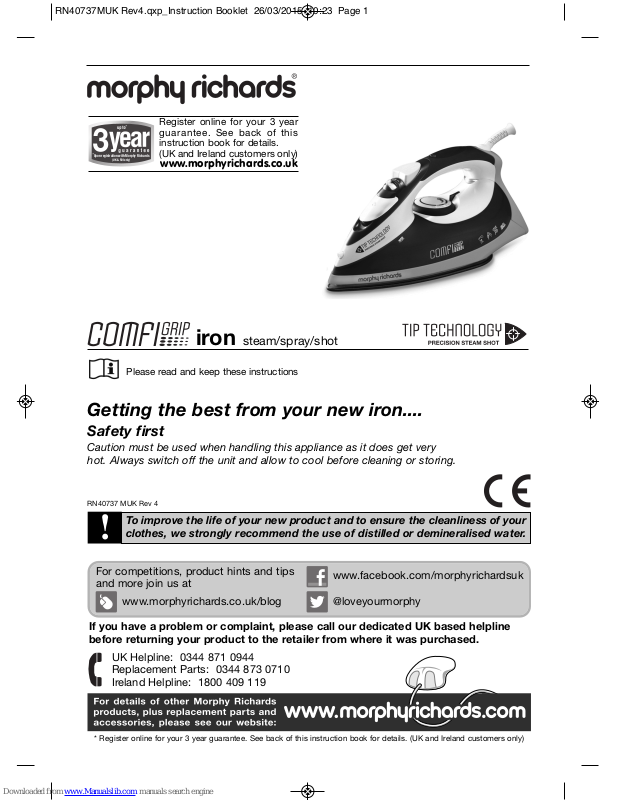

iron steam/spray/shot
Please read and keep these instructions
Getting the best from your new iron....
Safety first
Caution must be used when handling this appliance as it does get very
hot. Always switch off the unit and allow to cool before cleaning or storing.
RN40737 MUK Rev 4
Upon registration with Morphy Richards
(UK & ROI only)
Register online for your 3 year
guar antee. See back of this
instruction book for details.
(UK and Ireland customers only)
www.morphyrichards.co.uk
If you have a problem or complaint, please call our dedicated UK based helpline
before returning your product to the retailer from where it was purchased.
UK Helpline: 0344 871 0944
Replacement Parts: 0344 873 0710
Ireland Helpline: 1800 409 119
!
To improve the life of your new product and to ensure the cleanliness of your
clothes, we strongly recommend the use of distilled or demineralised water.
* Register online for your 3 year guarantee. See back of this instruction book for details. (UK and Ireland customers only)
www.morphyrichards.co.uk/blog
For competitions, product hints and tips
and more join us at
www.facebook.com/morphyrichardsuk
@loveyourmorphy
RN40737MUK Rev4.qxp_Instruction Booklet 26/03/2015 10:23 Page 1
2
UK Helpline 0344 871 0944 Replacement Parts 0344 873 0710 Ireland Helpline 1800 409 119
IMPORTANT SAFETY INSTRUCTIONS
•
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience or knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
•
Keep the iron and its cord out of reach of children
less than 8 years of age at all times.
•
The iron must not be left unattended while it is
connected to the supply mains.
•
The plug must be removed from the socket before
filling the iron with water.
•
The iron must be used and rested on a stable
surface.
•
When placing the iron on its heel, ensure that the
surface on which the heel is placed is stable.
•
The iron is not to be used if it has been dropped, if
there are visible signs of damage or it is leaking.
•
The filling aperture must not be opened during use.
•
CAUTION - HOT: Burns can occur from
touching hot parts, hot water or steam.
• WARNING: To avoid e le ct ri c shock, do no t
immerse appliance in water / liquid.
Electrical requirements and mains cable
• Check that the voltage on the rating plate of your
appliance corresponds with your house electricity
supply which must be A.C. (Alternating current).
• Do not operate with a damaged supply cord or
grommet, it must be replaced by the manufacturer,
its service agent or similarly qualified person in
order to avoid a hazard.
• Do not let the mains lead come into contact with
the hot soleplate of the iron.
• Should the fuse in the mains plug require changing,
a 13 amp BS1362 fuse must be fitted.
• WARNING: This appliance must be earthed.
PLEASE READ ALL INSTRUCTIONS AND KEEP
FOR REFERENCE
RN40737MUK Rev4.qxp_Instruction Booklet 26/03/2015 10:23 Page 2
Heat setting markings on the adjustable control dial of all Morphy Richards irons match those of
the International Textile Care Labelling Code.
Symbol
(120°C Max) Cool (160°C Max) Warm (210°C Max) Hot
Control knob
positions
Do not
iron at all
Fabric Nylon, Acetates
e.g. Acrilan
C
ourtelle, Orlon
Triacetates, e.g.
Tricel/Polyester
Wool, Polyester
mixtures e.g.
P
olyester/Cotton
Cotton, Linen
Rayon, Rayon
m
ixtures,
e.g. Rayon/Linen
Ironing Iron on wrong side,
if moisture required
use damp cloth
(Not Acetate)
Fabrics requiring this
setting usually require
steam pressing for heavy
cotton, denim etc.
With water in tank Dry and spray
Steam/spray/shot of steam
Without water in tank Dry ironing
INSTRUCTIONS FOR USE
3
Temperature guide
For details of other Morphy Richards products, please see our website:
COMPONENTS OF
YOUR IRON
⁄ Soleplate
¤ Spray nozzle
‹ Filling hole with cap
› Variable steam switch
fi Steam boost button
fl Water button
‡ Auto shut-off indicator light
(certain models only)
· Temperature indicator light (red)
‚ Life long anti-scale
(certain models only)
„ Water tank (illuminated on
certain models)
‰ Temperature control dial with
indicator
 Graduated filling beaker
›
fi
fl
‹
¤
⁄
‰
„
‚
·
Â
‡
RN40737MUK Rev4.qxp_Instruction Booklet 26/03/2015 10:23 Page 3
4
BEFORE USE
Sort out the items to be ironed
according to the type of fabric.
This will minimise the frequency
of temperature adjustment for
different garments.
NOTE: The steam facility should
only be used on garments which
are suitable for ironing at the 2
and 3 dot settings.
When ironing with the steam
facility at the 2 dot setting, the
steam output should be set at
the lower end of the steam
range (see the ‘Variable steam’
section on page 5).
Textiles and clothes are
supposed to carry ironing
instructions. If they don’t, you
should follow the Temperature
guide on page 3, but be sure to
test the temperature by ironing
the hem of the garment or
similar area first.
If you turn the control dial ‰
down from a hot setting to a
cooler setting, wait until the iron
temperature has stabilised
before you continue ironing.
Delicate fabrics such as silk,
wool, velour, etc, are best ironed
with an ironing cloth to prevent
shine marks.
FILLING
1 Make sure that the iron is not
plugged in, then set the variable
steam control › to the ‘0’
position before filling the iron
with water.
2 Lift up the filler cap ‹ and pour
water through the hole into the
water tank „, using the beaker
provided ÂA.
After filling, replace the fill cap.
IN HARD WATER AREAS, THE
USE OF DISTILLED OR
DEMINERALISED WATER IS
RECOMMENDED.
Never use battery topping up
fluid or water containing any
substances like starch, sugar,
fragrant additives, or
defrosted water from a
refrigerator.
3 Always pour out the remaining
water after use.
WARNING: When filling your
iron with tap water, always
use the beaker provided.
Never fill directly under the
tap.
Tank capacity
This varies for different models
between 350ml - 400ml.
There is a “Max” mark indicated
on the tank to show when it is
full, do not overfill.
Temperature
control
B
Plug in the iron and switch on.
Set the temperature control dial
‰ to the required temperature,
but don’t start ironing
immediately.
If you wait a few minutes, the
iron will stabilise at the required
setting. Your Morphy Richards
iron is fitted with a temperature
indicator light · which will go
on and off while you are ironing.
This is perfectly normal as it
shows that the iron is
maintaining the heat setting you
have chosen.
It is always a good idea to begin
with cool fabrics and work up to
higher settings.
An iron heats up quicker than it
cools down, so you’ll save time
and electricity.
FEATURES OF YOUR
IRON
Temperature indicator
light
The indicator light · shows
that the iron is warming up.
When the required temperature
is reached, the light will go out
and will cycle on-off during
operation.
A
B
UK Helpline 0344 871 0944 Replacement Parts 0344 873 0710 Ireland Helpline 1800 409 119
RN40737MUK Rev4.qxp_Instruction Booklet 26/03/2015 10:23 Page 4
Dry ironing
You can use your iron as a dry
iron only. Make sure the variable
steam control › is set to the ‘0’
symbol.
Any temperature setting may be
used depending on the
garment. The spray feature may
be used, providing there is
water in the tank (see the
‘Filling’ section on page 4). You
do not need to put any water in
the tank when dry ironing only.
Spray
C
Press the spray button fl and
aim the spray of water at
stubborn creases. You can do
this whilst dry ironing, providing
there is water in the tank. When
using the water spray, it may be
necessary to push the button a
few times to get the spray pump
primed.
Variable steam
D
Fill the iron with water (as
described in the ‘Filling’
section on page 4) and
insert the plug into the
electrical socket.
The steam output can be varied
from low to high by moving the
variable steam control D. When
using the iron at 2 dot, the
steam output should be
adjusted to the low setting.
The steam facility should only
be used on garments which are
suitable for ironing at 2 and 3
dot setting.
Shot of steam
E
Press the steam boost
button fi to obtain a
burst of extra steam for
ironing out creases in
heavy material such as
denim etc.
The steam boost can be used
whilst dry ironing, providing
there is water in the tank, and
the temperature control is set
within the steam range.
Do not use the steam boost at
temperatures below the steam
range shown on the control dial.
NOTE: For optimum steam
quality, do not operate the
steam boost more than three
times in succession.
Vertical steam
F
Hold the iron in a vertical
position between 1cm and 2cm
away from the item F. Press the
steam boost button fi, this will
create vertical steam. This
feature is especially useful for
removing creases from hanging
clothes, curtains, wall hangings,
etc.
NOTE: For optimum steam
quality, do not operate the
steam boost more than three
times in succession.
No drip system
Your iron is fitted with a no drip
system which is designed to
prevent water escaping from the
soleplate when the iron is too
cold.
During use, the no drip system
may emit a loud click,
particularly during heat-up or
whilst cooling down. This is
perfectly normal and indicates
that the system is functioning
correctly.
Auto shut-off
(certain models only)
If your iron is fitted with the auto
shut-off function, it will
automatically shut down after a
set period.
If the iron is left unattended in
the horizontal position, it will
shut down after 1 minute.
If it is left in the vertical position,
it will shut down after 8 minutes.
The auto shut-off light ‡ will
flash, indicating the product is in
shut-down mode.
C
D
E
5
Lower steam
Higher steam
For details of other Morphy Richards products, please see our website:
F
RN40737MUK Rev4.qxp_Instruction Booklet 26/03/2015 10:23 Page 5
6
To reactivate the iron, gently
shake it, the temperature
indicator light will come on,
indicating the iron is warming
up. Wait for the iron to heat-up
as normal.
Life long anti-scale
system
(certain models only)
The life long anti-scale system
reduces scale deposits and
helps prolong the life of the iron.
MAINTENANCE
To clean a stainless
steel soleplate
To keep the soleplate of your
iron clean and free of limescale,
we recommend that you use
one of the gentle chrome, silver
or stainless steel cleaners that
are generally available. Always
follow the manufacturer’s
instructions. To clean off melted
man-made fibres, set the iron at
the 3 dot position and pass it
over a clean piece of cotton
which will draw the deposit off
the surface.
To clean a coated
soleplate
(certain models only)
In the unlikely event of any
man-made fibre fusing to the
soleplate, set the iron at the 3
dot position and pass it over a
clean piece of cotton which will
draw the deposit off the surface.
Do not use scouring powder or
solution as this could cause
damage to the coating.
To clean the exterior
Allow the iron to cool and wipe
over with a damp cloth and mild
detergent, then wipe with a dry
cloth.
Emptying and storing
When you have finished ironing,
unplug your iron. Ensure that the
variable steam control is set at
the ‘0’ position, lift up the fill cap
and empty any remaining water
out of the filling hole. Do not
store in the box, but in an
upright position, so that any
drops of water remaining cannot
leak out and discolour the
soleplate G.
IMPORTANT: The flex can be
damaged if wound too tightly
around the iron after use. Make
a loose loop with the flex and
wrap it around the iron. The iron
must be cool before winding the
flex and storing on its heel H.
HELPLINE
If you have any difficulty with
your appliance, do not hesitate
to call us.
We are more likely to be able to
help than the store from where
you bought it.
Please have the following
information ready to enable our
staff to deal with your query
quickly.
• Name of the product.
• Model number as shown on the
underside of the appliance.
• Serial number as shown on
underside of the appliance.
UK Helpline 0344 871 0944
Replacement Parts 0344 873 0710
Ireland Helpline 1800 409 119
WEBSITE
You may also contact us through
our website, or visit the site to
browse and purchase appliances,
spare parts and accessories from
the extensive Morphy Richards
range.
G
H
UK Helpline 0344 871 0944 Replacement Parts 0344 873 0710 Ireland Helpline 1800 409 119
RN40737MUK Rev4.qxp_Instruction Booklet 26/03/2015 10:23 Page 6
7
For details of other Morphy Richards products, please see our website:
NOTES
Please attach your receipt to this page. This will be needed if you have any issues with the appliance.
RN40737MUK Rev4.qxp_Instruction Booklet 26/03/2015 10:23 Page 7
Morphy Richards products are intended for household use only.
Morphy Richards has a policy of continuous improvement in product quality and
design. The company, therefore, reserves the right to change the specification of
its models at any time.
The After Sales Division
Morphy Richards Ltd
Mexborough, South Yorkshire,
England, S64 8AJ
Helpline (office hours)
UK 0344 871 0944
Spare Parts 0344 873 0710
Republic of Ireland 1800 409 119
RN40737 MUK Rev 4 03/15
REGISTERING
YOUR THREE
YEAR GUARANTEE
Your standard one year guarantee is
e
xtended for an additional 2 years
when you register the product
within 28 days of purchase with
M
orphy Richards. If you do not
r
egister the product with Morphy
Richards within 28 days, your
p
roduct is guaranteed for 1 year. To
validate your 3 year guarantee
register with us online at
w
ww.morphyrichards.co.uk
Or call our customer registration line
U
K: 0344 871 0242
IRE: 1800 409 119
N
.B. Each qualifying product needs
to be registered with Morphy
Richards individually. Retailer’s
receipt should be kept as proof of
purchase.
Please note that the 3 year
guarantee is only available in the
UK and Ireland. Please refer to the
one year guarantee for more
information.
YOUR ONE YEAR
GUARANTEE
It is important to retain the retailer’s
receipt as proof of purchase. Staple
your receipt to this back cover for
future reference.
Please quote the following
information if the product develops
a fault. These numbers can be
found on the base of the product.
Model no.
Serial no.
All Morphy Richards products are
individually tested before leaving the
factory. In the unlikely event of any
appliance proving to be faulty within
28 days of purchase, it should be
returned to the place of purchase
for it to be replaced.
I
f the fault develops after 28 days
and within 12 months of original
p
urchase, you should contact the
Helpline number quoting Model
number and Serial number on the
p
roduct, or write to Morphy
Richards at the address shown.
Y
ou may be asked to return a copy
o
f proof of purchase.
S
ubject to the exclusions set out
below (see Exclusions), the faulty
appliance will then be repaired or
r
eplaced, as appropriate, and
dispatched usually within 7 working
d
ays of receipt.
If, for any reason, this item is
r
eplaced or repaired during the 1
year guarantee period, the
guarantee on the new item will be
calculated from original purchase
date. Therefore it is vital to retain
your original till receipt or invoice to
indicate the date of initial purchase.
To qualify for the 1 year guarantee,
the appliance must have been used
according to the instructions
supplied. For example, water
should be emptied after each use.
EXCLUSIONS
Morphy Richards shall not be liable
to replace or repair the goods under
the terms of the guarantee where:
1 The fault has been caused or is
attributable to accidental use,
misuse, negligent use or used
contrary to the manufacturer’s
recommendations or where the fault
has been caused by power surges
or damage caused in transit.
2 The fault is caused by limescale
build-up.
3 The cables are damaged due to
wrapping too tightly or excessive
kinking.
4
The appliance has been used on a
voltage supply other than that
s
tamped on the products.
5 Repairs have been attempted by
p
ersons other than our service staff
(or authorised dealer).
6
The appliance has been used for
h
ire purposes or non domestic use.
7
The appliance is second hand.
8 Morphy Richards reserves the right
n
ot to carry out any type of
servicing under the guarantee at its
d
iscretion.
• This guarantee does not confer any
r
ights other than those expressly set
out above and does not cover any
claims for consequential loss or
damage. This guarantee is offered
as an additional benefit and does
not affect your statutory rights as a
consumer. Morphy Richards
products are intended for
household use only. See usage
limitations within the location safety
instructions.
8
For electrical products sold within the
European Community. At the end of the
electrical products useful life, it should
not be disposed of with household
waste.
Please recycle where facilities exist.
Check with your Local Authority or
retailer for recycling advice in your
country.
RN40737MUK Rev4.qxp_Instruction Booklet 26/03/2015 10:23 Page 8
Loading...
