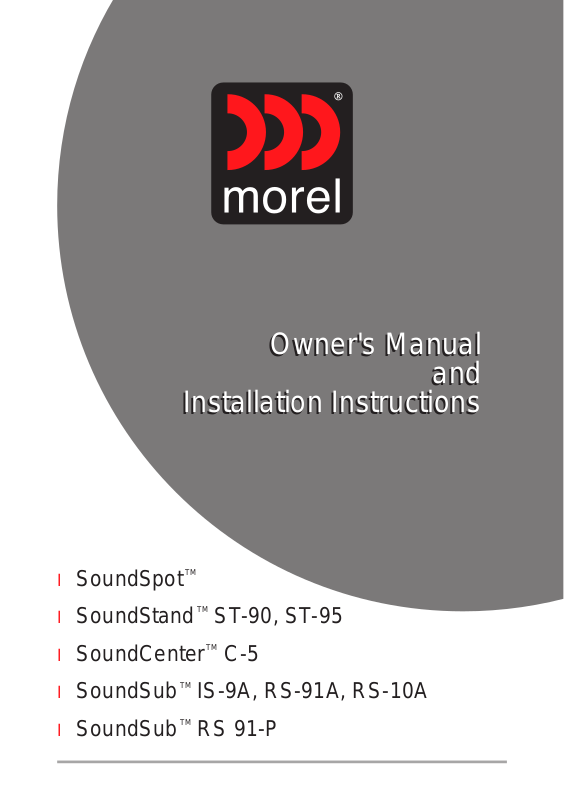

Morel ST-90, ST-95 User Manual
Owner's Manual
Owner's Manual
and
and
Installation Instructions
Installation Instructions
SoundSpot
l
SoundStand TM ST-90, ST-95
l
SoundCenter TM C-5
l
SoundSub TM IS-9A, RS-91A, RS-10A
l
SoundSub TM RS 91-P
l
TM
Contents
Important Notes
The SoundSpot TM Range
SoundSpot
TM
SoundStand TM ST-90, ST-95
SoundCenter
TM
C-5
SoundSub TM IS-9A, RS-91A, RS-10A
SoundSub TM RS 91-P
Thank you for choosing Morel loudspeakers
Your speakers have been handcrafted by Morel from the highestquality materials and components. Utmost attention and care have
been devoted to every detail of the design and construction, to
ensure your long-lasting enjoyment of the product.
The more you play, the better the sound
The sound quality of all speakers improves
after at least 48 hours of playing time.
This is needed as a breaking-in and period for
the moving parts of a new speaker.
The usage of quality cables and connectors
can improve performance. A good speaker
cable connection requires ample surface-area
and contact-area pressure. We recommend that
you consult your dealer for the most suitable
cables to match your system and budget.
Speakers Placement
Home Theater Stereo
A
CENTER
SW
SW
B
CENTER
SW
The SoundSpotTM Home Theater Range
APPLAUSE
SUPRA
VITRA
SPIRO
EVIT
STREAM
METRO
COMPA
Five SoundSpotTM SA-2, SoundSubTM IS-9A
Four SoundSpotTM SA-2,
SoundCenterTM C-5, SoundSubTM IS-9A
Two SoundSpotTM SA-2 front, Two SoundSpotTM SI-2 rear,
SoundCenterTM C-5, SoundSubTM IS-9A
Four SoundSpotTM SI-2,
SoundCenterTM C-5, SoundSubTM IS-9A
Two SoundSpotTM BI-2 front, Two SoundSpotTM BI-1 rear,
SoundCenterTM C-5, SoundSubTM RS91-A (RS-10A)
Five SoundSpotTM SI-2,
SoundSubTM RS-91A (RS-10A)
Three SoundSpotTM SI-2 front & center, Two SoundSpotTM LI-1 rear,
SoundSubTM RS-91A (RS-10A)
Two SoundSpotTM SA-2 front, Two SoundSpotTM LI-1 rear,
SoundCenterTM C-5, SoundSubTM RS-91A (RS-10A)
NOVA
BEAT
Five SoundSpotTM LI-1, SoundSubTM RS-91A (RS-10A)
Five SoundSpotTM BI-1, SoundSubTM RS-91A (RS-10A)
The SoundSpotTM Stereo Range
VIVACE
TRIO
Two SoundSpotTM SA-2, SoundSubTM RS-91P
Two SoundSpotTM SI-2, SoundSubTM RS-91P
TM
SoundSpot
Thank you for choosing Morel's SoundSpotTM. These awardwinning speakers are unique in design and construction,
offering extraordinary sound quality for both stereo and home
theatre applications in an attractive design.
The SoundSpotTM speakers deliver a full and rich sound, but their
size limits their ability to reproduce low-frequency bass notes,
which require massive air movement. For a more full-bodied,
dynamic sound across the entire frequency range, we
recommend that you include Morel's subwoofer in your system.
Speaker Placement
The SoundSpotTM speakers offer many installation
possibilities - they can be wall-mounted (fig. A or B),
hung from the ceiling (fig. C), placed on a shelf or TV
top (fig. D), or fitted on
the specially designed
(optional) ST-90 or
ST-95 floor stands
(see p. 8).
A
C
D
B
Mounting the SoundSpotTM Speakers
Snap on the rubber footing
The SoundSpotTM speakers
are equipped with a
pivoting base that turns 180°.
To change the orientation of the base, to best
conceal the base in the selected mounting option,
loosen the screw that locks the base position (located
under the base), rotate the base a full 180°
and firmly tighten the screw.
7mm
1/4”
To mount your SoundSpotTM speaker on a ceiling or wall, first
choose the location of the speaker and mark the precise spot
where you will drill a hole to line up with the hole in the speaker
base. Next drill a hole in the wall using a
7mm (1/4”) bit, and insert the plastic plug.
Attach the speaker using the fixing screw.
Cover the screw head with the plastic
screw cover provided.
Finally, adjust the speaker angle until the speaker is directed
toward the listening area, and lock it in place.
To mount your SoundSpotTM speakers on
the floor stand, see page 8.
