Mopar 2011-UP Installation Instructions Manual

Audio System Upgrade Package

2011-UP Jeep Wrangler 2-Door
10” Subwoofer Kit

Installation Instructions

77KCK051 6-3-2011 Page 1 of 6

© 2011, Chrysler, LLC. Mopar is a registered trademark of Chrysler, LLC. All rights reserved.

Fig. 1

CONTENTS

TOOLS REQUIRED:

Ratchet
13mm Socket
10mm Socket

Phillips Screwdriver

Pliers

Panel Removal Tool

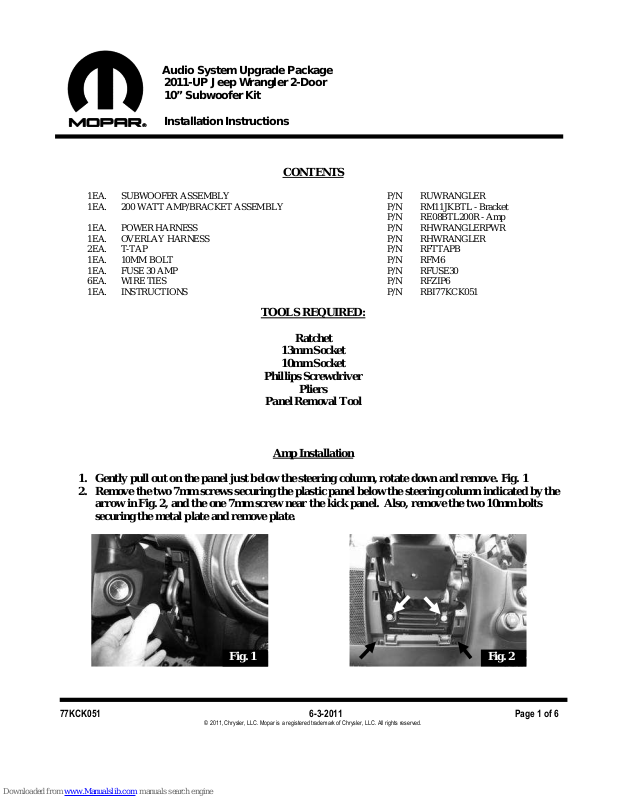

Amp Installation

1. Gently pull out on the panel just below the steering column, rotate down and remove. Fig. 1

2. Remove the two 7mm screws securing the plastic panel below the steering column indicated by the
arrow in Fig. 2, and the one 7mm screw near the kick panel. Also, remove the two 10mm bolts
securing the metal plate and remove plate.

1EA. SUBWOOFER ASSEMBLY P/N RUWRANGLER
1EA. 200 WATT AMP/BRACKET ASSEMBLY P/N RM11JKBTL - Bracket

P/N RE08BTL200R - Amp
1EA. POWER HARNESS P/N RHWRANGLERPWR
1EA. OVERLAY HARNESS P/N RHWRANGLER
2EA. T-TAP P/N RFTTAPB
1EA. 10MM BOLT P/N RFM6
1EA. FUSE 30 AMP P/N RFUSE30
6EA. WIRE TIES P/N RFZIP6
1EA. INSTRUCTIONS P/N RBI77KCK051

Fig. 2

Audio System Upgrade Package

2011-UP Jeep Wrangler 2-Door
10” Subwoofer Kit

Installation Instructions

77KCK051 6-3-2011 Page 2 of 6

© 2011, Chrysler, LLC. Mopar is a registered trademark of Chrysler, LLC. All rights reserved.

Fig. 3 Fig. 4

Fig. 5

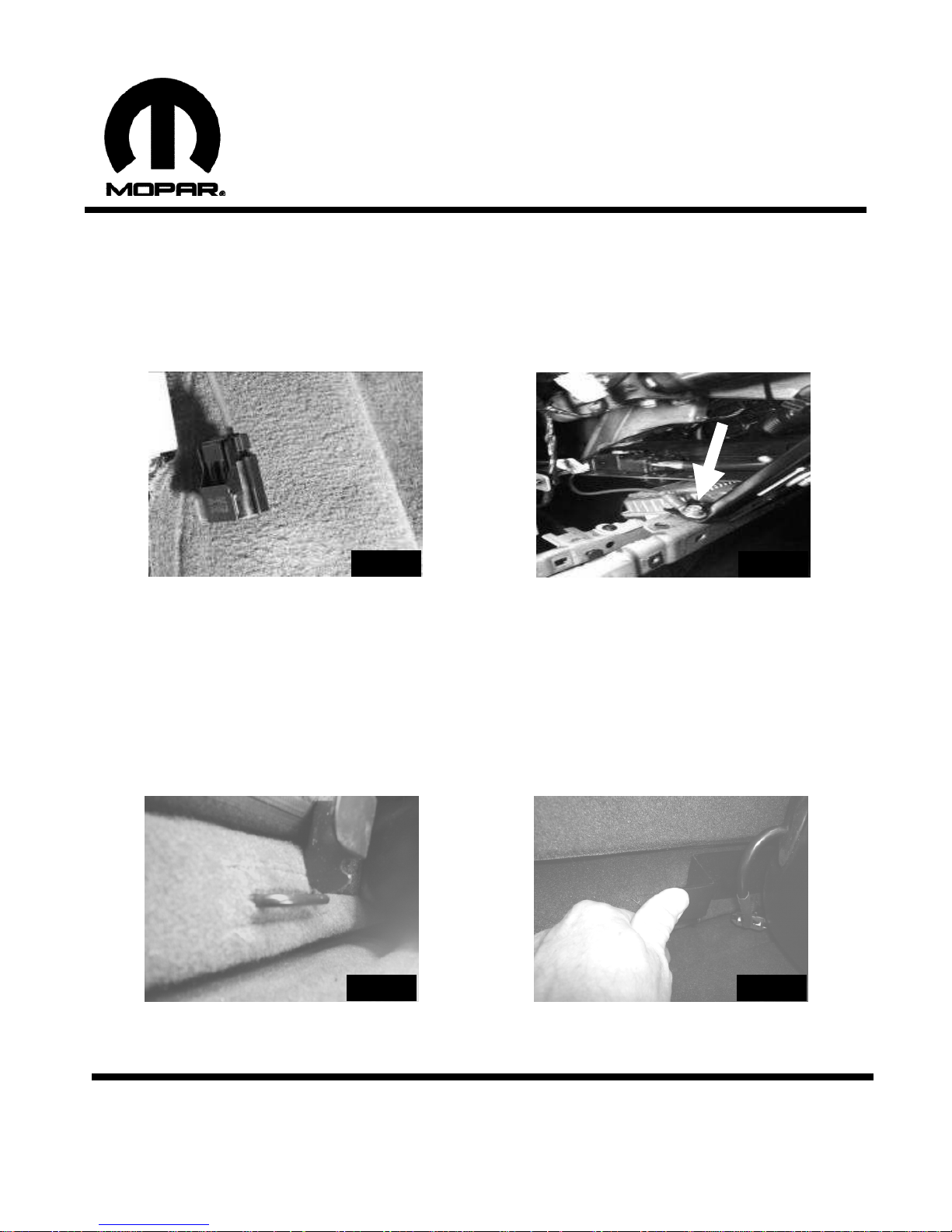

3. Remove the dash end panel by prying loose with a panel removal tool. Fig. 3

4. Install the amp into position by lining up the holes in the amp bracket with the two holes for the
bolts that retained the metal plate. Fig. 4

5. Install the supplied 10mm bolt into the bottom hole and leave loose. Fig. 5

6. Reinstall the metal plate over the top of the amp bracket and replace the factory bolts and tighten.

7. Tighten the bottom bolt.
