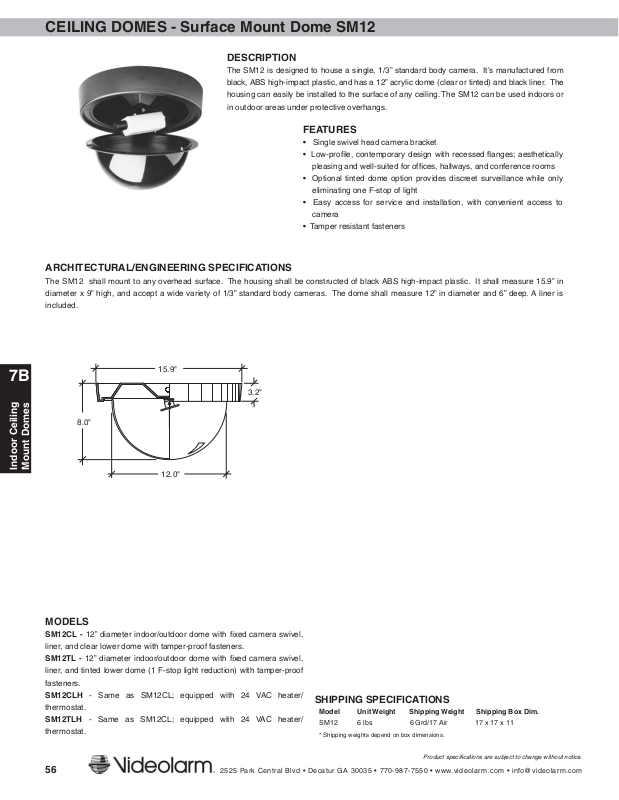

CEILING DOMES - Surface Mount Dome SM12

DESCRIPTION

The SM12 is designed to house a single, 1/3” standard body camera. It’s manufactured from

black, ABS high-impact plastic, and has a 12” acrylic dome (clear or tinted) and black liner. The

housing can easily be installed to the surface of any ceiling. The SM12 can be used indoors or

in outdoor areas under protective overhangs.

FEATURES

• Single swivel head camera bracket

• Low-profi le, contemporary design with recessed fl anges; aesthetically

pleasing and well-suited for offi ces, hallways, and conference rooms

• Optional tinted dome option provides discreet surveillance while only

eliminating one F-stop of light

• Easy access for service and installation, with convenient access to

camera

• Tamper resistant fasteners

ARCHITECTURAL/ENGINEERING SPECIFICATIONS

The SM12 shall mount to any overhead surface. The housing shall be constructed of black ABS high-impact plastic. It shall measure 15.9” in

diameter x 9” high, and accept a wide variety of 1/3” standard body cameras. The dome shall measure 12” in diameter and 6” deep. A liner is

included.

7B

Indoor Ceiling

Mount Domes

MODELS

SM12CL - 12” diameter indoor/outdoor dome with fi xed camera swivel,

liner, and clear lower dome with tamper-proof fasteners.

SM12TL - 12” diameter indoor/outdoor dome with fi xed camera swivel,

liner, and tinted lower dome (1 F-stop light reduction) with tamper-proof

fasteners.

SM12CLH - Same as SM12CL; equipped with 24 VAC heater/

thermostat.

SM12TLH - Same as SM12CL; equipped with 24 VAC heater/

thermostat.

15.9"

3.2"

8.0"

12.0"

SHIPPING SPECIFICATIONS

Model Unit Weight Shipping Weight Shipping Box Dim.

SM12 6 lbs 6 Grd/17 Air 17 x 17 x 11

* Shipping weights depend on box dimensions.

56

Product specifi cations are subject to change without notice.
