SIRIN CHEAT SHEET
FREE EDITOR/LIBRARIAN
Access and automate every parameter on and under the hood of your Sirin right from your DAW.
Get the free Editor/Librarian software when you register your Sirin at Moogmusic.com/register
STORE AND CHANGE PRESETS
Up to 128 presets can be saved and loaded onto your Sirin using the free Editor/Librarian software.
Sirin also supports MIDI Program Change messages, allowing almost any MIDI controller to change
presets on your Sirin.
NEXT PRESET:
GLIDE + OSCILLATOR 1 WAVE
PREVIOUS PRESET:
GLIDE + OSCILLATOR 2 WAVE
SAVE CURRENT PRESET:
GLIDE + RELE ASE
(Hold both for 1 second).
SAVE TO A NEW LOCATION:
GLIDE + RELEASE
(LEDs begin fla shing)
1. 2. 3.
SELECT A PRESET LOCATION:
GLID E + OSCI LLATOR 1 or 2
SAVE PRESET:
GLIDE + RELEASE
(Press RELEA SE to cancel without saving)
MODULATION SOURCES
Select from 6 different modulation sources: Triangle, Square, Ramp, Saw, Sample & Hold and Filter
EG (MIDI CC 85)
HARD SYNC
VCO 2 Hard Sync allows a number of sounds to be created with Sirin (MIDI CC 80)
OSCILLATOR 2 MODULATION
Send modulation to Oscillator 2 only – ideal for use with Hard Sync (MIDI CC 112)
CV MAPPING
Your Sirin’s Pitch and Volume CV inputs can be re-mapped to control any parameter on your Sirin,
while the Gate input can be re-mapped to alter the state of any on/off parameters like Oscillator
waveshape.
NOTE: All CV Mapping is configured in the free Sirin Editor/Librarian software.
CV TO MIDI CONVERSION
Sirin can convert multiple channels of Control Voltage to MIDI. This allows you to take CV sources
like a Moog Mother-32 and translate the voltage into MIDI for CV control over plug-in effects, soft
synths, or other MIDI gear.
WARNING: For optimal CV to MIDI conversion response, adjust the scale and range of the external
control voltage to stay within 0 to +5 Volts. Do not apply a negative control voltage, or a CV
greater than +5 Volts!
SHIFT PANEL FUNCTIONS QUICK REFERENCE GUIDE
The GLIDE switch on your Sirin can act as a “shift” key, allowing quick access to a number
of extended functions directly from the panel.
MOD SOURCE SELECTION:
GLIDE + LFO RATE
VCO 2 BEAT FREQUENCY:
GLIDE + VCO 2 FREQ
FILTER EG DELAY TIME:
GLIDE + FILTER EG ATTACK
HARD SYNC ON/OFF:
GLIDE + VCO 2 LEVEL
EXT. INPUT LEVEL:
GLIDE + VCO 1 LEVEL
FILTER EG HOLD TIME:
GLIDE + FILTER EG DECAY/RELEASE
VCO 2 MOD ONLY ON/OFF:
GLIDE + VCO LFO AMT
EG TRIGGER MODE:
GLIDE + AMP EG ATTACK
AMP EG HOLD TIME:
GLIDE + AMP EG DECAY/RELEASE
DRONE ON/OFF:
GLIDE + AMP SUSTAIN (Min to Max = ON)
GLIDE + AMP SUSTAIN (Max to Min = OFF)
TOP OCTAVE WRAP ON/OFF:
GLIDE + GLIDE RATE
PANIC/ALL NOTES OFF:
GLIDE + AMP EG SUSTAIN TO ZERO.
DECAY/RELEASE MODES
Press and hold the RELEASE switch for 1 second to change modes. The RELEASE switch LED will blink one
time to indicate Mode 1, or two times to indicate Mode 2.
MODE 1: Decay and Release times are linked and the RELEASE switch enables or disables the Release
stage of the envelope.
MODE 2: Decay and Release times are independent. If RELEASE is lit, the DECAY/RELEASE knob is
editing Release time. If RELEASE is dark, the DECAY/RELEASE knob is editing Decay time.
SIRIN
MINITAUR
SIRIN
Congratulations on your new Minitaur Analog Bass Synthesizer, a powerful, compact
Congratulations on your new Analog Synthesizer. Sirin, the Analog Messenger of Joy,
Moog synthesizer with a classic one knob per function design. At only 8.5" x 5.25"
is a limited-edition synthesizer module made in celebration of the Moog House of
and less than 3lbs, Minitaur puts legendary analog Moog bass into a package
Electronicus Pop-up experience. Based on the legendary Moog Taurus Bass
designed to fit seamlessly into all of your performance and production environments.
sound engine, and in the familiar Moog Minitaur form-factor, this new instrument
features an adjusted frequency range capable of reaching notes up to D8. Sirin is
Minitaur will bring you many happy years of creative and sonic enjoyment. We are
an analog synthesizer module that empowers effortless expression through its
sure you are anxious to start playing, so refer to the “Getting Started” guide or look
classic knob-per-function design and compact form. Connect Sirin directly to any
over the Setup and Connections section to get going. At some point, we encourage
MIDI controller and immediately access a portable world of powerful analog
you to spend some time with the manual to discover all that Minitaur has to offer.
sound, or hook up to a computer via USB to explore even deeper layers of sound
Don’t forget - Experimentation and learning will reward you with a lifetime of
design, where every parameter can be manipulated, automated, and recalled
rich synthesizer experiences.
instantly using Sirin’s dedicated Editor Librarian Software.
Sirin will bring you many happy years of creative and sonic enjoyment. We are
sure you are anxious to start playing, so refer to the “Getting Started” guide or look
over the Setup and Connections section to get going. At some point, we encourage
you to spend some time with the manual to discover all that Sirin has to offer.
Don’t forget - Experimentation and learning will reward you with a lifetime of
rich synthesizer experiences.
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ BEFORE USING THIS PRODUCT
When using Sirin, these basic prec autions should always be followed.
1. Read all the instructions before using this product.
2. Do not use Sirin near water.
3. This product, in combination with an amplifier and headphones or speakers,
may be capable of producing sound levels that could cause permanent
hearing loss. Do not operate for a long period of time at a high volume level
or at a level that is uncomfortable. If you experience any hearing loss or
ringing in you
4. Keep Sirin away from heat sources such as radiators, heat registers,
and other products that produce heat.
5. The product should be connected to a power supply only of the type
described in the operating instructions.
6. The power supply should be unplugged from the outlet when left unused
for long periods of time.
7. Care should be taken so that liquids are not spilled into the front panel.
8. Sirin should be serviced by qualified personnel when:
a. Objects have fallen, or liquid has been spilled onto the product.
b. The product has been exposed to rain.
c. The product does not appear to operate normally or exhibits
a marked change in performance.
d. The product has been dropped or the enclosure damaged.
r ears, you should consult an audiologist.
!
DANGER -- INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS: Do not open the chassis. There are no
user serviceable parts inside. Refer all servicing to qualified personnel only.
CONTENTS
UNPACKING AND INSPECTION
CHECK THE CONTENTS IN THE SHIPPING CARTON
The Sirin is shipped with the following items:
1. Sirin Analog Bass Synthesizer
2. A 12VDC Power Adaptor
3. A “Getting Started” guide
4. Registration Card
5. Earplugs
WHAT YOU WILL NEED
1. A MIDI keyboard or MIDI controller
2. A MIDI cable
3. A USB cable to connect Sirin to a host computer (for USB MIDI)
4. A 1/4” instrument cable and amplifier, or a pair of headphones with
an 1/8” plug
SETUP AND CONNECTIONS
NOTE: We encourage you to read the entire manual at some point to learn
more ab
can do with Sirin.
SET UP
Use care when unpacking your Sirin, and be sure to save the carton and
all packing material in case you need to ship it for any reason.
CONNECT TO POWER & MIDI
Connect the supplied Power Adaptor to Sirin’s 12VDC power jack on the
back of the unit. The Sirin’s universal power supply will operate with a
power source from 100 to 240 Volts AC, 50/60Hz. Using a 5 Pin MIDI cable,
make the connection between MIDI OUT of your MIDI controller and the MIDI
IN on the Sirin. Sirin is set to rece
make sure your controller is set to transmit on MIDI Channel 1. If you are using
USB MIDI, connect the USB cable from Sirin to a USB port on your
computer. Sirin’s USB drivers are automatically installed, and it will appear
as ‘Moog Sirin’ (Mac OSX or Win 7) or ‘USB Audio Device’ (Win XP) in the
MIDI Device selection options of your computer’s MIDI software.
THE BASICS
Unpacking & Inspection•••••••••••••••••••••
Setup and Connections••••••••••••••••••••••
Overviews and Features•••••••••••••••••••••
Signal Flow•••••••••••••••••••••••••••••••••••
Basic Operation••••••••••••••••••••••••••••••
THE COMPONENTS
Oscillators••••••••••••••••••••••••••••••••••••
Glide••••••••••••••••••••••••••••••••••••••••••
Mix••••••••••••••••••••••••••••••••••••••••••••
Filter••••••••••••••••••••••••••••••••••••••••••
Envelopes••••••••••••••••••••••••••••••••••••
Release•••••••••••••••••••••••••••••••••••••••
Modulation•••••••••••••••••••••••••••••••••••
Volume•••••••••••••••••••••••••••••••••••••••
Input/Output Panel••••••••••••••••••••••••••
MIDI OPERATIONS
MIDI CC Table••••••••••••••••••••••••••••••••
APPENDICES
A. MIDI Implementation Chart•••••••••••••••
B. Service & Support Information••••••••
C. Caring for Sirin•••••••••••••••••••••••
D. Specifications••••••••••••••••••••••••••••
•••
4
4
6
8
9
9
11
11
12
14
15
16
17
18
22
25
26
27
27
UNPACKING AND INSPECTION
CHECK THE CONTENTS IN THE SHIPPING CARTON
The Sirin is shipped with the following items:
1. Sirin Analog Synthesizer
2. A 12VDC Power Adaptor
3. A “Getting Started” guide
4. Registration Card
WHAT YOU WILL NEED
1. A MIDI keyboard or MIDI controller
2. A MIDI cable
3. A USB cable to connect Sirin to a host computer (for USB MIDI)
4. A 1/4” instrument cable and amplifier, or a pair of headphones with
an 1/8” plug
SETUP AND CONNECTIONS
NOTE: We encourage you to read the entire manual at some point to learn
more about the instrument and gain a better understanding of what you
can do with Sirin.
SET UP
Use care when unpacking your Sirin, and be sure to save the carton and
all packing material in case you need to ship it for any reason.
CONNECT TO POWER & MIDI
Connect the supplied Power Adaptor to Sirin’s 12VDC power jack on the
back of the unit. The Sirin’s universal power supply will operate with a
power source from 100 to 240 Volts AC, 50/60Hz. Using a 5 Pin MIDI cable,
make the connection between MIDI OUT of your MIDI controller and the MIDI
IN on the Sirin. Sirin is set to receive messages on
make sure your controller is set to transmit on MIDI Channel 1. If you are using
USB MIDI, connect the USB cable from Sirin to a USB por t on your
computer. Sirin’s USB drivers are automatically installed, and it will appear
as ‘Moog Sirin’ (Mac OSX or Win 7) or ‘USB Audio Device’ (Win XP) in the
MIDI Device selection options of your computer’s MIDI software.
4
MIDI Channel 1, so
POWER UP
Apply power to the Sirin and to your MIDI controller.
CONNECT TO AMPLIFIER
Set Sirin’s volume control to minimum before connecting to an amplifier,
mixer, or headphones. Set the amplifier volume to a comfortable listening
level, and then slowly bring up the volume on Sirin as you play a few notes.
NOTE: Use caution when adjusting initial volume levels, especially if connected
to a subwoofer.
START PLAYING
Play some notes, tweak some knobs and have some fun!
DOWNLOAD THE SIRIN
Register your Sirin online at www.moogmusic.com/register to download
the free Sirin Editor Program. This allows you to load and save patches
and access all of Sirin’s under the hood features. Registering your
Sirin also initiates your warranty, and ensures you receive the latest
software updates.
NOTE : A warm up period of about 15 minutes is recommended for
reach concert pitch. The warm up period may be a little longer if the Sirin has
been stored outside the recommended operating temperature ra
Sirin’s recommended operating temperature is between 50 and 100 degrees
Farenheit. It is safe to operate the synthesizer outside of this range, but Sirin’s
voltage controlled oscillators may not remain in tune. It is also recommended that
Sirin not be exposed to direct sunlight while operating.
EDITOR PROGRAM
nge.
5
OVERVIEW AND FEATURES
Sirin is a monophonic Analog Synthesizer with a 100% analog audio
path. It is based on the legendary Taurus I and Taurus 3 Synthesizers. Sirin
features 2 ultra-stable voltage controlled oscillators, a genuine Moog low pass
filter, 2 envelope generators and a modulation circuit. Sirin has a classic
one knob per function design in a rugged performance package that is small
enough to take with you anywhere.
FRONT PANEL
OSCILLATORS
Two Voltage Controlled Oscillators with selectable Sawtooth (original
Taurus) and Square waveshapes.
MIX
Mixer for adjusting VCO levels independently.
FI LT E R
Classic Moog 24dB/Octave Low Pass Filter with adjustable Resonance.
ENVELOPES
Twin Minimoog style ADSR Envelope Generators for modulating the
Filter (VCF) and Amplifier (VCA). The Envelope Decay and Release
segments are controlled by the DECAY knob, while the Release
segmentis enabled or disabled via the RELEASE switch.
MOD
MIDI-syncable Low Frequency Oscillator (LFO) with Rate control and
and individual VCO and VCF AMOUNT controls.
6

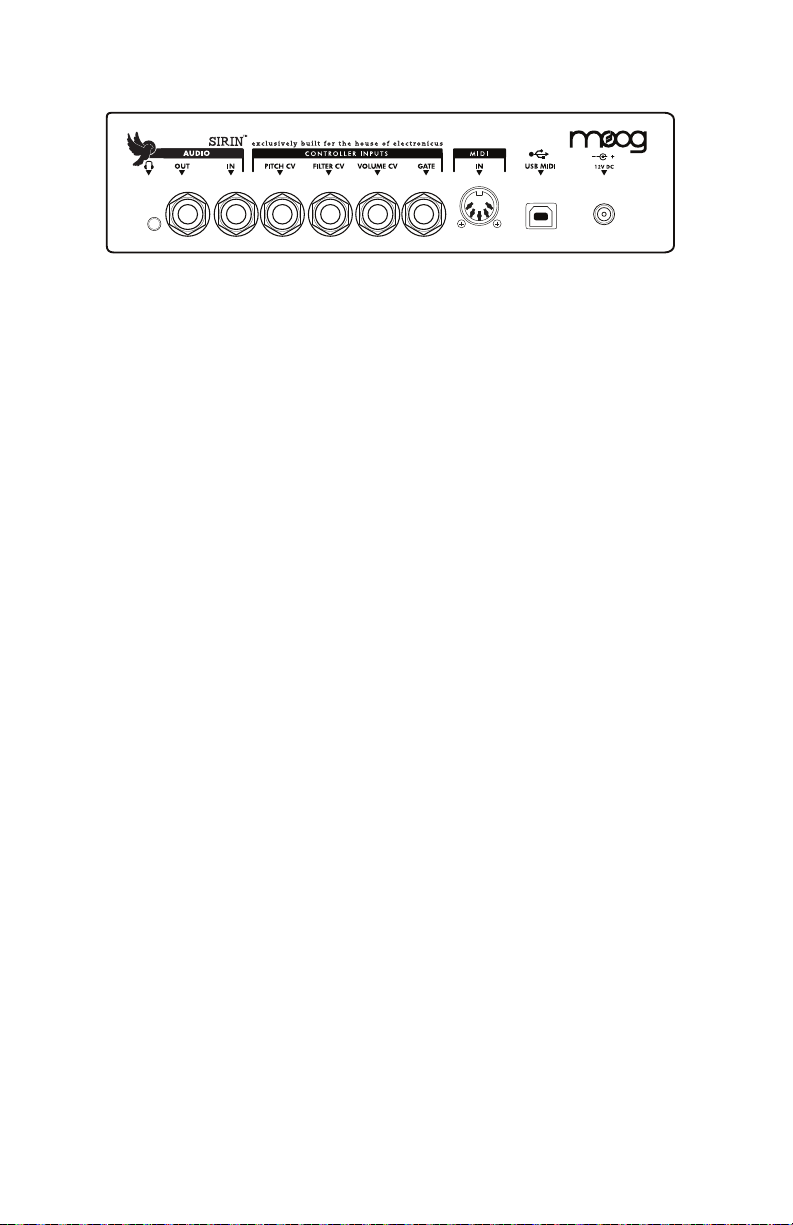

BACK PANEL
HEADPHONE OUT
1/8” Stereo Headphone Output.
AUDIO OUT
1/4” Unbalanced Output.
AUDIO IN
External Audio Input for processing audio through the Mixer and Filter
section of the Sirin.
CONTROL INPUTS
Analog control inputs for Pitch, Filter, Volume and Gate. Use control
voltage or a Moog EP3 expression pedal to connect and control the
Sirin with everything from Moogerfoogers to modular systems.
MIDI
DIN MIDI and USB MIDI offer complete control of Sirin’s sound engine.
7
SIGNAL FLOW
To understand how the Sirin generates sound, take a look at the diagram
below. It shows the flow of Audio, Control Voltage and Modulation signals in
the Sirin. Heavy lines indicate audio signals, which flow from left to right.
Lighter lines indicate Control Voltages (CV’s), which flow from the top and
from the bottom. Dotted lines indicate Modulation routings.
PITCH CV INPUT
OSCILLATORS MIX FILTER VOLUME
1
MODULATION
AUDIO INPUT FILTER CV INPUT VOLUME CV INPUT
(AMPLIFIER)
/
/
2
ENVELOPES
GATE
FILTER
ADSR
(LFO)
MIDI IN >
PITCH CV
MIDI/CV CONVERTER
VCA
VOLUME
ADSR
GATE INPUT
AUDIO
OUT
HEADPHONES
Sirin’s source signals are created by two Voltage-Controlled Oscillators (VCO) which are mixed with the External Audio Input. The Mixer
Output is routed to the Filter, where the tone is sculpted according to the
Filter parameters and the Filter ADSR Envelope. The signal is then passed
to the Amplifier (VCA) stage, where the Volume ADSR envelope shapes it.
Finally, the signal is routed to the Output section, where the final level is
set by the Volume control knob.
For most users, MIDI will be the main source of control for Sirin. Each time
Sirin receives a MIDI “Note On” command, it produces a Pitch CV and
Gate signal in response. The Pitch CV signal sets the Pitch of the Oscillators,
while the Gate signal triggers the Filter and Volume ADSR Envelopes.
The Sirin can also be operated via CV and Gate trigger connections,
for a more ‘old school’ method of control. Both control methods (MIDI &
CV/Gate) can be used at the same time, although some combinations of
control signals may cause unpredictable results.
NOTE: DIN MIDI IN is not passed to USB MIDI OUT
8
BASIC OPERATION
The Sirin responds to MIDI messages on both DIN and USB MIDI Inputs.
In addition, Sirin’s knobs and switches transmit MIDI Control Change
(CC) commands via MIDI USB, allowing parameter adjustments to be
captured by any MIDI-recording device. Sirin has an LED MIDI indicator
that indicates MIDI activity on either the DIN MIDI or USB MIIDI connector.
To further extend the Sirin’s capabilities, there are additional parameters
that can be accessed via MIDI control. A complete list of all MIDI CC commands
can be found on page 22-23.
THE COMPONENTS
OSCILL ATORS
The Oscillators are the main sound source of Sirin.
They create electronic vibrations that can be tuned
and amplified into sound that we can hear. The
Sirin’s VCOs can produce a total musical range
of 6 octaves.
OSCILLATOR 1 (VCO 1) serves as a master Oscillator
to which OSCILLATOR 2 (VCO 2) is tuned. Two
independent switches select the waveform for
each Oscillator (Sawtooth or Square). A FINE TUNE
control adjusts the master tuning of both Oscillators.
The frequencies of both Oscillators are affected by a number of sources. The
main source is a ‘Note On’ command transmitted from an external MIDI
controller or DAW. The ‘Note On’ command is translated into a Control
Voltage that allows the Oscillators to be played in an equal-tempered scale.
Other control sources include Sirin’s GLIDE circuit, VCO 2 FREQ, the
PITCH CV INPUT, the FINE TUNE control, and the output of the MODULATION
(LFO) circuit.
PANEL CONTROLS FOR THE OSCILLATOR
OSCILL ATOR 1 Switch (CC# 70):
Selects a Sawtooth (LED OFF) or Square wave (LED ON) for VCO 1.
OSCILL ATOR 2 Switch (CC# 71):
Selects a Sawtooth (LED OFF) or Square wave (LED ON) for VCO 2.
VCO 2 FREQ (CC# 17):
Sets the frequency offset of VCO 2 from VCO 1. The offset range is +/-1
octave. Center position tunes VCO 2 in unison with VCO 1.
9
FINE TUNE:
Adjusts the frequency of both VCOs by approximately +/-1 semitone. The
FINE TUNE control does not transmit MIDI.
MIDI ACCESSIBLE CONTROL
VCO 2 BEAT (CC# 18):
Selects the fine frequency offset for VCO 2. The adjustment range is
+/- 50 cents.
Default = 64.
NOTE SYNC (CC# 81):
When enabled, NOTE SYNC forces both oscillators to start at the same
time, eliminating any phase differences at the start of each “Note On”
command. This ensures energy is consistent at the start of each new note.
Default = OFF.
EXTERNAL CONTROL
The PITCH CV jack on the back panel is a CV input for external control of
the Oscillator pitch. This input controls the frequencies of both Oscillators.
A 1 volt change of this voltage will change the pitch by one octave. The
jack accepts 0 to +5 volts, or an expression pedal like the Moog EP-3.
PERFORMANCE TIPS:
• For punchy bass lines, tr y using NOTE SYNC to keep the
energy at the beginning of each note the same.
• A steady control voltage applied to the PITCH jack will
offset the base pitch of both oscillators. You can use this
feature to transpose the oscillators to any desired interval.
• To recreate the classic Taurus sound, choose the Sawtooth
wave for one or both oscillators.
10
GLIDE
GLIDE (AKA ‘portamento’) is a musical effect that makes smooth
changes in pitch between notes. Sirin’s GLIDE RATE is adjustable
from instantaneous to extremely long.
PANEL CONTROLS FOR GLIDE
GLIDE Switch (CC# 65):
Enables/Disables the GLIDE function. GLIDE is on when the LED is on.
GLIDE RATE (CC# 5):
Sets the rate of GLIDE that occurs when the note controlling Sirin changes.
MIDI ACCESSIBLE CONTOL
GLIDE TYPE (CC# 92):
Sirin offers three GLIDE types: Linear Constant Rate (LCR), Linear Constant
Time (LCT), or Exponential (EXP). When LCR is selected, the GLIDE RATE stays
the same regardless of the interval. When LCT is selected, the GLIDE TIME stays
the same regardless of the interval. When EXP is selected, the GLIDE RATE follows
an exponential curve that starts fast and then slows as it approaches the target
note (like the Taurus).
Default = LCR.
LEGATO GLIDE (CC# 83):
Normally, GLIDE occurs with every new note. When LEGATO GLIDE is enabled,
however, GLIDE is only applied when a new note is received while another note
is still being held.
Default = OFF.
MIX (OSCILLATOR LEVELS)
Each Oscillator (VCO 1 & VCO 2) has a dedicated level
knob that allows you to control the relative strength of
each oscillator from 0 to 100%. NOTE: The VCOs begin
to clip the filter at about 2 o’clock creating more
agressive sounds.
PANEL CONTROLS FOR THE MIXER
VCO 1 LVL (CC# 15):
Sets the level of VCO 1.
11
VCO 2 LVL (CC# 1 6):
Sets the level of VCO 2.
MIDI ACCESSIBLE CONTROL
EXTERNAL INPUT LEVEL (C C# 27 ):
Adjusts the External Audio Input level. By default, the level is set for unity
gain, but the level can be adjusted up to 200%
Default = 64.

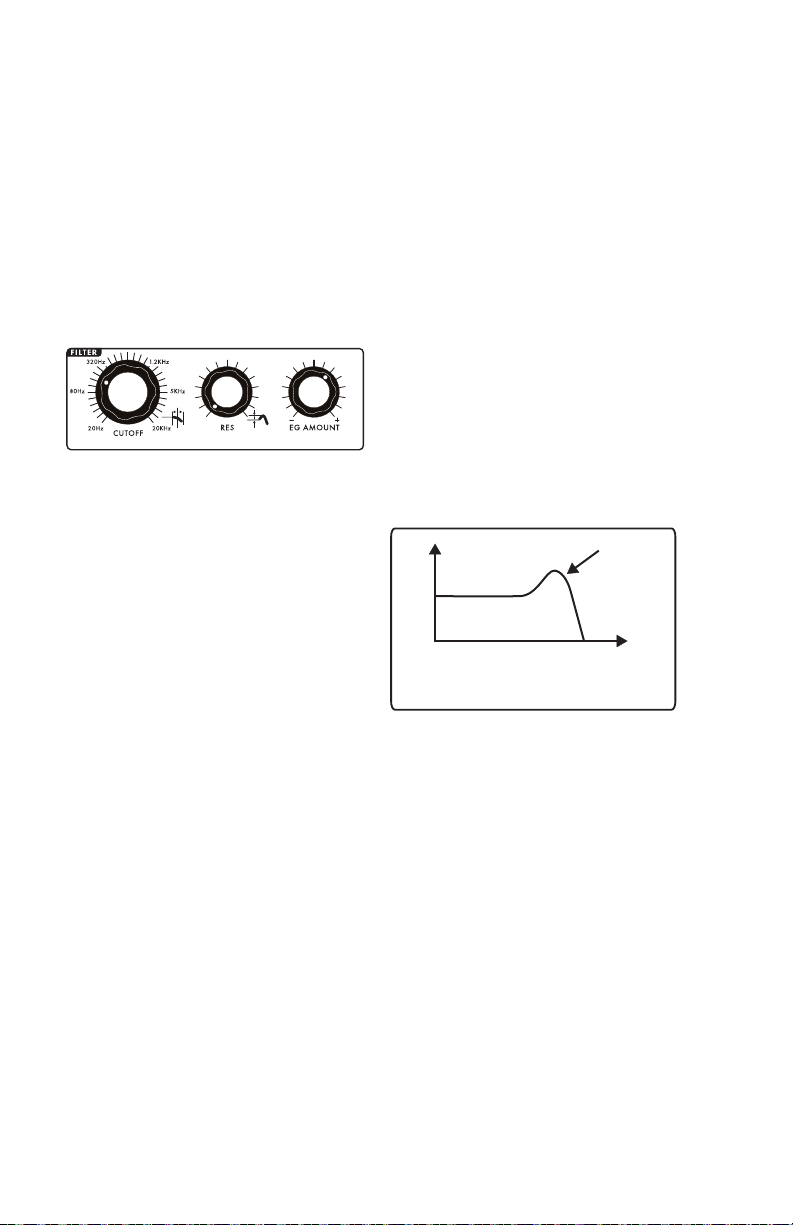

FILT E R
The FILTER is a classic Moog 24dB/
Octave Low-Pass Filter design with
resonance. It has controls for CUTOFF
frequency which determines the range
of frequencies the filter will affect, as
well as RESONANCE, which determines how much emphasis is applied to the
harmonics near the Cutoff frequency (see figure).
The FILTER provides either fixed or
dynamic timbre modifications. Dyna-
mic changes are provided by the
Filter Envelope Generator (EG), a Low
Frequency Oscillator (LFO), or by an
externally applied Control Voltage.
Amplitude
Frequency
Frequency response of a Low Pass Filter
with Resonance
Resonant Peak
PANEL CONTROLS FOR THE FILTER
CUTOFF (CC# 19):
Adjusts the CUTOFF frequency of the Low Pass Filter from 20 Hz to 20 KHz.
As the knob is rotated clockwise, the cutoff frequency is increased, allowing
more harmonics to pass through the filter, resulting in a brighter sound.
Conversely, as the knob is rotated counterclockwise, the sounds get darker.
NOTE: The Sirin may not produce sound when this control is turned all
the way down.
RESONANCE (RES) (CC# 21):
Sets the amount of signal sent from the FILTER output to be fed back into
it’s input. This creates a peak in the frequency that can be increased all the
way to self-oscillation.
12
EG AMOUNT (CC # 22):
The EGs are started by a Gate or MIDI
Note message. Once started, their
shape in time is set by the ATTACK,
DECAY/RELEASE, and SUSTAIN controls,
as well as the Release switch and length
of the Note played.

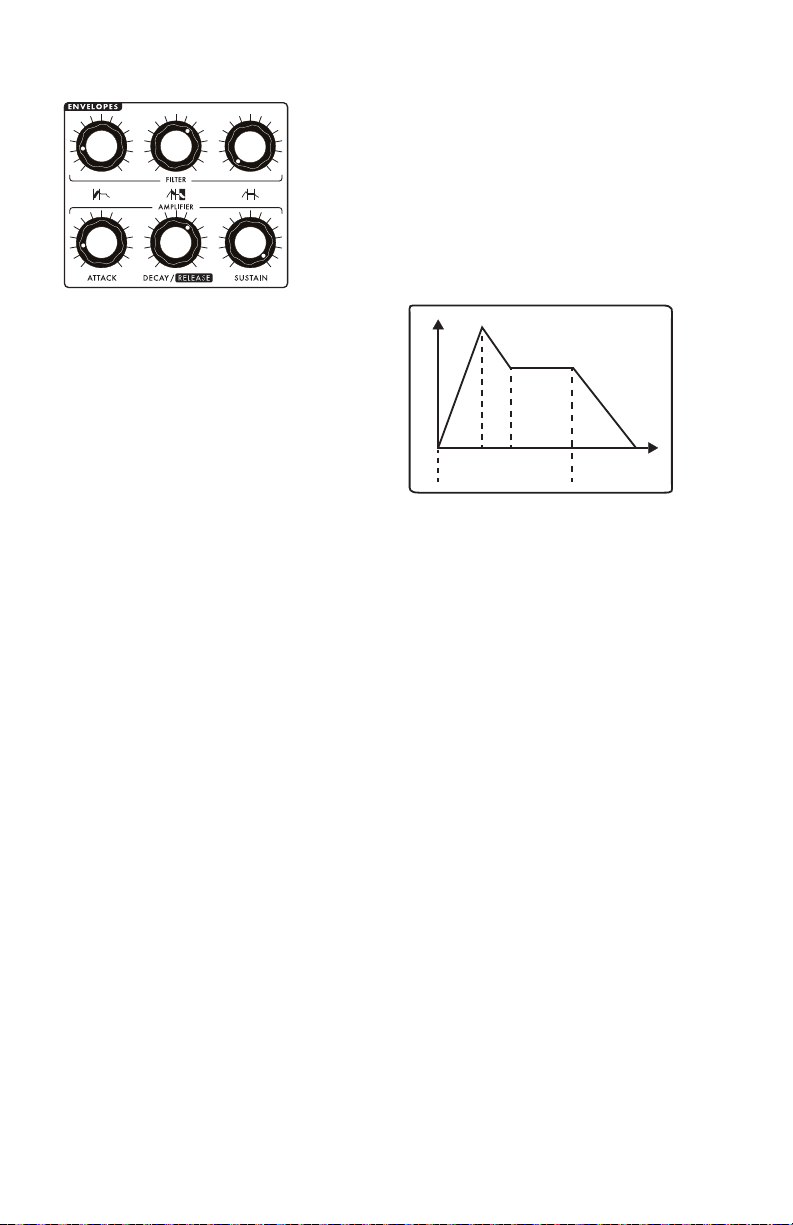

ENVELOPES
PANEL CONTROLS FOR THE ENVELOPES
FI LT E R ATTACK (CC# 23):
Sets the time it takes for the Attack portion of the Filter EG to rise from
zero to maximum. The Attack time ranges from 1 msec to 30 seconds.
FILTER DECAY/RELEASE (CC # 24):
Sets the time for the Decay and Release portion of the Filter EG. When a
note is held, and the Attack time end is reached, the Decay portion of the EG
starts. During the Decay portion, the EG moves to the Sustain level. When a
note is released, the EG moves back to zero at the rate set by this control.
This time ranges from 1 msec to 30 seconds. The Release segment of the
Envelope is determined by the state of the RELEASE switch (ON/OFF).
FILTER SUSTAIN (CC# 25):
Sets the Filter EG level after the Decay and before the Release portion.
A note must be held longer than both the Attack and Decay time to reach
the Sustain level. The level is adjustable from 0 to 100%.
AM P L IFIER AT TACK (CC# 28):
Sets the time it takes for the Attack portion of the Amplifier EG to rise from
zero to maximum. The Attack time ranges from 1 msec to 30 seconds.
AMPLIFIER DECAY/RELEASE (CC# 29):
Sets the time for the Decay and Release portion of the Amplifier EG . When
a note is held, and Attack time end is reached, the Decay portion of the EG
starts. During the decay portion, the EG moves to the Sustain level. When a
Determines how much the Filter Envelope Generator (EG) adds to or
subtracts from the Filter Cutoff control setting. When the EG AMOUNT knob
is set to positive (+), turn the FILTER CUTOFF knob left to hear the ef fect.
When the EG AMOUNT knob is set to negative (-), turn the FILTER CUTOFF
knob right to hear the effect. Note that if the Cutoff frequency is set very high,
a positive EG Amount may have little or no noticeable effect, regardless of the
setting. Similarly, if the Cutoff frequency is set low, a negative EG Amount may
have little or no noticeable effect.
MIDI ACCESSIBLE CONTROL
FILTER KB TRACKING (CC# 20):
Determines how the Filter Cutoff changes in response to MIDI Note On
values. Filter tracking is adjustable from 0 to 200%.
Default = 32 (about 50%).
FILTER VELOCITY SENSITIVITY (CC # 89) :
Sets the amount OF MIDI Note velocity to the Filter.
Default = 64.
EXTERNAL CONTROL
The FILTER CV jack on the back panel is an input for external control of the
Filter Cutoff parameter. A voltage applied to this jack is added to the setting
of the Filter Cutoff control. A one-volt change in the Control Voltage will
change the cutoff frequency of the filter by about one octave. The jack
accepts 0 to +5 volts, or an expression pedal like the Moog EP-3.
13
ENVELOPES
ENVELOPE GENERATORS (EGs) add motion to
a sound after a note is played. The Sirin has
two separate Minimoog style Envelope Generators that affect the brightness and loudness of
the Sirin's sound by modulating the Filter
Cutoff (VCF) and Volume (VCA).
The EGs are started by a Gate or MIDI
Note message. Once started, their
shape in time is set by the ATTACK,
DECAY/RELEASE, and SUSTAIN controls,
as well as the Release switch and length
of the Note played.
PANEL CONTROLS FOR THE ENVELOPES
FI LT E R ATTACK (CC# 23):
Sets the time it takes for the Attack portion of the Filter EG to rise from
zero to maximum. The Attack time ranges from 1 msec to 30 seconds.
FILTER DECAY/RELEASE (CC # 24):
Sets the time for the Decay and Release portion of the Filter EG. When a
note is held, and the Attack time end is reached, the Decay portion of the EG
starts. During the Decay portion, the EG moves to the Sustain level. When a
note is released, the EG moves back to zero at the rate set by this control.
This time ranges from 1 msec to 30 seconds. The Release segment of the
Envelope is determined by the state of the RELEASE switch (ON/OFF).
Amplitude
Attack
Note On
Decay
Time
Sustain
Release
Note Off
FILTER SUSTAIN (CC# 25):
Sets the Filter EG level after the Decay and before the Release portion.
A note must be held longer than both the Attack and Decay time to reach
the Sustain level. The level is adjustable from 0 to 100%.
AM P L IFIER AT TACK (CC# 28):
Sets the time it takes for the Attack portion of the Amplifier EG to rise from
zero to maximum. The Attack time ranges from 1 msec to 30 seconds.
AMPLIFIER DECAY/RELEASE (CC# 29):
Sets the time for the Decay and Release portion of the Amplifier EG . When
a note is held, and Attack time end is reached, the Decay portion of the EG
starts. During the decay portion, the EG moves to the Sustain level. When a
14
note is released, the EG moves back to zero at the rate set by this control.
Oscillator (LFO) is a signal used to move the pitch of VCOs and the Filter Cutoff
up and down automatically. A LFO can be used to simulate vibrato, create
wobbling filter sweeps, or make interesting synthesizer sounds.
MODULATION (MOD)
PANEL CONTROLS FOR MODULATION
LFO RATE (CC# 3):
Sets the frequency of LFO Modulation. The range is from 0.01Hz to 100Hz.
VCO LFO AMOUNT (CC # 13) :
Sets the maximum amount the LFO moves the VCOs pitch up and down,
up to +/- 1 octave. Modulation affects both Oscillators. Amounts above MIDI
Note 72 are clipped. If using a MIDI controller, the Mod Wheel (CC# 1) is
used to fade the LFO Pitch Modulation in and out.
VCF LFO AMOUNT (CC # 12):
Sets the maximum amount the LFO moves the Filter Cutoff up and down,
up to +/- 5 octaves. Amounts above 20KHz or below 20 Hz are clipped. If
using a MIDI controller, the Mod Wheel (CC# 1) is used to fade the LFO
Filter Modulation in and out.
MIDI ACCESSIBLE CONTROL
LFO MIDI SYNC ON/OFF (CC# 87):
Enables or Disables the ability of the Sirin’s LFO to sync to MIDI
Clock messages.
Default = ON.
LFO SYNC CLOCK DIVISION (CC# 86):
Selects the LFO Clock division when the LFO Sync Source is set to MIDI
Clock. LFO Division Settings are listed on page 24. The LFO RATE control
can also act as a Clock Divider.
Default = ON.
LFO KEY TRIGGER (CC# 82):
Re-triggers the start of the LFO cycle when a NOTE ON message or KB GATE
Control Voltage is received.
Default = OFF.
NOTE: When the Sirin powers up, the settings on the VCO LFO AMOUNT
and VCF LFO AMOUNT controls have a direct effect on the VCO and VCF. This
behavior continues until Sirin receives a MIDI Mod Wheel command, from
which point the Mod Wheel takes master control of the LFO modulation amount
set by the Amount controls.
The time ranges from 1 msec to 30 seconds. The Release segment of the
Envelope is determined by the state of the RELEASE switch (ON/OFF).
AMPLIFIER SUSTAIN (CC # 3 0):
Sets the Amplifier EG level after the Decay and before the Release portion.
A note must be held longer than both the Attack and Decay time to reach
the Sustain level. The level is adjustable from 0 to 100%.
MIDI ACCESSIBLE CONTROL
OUTPUT (VCA) VELOCITY SENSITIVITY (CC # 9 0):
Sets the amount of MIDI Note velocity to the Amplifier.
Default = 64 (50%).
EXTERNAL CV CONTROL
The GATE jack on the back panel is a trigger input that accepts a +5V Gate
signal. Applying a Gate signal causes both Envelopes (Amplifier and Filter)
to trigger simultaneously. NOTE: When a Gate signal is applied, it overrides
triggering via MIDI. You will still be able to control the Oscillator pitch and
Modulation amounts from a MIDI controller, but the envelopes will not
retrigger until the Gate trigger is removed.
RELEASE
The RELEASE switch enables or disables the Release segment of
both Envelope Generators. When enabled, the Envelope Release
time is the same as the Envelope Decay time, and the DECAY
control adjusts the time for both segments. When disabled, the
Release segment does not occur and the Envelope stops abruptly in response
to a “Note Off” message (or when the Gate CV goes to zero).
PANEL CONTROL FOR RELEASE
RELEASE Switch (CC# 68):
Enables/Disables the Release function for both Envelope Generators.
RELEASE is enabled when the switch LED is ON.
15
MODULATION (MOD)
MODULATION is an important part in the creation of musically-expressive sounds. Sirin’s
MODULATION section provides an LFO with adjustable
RATE and AMOUNT controls for the oscillators
(VCO) and the Filter (VCF). The Low Frequency
Oscillator (LFO) is a signal used to move the pitch of VCOs and the Filter Cutoff
up and down automatically. A LFO can be used to simulate vibrato, create
wobbling filter sweeps, or make interesting synthesizer sounds.
PANEL CONTROLS FOR MODULATION
LFO RATE (CC# 3):
Sets the frequency of LFO Modulation. The range is from 0.01Hz to 100Hz.
VCO LFO AMOUNT (CC # 13) :
Sets the maximum amount the LFO moves the VCOs pitch up and down,
up to +/- 1 octave. Modulation affects both Oscillators. Amounts above MIDI
Note 72 are clipped. If using a MIDI controller, the Mod Wheel (CC# 1) is
used to fade the LFO Pitch Modulation in and out.
VCF LFO AMOUNT (CC # 12):
Sets the maximum amount the LFO moves the Filter Cutoff up and down,
up to +/- 5 octaves. Amounts above 20KHz or below 20 Hz are clipped. If
using a MIDI controller, the Mod Wheel (CC# 1) is used to fade the LFO
Filter Modulation in and out.
MIDI ACCESSIBLE CONTROL
LFO MIDI SYNC ON/OFF (CC# 87):
Enables or Disables the ability of the Sirin’s LFO to sync to MIDI
Clock messages.
Default = ON.
LFO SYNC CLOCK DIVISION (CC# 86):
Selects the LFO Clock division when the LFO Sync Source is set to MIDI
Clock. LFO Division Settings are listed on page 24. The LFO RATE control
can also act as a Clock Divider.
Default = ON.
LFO KEY TRIGGER (CC# 82):
Re-triggers the start of the LFO cycle when a NOTE ON message or KB GATE
Control Voltage is received.
Default = OFF.
NOTE: When the Sirin powers up, the settings on the VCO LFO AMOUNT
and VCF LFO AMOUNT controls have a direct effect on the VCO and VCF. This
behavior continues until Sirin receives a MIDI Mod Wheel command, from
which point the Mod Wheel takes master control of the LFO modulation amount
set by the Amount controls.
16
VOLUME (VCA)
INPUT/OUTPUT PANEL
The back panel provides all of the input and output connections. In addition
to AUDIO INPUT/OUTPUT jacks, there are CV and GATE inputs, connections for
MIDI, and the Power Connector. The Sirin does not have a power switch.
12VDC (POWER INPUT)
A barrel connector that accepts a +12VDC , tip positive power input from
the power adaptor, which accepts 100 -240 VAC, 50-60Hz.
CONTROLLER INPUTS
The PITCH , FILTER and VOLUME CV jacks supply power and will accept an
expression pedal such as the Moog EP-2, or a Control Voltage from 0 to
+5 Volts. The GATE input accepts a +5 Volt trigger signal.
MIDI (DIN AND USB)
Connections for DIN MIDI input and USB MIDI IN-OUT.
AUDIO IN
The AUDIO IN jack allows an external audio source to be mixed with the
Sirin’s VCOs, and then routed to the Filter for processing. Although
the Sirin has no provisions for adjusting the level of this input on
the front panel, the level is adjustable up to 200% via MIDI CC# 27.
AUDIO OUT
The AUDIO OUT jack provides an unbalanced line-level signal for conne-
cting to an amplifier or mixer.
HEADPHONE OUTPUT
1/8” minijack for stereo Headphone Output. 32Ω or higher recommended
impedance.
BACK PANEL
The Sirin features a monophonic Audio Output and a Headphone
Output; both outputs appear on the back panel. Both ouputs are
adjusted simultaneously by the VOLUME control.
PANEL CONTROL FOR VOLUME
VOLUME:
Adjusts the output of the Voltage Controlled Amplifier (VCA) and Head-
phone levels. Rotating the control fully clockwise produces the maximum
output. Rotating the control fully counterclockwise silences the Sirin.
The VOLUME control does not transmit or receive MIDI. This is a post VCA
control.
MIDI ACCESSIBLE CONTROL
OUTPUT LEVEL (CC# 7):
Adjusts the Audio Output and Headphone volume levels.
VOLUME VELOCITY SENSITIVITY (CC# 90):
Velocity scales the amplitude of the Amplifier envelope Similar to tradit-
ional touch sensitivity.
Default = 64 (50%).
EXTERNAL CONTROL
The VOL CV jack on the back panel is an input for external control of the
Output level. A voltage of 0 Volts silences the Sirin and a voltage of
5 Volts corresponds to the output level set by the VOLUME control knob.
The jack accepts a positive Control Voltage from 0 to 5 Volts, or an expression pedal like the Moog EP-2.
17
INPUT/OUTPUT PANEL
The back panel provides all of the input and output connections. In addition
to AUDIO INPUT/OUTPUT jacks, there are CV and GATE inputs, connections for
MIDI, and the Power Connector. The Sirin does not have a power switch.
BACK PANEL
12VDC (POWER INPUT)
A barrel connector that accepts a +12VDC , tip positive power input from
the power adaptor, which accepts 100 -240 VAC, 50-60Hz.
CONTROLLER INPUTS
The PITCH , FILTER and VOLUME CV jacks supply power and will accept an
expression pedal such as the Moog EP-2, or a Control Voltage from 0 to
+5 Volts. The GATE input accepts a +5 Volt trigger signal.
MIDI (DIN AND USB)
Connections for DIN MIDI input and USB MIDI IN-OUT.
AUDIO IN
The AUDIO IN jack allows an external audio source to be mixed with the
Sirin’s VCOs, and then routed to the Filter for processing. Although
the Sirin has no provisions for adjusting the level of this input on
the front panel, the level is adjustable up to 200% via MIDI CC# 27.
AUDIO OUT
The AUDIO OUT jack provides an unbalanced line-level signal for connecting to an amplifier or mixer.
HEADPHONE OUTPUT
1/8” minijack for stereo Headphone Output. 32Ω or higher recommended
impedance.
18
PERFORMANCE TIPS:
• You can use the Sirin to process any audio signal simply
by plugging into the AUDIO IN jack. To hear the external
audio signal, you will need a MIDI NOTE ON message. To
hear the external audio signal without issuing a MIDI NOTE
ON message, apply +5V to the GATE jack. This will leave
the Gate open, and the Amplifier Envelope will remain at
its Sustain level until the Gate closes.
• The Sirin’s audio input is not limited to processing
monophonic signals - it can work well for processing
polyphonic signals, too. For example, connect the MIDI
Output of a MIDI-equipped polyphonic keyboard to the
Sirin’s AUDIO IN jack, and turn the MIX level of VCO 1
and VCO 2 all the way down on the Sirin. Now you
have a polyphonic source affected by the Sirin’s
Filter and Envelope circuits - a great way to warm up a
sterile digital signal!
19
MIDI OPERATIONS
MIDI CHANNEL
Sirin sends and receives on a single MIDI channel. By default, the
Sirin is set to MIDI Channel 1, but it can be set to any MIDI Channel
(1-16). To change the MIDI Channel on the Sirin:
1. Connect your MIDI controller or DAW to the Sirin.
2. Adjust the controller (or DAW) to transmit the desired
MIDI Channel.
3. On the Sirin; press and hold all four panel switches
(VCO 1 Wave, VCO 2 Wave, GLIDE and RELEASE). The panel
switch LEDs will blink, indicating that the Sirin is
waiting to set the new MIDI channel. The next MIDI message
that the Sirin receives (a Note On, CC, Pitch Bend etc...)
will set the new channel.
4. Once in learn mode, press a key on the MIDI controller(or
send MIDI data from the DAW). The Sirin will reset its MIDI
channel to match the channel being sent.
Changes to the Sirin’s MIDI channel are written to memory and
are remembered on power down.
PITCH BEND RESPONSE
By default, the PITCH BEND RESPONSE of the Sirin is set to +/- 3
semitones. The Pitch Bend up and down values can be adjusted
independently by issuing new values for MIDI CC#107 (Pitch Bend UP)
and CC# 108 (Pitch Bend DOWN). See the MIDI CC Messages Table for
the range of values.
MODULATION WHEEL (MOD WHEEL) RESPONSE
MIDI Mod Wheel messages control the maximum amount of modulation
effect set by the VCO LMO AMT and VCF LFO AMT controls (MIDI CC# 1).
20
MIDI CONTROL CHANGE (CC) MESSAGES
SECTION
The tables on the following pages list all MIDI CC messages for the
Sirin. Messages shown with an (M) indicate parameters which are
only accessible via MIDI. Bolded values indicate the appropriate range
for 7-bit messages (MSB).
NOTES:
• Sirin sends 7-bit MIDI CC messages for all parameters . It
can receive either 7-bit or 14-bit values for the parameters
controlled by knobs, but only 7-bit values for parameters con trolled by switches.
• For all parameters, the MSB indicates the ‘regular’ CC number,
and the LSB indicates the high-resolution ‘fine’ control value.
If you are only sending 7-bit MIDI CC messages to the Sirin,
use the MSB number by itself. Note that when MSB-only
messages are issued, the value range is always 0-127.
A NOTE ABOUT CONTROL PARAMETERS
LOCAL CONTROL OFF (CC# 122 ):
This parameter allows the front panel controls to send MIDI, but disconnects
the Sirin sound engine from direct control by the panel. Per the MIDI
spec, only values of ‘0’ and ‘127’ work (0 = OFF, 127 = ON). If you are connected to a DAW using USB MIDI patched through, you may need this to
avoid feedback artifacts. After changing the state of LOCAL CONTROL
on/off, the Sirin remembers the last setting after power down.
ALL SOUNDS OFF/ALL NOTES OFF (CC 120 or 123):
Both of these parameters are MIDI ‘panic’ functions that are used to silence
hung MIDI notes. Controllers or DAWs may send one or the other command
which is why the Sirin will respond to either.
21
SECTION
MOD(MODULATION)OSCILLATORSMIXERFILTER
CONTROL/
PARAMETER
LFO RATE Adjusts the LFO frequency
LFO VCO AMOUNT Adjusts the modulation amount
LFO VCF AMOUNT Adjusts the Modulation amount
LFO MIDI SYNC
(M)
LFO SYNC CLOCK
DIV (M)
LFO KEY TRIGGER
(M)
VCO 1 WAVE Selects the waveform of VCO 1
VCO 2 WAVE
VCO 2 FREQ
VCO 2 BEAT
(M)
NOTE SYNC
(M)
GLIDE RATE
GLIDE SWITCH
GLIDE TYPE
(M)
LEGATO GLIDE
(M)
VCO 1
VCO 2 Adjusts the level of VC0 2
EXTERNAL IN
LEVEL (M)
CUTOFF Adjusts the Filter Cutoff frequency
RESONANCE Adjusts the Filter Resonance
EG AMOUNT Adjusts the EG amount affecting
FILTER KB TRACK
(M)
FILTER VELOCITY
SENSITIVITY (M)
to the VCOs
to the VCF
Enables or disables ability of LFO
to sync with MIDI CLOCK messages
Sets the LFO synchronization
clock divider
Re-triggers the LFO to the start of
the cycle (Default is OFF)
Selects the waveform of VCO 2
Adjusts the frequency of VCO 2
Adjusts the beat frequency of
VCO 2 (Default is 64)
Enables/disables Note Sync
(Default is off)
Adjusts the Glide (portamento)
rate time
Sets the state of the GLIDE switch
(Glide is enabled when LED is lit)
Selects the type of Glide; Linear
Constant Rate, Linear Constant Time,
or Exponential.
Sets the state of the Legato Glide
parameter when GLIDE is enabled
(Default is OFF)
Adjusts the level of VCO 1
Adjusts the level of the External Audio
Input (Default is 64 = 50% level)
parameter
the cutoff
Sets the amount of keyboard tracking
for the filter (Default is 32 - about 50%)
Sets the amount of filter velocity
sensitivity (Default is 64 - 50%)
FUNCTION CC VALUE/RANGE
3(MSB)
35(LSB)
13(MSB)
45(LSB)
12(MSB)
44(LSB)
87
86
82
70
71
17(MSB)
49(LSB)
18(MSB)
50(LSB)
81
5(MSB)
65
92
83
15(MSB)
47(LSB)
16(MSB)
48(LSB)
27(MSB)
59(LSB)
19(MSB)
51(LSB)
21(MSB)
53(LSB)
22(MSB)
50(LSB)
20(MSB)
54(LSB)
89
0-127
0-127
0-127
0-63(INT)
64-127(MIDI CLOCK)
See table on
page 24
0-63(OFF)
64-127(ON)
0-63(SAW)
64-127(SQR)
0-63(SAW)
64-127(SQR)
0-127
(64 is center)
0-127
0-63(OFF)
64-127(ON)
0-127
0-63(OFF)
64-127(ON)
0-42(LCR)
43-84(LCT)
85-127(EXP)
0-63(Always Glide)
64-127(Glide on
legato notes only)
0-127
0-127
0-127
0-127
0-127
0-127
0-127
0-127
22
SECTION
TIME VALUE DIVISION VALUE
1/32 Note Triplet 1/32 T 116-121
1/64 Note Triplet 1/64 T 122-127
1/32 Note 1/32 110-115
1/16 Note Triplet 1/16 T 104-109
1/16 Note 1/16 98-103
1/8 Note Triplet 1/8 T 92-97
Dotted 1/16 Note 1/16 DOT 86-91
1/8 Note 1/8 80-85
1/4 Note Triplet 1/4 T 74-79
Dotted 1/8 Note 1/8 DOT 68-73
1/4 Note 1/4 61-67
1/2 Note Triplet 1/2 T 55-60
Dotted 1/4 Note Triplet 1/4 DOT 49-54
1/2 Note 1/2 43-48
Whole Note Triplet WH T 37-42
Dotted 1/2 Note 1/2 DOT 31-36
Whole Note WH 25-30
Whole Note + Half Note WH + 1/2 19-24
2 Whole Notes 2 Whole 13-18
3 Whole Notes 3 Whole 7-12
4 Whole Notes 4 Whole 0-6
MIDI CC VALUES FOR THE LFO CLOCK DIVIDER (CC# 86)
ENVELOPES
VOLUME
KEYBD
RESPONSE
MOD
WHEEL
RESPONSE
RESPONSE
PITCH WHEEL
CONTROL/
PARAMETER
VCF ATTACK Adjusts the filter envelope attack
VCF DECAY/
RELEASE
VCF SUSTAIN Adjusts the filter envelope
VCA ATTACK
VCA DECAY/
RELEASE
VCA SUSTAIN
RELEASE SWITCH Sets the state of the Release
TRIGGER MODE
(M)
VCA (OUTPUT)
LEVEL (M)
VOLUME VELOCITY
SENSITIVITY(M)
KEY PRIORITY(M)
MOD WHEEL(M)
BEND UP AMOUNT
(M)
BEND DOWN
AMOUNT(M)
LOCAL CONTROL
OFF(M)
FUNCTION CC VALUE/RANGE
time.
Adjusts the filter envelope decay
and release time
sustain level
Adjusts the volume envelope
attack time
Adjusts the volume envelope
decay and release time
Adjusts the volume envelope sustain
level
parameter (enabled when LED is lit)
Sets the state of the envelope
trigger (Default is Legato ON)
Adjusts the audio ouput and
headphone volume.
Sets the amount of volume velocity
sensitivity (Default is 64 = 50%)
Sets the Note Priority
(Default is last)
Modulation performance control
Pitch Wheel ‘UP’ performance
control (Default = +3 semitones)
Pitch Wheel ‘UP’ performance
control (Default = -3 semitones)
Sets the state of the Local Control
OFF parameter (Default is 127)
23(MSB)
55(LSB)
24(MSB)
56(LSB)
25(MSB)
57(LSB)
28(MSB)
60(LSB)
29(MSB)
61(LSB)
30(MSB)
62(LSB)
72
73
7(MSB)
39(LSB)
90
91
1(MSB)
33(LSB)
107
108
122
0-127
0-127
0-127
0-127
0-127
0-127
0-63(OFF)
64-127(ON)
0-42(LEGATO ON)
43-84(LEGATO OFF)
85-127(EG RESET)
0-127
0-127
0-42(LOW)
43-84(HIGH)
87-127(LAST)
-
0-15(OFF)
16-31(2 SEMITONES)
32-47(3 SEMITONES)
48-63(4 SEMITONES)
64-79(5 SEMITONES)
80-95(7 SEMITONES)
96-111(12 SEMITONES)
112-127(24 SEMITONES)
0 = OFF
127 = ON
ALL SOUNDS OFF
(M)
CONTROL
(SEE NOTE 1)
ALL NOTES OFF
(M)
MIDI Panic message (Shuts off hung
MIDI notes)
MIDI Panic message (Shuts off hung
MIDI notes)
23
120
123
Any Value
Any Value
MIDI CC VALUES FOR THE LFO CLOCK DIVIDER (CC# 86)
TIME VALUE DIVISION VALUE
1/64 Note Triplet 1/64 T 122-127
1/32 Note Triplet 1/32 T 116-121
1/32 Note 1/32 110-115
1/16 Note Triplet 1/16 T 104-109
1/16 Note 1/16 98-103
1/8 Note Triplet 1/8 T 92-97
Dotted 1/16 Note 1/16 DOT 86-91
1/8 Note 1/8 80-85
1/4 Note Triplet 1/4 T 74-79
Dotted 1/8 Note 1/8 DOT 68-73
1/4 Note 1/4 61-67
1/2 Note Triplet 1/2 T 55-60
Dotted 1/4 Note Triplet 1/4 DOT 49-54
1/2 Note 1/2 43-48
Whole Note Triplet WH T 37-42
Dotted 1/2 Note 1/2 DOT 31-36
Whole Note WH 25-30
Whole Note + Half Note WH + 1/2 19-24
2 Whole Notes 2 Whole 13-18
3 Whole Notes 3 Whole 7-12
4 Whole Notes 4 Whole 0-6
24
APPENDIX A - MIDI IMPLEMENTATION CHART
FUNCTION TRANSMITTED RECOGNIZED REMARKS
BASIC CHANNEL
Default 1 1
Changed 1-16 1-16 User Selectable
MODE
Default NO 4 Note Priority
Messages NO NO MIDI CC# 91
Altered NO NO
NOTE NUMBER NO 0-127
VELOCITY
Note On NO YES
Note Off NO NO
AFTER TOUCH NO NO
PITCH BEND NO YES Programmable from
0 ± 24 Semitones
CONTROL CHANGE YES YES 1,3,5,7,12,13,15-25,
27-30,33,35,37,39,
44,45,47-57,59-62,
65,70-73,81-83,86,
87,89-92,107,108,
120,122,123
PROGRAM CHANGE YES YES
SYSTEM EXCLUSIVE YES YES
SYSTEM COMMANDS
Song Position NO NO
Song Selection NO NO
Tune NO NO
SYSTEM REAL TIME
Clock NO YES Receives Timing Clock
Commands NO YES
AUX MESSAGES
Local Off NO YES
All Notes Off NO YES
Active Sense NO NO
System Reset NO NO
25
APPENDIX B - SERVICE AND SUPPORT
INFORMATION
MOOG’S STANDARD WARRANTY
Moog warrants its products to be free of defects in materials or workmanship and
conforming to specifications at the time of shipment. The Warranty Period is one
year from the date of purchase. If, in Moog’s determination, it has been more than
five years since the product shipped from our factory, it will be at Moog’s discre-
tion whether or not to honor the warranty without regard to the date of the
purchase. During the Warranty Period, any defective products will be repaired or
replaced, at Moog’s option, on a return-to-factory basis. This warranty covers
defects that Moog determines are no fault of the user.
The Moog Limited Warranty applies to USA purchasers only. Outside the USA the
warranty policy and associated service is determined by the laws of the country of
purchase and supported by our local authorized distributor. A listing of our
authorized distributors is available on moogmusic.com.
If you purchase outside of your country, you can expect to be charged for
warranty as well as non-warranty service by the service center in your country.
RETURNING YOUR PRODUCT TO MOOG MUSIC
You must obtain prior approval in the form of an RMA (Return Material Authoriza-
tion) number from Moog before returning any product. Email techsupport@moogmusic.com for the RMA # via email or call us at (828) 251-0090. All products must
be packed carefully and shipped with the Moog supplied power adapter. The
Moog Sirin must be returned in the original inner packing including the cardboard
inserts. Sorry, the warranty will not be honored if the product is not properly
packed. Once you have received the RMA# and carefully packed your Moog, ship
the product to Moog Music Inc. with transportation and insurance charges paid,
and include your return shipping address.
MOOG MUSIC
160 Broadway St.
Asheville NC, 28801
WHAT WE WILL DO
Once received, we will examine the product for any obvious signs of user abuse or
damage as a result of transport. If the product abused, damaged in transit, or is
out of warranty, we will contact you with an estimate of the repair cost. Warranty
work will be performed and Moog will ship and insure your product to your United
States address free of charge.
HOW TO INITIATE YOUR WARRANTY
Please initiate your warranty online at www.moogmusic.com/register. If you do
not have web access, please call (828) 251-0090 to register your product.
26
APPENDIX C - CARING FOR THE SIRIN
Clean the Sirin with a soft, slightly moist cloth only – do not use solvents
or abrasive detergents. Heed the safety warnings at the beginning of the
manual. Don’t drop the unit. If you are shipping your Sirin to the factory
for servicing, we recommend using the original shipping carton, or an ATA
approved Road Case.
AN IMPORTANT NOTE ABOUT SAFETY: Do not open the chassis. There are
no user serviceable parts in the Sirin. Maintenance of the Sirin
synthesizer should be referred to qualified service personnel only.
APPENDIX D - SPECIFICATIONS
TYPE: Programmable Monophonic Analog Synthesizer
SYNTH ENGINE:
Oscillator Section:
•OSCILLATOR 1:
Wave: Sawtooth/Square
Level: 0 to 100%
•OSCILLATOR 2:
Frequency: +/-12 Semitones
Wave: Sawtooth/Square
Level: 0 to 100%
•GLIDE RATE: 0 to 100%
Filter Section:
•CUTOFF: 20Hz to 20KHz
•RESONANCE: 0 to Self-Oscillation
•FILTER ENV. AMOUNT: -100% TO +100%
Envelope Generator Section (x2):
•ATTACK TIME: 1 msec to 30 sec
•DECAY TIME: 1 msec to 30 sec
•SUSTAIN LEVEL: 0 to 100%
•RELEASE TIME: 1 msec to 30 sec
•RELEASE: On/Off
Modulation Section:
•LFO RATE WITH RATE LED: 0.01 to 100Hz
•WAVE: Triangle
•AMOUNT TO VCO: 0 to 100%
•AMOUNT TO VCF: 0 to 100%
27
APPENDIX D - SPECIFICATIONS
PERFORMANCE CONTROLS:
•FINE TUNE: +/- 1 Semitone
•GLIDE: On/Off
•RELEASE: On/Off
•MASTER VOLUME
REAR PANEL:
•12VDC POWER INLET:
Accepts +12VDC, tip positive
•MONOPHONIC AUDIO IN (1/4” TS-UNBALANCED)
Accepts +4dBu line level signal
•MONOPHONIC AUDIO OUT (1/4“ TS-UNBALANCED)
•HEADPHONE JACK (1/8” TRS STEREO MINIJACK)
•CONTROL VOLTAGE INPUTS:
Pitch CV: 0 to +5V
Filter CV: 0 to +5V
Volume CV: 0 to +5V
Gate: +5V trigger
•DIN MIDI: MIDI Input
•USB MIDI: MIDI input, MIDI Output
DIMENSIONS:
•8.75” x 5.12” x 3.12”
•(222.3mm x 130.2mm x 79.4mm)
WEIGHT:
•2.5 lb
•(1.2 kg)
OPERATING SYSTEM:
•FLASH UPGRADEABLE VIA MIDI SYSEX
POWER CONSUMPTION:
• 7 WATTS
*Specifications subject to change without notice
©2018 MOOG MUSIC INC. | 160 Broadway St. Asheville, NC 28801
Moog is a registered trademark of Moog Music Inc.
The Moog Wordmark is a registered trademark of Moog Music Inc.
The Moog Icon is a registered trademark of Moog Music Inc.
Sirin is a trademark of Moog Music Inc.
WWW.MOOGMUSIC.COM
28
Loading...
