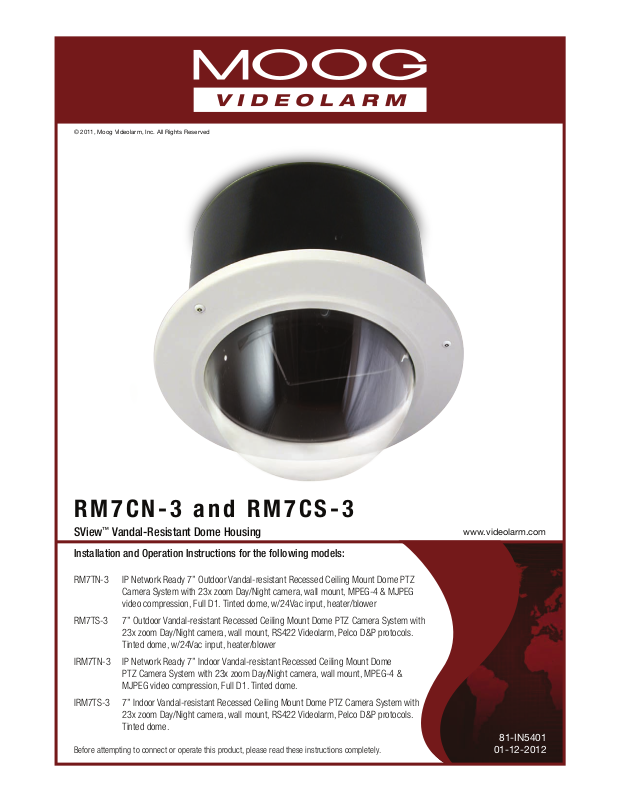

© 2011, Moog Videolarm, Inc. All Rights Reserved
RM7CN-3 and RM7CS-3
SView™ Vandal-Resistant Dome Housing
Installation and Operation Instructions for the following models:
RM7TN-3 IP Network Ready 7” Outdoor Vandal-resistant Recessed Ceiling Mount Dome PTZ
Camera System with 23x zoom Day/Night camera, wall mount, MPEG-4 & MJPEG
video compression, Full D1. Tinted dome, w/24Vac input, heater/blower
RM7TS-3 7” Outdoor Vandal-resistant Recessed Ceiling Mount Dome PTZ Camera System with
23x zoom Day/Night camera, wall mount, RS422 Videolarm, Pelco D&P protocols.
Tinted dome, w/24Vac input, heater/blower
IRM7TN-3 IP Network Ready 7” Indoor Vandal-resistant Recessed Ceiling Mount Dome
PTZ Camera System with 23x zoom Day/Night camera, wall mount, MPEG-4 &
MJPEG video compression, Full D1. Tinted dome.
IRM7TS-3 7” Indoor Vandal-resistant Recessed Ceiling Mount Dome PTZ Camera System with
23x zoom Day/Night camera, wall mount, RS422 Videolarm, Pelco D&P protocols.
Tinted dome.
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5401
01-12-2012
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with damp cloth.
7 Do not block any of the ventilation openings. Install in accordance with the
manufacturers instructions.
8 Cable Runs- All cable runs must be within permissible distance.
9 Mounting - This unit must be properly and securely mounted to a supporting
structure capable of sustaining the weight of the unit.
Accordingly:
a. The installation should be made by a qualied installer.
b. The installation should be in compliance with local codes.
c. Care should be exercised to select suitable hardware to install the unit, taking into
account both the composition of the mounting surface and the weight of the unit.
10 Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus ( including ampliers) that produce heat.
11 Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. When the provided plug does not t into your
outlet, consult an electrician for replacement of the obsolete outlet.
12 Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
13 Only use attachment/ accessories specied by the manufacturer.
14 Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
15 Unplug this apparatus during lighting storms or when unused for long periods of time.
16 Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled of objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
Be sure to periodically examine the unit and the supporting structure to make sure that the integrity
of the installation is intact. Failure to comply with the foregoing could result in the unit separating
from the support structure and falling, with resultant damages or injury to anyone or anything struck
by the falling unit.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER ( OR BACK). NO USER- SERVICE-
ABLE PARTS INSIDE. REFER SEVICING
TO QUALIFIED SERVICE PERSONNEL.
The lightning ash with an arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of non-insulated
“dangerous voltage” within the product’s
enclosure that may be of sufcient magnitude
to constitute a risk to persons.
Este símbolo se piensa para alertar al usuario a la presencia
del “voltaje peligroso no-aisIado” dentro del recinto de los
productos que puede ser un riesgo de choque eléctrico.
Ce symbole est prévu pour alerter I’utilisateur à la presence
“de la tension dangereuse” non-isolée dans la clôture de
produits qui peut être un risque de choc électrique.
Dieses Symbol soll den Benutzer zum Vorhandensein der
nicht-lsolier “Gefährdungsspannung” innerhalb der
Produkteinschließung alarmieren die eine Gefahr des
elektrischen Schlages sein kann.
Este símbolo é pretendido alertar o usuário à presença “di
tensão perigosa non-isolada” dentro do cerco dos produtos
que pode ser um risco de choque elétrico.
Questo simbolo è inteso per avvertire I’utente alla presenza
“di tensione pericolosa” non-isolata all’interno della
recinzione dei prodotti che può essere un rischio di scossa
elettrica
.
The exclamation point within an equilateral
triangle is intended to alert the user to
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
UNPACKING
Unpack carefully. Electronic components can be
damaged if improperly handled or dropped. If an item
appears to have been damaged in shipment, replace
it properly in its carton and notify the shipper.
Be sure to save:
1 The shipping carton and packaging material.
They are the safest material in which to make future
shipments of the equipment.
2 These Installation and Operating Instructions.
Este símbolo del punto del exclamation se piensa para
alertar al usuario a la presencia de instrucciones importantes
en la literatura que acompaña la aplicación.
Ce symbole de point d’exclamation est prévu pour alerter
l’utilisateur à la presence des instructions importantes dans
la littérature accompagnant l’appareil.
Dieses Ausruf Punktsymbol soll den Benutzer zum
Vorhandensein de wichtigen Anweisungen in der Literatur
alarmieren, die das Gerät begleitet.
Este símbolo do ponto do exclamation é pretendido alertar o
usuário à presença de instruções importantes na literatura
que acompanha o dispositivo.
Questo simbolo del punto del exclamaton è inteso per
avvertire l’utente alla presenza delle istruzioni importanti nella
letteratura che accompagna l'apparecchio.
SERVICE
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
If technical support or service is needed, contact us at
the following number:
TECHNICAL SUPPORT
AVAILABLE 24 HOURS
1- 800-554 -1124
Limited Warranty for Moog Videolarm Products
Moog Videolarm warrants these products to be free from defects in material or workmanship as follows:
PRODUCT CATEGORY PARTS \ LABOR
All Enclosures and Electronics* Five (5) Years
Poles/PolEvators™/CamEvator Three (3) Years
Warrior Series™/Q-View™/IR Illuminators Five (5) Years
SView Series™ Five (5) Years **6 months if used in auto scan/tour operation
Controllers Five (5) Years
Power Supplies Five (5) Years
EcoKit Three (3) Years
Accessory Brackets Five (5) Years
Liberty Dome Three (3) Years
*DeputyDome™, NiteTrac™, Igloo Dome, PurgeDome™ Three (3) Years **6 months if used in auto scan/tour operation
During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Moog Videolarm
Inc. Decatur GA. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with
a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip. To obtain a RMA# you must contact our Technical Support
Team at 800.554.1124, extension 101. Moog Videolarm will return the repaired Product freight prepaid to Purchaser. Moog Videolarm is not obligated to
provide Purchaser with a substitute unit during the warranty period or at any time. After the applicable warranty period, Purchaser must pay all labor and/or
parts charges.
The limited warranty stated in these product instructions is subject to all of the following terms and conditions.
TERMS AND CONDITIONS
1. NOTIFICATION OF CLAIMS: WARRANTY SERVICE: If Purchaser believes that the Product is defective in material or workmanship, then written notice with an
explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
If after investigation Moog Videolarm determines the reported problem was not covered by the warranty, Purchaser shall pay Moog Videolarm for the cost of
investigating the problem at its then prevailing per incident billable rate. No repair or replacement of any Product or part thereof shall extend the warranty period
of the entire Product. The speci c warranty on the repaired part only shall be in effect for a period of ninety (90) days following the repair or replacement of that
part or the remaining period of the Product parts warranty, whichever is greater.
2. EXCLUSIVE REMEDY: ACCEPTANCE: Purchaser’s exclusive remedy and Moog Videolarm’s sole obligation is to supply (or pay for) all labor necessary to repair any
Product found to be defective within the warranty period and to supply, at no extra charge, new or rebuilt replacements for defective parts.
3. EXCEPTIONS TO LIMITED WARRANTY: Moog Videolarm shall have no liability or obligation to Purchaser with respect to any Product requiring service during the
warranty period which is subjected to any of the following: abuse, improper use, negligence, accident, lightning damage or other acts of God (i.e., hurricanes,
earthquakes), modi cation, failure of the end-user to follow the directions outlined in the product instructions, failure of the end-user to follow the maintenance
procedures recommended by the International Security Industry Organization, written in product instructions, or recommended in the service manual for the
Product. Furthermore, Moog Videolarm shall have no liability where a schedule is speci ed for regular replacement or maintenance or cleaning of certain parts
(based on usage) and the end-user has failed to follow such schedule; attempted repair by non-quali ed personnel; operation of the Product outside of the
published environmental and electrical parameters, or if such Product’s original identi cation (trademark, serial number) markings have been defaced, altered,
or removed. Moog Videolarm excludes from warranty coverage Products sold AS IS and/or WITH ALL FAULTS and excludes used Products which have not
been sold by Moog Videolarm to the Purchaser. All software and accompanying documentation furnished with, or as part of the Product is furnished “AS IS”
(i.e., without any warranty of any kind), except where expressly provided otherwise in any documentation or license agreement furnished with the Product. Any
cost associated with removal of defective product and installation of replacement product is not included in this warranty.
4. PROOF OF PURCHASE: The Purchaser’s dated bill of sale must be retained as evidence of the date of purchase and to establish warranty eligibility.
DISCLAIMER OF WARRANTY
EXCEPT FOR THE FOREGOING WARRANTIES, Moog Videolarm HEREBY DISCLAIMS AND EXCLUDES ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO ANY AND/OR ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND/OR
ANY WARRANTY WITH REGARD TO ANY CLAIM OF INFRINGEMENT THAT MAY BE PROVIDED IN SECTION 2-312(3) OF THE UNIFORM COMMERCIAL
CODE AND/OR IN ANY OTHER COMPARABLE STATE STATUTE. Moog Videolarm HEREBY DISCLAIMS ANY REPRESENTATIONS OR WARRANTY THAT
THE PRODUCT IS COMPATIBLE WITH ANY COMBINATION OF NON-Moog Videolarm PRODUCTS OR NON-Moog Videolarm RECOMMENDED PRODUCTS
PURCHASER MAY CHOOSE TO CONNECT TO THE PRODUCT.
LIMITATION OF LIABILITY
THE LIABILITY OF Moog Videolarm, IF ANY, AND PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR DAMAGES FOR ANY CLAIM OF ANY KIND
WHATSOEVER, REGARDLESS OF THE LEGAL THEORY AND WHETHER ARISING IN TORT OR CONTRACT, SHALL NOT BE GREATER THAN THE ACTUAL
PURCHASE PRICE OF THE PRODUCT WITH RESPECT TO WHICH SUCH CLAIM IS MADE. IN NO EVENT SHALL Moog Videolarm BE LIABLE TO PURCHASER
FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION,
REIMBURSEMENT OR DAMAGES ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS OR FOR ANY OTHER REASON WHATSOEVER.
Electrical Specifications
!!
Power 24VAC
Class 2 Only
RM7TN-9
RM7TS-9
IRM7TN-9 (INDOOR ONLY
IRM7TS-9 (INDOOR ONLY
Contents of Box
)
)
24 VAC
Accessories: Heater: 50 Watts/Blower: 2 Watts
Camera Power: 28 Watts
English
Tools Required: .100” Flat Head Screwdriver
Phillips Head Screwdriver
Note: IRM7CN includes no accessories
3.3 Amps
Total Power: 80 Watts
24 VAC
Accesorios: Calentador: 50 Watts/Blower: 2 vatios
Energía De la Cámara fotográfica: 28 vatios
Español
Las Herramientas Requirieron: Destornillador Principal Plano Del 100"
Destornillador Principal Phillips
Nota: IRM7CN no incluye ningún accesorio
24 VCA
Accessoires : Réchauffeur : 50 Watts/Blower : 2 watts
Puissance D'Appareil-photo : 28 watts
Français
Les Outils Ont exigé : Tournevis Principal Plat De 100"
Tournevis Principal Phillips
Note : IRM7CN n'inclut aucun accessoire
3.3 amperios
Energía Total: 80 vatios
3.3 ampères
Puissance Totale : 80 watts
24 VAC
Zusatzgeräte: Heizung: 50 Watts/Blower: 2 Watt
Kamera-Energie: 28 Watt
Deutsch
Werkzeuge Erforderten: 100"Flacher Hauptschraubenzieher
Kreuzkopfhauptschraubenzieher
Anmerkung: IRM7CN schließt keine Zusatzgeräte mit ein
3.3 Ampere
Gesamtenergie: 80 Watt
24 VAC
Acessórios: Calefator: 50 Watts/Blower: 2 watt
Poder Da Câmera: 28 watt
Portuguese
As Ferramentas Requereram: Chave de fenda Principal Lisa Do 100"
Chave de fenda Principal Phillips
Nota: IRM7CN não inclui nenhum acessório
3.3 ampères
Poder Total: 80 watts
24 VAC
Accessori: Riscaldatore: 50 Watts/Blower: 2 watt
Alimentazione Della Macchina fotografica: 28 watt
Italiano
Attrezzi Richiesti: Cacciavite Capo Piano Del 100"
Cacciavite Capo "phillips"
Nota: IRM7CN non include accessori
3.3 ampère
Alimentazione Totale: 80 watt
*** Pan Tilt boxed separately along with its instructions.
11
2
10.375”
Using the provided template, mark the
ceiling tile for the cutout.
• Con la plantilla proporcionada, cortar el azulejo del
techo para el agujero.
• En utilisant le calibre fourni, marquez la tuile de
plafond pour le coupe-circuit.
• Mit der zur Verfügung gestellten Schablone
kennzeichnen Sie die Decke Fliese für den Ausschnitt.
• Usando o molde fornecido, marque a telha do teto
para o entalhe.
• Usando la mascherina fornita, contrassegni le
mattonelle del soffitto per il ritaglio.
3
A box cutter or jigsaw can be used for
cutting the circle.
• Un cortador o un rompecabezas de la caja se
puede utilizar para cortar el círculo.
• Un coupeur ou une scie sauteuse de boîte peut
être utilisé pour couper le cercle.
• Ein Kastenscherblock oder -tischlerbandsäge
können für den Schnitt des Kreises benutzt werden.
• Um cortador ou um jigsaw da caixa podem ser
usados cortando o círculo.
• Una taglierina o un jigsaw della scatola può essere
utilizzato per il taglio del cerchio.
4
Place the housing in the tile and secure
the outer tabs.
• Coloque la cubierta en el azulejo y asegure las
lengüetas externas.
• Placez le logement dans la tuile et fixez les
étiquettes externes.
• Legen Sie das Gehäuse in die Fliese und sichern
Sie die äußeren Vorsprünge.
• Coloque a carcaça na telha e fixe as abas
exteriores.
• Disponga l'alloggiamento nelle mattonelle ed
assicuri le linguette esterne.
Connect the flex conduit to the housing.
• Conecte el conducto de la flexión con la cubierta.
• Reliez le conduit de câble au logement.
• Schließen Sie das Flexrohr an das Gehäuse an.
• Conecte a canalização do cabo flexível à carcaça.
• Colleghi il condotto della flessione all'alloggiamento.
5
RJ45
BNC
24VAC
1
2
3
4
Camera
Camera
Heater/Blower
Heater/Blower
Red
Orange
Yellow
Green
POWER
Max 28 Watts
52 Watts
1/0
1
2
3
4
GND
GND
Alarm OUT
Alarm IN
Blue
Violet
Gray
White
(Outdoor Only)
Make the appropriate male and female connections.
•
Haga las conexiones masculinas y femeninas apropiadas.
•
Établissez les rapports masculins et femelles appropriés.
•
Stellen Sie die passenden männlichen und weiblichen Beziehungen her.
•
Faça as conexões masculinas e fêmeas apropriadas.
•
Faccia i collegamenti maschii e femminili adatti.
6
Add the safety wire to the flex conduit or
continue to the next step.
• Agregue el alambre de seguridad al conducto de la
flexión o continúe al paso siguiente.
• Ajoutez le fil de sûreté au conduit de câble ou
continuez à la prochaine étape.
• Fügen Sie die Sicherheit Leitung dem Flexrohr hinzu
oder fahren Sie zum folgenden Schritt fort.
• Adicione o fio de segurança à canalização do cabo
flexível ou continue à etapa seguinte.
• Aggiunga il legare di sicurezza al condotto della
flessione o continui al punto seguente.
7
The alternate location to attach the safety
wire is on the housing secure tab.
• La localización alterna para unir el alambre de seguridad
está en la lengüeta segura de la cubierta.
• L'endroit alternatif pour attacher le fil de sûreté est sur
l'étiquette bloquée de logement.
• Die wechselnde Position, zum der Sicherheit Leitung
anzubringen ist auf dem sicheren Vorsprung des Gehäuses.
• A posição alterna para unir o fio de segurança está na aba
segura da carcaça.
• La posizione alternata per fissare il legare di sicurezza è sulla
linguetta sicura dell'alloggiamento.
8
Green
Yellow
Orange
Red
Accessory
Power
Camera
Power
12
9
,5 ,75 1,0 1,5 2,5 4 6
22 20 18 16 14 12 10
MM
AWG
2
Camera = red & orange wires to terminal
Heater/Blower = yellow & green wires to terminal.
• Cámara fotográfica = alambres rojos y anaranjados al
terminal Heater/Blower = alambres del amarillo y del verde
al terminal.
• Appareil-photo = fils rouges et oranges à la borne
Heater/Blower = fils de jaune et de vert à la borne.
• Kamera = rote u. orange Leitungen zum Anschluß
Heater/Blower = Gelb- u. Grünleitungen zum Anschluß.
• Câmera = fios vermelhos & alaranjados ao terminal
Heater/Blower = fios do amarelo & do verde ao terminal.
• Macchina fotografica = legare rossi & arancioni al terminale
Heater/Blower = legare di verde & di colore giallo
al terminale.
These are recommended maximum distances
The beam angle may be adjusted on the
for 24VAC with a 10% voltage drop.
bottom of the unit.
• Éstos se recomiendan las distancias máximas para
24VAC con una gota del voltage del 10%.
• Ceux-ci sont recommandés des distances maximum
pour 24VAC avec une chute de tension de 10%.
• Diese werden maximale Abstände für 24VAC mit
einem 10% Spannungsabfall empfohlen.
• Estes são recomendados distâncias máximas para
24VAC com uma queda de tensão de 10%.
• Questi sono suggeriti distanze massime per 24VAC
con una differenza de potenziale di 10%.
1110
CAPTIVE SCREW
Remove Pan/Tilt from shipping carton.
Install in base bracket in housing.
• Quite Pan/Tilt del cartón del envío. Instale en soporte
bajo en la cubierta.
• Enlevez Pan/Tilt du carton d'expédition. Installez dans
la parenthèse basse dans le logement.
• Entfernen Sie Pan/Tilt vom Verschiffenkarton. Bringen
Sie in niedrigen Haltewinkel im Gehäuse an.
• Remova Pan/Tilt da caixa do transporte. Instale no
suporte baixo na carcaça.
• Rimuova Pan/Tilt dalla scatola di trasporto. Installi in
staffa bassa in alloggiamento.
To secure in place, tighten captive screw.
• Para asegurar en lugar, apriete el tornillo prisionero.
• Pour fixer en place, serrez la vis captive.
• Um im Platz zu sichern, ziehen Sie Sicherheitsschraube
fest.
• Para fixar-se no lugar, aperte o parafuso prisioneiro.
• Per fissare sul posto, stringa la vite prigioniera.
11
12
12
13
Hook the lanyard from the dome to the
The beam angle may be adjusted on the
housing as shown.
bottom of the unit.
• Enganche el acollador de la bóveda a la cubierta
según lo demostrado.
• Accrochez la lanière du dôme au logement comme
montré.
• Spannen Sie die Abzuglinie von der Haube zum
Gehäuse an, wie gezeigt.
• Enganche o colhedor da abóbada à carcaça como
mostrada.
• Agganci la cordicella dalla cupola all'alloggiamento
come indicato.
Secure the dome in place (alternate
The beam angle may be adjusted on the
security screws are provided).
bottom of the unit.
• Asegure la bóveda en lugar (se proporcionan los
tornillos alternos de la seguridad).
• Fixez le dôme en place (des vis alternatives de sécurité
sont fournies).
• Sichern Sie die Haube im Platz (wechselnde Sicherheit
Schrauben werden zur Verfügung gestellt).
• Fixe a abóbada no lugar (os parafusos alternos da
segurança são fornecidos).
• Fissi la cupola sul posto (le viti alternate di sicurezza
sono fornite).
RM7TN-9, RM7TS-9
(
OUTDOOR ONLY
)
IRM7TN-9, IRM7TS-9
(
INDOOR ONLY
)
Replacement Parts List
DESCRIPTION REPLACEMENT PARTS NUMBER
9
13
12
3
1
10
11
5
4
2
8
6
13
(1)
(1)
(3)
(1)
1
RP30VL2873
Metal Housing Top
2
RP
½” Rubber Conduit Plug
3
RP30VL2733
Lanyard Clip
4
RP90BTRP61
8 x 32 x 3’” Bolt (3)
5
RPVL2204
Ceiling Spring Clips (3)
6
RP96RSORG11
Trim Ring O-Ring
7
N/S
8
RP95FSSL05
Spring Lanyard
9
RPFD703
Dome Clamping Ring
10
RP30VL2884
Aluminum Trim Ring
11a
RP90BT3007
Captive Phillips Screws (3)
11b
RP90BT2975
Captive Security Screws (3)
12
RP96GK2558
Dome Gasket
13a
RPFD7C
Clear Polycarbonate Dome and Gasket
13b
RPFD7T
Tinted Polycarbonate Dome and Gasket
14
RPPKE1100
Electrical Packet
15
RPPKH2110
Security Tool and Screw Packet
14
15
16
19
21
20
17
18
16 RPUL2857 Pan/Tilt Base Bracket
17 RP76UL385A Pan/Tilt Connection PCB
18 RP96PS6K08 Pan/Tilt Grommet
19 RPVL3097 IP Card Bracket
20 RP76POF060E IP Connection PCB
21 RP70P14015 IP Card
Product Registration/Warranty
Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest
quality products available and superior customer service.
Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles,
Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators.
Register Your Products Online
Take a few moments and validate your purchase via the Online Product Registration Form at
www.videolarm.com/productregistration.jsp
Register your recent Moog Videolarm purchases and benet from the following:
• Simple and Trouble-Free RMA process
• Added into customer database to receive product updates / news
• Eliminate the need to archive original purchase documents:
Receipts, Purchase Orders, etc…
Loading...
