Moog 914-HDE M1, 914-EX, 914-DX, 914-HDV2, 914-SWITCH User Manual

...

MOOG PROPRIETARY AND CONFIDENTIAL INFORMATION

THIS TECHNICAL DATA/DRAWING/DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO, AND IS THE EXPRESS PROPERTY OF MOOG INC., OR MOOG INC. SUBSIDIARIES EXCEPT AS EXPRESSLY GRANTED BY CONTRACT OR BY OPERATION OF LAW AND IS RESTRICTED TO USE BY ONLY MOOG EMPLOYEES AND OTHER PERSONS AUTHORIZED IN WRITING BY MOOG OR AS EXPRESSLY GRANTED BY CONTRACT OR BY OPERATION OF LAW. NO PORTION OF THIS DATA/DRAWING/DOCUMENT SHALL BE REPRODUCED OR DISCLOSED OR COPIED OR FURNISHED IN WHOLE OR IN PART TO OTHERS OR USED BY OTHERS FOR ANY PURPOSE WHATSOEVER EXCEPT AS SPECIFICALLY AUTHORIZED IN WRITING BY MOOG INC. OR MOOG INC. SUBSIDIARY.

Focal Technologies Corporation

A Moog Inc. Company 77 Frazee Avenue Dartmouth, Nova Scotia, Canada B3B 1Z4 Tel: (902) 468-2263 | www.moog.com/focal

Model 914-X Series

Modular Multiplexer System

User Manual

Document No.:

914-0601-00

Revision:

5.0

Author(s):

E. Mullaley

Date of Issue:

2018-09-12

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page ii

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Document Revision History

Document

Revision

Details of Revision

Author(s)

Date

[yyyy-mm-dd]

Rev 1.0

Initial Release.

2016-02-01

Rev 2.0

Release of B1 and C1 firmware

 Ethernet Link Fault Pass Through  Trade HD-SDI for Gigabit Ethernet  Optional input of LED Header  Maximum 350Mb/s Ethernet throughput in M1 mode while

3G-SDI is plugged

 3G-SDI Level B support  Update to colour coded diagnostic cable

2016-06-27

Rev 3.0

Added sections

 7.0 Firmware Updates  8.0 Feature Upgrades

2016-10-13

Rev 4.0

Added sections

 Quick Start Check List  Troubleshooting Section  VDX Expansion Card

2017-07-24

Rev 5.0

Title change to 914-X Series Modular Multiplexer System Added sections

 Added System diagrams  Updated System Examples  EX Expansion Card

 AX Expansion Card  HDV2 Media Converter  Optical Cards  Ribbon Cable  SFPs  Part Numbers  Dimensions  Stacking Instructions

2018-09-12

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page iii

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Reference Documents

Document Number

Document Title and Description

914-0401-00

Model 914 Diagnostic GUI

914-0415-00

Model 914 HDV2 Diagnostic GUI

914-0401-01

Model 914 Programmer

914-2016-00

Model 914-HDE Configuration Drawing

914-2018-00

Model 914-HDV2 Configuration Drawing

914-2020-00

Model 914-VDX Configuration Drawing

914-2022-00

Model 914-EX Configuration Drawing

914-2023-00

Model 914-AX Configuration Drawing

700-0271-00

AIB Plug-in Module User Guide

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page iv

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

TABLE OF CONTENTS

1.0 Introduction ................................................................................................................................................. 1-1

1.1 Model 914-X Series Benefits ..................................................................................................................... 1-2

1.2 System Accessories and Options .............................................................................................................. 1-2

1.3 Safety Precautions .................................................................................................................................... 1-3

2.0 Setup Check List ......................................................................................................................................... 2-1

3.0 System Overview ........................................................................................................................................ 3-1

3.1 914-X Series System Card Options........................................................................................................... 3-1

3.2 Defining a 914-X Series System................................................................................................................ 3-2

3.3 System Specification ................................................................................................................................. 3-5

3.4 How to choose the optimal 914-X Series System Architecture ................................................................. 3-5

3.4.1 Example 914-X Series L1 System ...................................................................................................... 3-6

3.4.2 Example 914-X Series M1 System ..................................................................................................... 3-6

3.4.3 Example 914-X Series H1 System ...................................................................................................... 3-7

3.4.4 Choosing an Optical Card ................................................................................................................... 3-7

4.0 914-HDE Motherboard Overview ............................................................................................................... 4-1

4.1 914-HDE Versions ..................................................................................................................................... 4-1

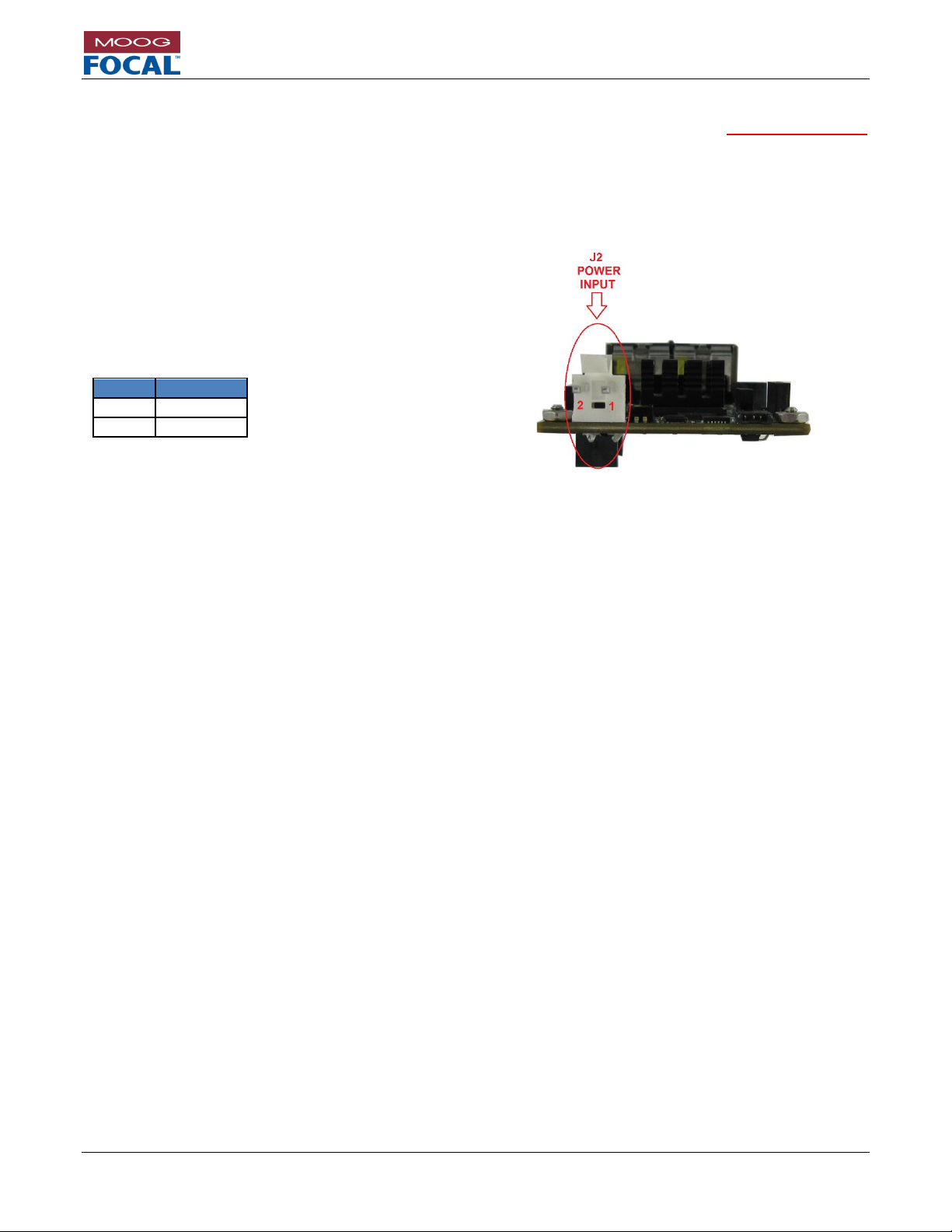

4.2 914-HDE Power ......................................................................................................................................... 4-2

4.3 914-HDE HD Video Channel ..................................................................................................................... 4-3

4.4 914-HDE Serial Data Ports ........................................................................................................................ 4-4

4.5 914-HDE Ethernet Port .............................................................................................................................. 4-5

4.6 914-HDE Diagnostic LEDs ........................................................................................................................ 4-6

4.7 914-HDE Diagnostic LED Header ............................................................................................................. 4-7

4.8 914-HDE Optics ......................................................................................................................................... 4-8

4.8.1 914-HDE Flux Budget Calculation ...................................................................................................... 4-8

4.8.2 Optical Safety ...................................................................................................................................... 4-8

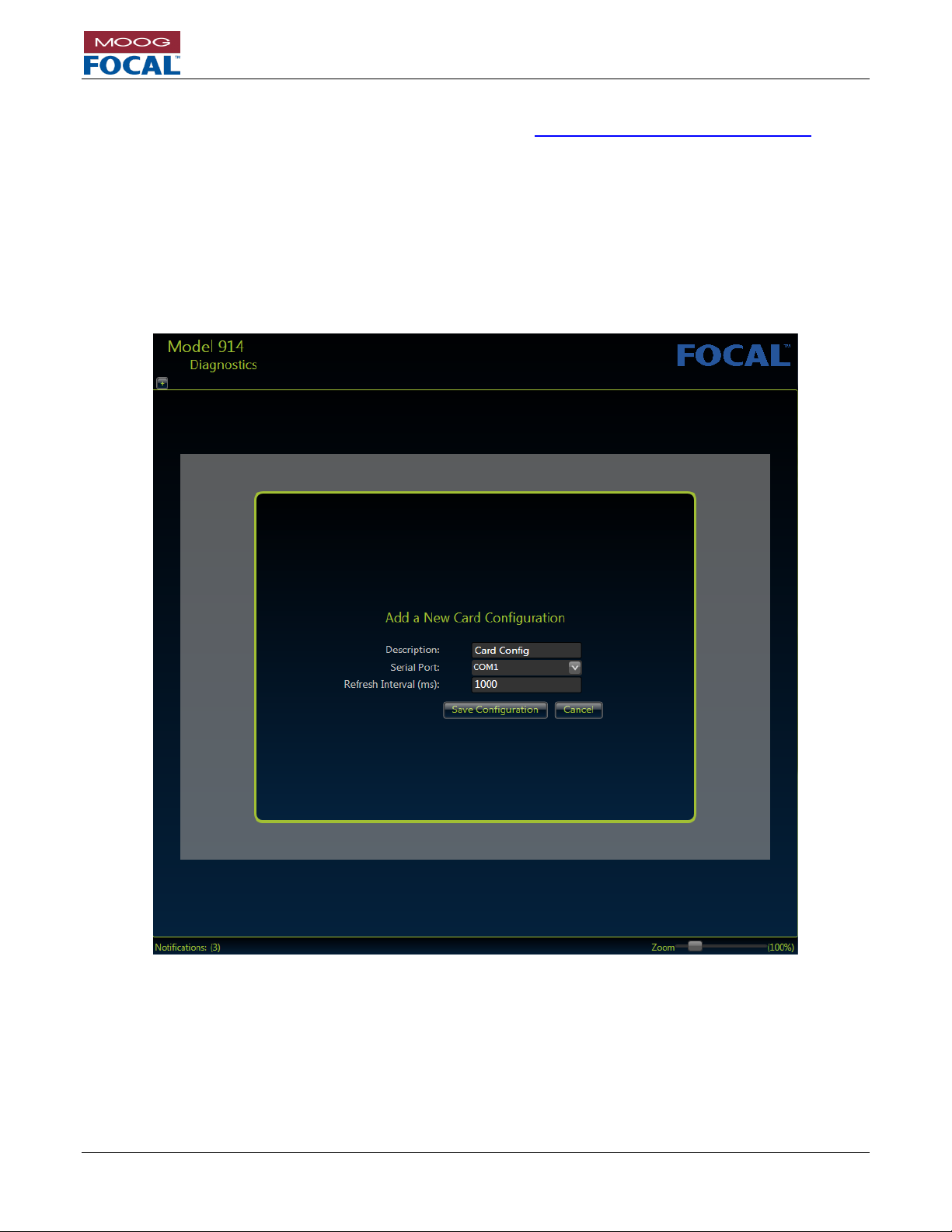

5.0 Model 914-X Series Diagnostic GUI .......................................................................................................... 5-1

5.1 Installing the Model 914-X Series Diagnostic GUI .................................................................................... 5-3

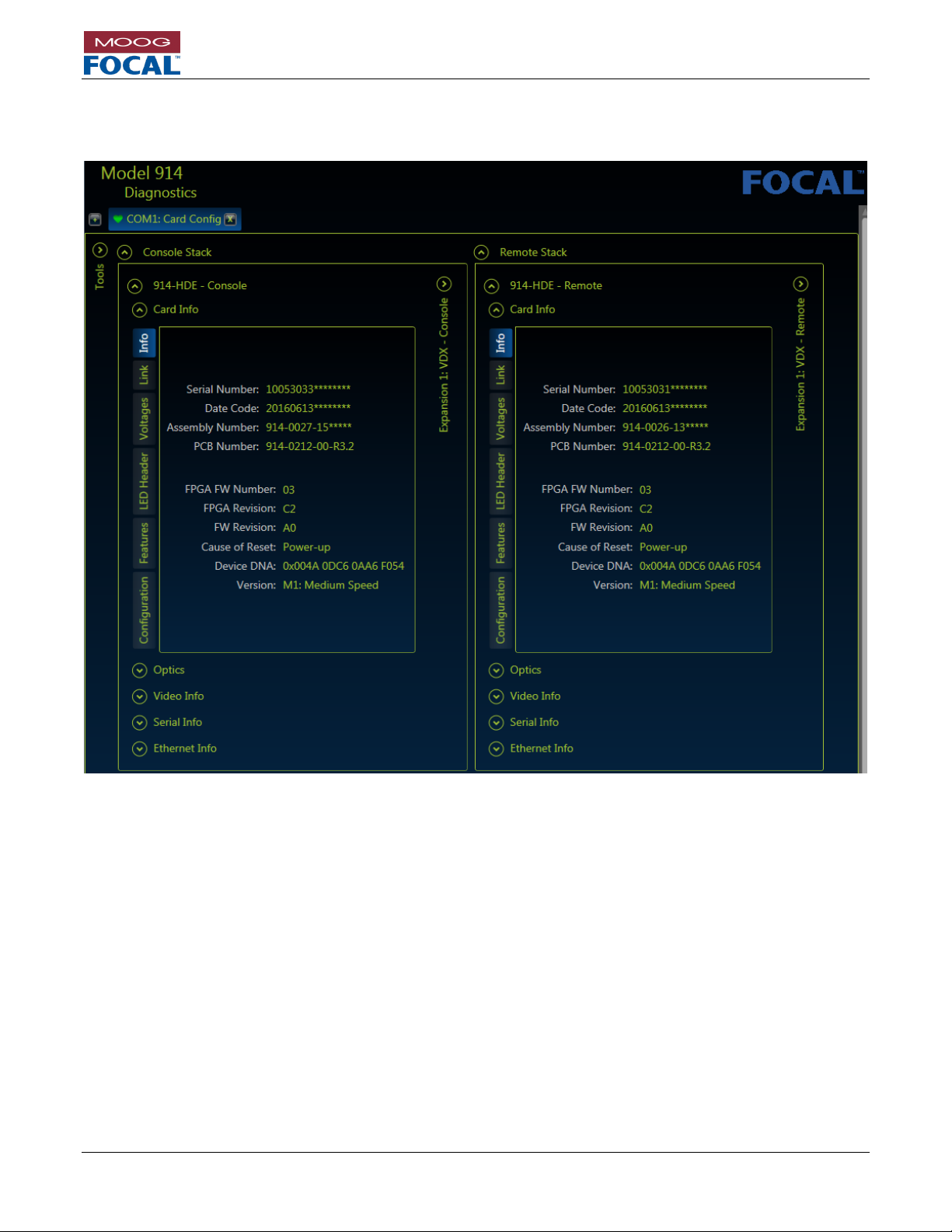

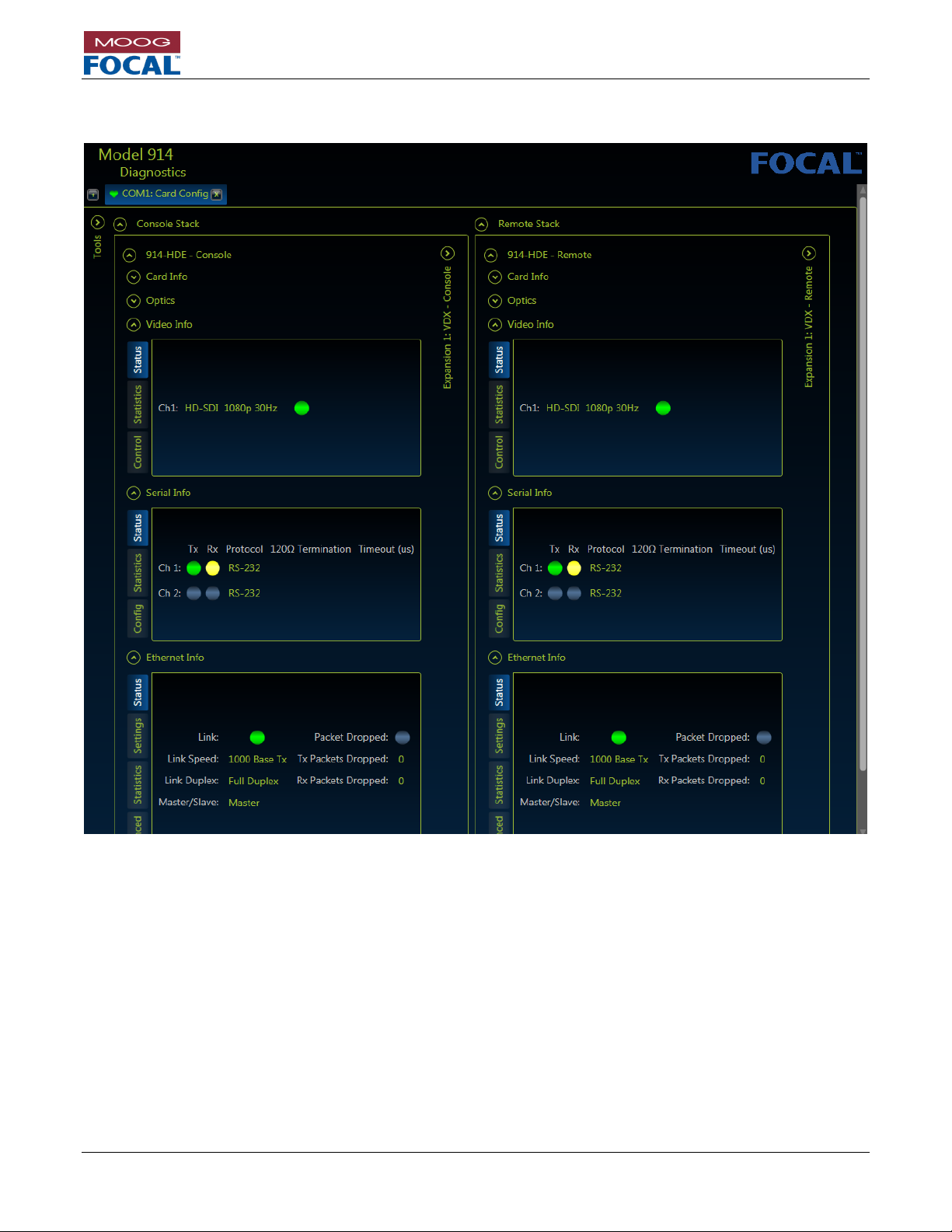

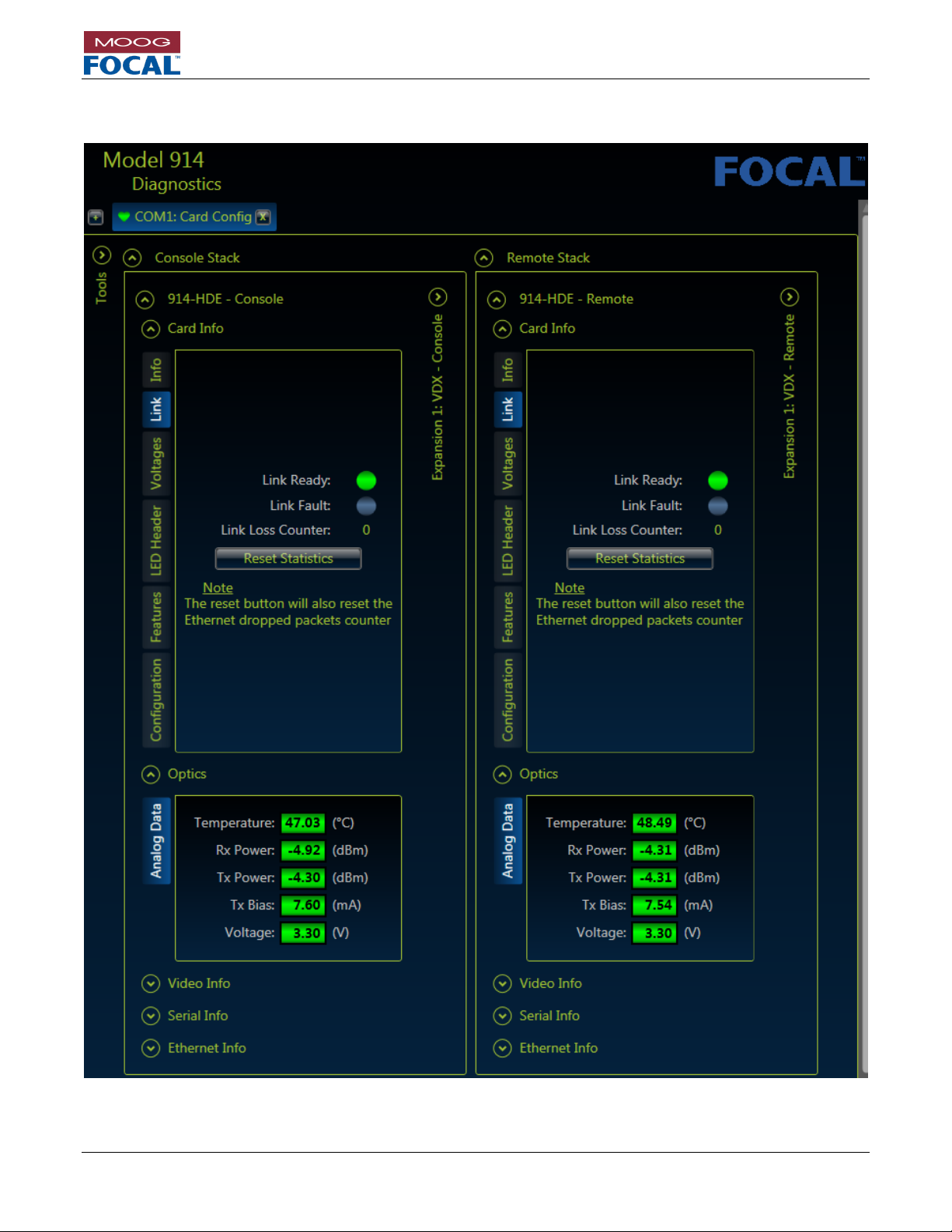

5.1.1 914-HDE Diagnostic Status Display ................................................................................................... 5-5

5.1.2 914-HDE Serial Port Configuration ..................................................................................................... 5-8

5.1.3 914-HDE Ethernet Port Configuration ................................................................................................. 5-9

6.0 914-X Series Expansion Cards .................................................................................................................. 6-1

6.1 914-VDX .................................................................................................................................................... 6-1

6.1.1 914-VDX Serial Data Ports ................................................................................................................. 6-2

6.1.2 914-VDX Composite Video Channels ................................................................................................. 6-1

6.1.3 914-VDX Power .................................................................................................................................. 6-2

6.1.4 914-VDX Diagnostic LEDs .................................................................................................................. 6-3

6.1.5 914-VDX Diagnostic LED Header ....................................................................................................... 6-4

6.1.6 914-VDX Expansion Channel Configuration ....................................................................................... 6-5

6.1.7 914-VDX Configuration ....................................................................................................................... 6-6

6.1.8 914-VDX Serial Port Configuration ..................................................................................................... 6-7

6.1.9 914-VDX Diagnostics .......................................................................................................................... 6-8

6.2 914-EX ....................................................................................................................................................... 6-9

6.2.1 914-EX Ethernet Ports ...................................................................................................................... 6-10

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page v

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

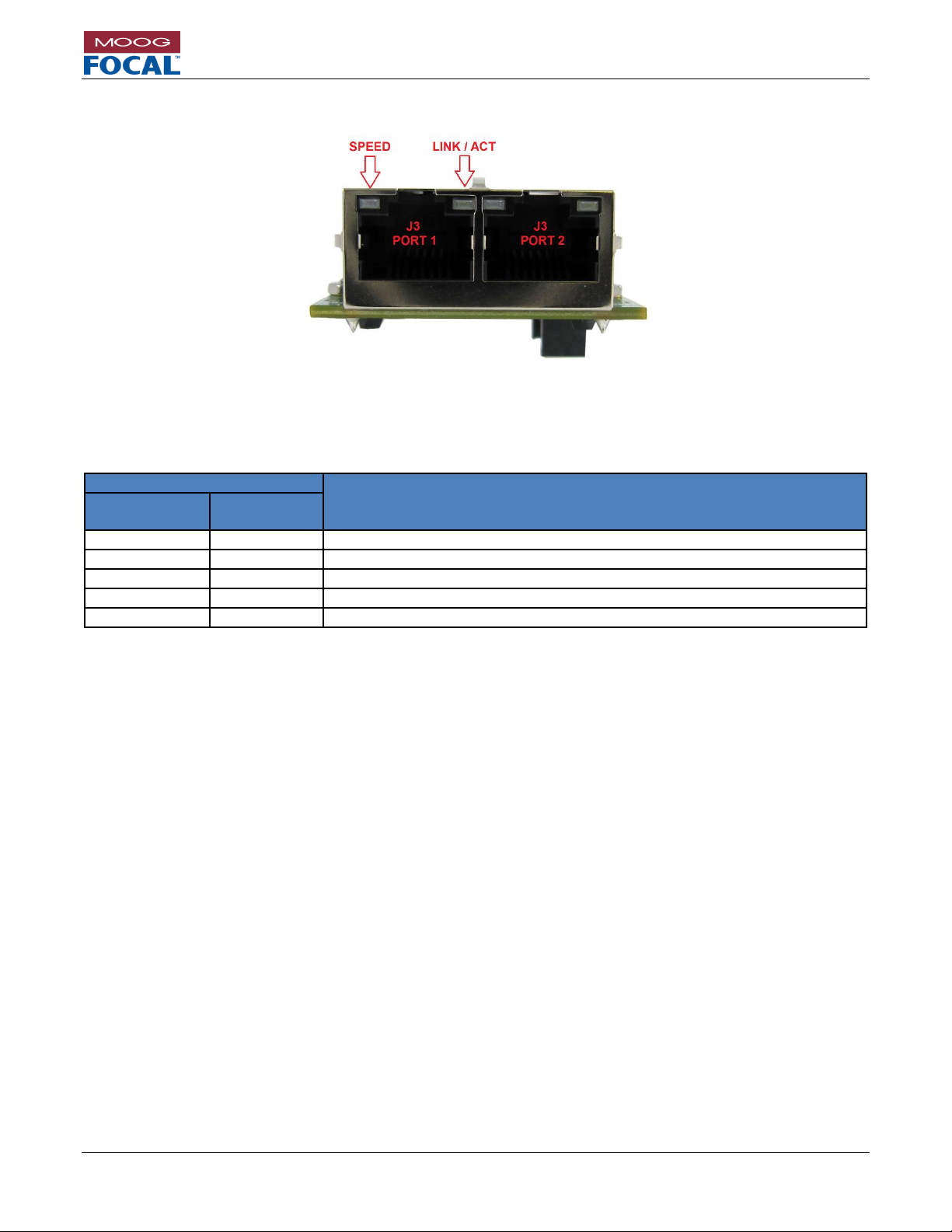

6.2.2 914-EX Ethernet RJ45 LEDs ............................................................................................................ 6-11

6.2.3 914-EX Power ................................................................................................................................... 6-12

6.2.4 914-EX Diagnostic LEDs................................................................................................................... 6-13

6.2.5 914-EX Diagnostic LED Header ....................................................................................................... 6-14

6.2.6 914-EX Expansion Channel Configuration ....................................................................................... 6-15

6.2.7 914-EX Configuration ........................................................................................................................ 6-16

6.2.8 914-EX Ethernet Port Configuration ................................................................................................. 6-17

6.2.9 914-EX Diagnostics ........................................................................................................................... 6-18

6.3 914-AX ..................................................................................................................................................... 6-19

6.3.1 914-AX AIB Module Options ............................................................................................................. 6-19

6.3.2 914-AX AIB Module Installation ........................................................................................................ 6-20

6.3.3 914-AX Interface Connector ............................................................................................................. 6-21

6.3.4 914-AX Diagnostic LEDs................................................................................................................... 6-22

6.3.5 914-AX Diagnostic LED Header ....................................................................................................... 6-23

6.3.7 914-AX Configuration and Diagnostics ............................................................................................. 6-24

6.4 914-DX (Preliminary Information) ............................................................................................................ 6-25

6.5 Custom 914-X Series .............................................................................................................................. 6-25

7.0 914 Media Converters ................................................................................................................................. 7-1

7.1 914-HDV2 .................................................................................................................................................. 7-1

7.1.1 914-HDV2 Video Connections ............................................................................................................ 7-2

7.1.2 914-HDV2 Optical Connections .......................................................................................................... 7-2

7.1.3 914-HDV2 Power ................................................................................................................................ 7-4

7.1.4 914-HDV2 Configuration ..................................................................................................................... 7-5

7.1.5 914-HDV2 Diagnostic LED Header ..................................................................................................... 7-6

7.1.6 914-HDV2 Diagnostic LEDs ................................................................................................................ 7-7

7.1.7 914-HDV2 Diagnostics ........................................................................................................................ 7-8

8.0 914 Optical Cards ........................................................................................................................................ 8-1

8.1 914-CWDM ................................................................................................................................................ 8-1

8.2 914-CWDM-4R1 ........................................................................................................................................ 8-1

8.3 914-CWDM-8R .......................................................................................................................................... 8-1

8.4 914-SPLIT .................................................................................................................................................. 8-1

8.5 914-FOS .................................................................................................................................................... 8-1

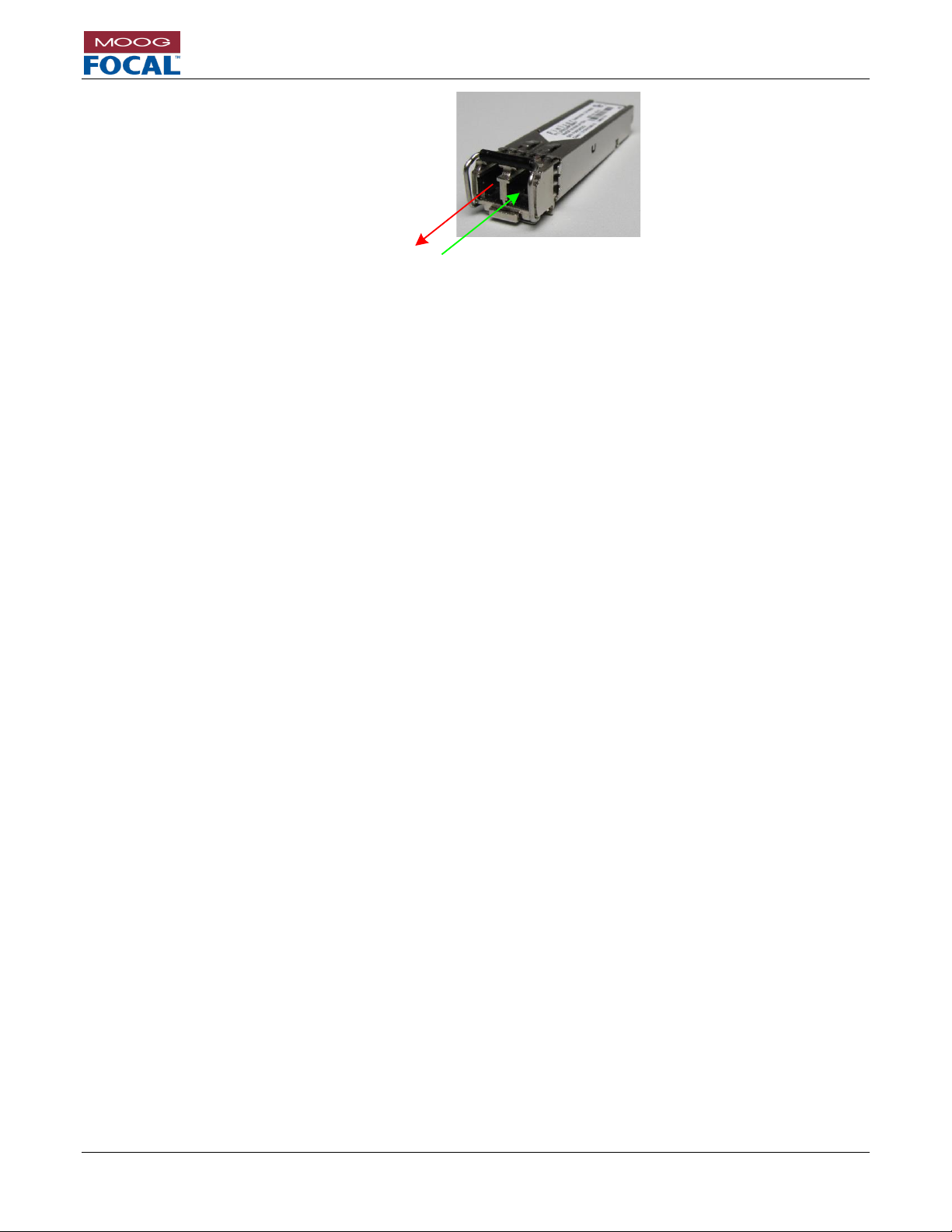

9.0 Moog Focal Optical Transceivers ............................................................................................................. 9-1

10.0 914-X Series System Installation and Operation ................................................................................... 10-1

10.1 Installation ................................................................................................................................................ 10-1

10.2 Card Stacking .......................................................................................................................................... 10-2

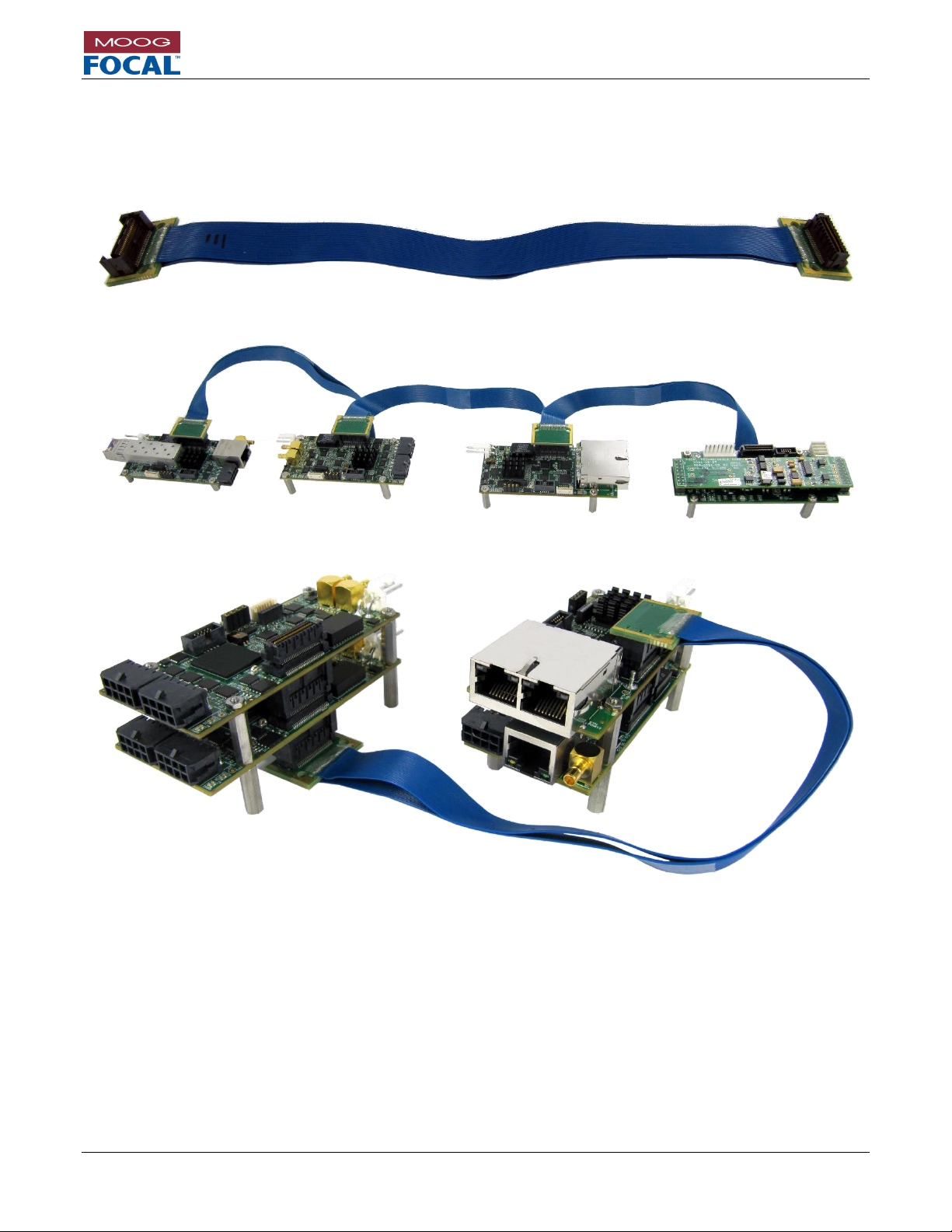

10.3 914-X Series Expansion Interface Ribbon Cables .................................................................................. 10-3

10.4 914-X Series Bench Test ......................................................................................................................... 10-4

10.5 914-X Series Electrical and Environmental Specifications ...................................................................... 10-5

10.6 914-X Series Maintenance ...................................................................................................................... 10-5

10.7 914-X Series System Product Handling .................................................................................................. 10-7

10.8 914-X Series Accessories ....................................................................................................................... 10-7

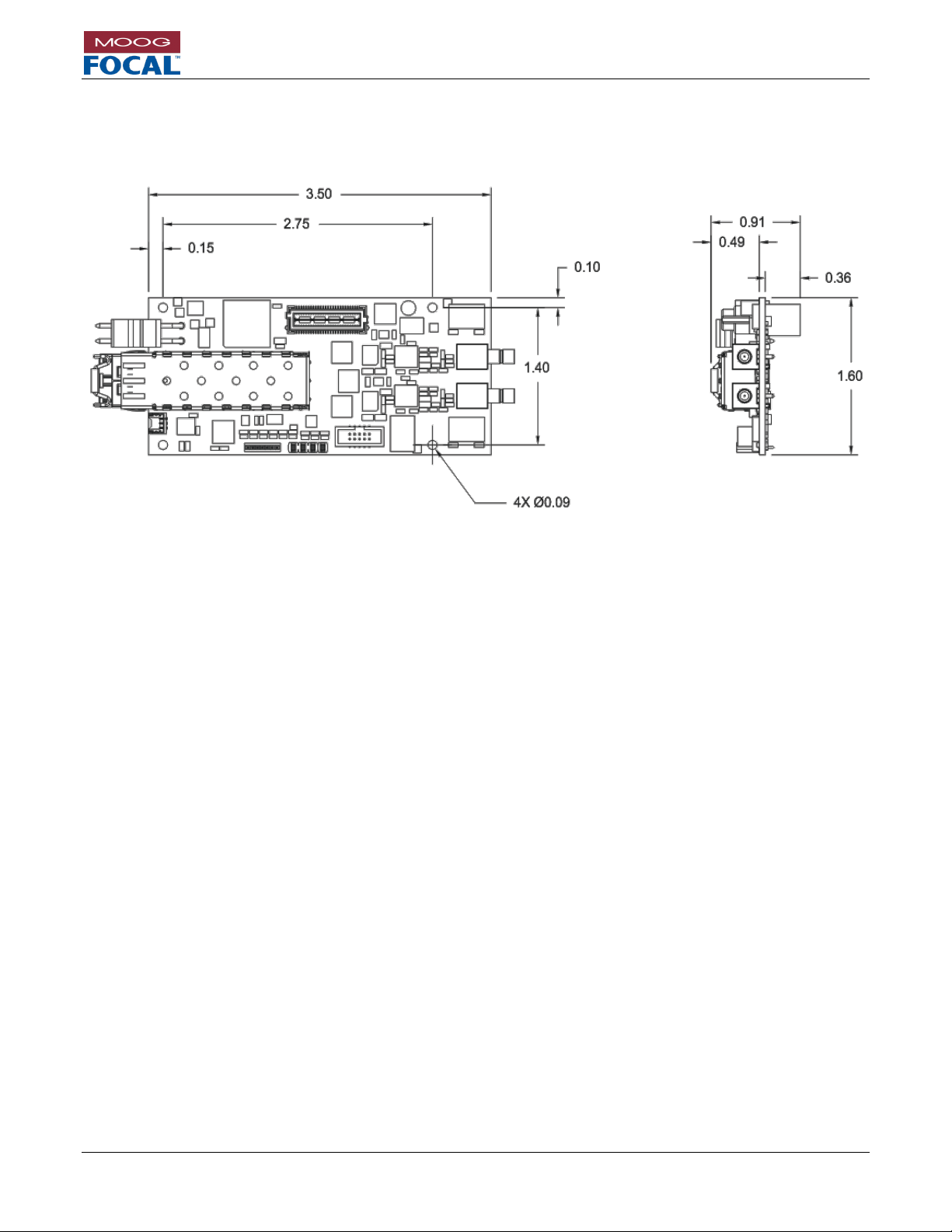

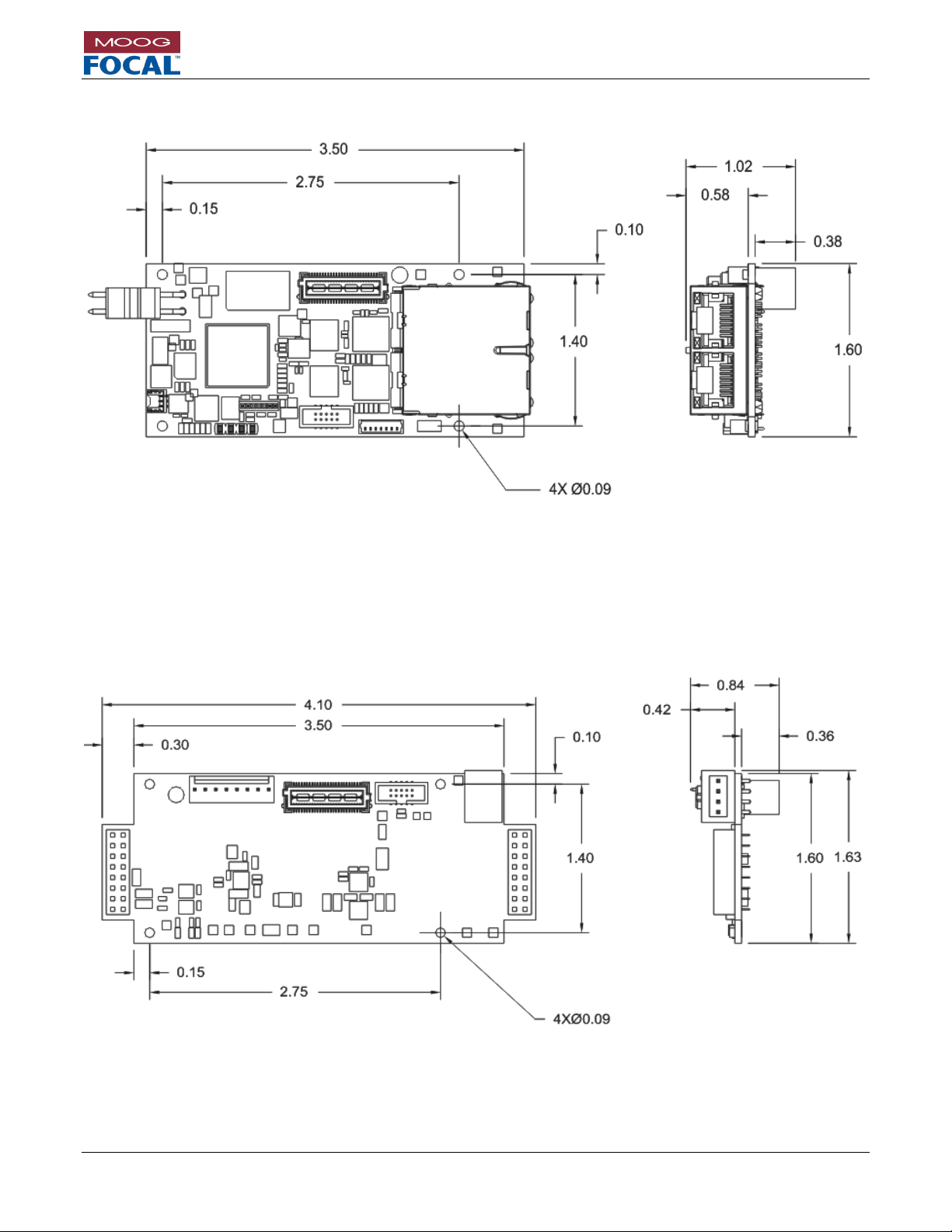

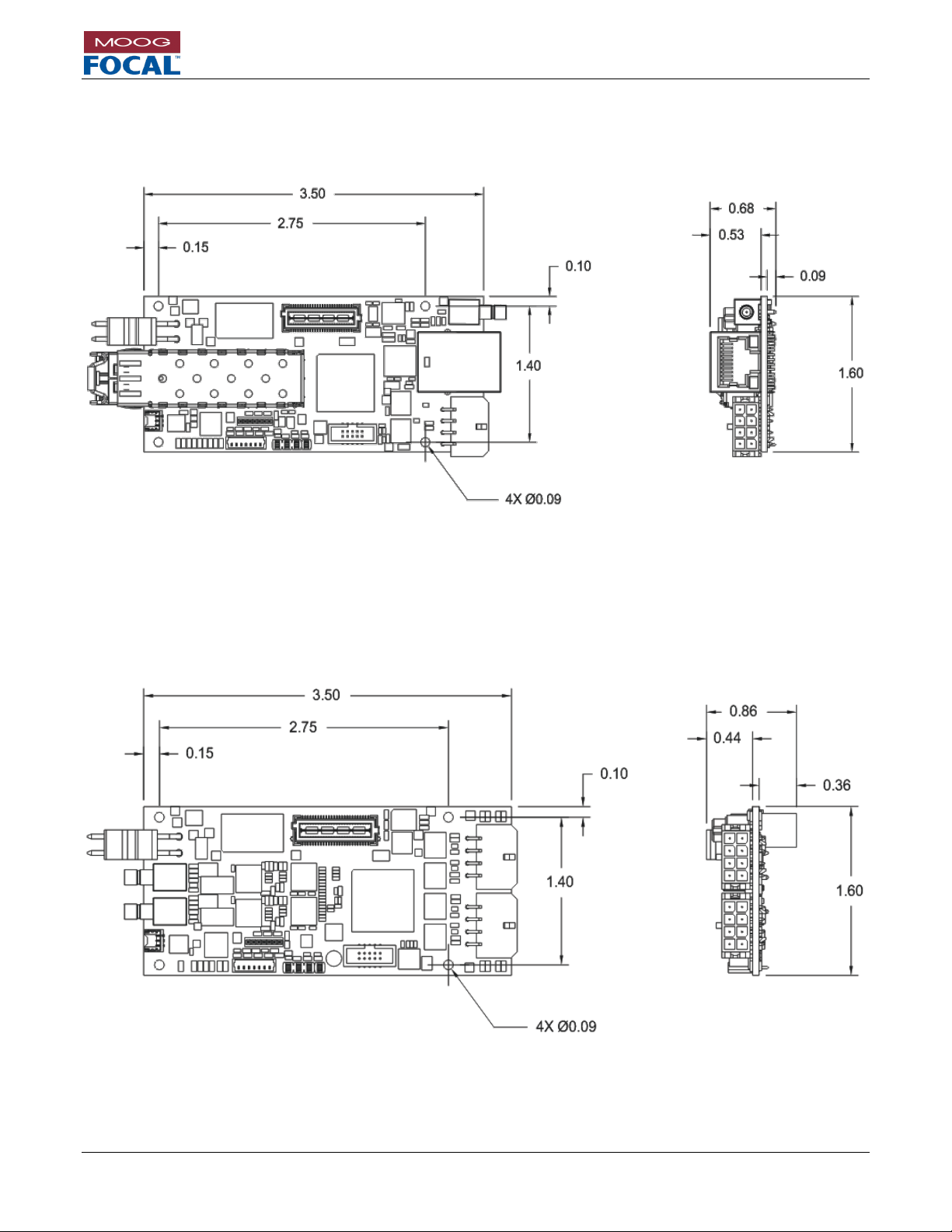

10.9 914-X Series Dimensions ........................................................................................................................ 10-8

10.9.1 914-HDE ........................................................................................................................................... 10-8

10.9.2 914-VDX ............................................................................................................................................ 10-8

10.9.3 914-EX. ............................................................................................................................................. 10-9

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page vi

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

10.9.4 914-AX. ............................................................................................................................................. 10-9

10.9.5 914-HDV2 ....................................................................................................................................... 10-10

10.10 Connector Part Numbers ....................................................................................................................... 10-11

10.11 Signal Specifications ............................................................................................................................. 10-12

11.0 Firmware Updates ..................................................................................................................................... 11-1

11.1 Firmware Compatibility ............................................................................................................................ 11-2

12.0 Feature Upgrades ..................................................................................................................................... 12-1

13.0 Part Numbers ............................................................................................................................................ 13-1

13.1 914-HDE Motherboard Part Numbers ..................................................................................................... 13-1

13.2 914-VDX Part Numbers ........................................................................................................................... 13-4

13.3 914-EX Part Numbers ............................................................................................................................. 13-5

13.4 914-AX Part Numbers ............................................................................................................................. 13-6

13.5 AIB Module Part Numbers ....................................................................................................................... 13-6

13.6 914-DX Part Numbers (Preliminary) ........................................................................................................ 13-7

13.7 914-HDV2 Part Numbers ......................................................................................................................... 13-8

13.8 914-X Series Optical Card Part Numbers ............................................................................................. 13-10

13.9 SFP Optical Transceiver Part Numbers ................................................................................................ 13-11

13.10 914-X Series High Speed Ribbon Cable Part Numbers ........................................................................ 13-13

14.0 Troubleshooting ........................................................................................................................................ 14-1

14.1 Moog Focal Technical Support Contact Information ............................................................................... 14-4

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page vii

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

LIST OF TABLES

Table 3-1: 914-X Series System Modular Card List ............................................................................................... 3-1

Table 3-2: Signal Types and Required Bandwidths ............................................................................................... 3-5

Table 3-3: Available Bandwidth by Motherboard Card Version ............................................................................. 3-5

Table 3-4: Example 914-X Series L1 System Requirements ................................................................................. 3-6

Table 3-5: Example 914-X Series L1 System Solution .......................................................................................... 3-6

Table 3-6: Example 914-X Series M1 System Requirements ................................................................................ 3-6

Table 3-7: Example 914-X Series M1 System Solution ......................................................................................... 3-6

Table 3-8: Example 914-X Series H1 System Requirements ................................................................................ 3-7

Table 3-9: Example 914-X Series H1 System Solution .......................................................................................... 3-7

Table 4-1: 914-HDE Versions ................................................................................................................................. 4-1

Table 4-2: Power Connector Pinout ....................................................................................................................... 4-2

Table 4-3: Serial Data Port Numbering .................................................................................................................. 4-4

Table 4-4: Serial Data Connector Pinout ................................................................................................................ 4-4

Table 4-5: Ethernet LEDs ....................................................................................................................................... 4-5

Table 4-6: Ethernet Latency ................................................................................................................................... 4-5

Table 4-7: 914-HDE Diagnostic LEDs .................................................................................................................... 4-6

Table 4-8: 914-HDE Diagnostic LED Header Pinout .............................................................................................. 4-7

Table 4-9: Sample Flux Budget Calculation ........................................................................................................... 4-8

Table 5-1: J8 Diagnostic Connector Pinout ............................................................................................................ 5-2

Table 5-2: Diagnostic Connector Part Numbers ..................................................................................................... 5-2

Table 6-1: Serial Data Port Numbering .................................................................................................................. 6-2

Table 6-2: Serial Data Connector Pinout ................................................................................................................ 6-2

Table 6-3: Power Connector Pinout ....................................................................................................................... 6-2

Table 6-4: 914-VDX Diagnostic LEDs .................................................................................................................... 6-3

Table 6-5: 914-VDX Diagnostic LED Header Pinout .............................................................................................. 6-4

Table 6-6: 914-VDX Expansion Channel Configuration ......................................................................................... 6-5

Table 6-7: Ethernet Latency ................................................................................................................................. 6-10

Table 6-8: Ethernet LEDs ..................................................................................................................................... 6-11

Table 6-9: Power Connector Pinout ..................................................................................................................... 6-12

Table 6-10: 914-EX Diagnostic LEDs ................................................................................................................... 6-13

Table 6-11: 914-EX Diagnostic LED Header Pinout ............................................................................................ 6-14

Table 6-12: 914-EX Expansion Channel Configuration ........................................................................................ 6-15

Table 6-13: AIB Module Options .......................................................................................................................... 6-19

Table 6-14: 914-AX Interface Connector Pinouts ................................................................................................. 6-21

Table 6-15: 914-AX WAGO Connector Mating Plug ............................................................................................ 6-21

Table 6-16: 914-AX Diagnostic LEDs ................................................................................................................... 6-22

Table 6-17: 914-AX Diagnostic LED Header Pinout ............................................................................................ 6-23

Table 7-1: Power Connector Pinout ....................................................................................................................... 7-4

Table 7-2: SW1 - SFP Transmitter Disable Non-MSA Mode ................................................................................. 7-5

Table 7-3: SW3 - SFP Transmitter Disable MSA Mode ......................................................................................... 7-5

Table 7-4: SW4 and SW5 Factory Programming Mode ......................................................................................... 7-5

Table 7-5: SW7 - DIAGNOSTICS IN MSA OR NON-MSA ..................................................................................... 7-6

Table 7-6: SW2 (Channel 1) and SW6 (Channel 2): Input EQ or Output Cabled Driver Settings ......................... 7-6

Table 7-7: 914-HDV2 Diagnostic LED Header J7 Pinout ....................................................................................... 7-6

Table 7-8: 914-HDV2 Diagnostic LEDs .................................................................................................................. 7-7

Table 9-1: SFP Optical Transceiver Options .......................................................................................................... 9-1

Table 10-1: Electrical Specification ...................................................................................................................... 10-5

Table 10-2: Environmental Specification .............................................................................................................. 10-5

Table 10-3: Connector Part Numbers ................................................................................................................. 10-11

Table 10-4: Signal Specifications ....................................................................................................................... 10-12

Table 11-1: Firmware Revisions ........................................................................................................................... 11-2

Table 13-1: 914-HDE Part Numbers .................................................................................................................... 13-1

Table 13-2: 914-HDE Included Accessories ........................................................................................................ 13-1

Table 13-3: 914-HDE CWDM Options.................................................................................................................. 13-2

Table 13-4: 914-HDE Factory Versions................................................................................................................ 13-2

Table 13-5: 914-HDE Factory Configurations ...................................................................................................... 13-3

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page viii

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Table 13-6: 914-VDX Part Numbers ..................................................................................................................... 13-4

Table 13-7: 914-VDX Included Accessories ......................................................................................................... 13-4

Table 13-8: 914-VDX Factory Configuration Options ........................................................................................... 13-4

Table 13-9: 914-EX Part Numbers ....................................................................................................................... 13-5

Table 13-10: 914-EX Included Accessories ......................................................................................................... 13-5

Table 13-11: 914-EX Factory Configuration Options ........................................................................................... 13-5

Table 13-12: 914-AX Part Numbers ..................................................................................................................... 13-6

Table 13-13: 914-AX Included Accessories ......................................................................................................... 13-6

Table 13-14: AIB Module Part Numbers............................................................................................................... 13-6

Table 13-15: 914-DX Part Numbers ..................................................................................................................... 13-7

Table 13-16: 914-DX Included Accessories ......................................................................................................... 13-7

Table 13-17: 914-DX Factory Configuration Options ........................................................................................... 13-7

Table 13-18: 914-HDV2 Part Numbers ................................................................................................................ 13-8

Table 13-19: 914-HDV2 Included Accessories .................................................................................................... 13-9

Table 13-20: 914-HDV2 CWDM Options ............................................................................................................. 13-9

Table 13-21: 914 Optical Card Part Numbers .................................................................................................... 13-10

Table 13-22: 914 Standard Optical SFP Part Numbers ..................................................................................... 13-11

Table 13-23: 914 Pressure Tolerant Optical SFP Part Numbers ....................................................................... 13-12

Table 13-24: 914-X Series High Speed Ribbon Cable Part Numbers ............................................................... 13-13

Table 13-25: 914-X Series High Speed Ribbon Cable Included Accessories.................................................... 13-13

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page ix

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

LIST OF FIGURES

Figure 1-1: 914-X Series HDE Motherboard .......................................................................................................... 1-1

Figure 1-2: 914-X Series System with Stacked Expansion Cards ......................................................................... 1-1

Figure 1-3: 914-X Series System with Tethered Expansion Cards ........................................................................ 1-1

Figure 3-1: 914-HDE Motherboard ......................................................................................................................... 3-2

Figure 3-2: 914-X Series System with Expansion Cards ....................................................................................... 3-3

Figure 3-3: 914 4-CH CWDM Card ........................................................................................................................ 3-3

Figure 3-4: 914-X Series System with 914-HDV2 and CWDM .............................................................................. 3-4

Figure 4-1: 914-HDE Top View .............................................................................................................................. 4-1

Figure 4-2: Power Input Connector Location .......................................................................................................... 4-2

Figure 4-3: Mini SMB Jack - Amphenol P/N 142146-75 ......................................................................................... 4-3

Figure 4-4: Video Channel 1 Connector Location .................................................................................................. 4-3

Figure 4-5: Molex Micro-fit P/N 43045-0800 .......................................................................................................... 4-4

Figure 4-6: Serial Ports 1 and 2 .............................................................................................................................. 4-4

Figure 4-7: Ethernet Port ........................................................................................................................................ 4-5

Figure 4-8: Diagnostic LEDs ................................................................................................................................... 4-6

Figure 4-9: External LED Circuit Diagram .............................................................................................................. 4-7

Figure 4-10: Diagnostic LED Header...................................................................................................................... 4-7

Figure 5-1: Basic Diagnostics Setup ...................................................................................................................... 5-1

Figure 5-2: 914-HDE Diagnostic Interface Cable ................................................................................................... 5-1

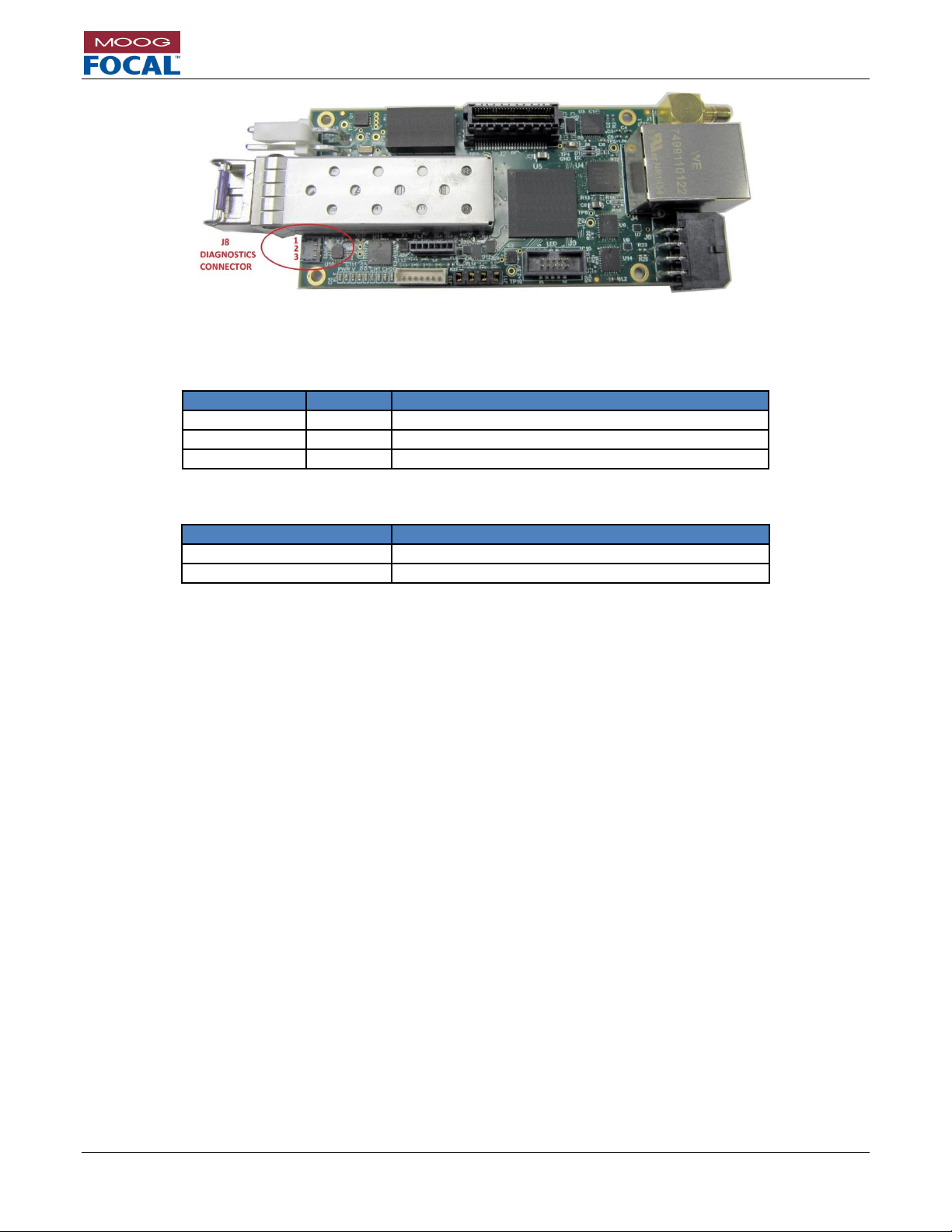

Figure 5-3: 914-HDE Diagnostic Connector ........................................................................................................... 5-2

Figure 5-4: Diagnostic GUI Start Screen ................................................................................................................ 5-3

Figure 5-5: 914-HDE Card Info ............................................................................................................................... 5-4

Figure 5-6: 914-HDE Voltage and Junction Temperature Information ................................................................... 5-5

Figure 5-7: 914-HDE Optical Link Status ............................................................................................................... 5-6

Figure 5-8: 914-HDE Signal Status ........................................................................................................................ 5-7

Figure 5-9: 914-HDE Serial Port Configuration ...................................................................................................... 5-8

Figure 5-10: 914-HDE Ethernet Settings ................................................................................................................ 5-9

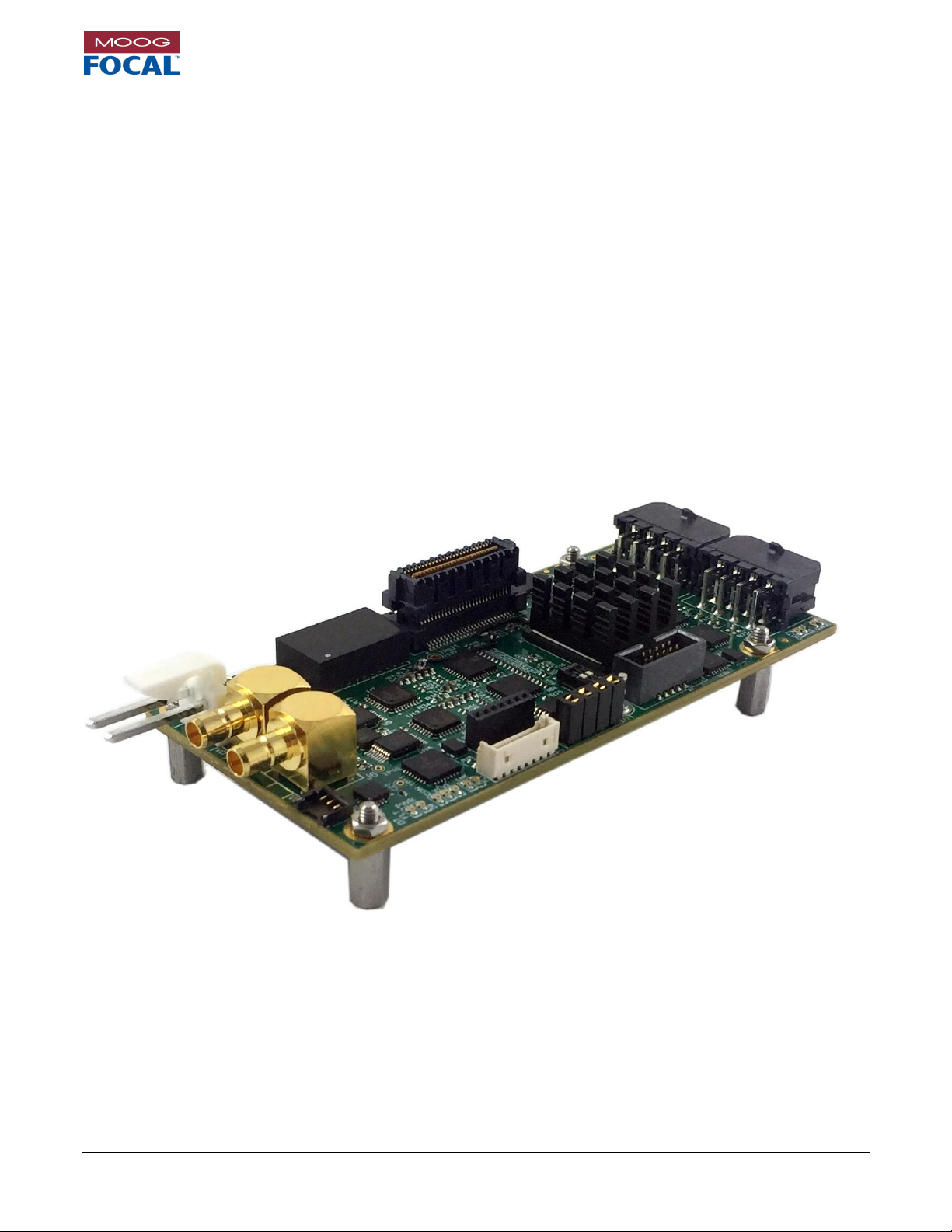

Figure 6-1: 914-VDX ............................................................................................................................................... 6-1

Figure 6-2: Molex Micro-fit ...................................................................................................................................... 6-2

Figure 6-3: VDX Serial Ports .................................................................................................................................. 6-2

Figure 6-4: Mini SMB Jack - Amphenol P/N 142146-75 ......................................................................................... 6-1

Figure 6-5: Video Connector Locations .................................................................................................................. 6-1

Figure 6-6: Power Input Connector Location .......................................................................................................... 6-2

Figure 6-7: VDX Diagnostic LEDs .......................................................................................................................... 6-3

Figure 6-8: Diagnostic LED Header ........................................................................................................................ 6-4

Figure 6-9: Diagnostic LED Header ........................................................................................................................ 6-5

Figure 6-10: SW1 Position and Orientation ............................................................................................................ 6-5

Figure 6-11: 914-VDX Video Configuration ............................................................................................................ 6-6

Figure 6-12: 914-VDX Serial Port Configuration .................................................................................................... 6-7

Figure 6-13: 914-VDX Voltages and Temperature ................................................................................................. 6-8

Figure 6-14: 914-EX ............................................................................................................................................... 6-9

Figure 6-15: Ethernet Ports .................................................................................................................................. 6-11

Figure 6-16: Factory Power Input Connector Location ......................................................................................... 6-12

Figure 6-17: 914-EX Diagnostic LEDs .................................................................................................................. 6-13

Figure 6-18: Diagnostic LED Header.................................................................................................................... 6-14

Figure 6-19: Diagnostic LED Header.................................................................................................................... 6-15

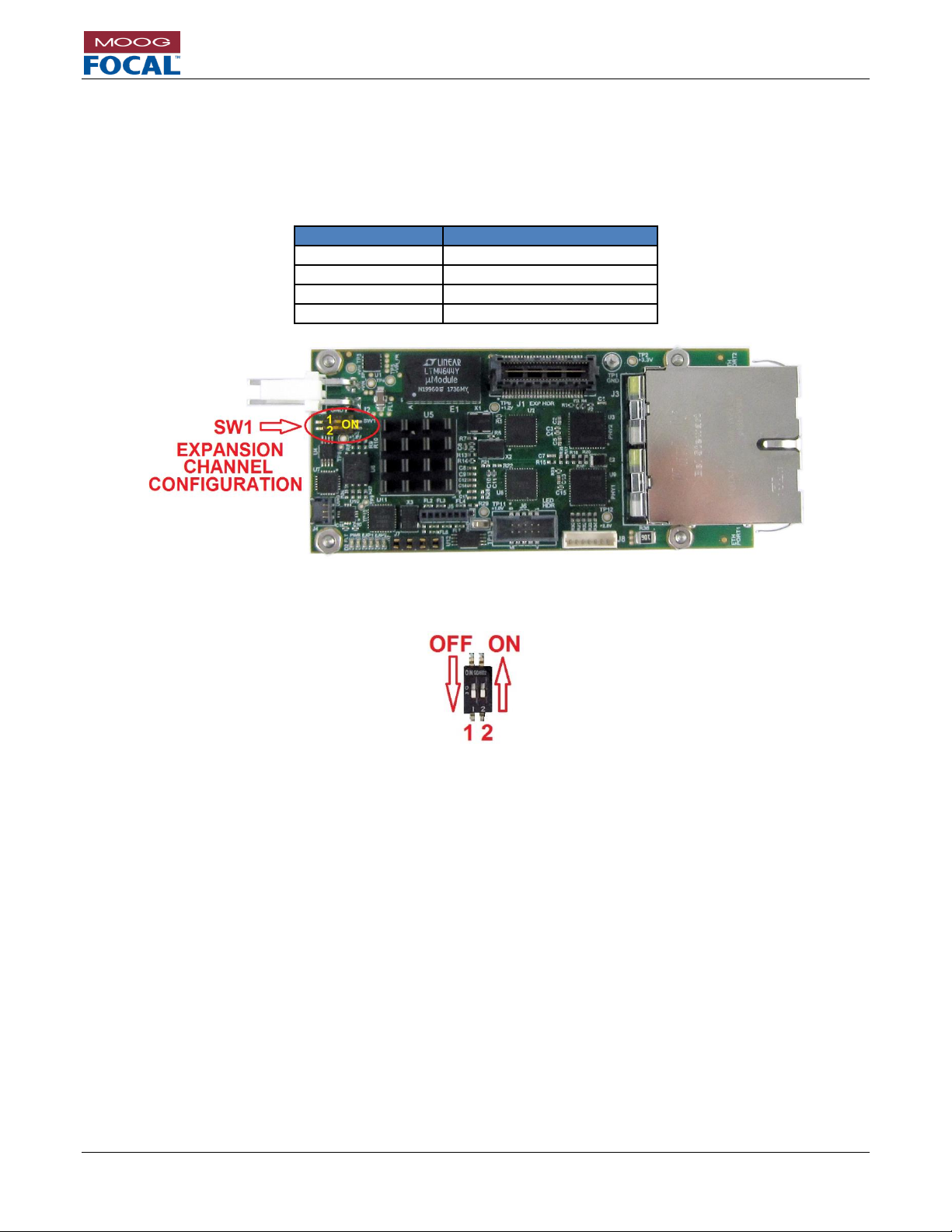

Figure 6-20: SW1 Position and Orientation .......................................................................................................... 6-15

Figure 6-21: 914-EX Location Configuration ........................................................................................................ 6-16

Figure 6-22: 914-EX Ethernet Port Configuration ................................................................................................ 6-17

Figure 6-23: 914-EX Ethernet Port Link Status .................................................................................................... 6-17

Figure 6-24: 914-EX Voltages and Temperature ................................................................................................. 6-18

Figure 6-25: 914-AX ............................................................................................................................................. 6-19

Figure 6-26: 914-AX with AIB-232 Module (example) .......................................................................................... 6-19

Figure 6-27: AIB Module Orientation .................................................................................................................... 6-20

Figure 6-28: 914-AX WAGO Connector ............................................................................................................... 6-21

Figure 6-29: 914-AX Diagnostic LEDs .................................................................................................................. 6-22

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page x

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Figure 6-30: 914-AX Diagnostic LED Header ...................................................................................................... 6-23

Figure 6-31: 914-AX Data Activity ........................................................................................................................ 6-24

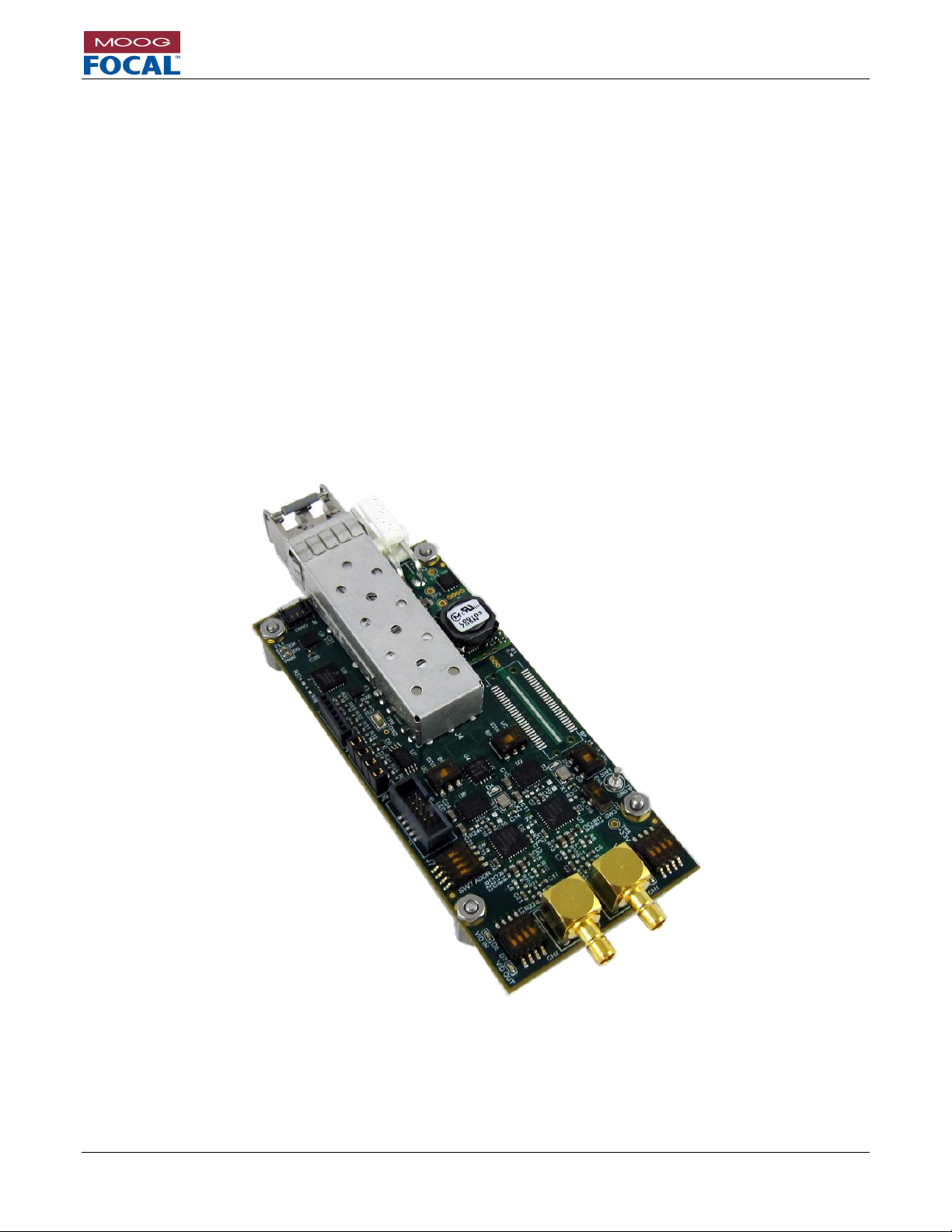

Figure 7-1: 914-HDV2............................................................................................................................................. 7-1

Figure 7-2: 914-HDV2 Interface Locations and Pin Numbering ............................................................................. 7-2

Figure 7-3: Mini SMB Jack - Amphenol P/N 142146-75 ......................................................................................... 7-2

Figure 7-4: Video I/O Locations .............................................................................................................................. 7-2

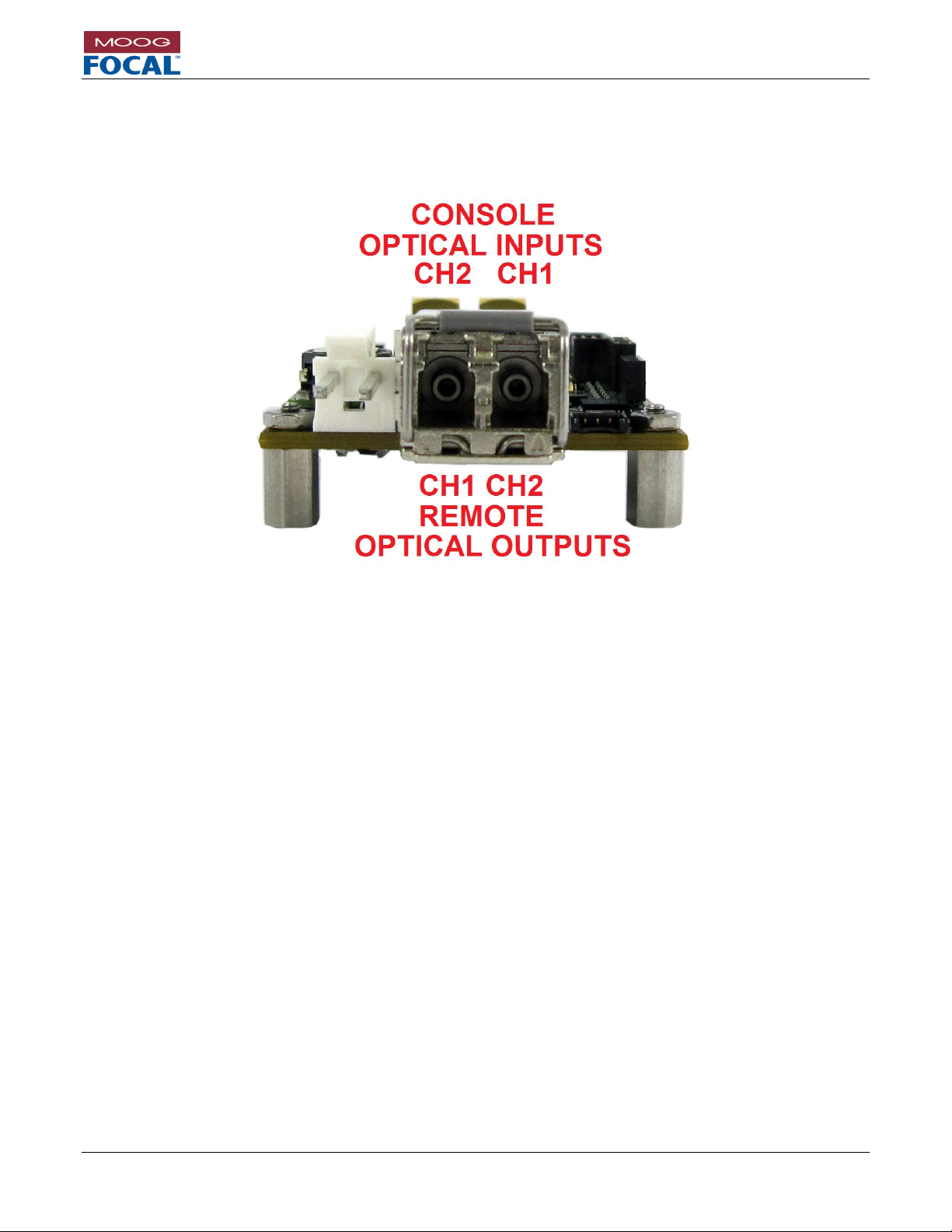

Figure 7-5: 914-HDV2 Optical Interface ................................................................................................................. 7-3

Figure 7-6: Power Input Connector Location .......................................................................................................... 7-4

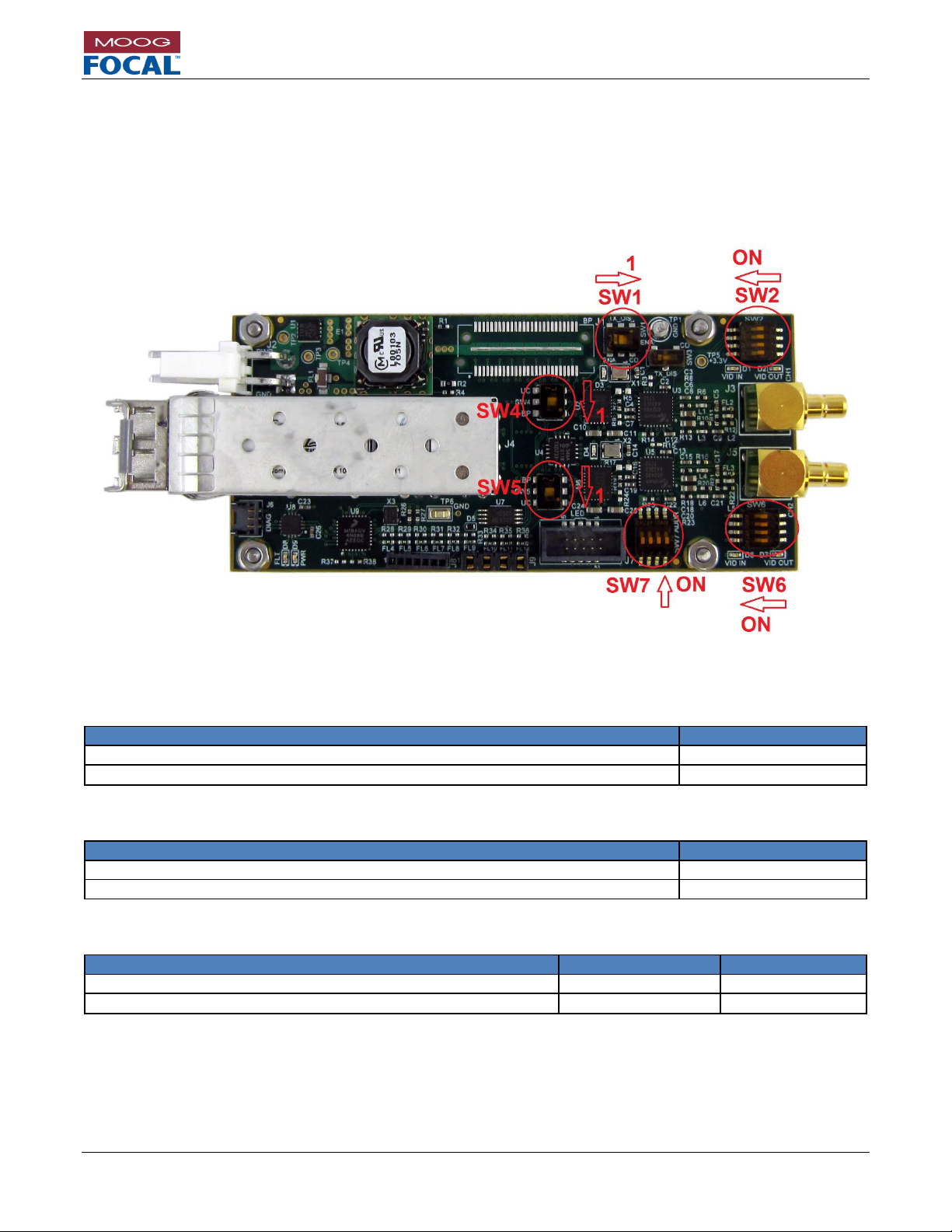

Figure 7-7: 914-HDV2 Configuration Dip Switches ................................................................................................ 7-5

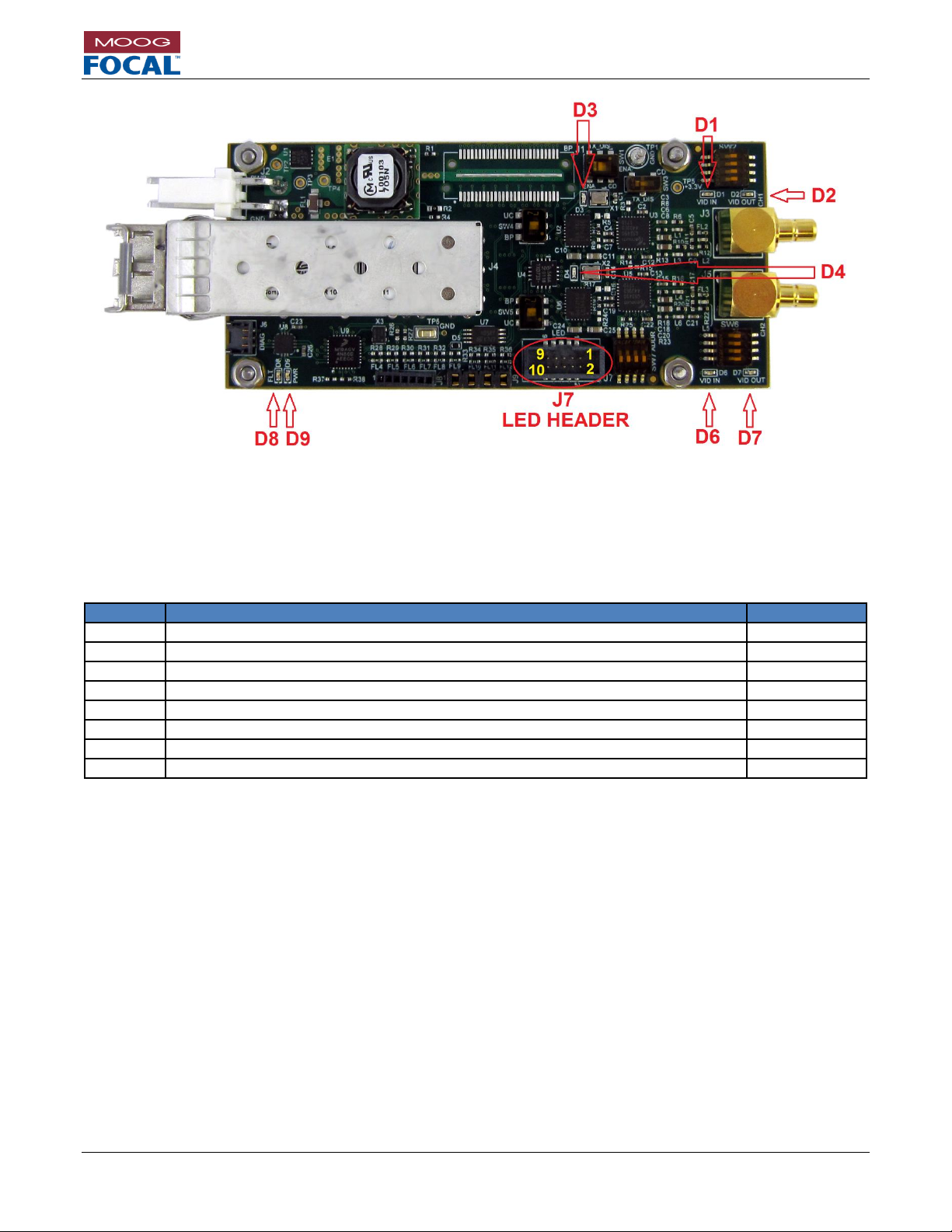

Figure 7-8: 914-HDV2 Diagnostic LEDs and LED Header ..................................................................................... 7-7

Figure 7-9: 914-HDV2 Optical Diagnostics............................................................................................................. 7-8

Figure 7-10: 914-HDV2 PCBA Diagnostics ............................................................................................................ 7-9

Figure 7-11: 914-HDV2 Video Diagnostics ............................................................................................................ 7-9

Figure 7-12: 914-HDV2 LED Diagnostics ............................................................................................................... 7-9

Figure 10-1: 914-HDE Dimensions ....................................................................................................................... 10-1

Figure 10-2: 914-X Series System Stack ............................................................................................................. 10-2

Figure 10-3: 914-X Series Expansion Interface High Speed Ribbon Cable......................................................... 10-3

Figure 10-4: 914-X Series Linear (inline) Layout .................................................................................................. 10-3

Figure 10-5: 914-X Series System Dual Stack (side-to-side) Layout ................................................................... 10-3

Figure 10-6: LC connector .................................................................................................................................... 10-6

Figure 10-7: ST connector .................................................................................................................................... 10-6

Figure 10-8: SFP Transceiver (Dual LC) .............................................................................................................. 10-7

Figure 10-9: 914-HDE Dimensions ....................................................................................................................... 10-8

Figure 10-10: 914-VDX Dimensions ..................................................................................................................... 10-8

Figure 10-11: 914-EX Dimensions ....................................................................................................................... 10-9

Figure 10-12: 914-AX Dimensions ....................................................................................................................... 10-9

Figure 10-13: 914-HDV2 Dimensions................................................................................................................. 10-10

Figure 11-1: Firmware Update GUI ...................................................................................................................... 11-1

Figure 12-1: Feature Update Via Configuration Tool ........................................................................................... 12-1

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page xi

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

ACRONYMS AND ABBREVIATIONS

The list below contains the acronyms and abbreviations used in this user's guide.

ACRONYM / ABBREVIATION

DESCRIPTION

AIB

Adaptable Interface Board

AIB EXpansion Adaptor Card

3 Gbps HD Video

BER

Bit Error Rate

CWDM

Coarse Wavelength Division Multiplexer / Multiplexing

Serial Data EXpansion

EIA

Electronic Industries Association

ESD

Electrostatic Discharge

Ethernet EXpansion

FORJ

Fiber Optic Rotary Joint

FPGA

Field Programmable Gate Array

GBE

Gigabit Ethernet

Gbps

Gigabits Per Second

High Definition

High Speed

HDE

HD-Video, Serial Data, Ethernet

HDV2

Dual (2) HD Video

I/O

Input/output

kbps

Kilobits Per Second

LC/PC

Lucent Connector / Physical Contact

LED

Light Emitting Diode

Low Speed

Mbps

Megabits Per Second

MDI/MDIX

Automatic medium-dependent interface crossover

Medium Speed

P/N

Part Number

PCB

Printed Circuit Board

PCBA

Printed Circuit Board Assembly

PPS

Pulse Per Second

Standard Definition

SDI

Serial Digital Interface

SFP

Small Form-factor Pluggable (Optical Transceiver)

SMT

Surface Mount Technology

TDM

Time Division Multiplexer / Multiplexing

TTL

Transistor-Transistor Logic

VDX

Composite Video, Serial Data, EXpansion

VOAT

Variable Optical Attenuator

WDM

Wavelength Division Multiplexer / Multiplexing

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 1-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

1.0 Introduction

The Focal Model 914-X Series Modular Multiplexer System is a compact and rugged video, data and Ethernet multiplexer and fiber optic transmission system designed for industrial environments and other applications requiring the transmission of HD video, serial data and Ethernet over an optical link. The 914-X Series has been optimized for low power operation and delivery of low latency, uncompressed video and Ethernet data.

A series of expansion cards are available, allowing additional composite video channels, serial data channels, Ethernet ports, as well as many specialty signals such as TTL, hydrophone, CAN bus and custom sonars to be added to any 914-X Series system without requiring extra fibers or wavelengths.

The rich feature set and vast signal options are packaged in an incredibly small form factor. The credit card size, along with the geometry and location of the connectors allow the 914-X Series multiplexers to be installed in very small enclosures. Multiple card systems can be configured either as stacks, or via flexible high speed ribbon cable providing even further installation flexibility.

This manual provides 914-X Series system users with detailed information relevant to the design, configuration, installation, and operation of the 914-X Series system. This manual and the appropriate

reference documents should be reviewed prior to installation or configuration of the multiplexer system.

The figures below show different configurations and stacking options of the 914-X series. On the left, the 914-HDE motherboard is shown stand-alone. On the right, the 914-HDE and expansion cards (914-EX, VDX and AX-232) are shown stacked together and held into place via standoffs. At the bottom, a similar stack is shown but with a high-speed ribbon cable to accommodate applications such as bottles or low profile enclosures.

Figure 1-1: 914-X Series HDE Motherboard

Figure 1-2: 914-X Series System with Stacked

Expansion Cards

Figure 1-3: 914-X Series System with Tethered Expansion Cards

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 1-2

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

1.1 Model 914-X Series Benefits

 Modular Design, configured to custom requirements  Very high bandwidth optical options replace many lower speed options.  High budget optics allow for extended link distances  Extremely small size will fit in cost effective enclosure systems  Upgrade and add features or cards when required.  Low cost of spare parts  Full diagnostics provided with an advanced GUI included with every system  Software configuration of features and settings  Software configurable multi-protocol serial ports.  Non-switched Ethernet ports guaranteeing throughput without collisions in real time  Full bandwidth real time video, no compression, no compromises  Latency for all signals is measured in micro-seconds  Simple integration of complex systems with user friendly instructions, Moog Focal direct support when

required

 Custom OEM options available

1.2 System Accessories and Options

Included:

 Mounting Hardware  Pigtailed diagnostic (RS232) plug and wires  Pigtailed power plug and cable for the 914-HDE Motherboard.  Modules individually packaged with configuration drawings  914-0401-00 Diagnostic GUI – downloadable from www.moog.com/focal/914-x-series  Default configuration settings  Moog Focal direct support

Optional:

 Fiber jumpers and attenuators  Mating connectors and plugs  Thermal gap pad material  Extended factory testing  Factory custom configuration  Factory multi-card system integration, build and testing  Enclosure options:

o Pressure bottles o 19” racks with diagnostic LEDs o Custom enclosures for OEM

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 1-3

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

1.3 Safety Precautions

The following safety precautions should be observed before using this product.

This product is intended for use by qualified personnel who recognize shock hazards and are familiar with safety precautions required to avoid possible injury. Do not make module connections unless qualified to do so.

Before connecting this product to the power source, verify that the output voltage is within the specifications of the product’s power supply.

Do not attempt to modify or repair any circuit unless recommended by the manufacturer.

Protect the power cable from being walked on or pinched by items placed or against them. Always unplug the power cable at the plug, do not pull on the cord itself. Do not block any ventilation openings.

Do not look into the end of a fiber when it is plugged into a transceiver or active fiber, especially when using a magnifying instrument, such as a fiber microscope.

Handle optical fiber with extreme care. Glass fiber is subject to breakage if mishandled.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 2-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

2.0 Setup Check List

The purpose of this section is to provide a check list that can be followed to setup 914-X Series systems both physically and through electronic configuration. Details regarding each step can be found in this manual via the referenced section links.

1. Expansion cards: a. Set dip switch to appropriate setting, refer to Section 6.1.6.

i. The (bottom) card closest to the 914-HDE should be set to OFF, OFF (Expansion 1).

2. Mounting cards: a. 5/32” (4 mm) minimum clearance under the 914-HDE. (included standoff P/N EL-M0260) b. 21/32” (16.67 mm) nominal standoffs of 2-56 type between cards. (included standoff P/N EL-M0247) c. All 914-X Series cards provide electrically isolated conductive cooling via the mounting holes. d. Thermal gap material (optional P/N 914-0118-00) to provide conductive cooling to an enclosure should be placed under

the 914-HDE.

e. Stacking order is 914-HDE on bottom, then medium speed (MS) expansion cards directly above, ending with low speed

(LS) expansion cards on top. Media Converters and optical cards do not require electrical connection via the expansion connector, they can be the furthest away from the 914-HDE.

f. Refer to Section 10.1.

3. Connect console to remote via LC to LC fiber jumper. For short links, attenuation is required. 10 dB is the suggested minimum attenuation in the fiber link. For flux budget calculations refer to Section 4.8.1.

4. Connect the diagnostic port of the console 914-HDE to a computer using either the local COM port or a serial-to-USB converter. Install and run the 914 Diagnostic GUI. Refer to Section 5.0.

5. Connect the 914-HDE to a DC power supply with 5 V to 12 V power. Refer to Section 4.2. All power LEDs on each card should be lit green. Verify all system voltages in the 914 Diagnostic GUI. Refer to Section 5.0.

6. Configure all cards (except 914-AX) via Diagnostic GUI: a. Configure console HDE

i. Serial protocol. Refer to Section 5.1.2.

ii. Ethernet auto-negotiate settings. Refer to Section 0.

b. Configure console VDX

i. Set as console. Refer to Section 6.1.7.

ii. Set video direction to input. Refer to Section 6.1.7.

iii. Set serial protocol. Refer to Section 6.1.8.

c. Configure console EX

i. Set as console. Refer to Section 6.1.7.

ii. Set Ethernet speed and negotiation. Refer to Section 6.1.7.

d. Configure remote HDE

i. Serial protocol. Refer to Section 5.1.2.

ii. Ethernet auto-negotiate settings. Refer to Section 0.

e. Configure remote VDX

i. Set as remote. Refer to Section 6.1.7.

ii. Set video direction to output. Refer to Section 6.1.7.

iii. Set serial protocol. Refer to Section 6.1.8.

f. Configure remote EX

i. Set as remote. Refer to Section 6.1.7.

ii. Set Ethernet speed and negotiation. Refer to Section 6.1.7.

g. Turn the power off, wait 10 seconds and power up again. Confirm the settings are correct using the 914 Diagnostic

GUI.

7. Connect video, Ethernet and serial as required. Verify status and activity in the 914 Diagnostic GUI. a. HD Video – Refer to Section 4.3. b. Ethernet – Refer to Section 4.5. c. Serial– Refer to Section 4.4. d. Composite video – Refer to Section 6.1.2.

8. Perform bench level testing to verify links. Refer to troubleshooting Section 14.0.

9. Install cards in system, ensure good thermal contact via mounting hardware, thermal gap pads, and heat spreaders. Refer to Section 10.0.

10. Verify and monitor the FPGA and SFP temperatures and voltages during operation using the 914 Diagnostic GUI. All values should remain in green.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 3-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

3.0 System Overview

3.1 914-X Series System Card Options

Users can combine the modular 914-X Series cards into complex fiber optic telemetry systems. 914-X Series cards are sorted into 4 basic categories:

1. Motherboards: Have optical transceivers and multiplex various different data types into a single data

stream over fiber. This is the foundation to any multiplexing system, they provide expansion channels for expansion card integration.

a. Card(s): 914-HDE.

2. Expansion Cards: Add more signal interfaces to the motherboard. They draw power from the

motherboard and do not require their own optical transceiver. They do not operate on their own. They require one or more low speed (LS) or medium speed (MS) expansion channels on a motherboard to operate.

a. Card(s): 914-VDX, 914-EX, 914-DX and 914-AX.

3. Media Converters: Convert a single data type to fiber, usually in a 1:1 signal to optical wavelength

conversion. Can operate stand-alone, or can be optically combined with other multiplexers or media converters.

a. Card(s): 914-HDV2.

4. Optical Cards: Combine multiple optical wavelengths onto a single fiber, or create optical

redundancies for increased system reliability.

a. Cards: 914-CWDM, 914-CWDM-4, 914-CWDM-8, 914-SWITCH, 914-FOS

Table 3-1: 914-X Series System Modular Card List

Card ID

Ethernet

Video

Serial Data

Other

Optics

Expansion channels

Motherboards

914-HDE L1

10/100 Mb/s

HD/SD-SDI

RS232/485/422

Requires 2

wavelengths: Uplink

and Downlink

4x LS

914-HDE M1

10/100/1000

Mb/s

3G/HD/SD-

SDI

RS232/485/422

Requires 2

wavelengths: Uplink

and Downlink

4x LS

4x MS

914-HDE H1

10/100/1000

Mb/s

3G/HD/SD-

SDI

RS232/485/422

Requires 2

wavelengths: Uplink

and Downlink

4x LS

4x MS

Expansion Cards

914-VDX

NTSC/PAL

RS232/485/422

Via 914-HDE

1x MS

914-EX

10/100/1000

Mb/s

Via 914-HDE

1x MS

(2x MS

Optional)

914-AX w/914-AIB

1x Isolated RS232 or RS485 or

RS422

TTL

MS900

ARCnet

Hydrophone

CAN bus

Via 914-HDE

w/914-AIB installed on

914-AX

1x LS

914-DX

RS232/485/422

Via 914-HDE

1x LS

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 3-2

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Card ID

Ethernet

Video

Serial Data

Other

Optics

Expansion channels

Media Converters

914-HDV2

3G/HD/SD-

SDI

Requires 1 wavelength per video channel

None

Optical Cards

914 CWDM

2 wavelengths + 1310/1550 bypass to single fiber

N/A

914 4Ch CWDM

4 wavelengths to single fiber

N/A

914 8Ch CWDM

8 wavelengths to single fiber

N/A

914-SWITCH

Splits the optical feed to two fibers for redundancy

N/A

914-FOS

Selects between two redundant optical fibers.

N/A

3.2 Defining a 914-X Series System

914-X Series systems are used as pairs (one remote and one console) to provide a transparent video, data and Ethernet link over optical fiber(s). The installed optical transceivers determine the maximum optical link speed, fiber type, number of fibers (1 or 2), and link distance. The card version sets the operational bandwidth, which is independent from the optical data rate. The optical link uses a proprietary data protocol ensuring reliable transmission with extremely low latency using highly efficient and dynamic bandwidth utilization.

Typically, the uplink (remote to console) and downlink (console to remote) are combined on a single fiber – multimode or singlemode (standard) – with a passive optical coupler known as a Wavelength Division Multiplexer (WDM). The WDM is integrated in the optical transceiver. Standard, single fiber systems operate with 1310 nm uplink and 1550 nm downlink wavelengths. In larger systems, multiple 914-X Series stacks may be combined on a single fiber using a Coarse Wavelength Division Multiplexer (CWDM) to take advantage of the high bandwidth of optical fiber.

Figure 3-1 illustrates an example of a simple 914-X Series system configuration using a standard, standalone 914HDE motherboard, which supports the multiplexing of one (1) 3G/HD/SD-SDI channels, two (2) bidirectional RS232 / RS-485 / RS-422 serial data channels and one (1) Gigabit Ethernet channel over a single optical fiber. This is the base card of any 914-X Series system.

Figure 3-1: 914-HDE Motherboard

Note that the HD video source (e.g. from an HD camera) is connected at the remote end. The HD video output is provided at the console end (e.g. to an HD monitor).

Focal 914-X Series

System

Focal 914-X Series

System

914-HDE

HD Video, Ethernet

and Serial

Motherboard

Host Electronics

(Remote)

914-HDE

HD Video, Ethernet

and Serial

Motherboard

Multiple Serial

HD Video

Host Electronics

(Console)

Optical Fiber

Multiple Serial

Ethernet

HD Video

Ethernet

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 3-3

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

The external fiber optic system includes optical components such as optical connectors and a Fiber Optic Rotary Joint (FORJ).

An expansion connector on the 914-HDE supports 8 expansion card ports: 4 low speed (LS) and 4 medium speed (MS) ports. Expansion cards allow a full system to be built using the 914-HDE Motherboard as the base optical card. Optional expansion cards are detailed in Section 6.0.

Figure 3-2: 914-X Series System with Expansion Cards

Figure 3-2 shows a 914-X Series system with both 914-VDX and 914-EX expansion cards added. These cards stack on top of the 914-HDE motherboard providing more video, Ethernet and serial data channels. No extra optical components are required for these additional expansion cards.

For larger systems requiring more optical bandwidth than a single 914-X Series stack can provide, Moog Focal has a series of CWDM products that allow many optical data streams to be combined onto a single fiber. These cards can handle the addition of 2, 4, 6, 8 or more systems onto a single fiber.

Figure 3-3 shows a simple 4 channel CWDM that would combine 4 optical wavelengths onto a single fiber.

Figure 3-3: 914 4-CH CWDM Card

Focal 914-X Series

System

Focal 914-X Series

System

914-HDE

HD Video, Ethernet

and Serial

Motherboard

914-VDX

Video and Serial

Expansion

Multiple Serial

Host Electronics

(Remote)

914-HDE

HD Video, Ethernet

and Serial

Motherboard

Multiple Serial

HD Video

Host Electronics

(Console)

Optical Fiber

Multiple Serial

Ethernet

HD Video

Ethernet

Multiple Video

914-EX

Ethernet Expansion

Multiple Ethernet

914-EX

Ethernet Expansion

914-VDX

Video and Serial

Expansion

Multiple Serial

Multiple Video

Multiple Ethernet

Focal 914-X Series

CWDM

Focal 914-X Series

CWDM

Host Electronics

(Remote)

Host Electronics

(Console)

4 Channel CWDM,

Red

Optical Fiber

1531 nm 1511 nm 1491 nm 1471 nm

4 Channel CWDM,

Red

1531 nm 1511 nm 1491 nm 1471 nm

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 3-4

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Figure 3-4 shows how a 914-X Series system can be combined with the 914-HDV2 media converter using a 4 channel CWDM.

This example system has 3 HD video channels, 2 NTSC/PAL channels, 3 Gigabit Ethernet channels and 6 serial data channels all combined in real time onto a single bi-directional fiber link.

Figure 3-4: 914-X Series System with 914-HDV2 and CWDM

Focal 914-X Series

System

Focal 914-X Series

System

Multiple Serial

Host Electronics

(Remote)

Multiple Serial

HD Video

Host Electronics

(Console)

Multiple Serial

Ethernet

HD Video

Ethernet

Multiple Video

Multiple Ethernet

Multiple Serial

Multiple Video

Multiple Ethernet

Multiple HD Video

Optical Fiber

Multiple HD Video

914-CWDM

Optical Mux/Demux

914-HDE

HD Video, Ethernet

and Serial

Motherboard

914-HDE

HD Video, Ethernet

and Serial

Motherboard

914-VDX

Video and Serial

Expansion

914-EX

Ethernet Expansion

914-HDV2

Dual HD Video

Media Converter

914-CWDM

Optical Mux/Demux

914-HDV2

Dual HD Video

Media Converter

914-EX

Ethernet Expansion

914-VDX

Video and Serial

Expansion

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 3-5

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

3.3 System Specification

When specifying a 914-X Series system, it is important to ensure there is enough available optical bandwidth to support the signals and data throughput required. Moog Focal has released three versions of the 914-HDE motherboard with pricing linked to bandwidth. This allows customers who do not require expansion cards, 3G-SDI, or gigabit Ethernet to specify a more cost effective solution. Moog Focal can work with customers to configure a complete optical multiplexer solution, and the following section shows signal bandwidths and sample system configurations. This allows customers to weigh the tradeoffs between system bandwidth, cost, size and power, while also showing the upgrade potential of any 914-X Series system.

Table 3-2: Signal Types and Required Bandwidths

Signal type or expansion card

Required Bandwidth

914-HDE base bandwidth for serial channels, diagnostics, and all low speed (LS) expansion channels

150 Mb/s (Always Enabled) 914-VDX base bandwidth (serial channels)

50 Mb/s total per card (Always Enabled)

10 Mb/s Ethernet

Up to 10 Mb/s

100 Mb/s Ethernet

Up to 100 Mb/s

1000 Mb/s Ethernet

Up to 1000 Mb/s

SD-SDI

300 Mb/s

HD-SDI

1550 Mb/s

3G-SDI

3050 Mb/s

Analog video (NTSC or PAL)

250 Mb/s per video channel

914-DX

0 Mb/s Included with 914-HDE base bandwidth

914-AX

0 Mb/s Included with 914-HDE base bandwidth

Table 3-3: Available Bandwidth by Motherboard Card Version

914-HDE Version

Available Bandwidth

Expansion Channels Supported

1800 Mb/s

4 low speed channels

3500 Mb/s

4 low speed channels 4 medium speed channels

5600 Mb/s

4 low speed channels 4 medium speed channels

Using the above two tables as a reference, it becomes possible to specify a full system and ensure a lossless, low latency optical link.

3.4 How to choose the optimal 914-X Series System Architecture

1. Calculate the bandwidth of the required signals based on Table 3-2.

2. Choose the 914-HDE motherboard version based on required bandwidth. Multiple 914-X Series systems may be required for very high bandwidth applications. Refer to Table 3-3.

3. Consider using 914-HDV2 for systems requiring more than one HD video channel.

4. Choose 914 expansion card(s) with the required number and type of interfaces required.

5. Ensure the base bandwidths for the 914-HDE and any 914-VDX cards are included with the bandwidth calculations.

6. Verify expansion channels available vs required, refer to Table 3-1.

7. Balance expansion cards between motherboards in very large systems.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 3-6

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

3.4.1 Example 914-X Series L1 System

Table 3-4: Example 914-X Series L1 System Requirements

Quantity

Required Signal

Bandwidth

HD-SDI video

1550 Mb/s

Serial channels

150 Mb/s (914-HDE base bandwidth)

CAN bus

Included

Hydrophone

Included

Fast Ethernet channel

100 Mb/s

Total

1800 Mb/s (= Max L1 bandwidth)

Table 3-5: Example 914-X Series L1 System Solution

Required Card

Quantity

Signals

Expansion Channels

914-HDE (L1)

1 x HD-SDI 2 x Serial 1 x Fast Ethernet

4 x Low speed available 914-DX

6 x Serial channels (6 per Card)

1 x Low speed

914-AX with AIB-CANBUS

1 x CAN bus

1 x Low speed

914-AX with AIB-HYDRO

1 x Hydrophone

1 x Low speed

3.4.2 Example 914-X Series M1 System

Table 3-6: Example 914-X Series M1 System Requirements

Quantity

Required Signal

Bandwidth

HD-SDI video

1550 Mb/s

Serial channels

200 Mb/s (914-HDE + 914-VDX base bandwidth)

Gigabit Ethernet channel

1000 Mb/s

Fast Ethernet channels

200 Mb/s (100 Mb/s each)

NTSC video channels

500 Mb/s (250 Mb/s each)

Total

3450 Mb/s (< 3500 Mb/s Max for M1)

Table 3-7: Example 914-X Series M1 System Solution

Required Card

Quantity

Signals

Expansion Channels

914-HDE (M1)

1 x HD-SDI 2 x Serial 1 x Gigabit Ethernet

4 x Low speed 4 x Medium speed Available

914-DX

12 x Serial channels (6 per card)

2 x Low speed

914-VDX

2 x Analog video 4 x Serial

1 x Medium speed 914-EX

2 x Fast Ethernet channels

1 x Medium speed

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 3-7

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

3.4.3 Example 914-X Series H1 System

Table 3-8: Example 914-X Series H1 System Requirements

Quantity

Required Signal

Bandwidth

3G-SDI Video

3050 Mb/s

Serial Channels

250 Mb/s (914-HDE + 2x 914-VDX base bandwidth)

Gigabit Ethernet Channel

1000 Mb/s

Fast Ethernet Channels

200 Mb/s (100 Mb/s each)

PAL Video Channels

1000 Mb/s (250 Mb/s each)

CAN bus

Included

Hydrophone

Included

Total

5500 Mb/s (< 5600 Mb/s Max for H1)

Table 3-9: Example 914-X Series H1 System Solution

Required Card

Quantity

Signals

Expansion Channels

914-HDE (H1)

1 x 3G-SDI 2 x Serial 1 x Gigabit Ethernet

4 x Low speed 4 x Medium speed Available

914-VDX

4 x Analog video (2 per card) 8 x Serial (4 per card)

2 x Medium speed 914-EX

2 x Fast Ethernet channels

1 x Medium speed

914-DX

6 x Serial

1 x Low speed

914-AX with AIB-CAN bus

1 x CAN bus

1 x Low speed

914-AX with AIB-HYDRO

1 x Hydrophone

1 x Low speed

3.4.4 Choosing an Optical Card

For systems requiring more than a single 914-X Series stack with a single fiber bi-directional transceiver, an optical CWDM card may be used to combine more signals onto the same fiber. Please refer to section 8.0 for more details.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 4-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

4.0 914-HDE Motherboard Overview

Figure 4-1 shows the top view of a 914-HDE card with user interface connectors highlighted. The remote and console 914 cards are physically identical; the only difference between them is the EEPROM configuration and optical transceiver. The 914-HDE does not use physical DIP switches for system configuration and settings. All settings are accessed via the Model 914 Diagnostic GUI and are saved in non-volatile memory. Firmware updates may also be available. Please visit http://www.moog.com/products/multiplexers-media-converters/focal-multiplexer-

product-line/multiplexer-technical-documents.html to check for updated firmware and/or manuals.

Figure 4-1: 914-HDE Top View

4.1 914-HDE Versions

Depending on system requirements, different 914-HDE versions may be ordered. Each version supports different optical bandwidths and expansion cards. Version upgrades are possible, please contact Moog Focal for availability. For more information regarding the expansion cards, system bandwidth capabilities, and system configurations, please consult sections 6.0 and 3.3.

Table 4-1: 914-HDE Versions

Version

Available Bandwidth

Serial Channels

Ethernet

Video

Supported Expansion Channels

1.8 Gb/s

RS-232/485/422

10/100/1000 Mb/s *

HD/SD-SDI

4x LS

3.5 Gb/s

RS-232/485/422

10/100/1000 Mb/s **

3G/HD/SD-SDI

4x LS 4x MS***

5.6 Gb/s

RS-232/485/422

10/100/1000 Mb/s

3G/HD/SD-SDI

4x LS 4x MS***

* 1000 BASE-T is not supported by default. If HD-SDI video is not required, this feature can be traded for 1000 BASE-T in L1 versions via the diagnostic GUI under the Ethernet options tab. ** In M1 version both 3G-SDI and full bandwidth gigabit Ethernet cannot be supported simultaneously. While 3GSDI video is passing through the system, the maximum available bandwidth for Ethernet is 350Mb/s.

*** MS expansion channels have limited available bandwidth, especially when 3G-SDI is active.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 4-2

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

4.2 914-HDE Power

Power to the 914-HDE card is provided through connector J3, Molex P/N 09-75-2024. The mating plug is Molex P/N 26-03-4020 with crimps P/N 08-52-0113. The pinout is provided in the table and figure below.

Figure 4-2: Power Input Connector Location

The recommended input voltage range is 4.5 VDC to 13.0 VDC (typically +5 VDC regulated). Nominal power consumption is 5 W, increasing to 5.5 W at 60o C ambient temperature. This power consumption does not include expansion card power requirements. Power leads should be AWG 18 – 20. Refer to section 10.5 for more details on the system electrical and environmental specifications.

The onboard surface mount fuse, F1, is rated to 2A and is not intended to be field replaceable. If the power fuse

is blown, the card should be evaluated for damage by the factory or trained service personnel prior to any repair.

Pin #

Function

GND

VCC

Table 4-2: Power

Connector Pinout

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 4-3

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

4.3 914-HDE HD Video Channel

The 914-HDE card has one video port, supporting 3G/HD/SD-SDI video conforming to SMPTE 259M-C, SMPTE 292M, and SMPTE 424M-A/B. On the remote card the video is an input, and on the console it is an output.

The connector is a Mini SMB jack, Amphenol P/N 142146-75. Recommended mating plug is Cinch P/N 131-8403101, although other 75  Mini SMB plugs may be suitable. Cabling should be RG-179, 75  coaxial type. Video latency through the mux/demux system is less than 50 s, not including fiber delays of 5 ns/m.

Figure 4-3: Mini SMB Jack - Amphenol P/N 142146-75

Figure 4-4: Video Channel 1 Connector Location

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 4-4

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

4.4 914-HDE Serial Data Ports

The 914-HDE has two non-isolated serial ports supporting RS-232, RS-485 or RS-422 signaling protocols. These three protocols may be configured by the user in the field via the 914 Diagnostic GUI. TTL and PPS are factory options. All data rates are supported up to 2.5 Mbaud for RS-485 and RS-422 and up to 500 KBaud for RS-232. Each port can support completely independent serial data links with independent baud rates. By default, RS-485 and RS-422 inputs are terminated differentially with an on-board 120  resistor that can be disabled via software configuration. Latency through the Mux/Demux system is less than 50 s, not including fiber delays of 5 ns/m.

For RS-485 which is a half-duplex protocol, a programmable turn-around time is implemented. The default turnaround time (timeout between Tx and Rx) is set to 1 ms. Serial port settings, including protocol, timeouts, and terminations may be accessed and changed via the Model 914 Diagnostic GUI.

The serial port connector is Molex Micro-fit P/N 43045-0800. The mating plug is Molex Micro-fit P/N 0430250800 with Molex crimps P/N 0430300010. The pinout is detailed in Table 4-4. Tx refers to transmit data from the 914HDE to the external equipment. Rx refers to receive data into the 914-HDE from the external equipment. Data coming into the RS-422 RX lines at the remote, for example, will exit from the RS-422 TX lines at the console.

Table 4-3: Serial Data Port Numbering

Port Number

Reference Designator

J6 (lower pin row)

J6 (upper pin row)

Table 4-4: Serial Data Connector Pinout

REF.

MODE

RS-232

RS-485

RS-422

CH1

CH2

RS232-RX

DO NOT CONNECT

RX 422+

2 6 GND

GND

RX 422-

3 7 DO NOT CONNECT

RS485+

TX 422+

4 8 RS232-TX

RS485-

TX 422-

Figure 4-5: Molex Micro-fit P/N 43045-0800

Figure 4-6: Serial Ports 1 and 2

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 4-5

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

4.5 914-HDE Ethernet Port

The 914-HDE provides an un-switched, low latency 10/100/1000 BASE-T(X) Ethernet link through the optical port. The part is default configured for 10/100 BASE-T(X) in the L1 version, and 10/100/1000 BASE-T(X) for M1 and H1 versions. Auto-negotiate settings can be accessed via the Model 914 Diagnostic GUI. A standard 8P8C (RJ45) modular jack provides the mechanical interface for the Ethernet port. The port is auto MDI/MDIX capable, and supports jumbo frames up to 9000 bytes.

An optional “Link Fault Pass Through” can be enabled. This feature will disconnect the Ethernet link if the far side is not linked. Therefore the system must be linked on both sides for the Ethernet link to be established. Enabling or disabling this feature is done through the diagnostic GUI.

Figure 4-7: Ethernet Port

Integrated LEDs show Ethernet Link Status as shown in Table 4-5.

Table 4-5: Ethernet LEDs

LED Status

Function Green

Yellow

OFF

No Link

OFF

Linked at either 1000 BASE-T or 10 BASE-T

Linked at 100 BASE-TX

FLASHING

OFF

Link Activity at either 1000 BASE-T or 10 BASE-T

FLASHING

Link Activity at 100 BASE-TX

End-to-end latency through the multiplexer is a calculation adding a fixed electronic latency to the Ethernet frame time which is a function of the frame length, and the optical latency which is a function of distance. Adding all three together gives a total latency figure.

Table 4-6: Ethernet Latency

Latency Component / Link Speed

10 Mb/s

100 Mb/s

1000 Mb/s

FEL (Fixed Electronic Latency)

30 s

6 s

3 s

FT (Frame Time)

# Bytes * 0.8 s

# Bytes * 0.08 s

# Bytes * 0.008 s

OL (Optical Latency)

5 s / km

Latency = FEL + FT + OL

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 4-6

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

4.6 914-HDE Diagnostic LEDs

The 914-HDE card includes 9 on-board diagnostic LEDs. A description and location of each LED is provided in Table 4-7 and Figure 4-8.

Table 4-7: 914-HDE Diagnostic LEDs

Reference

Designator

Color

Description

Red

Indicates a power fault when lit. A power fault is encountered when the input voltage falls outside of the supported range of 4.5 to 13.5 V. Recommended input voltage is 5 VDC. When this LED is lit, the card is not powered properly and will not function.

Green

Indicates that the card is powered properly when lit.

Green

Indicates a valid video signal is present when lit

Green

Indicates a valid optical link is being received. (data frames are present)

Red

Indicates that insufficient optical power is present at the receiver.

D10

Green

Flashing LED indicates serial channel 1 is transmitting to external equipment.

D11

Yellow

Flashing LED indicates serial channel 1 is receiving from external equipment.

D12

Green

Flashing LED indicates serial channel 2 is transmitting to external equipment.

D13

Yellow

Flashing LED indicates serial channel 2 is receiving from external equipment.

Figure 4-8: Diagnostic LEDs

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 4-7

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

4.7 914-HDE Diagnostic LED Header

The 914-HDE card includes a 10-pin header capable of driving 8 LEDs. This is useful for LED integration into an enclosure. Each LED pin is driven low to turn on an LED, and includes a 267 ohm resistor in series to limit the current draw. Maximum current draw per LED pin is 8 mA.

Figure 4-9: External LED Circuit Diagram

This header may optionally become an input via the diagnostic GUI with firmware revisions greater than B1. The LED header J9 is FCI P/N 20021521-00010T1LF, and the mating part is FCI P/N 20021444-00010T1LF. This

can be used with most 0.050” (1.27mm) spacing ribbon cables.

Table 4-8: 914-HDE Diagnostic LED Header Pinout

Name

Description

3.3V

3.3V This pin can be used to drive the LEDs, Maximum current is 0.5A.

LINK

Indicates a valid optical link is being received. Active low.

LINK FAULT

Indicates that insufficient optical power is present. Active low.

VIDEO

Indicates a valid video signal is present when lit. Active low.

ETHERNET

Indicates that an Ethernet link is established locally. Active low.

SER1 RX

Flashing LED indicates serial channel 1 receive activity. Active low.

SER1 TX

Flashing LED indicates serial channel 1 transmit activity. Active low.

SER2 RX

Flashing LED indicates serial channel 2 receive activity. Active low.

SER2 TX

Flashing LED indicates serial channel 2 transmit activity. Active low.

GND

Ground

Figure 4-10: Diagnostic LED Header

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 4-8

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

4.8 914-HDE Optics

An SFP or SFP+ transceiver provides the optical interface for the 914-HDE. Many options exist including:

 Singlemode or multimode fiber  Bi-directional 1310/1550 nm transceivers (L1 and M1 versions)  Bi-directional 1270/1330 nm transceivers (H1 version)  CWDM wavelengths (L1, M1 or H1 versions)  Non-standard optical budgets

Due to the high data rates, singlemode fiber is standard. Multimode fiber is only suitable for very short links (< 300m). Contact Moog Focal for multimode options. Typical link budgets for single mode fiber are 20dB for bidirectional single fiber or 24dB for dual fiber CWDM. Moog Focal has compatible CWDM modules that can be mounted and stacked with 914-HDE systems. Please refer to section 8.0.

4.8.1 914-HDE Flux Budget Calculation

When specifying an optical system, it is important to analyze system losses and fiber link distances in order to calculate the required optical configuration. The following table shows a sample flux budget calculation for a system with multiple ST bushings, a 10 km singlemode fiber link and a FORJ. Actual losses can vary widely from this, each system flux budget calculation must use data based on actual parts in use.

Table 4-9: Sample Flux Budget Calculation

Component

Uplink (1310 nm)

Downlink (1550 nm)

Unit

Typical Output Power

-1.0

dBm

Connector

0.3

Connector

0.3

Fiber Optic Rotary Joint

4.0

Connector

0.3

Connector

0.3

Cable (for 10 km SMF length)

4.0

3.0

Connector

0.3

Connector

0.3

Total Losses

9.8

8.8

Received Power

-10.8 (=-1.0 dBm - 9.8 dB)

-9.8 (=-1.0 dBm - 8.8 dB)

dBm

Dispersion Penalty

1.0

Required Receive Sensitivity

-11.8

-10.8

dBm

Typical Receive Sensitivity

-21.0

dBm

Available Margin

9.2

10.2

Assumptions: Fiber Loss 0.4 dB/km @ 1310 nm; 0.3 dB/km @1550 nm (single mode fiber - SMF). Connector (ST/PC) 0.3 dB/conn FORJ Loss (Max.) 4.0 dB

4.8.2 Optical Safety

All lasers used in the 914-HDE system are Class I laser devices per IEC-60825 unless otherwise specified in installation or configuration drawing. No special control measures or warning labels are required, although any needless exposure of the eye should be avoided as a matter of good practice, and fibers should never be viewed

with magnifying instruments, e.g. fiber scopes, while optical power is present. Note that the optical

wavelengths are in the infrared range, so not visible, but magnifying instruments can still cause damaging levels to the eye.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 5-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

5.0 Model 914-X Series Diagnostic GUI

The 914-X Series has advanced diagnostics available over a dedicated RS-232 port on the console 914-HDE motherboard. This one port gives access to all* 914 cards in the 914-X Series system, including those at the

remote side if the fiber optic link is established. This diagnostic link is critical during the setup phase of any system, as it gives access to the settings of any port in the system. This is useful to configure serial port protocols, Ethernet negotiation settings, and any special video settings, for example. Do not connect directly to the REMOTE 914- HDE RS232 diagnostic port for configuration purposes, as the settings will not be retained. *914-HDV2 has its own diagnostic port

Figure 5-1 shows a typical setup between a 914 card and a PC to obtain diagnostics information from both console and remote ends.

Figure 5-1: Basic Diagnostics Setup

The diagnostics serial port configuration is as follows:

 Speed: 115200 baud  Data bits: 8  Stop bits: 1  Parity: None  Flow Control: None

Included with every 914-X Series card is a pigtailed jumper for the RS-232 diagnostic port, as shown in the figure below. This cable plugs into J8 on the console 914-HDE PCBA. To install the cable, the plug is pressed down into the connector and should be epoxied in place for permanent connection. Extra cables provide firmware update access for individual cards.

Figure 5-2: 914-HDE Diagnostic Interface Cable

DIAGNOSTICS

PC WITH

RS-232 PORT

+VIN GND 1

SERIAL

DIAGNOSTICS

CABLE

+VIN GND 1

CONSOLE (SURFACE)

CARD

REMOTE (SUBSEA)

CARD

FIBER OPTIC CABLE SYSTEM

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 5-2

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Figure 5-3: 914-HDE Diagnostic Connector

Table 5-1: J8 Diagnostic Connector Pinout

Pin Number

Colour

Function

Black

GND

Violet

RS-232 Tx (Data from 914-HDE to PC GUI)

White

RS-232 Rx (Data from PC GUI)

Table 5-2: Diagnostic Connector Part Numbers

Part Number

Connector

Molex 0781710003

Mating Plug

Molex 0781720003

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 5-3

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

5.1 Installing the Model 914-X Series Diagnostic GUI

Check for the latest software release on the Moog Focal website: http://www.moog.com/focal/914-x-series and search for 914-0401-00.

Install the software on a computer with Microsoft Windows 7 (or newer Microsoft OS) and a serial (COM) port connected to the 914-HDE diagnostic port. Microsoft .NET version 4.0 or greater must be installed on the host computer. Installation of the Model 914 diagnostic GUI will involve copying the compressed software package to a local drive, then uncompressing to “C:\Focal\”. Follow the instructions in the “Installation.txt” file and open the "Model914.exe" file. Once installed, open the software and press the (+) at the top left corner to set up the COM link.

The following section is an overview of the diagnostic GUI.

Figure 5-4: Diagnostic GUI Start Screen

Once the COM port is setup, press “Start Data Refresh” at the bottom of the screen. If a successful link to the 914-HDE is established, a green heart will be seen at the top left of the screen near the

COM port listing. If the heart appears red, the link has not been established. Verify the COM port number and the wiring harness to the PCBA and ensure power is applied to the 914-HDE.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 5-4

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

When the link is established, click on the “Model 914 – Console” and “Model 914 Remote” text to pull up a list of card features, including the card info as displayed in Figure 5-5.

Figure 5-5: 914-HDE Card Info

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 5-5

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

5.1.1 914-HDE Diagnostic Status Display

Navigating through the drop down tabs and expansion buttons allows more system information to be extracted. Figure 5-6 shows all the system voltages as well as the FPGA junction temperature. A green background indicates that the observed status is within the normal range. Red backgrounds indicate potential problems that need to be addressed. Yellow backgrounds give warnings.

Figure 5-6: 914-HDE Voltage and Junction Temperature Information

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 5-6

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Figure 5-7 shows the optical link status, including information provided by the optical transceiver, such as transmit and receive optical power and transceiver temperature.

Figure 5-7: 914-HDE Optical Link Status

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 5-7

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

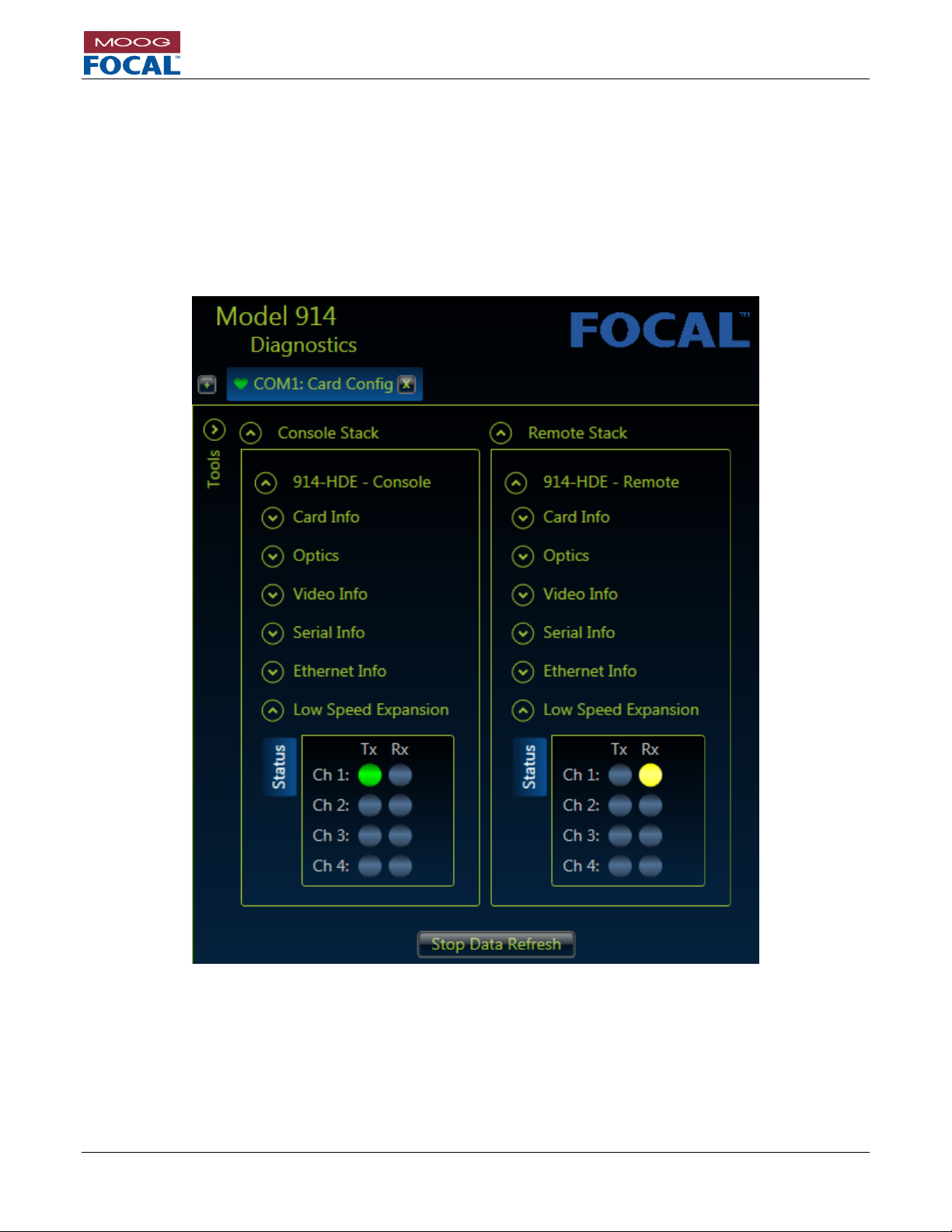

Figure 5-8 shows the current status of each input / output signal (video, serial and Ethernet). Receive serial activity is shown in yellow to match the LEDs on the 914-HDE.

Figure 5-8: 914-HDE Signal Status

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 5-8

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

5.1.2 914-HDE Serial Port Configuration

Figure 5-9 shows how to configure each serial port. Select the desired protocol, termination and timeout (if applicable). Press “Apply” to save the changes. These settings are non-volatile and do not need to be re-configured each time the 914-HDE is powered.

Typical Settings: (Refer to Section 4.4)

 RS-485: 1 ms timeout; terminations enabled  RS-422: terminations enabled  RS-232: No options.

Figure 5-9: 914-HDE Serial Port Configuration

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 5-9

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

5.1.3 914-HDE Ethernet Port Configuration

Figure 5-10 shows how to configure the Ethernet port auto-negotiation settings. By default the system will autonegotiate to the highest possible speed, but these settings are useful to ensure both side negotiate to the same speed and duplex if they did not automatically do this.

Ethernet link speed mismatches should be avoided. Typically newer PCs will link at 1G at the console side and older Ethernet equipment at the remote side might link at 100M. In this case, the console and remote cards should be set to 100M and the PC should be forced to 100M to ensure that all elements in the Ethernet link are set at the same speed.

Figure 5-10: 914-HDE Ethernet Settings

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.0 914-X Series Expansion Cards

The 914-HDE motherboard is a full multiplexing system capable of supporting up to 8 expansion cards simultaneously through a multi-gigabit board-to-board expansion connector. A separate backplane card is not required. Moog Focal has developed a family of compatible expansion cards that allow the user to specify more signals without adding more fibers. This reduces cost and size as compared to adding media converters or additional multiplexer cards. The expansion connector has 4 medium speed channels and 4 low speed channels available.

The expansion connector provides for 21/32” (16.67 mm) spacing between cards when directly stacked together. For tight spaces and/or larger stacks, Moog Focal can provide high speed ribbon cables to allow cards to sit up to 18” (46 cm) apart. Please refer to Section 10.3 for more information.

6.1 914-VDX

The 914-VDX (video and serial data expansion card) provides 2 channels of analog (composite) video and 4 channels of non-isolated serial data (RS-232, RS-485, RS-422). The video channels are compatible with both NTSC and PAL standards. Diagnostics from this card are provided to the 914-HDE and are available to the Model 914-X Series Diagnostic GUI. This expansion card requires up to 550 Mb/s of bandwidth from the 914-HDE motherboard. This expansion card requires 1 medium speed expansion channel.

Figure 6-1: 914-VDX

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-2

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.1.1 914-VDX Serial Data Ports

The 914-VDX has four non-isolated serial ports supporting RS-232, RS-485 or RS-422 signaling protocols. These three protocols may be configured by the user in the field via the 914 Diagnostic GUI. TTL and PPS are factory options. All data rates are supported up to 1.25 Mbaud for RS-485 and RS-422 and up to 500 KBaud for RS-232. Each port can support completely independent serial data links with independent baud rates. By default, RS-485 and RS-422 inputs are terminated differentially with an on-board 120  resistor that can be disabled via software configuration. Latency through the Mux/Demux system is less than 500 s, not including fiber delays of 5 ns/m.

The serial port connector is Molex Micro-fit P/N 43045-0800. The mating plug is Molex Micro-fit P/N 0430250800 with Molex crimps P/N 0430300010. The pinout is detailed in Table 6-2. Tx refers to transmit data from the 914VDX to the external equipment. Rx refers to receive data into the 914-VDX from the external equipment. Data coming into the RS-422 RX lines at the remote, for example, will exit from the RS-422 TX lines at the console.

Table 6-1: Serial Data Port Numbering

Port Number

Reference Designator

J5 (lower pin row)

J5 (upper pin row)

J3 (lower pin row)

J3 (upper pin row)

Table 6-2: Serial Data Connector Pinout

REF.

MODE

RS-232

RS-485

RS-422

CH1

CH2

RS232-RX

DO NOT CONNECT

RX 422+

2 6 GND

GND

RX 422-

3 7 DO NOT CONNECT

RS485+

TX 422+

4 8 RS232-TX

RS485-

TX 422-

Figure 6-2: Molex Micro-fit

P/N 43045-0800

Figure 6-3: VDX Serial Ports

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.1.2 914-VDX Composite Video Channels

The 914-VDX has two NTSC or PAL compatible composite video channels. The channel direction (input vs output) is set up from the Model 914 Diagnostic GUI. Each channel uses approximately 250 Mb/s of available bandwidth from the 914-HDE. No bandwidth is used if the video input is unplugged, or if that channel has been disabled via the Diagnostic GUI. Latency through the Mux/Demux system is less than 500 s, not including fiber delays of 5 ns/m.

Coaxial shielding on the connectors is directly tied to ground, care must be taken to ensure a common ground to all video equipment or isolation must be installed external to the 914-VDX. The video signal is AC coupled on the PCBA.

Figure 6-4: Mini SMB Jack - Amphenol P/N 142146-75

Figure 6-5: Video Connector Locations

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-2

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.1.3 914-VDX Power

Power to the 914-VDX card is provided via the expansion connector. Power input connect J3 should not be used during normal operation with the 914-VDX. It can optionally be used for standalone operation during firmware updates or configuration.

If the 914-VDX is to be self-powered, this is accomplished via connector J3, Molex P/N 09-75-2024. The mating plug is Molex P/N 26-03-4020 with crimps P/N 08-52-0113. The pinout is provided in the table and figure below.

Figure 6-6: Power Input Connector Location

The recommended input voltage range is 4.5 VDC to 13.0 VDC (typically +5 VDC regulated). Nominal power consumption is 5 W, increasing to 5.5 W at 60o C ambient temperature. Power leads should be AWG 18 – 20.

The onboard surface mount fuse, F1, is rated to 2A and is not intended to be field replaceable. If the power fuse is blown, the card should be evaluated for damage by the factory or trained service personnel prior to any repair.

Pin #

Function

GND

VCC

Table 6-3: Power

Connector Pinout

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-3

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.1.4 914-VDX Diagnostic LEDs

The 914-VDX card includes 15 on-board diagnostic LEDs. A description and location of each LED is provided in Table 4-7 and Figure 4-8.

Table 6-4: 914-VDX Diagnostic LEDs

Reference

Designator

Color

Description

Green

Flashing LED indicates serial channel 3 is transmitting to external equipment.

Yellow

Flashing LED indicates serial channel 3 is receiving from external equipment.

Green

Flashing LED indicates serial channel 4 is transmitting to external equipment.

Yellow

Flashing LED indicates serial channel 4 is receiving from external equipment.

Red

Green

Indicates that the card is powered properly when lit.

Green

Indicates the 914-VDX is configured for Console mode.

D10

Green

Indicates a valid video signal is present on channel 1 when lit

D11

Green

Indicates a valid video signal is present on channel 2 when lit

D12

Green

Indicates a valid expansion link is being received. (data frames are present)

D13

Red

Indicates the expansion link is in fault condition. (little or no valid data is present)

D14

Green

Flashing LED indicates serial channel 1 is transmitting to external equipment.

D15

Yellow

Flashing LED indicates serial channel 1 is receiving from external equipment.

D16

Green

Flashing LED indicates serial channel 2 is transmitting to external equipment.

D17

Yellow

Flashing LED indicates serial channel 2 is receiving from external equipment.

Figure 6-7: VDX Diagnostic LEDs

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-4

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.1.5 914-VDX Diagnostic LED Header

The 914-VDX card includes a 10-pin header capable of driving 8 LEDs. This is useful for LED integration into an enclosure. Each LED pin is driven low to turn on an LED, and includes a 267 ohm resistor in series to limit the current draw. Maximum current draw is 8 mA. Refer to section 4.7 for a sample connection diagram.

Serial data activity header pins can be configured for Tx (Transmit Activity), Rx (Receive Activity), or both (Default) via the diagnostic GUI.

The LED header is FCI P/N 20021521-00010T1LF, and the mating part is FCI P/N 20021444-00010T1LF. This can be used with most 0.050” (1.27mm) spacing ribbon cables.

Table 6-5: 914-VDX Diagnostic LED Header Pinout

Name

Description

3.3V

3.3V This pin can be used to drive the LEDs, Maximum current is 0.5A.

VIDEO CH1

Indicates a valid video signal is present on channel 1 when lit. Active low.

VIDEO CH2

Indicates a valid video signal is present on channel 2 when lit. Active low.

SER1 RX

Flashing LED indicates serial channel 1 activity. Active low.

SER1 TX

Flashing LED indicates serial channel 2 activity. Active low.

SER2 RX

Flashing LED indicates serial channel 3 activity. Active low.

SER2 TX

Flashing LED indicates serial channel 4 activity. Active low.

EXPANSION LINK

Indicates a valid expansion link is present. Active low.

EXPANSION LINK FAULT

Indicates that the expansion link is in a fault condition. Active low.

GND

Ground, non-isolated, connected to 914-HDE input voltage ground.

Figure 6-8: Diagnostic LED Header

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-5

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.1.6 914-VDX Expansion Channel Configuration

Up to four 914-VDX cards may be stacked on each 914-HDE, depending on available optical bandwidth. Dip switch SW1 configures which expansion channel each card uses. The card closest to the 914-HDE must be configured for expansion channel 1, with each subsequent card configured for the next channel in succession. No channels may be skipped.

Table 6-6: 914-VDX Expansion Channel Configuration

SW1[1:2]

Setting

OFF, OFF

Expansion channel 1

ON, OFF

Expansion channel 2

OFF, ON

Expansion channel 3

ON, ON

Expansion channel 4

Figure 6-9: Diagnostic LED Header

Figure 6-10: SW1 Position and Orientation

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-6

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.1.7 914-VDX Configuration

By default, all 914-VDX cards are shipped with these settings:

 Remote configuration  Both video channels are inputs and enabled  All serial channels are set to RS232

To change these settings, connect the console 914-HDE to the 914 Diagnostic GUI via a local COM port. Ensure a stable optical link is present and the cards are stacked together in the correct order with the correct expansion settings as per the previous section.

From the GUI, click on the “Card Info” then “Configuration” tab as shown in Figure 6-11. Typically the console stack side needs to be changed from the default remote with video inputs, to console with video outputs. Once the desired “new” settings are selected, press apply to save them to the card.

The Driver Voltage indicates the drive strength for the expansion interface. For 914-VDX cards that are distant from the 914-HDE (either stacked at expansion channel 2+, or are using a high speed ribbon cable) it may be necessary to boost this from the default setting of 682 mV. This setting should never be set below 682 mV.

Figure 6-11: 914-VDX Video Configuration

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-7

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.1.8 914-VDX Serial Port Configuration

To alter the serial port settings from the GUI, click on the “Serial Info” then “Config” tab as shown in Figure 6-12. Select new settings on a port by port basis and press apply. Each setting can take up to 10 seconds to save in nonvolatile memory (EEPROM).

Figure 6-12: 914-VDX Serial Port Configuration

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-8

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.1.9 914-VDX Diagnostics

In a similar manner to the 914-HDE, the 914-VDX has available diagnostics from the GUI including all voltages and the junction temperature of the FPGA. Any value shown in green is operating within normal specification. Values in red or yellow should be examined.

Figure 6-13: 914-VDX Voltages and Temperature

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-9

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.2 914-EX

The 914-EX (Ethernet expansion card) provides an additional two (2) 10/100/1000 BASE-T(X) ports to a 914-HDE system. These ports are multiplexed into the 914-HDE optical data stream. This design is switchless ensuring no mixing of Ethernet traffic between ports, i.e. data input to port 1 is an output on port 1 at the far side of the optical link. Diagnostics from this card are provided to the 914-HDE and are available to the Model 914 Diagnostic GUI.

The 914-EX can use a single medium speed expansion channel for up to 1000 Mb/s of bandwidth dynamically shared between the two Ethernet ports, or two medium speed expansion channels allowing for a full 1000 Mb/s of bandwidth per Ethernet port. Care must be taken to ensure the 914-HDE motherboard optical interface has sufficient bandwidth to support the Ethernet traffic. Actual bandwidth requirements are based on the external devices connected to the Ethernet ports.

Figure 6-14: 914-EX

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-10

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.2.1 914-EX Ethernet Ports

The 914-EX provides two un-switched, low latency 10/100/1000 BASE-T(X) Ethernet links through the 914-HDE optical port. Both ports are default configured for 10/100/1000 BASE-T(X) auto-negotiation. Auto-negotiate settings can be accessed via the Model 914 Diagnostic GUI when connected to the console 914-HDE diagnostic port. A standard 8P8C (RJ45) modular jack provides the mechanical interface for the Ethernet port. The port is auto MDI/MDIX capable, and supports jumbo frames up to 9000 bytes.

An optional “Link Fault Pass Through” can be enabled on a per port basis. This feature will disconnect the Ethernet

link if the far side is not linked. Therefore the system must be linked on both sides for the Ethernet link to be established. Enabling or disabling this feature is done through the diagnostic GUI.

The 914-EX combines the traffic of both Ethernet ports along with diagnostic information onto a single medium speed expansion channel to the 914-HDE. This bandwidth is dynamically shared between the 2 Ethernet ports allowing for throughput up to 950 Mb/s.

Optionally the 914-EX can be specified to use 2 medium speed expansion channels. This doubles the bandwidth of the Ethernet ports and is ideal for high bandwidth video over IP or GigE vision applications. Since the 914-HDE motherboard multiplexes the Ethernet data from the 914-EX card and other expansion cards in the system the total system bandwidth (BW) usage must be considered and be at or under the maximum optical bandwidth available. Refer to section 3.2 for detailed information 914-X series card BW usage.

Table 6-7: Ethernet Latency

Latency Component / Link Speed

10 Mb/s

100 Mb/s

1000 Mb/s

FEL (Fixed Electronic Latency)

40 s

12 s

15 s

FT (Frame Time)

# Bytes * 0.8 s

# Bytes * 0.08 s

# Bytes * 0.008 s

OL (Optical Latency)

5 s / km

Latency = FEL + FT + OL

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-11

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.2.2 914-EX Ethernet RJ45 LEDs

Figure 6-15: Ethernet Ports

Integrated LEDs show Ethernet Link Status as shown in Table 4-5.

Table 6-8: Ethernet LEDs

LED Status

Function Left Green/Orange

Right Yellow

OFF*

10 BASE-T

ORANGE

100 BASE-TX

GREEN

1000 BASE-T

LINKED

FLASHING

LINKED WITH ACTIVITY

* Speed indication only valid when link LED is on or flashing.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-12

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.2.3 914-EX Power

Power to the 914-EX card is provided via the expansion connector J9. Power input connect J2 should not be used during normal operation with the 914-EX. It can optionally be used for standalone operation during firmware updates or configuration.

If the 914-EX is to be self-powered, this is accomplished via connector J2, Molex P/N 09-75-2024. The mating plug is Molex P/N 26-03-4020 with crimps P/N 08-52-0113. The pinout is provided in the table and figure below.

Figure 6-16: Factory Power Input Connector Location

The recommended input voltage range is 4.5 VDC to 13.0 VDC (typically +5 VDC regulated). Nominal power consumption is 3.5 W, increasing to 4.2 W at 60o C ambient temperature with both ports linked at 1000 BASE-T. Power leads should be AWG 18 – 20.

Pin #

Function

GND

VCC

Table 6-9: Power

Connector Pinout

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-13

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.2.4 914-EX Diagnostic LEDs

The 914-EX card includes 6 on-board diagnostic LEDs. A description and location of each LED is provided in Table 4-7 and Figure 4-8.

Table 6-10: 914-EX Diagnostic LEDs

Reference

Designator

Color

Description

Red

Power Fault. Only lit if power is sourced via J2 and input voltage is outside nominal 4.5 to 13.0 VDC.

Green

Power. Lit when powered.

Red

Primary Expansion channel fault. No link established to partner card via 914-HDE across the optical link.

Green

Primary Expansion channel link. Valid link established to partner card via 914-HDE across the optical link.

Red

Secondary Expansion channel fault. No link established to partner card via 914-HDE across the optical link.

Green

Secondary Expansion channel link. Valid link established to partner card via 914-HDE across the optical link.

Figure 6-17: 914-EX Diagnostic LEDs

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-14

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.2.5 914-EX Diagnostic LED Header

The 914-EX card includes a 10-pin header capable of driving 8 LEDs. This is useful for LED integration into an enclosure. Each LED pin is driven low to turn on an LED, and includes a 267 ohm resistor in series to limit the current draw. Maximum current draw is 8 mA. Refer to section 4.7 for a sample connection diagram.

The LED header is FCI P/N 20021521-00010T1LF, and the mating part is FCI P/N 20021444-00010T1LF. This can be used with most 0.050” (1.27mm) spacing ribbon cables.

Table 6-11: 914-EX Diagnostic LED Header Pinout

Name

Description

3.3V

3.3V This pin can be used to drive the LEDs, Maximum current is

0.5A.

EXPANSION 1 LINK

Primary Expansion channel link. Valid link established to partner card via 914-HDE across the optical link. Active low.

EXPANSION 1 FAULT

Primary Expansion channel fault. No link established to partner card via 914-HDE across the optical link. Active low.

EXPANSION 2 LINK

Secondary Expansion channel link. Valid link established to partner card via 914-HDE across the optical link. Active low.

EXPANSION 2 FAULT

Secondary Expansion channel fault. No link established to partner card via 914-HDE across the optical link. Active low.

ETHERNET PORT 1 ACTIVITY

Activity present on Ethernet port 1. Active low.

ETHERNET PORT 1 LINK

Ethernet port 1 is linked. Active low.

ETHERNET PORT 2 ACTIVITY

Activity present on Ethernet port 2. Active low.

ETHERNET PORT 2 LINK

Ethernet port 2 is linked. Active low.

GND

Ground, non-isolated, connected to 914-HDE input voltage ground.

Figure 6-18: Diagnostic LED Header

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-15

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.2.6 914-EX Expansion Channel Configuration

Up to four 914-EX cards giving up to 8 additional Ethernet ports may be stacked on each 914-HDE, depending on available optical bandwidth. Dip switch SW1 configures which expansion channel each card uses. The card closest to the 914-HDE must be configured for expansion channel 1, with each subsequent card configured for the next channel in succession. No channels may be skipped.

Table 6-12: 914-EX Expansion Channel Configuration

SW1[1:2]

Setting

OFF, OFF

Expansion channel 1

ON, OFF

Expansion channel 2

OFF, ON

Expansion channel 3

ON, ON

Expansion channel 4

Figure 6-19: Diagnostic LED Header

Figure 6-20: SW1 Position and Orientation

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-16

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.2.7 914-EX Configuration

By default, all 914-EX cards are shipped with these settings:

 Remote configuration  Both Ethernet ports set to auto-negotiate all speeds (10/100/1000M) and duplex settings (full/half)  Link fault pass-through disabled.

From the GUI, click on the “Card Info” then “Configuration” tab as shown in Figure 6-11. Since a 914-X Series system requires a remote and console card and all 914-EX cards are shipped by default as remote, the user MUST configure the 914-EX card that is installed at the console side as a console 914-EX (step 1). Once the desired “new” settings are selected, press apply to save them to the card (step 2). Console cards should always be viewed on the left side of the GUI.

The Driver Voltage indicates the drive strength for the expansion interface. For 914-EX cards that are distant from the 914-HDE (either stacked at expansion channel 2+, or are using a high speed ribbon cable) it may be necessary to boost this from the default setting of 682 mV. This setting should never be set below 682 mV.

Figure 6-21: 914-EX Location Configuration

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-17

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.2.8 914-EX Ethernet Port Configuration

To alter the Ethernet port 1 settings from the GUI, click on “Ethernet Info Cu1” then “Settings” tab as shown in Figure 6-12. Press ON or OFF for the desired settings and wait for each change to take effect. Figure 6-22 shows a Console Ethernet port 1 that has 1000 BASE-T negotiation disabled. The process to alter Ethernet port 2 settings is the same, but in the “Ethernet info Cu2” GUI section.

Figure 6-22: 914-EX Ethernet Port Configuration

Current Ethernet port link status is shown in the GUI in the “Status” tab as shown in Figure 6-23.

Figure 6-23: 914-EX Ethernet Port Link Status

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-18

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.2.9 914-EX Diagnostics

In a similar manner to the 914-HDE, the 914-EX has available diagnostics from the GUI including all voltages and the junction temperature of the FPGA. Any value shown in green is operating within normal specification. Values in red or yellow should be examined.

Figure 6-24: 914-EX Voltages and Temperature

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-19

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.3 914-AX

The 914-AX (Adaptable Interface Board Expansion) is an adaptor board to provide one data channel which can support a range of existing AIB (Adaptable Interface Board) modules. These boards provide simple single channel interface add-ons for serial data, sonar data, TTL signals, CAN bus or hydrophones. These ports are multiplexed into the 914-HDE optical data stream. This expansion card bandwidth is included with the baseline 914-HDE bandwidth, and uses 1 of the 4 Low Speed (LS) expansion channels.

Figure 6-25: 914-AX

Figure 6-26: 914-AX with AIB-232 Module (example)

Figure 6-26 shows an example where one (1) isolated RS-232 channel can be added via the on-board expansion connector to the 914-HDE card. As shown, the small AIB module is plugged on top of the 914-AX card. Access to the isolated RS-232 channel is via the 4-pin WAGO connector (shown at the bottom right corner).

6.3.1 914-AX AIB Module Options

Table 6-13: AIB Module Options

Module

AIB 485

AIB 232

AIB

HYDRO

AIB

ARCNET

AIB

MS900

AIB

CANBUS

Signal

RS-485

RS-422

TTL

RS-232

Hydro-

phone

Tritech

ARCNET

MS900

Sonar

CAN bus

AIB

Module

Part

Number

903-0252-00

903-0252-01

903-0251-00

903-0244-00

903-0261-00

903-0250-00

903-0297-00

Please refer to 700-0271-00 AIB Plug-in Module User Guide for details and configurations.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-20

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.3.2 914-AX AIB Module Installation

When installing an AIB module onto the 914-AX across connectors J5 and J6, always ensure the white dots on both the AIB module and the 914-AX line up for proper orientation.

Figure 6-27: AIB Module Orientation

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-21

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.3.3 914-AX Interface Connector

The pinout of the WAGO connector P/N 733-364 on the 914-AX card is dependent on the installed AIB module.

Table 6-14: 914-AX Interface Connector Pinouts

AIB-485

(RS-485)

AIB-485

(RS-422)

AIB-485

(TTL)

AIB-232

(RS-232)

AIBHYDRO

(ANALOG)

AIBARCNET

(TRITECH)

AIBMS900

(SONAR)

AIBCANBUS

(CAN bus)

A (+)

+RX

INPUT

ISOGND

CHASSIS

CAN H

B (-)

-RX

N/C

RXD

N/C

LAN A

N/C

CAN L

N/C

+TX

OUTPUT

TXD

HYDRO-

LAN B

SONAR

BUS (GND)

N/C

-TX

ISOGND

CHASSIS

HYDRO+

N/C

SONAR

Shield

Figure 6-28: 914-AX WAGO Connector

Headers for the external connections are all four-pin, right-angled 733 series WAGO connectors (mating WAGO connectors are P/N 733-104). Pin locations of the WAGO headers are shown in Figure 6-28. Corresponding pins of the mating connector, use cage clamps rather than screw terminals to hold wires in place. External wires should be 20-28 AWG stranded conductors with 0.22” - 0.24” stripped ends. The clamp for each pin can be opened up by inserting either a WAGO tool or a small screwdriver in the hole immediately above the wire hole.

Table 6-15: 914-AX WAGO Connector Mating Plug

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-22

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.3.4 914-AX Diagnostic LEDs

The 914-AX card includes 3 on-board diagnostic LEDs. A description and location of each LED is provided in Table 4-7 and Figure 6-29.

Table 6-16: 914-AX Diagnostic LEDs

Reference

Designator

Color

Description

Green

Power. Lit when power is received via the expansion connector.

Green

AIB Tx data. Tx refers to transmit from the 914-AX.

Yellow

AIB Rx data. Rx refers to receive at the 914-AX.

Figure 6-29: 914-AX Diagnostic LEDs

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-23

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.3.5 914-AX Diagnostic LED Header

The 914-AX card includes a 10-pin header capable of driving 8 LEDs. This is useful for LED integration into an enclosure. Each LED pin is driven low to turn on an LED, and includes a 267 ohm resistor in series to limit the current draw. Maximum current draw is 8 mA. Refer to section 4.7 for a sample connection diagram.

The LED header is FCI P/N 20021521-00010T1LF, and the mating part is FCI P/N 20021444-00010T1LF. This can be used with most 0.050” (1.27mm) spacing ribbon cables.

Table 6-17: 914-AX Diagnostic LED Header Pinout

Name

Description

3.3V

3.3V This pin can be used to drive the LEDs, Maximum current is

0.5A.

AIB TX DATA

Data is transmitting from the AIB module. Active low.

AIB RX DATA

Data is received at the AIB module. Active low.

N/C

GND

Ground, non-isolated, connected to 914-HDE input voltage ground.

Figure 6-30: 914-AX Diagnostic LED Header

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-24

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.3.7 914-AX Configuration and Diagnostics

The 914-AX does not require any specific configuration, however, the installed AIB module may require configuration. Please refer to the AIB Plug-In Modules User’s Guide 700-0271-00 for configuration details specific to the installed AIB module.

Up to four 914-AX with associated AIB modules may be added to a 914-HDE system. The 914-AX closest to the 914-HDE will show up as channel one in the diagnostic GUI. Tx and Rx activity status may be observed via the 914-HDE diagnostics in the “Low Speed Expansion” tab.

Figure 6-31: 914-AX Data Activity

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 6-25

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

6.4 914-DX (Preliminary Information)

The 914-DX provides 6 channels of isolated serial data. The serial channels are isolated in pairs and can each be individually configured for RS-232, RS-485 or RS-422. The 914-DX does not require additional bandwidth from the 914-HDE as it is already included with the standard 914-HDE bandwidth calculation. Diagnostics from this card are provided to the 914-HDE and is available to the Model 914 Diagnostic GUI. This expansion card requires 1 low speed expansion channel. Consult factory for more information.

6.5 Custom 914-X Series

The 914-HDE expansion connector has been designed to enable future upgrades and addition of new 914-X Series cards that can be developed in the future to support other types of electrical signals or protocols. Please contact Moog Focal to discuss other applications or custom board needs.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 7-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

7.0 914 Media Converters

Media converters provide conversion of high bandwidth signals to fiber on a 1:1 basis. These are useful additions to systems as upgrades, or act as standalone optical converters for simple systems with only a single data type.

Media converter cards may be added to a 914-HDE system using the same standoffs and 21/32” (16.67 mm) spacing as other 914-HDE system cards when directly stacked together. Media converter cards do not require an electrical link to 914-HDE system cards, or other media converter cards other than the fiber optic link when using a CWDM module.

7.1 914-HDV2

The Moog Focal Model 914-HDV2 is a standalone media converter solution for one or two 3G/HD/SD-SDI video feeds per card. This card has the same form factor and mounting requirements as the rest of the 914-HDE series, and can have the optical signals combined with a 914-HDE system via available optical CWDM cards.

The compact size and high optical budget make the 914-HDV2 an ideal solution for long distance transmission of uncompressed low latency video signals. 4K video over dual link 3G-SDI is supported using a single 914-HDV2, and multiple 914-HDV2 cards may be combined for transmission of 4K video over quad link 3G-SDI.

Figure 7-1: 914-HDV2

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 7-2

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Figure 7-2: 914-HDV2 Interface Locations and Pin Numbering

7.1.1 914-HDV2 Video Connections

The 914-HDV2 card has two video ports, supporting 3G/HD/SD-SDI video conforming to SMPTE 259M-C, SMPTE 292M, and SMPTE 424M. On the remote card the video channels are inputs, and on the console they are outputs.

The connectors are a Mini SMB jack, Amphenol P/N 142146-75. Recommended mating plug is Cinch P/N 1318403-101, although other 75  Mini SMB plugs may be suitable. Cabling should be RG-179, 75  coaxial type. Video latency through the media converter system is less than 1 s, not including fiber delays of 5 ns/m.

Figure 7-3: Mini SMB Jack - Amphenol P/N 142146-75

Figure 7-4: Video I/O Locations

7.1.2 914-HDV2 Optical Connections

914-HDV2 cards typically use dual transmitter optics at the remote end, and dual receivers at the console. Note that the channel nomenclature is inverted when switching configurations. For single channel 914-HDV2 configurations, the CH1 location (only) should be used.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 7-3

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

All versions of the 914-HDV2 use high powered optical transceivers, a minimum link loss or attenuation of 10 dB is suggested.

Bushings on the SFP optical transceiver are standard LC. Fiber type is singlemode.

Figure 7-5: 914-HDV2 Optical Interface

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 7-4

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

7.1.3 914-HDV2 Power

Power to the 914-HDV2 card is provided through connector J2, Molex P/N 09-75-2024. The mating plug is Molex P/N 26-03-4020 with crimps P/N 08-52-0113. The pinout is provided in the table and figure below.

Figure 7-6: Power Input Connector Location

The recommended input voltage range is 4.5 VDC to 13.0 VDC (typically +5 VDC regulated). Nominal power consumption is 2.8 W, increasing to 3.2 W at 60o C ambient temperature. Power leads should be AWG 18 – 20.

The onboard surface mount fuse, F1, is rated to 2A and is not intended to be field replaceable. If the power fuse

is blown, the card should be evaluated for damage by the factory or trained service personnel prior to any repair.

Pin #

Function

GND

VCC

Table 7-1: Power

Connector Pinout

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 7-5

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

7.1.4 914-HDV2 Configuration

The 914-HDV2 is configured via dip switches, and not by software. Dip switches are pre-set to the appropriate settings based on the as shipped configuration and part number. MSA refers to single video channel assemblies using standard SFP transceivers, non-MSA refers to dual uni-directional transceivers that are default for the 914HDV2. There are hardware differences between the MSA and non-MSA boards, do not alter the switch settings without consulting Moog Focal. The exception is SW2 and SW6 EQ and CD settings. This can be tuned to the video resolution and cable lengths as required.

Figure 7-7: 914-HDV2 Configuration Dip Switches

Table 7-2: SW1 - SFP Transmitter Disable Non-MSA Mode

Function

SW1 Position

SFP Transmitter Disabled when no video is present (default)

SFP transmitter is always enabled, or MSA mode

Table 7-3: SW3 - SFP Transmitter Disable MSA Mode

Function

SW3 Position

SFP Transmitter Disabled when no video is present (default)

SFP transmitter is always enabled

Table 7-4: SW4 and SW5 Factory Programming Mode

Function

SW4 Position

SW5 Position

Factory Programming Mode

Diagnostics Mode (default)

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 7-6

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Table 7-5: SW7 - DIAGNOSTICS IN MSA OR NON-MSA

Function

SW7[1]

SW7[2]

SW7[3]

SW7[4]

Diagnostics Mode (default)

OFF

N/A

Non-MSA Mode (default)

N/A

OFF

MSA Mode

N/A

Table 7-6: SW2 (Channel 1) and SW6 (Channel 2): Input EQ or Output Cabled Driver Settings

Function

SWx[1]

SWx[2]

SWx[3]

SWx[4]

Video Output CD Mode

OFF

(CONSOLE)

N/A

Video Input EQ Mode

ON (REMOTE)

N/A

EQ Gain Normal

N/A

OFF

(DEFAULT)

N/A

EQ Gain Boost 6dB

N/A

EQ Enabled

N/A

OFF

(DEFAULT)

N/A

EQ Bypass

N/A

Cable driver in SD Mode

N/A

OFF

Cable driver in HD Mode (console)

N/A

ON (DEFAULT)

7.1.5 914-HDV2 Diagnostic LED Header

The 914-HDV2 card includes a 10-pin header capable of driving 8 LEDs. This is useful for LED integration into an enclosure. Each LED pin is driven low to turn on an LED, and includes a 267 ohm resistor in series to limit the current draw. Maximum current draw is 8 mA.

The LED header is FCI P/N 20021521-00010T1LF, and the mating part is FCI P/N 20021444-00010T1LF. This can be used with most 0.050” (1.27mm) spacing ribbon cables.

Table 7-7: 914-HDV2 Diagnostic LED Header J7 Pinout

J7 Pin

Name

Description

3.3V

3.3V This pin can be used to drive the LEDs, Maximum current is 0.5A.

RX OPT LINK

Receive Optical Link Valid (MSA SFP only). Active low.

VID CH1 CD

Video Channel 1 Carrier Detect. Remote side only. Active low.

VID CH2 CD

Video Channel 2 Carrier Detect. Remote side only. Active low.

FAULT

Fault. (no SFP, No I2C diagnostics) Active low.

RX OPT LINK CH2

Receive Channel 2 Optical Link Valid (non-MSA SFP only). Active low.

RX OPT LINK CH1

Receive Channel 1 Optical Link Valid (non-MSA SFP only). Active low.

VID CH1 VALID

Video Channel 1 output is valid. Console only. Active low.

VID CH2 VALID

Video Channel 2 output is valid. Console only. Active low.

GND

Ground

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 7-7

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Figure 7-8: 914-HDV2 Diagnostic LEDs and LED Header

7.1.6 914-HDV2 Diagnostic LEDs

The 914-HDV2 card includes 8 on-board diagnostic LEDs. A description and location of each LED is provided in Figure 7-8 and Table 7-8.

Table 7-8: 914-HDV2 Diagnostic LEDs

LED

Description

Colour

Video channel 1 input valid (remote)

Yellow

Video channel 1 output valid (console)

Green

Video channel 1 lock detect (remote)

Green

Video channel 2 lock detect (remote)

Green

Video channel 2 input valid (remote)

Yellow

Video channel 2 output valid (console)

Green

Power Fault. Outside of +4.5 V to +13.0 V range.

Red

Power Good

Green

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 7-8

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

7.1.7 914-HDV2 Diagnostics

914-HDV2 has its own GUI and diagnostic connection separate from the 914-HDE motherboard. This diagnostic GUI cannot alter settings, nor can it access remote side diagnostics. It does give information regarding the health of the fiber links, the status of the video channels, and some standard board level diagnostics including voltages and temperatures. It also gives software access to all LED status. Access to the RS232 diagnostic interface is via connector J6. Please refer to Section 5.0 for more information regarding this connector, pinout and cabling. 914-HDV2 diagnostic GUI part number is 914-0415-00 available via the Moog Focal website.

Figure 7-9: 914-HDV2 Optical Diagnostics

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 7-9

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Figure 7-10: 914-HDV2 PCBA Diagnostics

Figure 7-11: 914-HDV2 Video Diagnostics

Figure 7-12: 914-HDV2 LED Diagnostics

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 8-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

8.0 914 Optical Cards

8.1 914-CWDM

The 914-CWDM allows a standard 1310 / 1550 nm bidirectional single fiber system to be upgraded with two new wavelengths. The standard upgrade is for 1471 / 1491 nm which can be used for a second 914-HDE system or for a 914-HDV2 dual HD video upgrade.

8.2 914-CWDM-4R1

The 914-CWDM-4R1 allows four standard red band wavelengths to be combined onto a single fiber. A blue band bypass is optional for system upgrades. 1471 / 1491 / 1511 / 1531 nm are the four multiplexed wavelengths. Other wavelength options are possible. Contact Moog Focal for part numbers.

8.3 914-CWDM-8R

The 914-CWDM-8R allows all eight standard red band wavelengths to be combined onto a single fiber. A blue band bypass is optional for system upgrades. 1471 / 1491 / 1511 / 1531 / 1551 / 1571 / 1591 / 1611 nm are the eight multiplexed wavelengths (red band).

8.4 914-SPLIT

The single fiber link can be split onto 2 fibers for communication and fiber redundancy. Please contact Moog Focal for details.

8.5 914-FOS

Redundant fiber systems integrate a switch to choose which fiber is active. Please contact Moog Focal for details.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 9-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

9.0 Moog Focal Optical Transceivers

Moog Focal OEM SFP optical transceivers are available for sparing, replacements, and upgrades. Pressure tolerant versions of the 4.25 Gbps SFPs are available.

Table 9-1: SFP Optical Transceiver Options

4.25 Gbps

Bi-Directional SFP

4.25 Gbps CWDM

SFP

10.3 Gbps

Bi-Directional SFP

10.3 Gbps CWDM

SFP

Wavelengths (nm)

1310 / 1550

All 18 CWDM

wavelengths

1270 / 1330

All 8 red CWDM

wavelengths

Connector Type

Single LC

bi-directional

Dual LC

Tx / Rx

Single LC

bi-directional

Dual LC

Tx / Rx

Fiber Type

Singlemode

Min bit rate (Gbps)

0.125

0.6

Max bit rate (Gbps)

4.25

10.3

Max Distance (km)

Optical budget (dB)

Tx Power (dBm) min

0 0 0

Rx Sensitivity (dBm)

- 20

-24

-20

-23

Case Operating temperature (C)

-40 to +85

-20 to +85

-40 to +85

-20 to +75

Available as pressure tolerant

Yes

Max 3000 PSI

Yes

Max 6000 PSI

Compatibility

914-HDE L1/M1

914-HDE H1

Refer to Section 13.9 for part numbers.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

10.0 914-X Series System Installation and Operation

10.1 Installation

The 914-X Series is intended to be installed in an enclosure with access to conductive cooling, or in an environment with airflow. 914-X Series is designed to ensure low power consumption and tolerance of wide operating temperatures. It is, however, the responsibility of the system integrators to ensure that adequate cooling is provided to the units. In particular, the optical transceiver (J5) must not exceed a case temperature of +85 C and the FPGA, U5, should not exceed a junction temperature of +100 C as reported by the diagnostic GUI. To accomplish this, it is recommended to provide direct conductive cooling to the four mounting holes. Recommended mounting hardware is #2-56 type and is included with the cards. Ensure any mating hardware (standoffs, nuts, washers) are fully clear of any onboard parts, solder joints, and electrical traces. Thermally conductive hardware is recommended for mounting the card stacks. The mounting holes are electrically isolated from the system ground and are connected to a thermal layer in the PCB. These mounting holes should be used to provide conductive cooling to the PCB.

Stacking height for expansion cards is 16.00 mm to 17.22 mm. Nominal height should be minimum 16.15 mm (0.636”) to take into account component tolerances. A 4.00 mm (minimum) standoff should be used under the 914HDE to ensure bottom side components have sufficient clearance. Standard 5/32” standoffs are supplied with the 914-HDE for mounting, along with 21/32” standoffs for expansion and media converter cards. Thermal gap material should be used under the 914-HDE to further extract heat from the card.

Figure 10-1: 914-HDE Dimensions

When mounting, disassembling, or reassembling the 914-HDE (and stack), ensure that no fibers are subjected to bends in excess of those held by the natural routing of the fibers. The minimum bend radius of the fibers should be no less than 25 mm, though single partial bends may be less than this – as low as 15 mm – without damaging the fiber. Allowable long term values for bend radius are dependent on the fiber type and environment. Avoid even temporary bends with a radius less than 15 mm, which may affect the long-term reliability of the fiber.

To ensure that the system maintains link and reliability through high shock and/or vibration environments, it is recommended to secure the fiber LC connectors in the transceiver bushings using MIL-A-46146 equivalent RTV, such as Dow Corning 3145 clear RTV. RTV may also be applied to power and data connectors, if required.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-2

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

10.2 Card Stacking

Expansion cards are stacked using the expansion connectors as a high speed backplane system. Ensure the orientation of the cards match, and observe the genders of the expansion connectors. Male connectors are always on the top (component) side of the board, and female connectors on the bottom.

1. Bench level testing of the 914-HDE system should be performed prior to permanent installation of the cards using Loctite and/or epoxy. This will allow all interfaces to be configured and tested with the user equipment prior to committing to the assembled hardware configuration.

2. Mounting order:

a. Top card: Optical card(s) [914-CWDM; 914-FOS; 914-SPLIT] b. Media converter card(s) [914-HDV2] c. Low speed expansion card(s) [914-AX; 914-DX] d. Medium speed expansion Card(s) [914-VDX; 914-EX] e. Base card: Motherboard [914-HDE]

3. Install the 914-HDE Motherboard to a suitable mounting plate.

a. Use the 5/32” standoffs with thermal gap material under the card to provide a good conductive

cooling path to the mounting plate and/or enclosure. b. Alternatively ensure there is adequate airflow to provide cooling to the 914-HDE Motherboard. c. If no expansion cards are required, install the supplied nuts with Loctite 290 (or similar). d. If expansion cards are required, move to step 4.

4. Install the supplied 21/32” standoffs with Loctite 242 (or similar) to the 914-HDE or 914 card directly under the next expansion card.

a. Stack the expansion card carefully onto the expansion header while lining up the standoffs to the

mounting holes. The card should seat directly down on all sides simultaneously with little resistance.

b. Optionally install a 914-HDE high speed ribbon cable with Loctite SI 595 CL RTV for expansion

connector retention. Refer to Section 10.3 for details.

i. Complete the first card with supplied nuts and Loctite 290 or similar.

ii. Start the next stack with the male end of the ribbon cable epoxied to the bottom side female

expansion connector. Use Loctite SI 595 CL RTV to retain this connector in place.

iii. Start the new stack with supplied 21/32” standoffs.

c. Repeat step 4 for each Expansion card.

5. Complete the stack with supplied nuts and Loctite 290 (or similar) to retain the top card.

Figure 10-2: 914-X Series System Stack

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-3

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

10.3 914-X Series Expansion Interface Ribbon Cables

When specifying a large stack to fit into a small enclosure or pressure bottle, it may be desirable to break the stack into smaller pieces. This can be accomplished with Moog Focal 914-X Series expansion interface high speed ribbon cables. Specify lengths from 3” to 18” with orientations for inline mounting vs side-to-side mounting.

Figure 10-3: 914-X Series Expansion Interface High Speed Ribbon Cable

Figure 10-4: 914-X Series Linear (inline) Layout

Figure 10-5: 914-X Series System Dual Stack (side-to-side) Layout

Many other configurations are possible, these are representative examples.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-4

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

10.4 914-X Series Bench Test

Basic Link Operation

Basic operation of the uplink (remote to console) and downlink (console to remote) can be verified in a bench test simply by connecting fiber jumpers between the optical transceivers. The number of jumpers and the optical attenuation required depends on the optical configuration of the system under test. In some optical configurations, it may be required to use 5 or 10 dB optical attenuators placed between the fiber bushings on the mux (remote) card and the bushings on the demux (console) card to ensure the optical receivers are not saturated. Complete a flux budget calculation for your system, referring to the optical transmit power and receive overload level to determine whether optical attenuation is required or not.

After power is applied to the 914-HDE, the power LED D6 should be on (green). A red Link Fault LED D9 indicates insufficient received optical power, typically due to excessive loss in the fiber link. Excessive loss may be caused by poor fiber connections (contaminated bushings, damaged fiber, damaged ferrules) or excessive fiber bends.

CARE MUST BE TAKEN WHILE HANDLING FIBER. DO NOT TOUCH THE TIP OF THE FIBER CABLE (FERRULE) SINCE CONTAMINATION WILL OCCOUR. ALL FIBER CONNECTIONS MUST BE INSPECTED AND VERIFIED TO BE CLEAN PRIOR TO FINAL INSTALLATION.

If the basic optical link is present (LED D8 is on), there should be data continuity through the multiplexer system to provide video and serial data links.

Optical Power Budget Test

1. To verify the console to remote flux budget (downlink), measure the transmit power of the console card by connecting the optical output directly to a calibrated optical power meter using a short, low-loss, test jumper. (Ensure the correct fiber type is used. All fibers must be of the same type. e.g. for SM normally 9 um core, for MM 50 um or 62.5 um core)

2. Remove the test jumper and install a variable optical attenuator (VOAT) between the console and remote cards.

3. Adjust the VOAT until the red Link LED on either one of the modules turns on, then reduce the loss to the point where both green link LEDs are continuously on. A stable serial data connection is a good reference point.

4. Measure the received optical power at the remote side by connecting that end of the VOAT to the optical power meter. The difference between the transmit power previously measured and this receive measured power is an estimate of optical power budget. A spool of fiber used with the VOAT can also be used to simulate dispersion effects over long cable lengths.

5. Repeat steps 1-4 with connections reversed to verify the remote to console (uplink) optical budget.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-5

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

10.5 914-X Series Electrical and Environmental Specifications

The tables below summarize the electrical power requirements and environmental specifications of standard products. Cards can be configured and/or screened at the factory for extended performance, such as higher operational temperatures.

Table 10-1: Electrical Specification

Electrical Specification

Min

Typ

Max

Units

Power Voltage (In)

4.5 5 13.0

Volts

Power 914-HDE

5.0

6.0*

Watts

Power 914-VDX**

2.9

3.6*

Watts

Power 914-EX**

3.5

4.2*

Watts

Power 914-AX**

0.1****

1.15*

Watts

Power 914-HDV2

2.8

3.2*

Watts

Table 10-2: Environmental Specification

Environmental Specification

Min

Typ

Max

Units

Temperature Range (Operational)

-10

+60***

Celsius

Temperature Range (Storage)

-50

+85

Celsius

Humidity

85% RH, non-condensing

Shock

30 g, 11 ms half sine, 3 axes

Vibration

5 g, 25-1000 Hz, 3 axes

g, Hz

* The maximum power is with a 12V input at +60oC. ** This power is in addition to the 914-HDE, all stacked cards and their associated power ratings must be combined to calculate a total system power rating. *** Higher operational temperatures are possible by using thermal management to ensure electronic parts do not exceed a case temperature of +85oC. **** 914-AX power is highly dependent on the AIB module installed.

Input amperage must not exceed 4 A, if close to 20 W is required, the power supply must use a higher nominal voltage e.g. 12 V.

10.6 914-X Series Maintenance

The unit requires no routine maintenance or calibration for the specified performance. Maintenance of the units is limited to cleaning the various components using the methods described below.

Dust or dirt on the cards can be blown off using compressed air. If severe contamination of the cards should occur, they can be removed and cleaned using distilled water. Cards must be thoroughly dried before reapplying power.

In order to maintain optical performance, please refer to the following optical considerations.

Optical Considerations

1. Observe the bend radius of fiber optic cables at all times

When mounting, disassembling, or reassembling the cards in your system, ensure that no fibers are subjected to bends in excess of those held by the natural routing of the fibers. The minimum bend radius of the fibers should generally be no less than 25 mm, though single loops may be less than this – as low as 15 mm – without damaging the fibers. Keep in mind that allowable values are dependent on the type of fiber and the environment, and cable manufacturers typically specify the minimum bend radius. Avoid even temporary bends with a radius less than 15 mm, which may induce cracks that affect long-term reliability of the fibers. In general, fiber jumpers and pigtails should be periodically inspected for damage, such as nicks in the jackets or excessive bends.

2. Ensure fiber optic components are of the same type

All jumpers, cables, connectors, couplers, and Fiber Optic Rotary Joints (FORJs) used in the external optical system connecting the remote to console multiplexer must use the same type of fiber.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-6

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

The 914-X Series system has singlemode SFP transceivers installed and therefore all components in the fiber link should also be singlemode, typically Corning SMF-28 (9/125 µm) or equivalent. A single mismatched jumper in the system may cause intermittent or persistent optical link errors. Do not rely on cable jacket or connector colors alone to determine the type of optical fiber.

3. Use clean connectors

It is critical to ensure all fiber connectors are clean and free of dirt and debris. Even a small amount of dirt or fluid contaminant may degrade link performance, and most reported optical link problems are due simply to poor or contaminated optical connections.

 Keep protective dust covers on fiber connectors and bushings when not in use.  Do not touch the white ceramic ferrules of the connectors with bare hands or objects, other than

cleaning materials.

 Prior to making a fiber connection, clean the barrel and tip of the ferrule using a suitable solvent, such

as reagent grade isopropyl alcohol, and a lint free optics cleaning tissue, such as Kimwipes® EX-L. Carefully dab any dirt or debris off the face of the ceramic ferrules. Excessive dirt may need to be cleared with pressurized air from a can prior to wiping the ferrule to avoid scratching the fiber itself. Do not used air from a compressor as it may be contaminated with oil.

 During mating or unmating of fiber connectors with bushings, keep the connector aligned as straight

as possible. Avoid side loading the ceramic ferrule, which can crack the internal alignment sleeve in the bushing.

 It is recommended that each fiber connector is inspected with a handheld fiber microscope prior to

final assembly to ensure there are no scratches, pits, debris, or fluid contamination on the fiber face.

NEVER look into the end of a fiber when it is plugged into a transceiver or active fiber, especially when using a magnifying instrument, such as a fiber microscope.

Figure 10-6 shows an LC connector which is a small form-factor fiber optic connector that uses a 1.25 mm ferrule and incorporates a push-and-latch design similar to an RJ-45 connector. Error! Reference source not f ound. shows an ST fiber optic connector that uses a 2.5 mm ferrule. The ST connector is latched into place by twisting to engage a spring-loaded bayonet socket.

Figure 10-6: LC connector

Figure 10-7: ST connector

4. Maintain good optical connections

SFP optical transceivers typically have a transmit and receive optical bushing (LC type), which requires dual fiber operation. The transmit side (Tx) and the receiver side (Rx) of a dual LC port SFP is shown in the figure below.

Ferrule

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-7

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Figure 10-8: SFP Transceiver (Dual LC)

5. Maintain proper optical power levels

Optical receivers will experience errors if the received optical power is too low. Ensure the total optical losses of the components in the external cable system (jumpers, cable, connectors, couplers, FORJ, etc.) are less than the specified optical power budget of your system. For any detailed measurements or trouble-shooting a calibrated optical power meter should be used.

Optical receivers can also saturate and experience errors if the received optical power is too high, especially when using high power transceivers. Use a 5 or 10 dB fixed attenuator in line with each fiber during bench tests or with short, low loss links to ensure a minimum level of attenuation is present. A variable optical attenuator (VOAT) can also be used for testing. In some high power systems, receivers can actually be damaged by excessive optical power, so a fixed attenuator is recommended even with a VOAT.

10.7 914-X Series System Product Handling

General Handling

Care must always be taken during the handling of the 914-X Series cards to ensure product integrity. The following guidelines should be observed while working with the card:

 Handle products at an ESD safe workstation with a clean surface.  Ensure fibers are not crimped or moved away from their intended routes.  Ensure any disconnected optical connectors are cleaned immediately prior to reconnection.  Do not exceed the recommended minimum fiber bend radius, even momentarily.  Mishandling may cause damage to the optical transceiver, video or serial connectors, or internal

components. The multiplexers must always be handled appropriately during installation, operation, maintenance, storage, and transportation to ensure safe and problem free operation.

 Any visible damage or evidence of loose parts requires removal of the multiplexer from operation and

investigation by qualified service personnel.

10.8 914-X Series Accessories

914 accessory kits are available from Focal, these include mating cables for all interfaces. Please contact your local Moog Focal representative for more information including orderable part numbers.

Tx (Optical Output)

(Optical

Input)

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-8

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

10.9 914-X Series Dimensions

10.9.1 914-HDE

Figure 10-9: 914-HDE Dimensions (inches)

10.9.2 914-VDX

Figure 10-10: 914-VDX Dimensions (inches)

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-9

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

10.9.3 914-EX.

Figure 10-11: 914-EX Dimensions (inches)

10.9.4 914-AX.

Figure 10-12: 914-AX Dimensions (inches)

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-10

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

10.9.5 914-HDV2

Figure 10-13: 914-HDV2 Dimensions (inches)

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-11

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

10.10 Connector Part Numbers

Table 10-3: Connector Part Numbers

Card

Type

Mfr. Name

On-Board P/N [Description]

Mating P/N [Description]

914-HDE

Power

Molex

09-75-2024 [2-pin]

26-03-4020 [plug] 08-52-0113 [Crimps]

Video

Amphenol

142146-75 [SMB]

131-8403-101 [Cinch 75 ohm SMB plug, other SMB plugs will work, RG179 cabling is recommended]

Ethernet

Wurth Elektronik

7499110122 [RJ45]

Standard 8P8C RJ45 plug; CAT5 or better cabling.

Serial Data

Molex

43045-0800 [8-pin Microfit]

0430250800 [plug] 0430300010 [crimps]

LED Header

FCI

20021521-00010T1LF [10-pin; 2 row]

20021444-00010T1LF

[plug compatible with most 10 wire 0.05“ spacing

ribbon cables]

Diagnostics

Molex

0781710003 [3-pin]

0781720003 [3-pin plug]

914-VDX

Power

Molex

09-75-2024 [2-pin]

26-03-4020 [plug] 08-52-0113 [Crimps]

Video

Amphenol

142146-75 [SMB]

131-8403-101 [Cinch 75 ohm SMB plug, other SMB plugs will work, RG179 cabling is recommended]

Serial Data

Molex

43045-0800 [8-pin Microfit]

0430250800 [plug] 0430300010 [crimps]

LED Header

FCI

20021521-00010T1LF [10-pin; 2 row]

20021444-00010T1LF

[plug compatible with most 10 wire 0.05“ spacing

ribbon cables]

Diagnostics

Molex

0781710003 [3-pin]

0781720003 [3-pin plug]

914-EX

Power

Molex

09-75-2024 [2-pin]

26-03-4020 [plug] 08-52-0113 [Crimps]

Ethernet

Bel Fuse

0826-1X2T-23-F [Dual RJ45 Array]

Standard 8P8C RJ45 plug; CAT5 or better cabling.

LED Header

FCI

20021521-00010T1LF [10-pin; 2 row]

20021444-00010T1LF [plug compatible with most 10 wire 0.05“ spacing ribbon cables]

Diagnostics

Molex

0781710003 [3-pin]

0781720003 [3-pin plug]

914-AX

Data

WAGO

733-364 [4-pin 2.5 mm]

733-104 [4-socket plug]

LED Header

FCI

20021521-00010T1LF [10-pin; 2 row]

20021444-00010T1LF [plug compatible with most 10 wire 0.05“ spacing ribbon cables]

Diagnostics

Molex

0781710003 [3-pin]

0781720003 [3-pin plug]

914-HDV2

Power

Molex

09-75-2024 [2-pin]

26-03-4020 [plug] 08-52-0113 [Crimps]

Video

Amphenol

142146-75 [SMB]

131-8403-101 [Cinch 75 ohm SMB plug, other SMB plugs will work, RG179 cabling is recommended]

LED Header

FCI

20021521-00010T1LF [10-pin; 2 row]

20021444-00010T1LF

[plug compatible with most 10 wire 0.05“ spacing

ribbon cables]

Diagnostics

Molex

0781710003 [3-pin]

0781720003 [3-pin plug]

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 10-12

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

10.11 Signal Specifications

Table 10-4: Signal Specifications

Signal / Parameter

Min.

Typ.

Max.

Units

Diagnostics

RS-232

115

KBaud

Digital Video

SD/HD/3G-SDI

270

1485

2970

Mb/s

Latency* (914-HDE)

s

Latency* (914-HDV2)

s

Ethernet

Speed

100

1000

Mb/s

Latency* (914-HDE)

3**

6**

30**

s

Latency* (914-EX)

15**

12**

40**

s

Serial Data

RS-232 Data Rate

500

KBaud

RS-485/422 Termination

120

open



RS-485/422 Data Rate (914-HDE)

2500

KBaud

RS-485/422 Data Rate (914-VDX)

1250

KBaud

RS-485/422 Data Rate (914-DX)

500

KBaud

Latency* (914-HDE)

s

Latency* (914-VDX)

500

s

Latency* (914-DX)

500

s

Composite Video

NTSC/PAL

Input Level

1 1.4

Output Level

1 1.4

Input / Output Impedance



Digital Resolution

10 bits

Signal to Noise Ratio

58 dB

Differential Gain

1.4 2 %

Differential Phase

0.6 1 Deg.

Luminance Nonlinearity

4.0

6.0

Latency*

500

s

AIB Plug-in Modules

Latency*

50***

s

* Latency figures comprise end-to-end electronic latency. Fiber optic latency of 5 s/km is not included. ** Ethernet Latency is one frame time at the given Ethernet link speed plus the latency expressed in the table. Minimum latency is for 1000BASE-T, typical for 100BASE-TX, and maximum for 10BASE-T. ***Does not include latency through the AIB plug-in modules. Specifications for the AIB plugin modules are contained in the 700-0271-00 user guide.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 11-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

11.0 Firmware Updates

If the factory has recommended a firmware update, these are the instructions to perform the update via the diagnostic interface.

1. Receive both the 914-0401-01_FW_UPDATER_GUI_Release.7z installer and the new firmware revision *.bin from Focal.

2. Decompress the 914-0401-01_FW_UPDATER_GUI_Release.7z file to the computer you plan to use to update the 914 cards. If the file you received contains an ‘x’ in the file extension, remove it.

3. Save the firmware *.bin file to the same computer

4. Connect the diagnostic port on the card to be updated to a COM port on the computer as per section 3 of this manual:

a. J8 on the 914-HDE b. J7 on the 914-VDX c. J4 on the 914-EX

5. Ensure the card is powered OFF.

6. Run the “Model914FWUpdater.exe” application.

7. Select the COM port that is connected to RS232 Diagnostic of the 914 card.

8. Select the Model # to be updated (914-HDE, VDX, etc...).

9. Select “Clear Flash”.

10. Select the firmware *.bin file.

11. Press “Start FW Update”.

12. Power up the 914 card.

13. Wait for the update to complete (several minutes).

14. Power down the 914 card (it must be power cycled to take effect).

15. Repeat for all 914 cards that require an update, linked pairs must both have the same firmware version.

Figure 11-1: Firmware Update GUI

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 11-2

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

11.1 Firmware Compatibility

Table 11-1 shows compatible revisions in rows. Each row is only compatible with other products and revisions in that row.

Contact Moog Focal regarding non-standard updates of older products, or for compatible expansion cards for 914HDE Rev 2 cards.

Table 11-1: Firmware Revisions

Release Dates

914-HDE

Rev 2

914-HDE

Rev 3

914-VDX

914-EX

914-DX

2015/09

A0 - - - -

2015/11

A1 - - - -

2015/12

A2 - - - -

2016/03

B0 - - - -

2016/06

C1 - -

2017/07

A1 - -

2017/11

C3 - -

2018/05

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 12-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

12.0 Feature Upgrades

If a feature upgrade has been purchased, these are the installation instructions. Feature upgrades allow 914-HDE L1 cards to be upgraded to M1 version, as an example. Contact Focal for upgrade options for your cards.

1. Obtain Feature upgrade codes from Focal, there are 2 codes: Unlock Code and Feature Code. Both codes are 16 digit hexadecimal alpha numeric numbers

2. Open the 914-HDE diagnostic GUI with the Console 914-HDE connected to a local COM port as per manual section 3.

3. Use the “Tools” slide over menu on the left side, and select the “Configuration Tool”.

4. Enter both the Unlock and Feature Code, and select the destination card (remote or console), then press “Apply”

5. Both remote and console cards can be upgraded from the console side, there is no need to directly access the remote card, but it must be powered and have a valid optical link to receive the upgrade.

Figure 12-1: Feature Update Via Configuration Tool

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 13-1

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

13.0 Part Numbers

13.1 914-HDE Motherboard Part Numbers

914-HDE cards are typically specified in pairs of remote and console sides of the system. Pairs must have the same version (L1, M1 or H1), and compatible (different) optical wavelengths. Single fiber bi-directional systems put the lower wavelength (1310 or 1270 nm) at the remote, and the higher wavelength (1550 or 1330 nm) at the console. CWDM wavelengths must be compatible with the chosen CWDM module, and must be unique between remote and console cards, or from any other optical component in the system.

Table 13-1: 914-HDE Part Numbers

Part Number

Description

914-0023-13-CYZZ**

Remote Configuration, 1310 nm, SM, bidi single fiber, L1*** Version, 20dB

914-0023-XX*-CYZZ**

Remote Configuration, 1XX0 nm, SM, CWDM dual fiber, L1*** Version, 24 dB

914-0023-99-CYZZ**

Remote Configuration, No SFP, L1*** Version

914-0024-15-CYZZ**

Console Configuration, 1550 nm, SM, bidi single fiber, L1*** Version, 20 dB

914-0024-XX*-CYZZ**

Console Configuration, 1XX0 nm, SM, CWDM dual fiber, L1*** Version, 24 dB

914-0024-99-CYZZ**

Console Configuration, No SFP, L1*** Version

914-0026-13-CYZZ**

Remote Configuration, 1310 nm, SM, bidi single fiber, M1*** Version, 20 dB

914-0026-XX*-CYZZ**

Remote Configuration, 1XX0 nm, SM, CWDM dual fiber, M1*** Version, 24 dB

914-0026-99-CYZZ**

Remote Configuration, No SFP, M1*** Version

914-0027-15-CYZZ**

Console Configuration, 1550 nm, SM, bidi single fiber, M1*** Version, 20 dB

914-0027-XX*-CYZZ**

Console Configuration, 1XX0 nm, SM, CWDM dual fiber, M1*** Version, 24 dB

914-0027-99-CYZZ**

Console Configuration, No SFP, M1*** Version

914-0029-12-CYZZ**

Remote Configuration, 1270 nm, SM, bidi single fiber, H1*** Version, 20 dB

914-0029-XX*-CYZZ**

Remote Configuration, 1XX0 nm, SM, CWDM dual fiber, H1*** Version, 23 dB

914-0029-99-CYZZ**

Remote Configuration, No SFP, H1*** Version

914-0030-13-CYZZ**

Console Configuration, 1330 nm, SM, bidi single fiber, H1*** Version, 20 dB

914-0030-XX*-CYZZ**

Console Configuration, 1XX0 nm, SM, CWDM dual fiber, H1*** Version, 23 dB

914-0030-99-CYZZ**

Console Configuration, No SFP, H1*** Version

914-0037-13-CYZZ**

Remote Configuration, 1310 nm, SM, bidi single fiber, L1*** Version, 20 dB, PT3K****

914-0037-XX*-CYZZ**

Remote Configuration, 1XX0 nm, SM, CWDM dual fiber, L1*** Version, 24 dB, PT6K****

914-0038-13-CYZZ**

Remote Configuration, 1310 nm, SM, bidi single fiber, M1*** Version, 20 dB, PT3K****

914-0038-XX*-CYZZ**

Remote Configuration, 1XX0 nm, SM, CWDM dual fiber, M1*** Version, 24 dB, PT6K***

* Refer to Table 13-3 ** Refer to Table 13-5 *** Refer to Table 13-4

Table 13-2: 914-HDE Included Accessories

Quantity

Description

Power harness, 6’, pigtailed

RS-232 Diagnostic cable, 6”, pigtailed

#2-56, 3/16”, 21/32” tall standoff

#2-56, 3/16”, 5/32” tall standoff

#2-56, hex nut

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 13-2

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Table 13-3: 914-HDE CWDM Options

Description

CWDM Band

Status

1271 nm optical transmitter

Blue

Special Order

1291 nm optical transmitter

Blue

Special Order

1311 nm optical transmitter

Blue

Special Order

1331 nm optical transmitter

Blue

Special Order

1351 nm optical transmitter

Blue

Special Order

1371 nm optical transmitter

Blue

Special Order

1391 nm optical transmitter

Blue

Special Order

1411 nm optical transmitter

Blue

Special Order

1431 nm optical transmitter

Blue

Special Order, Not recommended

1451 nm optical transmitter

Blue

Special Order, Not recommended

1471 nm optical transmitter

Red

Recommended, compatible with 914-CWDM

1491 nm optical transmitter

Red

Recommended, compatible with 914-CWDM

1511 nm optical transmitter

Red

Recommended

1531 nm optical transmitter

Red

Recommended

1551 nm optical transmitter

Red

Upgrade

1571 nm optical transmitter

Red

Upgrade

1591 nm optical transmitter

Red

Upgrade, not for use with Moog Focal OMS

1611 nm optical transmitter

Red

Upgrade, not for use with Moog Focal OMS

 Red wavelengths are recommended, particularly 1471 to 1571 nm.  1591 and 1611 nm wavelengths are not recommended for use with the Moog Focal Optical Monitoring

System (OMS).

 When configuring a system, it is best to choose adjacent wavelengths and not to mix red band with blue

band wavelengths.

Table 13-4: 914-HDE Factory Versions

Feature

Parameter

Video

Speed

HD/SD

3G/HS/SD

3G/HD/SD

Ethernet

Speed (Mb/s)

10/100/1000*

10/100/1000**

10/100/1000

Serial Ch1

Format

RS232, RS485, RS422

Serial Ch2

Format

RS232, RS485, RS422

LS Expansion Channels

Quantity

MS Expansion Channels

Quantity 0 4***

4***

Optical Bandwidth

Gb/s

1.8

3.5

5.6

* L1 Version Supports HD-SDI or 1000 BASE-T, default is to support HD-SDI. This can be changed via the 914HDE Diagnostic GUI ** M1 Version supports 3G-SDI or 1000 BASE-T. When 3G-SDI is plugged, Ethernet is limited to 300Mb/s bandwidth. *** Limited to available optical bandwidth. Refer to Section 3.3.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 13-3

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

Table 13-5: 914-HDE Factory Configurations

Setting Option

Video Setting

Ethernet Setting

Serial Channel 1 Setting

Serial Channel 2 Setting

BLANK (Default)

Enabled*

Auto-Negotiate**

RS232

C001

Enabled*

Auto-Negotiate**

RS485

C002

Enabled*

Auto-Negotiate**

RS422

C003

Enabled*

Auto-Negotiate**

RS232

RS485

C004

Enabled*

Auto-Negotiate**

RS232

RS422

C005

Enabled*

Auto-Negotiate**

RS485

RS422

C010

Enabled*

100 BASE-TX Full Duplex Only

RS232

C011

Enabled*

100 BASE-TX Full Duplex Only

RS485

C012

Enabled*

100 BASE-TX Full Duplex Only

RS422

C013

Enabled*

100 BASE-TX Full Duplex Only

RS232

RS485

C014

Enabled*

100 BASE-TX Full Duplex Only

RS232

RS422

C015

Enabled*

100 BASE-TX Full Duplex Only

RS485

RS422

C020 L1 Version Only

SD-SDI Only

Auto-Negotiate up to 1000 BASE-T

RS232

C021 L1 Version Only

SD-SDI Only

Auto-Negotiate up to 1000 BASE-T

RS485

C022 L1 Version Only

SD-SDI Only

Auto-Negotiate up to 1000 BASE-T

RS422

C023 L1 Version Only

SD-SDI Only

Auto-Negotiate up to 1000 BASE-T

RS232

RS485

C024 L1 Version Only

SD-SDI Only

Auto-Negotiate up to 1000 BASE-T

RS232

RS422

C025 L1 Version Only

SD-SDI Only

Auto-Negotiate up to 1000 BASE-T

RS485

RS422

* HD/SD-SDI enabled for L1 version, 3G/HD/SD-SDI enabled for M1/H1 versions. ** 10/100 BASE-T(X) default for L1 version, 10/100/1000 BASE-T(X) for M1/H1 versions.

Notes:

1. Factory configuration options represent “as shipped” settings.

2. Users may alter all allowable configurations via 914-HDE Diagnostic GUI based on 914-HDE version: L1, M1 or H1.

3. Default configuration is recommended for spare assemblies.

4. Other factory settings are possible, contact Moog Focal for more options.

5. Configurations other than the default are subject to a surcharge.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 13-4

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

13.2 914-VDX Part Numbers

Table 13-6: 914-VDX Part Numbers

Part Number

Description

914-0039-00-CYZZ*

Standard 914-VDX

914-0039-01-CYZZ*

914-VDX PT6K**

* Refer to Table 13-8 ** PT6K refers to Pressure Tolerant Assembly rated to 6000 PSI

Table 13-7: 914-VDX Included Accessories

Quantity

Description

RS-232 Diagnostic cable, 6”, pigtailed

#2-56, 3/16”, 21/32” tall standoff

Table 13-8: 914-VDX Factory Configuration Options

Remote

Console

Serial Channel 1

Setting

Serial Channel 2

Setting

Serial Channel 3

Setting

Serial Channel 4

Setting

Blank

C100

RS232

C001

C101

RS485*

C002

C102

RS422**

C003

C103

RS232

RS485*

C004

C104

RS232

RS485*

C005

C105

RS232

RS485*

C006

C106

RS232

RS422**

C007

C107

RS232

RS422**

C008

C108

RS232

RS422**

C009

C109

RS485*

RS422**

C010

C110

RS485*

RS422**

C011

C111

RS485*

RS422**

C012

C112

RS232

RS485*

RS422**

C013

C113

RS232

RS485*

RS422**

C014

C114

RS232

RS485*

RS422**

* RS485 has differential 120 ohm terminations enabled with a timeout of 1 ms ** RS422 has differential terminations enabled

Notes:

1. Factory configuration options represent “as shipped” settings.

2. Users may alter all configurations via 914-HDE Diagnostic GUI in combination with DIP switches.

3. Default configuration is recommended for spare assemblies

4. SW1 is always set to [OFF, OFF] for expansion channel 1. Ensure systems with multiple expansion cards have unique channel settings.

5. Other factory settings are possible, contact Moog Focal for more options.

6. Configurations other than the default are subject to a surcharge.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 13-5

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

13.3 914-EX Part Numbers

Table 13-9: 914-EX Part Numbers

Part Number

Description

914-0040-00-CYZZ*

Standard 914-EX

914-0040-01-CYZZ*

914-EX PT6K**

* Refer to Table 13-11 ** PT6K refers to Pressure Tolerant Assembly rated to 6000 PSI

Table 13-10: 914-EX Included Accessories

Quantity

Description

RS-232 Diagnostic cable, 6”, pigtailed

#2-56, 3/16”, 21/32” tall standoff

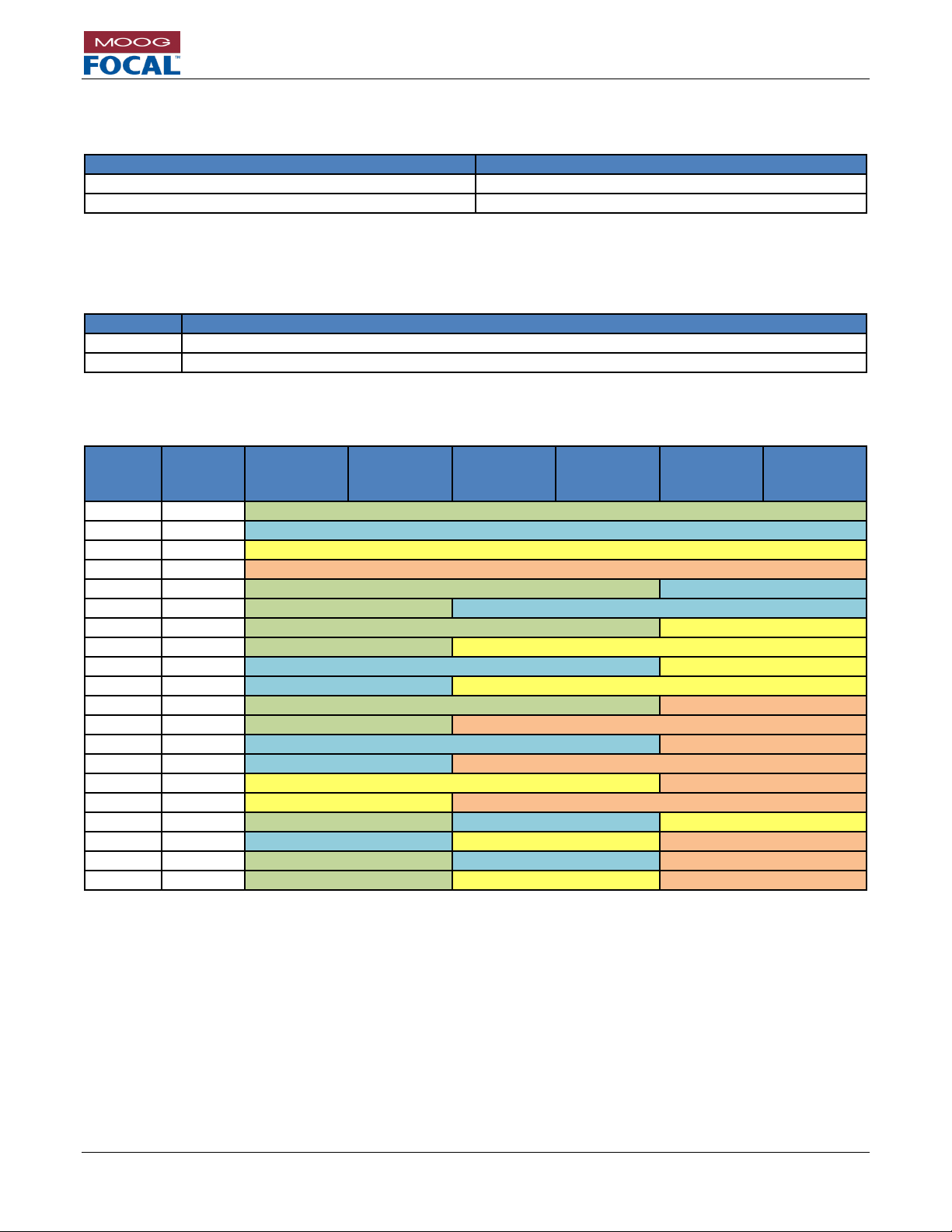

Table 13-11: 914-EX Factory Configuration Options

Remote

Console

Ethernet Port 1 Setting

Ethernet Port 2 Setting

Link Fault

Passthrough

Blank

C100

10/100/1000 BASE-T(X)

Disabled

C001

C101

10/100/1000 BASE-T(X)

100 BASE-TX

C002

C102

10/100/1000 BASE-T(X)

10 BASE-T

C003

C103

100 BASE-TX

C004

C104

100 BASE-TX

10 BASE-T

C005

C105

10 BASE-T

C010

C110

10/100/1000 BASE-T(X)

Enabled

C011

C111

10/100/1000 BASE-T(X)

100 BASE-TX

C012

C112

10/100/1000 BASE-T(X)

10 BASE-T

C013

C113

100 BASE-TX

C014

C114

100 BASE-TX

10 BASE-T

C015

C115

10 BASE-T

Notes:

1. Factory configuration options represent “as shipped” settings.

2. Users may alter all configurations via 914-HDE Diagnostic GUI in combination with DIP switches.

3. Default configuration is recommended for spare assemblies

4. SW1 is always set to [OFF, OFF] for expansion channel 1. Ensure systems with multiple expansion cards have unique channel settings.

5. Other factory settings are possible, contact Moog Focal for more options.

6. Configurations other than the default are subject to a surcharge.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 13-6

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

13.4 914-AX Part Numbers

Table 13-12: 914-AX Part Numbers

Part Number

Description

914-0041-00

Standard 914-AX

914-0041-01

914-AX PT6K*

* PT6K refers to Pressure Tolerant Assembly rated to 6000 PSI

Table 13-13: 914-AX Included Accessories

Quantity

Description

#2-56, 3/16”, 21/32” tall standoff

13.5 AIB Module Part Numbers

Please refer to 700-0271-00 AIB Plug-In Modules User Guide for module details and configuration.

Table 13-14: AIB Module Part Numbers

Part Number

Card ID

Description

903-0251-00

AIB 232

RS232 Interface

903-0251-01

AIB TRIG

Modified RS232 for +5 to +25 V for trigger signals.

903-0252-00

AIB 485/422

RS485/RS422 Interface

903-0252-01

AIB TTL

TTL Interface, 0 to +5 V TTL signals

903-0261-00

AIB-ARCNET

Tritech ARCNET compatible interface

903-0244-00

AIB-HYDRO

Default hydrophone gain of 36 dB

903-0244-01

AIB-IRIG

Modified for IRIG-B

903-0244-02

AIB-HYDRO

Provides 12 V to the hydrophone, gain is bypassed

903-0250-00

AIB-MS900

MS900 Analog Sonar Interface

903-0250-01

AIB-MS900L

MS900 Analog Sonar Low Frequency Interface

903-0297-00

AIB-CANBUS

CAN bus interface, up to 1 Mb/s supported

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 13-7

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

13.6 914-DX Part Numbers (Preliminary)

Table 13-15: 914-DX Part Numbers

Part Number

Description

914-0042-00-CYZZ*

Standard 914-DX

914-0042-01-CYZZ*

914-DX PT6K**

* Refer to Table 13-17 ** PT6K refers to Pressure Tolerant Assembly rated to 6000 PSI

Table 13-16: 914-DX Included Accessories

Quantity

Description

RS-232 Diagnostic cable, 6”, pigtailed

#2-56, 3/16”, 21/32” tall standoff

Table 13-17: 914-DX Factory Configuration Options

Remote

Console

Serial

Channel 1

Setting

Serial

Channel 2

Setting

Serial

Channel 3

Setting

Serial

Channel 4

Setting

Serial

Channel 5

Setting

Serial

Channel 6

Setting

Blank

C100

RS232

C001

C101

RS485*

C002

C102

RS422**

C003

C103

TTL

C004

C104

RS232

RS485*

C005

C105

RS232

RS485*

C006

C106

RS232

RS422**

C007

C107

RS232

RS422**

C008

C108

RS485*

RS422**

C009

C109

RS485*

RS422**

C010

C110

RS232

TTL

C011

C111

RS232

TTL

C012

C112

RS485*

TTL

C013

C113

RS485*

TTL

C014

C114

RS422**

TTL

C015

C115

RS422**

TTL

C016

C116

RS232

RS485*

RS422**

C017

C117

RS485*

RS422**

TTL

C018

C118

RS232

RS485*

TTL

C019

C119

RS232

RS422**

TTL

* RS485 has 120 ohm differential terminations enabled with a timeout of 1 ms ** RS422 has 120 ohm differential terminations enabled

Notes:

1. Factory configuration options represent “as shipped” settings.

2. Users may alter all configurations via 914-HDE Diagnostic GUI in combination with DIP switches.

3. Default configuration is recommended for spare assemblies

4. SW1 is always set to [OFF, OFF] for LS expansion channel 1. Ensure systems with multiple LS expansion cards have unique channel settings.

5. Other factory settings are possible, contact Moog Focal for more options.

6. Configurations other than the default are subject to a surcharge.

Model 914-X Series Modular Multiplexer System User Manual

Focal Technologies Corporation Page 13-8

A Moog Inc. Company Document Number: 914-0601-00 Rev. 5.0

13.7 914-HDV2 Part Numbers

Table 13-18: 914-HDV2 Part Numbers

Part Number

Description

Status

Dual Channel Options

914-0031-00

HDV2 Console non-MSA dual video output; 1260 nm to 1620 nm optical inputs

Recommended

914-0032-00

HDV2 Remote non-MSA dual video input; CWDM output wavelengths: Ch1 1271 nm and Ch2 1291 nm

Special Order

914-0032-01

HDV2 Remote non-MSA dual video input; CWDM output wavelengths: Ch1 1311 nm and Ch2 1331 nm

Special Order

914-0032-02

HDV2 Remote non-MSA dual video input; CWDM output wavelengths: Ch1 1351 nm and Ch2 1371 nm

Special Order

914-0032-03

HDV2 Remote non-MSA dual video input; CWDM output wavelengths: Ch1 1391 nm and Ch2 1411 nm

Special Order

914-0032-04

HDV2 Remote non-MSA dual video input; CWDM output wavelengths: Ch1 1471 nm and Ch2 1491 nm; Recommended for use with 914CWDM

Recommended

914-0032-05

HDV2 Remote non-MSA dual video input; CWDM output wavelengths: Ch1 1511 nm and Ch2 1531 nm

Recommended

914-0032-06

HDV2 Remote non-MSA dual video input; CWDM output wavelengths: Ch1 1551 nm and Ch2 1571 nm

Recommended

914-0032-07

HDV2 Remote non-MSA dual video input; CWDM output wavelengths: Ch1 1591 nm and Ch2 1611 nm

Recommended***

Single Channel Options

914-0033-00

HDV2 Console MSA single video output; 1260 nm to 1620 nm optical input

Recommended

914-0034-XX*

HDV2 Remote MSA single video input; CWDM output wavelength: Ch1 1XX1 nm

See Table 13-20

914-0035-XX*

HDV2 Remote MSA single video input; CWDM output wavelength: Ch1 1XX1 nm PT6K**

See Table 13-20

* XX Refer to Table 13-20 ** PT6K refers to Pressure Tolerant Assembly rated to 6000 PSI *** Not for use with Moog Focal OMS (Optical Monitoring System)

Moog 914-HDE M1, 914-EX, 914-DX, 914-HDV2, 914-SWITCH User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1.0 Introduction

1.1 Model 914-X Series Benefits
