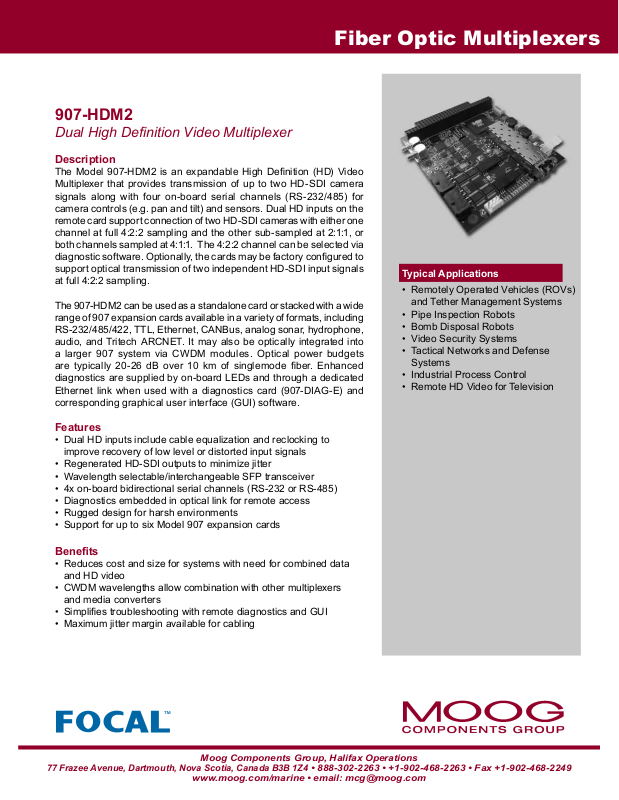

Moog 907-HDM2 DATASHEET

Fiber Optic Multiplexers

907-HDM2

Dual High Denition Video Multiplexer

Description

The Model 907-HDM2 is an expandable High Denition (HD) Video
Multiplexer that provides transmission of up to two HD-SDI camera
signals along with four on-board serial channels (RS-232/485) for
camera controls (e.g. pan and tilt) and sensors. Dual HD inputs on the
remote card support connection of two HD-SDI cameras with either one
channel at full 4:2:2 sampling and the other sub-sampled at 2:1:1, or
both channels sampled at 4:1:1. The 4:2:2 channel can be selected via
diagnostic software. Optionally, the cards may be factory congured to
support optical transmission of two independent HD-SDI input signals
at full 4:2:2 sampling.

The 907-HDM2 can be used as a standalone card or stacked with a wide
range of 907 expansion cards available in a variety of formats, including
RS-232/485/422, TTL, Ethernet, CANBus, analog sonar, hydrophone,
audio, and Tritech ARCNET. It may also be optically integrated into
a larger 907 system via CWDM modules. Optical power budgets
are typically 20 -26 dB over 10 km of singlemode ber. Enhanced
diagnostics are supplied by on-board LEDs and through a dedicated
Ethernet link when used with a diagnostics card (907-DIAG-E) and
corresponding graphical user interface (GUI) software.

Typical Applications

• Remotely Operated Vehicles (ROVs)
and Tether Management Systems

• Pipe Inspection Robots

• Bomb Disposal Robots

• Video Security Systems

• Tactical Networks and Defense
Systems

• Industrial Process Control

• Remote HD Video for Television

Features

• Dual HD inputs include cable equalization and reclocking to
improve recovery of low level or distorted input signals

• Regenerated HD-SDI outputs to minimize jitter

• Wavelength selectable/interchangeable SFP transceiver

• 4x on-board bidirectional serial channels (RS-232 or RS-485)

• Diagnostics embedded in optical link for remote access

• Rugged design for harsh environments

• Support for up to six Model 907 expansion cards

Benets

• Reduces cost and size for systems with need for combined data
and HD video

• CWDM wavelengths allow combination with other multiplexers
and media converters

• Simplies troubleshooting with remote diagnostics and GUI

• Maximum jitter margin available for cabling

Moog Components Group, Halifax Operations

77 Frazee Avenue, Dartmouth, Nova Scotia, Canada B3B 1Z4

www.moog.com/marine • email: [e-mail]

• 888-302-2263 • [phone] • Fax [phone]

Fiber Optic Multiplexers

Video

No. of Channels 2

Format HD-SDI (SMPTE-292M)

@ 720p, 1080i and 1080p

Data Rate 1483 or 1485 Mbps

Input Buffer Adaptive cable EQ

Output Voltage 800 mVpp nominal

Impedance 75 Ohms, input/output

Modes 1 x 4:2:2, 1 x 2:1:1 or 2 x 4:1:1

2 x 4:2:2 with 3.2 Gbaud SFP (optional)
(Ancillary data in HD stream is not transmitted)

Data

No. of Channels 4

Format RS-232, RS-485 (selectable)

Data Rate 120 kbaud max.

Options Expansion cards for Ethernet, serial data,

Tritech ARCNET, MS-900, Hydrophone/ Analog,
CANBUS and Ethernet Diagnostics; RS-422 on
board instead of RS-485

Optical

Optical Fiber 1 or 2 singlemode (9/125 um)

Baud Rate 2.5 Gbaud (3.2 Gbaud optional)

Format AME-TF (Moog proprietary)

Wavelengths 1310/1550 nm standard

(CWDM optional)

Flux Budget 20 dB min. standard (others available)

Options CWDM wavelengths for combining multiple 907

cards on one singlemode ber; bidirectional
transceivers; extended temperature

Electrical

Power Supply +5 VDC +/-10%, regulated input required

Current Draw 1.3 A typical (2 A max.)

Power Used 6.5 W typical (10 W max.)

Voltage Protection Overvoltage and reverse polarity

Current Protection Time delay fuse (3 A)

Mechanical

Dimensions PC/104 (form factor only)

Weight 125 g (0.27 lb), including SFP

Enclosures Contact Moog for custom enclosures

Stacking Spacers 0.625 inch standoffs required when stacking cards.

Contact Moog for stacking options

Stacking Pins Short pins on PC/104 standard for all wavelengths

Connectors

Optical Dual LC (SFP)

Video Mini-SMB (75 ohm)

Data (Serial) 2 x 8-pin Molex for serial data

Power 1 x 2-pin Molex, 0.156 inch pin spacing

Stacking Header PC/104 (for stacking 907 cards only)

Environmental

Temperature -10 to +60 °C (ambient, operational)

-20 to +85 °C (ambient, storage)

Humidity 85% relative, non-condensing

Shock 30 g, 11 ms, half-sine, six directions

Vibration 1 - 2 mm (5 - 25 Hz), 5 g (25 - 1000 Hz)

Diagnostics

LEDS Power (electrical), optical link, optical fault, serial

Tx/Rx, video status

Ethernet to PC Available through 907-DIAG-E card at console

907-HDM2 Dimensions

Dimensions in inches [mm]

Specications and information are subject to change without prior notice. Please refer to the website for the latest information / updates.
© 2011 Moog Inc. MS3040 01/11
