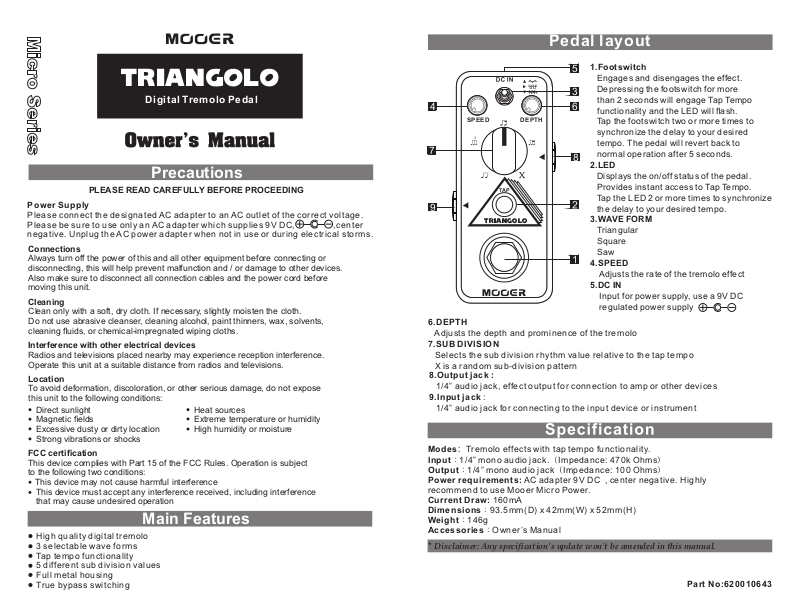

Mooer Triangolo User manual

Triangolo
Digit al Tremo lo Peda l
Precautions
PLEASE READ CAREFULLY BEFORE PROCEEDING
Pow er Suppl y
Please connect the designated AC adapter to an AC ou tle t of th e cor rec t vol tag e. Please be sure to use only an AC adapter which suppli es 9V D C, ,center negative. Unplug the AC power adapter when not in u se or d uri ng el ect ric al st orm s.
Connections
Always turn off the power of this and all other equipment before connecting or disconnecting, this will help prevent malfunction and / or damage to other devices. Also make sure to disconnect all connection cables and the power cord before moving this unit.
Clean only with a soft, dry cloth. If necessary, slightly moisten the cloth. Do not use abrasive cleanser, cleaning alcohol, paint thinners, wax, solvents, cleaning fluids, or chemical-impregnated wiping cloths.
Interference with other electrical devices
Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions.
Location
To avoid deformation, discoloration, or other serious damage, do not expose this unit to the following conditions:
Direct sunlight Magnetic fields Excessive dusty or dirty location Strong vibrations or shocks
FCC certification
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference This device must accept any interference received, including interference that may cause undesired operation
Main Features
High quality digital tremolo 3 selectable wave forms Tap tempo functionality 5 differ ent s ub di vis ion v alu es Ful l metal housing Tru e byp ass s wit chi ng
Heat sources Extreme temperature or humidity High humidity or moisture
Pedal layout
1.Fo otswitch
5
Enga ges and di senga ges the ef fect. Depr essin g the foot switch for mor e
3
4
SPE ED
3
DEP TH
7
TAP
9
Triangolo
6.DEPTH
Adjusts the depth and prominence of the tremolo
7.SUB DIVISION
Sel ects the sub division rhythm value relative to the tap tempo X is a ra ndom sub-division pattern
8.O utp ut ja ck :
1/4 ” aud io jack, effe ct ou tpu t for c onn ect ion t o amp o r oth er de vic es
9.I npu t jac k : 1/4 ” aud io jack for connecting to the input device or instrument
Mod esTr emo lo effects with tap tempo functionality. Inp ut1/ 4” mo no audio jack.Impedance: 470k Ohms Out put1 /4” m ono audio jackImpedance: 100 Ohms Pow er requirements: AC adapter 9V DC , center negative. Highly
recommend to use Mooer Micro Power.
Cur rent Draw: 160mA Dim ensions93.5mm(D) x 42mm(W) x 52mm(H) Wei ght1 46g AccessoriesOwner’s M anu al
* Disclaimer: Any specification’s update won't be amended in this manual.
than 2 seconds wi ll enga ge Tap Tempo
6
func tiona lity an d the LED wil l flash. Tap th e foots witch two or more ti mes to sync hroni ze the del ay to your d esire d temp o. The peda l will revert bac k to norm al operation af ter 5 seco nds.
8
2.LE D
Disp lays the on/off st atus of th e pedal . Prov ides instant ac cess to Tap Tempo. Tap th e LED 2 or more times to sy nchro nize the del ay to your d esire d tempo .
3.WAVE FOR M
Triang ular Squa re Saw
4.SP EED
Adjust s the rate o f the trem olo effe ct
5.DC I N
Inpu t for powe r suppl y, use a 9V DC regu lated power sup ply
Pa rt No :620 01 064 3
