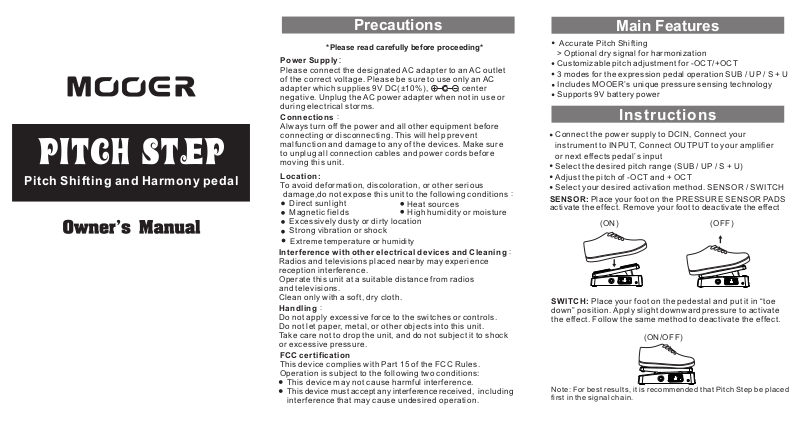

Mooer Pitch Step User manual
Pitch Shif ti ng a nd Harmony pedal
Precautions
*Please read carefully before proceeding*
Pow er Suppl y：
Please connect the designated AC adapter to an AC outlet
of th e correct voltage. Please be sure to use only an AC
adapter which supplies 9V DC(±10%), , center
negative. Unplug the AC power adapter when not in use or
during electrical storms.
Connections：
Always turn off th e pow er an d all o the r equ ipm ent b efo re
connecting or disconnecting. This w ill h elp p rev ent
malfunction and damage to any of the devices. Make sure
to un plug all connection cables and power cords before
moving this unit.
Loc ation:
To avoid deformation, discoloration, or other serious
damage,do not expose this unit to the following condition s：
Dir ect s unlight
Mag netic fi elds
Exc ess ively dusty or dirty location
Str ong v ibration or shock
Ext reme te mpera ture or h umidi ty
Int erference with other electrical devices and Cleaning：
Radios and televisions placed nearby may experi enc e
reception interference.
Ope rate this unit at a suitable distance from radios
and televisions.
Clean only with a soft, dry cloth.
Handling：
Do not apply excessive force to the switches or controls.
Do not let paper, metal, or other objects into this unit.
Take care not to drop the unit, and do not subject it to shock
or excessive pressure.
FCC certification
Thi s device complies with Part 15 of the FCC Rules.
Ope ration is subject to the following two conditions:
T his d evi ce ma y not c aus e har mfu l int erf ere nce .
This devi ce must accept any int erfere nce receiv ed, inc lud ing
int erference that may cause undesired operation.
Heat sources
High humidity or moisture
Main Features
Acc ura te Pit ch Shifti ng
> Opt ion al dry s ignal for h armo niz ati on
Cus tom izab le pi tch ad jus tment for - OCT/ +OC T
3 mod es for the ex pres sio n pedal ope ration SU B / UP / S + U
Inc lud es MOO ER’s u niq ue pre ssu re sen sin g technol ogy
Sup por ts 9V ba tte ry pow er
Instructions
Connect the power supply to DCIN, Connect your
instrument to INPUT, Connect OUTPUT to yo ur am pli fier
or next effec ts pe dal ’s in put
Select the desired pitch range (SUB / UP / S + U)
Adjust the pitch of -OCT and + O CT
Select your desired activation method. SENSOR / SWITCH
SEN SOR: Plac e your f oot on t he PRE SSU RE SEN SOR PAD S
act ivate the e ffec t. Rem ove yo ur foot to deacti vate t he eff ect
(ON )
SWI TCH : Place your foot on the pedestal and put it in “toe
down” position. Apply slight downward pressure to activa te
the effe ct. F oll ow th e sam e met hod t o dea cti vat e the e ffe ct.
(ON /OF F)
Not e: For be st resu lts, it i s recom mende d that Pi tch Ste p be plac ed
firs t in the si gnal ch ain.
(OF F)
Pedal Layout
4
1
1
5
3
9
2
10
7
1. LE D:
Ind ica tes the On /Off sta tus o f Pit ch St ep.
2. IN PUT:
¼ inc h aud io input Jack
3. OU TPU T:
¼ inc h aud io output Jack
4. DC i npu t:
Con nect a 9v DC power supply centre pin negative
5. PR ESS URE SENSOR PAD S:
Pla ce yo ur fo ot here to activate the effe ct
in SE NSO R set tin g
6. Tou ch Sw itc h:
Put t he pe das tal in toe down position and apply
sli ght downward pressure to activate the effe ct in
SWI TCH s ett ing
7. SU B/U P/S+U:
Sel ect s the r ange and direction of the pitch shifting
SUB：1 o cta ve ra nge. Toe dow n = -1 OC T
Hee l down = Ori ginal pitch
UP: 1 o cta ve ra nge. Toe dow n = +1 OC T
Hee l down = Ori ginal pitch
S+U：2 o cta ve ra nge. Toe dow n = +1 OC T
Hee l down = -1 OC T
8. SE NSO R/S WIT CH：
Sel ect s the m eth od used for activation
of th e eff ect
9. -O CT/ +OC T:
Adju sts t he pitch of the -OCT and +O CT
6
for c ust om ra nge
10.HARMONY:
Sel ect s bet ween harmony and pitch shift modes
8
Pre ss in f or Ha rmo ny mode
(dr y sig nal c an be heard)
Pre ss ou t for P itc h Shi ft mo de
(no d ry si gna l can be heard)
Specifications
Inp ut：1/ 4” mo no audio jack.（Impedance: 1M Ohms）
Out put：1 /4” m ono a udio jack（Impedance: 100 Ohms）
Pow er requirements: 9V DC
Cur rent Draw: 180 mA
Dim ensions: 154.5mm(D)×73mm(W)×53mm(H)
Wei ght : 540 g
MOOER AUDIO CO.,LTD
www.mooeraudio.com
Pa rt No :
