Monster Nomad User Manual

NOMAD

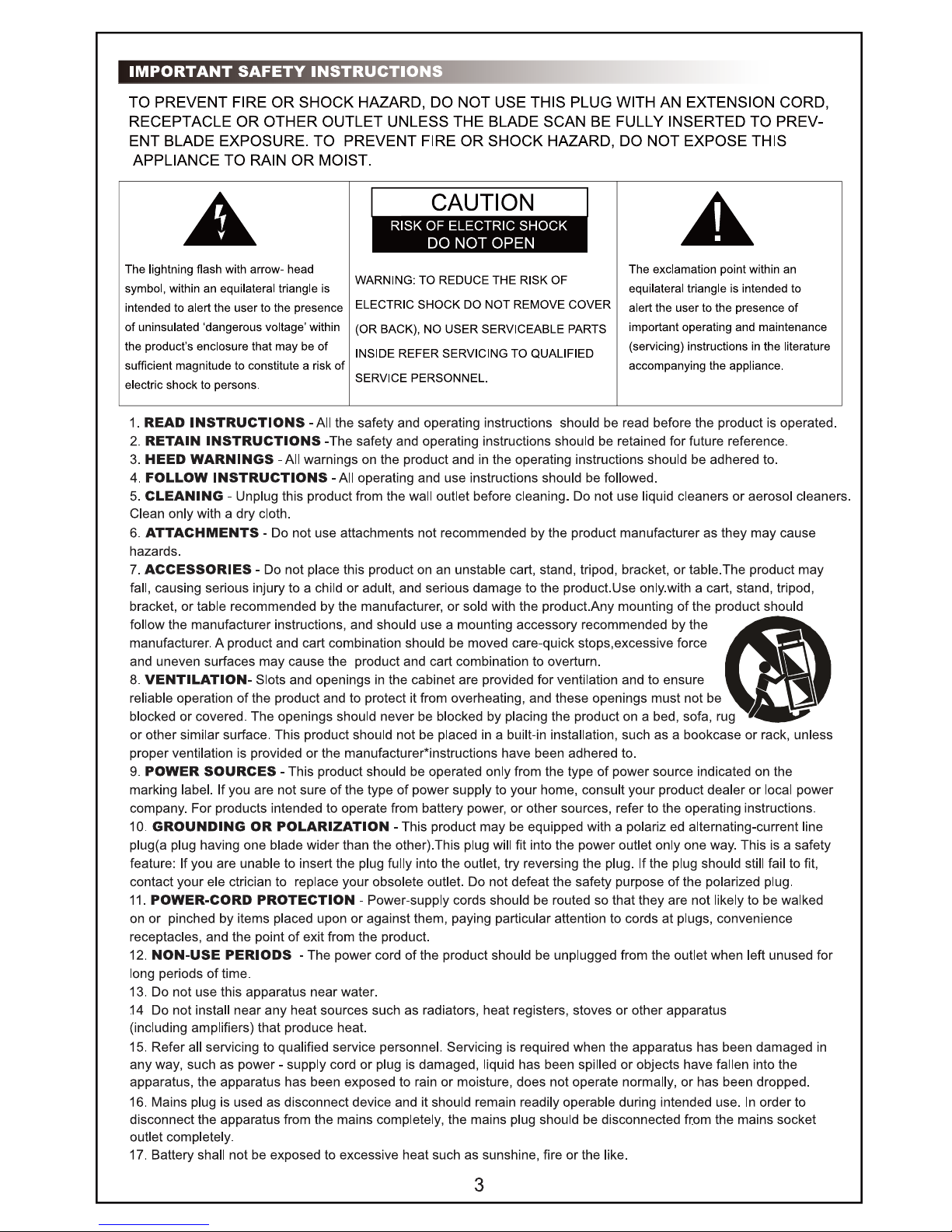

IMPORTANT SAFETY INSTRUCTIONS 3

UNPACKING 4

GETTING STARTED 5

BLUETOOTH CONNECTION (Bluetooth Devices) 5

CONNECTION USING AUX INPUT 6

CONNECTION MIC/GUITAR 6

FM / USB CHARGING 6

AUTO STANDBY 6

TROUBLESHOOTING 7

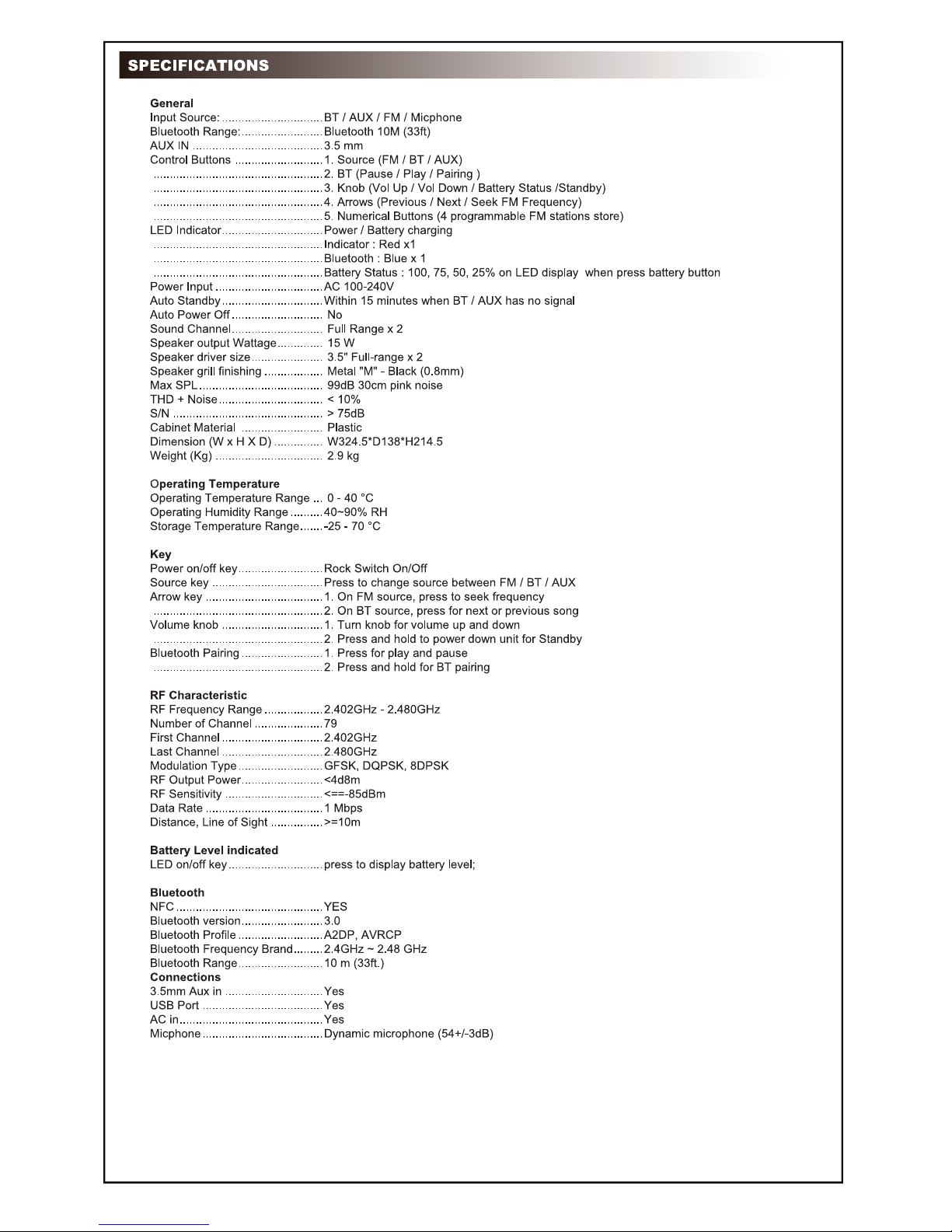

SPECIFICATIONS 8

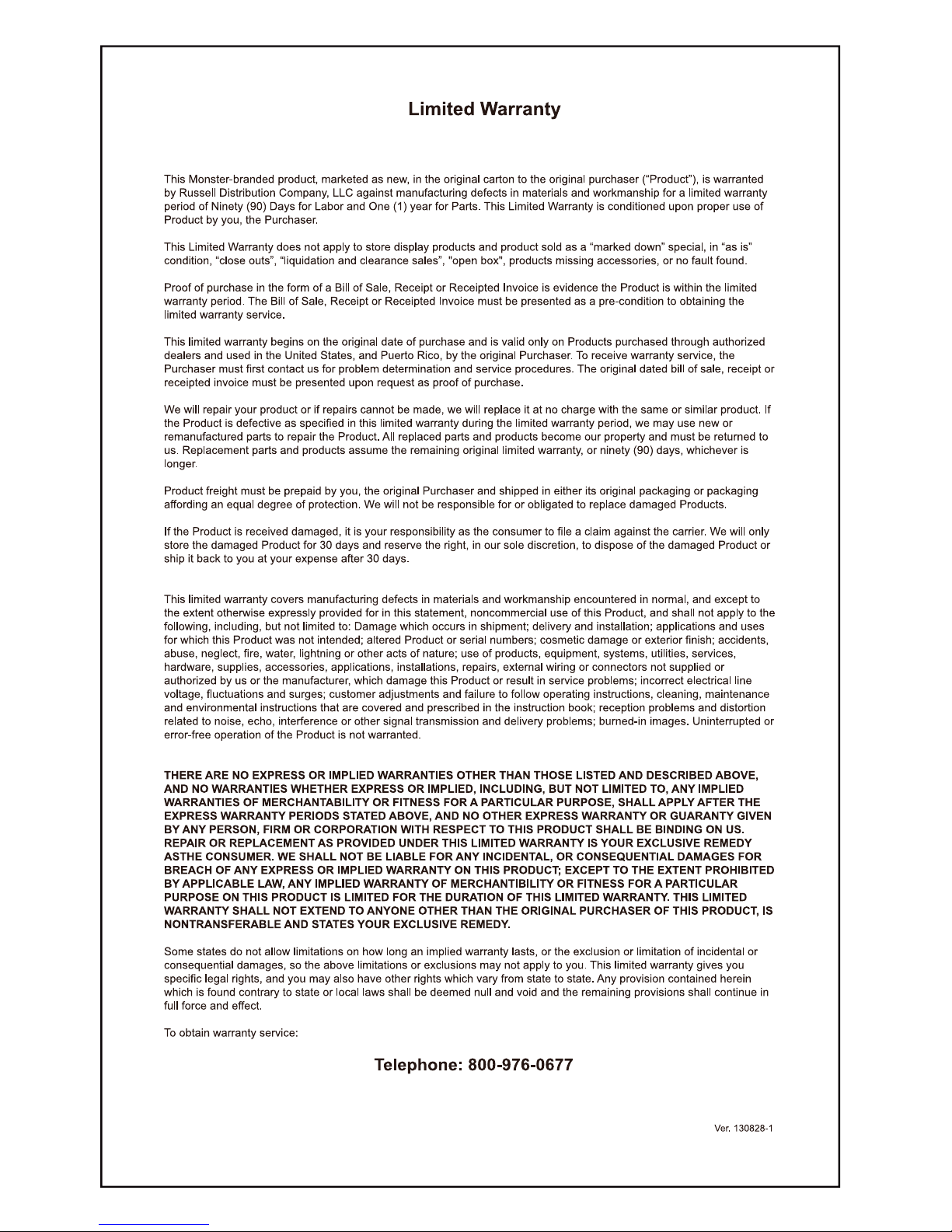

LIMITED WARRANTY 9

- Monster Nomad Speaker

- Power Cable

- User Manual (with Warranty Statement)

- Quick Start Guide

- Mic/Guitar Adapter (6.5mm to 3.5mm)

1

1...... Handle

2...... AC connection input

3 ......Mic/Guitar Volume Control

4...... LED Interface

5...... Mic/Guitar Port

6...... USB Port

7...... Aux Input

2

4 83

9 10

65

11

8...... Power On/O

9...... Source Select

10.... Bluetooth Pairing Key

11.... Battery Level Indicator

12.... Radio Preset

13.... Volume Knob

7

12

13

AC

AC

- Press the Power switch to "ON" position on top panel of speaker

the speaker.

Power Red LED

The unit will enter into Bluetooth mode,
Bluetooth LED will flash blue.

If the 3.5mm Stereo Audio cable is plugged in during this Power On mode, it will automatically enter into AUX mode.

- By connecting AC power, battery will start charging

- Charge battery about 6 hours in Power off mode
before you start using the unit for the first time

- Battery status by pushing battery button. 100,75,50,25
and battery low on LED display when press battery button.

- The Red Power LED will pulse off and on during battery charging.

- The RED power LED will turn solid when fully charged.

BLUETOOTH CONNECTION (Bluetooth Device)

Place Speaker and your Bluetooth device so they are
no more than 3 feet apart.

Press the Source button until "BT" mode is displayed on LED screen

Press “Bbutton on Speaker to enter
into Bluetooth pairing mode. BT Blue LED will flash .

the

Monster Nomad

- Once selected,your Bluetooth device will indicate
as "Connected" , and you will hear confirmation
tone from the speaker;

- Bluetooth LED turns solid upon completion of pairing.

PAIRING USING NFC

- Turn on NFC function on your Bluetooth
enabled device.

- Place your Bluetooth device on the silkscreen
“NFC” on the right side of Monster Nomad handle.

- Confirm Bluetooth connection on your Bluetooth
device. Note: Blue LED indicator will be solid.

- Once paired you can play audio from your Bluetooth
device and audio can be heard from the unit.

Press the Source button until "Aux" mode is displayed on LED screen

Connect Microphone

Connect Microphone

- First plug the supplied "Mic/Guitar" adapter (6.5mm to 3.5mm) to the input
labeled "MIC/Guitar" above the Volume knob

- Once the microphone is plugged in select the "MIC/Guitar" button to Mic position

- Now control your microphone volume on the smaller knob on the far left of the dashboard of the speaker

*Make sure your microphone is also switched to “On”

FM / USB Charging

Listening to FM radio

- Press the "Source" button to select FM source, the radio

station frequency will be displayed on the screen.

- Press and hold (  or ) to search a station with
strongest reception automatically.

Store your favorite four radio stations manually

- Tune to the desired radio station.

- Press and hold a number key (1-4) to enter programming
mode; the corresponding number blinks on the screen;
and the station to save on the selected preset.

- Repeat above steps above to store additional stations.

Select a favorite radio station

- Press the "Source" button to select FM source.

- Press the number 1-4 keys to select one of your favorite
radio stations to listen.

USB Charging (5V/2A)

- With the built in USB power bank, connect your USB
cable to USB power ports. You can
connect an iPhone, iPad, or any Android device.
(USB cable not included)

AUTO STANDBY/ WAKE UP

Auto Standby:

The Power Red LED Signal will turn on and other LED Signals will turn off once the main unit is in Standby mode.

- Bluetooth: When there is no BT Connection, or there is a BT Connection failure, or if the BT has
been disconnected for 15 Minutes, the set will go to standby mode and the BT LED Signal will turn off.

- AUX: The main unit will enter standby mode when the main unit is in Aux mode and no Aux cable has
been detected for 15 minutes.

- Work Mode: When the main unit is in work mode, pressing and holding the volume knob key for
3 seconds will auto enter the unit to Standby Mode.

“Wake up” from standby mode:

If the main unit is in Standby mode, press and hold the volume knob for 1 second. The main unit will turn on
and return to the latest source mode.

6

No power

- Make sure the Guitar is connected through Mic/Guitar converting the header,
and Guitar mode is selected (Press Mic/Guitar button) and Mic/Guitar
volume is turned to a reasonable level;

- Make sure the Mic is connected through Mic/Guitar converting the header, and Mic mode is selected
(Press Mic/Guitar button) and Mic/Guitar volume is turned to a reasonable level;

Audio quality is poor

Speaker.

Cannot pair to Bluetooth device

Speaker

Speaker

Speaker

2

7

8

Model: Nomad
