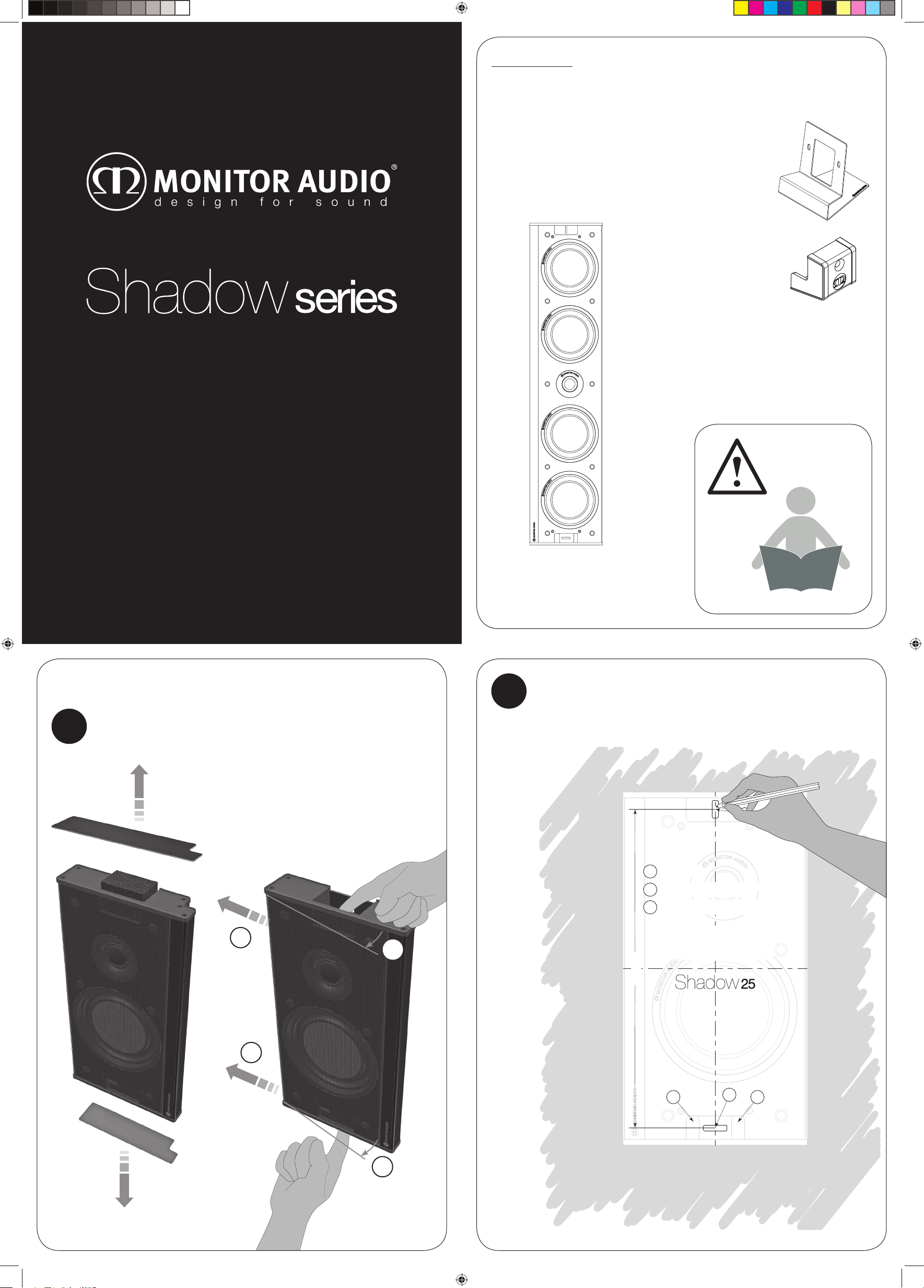

INSTALLATION INSTRUCTIONS
CONTENTS
Product.
Shadow 25
Shadow 50 (Left & Right)
Shadow 60 (Left & Right)
Shadow Centre
(Left & Right)
Shadow 25
Table Stand (x2)
and Fixings.
(Shadow 25 only)
Shadow Centre
Table Stand (x2)
and Fixings.
(Shadow Centre only)
Grille, chrome in-lays and
blanking foam are attached to
the product.
monitoraudio.com
WALL FIXING
All Shadow products
2
Wall fixings not supplied.
Use template to mark wall fixing points.
Drill hole according to desired fixing method.
1
Remove chrome in-lays, foam and grille (being
careful not to touch the tweeter dome).
2
1
C
L
Fixing Point
1
Точ ка крепления
Cable Through Hole. (Left Hand Speaker)
2
Отверстие для кабеля (левая колонка)
Cable Through Hole. (Right Hand Speaker)
3
Отверстие для кабеля (правая колонка)
This template can be used for
both left and right hand speakers
Этот шаблон может использоваться для
монтажа левой или правой колонки
271mm
1
C
L
2
2
1
3
1
Shadow Installation Guide Rev3.indd 1 06/01/2012 11:55:35
Page 2

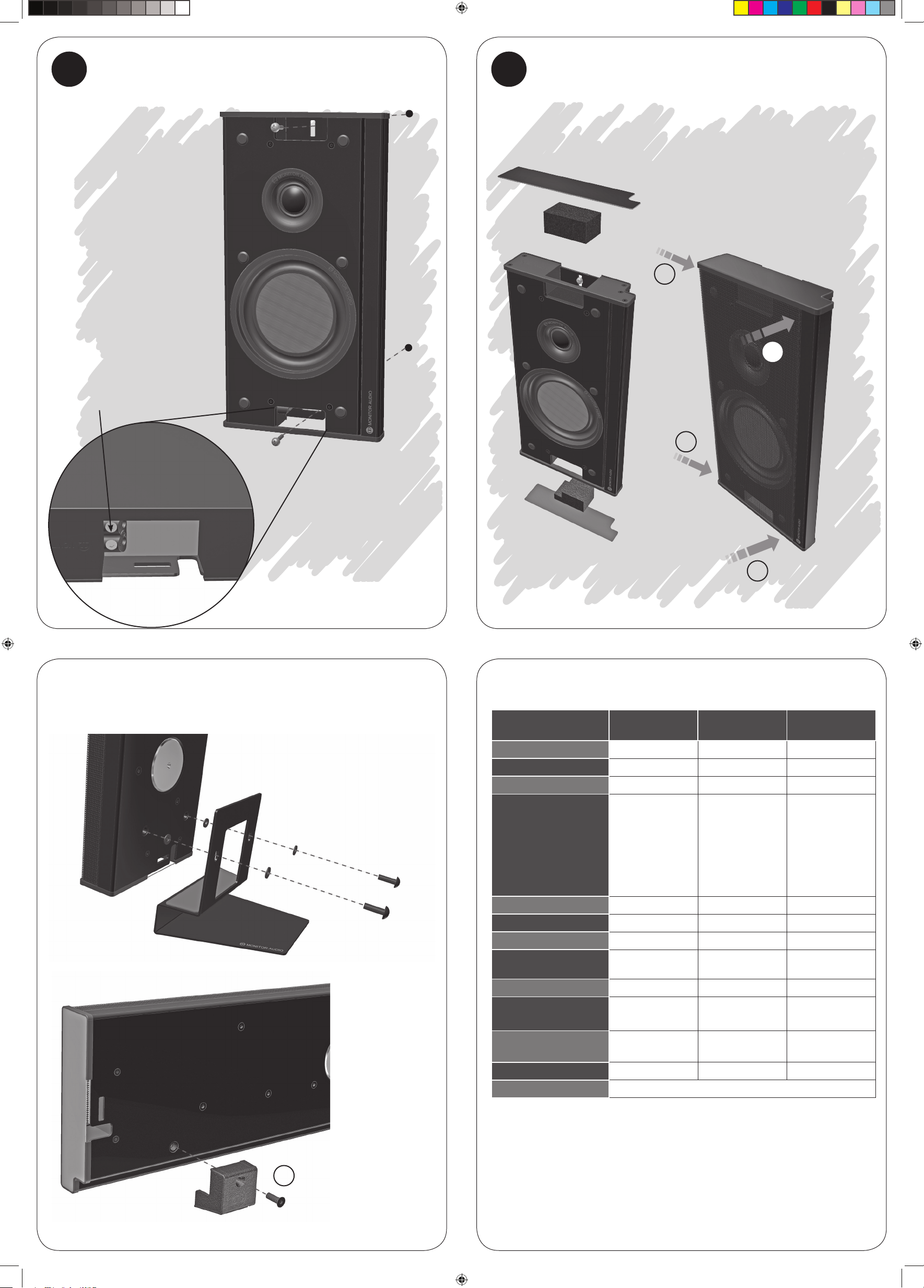

Clamp cables in terminals and fix product to wall.
Right hand speaker shown.
Speaker cable
43
Re-attach foam, chrome in-lays and grille(s).
1
2
terminals.
Max cable diameter 3mm.
1
2
TABLE STAND ASSEMBLY SPECIFICATIONS
Shadow 25
Shadow Centre
Frequency Response
Sensitivity
System Configuration
Driver compliment:
Nominal Impedance
Maximum SPL (each @1M)
Power Handling (R.M.S)
Recommended Amplifier
Requirements (R.M.S)
Bass Alignment
Shadow 25 Shadow 50
100Hz – 30kHz 80Hz – 30kHz 70Hz – 30kHz
84dB 87dB 87dB
2- way 2- way 2- way
1 x 4” Flat diaphragm
mid-bass driver
1 x 25mm C-CAM®
tweeter with vented
loading system
8 ohms 8 ohms 8 ohms
102.6 dBA 108.6 dBA 108.6 dBA
60 watts 120 watts 120 watts
25-60 watts 40-120 watts 40-120 watts
Sealed Box ABR loading ABR loading
2 x 4” Flat diaphragm
mid-bass drivers
2 x 4” Flat diaphragm
ABR drivers
1 x 25mm C-CAM®
tweeter with vented
loading system
Shadow 60 &
Centre
2 x 4” Flat diaphragm
mid-bass driver
2 x 4” Flat diaphragm
ABR drivers
1 x 25mm C-CAM®
tweeter with vented
loading system
Recommended L.P.
Crossover Frequency
Overall Dimensions
(H x W x D)
Weight
Finishes
x2
Shadow Installation Guide Rev3.indd 2 06/01/2012 11:55:42
100-120Hz 80-100Hz 80-100Hz
300 x 156.6 x 40 mm
3/4
11
1.68kg (3lb, 11oz) 3.24kg (7Ib, 2oz) 3.72kg (8Ib, 3oz)
3/16
x 6
x 1
© Monitor Audio Ltd
24 Brook Road, Rayleigh
Essex, SS6 7XJ
England
Tel: + 44 (0)1268 740580
Fax: + 44 (0)1268 740589
Email: [email protected]
Designed in the United Kingdom
Version 1.
686 x 156.6 x 40 mm
1/2
”
Black Anodised Aluminium
27 x 6
3/16
x 1
815 x 156.6 x 40 mm
1/2
”
32 x 6
3/16
x 1
