Speaker Mount
Installation Instructions
Fixing Dial
CONTENTS
Wall Plate
Wall Arm
Locking
Nut
Ceiling
Arm
1
2
3

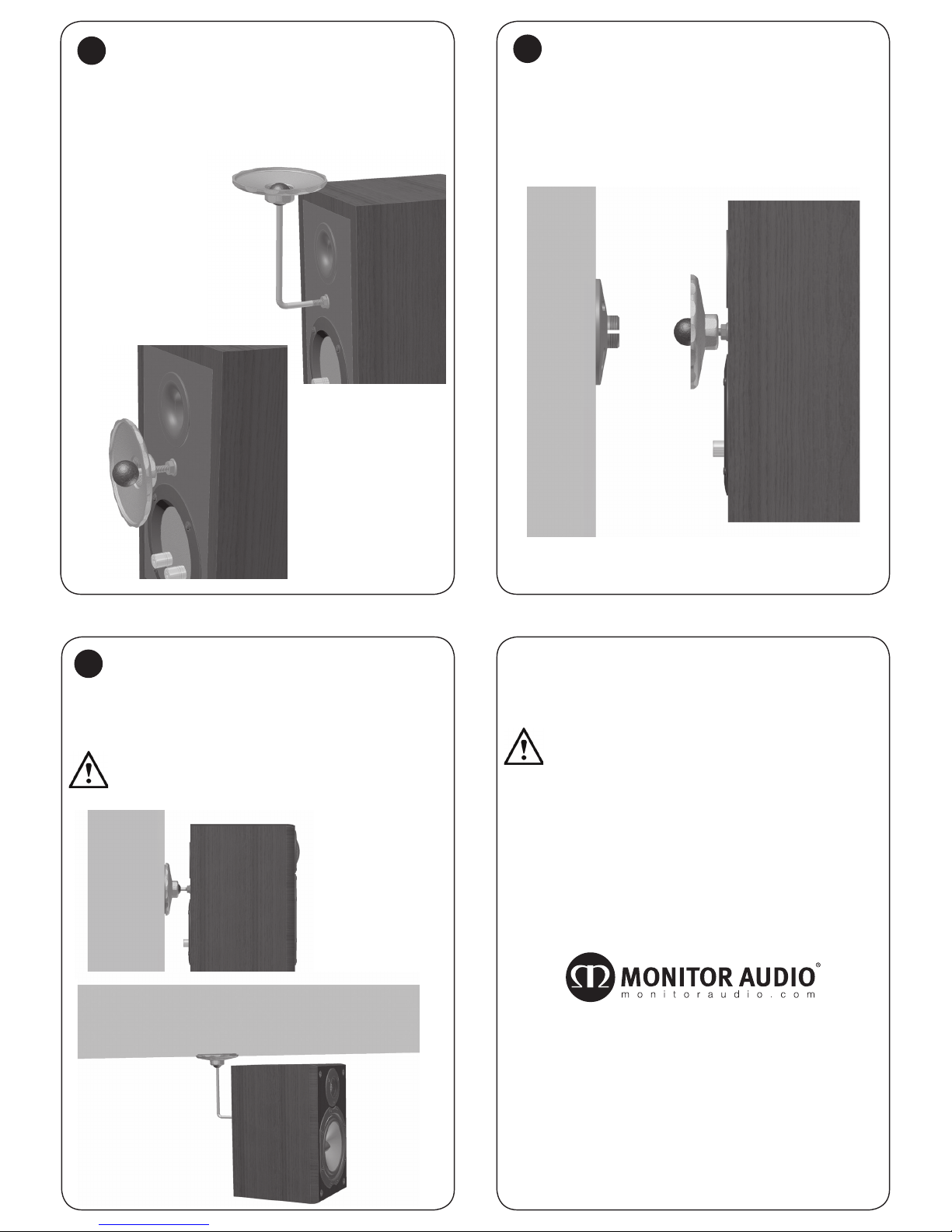

Mark fixing points of wall plate and
drill holes.
Size will be depend on fixing method and you should
refer to the appropriate manufacturers instructions.
If you are unsure of being able to provide a secure fixing
seek the advise of a professional installer.
Fix wall plate to wall
Fit locking nut onto either the
wall mount or ceiling mount arms
(depending on application).
NOTE: No fixings are supplied.
Please use the appropriate fixings dependant
on the wall structure.
4
6
5
Slide the fixing dial over the threaded
part of the arm and fix the arm to
the cabinet turning it clockwise.
Ensure the cabinet is in the desired
angle and fully tighten the Fixing
Dial.
Extra purchase can be achieved by using a spanner on
the Fixing Dial.
If further adjustment is required, loosen the Fixing Dial
before adjusting.
Offer the cabinet and bracket
assembly up to the wall plate
and start to tighten the fixing dial
supporting the weight of the cabinet.
Do not completely tighten.
This Universal Speaker Mount from Monitor Audio uses
a 1/4” UNC thread and can be used with any of our
speakers with the 1/4” UNC threaded insert.
The Maximum weight the bracket can hold is 4Kg.
