Monitor Audio RADIUS 45 User Manual

Owners Manual

Contents Page

Important Safety Instructions 2

Safety Instructions For Fixing Your RadiusHD
Loudspeakers to a Wall 3

Re-cycling 3

RoHS Declaration of Conformity 3

Background 3

Introduction 4

Setting up and Positioning 5

Positioning - Front Speakers 5

Positioning - Surround Speakers 5

Optimum Speaker Placement 6

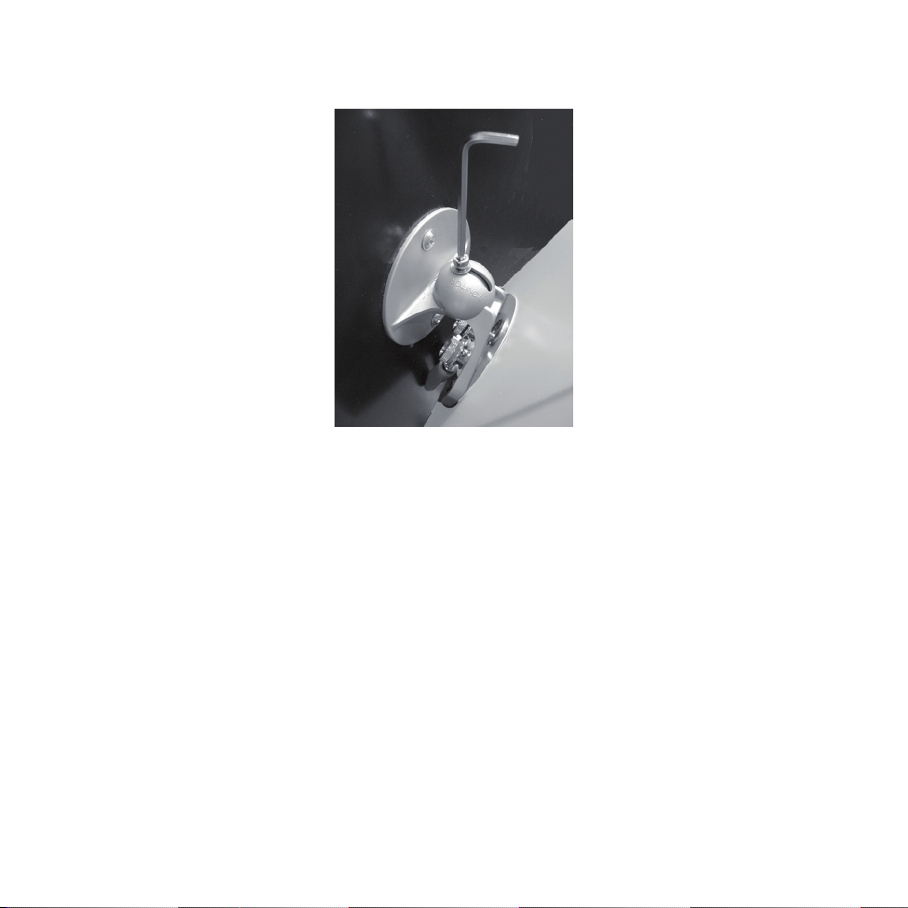

Fixing to the Wall 7

Specifications 10

Guarantee and Service 10

Claims under this Guarantee 11

Data Protection 11

EC Declaration of Conformity 12

monitoraudio.co.uk 1

Important Safety Instructions

Please read these instructions1. .

Please keep these instructions.2.

Heed all warnings.3.

Follow all instructions.4.

Do not use this apparatus with water.5.

Clean only with a dry cloth.6. Great care and attention has gone into the materials chosen to produce the

Radius HD Series. A gentle wipe with a dry, clean cloth is all that is required to remove any dust. Treat them as
you would a fine piece of furniture because that is how they have been designed.

Do not install near any heat source7. , such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

Only use attachments/ accessories specified by Monitor Audio.8.

Use only with the cart9. , stand, tripod, bracket, or table specified by monitor Audio or sold with the apparatus.

When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

Refer all servicing to qualified service personnel.10. Servicing is required when the apparatus has been

damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have
fallen onto the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or
has been dropped.

This apparatus shall not be exposed to dripping or splashing water 11. and that no object filled with liquids

such as vases shall be placed on the apparatus.

This exclamation point within an equilateral triangle 12. is intended to alert the user to the presence of

important maintenance (servicing) instructions in the literature accompanying the appliance.

HD

2

Radius

Safety Instructions For Fixing Your Radius Loudspeakers to a Wall

WARNING: For safety reasons do not attempt to fix these speakers to your wall if you are unsure of
your ability to provide a secure and safe fixing. You will need to determine where to fit the bracket and the
structure of the wall. If unsure, please obtain the services of a competent qualified trades-person.

WARNING: Ensure that there are no water pipes, or electricity cables running behind where the wall
bracket is going to be secured. Work from secure steps and avoid trailing wires.

HD

Re-cycling

Correct Disposal of Waste Electrical and Electronic Equipment (WEEE) by User in Private Households in the EU.

This symbol on the product or accessories indicates that they must not be disposed of with your
household wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of
material resources. Instead it is your responsibility to dispose of your waste equipment by handing
it over to a designated WEEE collection point for recycling. The separate collection and recycling
of your waste equipment will help conserve natural resources and ensure that it is recycled in a
manner that protects human health and the environment.

For more specific information about where you can take your equipment for recycling please contact your local city/
council office, your local waste disposal service or the outlet where you purchased your RadiusHD product.

RoHS Declaration of Conformity

Directive 2002/95/EC of the European Parliament and of the Council on the reduction of the use
of certain hazardous substances in electrical and electronic equipment, January2003.

Background

The RoHS directive restricts the use of Lead (Pb), Cadmium (Cd), Mercury (Hg), hexavalent Chromium (CrVI),
polybrominated biphenyl (PBB) compounds, and polybrominated diphenyl ether (PBDE) compounds in electrical and
electronic equipment sold in the European Union.

monitoraudio.co.uk 3
