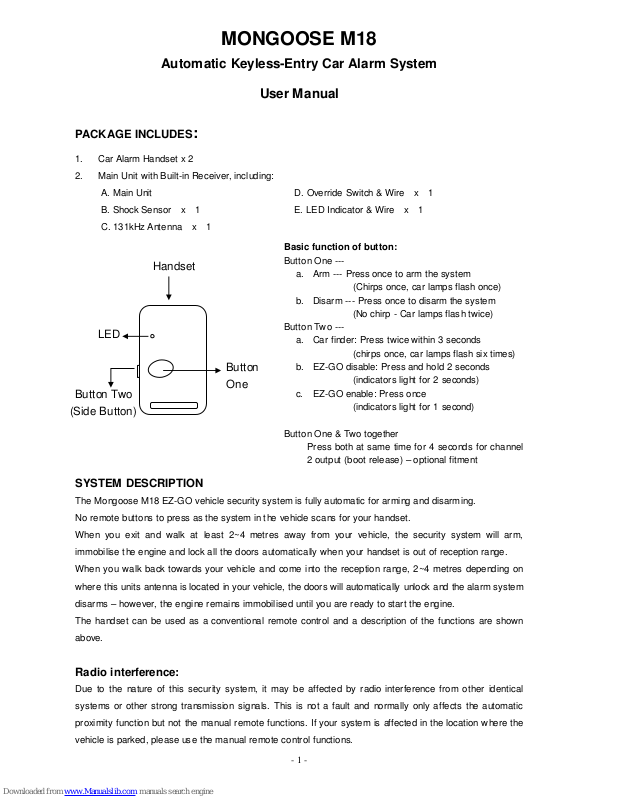

MONGOOSE M18
Automatic Keyless-Entry Car Alarm System
User Manual
PACKAGE INCLUDES:
1. Car Alarm Handset x 2
2. Main Unit with Built-in Receiver, including:
A. Main Unit D. Override Switch & Wire x 1
B. Shock Sensor x 1 E. LED Indicator & Wire x 1
C. 131kHz Antenna x 1
SYSTEM DESCRIPTION
The Mongoose M18 EZ-GO vehicle security system is fully automatic for arming and disarming.
No remote buttons to press as the system in the vehicle scans for your handset.
When you exit and walk at least 2~4 metres away from your vehicle, the security system will arm,
immobilise t he engine and lock all the doors automatically when your handset is out of reception range.
When you walk back towards your vehicle and come into the reception range, 2~4 metres depending on
where this units antenna is located in your vehicle, the doors will automatically unlock and the alarm system
disarms – however, the engine remains immobilised until you are ready to start the engine.
The handset can be used as a conventional remote control and a description of the functions are shown
above.
Radio interference:
Due to the nature of this security system, it may be affected by radio interference from other identical
systems or other strong transmission signals. This is not a fault and normally only affects the automatic
proximity function but not the manual remote functions. If your system is affected in the location where the
vehicle is parked, please use the manual remote control functions.
Button
One
Button Two
(Side Button)
LED
Handset
Basic function of button:
Button One ---
a. Arm --- Press once to arm the system
(Chirps once, car lamps flash once)
b. Disarm --- Press once to disarm the system
(No chirp - Car lamps flash twice)
Button Two ---
a. Car finder: Press twice within 3 seconds
(chirps once, car lamps flash six times)
b. EZ-GO disable: Press and hold 2 seconds
(indicators light for 2 seconds)
c. EZ-GO enable: Press once
(indicators light for 1 second)
Button One & Two together
Press both at same time for 4 seconds for channel
2 output (boot release) – optional fitment
- 2 -
5 MAIN EZ-GO FUNCTIONS:
1. Automatic Unlock & Alarm Disarm
When t he user with the handset walks into the 2~4 metre reception range of the vehicle, the alarm
system will automatically UNLOCK the vehicle doors. At the same time, the alarm system will disarm
including the impact sensor but at this stage the engine will remain immobilised.
2. Automatic Immobiliser
The system will automatically immobilise the vehicle after the ignition is t urned OFF and a door is
opened. The vehicle cannot be started if the handset is not present.
3. Automatic Lock & Alarm Arm
If any door is opened and then closed after the ignition has been t urned OFF, the system will start to
check if the handset is still present. If present, the system will not LOCK/ARM and continues to check if
the handset is within range.
If the handset is not present or the user moves out of range, the system will LOCK/ARM the vehicle
automatically within 6 seconds.
** If the user intends to work/stay around the vehicle for a period of time, it is recommended to turn off
the EZ-GO function temporarily (see below Note 1).
4. Automatic Re-Arm/Re-Lock
The system will re-arm & re-lock the car if either of the following two conditions applies:
1) The user with the handset gets into the range and then goes away without opening the door
2) The user opens and closes the door without turning the IGN to ON, and then goes out of range.
5. Anti-Hijack Function
While the ignition is ON, if any car door is opened, 2 minutes later, the system will transmit signals for
30 seconds to check if the handset is present. If the system does not receive the response from the
handset, the siren will start to intermittently sound and the cars indicators will flash for 50 seconds. 50
seconds later, the engine will be stopped and immobilised. The siren will continue to sound and
indicators to flash for 30 seconds.
Under this condition, the system will continue to check if the handset is nearby. Even if the ignition is
turned off and on again, if the handset is still not present, system will proceed with the same action as
described above - ” Siren will continue to sound and indicators will flash for 30 seconds and then
stop.”
Note:
1. You can temporarily deactivate the above 5 EZ-GO functions by pressing and holding button two
of the handset for 2 seconds when within range - indicators light for 2 seconds to confirm.
2. Pressing button two of the handset once activates the EZ-GO functions - indicators light 1 second
to confirm.
3. Under the Anti-Hijack condition, either get handset close to the car or turn the ignition ON and
then press the Override Switch for 2 second can stop Anti-Hijack mode.
4. It is recommended to break the fuel or ignition circuit instead of starter cut circuit for the
Anti-Hijack function use.
5. OVERRIDE: If the handset is not available the system can be overridden.
Open the vehicle with the key and turn the ignition ON and then press and hold the override s
witch
for 2 seconds. The system will disarm and deactivate the above 5 main functions. Once the
handset is available, just press button two of the handset once to activate the 5 main functions.
- 3 -
6. Automatic Door Lock (after entry into the vehicle) – optional connection
With the doors unlocked, turn the ignition ON, then open and close the drivers door, then press the
brake pedal on and off - system will lock the car doors automatically
or
With the doors unlocked, open and close the drivers door, then t urn the ignition ON, t hen press the
brake pedal on and off - system will lock the car doors automatically
7. Car Finder Function:
Press button two of the handset TWICE (within 3 seconds). If within remote range, the siren will chirp
once and the indicators will flash six times to show where the vehicle is.
8. Power Saving
(1) The system will turn to power saving mode automatically if the system does not get a signal from
the handset for 72 hours.
(2) If the handset is constantly inside reception range for over 12 minutes, the handset will
automatically lengthen the interval between each respond signal to 30 seconds (normally 3
seconds) to save the power of both system and handset.
SYSTEM LEARNING & HANDSET SETTING:
Handset Learning:
(1) Insert the car key and turn the ignition ON.
(2) Press and Hold Override Switch for 5 seconds, LED and indicators stay solid ON indicating system is
in Learning Mode.
(3) Press button one of handset once.
(4) Indicators will flash once to confirm the handset has been memorised - indicators then light solid.
(5) Repeat Step 3 until all handsets are memorised into the system (Maximum 4 handsets).
(6) The system will exit Learning Mode after 10 seconds idle or turn the ignition OFF to exit at any time.
Programming Setting Function:
1. Insert the key and turn it the ignition ON. (The following setting process will need to be completed
within 25sec)
2. Press Override Switch 5 times, siren will chirp 5 times, LED stays solid ON, which indicates the
system is under Programming Settings Mode.
3. Press Override Switch the number of time you wish to enable or disable the function, i.e. press
ONCE to set “Dome Light Delay” Function, siren will chirp ONCE as indication.
4. Press button one of the handset ONCE to switch ON this f unction. The LED indicator will flash
ONCE to indicate the function is O N; and instead, if press button one TWICE, the LED indicator will
flash TWICE to indicate this function is OFF. After finish one setting, user can continue to perform
next setting. If user does not proceed with any setting within 15 seconds, system will exit the setting.
Smart Low Battery Power Warning
If the battery power of the handset is low, the system will alert you by;
• 5 flashes of the indicators upon DISARMING
or
• 1 siren chirp and 4 flashes upon ARMING
The 5 main functions will be temporarily disabled in order for the user to manually arm and disarm by remote
control. After the battery has been replaced, press the button two of the handset once, the main functions will
be enabled.
- 4 -
Range Detection:
We recommend regular checking of the reception range to ensure continuing performance and security.
After step 3 of above system programming setting, press the Override Switch for 20 times to perform range
detection.
Without pressing any remote button, walk around the vehicle at varying distances away from the vehicle to
check the reception range. Siren will chirp every time when the handset is within reception range.
Turn the ignition OFF to exit this function.
Programming Table: (The “●” indicates the Factory Default settings for each feature)
Override
Switch
Press Handset Button to Turn the Functions ON/OFF
Press Once Dome Light Delay ● Disable
Press Twice Anti-Hijack Mode ● Disable
Press 3 Times ● Full 5 Main Functions Disable
Press 4 Times ● Central Door Lock Time (0.6 sec.) Central Door Lock Time (3 sec.)
Press 5 Times ● 1 Chirp when Arming Mute when Arming
Press 6 Times ● Safety Door Lock
5sec after IGN ON
Disable
Press 7 Times ● Door Unlock upon IGN OFF Disable
Press 8 Times ● Connects to Car Horn Connects to Alarm Siren
Press 9 Times ● Honk Chirp 30ms Honk Chirp 50ms
Press 10 Times
Press the handset button ONCE again to confirm all settings back to
Factory Default
Press 20 Times
Range Detection (Please view the previous page for the range detection
function.)
The placement of Antenna
It is recommended to place the antenna at either of the following places:
1. Rear of the interior rear-view mirror.
2. Inside the A or B column of the driver’s side at the height of driver’s shoulder.
- 5 -
WIRING DIAGRAM：：：：
Override Switch
2 P
2 P
LED Indicator
N/C
Green
Purple/White
N/O
6 P
Blue
Unlock
Gray
White
Purple
N/C
Lock
N/O
COM
COM
7 P
Right Indicator output（’+’ 10mA）
Red
+12V
Ground out for immobiliser（’-‘ 500mA）
Yellow
Siren output （’-‘ 500mA）
Brown/Black
White
Black
Green/White
Boot release output（’-‘ 500mA）optional
Left Indicator output（’+’ 10mA）
（’-‘）GND
Green/White
Door（--）
Door（+）
Selection Jumpers
3 P
Antenna (Standard)
3 P
3 P
2nd Antenna (Optional)
Shock Sensor
Door Lock for Negative Trigger
Door Lock for Positive Trigger
Door Lock for Direct Actuator Drive
Blue
Green
Purpl
e/Whit
e
Gray
White
Purple
(+)(-)Unlock
(+)(-)Lock
+
12V
Blue
Green
Purple/White
Gray
White
Purple
X X
(-)Unlock
(-)Lock
Blue
Green
Purple/White
Gray
White
Purple
X
X
(+)Unlock
(+)Lock
+
12V
3 P
Blue
Orange
Brown/White
DoorTrigger input (+/- by Jumper)
Ignition input（+）
Brake input （（（（+））））
NOTE: Optional connection - see feature 6.
