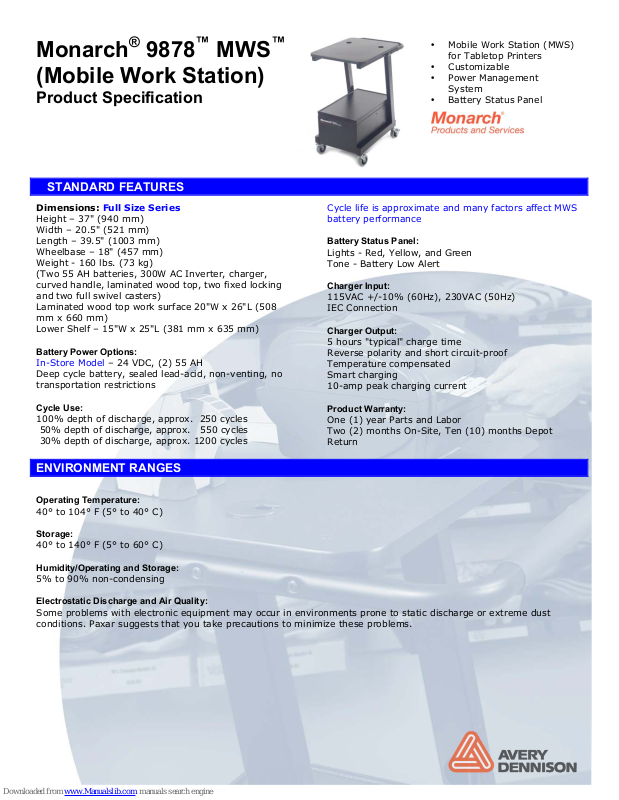

Monarch 9878 MWS Specifications

Monarch® 9878™ MWS
(Mobile Work Station)

Product Specification

STANDARD FEATURES

™

• Mobile Work Station (MWS)

for Tabletop Printers

• Customizable

• Power Management

System

• Battery Status Panel

Dimensions: Full Size Series

Height – 37" (940 mm)
Width – 20.5" (521 mm)
Length – 39.5" (1003 mm)
Wheelbase – 18" (457 mm)
Weight - 160 lbs. (73 kg)
(Two 55 AH batteries, 300W AC Inverter, charger,
curved handle, laminated wood top, two fixed locking
and two full swivel casters)
Laminated wood top work surface 20"W x 26"L (508
mm x 660 mm)
Lower Shelf – 15"W x 25"L (381 mm x 635 mm)

Battery Power Options:

In-Store Model – 24 VDC, (2) 55 AH

Deep cycle battery, sealed lead-acid, non-venting, no
transportation restrictions

Cycle Use:

100% depth of discharge, approx. 250 cycles
50% depth of discharge, approx. 550 cycles
30% depth of discharge, approx. 1200 cycles

ENVIRONMENT RANGES

Operating Temperature:

40° to 104° F (5° to 40° C)

Cycle life is approximate and many factors affect MWS
battery performance

Battery Status Panel:

Lights - Red, Yellow, and Green
Tone - Battery Low Alert

Charger Input:

115VAC +/-10% (60Hz), 230VAC (50Hz)
IEC Connection

Charger Output:

5 hours "typical" charge time
Reverse polarity and short circuit-proof
Temperature compensated
Smart charging
10-amp peak charging current

Product Warranty:

One (1) year Parts and Labor
Two (2) months On-Site, Ten (10) months Depot
Return

Storage:

40° to 140° F (5° to 60° C)

Humidity/Operating and Storage:

5% to 90% non-condensing

Electrostatic Discharge and Air Quality:

Some problems with electronic equipment may occur in environments prone to static discharge or extreme dust
conditions. Paxar suggests that you take precautions to minimize these problems.

™

PERFORMANCE

Two standard full size models to choose from to meet your needs.

In-Store:

M0987802 24 VDC with 24 VDC to 12 VDC

converter

M0987803 24 VDC/300W pure sine wave 115

VAC 50/60 Hz output

SPECIAL CONSIDERATIONS

The M09878 MWS is designed for the full range of Monarch thermal printers
(M0946X, M0603X, M0601X, M0943X, M098X5 and M0941X series).

OPTIONS

• Contact your Sales Representative.

In our ongoing effort to deliver the best technology, specifications are subject
to change without notice.

BC-SP-020 Rev. 7/07

Monarch® 9878™ MWS
(Mobile Work Station)

800.543.6650 prompt 5

937.865.2554 fax

www.paxar.com

©2007 Paxar Americas, Inc. All rights reserved.
