TC9465OI Rev. AG 11/10 ©2009 Avery Dennison Corp. All rights reserved.

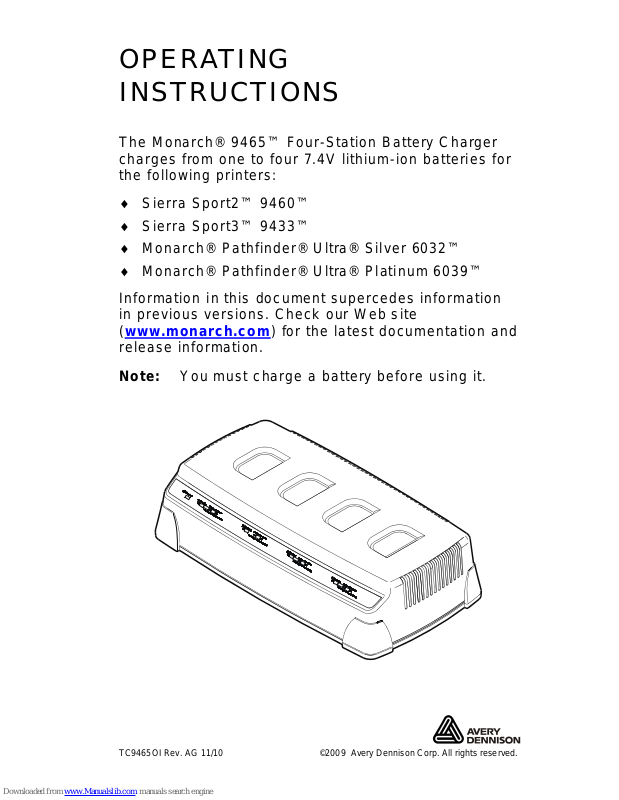

OPERATING
INSTRUCTIONS
The Monarch® 9465™ Four-Stati on Battery Charger
charges from one to four 7.4V lithium-ion batteries for
the following printers:
Sierra Sport2™ 9460™
Sierra Sport3™ 9433™
Monarch® Pathfinder® Ultra® Silver 6032™
Monarch® Pathfinder® Ultra® Platinum 6039™
Information in this documen t supercedes information
in previous versions. Check our We b site
(www.monarch.com
) for the latest documentation and
release information.
Note: You must charge a battery before using it.
Page 2
2
WARNINGS
Use only a Monarch-qualified battery.
The battery could be damaged or explode if placed
on a different charger.
Do not throw the battery i n the trash. Dispose
according to your local regulations.
Do not disassemble, short-circuit, heat above
80°C, or incinerate the battery. It may explode.
Follow the operating and storage limit
specifications listed a t the end of these
instructions. Otherwise, the batt ery may
permanently lose its charge capacity.
Connecting the Power Supply
To connect the power supply:
1. Plug one end of the power supply into a wall
electrical outlet.
2. Plug the other end of the power supply into the
back of the charger.
The Power LED is on when the charger is set up and
plugged in.
Page 3
3
Charging a Battery
To charge a battery, insert the battery into the charger
as shown. Charging t ime can take up to three hours.
It takes approximately two hours to reach the 80%
level (where it is now usable). To reach 100%, it
takes approximately one hour more.
Reading the Display
Once the charger is plugged into an elec trical outlet,
the Power LED is on (solid). There are four charging
stations and each has its own set of LEDs.
Charging LED – flashes when you insert the ba ttery; is
solid while charging; and is off when charging is
complete.
Complete LED – flashes when the ba ttery is 80%
charged and is solid wh en the battery is 100%
charged.
Page 4
4
Troubleshooting
When an error occurs, the Charging and Complete
LEDs blink together. In this case, repeat the charging
process. If the error still occurs, repeat the process
with a new battery. If there is a problem after the
second repeat charge, call Service.
In between charges, remove the ba ttery, wait for the
lights to stop flashi ng, then re-insert the batter y.
Specifications
Operating Limits
Temperature
32°F to 104°F (0°C to 40°C)
Humidity
5% to 90% non-condensing
Storage Limits
Temperature
-40°F to 158°F (-40°C to 70°C)
Humidity
5% to 90% non-condensing
Charger
Length:
11.8” (300.0 mm)
Width:
6.25” (158.75 mm)
Height:
2.75” (70.0 mm)
Input:
12 to 16 VDC/50W
Weight:
4.55 lbs. (2.06 kg)
Power Supply
Input:
Universal switching power supply, 90
to 264 VAC, 50/60 Hz.
Output:
12 VDC/80W max
Visit our Web site for sales, service, supplies,
information, and telephone numbers for our locations
throughout the world.
Toll Free:
1-800-543-6650 (In the U.S.A.)
1-800-387-4740 (In Canada)
