Page 1

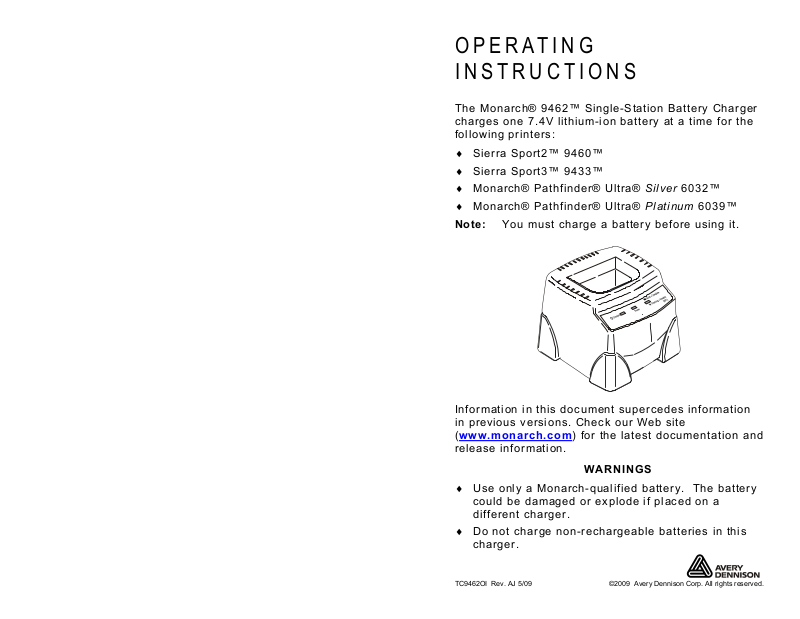

OPERATING
INSTRUCTIONS
The Monarch® 9462™ Single-Station Battery Charger
charges one 7.4V lithium-ion battery at a time for the
following printers:
Sierra Sport2™ 9460™ ♦
♦
Sierra Sport3™ 9433™
♦
Monarch® Pathfinder® Ultra® Silver 6032™
♦
Monarch® Pathfinder® Ultra® Platinum 6039™
Note: You must charge a battery before using it.
Information in this document supercedes information
in previous versions. Check our Web site
(www.monarch.com
release information.
Use only a Monarch-qualified battery. The battery
♦
could be damaged or explode if placed on a
different charger.
♦ Do not charge non-rechargeable batteries in this
charger.
TC9462OI Rev. AJ 5/09 ©2009 Avery Dennison Corp. All rights reserved.
) for the latest documentation and
WARNINGS
Page 2
Do not throw the battery in the trash. Dispose
♦
according to your local regulations.
♦ ♦ Do not disassemble, short-circuit, heat above
80°C, or incinerate the battery. It may explode.
Follow the operating and storage limit
specifications listed at the end of these
instructions. Otherwise, the battery may
permanently lose its charge capacity.
Setting Up the Equipment
To set up the equipment:
1. Plug one end of the power supply into a wall
electrical outlet.
2. Plug the other end of the power supply into the
back of the charger.
The Power LED is lit when the charger is set up and
plugged in.
2
Page 3
Charging the Battery
To charge the battery, insert the battery into the
charger, with the ribbed end sticking out. Charging
time can take up to three hours. It takes
approximately 1 hour to reach the 80% level (where it
is now usable). To reach 100%, it takes
approximately 2 hours more.
Reading the Display
Power LED – on (solid). Charger is plugged in. ♦
♦ ♦ Charging LED – flashes when you insert the
battery; on (solid) during charging; off when
charging is complete.
Complete LED – flashes when the battery is 80%
charged; on (solid) when the battery is 100%
charged.
3
Page 4
Troubleshooting
When an error occurs, the Charging and Complete
LEDs blink together. In this case, repeat the charging
process. If the error still occurs, repeat the process
with a new battery. If there is a still a problem after
the second repeat charge, call Service.
In between charges, remove the battery, wait for the
lights to stop flashing, then re-insert the battery.
Specifications
Operating
Limits:
Temperature
Humidity
Storage Limits:
Temperature
Humidity
32°F to 104°F (0°C to 40°C)
5% to 90% non-condensing
-40°F to 158°F (-40°C to 70°C)
5% to 90% non-condensing
Charger
Length:
Width:
Height:
Input:
Shipping Weight:
3” (76.2 mm)
3.25” (82.55 mm)
3” (76.2 mm)
12 to 16 VDC/14W
1.16 lbs. (.53 kg)
Power Supply
Input:
Output:
Visit our Web site for sales, service, supplies,
information, and telephone numbers for our locations
throughout the world.
Toll Free:
1-800-543-6650 (In the U.S.A.)
1-800-387-4740 (In Canada)
Universal switching power supply, 85
to 264 VAC, 50/60 Hz.
12 VDC/18W max
4
