Monarch

9416 Printer

UM FFIN

IS /

DAN

UFFIN

ANI H/

ILLO

ANEC

MUS

BY:

PAN

ECIL

UST

Each product and program carries a respective written warranty, the only warranty on which the customer can rely. Paxar reserves the right to make changes in the product, the programs, and their availability at any time and without notice. Although Paxar has made every effort to provide complete and accurate information in this manual, Paxar shall not be liable for any omissions or inaccuracies. Any update will be incorporated in a later edition of this manual.

©2005 Paxar Americas, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form by any means, without the prior written permission of Paxar Americas, Inc.

WARNING

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CANADIAN D.O.C. WARNING

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Réglement sur le brouillage radioélectrique édicte par le ministère des Communications du Canada.

Trademarks

MONARCH and 9416 are registered trademarks of Paxar Americas, Inc. Paxar is a trademark of Paxar Corporation.

McDonald’s is a registered trademark of McDonald’s Corporation. Microsoft, Windows, NT, and Office are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Other products are trademarks or registered trademarks of their respective companies and are hereby acknowledged.

Paxar Americas, Inc. 170 Monarch Lane Miamisburg, Ohio 45342

TABLE OF CONTENTS

GETTING STARTED 1-1

Using This Manual .......................................................1-1

Audience .................................................................... 1-2

Unpacking the Freshness System .................................. 1-2

Connecting the Printer’s Power Supply ..........................1-3

Reading the Indicator Light........................................... 1-5

Loading Labels ............................................................ 1-6

Calibrating the Supply ................................................ 1-11

Checking the Die Cut Sensor ...................................... 1-11

USING THE KEYPAD 2-1

Connecting the Keypad’s Power Supply ......................... 2-1

Connecting the Communication Cable ............................ 2-3

About the Keypad ........................................................ 2-4

Setting up the McDonald’s System................................. 2-5

Setting the Date and Time ............................................ 2-5

Processing the Product ................................................2-7

Printing a Use First Label ............................................. 2-8

Using the Stop Printing Function ................................... 2-8

Future Upgrades.......................................................... 2-8

CARE AND MAINTENANCE 3-1

Clearing Label Jams ....................................................3-1

Cleaning the Printhead................................................. 3-2

Cleaning the Platen Roller and Printer ........................... 3-2

TROUBLESHOOTING 4-1

USING THE UPDATE UTILITY 5-1

Before You Begin .........................................................5-2

Editing the Overlay.......................................................5-3

Changing a Key’s Color .............................................5-6

Defining Custom Colors .............................................5-8

Deleting a Key..........................................................5-9

Printing the Overlay....................................................5-11

Updating the Keypad ..................................................5-12

Communication Settings ..........................................5-13

SPECIFICATIONS A-1

Printer Specifications .................................................. A-1

GETTING STARTED

Use this system for product freshness. The system consists of a Monarch 9416 printer and a keypad with the McDonald’s Freshness application.

Using This Manual

Following is a summary of the contents of this manual.

Chapter Contents

1 Getting Started

2 Using the Keypad

Care &

Maintenance

4 Troubleshooting

Using the Update

Utility

A Specifications Printer specifications.

Unpacking and installing the printer and loading supplies.

Configuring the system, setting the date and time, and processing products.

Clearing label jams and cleaning the printer.

Common problems and their solutions.

Editing the keypad overlay and updating the keypad settings.

Getting Started 1-1

Audience

This Equipment Manual is for the person who prints and applies labels.

This chapter includes information about

♦ unpacking the freshness system

♦ connecting the printer’s power supply

♦ reading the printer’s indicator light

♦ loading labels.

Information in this document supercedes information in previous versions. Check our Web site (www.paxar.com) for the latest documentation and release information.

Unpacking the Freshness System

After you unpack the system, you should have the following:

♦ 9416 printer and power supply

♦ power strip

♦ communications cable

♦ keypad and AC adapter (depends on kit ordered).

For missing items, service, technical assistance or ordering labels, please call the number on the back of this manual.

Keep all packaging material in case you need to move or return the system.

1-2 Equipment Manual

Connecting the Printer’s Power Supply

Do not touch the electrical connectors while setting up the printer. Electrostatic discharge can damage or destroy the printhead or electronic components.

To connect the power supply to the printer:

1. Place the printer on a table in a location that allows easy access to the front of the printer.

Note: Never operate the printer resting on its side

or upside down.

2. Turn off the printer. Press the power switch on the back of the printer to the off (O) position.

3. Place the power supply in a suitable location, preferably on a table, near an electrical outlet.

4. Plug the three-hole end of the AC adapter cable into the three-pronged outlet in the printer’s power supply.

Caution: The printer’s power supply uses a

different voltage than the keypad. To connect the wrong power supply could permanently damage the keypad or the printer.

Getting Started 1-3

5. Plug the round end of the power supply cable into the socket at the back of the printer.

6. Plug the three-pronged end of the AC adapter cord into a grounded electrical outlet.

Warning: The printer and power supply should

never be operated in a location where either one can get wet. Personal injury could result.

1-4 Equipment Manual

Reading the Indicator Light

The indicator light monitors the printer's status.

Indicator Light

Feed Button

Indicator Light Description

GREEN Printer is on and ready to use.

FLASHING GREEN

FLASHING RED

ORANGE The printer is detecting the labels.

No light

Printer is paused. Press the FEED button to resume printing.

Printer error condition. See Chapter 4, “Troubleshooting” for error conditions and solutions.

Printer is off. Make sure the power supply is connected properly. See "Connecting the Power Supply" earlier in this chapter.

Getting Started 1-5

Loading Labels

If you run out of labels while printing, do not turn off the printer when reloading the labels. You may lose your data. The printer resumes printing when reloaded.

1. Remove and discard the tape from a new roll of labels.

2. Press the cover release levers located on both sides of the printer towards the front of the printer to release the cover.

3. Lift open the cover.

1-6 Equipment Manual

4. Remove a supply holder guide from one end of the supply holder. The supply holder is normally attached with a line to the inside of the printer.

Supply Holder Guides

Supply Holder

1.5” Supply Core Adapter

5. Slide a roll of labels onto the supply holder. If the core diameter on your roll of labels is 1-inch in diameter, remove the 1.5-inch supply core adapters from the supply holder guides.

6. Slide the supply holder guide back onto the end of the supply holder.

Getting Started 1-7

7. Insert the ends of the supply holder into the slots in the supply roll mount.

Supply Roll Mount

Note: The plastic line attaching the supply holder to

the printer should be tucked down out of the way of the supply holder and supply holder guides. Otherwise, the plastic line may wrap around the supply holder or get caught on the supply holder guides.

1-8 Equipment Manual

8. Turn the dial to adjust the supply guides to their widest position.

Supply Guides

9. Feed the labels, printing side up, under the supply guides and over the platen roller.

Supply Guides

Platen Roller

Getting Started 1-9

10. Press the labels under the supply guides.

11. Turn the dial to adjust the supply guides so that

they barely touch the edges of the label backing paper.

12. Close the cover until it locks in place.

13. Press the FEED button. The indicator light should

be GREEN.

14. Calibrate the supply if printing stops and the indicator light turns RED or the labels do not properly advance. See “Calibrating the Supply,” for more information.

1-10 Equipment Manual

Calibrating the Supply

1. Turn off the printer.

2. Press and hold the FEED button while turning on

the printer.

3. Release the FEED button after the indicator light starts flashing ORANGE. The printer calibrates the die cut sensor, measures the label length, and prints the test labels.

4. To resume normal printing, turn off the printer, wait two seconds, then turn it back on again.

If the supply does not calibrate, make sure the die cut sensor has not been accidentally moved.

Checking the Die Cut Sensor

After loading supplies, make sure you did not accidentally move the die cut sensor. The die cut sensor senses and calibrates the supply. For your supplies, make sure the die cut sensor is in the detented position and the middle of the square lens lines up with the arrow inside the printer.

Sensor set for die cut supplies

Getting Started 1-11

1-12 Equipment Manual

USING THE KEYPAD

This chapter describes how to

♦ connect the keypad

♦ use the keypad

♦ configure the McDonald’s system–IMPORTANT!

♦ set the date and time

♦ process the product

♦ print a Use First label

♦ use the Stop Printing function.

Note: Keep this manual in a safe place; otherwise,

changing the settings requires a service call.

Connecting the Keypad’s Power Supply

The keypad should not be operated in a location that has room temperatures above 158°F or below –4°F for extended periods of time. This could permanently damage the display. To connect the power supply to the keypad:

1. Place the keypad on a table or shelf.

2. Place the keypad’s power supply in a suitable

location, preferably on a table near an electrical outlet.

3. Plug the three-hole end of the AC adapter cable into the three-pronged outlet in the keypad’s power supply.

4. Plug the power supply cable with the L-shaped end into the socket on the right side of the keypad.

Using the Keypad 2-1

L-shaped Connector

5. Plug the three-pronged end of the AC adapter cord into a grounded electrical outlet.

2-2 Equipment Manual

Connecting the Communication Cable

To connect the serial cable from the printer to the keypad:

1. Turn off the printer and the keypad before connecting the cable.

2. Connect the serial cable to the 9-pin serial port on the back of the printer.

9-pin Serial Port

Using the Keypad 2-3

3. Connect the other end of the serial cable (9-pin) to the serial port on the right-hand side of the keypad.

Serial Port

About the Keypad

Use the McDonald’s application to label inventory products. The buttons are color-coded so you can easily print the item labels.

♦ Yellow – breakfast items

♦ Red – grill area items

♦ Blue – front counter

items

♦ Green – prep/salad

items

♦ Orange – miscellaneous

items

2-4 Equipment Manual

Setting up the McDonald’s System

IMPORTANT - Please perform the following steps before using the system.

To set up the system:

1. Press the McDonald’s button three times.

SELECT DATE OR TIME

2. Press the number 3 button.

SENDING I PACKET COMMAND TO PRINTER, PLEASE WAIT.

3. Press any key to print a label.

Setting the Date and Time

To set the date:

1. Press the McDonald's button three times.

SELECT DATE OR TIME

2. Press the number 1 button. The display shows the current date setting. If this is correct, press the McDonald’s button to return to the main display.

To change the setting, use the numeric buttons:

♦ Press 1 to change the month ♦ Press 2 to change the day ♦ Press 3 to add a year ♦ Press 4 to subtract a year

3. Press the McDonald’s button to save the changes and to return to the main display.

Using the Keypad 2-5

To set the time:

1. Press the McDonald’s button three times.

SELECT DATE OR TIME

2. Press the number 2 button.

The display shows the current time setting. If this is correct, press the McDonald’s button to return to the main display.

To change the setting, use the numeric buttons:

♦ press 1 to change the hours ♦ press 2 to change the minutes ♦ press 3 to change AM/PM.

3. Press the McDonald’s button to save the changes and to return to the main display.

2-6 Equipment Manual

Processing the Product

Use the McDonald's application to label any product for freshness. All products are listed on the buttons on the keypad. The numeric buttons on the keypad allow you to enter the quantity of labels to be printed.

To print one label at a time:

1. Press any product button once.

CHECKING PRINTER STATUS PLEASE WAIT

2. A label prints for the product you selected.

To print multiple labels:

1. Press the numeric buttons to enter a quantity.

QTY = X SELECT PRODUCT

X represents the quantity you entered.

2. Press a product button.

CHECKING PRINTER STATUS PLEASE WAIT

The labels print for the product you selected.

Using the Keypad 2-7

Printing a Use First Label

Apply a “Use First” label to any product on the shelf that needs to be used first.

1. Press the Use First button on the keypad (bottom right).

CHECKING PRINTER STATUS PLEASE WAIT

2. A label with the words "Use First" prints.

Using the Stop Printing Function

If you press the wrong number of labels to be printed, or the wrong product button:

1. Press the Stop Printing button on the keypad (upper right) to cancel printing.

2. Press the FEED button on the printer to clear the stopped label.

Note: You must be at the main display for this

function to work.

Future Upgrades

Updates will be provided by Supervisors. To use the Update Utility, see Chapter 5, “Using the

Update Utility,” for more information.

2-8 Equipment Manual

CARE AND

MAINTENANCE

This chapter tells you how to

♦ clear label jams

♦ clean the printhead.

Clearing Label Jams

When you are printing and a jam occurs, the indicator light turns RED.

To clear the jam:

1. Turn off the printer. Press the power switch on the back of the printer to the off position (O).

2. Press the cover release levers towards the front of the printer to release the cover.

3. Lift open the cover.

4. If necessary, remove any previously loaded labels.

Lift up the supply holder and remove one of the supply holder guides.

5. Slide the labels off the supply holder.

6. Remove the jammed labels.

Caution: Do not use sharp or pointed objects to

remove labels, or damage to the printhead may occur.

7. Reload the labels. See “Loading Labels” in Chapter 1 for more information.

8. Close the cover until it locks in place.

9. Press the FEED button. The indicator light should

be GREEN.

Care and Maintenance 3-1

Cleaning the Printhead

Remember to clean the printhead every time you load a new label roll into the printer.

Caution: You must turn off the printer’s power before

cleaning the printhead. To clean the printhead while printing, you may lose your data when you turn off the printer.

1. Turn off the printer. Press the power switch on the back of the printer to the OFF (O) position.

2. Press the cover release levers towards the front of the printer to release the cover.

3. Lift open the cover.

4. Moisten a cotton swab with isopropyl alcohol.

5. Rub the cotton swab across the printhead to

remove any build-up.

6. Allow the printhead to dry for one minute before you close the cover and resume printing.

Cleaning the Platen Roller and Printer

Moisten a cotton swab with isopropyl alcohol and run the cotton swab across the platen roller. Turn the platen roller with your finger and make sure it is clean all the way around.

Note: Do not remove the platen roller. Slightly dampen a cloth with water and wipe the

printer’s exterior surfaces clean. Use a dry, soft-bristled brush to clean paper dust out of the printer’s interior.

3-2 Equipment Manual

Platen Roller

TROUBLESHOOTING

This section lists some common problems and their solutions.

Problem Action

Indicator light is off when the printer is turned on.

Indicator light is GREEN, but the printer will not print.

Indicator light is RED.

Check the power connections from the power supply to the printer and wall outlet. See "Connecting the Printer’s Power Supply” in Chapter 1 for more information.

Check the cable connections from the keypad to the printer. See “Connecting the Communication Cable” in Chapter 2 for more information.

Make sure the labels are loaded correctly and that they are the Paxar/Monarch labels recommended for this application. See “Loading Labels” in Chapter 1 for more information.

Clean the printhead. See "Cleaning the Printhead" in Chapter 3 for more information.

Make sure the cover is closed.

Out of labels or the cover is open.

Load labels. See "Loading Labels” in Chapter 1 for more information.

Make sure the cover is closed until it latches, then press the FEED button.

Troubleshooting 4-1

Problem Action

Printing stops and indicator light turns RED.

Or, the printer does not advance from one label to the next correctly.

Calibrate the supply.

1. Turn off the printer.

2. Load labels. See “Loading

Labels” in Chapter 1 for more information.

3. Press and hold the FEED button while turning on the printer.

4. Release the FEED button after the indicator light starts flashing ORANGE. The printer calibrates the die cut sensor, measures the label length, and prints the test labels.

5. To resume normal printing, turn off the printer, wait two seconds, then turn it back on.

Load different labels. See “Loading Labels” in Chapter 1 for more information.

Clear a label jam. See "Clearing Label Jams" in Chapter 3 for more information.

Make sure the die cut sensor is in the correct position (was not accidentally moved while loading supplies). See “Checking the Die Cut Sensor,” in Chapter 1 for more information.

4-2 Equipment Manual

Problem Action

Label exits partially out of the printer or skips a label.

Printing is faded or poor quality.

A label may be caught in the printer. See “Clearing Label Jams” in Chapter 3 for more information.

Make sure the labels are loaded correctly and that they are the Paxar/Monarch labels recommended for this application. See “Loading Labels” in Chapter 1 for more information.

Make sure the cover is closed completely.

Clean the printhead. See "Cleaning the Printhead" in Chapter 3 for more information.

Adjust the print speed/darkness. See your System Administrator.

Troubleshooting 4-3

Problem Action

Test label does not print.

Make sure the supply is loaded correctly.

Make sure the die cut sensor is in the correct position (was not accidentally moved while loading supplies). See “Checking the Die Cut Sensor,” in Chapter 1 for more information.

The keypad displays an error.

To clear an error displayed on the keypad, turn off the printer’s power switch, wait two seconds, then turn on the printer.

4-4 Equipment Manual

USING THE UPDATE

UTILITY

The McDonald’s Update Utility allows you to

♦ edit the keypad’s overlay

♦ change a key’s description

♦ print the new overlay

♦ send the updated data to the keypad.

Note: The Update Utility is only for Supervisors or

System Administrators.

Using the Update Utility 5-1

Before You Begin

Install the Update Utility on a computer with Microsoft Windows 98 or greater. The computer should also have Microsoft Office 2000 (or greater installed), which includes Access database software.

1. Install the Update Utility by inserting the Update Utility CD into the CD-ROM drive on your computer. Follow the instructions on the screen to complete the installation.

2. Start the Update Utility. The main screen appears.

Status Bar

At the bottom left-hand corner, there is a status bar, which displays the utility’s current status.

3. Decide what you want to do next:

♦ To edit the overlay (change a key’s color or

description), see “Editing the Overlay,” for more information.

♦ To update the keypad’s software/application, see

“Updating the Keypad,” for more information.

5-2 Equipment Manual

Editing the Overlay

You can change the way the overlay appears (a key’s color or text description).

1. From the main screen, click Edit Overlay. The Overlay Edit screen appears.

2. To change a key’s text, click the key to change. The Edit Overlay Key Data screen appears.

Click here and enter new key data

3. Click in the box and enter the new key data.

Using the Update Utility 5-3

4. Click Edit Label to change the label’s wording, offset time, and choose to print the time on the label. The Edit Label Data screen appears.

5. Change any necessary text for the label or offset time.

6. Decide if you want to print the time on the label. If so, make sure the box is checked next to Print Time on Label. If not, make sure the box is not checked next to Print Time on Label. A sample label displays while you make changes.

7. Click D

one when finished editing the label.

You return to the previous screen (Edit Overlay Key Data). Or, click Cancel to cancel these changes and return to the previous screen (Edit Overlay Key Data).

8. Click D

one when finished editing the label.

You return to the previous screen (Overlay Edit).

9. Click D

5-4 Equipment Manual

one to return to the main screen.

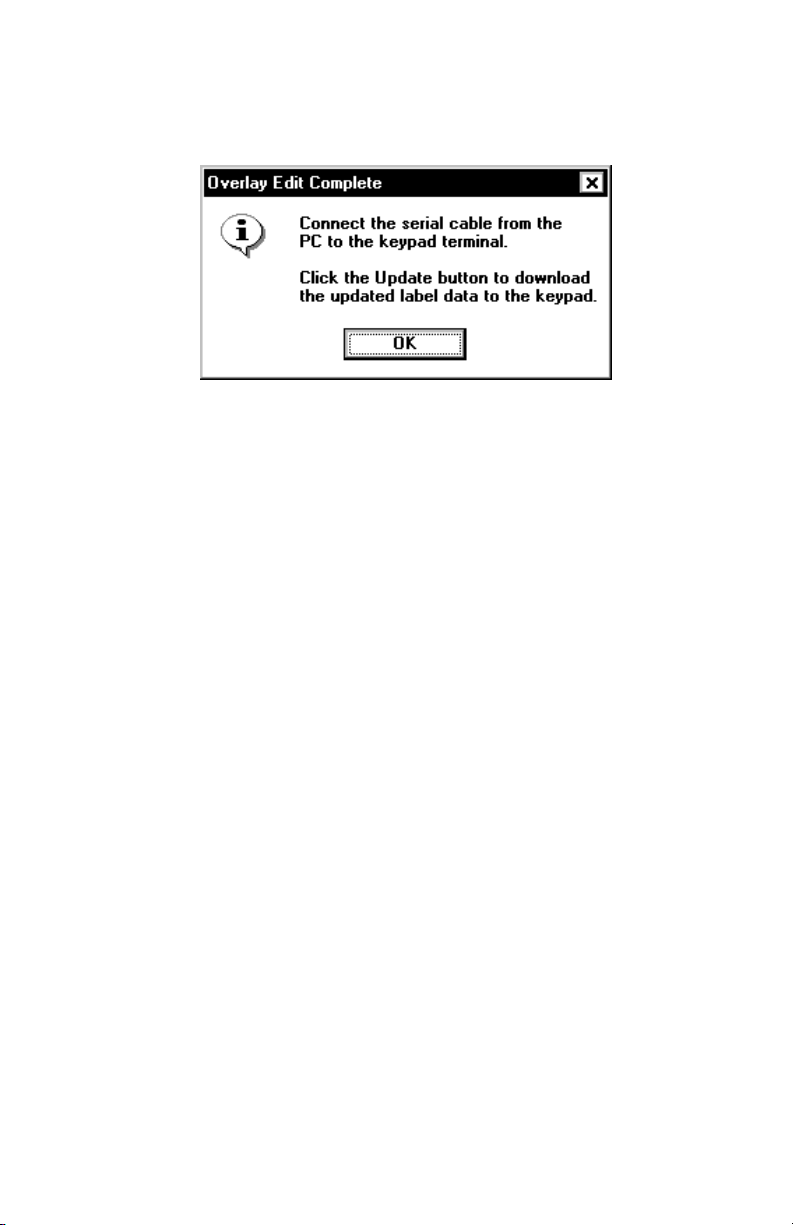

Whenever you return to the main screen, you are prompted:

10. Click OK to continue.

11. If you made changes:

♦ print the new overlay, see “Printing the Overlay,”

for more information.

♦ update the keypad’s software/application, see

“Updating the Keypad,” for more information.

Using the Update Utility 5-5

Changing a Key’s Color

1. From the main screen, click Edit Overlay. The Overlay Edit screen appears.

2. Click the key to change. The Edit Overlay Key Data screen appears.

3. Click Change Color. The Color screen appears.

4. Pick the color you want for the selected key.

If you want to define a custom color, click Define Custom Colors>>. See “Defining Custom

Colors,” for more information.

5. Click OK when finished picking a color for the selected key. You return to the previous screen (Edit Overlay Key Data). Or click Cancel to cancel these changes and return to the previous screen (Edit Overlay Key Data).

6. Click D You return to the previous screen (Overlay Edit).

5-6 Equipment Manual

one when finished editing the label.

7. Click Done to return to the main screen.

Whenever you return to the main screen, you are prompted:

8. Click OK to continue.

9. If you made changes:

♦ print the new overlay, see “Printing the Overlay,”

for more information.

♦ update the keypad’s software/application, see

“Updating the Keypad,” for more information.

Using the Update Utility 5-7

Defining Custom Colors

1. From the main screen, click Edit Overlay. The Overlay Edit screen appears.

2. Click the key to change. The Edit Overlay Key Data screen appears.

3. Click Change Color. The Color screen appears.

4. From the Color screen, click D

Colors. The Custom Color screen appears.

5. Enter values for Hue Blue as necessary. The color changes based on each value you change.

6. Click A

7. Click the color you just added to the custom colors

palette.

8. Click OK when finished defining a custom color for the selected key. You return to the previous screen (Edit Overlay Key Data). Or click Cancel to cancel these changes and return to the previous screen (Edit Overlay Key Data).

dd to Custom Colors.

, Sat, Lum, Red, Green, and

efine Custom

9. Click D You return to the previous screen (Overlay Edit).

5-8 Equipment Manual

one when finished editing the label.

10. Click Done to return to the main screen.

Whenever you return to the Main screen, you are prompted:

11. Click OK to continue.

12. If you made changes:

♦ print the new overlay, see “Printing the Overlay,”

for more information.

♦ update the keypad’s software/application, see

“Updating the Keypad,” for more information.

Deleting a Key

You can delete a key from either the Edit Overlay Key Data or Edit Label Data screen. When you delete a key

♦ the key’s information is removed from the

database.

♦ the key appears as a black box on the overlay.

Note: Check with your System Administrator before

removing any key from the database.

1. From the main screen, click Edit Overlay. The Overlay Edit screen appears.

Using the Update Utility 5-9

2. Click the key to delete. The Edit Overlay Key Data screen appears. When you click Delete Key, you see

3. Click OK to remove ALL data for this key from the database and display a black box in place of this key on the overlay.

4. Click Cancel to return to the previous screen and keep the key in the database.

5. Click D

6. Click D

one to return to the previous screen.

one to return to the main screen.

Whenever you return to the main screen, you are prompted:

7. Click OK to continue.

8. If you made changes:

♦ print the new overlay, see “Printing the Overlay,”

for more information.

♦ update the keypad’s software/application, see

“Updating the Keypad,” for more information.

5-10 Equipment Manual

Printing the Overlay

If you make any changes to the overlay, print it and insert it into the keypad.

1. From the main screen, click Edit Overlay. The Overlay Edit screen appears.

2. Click P screen may appear differently, based on your operating system and printer.

3. Select the printer.

4. Make any changes to the number of copies,

layout, and paper/quality if necessary.

rint. The Print screen appears. Your Print

5. Click P printer.

6. Click D

rint to send the overlay to the selected

one to return to the main screen.

Using the Update Utility 5-11

Whenever you return to the main screen, you are prompted:

7. Click OK to continue.

Updating the Keypad

After the changes are made to the key and label data, send the updated data to the keypad/terminal, so the changes appear on any future labels printed.

Note: Make sure the printer is connected to the

computer.

Make sure the computer’s serial communication values match those at the keypad. See “Communication Settings,” for more information.

5-12 Equipment Manual

Communication Settings

The Update Utility scans your computer for available communication ports and adds them to the Com Port list box.

To display the communication settings:

1. From the main screen, click S You see

2. Enter the password: 5675 and click OK. The Communications Settings screen appears.

etup, Com Port.

The default settings match the settings of the keypad.

3. Make any changes and click OK when finished. You return to the main screen.

Using the Update Utility 5-13

To update the keypad/terminal:

1. Connect the serial cable from the computer to the keypad/terminal.

2. From the main screen, click U

pdate Terminal.

The Update Utility begins sending the application and data files to the keypad.

This process may take several minutes. Do not click Cancel while updating the

keypad/terminal.

3. When finished, you see “Update Complete. Please unplug terminal power and connect printer cable.” Click OK.

5-14 Equipment Manual

4. Unplug the keypad’s serial cable to the computer and reconnect it to the printer. Unplug the terminal’s power cable. Wait several seconds and then reconnect the power cable to the keypad. The keypad is now ready to use.

5. Click Ex

it to close the Update Utility.

Using the Update Utility 5-15

5-16 Equipment Manual

SPECIFICATIONS

This appendix includes information about printer specifications.

Printer Specifications

Height: 6.6" (168 mm) Width: 8.3" (211 mm) Depth: 9.4" (239 mm) Weight: 4.1 lbs. (1.9 kg) without power

supply

Shipping Weight: 9.0 lb. (4.1 kg) Power: U.S. - 120 VAC ± 10%, 60Hz

International - 220 VAC ± 10%, 50Hz

Operating Limits: Operating Thermal Direct

40° to 105° F (4° to 40° C) Storage: 40° to 140° F (4° to 60° C)

Printhead: 4.09" (104 mm)

203 dpi (8.0 dots per mm)

Printing Method: Thermal Direct

Specifications A-1

A-2 Equipment Manual

Monarch 9416 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
