Moffat SN8100E User Manual

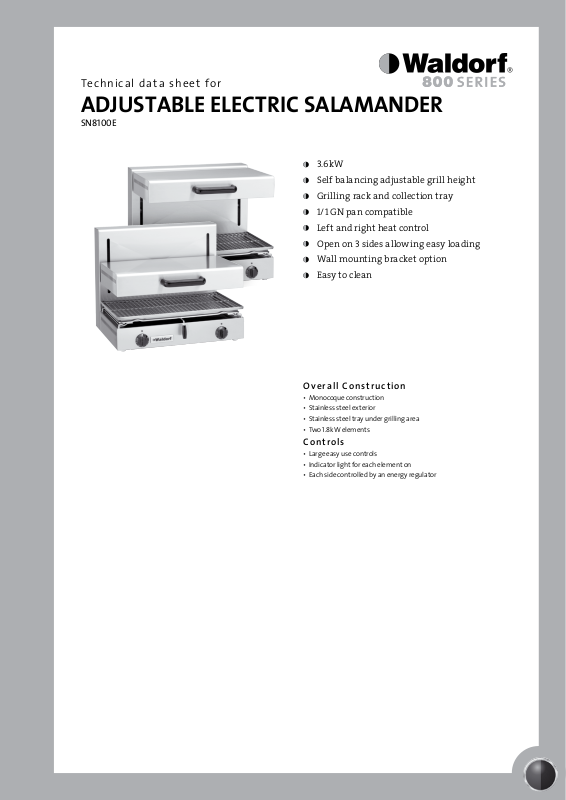

Technical data sheet for

ADJUSTABLE ELECTRIC SALAMANDER

SN8100E

3.6kW

Self balancing adjustable grill height

Grilling rack and collection tray

1/1 GN pan compatible

Left and right heat control

Open on 3 sides allowing easy loading

Wall mounting bracket option

Easy to clean

Ove ra ll Con str uction

• Monocoque construction

• Stainless steel exterior

• Stainless steel tray under grilling area

• Two 1.8kW elements

Con tro ls

• Large easy use controls

• Indicator light for each element on

• Each side controlled by an energy regulator

Technical data sheet for

ADJUSTABLE ELECTRIC SALAMANDER

Sp e ci f ic at ion s

Elements

2 x 1.8kW

Electrical requirements

230-240V, 1P+N+E, 50/60Hz, 3.6kW, 15A

Di me ns i on s

Width 600mm
Depth 510mm
(540mm with wall mounting bracket)
Height 514mm

Co oki ng a rea

Rack size 600mm x 350mm
1/1 GN pan size

Pac ki ng data

0.23m3, 53kg

El ec tric al co nn ect ion

3 pin plug cordset (15A) fitted

Op tions at ex tra c o st

Wall mounting bracket

SN 82 00E

Printed in New Zealand
© Copyright Moffat Limited
Moffat/BH/6864
