Voss™ Technical Specication

Grab Bar

Stock Numbers:

☐ YG5112CH – 12" Grab Bar Chrome Finish ☐ YG5118CH – 18" Grab Bar Chrome Finish ☐ YG5124CH – 24" Grab Bar Chrome Finish ☐ YG5112BN – 12" Grab Bar Brushed Nickel Finish ☐ YG5118BN – 18" Grab Bar Brushed Nickel Finish ☐ YG5124BN – 24" Grab Bar Brushed Nickel Finish ☐ YG5112ORB – 12" Grab Bar Oil Rubbed Bronze Finish ☐ YG5118ORB – 18" Grab Bar Oil Rubbed Bronze Finish ☐ YG5124ORB – 24" Grab Bar Oil Rubbed Bronze Finish

YG5112, YG5118, YG5124

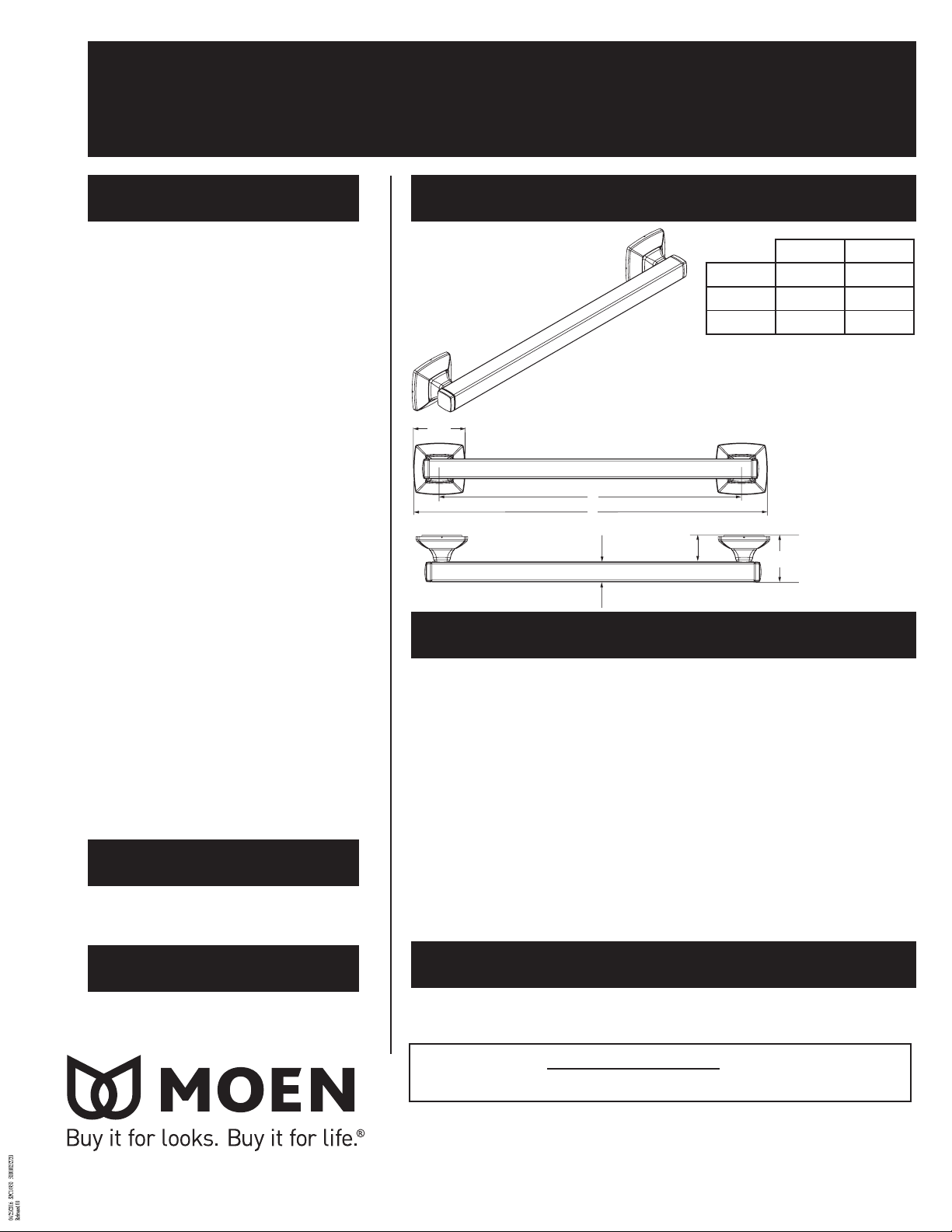

Dimensions:

3-1/8"

(79mm)

1-1/4"

(32mm)

1-1/2"

(38mm)

Dim. A Dim. B YG5112 12 15.125 YG5118 18 21.125 YG5124 24 27.125

2-5/8"

(67mm)

Materials:

Grab Bar posts and bars are constructed of stainless steel.

Compliance:

• ADA, ANSI, ASTM, CSA

• Tested to 500lbs. pull

Installation Instructions:

1. Please note that screws MUST be mounted into a wood stud for secure installation.

2. Decide whether you would like to position your grab bar horizontally, vertically or at an angle, remembering that BOTH ends of the grab bar MUST be positioned over a wood stud (unless using secure mount anchors).

3. For easier installation and mounting remove 3 set screws from each ange and remove bar from SecureMount™ Flange.

4. Remove cover and re-assemble ange to bar by tightening 3 set screws.

5. Place grab bar and mark three mounting locations on each of the two grab bar anges with a pencil.

6. Drill 1/8” diameter pilot holes at each screw location. Make sure to drill into the stud.

7. Install 3 screws and washers each SecureMount™ ange and tighten until secure. If desired, apply silicone caulk to the back of the SecureMount™ plate to guard against water penetration.

8. After screws are installed each side, dis-assemble bar from SecureMount™ ange by removing set screws.

9. Re-install covers.

10. Place bar over SecureMount™ anges and tighten all set screws.

11. Snap on covers.

Cleaning Instructions:

To preserve the ne nish of this product, clean only with a soft damp cloth. Dry well. Do not use commercial or abrasive cleaners.

Stock Number: Grab Bar

By MOEN

25300 AL MOEN DRIVE • NORTH OLMSTED, OH 44070 CORPORATE HEADQUARTERS: (800) 321-8809 • FAX: (800) 848-6636 INTERNATIONAL: (440) 962-2000 • FAX: (440) 962-2726 CUSTOMER SERVICE (USA): (800) 882-0116 • FAX: (888) 379-2720 WWW.MOEN.COM ©Copyright Moen, Inc.
