Y3203BN – Robe Hook
Brushed Nickel Finish
Y3203CH – Robe Hook
Chrome Finish
25300 AL MOEN D RI VE NOR TH OLMSTED , OH 44070
COR PORATE H EADQU ARTERS: (800) 321-8809 F AX: (800) 848-6636
IN TER NATION AL: (440) 962-2000 FAX: (440) 962-2726
CU STOMER SERVI CE (USA): 800 -882-0116 FAX: (888) 379-2720
WW W. MOEN .C OM
Copyright Creative Specialties International Literature # BA1596
Robe Hook post is die cast from
highest quality zinc alloy (Zamac).
Cleaning Instructions:
1. Remove mounting plate from the product post by loosening each
setscrew.
2. Position the mounting plate on the wall at desired location with
“UP” facing you. Mark hole locations.
3. Drill 2 holes as marked using 5/16” drill bit.
4. Fold ends of the plastic toggle anchor together and insert into
each hole in the wall.
5. Lightly tap anchors until flush with the wall.
6. One at a time, insert plastic pin into each anchor and lightly tap to
activate anchor. Remove pin and repeat on other anchor.
7. Place the mounting plate on the wall over the installed wall
anchors with “UP” facing you.
8. Tighten screws.
9. Place decorative product over the mounting plate with the
setscrew facing down and tighten setscrew.
Stock Number:______________________Robe Hook
By Creative Specialties
Materials:
Installation Instructions:
Stock Numbers:
Dimensions:
Robe Hook
Y3203

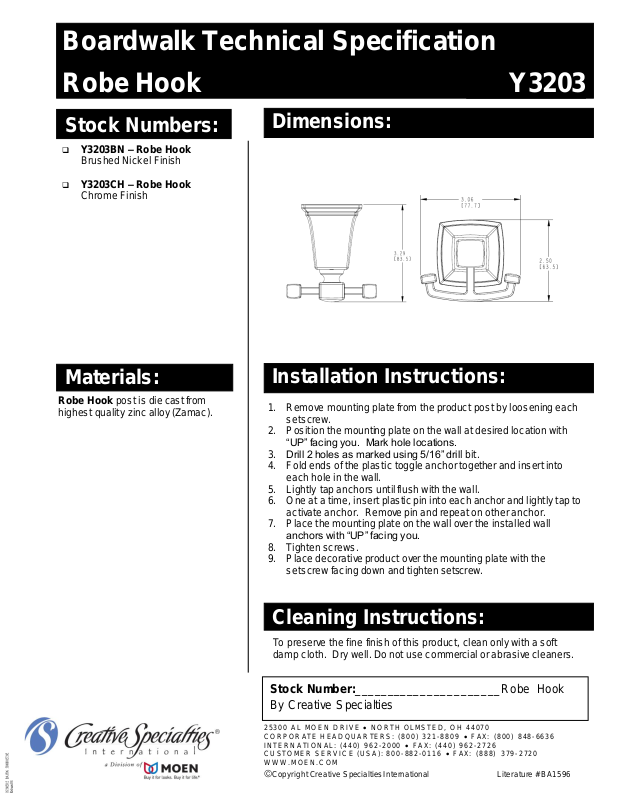

Boardwalk Technical Specification
To preserve the fine finish of this product, clean only with a soft
damp cloth. Dry well. Do not use commercial or abrasive cleaners.
