Home Care Technical Specification
SecureMount Anchor
Stock Numbers:
SMA1000CH –SecureMount
Anchors
Chrome Finish
2 Anchors
SMA1000OWB –SecureMount
Anchors
Old World Bronze Finish
2 Anchors
SMA1001CH –SecureMount
Anchors
Chrome Finish
10 Anchors
SMA1005CH –SecureMount
Anchors
Chrome Finish
Single Anchor

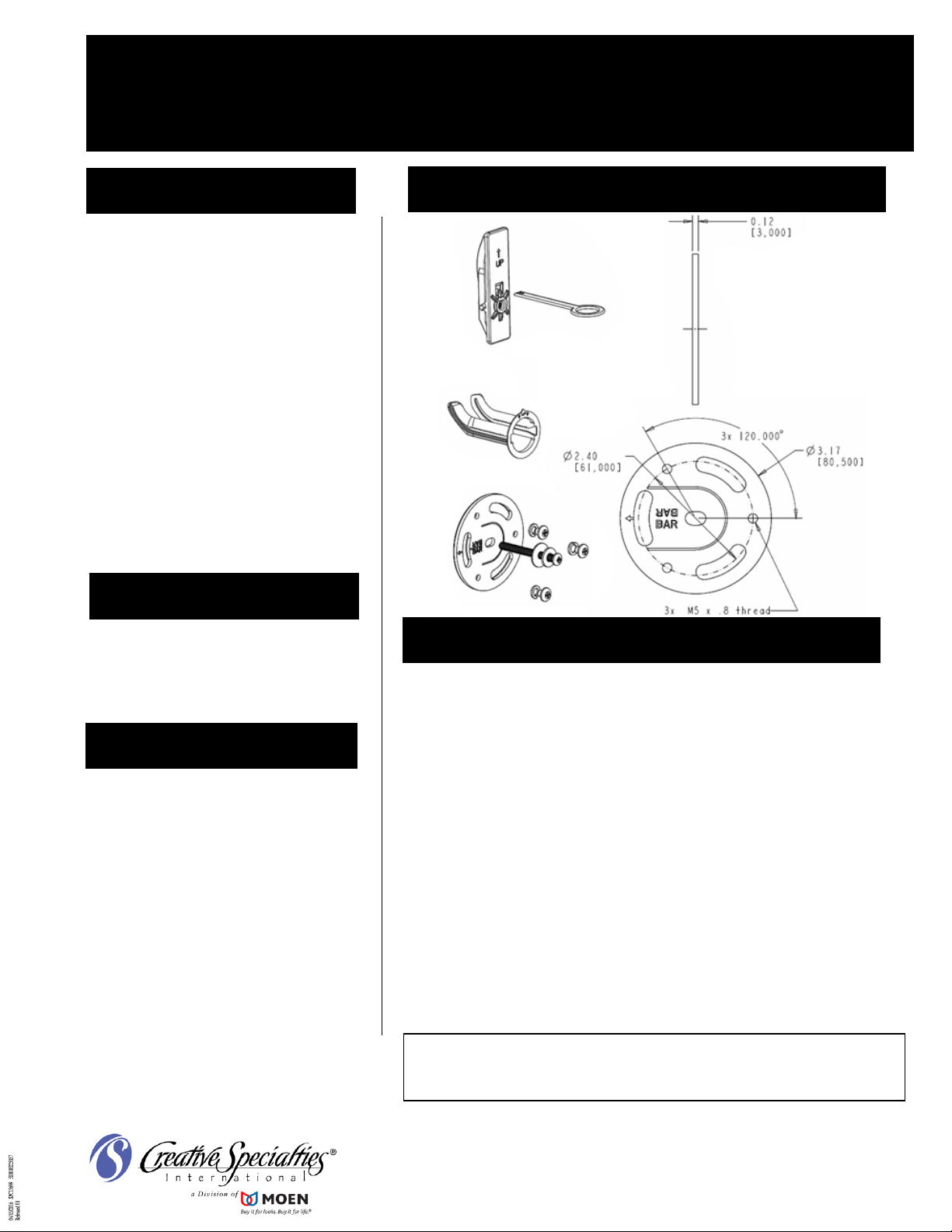

Dimensions:
SMA1000
Materials:
SecureMount Anchor mounting plate
is made of stainless steel.
SecureMoun
anchor are made of POM.
t Anchor guide and
Compliance:
• CSI SecureMount Anchors meet or
exceed the applicable requirements
of the following standards:
ADA
ANSI A117.1
ASTM F446
CSA B45
CSA B651
or use only when securely installed
• F
in approved substrates* for persons
no more than 300lbs.
*Req
uires a 3½” space behind the wall
and works in the following substrates
• 1/2” or 5/8 ” Dry Wall
1/2” or 5/8 ” Dry Wall with Tile
•
• 1/2” or 5/8 ” Dry Wall with Marbl
• 1/8” or 1/4 ” Fiberglass Tub Surround
e
Installation Instructions:
Direction for wall mounting installation:
1. Position grab bar on wall in desired lo cation and mark around the outside of the flanges.
2. One at a time, center the mounting plate within the marked flanges, and mark the center
hole for drilling.
3. Drill one 1¼” hole at each mounting location.
4. Insert guide sleeves into each hole in the wall. (Note: UP indicator must always point up
regardless of grab bar orientation)
5. Connect pull tab to the secure mount anchor.
6. With pull tab up, insert the anchor all the way into the hole in the wall.
7. Pull back on the pull tab, and disconnect it from the anchor.
8. Place mounting plate over the hole and secure w ith the anchor screw , and flat and
rubber washers. (Note: Bar indicators should be facing in, align arrows)
9. Align the grab bar flanges to the secure mount anchor and secure with flange screws
and split lock washer.
Directions for stud mounting installation:
1. Position grab bar on wall in desired lo cation and mark around the outside of the flanges.
2. Determine stud center and drill one 1/8” pilot hole at each location.
3. Install wood screw supplied with grab bar.
4. Install the 3 additional wood screws through the grab bar flange into the elongated
mounting plate slots.
Stock Number:_______________ SecureMount Anchor
By Creative Specialties
25300 AL MOEN DRIVE • NORTH OLMSTED, OH 44070
CORPORATE HEADQUARTERS: (800) 321-8809 • FAX: (800) 848-6636
INTERNATIONAL: (440) 962-2000 • FAX: (440) 962-2726
CUSTOMER SERVICE (USA): 800-882-0116 • FAX: (888) 379-27 20
WWW.MOEN.COM
©Copyright Creative Specialties International
Literature #BA1387
