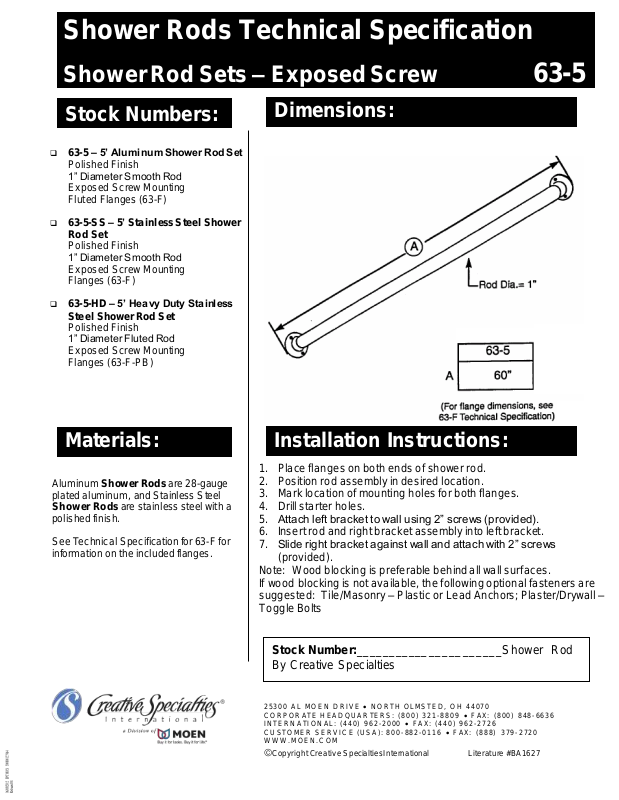

Aluminum Shower Rods are 28-gauge
plated aluminum, and Stainless Steel
Shower Rods are stainless steel with a
polished finish.
See Technical Specification for 63-F for
information on the included flanges.
63-5 – 5’ Aluminum Shower Rod Set
Polished Finish
1” Diameter Smooth Rod
Exposed Screw Mounting
Fluted Flanges (63-F)
63-5-SS – 5’ Stainless Steel Shower
Rod Set
Polished Finish
1” Diameter Smooth Rod
Exposed Screw Mounting
Flanges (63-F)
63-5-HD – 5’ Hea vy Duty Stainless
Steel Shower Rod Set
Polished Finish
1” Diameter Fluted Rod
Exposed Screw Mounting
Flanges (63-F-PB)
1. Place flanges on both ends of shower rod.
2. Position rod assembly in desired location.
3. Mark location of mounting holes for both flanges.
4. Drill starter holes.
5. Attach left bracket to wall using 2” screws (provided).
6. Insert rod and right bracket assembly into left bracket.
7. Slide right bracket against wall and attach with 2” screws
(provided).
Note: Wood blocking is preferable behind all wall surfaces.
If wood blocking is not available, the following optional fasteners are
suggested: Tile/Masonry – Plastic or Lead Anchors; Plaster/Drywall –
Toggle Bolts
Stock Number:______________________Shower Rod
By Creative Specialties
Materials:
Installation Instructions:
Stock Numbers:

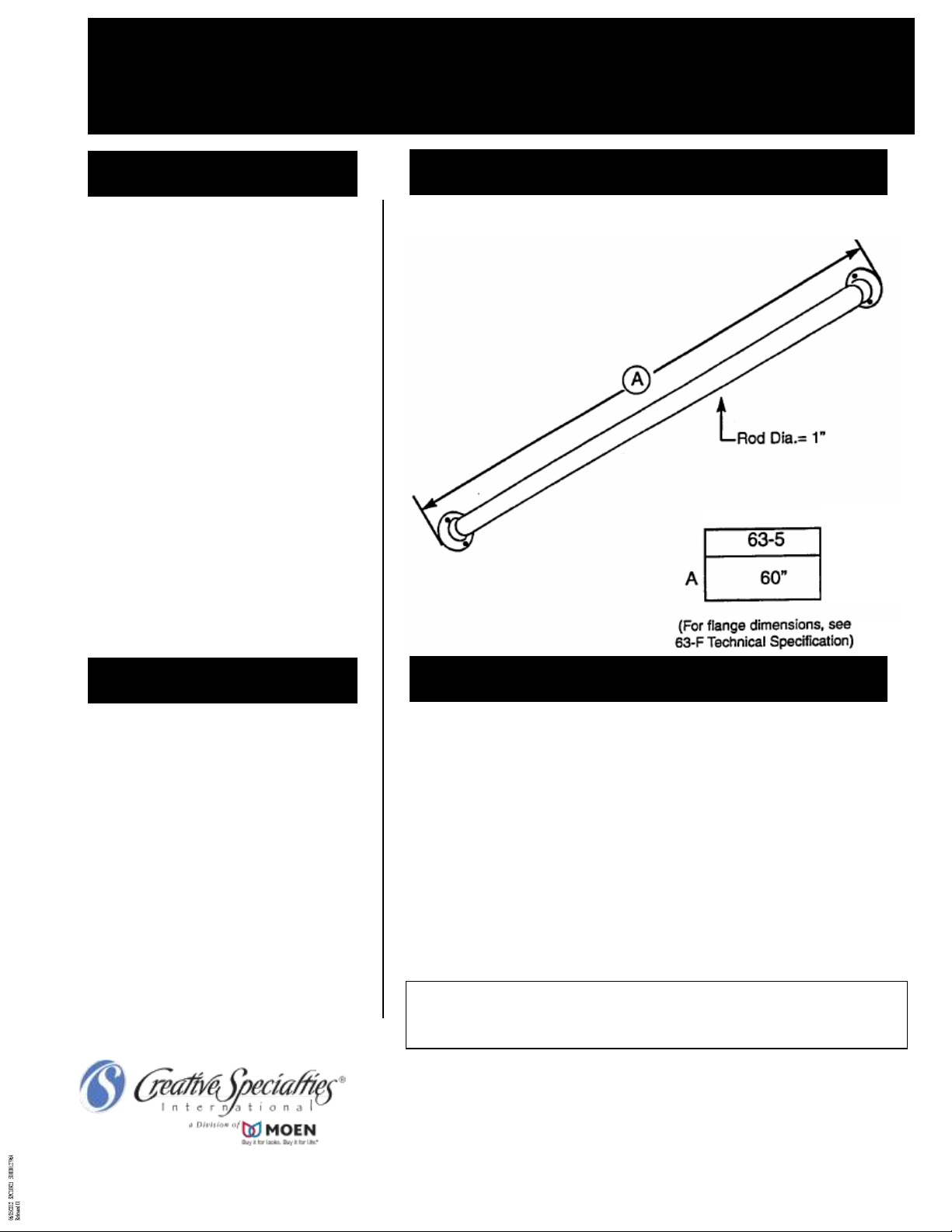

Dimensions:
Shower Rod Sets – Exposed Screw
63-5
Shower Rods Technical Specification
