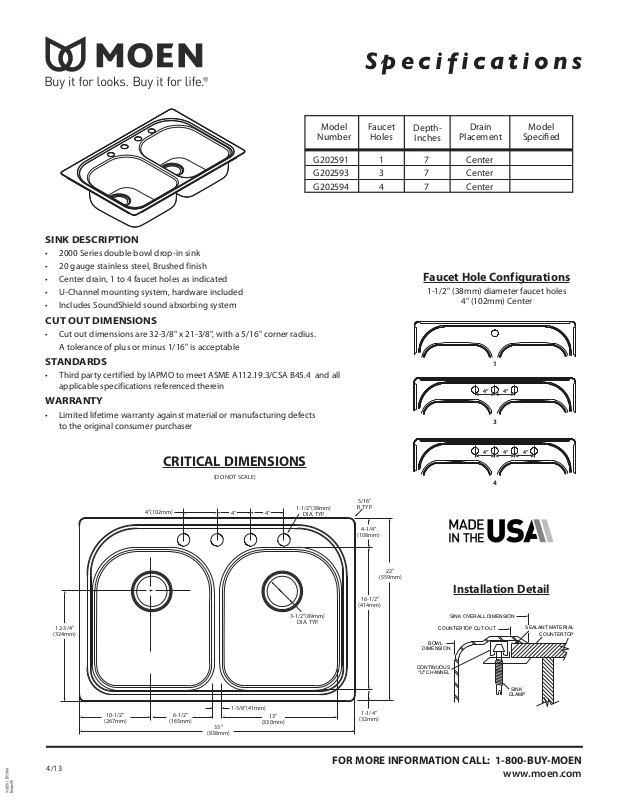

Moen G202593 Specs
SINK DESCRIPTION
Model
Number
G202591 1 7 Center
G202593 3 7 Center
G202594 4 7 Center
Faucet
Holes
Depth-
Inches
Drain
Placement
Model
Specied
3
4
4” 4”
4” 4” 4”
1-1/4"
(32mm)
4-1/4"
(108mm)
16-1/2"
(414mm)
5/16"
R. TYP.
13"
(330mm)
33"
(838mm)
4"
4"(102mm)
4"
1-5/8"(41mm)
22"
(559mm)
12-3/4"
(324mm)
10-1/2"
(267mm)
6-1/2"
(165mm)
3-1/2"(89mm)
DIA. TYP.
1-1/2"(38mm)
DIA. TYP.
SINK OVERALL DIMENSION
COUNTERTOP CUT-OUT
BOWL
DIMENSION
CONTINUOUS
"U" CHANNEL
SINK
CLAMP
COUNTERTOP
SEALANT MATERIAL
1
• 2000 Series double bowl drop-in sink
• 20 gauge stainless steel, Brushed finish
• Center drain, 1 to 4 faucet holes as indicated
• U-Channel mounting system, hardware included
• Includes SoundShield sound absorbing system
CUT OUT DIMENSIONS
• Cut out dimensions are 32-3/8" x 21-3/8", with a 5/16" corner radius.
A tolerance of plus or minus 1/16" is acceptable
STANDARDS
• Third party certified by IAPMO to meet ASME A112.19.3/CSA B45.4 and all
applicable specifications referenced therein
WARRANTY
• Limited lifetime warranty against material or manufacturing defects
to the original consumer purchaser
S p e c i f i c a t i o n s
Faucet Hole Configurations
1-1/2" (38mm) diameter faucet holes
4" (102mm) Center
CRITICAL DIMENSIONS
(DO NOT SCALE)
Installation Detail
4/13
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
