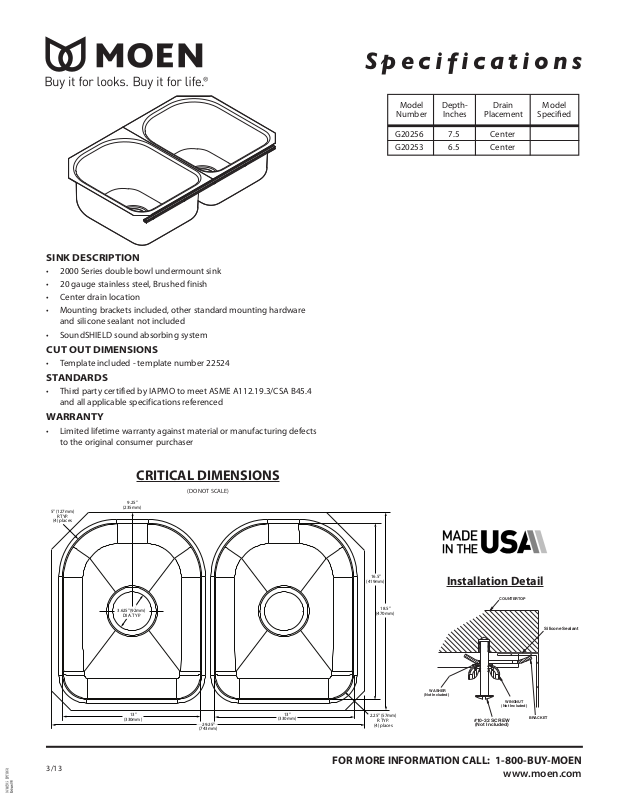

Moen G20253 Specs

SINK DESCRIPTION

Model

Number

G20256 7.5 Center
G20253 6.5 Center

Depth-

Inches

Drain

Placement

Model

Specified

13”

(330mm)

29.25”

(743mm)

13”

(330mm)

18.5”

(470mm)

16.5”

(419mm)

9.25”

(235mm)

3 . 6 2 5 " ( 9 2 m m )

DIA. TYP.

5” (127mm)

R TY P.

(4) places

2.25” (57mm)
R TY P.

(4) places

COUNTERTOP

BRACKET

#10-32 SCREW

(Not Included)

WINGNUT

(Not Included)

WASHER

(Not Included)

Silicone Sealant

• 2000 Series double bowl undermount sink

• 20 gauge stainless steel, Brushed finish

• Center drain location

• Mounting brackets included, other standard mounting hardware
and silicone sealant not included

• SoundSHIELD sound absorbing system

CUT OUT DIMENSIONS

• Template included - template number 22524

STANDARDS

• Third party certified by IAPMO to meet ASME A112.19.3/CSA B45.4
and all applicable specifications referenced

WARRANTY

• Limited lifetime warranty against material or manufacturing defects
to the original consumer purchaser

S p e c i f i c a t i o n s

3/13

CRITICAL DIMENSIONS

(DO NOT SCALE)

Installation Detail

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com
