Moen 7310, 7300 User Manual

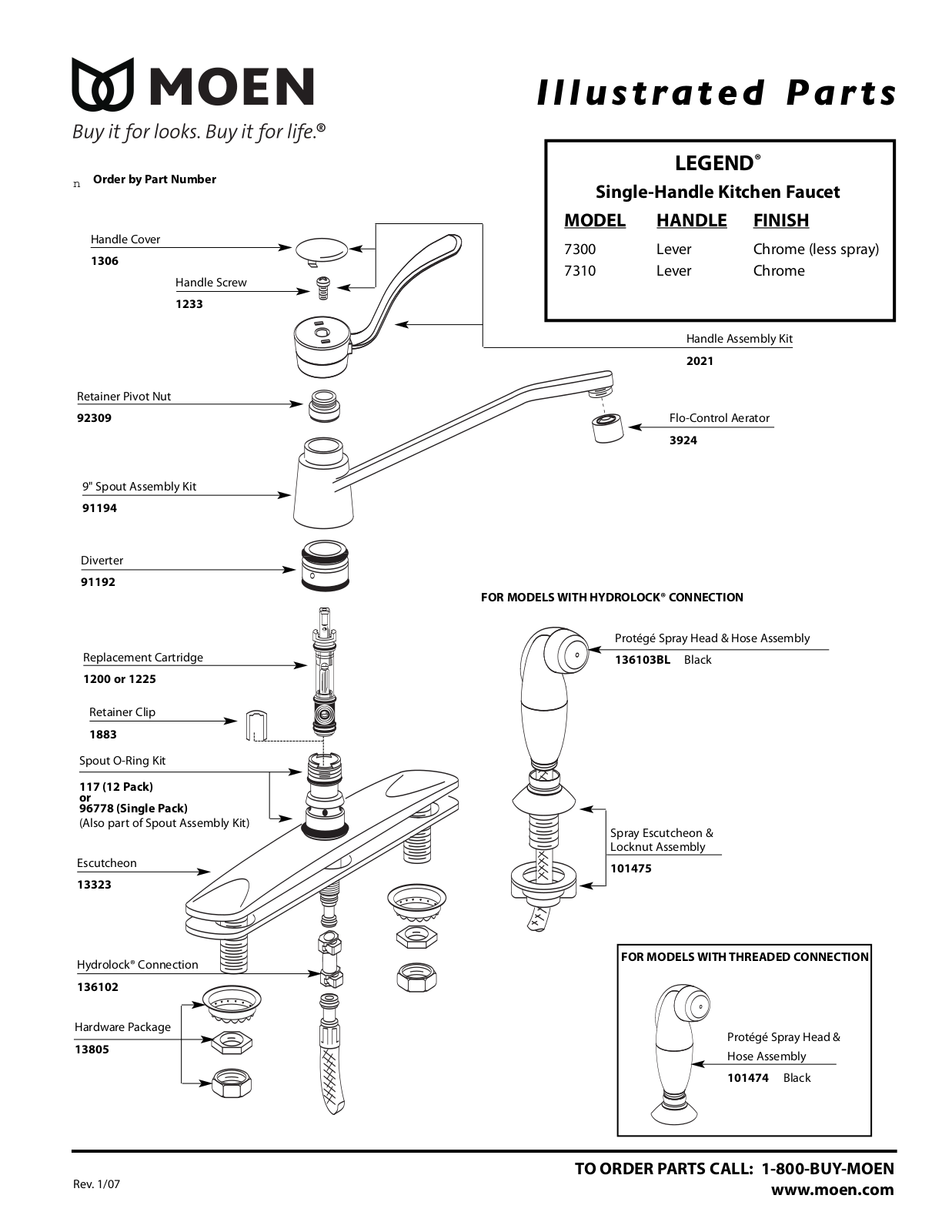

Illustrated Parts

Order by Part Number

n

Handle Cover

1306

Retainer Pivot Nut

92309

9" Spout Assembly Kit

91194

Diverter

91192

Handle Screw

1233

LEGEND

Single-Handle Kitchen Faucet

MODEL HANDLE FINISH

7300 Lever Chrome (less spray)
7310 Lever Chrome

Handle Assembly Kit

2021

Flo-Control Aerator

3924

FOR MODELS WITH HYDROLOCK® CONNECTION

®

Replacement Cartridge

1200 or 1225

Retainer Clip

1883

Spout O-Ring Kit

dw

cheon

e P

ar

ack)

ack

age

117 (12 P
or
96778 (Single Pack)

(Also part of Spout Assembly Kit)

Escut

13323

Hydrolock® Connection

136102

Har

13805

Protégé Spray Head & Hose Assembly

136103BL Black

Spray Escutcheon &
Locknut Assembly

101475

FOR MODELS WITH THREADED CONNECTION

Protégé Spray Head &

ssembly

Hose A

101474 Black

Rev. 1/07

TO ORDER PARTS CALL: 1-800-BUY-MOEN
