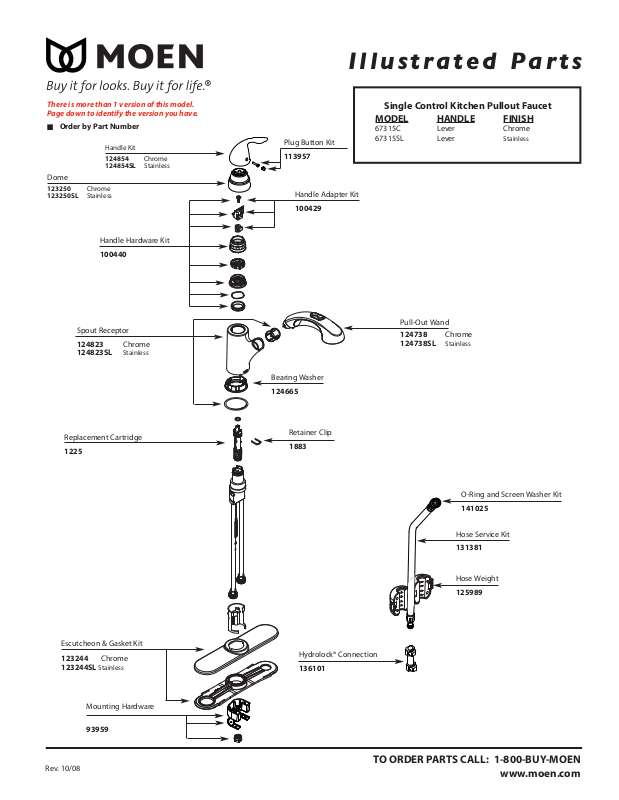

Moen 67315C Exploded View

Escutcheon & Gasket Kit
123244 Chrome 123244SL Stainless
Mounting Hardware
93959
Single Control Kitchen Pullout Faucet
MODEL HANDLE FINISH
Illustrated Parts
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Order by Part Number
Handle Kit
124854 Chrome 124854SL Stainless
Replacement Cartridge
1225
Handle Hardware Kit
100440
Pull-Out Wand
124738 Chrome 124738SL
Stainless
Rev. 10/08
Hose Weight
125989
Spout Receptor
124823 Chrome 124823SL Stainless
Retainer Clip
1883
Dome
123250 Chrome 123250SL Stainless
Bearing Washer
124665
Hose Service Kit
131381
Handle Adapter Kit
100429
There is more than 1 version of this model. Page down to identify the version you have.
Plug Button Kit
113957
Hydrolock® Connection
136101
O-Ring and Screen Washer Kit
141025
Illustrated Parts
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Order by Part Number
Integra
Single Control Kitchen Pullout Faucet
MODEL HANDLE FINISH
67315 Lever Chrome/Glacier 67315C Lever Chrome 67315BC Lever Brushed Chrome
Plug Button Kit
100109WBL
Handle Kit
102565 Chrome 102565BC Brushed Chrome 102565V Ivory 102565W Glacier 102565SL Stainless
Handle Screw
96804
Connector Kit
103437
Collar & Nut Kit
101249 Chrome 101249BC Brushed Chrome 101249V Ivory 101249W Glacier 101249SL Stainless
Pivot Retainer
14699
Aerator Service Kit
101257
Screen Washer Kit
101199
Spout Wand Kit
140392 Chrome 140392V Ivory 140392W Glacier 140392BL Matte Black 100153BC Brushed
Chrome
Rev. 1/08
Escutcheon Kit
1935 Chrome 1935BC Brushed Chrome 1935V Ivory 1935W Glacier 1935SL Stainless
Round Escutcheon & Gasket Kit
1933 Chrome 1933BC Brushed Chrome 1933V Ivory
1933W Glacier 1933SL Stainless
Deck Gasket
98430
Check Valve Kit
94873
Spout Receptor Kit
101484 Chrome 101484BC Brushed Chrome 101484V Ivory 101484W Glacier 101484SL Stainless
Receptor Gasket
(Not included with faucet)
100099
Replacement Cartridge
1225
Retaining Clip
1883
Vacuum Breaker Hub Kit (FVB) 101707
Hub O-Ring Kit (FVB)
117 (12 Pack) or
96778 (Single Pack)
Hardware Package
785
Hydrolock®Adapter
114306
Hose Weight
98317
Hose Service Kit
(includes screen washer with integral check valve)
100612
(For models sold after Sept. 10, 2003)
Mounting Hardware
93959
Hose Service Kit
(FVB)
109248
(includes screen washer from 101199 kit)
(For models sold prior to Sept. 10,
2003)
Vacuum Breaker Conversion Kit
100593 (includes plug, hose, check valves & hose adapter)
* Models before 3/07
