-40 to +60°C
Technical Specifications

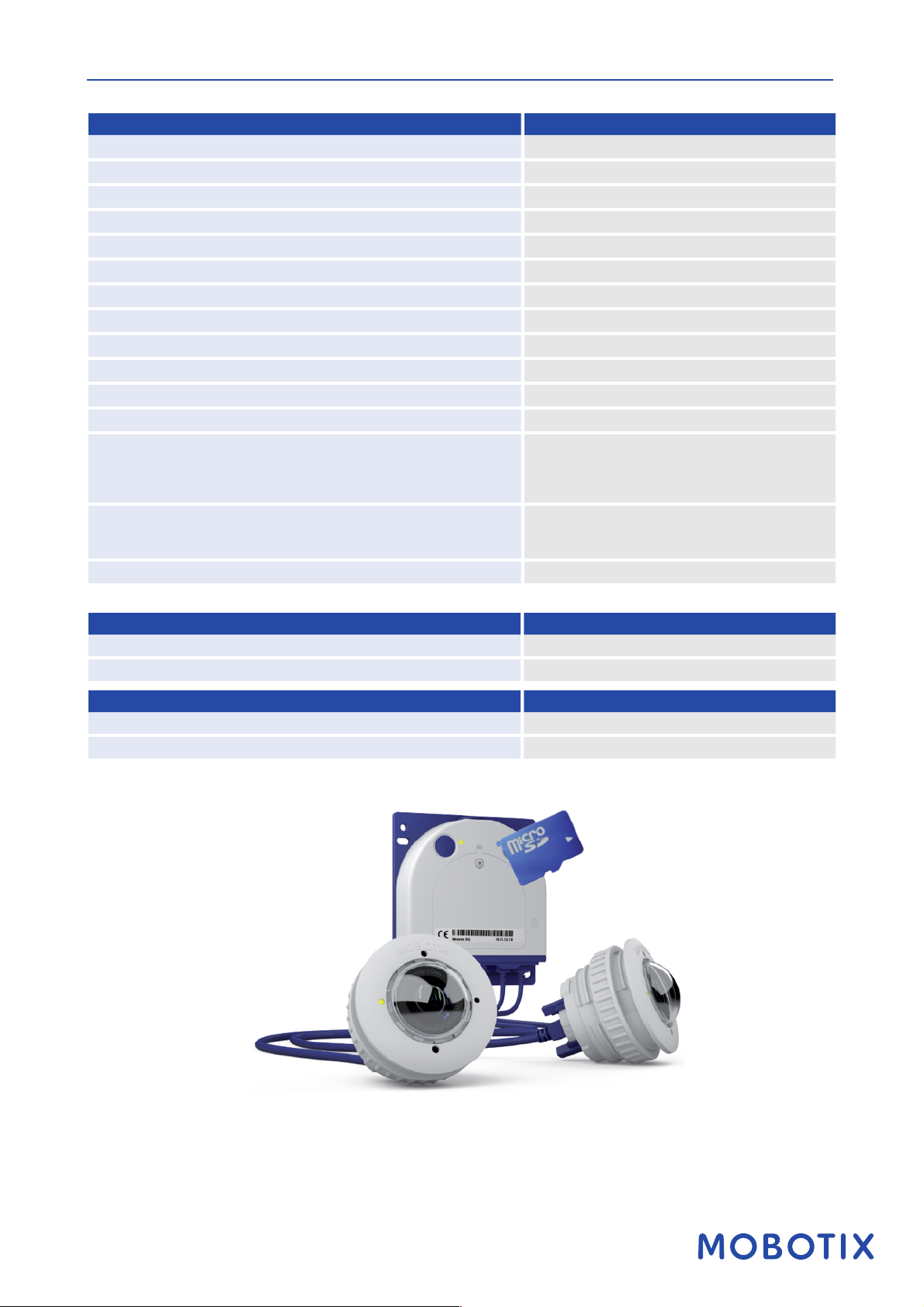

MOBOTIX S16B DualFlex
Flexible. Virtually Invisible Flush-Mount Dual-Lens Camera.
The S16B from MOBOTIX is a weatherproof system that stands out first and foremost for the extremely flexible
installation options it offers. Two sensor modules are connected to the concealed camera housing via cables up to
three meters long. This makes it possible to discreetly monitor two neighboring rooms with just a single camera.
◼︎ Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
◼︎ Recording on an internal MicroSD card (4GB as standard)
◼︎ Diverse installation options and mounting accessories for sensor modules
◼︎ Max. length of each sensor module cable: 3m
◼︎ Microphone can be used in sensor module
◼︎ Additional microphone and speaker connections
◼︎ Integrated shock detector
◼︎ Weatherproof and robust camera housing (IP66, IK07)
MOBOTIX AG • www.mobotix.com • 06/2018
Technical specifications subject to change without notice
Camera Variants
S16B DualFlex
Flexible and modular system: The S16B camera module (Body) Mx-S16B can be fitted with one or two sensor modules free of choice (day/
night/thermal). MOBOTIX sensor cables are available with a length from 0.5 to 3 m (1.6 to 9.8 .). Additionally MOBOTIX offers three different
S16B Complete Sets (Mx-S16B-S1, Mx-S16B-S2, Mx-S16B-S3) with one or two hemispheric sensor modules and 2 m (6.6 ) long sensor cables.
S16B Body
Mx-S16B
S16B Complete Set 1 (Body + 1x Mx-O-SMA-S-6D016 + accessories)
Mx-S16B-S1
S16B Complete Se 2 (Body + 2x Mx-O-SMA-S-6D016 + accessories)
Mx-S16B-S2
S16B Complete Set 3 (Body + 1x Mx-O-SMA-S-6D016 + 1x Mx-O-SMA-S-6N016 +
accessories)
Mx-S16B-S3
Hardware
S16B DualFlex
Light sensitivity in lux at 1/60 s and 1/1 s
Day sensor (Color): 0.1/0.005 lux
Night sensor (B/W): 0.02/0.001 lux
Thermal sensor modules
NETD typ. 50 mK, < 79 mK, IR range 7,5 to 13,5 μm
Temperature measuring range for thermal sensor modules
High Sensitivity: -40 to 160°C/-40 t0 320°F
Low Sensitivity: -40 to 550°C/-40 to 1022°F
Optical image sensor (color or B/W sensor)
1/1.8“ CMOS, 6MP (3072 x 2048), Progressive Scan
Microprocessor
i.MX 6 Dual Core incl. GPU (1 GB RAM, 512 MB Flash)
H.264 Hardware Codec
Yes, bandwidth limitation available; output image format
up to QXGA
Protection class S16B camera module (body)
IP66 and IK07
Protection class S16B with 6MP sensor mdoules
IP66 with all modules incl. Thermal;
IK04 with B036 to B237; IK07 with B016;
BlockFlexMount: IP30/no IK class
Intended use
Not for use in hazardous areas (Ex area)
Ambient temperature (range, incl. storage)
-40 to 60°C/-40 to 140°F (cold boot from -30°C/-22°F)
BlockFlexMount: 0 to 50°C/32 to 122°F
Internal DVR, ex works
4 GB (microSD)
Microphone
Part of sensor module/BlockFlexMount (not part of sensor
modules with CS-Mount or B500 super tele lens)
or with accessory (e.g., ExtIO or AudioMount)
Technical data for external microphone
2,0 V, 2,2 kOhm, sensitivity –35 ± 4 dB,
e. g., Panasonic Microphone Capsule WM61
Speaker
With accessory (e.g., SpeakerMount)
Technical data for external speaker
Max. power output 400 mW at 8 Ohm impedance,
e. g., Visaton Speaker K36WP or K50WP
16bit/16kHz HD wideband audio (Opus codec)
Yes (live and audio messages)
Passive infrared sensor (PIR)
No
Temperature sensors/shock detector (tamper detection)
Yes/Yes
Power consumption (typically at 20°C/68°F)
7.5 Watts
Power consumption with one/two thermal sensor module(s)
(typically at 20°C/68°F)
1.5 W per thermal sensor module, 2.5 W possible over the
short term; can only be used together with an S16B body
PoE Class (IEEE 802.3af)
Class 2 or 3 (variable), factory setting: class 3;
S16B with thermal sensor always requires class 3
Interfaces Ethernet 100BaseT/MxBus/USB
Yes (MxRJ45 and LSA+ rail)/Yes/Yes
Interfaces external microphone/speaker
Yes/Yes
Interface RS232
With MX-232-IO-Box (Order Nr: MX-OPT-RS1-EXT)
Mounting options
Wall, ceiling, hidden insatllation; extensive selection of
mounting accessories available
Dimensions Mx-S16B (height x width x depth)
130 x 115 x 33 mm
Weight Mx-S16B
430 g
Technical Specifications: S16B DualFlex
MOBOTIX AG • www.mobotix.com • 06/2018
Technical specifications subject to change without notice • Page 2
Hardware
S16B DualFlex
Housing Mx-S16B
PBT-30GF, color: white
Housing thermal sensor modules l (not PTMount)
Module housing: black anodized aluminum
Pressure plate: V2A stainless steel
Lens and protective glass lens: germanium
Standard accessory Mx-S16B
Screws, dowels, allen wrench, module key, cable strap,
0.5 m ethernet patch cable, Quick Install
Detailed technical documentation
www.mobotix.com > Support > Download Center
Online version of this document
www.mobotix.com > Support > Download Center
MTBF
> 80,000 hours
Certifications
EN55022:2010; EN55024:2010; EN50121-4:2006
EN61000-6-1:2007; EN 61000-6-2:2005
EN61000-6-3:2007+A1:2011
EN61000-6-4:2007+A1:2011
AS/ NZS CISPR22:2009+A1:2010
CFR47 FCC part15B
Protocols
IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP,
SNMP, SMTP, DHCP (client and server), NTP (client and
server), SIP (client and server) G.711 (PCMA and PCMU)
and G.722
Manufacturer‘s warranty (since May 2018)
3 years
Image Formats, Frame Rates, Image Storage
S16B DualFlex
Available video codecs
MxPEG/MJPEG/H.264
Image formats
Freely configurable format 4:3, 8:3, 16:9 or customized
format (Image Cropping), such as 2592x1944 (5MP),
2048x1536 (QXGA), 1920x1080 (Full-HD), 1280x960 (MEGA)
Multistreaming
Yes
Multicast stream via RTSP
Yes
Max. image format optical sensor modules (dual image from both sensors)
2x 6MP (6144 x 2048)
Max. image format thermal sensor module
336 x 252, scalable up to 3072 x 2048 (6MP)
Max. frame rate thermal sensor or thermal + optical sensor module
9 frames per secon (fps)
Max. frame rate optical sensor module (fps, only single core used)
MxPEG: 42@HD(1280x720), 34@Full-HD, 24@QXGA,
15@5MP, 12@6MP, 6@2x 6MP
MJPEG: 26@HD(1280x720), 13@Full-HD, 9@QXGA, 5@5MP,
4@6MP, 2@2x 6MP
H.264: 25@Full-HD, 20@QXGA
Number of images with 4 GB microSD (internal DVR)
CIF: 250,000, VGA: 125,000, HD: 40,000, QXGA: 20,000,
6MP: 10,000
General Functions
S16B DualFlex
Temperature measurement of 2x2 pixels in the center of the image (Thermal Spot)
Only with thermal sensor module (incl. TR)
TR temperature measurement in the whole image area
Only with thermal sensor module TR
Event trigger for temperatures above or below a limit between
-40 to 550°C/-40 to 1022°F
Only with thermal sensor module (incl. TR)
Digital zoom and pan
Yes
ONVIF compatibility
Yes (Profile S, audio support with camera firmware
V5.2.x and higher)
Genetec protocol integration
Yes
Programmable exposure zones
Yes
Snapshot recording (pre/post-alarm images)
Yes
Continuous recording with audio
Yes
Event recording with audio
Yes
Technical Specifications: S16B DualFlex
MOBOTIX AG • www.mobotix.com • 06/2018
Technical specifications subject to change without notice • Page 3
General Functions
S16B DualFlex
Time and event control/flexible event logic
Yes
Weekly schedules for recordings and actions
Yes
Event video and image transfer via FTP and email
Yes
Playback and QuadView via web browser
Yes
Bidirectional audio in browser
Yes
Animated logos on the image
Yes
Master/Slave functionality
Yes
Privacy zone scheduling
Yes
Customized voice messages
Yes
VoIP telephony (audio, alert)
Yes
Remote alarm notification (network message)
Yes
Programming interface (HTTP-API)
Yes
DVR/Storage Management
Inside camera via microSD card, externally via USB device
and NAS, different streams for live image and recording,
MxFFS with archive function, pre-alarm an post-alarm
images, monitoring recording with failure reporting
Camera and data security
User and group management, SSL connections, IP-based
access control, IEEE802.1x, intrusion detection, digital
image signature
MxMessageSystem: Sending and receiving of MxMessages
Yes
Video Analysis
S16B DualFlex
Video motion detector
Yes
MxActivitySensor
Yes
Video Management Soware
S16B DualFlex
MxManagementCenter
Yes
Mobile MOBOTIX App
Yes
Technical Specifications: S16B DualFlex
MOBOTIX AG • www.mobotix.com • 06/2018
Technical specifications subject to change without notice • Page 4
Sensor Modules and BlockFlexMounts Day, 6MP image sensor (color 3072 x 2048), IP66 (sensor modules) and IP30 (BlockFlexMounts)
Sensor Module Day with Fisheye lens B016 (180° x 180°), white
Sensor Module Day with Fisheye lens B016 (180° x 180°), black
BlockFlexMount Day with Fisheye lens B016 (180° x 180°)
Mx-O-SMA-S-6D016
Mx-O-SMA-S-6D016-b
Mx-O-SMA-B-6D016
Sensor Module Day with Ultra Wide lens B036 (103° x 77°), white
Sensor Module Day with Ultra Wide lens B036 (103° x 77°), black
BlockFlexMount Day with Ultra Wide lens B036 (103° x 77°)
Mx-O-SMA-S-6D036
Mx-O-SMA-S-6D036-b
Mx-O-SMA-B-6D036
Sensor Module Day with Super Wide lens B041 (90° x 67°), white
Sensor Module Day with Super Wide lens B041 (90° x 67°), black
BlockFlexMount Day with Super Wide lens B041 (90° x 67°)
Mx-O-SMA-S-6D041
Mx-O-SMA-S-6D041-b
Mx-O-SMA-B-6D041
Sensor Module Day with Wide lens B061 (60° x 45°), white
Sensor Module Day with Wide lens B061 (60° x 45°), black
BlockFlexMount Day with Wide lens B061 (60° x 45°)
Mx-O-SMA-S-6D061
Mx-O-SMA-S-6D061-b
Mx-O-SMA-B-6D061
Sensor Module Day with Standard lens B079 (45° x 34°), white
Sensor Module Day with Standard lens B079 (45° x 34°), black
BlockFlexMount Day with Standard lens B079 (45° x 34°)
Mx-O-SMA-S-6D079
Mx-O-SMA-S-6D079-b
Mx-O-SMA-B-6D079
Sensor Module Day with Tele lens B119 (31° x 23°), white
Sensor Module Day with Tele lens B119 (31° x 23°), black
BlockFlexMount Day with Tele lens B119 (31° x 23°)
Mx-O-SMA-S-6D119
Mx-O-SMA-S-6D119-b
Mx-O-SMA-B-6D119
Sensor Module Day with Distant Tele lens B237 (15° x 11°), white
Sensor Module Day with Distant Tele lens B237 (15° x 11°), black
BlockFlexMount Day with Distant Tele lens B237 (15° x 11°)
Mx-O-SMA-S-6D237
Mx-O-SMA-S-6D237-b
Mx-O-SMA-B-6D237
Sensor Module Day with Super-Tele lens B500 (8° x 6°), white
Sensor Module Day with Super-Tele lens B500 (8° x 6°), black
BlockFlexMount Day with Super-Tele lens B500 (8° x 6°)
Mx-O-SMA-S-6D500
Mx-O-SMA-S-6D500-b
Mx-O-SMA-B-6D500
Sensor Module Day with CS-Mount (no lens), white
Sensor Module Day with CS-Mount (no lens), black
BlockFlexMount Day with CS-Mount (no lens)
Mx-O-SMA-S-6DCS
Mx-O-SMA-S-6DCS-b
Mx-O-SMA-B-6DCS
Sensor Module Day with CSVario-Objektiv B045-100-CS, white
Sensor Module Day with CSVario-Objektiv B045-100-CS, black
BlockFlexMount Day with CSVario-Objektiv B045-100-CS
Mx-O-SMA-S-6DCSV
Mx-O-SMA-S-6DCSV-b
Nur Selbstmontage
Sensor Modules and BlockFlexMounts Night, 6MP image sensor (B/W 3072 x 2048), IP66 (sensor modules) and IP30 (BlockFlexMounts)
Sensor Module Night with Fisheye lens B016 (180° x 180°), white
Sensor Module Night with Fisheye lens B016 (180° x 180°), black
BlockFlexMount Night with Fisheye lens B016 (180° x 180°)
Mx-O-SMA-S-6N016
Mx-O-SMA-S-6N016-b
Mx-O-SMA-B-6N016
Sensor Module Night with Ultra Wide lens B036 (103° x 77°), white
Sensor Module Night with Ultra Wide lens B036 (103° x 77°), black
BlockFlexMount Night with Ultra Wide lens B036 (103° x 77°)
Mx-O-SMA-S-6N036
Mx-O-SMA-S-6N036-b
Mx-O-SMA-B-6N036
Technical Specifications: S16B DualFlex
Overview: Available Sensor Modules For S16:
MOBOTIX AG • www.mobotix.com • 06/2018
Technical specifications subject to change without notice • Page 5
Sensor Modules and BlockFlexMounts Night, 6MP image sensor (B/W 3072 x 2048), IP66 (sensor modules) and IP30 (BlockFlexMounts)
Sensor Module Night with Super Wide lens B041 (90° x 67°), white
Sensor Module Night with Super Wide lens B041 (90° x 67°), black
BlockFlexMount Night with Super Wide lens B041 (90° x 67°)
Mx-O-SMA-S-6N041
Mx-O-SMA-S-6N041-b
Mx-O-SMA-B-6N041
Sensor Module Night with Wide lens B061 (60° x 45°), white
Sensor Module Night with Wide lens B061 (60° x 45°), black
BlockFlexMount Night with Wide lens B061 (60° x 45°)
Mx-O-SMA-S-6N061
Mx-O-SMA-S-6N061-b
Mx-O-SMA-B-6N061
Sensor Module Night with Standard lens B079 (45° x 34°), white
Sensor Module Night with Standard lens B079 (45° x 34°), black
BlockFlexMount Night with Standard lens B079 (45° x 34°)
Mx-O-SMA-S-6N079
Mx-O-SMA-S-6N079-b
Mx-O-SMA-B-6N079
Sensor Module Night with Tele lens B119 (31° x 23°), white
Sensor Module Night with Tele lens B119 (31° x 23°), black
BlockFlexMount Night with Tele lens B119 (31° x 23°)
Mx-O-SMA-S-6N119
Mx-O-SMA-S-6N119-b
Mx-O-SMA-B-6N119
Sensor Module Night with Distant Tele lens B237 (15° x 11°), white
Sensor Module Night with Distant Tele lens B237 (15° x 11°), black
BlockFlexMount Night with Distant Tele lens B237 (15° x 11°)
Mx-O-SMA-S-6N237
Mx-O-SMA-S-6N237-b
Mx-O-SMA-B-6N237
Sensor Module Night with Super-Tele lens B500 (8° x 6°), white
Sensor Module Night with Super-Tele lens B500 (8° x 6°), black
BlockFlexMount Night with Super-Tele lens B500 (8° x 6°)
Mx-O-SMA-S-6N500
Mx-O-SMA-S-6N500-b
Mx-O-SMA-B-6N500
Sensor Module Night with CS-Mount (no lens), white
Sensor Module Night with CS-Mount (no lens), black
BlockFlexMount Night with CS-Mount (no lens)
Mx-O-SMA-S-6NCS
Mx-O-SMA-S-6NCS-b
Mx-O-SMA-B-6NCS
Sensor Module Night with CSVario-Objektiv B045-100-CS, white
Sensor Module Night with CSVario-Objektiv B045-100-CS, black
BlockFlexMount Night with CSVario-Objektiv B045-100-CS
Mx-O-SMA-S-6NCSV
Mx-O-SMA-S-6NCSV-b
Nur Selbstmontage
Sensor Modules and BlockFlexMounts Nigth with Longpass filter (LPF), 6MP image sensor (B7W: 3072 x 2048),
IP66 (sensor modules) and IP30 (BlockFlexMounts)
Sensor Module Night+LPF with Fisheye lens B016 (180° x 180°), white
Sensor Module Night+LPF with Fisheye lens B016 (180° x 180°), black
BlockFlexMount Night+LPF with Fisheye lens B016 (180° x 180°)
Mx-O-SMA-S-6L016
Mx-O-SMA-S-6L016-b
Nicht verfügbar
Sensor Module Night+LPF with Ultra Wide lens B036 (103° x 77°), white
Sensor Module Night+LPF with Ultra Wide lens B036 (103° x 77°), black
BlockFlexMount Night+LPF with Ultra Wide lens B036 (103° x 77°)
Mx-O-SMA-S-6L036
Mx-O-SMA-S-6L036-b
Mx-O-SMA-B-6L036
Sensor Module Night+LPF with Super Wide lens B041 (90° x 67°), white
Sensor Module Night+LPF with Super Wide lens B041 (90° x 67°), black
BlockFlexMount Night+LPF with Super Wide lens B041 (90° x 67°)
Mx-O-SMA-S-6L041
Mx-O-SMA-S-6L041-b
Mx-O-SMA-B-6L041
Sensor Module Night+LPF with Wide lens B061 (60° x 45°), white
Sensor Module Night+LPF with Wide lens B061 (60° x 45°), black
BlockFlexMount Night+LPF with Wide lens B061 (60° x 45°)
Mx-O-SMA-S-6L061
Mx-O-SMA-S-6L061-b
Mx-O-SMA-B-6L061
Sensor Module Night+LPF with Standard lens B079 (45° x 34°), white
Sensor Module Night+LPF with Standard lens B079 (45° x 34°), black
BlockFlexMount Night+LPF with Standard lens B079 (45° x 34°)
Mx-O-SMA-S-6L079
Mx-O-SMA-S-6L079-b
Mx-O-SMA-B-6L079
Sensor Module Night+LPF with Tele lens B119 (31° x 23°), white
Sensor Module Night+LPF with Tele lens B119 (31° x 23°), black
BlockFlexMount Night+LPF with Tele lens B119 (31° x 23°)
Mx-O-SMA-S-6L119
Mx-O-SMA-S-6L119-b
Mx-O-SMA-B-6L119
Sensor Module Night+LPF with Distant Tele lens B237 (15° x 11°), white
Sensor Module Night+LPF with Distant Tele lens B237 (15° x 11°), black
BlockFlexMount Night+LPF with Distant Tele lens B237 (15° x 11°)
Mx-O-SMA-S-6L237
Mx-O-SMA-S-6L237-b
Mx-O-SMA-B-6L237
Sensor Module Night+LPF with Super-Tele lens B500 (8° x 6°), white
Sensor Module Night+LPF with Super-Tele lens B500 (8° x 6°), black
BlockFlexMount Night+LPF with Super-Tele lens B500 (8° x 6°)
Mx-O-SMA-S-6L500
Mx-O-SMA-S-6L500-b
Mx-O-SMA-B-6L500
Sensor Module Night+LPF with CS-Mount (no lens), white
Sensor Module Night+LPF with CS-Mount (no lens), black
BlockFlexMount Night+LPF with CS-Mount (no lens)
Nicht verfügbar
Nicht verfügbar
Mx-O-SMA-B-6LCS
Sensor Modules Thermal, NETD 50 mK, measuring range -40 to 550 °C, IP66 (all)
Thermal Sensor Module with metal housing, lens T079 (45° x 32°)
Mx-O-SMA-TS-T079
Thermal Sensor Module with metal housing, lens T119 (25° x 19°)
Mx-O-SMA-TS-T119
Technical Specifications: S16B DualFlex
MOBOTIX AG • www.mobotix.com • 06/2018
Technical specifications subject to change without notice • Page 6
Sensor Modules Thermal, NETD 50 mK, measuring range -40 to 550 °C, IP66 (all)
Thermal Sensor Module with metal housing, lens T237 (17° x 13°)
Mx-O-SMA-TS-T237
PTMount Thermal, lens T079 (45° x 32°), white
Mx-O-SMA-TP-T079
PTMount Thermal, lens T119 (25° x 19°), white
Mx-O-SMA-TP-T119
PTMount Thermal, lens T237 (17° x 13°), white
Mx-O-SMA-TP-T237
PTMount Thermal, lens T079 (45° x 32°), black
Mx-O-SMA-TP-T079-b
PTMount Thermal, lens T119 (25° x 19°), black
Mx-O-SMA-TP-T119-b
PTMount Thermal, lens T237 (17° x 13°), black
Mx-O-SMA-TP-T237-b
Sensor Modules Thermal with Thermal Radiometry (TR), NETD 50 mK, measuring range -40 to 550 °C, IP66 (all)
Thermal Sensor Module TR with metal housing, lens R079 (45° x 32°)
Mx-O-SMA-TS-R079
Thermal Sensor Module TR with metal housing, lens R119 (25° x 19°)
Mx-O-SMA-TS-R119
Thermal Sensor Module TR with metal housing, lens R237 (17° x 13°)
Mx-O-SMA-TS-R237
PTMount Thermal TR, lens R079 (45° x 32°), white
Mx-O-SMA-TP-R079
PTMount Thermal TR, lens R119 (25° x 19°), white
Mx-O-SMA-TP-R119
PTMount Thermal TR, lens R237 (17° x 13°), white
Mx-O-SMA-TP-R237
PTMount Thermal TR, lens R079 (45° x 32°), black
Mx-O-SMA-TP-R079-b
PTMount Thermal TR, lens R119 (25° x 19°), black
Mx-O-SMA-TP-R119-b
PTMount Thermal TR, lens R237 (17° x 13°), black
Mx-O-SMA-TP-R237-b
Technical Specifications: S16B DualFlex
MOBOTIX AG • www.mobotix.com • 06/2018
Technical specifications subject to change without notice • Page 7
Attention – Special Export Regulations For Thermal Cameras Apply!
Cameras with thermographic image sensors (“thermographic cameras”) are subject to special U.S. and ITAR (International
Traffic in Arms Regulation) export regulations:
According to currently valid export regulations from the U.S. and ITAR, cameras with thermographic image sensors or their
component parts cannot be exported to countries that have been embargoed by the U.S./ITAR. The corresponding delivery
ban also applies to all individuals and institutions included on “The Denied Persons List” (see www.bis.doc.gov under Policy
Guidance > Lists of Parties of Concern). These cameras and their installed thermographic image sensors are not to be used for
the design, development, or production of nuclear, biological or chemical weapons or installed in these systems.
Link to the Thermal End User Statement on MOBOTIX Website
Technical Specifications: S16B DualFlex
Standard Delivery Mx-S16B
S16 with two PTMount Thermal
MOBOTIX AG • www.mobotix.com • 06/2018
Technical specifications subject to change without notice • Page 8
Technical Specifications: S16B DualFlex
MOBOTIX AG • www.mobotix.com • 06/2018
Technical specifications subject to change without notice • Page 9
Dimension in mm
Loading...
