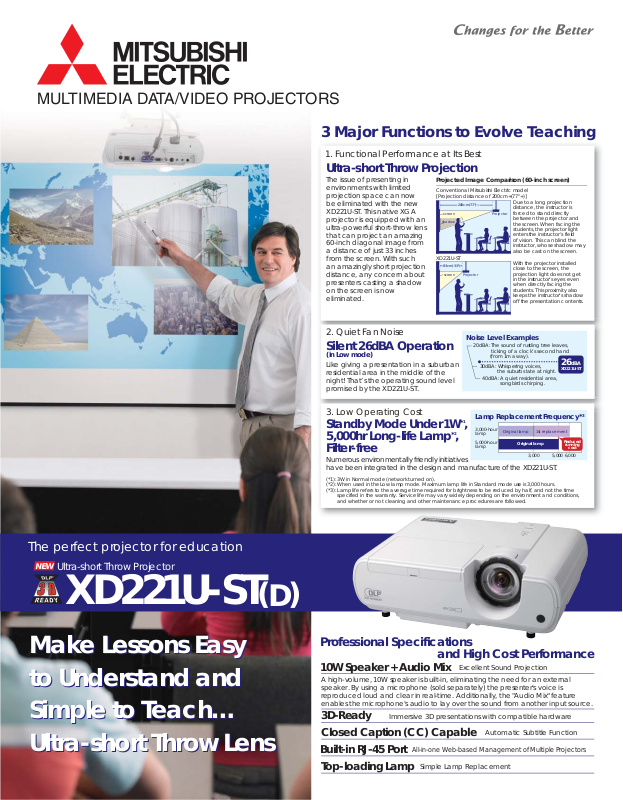

Mitsubishi XD221U-STD BROCHURE
MULTIMEDIA DATA/VIDEO PROJECTORS
3 Major Functions to Evolve Teaching
1. Functional Performance at Its Best
Ultra-short Throw Projection
The issue of presenting in
environments with limited
projection space can now
be eliminated with the new
XD221U-ST. This native XGA
projector is equipped with an
ultra-powerful short-throw lens
that can project an amazing
60-inch diagonal image from
a distance of just 33 inches
from the screen. With such
an amazingly short projection
distance, any concern about
presenters casting a shadow
on the screen is now
eliminated.
Projected Image Comparison (60-inch screen)
Conventional Mitsubishi Electric model
[Projection distance of 200cm+(77''+)]
200cm(77'')
screen
shadow
XD221U-ST
83cm(33'')
screen
Projector
Due to a long projection
distance, the instructor is
forced to stand directly
Projector
between the projector and
the screen. When facing the
students, the projector light
enters the instructor’s field
of vision. This can blind the
instructor, whose shadow may
also be cast on the screen.
With the projector installed
close to the screen, the
projection light does not get
in the instructor’s eyes even
when directly facing the
students. This proximity also
keeps the instructor’s shadow
off the presentation contents.
The perfect projector for education
NEW
Ultra-short Throw Projector
XD221U-ST(
D
)
2. Quiet Fan Noise
Silent 26dBA Operation
(in Low mode)
Like giving a presentation in a suburban
residential area in the middle of the
night! That’s the operating sound level
promised by the XD221U-ST.
3. Low Operating Cost
Standby Mode Under 1W
5,000hr Long-life Lamp
Filter-free
Numerous environmentally friendly initiatives
have been integrated in the design and manufacture of the XD221U-ST.
(*1): 3W in Normal mode (network turned on).
(*2): When used in the Low lamp mode. Maximum lamp life in Standard mode use is 3,000 hours.
(*3): Lamp life refers to the average time required for brightness to be reduced by half, and not the time
specified in the warranty. Service life may vary widely depending on the environment and conditions,
and whether or not cleaning and other maintenance procedures are followed.
Noise Level Examples
20dBA: The sound of rustling tree leaves,
ticking of a clock’s second hand
(from 1m away).
30dBA: Whispering voices,
the suburbs late at night.
40dBA: A quiet residential area,
songbirds chirping.
Lamp Replacement Frequency*
1
*
,
3,000-hour
Original lamp 1st replacement
lamp
2
*
,
5,000-hour
lamp
Original lamp
3,000 6,0005,000
26dBA
XD221U-ST
Reduced
running
cost
3
Make Lessons Easy
Make Lessons Easy
to Understand and
to Understand and
Simple to Teach…
Simple to Teach…
Ultra-short Throw Lens
Ultra-short Throw Lens
Professional Specifications
and High Cost Performance
10W Speaker + Audio Mix
A high-volume, 10W speaker is built-in, eliminating the need for an external
speaker. By using a microphone (sold separately) the presenter's voice is
reproduced loud and clear in real-time. Additionally, the "Audio Mix" feature
enables the microphone's audio to lay over the sound from another input source.
3D-Ready
Immersive 3D presentations with compatible hardware
Closed Caption (CC) Capable
Built-in RJ-45 Port
Top-loading Lamp
All-in-one Web-based Management of Multiple Projectors
Simple Lamp Replacement
Excellent Sound Projection
Automatic Subtitle Function
XD221U-ST
Ultra-short Throw Projector
TM
Enhancer
Color
Top
Loading
Lamp
Screen
(RJ-45)
Brilliant
3D
Ready
Long-life
Lamp
Color
Low
Standby
Power
Input and Output Terminals
1 2 3 7654
Dimensions
Wall
LAN
10W
Speaker
Closed
Caption
Password
Lock
Low
Fan Noise
(
Picture Performance
Presentation
User Friendly
1
Audio output
2
Audio input
3
S-Video/Video
4
Monitor output
5
PC/Component
Video input
6
Serial RS-232C
7
LAN (RJ-45)
D
Specifications
Model
Display Technology
Resolution
Brightness
Contrast Ratio
Projection Lens
Offset Axis
Picture Size
Throw Ratio
Color Wheel
Zoom & Focus
Estimated Lamp Life
PC Compatibility
)
Video Compatibility
XD221U-ST(
0.55" 1-Chip DMD, 12deg. LVDS, DDP2230
1024 x 768 (Total 786,432 pixels
2000lm
2500 : 1
f=7.7 mm, F=2.8
7.9:-1, Hd=9‰ up @100"
40" - 300" Diagonal
0.7
5 segment Color Wheel (R/G/B/W/Y)
Manual focus & zoom lens
5000 hours (Low Mode), 3000 hours (Standard Mode)*
Compressed: 1280 x 1024, Expanded: 640 x 480
True: 1024 x 768, Sync on Green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video: 480i/p (525i/p), 576i/p (625i/p),
720p (750p), 1080i (1125i 60Hz), 1080i (1125i 50Hz)
RGB: mini D-sub 15pin x 2
Input Terminals
Output Terminals
Communication Terminal
Audio Speaker
(
Dimensions
W x H x D
Weight
Power Requirements
Optional Accessories
Included Accessories
Warranty
• Compliance with ISO21118-2005
• All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
* Lamp life specification is an estimate based on information provided by the lamp manufacturer and is not the duration
of the warranty. Lamp will shut-off automatically when usage reaches the specified estimated maximum lamp hours.
RCA x 1 + S-VIDEO x 1
Audio: Stereo mini jack (Œ3.5mm) x 2
RGB: mini D-sub 15pin x 1
Audio: Stereo mini jack (Œ3.5mm) x 1
RS-232C: mini DIN 8pin x 1, LAN (RJ-45) x 1
10W Mono
)
320mm x 104mm x 236mm / 12.6‰ x 4.1‰ x 9.3‰
3.2kg / 7.0lbs
AC 100-240V, 50/60Hz
Replacement lamp (
Wall mount (PROJ-WM2), Wall Mount Arm (WM2-ARM)
Soft carrying bag, Remote control (With 2 batteries), Power cable(1.8m),
VGA(D-sub) cable(1.8m), User-Manual (CD-ROM), Safety manual
3-Years of Parts/Labor, 3-Years of Express Replacement Assistance
(ERA), 1-year or 500 hours lamp warranty (whichever comes first)
)
D
VLT-XD221LP
)
), Ceiling mount (PROJ-UCM-PRO2),
Screen size and Projection distance
As seen from the side
Top View Bottom View
320 116 116
236
214
48
Front View Side View
64.5
90 14
60.2
MITSUBISHI DIGITAL ELECTRONICS
AMERICA, INC.
Presentation Products Division
Phone: 888.307.0349
www.mitsubishi-presentations.com
Height
XD221U-ST
34.5
Screen size chart (4:3 aspect ratio)
213
45.4
14.3
30.6
113.9135.5
48
Unit:mm
Diagonal Size
cm
inch
102
40
152
60
203
80
254
100
381
150
508
200
635
250
762
300
The above numbers are approximate, and may be slightly different from the actual measurements.
Screen size chart (16:9 aspect ratio)
Diagonal Size
cm
inch
102
40
152
60
203
80
254
100
381
150
508
200
635
250
762
300
The above numbers are approximate, and may be slightly different from the actual measurements.
Hd
Screen
Width (W) Height
inch
32
48
64
80
120
160
200
240
Screen
Width (W) Height
inch
35
52
70
87
131
174
218
261
Projection Distance (L
cm
inch
81
122
163
203
305
406
120
508
150
610
180
cm
inch
89
133
177
221
332
443
553
123
664
147
(H)
cm
61
24
91
36
122
48
152
60
229
90
305
381
457
(H)
cm
50
20
75
29
100
39
125
49
187
74
249
98
311
374
)
Distance from
screen (L)
inch
22
33
44
55
83
111
139
167
Distance from
screen (L)
inch
23
36
48
60
91
121
152
182
m
0.5
0.8
1.1
1.4
2.1
2.8
3.5
4.3
m
0.6
0.9
1.2
1.5
2.3
3.1
3.9
4.6
Height projected
image (Hd)
cm
inch
9
3.6
14
5.4
18
7.2
23
9.0
34
13.4
45
17.9
57
22.4
68
26.9
Height projected
image (Hd)
cm
inch
18
7.2
27
10.8
36
14.3
46
17.9
68
26.9
91
35.9
114
44.8
137
53.8
MITSUBISHI ELECTRIC SALES
CANADA, INC.
Display & Imaging Solutions Division
Phone: 905.475.7728
www.mitsubishielectric.ca
LITXD221U-ST(D)
New publication, effective June 2010.
Specifications subject to change without notice.
