Data Projector

MODEL

LVP-XD10U
LVP-SD10U

OPERATING GUIDE

Thank you very much for purchasing this DLP™ Technology Projector.

Please read this operating guide to ensure a correct use of the device.

this manual, keep it for future reference.

Outline

This DLP™ Technology Projector can display
various computer signals and NTSC/PAL/
SECAM video signals.

Features

1. High brightness

2. High resolution

3. Compact size, light weight for portability

4. RGB input Terminal

After reading

5. Mouse Function

6. Mouse Emulation

7. Complies with VESA DDC1/2B specifications

English I

COPYRIGHT

Copyright © 2001 by this company. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of this company.

DISCLAIMER

This company makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose.
Further, this company reserves the right to revise this publication and to make changes from time to time in the
contents hereof without obligation of this company to notify any person of such revision or changes.

WARNING

Use the attached specified power supply cord. If you use another power-supply cord, it may cause interference
with radio and television reception.

Use the attached VGA cable or serial mouse cable with this equipment so as to keep interference within the
limit of a FCC Class B device.

This apparatus must be grounded.

COMPLIANCE NOTICE

This Data Projector complies with the requirements of the EC Directive 89/336/EEC "EMC Directive" as
amended by Directive 93/68/EEC and 73/23/EEC "Low Voltage Directive" as amended by Directive 93/68/
EEC.

The electro-magnetic susceptibility has been chosen at a level that gains proper operation in residential areas,
on business and light industrial premises and on small-scale enterprises, inside as well as outside of the
buildings. All places of operation are characterized by their connection to the public low voltage power supply
system.

WARNING

USE THE ATTACHED VGA CABLE OR SERIAL MOUSE CABLE WITH THIS EQUIPMENT SO AS TO
KEEP INTERFERENCE WITHIN THE LIMITS OF A EN55022 CLASS B AND EN55013. PLEASE
FOLLOW WARNINGS INSTRUCTIONS.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. AND PLEASE READ ALL
OF THESE INSTRUCTIONS BEFORE YOU OPERATE YOUR PROJECTOR. SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE .

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE, DO NOT USE
THIS UNITS GROUNDED PLUG WITH AN EXTENSION CORE OR IN AN OUTLET UNLESS ALL THREE
PRONGS CAN BE FULLY INSERTED.

z For PLUGGABLE EQUIPMENT. The socket-outlet shall be installed near the equipment and shall be

accessible.

z Do not stand the projector. It may fall and cause serious injury and damage to the projector.

II English

SAFETY INSTRUCTIONS

1. Read all of these instructions before you operate your projector and save them for future reference.

2. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45
minutes prior to removing the lamp assembly for replacement. Do not operate the lamps beyond the rated
lamp life. Excessive operation of the lamps beyond the rated life could cause them to explode on rare
occasions.

3. Power is still available when the projector is in the standby mode. Never replace the lamp assembly or
any electronic components unless the projector is unplugged.

4. Do not attempt to service this product yourself, as opening or removing the covers may damage the
components inside and will void your warranty.

5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious
damage to the product.

6. The Standard Remote Control contains a low-power laser that acts as a pointing device during
presentations. The light beam may cause injury if pointed directly into a person's eyes.

7. This product is capable of displaying inverted images for ceiling mount configurations. Please use suitable
equipment for mounting the unit and make sure it is securely installed.

8. Openings in the front or at the two sides are for ventilation. They must not be blocked or covered.

9. For ventilation reasons, the fan continues to operate for about 1 minute after the projector has been
powered off. Please do not unplug the power cord until the fan stops.

10. Do not look straight at the projector lens during operation. The intense light beam may injure your eyes.

COMPLIANCE NOTICE OF FCC

NOTE : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A
CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE
DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A
RESIDENTIAL INSTALLATION. THIS EQUIPMENT GENERATES, USES AND CAN RADIATE RADIO
FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE
INSTRUCTIONS, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. HOWEVER,
THERE IS NO GUARANTEE THAT INTERFERENCE WILL NOT OCCUR IN A PARTICULAR
INSTALLATION. IF THIS EQUIPMENT DOES CAUSE HARMFUL INTERFERENCE TO RADIO OR
TELEVISION RECEPTION, WHICH CAN BE DETERMINED BY TURNING THE EQUIPMENT OFF AND ON,
THE USER IS ENCOURAGED TO TRY TO CORRECT THE INTERFERENCE BY ONE OR MORE OF THE
FOLLOWING MEASURES :

z REORIENT OR RELOCATE THE RECEIVING ANTENNA.

z INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND RECEIVER.

z CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT TO WHICH

THE RECEIVER IS CONNECTED.

z CONSULT THE DEALER OR AN EXPERIENCED RADIO/TV TECHNICIAN FOR HELP.

Changes or modifications not expressly approved by Mitsubishi could void the user's authority to operate this
equipment.

COMPLIANCE NOTICE OF INDUSTRY CANADA

This Class B digital apparatus complies with Canadian ICES-003.

English III

Table of Contents

Introduction .......................................................................................................................................... 1

Projector Features............................................................................................................................. 1

Description ........................................................................................................................................ 2

A FRONT (
BREAR (
C BOTTOM (

Installation ......................................................................................................................................... 3

OSITIONING

AP

DJUSTABLE FEET

BA

Moving the Projector ......................................................................................................................... 4

Accessories....................................................................................................................................... 5

Connection ........................................................................................................................................... 6

ONNECTING THE PROJECTOR TO COMPUTER/NOTEBOOK

AC

Operation .............................................................................................................................................. 7

Turn On/Off Procedure...................................................................................................................... 7

OWER ON

AP

TANDBY

BS

External Control ................................................................................................................................ 7

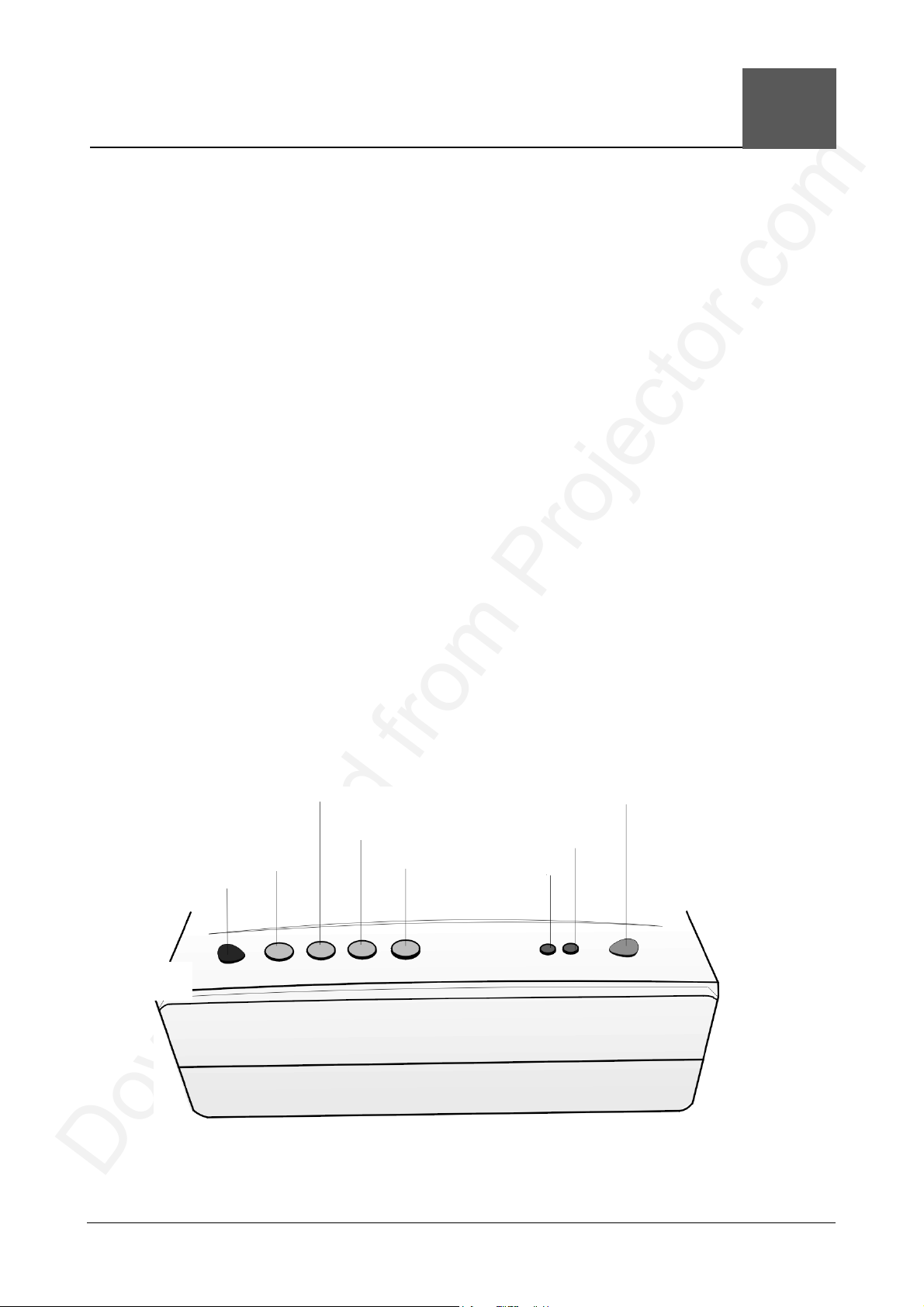

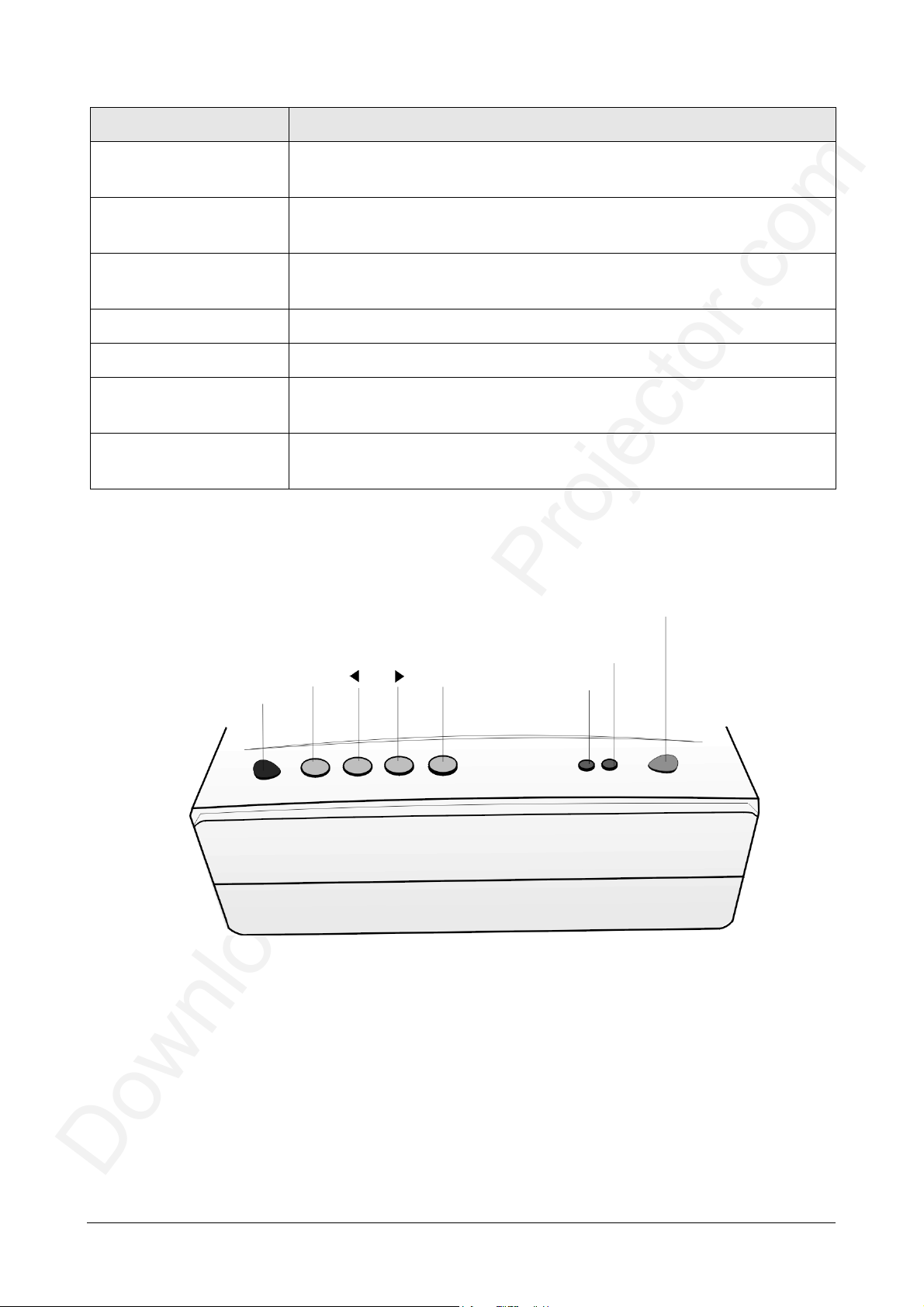

ONTROL PAD

A C

EMOTE CONTROL

B R

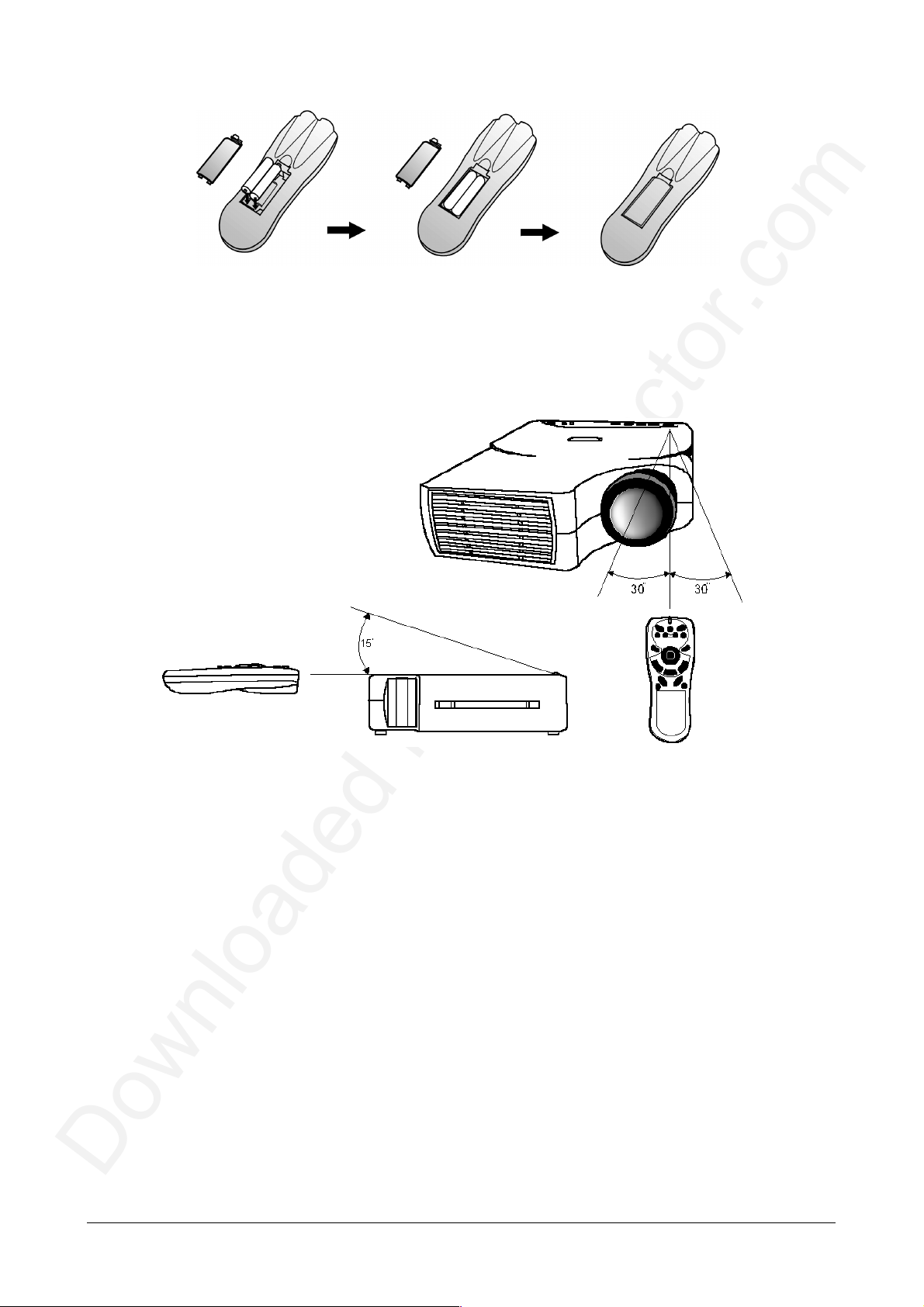

NSERTING BATTERIES IN THE REMOTE CONTROL

I

FIGURE

FIGURE

.................................................................................................................................. 7

) ..................................................................................................................... 2

)........................................................................................................................ 2

FIGURE

............................................................................................................................... 7

) .................................................................................................................. 3

............................................................................................................................. 3

.................................................................................................................... 4

......................................................... 6

.......................................................................................................................... 7

................................................................................................................... 9

.......................................................................... 10

Usage and Replacement of Lamp................................................................................................... 11

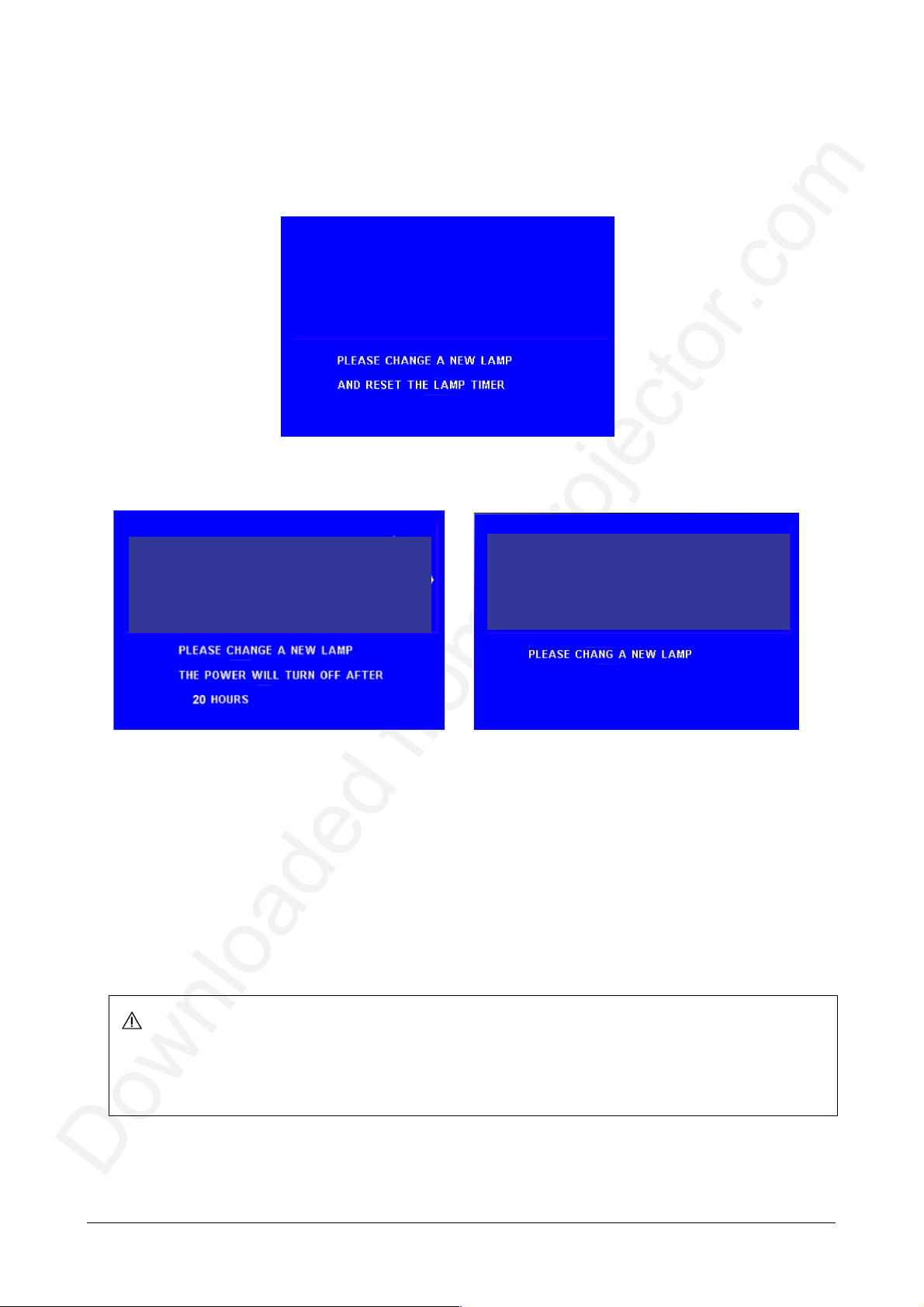

AMP/TEMPERATURE STATUS

AL

EPLACING THE LAMP

BR

OSD ................................................................................................................................................ 15

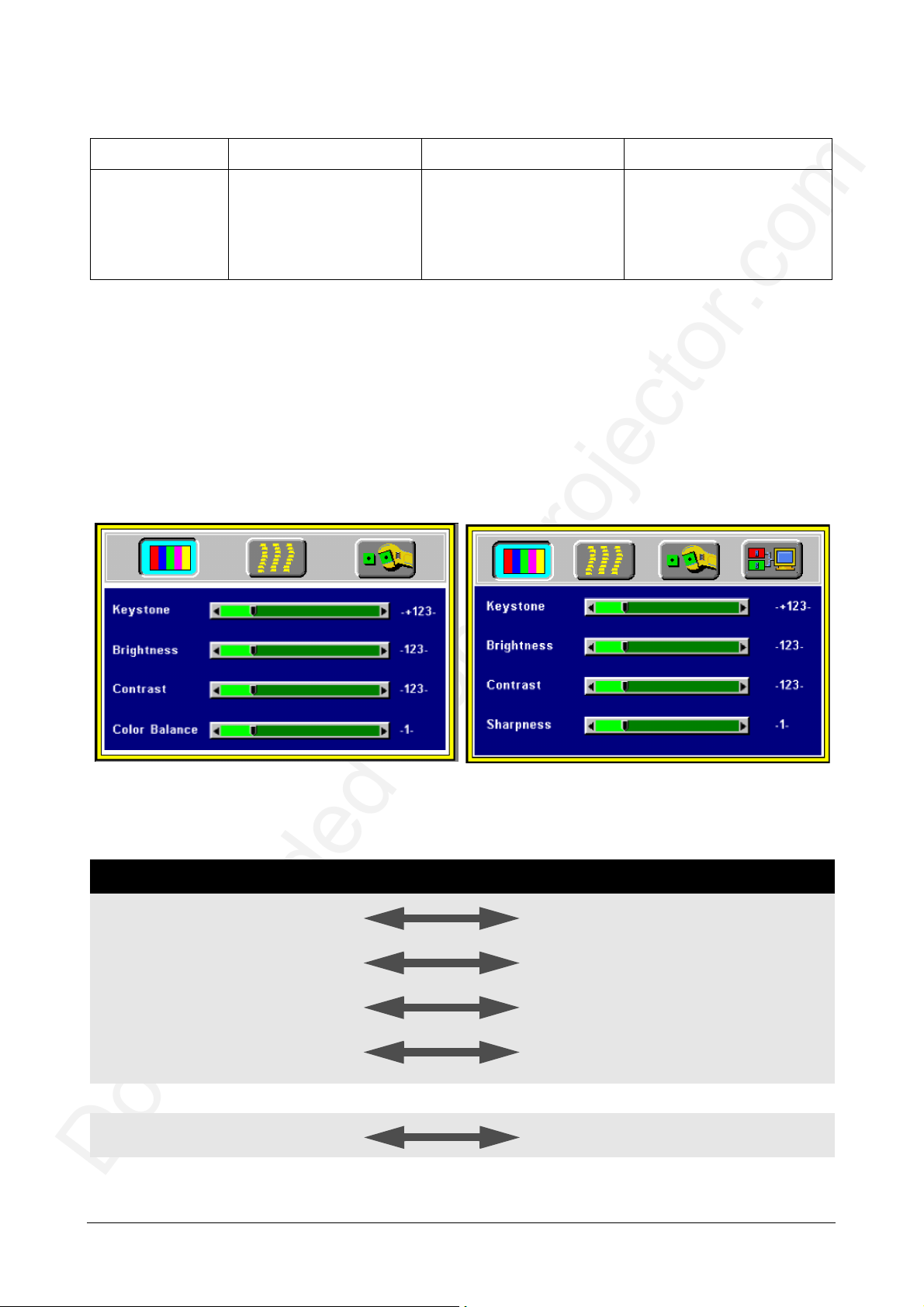

ISPLAY PAGE

AD

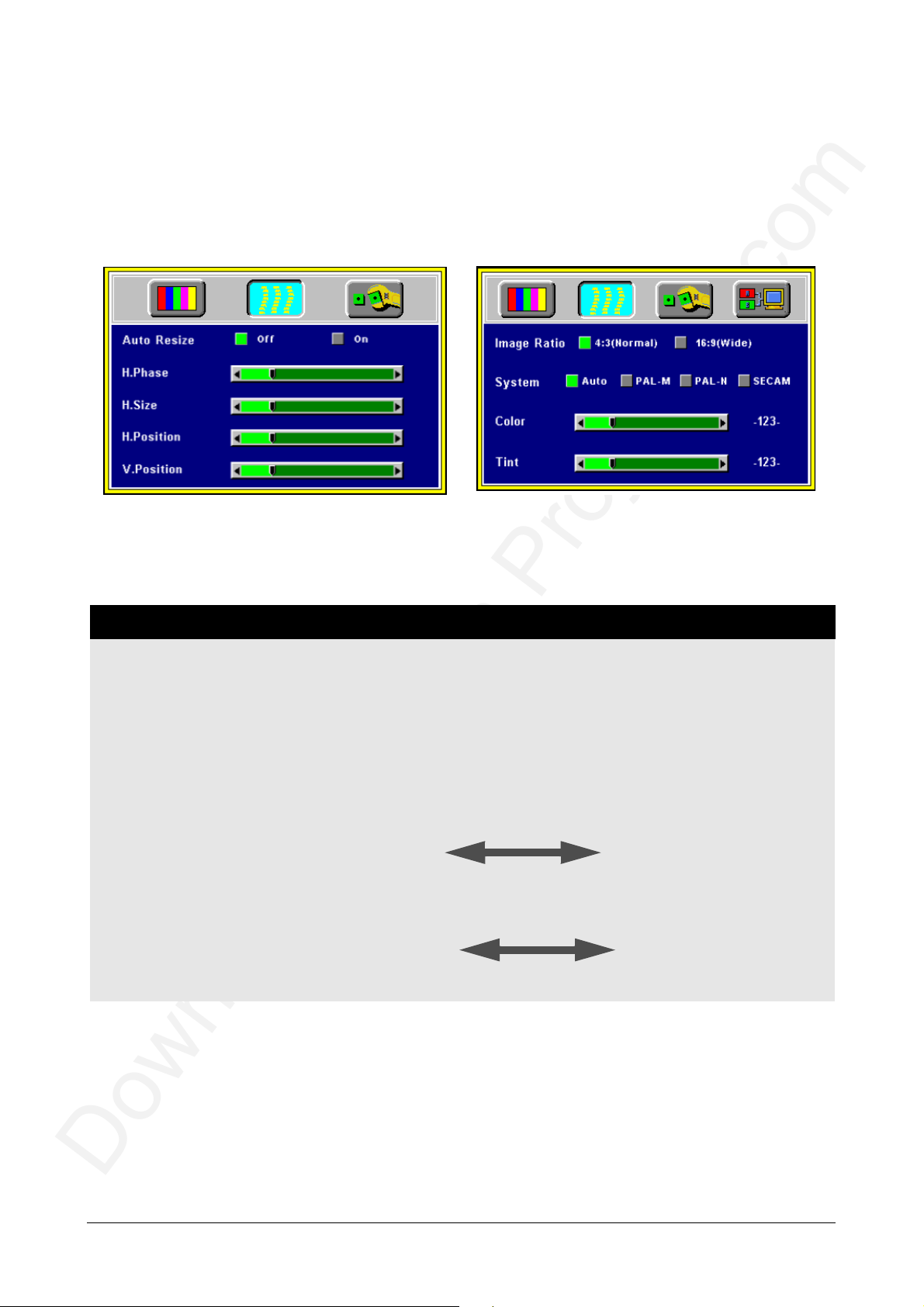

MAGE PAGE

B I

ONTROL PAGE

CC

OURCE PAGE

DS

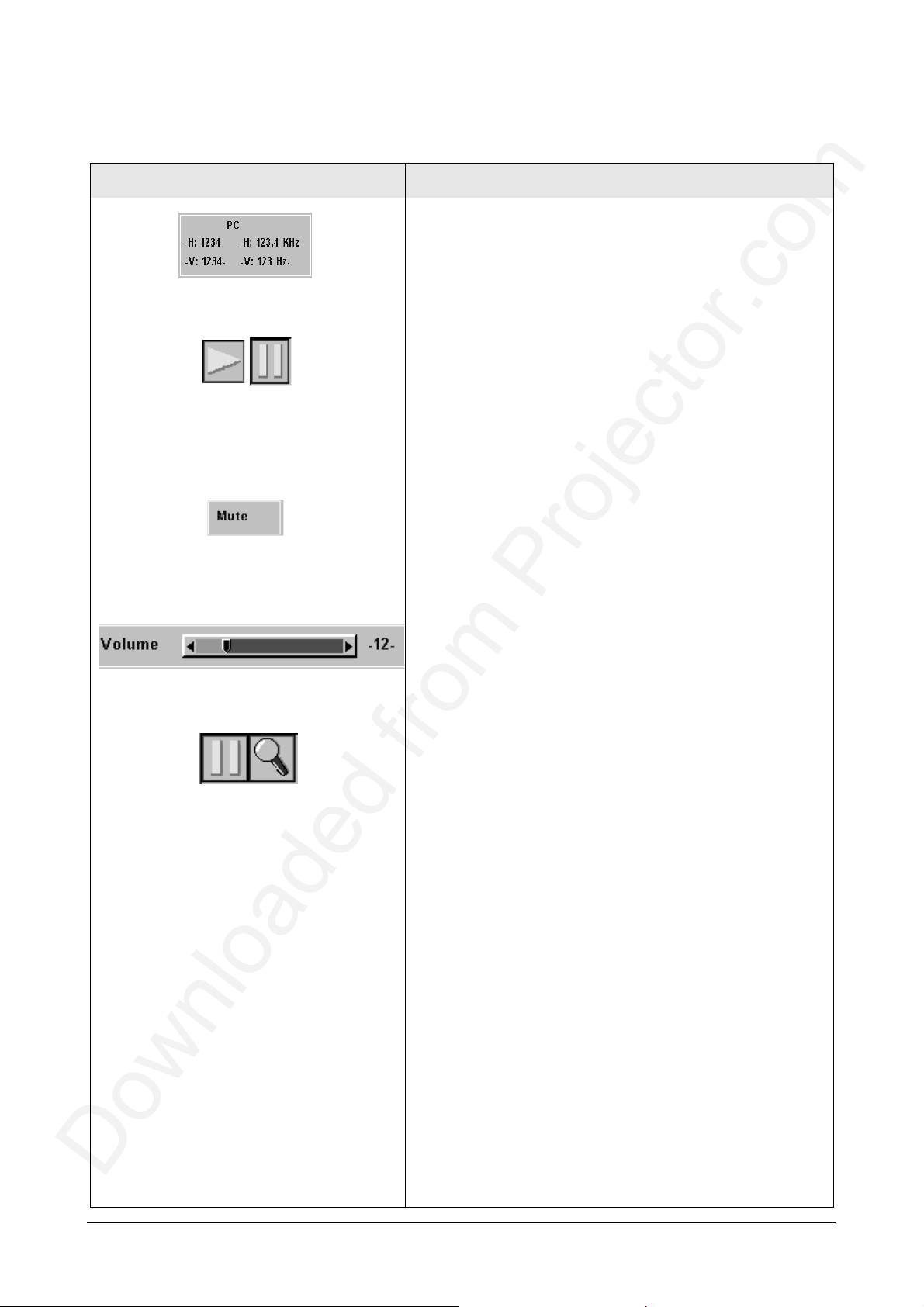

Other Correspondent Remote Functions and Messages ................................................................ 20

Maintenance and Troubleshooting................................................................................................... 21

AMP REPLACEMENT

AL

LEANING THE LENS

BC

ROUBLESHOOTING

CT

Specifications ..................................................................................................................................... 23

PTICAL

AO

LECTRICAL

BE

ECHANICAL

CM

RESET DISPLAY RESOLUTION TABLE

DP

PPENDIX

A

EATURES AND CONNECTION

F

.................................................................................................................................... 24

........................................................................................................................ 16

........................................................................................................................... 17

....................................................................................................................... 19

................................................................................................................................. 23

............................................................................................................................ 23

.......................................................................................................................... 23

............................................................................................................. 13

...................................................................................................................... 18

............................................................................................................... 21

............................................................................................................... 21

................................................................................................................ 22

....................................................................................................... 24

LED I

NDICATOR

...................................................................................... 23

......................................................................... 11

IV English

Introduction

1

Projector Features

A Image Resolution

Fully compatible with true SVGA (LVP-SD10U)/XGA (LVP-XD10U) and supports SXGA
using advanced intelligent compression technology. The advanced intelligent compression
technology enables it to present clear compression SVGA/XGA images without line
omission.

B Brightness

Provides superior brightness using TI's Digital Micromirror Device (DMD) and our own
optical design, with a geometric effect that increases light usage efficiency. By increasing
the light usage efficiency we can better reproduce the three basic colors (RGB) required for
color reproduction on a single DMD.

C Portability

This projector has a sophisticated shape, like that of an attached case, with a retractable
carrying handle that is extremely compact and lightweight. It helps you make powerful
presentations wherever you go with its 5-pound weight and B5 size.

D Keystone

The projection position is already set to the height of the line of vision; there is no keystone
effect. Even when projecting above or under the height of the line of vision, image distortion
(if any) can be adjusted using the hotkey "KEYSTONE" correction function.

E Multilanguage

The OSD (On Screen Display: information screens and menus) in 7 languages (English,
French, Dutch, Italian, German, Spanish and Simplified Chinese.) provides you with
additional information to help you make corrections with OSD operation in your native
languages.

F Auto Detect System

This projector can detect display signals from PCs with frequently used timing automatically,
or use the hotkey "AUTO" to do the optimization simultaneously. It does not require
complicated adjustments in order to project picture images from PCs.

G Ceiling Mount and Rear Screen Projection

The projector is equipped with a full mirror scan conversion function (vertical/horizontal
mirror), which allows the image to be reversed for ceiling mounting as well as for rear
projection applications.

English 1

H AV box (Model name: VA-10U)

An AV box is optional, and users can attach one or two to the projector. Additionally, our AV
box video standard is compatible with:

NTSC U.S. and Canada standard

PAL Western Europe standard

SECAM France and Eastern Europe standard

NTSC4.43 Middle East standard

If users want to watch CATV, an AV box will serve the need.

Description

A FRONT (figure)

Ventilation

Hole

Figure 1 Front view

B REAR (figure)

AV BOX

CONNECTOR

ONTROL PAD

C

ONTROL PORT

C

FOR MOUSE

(

OMPUTER IINPUT

C
D-SUB 15

PIN

ROJECTION

P

ENS

L

)

NLET

AC I

Figure 2 Rear view

2 English

C BOTTOM (figure)

DJUSTABLE FEET

A

Figure 3 Bottom view

Installation

A Positioning

This projector is basically designed to project on a flat projection surface. It can

z

focus from 1.5m-12m and adjust the screen size like figure below.

AMP COVER

L

Figure 4 Positioning

English 3

B Adjustable Feet

Picture tilt and projection angle can be adjusted by twisting Adjustable Feet. Projection
angle can be adjusted 2° to 8.5° degrees by rotating the front/center foot. The projector is
also equipped with left adjustable foot.

Figure 5 Adjustable feet (left/ right/ middle)

Moving the Projector

Use the carrying handle when moving the projector.

Replace the lens cover and rotate the feet fully clockwise (to shorten the feet) when moving
the projector to prevent damage to the projector.

Caution

Caution

CautionCaution

The carrier bag (supplied) is intended to protect the projector from dust and scratches
on the surface of the cabinet. It is not designed to protect the projector from external
shock.

Do not transport the projector in an unsuitable transport case by using a courier or
transport service. This may cause damage to the projector.

Figure 6 Moving the projector

4 English

Accessories

Please check and make sure your box contains everything listed below. If any pieces are
missing, contact your dealer.

ROJECTION

P

ENS

ENTILATION

V

OLE

H

G

A

B

R

E

I

R

R

A

C

L

A

U

N

A

M

L

EMOTE CONTROL

R

OWER CONNECTOR

P
(2

PIN TO

3

PIN

)

ATTERIES

AAA B

Q

VGA C

U

I

ABLE

C

K

S

T

A

R

T

C

A

R

D

(P/N.: 246D016-10)

OUSE ADAPTER

PS/2 M
(P/N.: 246D016-20)

ERIAL MOUSE ADAPTER

S
(P/N.: 246D016-30)

ENERAL CABLE

G
(P/N.: 246D096-40)

ABLE

RCA C

UDIO/VIDEO

(A

TTACHED TO

(A

)

VA-10U)

(P/N.: 246D016-50)

UDIO CABLE

A

TTACHED TO

(A

VA-10U)

(P/N.: 246D016-60)

VIDEO CABLE

S-

TTACHED TO

(A

VA-10U)

(P/N.: 246D016-70)

OWER CABLE (X

P

3)
(P/N.: 246D017-10)
(P/N.: 246D017-20)
(P/N.: 246D017-30)

Figure 7 Accessories

English 5
