WS-48315

2004

Service Manual

PROJECTION TELEVISION V24 CHASSIS

V24 Chassis

MODELS

WS-48315 WS-55315 WS-65315

CAUTION:

Before servicing this chassis, it is important that the service person read the "SAFETY PRECAUTIONS" and "PRODUCT SAFETY NOTICE" contained in this manual.

SPECIFICATIONS

• Power : AC 120V, 60Hz

240W

• Frequency : VHF 54 ~ 470MHz Range UHF 470 ~ 806MHz

• Antenna Input : VHF/UHF 75Ω unbalanced

• CRT Size : 7 inches

• High Voltage : 30.8KV

• Speakers : [WS-48315]

Two 5" round, full range (8Ω 10W) : [WS-55315 / 65315] Two 6" round, full range (8Ω 10W)

• Weight / Cabinet Dimensions

Model Weight Height Width Depth WS-48315 WS-55315 WS-65315

172lbs 49" 44.5" 24" 221 lbs 50.4" 50.5" 27.8" 327 lbs 62" 59" 28"

• Input Level : VIDEO IN JACK (RCA Type)

1.0Vp-p 75Ω unbalanced : AUDIO IN JACK (RCA Type)

-4.7dBm 43kΩ unbalanced : S-VIDEO IN JACK (Y/C separate) Y=1.0 Vp-p C=0.286Vp-p(BURST) 75Ω unbalanced : COMP / Y, Cr, Cb (RCA Type) Y=1.0 Vp-p. Cr, Cb=700mVp-p : DTV / Y(G), Pr(R), Pb(B), H, V Y 1.0Vp-p with sync 75Ω (RCA Type) Pr, Pb: 700mV 75Ω H, V: 3.0Vp-p 75Ω

• Digital Inputs

:MonitorLink :MonitorLink

• Output Level : VIDEO OUT JACK (RCA Type)

1.0Vp-p 75Ω unbalanced : AUDIO OUT JACK (RCA

-4.7dBm 4.7kΩ unbalanced

/DVI

Control/RS-232C

Type)

• Weight and dimensions shown are approximate.

• Design specifications are subject to change without notice.

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.

9351 Jeronimo Road, Irvine, CA 92618-1904

marik08

MODELS: WS-48315 / WS-55315 / WS-65315

CONTENTS

INTRODUCTION .................................................................................................................................. 5

PRODUCT SAFETY NOTICE ............................................................................................................ 5

SAFETY PRECAUTIONS................................................................................................................... 6

DISASSEMBLY PROCEDURES .......................................................................................................... 7

WS-48315

Front Cabinet Components ..................................................................................................... 7

Rear Cabinet Components ...................................................................................................... 8

WS-55315 / WS-65315

Front Cabinet Components ..................................................................................................... 9

Rear Cabinet Components .................................................................................................... 10

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS ...................................................... 11

WS-48315

Removal of the Lenticular Screen and Fresnel Lens ............................................................... 11

WS-55315 / WS-65315

Removal of the Lenticular Screen and Fresnel Lens .............................................................. 12

Installation of the Lenticular Screen and Fresnel Lens ................................................................... 13

CABINET SEPARATION PROCEDURES ........................................................................................... 14

WS-65315 ...................................................................................................................................... 14

SERVICING THE DIAMONDSHIELD™ ............................................................................................. 15

DiamondShield Removal ................................................................................................................. 15

DiamondShield Installation ............................................................................................................. 15

SERVICING PCBs ............................................................................................................................. 16

Chassis Removal ........................................................................................................................... 16

PCB Locations ............................................................................................................................... 16

Major Parts Locations .................................................................................................................... 16

ANODE LEAD REMOVAL .................................................................................................................. 17

CRT REPLACEMENT ........................................................................................................................ 17

CRT Removal ................................................................................................................................. 17

CRT Installation .............................................................................................................................. 18

ELECTRICAL ADJUSTMENTS ....................................................................................................... 20

Equipment ..................................................................................................................................... 20

Initial Setup .................................................................................................................................... 21

LED Indicator Diagnostics .............................................................................................................. 22

Circuit Adjustment Mode ................................................................................................................ 23

Convergence Adjustment Mode ...................................................................................................... 24

Adjustment Items List .................................................................................................................... 26

marik08

Page 3

MODELS: WS-48315 / WS-55315 / WS-65315

Adjustment Procedures .................................................................................................................. 29

Test Point Locations ............................................................................................................. 29

HV Regulation ....................................................................................................................... 30

Main / Sub Y Level ................................................................................................................ 30

Main / Sub Color Level .......................................................................................................... 31

CRT Cutoff ............................................................................................................................. 31

White Balance (NTSC) .......................................................................................................... 32

White Balance (HD) .............................................................................................................. 32

Black Level............................................................................................................................ 33

Sub Contrast ......................................................................................................................... 33

Dynamic Focus Presets ....................................................................................................... 34

Lens Focus ........................................................................................................................... 34

Alignment Magnet & Electrostatic Focus .............................................................................. 35

Charactrer Position ............................................................................................................... 35

Geometry Presets ................................................................................................................. 36

Deflection Geometry Adjustments ......................................................................................... 37

Convergence Geometry Adjustments .................................................................................... 38

Centering & Static Convergence ............................................................................................ 39

Coarse Convergence Adjustments ........................................................................................ 40

Fine Convergence Adjustments ............................................................................................. 41

MonitorLink Picture Position ................................................................................................. 41

CHIP PARTS REPLACEMENT .......................................................................................................... 42

REPLACEMENT PARTS .................................................................................................................... 43

Parts Ordering ................................................................................................................................ 43

Critical and Warranty Parts Designation ........................................................................................ 43

Parts Tolerance Codes ................................................................................................................... 43

Quick Reference List ...................................................................................................................... 44

SERVICE PARTS LIST ..................................................................................................................... 45

SCREEN ASSEMBLY PARTS LIST ................................................................................................... 57

CIRCUITRY BLOCK DIAGRAMS ...................................................................................................... 59

Part 2

Schematic Diagrams

CONTENTS Page

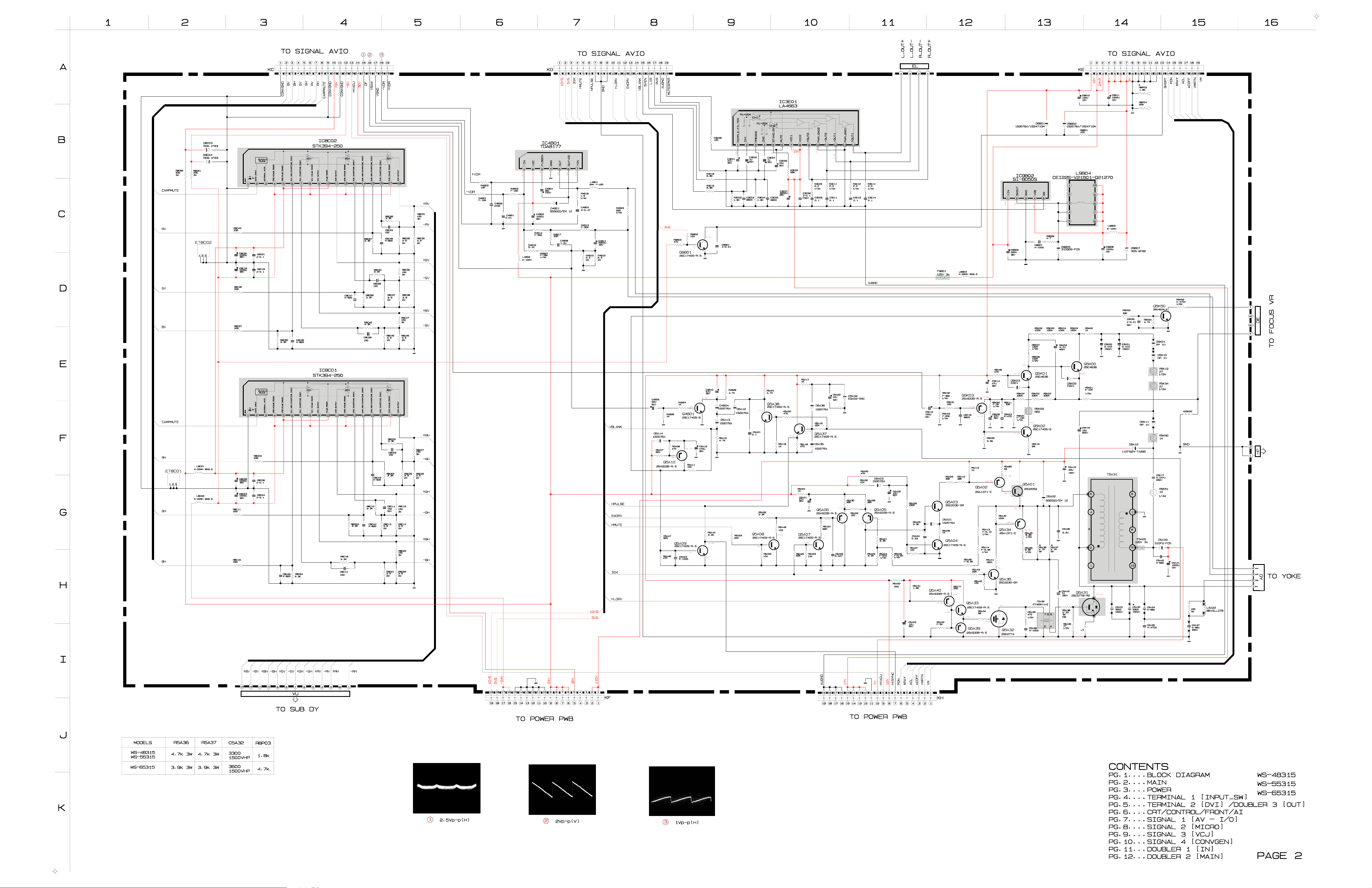

SCHEMATIC DIAGRAMS

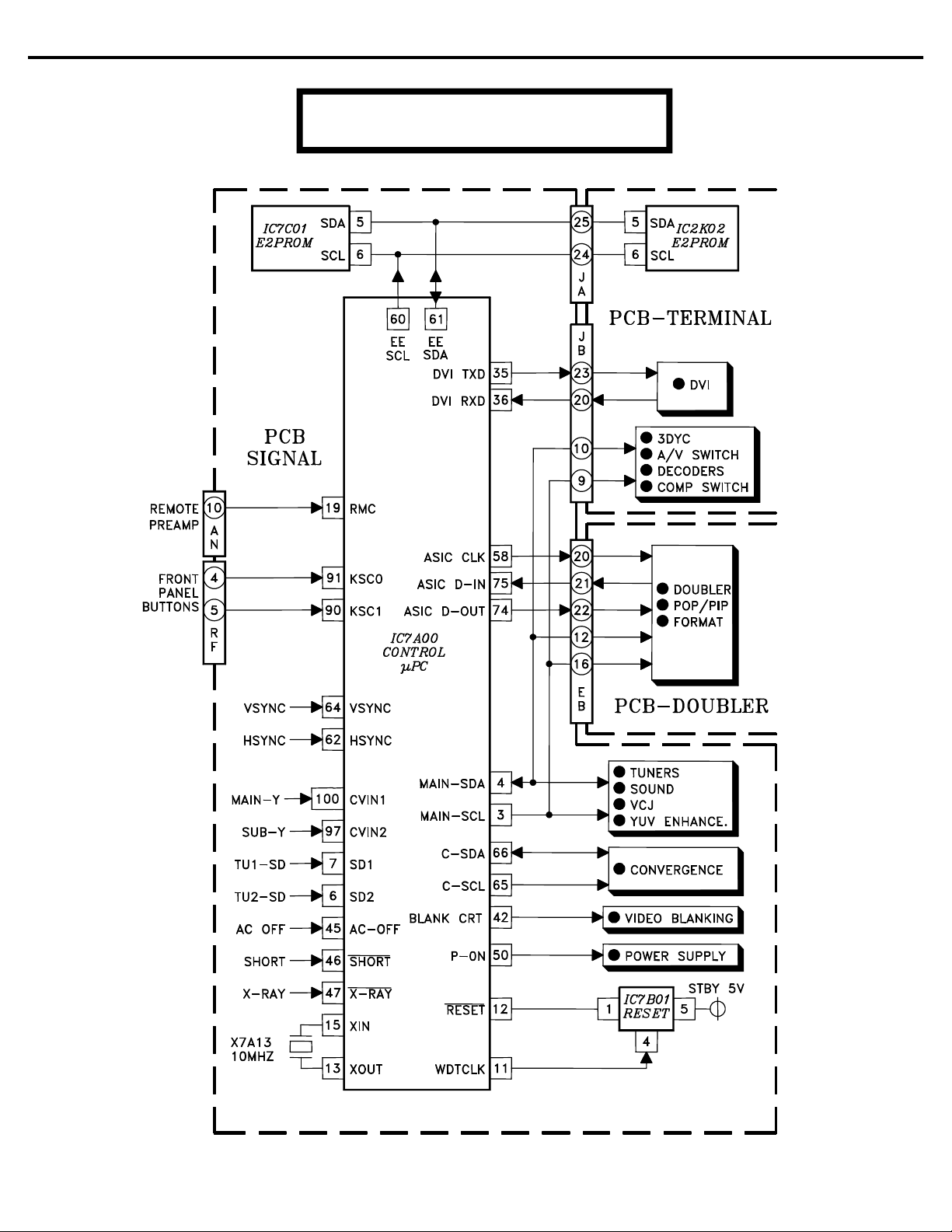

PCB INTERCONNECT BLOCK DIAGRAM ....................................................................................... 1

PCB-MAIN ....................................................................................................................................... 2

PCB-POWER ................................................................................................................................... 3

PCB-TERMINAL-1 (A/V I/O) ............................................................................................................. 4

PCB-TERMINAL-2 (DVI), DOUBLER-3 ............................................................................................. 5

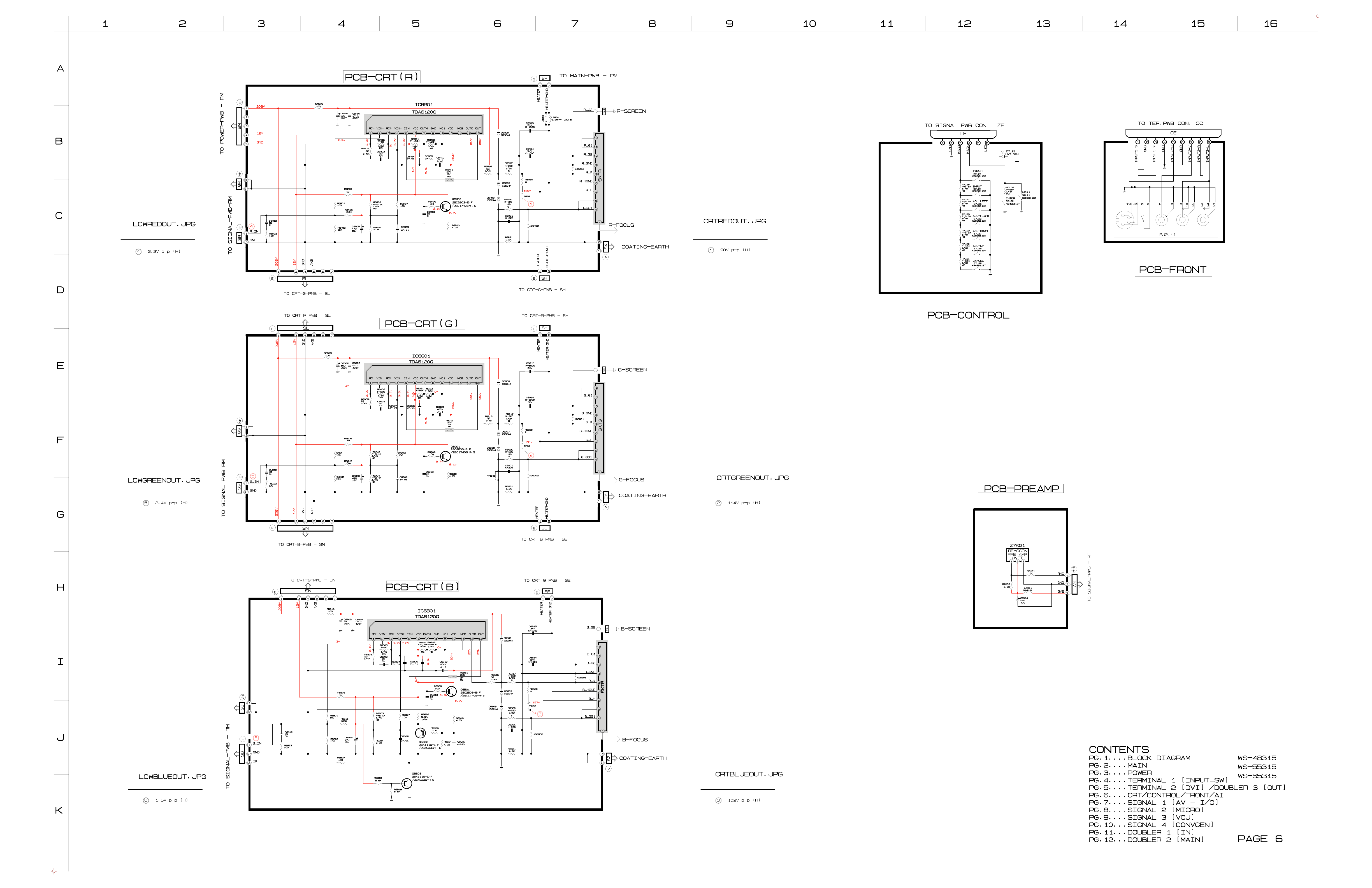

PCB-CRT, CONTROL, FRONT and PREAMP .................................................................................. 6

PCB-SIGNAL-1 (TUNER I/O) ............................................................................................................ 7

PCB-SIGNAL-2 (MICRO) .................................................................................................................. 8

PCB-SIGNAL-3 (VIDEO / CHROMA) ................................................................................................ 9

PCB-SIGNAL-4 (CONVERGENCE GENERATOR) ......................................................................... 10

PCB-DOUBLER-1 ........................................................................................................................... 11

PCB-DOUBLER-2 .......................................................................................................................... 12

PCB LAYOUT DIAGRAMS ................................................................................................................ 13

marik08

Page 4

MODELS: WS-48315 / WS-55315 / WS-65315

INTRODUCTION

This service manual provides service instructions for the PTV Models listed below. Service personnel should read this manual thoroughly before servicing these chassis.

V24 Chassis

WS-48315 WS-55315 WS-65315

This service manual includes:

1. Assembly and disassembly instructions for the front and rear cabinet components.

2. Servicing of the Lenticular Screen and Fresnel Lens.

3. Servicing printed circuit boards (PCBs).

4. CRT replacement procedure.

5. Electrical adjustments.

6. Chip parts replacement procedures.

7. Circuit path diagrams.

The parts list section of this service manual includes:

1. Cabinet and screen parts.

2. Electrical parts.

Schematic and block diagrams of the above listed models are included in this service manual for better understanding of the circuitry. PCB drawings are also included for easy location of parts and test points.

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in television receivers have special safety related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.

Replacement parts which have special safety characteristics are identified in this service manual.

Electrical components having such features are identified by shading on the schematic diagram and by bold

type in the parts list of this service manual. The replacement for any safety part should be identical in value and characteristics.

marik08

Page 5

MODELS: WS-48315 / WS-55315 / WS-65315

SAFETY PRECAUTIONS

NOTICE: Observe all cautions and safety related notes located inside the receiver cabinet and on the

receiver chassis.

WARNING:

1. Operation of this receiver outside the cabinet or with the cover removed presents a shock hazard from the receiver's power supplies. Work on the receiver should not be attempted by anyone who is not thoroughly familiar with the precautions necessary when working on high voltage equipment.

2. Do not install, remove or handle the picture tubes in any manner unless shatterproof goggles are worn. People not so equipped should be kept away while the picture tube is being handled. Keep the picture tube away from the body while handling.

3. When service is required, observe the original lead dress. Extra precaution should be taken to assure correct lead dress in the high voltage area. Where a short-circuit has occurred, replace those components that indicate evidence of overheating.

X-Radiation warning

The surface of the cathode ray tubes (CRTs) may generate X-Radiation, so take proper precautions when servicing. It is recommended that a lead apron be used for shielding while handling the CRT. Use this method if possible.

When replacing the CRTs, use only the designated replacement part since it is a critical component with regard to X-Radiation. High voltage must be set as prescribed under the section titled Electrical Adjustments.

Leakage current check

Before returning the receiver to the customer, it is recommended that leakage current be measured according to the following methods.

1. Cold Check

With the alternating current (AC) plug removed from the AC source, place a jumper across the two AC plug

prongs. Connect one lead of an ohm meter to the AC plug and touch the other lead to each exposed metal part (i.e. antennas, handle bracket, metal cabinet, screw heads, metal overlay, control shafts, etc.), particularly any exposed metal part that has a return path to the chassis. The resistance of the exposed metal parts having a return path to the chassis should be a minimum of 1Mega Ohm. Any resistance below this value indicates an abnormal condition and requires corrective action.

2. Hot Check ...Use the circuit shown below to perform the hot check test.

1. Keep switch S1 open and connect the receiver to the measuring circuit. Immediately after connection, and with the switching devices of the receiver in their operating positions, measure the leakage current for both positions of switch S2.

2. Close switch S1, energizing the receiver. Immediately after closing switch S1, and with the switching devices of the receiver in their operating positions, measure the leakage current for both positions of switch S2. Repeat the current measurements of items 1 and 2 after the receiver has reached thermal stabilization. The leakage current must not exceed 0.5 milliampere (mA).

marik08

Page 6

MODELS: WS-48315 / WS-55315 / WS-65315

CABINET DISASSEMBLY (FRONT VIEW)

*Refer to PARTS LIST for Part Numbers

WS-48315

Front Cabinet Disassembly

1. Remove the Speaker Grille by pulling forward.

2. Remove the Board-Front by removing six screws "a".

3. Remove the Screen Assembly by removing four screws "b". Disconnect all cable harnesses between the Screen Assembly and the PCB-Signal.

4. Lift the Screen Assembly and pull up and away from the cabinet as shown.

marik08

Page 7

MODELS: WS-48315 / WS-55315 / WS-65315

CABINET DISASSEMBLY (REAR VIEW)

WS-48315

Rear Cabinet Disassembly

1. Remove the Back Board by removing 14 screws "a", “b” and “c”.

2. Remove 4 screws "d" securing the Light Box Assembly.

3. Be certain that all cables and connectors between the Light Box Assembly and external items are disconnected (e.g. speaker plugs).

4. Slide the Light Box Assembly out of the cabinet.

marik08

Page 8

MODELS: WS-48315 / WS-55315 / WS-65315

CABINET DISASSEMBLY (FRONT VIEW)

WS-55315 WS-65315

Front Cabinet Disassembly

1. Remove the Speaker Grille by pulling forward.

2. Remove the Front-Board by removing screws "a".

3. Remove the Screen Assembly by removing 5 screws "b". Disconnect connectors CC and ZF between the

Screen Assembly and the PCB-Signal.

4. Lift the Screen Assembly and pull up and away from the cabinet as shown.

marik08

Page 9

MODELS: WS-48315 / WS-55315 / WS-65315

CABINET DISASSEMBLY (REAR VIEW)

WS-55315 WS-65315

Rear Cabinet Disassembly

1. Remove the Back Board by removing 13 screws "a" (15 screws “a” in 65 inch models).

2. Remove the Board Slide by removing four screws “b”.

3. Remove the two Board Shelves by removing 8 screws “c”.

4. Remove 4 screws "d" securing the Light Box Assembly.

5. Be certain that all cables and connectors between the Light Box Assembly and external items are disconnected (connectors CC, ZF and EJ)).

6. Slide the Light Box Assembly out of the cabinet.

marik08

Page 10

MODELS: WS-48315 / WS-55315 / WS-65315

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

WS-48315

CAUTION: Wear gloves when handling the Lenticular Screen and Fresnel Lens.

This prevents cuts and finger prints. Do not place Fresnel Lens in the sun. This may cause fire and heat related injuries.

1a. Lenticular Screen and Fresnel Lens Removal

1. Remove the screen assembly as shown in the Cabinet Disassembly procedure.

2. Remove the Top, Bottom and Side Holder Screens..

3. Carefully lift the Lenticular Screen and Fresnel Lens combination from the Screen Frame Assembly.

Note: When separating the Lenticular Screen from the Fresnel Lens, use caution

while prying the Screen and Lens apart. Use a slot type screw driver, and remove the pressure sensitive double sided tape.

marik08

Page 11

MODELS: WS-48315 / WS-55315 / WS-65315

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

WS-55315 WS-65315

CAUTION: Wear gloves when handling the Lenticular Screen and Fresnel Lens.

This prevents cuts and finger prints. Do not place Fresnel Lens in the sun. This may cause fire and heat related injuries.

1b. Lenticular Screen and Fresnel Lens Removal

1. Remove the screen assembly as shown in the Cabinet Disassembly procedure.

2. Remove the HOLDER-SCREEN-BOTTOM.

3. Carefully slide the Lenticular Screen and Fresnel Lens combination from the upper Screen Frame Assembly.

Note: When separating the Lenticular Screen from the Fresnel Lens, use caution

while prying the Screen and Lens apart. Use a slot type screw driver, and remove the pressure sensitive double sided tape.

1b. Installing the Fresnel Lens and Lenticular Screen

1. Insert the Lenticular Screen and Fresnel Lens combination into the upper Screen Frame.

2. Install the HOLDER-SCREEN-BOTTOM, install the end screws first.

marik08

Page 12

MODELS: WS-48315 / WS-55315 / WS-65315

2. Installation of the Lenticular Screen and Fresnel Lens

Note: Store the Lenticular Screen and Fresnel Lens in a cool dry place. High heat/humidity may

deform the Lenticular Screen and Fresnel Lens.

1. Apply double coated tape (Part # LENS-TAPE) along the top front edge of the Fresnel Lens as shown in Figure 2-2. Refer to Table A for proper tape length.

2. Place the Fresnel Lens on top of the Lenticular Screen and apply pressure at the top edge to bond them together as shown in Figure 2-2.

3. Reverse the disassembly procedure for that model to install the screens in the screen frame.

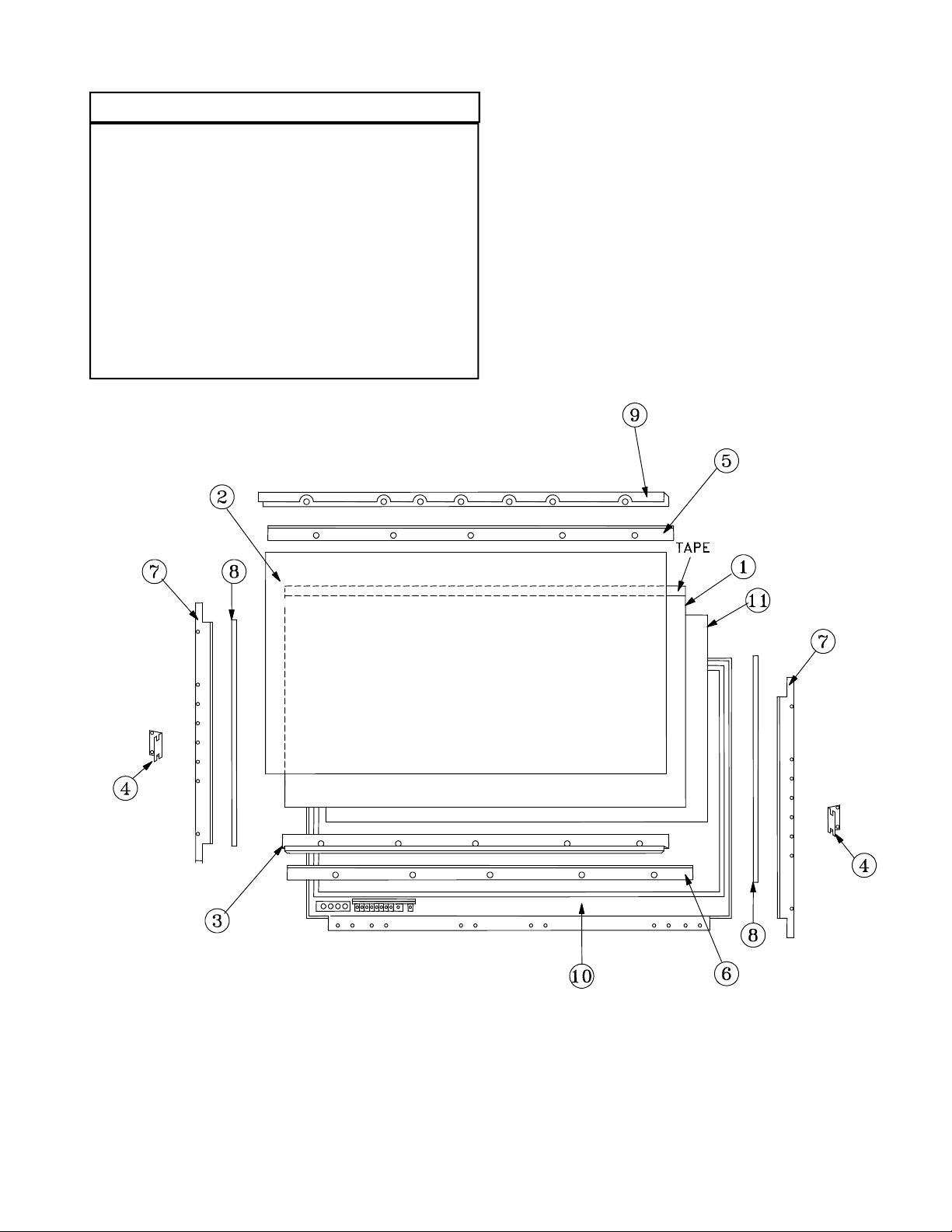

Fresnel Lens

Top

( * X ) inch

Double Sided Tape (Part# LENS-TAPE)

Fresnel Lens

Lenticular Screen

Bottom

Lenticular Screen

Figure 2-2

Model

WS-48315 48" 41.76 WS-55315 55" 47.85 WS-65315 65" 56.55

Screen

Size

Table A

Tape

Length

Bottom

0.16 inch

marik08

Page 13

MODELS: WS-48315 / WS-55315 / WS-65315

CABINET SEPARATION PROCEDURE

(WS-65315)

Modes WS-65315 cabinet is assembled in two pieces. These two pieces may be separated to allow easier delivery and setup.

Cabinet Separation Precedure

(Figure 1)

1. Pull the Speaker Grille off.

2. Unplug connectors “CC” and ZF.

3. Remove 4 screws “a” on both sides of the cabinet.

(Figure 2)

4. Carefully lift the cabinet top until the support tabs clear the bottom cabinet.

(Figure 3)

5. Carefully rotate the cabinet top and place it on the floor.

6. Reverse the procedure to mount the cabinet top on the cabinet bottom.

Figure 2

Figure 1

Figure 3

marik08

Page 14

MODELS: WS-48315 / WS-55315 / WS-65315

SERVICING THE DIAMONDSHIELD™

1. DiamondShield Removal Procedure

The location of the DiamondShield molding clips may vary between models, top and bottom, or sides. Use the appropriate disassembly procedure given below.

Note: Wear gloves when handling the DiamondShield to prevent finger prints.

Top & Bottom Molding Clips

1. Gently insert a small screwdriver between the

DiamondShield and one end of the clip to pry the clip loose.

Side Molding Clips

1. Gently insert a small screwdriver between the DiamondShield and one end of the clip to pry the clip loose.

2. Remove both clips by pulling them toward you.

3. Carefully insert a small screwdriver into the gap at the top/center point of the Shield and pull the Shield slightly away from the unit. Place your hands at the points shown and gently bow the Shield toward you and remove from the unit. Then re-install the two clips.

2. DiamondShield Installation Procedure

*(See the Parts List for DiamondShield part numbers)

To install the DiamondShield, reverse the above Removal Procedure.

2. Remove both clips by pulling them toward you.

3. Carefully insert a small screwdriver into the gap at the side/center point of the Shield and pull the Shield slightly away from the unit. Place your hands at the points shown and gently bow the Shield toward you and remove from the unit. Then re-install the two clips.

marik08

Page 15

MODELS: WS-48315 / WS-55315 / WS-65315

SERVICING PCBs

Chassis Removal and PCB Locations

Chassis Removal

1) Remove screw “a” from the Main Chassis.

2) Raise the two chassis locks on the inner sides of the Lightbox Assembly and slide the chassis towards the rear.

Major Part Locations

marik08

Page 16

MODELS: WS-48315 / WS-55315 / WS-65315

ANODE LEAD REMOVAL

CAUTION: To prevent damage, the following procedure must be used when removing an

Anode Lead from the Flyback Transformer.

1) Push the Anode Lead down.

2) While holding the lead down rotate the lead 90º counter clockwise.

3) Carefully remove the Anode Lead from the Flyback Transformer.

CRT REPLACEMENT

1. Removal of the CRT

Caution! High voltage should be completely discharged prior to CRT removal.

Since the CRTs receive high voltage from the Flyback transformer, discharge by shorting the open end of the respective high voltage cable to chassis ground.

Note: Refer to Cabinet Disassembly when performing steps 1 through 2.

1. Remove the Speaker Grille, Front Board, and Screen Assy.

2. Remove the Back Board.

3. Remove the Anode Lead Wire from the Flyback transformer. (Use the above procedure)

4. Remove the PCB-CRT.

5. Remove 4 hex-screws "a" retaining the Optical Unit. [Figure 5-1]

6. Remove 4 screws "b" retaining the Lens.

Note: DO NOT loosen the RED screws. Doing so will break the seal between the

C-Element and the # 6 Lens, causing leakage of the CRT Coolant.

7. Remove 4 screws "c" retaining the CRT. [Figure 5-2]

8. Remove the Deflection Yoke and other CRT components from the neck of the CRT. [Figure 5-6]

Figure 5-1

marik08

Page 17

MODELS: WS-48315 / WS-55315 / WS-65315

2. Installation of the CRT

Note: The replacement CRT is supplied as an assembly comprised of the CRT and the

Inner Lens with the space between them filled with ethylene glycol. Care should be taken during handling and installation to prevent shock from disrupting the seal or alignment between the CRT and Inner Lens. [Figure 5-3]

Note: The 4 spring-loaded screws shown

in Fig 5-2 and labeled as "DO NOT REMOVE", should not be loosened under any circumstance. Doing so will break the seal between the CRT and the CRT-Spacer, causing leakage of the CRT Coolant.

Figure 5-2

Figure 5-3

Figure 5-5

Figure 5-4

marik08

Page 18

MODELS: WS-48315 / WS-55315 / WS-65315

1. Carefully position the replacement CRT and fasten in place using 4 screws "d". [Figure 5-5]

2. Install the Deflection Yoke and other CRT components back in their original position on the CRT neck. [Figure 5-6]

3. Install the Lens that was removed in step 6 of Removal Of The CRT. [ Figures 5-1 and 5-2 ]

a) Position the Lens so that the Label faces the direction shown in Figure 5-7 b) Install the mounting screws “b”. [Figure 5-1]

4. Insert the Optical Unit into the Light Box Assembly.5. Install the PCB-CRT.

6. Insert the Anode Lead Wire into the Flyback Transformer.

7. Re-clamp the Lead Wire in its original position.

Figure 5-6

Figure 5-7

Adjustment procedures after replacing the CRT(s)

• CRT Cut Off / White Balance Adjustment

• Static Convergence Adjustment

• Dynamic Convergence Adjustment

marik08

Page 19

MODELS: WS-48315 / WS-55315 / WS-65315

ELECTRICAL ADJUSTMENTS

Note: Perform only the adjustments required.

Do not attempt an alignment if proper equipment is not available.

1. Test Equipment

• Oscilloscope (Unless otherwise specified, use 10:1 probes)

• Signal Generator (both SD and HD capable)

• Direct Current Voltmeter

• Direct Current Ampere Meter

2. Test Signal

A. Monoscope Signal

Note: If you do not have

a monoscope signal source, connect the unit to a VCR and play a Monoscope *alignment tape. (* Part Number: 859C568060)

B. Color Bar Signal

Use the color bar signal shown below, unless otherwise specified in this manual.

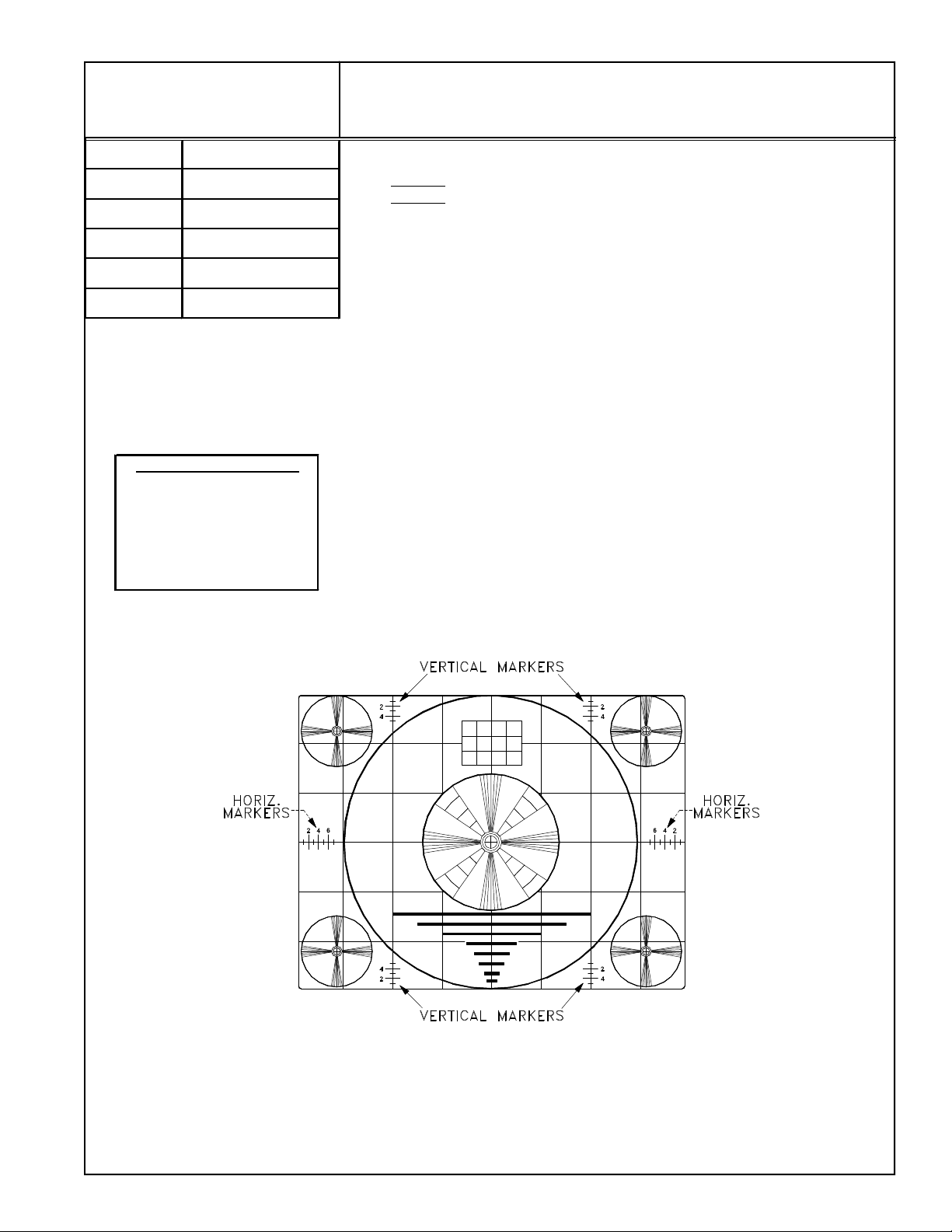

Monoscope Signal

Split-Field Color Bars (100% window)

marik08

Page 20

MODELS: WS-48315 / WS-55315 / WS-65315

MENU-0-3-7-0

OPTION MENU

Direct Key Mod

:OFF

NetCommand

IR Setup

VIDEO SETTINGS

CLOCK Menu

CAPTIONS Menu

CHANNEL EDIT Menu

TV Volume

TIMER Menu

PIP Source

PIP Position

POP Position

Format

PIP/POP Format

3. Initial Setup

A. Option Menu Setup

Follow the steps below for the initial set-up:

1. Select the "MENU" display by pressing the "MENU" button once.

2. Press the number buttons "0", "3", "7", "0" in sequence to select the "OPTION MENU" display.

3. Press the "ADJUST" button to select "INITIAL."

4. Press "ENTER."

NOTE: At this time channel 3 is automatically selected.

Initial Power Restore :OFF DTV Port :Auto

B. Default Settings

MAIN MENU DEFAULT SETTINGS

SETUP Menu

Memorize Channels Ant-A Air Lock by Time Off Magenta 50% NetCommand® IR Setup Lock Time N/A Red 50% Clock Unlock Time N/A Yellow 50% Language English Front Button Lock Off Green 50% Energy Mode Standard V-Chip Cyan 50%

INPUT ASSIGNMENT Menu

Antenna-A On V-Chip Off Antenna-B On TV Rating TV-PG A/V Memory Reset Ant A DTV YPrPb FV-Fantasy Violence Allow TV Speakers (Internal) On Component-1 Comp-1 D-Sexual Dialog Allow Audio Output Variable Component-2 Comp-2 L-Adult Language Allow Input-1 Input-1 S-Sexual Situation Allow TV Bass 50% Input-2 Input-2 V-Violence Allow TV Treble 50% Input-3 Input-3 Movie Rating PG TV Balance 50% MonLink MonLink Programs Not Rated Allow TV Surround Off

Language English V-Chip Start Time 12:00am TV Level Sound Off

V-Chip Stop Time 12:00am

Clock Setting Manual Color Balance TV Brightness 50% Clock Time --:-- Timer TV Sharpness 50% Set Day Sunday Convergence TV Color 50% Time Zone N/A Video Mute On TV Tint 50% Daylight Savings Time N/A Black Enhancement On TV Color Temp High

Closed Captions In Mute Ant-A Auto Color Correction Off TV Film Mode (Auto) On CC Background Gray PerfectColor™ TV VSM On

Reset Color for Ant-A Antenna ANT-A Channel 003 Timer Off Memory Deleted Set Time 12:00 am Name N/A Set Day Everyday SQV N/A Input Ant-A

Channel 003

V-CHIP LOCK Menu

V-CHIP Menu

V-CHIP HoursWelcome to NetCommand® IR

ADVANCED FEATURES Menu

COLOR BALANCE Menu

Blue 50%

AUDIO/VIDEO SETTINGS Menu

AUDIO SETTINGS

TV Listen To Stereo

TV Contrast 100%

TV Video Noise Standard

PerfectColor™

30%

Ant A Ch 3

Lower Right

Right Half

Stretch

Dble Win

marik08

Page 21

MODELS: WS-48315 / WS-55315 / WS-65315

Ant-B

1/2/3

1/2

TV Contrast

TV Brightness

TV Sharpness

TV Color

TV Tint

TV Color Temp.

Video Noise

TV Image Type

TV SVM

TV Bass

TV Treble

TV Balance

TV Surrond

TV Listen To

TV Level Sound

Off

Items in the table below are set following Initalization.

AV Memory Initial Settings

A/V Memory

Ant-A

Max Max Max Max Max Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center

High High High High High

Standard Standard Standard Standard Standard

Video Video Video Video Video

DTV

NTSC

COMP

MonLink

Sharpness

4. LED Indicator Diagnostics

The “Power ON LED” provides an indication of the sets operation, and the possible cause of a malfunction.

A. Initial Control Circuitry Check

Immediately after the TV is connected to an AC power source:

• The LED flashes three times ... indicating the Microprocessor has initialized and is functioning

properly.

• If the LED does not flash ... the Microprocessor is NOT functioning.

B. Error Code Operational Check

Note: The TV must be in “Shut Down” and not heve been switched Off, to perform the Error Code Opera-

tional Check. When the TV is switched Off, the code automatically resets to “12” No Error.

Pressing the front panel “DEVICE” and “MENU” buttons at the same time, and holding for 5 seconds, activates the Error Code Mode. The LED flashes denoting a two digit Error Code, or indicating no problem has occured since the last Initalization.

Note: The front panel buttons must be used, NOT those on the Remote Control.

• The number of flashes indicates the value of the MSD (tens digit) of the Error Code.

• The flashing then pauses for approximately 1/2 second.

• The LED then flashes indicating the value of the LSD (ones digit) of the Error Code.

• The Error Code is repeated a total of 5 times.

Example: If the Error Code is “23”, the LED will flash two times, pause, and then flashes three

times.

On On On On On

Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center

Off Off Off Off Off

Stereo Stereo Stereo Stereo Stereo

C. Error Codes

The Error Code designations indicating a malfunction, or no malfunction, are listed below:

Error Code Description

12 No error has occurred. 21 X-Ray Protect circuit. 22 Short Protect circuit. 23 Deflection failure.

marik08

Page 22

MODELS: WS-48315 / WS-55315 / WS-65315

Video Chr

Defl Jung

Main Matr

MISCDEV

Sub Matr

5. Circuit Adjustment Mode

Except for the following, all adjustment items must be performed using the remote hand unit.

• CRT Cutoff

• Lens Focus

• Electrostatic Focus

A. Activating the Circuit Adjustment Mode

1. Press the "MENU" button on a remote hand unit.

2. Press the number buttons "0", 3", "5", "7" in sequence. The screen will change to the Adjustment Mode.

Note: Repeat steps 1 and 2 if the circuit

adjustment mode display does not appear on screen

B. Selection of adjustment Functions and

Adjustment Items

To select an adjustment item in the circuit adjustment mode, first select the adjustment function that includes the specific adjustment item to be selected. Then, select the adjustment item.

MODE

ITEM#

FUNCTION CHASSIS

Video Chr V24

Mode 0 NTSC

1 SCT 55

ABBREV. DATA

SIGNAL

Refer to the following pages for the listing of adjustment functions and adjustment items.

1. Press the "AUDIO" button on a remote hand unit to select an adjustment function. Each time the button is pressed, the Function changes in the following sequence:

FUNCTIONS

2. Press the “VIDEO” button to select a specific Adjustment Item. The Item number increases each time the “VIDEO” button is pressed.

C. Changing Data

After selecting an adjustment Item, use the “ADJUST UP/DOWN” button to change data.

• Press “ADJUST DOWN” to decrease the data value.

• Press “ADJUST UP” to increase the data value.

marik08

Page 23

MODELS: WS-48315 / WS-55315 / WS-65315

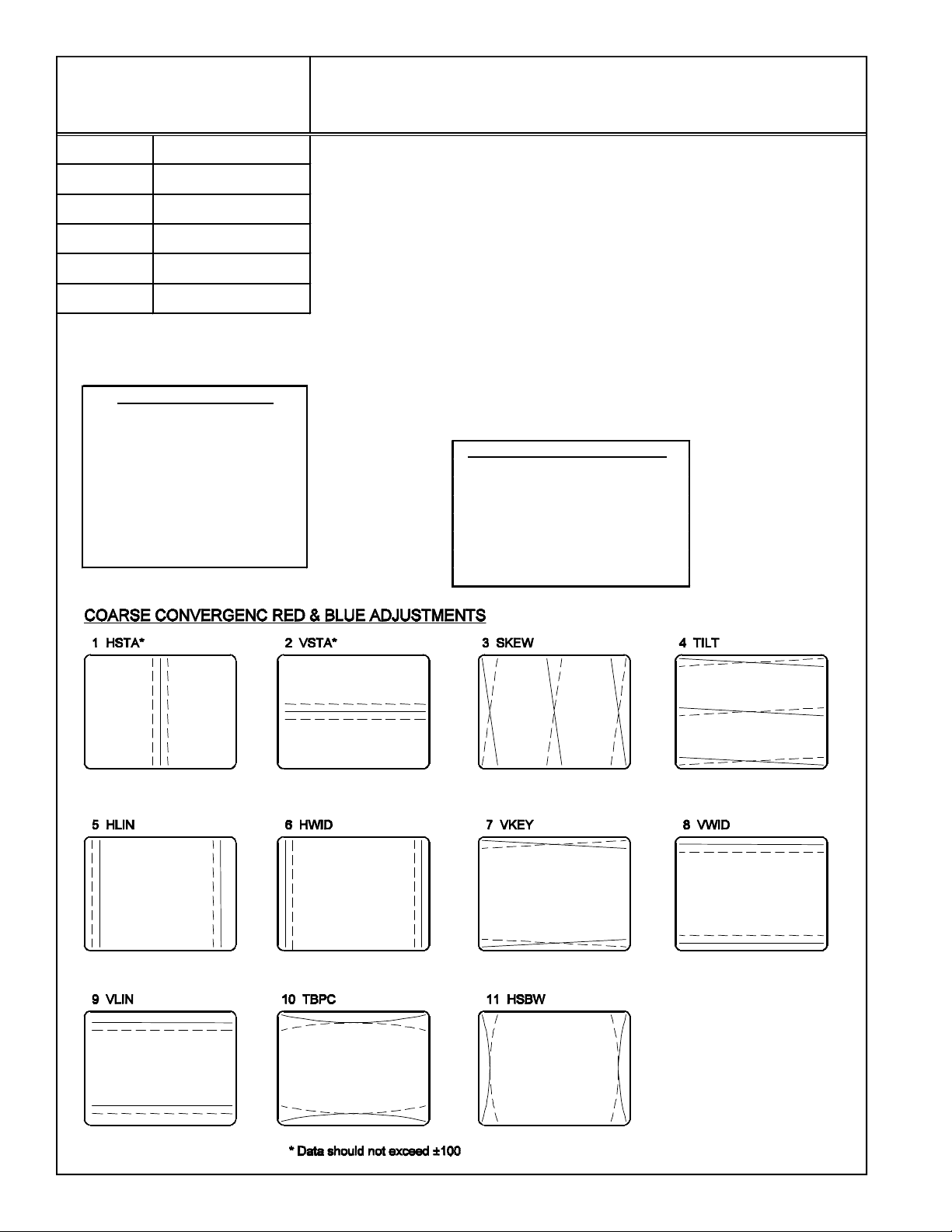

Coarse BLUE

D. Saving Adjustment Data

Press “ENTER” to save adjustment data in memory. The character display turns red for approximately one second in this step.

Note: If the circuit adjustment mode is terminated without pressing “ENTER”, changes

in adjustment data are not saved.

E. Terminating the Circuit Adjustment Mode

Press the “MENU” button on the remote hand unit twice to terminate the adjustment mode.

Note: The circuit adjustment mode can also be terminated by turning power OFF.

F. Service Mode Reset

To reset items in the service mode to their factory values:

1. Press MENU-0-3-5-7 to enter the Service Mode.

2. Press the “INPUT” or “DEVICE” button, on the front panel or the remote, and hold for 2 seconds.

6. Convergence Adjustment Mode

The Convergence mode is used to perform raster geometry correction, and convergence adjustments as specified in Adjustment Procedures 15 through 18.

A. Convergence Mode Activation

1. Press MENU-0-3-5-9

2. When the Convergence Mode is activated, the display at

the right appears on a Green Crosshatch.

B. Selecting the HD or SD Mode

1. Select the Signal Source before entering the Convergence Mode, either an NTSC or HD source.

2. Enter the Convergence Mode (MENU-0-3-5-9)

• If the signal source is NTSC, the SD mode is activated.

• If the signal source is HD 1080i, the HD mode is activated.

3. Activating the HD mode when no HD signal is available.

• Activate the Factory Option Menu (MENU-0-3-7-0)

• Use the “Adjust” keys to select “DTV Port” and press “Enter” to change the setting to “1080i”. Sequence = “Auto”-”480i”-”480p”-”1080i”. Ignore any loss of sync while changing modes.

• Exit the Option Menu (Press “MENU” twice).

• Select the DTV Inputs as the signal source (INPUT or DEVICE button).

• Activate the Convergence Mode ... the Convergence mode will be in the HD mode and the internal crosshatch is displayed.

4. After adjusting Convergence, be sure to set the DTV Port back to AUTO.

• Select an analog input as the signal source (INPUT or DEVICE button).

• Activate the Option Menu (MENU-0-3-7-0).

• Use the “Adjust” keys to select “DTV Port and press “Enter” to change the setting from “1080i” to “AUTO”.

• Exit the Option Menu (Press MENU twice).

1 HSTA -50

Coarse Conv. Display

GREEN

C. Convergence Mode Functions

In the Convergence Mode there are three main Functions (Categories).

• Pressing “6” activates CONV MISC

• Pressing “5” activates COARSE CONV

• Pressing “4” activates FINE CONV

marik08

Page 24

MODELS: WS-48315 / WS-55315 / WS-65315

D. CONV MISC (Press 6)

This mode is used to preset data values controlling the Convergence Generator, and to perform the HV Regulation adjustment.

1. Use the VIDEO button to select an item.

2. Use the ADJUST buttons to change data.

Note: When Item “1 HVOL” is selected the screen goes black except for the data display. This occurs since a black screen is required when making the HV Regulation adjustment.

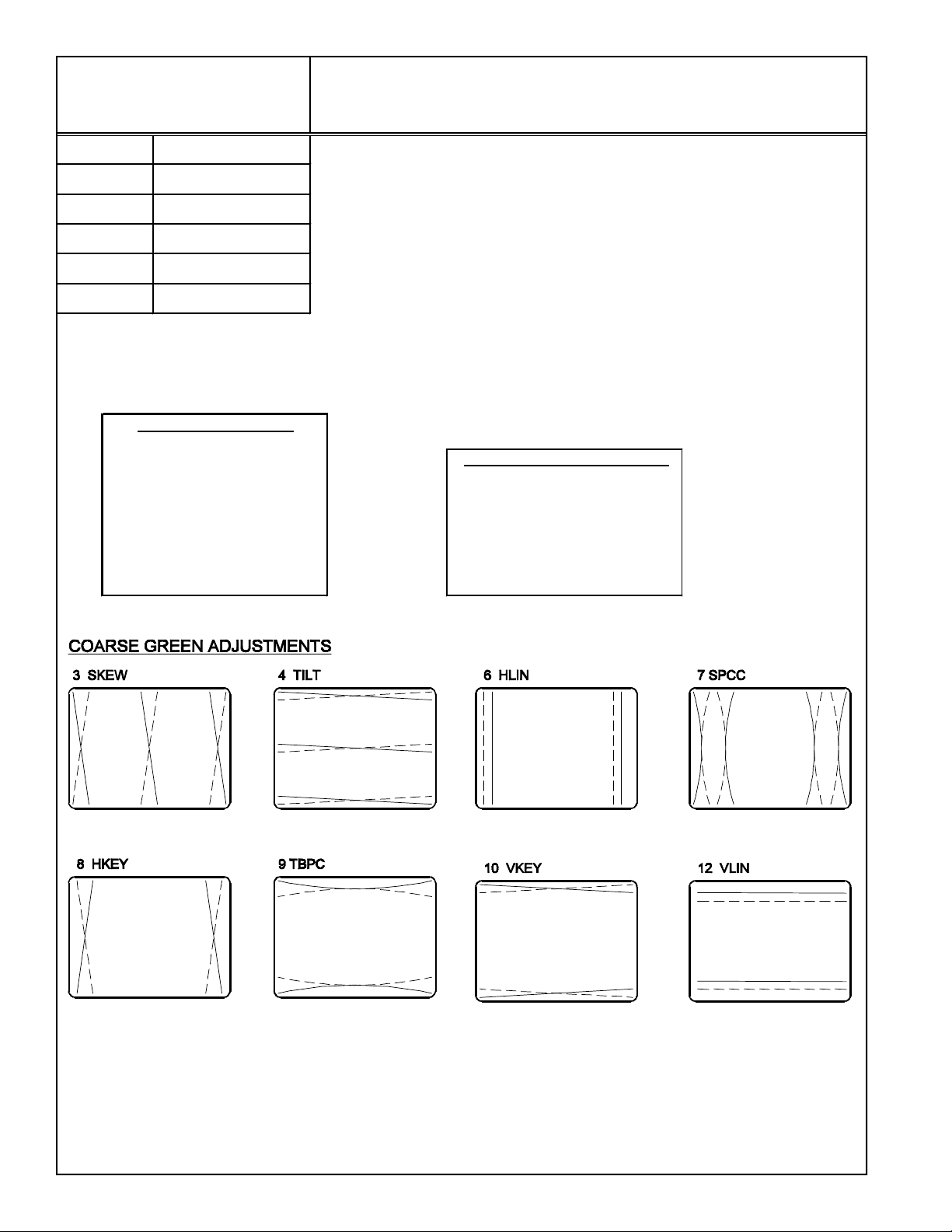

E. COARSE CONV (Press 5)

There are four Sub Functions in the Coarse mode, COARSE GREEN, RED and BLUE, and DF.

• COARSE GREEN .... used to make Coarse Raster Geometry Adjustments.

• COARSE RED ... used to make Coarse Red Convergence Adjustments.

• COARSE BLUE ... used to make Coarse Blue Convergence Adjustments.

• DF ... used to preset data values controlling the Dynamic Beam Focus circuit drive signal.

1. Use AUDIO button to select a Sub Function

2. Use the VIDEO button to select an Adjustment Item.

3. Use the ADJUST buttons to change data.

F. FINE CONV (Press 4)

Sub Functions

This mode is used to perform Fine Raster Correction, and Fine Red and Blue Convergence Adjustments. There are three Sub Adjustment Functions, selected with the AUDIO button:

• FINE GREEN .... a Green Crosshatch is displayed, for Fine Raster Corrections.

• FINE RED .... a White Crosshatch is displayed, for Fine Red Convergence Adjustments.

• FINE BLUE .... a White Crosshatch is displayed, for Fine Blue Convergence Adjustments.

Cursor

In the Fine mode a Cursor is added to the Crosshatch. The ENTER button toggles the Cursor between two modes:

• MOVE (blinking Cursor) .... use the ADJUST buttons to select any of 64 points on the Crosshatch.

• ADJUST (Non blinking Cursor) .... the ADJUST buttons adjust the active color at the current Cursor

position, horizontally or vertically.

marik08

Page 25

MODELS: WS-48315 / WS-55315 / WS-65315

Fine RED

13H1V3

-32

Video Chroma Function

Item#

Abbrev.

Description

Range

480i

480p

1080i

Adjustment

ABLT

Threshold Adjust for ABL input

0~15

4*4*4*

Cursor Coordinates

Specific intersections in the Crosshatch are assigned vertical and horizontal coordinates. These are shown in the preceeding diagram. The Cursor can only be moved to those positions that have coordinates assigned. If the Cursor is at coordinates outside the screen area, the Cursor will not be visible. Use the ADJUST buttons to move the Cursor to an intersection on the screen.

Display

The on-screen display changes in the Fine mode, as shown below. The display shows the vertical and horizontal data for the current Cursor Position, and the horizontal and vertical coordinates for that position.

Horiz. H Coord. V Coord. Vert.

Data Data

F. Saving Data and Exiting the Convergence Mode

Press MENU twice to exit the Convergence mode, data is automatically saved.

Note: If power is interrupted, or the “CANCEL” button is presssed prior to properly exiting the Convergence

Mode, changes in adjustment data will not be saved. The data is restored to the last saved previous values.

ADJUSTMENT ITEMS LIST

Data

1 SCT Picture Gain control 0~63 42 42 42 Sub Contrast 2 SBRT Sub Brightness 0~63 20 20 20 Black Level 3 SCON Sub Contrast 0~15 7 7 7 Preset 4 RDRH R Drive (H temp) 0~63 31 31 31 White Balance 5 GDRH G Drive (H temp) 0~63 41 41 41 Preset 6 BDRH B Drive (H temp) 0~63 31 31 31 White Balance 7 CTRH R Cutoff (H temp) 0~63 31 31 31 " 8 CTGH G Cutoff (H temp) 0~63 31 31 31 Preset

9 CTBH B Cutoff (H temp) 0~63 31 31 31 White Balance 10 RDRL R Drive (L temp) 0~63 31 31 31 " 11 GDRL G Drive (L temp) 0~63 41 41 41 Preset 12 BDRL B Drive (L temp) 0~63 31 31 31 White Balance 13 CTRL R Cutoff (L temp) 0~63 31 31 31 " 14 CTGL G Cutoff (L temp) 0~63 31 31 31 Preset 15 CTBL B Cutoff (L temp) 0~63 31 31 31 White Balance 16 GMMA RGB Gamma Correction 0~3 2 2 2 Preset 17 GAML Gamma Differential Corr. Switch 0~1 0 0 0 " 18 BRT Brightness 0~63 31 31 31 " 19 COL Color 0~63 38 34 33 White Balance 20 TINT Tint 0~63 29** 30 29 Preset 21 SHRP Sharpness 0~63 31 31 31 " 22 CBOF Cb DC Offset 0~63 31 31 31 " 23 CROF Cr DC Offset 0~63 31 31 31 " 31 VMLE VM Output Level 0~3 1 1 2 " 40 AGIW White output aging mode switch 0~1 0 0 0 "

* For models WS-65315 set data to 0 **For models WS-48315 set #20 TINT data to 29 For models WS-55315 set #20 TINT to 28 For models WS-65315 t #20 TINT data to 30

marik08

Page 26

MODELS: WS-48315 / WS-55315 / WS-65315

MENU-0-3-5-7

Item#

Abbrev.

Description

Initial

1HRNTSC Disp.Pos.

MISCDEV

MENU-0-3-5-7

Item#

Abbrev.

Description

Initial Data

475

OFF2

MLINK picture position

MAIN MATRIX

Item#

Abbrev.

Description

Range

Initial

SCLR

CbCr Amp

0~31

SUB MATRIX

Item#

Abbrev.

Description

Range

Initial

SCLR

CbCr Amp

0~31

Deflection Jungle

WS-65315WS-48315 WS-55315

Item Abbrev. Description HD NTSC HD NTSC HD NTSC HD

1 HWID Width 29 30 29 23 22 30 28 2 HKEY Horiz. Keystone 25 24 25 24 25 24 25 7 VHGT Height 16 18 16 14 13 33 31 8 VLIN Vert. Linearity 5 5 5 5 5 7 7

9 VSCN Vert. S Corr. 0 0 0 0 0 0 0 18 VPOS Vert. Position 31 31 31 31 31 31 31 36 PINA Pincushion Comp. 8 10 8 10 8 10 8

Data

39 SCNT Main Y-Out 0~31 16

Data

39 SCNT Main Y-Out 0~31 16

474 OFFT MLINK picture position 31

CONVERGENCE MODE ITEMS

CONV MISC. MENU-0-3-5-9-6

Data

Item# Abbrev. Description Range SD HD

1 HVOL HV Adjust 0~352 150 150 2 VCNT V-saw amplitude 0~127 29 29 3 VSTR V-saw start timer 0~127 0 10 4 VOFS V-saw offset 0~127 10 8 5 STLN Start line 0~127 38 26 6 FPHS Fine phase 0~352 303 294 7 CPHS Coarse phase 0~31 15 15 8 HOFS H-saw offset 0~127 22 22

9 DPHS DF coarse horiz phase 0~31 1 1 10 DOFS DF offset 0~127 34 34 11 TPHS Test Pattern phase 0~352 43 39 12 TPVD Test Pattern Vert. Position 0~127 23 39 13 ODEV Odd/Even detection 0~352 24 42 14 HRTC H-saw retrace 0~3 1 1 15 DRTC DF retrace 0~3 1 1 16 DAC External DAC selection 0~1 1 1 17 EPWP EEPROM write protection 0~1 0 0

marik08

Page 27

MODELS: WS-48315 / WS-55315 / WS-65315

SD Data

HD Data

SD Data

HD Data

COARSE CONV GREEN MENU 0-3-5-9-5

# Abbrev Description WS-55315 WS-65315

1 HSTA Horiz. Position 0 0 0 0 0 0 2 VSTA Vert. Position 0 0 0 0 0 0 3 SKEW Skew (Y axis) 0 0 0 0 0 0 4 TILT Tilt (X axis) 0 0 0 0 0 0 5 HWID Width 20 20 20 20 20 20 6 HLIN Horiz. Linearity 0 0 0 0 0 0 7 SPCC Side PC Corr. 0 0 0 0 0 0 8 HKEY Horiz. Keystone 23 20 15 10 0 0

9 TBPC Top/Bottom PC -180 -160 -190 -165 -200 -175 10 VKEY Vert. Keystone 0 0 0 0 0 0 11 VWID Height 30 20 30 20 30 20 12 VLIN Vert. Linearity 0 0 0 0 0 0

COARSE CONV RED MENU 0-3-5-9-5

# Abbrev Description WS-55315 WS-65315

1 HSTA Horiz. Position 50 50 50 50 50 50

2 VSTA Vert. Position 0 0 0 0 0 0

3 SKEW Skew (Y axis) 0 0 0 0 0 0

4 TILT Tilt (X axis) 0 0 0 0 0 0

5 HLIN Horiz. Linearity -220 -200 -215 -195 -170 -150

6 HWID Width 0 0 0 0 10 10

7 VKEY Vert. Keystone -90 -90 -75 -75 -90 -75

8 VWID Height 0 0 0 0 0 10

9 VLIN Vert. Linearity 0 0 0 0 0 0 10 TBPC Top/Bottom PC 20 20 20 20 20 20 11 SDBW Side Bow 30 30 30 30 30 30

WS-48315

SD HD SD HD SD HD

WS-48315

SD HD SD HD SD HD

COARSE CONV BLUE MENU 0-3-5-9-5

# Abbrev Description WS-55315 WS-65315

1 HSTA Horiz. Position -50 -50 -50 -50 -50 -50

2 VSTA Vert. Position 0 0 0 0 0 0

3 SKEW Skew (Y axis) 0 0 0 -5 0 0

4 TILT Tilt (X axis) 0 0 0 0 0 0

5 HLIN Horiz. Linearity 220 200 220 205 175 160

6 HWID Width 0 -15 0 0 10 10

7 VKEY Vert. Keystone 90 90 90 70 80 75

8 VWID Height 0 0 0 0 0 0

9 VLIN Vert. Linearity 0 0 0 0 0 0 10 TBPC Top/Bottom PC -20 0 0 0 -20 0 11 SDBW Side Bow -30 -30 -30 -30 -30 -30

DF MENU-0-3-5-9-5

Item Abbr.

0 DFH -220 -220 -280 -250 1 DFV -100 -100 -110 -95

WS-48315 / WS-55315 WS-65315

WS-48315

SD HD SD HD SD HD

marik08

Page 28

MODELS: WS-48315 / WS-55315 / WS-65315

Adjustment Test Point Locations

Test Points

DT pin 3 - HV Adjust DT pin 6 - Ground DT pin 7 - 12 Volts DT pin 8 - ACL JA pin 22 - Main Picture (Y) JA pin 20 - Main Color (Pr) JB pin 3 - Sub Picture (Y) JB pin 5 - Sub Picture (Cr) TP6(R, G or B) - CRT Cathode

marik08

Page 29

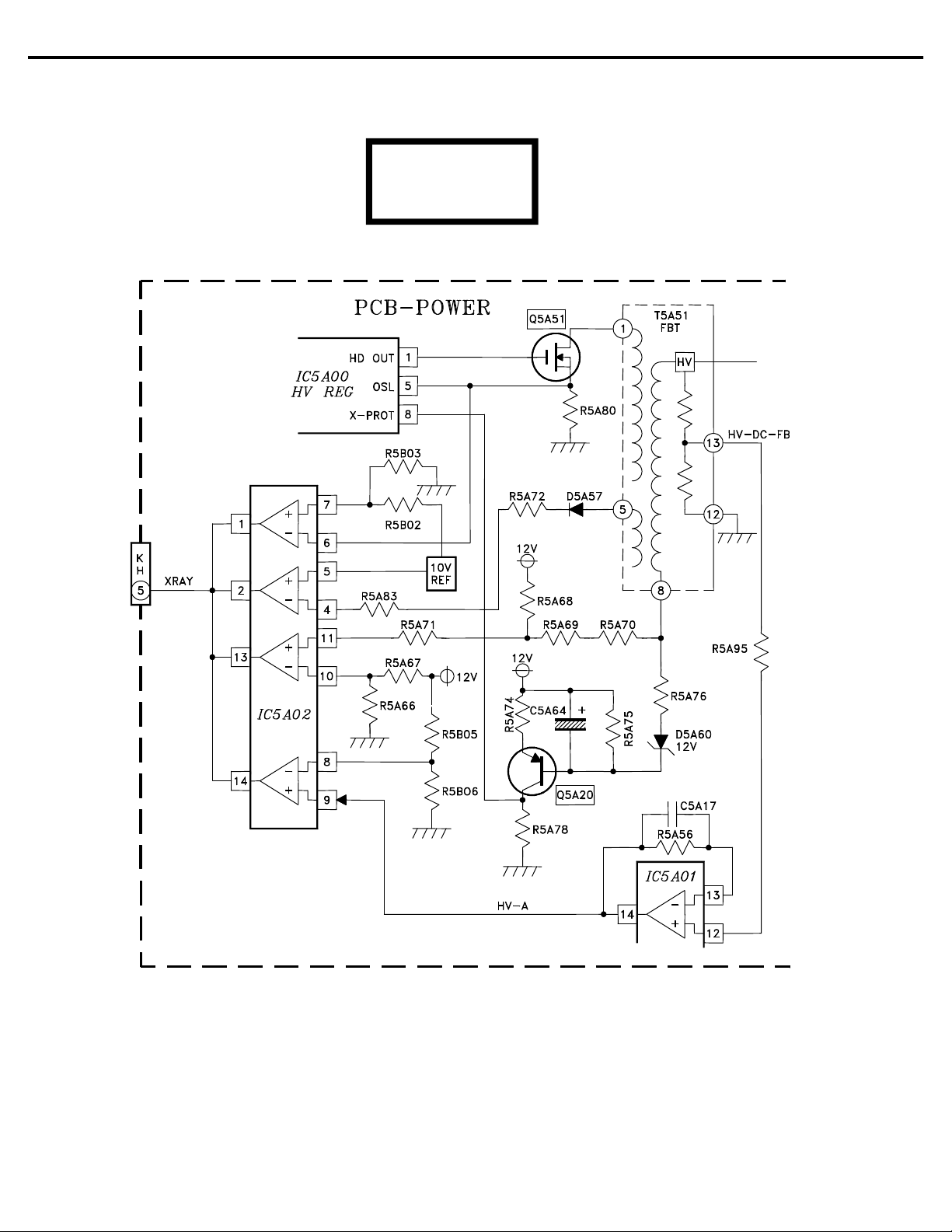

[HV Circuit]

MODELS: WS-48315 / WS-55315 / WS-65315

Purpose:

To set the CRT Anode voltage.

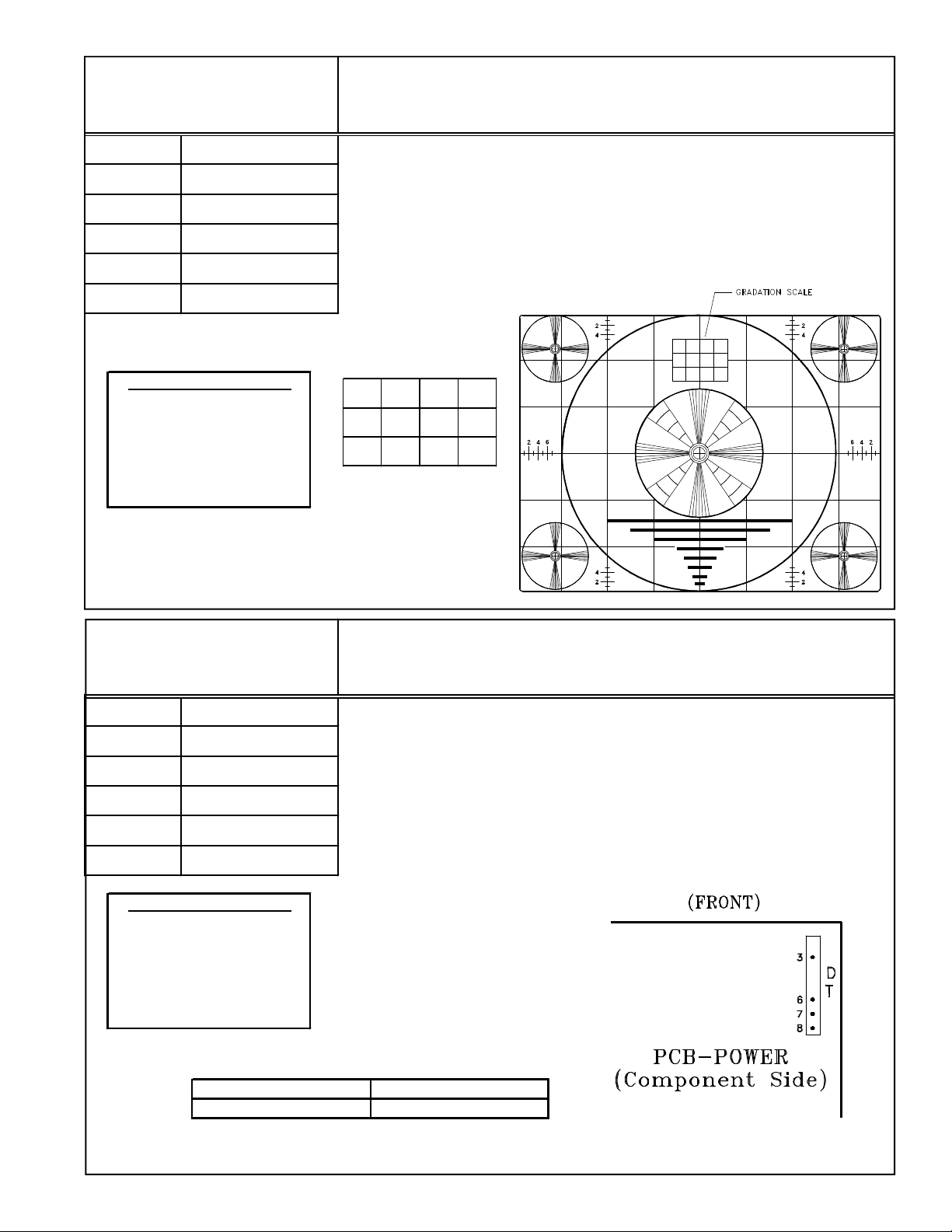

1. HV Regulation

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

DC Voltmeter

DT connector pins 3 & 6

------

-------

Video Signal Monoscope

Video Input

Symptom:

Note: This adjustment must be rechecked following Adjustment 9 CRT Cutoff.

1. Supply a video monoscope signal.

2. Set Contrast to maximum, and Brightness to mid position.

3. Connect a DC volt meter between pins 3 and 6 of the DT connector. (Positive lead to pin 3)

4. Activate the Conv-Misc Mode.

5. Select Item “1 HVOL” (screen goes black).

6. Adjust Item “1 HVOL” for 15.4V ±0.02V on the meter.

7. Save data and exit the Conv-Misc mode.

8. Confirm that the voltage does not change more than 0.15V.

Note: This adjustment must be performed if E2RESET or Convergence E2RESET

are activated.

Dark Picture

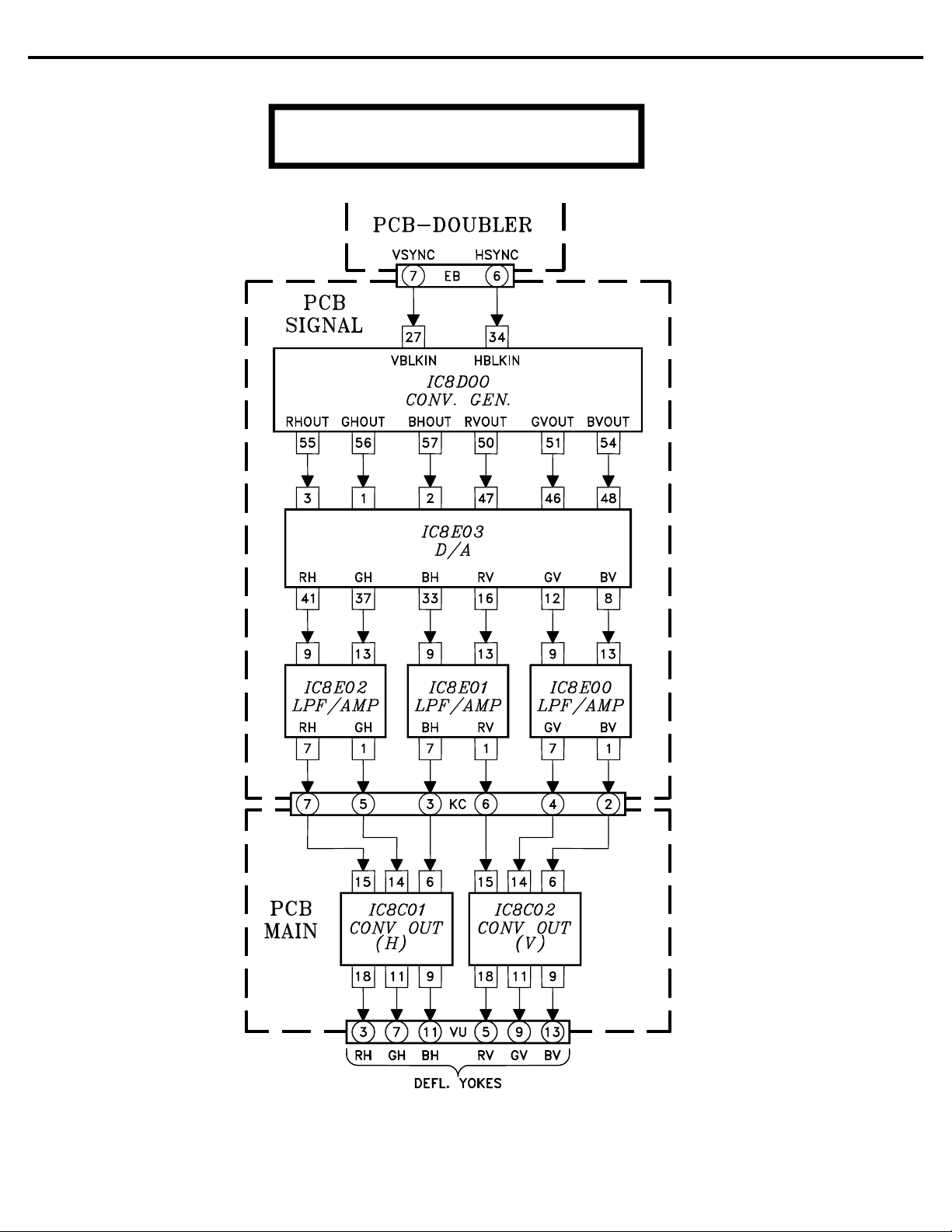

CONVERGENCE MODE

Activate ……..MENU-0-3-5-9 Misc. ……………….……"6" Coarse………………..…."5" Fine ……………………..."4" Color (R,G or B)……AUDIO Item No………….…..VIDEO Adjust/Move……….ADJUST Cursor Toggle….…..ENTER Save & Exit…..MENU (twice)

[Video Circuit]

2. Main/Sub Y Level

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

Oscilloscope

JA Connector pin 22 JB Connector pin 3

------

Color Bars

Video Input

Purpose:

Symptom:

1. Supply a color bar signal to a Video Input (not an RF input).

2. Select the color bar signal for both the main and sub pictures.

3. Connect the oscilloscope to connector JA pin 22 (Main-Y).

4. Activate the Adjustment Mode

5. Select Item “39 SCNT” in the Main Matrix function.

6. Adjust the data so the Main-Y signal is between 0.71 Vp-p max. and 0.66 Vp-p min. at JA pin 22. (If it cannot be adjusted within this range, set to the lowest closest value)

7. Move the oscilloscope to connector JB pin 3 (Sub-Y).

8. Select Item “39 SCNT” in the Sub Matrix function.

9. Adjust the data to equal the MAIN-Y Gain (+0.0V -0.05V).

10. Press “ENTER” to save data.

To set picture luminance

Excess or insufficient brightness.

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7 Function …...………..AUDIO Item No. ……….…….VIDEO Adjust Data ….…….ADJUST Save Data …. ………ENTER Exit …………..MENU (twice)

marik08

Page 30

[Video Circuit]

Item

Abbr

Data

MODELS: WS-48315 / WS-55315 / WS-65315

Purpose:

To match the sub picture color to that of the main picture.

3. Main/Sub Color Level

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7 Function …...………..AUDIO Item No. ……….…….VIDEO Adjust Data ….…….ADJUST Save Data …. ………ENTER Exit …………..MENU (twice)

Oscilloscope

JA pin 20 JB pin 5

------

Color Bars

Video

Symptom:

1. Supply an NTSC signal to an External Video Input.

2. Select the NTSC signal as the source for both the main and sub pictures.

3. Connect an oscilloscope to connector JA pin 20 (Main PR).

4. Activate the Adjustment mode.

5. Select Item “41 SCLR” in the Main Matrix Function.

6. Adjust data so the PR signal is 0.71 Vp-p max. - 0.66 Vp-p min (If it cannot be adjusted within this range, set to the lowest closest value) When using a Leader 480, set to 0.585±0.02Vp-p.

7. Connect an oscilloscope to connector JB pin 5 (Sub PR).

8. Select item “41 SCLR” in the Sub Matrix Function.

9. Adjust so Sub PR = Main PR (+0.0V -0.05V)

10. Press “ENTER” to save data.

Main and sub pictures colors differ.

[CRT Circuit]

4. CRT Cutoff

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7 Function …...………..AUDIO Item No. ……….…….VIDEO Adjust Data ….…….ADJUST Save Data …. ………ENTER Exit …………..MENU (twice)

Oscilloscope

TP6R, TP6G, TP6B

------

50V/Div. 2msec/Div.

None

Video Input

Purpose:

Symptom:

Note: Use the Expand mode (full screen)

1. Select an External Input with no signal.

2. Enter the Adjustment Mode, Video Chroma Function.

3. Press “1”, automatically blanks the screen and sets COL to 0.

4. Set the data to the values given in the table below.

5. Connect the oscilloscope to TP6R.

6. Adjust the Red Screen VR so the black level is 170V, as shown below, or 178V ±1VDC using an DC Voltmeter.

7. Repeat Steps 4 and 5 to set the Blue and Green Screen VRs, using TP6G and TP6B.

Note: White Balance must be performed after this adjustment.

VC Preset Data

1 SCT 42 2 SBRT 20 3 SCON 7 4 RDRH 31 5 GDRH 41 6 BDRH 31 7 CTRH 31 8 CRGH 31 9 CTBH 31

To set the cutoff point for all three CRTs.

Monochrome has a color tint, or incorrect brightness.

marik08

Page 31

[CRT Circuit]

Max CRT Current

CRT

ALL

Red

580 ua

Green

580 ua

Blue

580 ua

MODELS: WS-48315 / WS-55315 / WS-65315

Purpose:

To set the CRTs white level in the NTSC mode.

5. White Balance (NTSC)

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

Activate …….. MENU-0-3-5-7 Function …...………..AUDIO Item No. ……….…….VIDEO Adjust Data ….…….ADJUST Save Data …. ………ENTER Exit …………..MENU (twice)

DC Voltmeter

------

NTSC White Raster

RF or Video

CIRCUIT ADJUST MODE

Symptom:

Note: Use the “FORMAT” button to activate the Expand mode (full screen).

1. Supply a full White Raster Signal

2. Activate the Service Mode, Video Chroma Function.

3. Set the data for Item “19 COL” to 0.

4. Adjust Items “4 RDRH” and “6 BDRH” for optimum white at the center of the screen.

5. Reduce the input luminance level to 25%.

6. Adjust Items “7 CTRH” and “9 CTBH” for optimum white.

7. Open pin 6 of each CRT, an insert a Milliammeter in series with each CRT Cathode. The maximum allowable current for each CRT is given in the table below.

8. Set the white raster to 100% and adjust Items “10 RDRL” and “12 BDRL” for optimum white at the center of the screen.

9. Reduce the luminance level to 25%.

10. Adjust Item “13 CTRL” and “15 CTBL” for optimum white.

11. Set the data for Item “19 COL” back to 31.

12. Press “ENTER” to save data.

Monochrome has a color tint.

[CRT Circuit]

6. White Balance (HD)

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

Activate …….. MENU-0-3-5-7 Function …...………..AUDIO Item No. ……….…….VIDEO Adjust Data ….…….ADJUST Save Data …. ………ENTER Exit …………..MENU (twice)

-----

------

-----

HD White Raster

DTV Inputs

CIRCUIT ADJUST MODE

Purpose:

Symptom:

1. Supply an HD Full White Raster signal to the DTV Inputs.

2. Select the DTV Inputs (Input button)

3. Activate the Adjustment mode, Video Chroma Function.

4. Set Item “19 COL” to 0.

5. Adjust Items “4 RDRH” and “6 BDRH” for optimum white at the center of the screen.

6. Reduce the input signal luminance to 25%.

7. Adjust Items “7 CTRH” and “9 CTBH” for optimum white.

8. Set the white raster to 100% and adjust Items “10 RDRL” and “12 BDRL” for optimum white at the center of the screen.

9. Reduce the luminance level to 25%.

10. Adjust Item “13 CTRL” and “15 CTBL” for optimum white.

11. Set the data for Item “19 COL” back to 31.

12. Press “ENTER” to save data.

To set the CRTs white level in the HD mode.

Monchrome pictures have a color tint.

marik08

Page 32

[Video Circuit]

Sub Contrast Current Alignment

WS-48315 / WS-55315

WS-65315

MODELS: WS-48315 / WS-55315 / WS-65315

Purpose:

To set the black level of the picture.

7. Black Level

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7 Function …...………..AUDIO Item No. ……….…….VIDEO Adjust Data ….…….ADJUST Save Data …. ………ENTER Exit …………..MENU (twice)

-----

------

Monoscope

Video Input

Symptom:

1. Supply a Monoscope signal to a Video Input.

2. Activate the Adjust Mode, Video Chroma Function.

3. Adjust Item “2 SBRT” so the 0% and 10% black levels on the gradation scale are the same.

4. Press ENTER to save data.

7. Exit the Service Mode.

NOTE: Item 2 SBRT should be no more than “21”.

40% 30% 20% 10%

50% 0% 0% 0%

60% 70% 80% 90%

GRADATION SCALE

Excess or insufficient brightness.

[Video Circuit]

8. Sub Contrast

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7 Function …...………..AUDIO Item No. ……….…….VIDEO Adjust Data ….…….ADJUST Save Data …. ………ENTER Exit …………..MENU (twice)

DC ma meter

DT connector pins 7 & 8

------

-----

Grayscale

RF Input

Purpose:

Symptom:

Note: Activate the Expand mode (full screen).

1. Supply a Grayscale signal to a RF Input.

2. Activate the Adjust Mode, Video Chroma Function.

3. Select Item “1 SCT”, signal level automatically reduces.

4. Connect a 3ma DC meter between DT connector pins 7 and 8. Positive lead to pin 7.

5. Adjust Item “1 SCT” for the current given in the table below.

6. Remove the meter.

7. Press “ENTER” to save data.

8. Exit the Service Mode.

To set overall beam current to its’ optimum level.

Excess or insufficient contrast.

marik08

520 ±10ua 550 ±10ua

Page 33

[Focus Circuit]

CONV MISC

Item

Abbr.

SD & HD

MENU-0-3-5-9-5

SD Data

HD Data

SD Data

HD Data

DFV

-100

-110

-95

MODELS: WS-48315 / WS-55315 / WS-65315

Purpose:

To improve edge focus.

9. Dynamic Focus Preset

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

-----

Monoscope

Video Input

CONVERGENCE MODE

Symptom:

1. Supply a Monoscope signal to a Video Input

2. Activate the Convergence Mode.

3. Select the DF Function under the Conv. Coarse Mode.

4. Set Items “0 DFH” and “1 DFV” to the data values given in the DF Table.

5. Press “6” to activate CONV-MISC

6. Set “0 FPHS” and “1 DPHS” to data values given in the CONV-MISC Table.

7. Press “ENTER” to save data.

8. Exit the Conv. Mode.

Poor focus at the edges of the screen.

Item Abbr.

1 DFH -220 -220 -280 -250

(MENU-0-3-5-9-6)

WS-48315 / WS-55315 WS-65315

9 DPHS 1

10 DOFS 34

[Video Circuit]

10. Lens Focus

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

-----

Monoscope

Video Input

Purpose:

Symptom:

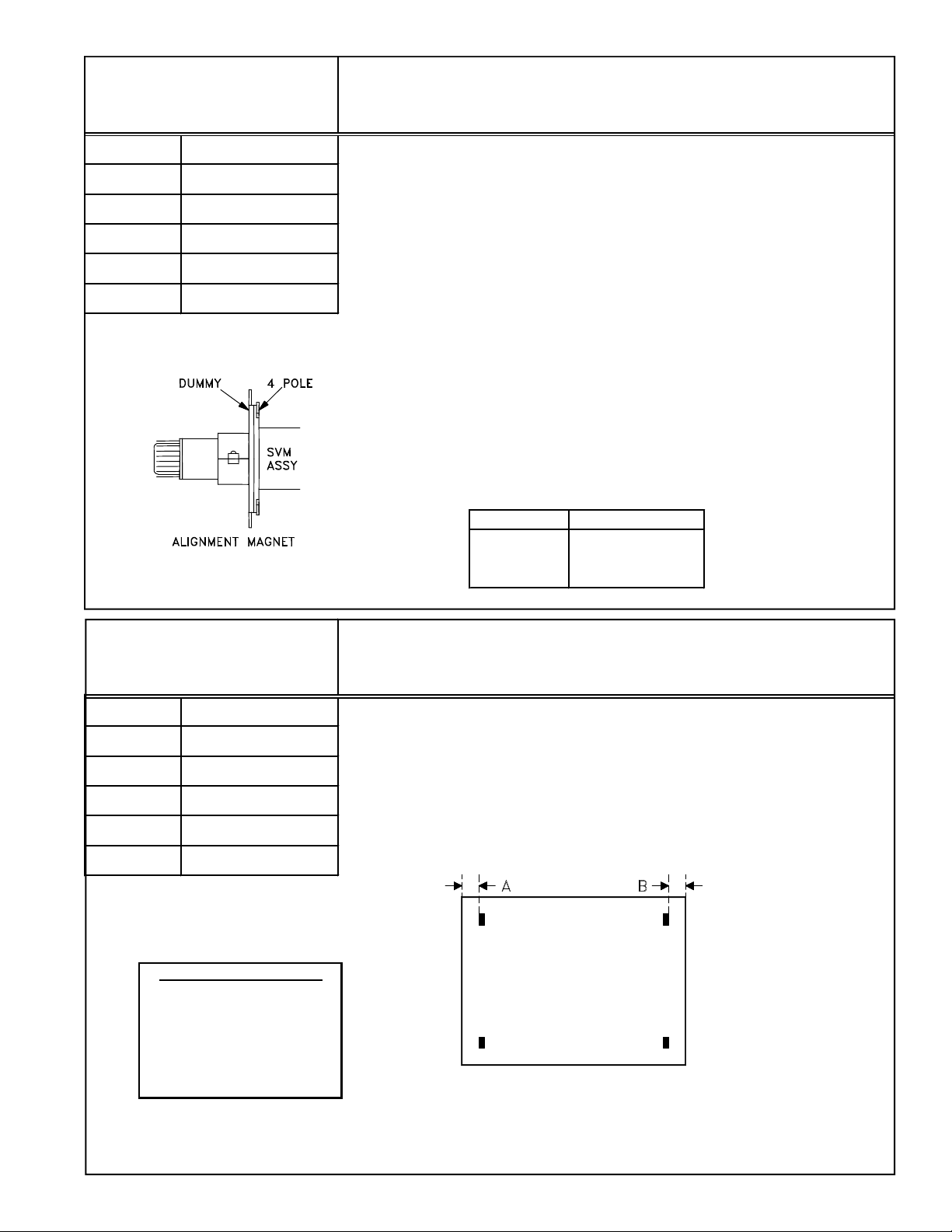

Note: This adjustment must be done before Electrostatic Focus. Perform this

1. Supply a VIDEO signal (Monoscope).

2. Cover the Red and Blue Lens (producing a green raster).

3. Adjust the Green Lens for best focus at the center of the Monoscope pattern.

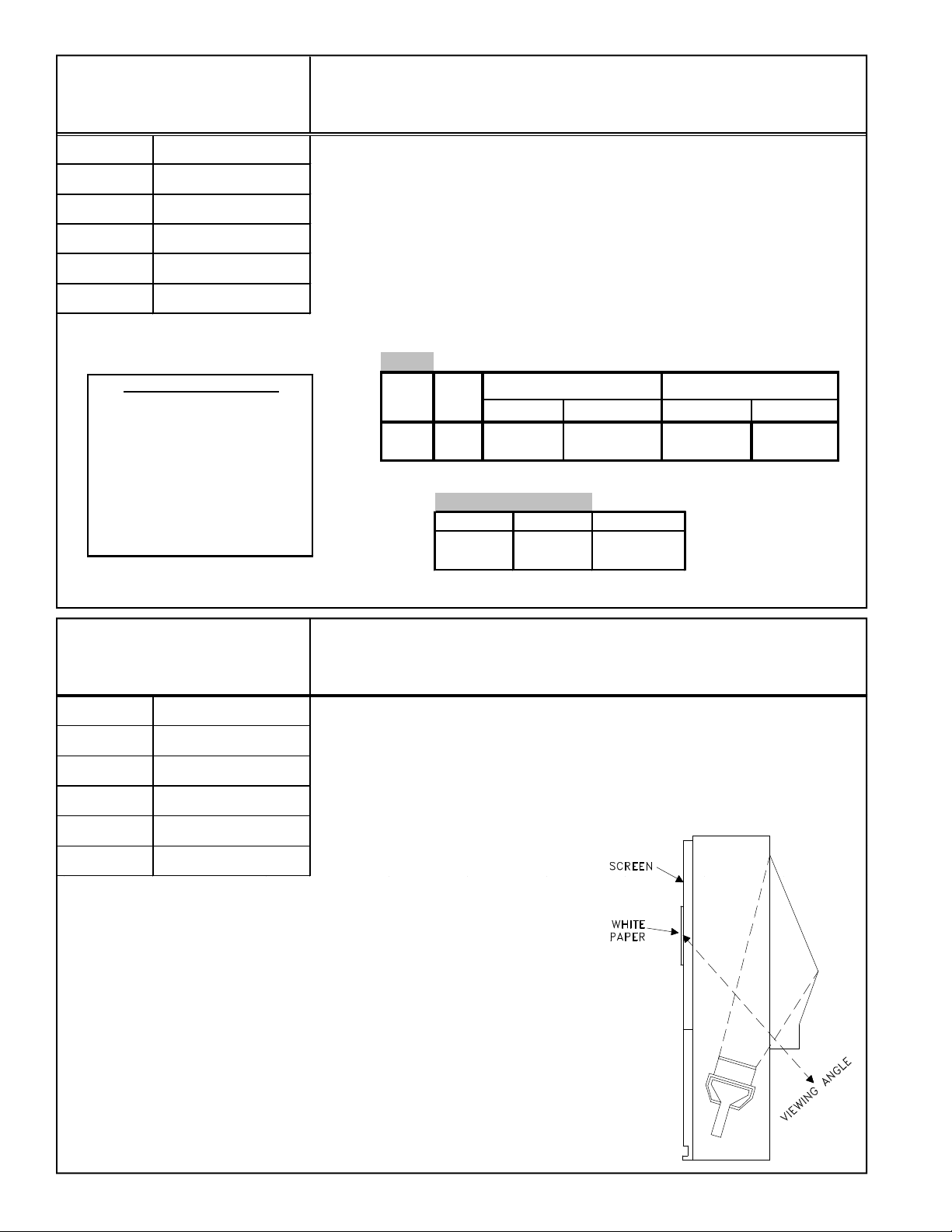

Note: Attach a white paper to the screen center. During adjustment, observe the picture on the screen from inside for easier adjustment.

4. Repeat Steps 2 and 3 for the Red and Blue monochrome pictures.

To set the Lens position for optimum focus.

Poor focus

adjustment for RED, GREEN, and BLUE monochrome pictures.

marik08

Page 34

[CRT Circuit]

MODELS: WS-48315 / WS-55315 / WS-65315

Purpose:

To set electrostatic focus to the optimum point.

11. Electrostatic Focus & Beam Forming Magnet

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

Monscope & Crosshatch

Video Input

Symptom:

Note: This adjustment must be performed after the Sub Contrast adjustment.

Alignment Magnet Adjustment This adjustment must be performed before Static

Focus Adjustment

1. Set the display to the “Standard” mode (Format button)

2. Supply a Crosshatch with Center Dot signal to a Video Input.

3. Select a Green raster using the table below.

4. Roughly adjust Green Focus VR.

5. Rotate Green Focus VR CCW so the center dot is about 10mm diameter.

6. Adjust the Green 4 Pole Magnet for the roundest center dot.

7. Set the Green Focus VR for optimum focus.

8. Repeat the procedure with a Red raster and adjust the Red 4 Pole Magnet.

9. Use silicon to lock the magnets in place.

Static Focus Adjustment (All Models)

1. Supply a Monoscope signal to a Video Input

2. Activate A/V Reset

3. Select Red, Green or Blue rasters using the table below.

3. Set the Red, Green and Blue Focus VRs for optimum focus at the top center of the picture..

Poor focus.

Raster Color Selection

Color Raster Activation Code

Red MENU-0-3-5-9-1

Green MENU-0-3-5-9-2

Blue MENU-0-3-5-9-3

[On Screen Display]

12.Character Position

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

Video Signal (HD/NTSC)

ANT-A/DTV

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7 Function …...………..AUDIO Item No. ……….…….VIDEO Adjust Data ….…….ADJUST Save Data …. ………ENTER Exit …………..MENU (twice)

Purpose:

Symptom:

1. Supply a Monoscope signal to the Video or RF Input.

2. Select the Monoscope as the source for the main picture (Input button).

3. Activate the Service Mode, HR Function.

4. Use the Adjust Right/Left buttons to center the display horizontally. (A = B)

5. Save data and exit the Service Mode..

To position the character display horizontally.

Incorrect display position

marik08

Page 35

MODELS: WS-48315 / WS-55315 / WS-65315

Deflection Jungle

Menu-0-3-5-7

Item

Abbr.

NTSC

PINA

10810810

Coarse Conv. Green

(Menu-0-3-5-9-5)

SDHDSDHDSD

HSTA

00000

VLIN

00000

[Conv/Defl]

13. Geometry Preset

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

-----

NTSC & HD

Video & DTV Inputs

Purpose:

Symptom:

Note: This procedure is usually only necessary if an E2PROM is replaced in the TV

Control or Convergence circuits.

Procedure

In the Circuit Adjustment and Coarse Convergence Modes pre-set the data to the values given in the Tables below.

To preset data controlling raster geometry

Raster distortion.

# Abbrev.

1 HWID 30 29 23 22 30 28 2 HKEY 24 25 24 25 24 25 7 VHGT 18 16 14 13 33 31 8 VLIN 5 5 5 5 7 7 9 VSCN 0 0 0 0 0 0

18 VPOS 31 31 31 31 31 31

WS-65315WS-48315 WS-55315

# Abbrev.

2 VSTA 0 0 0 0 0 0 3 SKEW 0 0 0 0 0 0 4 TILT 0 0 0 0 0 0 5 HWID 20 20 20 20 20 20 6 HLIN 0 0 0 0 0 0 7 SPCC 0 0 0 0 0 0 8 HKEY 23 20 15 10 0 0

9 TBPC -180 -160 -190 -165 -200 -175 10 VKEY 0 0 0 0 0 0 11 VWID 30 20 30 20 30 20

Coarse Conv. Red Menu-0-3-5-9-5

# Abbrev

1 HSTA 50 50 50 50 50 50 2 VSTA 0 0 0 0 0 0 3 SKEW 5 5 5 5 0 0 4 TILT 0 0 0 0 0 0 5 HLIN -220 -200 -215 -195 -170 -150 6 HWID 0 0 0 0 10 10 7 VKEY -90 -90 -75 -75 -90 -75 8 VWID 0 0 0 0 0 10

9 VLIN 0 0 0 0 0 0 10 TBPC 20 20 20 20 20 20 11 SDBW 30 30 30 30 30 30

WS-48315 WS-55315 WS-65315

SD HD SD HD SD HD

WS-55315WS-48315 WS-65315

Coarse Conv. Blue Menu-0-3-5-9-5

# Abbrev

1 HSTA -50 -50 -50 -50 -50 -50 2 VSTA 0 0 0 0 0 0 3 SKEW 0 -5 0 -5 0 0 4 TILT 0 0 0 0 0 0 5 HLIN 220 200 220 205 175 160 6 HWID 0 0 0 0 10 10 7 VKEY 90 90 90 70 80 75 8 VWID 0 0 0 0 0 0

9 VLIN 0 0 0 0 0 0 10 TBPC 0 0 0 0 -20 0 11 SDBW -30 -30 -30 -30 -30 -30

WS-48315 WS-65315WS-55315

SD HD SD HD SD HD

marik08

Page 36

MODELS: WS-48315 / WS-55315 / WS-65315

[Deflection Circuit]

14: Deflection Geometry Height & Width Adjustment

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7 Function …...………..AUDIO Item No. ……….…….VIDEO Adjust Data ….…….ADJUST Save Data …. ………ENTER Exit …………..MENU (twice)

-----

------

-----

Monoscope (NTSC & HD)

Video & DTV Inputs

Purpose:

Symptom:

Preliminary:

1. DO NOT

2. DO NOT

NTSC Mode

1. Supply an NTSC Monoscope signal to a Video Input.

2. Select the Monoscope as the signal source.

3. Activate the Adjustment Mode, JNGL Function.

4. Select and adjust each of the following items.

5. Save data and Exit the Service Mode.

HD Mode

1. Supply an HD Monoscope signal to the DTV HD Inputs.

2. Select the DTV Inputs as the signal source (Input button)

3. Activate the Service Mode, Defl. Jungle Function.

4. Select and adjust each of the following items.

5. Save data and Exit the Service Mode.

To set the height, width and linearity of the raster.

Incorrect height, width and/or linearity.

change the initial values for “#8 VLIN” in the Defl. Jungle Function. exceed the following VHGT adjustment ranges:

NTSC ... from -4 to +10 HD ... from -10 TO +5

• “7 VHGT” ... so the vertical marker sum = 4

• “1 HWD” ... so the horizontal marker sum = 7

• “7 VHGT” ... so the vertical marker sum = 2

• “1 HWD” ... so the horizontal marker sum = 5

marik08

Page 37

MODELS: WS-48315 / WS-55315 / WS-65315

[Convergence Circuit]

15. Convergence Geometry Adjustment

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

-----

NTSC -- None HD -- HD sync

Video & DTV Inputs

CONVERGENCE MODE

Purpose:

Symptom:

Note: Deflection Circuit Geometry must be performed before this adjustment.

NTSC mode

1. Select a Video Input with no signal.

2. Activate the Convergence Mode, Coarse Green.

3. Adjust the Coarse Green Items shown below for straight crosshatch lines.

4. Select the Fine Green Mode, a Cursor is displayed on the crosshatch.

5. Use the Cursor to adjust for straight crosshatch lines.

6. Exit the Convergence Mode.

HD mode

1. Supply horizontal and vertical HD sync to the DTV Inputs and select the DTV Inputs as the source. Note: If an HD signal is not available, use the Conv. HD with No Signal

2. Enter the Convergence Mode, Coarse Green.

3. Repeat NTSC Steps 3 through 6 in the HD mode.

To set the Convergence circuit geometry adjustments.

Raster distortion at the top, bottom or sides of the picture.

Procedure

CONV. HD WITH NO SIGNAL

1. MENU-0-3-7-0

2. Set DTV Port to 1080i

3. MENU (Twice)

4. INPUT select DTV inputs

5. MENU-0-3-5-9

After Adjusting, set the

DTV Port to AUTO

marik08

Page 38

MODELS: WS-48315 / WS-55315 / WS-65315

[Convergence Circuit]

16. Centering and Static Convergence

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

-----

NTSC -- Monoscope HD -- Monoscope

Video & DTV Inputs

CONVERGENCE MODE

Purpose:

Symptom:

Preliminary

Degauss the shield cover and bracket unit of the CRT assembly and chassis.

DO NOT

CAUTION: On models WS-48315, WS-55315 and WS-65315, Do Not

Alignment Magnets instead of the Centering Magnets.

HD mode

1. Supply an HD Monoscope signal to the DTV Inputs.

2. Select the DTV Inputs as the signal source (Input button).

3. Enter the Convergence Coarse mode.

4. Set the data for the “HSTA” and “VSTA” items to:

5. In the Coarse Green mode:

6. In the Coarse Red mode, use the Red Centering Magnet to converge red on the green at the center of screen. Correct any red tilt with the Red Deflection Yoke.

7. In the Coarse Blue mode, repeat Step 6 using the Blue Centering magnet and the Blue Deflection Yoke.

8. Exit the Convergence mode.

SD mode

1. Supply an NTSC Monoscope signal to a Video Input.

2. Select the Monoscope as the signal source (Input button).

3. Enter the Convergence Coarse Green mode.

4. If needed, center the green raster using “1 HSTA” and “2 VSTA” adjustments.

5. In the Coarse Red mode, use “1 HSTA” and “2 VSTA” adjustments to converge the red on the green at the center of the screen.

6. In the Coarse Blue mode, repeat step 5 to converge the blue on the green.

7. Exit the Convergence Mode

To converge red, green and blue at the center of the screen

Color edging over the entire picture.

degauss the Centering and Alignment Magnet Assemblies.

GREEN HSTA = 0 HSTA = 50 HSTA = -50 VSTA = 0 VSTA = 0 VSTA = 0

• Center the Green Raster using the Green Centering Magnet.

• Rotate the Green Deflection Yoke to correct any tilt.

RED BLUE

adjust the

marik08

Page 39

[Convergence Circuit]

CONV. HD WITH NO SIGNAL

17. Coarse Convergence

MODELS: WS-48315 / WS-55315 / WS-65315

Purpose:

Symptom:

To converge red and blue on green at the edges of the screen.

Color edging at the top, bottom and sides of the screen.

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

-----

NTSC -- None HD -- HD sync

Video & HD Inputs

CONVERGENCE MODE

SD mode

1. Select an External Input with no signal.

2. Activate the Convergence Mode, Coarse Red.

3. Adjust the Items shown below to converge the red on the green.

4. Select Coarse Blue mode.

5. Adjust the Items shown below to converge the blue on the green.

Note: If center convergence shifts, use red and blue Items “0 HSTA” and

“1 VSTA” to correct the shift.

6. Exit the Convergence Mode.

HD mode

1. Supply horizontal and vertical HD sync to the DTV Inputs and select the DTV Inputs as the source.

Note: If an HD signal is not available, use the Conv. HD with No Signal

Procedure.

2. Repeat SD Steps 2 through 5 in the HD mode.

3. Exit the Convergence mode.

1. MENU-0-3-7-0

2. Set DTV Port to 1080i

3. MENU (Twice)

4. INPUT select DTV inputs

5. MENU-0-3-5-9

After Adjusting, set the

DTV Port to AUTO

marik08

Page 40

[Convergence Circuit]

CONV. HD WITH NO SIGNAL

MODELS: WS-48315 / WS-55315 / WS-65315

Purpose:

To converge red, green and blue at the edges of the screen

18. Fine Convergence

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

-----

NTSC -- None HD -- HD sync

Video & DTV Inputs

CONVERGENCE MODE

Symptom:

SD Fine Adjustment

1. Select an External Input, no signal.

2. Activate the Convergence Mode, Fine Red.

3. Use the Cursor to converge red on the green.

4. Select the Fine Blue mode.

5. Use the Cursor to converge blue on the green.

6. Exit the Convergence mode.

HD Fine Adjustment

1. Supply an HD signal (sync only) to the DTV inputs and select DTV with the “Audio” button. Note: If an HD signal is not available, use the Conv. HD with No Signal

2. Repeat SD Fine Adjustment Steps 2 through 6, in the HD mode.

Color edging at the edges of the picture.

Procedure.

1. MENU-0-3-7-0

2. Set DTV Port to 1080i

3. MENU (Twice)

4. INPUT select DTV inputs

5. MENU-0-3-5-9

After Adjusting, set the

DTV Port to AUTO

[MonitorLink]

19. MonitorLink Picture Position

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

MonitorLink Source

MLINK

CIRCUIT ADJUST MODE

Activate …….. MENU-0-3-5-7 Function …...………..AUDIO Item No. ……….…….VIDEO Adjust Data ….…….ADJUST Save Data …. ………ENTER Exit …………..MENU (twice)

Purpose:

Symptom:

1. Apply a MonitorLink source to the MLink input.

2. Select MLINK input as the signal source.

3. Enter the Service Adjust Mode.

4. Select the MISCDEV Function.

5. Use Items #474 and #475 to center the MLink picture on the screen.

6. Press ENTER and exit the Adjustment Mode.

To position MonitorLink source picture on the screen.

MonitorLink picture not centered on the screen.

marik08

Page 41

MODELS: WS-48315 / WS-55315 / WS-65315

CHIP PARTS REPLACEMENT

Some resistors, shorting jumpers (0 Ohm resistors), ceramic capacitors, transistors and diodes are chip parts. The following precautions should be taken when replacing these parts.

Cautions:

1. Use a fine tipped, well insulated soldering iron (approximately 30 watts), and tweezers.

2. Melt the solder and remove the chip parts carefully so as not to tear the copper foil from the printed circuit board.

3. Discard removed chips; do not reuse them.

4. Do not apply heat for more than 3 (three) seconds to new chip parts.

5. Avoid using a rubbing stroke when soldering.

6. Take care not to scratch, or damage the chip parts when soldering.

7. Supplementary cementing is not required.

Chip Parts Removal (Resistors, Capacitors, etc.)

1. Grasp the part with tweezers. Melt the solder at both sides alternately, and remove one side of the part with a twisting motion.

2. Melt the solder at the other side and remove the part.

Chip Parts Removal (Transistors)

1. Melt the solder of one lead and lift the side of that lead upward.

2. Simultaneously melt the solder of the other two leads and lift the part from the PCB.

Replacement

1. Presolder the contact points on the circuit pattern.

2. Press the part downward with tweezers and apply the soldering iron as shown.

marik08

Page 42

MODELS: WS-48315 / WS-55315 / WS-65315

REPLACEMENT PARTS

Parts Ordering

To expedite delivery of replacement parts orders, specify the following:

1. Model Number/Serial Number

2. Part Number and description

3. Quantity

Note: Unless complete information is supplied, delay in processing of orders will result.

Critical and Warranty Parts Designation

Critical Electrical Components are indicated by Bold Type in the Parts List, and in the schematic

diagrams by shading.

Warranty Return Parts are indicated in the Parts List with an (*).

Parts Tolerance Codes

Refer to the following chart for tolerance characteristics of electrical components.

MARK B C D F G J K

Tolerance % ± 0.1 ± 0.25 ± 0.5 ± 1 ± 2 ± 5 ± 10

MARK M N V X Z P Q

Tolerance %

MARK M N V X Z

Tolerance (pF) ± 0.1 ± 0.25 ± 0.5 ± 1 ± 2

± 20 ± 30 ± 10 + 40 + 80 + 100 + 30

-20 -20 - 0 -10

marik08

Page 43

MODELS: WS-48315 / WS-55315 / WS-65315

LENTICULAR

FRESNEL

MODEL

MIRROR

SCREEN

LENS

WS-48315

WS-55315

WS-65315

PCB

WS-48315

WS-55315

WS-65315

MAIN

POWER

SIGNAL

TERMINAL

CRT

DOUBLER

PREAMP

FRONT

CONTROL

QUICK REFERENCE FOR COMMON REPLACEMENT PARTS

CRT ASSEMBLIES

CRT-ASSY WS-48315 WS-55315 WS-65315

ASSY-CRT-RED 251C223040 251C223010 251C222040

ASSY-CRT-GREEN 251C223050 251C223020 251C222050

ASSY-CRT-BLUE 251C223060 251C223030 251C222060

PRINTED CIRCUIT BOARDS

930B899004 930B899004 930B899005 930B900002 930B900002 930B900002

930B901003-48 930B901003-55 930B901003-65

930B902001 930B902001 930B902001 934C062001 934C062001 934C062001 934C063003 934C063003 934C063003 935D738001 935D738001 935D738001 935D739001 935D739001 935D739001 935D740001 935D740001 935D740001

REMOTE CONTROL

290P116010 Remote Control

HIGH VOLTAGE / DEFLECTION COMPONENTS

Q5A51 261P082010 HV-OUT 2SK2771-O1R T5A51 334P281010 TRANS-FLYBACK

330P293010 DEFL-YOKE WS-65315 330P293020 DEFL-YOKE WS-48315 / WS-55315 453B036010 CAP-ANODE-SHORT [R] 453B036020 CAP-ANODE-LONG [GB]

MISCELLANEOUS

767D072040 491P138020 491P139020 767D072050 491P103030 491P104030 767D048090 491P105050 491P106080

marik08

Page 44

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

TUBES

251C222040 ASSY-CRT-RED c 251C222050 ASSY-CRT-GREEN c 251C222060 ASSY-CRT-BLUE c 251C223040 ASSY-CRT-RED a 251C223050 ASSY-CRT-GREEN a 251C223060 ASSY-CRT-BLUE a 251C223010 ASSY-CRT-RED b 251C223020 ASSY-CRT-GREEN b 251C223030 ASSY-CRT-BLUE b

INTEGRATED CIRCUITS

IC2C00 275P989010 IC-C-MOS - MAX3223ECAP IC2D00 270P974010 IC-C-MOS - SII907B IC2D02 261P135010 FET-HEX - IRF7313 IC2D04 271P004010 IC - CM1208-08MS IC2K01 270P623010 IC - CXA2069Q IC2K02 275P533010 IC-C-MOS - M24C64WM6T IC2K04 275P718010 IC-C-MOS - TC74HC4053FT IC2K05 275P718010 IC-C-MOS - TC74HC4053FT IC2L01 275P937010 IC-C-MOS - MM1519XQ IC2M01 275P947010 IC-C-MOS - UPD64083 IC2M02 270P992020 IC - BA25BC0FP IC2MD1 272P379020 IC - LM1881MX (NSC) IC2N01 275P938010 IC-C-MOS - TA1340F IC2P01 275P938010 IC-C-MOS - TA1340F IC2R01 271P005020 IC - AN15851AN IC2V00 275P733010 IC-C-MOS - CXA2150AQ IC3A01 275P731020 IC-C-MOS - MSP3445G-QI-B8-V3

IC3E01 270P750010 IC - LA4663

IC3J01 270P838010 IC-C-MOS - NJM2520M IC3J02 270P838010 IC-C-MOS - NJM2520M IC3J03 270P838010 IC-C-MOS - NJM2520M IC3J04 270P838010 IC-C-MOS - NJM2520M

IC4B01 270P261020 IC - TDA8177

IC5A00 267P163010 HIC - MSPAD401 IC5A01 272P237010 IC - LA6324N IC5A02 266P727040 IC - UPC339C/LM339N IC5A03 270P704010 IC - LM4040BIZ-10.0 IC6B01 270P667010 IC - TDA6120Q IC6G01 270P667010 IC - TDA6120Q IC6R01 270P667010 IC - TDA6120Q IC7A00 275P942040 IC-C-MOS - M306V3MG-808FP IC7AAA 275P981010 IC-C-MOS - 24LCS22AT/SN IC7B01 270P706020 IC - MAX823REUK IC7C01 275P533010 IC-C-MOS - M24C64WM6T IC7D01 275P278010 IC-C-MOS - TC74LVX14FT IC7D02 270P818020 IC - CXA3506R IC7D03 267P172010 HIC - AF-9395A IC7E00 275P451010 IC-C-MOS - TC74HC4066AFN IC7E01 275P560010 IC-C-MOS - ADS931E IC7E02 275P560010 IC-C-MOS - ADS931E IC7E03 275P560010 IC-C-MOS - ADS931E IC7H00 275P963010 IC-C-MOS - DPM5 IC7H07 270P992010 IC - BA18BC0FP IC7M00 275P982010 IC - MT48LC2M32B2-7 IC7N01 270P348010 IC - TLC2932IPW IC7N11 275P236020 IC-C-MOS - TC74LVX244FT IC7N21 275P769010 IC-C-MOS - TC74AC157FT

IC7N31 275P769010 IC-C-MOS - TC74AC157FT IC7N41 274P901010 IC-C-MOS - TC74HCT7007AF IC7N61 274P901010 IC-C-MOS - TC74HCT7007AF

IC8C01 267P173010 HIC - STK394-250

IC8C02 267P173010 HIC - STK394-250 IC8D00 275P595010 IC-C-MOS - CM0022AF IC8D01 275P222020 IC-C-MOS - M24C32MN6T IC8E00 270P751010 IC - TL084CD IC8E01 270P751010 IC - TL084CD IC8E02 270P751010 IC - TL084CD IC8E03 275P721010 IC-C-MOS - CD0031AM

IC9A20 267P164010 HIC - TNY264P

IC9A21 270P816010 IC - NJM431L

IC9A50 267P161010 HIC - STR-F6428S

IC9AAA 270P677010 IC - BA033FP

IC9B02 270P668020 IC - SI-8050S

IC9C01 270P928010 IC - BA17809FP IC9C11 270P928010 IC - BA17809FP IC9C21 270P677010 IC - BA033FP IC9C31 270P999010 IC - NJM2370R09 IC9C41 270P677010 IC - BA033FP IC9C51 270P990010 IC - SI-8120JD IC9C61 270P677010 IC - BA033FP

TRANSISTORS

CHIP Type Transistors (Listed by Part No.)

Part No. 260P817050 2SA1037K-R,S/2SB709AI-R,S 260P817080 2SA1037K-R,S 260P818050 2SC2412K-R,S/2SD601AI-R,S 260P835030 2SC2413K-Q 261P066040 2SA1037AK-Q 261P801010 2SA1252-5,6

Description

TRANSISTORS

Conventional Transistors (By Ref #) Part # Part Name & Description [#]

Ref # Q2V30 260C004020 TR - 2SC1740S-R,S/2SC3311A-R,S Q4B01 260C004020 TR - 2SC1740S-R,S/2SC3311A-R,S

Q5A01 261P126010 TR - 2SD2052

Q5A02 260P561020 TR - 2SA1371-E Q5A03 260P386010 TR - 2SC2230-GR Q5A04 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S Q5A05 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S Q5A06 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S

Q5A07 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q5A07 260C416030 TR - 2SC2274-F/2SC2274K-F Q5A08 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q5A09 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q5A09 260C255040 TR - 2SA950-Y Q5A10 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S

Q5A20 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S

Q5A31 261P122010 TR - 2SC5778 Q5A32 261P127010 TR - 2SK2774-01 Q5A33 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S Q5A34 260P561020 TR - 2SA1371-E Q5A35 260P386010 TR - 2SC2230-GR Q5A36 260P630010 TR - 2SD2012

marik08

Page 45

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

Q5A37 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S Q5A38 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S Q5A39 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S Q5A40 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S Q5A51 261P082010 TR - 2SK2771-01R Q5H01 260C001040 TR - 2SC2603-G/2SC1740S-E Q5H03 260C001040 TR - 2SC2603-G/2SC1740S-E Q5H04 260C001040 TR - 2SC2603-G/2SC1740S-E Q5H05 260C001040 TR - 2SC2603-G/2SC1740S-E Q5H06 260C001060 TR - 2SA1115-F/2SA933S-S Q5H09 260C001030 TR - 2SC2603-F,G/2SC1740S Q5H10 260C001060 TR - 2SA1115-F/2SA933S-S

Q5H11 260P644040 TR - 2SA1535-R

Q5H12 260P647040 TR - 2SC3944-R Q5H13 260C001060 TR - 2SA1115-F/2SA933S-S Q5K00 260P664030 TR - 2SC4636 Q5K01 260P664030 TR - 2SC4636 Q5K02 260C004020 TR - 2SC1740S-R,S/2SC3311A-R,S Q5K03 260C004050 TR - 2SA933S-R,S/2SA1309A-R,S Q5K50 261P214010 TR - 2SC4634LS Q6B01 260C001010 TR - 2SC2603-E,F Q6B02 260C001050 TR - 2SA1115-E,F/2SA933S Q6B03 260C001050 TR - 2SA1115-E,F/2SA933S Q6G01 260C001010 TR - 2SC2603-E,F Q6R01 260C001010 TR - 2SC2603-E,F

Q9A51 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

Q9A52 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S Q9A54 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S Q9A55 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S Q9B01 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S

DIODES

D2W01 264P828010 D-CHIP - DAN202U/MA142WK D2W02 264P828010 D-CHIP - DAN202U/MA142WK D2W03 264P828010 D-CHIP - DAN202U/MA142WK D2W04 264P828010 D-CHIP - DAN202U/MA142WK D4B01 264D056020 DIODE - S5500D/EM1Z/ERB12-02RK D4B04 264P045080 DIODE - 1S2076A/1S2471OM D5A01 264P045080 DIODE - 1S2076A/1S2471OM D5A02 264D056020 DIODE - S5500D/EM1Z/ERB12-02RK D5A03 264P045080 DIODE - 1S2076A/1S2471OM D5A12 264P045080 DIODE - 1S2076A/1S2471OM D5A13 264P045080 DIODE - 1S2076A/1S2471OM D5A14 264P045080 DIODE - 1S2076A/1S2471OM D5A33 262P086010 DIODE - 31DF2-FC5 D5A34 264P460060 DIODE - EQA02-05C/RD5.1EB1 D5A35 264P045080 DIODE - 1S2076A/1S2471OM D5A36 264P045080 DIODE - 1S2076A/1S2471OM D5A37 264P521010 DIODE - EU 1Z

D5A51 262P039010 DIODE - BYW96E/20

D5A52 264P899010 DIODE - BYV26E D5A53 264P466040 DIODE - EQA02-15AB/RD16EB1

D5A54 262P085010 DIODE - 11EFS2N-TA2B5

D5A55 262P085010 DIODE - 11EFS2N-TA2B5 D5A56 264P045080 DIODE - 1S2076A/1S2471OM D5A57 264P521010 DIODE - EU 1Z D5A58 264P045080 DIODE - 1S2076A/1S2471OM

D5A60 264P465060 DIODE - EQA02-12B/RD13EB2

D5H01 264P045080 DIODE - 1S2076A/1S2471OM

D5H02 264P045080 DIODE - 1S2076A/1S2471OM D5K01 264P528030 DIODE - RP 1H D5K02 264P543010 DIODE - EG01 D5K03 264P543010 DIODE - EG01 D5K10 264P528030 DIODE - RP 1H D5K11 264P528030 DIODE - RP 1H D5K12 262P085010 DIODE - 11EFS2N-TA2B5 D6B00 262P063010 DIODE - 1SS244 D6B07 262P063010 DIODE - 1SS244 D6B08 262P063010 DIODE - 1SS244 D6G00 262P063010 DIODE - 1SS244 D6G07 262P063010 DIODE - 1SS244 D6G08 262P063010 DIODE - 1SS244 D6R00 262P063010 DIODE - 1SS244 D6R07 262P063010 DIODE - 1SS244 D6R08 262P063010 DIODE - 1SS244 D7AAA 262P805050 D-CHIP - UDZS5.1B D7L21 264P212020 D-LED - LN31GPH D8C03 264P486060 DIODE - RD9.1FB3 D8C04 264P486060 DIODE - RD9.1FB3

D9A01 262P031010 DIODE - D6SB80

D9A22 264P825040 DIODE - ERA15-08 D9A24 264P045080 DIODE - 1S2076A/1S2471OM D9A28 264P045080 DIODE - 1S2076A/1S2471OM D9A29 264P461050 DIODE - EQA02-06B/RD5.6EB3 D9A30 262P097010 DIODE - 11EQS06N-TA2B5 D9A31 262P097010 DIODE - 11EQS06N-TA2B5 D9A53 264P045080 DIODE - 1S2076A/1S2471OM D9A54 262P085010 DIODE - 11EFS2N-TA2B5 D9A55 264P045080 DIODE - 1S2076A/1S2471OM D9A56 262P083010 DIODE - FSF05A20 D9A57 264P899010 DIODE - BYV26E D9A58 262P088010 DIODE - 31DF4-FC5 D9A60 262P083010 DIODE - FSF05A20 D9A61 262P086010 DIODE - 31DF2-FC5 D9A65 264P045080 DIODE - 1S2076A/1S2471OM D9A66 264P045080 DIODE - 1S2076A/1S2471OM D9A67 264P461050 DIODE - EQA02-06B/RD5.6EB3 D9A68 264P469070 DIODE - EQA02-28A/RD27EB4 D9A69 264P527020 DIODE - AK04 D9B01 264P045080 DIODE - 1S2076A/1S2471OM D9B02 264P045080 DIODE - 1S2076A/1S2471OM D9B05 262P084010 DIODE - 31DQ06 D9B07 264P484030 DIODE - RD5.6FB2 D9C51 262P087010 D-CHIP - EC21QS04-TE12L

COILS

L1A30 321C114010 COIL-RF - 2200MH-J L1A31 325C461030 COIL-PEAKING - 10MH-K L1B30 321C114010 COIL-RF - 2200MH-J L1B31 325C461030 COIL-PEAKING - 10MH-K L2AGA 409P864010 EMI-F-CHIP - ACB2012M600/BLM21A601S L2AJA 409P864010 EMI-F-CHIP - ACB2012M600/BLM21A601S L2AKA 409P864010 EMI-F-CHIP - ACB2012M600/BLM21A601S L2ANA 409P864010 EMI-F-CHIP - ACB2012M600/BLM21A601S L2APA 409P864010 EMI-F-CHIP - ACB2012M600/BLM21A601S L2ARA 409P864010 EMI-F-CHIP - ACB2012M600/BLM21A601S L2ATA 409P864010 EMI-F-CHIP - ACB2012M600/BLM21A601S L2AYA 409P864010 EMI-F-CHIP - ACB2012M600/BLM21A601S

marik08

Page 46

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

L2AZA 409P864010 EMI-F-CHIP - ACB2012M600/BLM21A601S L2K05 409P777080 EMI-F-CHIP - BLM21P221S L2K42 325C461030 COIL-PEAKING - 10MH-K L2K46 325C462080 COIL-PEAKING - 180MH-J L2K55 325C462080 COIL-PEAKING - 180MH-J L2L28 325C461030 COIL-PEAKING - 10MH-K L2M22 325C461050 COIL-PEAKING - 15MH-K L2M31 409P777080 EMI-F-CHIP - BLM21P221S L2M32 325C461050 COIL-PEAKING - 15MH-K L2M38 409P777080 EMI-F-CHIP - BLM21P221S L2M45 409P777080 EMI-F-CHIP - BLM21P221S L2M46 409P777080 EMI-F-CHIP - BLM21P221S L2M50 325C461000 COIL-PEAKING - 5.6MH-K L2M53 325C461030 COIL-PEAKING - 10MH-K L2M81 409P777080 EMI-F-CHIP - BLM21P221S L2MA0 325C461050 COIL-PEAKING - 15MH-K L2MA1 325C461030 COIL-PEAKING - 10MH-K L2MD1 325C461030 COIL-PEAKING - 10MH-K L2N01 325C461030 COIL-PEAKING - 10MH-K L2N25 325C462020 COIL-PEAKING - 56MH-K L2NA1 325C461030 COIL-PEAKING - 10MH-K L2NA2 325C461080 COIL-PEAKING - 27MH-K L2NA3 325C461030 COIL-PEAKING - 10MH-K L2NC0 325C461030 COIL-PEAKING - 10MH-K L2NC1 325C461080 COIL-PEAKING - 27MH-K L2P01 325C461030 COIL-PEAKING - 10MH-K L2P22 325C461050 COIL-PEAKING - 15MH-K L2P25 325C462020 COIL-PEAKING - 56MH-K L2P31 325C462020 COIL-PEAKING - 56MH-K L2P32 325C461050 COIL-PEAKING - 15MH-K L2P41 325C462020 COIL-PEAKING - 56MH-K L2R28 325C461030 COIL-PEAKING - 10MH-K L2V19 325C461010 COIL-PEAKING - 6.8MH-K L2V55 325C461010 COIL-PEAKING - 6.8MH-K L2V61 325C461010 COIL-PEAKING - 6.8MH-K L2W02 409P923060 EMI-F-CHIP - BLM21B272S L2W03 409P923060 EMI-F-CHIP - BLM21B272S L2W04 409P923060 EMI-F-CHIP - BLM21B272S L3A10 409P923060 EMI-F-CHIP - BLM21B272S L3A49 409P923060 EMI-F-CHIP - BLM21B272S L3J01 325C461030 COIL-PEAKING - 10MH-K L3J20 325C461030 COIL-PEAKING - 10MH-K L3J40 409P777020 EMI-F-CHIP - BLM21A05 L4B01 321C130010 COIL-RF - 2MH L4B02 321C130090 COIL-RF - 10MH-K L5A22 333P059020 COIL-HORIZ-LIN L5A34 321C130010 COIL-RF - 2MH L5A51 321C151040 COIL-RF - 12MH-K L5A54 411D009020 CORE-FERRITE L7A16 409P777050 EMI-F-CHIP - BLM21B201S L7A19 409P777050 EMI-F-CHIP - BLM21B201S L7A88 409P777050 EMI-F-CHIP - BLM21B201S L7A90 409P777050 EMI-F-CHIP - BLM21B201S L7A91 409P777050 EMI-F-CHIP - BLM21B201S L7A99 409P777050 EMI-F-CHIP - BLM21B201S L7ACC 409P777080 EMI-F-CHIP - BLM21P221S L7CA3 325C146090 COIL-CHIP - 33MH-J L7D30 325C241030 COIL-CHIP - 10MH-K L7D31 325C241030 COIL-CHIP - 10MH-K L7D41 325C241030 COIL-CHIP - 10MH-K

L7D42 409P777080 EMI-F-CHIP - BLM21P221S L7D90 409P777080 EMI-F-CHIP - BLM21P221S L7E00 409P777080 EMI-F-CHIP - BLM21P221S L7E11 325C241030 COIL-CHIP - 10MH-K L7E12 409P777080 EMI-F-CHIP - BLM21P221S L7E13 325C241030 COIL-CHIP - 10MH-K L7E14 409P777080 EMI-F-CHIP - BLM21P221S L7E15 325C241030 COIL-CHIP - 10MH-K L7G51 325C241030 COIL-CHIP - 10MH-K L7G66 325C241030 COIL-CHIP - 10MH-K L7G81 325C241030 COIL-CHIP - 10MH-K L7H01 409P777080 EMI-F-CHIP - BLM21P221S L7H04 409P777080 EMI-F-CHIP - BLM21P221S L7H29 409P777080 EMI-F-CHIP - BLM21P221S L7H49 409P777080 EMI-F-CHIP - BLM21P221S L7H73 409P777080 EMI-F-CHIP - BLM21P221S L7H76 409P777080 EMI-F-CHIP - BLM21P221S L7J13 409P777080 EMI-F-CHIP - BLM21P221S L7J23 325C241030 COIL-CHIP - 10MH-K L7J38 409P777080 EMI-F-CHIP - BLM21P221S L7J44 409P777080 EMI-F-CHIP - BLM21P221S L7K01 325C121030 COIL-PEAKING - 10MH-K L7M90 409P777080 EMI-F-CHIP - BLM21P221S L7N01 325C241030 COIL-CHIP - 10MH-K L7N02 409P777080 EMI-F-CHIP - BLM21P221S L7N11 409P777080 EMI-F-CHIP - BLM21P221S L7N21 409P777080 EMI-F-CHIP - BLM21P221S L7N31 409P777080 EMI-F-CHIP - BLM21P221S L7N41 409P777080 EMI-F-CHIP - BLM21P221S L7N61 409P777080 EMI-F-CHIP - BLM21P221S L7P01 409P777050 EMI-F-CHIP - BLM21B201S L7RF1 409P777050 EMI-F-CHIP - BLM21B201S L8C01 321C141070 COIL-RF - 22MH-K L8C02 321C141070 COIL-RF - 22MH-K L8D01 409P777080 EMI-F-CHIP - BLM21P221S L8D02 409P777080 EMI-F-CHIP - BLM21P221S L8D03 409P777080 EMI-F-CHIP - BLM21P221S 246 L8D04 409P777080 EMI-F-CHIP - BLM21P221S L8D05 325C461030 COIL-PEAKING - 10MH-K L8D06 409P777080 EMI-F-CHIP - BLM21P221S L8D07 409P777080 EMI-F-CHIP - BLM21P221S L8D08 325C461030 COIL-PEAKING - 10MH-K L8G00 409P777080 EMI-F-CHIP - BLM21P221S L8G01 409P777080 EMI-F-CHIP - BLM21P221S L9A20 321C141070 COIL-RF - 22MH-K L9A21 321C141070 COIL-RF - 22MH-K L9A50 411D009020 CORE-FERRITE L9A52 411D009020 CORE-FERRITE L9A53 321C141010 COIL-RF - 6.8MH-M L9A54 411D009020 CORE-FERRITE L9A55 321C142030 COIL-RF - 68MH-K L9A56 411D009020 CORE-FERRITE L9A57 321C141070 COIL-RF - 22MH-K L9A62 321C141010 COIL-RF - 6.8MH-M L9A63 321C141010 COIL-RF - 6.8MH-M L9A64 321C141010 COIL-RF - 6.8MH-M L9AAA 325C462020 COIL-PEAKING - 56MH-K L9B03 321C141070 COIL-RF - 22MH-K

L9B04 351P247010 COIL-CHOKE - 150UH

L9B05 321C141030 COIL-RF - 10MH-K

marik08

Page 47

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

L9C51 321C141070 COIL-RF - 22MH-K L9C52 351P244010 COIL-CHOKE - CD-C-1010-101 L9C53 321C141070 COIL-RF - 22MH-K

L9D00 351P243010 FILTER-LINE - CD-N-2637F-152 L9D01 351P243010 FILTER-LINE - CD-N-2637F-152 L9D02 351P223010 FILTER-LINE - SLF15N0601

LC2J40 409P777020 EMI-F-CHIP - BLM21A05 LC2J41 409P777020 EMI-F-CHIP - BLM21A05 LC2J42 409P777020 EMI-F-CHIP - BLM21A05 LC2J43 409P777020 EMI-F-CHIP - BLM21A05 LC3J41 409P777020 EMI-F-CHIP - BLM21A05 LC7CBA 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7CCA409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7CDA409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7D02 409P875090 EMI-F-CHIP - ELKE103FA LC7D05 409P875090 EMI-F-CHIP - ELKE103FA LC7D10 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7D11 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7D12 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7D13 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7D14 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7E10 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7E11 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7E12 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7E13 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7E14 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G01 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G02 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G03 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G04 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G05 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G06 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G07 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G08 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G09 409P875090 EMI-F-CHIP - ELKE103FA LC7G10 409P875090 EMI-F-CHIP - ELKE103FA LC7G11 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G12 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G13 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G14 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G15 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G16 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G17 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S

TRANSFORMERS

T5A31 349P221010 TRANS-HORIZ T5A32 336P040010 TRANS-HORIZ-DRIVE

T5A51 334P281010 TRANS-FLYBACK T9A20 350P806010 TRANS-PWR -

ETS19AB1R5BG

T9A50 350P807010 TRANS-PWR -

ETS42AD485NC

VARIABLE RESISTORS

129P070020 VR-FOCUS:MT010315-157

RV9D00 65P100020 VAR - ERZV10D271CS

Ref # R2J21 109D151050 R-CARBON - 1/4W 75-J R2J31 109D151050 R-CARBON - 1/4W 75-J R3E02 103P712080 R-CARBON - 1/4W 1.8K-J R3E04 103P712080 R-CARBON - 1/4W 1.8K-J R3E05 103P714060 R-CARBON - 1/4W 56K-J R3E06 103P713080 R-CARBON - 1/4W 12K-J R3E09 109D151010 R-CARBON - 1/4W 2.2-J

RESISTORS

CHIP Type Resistors (Listed by Value) Part No. 103P509050 1/16W 0OHM 103P493020 1/16W 2K-F 103P508040 1/16W 2.2-J 103P493030 1/16W 2.2K-F 103P500050 1/16W 22-J 103P502090 1/16W 2.2K-J 103P500070 1/16W 33-J 103P493030 1/16W 2.2K-F 103P500080 1/16W 39-J 103P502090 1/16W 2.2K-J 103P500090 1/16W 47-J 103P493050 1/16W 2.7K-F 103P501000 1/16W 56-J 103P503000 1/16W 2.7K-J 103P501010 1/16W 68-J 103P493050 1/16W 2.7K-F 103P794060 1/16W 75-F 103P503000 1/16W 2.7K-J 103P509090 1/16W 75-J 103P503010 1/16W 3.3K-J 103P501020 1/16W 82-J 103P493090 1/16W 3.9K-F 103P501030 1/16W 100-J 103P503020 1/16W 3.9K-J 103P401030 1/10W 100-J 103P493060 1/16W 3K-F 103P501040 1/16W 120-J 103P494010 1/16W 4.7K-F 103P401050 1/10W 150-J 103P503030 1/16W 4.7K-J 103P490050 1/16W 150-F 103P494020 1/16W 5.1K-F 103P501050 1/16W 150-J 103P503040 1/16W 5.6K-J 103P490070 1/16W 180-F 103P494050 1/16W 6.8K-F 103P501060 1/16W 180-J 103P503050 1/16W 6.8K-J 103P501070 1/16W 220-J 103P503060 1/16W 8.2K-J 103P491000 1/16W 240-F 103P494090 1/16W 10K-F 103P501080 1/16W 270-J 103P503070 1/16W 10K-J 103P401080 1/10W 270-J 103P503080 1/16W 12K-J 103P491020 1/16W 300-F 103P503080 1/16W 12K-J 103P501090 1/16W 330-J 103P503090 1/16W 15K-J 103P491040 1/16W 360-F 103P504000 1/16W 18K-J 103P491050 1/16W 390-F 103P504010 1/16W 22K-J 103P502000 1/16W 390-J 103P504020 1/16W 27K-J 103P502010 1/16W 470-J 103P496000 1/16W 30K-F 103P491090 1/16W 560-F 103P504030 1/16W 33K-J 103P502020 1/16W 560-J 103P504040 1/16W 39K-J 103P492000 1/16W 620-F 103P504050 1/16W 47K-J 103P492010 1/16W 680-F 103P504060 1/16W 56K-J 103P502030 1/16W 680-J 103P496080 1/16W 62K-F 103P492030 1/16W 820-F 103P496090 1/16W 68K-F 103P502040 1/16W 820-J 103P504070 1/16W 68K-J 103P492050 1/16W 1K-F 103P504080 1/16W 82K-J 103P502050 1/16W 1K-J 103P504090 1/16W 100K-J 103P492060 1/16W 1.1K-F 103P505000 1/16W 120K-J 103P502060 1/16W 1.2K-J 103P505090 1/16W 680K-J 103P492090 1/16W 1.5K-F 103P506000 1/16W 820K-J 103P502070 1/16W 1.5K-J 103P506010 1/16W 1M-J 103P402070 1/8W 1.5K-J 103P506070 1/16W 3.3M-J 103P502080 1/16W 1.8K-J

Value part No. Value

RESISTORS

Conventional Resistors (By Ref #) Part # Part Name & Description [#]

marik08

Page 48

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

R3E11 109D151010 R-CARBON - 1/4W 2.2-J R3E12 109D151010 R-CARBON - 1/4W 2.2-J R3E14 109D151010 R-CARBON - 1/4W 2.2-J R3E15 103P713050 R-CARBON - 1/4W 6.8K-J R3E16 103P713050 R-CARBON - 1/4W 6.8K-J R4B01 103P465040 R-METAL - 1/4W 16K-F R4B02 103P465040 R-METAL - 1/4W 16K-F R4B03 103P713090 R-CARBON - 1/4W 15K-J R4B10 103C188040 R-METAL - 2W 2.2-J R4B12 103C188040 R-METAL - 2W 2.2-J R4B13 103P466000 R-METAL - 1/4W 2.4K-F R4B14 103P466000 R-METAL - 1/4W 2.4K-F R4B16 109P095010 R-METAL-LIN - 1/4W 5.1K-J R4B17 103P711090 R-CARBON - 1/4W 330-J R4B18 103P338020 R-CARBON-25 - 1/4W 1.5-J R4B23 103P411070 R-CARBON - 1/4W 220-J R4B24 103P712050 R-CARBON - 1/4W 1K-J ab R4B25 103P712050 R-CARBON - 1/4W 1K-J ab R4B26 103P713030 R-CARBON - 1/4W 4.7K-J c R4B27 103P465040 R-METAL - 1/4W 16K-F

R5A00 103P711030 R-CARBON - 1/4W 100-J

R5A01 103P713010 R-CARBON - 1/4W 3.3K-J R5A02 103P711030 R-CARBON - 1/4W 100-J R5A03 103P713010 R-CARBON - 1/4W 3.3K-J R5A04 103P462040 R-METAL - 1/4W 910-F R5A05 103P713010 R-CARBON - 1/4W 3.3K-J R5A06 103P712050 R-CARBON - 1/4W 1K-J ab R5A07 103P714080 R-CARBON - 1/4W 82K-J R5A08 103P714050 R-CARBON - 1/4W 47K-J R5A09 103P714040 R-CARBON - 1/4W 39K-J R5A10 103P714040 R-CARBON - 1/4W 39K-J R5A11 103P713070 R-CARBON - 1/4W 10K-J R5A12 103P712050 R-CARBON - 1/4W 1K-J ab R5A13 103P464020 R-METAL - 1/4W 2.4K-F R5A14 103P464030 R-METAL - 1/4W 5.6K-F R5A15 103P713030 R-CARBON - 1/4W 4.7K-J c R5A16 103P714010 R-CARBON - 1/4W 22K-J R5A17 103P712050 R-CARBON - 1/4W 1K-J ab R5A18 103P712050 R-CARBON - 1/4W 1K-J ab R5A19 103P712010 R-CARBON - 1/4W 470-J c R5A20 103P714050 R-CARBON - 1/4W 47K-J R5A21 103P713030 R-CARBON - 1/4W 4.7K-J c R5A22 103P714010 R-CARBON - 1/4W 22K-J R5A23 103P713070 R-CARBON - 1/4W 10K-J R5A24 103P714070 R-CARBON - 1/4W 68K-J R5A25 103P464030 R-METAL - 1/4W 5.6K-F R5A26 103P464030 R-METAL - 1/4W 5.6K-F R5A27 103P713070 R-CARBON - 1/4W 10K-J R5A28 103P715010 R-CARBON - 1/4W 150K-J R5A29 103P714040 R-CARBON - 1/4W 39K-J R5A30 103P714040 R-CARBON - 1/4W 39K-J R5A31 103P712080 R-CARBON - 1/4W 1.8K-J ab R5A32 103P713070 R-CARBON - 1/4W 10K-J R5A33 103P463060 R-METAL - 1/4W 3K-F R5A34 103P711000 R-CARBON - 1/4W 56-J R5A35 103P142010 R-CARBON - 1/2W 470-J R5A36 103C393020 R-METAL-P - 3W 3.9K-J c R5A36 103C393030 R-METAL-P - 3W 4.7K-J ab R5A37 103C393020 R-METAL-P - 3W 3.9K-J c R5A37 103C393030 R-METAL-P - 3W 4.7K-J ab

R5A38 103C197040 R-METAL - 3W 0.33-J R5A39 103P140090 R-CARBON - 1/2W 47-J R5A40 103P714090 R-CARBON - 1/4W 100K-J R5A41 103P715020 R-CARBON - 1/4W 180K-J R5A42 103P713070 R-CARBON - 1/4W 10K-J R5A43 103P714010 R-CARBON - 1/4W 22K-J R5A44 103P712090 R-CARBON - 1/4W 2.2K-J R5A45 103P143050 R-CARBON - 1/2W 6.8K-J R5A46 103C391050 R-METAL-P - 3W 150-J R5A47 103P714080 R-CARBON - 1/4W 82K-J R5A48 103P714050 R-CARBON - 1/4W 47K-J R5A49 103P711030 R-CARBON - 1/4W 100-J R5A50 103P714050 R-CARBON - 1/4W 47K-J R5A51 103P712050 R-CARBON - 1/4W 1K-J ab R5A52 103P713010 R-CARBON - 1/4W 3.3K-J R5A53 103P713070 R-CARBON - 1/4W 10K-J R5A54 103P714010 R-CARBON - 1/4W 22K-J R5A55 103P143050 R-CARBON - 1/2W 6.8K-J

R5A56 103P715060 R-CARBON - 1/4W 390K-J

R5A57 103P711030 R-CARBON - 1/4W 100-J

R5A58 103P464080 R-METAL - 1/4W 9.1K-F

R5A59 103P461070 R-METAL - 1/4W 470-F R5A60 103P464000 R-METAL - 1/4W 4.3K-F R5A61 103P465010 R-METAL - 1/4W 12K-F R5A62 103P711030 R-CARBON - 1/4W 100-J R5A62 103P711070 R-CARBON - 1/4W 220-J R5A63 103P466080 R-METAL - 1/4W 62K-F R5A64 103P712010 R-CARBON - 1/4W 470-J

R5A65 103P141030 R-CARBON - 1/2W 100-J

R5A66 103P466010 R-METAL - 1/4W 33K-F R5A67 103P465080 R-METAL - 1/4W 24K-F R5A68 103P463050 R-METAL - 1/4W 2.7K-F R5A69 103P462010 R-METAL - 1/4W 680-F R5A70 103P463070 R-METAL - 1/4W 3.3K-F R5A71 103P713070 R-CARBON - 1/4W 10K-J R5A72 103P463050 R-METAL - 1/4W 2.7K-F R5A73 103P713070 R-CARBON - 1/4W 10K-J R5A74 103P713070 R-CARBON - 1/4W 10K-J R5A75 103P713070 R-CARBON - 1/4W 10K-J R5A76 103P713070 R-CARBON - 1/4W 10K-J R5A77 103P711090 R-CARBON - 1/4W 330-J

R5A78 103P714010 R-CARBON - 1/4W 22K-J

R5A79 103P713030 R-CARBON - 1/4W 4.7K-J R5A80 109P175010 R-WIRE - 2W 0.12-J R5A81 103P711030 R-CARBON - 1/4W 100-J

R5A82 103P370090 R-FUSE - 1/4W 47-J

R5A83 103P464070 R-METAL - 1/4W 8.2K-F R5A84 103P464070 R-METAL - 1/4W 8.2K-F R5A85 103P710070 R-CARBON - 1/4W 33-J R5A86 103P466030 R-METAL - 1/4W 39K-F R5A87 103P142060 R-CARBON - 1/2W 1.2K-J R5A88 103P714010 R-CARBON - 1/4W 22K-J R5A89 103P466090 R-METAL - 1/4W 68K-F

R5A90 103P711060 R-CARBON - 1/4W 180-J

R5A91 103P467030 R-METAL - 1/4W 100K-F R5A92 103P465070 R-METAL - 1/4W 22K-F

R5A93 103P140090 R-CARBON - 1/2W 47-J

R5A94 103C390070 R-METAL-P - 3W 33-J

R5A95 103P714030 R-CARBON - 1/4W 33K-J

R5A96 103P466080 R-METAL - 1/4W 62K-F

marik08

Page 49

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

R5A99 103P714090 R-CARBON - 1/4W 100K-J R5B01 103P714030 R-CARBON - 1/4W 33K-J R5B02 103P714090 R-CARBON - 1/4W 100K-J R5B03 103P712060 R-CARBON - 1/4W 1.2K-J R5B04 103P711030 R-CARBON - 1/4W 100-J R5B05 103P713070 R-CARBON - 1/4W 10K-J R5B06 103P713070 R-CARBON - 1/4W 10K-J R5H01 103P712050 R-CARBON - 1/4W 1K-J R5H02 103P758000 R-FUSE - 1/4W 1-J R5H03 103P714030 R-CARBON - 1/4W 33K-J R5H04 103P463060 R-METAL - 1/4W 3K-F R5H07 103P461060 R-METAL - 1/4W 430-F R5H08 103P711030 R-CARBON - 1/4W 100-J R5H09 103P711010 R-CARBON - 1/4W 68-J R5H10 103P710090 R-CARBON - 1/4W 47-J R5H11 103P712020 R-CARBON - 1/4W 560-J R5H12 103P712020 R-CARBON - 1/4W 560-J R5H13 103P712020 R-CARBON - 1/4W 560-J R5H14 103P710090 R-CARBON - 1/4W 47-J R5H15 103P710090 R-CARBON - 1/4W 47-J R5H16 103P710020 R-CARBON - 1/4W 12-J R5H17 103P710020 R-CARBON - 1/4W 12-J R5H22 103P711030 R-CARBON - 1/4W 100-J R5H23 103P713010 R-CARBON - 1/4W 3.3K-J

R5H47 103C392010 R-METAL-P - 3W 470-J

R5H48 103P712060 R-CARBON - 1/4W 1.2K-J R5H49 103P714070 R-CARBON - 1/4W 68K-J R5H50 103P714070 R-CARBON - 1/4W 68K-J R5H51 103P712060 R-CARBON - 1/4W 1.2K-J R5H55 103P140070 R-CARBON - 1/2W 33-J R5H56 103P140070 R-CARBON - 1/2W 33-J R5H58 103P148000 R-CARBON - 1/2W 1-J R5H59 103C191050 R-METAL - 3W 150-J R5H60 103C178080 R-METAL - 1W 4.7-J R5H67 103P148000 R-CARBON - 1/2W 1-J R5K01 109D031070 R-COMP - 1/2W 10K-K R5K02 103P412050 R-CARBON - 1/4W 1K-J R5K03 103P145000 R-CARBON - 1/2W 120K-J R5K04 103P144090 R-CARBON - 1/2W 100K-J R5K05 103P145000 R-CARBON - 1/2W 120K-J R5K06 103P144090 R-CARBON - 1/2W 100K-J R5K07 103P145000 R-CARBON - 1/2W 120K-J R5K08 103P144090 R-CARBON - 1/2W 100K-J

R5K09 103P762020 R-FUSE - 1/2W 560-J

R5K10 103P711010 R-CARBON - 1/4W 68-J R5K11 103P711090 R-CARBON - 1/4W 330-J

R5K12 103P760060 R-FUSE - 1/2W 27-J

R5K20 103P463060 R-METAL - 1/4W 3K-F R5K21 103P464090 R-METAL - 1/4W 10K-F R5K22 103P145050 R-CARBON - 1/2W 330K-J R5K23 103P145050 R-CARBON - 1/2W 330K-J R5K24 103P145050 R-CARBON - 1/2W 330K-J R5K25 103P713040 R-CARBON - 1/4W 5.6K-J R5K31 103P711030 R-CARBON - 1/4W 100-J R5K32 103P466020 R-METAL - 1/4W 2.4K-F R5K33 103P465060 R-METAL - 1/4W 20K-F

R5K34 103P760060 R-FUSE - 1/2W 27-J

R5K46 103P712010 R-CARBON - 1/4W 470-J c

R5K50 103P762050 R-FUSE - 1/2W 1K-J

R5K51 103P750010 R-FUSE - 1/4W 10-J

R5K52 109D031090 R-COMP - 1/2W 470K-K R5K53 103P714030 R-CARBON - 1/4W 33K-J R5K54 103P714010 R-CARBON - 1/4W 22K-J R6B01 103P711030 R-CARBON - 1/4W 100-J R6B02 103P713090 R-CARBON - 1/4W 15K-J R6B03 103P464020 R-METAL - 1/4W 2.4K-F R6B04 103P713000 R-CARBON - 1/4W 2.7K-J R6B05 103P410060 R-CARBON - 1/4W 27-J R6B06 103P462050 R-METAL - 1/4W 1K-F R6B07 103P711030 R-CARBON - 1/4W 100-J R6B08 103P710010 R-CARBON - 1/4W 10-J R6B09 103P711030 R-CARBON - 1/4W 100-J R6B10 103P713030 R-CARBON - 1/4W 4.7K-J

R6B11 103C194020 R-METAL - 3W 27K-J

R6B13 103P331030 R-CARBON - 1/4W 100-J R6B15 103P714090 R-CARBON - 1/4W 100K-J R6B16 103P411000 R-CARBON - 1/4W 56-J R6B17 101P221030 R-COMP - 1/2W 220-K R6B18 103P713040 R-CARBON - 1/4W 5.6K-J R6B19 103P713050 R-CARBON - 1/4W 6.8K-J R6B20 101P221030 R-COMP - 1/2W 220-K R6B21 103P467030 R-METAL - 1/4W 100K-F R6B22 103P467030 R-METAL - 1/4W 100K-F R6B23 103P711030 R-CARBON - 1/4W 100-J R6B24 103P713030 R-CARBON - 1/4W 4.7K-J R6B25 103P711030 R-CARBON - 1/4W 100-J R6B26 103P413050 R-CARBON - 1/4W 6.8K-J R6B27 103P711030 R-CARBON - 1/4W 100-J R6B30 103P719050 R-CARBON - 1/4W 0OHM (MAX 3A) R6B31 103P712060 R-CARBON - 1/4W 1.2K-J R6G01 103P711030 R-CARBON - 1/4W 100-J R6G02 103P713090 R-CARBON - 1/4W 15K-J R6G03 103P464020 R-METAL - 1/4W 2.4K-F R6G04 103P463040 R-METAL - 1/4W 2.4K-F R6G05 103P410060 R-CARBON - 1/4W 27-J R6G06 103P462030 R-METAL - 1/4W 820-F R6G07 103P711030 R-CARBON - 1/4W 100-J R6G08 103P710010 R-CARBON - 1/4W 10-J R6G09 103P711030 R-CARBON - 1/4W 100-J R6G10 103P713030 R-CARBON - 1/4W 4.7K-J

R6G11 103C194020 R-METAL - 3W 27K-J

R6G13 103P331030 R-CARBON - 1/4W 100-J R6G15 103P714090 R-CARBON - 1/4W 100K-J R6G16 103P411000 R-CARBON - 1/4W 56-J R6G17 101P221030 R-COMP - 1/2W 220-K R6G20 101P221030 R-COMP - 1/2W 220-K R6G21 103P467010 R-METAL - 1/4W 82K-F R6G22 103P467010 R-METAL - 1/4W 82K-F R6G23 103P711030 R-CARBON - 1/4W 100-J R6G30 103P719050 R-CARBON - 1/4W 0OHM (MAX 3A) R6G31 103P712060 R-CARBON - 1/4W 1.2K-J R6R01 103P711030 R-CARBON - 1/4W 100-J R6R02 103P713090 R-CARBON - 1/4W 15K-J R6R03 103P464020 R-METAL - 1/4W 2.4K-F R6R04 103P713000 R-CARBON - 1/4W 2.7K-J R6R05 103P410060 R-CARBON - 1/4W 27-J R6R06 103P462050 R-METAL - 1/4W 1K-F R6R07 103P711030 R-CARBON - 1/4W 100-J R6R08 103P710010 R-CARBON - 1/4W 10-J R6R09 103P711030 R-CARBON - 1/4W 100-J

marik08

Page 50

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

R6R10 103P713030 R-CARBON - 1/4W 4.7K-J

R6R11 103C194020 R-METAL - 3W 27K-J

R6R13 103P331030 R-CARBON - 1/4W 100-J R6R15 103P714090 R-CARBON - 1/4W 100K-J R6R16 103P411000 R-CARBON - 1/4W 56-J R6R17 101P221030 R-COMP - 1/2W 220-K R6R20 101P221030 R-COMP - 1/2W 220-K R6R21 103P467030 R-METAL - 1/4W 100K-F R6R22 103P467030 R-METAL - 1/4W 100K-F R6R23 103P711030 R-CARBON - 1/4W 100-J R6R30 103P719050 R-CARBON - 1/4W 0OHM (MAX 3A) R6R31 103P712060 R-CARBON - 1/4W 1.2K-J R7K01 103P712050 R-CARBON - 1/4W 1K-J R7K02 103P713010 R-CARBON - 1/4W 3.3K-J R7L26 103P462090 R-METAL - 1/4W 1.5K-F R7L27 103P463030 R-METAL - 1/4W 2.2K-F R7L28 103P463070 R-METAL - 1/4W 3.3K-F R7L29 103P464030 R-METAL - 1/4W 5.6K-F R7L30 103P465010 R-METAL - 1/4W 12K-F R7L31 103P466010 R-METAL - 1/4W 33K-F R7L32 103P466070 R-METAL - 1/4W 56K-F R8C02 103P713010 R-CARBON - 1/4W 3.3K-J R8C03 103P711090 R-CARBON - 1/4W 330-J R8C05 103C288070 R-METAL-CP - 2W 3.9-J R8C06 103C288070 R-METAL-CP - 2W 3.9-J R8C07 103C391050 R-METAL-P - 3W 150-J R8C10 103P713010 R-CARBON - 1/4W 3.3K-J R8C11 103P711090 R-CARBON - 1/4W 330-J R8C13 103C288070 R-METAL-CP - 2W 3.9-J R8C14 103C288070 R-METAL-CP - 2W 3.9-J R8C15 103C391050 R-METAL-P - 3W 150-J R8C18 103P713010 R-CARBON - 1/4W 3.3K-J R8C19 103P711090 R-CARBON - 1/4W 330-J R8C21 103C288070 R-METAL-CP - 2W 3.9-J R8C22 103C288070 R-METAL-CP - 2W 3.9-J R8C23 103C391050 R-METAL-P - 3W 150-J R8C26 103P713010 R-CARBON - 1/4W 3.3K-J R8C27 103P711090 R-CARBON - 1/4W 330-J R8C29 103C288070 R-METAL-CP - 2W 3.9-J R8C30 103C288070 R-METAL-CP - 2W 3.9-J R8C31 103C391050 R-METAL-P - 3W 150-J R8C34 103P713010 R-CARBON - 1/4W 3.3K-J R8C35 103P711090 R-CARBON - 1/4W 330-J R8C37 103C288070 R-METAL-CP - 2W 3.9-J R8C38 103C288070 R-METAL-CP - 2W 3.9-J R8C39 103C391050 R-METAL-P - 3W 150-J R8C42 103P713010 R-CARBON - 1/4W 3.3K-J R8C43 103P711090 R-CARBON - 1/4W 330-J R8C45 103C288070 R-METAL-CP - 2W 3.9-J R8C46 103C288070 R-METAL-CP - 2W 3.9-J R8C47 103C391050 R-METAL-P - 3W 150-J R8C60 103C191090 R-METAL - 3W 330-J R8C61 103C191090 R-METAL - 3W 330-J R8C62 103P713010 R-CARBON - 1/4W 3.3K-J R8C63 103P713010 R-CARBON - 1/4W 3.3K-J R8C64 103P713010 R-CARBON - 1/4W 3.3K-J R8C65 103P713010 R-CARBON - 1/4W 3.3K-J R8C66 103P713010 R-CARBON - 1/4W 3.3K-J R8C67 103P713010 R-CARBON - 1/4W 3.3K-J

R8P03 103P712080 R-CARBON - 1/4W 1.8K-J ab R8P03 103P713030 R-CARBON - 1/4W 4.7K-J c R8P04 103P711070 R-CARBON - 1/4W 220-J R8P05 103P712010 R-CARBON - 1/4W 470-J R8P06 103P711070 R-CARBON - 1/4W 220-J R9A02 102P084000 R-CEMENT-WIRE - 15W 2.2-K

R9A03 109C010010 R-COMP - 1/2W 1M-K

R9A05 109C010010 R-COMP - 1/2W 1M-K R9A06 109C010010 R-COMP - 1/2W 1M-K R9A09 103P145030 R-CARBON - 1/2W 220K-J R9A10 103P713090 R-CARBON - 1/4W 15K-J R9A11 103P145030 R-CARBON - 1/2W 220K-J R9A12 103P713060 R-CARBON - 1/4W 8.2K-J R9A20 103C391020 R-METAL-P - 3W 82-J R9A21 103P712050 R-CARBON - 1/4W 1K-J R9A22 103P713000 R-CARBON - 1/4W 2.7K-J R9A23 103P710090 R-CARBON - 1/4W 47-J R9A24 103P142070 R-CARBON - 1/2W 1.5K-J R9A25 103P462050 R-METAL - 1/4W 1K-F R9A26 103P462050 R-METAL - 1/4W 1K-F R9A27 103P712050 R-CARBON - 1/4W 1K-J R9A28 103P713070 R-CARBON - 1/4W 10K-J R9A29 103P711030 R-CARBON - 1/4W 100-J R9A30 103P710080 R-CARBON - 1/4W 39-J R9A50 103P712090 R-CARBON - 1/4W 2.2K-J R9A51 103P714010 R-CARBON - 1/4W 22K-J R9A52 103C183070 R-METAL - 2W 10K-J R9A53 103P712030 R-CARBON - 1/4W 680-J R9A54 109P175020 R-WIRE - 2W 0.15-J R9A55 109P175010 R-WIRE - 2W 0.12-J R9A57 103P712070 R-CARBON - 1/4W 1.5K-J R9A58 103P145030 R-CARBON - 1/2W 220K-J R9A59 103P710010 R-CARBON - 1/4W 10-J R9A60 103P710090 R-CARBON - 1/4W 47-J R9A61 103P713040 R-CARBON - 1/4W 5.6K-J R9A63 103P712090 R-CARBON - 1/4W 2.2K-J R9A64 103P713030 R-CARBON - 1/4W 4.7K-J R9A65 103P465090 R-METAL - 1/4W 27K-F R9A66 103P714010 R-CARBON - 1/4W 22K-J R9A67 103P710050 R-CARBON - 1/4W 22-J R9A68 103C390020 R-METAL-P - 3W 12-J R9A70 109D151090 R-CARBON - 1/4W 33-J R9A71 103P145030 R-CARBON - 1/2W 220K-J R9A72 103P462050 R-METAL - 1/4W 1K-F R9A73 103P464020 R-METAL - 1/4W 2.4K-F R9A74 103P465080 R-METAL - 1/4W 24K-F R9A75 103P716000 R-CARBON 1/6W OR 1/4W 820K-J R9A76 103P715070 R-CARBON - 1/4W 470K-J R9A77 103P713030 R-CARBON - 1/4W 4.7K-J R9A80 103C193060 R-METAL - 3W 8.2K-J R9A81 103P142090 R-CARBON - 1/2W 2.2K-J R9A82 103P465050 R-METAL - 1/4W 18K-F R9A83 103P464010 R-METAL - 1/4W 4.7K-F R9A84 103P713070 R-CARBON - 1/4W 10K-J R9B01 103P711030 R-CARBON - 1/4W 100-J R9B02 103P713080 R-CARBON - 1/4W 12K-J R9B03 103P714050 R-CARBON - 1/4W 47K-J R9B09 109D151030 R-CARBON - 1/4W 4.7-J

R9D00 109D036020 R-COMP - 1/2W 4.7M-K

marik08

Page 51

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

CAPACITORS & TRIMMERS

CHIP Type Capacitors (Listed by Value)

Part No. Value Part No. Value

154P350040 SL50V 2P-C 141P141010 B50V 1500P-K 154P340040 50V 3P-C 141P141030 B50V 2200P-K 154P341010 CH50V 10P-C 141P141070 B50V 4700P-K 154P351020 SL50V 10P-J 141P143080 F50V 0.01M-Z 154P341030 CH50V 12P-J 141P142010 B50V 0.01M-K 154P341050 CH50V 15P-J 141P143010 B25V 0.068M-K 154P341090 CH50V 22P-J 141P143020 B16V 0.082M-K 154P342030 CH50V 33P-J 141P134090 F50V 0.1M-Z 154P342070 CH50V 47P-J 141P144020 F25V 0.1M-Z 154P342090 CH50V 56P-J 141P143030 B16V 0.1M-K 154P353000 SL50V 56P-J 141P146040 B10V 0.22M-K 154P343030 CH50V 82P-J 141P138080 B25V 0.33M-K 154P343050 CH50V 100P-J 141P146080 B10V 0.47M-K 154P343070 CH50V 120P-J 141P139090 B16V 0.47M-K 154P343090 CH50V 150P-J 181P526010 50V 1M-M 141P140010 B50V 220P-K 141P144060 F16V 1M-Z 154P344030 CH50V 220P-J 141P147020 B10V/6.3V 1M-K 154P344050 CH50V 270P-J 181P526020 50V 2.2M-M 141P140050 B50V 470P-K 181P532030 16V 10M-M 154P345030 CH25V 560P-J 181P530030 6.3V 47M-M 154P345070 CH25V 820P-J 181P520030 6.3V 47M-M 141P140090 B50V 1000P-K 181P522060 6V 47M-M 154P345090 CH25V 1000P-J 181P520040 6.3V 100M-M

Capcitors by Reference #

Ref #

Part # Part Name & Description [#]

C1A13 181P352040 C-ELEC - 16V 100M-M C1A21 181P352040 C-ELEC - 16V 100M-M C1A24 181P352040 C-ELEC - 16V 100M-M C1A26 172P262010 C-M-POLY - 50V 0.047M-J C1B13 181P355090 C-ELEC - 50V 100M-M C1B21 181P352040 C-ELEC - 16V 100M-M C1B24 181P352040 C-ELEC - 16V 100M-M C1B26 172P262010 C-M-POLY - 50V 0.047M-J C2AGC 155P239040 C-CER - CH50V 100P-J C2AGD 142P024060 C-CER - BF50V 0.1M-Z C2AJB 142P024060 C-CER - BF50V 0.1M-Z C2AJD 155P239040 C-CER - CH50V 100P-J C2AKC 181P352040 C-ELEC - 16V 100M-M C2AKD 155P239040 C-CER - CH50V 100P-J C2ANC 142P024060 C-CER - BF50V 0.1M-Z C2AND 155P239040 C-CER - CH50V 100P-J C2APC 181P352040 C-ELEC - 16V 100M-M C2APD 155P239040 C-CER - CH50V 100P-J C2ARC 142P024060 C-CER - BF50V 0.1M-Z C2ARD 155P239040 C-CER - CH50V 100P-J C2ATC 142P024060 C-CER - BF50V 0.1M-Z C2ATD 155P239040 C-CER - CH50V 100P-J C2AYC 142P024060 C-CER - BF50V 0.1M-Z C2AYD 155P239040 C-CER - CH50V 100P-J C2AZC 142P024060 C-CER - BF50V 0.1M-Z C2AZE 181P355050 C-ELEC - 50V 10M-M C2AZF 155P239040 C-CER - CH50V 100P-J C2K01 181P355050 C-ELEC - 50V 10M-M C2K03 181P355050 C-ELEC - 50V 10M-M

C2K08 181P355050 C-ELEC - 50V 10M-M C2K10 181P355050 C-ELEC - 50V 10M-M C2K15 181P355050 C-ELEC - 50V 10M-M C2K17 181P355050 C-ELEC - 50V 10M-M C2K18 181P351060 C-ELEC - 10V 330M-M C2K22 181P355050 C-ELEC - 50V 10M-M C2K27 181P355050 C-ELEC - 50V 10M-M C2K43 181P352030 C-ELEC - 16V 47M-M C2K48 181P352030 C-ELEC - 16V 47M-M C2K50 181P355050 C-ELEC - 50V 10M-M C2K63 181P355050 C-ELEC - 50V 10M-M C2K71 181P352030 C-ELEC - 16V 47M-M C2K75 181P352030 C-ELEC - 16V 47M-M C2L29 181P352030 C-ELEC - 16V 47M-M C2L52 181P352030 C-ELEC - 16V 47M-M C2M28 181P351080 C-ELEC - 10V 1000M-M C2M29 181P351080 C-ELEC - 10V 1000M-M C2M31 181P352030 C-ELEC - 16V 47M-M C2M34 181P352030 C-ELEC - 16V 47M-M C2M36 181P352030 C-ELEC - 16V 47M-M C2M38 181P352030 C-ELEC - 16V 47M-M C2M43 181P352030 C-ELEC - 16V 47M-M C2M44 181P352030 C-ELEC - 16V 47M-M C2M54 181P355050 C-ELEC - 50V 10M-M C2M64 181P352030 C-ELEC - 16V 47M-M C2M80 181P352030 C-ELEC - 16V 47M-M C2M88 181P355010 C-ELEC - 50V 1M-M C2M89 181P352030 C-ELEC - 16V 47M-M C2M98 181P355050 C-ELEC - 50V 10M-M C2MA4 181P352030 C-ELEC - 16V 47M-M C2MA6 181P352030 C-ELEC - 16V 47M-M C2MA9 181P352030 C-ELEC - 16V 47M-M C2MC4 181P352030 C-ELEC - 16V 47M-M C2MC8 181P352040 C-ELEC - 16V 100M-M C2MD6 181P352040 C-ELEC - 16V 100M-M C2MD7 181P352040 C-ELEC - 16V 100M-M C2N03 181P352070 C-ELEC - 16V 470M-M C2N27 181P350060 C-ELEC - 3V 1000M-M C2NA6 181P355050 C-ELEC - 50V 10M-M C2NC5 181P355050 C-ELEC - 50V 10M-M C2P01 181P352070 C-ELEC - 16V 470M-M C2P26 181P350060 C-ELEC - 3V 1000M-M C2P32 181P352030 C-ELEC - 16V 47M-M C2P42 181P352030 C-ELEC - 16V 47M-M C2R29 181P352030 C-ELEC - 16V 47M-M C2V14 181P352040 C-ELEC - 16V 100M-M C2V17 181P355040 C-ELEC - 50V 4.7M-M C2V19 181P352040 C-ELEC - 16V 100M-M C2V29 181P352040 C-ELEC - 16V 100M-M C2V30 181P118010 C-ELEC - 50V 0.68M-M C2V32 181P355000 C-ELEC - 50V 0.47M-M C2V48 172P166030 C-TF - 50V 0.1M-J C2V49 172P166030 C-TF - 50V 0.1M-J C2V55 181P352040 C-ELEC - 16V 100M-M C2V57 181P355060 C-ELEC - 50V 22M-M C2V61 181P352040 C-ELEC - 16V 100M-M C2W02 181P352080 C-ELEC - 16V 1000M-M C2W05 181P352030 C-ELEC - 16V 47M-M C2W09 181P352030 C-ELEC - 16V 47M-M C2W14 181P352030 C-ELEC - 16V 47M-M

marik08

Page 52

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

C3A14 181P355050 C-ELEC - 50V 10M-M C3A20 181P355050 C-ELEC - 50V 10M-M C3A21 181P355050 C-ELEC - 50V 10M-M C3A28 181P355050 C-ELEC - 50V 10M-M C3A29 181P355050 C-ELEC - 50V 10M-M C3A32 181P355050 C-ELEC - 50V 10M-M C3A33 181P355050 C-ELEC - 50V 10M-M C3A34 181P355030 C-ELEC - 50V 3.3M-M C3A46 181P355050 C-ELEC - 50V 10M-M C3A49 181P355050 C-ELEC - 50V 10M-M

C3E01 181P354050 C-ELEC - 35V 47M-M

C3E02 181P355010 C-ELEC - 50V 1M-M C3E03 172P331010 C-POLY - 50V 6800P-J C3E04 181P355010 C-ELEC - 50V 1M-M C3E05 172P331010 C-POLY - 50V 6800P-J C3E06 181P355050 C-ELEC - 50V 10M-M C3E07 181P353090 C-ELEC - 5V 2200M-M C3E08 141P197080 C-CER - F50V 0.1M-Z C3E09 172P262050 C-M-POLY - 50V 0.1M-J C3E11 172P262050 C-M-POLY - 50V 0.1M-J C3E12 172P262050 C-M-POLY - 50V 0.1M-J C3E14 172P262050 C-M-POLY - 50V 0.1M-J C3J01 181P352030 C-ELEC - 16V 47M-M C3J05 181P355050 C-ELEC - 50V 10M-M C3J06 181P122070 C-ELEC-NP - 25V 10M-M C3J09 181P355050 C-ELEC - 50V 10M-M C3J10 181P122070 C-ELEC-NP - 25V 10M-M C3J24 181P352030 C-ELEC - 16V 47M-M C3K02 181P355010 C-ELEC - 50V 1M-M C3K04 181P355010 C-ELEC - 50V 1M-M C3K09 181P355010 C-ELEC - 50V 1M-M C3K11 181P355010 C-ELEC - 50V 1M-M C3K16 181P355010 C-ELEC - 50V 1M-M C3K18 181P355010 C-ELEC - 50V 1M-M C3K23 181P355010 C-ELEC - 50V 1M-M C3K25 181P355010 C-ELEC - 50V 1M-M C3K29 181P355010 C-ELEC - 50V 1M-M C3K31 181P355010 C-ELEC - 50V 1M-M C3K62 181P355010 C-ELEC - 50V 1M-M C3K64 181P355010 C-ELEC - 50V 1M-M

C4B01 172P261030 C-M-POLY - 50V 0.01M-J

C4B02 181P358000 C-ELEC - 35V 1000M-M C4B03 172P383030 C-M-POLY - 100V 0.47M-K C4B04 181P184020 C-ELEC - 35V 100M-M C4B06 172P330090 C-POLY - 50V 4700P-J C4B08 172P263070 C-M-POLY - 50V 1.0M-J C4B09 181P355060 C-ELEC - 50V 22M-M C4B10 181P354050 C-ELEC - 35V 47M-M C4B11 181P353090 C-ELEC - 5V 2200M-M

C5A01 181P354050 C-ELEC - 35V 47M-M

C5A02 181P355050 C-ELEC - 50V 10M-M C5A03 142P020090 C-CER - B50V 1000P-K C5A04 172P263010 C-M-POLY - 50V 0.33M-J C5A05 172P262010 C-M-POLY - 50V 0.047M-J C5A10 181P191000 C-ELEC - 160V 22M-M/Q C5A12 181P354090 C-ELEC - 35V 470M-M C5A17 142P020090 C-CER - B50V 1000P-K C5A18 142P020090 C-CER - B50V 1000P-K C5A21 172P262050 C-M-POLY - 50V 0.1M-J C5A22 181P355050 C-ELEC - 50V 10M-M

C5A23 181P355050 C-ELEC - 50V 10M-M C5A31 172P571030 C-M-PLA-PP - 1500V 3300P-J ab C5A31 172P571040 C-M-PLA-PP - 1500VHP 3600P c C5A32 172P571030 C-M-PLA-PP - 1500V 3300P-J ab C5A32 172P571040 C-M-PLA-PP - 1500VHP 3600P c C5A34 154P262050 C-CER - R2KV 560P-K C5A35 142P012010 C-CER - B500V 4700P-K C5A36 172P524010 C-M-POLY - 250V 2.2M-J C5A37 172P436070 C-M-PLA-PP - 250V 0.56M-J C5A39 142P011030 C-CER - B500V 1000P-K C5A40 142P011000 C-CER - B500V 560P-K C5A41 181P352080 C-ELEC - 16V 1000M-M C5A42 181P352030 C-ELEC - 16V 47M-M C5A43 181P190050 C-ELEC - 160V 1M-M/Q C5A45 181P352070 C-ELEC - 16V 470M-M C5A50 142P024060 C-CER - BF50V 0.1M-Z

C5A51 154P260010 C-CER - R1KV 220P-K

C5A52 172P580090 C-M-PLA-PP - 1800V 2200P-J C5A55 172P088060 C-PLA-PP - 630V 6800P-J C5A56 181P352030 C-ELEC - 16V 47M-M

C5A57 172P262070 C-M-POLY - 50V 0.15M-J

C5A58 142P024060 C-CER - BF50V 0.1M-Z C5A59 142P023080 C-CER - BF50V 0.01M-Z

C5A60 172P262050 C-M-POLY - 50V 0.1M-J

C5A61 181P355040 C-ELEC - 50V 4.7M-M C5A62 142P023080 C-CER - BF50V 0.01M-Z C5A63 142P023080 C-CER - BF50V 0.01M-Z C5A64 181P352010 C-ELEC - 16V 22M-M C5A65 181P355050 C-ELEC - 50V 10M-M C5A66 142P024060 C-CER - BF50V 0.1M-Z C5A67 142P023080 C-CER - BF50V 0.01M-Z C5A68 181P123070 C-ELEC-NP - 50V 0.47M-M C5A69 142P024060 C-CER - BF50V 0.1M-Z

C5A70 172P264010 C-M-POLY - 50V 2.2M-J

C5A71 172P262060 C-M-POLY - 50V 0.12M-J C5A72 181P355010 C-ELEC - 50V 1M-M C5H01 181P354080 C-ELEC - 35V 330M-M C5H02 142P023080 C-CER - BF50V 0.01M-Z C5H03 142P023080 C-CER - BF50V 0.01M-Z C5H04 155P238090 C-CER - CH50V 270P-J C5H07 142P023080 C-CER - BF50V 0.01M-Z C5H16 172P186030 C-PLA-PP - 200V 0.01M-K C5H17 172P261030 C-M-POLY - 50V 0.01M-J C5H19 181P183010 C-ELEC - 25V 100M-M C5H20 181P352040 C-ELEC - 16V 100M-M C5H21 181P780060 C-ELEC - 160V 10M-M C5H24 181P192060 C-ELEC - 200V 22M-M/Q C5K00 172P572090 C-M-PLA-PP - 1500V 0.015M-J C5K01 172P572090 C-M-PLA-PP - 1500V 0.015M-J C5K02 181P198040 C-ELEC - 450V 4.7M-M/Q C5K03 142P020050 C-CER - B50V 470P-K C5K05 181P354050 C-ELEC - 35V 47M-M C5K12 181P352040 C-ELEC - 16V 100M-M C5K14 181P354050 C-ELEC - 35V 47M-M C5K15 181P194000 C-ELEC - 250V 10M-M/Q C5K16 172P331010 C-POLY - 50V 6800P-J C5K17 172P434010 C-M-PLA-PP - 250V 0.047M-J

C6B01 154P400010 C-CER - B1KV 220P-K

C6B02 181P195050 C-ELEC - 350V 10M-M/Q C6B03 155P231070 C-CER - CH50V 18P-J

marik08

Page 53

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

C6B04 142P023080 C-CER - BF50V 0.01M-Z C6B05 181P352030 C-ELEC - 16V 47M-M C6B06 142P023080 C-CER - BF50V 0.01M-Z C6B07 172P532050 C-M-POLY - 400V 0.1M-J C6B08 142P020030 C-CER - B50V 330P-K C6B09 142P023080 C-CER - BF50V 0.01M-Z C6B10 172P532050 C-M-POLY - 400V 0.1M-J C6B12 155P231050 C-CER - CH50V 15P-J C6B13 155P231090 C-CER - CH50V 22P-J C6B14 154P405000 C-CER - B3KV 1000P-K C6B15 154P405000 C-CER - B3KV 1000P-K

C6G01 154P400010 C-CER - B1KV 220P-K

C6G02 181P195050 C-ELEC - 350V 10M-M/Q C6G03 155P231090 C-CER - CH50V 22P-J C6G04 142P023080 C-CER - BF50V 0.01M-Z C6G05 181P352030 C-ELEC - 16V 47M-M C6G06 142P023080 C-CER - BF50V 0.01M-Z C6G07 172P532050 C-M-POLY - 400V 0.1M-J C6G09 142P023080 C-CER - BF50V 0.01M-Z C6G10 172P532050 C-M-POLY - 400V 0.1M-J C6G12 155P231050 C-CER - CH50V 15P-J C6G13 155P231090 C-CER - CH50V 22P-J C6G14 154P405000 C-CER - B3KV 1000P-K C6G15 154P405000 C-CER - B3KV 1000P-K

C6R01 154P400010 C-CER - B1KV 220P-K

C6R02 181P195050 C-ELEC - 350V 10M-M/Q C6R03 155P231070 C-CER - CH50V 18P-J C6R04 142P023080 C-CER - BF50V 0.01M-Z C6R05 181P352030 C-ELEC - 16V 47M-M C6R06 142P023080 C-CER - BF50V 0.01M-Z C6R07 172P532050 C-M-POLY - 400V 0.1M-J C6R09 142P023080 C-CER - BF50V 0.01M-Z C6R10 172P532050 C-M-POLY - 400V 0.1M-J C6R12 155P231050 C-CER - CH50V 15P-J C6R13 155P231090 C-CER - CH50V 22P-J C6R14 154P405000 C-CER - B3KV 1000P-K C6R15 154P405000 C-CER - B3KV 1000P-K

C7A00 154P345090 C-CER-CHIP - CH25V 1000P-J

C7A16 181P352030 C-ELEC - 16V 47M-M C7A99 181P352030 C-ELEC - 16V 47M-M C7ACB 181P355050 C-ELEC - 50V 10M-M C7B02 181P355010 C-ELEC - 50V 1M-M C7B88 181P355050 C-ELEC - 50V 10M-M C7B96 181P355010 C-ELEC - 50V 1M-M C7BMA 181P352030 C-ELEC - 16V 47M-M C7D00 181P352040 C-ELEC - 16V 100M-M C7D97 181P352040 C-ELEC - 16V 100M-M C7K01 181P352030 C-ELEC - 16V 47M-M C7RF2 181P355050 C-ELEC - 50V 10M-M C7S03 181P352030 C-ELEC - 16V 47M-M C8C03 181P358000 C-ELEC - 35V 1000M-M C8C04 142P024060 C-CER - BF50V 0.1M-Z C8C05 181P358000 C-ELEC - 35V 1000M-M C8C06 142P024060 C-CER - BF50V 0.1M-Z C8C09 155P233090 C-CER - CH50V 150P-J C8C11 155P233090 C-CER - CH50V 150P-J C8C14 155P233090 C-CER - CH50V 150P-J C8C18 181P358000 C-ELEC - 35V 1000M-M C8C19 142P024060 C-CER - BF50V 0.1M-Z C8C20 181P358000 C-ELEC - 35V 1000M-M

C8C21 142P024060 C-CER - BF50V 0.1M-Z C8C23 155P233090 C-CER - CH50V 150P-J C8C26 155P233090 C-CER - CH50V 150P-J C8C29 155P233090 C-CER - CH50V 150P-J C8C43 142P020080 C-CER - B50V 820P-K C8C44 142P020080 C-CER - B50V 820P-K C8C45 142P020080 C-CER - B50V 820P-K C8C46 142P020080 C-CER - B50V 820P-K C8C47 142P020080 C-CER - B50V 820P-K C8C48 142P020080 C-CER - B50V 820P-K C8D16 181P352030 C-ELEC - 16V 47M-M C8D19 181P352030 C-ELEC - 16V 47M-M C8D20 181P352030 C-ELEC - 16V 47M-M C8D21 181P352030 C-ELEC - 16V 47M-M C8D22 181P352030 C-ELEC - 16V 47M-M C8D29 181P355010 C-ELEC - 50V 1M-M C8D30 181P352030 C-ELEC - 16V 47M-M C8D31 181P352030 C-ELEC - 16V 47M-M C8D33 181P352030 C-ELEC - 16V 47M-M C8D39 181P352030 C-ELEC - 16V 47M-M C8D40 181P352030 C-ELEC - 16V 47M-M C8E01 181P352030 C-ELEC - 16V 47M-M C8E03 181P352030 C-ELEC - 16V 47M-M C8E05 181P352030 C-ELEC - 16V 47M-M C8E07 181P352030 C-ELEC - 16V 47M-M C8E09 181P352030 C-ELEC - 16V 47M-M C8E12 181P352030 C-ELEC - 16V 47M-M C8E14 181P352030 C-ELEC - 16V 47M-M C8E16 181P352030 C-ELEC - 16V 47M-M C8G00 181P352030 C-ELEC - 16V 47M-M C8G03 181P352020 C-ELEC - 16V 33M-M C8G05 181P352030 C-ELEC - 16V 47M-M C8G06 181P352030 C-ELEC - 16V 47M-M

C9A05 189P185070 C-CER - AC250V E1000P-M

C9A06 189P185070 C-CER - AC250V E1000P-M C9A07 189P153040 C-M-POLY - 250VAC 0.1M-M C9A08 189P185090 C-CER - AC250V E2200P-M C9A09 189P185090 C-CER - AC250V E2200P-M C9A10 189P185090 C-CER - AC250V E2200P-M C9A11 189P185090 C-CER - AC250V E2200P-M C9A13 189P152070 C-M-POLY - 250VAC 0.01M-M C9A14 189P152070 C-M-POLY - 250VAC 0.01M-M C9A15 181P355010 C-ELEC - 50V 1M-M

C9A16 189P185070 C-CER - AC250V E1000P-M

C9A17 189P185070 C-CER - AC250V E1000P-M C9A20 142P024060 C-CER - BF50V 0.1M-Z C9A22 181P199080 C-ELEC - 200V 47M-M/Q C9A25 172P262050 C-M-POLY - 50V 0.1M-J C9A27 154P270050 C-CER - SL1KV 22P-J C9A28 172P262050 C-M-POLY - 50V 0.1M-J C9A29 142P010090 C-CER - B500V 470P-K C9A30 142P010090 C-CER - B500V 470P-K C9A31 181P743040 C-ELEC - 16V 330M-M C9A32 181P352040 C-ELEC - 16V 100M-M C9A33 181P354060 C-ELEC - 35V 100M-M C9A34 181P354060 C-ELEC - 35V 100M-M C9A39 181P355010 C-ELEC - 50V 1M-M

C9A50 142P020050 C-CER - B50V 470P-K

C9A51 181P355090 C-ELEC - 50V 100M-M C9A52 154P260080 C-CER - R1KV 3300P-K

marik08

Page 54

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

C9A53 185D122040 C-ELEC - H200V 820M-M C9A54 154P260080 C-CER - R1KV 3300P-K C9A55 172P339070 C-POLY - 50V 560P-J C9A56 181P355080 C-ELEC - 50V 47M-M C9A57 142P010090 C-CER - B500V 470P-K C9A59 185D122040 C-ELEC - H200V 820M-M C9A60 154P400030 C-CER - B1KV 470P-K C9A61 142P010090 C-CER - B500V 470P-K C9A62 189D183010 C-ELEC - 400V 100M-KC C9A63 185D120040 C-ELEC - 160V 820M-M C9A64 181P190090 C-ELEC - 160V 10M-M/Q C9A65 181P194000 C-ELEC - 250V 10M-M/Q C9A66 142P012050 C-CER - B500V 0.01M-K C9A68 142P010090 C-CER - B500V 470P-K C9A69 181P736070 C-ELEC - 35V 330M-M C9A70 181P736070 C-ELEC - 35V 330M-M C9A71 181P736070 C-ELEC - 35V 330M-M C9A72 181P736070 C-ELEC - 35V 330M-M C9A73 181P736070 C-ELEC - 35V 330M-M C9A74 142P010090 C-CER - B500V 470P-K C9A75 181P355080 C-ELEC - 50V 47M-M C9A76 142P023080 C-CER - BF50V 0.01M-Z C9A77 142P020090 C-CER - B50V 1000P-K C9A78 142P020090 C-CER - B50V 1000P-K C9A79 181P736070 C-ELEC - 35V 330M-M C9A80 181P746040 C-ELEC - 35V 150M-M C9A82 142P024060 C-CER - BF50V 0.1M-Z C9A83 181P355050 C-ELEC - 50V 10M-M C9A84 181P352040 C-ELEC - 16V 100M-M C9A85 181P735010 C-ELEC - 25V 470M-M C9A86 181P735010 C-ELEC - 25V 470M-M C9A87 181P735010 C-ELEC - 25V 470M-M C9AAB 181P351070 C-ELEC - 10V 470M-M C9ABA 181P352040 C-ELEC - 16V 100M-M C9B01 142P023080 C-CER - BF50V 0.01M-Z C9B06 181P746050 C-ELEC - 35V 220M-M C9B07 142P020090 C-CER - B50V 1000P-K C9B08 181P743070 C-ELEC - 16V 1000M-M C9B10 181P352040 C-ELEC - 16V 100M-M C9B11 181P352080 C-ELEC - 16V 1000M-M C9C01 181P352030 C-ELEC - 16V 47M-M C9C02 181P352030 C-ELEC - 16V 47M-M C9C11 181P352030 C-ELEC - 16V 47M-M C9C12 181P352030 C-ELEC - 16V 47M-M C9C21 181P352030 C-ELEC - 16V 47M-M C9C22 181P352040 C-ELEC - 16V 100M-M C9C35 181P355050 C-ELEC - 50V 10M-M C9C38 181P355050 C-ELEC - 50V 10M-M C9C41 181P352030 C-ELEC - 16V 47M-M C9C42 181P352030 C-ELEC - 16V 47M-M C9C51 181P746040 C-ELEC - 35V 150M-M C9C54 181P743040 C-ELEC - 16V 330M-M C9C55 181P352070 C-ELEC - 16V 470M-M C9C61 181P352030 C-ELEC - 16V 47M-M C9C62 181P352040 C-ELEC - 16V 100M-M

C9D00 189P153040 C-M-POLY - 250VAC 0.1M-M

C9D01 189P153040 C-M-POLY - 250VAC 0.1M-M CF2N10 299P267010 RESONATOR-CER - CSBLA503KECZF30-B0 CF2P10 299P267010 RESONATOR-CER - CSBLA503KECZF30-B0 CF2V01 299P259010 OSC-CERAMIC - CSALA2M6964ZF01-B0

S7L21 432P109010 SW-KEY BOARD - KSHS611BT S7L22 432P109010 SW-KEY BOARD - KSHS611BT S7L23 432P109010 SW-KEY BOARD - KSHS611BT S7L24 432P109010 SW-KEY BOARD - KSHS611BT S7L25 432P109010 SW-KEY BOARD - KSHS611BT S7L26 432P109010 SW-KEY BOARD - KSHS611BT S7L27 432P109010 SW-KEY BOARD - KSHS611BT S7L28 432P109010 SW-KEY BOARD - KSHS611BT S7L29 432P109010 SW-KEY BOARD - KSHS611BT

SWITCHES

MISCELLANEOUS

096Z465030 TAPE-LENS c 096Z465080 TAPE-LENS ab 129P070020 VR-FOCUS 305P702030 2RF-SW

330P293010 YOKE-DEFL - 625UH c 330P293020 YOKE-DEFL - 760UH ab

338P054010 SVM-ASSY 411D044020 CORE-FERRITE - R19.5 L32 411D062010 CORE-FERRITE - R15 L18

449C141030 SOCKET-CRT

453B036010 CAP-ANODE - [R] 453B036020 CAP-ANODE - [GB] 480P053010 SPEAKER - 5" a 480P063010 SPEAKER - 6" bc 490P154010 LENS-BARREL - RED a 490P154020 LENS-BARREL - BLUE/GREEN a 490P174070 LENS-BARREL - RED c 490P174080 LENS-BARREL - GREEN c 490P174090 LENS-BARREL - BLUE c 490P220010 LENS-BARREL - BLUE b 490P220040 LENS-BARREL - RED/GREEN b 589C063010 CASTOR - DUAL WHEEL 597D843010 STIFFENER-MIRROR c 598D456010 BRACKET-MIRROR - TOP a 622B009020 TRAY - CRT-COOLANT 622D875010 CUSHION-TAPE - OPTICAL ac 622C086010 CLIP-MIRROR - TOP a 642C340010 BRACKET-MIRROR - TOP c 642C352010 CLIP-MIRROR - TOP b 642C394040 BOARD-SLIDE a 642C412020 BOARD-SLIDE c 642C412030 BOARD-SLIDE b 669D633010 SCREW-LIQUID - M6*1.0-17.5 703D125010 CAP - SCREW GRAY c 720C188050 COVER-FRONT a 720C250020 COVER-FRONT c 720C254010 COVER-FRONT b 750A449010 COVER-BACK - TOP a 761A209030 GRILLE - SPEAKER a 761A210010 GRILLE - SPEAKER b 761A211010 GRILLE - SPEAKER c 762B371030 COVER-BACK - BOTTOM a 762B378010 COVER-BACK b 762B378020 COVER-BACK c 767D048090 MIRROR - 65" c 767D072040 MIRROR - 48" a 767D072050 MIRROR - 55" b

marik08

Page 55

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description [#]

AG5K00 224D019040 AIR GAP - 2.0+-0.5KV AG6B01 224D019090 AIR GAP - 1.5+-0.5KV AG6B02 224D019090 AIR GAP - 1.5+-0.5KV AG6G01 224D019090 AIR GAP - 1.5+-0.5KV AG6G02 224D019090 AIR GAP - 1.5+-0.5KV AG6R01 224D019090 AIR GAP - 1.5+-0.5KV AG6R02 224D019090 AIR GAP - 1.5+-0.5KV

F5A00 283P144070 FUSE - 125V 3A F9A02 283P144090 FUSE - 125V 10A F9A03 283P144080 FUSE - 125V 5A F9A04 283P144090 FUSE - 125V 10A F9A05 283P144080 FUSE - 125V 5A F9B01 283P144070 FUSE - 125V 3A F9D00 283D131040 FUSE - S10A 125A F9D01 283P144060 FUSE - 125V 7A

J2AAA 452C385010 CONNECTOR-DVI J7CAA 452C383010 CONNECTOR-DSUB

K9A50 287P111010 RELAY-POWER - LKS1AF-5V

K9A51 287P111010 RELAY-POWER - LKS1AF-5V PC9A21 268P058020 PHOTO-COUPLER - ON3131-R/ON3161-R PC9A50 268P106020 PHOTO-COUPLER - CNZ3132 PJ2J00 440C407010 PIN-JACK-BOARD-6P PJ2J01 440C410010 PIN-JACK-BOARD-5P PJ2J02 440C410010 PIN-JACK-BOARD-5P PJ2J03 440C410010 PIN-JACK-BOARD-5P PJ2J04 440C409010 PIN-JACK-BOARD-2P PJ2J05 440C408010 PIN-JACK-BOARD-3P PJ2J06 440C421010 PIN-JACK-BOARD-2P PJ2J11 440C412010 PIN-JACK-BOARD-3P

TU1A01 295P516010 TUNER-TV - 115-V-F045AP

TU1B01 295P516020 TUNER-TV - 115-V-F025AP X2M47 285P426040 QTZ-CRYST - 20.000MHZ X2N21 285P426010 QTZ-CRYST - 3.579545MHZ X2P21 285P426010 QTZ-CRYST - 3.579545MHZ X3A01 285P413010 QTZ-CRYST - 18.432MHZ X7A13 285P434020 QTZ-CRYST - 16.000MHZ X7J10 285P335050 QTZ-CRYST - 80.000MHZ Z7K01 939P617010 UNIT-PREAMP - GP1U283Q

775B140040 NAME-PLATE - WS-55315 b 775B140050 NAME-PLATE - WS-65315 c 850A003010 INLAY-TERMINAL

ACCESSORIES

246C351030 CORD-AC - POWER 290P116010 REMOTE CONTROL - V24 I/QR WS48315 GUIDE - QUICK REFERENCE I/B WS48315 GUIDE - OWNERS

PRINTED CIRCUIT BOARDS

930B899004 ASSY-PWB-MAIN ab 930B899005 ASSY-PWB-MAIN c 930B900002 ASSY-PWB-POWER 930B901003-48 ASSY-PWB-SIGNAL a 930B901003-55 ASSY-PWB-SIGNAL b 930B901003-65 ASSY-PWB-SIGNAL c 930B902001 ASSY-PWB-TERMINAL 934C062001 ASSY-PWB-CRT 934C063003 ASSY-PWB-DOUBLER 935D738001 ASSY-PWB-PREAMP 935D739001 ASSY-PWB-FRONT 935D740001 ASSY-PWB-CONTROL

COSMETIC PARTS

702A431010 PANEL-TERMINAL 703D125020 CAP - SCREW BLACK c 705C011020 DOOR - A/V INPUT 716C040010 BADGE-BRAND 775B140030 NAME-PLATE - WS-48315 a

marik08

Page 56

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description

SCREEN ASSEMBLY PARTS

WS-48315 Screen Parts (Figure 1) (1)

(2) 491P139020 LENS-FRESNEL - 48" (3) 597C027010 BRACKET-SCREEN FRAME (4) 598D339010 BRACKET-SCREEN-SIDE (5) 622B010010 HOLDER-SCREEN - TOP (6) 622B011010 HOLDER-SCREEN - BOTTOM (7) 622B012010 HOLDER-SCREEN - SIDE (8) 622B013030 CLIP-DIAMOND SHIELD - 48" (9) 635B109010 STIFFENER-SCREEN - TOP (10) 751A005070 BEZEL-FRONT (11) 760D628090 DIAMOND SHIELD - 48"

491P138020 SCREEN-LENTICULAR - 48"

Ref # Part # Part Name & Description

Figure 1: WS-48315

Screen Assembly Parts (Rear View)

marik08

Page 57

MODELS: WS-48315 / WS-55315 / WS-65315

Model Legend: (a) WS-48315, (b) WS-55315, (c) WS-65315

Ref # Part # Part Name & Description

WS-55315 Screen Parts (Figure2) (1)

(2) 491P104030 LENS-FRESNEL - 55" (3) 622B016010 CLIP-DIAMOND SHIELD - 55" (4) 622C104010 HOLDER-SCREEN (5) 701B481010 FRAME-SCREEN-TOP (6) 701B482010 FRAME-SCREEN-SIDE (7) 702A446010 CORNER-CAP (8) 702A436010 PANEL-CONTROL (9) 760D628080 DIAMOND SHIELD - 55" (10) 598D491010 BRACKET-SCREEN SIDE (11) 594C988010 BRACKET-SCREEN FRAME

491P103030 SCREEN-LENTICULAR - 55"

WS-65315 Screen Parts (Figure 2) (1)

(2) 491P106080 LENS-FRESNEL - 65" (3) 622B016020 CLIP-DIAMOND SHIELD - 65" (4) 622C104020 HOLDER-SCREEN (5) 701B481020 FRAME-SCREEN-TOP (6) 701B482020 FRAME-SCREEN-SIDE (7) 702A446010 CORNER-CAP (8) 702A437010 PANEL-CONTROL (9) 760D627070 DIAMOND SHIELD - 65" (10) 598D491010 BRACKET-SCREEN SIDE (11) 594C988010 BRACKET-SCREEN FRAME

491P105050 SCREEN-LENTICULAR - 65"

Figure 2: WS-55315 / WS-65315

Screen Assembly Parts (Rear View)

marik08

Page 58

MODELS: WS-48315 / WS-55315 / WS-65315

POWER SUPPLY

marik08

Page 59

MODELS: WS-48315 / WS-55315 / WS-65315

VIDEO/COLOR PATH

marik08

Page 60

MODELS: WS-48315 / WS-55315 / WS-65315

SYNC PATH

marik08

Page 61

MODELS: WS-48315 / WS-55315 / WS-65315

DEFLECTION / HV CIRCUIT

marik08

Page 62

MODELS: WS-48315 / WS-55315 / WS-65315

REGULATION

marik08

Page 63

MODELS: WS-48315 / WS-55315 / WS-65315

X-RAY

PROTECT

marik08

Page 64

MODELS: WS-48315 / WS-55315 / WS-65315

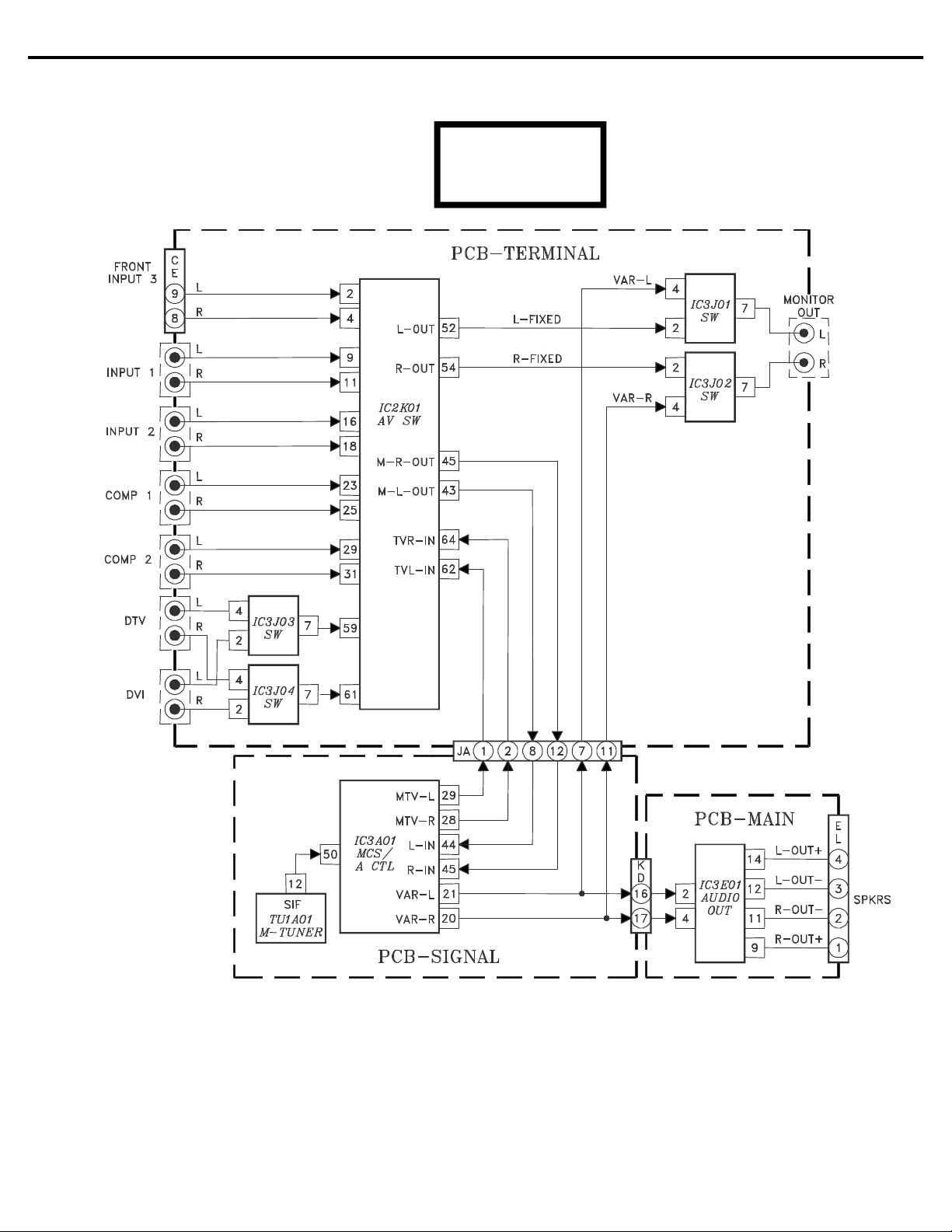

SOUND

PATH

marik08

Page 65

MODELS: WS-48315 / WS-55315 / WS-65315

CONVERGENCE CIRCUIT

marik08

Page 66

MODELS: WS-48315 / WS-55315 / WS-65315

CONTROL CIRCUIT

marik08

Page 67

MODELS: WS-48315 / WS-55315 / WS-65315

marik08

Page 68

MITSUBISHI ELECTRIC

WS-48315

2004

Service Manual

PROJECTION TELEVISION V24 CHASSIS

V24 Chassis

MODELS

WS-48315 WS-55315 WS-65315

CAUTION:

Before servicing this chassis, it is important that the service person read the "SAFETY PRECAUTIONS" and "PRODUCT SAFETY NOTICE" contained in this manual.

PART 2

SCHEMATIC DIAGRAMS

CONTENTS Page

Overall PCB Block Diagram ........................................... 1

MAIN ............................................................................. 2

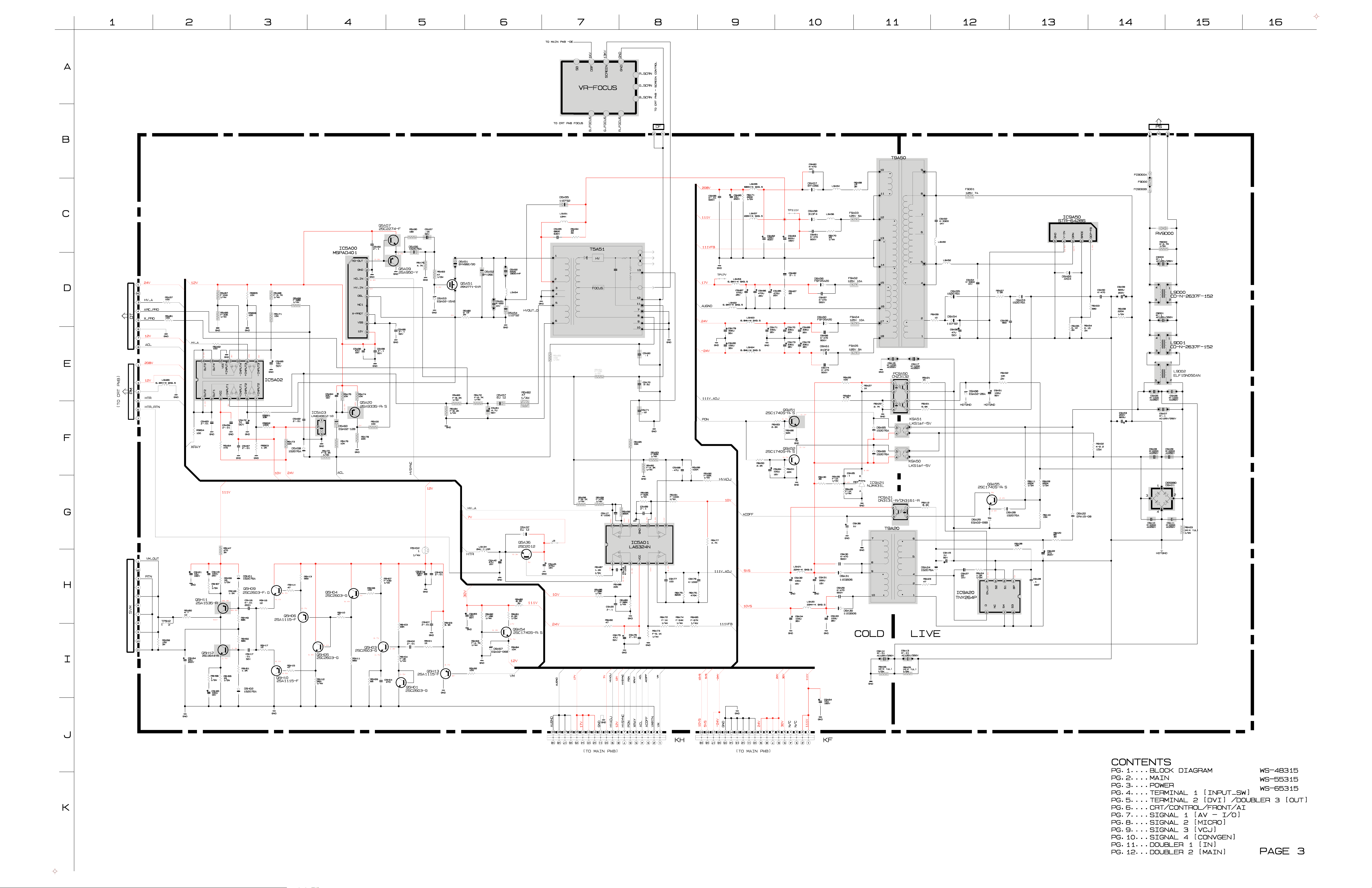

POWER ......................................................................... 3

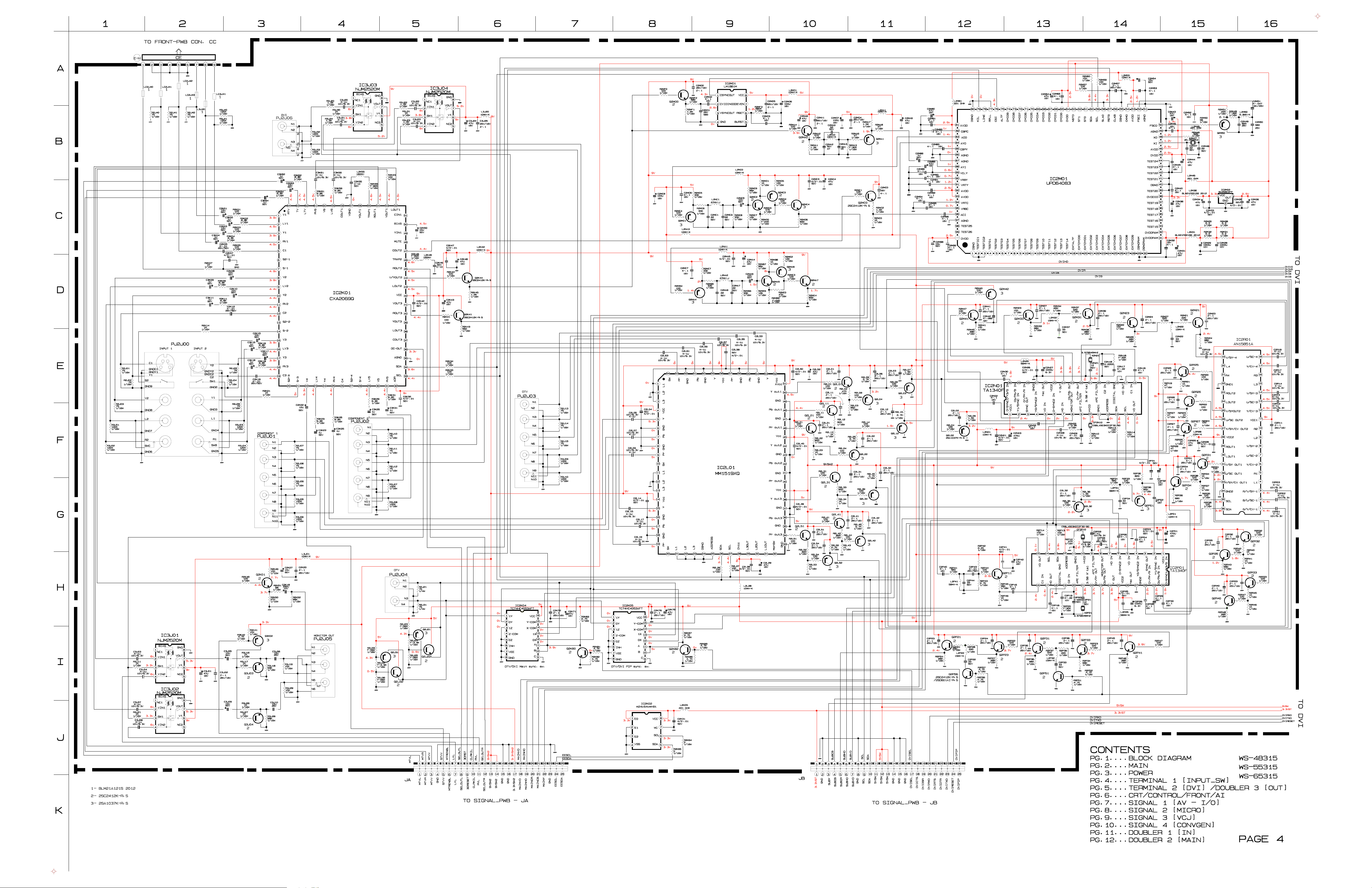

TERMINAL-1 (A/V I/O) ................................................... 4

TERMINAL-2 (DVI), DOUBLER-3 (OUT) ........................ 5

CRT / CONTROL / FRONT ............................................. 6

PCB-SIGNAL-1 (TUNER / IO)) ....................................... 7

PCB-SIGNAL-2 (MICRO) ............................................... 8

PCB-SIGNAL-3 (VIDEO / CHROMA) ............................. 9

PCB-SIGNAL-4 (CONVERGENCE GENERATOR) ...... 10

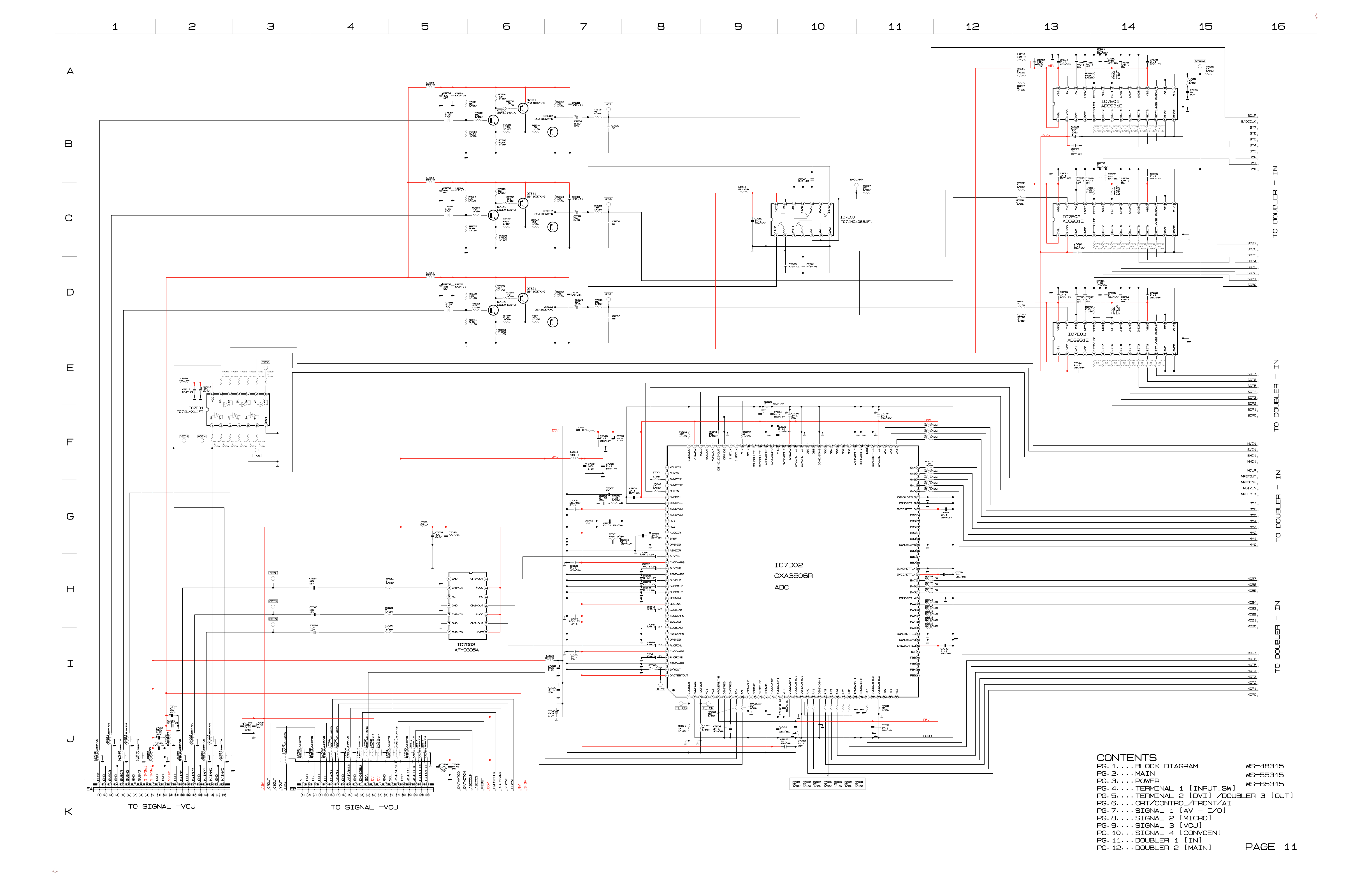

PCB-DOUBLER-1 (IN) ..................................................11

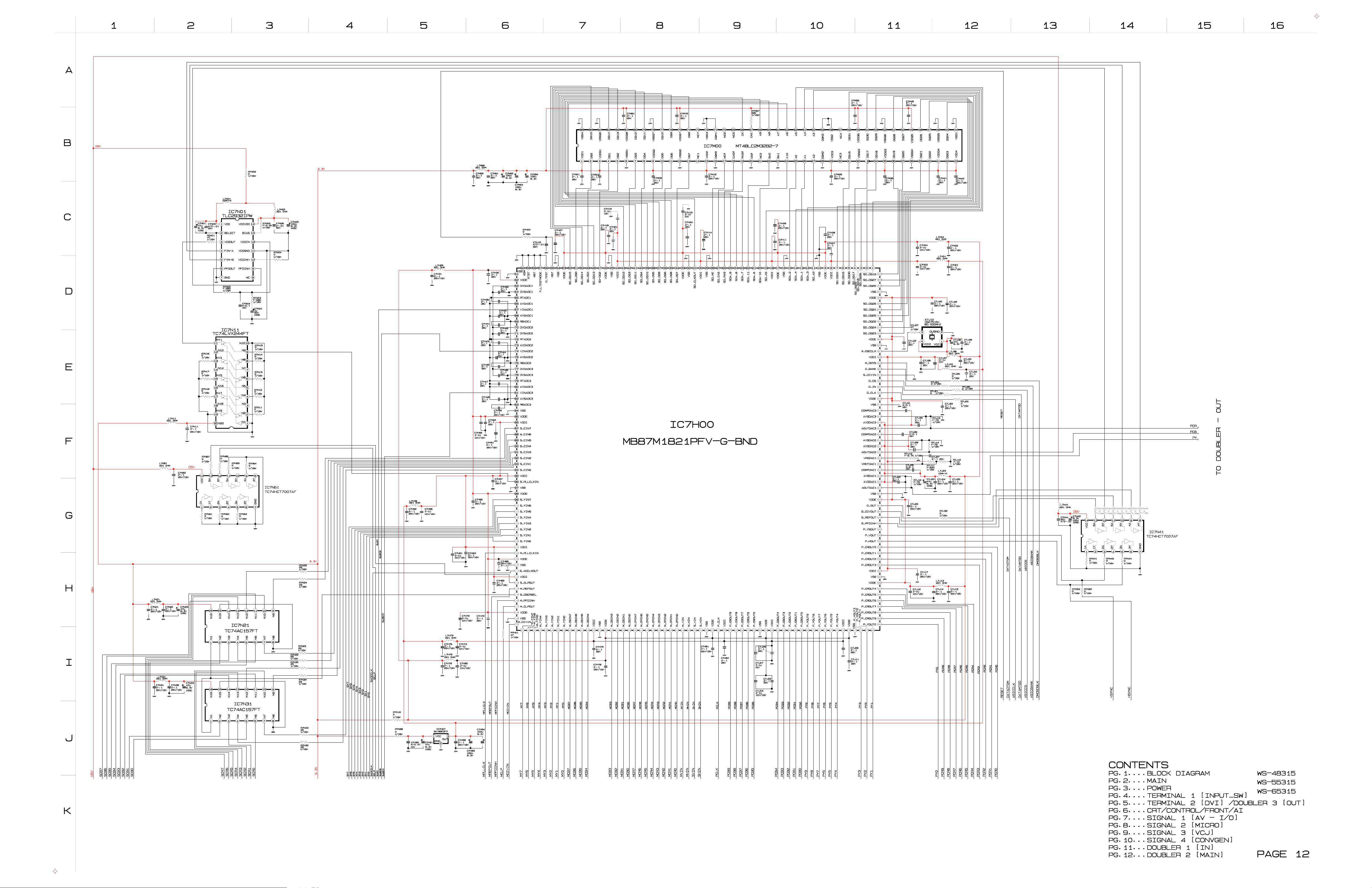

PCB-DOUBLER-2 (MAIN) ........................................... 12

Refer to PART 1 for:

• Specifications

• Safety Precautions

• Disassembly

• CRT Replacement

• Electrical Adjustments

• Parts List

• Block Diagrams

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.

9351 Jeronimo Road, Irvine, CA 92618-1904

marik08

Mitsubishi WS-48315, WS-55315, WS-65315 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

CRT REPLACEMENT

ELECTRICAL ADJUSTMENTS
