Mitsubishi WD-73640, WD-73C11, WD-73CA1 Supplemental User Guide

3D DLP ® HOME-CINEMA TELEVISION

MODELS

WD-73640 WD-73C11 WD-73CA1

SUPPLEMENTAL OWNER’S GUIDE

• For questions:

- Visit our website at www.mitsubishi-tv.com.

- E-mail us at TVsupport@mevsa.com.

- Call Consumer Relations at 800-332-2119 for operational or connection assistance.

• For information on System Reset, please see the back cover.

• To order replacement or additional remote controls or lamps, visit our website at www.mitsuparts.com or call 800-553-7278.

• MEVSA recommends that you use only genuine Replacement Lamp Assemblies purchased directly from Mitsubishi or a Mitsubishi Authorized Dealer or a Mitsubishi Authorized Service Center. See page 28 for complete instructions.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user of the

presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

MAINS DISCONNECTION: The mains plug is used as the disconnect device. The mains plug shall remain readily operable.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

This apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Cet appareil ne doit pas être exposé à des gouttes ou à des éclaboussures et aucun objet rempli d’un liquide, comme un vase, ne doit être placé sur l’appareil.

WARNING: This product contains chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm.

TV WEIGHT: This TV is heavy. Exercise extreme care when lifting or moving it. Lift or move the TV with a minimum of two adults. To prevent damage to the TV, avoid jarring or moving it while it is turned on. Always power off your TV, unplug the power cord, and disconnect all cables before moving it.

St and Requirement

CAUTION: Use these Mitsubishi TV models only with the Mitsubishi stand model shown here. Other stands can result in instability and possibly cause injury.

TV Model Stand Model

WD-73640, WD-73C11, WD-73CA1 MB-S73A

Custom cabinet installation must allow for proper air circulation around the television.

TV Software

Do not attempt to update the software of this TV with software or USB drives not provided by or authorized by Mitsubishi Electric Visual Solutions America, Inc. Nonauthorized software may damage the TV and will not be covered by the warranty.

FCC Declaration of Conformity

Product: Projection Television Receiver

Models: WD-73640

WD-73C11 WD-73CA1

Responsible Party:

Telephone: 1 (800) 332-2119

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference received,

including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Mitsubishi could cause harmful interference and would void the user’s authority to operate this equipment.

Mitsubishi Electric Visual Solutions America, Inc. 9351 Jeronimo Road Irvine, CA 92618-1904

Canadian Notice

For Model WD-73CA1

This Class B digital apparatus complies with Cana-

dian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Children and TV Viewing

The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

Note: Features and specifications described in this owner’s guide are subject to change without notice.

For assistance call 1(800) 332-2119

Contents

Important Safety Instructions ................ 4

1 Additional TV Features

Supplemental Information on TV Inputs

and Outputs

Using the TV with an Audio-Only Device ........ 6

Picture Shape and Display Formats ........... 7

Using the TV with a Personal Computer

2 TV Menus

Main Menu ............................ 10

Picture............................... 10

Sound

............................... 14

Captions ............................. 15

Setup ............................... 16

Inputs ............................... 19

Lock

................................ 21

3 HDMI Control of CEC Devices

Enabling HDMI Control of CEC Devices HDMI Control of an HDMI A/V Receiver and

Connected Devices .................... 26

Resolving CEC Conflicts .................. 27

Removing an HDMI Device

Using HDMI Control ..................... 27

........................... 5

........ 8

....... 25

................ 27

Appendices

Appendix A: Lamp Cartridge Replacement .... 28

Appendix B: Troubleshooting

.............. 30

Trademark and License Information .......... 34

Warranty

.............................. 41

Index ................................. 45

NOTE TO CATV SYSTEM INSTALLER:

THIS REMINDER IS

PROVIDED TO CALL THE CATV SYSTEM INSTALLER’S ATTENTION TO ARTICLE 820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR THE PROPER GROUNDING AND, IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL.

Lamp Replacement

For lamp-replacement instructions, see Appendix A .

To Order a Replacement Lamp Under Warranty

Visit our website www.mitsuparts.com or call (800) 553-7278. Please have television model number, serial number, and proof of purchase available.

To Order a Replacement Lamp After Warranty

Visit our website at www.mitsuparts.com or call (800) 553-7278. Please have the television model number available. Order new lamp part number

915B455011.

For assistance call 1(800) 332-2119

Important Safety Instructions

Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

EXAMPLE OF ANTENNA GROUNDING

ANTENNA LEAD IN WIRE

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

NEC — NATIONAL ELECTRICAL CODE

ANTENNA DISCHARGE UNIT (NEC ARTICLE 810.20)

GROUNDING CONDUCTORS (NEC ARTICLE 810.21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250)

Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.

Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

For assistance call 1(800) 332-2119

Additional TV Features

HDMI

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

INPUT

AUDIO

GLASSES

EMITTER

ANT

Supplemental Information on TV Inputs and Outputs

The Basic Owner’s Guide supplied with your TV contains connection diagrams showing how to use most of these jacks.

1 9

HDMI

Inputs are

HDMI HDCP

compliant.

ANT

Coaxial antenna

input

2 3

USB DVI/PC

GLASSES

EMITTER

INPUT

Audio

input

DIGITAL

AUDIO

OUTPUT

Composite video input

Y Pb Pr

Component video input

L/R

Analog

stereo audio

inputs

1. HDMI® Inputs

(High-Definition Multimedia

Interface)

The HDMI inputs support uncompressed standard and

high-definition digital video formats, bitstream Dolby Digital 5.1, and PCM digital stereo audio. These inputs are HDCP (High-Bandwidth Digital Copy Protection) compliant.

Mitsubishi recommends you use high-speed HDMI cables to connect newer source devices incorporating

HDMI technology. High-speed cables bring you the full benefits of Deep Color.

These HDMI inputs can also accept digital DVI video

signals. To connect a device’s DVI output to the TV’s HDMI input, use an HDMI-to-DVI adapter or cable plus an analog audio cable. Connect the audio cable to the

DVI/PC AUDIO INPUT

from your DVI device.

jack on the TV to receive audio

H DMI Cable Categories

HDMI cables are available as Standard and High-Speed types.

• High-Speed HDMI Cables. Blu-ray players, newer DVD players, video games, 3D content, and set-top boxes require High-Speed HDMI cables, suitable for clock frequencies up to 340 MHz or data rates of up to 10.2 gigabits per second. Use high-speed cables for 1080p HD signals carrying extended color encodings (i.e., 30 or more bits, also called Deep Color). High-Speed HDMI cables are also suitable for standard HDTV signals.

• Standard HDMI Cables. Standard HDMI cables may be unmarked. They are suitable for standard HDTV 720p, 1080i, and 1080p signals with 8-bit color depth. Use Standard HDMI cables for clock frequencies up to 74.25 MHz or data rates of up to 2.23 gigabits per second.

For assistance call 1(800) 332-2119

6 1. Additional TV Features

OUTPUT

Inputs and Outputs, continued

Use the HDMI inputs to connect to CEA-861 HDMI compliant devices such as a high-definition receiver or DVD player. These inputs support 480i, 480p, 720p, 1080i, and 1080p video formats.

The TV’s HDMI inputs are compatible with many DVI-D

and HDMI computer video signals.

2. ANT ( Antenna)

Connect your main antenna or direct cable service (without a cable box) to receive digital and analog over-the-air channels from a VHF/UHF antenna or non-scrambled digital/analog cable source.

3. 3D GL ASSES EMITTER

Use this jack for the special synchronization emitter supplied with some 3D glasses. The emitter sends out a signal that synchronizes your 3D glasses with the screen display.

ANT

. The

ANT

input can

If you have a digital A/V receiver, this is the only audio connection needed between the TV and your A/V receiver.

5. Y/

VIDEO

(Composite Video)

Analog standard-definition video inputs. Use the adja-

cent R and L inputs if you wish to send audio to the TV speakers.

6. Y/VIDEO Pb Pr (Component Video)

Analog video inputs able to accept high-definition video

from a high-definition source device. Use the adjacent R and L inputs if you wish to send audio to the TV speakers.

7. L/R (INPUT 1 audio)

Analog stereo inputs for use in conjunction with adja-

cent composite or component video jacks.

8. DVI/PC INPUT

Connect a DVI device to one of the TV’s HDMI inputs and use this jack to send analog audio to the TV.

4. DIGITAL AUDIO OUTPUT

This output sends Dolby Digital or PCM digital audio

to your digital A/V surround sound receiver. Incoming analog audio is converted by the TV to PCM digital audio.

Using the TV with an A udio- Only Device

To use the TV speakers to listen to an audio device such as an MP3 or CD player with analog output, follow these steps.

Insert an unused RCA-style connector into the

composite video jack. The presence of this con-

nector activates the TV’s auto-detection.

When the TV detects the video connector, it will display the New Device Found screen. Name the new input CD/Audio or MP3 Player.

Connect left (white) and right (red) audio cables from

AUDIO OUT

Keep the connector in the Y jack while using the audio-only device.

on the device to

L and R

on the TV.

9. USB

For software updates only. To check for updates, visit www.mitsubishi-tv.com and follow the support link.

DIGITAL

IGITAL

AUDIO

OUTPU

OUTPUT

ANT

GLASSES

LASSE

EMITTER

TV jack panel

Audio

cables

MITTER

DIGITAL

IGITAL

UDIO

AUDIO

OUTPUT

Unused RCA-style plug (plug in ﬁrst)

Audio-only

device

For assistance call 1(800) 332-2119

1. Additional TV Features 7

Picture Shape and Display Formats

Fo rmat Definitions

Use the

Standard: The full-screen format used by HDTV signals. Use this format to display anamorphic DVDs with a 1.78:1 or 1.85:1 aspect ratio. Anamorphic DVDs with a 2.35:1 aspect ratio are displayed correctly but with top and bottom black bars. Squarish (4:3) images are stretched evenly from side to side. Available for all signals.

Expand: Enlarges the picture to fill the screen by cropping the top and bottom; useful for reducing the letter box top and bottom bars of non-anamorphic DVD images.

FORMAT

key to apply the formats described here.

Effect of Mitsubishi Formats on Picture Types

Original Signal

TV Display Format

Standard

Expand

Zoom

Stretch

Stretch Plus

Narrow

Note 1: Available for 480i and 480p signals only.

Original Signal Display Formats

SD 16:9 or HD Digital 720p, 1080i, 1080p Signal

TV Display Formats. Press the different displays for the current program. Press the see the name of the format in use.

Non-anamorphic or SD 4:3

Distorted; Not recommended.

Recommended for letterbox. See Note 1.

Distorted; Not recommended. See Note 1.

Recommended for standard broadcasts. See Note 1.

See Note 1 Distorted; not recom-

Wide Expand

Zoom

FORMAT

Anamorphic DVD

Recommended

Distorted; not recommended. See Note 1.

Recommended for anamorphic 2.35:1 images. See Note 1.

Distorted; not recommended. See Note 1.

mended. See Note 1.

Recommended to remove side bars.

Recommended to remove bars from the top, bottom, and sides.

key repeatedly to see

INFO

Zoom: Enlarges the picture to fill the screen by crop-

ping the sides, top, and bottom to eliminate black bars.

• 480i/480p and SD 4:3 signals: Eliminates top and bottom bars on anamorphic DVDs with a 2.35:1 aspect ratio.

• 720p, 1080i, SD 16:9, and HD signals: Eliminates bars added to squarish 4:3 images.

Stretch: Stretches a squarish 4:3 image across the screen to display the entire image with less distortion than the Standard format.

Stretch Plus: Similar to Stretch, but minimizes distortion on the sides by expanding the picture to crop off portions of the top and bottom. Use

to adjust the

vertical position of the picture.

Narrow: Displays narrow 4:3 images in their original shape. Adds black side bars to fill the screen.

Wide Expand: Enlarges the picture, cropping the image on both sides. Removes or reduces black side bars added to narrow images converted to 16:9 signals for digital broadcast.

Note: All high-definition channels send widescreen (16:9) signals, but not all programming was created for the widescreen format. The broadcaster may stretch the image or add side bars to fill the widescreen area.

DVD Image Definitions

Image information may be stated on the DVD case. Some DVDs support both formats described below.

Anamorphic (or Enhanced for WideScreen TV)

Indicates DVDs recorded to show widescreen images properly on 16:9 TV sets using the TV’s

Standard format mode (recommended).

Non-Anamorphic (or 4:3, 1.33:1, Letter Box, or Full Screen)

Indicates DVDs recorded for viewing on squarish TV screens. They may be full screen (4:3 or

1.33:1) which crops movies to fit the narrow TV, or letter box, which adds black top and bottom bars.

key to

For assistance call 1(800) 332-2119

8 1. Additional TV Features

Using the TV with a Pe rsonal Computer

Connecting a Computer to the TV

Use one of the connection methods listed below based on your computer’s output.

Computer

Graphics

Output

Digital DVI

HDMI HDMI-to-HDMI cable No additional

This TV accepts digital computer graphics signals only. This TV is not compatible with VGA (analog) computer signals.

Connect the computer’s digital video output to one of the TV’s HDMI jacks. See the connection diagrams on this page for the method suited to your equipment.

Connect the computer’s audio output using one of these options:

• For digital DVI video signals, connect the

• For HDMI signals, no additional audio connec-

Note: If you are unable to hear audio from the

Power on the TV and computer. The TV will detect the connection and display the New Device Found screen.

In the New Device Found screen, press to highlight PC in the list of device types. It is important to use the name PC so that the TV processes the PC signal correctly.

Highlight EXIT and press Device Found screen.

Note:

Computer Graphics

Connection

DVI-to-HDMI cable or an HDMI cable with a

Audio

Connection

Audio cable with mini-plugs

DVI-to-HDMI adapter

audio connection is required.

IMPORTANT

VGA

PC MONITOR OUT

analog audio output to the TV’s

INPUT

jack.

DVI/PC AUDIO

tion is required.

computer, there may be an incompatibility in the computer’s hardware, software, or internal settings. Consult a trained computer technician for advice.

ENTER

to close the New

If your computer provides digital audio output you can connect it directly to a digital A/V receiver and bypass the TV.

DMI Connection

Mitsubishi recommends using high-speed HDMI cables to connect newer devices incorporating HDMI technology.

DIGITAL

IGITAL

AUDIO

OUTPU

OUTPUT

ANT

LASSE

GLASSES EMITTER

MITTE

TV jack panel

Computer with HDMI output

An HDMI-to-HDMI connection carries all video and

audio on a single cable.

DVI Video Connection

DIGITAL

IGITAL

AUDIO

OUTPUT

OUTPU

ANT

LASSE

GLASSES EMITTER

MITTER

TV jack panel

DVI OUT

AUDIO

OUT

DVI-to-HDMI cable

Analog audio cable

with mini-plugs

Computer with DVI and analog audio outputs

A DVI connection from a personal computer requires a separate audio connection.

For assistance call 1(800) 332-2119

1. Additional TV Features 9

Co mputer Video Adjustments

Power on the computer.

Select PC from the Input Selection menu. To do this, press move the highlight to the PC icon, and press

Working from the computer, change the resolution of the computer image. View the computer image on the TV and maximize the computer resolution while maintaining a suitable aspect ratio for the image.

Perform TV video adjustments. Press

VIDEO

adjustment options.

Press picture shape best suited to the image. See the chart on this page showing how different computer resolutions can be displayed on the TV.

INPUT

to open the Input Selection menu,

repeatedly to access video-

FORMAT

repeatedly to find the

Tip

Set the computer’s screen saver to display a pattern after several minutes of inactivity. This acts as a reminder that the TV is powered on.

ENTER.

C omputer Display Formats

Press

FORMAT

your computer’s video signal.

Computer Signal

Original Format

VGA 640 X 480

SVGA 800 X 600

repeatedly to cycle through the TV displays available for

4 X 3

Standard

As Displayed on TV Screen

16 X 9

Standard

Zoom

Distortion in Computer Images

Computer images may show distortion when viewed on the TV, e.g., lines that should be straight may appear slightly curved.

Image Resolution

Your Mitsubishi TV can display the resolutions shown in the chart from standard VGA (640 x 480) through 1920 x 1080 signals at a refresh rate of 60 Hz.

In most cases, the computer will select the best resolution match to display on the TV. You can override this setting if you wish. Refer to your computer operating system’s instructions for information on changing the screen resolution.

You may need to restart the computer for changes to take effect.

Original Format Standard Zoom

XGA 1024 X 768

PC 720p 1280 X 720

WXGA 1360 X 768

SXGA 1280 X 1024

Original Format Standard Reduce

PC 1080p 1920 X 1080

For assistance call 1(800) 332-2119

Ma in Menu

TV Menus

Press open the main menu.

on the remote control to


Sound

Pi cture

Picture Vide o

Closed captions on/

Captions

Setup

Inputs

Picture settings 10

Sound settings 14

Assign a name to the TV input before making video adjustments (use the New Device Found or Inputs > Name menu). Adjustments will be reset to the defaults if you rename the input after making adjustments.

Settings in this menu are saved for the current input only. Press to make changes and then press

to return to the menu screen.

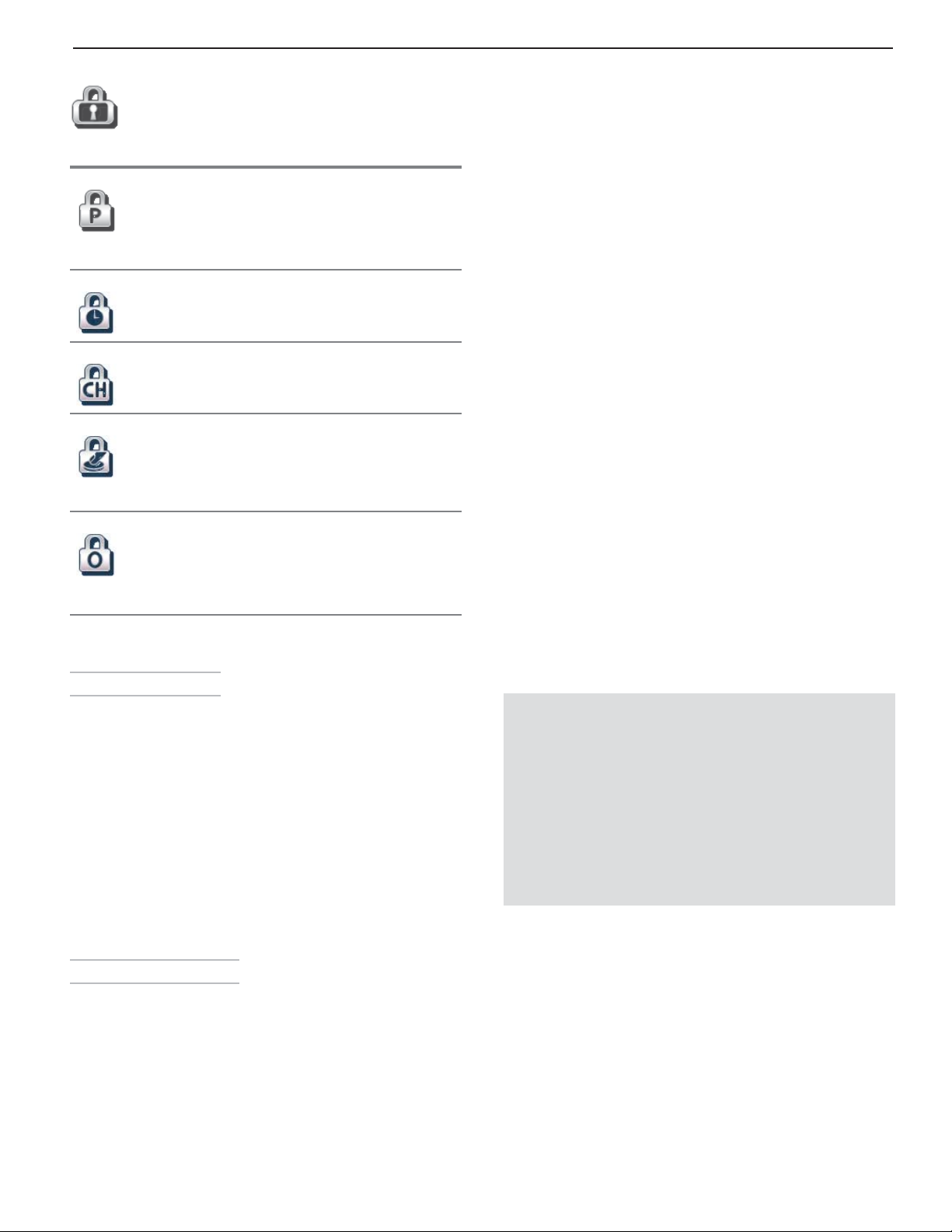

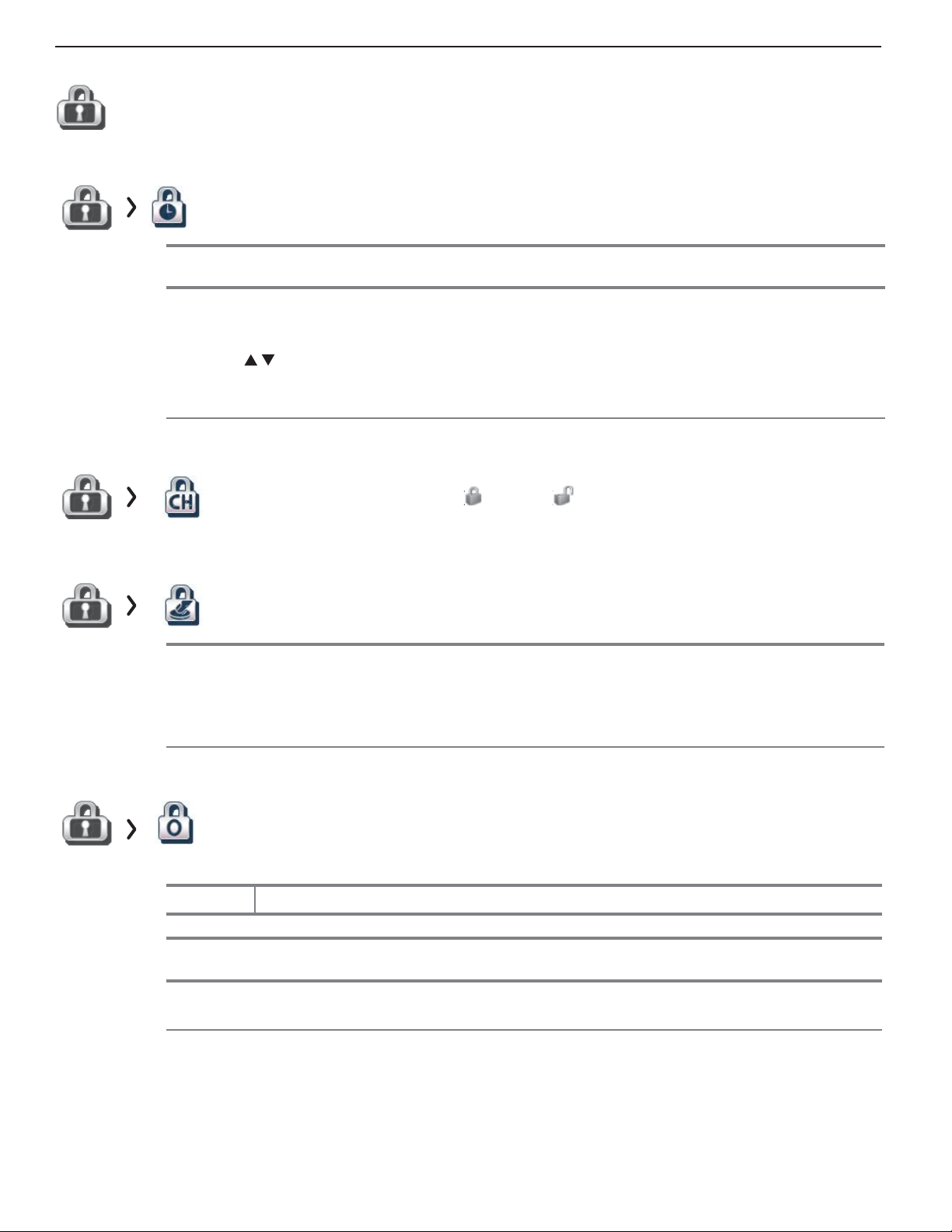

Lock

and off; caption displays

Basic TV setup 16

Name assignments for TV inputs, HDMI Control setup

Setting a pass code and restrictions on TV use. Disabling the control-panel buttons.

To make Video adjustments while watching TV and without using the menu:

1. Press the

2. Press to select a video option.

3. Press to change the setting.

P icture

Mode

VIDEO

key.

Brilliant

Game

Bright For most daytime viewing

Natural For most nighttime viewing

ADV1,

ADV2

For use under bright light; unavailable when the current input is named

Optimizes picture and video processing for gaming consoles. Available only when the name of the input is

Advanced Picture Modes. Contact your professional installer for setup. See page 12 for an overview.

Game or PC.

Game

or PC.

Set the Picture Mode first before changing other video settings, as some settings are stored independently for each Picture Mode. Use Picture Modes to get the best image under different viewing conditions.

For assistance call 1(800) 332-2119

2. TV Menus 11

Picture, continued

Contrast • Low contrast shows a variety of shades in darker images

• In most home lighting situations, medium contrast looks best.

• High contrast shows darker images more uniformly black and makes colors appear more vibrant. High contrast is good for brightly lit environments.

Brightness Adjusts overall picture brightness. Settings are stored independently for each Picture Mode.

Color Adjusts overall color intensity from monochromatic to fully saturated.

Tint Adjusts the red-to-green ratio.

Sharpness Adjusts picture detail and clarity.

Color

Temper a t ur e

Video Noise

High

Low Gives white images a warm cast. Natural/Color

High,

Medium,

Low, Off

Gives white images a cool cast. May provide the most realistic picture under bright lighting.

Temp at the low setting displays video at approximately the 6500K industry standard for NTSC pictures.

• High. For poor-quality signals.

• Medium.

• Low. For good-quality signals.

• Off. Leaves the picture unaltered.

For moderate noise reduction.

Adjusts the white-to-black level Settings are stored independently for each Picture Mode.

Adjusts the white balance. Settings are stored independently for each Picture Mode.

Reduces minor noise (graininess) in the picture.

Picture Pi cture+ (Picture Plus)

Screensaver

Film Mode Auto, Off 480i and 1080i signals only.

Test Pictu r e

On, Off Select On to display a screensaver pattern while playing an audio-only input. To

use this feature, the input must either

• Be named as an audio source (e.g., CD, MP3 Player)

• Be the antenna input tuned to an audio-only signal.

film-decoding correction to movies filmed at 24 frames per second. Try the setting if images show many jagged edges. Setting saved by input.

Press

ENTER

to display a test picture. Use as a reference picture for high-definition

images only.

Picture Reset

• Resets sound and picture adjustments for the current input. Highlight the Reset icon and press

• Reset has no effect on universal settings (Balance, Listen To, Language) or on

Advanced Picture Mode settings.

ENTER

twice to perform reset

Auto

, the TV automatically detects and applies

Off

For assistance call 1(800) 332-2119

12 2. TV Menus

Picture, continued

Picture Adv anced

Picture > Advanced allows you to save highly customized picture adjustments for each input. Mitsubishi recommends these adjustments be made only by a trained pro-

fessional installer.

1. Press

2. With Picture Mode (the first option) highlighted,

3. Use

4. Press

5. Use

6. Press

Saving Custom 3D Settings

This menu can be used to create a custom Picture Mode for viewing 3D content. Mitsubishi recommends using ADV1 to save 3D settings and ADV2 to save 2D settings.

To create a custom 3D picture mode:

• The TV must be receiving a 3D signal

• One of the TV’s 3D Source Formats must be

• You must be wearing matching 3D glasses.

. Under Picture, highlight the

Advanced icon and press

press

ENTER

to change

ADV1

(daytime settings) or

highlight an option you wish to change and

press

ENTER

to see the adjustment display.

to change settings.

navigate to additional options and press

to change settings

to return to the Picture > Advanced menu and save the adjustments for the current input. Press

selected

EXIT

to close the menu

ENTER

from blank (undefined)

ADV2 (nighttime settings).

To Use a Custom Picture Mode at a Later Time

VIDEO

• Press option.

• Press

Mode and select ADV1 or ADV2.

To Return to the Default Values for Advanced

Display the Picture > Advanced menu and:

1. Highlight the name of the Advanced mode to change.

2. Highlight RESET Pic Mode and press

must perform the reset separately for both ADV1 and ADV2.

and use to find the Picture Mode

Press

to select ADV1 or ADV2.

and go to Picture > Video > Picture

ENTER

. You

For assistance call 1(800) 332-2119

2. TV Menus 13

Picture, continued

3 D


Mode

Source Format

Glasses

Emitter

External

Depth

DLP Link

Off • Overrides the 3D processing of any HDMI 1.4a-compliant 3D signal and dis-

plays the signal in 2D instead.

• Allows access to some of the 2D picture adjustments that are hidden when the TV’s 3D mode is set to Automatic.

Automatic • When the TV receives a 3D signal from an HDMI 1.4a-compliant device, forces

the TV automatically into 3D mode and selects the correct 3D format.

• When the TV receives a normal 2D signal, makes the TV automatically exit 3D mode.

• Not effective with checkerboard 3D signals. Manually select Checkerboard when needed.

Side-by-Side

Top/bo t tom

Checkerboard

2D+ Depth When active, generates a simulated 3D image from an ordinary 2D signal.

Standard,

Reverse

Standard,

Reverse, Off

• 3D format choices for use with 3D signals that are not HDMI 1.4a compliant.

• When the TV receives a 3D signal that is not HDMI 1.4a compliant, you must manually select a 3D format here based on the type of 3D signal being received.

• Return the TV to Automatic or Off at the end of the non-compliant 3D program.

• If an HDMI 1.4a compliant signal is received, the TV will automatically override any manual 3D selection.

For use with an external emitter connected to the

3D GLASSES EMITTER

TV’s

• Available only when Source Format is set to 2D+ Depth.

• Highlight the icon and press

• Allows adjustment of the 3D effect from a flatter image to one with more depth.

• For use with DLP Link.

• Select the Off setting if you are not using DLP Link glasses.

jack.

ENTER

to display the adjustment screen.

Use the Standard or Reverse setting to synchronizes left/right images to work with your 3D glasses.

Notice Concerning Format Compatibility

The Mitsubishi TVs will support the mandatory HDMI

1.4a 3D signals intended for the United States. Specifically, the TVs will support the 3D signals known as Frame Packing 1080p/24Hz and 720p/60Hz (primarily from Blu-ray players and gaming consoles), Sideby-Side in 1080i/60Hz, 1080p/24Hz/30Hz/60Hz and 720p/60Hz, Top/Bottom in 1080p/24Hz and 720p/60Hz,

and Checkerboard 1080p/60Hz. However, there may be some 3D sources that are not compatible with the TVs. In all cases: (1) 3D sources must connect to the TVs using the HDMI inputs, and (2) Active Shutter 3D glasses with matching synchronization emitter or DLP Link Active Shutter 3D glasses are required in order to view 3D content.

For assistance call 1(800) 332-2119

14 2. TV Menus

S ound

Sound Au dio

Settings in this menu are saved for the current input only with the exception of Balance, which applies to all inputs. Press to make changes and then press menu screen.

To make Audio adjustments while watching TV and without using the menu:

1. Press the

2. Press to select an audio option.

3. Press to change the setting.

TV Speakers On Turns on the internal TV speakers.

AUDIO

key.

Off

Turns off the internal TV speakers so you hear sound only from a connected A/V receiver. Note: When you disconnect an A/V receiver, be sure to change the Sound setting to TV to hear sound from the TV speakers.

Bass Controls volume of low-pitched sound from the TV speakers.

Treble Controls volume of high-pitched sound from the TV speakers.

to return to the

Balance Controls audio balance between the right and left TV speakers

Sou nd Mode Stereo No special audio effects from the TV speakers

Surround Modifies audio from the TV speakers.

• For monaural (non-stereo) programs, creates a simulated stereo effect.

• For stereo programs, creates a simulated surround sound effect.

Level Sound On, Off Reduces differences in sound volume between programming segments, such as the

difference between regular broadcast programs and commercial segments.

Li sten To

(applies only

to analog channels from the

ANT

input)

(Second Audio

Mono Reduces background noise. Use when receiving a weak stereo audio signal. All

audio is played as mono.

Stereo The TV plays stereo broadcasts in stereo and mono broadcasts in mono. The word

Stereo is displayed when you tune to a channel broadcasting in stereo.

SAP

Selects an additional monaural sound track not audible during normal TV viewing. The SAP signal might be related to the program (such as a sound track in a foreign

Program)

language), or it might be unrelated (such as a weather report). If an SAP signal is broadcast, the letters SAP are displayed when you tune to the channel.

For assistance call 1(800) 332-2119

+ 32 hidden pages
