DIGITAL LIGHT PROCESSING™ PROJECTION TV

V26 CHASSIS

MODELS

V26 V26+ V26++ WD-52525 WD-52725 WD-52825 WD-62525 WD-62725 WD-62825

WD-52525

CAUTION:

Before servicing this chassis, it is important that the service person read the "SAFETY PRECAUTIONS" and "PRODUCT SAFETY NOTICE" contained in this manual.

SPECIFICATIONS

• Power Input : AC 120V, 60Hz

• Power Usage : 275W

• Light Engine : DLP 0.85" 1280 x 720p

• Lamp : 120W VIP Type

• Channel Frequencies : Air - VHF 2 ~ 13 UHF 14 ~ 69

Analog Cable - 1 ~ 125 Digital Cable - 1 ~ 135

• Antenna Input : 2 RF 75Ω unbalanced

• Tuning : 1 NTSC/ATSC/QAM64&256 1 CableCARD™ Slot 1 NTSC for PIP

• Cabinet Dimensions : [WD-52xxx] 37.2" x 49.6" x 17.4" [WD-62xxx] 43.7" x 58.3" x 19.9"

• Weight : [WD-52xxx] 132.4 lbs [WD-62xxx] 165.5 lbs

• Speakers (10Wx2) : 5" Coaxial x 2

• Input Level : VIDEO IN JACK (RCA Type)

1.0Vp-p 75Ω unbalanced AUDIO IN JACK (RCA Type) 500mV RMS full scale into 43kΩ, unbalanced

• Design specifications are subject to change without notice.

: S-VIDEO IN JACK

(Y/C separate type) Y:1.0 Vp-p C:0.286Vp-p(BURST) 75Ω unbalanced, 480i

: COMP / Y, Pr, Pb (RCA Type )

Y: 1.0 Vp-p Pr, Pb: 700mVp-p, 480i, 480p, 720p, 1080i

: DTV / Y(G), Pr(R), Pb(B), H, V (RCA

Type) Y: 1.0 Vp-p Pr, Pb: 700mVp-p, 75Ω, H, V: 3.0Vp-p, 480i, 480p, 720p, 1080i

: VGA / R,G,B,V,H (15 pin D) 640x480,

800x600, 1024x768, 720x1280, 60Hz

• Output Level : VIDEO OUT JACK (RCA Type)

1.0Vp-p 75Ω unbalanced

: AUDIO OUT JACK (RCA Type)

500mV RMS

full scale into 4.7kΩ, unbalanced

• Digital : IEEE-1394 I/O Jacks

Interface : AC-3 Digital Audio Output (RCA

Type)

: HDMI

: MonitorLink

: 4 Memory Card Reader Inputs

(+/-200mV)

1.5V RMS

Control/RS-232C

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.

9351 Jeronimo Road, Irvine, CA 92618-1904

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

CONTENTS

INTRODUCTION ................................................................................................................................5

PRODUCT SAFETY NOTICE ...........................................................................................................5

SAFETY PRECAUTIONS .................................................................................................................6

DISASSEMBLY PROCEDURES ......................................................................................................... 7

Cabinet Front Disassembly ............................................................................................................. 7

Cabinet Rear Disassembly .............................................................................................................. 9

ELECTRICAL CHASSIS REPLACEMENT ........................................................................................ 10

OPTICAL ENGINE REPLACEMENT ................................................................................................. 13

DATA COPY PROCEDURE ............................................................................................................... 16

DIAMONDSHIELD™ REPLACEMENT .............................................................................................. 17

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS ..................................................... 18

INITIAL SETUP ................................................................................................................................ 20

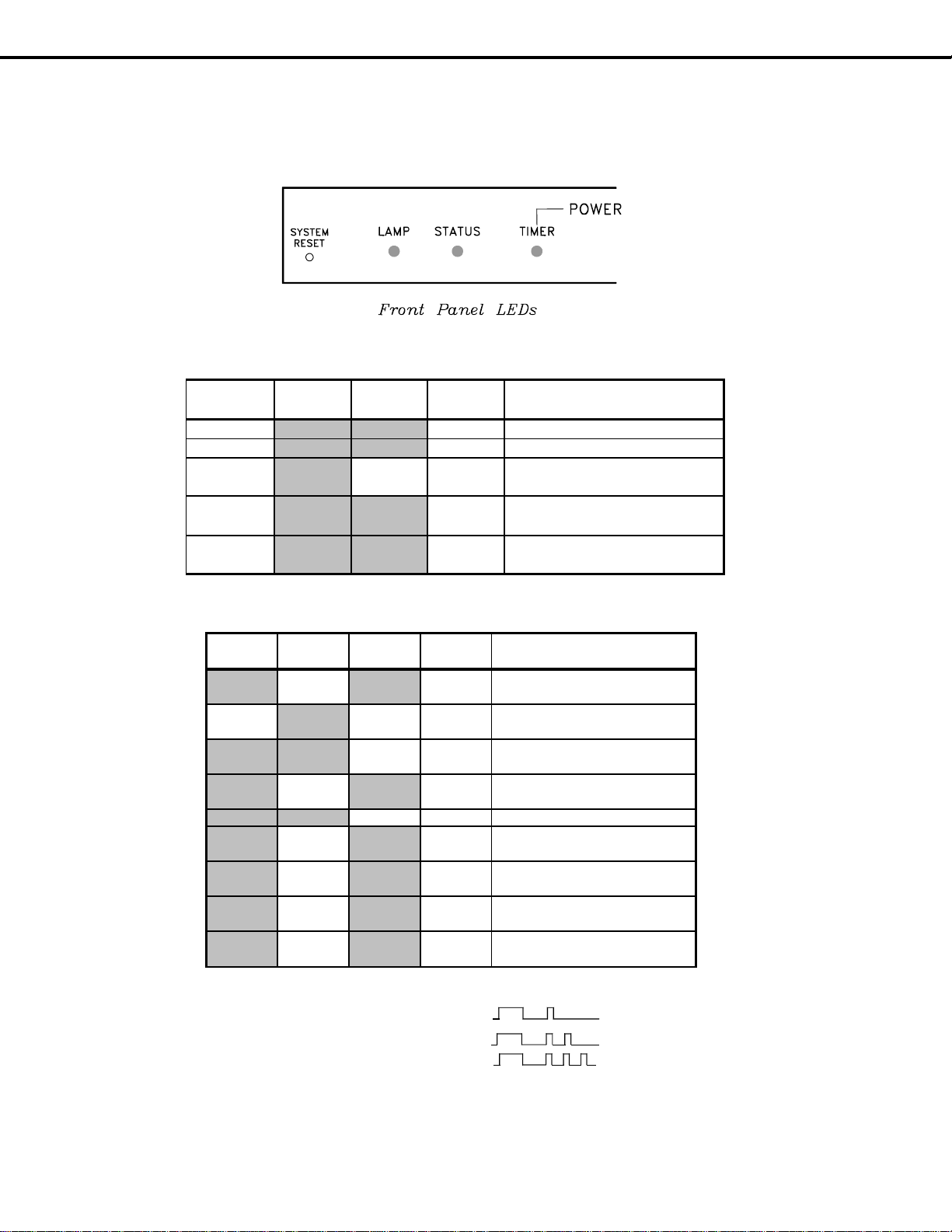

FRONT PANEL LED DIAGNOSTICS ................................................................................................ 22

SERVICE ADJUSTMENTS ............................................................................................................... 24

Equipment .................................................................................................................................... 24

Circuit Adjustment Mode ............................................................................................................... 24

Adjustment Items and Initial Data Settings ................................................................................... 26

Electrical Adjustments .................................................................................................................. 27

Mechanical Adjustments ............................................................................................................... 27

REPLACEMENT PARTS .................................................................................................................. 30

SCREEN ASSEMBLY PARTS .......................................................................................................... 33

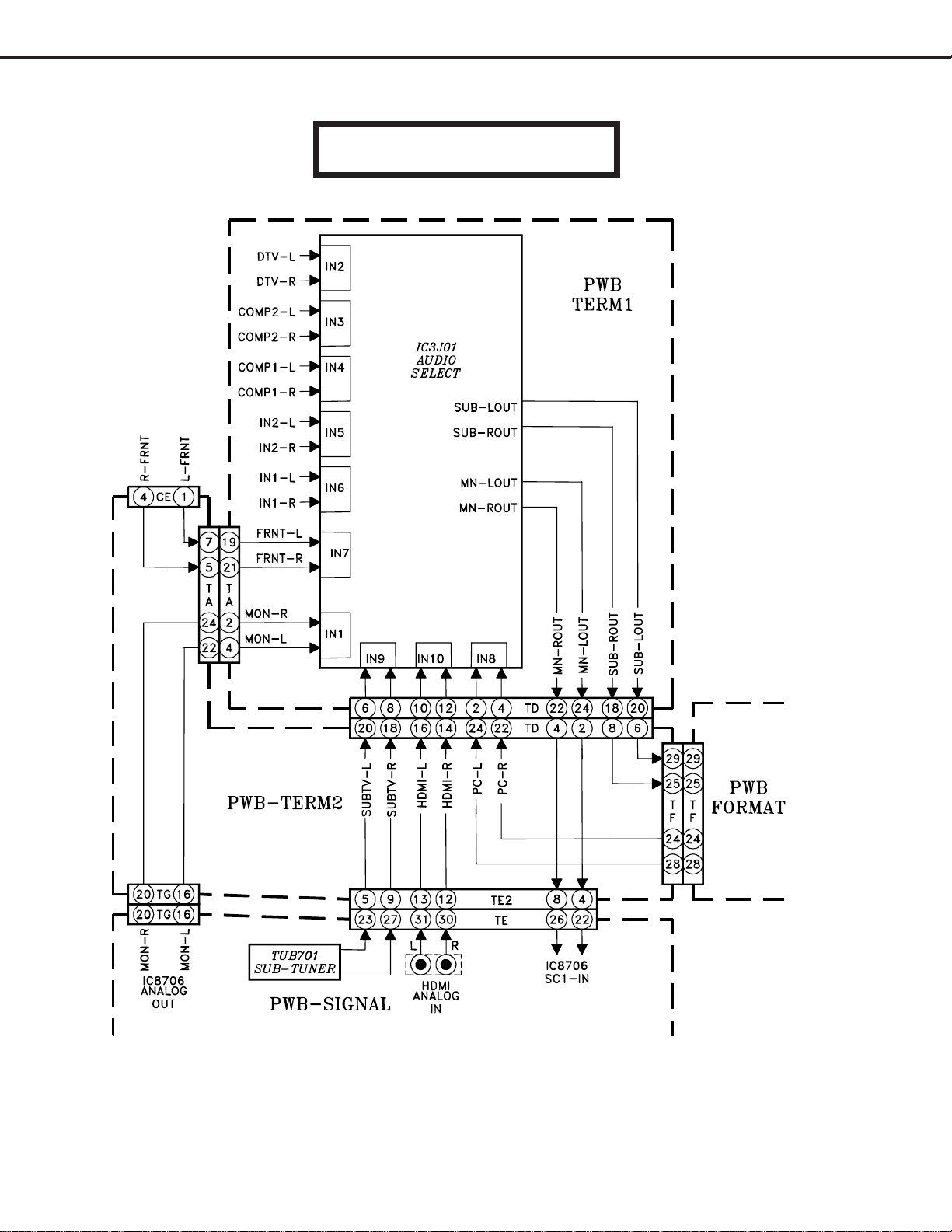

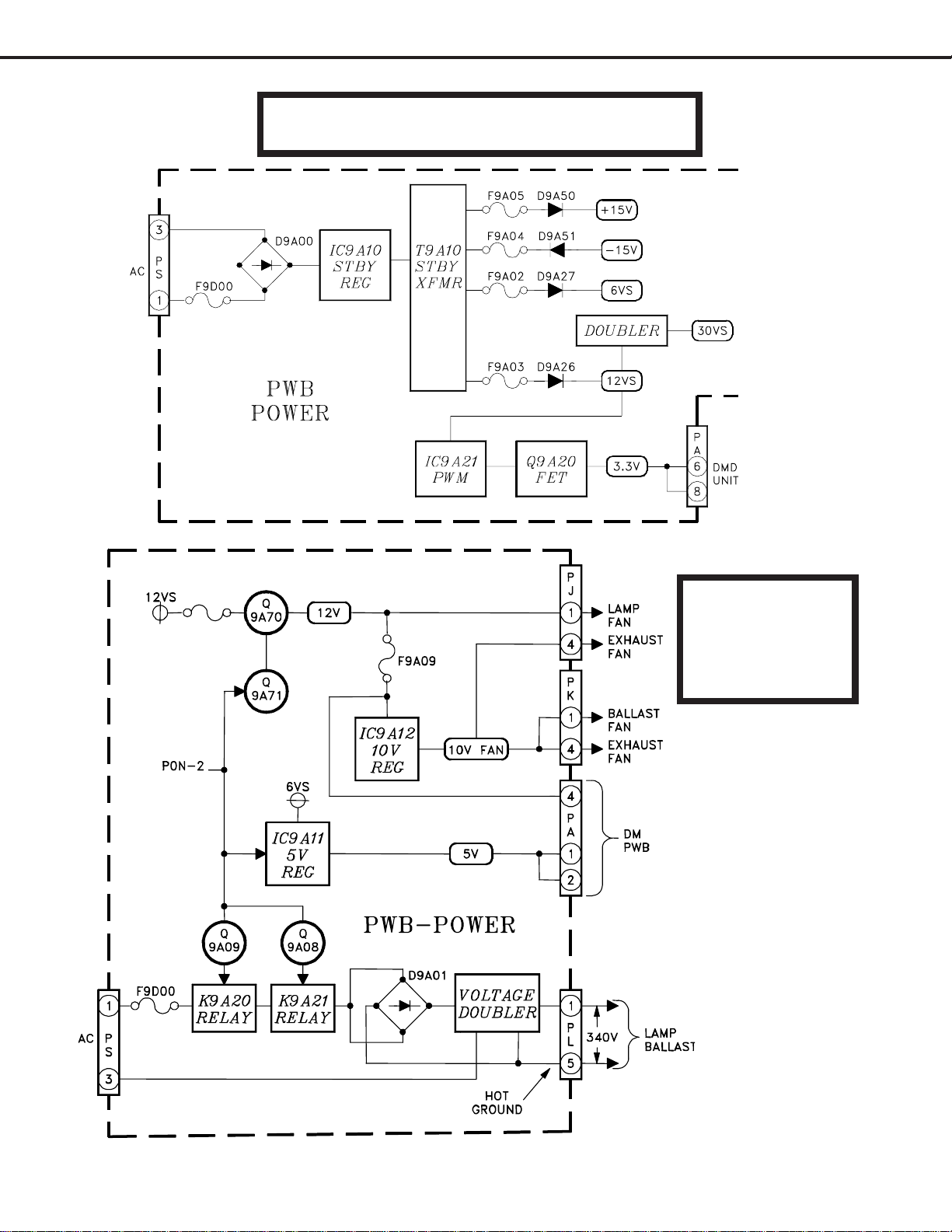

CIRCUITRY BLOCK DIAGRAMS ..................................................................................................... 35

PCB INTERCONNECT DIAGRAM

Page 3

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

Page 4

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

INTRODUCTION

This service manual provides service instructions for PTV Models and Chassis:

V26 Chassis V26+ Chassis V26++ Chassis WD-52525 WD-52725 WD-52825 WD-62525 WD-62725 WD-62825

This service manual includes:

1. Assembly and disassembly instructions for the front and rear cabinet components.

2. Servicing of the Lenticular Screen and Fresnel Lens.

3. Servicing down to major components, chassis, Optical Engine, Lamp Ballast, etc..

4. Electrical adjustments.

5. Optical Adjustments.

6. Chip parts replacement procedures.

7. Simplified circuit path diagrams.

8. Overall PCB interconnect block diagram.

The parts list section of this service manual includes:

1. Cabinet and screen parts.

2. Electrical parts.

Block diagrams of the above listed models are included in this service manual for better understanding of the circuitry.

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in television receivers have special safety related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.

Replacement parts which have special safety characteristics are identified in this service manual.

Electrical components having such features are identified by shading on the schematic diagram and by bold type in the parts list of this service manual. Therefore, the replacement for any safety part should be identical in value

and characteristics.

Digital Light Processing, Digital Micromirror Device and DLP are trademarks of Texas Instruments. CableCARD is a trademark of Cable Television Laboratories, Inc. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Page 5

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

SAFETY PRECAUTIONS

NOTICE: Observe all cautions and safety related notes located inside the receiver cabinet and on the

receiver chassis.

WARNING:

1. Operation of this receiver outside the cabinet or with the cover removed presents a shock hazard from the receiver's power supplies. Work on the receiver should not be attempted by anyone who is not thoroughly familiar with the precautions necessary when working on high voltage equipment.

2. When service is required, observe the original lead dress. Extra precaution should be taken to assure correct lead dress in the high voltage area. Where a short-circuit has occurred, replace those components that indicate evidence of overheating.

WARNING ... RISK OF EYE INJURY Do not look into the light source, lens or mirror when operating the TV.

Leakage current check:

Before returning the receiver to the customer, it is recommended that leakage current be measured according to the following methods.

1. Cold Check

With the alternating current (AC) plug removed from the AC source, place a jumper across the two AC plug

prongs. Connect one lead of an ohm meter to the AC plug and touch the other lead to each exposed metal part (i.e. antennas, handle bracket, metal cabinet, screw heads, metal overlay, control shafts, etc.), particularly any exposed metal part that has a return path to the chassis. The resistance of the exposed metal parts having a return path to the chassis should be a minimum of 1Megohm. Any resistance below this value indicates an abnormal condition and requires corrective action.

2. Hot Check ...Use the circuit shown below to perform the hot check test.

1. Keep switch S1 open and connect the receiver to the measuring circuit. Immediately after

connection, and with the switching devices of the receiver in their operating positions, measure the

leakage current for both positions of switch S2.

2. Close switch S1, energizing the receiver. Immediately after closing switch S1, and with the

switching devices of the receiver in their operating positions, measure the leakage current for both positions of switch S2. Repeat the current measurements of items 1 and 2 after the receiver has

reached thermal stabilization. The leakage current must not exceed 0.5 milliampere (mA).

Page 6

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

Reusable Wire Ties

Do not cut wire ties during disassembly, reusable

wire ties are used in these models. Lift the tab to release the wire tie. During reassembly, re-use wire ties to ensure all wiring harnesses are properly bundled and dressed.

CABINET DISASSEMBLY (FRONT VIEW)

WD-52525 / WD-62525 / WD-52725 / WD-62725

*Refer to the Parts List for Part Numbers

Lift Tab to Release

Wire Tie

Front Cabinet Disassembly

1. Remove the SPEAKER-GRILLE by pulling forward.

2. Remove screws (a) to remove the COVER-FRONT.

3. Remove screws (b) on the rear of the upper back cover (4 across the top and 3 on each side).

4. Remove the 4 screws (c) holding the bottom of the Screen Assembly.

5. Unplug connector LN from the Control Panel.

6. Lift the Screen Assembly up slightly then pull towards the front to remove the assembly.

Page 7

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

CABINET DISASSEMBLY (FRONT VIEW)

WD-52825 /WD-62825

*Refer to the Parts List for Part Numbers

Front Cabinet Disassembly

1. Remove the SPEAKER-GRILLES by pulling forward.

2. Remove screws (a) to remove the COVER-FRONT.

3. Remove screws (b) to remove the GRILLE-BASE.

4. Remove screws (d) on the rear of the upper back cover (3 on each side and 4 across the top).

5. Remove the 4 screws (c) holding the bottom of the Screen Assembly.

6. Unplug connector LN from the Control Panel.

7. Lift the Screen Assembly up slightly then pull towards the front to remove the assembly

8. To disconnect the Card Reader and the Front Inputs:

• Unplug the Card Reader USB connector from the PCB-DM.

• Unplug the Front 1394 cable from the HDD Module (Hard Drive).

• Unplug the CC connector from the Front Inputs.

Page 8

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

(b)

CABINET DISASSEMBLY (REAR VIEW)

FILTER-COVER Removal

Remove 2 screws (d) to remove the Filter Cover.

COVER-BACK Removal

1) Remove 9 screws (a)

2) Remove 5 screws (b)

3) Remove 2 screws (c)

4) Pull the COVER-BACK from the cabinet.

Rear Plate Removal

1) Remove 6 screws (a)

2 Remove10 screws (b)

3) Pull the Rear Plate from the cabinet.

NOTE: To operate set with the Cover-Back and Rear Plate removed, re-install the Filter Cover and ensure the Exhaust Fan is connected.

(a)

(b)

(a)

Page 9

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

ELECTRICAL CHASSIS REPLACEMENT

1) Remove the 4 black screws (a) securing the chassis shown in the two diagrams below.

2) Unplug the USB and 1394 connectors from the Card Reader. NOTE: In the V26++ chassis the Card Reader 1394 connector plug into the Hard Drive Module.

3) Disconnect all cables to the front of the cabinet, the Optical Engine and the Lamp Ballast (see next page).

4) Carefully slide the chassis from the cabinet.

5) IMPORTANT: After Electrical Chassis replacement, perform the Data Copy Procedure (page 16).

Page 10

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

NOTE: To remove the chassis, the two connectors to the Lamp Ballast must be

disconnected at the Lamp Ballast.

Accessing & Disconnecting The Lamp Ballast

Removing the Right Support

Remove the 3 screws shown below.

3 Screws

Removing the Lamp Ballast Shield

(4 screws)

4 Screws

Unplug CN1 & CN2

Connectors

Unplug Connectors

Page 11

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

V26 Chassis PWB Locations

NOTE: The HDD is only in the V26++ models.

Page 12

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

Optical Engine Mounting

Optical Engine Replacement

The Optical Engine is mounted on the Adjuster assembly as shown in the above diagram.

1) Four screws (a) secure the bottom plate and Optical Engine to the Adjuster assembly.

2) The bottom plate tab (1) slides into slot (1) on the Adjuster.

3) The Optical Engine is secured to the bottom plate by 4 screws (b).

4) The Black Bracket is secured to the bottom plate and the Lamp Box with 4 screws (c).

5) To replace the Optical Engine, the Optical Engine, bottom plate and black bracket need to be removed together as an assembly. Refer to the following pages for exact replacement instructions.

Page 13

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

Removing the Optical Engine

1) Remove the Cabinet Back (refer to disassembly instructions).

2) Disconnect all connectors from the Optical Engine, Lamp Cartridge Housing and the PCB-DMD.

3) From the rear of the TV, remove the 4 screws (c), to remove the COVER-DUCT and DMD Fan cover.

4) From the rear of the TV, remove the 4 brass colored screws (a), shown below, securing the bottom plate to the Adjuster assembly.

5) Slide the Optical Engine/Lamp Cartridge Housing towards the rear to remove from the TV.

(a)

O ptic al Engine ( Re a r Vie w / Aird uct & DMD Fa n Cover Re moved)

Page 14

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

Remove the following parts from the Optical Engine

• DMD Thermal Sensor

• The Optical Engine bottom plate and black bracket

DMD Thermal Sensor Removal (Figure 1)

1) Remove screw (a) on the top of the DMD Fan.

2) Set the Thermal Sensor aside to install on the replacement Optical Engine.

(a)

Figure 1: DMD Thermal Sensor

Bottom Plate & Black Bracket Removal

1) Remove the 4 screws (B) from the Bottom Plate (Figure 2)

2) Remove the two screws (C), holding the Black Bracket to the Lamp Box. (Figure 3)

Heat Sensor

Thermal Sensor

(B)

Bottom V iew

Figure 2: Bottom Plate

Page 15

Bottom Pla te

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

Bla ck Bra cke t

(C)

Front View

Figure 3: Black Support Bracket

Installing the Optical Engine

1) Install the Bottom Plate, Black Support Bracket and the Heat Sensor, removed from the original Optical Engine, on the replacement Engine

2) Reverse the removal procedure to install the replacement Optical Engine in the cabinet.

3) The following adjustments may have to be performed after the installation. (See Service Manual)

• Horizontal and Vertical Electrical Centering Adjustment.

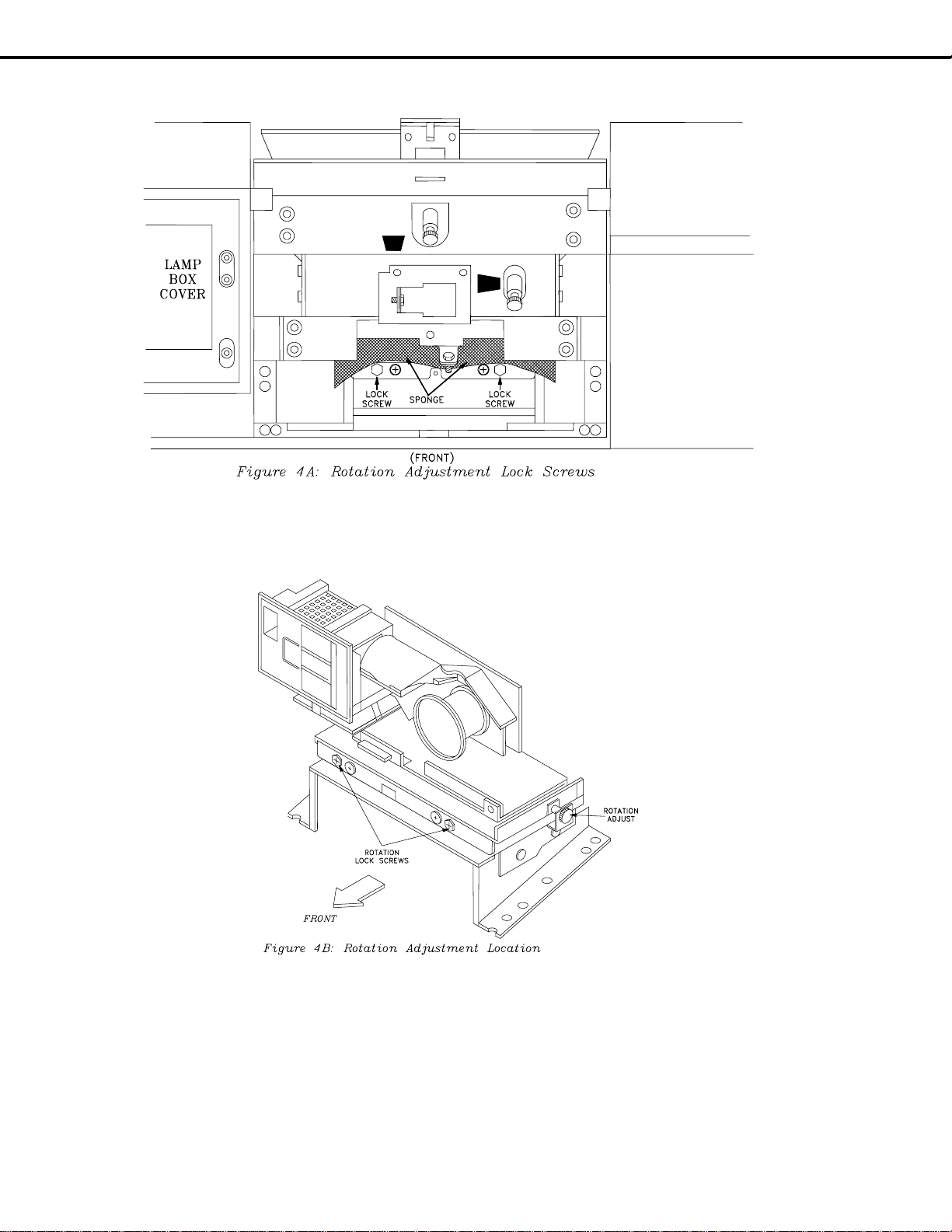

• Optical Unit Rotation Adjustment

• Optical Unit Keystone Distortion Adjustments.

4) IMPORTANT: After Optical Engine replacement, perform the Data Copy Procedure described below.

Data Copy Procedure

This procedure must be performed after replacing either the Electrical Chassis or Optical Engine.

1) To display the data copy menu press <TV MENU> <2-4-5-7> <0>

2) Use the cursor keys to yellow highlight “Copy Light Engine EEPROM to DM”

3) Press <ENTer>

4) After the copy procedure has been completed, exit the menu by pressing <HOME>

Copy Light Engine EEPROM to DM

Restore backup UPLOAD TERMINAL BOARD DATA

Page 16

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

DIAMOND SHIELD REPLACEMENT

To Remove the Diamond Shield:

1. While wearing soft cotton gloves, loosen the sides of the Diamond Shield by pressing a small plastic card (the size of a standard credit card or a clean, plastic, putty knife) into the middle of the side slot. The Diamond Shield side will snap out of the top middle and bottom clips. Loosen both sides before proceeding to step 2.

2. After the sides are free, gently push down on the top of the Diamond Shield. It will slide out of the top channel.

3 Carefully pull the screen up to remove it from the

bottom channel. Store the Diamond Shield in a clean, dust free area, where it will not be scratched.

To Install the Diamond Shield:

4. Slide the Diamond Shield into the bottom channel, making sure it fits securely.

5. Press gently on the top of the Diamond Shield to slightly bow the screen towards you. Insert the top of the Diamond Shield into the top channel. It should fit securely.

6. At each side, gently press the top, middle and

bottom of the Diamond Shield to snap it back into place.

WARNING

Sharp edges! Always wear gloves to handle, lift, install and remove the Diamond Shield.

Page 17

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

CAUTION: Wear gloves when handling the Lenticular Screen and Fresnel Lens.

This prevents cuts and finger prints. Do not place Fresnel Lens in the sun. This may cause fire and heat related injuries.

Lenticular Screen and Fresnel Lens Removal

1. Remove the screen assembly shown in the Cabinet Disassembly procedure.

2. Remove the four screws (a) to remove the bottom of the SCREEN-FRAME-BOTTOM .

3. Carefully slide the Lenticular Screen and Fresnel Lens combination from the Screen Frame assembly. Note: When separating the Lenticular Screen from the Fresnel Lens, use caution

while prying the Screen and Lens apart. Use a slot type screw driver, and remove the pressure sensitive double sided tape.

Page 18

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

Lenticular Screen and Fresnel Lens Installation

Note: Store the Lenticular Screen and Fresnel Lens in a cool dry place. High heat and humidity may

deform the Lenticular Screen and Fresnel Lens.

1. Apply double coated tape (Part #LENS-TAPE) along the top rear edge of the Lenticular Screen, as shown below. Refer to the table below for the tape length.

2. Place the Fresnel Lens on top of the Lenticular Screen and apply pressure at the top edge to bond them together.

3. Reverse the Screen Removal procedure to insert the screens in the Screen Frame Assembly.

*X INCHES - Refer to the Tape Length in the table below

MODEL SCREEN SIZE TAPE LENGTH

WD-52525 52 Inches 46.3 Inches WD-52725 " " WD-52825 " " WD-62525 62 Inches 55.1 Inches WD-62725 " " WD-62825 " "

Page 19

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

INITIAL SETUP

OPTION MENU

1. Press the “MENU” button on the remote hand unit.

2. Press the buttons “2”, “4”, “7” and “0” in order. (The screen will change to the option menu.)

3. Select “Initialize” and press <ENTer> to restore all Inital Main Menu Defaults and A/V Reset Default settings to those listed in the following two tables.

OPTION MENU <TV MENU> <2-4-7-0>

Initialize Power Restore: Off DTV Port: AUTO Direct Key Mode : Off NetCommand Software: V26 XXX.XX Digital Signal Strength: X

00000 00000 00000 00000 00000

Tot al TV On Time

Current

Lamp

Tim e

Lamp

Tim e

Lamp

Tim e 2

Initial Main Menu D efaults

Setup Menu

Language English Programs Not Rated Enable Combine Channel View -- Movie Rating PG

NetCommand Menu

Edit -- Start 12:00pm Transport Menu On S top 12:00pm Default Digital Record Device -Icon Order -- Lock by Time On

Antenna Menu

Antenna 1 Unlock Time 12:00pm Memorize -- Front B utton Lock Off Prefer Digital -Channel 3 A/V Memory Res et Ant-1 Memory A dded Settings Name -SQV -- Bass 50%

Time Me nu

Clock Setting Manual Balanc e 50% Time 12:00pm Surround Off Date -- Listen to (Analog Only) Stereo Time Zone -- Level Sound (Analog Only) On Daylight Savings Time -- Language (Digital Only) English Tim er --

Captions Menu

Analog Captions On if Mute Brightness 50% Background Gray Sharpness 50% Digital Caption On if Mute Color 50% Appearance Default Tint 50% Digital S ettings Color Temp High

Font Font 3 Video Noise Standard Siz e Large Film Mode (Auto) On Color White Define Edge On Background Black Color Balanc e Opacity Translucent Video M ute On Background Opacity Translucent black Enhancem ent On

V-Chip Lock Menu

V-Chip Off TV Rat i n g TV -P G FV-Fantas y Violence Enable D-Sexual Dialog Enable L-Adult Language Enable S-Sexual Situations Enable

Page 20

V-Violence Enable

V-Chip Time

Lock by Time

Lock Time 12:00pm

Audio/Video

Audio

Treble 50%

Video

Contrast 100%

TV Speakers On

TV Volume PIP Source PIP Position POP Position PIP/POP Format Format

30% Ant 1 003 Lower Right Right Half Double W indow Stretch

Lamp

Tim e 3

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

A/V RESET DEFAULT SETTINGS (By Input)

A/V Me mory Ant 1/2

Contrast Max. Max. Max. Max. Max. N/A Brightness Center Center Center Center Center N/A Sharpness Center Center Center Center Center N/A

Color Center Center Center Center Center N/A

Tint Center Center Center Center Center N/A Color Temp. High High High High High N/A Video Noise Standard Standard Standard N/A N/A N/A

TV Film Mode (Auto) On On On N/A On N/A

TV DefinEdge VS M On On On On On On

Bass Center Center Center Center Center Center

Treble Center Center Center Center Center Center

Balance Center Center Center Center Center Center Surround OFF OFF OFF OFF OFF N/A Listen To Stereo N/A N/A N/A N/A Stereo

Level Sound On On On On On N/A

INPUTS

1/2/3

Component

1/2/DTV

1394 w hen

connected

HDMI Card 1~4

A. A/V Memory

Each of the external inputs has its own Audio/Video Memory. A change in an A/V setting at a specific input is

stored in memory for that specific input.

B. A/V Reset

The AV Memory Reset in the user’s menu initializes the selected input’s A/V Memory.

Remote Control Operational Modes

There are two Remote Hand Unit Operational Modes, “Standard” and “NetCommand™”. The Remote is initially in the “Standard” mode. The “NetCommand” mode is used when controlling Home Theater devices using NetCommand. To change the Remote Operational Mode:

• Set the Remote to the TV Layer

• Point the Remote away from the TV.

• To change to “Netcommand” ... Hold the “Power” button and press “9-3-5” in sequence.

• To change to “Standard” ... Hold the “Power” button and press “0-0-0” in sequence.

Page 21

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

FRONT LED INDICATOR DIAGNOSTICS

The front panel LEDs provide an indication of the sets operation, and the possible cause of a malfunction. There are three front panel LEDs, “Power”, “Status” and “Lamp”. Which LED is lit, the color, and whether it is blinking or steady indicate the current status, or a possible malfunction.

Normal LED Indications

POWER

LED

Off Off Off Stby Off

Green Off Off P-0N Power On

Off Off

Blinks

Green

Slow Blinks

Green

STATUS

LED

LAMP

LED

Blinks

Green

Power

Status

After Turn

Off

Condition

Lamp Fan On for 1 minute

Off Off Stby Booting after AC applied

Off Off Stby On Timer is set

Abnormal LED Indications

POWER

LED

Off Yellow Off

Off or On Off Yellow

Off Off

Off

Off Off Red Stby Lamp did not turn On

Off

Off Red Off "

STATUS

LED

Blinks

Yellow

*Blinks

Red

**Blinks

Red

***Blinks

Red

*Blinks = (1 long/1 short)

**Blinks = (1 long/2 short)

***Blinks = (1 long/3 short)

LAMP

LED

Blinks Yellow

Off " Filter Cover Open

Off

Off "

Off " DMD or Lamp Fan Stopped

Power

Status

Low

Power

change

Low

Power

Low

Power

Condition

Excess Temperature

Usage time over 4000 Hrs.

Lamp Cover open

Chassis Fan Stopped

Ballast or Exhaust Fan Stopped

Short or DVI Cable from FMT to DMD disconnected

Page 22

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

3. Error Code Operational Check

Note: The TV must be in “Shut Down” and not manually switched Off, to perform the Error Code Opera-

tional Check. When the TV is switched Off, the code automatically resets to “12” No Error.

Press the front panel “DEVICE” and “MENU” buttons at the same time, and hold for 5 seconds to activate the Error Code Operational Check. The LED will then flash denoting a two digit Code.

Note: The front panel buttons must be used, NOT those on the Remote Control.

• The number of flashes indicates the value of the MSD (tens digit) of the Error Code.

• The flashing then pauses for approximately 1/2 second.

• The LED then flashes indicating the value of the LSD (ones digit) of the Error Code.

Example: If the Error Code is “32”, the LED will flash three times, pause, and then flash two times.

• The Error Code is repeated a total of 5 times.

4. Error Codes

The Error Code designations are listed below:

ERROR CODES

Press and Hold "DEVICE" and "MENU" FOR 5 SECONDS

Error Code Probable Cause

12 No error detected 22 Recovery from momentary Reset 32 Lamp Cover open 33 Air Filter Cover open 34 Lamp abnormality 35 Chassis Fan failure 36 Exhaust (Back Cover) or Lamp Ballast Fan failure 37 Engine (DMD or Lamp) Fan failure 38 Exces s Lamp Temperature 39 Exces s DMD Temperature 41 Short Detected 44 DVI Cable (between Chassis and Engine) disc onnected

Page 23

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

SERVICE ADJUSTMENTS

There are only 5 Service Adjustments required:

Two Electrical Adjustments

• Horizontal Centering

• Vertical Centering

Three Mechanical Adjustments

• Picture Rotation

• Horizontal Keystone Distortion

• Vertical Keystone Distortion

Tools, Test equipment and Test signals

• Conventional Hand Tools.

• No additional Test Equipment is required.

• Test Signals are internally generated, no external signals are required.

Circuit Adjustment Mode

On these models, the Circuit Adjustment Mode is used only for:

• Test Signal activation

• Horizontal Centering

• Vertical Centering

1. Activating the Circuit Adjustment mode

1. Press the “TV MENU” button on the remote control. (The Customer Menu will appear.)

2. Press the buttons “2”, “4”, “5” and “7” in that order. (The screen will change to the adjustment mode.) If unsucessful, repeat steps 1 and 2.

2. Test Signal Activation

When in the Circuit Adjustment mode, press “REWIND” once on the remote control to activate the test pattern. This pattern is used for both electrical and mechanical adjustments.

Page 24

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

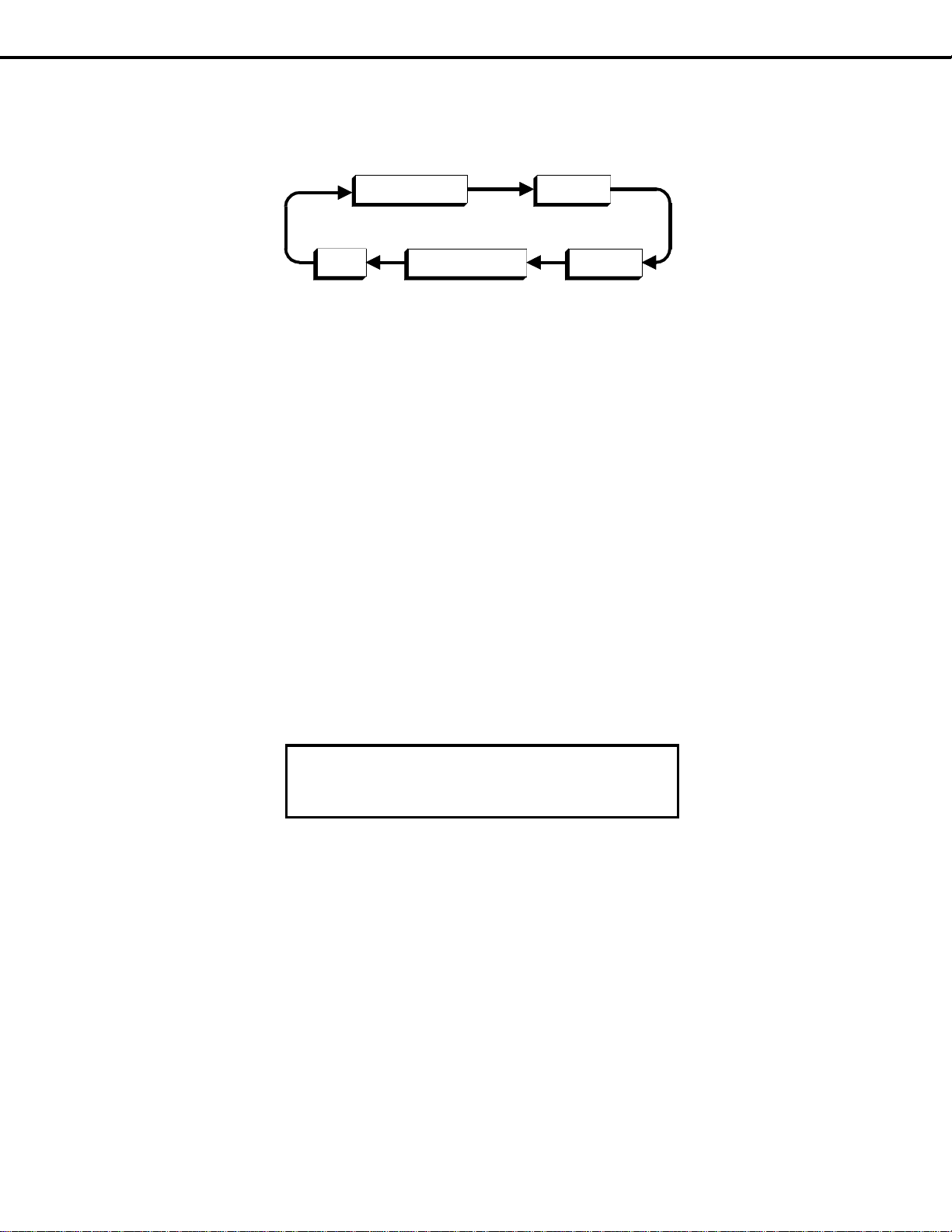

3. Adjustment Function Selection

Use the “AUDIO” button to select a specific Adjustment Function.

AD9883A MMTX

Functions

SMTXlight engfmt

4. Adjusting Data

After selecting an adjustment item, use the UP and DOWN cursor buttons to change adjustment data.

• If the UP button is pressed, the adjustment data increases.

• If the DOWN button is pressed, the adjustment data decreases.

5. Saving data

Press “ENTER” to save the adjustment data in memory. The display characters go red for about one second in this step.

Note: If the circuit adjustment mode is terminated without pressing “ENTER”, changes in adjustment data are not saved.

6. Terminating the circuit adjustment mode

Press the “HOME button or the “MENU” button twice on the remote to terminate the adjustment mode.

Note: The adjustment mode can be also terminated by turning the power off.

Resetting Data to Factory Values

1) Enter the Service Adjustment Mode ... Press “TV MENU” “2-4-5-7”

2) Press “0” when in the Service Mode ... Three choices appear at the top of the screen.

"TV MENU" "2-4-7-0" then "0"

Copy Light Engine EEPROM to DM Restore backup UPLOAD TERMINAL BOARD DATA

3) Use UP & DOWN keys to highlight the desired choice, then Press “ENTER”

• Copy Light Engine EEPROM to DM ... required after replacing the Light Engine or Electrical Chassis.

• Restore Back Up ... resets Service Mode data back to factory values. Use this feature if service adjustment data has been corrupted or improper adjustments have been performed.

• Up Load Terminal Board Data ... uploads White Balance data from PWB-SIGNAL. (Do Not Select. This option is for depot level service only.)

Page 25

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

SERVICE MODE - Adjustment Items and Initial Data Values

AD9883

Item # Abbrev. Description

12 ROFF Red Offset 0~127 14 BOFF Blue Offset 0~127

Main Matrix (MMTX)

Item # Abbre v. Description

1 TNTM Hue Control 0~63 31

4 COLM Color Gain Control 0~63 19 15 YDRM Y Drive Gain Control 0~31 5 19 VPDM V Signal Pedestal Control 0~15 2 20 UPDM U Signal Pedestal Control 0~15 2

Data

Ran

Data

Range

Initial

Data

Sub M a trix (S MTX)

Item # Abbre v. Description

1 TNTS Hue Control 0~63 31 4 COLS Color Gain Control 0~63 16

15 YDRS Y Drive Gain Control 0~31 5 19 VPDS V S ignal Pedestal Control 0~15 2 20 UPDS U Signal Pedestal Control 0~15 2

Light Engine (light eng)

Item # Abbrev. Description

120 GGH Temp. H Green Gain 121 GRH Temp. H Red Gain 122 GBH Temp. H Blue Gain 123 GGM Temp. M Green Gain 124 GRM Temp. M Red Gain 125 GBM Temp. M Blue Gain 126 GGL Temp. L Green Gain 127 GRL Temp. L Red Gain 128 GBL Temp. L Blue Gain

Data

Range

Initial

Data

Format (fmt)

Item # Abbrev. Description

Data

Ran

1 HPOS Horizontal Position 0~255 2 VPOS Vertical Position *0~255

* Do Not

set VPOS Data to 0 or 255 and press Enter.

(Video will be muted and On Screen Menus will no longer be visible.)

Page 26

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

Electrical Adjustments

[PICTURE POSITION]

1. Horizontal/Vertical Position

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input

----

------

-------

None

ANT-DTV

Purpose:

Symptom:

To center picture on the screen.

Picture is off center.

NOTE: The TV should be placed on a flat level surface.

Improper installation can affect raster geometry.

1. Select the ANT-DTV Input, no signal.

2. Press “TV MENU-2-4-5-7” in sequence

3. Press “REWIND” to activate the Test Pattern shown above.

4. Press “AUDIO” to select “FMT” function.

5. Use the “VIDEO” button to select “1 HPOS”.

6. Use the “ADJUST” buttons to center the picture Horizontally.

7. Press “ENTER” to save the adjustment.

8. Use the “VIDEO” button to select “2 VPOS”.

9. Use the “ADJUST” buttons to center the picture Vertically.

10. Press “ENTER” to save the adjustment.

CAUTION: DO NOT set VPOS data to “0” or “255” and press ENTER. Video will be muted and On Screen Menus will no longer be visible.

11. Press “HOME” or “TV MENU” twice to terminate the Adjustment Mode.

Mechanical Adjustments

Picture Rotation Adjustment

NOTE: The TV should be placed on a flat level surface.

Improper installation can affect raster geometry.

1. Refer to the Disassembly Preocedures on Pages 7, 8, and 9 to remove the Speaker Grille, Front Cover, Back Cover and Inner Cover.

2. From the front of the TV, lift the sponge to access and slightly loosen the brass Rotation Locking Screws on the Adjuster

Assembly, Figure 4A. (Use a 10mm wrench.)

3. From the rear of the TV, access the black Rotation Adjustment screw (4mm allen wrench) and adjust so the test pattern

center lines are parallel to the sides, top and bottom of the screen frame, Figure 4B. (Use a mirror to view the picture

from the rear of the set.)

4. Tighten the two Locking Screws. Use Locktite to secure the Adjustment Screw. (If necessary, use the electrical adjustments to center the picture)

Page 27

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 /WD-62825

Page 28

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

Keystone Adjustment

NOTE: The TV should be placed on a flat level surface.

Improper installation can affect raster geometry.

Horizontal Keystone Distortion

Vertical Keystone Distortion

1. From the front of the TV, loosen the two Keystone Locking Screws in the small mirror assembly. (10mm box wrench)

2. From the front of the TV, adjust the Horizontal Keystone Adjustment for minimum distortion. (4mm allen wrench)

3. From the front of the TV, adjust the Vertical Keystone Adjustment for minimum distortion. Note: There may be some inter-action between the Keystone and Rotation Adjustments.

4. Tighten the Keystone Lock Screws. and secure the adjustment screws with Locktite.

Horiz Keystone

djust

Locking Screws

Vertical Keystone

djust

Small Mirror Assembly (Front View)

Page 29

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

REPLACEMENT PARTS

Critical Electrical Components are indicated by Bold Type in the Parts List.

QUICK REFERENCE FOR COMMON REPLACEMENT PARTS

Customer Replaceable Parts

Part Name Description WD-52525 WD-62525 WD-52725 WD-62725 WD-52825 WD-62825

Lamp Cartridge LAMP - CARTRIDGE Dust Filter FILTER - DUST 620D144010 620D144010 620D144010 620D144010 620D144010 620D144010 Remote Control REMOTE 290P123010 290P123010 290P123020 290P123020 290P123020 290P123020

Part Name Descri

Optical Engine OPTICAL-ENGINE 939P977010 939P977020 939P977010 939P977020 939P977010 939P977020 Electrical Chassis Lamp Ballast PCB UNIT-POWER-LAMP 939P978010 939P978010 939P978010 939P978010 939P978010 939P978010 Memory Card PCB Preamp PCB ASSY-PWB-PREAMP 935D774001 935D774001 935D774001 935D774001 935D774001 935D774001 Front PCB ASSY-PWB-FRONT 935D775001 935D775001 935D775001 935D775001 935D779001 935D779001 Control PCB ASSY-PWB-CONTROL 935D776001 935D776001 935D776001 935D776001 935D776001 935D776001 Right Speaker PCB ASSY-PWB-SPEAKER-R 935D806001 935D806001 935D806001 935D806001 935D806001 935D806001 Left Speaker PCB ASSY-PWB-SPEAKER-L 935D807001 935D807001 935D807001 935D807001 935D807001 935D807001 Hard Disk DriveASSY-HDD-UNIT ----939P989010 939P989010 Lamp Ballast Fan FAN-BALLAST 299P278020 299P278020 299P278020 299P278020 299P278020 299P278020 Lamp Fan FAN-LAMP DMD Fan FAN-DMD 299P283010 299P283010 299P283010 299P283010 299P283010 299P283010 Chassis Fan FAN-COOLING 299P103050 299P103050 299P103050 299P103050 299P103050 299P103050 Exhaust Fan FAN-COOLING Lamp Cover Detect Switch SW-MICRO 436P021010 436P021010 436P021010 436P021010 436P021010 436P021010 Filter Cover Detect Switch SW-MICRO 436P021010 436P021010 436P021010 436P021010 436P021010 436P021010 DMD Thermal Sensor SENSOR – THERMAL 299P280010 299P280010 299P280010 299P280010 299P280010 299P280010 Lamp Thermal Sensor

Bold Type = Safety Critical

(Complete)

SSY-CHASSIS 955B298001 955B298001 955B298002 955B298002 955B298003 955B298003

MEMORY -CARD-RE ADER-P WB 299P271010 299P271010 299P271010 299P271010 299P271010 299P271010

SENSOR-THERMAL (LAMP) 299P285010 299P285010 299P285010 299P285010 299P285010 299P285010

tion WD-52525 WD-62525 WD-52725 WD-62725 WD-52825 WD-62825

915P020010 915P020010 915P020010 915P020010 915P020010 915P020010

Service Parts

299P282010 299P282010 299P282010 299P282010 299P282010 299P282010

299P103050 299P103050 299P103050 299P103050 299P103050 299P103050

Screen Parts

Part Name Descri

DiamondShield Lenticular Screen Fresnel Lens

PWB Name Descri

Power Signal PWB-SIGNAL 930B923002 930B923002 930B923001 930B923001 930B923003 930B923003 Format PWB-FMT 930B924002 930B924002 930B924003 930B924003 930B924001 930B924001 DM PWB-DM 934C116002 934C116002 934C116003 934C116003 934C116001 934C116001 Terminal-1 PWB-TERMINAL 1 934C117001 934C117001 934C117001 934C117001 934C117002 934C117002 Terminal-2 PWG-TERMINAL-2 934C118001 934C118001 934C118001 934C118001 934C118001 934C118001

DIAMOND - SHIELD LENS - LENTICULAR LENS - FRESNEL

PWB-POW ER

tion WD-52525 WD-62525 WD-52725 WD-62725 WD-52825 WD-62825

KIT-WD52525 DS KIT-WD62525 DS KIT-W D52725 DS KIT-W D62725 DS KIT-WD52825 DS KIT-WD62825 DS

491P178020 491P174020 491P178020 491P176020 491P178020 491P176020 491P177020 491P173020 491P177020 491P175020 491P177020 491P175020

Chassis PWBs

tion WD-52525 WD-62525 WD-52725 WD-62725 WD-52825 WD-62825

930B921002 930B921002 930B921002 930B921002 930B921001 930B921001

Note: The DiamondShield includes the Shield, Logo, Side and Bottom Clips.

PAGE 30

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

INTEGRATED CIRCUITS

IC2000 276P090010 IC-C-MOS - SiI9993 IC2010 261P829010 TR-CHIP - NDC7002N IC2020 275P981010 IC-C-MOS - 24LCS22AT/SN IC2030 271P069010 IC-C-MOS - CM1210-08MS IC2040 271P071010 IC - BA033SFP IC2C00 275P989010 IC-C-MOS - MAX3223ECAP IC2C01 276P020010 IC-C-MOS - SN74LVC2G14DBVR IC2C02 276P064010 IC-C-MOS - SN74LVC1G125DBV IC2C03 276P064010 IC-C-MOS - SN74LVC1G125DBV IC2K01 271P061010 IC - CXA2189Q IC2L00 271P078010 IC - MM1566AJBE IC2M01 275P947010 IC-C-MOS - UPD64083 IC2M02 272P379020 IC - LM1881MX (NSC) IC3E00 271P080010 IC - TDA8922J IC3J01 271P060010 IC - CXA2188Q

IC7A00 276P017020 IC-C-MOS - M306V7MG

IC7A01 275P533010 IC-C-MOS - M24C64WM6T IC7A02 270P706020 IC - MAX823REUK IC7A03 275P786010 IC-C-MOS - TC7SA08FU IC7A05 271P023010 IC - SN74CBTD1G125DBVR IC7A06 271P023010 IC - SN74CBTD1G125DBVR IC7D00 275P278010 IC-C-MOS - TC74LVX14FT IC7D01 270P818020 IC - CXA3506R IC7DA1 267P176010 HIC - AF-9412 IC7DB0 270P677010 IC - BA033FP IC7DC0 270P992010 IC - BA18BC0FP IC7E01 275P894010 IC-C-MOS - AD9883AKST-110 IC7E02 275P663030 IC-C-MOS - M4A3-32/32-5VC-48

IC7H00 276P106010 IC-C-MOS - MB87M1823PFV-ES-BND

IC7K21 270P831010 IC-C-MOS - OPA2350PA IC7M00 276P091010 IC-C-MOS - M12L64322A-6T IC7N01 275P682010 IC-C-MOS - TC74VCX16244FT IC7N02 275P682010 IC-C-MOS - TC74VCX16244FT IC7P01 275P943030 IC-C-MOS - PIC18F252T-I/SO030 IC7P03 263P154010 IC-C-MOS - SN74HC132DB IC7P04 271P023010 IC - SN74CBTD1G125DBVR

IC8001 276P030020 IC-C-MOS - 215H31AGA12 be IC8001 276P030030 IC-C-MOS - 215H31AGA12H

IC8002 270P706020 IC - MAX823REUK IC8003 276P064010 IC-C-MOS - SN74LVC1G125DBV cf IC8003 276P064010 IC-C-MOS - SN74LVC1G125DBV IC80E1 275P657050 IC-C-MOS - 24LC256T-I/SN IC80E2 276P174010 IC-C-MOS - AT24C512N-10S1-2.7 IC80E3 270P880010 IC - 24LC64I/SN IC8101 271P033010 IC - LP2996MRX IC8102 276P029020 IC-C-MOS - NT5DS16M16BT-5T IC8103 276P029020 IC-C-MOS - NT5DS16M16BT-5T IC8104 276P029020 IC-C-MOS - NT5DS16M16BT-5T IC8105 276P029020 IC-C-MOS - NT5DS16M16BT-5T IC81A1 270P991010 IC - IRU3037CS IC81A2 261P135010 FET-HEX - IRF7313 IC81A3 270P879030 IC - SC1566I5M-2.5TR IC81A4 270P992010 IC - BA18BC0FP IC81A5 270P879030 IC - SC1566I5M-2.5TR IC81A6 270P037020 IC - MIC29301-5.0BU IC81A7 270P999010 IC - NJM2370R09 IC81A8 271P081010 IC - BA00CC0WFP IC8205 276P042010 IC-C-MOS - MIC2544-1BM

IC8211 276P029020 IC-C-MOS - NT5DS16M16BT-5T IC8212 276P029020 IC-C-MOS - NT5DS16M16BT-5T IC8280 275P955010 IC-C-MOS - RTC-8564JE IC8301 275P677010 IC-C-MOS - SN74LVC573APWR IC8302 275P677010 IC-C-MOS - SN74LVC573APWR IC8303 275P677010 IC-C-MOS - SN74LVC573APWR IC8305 275P956010 IC-C-MOS - MD2811-D16-V3 IC8305 275P956020 IC-C-MOS - MD2811-D32-V3 IC8307 275P983010 IC-C-MOS - XR16L2750CM IC8308 276P077010 IC-C-MOS - ST013T IC8309 275P660020 IC-C-MOS - CS4341-KSR IC8310 275P270010 IC-C-MOS - M66010GP IC8311 275P769010 IC-C-MOS - TC74AC157FT IC8312 270P938010 IC - MC33202D IC8313 275P731020 IC-C-MOS - MSP3445G-QI-B8-V3 IC8314 275P677010 IC-C-MOS - SN74LVC573APWR IC8315 275P464010 IC-C-MOS - TC7WH14FK IC8316 276P064010 IC-C-MOS - SN74LVC1G125DBV IC8401 275P624010 IC-C-MOS - TSB42AA4 IC8402 275P686010 IC-C-MOS - TSB41AB3PFP IC8501 275P679010 IC-C-MOS - TC74LCX74FT IC8502 275P124040 IC-C-MOS - SN74LVC245APWR IC8503 275P677010 IC-C-MOS - SN74LVC573APWR IC8504 271P036020 IC - TPS2221PWPR IC8505 275P677010 IC-C-MOS - SN74LVC573APWR IC8506 276P065020 IC-C-MOS - CIMAX(103563) IC8507 275P680010 IC-C-MOS - TC74VCX257FT IC8508 275P675010 IC-C-MOS - SN74LV125APWR IC8509 271P036020 IC - TPS2221PWPR IC8600 275P983010 IC-C-MOS - XR16L2750CM IC8601 275P122020 IC-C-MOS - SN74LV32APWR IC8602 275P676010 IC-C-MOS - SN74LVC139APWR IC8705 275P769010 IC-C-MOS - TC74AC157FT IC8706 275P731020 IC-C-MOS - MSP3445G-QI-B8-V3 IC8707 276P089010 IC-C-MOS - TC7W66FU IC8708 270P037020 IC - MIC29301-5.0BU IC8709 271P082010 IC - LD1117DT12 IC8710 271P072010 IC - LD29150DT25 IC8711 295P527010 TUNER-NTSC DEMODULATOR IC8712 276P109010 IC-C-MOS - CS4334-KS IC8713 270P938010 IC - MC33202D IC8719 271P023010 IC - SN74CBTD1G125DBVR IC8720 271P023010 IC - SN74CBTD1G125DBVR IC8722 271P064010 IC - TA75S01F IC8723 275P278010 IC-C-MOS - TC74LVX14FT IC8800 270P877010 I C - UPC3217GV IC8801 270P877010 I C - UPC3217GV IC8802 275P464010 IC-C-MOS - TC7WH14FK IC8805 270P988010 IC-OP AMP - LM358M IC8806 271P039010 IC-C-MOS - NXT2003 100C IC8A00 275P980010 IC-C-MOS - SAA7115HL cf IC8A01 275P982020 IC IC8A02 276P111010 IC-C-MOS - AK5353VT cf IC8A03 276P112010 IC-C-MOS - BCM7040 KQL cf IC8B01 275P278010 IC-C-MOS - TC74LVX14FT IC8B02 270P818020 IC - CXA3506R IC8B03 270P915020 IC - RT9161A-33CG IC8B04 270P537010 IC - M52347FP cf IC8B04 270P537010 IC - M52347FP abde IC8B05 275P981010 IC-C-MOS - 24LCS22AT/SN

C-MOS - MT48LC2M32B2P-7 c f

PAGE 31

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

IC8C01 275P994010 IC-C-MOS - S1L52502B24S000

IC8C03 275P689010 IC-C-MOS - ICS551MT IC8C04 275P680010 IC-C-MOS - TC74VCX257FT IC8D01 275P997010 IC-C-MOS - IP00C720 IC8D02 275P982020 IC-C-MOS - MT48LC2M32B2P-7 IC8D03 276P113040 IC-C-MOS - XC9572XL-8D03 IC8E00 276P107010 IC-C-MOS - SiI164 IC8E01 276P113030 IC-C-MOS - XC9572XL-10TQ100C-8E0102 IC8E02 276P113030 IC-C-MOS - XC9572XL-10TQ100C-8E0102

IC8F01 276P156010 IC-C-MOS - M30826MH-092GP

IC8F02 275P657050 IC-C-MOS - 24LC256T-I/SN IC8F03 274P503020 IC-C-MOS - 74ACT245MTC IC8F04 271P010010 IC - RT9172-18CG cf IC8F05 271P009010 IC - RT9172-25CG IC8F06 270P677020 IC - BA05FP IC8F07 261P135010 FET-HEX - IRF7313 IC8F08 270P991010 IC - IRU3037CS IC8F09 270P915020 IC - RT9161A-33CG IC8F10 275P786010 IC-C-MOS - TC7SA08FU IC8F11 275P124040 IC-C-MOS - SN74LVC245APWR IC8F12 275P124040 IC-C-MOS - SN74LVC245APWR IC8F13 275P124040 IC-C-MOS - SN74LVC245APWR IC8F14 275P124040 IC-C-MOS - SN74LVC245APWR IC8F15 275P124040 IC-C-MOS - SN74LVC245APWR IC8F16 260P846030 TR-CHIP - DTC143ZKAT146 IC8F17 270P696010 IC - BA05SFP bcef IC8G00 276P108020 IC-C-MOS - M306H2MC-517FP be IC8G00 276P108030 IC-C-MOS - M306H2FCFP-V261 cf IC8G01 270P706010 IC - MAX823 bcef IC8G02 271P023010 IC - SN74CBTD1G125DBVR bcef IC8G03 276P020010 IC-C-MOS - SN74LVC2G14DBVR bcef IC8G04 271P023010 IC - SN74CBTD1G125DBVR bcef IC8G05 275P443010 IC-C-MOS - TC7SET08H bcef IC8G06 271P023010 IC - SN74CBTD1G125DBVR bcef IC8H01 270P658030 IC - CXA2019AQ/T4 IC8H02 271P079010 IC - CXA2181Q IC8H10 271P071020 IC - BA09SFP IC8H20 270P696010 IC - BA05SFP bcef IC8T01 270P658030 IC - CXA2019AQ/T4 IC8T02 271P079010 IC - CXA2181Q IC8T10 271P023010 IC - SN74CBTD1G125DBVR IC8T11 271P023010 IC - SN74CBTD1G125DBVR IC9A10 267P175010 HIC - STR-W6735 IC9A11 270P696010 IC - BA05SFP IC9A12 271P081010 IC - BA00CC0WFP

IC9A20 270P816010 IC - NJM431L IC9A21 270P991010 IC - IRU3037CS

IC9C01 271P071020 IC - BA09SFP IC9C21 271P072020 IC - LD29150DT33 IC9C41 271P072030 IC - LD29150DT50 IC9M01 270P677010 IC - BA033FP IC9M02 270P992020 IC - BA25BC0FP IC9M03 271P071020 IC - BA09SFP IC9M04 270P696010 IC - BA05SFP

TRANSISTORS

CHIP Type Transistors (Listed by Part No.)

Part No. Description

260P806010 DTA124EK/UN2112 260P809010 DTC114YK 260P817030 2SA1037K-S 260P817050 2SA1037K-R,S/2SB709AI-R,S 260P817080 2SA1037K-R,S 260P818030 2SC2412K-S 260P818050 2SC2412K-R,S/2SD601AI-R,S 260P818080 2SC2412K-R,S 260P836090 2SC3326-A,B 260P846030 DTC143ZKAT146 261P005010 2SC3123

TRANSISTORS

Conventional Transistors (By Ref #)

Ref # Part # Part Name & Description [#]

Q7E03 261P114010 TR - 2SA1585STPR Q8800 261P026010 TR - 2SC3356 Q9A20 261P135010 FET-HEX - IRF7313 Q9A70 261P101010 TR - PHP21N06T Q9F01 260C004010 TR - 2SC1740S-R,S/2SC3311A-R,S Q9F02 260P741010 TR - 2SA1020-0,Y Q9F03 260C604010 TR - DTC124ES/UN4212 Q9F04 260C604010 TR - DTC124ES/UN4212 Q9F05 260C604010 TR - DTC124ES/UN4212 Q9F06 260C604010 TR - DTC124ES/UN4212

DIODES

D2760 264P828010 D-CHIP - DAN202U/MA142WK D2761 264P828010 D-CHIP - DAN202U/MA142WK D2770 262P805050 D-CHIP - UDZS5.1B D2771 264P828010 D-CHIP - DAN202U/MA142WK D2J00 264P458050 DIODE - RD3.9EB1 D2J01 264P458050 DIODE - RD3.9EB1 D2J91 262P075010 DIODE - RSB6.8S abde D2J92 262P075010 DIODE - RSB6.8S cf D2L80 262P075010 DIODE - RSB6.8S D2L81 262P075010 DIODE - RSB6.8S D7A00 264P828010 D-CHIP - DAN202U/MA142WK D7A01 264P828010 D-CHIP - DAN202U/MA142WK D7E00 262P075010 DIODE - RSB6.8S D7E01 262P075010 DIODE - RSB6.8S D7K21 268P100010 DIODE-PHOTO - SFH235FA D7K22 264P045080 DIODE - 1S2076A/1S2471OM D7L20 262P075010 DIODE - RSB6.8S D7L21 264P212020 D-LED - LN31GPH D7L22 264P584020 DIODE-LE - SML1216W-C,D D7L23 264P584020 DIODE-LE - SML1216W-C,D D7L24 262P075010 DIODE - RSB6.8S D7L25 262P075010 DIODE - RSB6.8S D7L26 262P075010 DIODE - RSB6.8S

PAGE 32

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

D7L27 262P075010 DIODE - RSB6.8S D81A2 264P828010 D-CHIP - DAN202U/MA142WK D81A3 264P828010 D-CHIP - DAN202U/MA142WK D81A4 262P090010 DIODE - M1FP3 D81A5 264P458050 DIODE - RD3.9EB1 D8201 264P846010 DIODE-CHIP - MA732 D8202 264P846010 DIODE-CHIP - MA732 D8203 264P846010 DIODE-CHIP - MA732 D8204 264P846010 DIODE-CHIP - MA732 D8280 264P808010 DIODE-CHIP - DAN202K D8701 262P132010 DIODE - MA2Z077 D8702 262P132010 DIODE - MA2Z077 D8703 262P132010 DIODE - MA2Z077 D8704 262P132010 DIODE - MA2Z077 D8800 262P089010 DIODE - MA2S728 D8801 262P071070 DIODE-LE - SML-210FT D8802 262P071070 DIODE-LE - SML-210FT D8803 262P071070 DIODE-LE - SML-210FT D8B00 264P882010 D-CHIP - HSB123 D8B01 264P882010 D-CHIP - HSB123 D8B02 264P882010 D-CHIP - HSB123 D8B03 264P878020 D-CHIP - HZM6.2ZWA D8B04 264P828010 D-CHIP - DAN202U/MA142WK bcef D8B04 264P828010 D-CHIP - DAN202U/MA142WK D8B09 264P878020 D-CHIP - HZM6.2ZWA D8F00 264P828010 D-CHIP - DAN202U/MA142WK bcef D8F00 264P828010 D-CHIP - DAN202U/MA142WK D8F01 264P828010 D-CHIP - DAN202U/MA142WK bcef D8F01 264P828010 D-CHIP - DAN202U/MA142WK D8F03 262P090010 DIODE - M1FP3 D8F04 264P458050 DIODE - RD3.9EB1 D8F05 264P828010 D-CHIP - DAN202U/MA142WK D9A00 262P031010 DIODE - D6SB80

D9A01 262P031010DIODE - D6SB80

D9A02 264P045080 DIODE - 1S2076A/1S2471OM D9A03 264P461050 DIODE - EQA02-06B/RD5.6EB3 D9A04 264P045080 DIODE - 1S2076A/1S2471OM D9A05 264P899010 DIODE - BYV26E D9A18 264P045080 DIODE - 1S2076A/1S2471OM D9A19 264P045080 DIODE - 1S2076A/1S2471OM D9A20 264P045080 DIODE - 1S2076A/1S2471OM D9A23 264P045080 DIODE - 1S2076A/1S2471OM D9A24 264P045080 DIODE - 1S2076A/1S2471OM D9A25 264P045080 DIODE - 1S2076A/1S2471OM

D9A26 262P066010 DIODE - RU4A D9A27 262P066010 DIODE - RU4A

D9A28 264P045080 DIODE - 1S2076A/1S2471OM D9A29 264P045080 DIODE - 1S2076A/1S2471OM D9A30 264P470070 DIODE - EQA02-32B/RD33EB3 D9A31 264P828010 D-CHIP - DAN202U/MA142WK D9A32 264P828010 D-CHIP - DAN202U/MA142WK D9A33 264P458050 DIODE - RD3.9EB1 D9A34 262P090010 DIODE - M1FP3 D9A41 264P828010 D-CHIP - DAN202U/MA142WK D9A42 264P828010 D-CHIP - DAN202U/MA142WK D9A43 264P828010 D-CHIP - DAN202U/MA142WK D9A44 264P828010 D-CHIP - DAN202U/MA142WK D9A45 264P828010 D-CHIP - DAN202U/MA142WK

D9A60 264P669030 DIODE - S3L20U

D9A61 264P669030 DIODE - S3L20U

D9A80 264P828010 D-CHIP - DAN202U/MA142WK D9A81 264P828010 D-CHIP - DAN202U/MA142WK D9A82 264P828010 D-CHIP - DAN202U/MA142WK D9C40 262P090010 DIODE - M1FP3 D9F01 264P212020 D-LED - LN31GPH

L1H01 321C114010 COIL-RF - 2200MH-J L1H02 325C461030 COIL-PEAKING - 10MH-K L1H51 321C114010 COIL-RF - 2200MH-J L1H52 325C461030 COIL-PEAKING - 10MH-K L2011 409P777080 EMI-F-CHIP - BLM21P221S L2012 409P777080 EMI-F-CHIP - BLM21P221S L2061 409P777080 EMI-F-CHIP - BLM21P221S L2071 409P777080 EMI-F-CHIP - BLM21P221S L2111 409P777080 EMI-F-CHIP - BLM21P221S L2121 409P777080 EMI-F-CHIP - BLM21P221S L2141 409P777080 EMI-F-CHIP - BLM21P221S L2151 409P777080 EMI-F-CHIP - BLM21P221S L2231 409P777080 EMI-F-CHIP - BLM21P221S L2272 409P955020 EMI-F-CHIP - BLM18BB220SN1 L2301 409P955020 EMI-F-CHIP - BLM18BB220SN1 L2311 409P955020 EMI-F-CHIP - BLM18BB220SN1 L2321 409P955020 EMI-F-CHIP - BLM18BB220SN1 L2331 409P955020 EMI-F-CHIP - BLM18BB220SN1 L2341 409P955020 EMI-F-CHIP - BLM18BB220SN1 L2761 409P777080 EMI-F-CHIP - BLM21P221S L2801 409P777080 EMI-F-CHIP - BLM21P221S L2821 409P777080 EMI-F-CHIP - BLM21P221S L2C03 325C146090 COIL-CHIP - 33MH-J L2K01 325C461030 COIL-PEAKING - 10MH-K L2K09 325C461030 COIL-PEAKING - 10MH-K L2K25 321C141090 COIL-RF - 33MH-K L2K58 325C461030 COIL-PEAKING - 10MH-K L2K67 325C461030 COIL-PEAKING - 10MH-K L2K71 325C461030 COIL-PEAKING - 10MH-K L2K80 409P777080 EMI-F-CHIP - BLM21P221S L2K81 409P777080 EMI-F-CHIP - BLM21P221S L2K90 325C461030 COIL-PEAKING - 10MH-K L2K91 325C461030 COIL-PEAKING - 10MH-K L2K99 409P777080 EMI-F-CHIP - BLM21P221S L2L12 409P777080 EMI-F-CHIP - BLM21P221S L2L13 409P777080 EMI-F-CHIP - BLM21P221S L2L80 409P923060 EMI-F-CHIP - BLM21B272S L2L81 409P923060 EMI-F-CHIP - BLM21B272S L2L82 409P923060 EMI-F-CHIP - BLM21B272S L2L83 409P923060 EMI-F-CHIP - BLM21B272S L2L84 409P923060 EMI-F-CHIP - BLM21B272S L2L85 409P923060 EMI-F-CHIP - BLM21B272S L2M21 325C461030 COIL-PEAKING - 10MH-K L2M30 409P777080 EMI-F-CHIP - BLM21P221S L2M31 409P777080 EMI-F-CHIP - BLM21P221S L2M35 325C461050 COIL-PEAKING - 15MH-K L2M36 325C461030 COIL-PEAKING - 10MH-K L2M38 409P777080 EMI-F-CHIP - BLM21P221S L2M40 325C461030 COIL-PEAKING - 10MH-K L2M41 325C461080 COIL-PEAKING - 27MH-K

COILS

PAGE 33

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

L2M42 325C461030 COIL-PEAKING - 10MH-K L2M45 409P777080 EMI-F-CHIP - BLM21P221S L2M46 409P777080 EMI-F-CHIP - BLM21P221S L2M50 325C461000 COIL-PEAKING - 5.6MH-K L2M53 325C461030 COIL-PEAKING - 10MH-K L2M70 325C461030 COIL-PEAKING - 10MH-K L2M71 325C461080 COIL-PEAKING - 27MH-K L2M77 325C461030 COIL-PEAKING - 10MH-K L2M81 409P777080 EMI-F-CHIP - BLM21P221S L3E25 325C502010 COIL-CHIP - SLF12575T-330M3R2-H L3E26 325C502010 COIL-CHIP - SLF12575T-330M3R2-H L3E51 411D009020 CORE-FERRITE - ZBF503D-01 L3E52 411D009020 CORE-FERRITE - ZBF503D-01 L3J00 409P777080 EMI-F-CHIP - BLM21P221S L7A16 409P777050 EMI-F-CHIP - BLM21B201S bcef L7A19 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A19 409P865060 EMI-F-CHIP - BLM11B141S L7A39 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A39 409P865060 EMI-F-CHIP - BLM11B141S L7A42 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A42 409P865060 EMI-F-CHIP - BLM11B141S L7A43 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A43 409P865060 EMI-F-CHIP - BLM11B141S L7A47 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A47 409P865060 EMI-F-CHIP - BLM11B141S L7A49 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A49 409P865060 EMI-F-CHIP - BLM11B141S L7A50 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A50 409P865060 EMI-F-CHIP - BLM11B141S L7A51 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A51 409P865060 EMI-F-CHIP - BLM11B141S L7A52 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A52 409P865060 EMI-F-CHIP - BLM11B141S L7A53 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A53 409P865060 EMI-F-CHIP - BLM11B141S L7A54 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A54 409P865060 EMI-F-CHIP - BLM11B141S L7A55 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A55 409P865060 EMI-F-CHIP - BLM11B141S L7A56 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A56 409P865060 EMI-F-CHIP - BLM11B141S L7A57 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A57 409P865060 EMI-F-CHIP - BLM11B141S L7A58 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A58 409P865060 EMI-F-CHIP - BLM11B141S L7A59 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A59 409P865060 EMI-F-CHIP - BLM11B141S L7A60 409P865060 EMI-F-CHIP - BLM11B141S cf L7A61 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A61 409P865060 EMI-F-CHIP - BLM11B141S L7A62 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A62 409P865060 EMI-F-CHIP - BLM11B141S L7A63 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A63 409P865060 EMI-F-CHIP - BLM11B141S L7A64 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A64 409P865060 EMI-F-CHIP - BLM11B141S L7A65 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A65 409P865060 EMI-F-CHIP - BLM11B141S L7A66 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A66 409P865060 EMI-F-CHIP - BLM11B141S

L7A67 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A67 409P865060 EMI-F-CHIP - BLM11B141S L7A88 409P777050 EMI-F-CHIP - BLM21B201S bcef L7A90 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A90 409P865060 EMI-F-CHIP - BLM11B141S L7A91 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A91 409P865060 EMI-F-CHIP - BLM11B141S L7A92 409P865060 EMI-F-CHIP - BLM11B141S bcef L7A92 409P865060 EMI-F-CHIP - BLM11B141S L7A99 409P777050 EMI-F-CHIP - BLM21B201S bcef L7D16 325C420070 COIL-CHIP - 10MH-K L7DA7 325C420070 COIL-CHIP - 10MH-K L7DF4 409P777080 EMI-F-CHIP - BLM21P221S L7DF8 325C420070 COIL-CHIP - 10MH-K L7E00 409P876040 EMI-F-CHIP - CNF20C221S/CKD510JB1H221S L7E01 409P777080 EMI-F-CHIP - BLM21P221S L7E01 409P876040 EMI-F-CHIP - CNF20C221S/CKD510JB1H221S L7E34 409P777080 EMI-F-CHIP - BLM21P221S L7E42 409P777080 EMI-F-CHIP - BLM21P221S L7E69 409P777080 EMI-F-CHIP - BLM21P221S L7H01 409P777080 EMI-F-CHIP - BLM21P221S L7H04 409P777080 EMI-F-CHIP - BLM21P221S L7H29 409P777080 EMI-F-CHIP - BLM21P221S L7H49 409P777080 EMI-F-CHIP - BLM21P221S L7H66 409P777080 EMI-F-CHIP - BLM21P221S L7H73 409P777080 EMI-F-CHIP - BLM21P221S L7H76 409P777080 EMI-F-CHIP - BLM21P221S L7J13 409P777080 EMI-F-CHIP - BLM21P221S L7J38 409P777080 EMI-F-CHIP - BLM21P221S L7J44 409P777080 EMI-F-CHIP - BLM21P221S L7K01 409P777080 EMI-F-CHIP - BLM21P221S L7M90 409P777080 EMI-F-CHIP - BLM21P221S L7N01 409P777080 EMI-F-CHIP - BLM21P221S L7N41 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N42 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N43 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N44 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N45 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N46 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N47 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N48 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N49 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N50 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N51 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N52 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N53 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N54 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N55 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N56 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N57 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N58 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N59 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N60 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N61 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N62 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N63 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N64 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N65 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N66 409P936090 EMI-F-CHIP - BK1608 HS102 L7N67 409P955020 EMI-F-CHIP - BLM18BB220SN1

PAGE 34

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

L7N68 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N70 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7N71 409P955020 EMI-F-CHIP - BLM18BB220SN1 L7P00 409P923060 EMI-F-CHIP - BLM21B272S L7P14 409P777050 EMI-F-CHIP - BLM21B201S L7P20 409P777050 EMI-F-CHIP - BLM21B201S L8001 409P865080 EMI-F-CHIP - BLM18PG6 L8002 409P865080 EMI-F-CHIP - BLM18PG6 L8003 409P865080 EMI-F-CHIP - BLM18PG6 L8004 409P865080 EMI-F-CHIP - BLM18PG6 L8005 409P865080 EMI-F-CHIP - BLM18PG6 L8006 409P865080 EMI-F-CHIP - BLM18PG6 L8007 409P865080 EMI-F-CHIP - BLM18PG6 L8008 409P865080 EMI-F-CHIP - BLM18PG6 L8009 409P777080 EMI-F-CHIP - BLM21P221S L8012 409P865080 EMI-F-CHIP - BLM18PG6 L8013 409P865080 EMI-F-CHIP - BLM18PG6 L8017 409P865020 EMI-F-CHIP - BLM11A601S L8018 409P865020 EMI-F-CHIP - BLM11A601S L81A1 321C140060 COIL-RF - 2.7MH-M L81A2 351P250010 COIL-CHOKE - GSTC6018-100M L81A3 409P777080 EMI-F-CHIP - BLM21P221S L81A4 321C140060 COIL-RF - 2.7MH-M L81A5 321C140060 COIL-RF - 2.7MH-M L81A6 409P777080 EMI-F-CHIP - BLM21P221S L81A7 409P865080 EMI-F-CHIP - BLM18PG6 L81A8 409P777080 EMI-F-CHIP - BLM21P221S L81A9 409P777080 EMI-F-CHIP - BLM21P221S L8202 409P777080 EMI-F-CHIP - BLM21P221S L8203 409P777080 EMI-F-CHIP - BLM21P221S L8204 409P777080 EMI-F-CHIP - BLM21P221S L8205 409P777080 EMI-F-CHIP - BLM21P221S L8206 351P265010 COIL-CHOKE-CHIP - ACM2012 L8207 351P265010 COIL-CHOKE-CHIP - ACM2012 L8280 409P865080 EMI-F-CHIP - BLM18PG6 L8301 409P865080 EMI-F-CHIP - BLM18PG6 L8304 325C501010 COIL-CHIP - ALQM21NNR47K10 L8305 325C501010 COIL-CHIP - ALQM21NNR47K10 L8307 409P865080 EMI-F-CHIP - BLM18PG6 L8307 409P865080 EMI-F-CHIP - BLM18PG6 be L8309 409P865080 EMI-F-CHIP - BLM18PG6 L8309 409P865080 EMI-F-CHIP - BLM18PG6 be L8310 409P865080 EMI-F-CHIP - BLM18PG6 L8310 409P865080 EMI-F-CHIP - BLM18PG6 be L8311 409P865080 EMI-F-CHIP - BLM18PG6 L8311 409P865080 EMI-F-CHIP - BLM18PG6 be L8312 409P865080 EMI-F-CHIP - BLM18PG6 L8312 409P865080 EMI-F-CHIP - BLM18PG6 be L8313 409P865080 EMI-F-CHIP - BLM18PG6 L8313 409P865080 EMI-F-CHIP - BLM18PG6 be L8314 409P865080 EMI-F-CHIP - BLM18PG6 L8314 409P865080 EMI-F-CHIP - BLM18PG6 be L8315 409P865080 EMI-F-CHIP - BLM18PG6 L8315 409P865080 EMI-F-CHIP - BLM18PG6 be L8320 409P865080 EMI-F-CHIP - BLM18PG6 L8320 409P865080 EMI-F-CHIP - BLM18PG6 be L8321 409P865080 EMI-F-CHIP - BLM18PG6 L8321 409P865080 EMI-F-CHIP - BLM18PG6 be L8322 409P865080 EMI-F-CHIP - BLM18PG6 L8322 409P865080 EMI-F-CHIP - BLM18PG6 be

L8323 409P865080 EMI-F-CHIP - BLM18PG6 L8323 409P865080 EMI-F-CHIP - BLM18PG6 be L8324 409P865080 EMI-F-CHIP - BLM18PG6 L8324 409P865080 EMI-F-CHIP - BLM18PG6 be L8326 409P865080 EMI-F-CHIP - BLM18PG6 L8326 409P865080 EMI-F-CHIP - BLM18PG6 be L8329 409P865080 EMI-F-CHIP - BLM18PG6 L8329 409P865080 EMI-F-CHIP - BLM18PG6 be L8331 409P865080 EMI-F-CHIP - BLM18PG6 L8331 409P865080 EMI-F-CHIP - BLM18PG6 be L8332 409P865080 EMI-F-CHIP - BLM18PG6 L8332 409P865080 EMI-F-CHIP - BLM18PG6 be L8333 409P865080 EMI-F-CHIP - BLM18PG6 L8401 409P865080 EMI-F-CHIP - BLM18PG6 L8403 409P777080 EMI-F-CHIP - BLM21P221S L8404 409P777080 EMI-F-CHIP - BLM21P221S L8411 351P265020 COIL-CHIP - ACM2012-201-2P L8412 351P265020 COIL-CHIP - ACM2012-201-2P L8413 351P265020 COIL-CHIP - ACM2012-201-2P L8414 351P265020 COIL-CHIP - ACM2012-201-2P L8415 351P265020 COIL-CHIP - ACM2012-201-2P L8416 351P265020 COIL-CHIP - ACM2012-201-2P L8501 409P865080 EMI-F-CHIP - BLM18PG6 L8502 409P777080 EMI-F-CHIP - BLM21P221S L8503 409P865080 EMI-F-CHIP - BLM18PG6 L8504 409P777080 EMI-F-CHIP - BLM21P221S L8505 409P865080 EMI-F-CHIP - BLM18PG6 L8506 409P777080 EMI-F-CHIP - BLM21P221S L8507 409P865080 EMI-F-CHIP - BLM18PG6 L8508 409P865080 EMI-F-CHIP - BLM18PG6 L8509 409P865080 EMI-F-CHIP - BLM18PG6 L8510 409P865080 EMI-F-CHIP - BLM18PG6 L8510 409P865080 EMI-F-CHIP - BLM18PG6 be L8700 325C412050 COIL-CHIP - 100MH-J L8701 325C420030 COIL-CHIP - 2.2MH-M L8702 325C420030 COIL-CHIP - 2.2MH-M L8703 325C420030 COIL-CHIP - 2.2MH-M L8704 325C420030 COIL-CHIP - 2.2MH-M L8705 325C412050 COIL-CHIP - 100MH-J L8706 409P923060 EMI-F-CHIP - BLM21B272S L8707 409P923060 EMI-F-CHIP - BLM21B272S L8717 325C420030 COIL-CHIP - 2.2MH-M L8718 325C420030 COIL-CHIP - 2.2MH-M L8719 409P777080 EMI-F-CHIP - BLM21P221S L8722 325C420030 COIL-CHIP - 2.2MH-M L8723 409P923060 EMI-F-CHIP - BLM21B272S L8725 409P923060 EMI-F-CHIP - BLM21B272S L8726 409P923060 EMI-F-CHIP - BLM21B272S L8727 409P923060 EMI-F-CHIP - BLM21B272S L8729 409P923060 EMI-F-CHIP - BLM21B272S L8730 409P923060 EMI-F-CHIP - BLM21B272S L8736 409P923060 EMI-F-CHIP - BLM21B272S L8737 409P865080 EMI-F-CHIP - BLM18PG6 L8738 409P923060 EMI-F-CHIP - BLM21B272S L8739 409P923060 EMI-F-CHIP - BLM21B272S L8800 409P936050 EMI-F-CHIP - HS800 L8801 409P936050 EMI-F-CHIP - HS800 L8802 409P936050 EMI-F-CHIP - HS800 L8803 409P936050 EMI-F-CHIP - HS800 L8804 409P936050 EMI-F-CHIP - HS800

PAGE 35

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

L8807 325C414090 COIL-CHIP - 0.68MH-J L8809 325C410040 COIL-CHIP - 1.8MH-J L8834 409P865060 EMI-F-CHIP - BLM11B141S L8835 409P865060 EMI-F-CHIP - BLM11B141S L8863 409P865060 EMI-F-CHIP - BLM11B141S L8A00 409P777080 EMI-F-CHIP - BLM21P221S c f L8A01 409P777080 EMI-F-CHIP - BLM21P221S c f L8A02 409P777080 EMI-F-CHIP - BLM21P221S c f L8A03 409P777080 EMI-F-CHIP - BLM21P221S c f L8A04 409P777080 EMI-F-CHIP - BLM21P221S c f L8A05 409P777080 EMI-F-CHIP - BLM21P221S c f L8A06 409P777080 EMI-F-CHIP - BLM21P221S c f L8A07 409P777080 EMI-F-CHIP - BLM21P221S c f L8A08 409P777080 EMI-F-CHIP - BLM21P221S c f L8A11 325C241030 COIL-CHIP - 10MH-K cf L8B00 409P865040 EMI-F-CHIP - BLM11B050SA L8B01 409P865040 EMI-F-CHIP - BLM11B050SA L8B02 409P865040 EMI-F-CHIP - BLM11B050SA L8B03 409P865060 EMI-F-CHIP - BLM11B141S L8B04 409P865060 EMI-F-CHIP - BLM11B141S L8B05 409P865020 EMI-F-CHIP - BLM11A601S L8B08 409P865020 EMI-F-CHIP - BLM11A601S L8B09 325C241030 COIL-CHIP - 10MH-K L8B10 409P865020 EMI-F-CHIP - BLM11A601S L8B13 325C241030 COIL-CHIP - 10MH-K L8B14 409P865060 EMI-F-CHIP - BLM11B141S L8B15 409P865060 EMI-F-CHIP - BLM11B141S L8C01 409P964010 EMI-F-CHIP - BK2125HS102 L8C02 409P964010 EMI-F-CHIP - BK2125HS102 L8C04 409P964010 EMI-F-CHIP - BK2125HS102 L8C05 409P964010 EMI-F-CHIP - BK2125HS102 L8C06 409P938020 EMI-F-CHIP - BK1608 LL121 bcef L8C06 409P938020 EMI-F-CHIP - BK1608 LL121 L8C07 409P938020 EMI-F-CHIP - BK1608 LL121 bcef L8C07 409P938020 EMI-F-CHIP - BK1608 LL121 L8C08 409P956040 EMI-F-CHIP - BLM18PG330SN1 bcef L8C08 409P956040 EMI-F-CHIP - BLM18PG330SN1 L8C09 409P956040 EMI-F-CHIP - BLM18PG330SN1 L8C10 409P938020 EMI-F-CHIP - BK1608 LL121 L8C11 409P956040 EMI-F-CHIP - BLM18PG330SN1 L8C12 409P938020 EMI-F-CHIP - BK1608 LL121 L8C13 409P938020 EMI-F-CHIP - BK1608 LL121 L8D01 409P777080 EMI-F-CHIP - BLM21P221S L8D02 409P777080 EMI-F-CHIP - BLM21P221S L8D03 409P777080 EMI-F-CHIP - BLM21P221S bcef L8D03 409P777080 EMI-F-CHIP - BLM21P221S L8D04 409P964010 EMI-F-CHIP - BK2125HS102 L8D05 409P777080 EMI-F-CHIP - BLM21P221S L8E00 409P777080 EMI-F-CHIP - BLM21P221S L8E01 409P777080 EMI-F-CHIP - BLM21P221S L8E03 409P777080 EMI-F-CHIP - BLM21P221S bcef L8E04 409P777080 EMI-F-CHIP - BLM21P221S L8E05 409P777080 EMI-F-CHIP - BLM21P221S L8E06 409P777080 EMI-F-CHIP - BLM21P221S L8E07 409P777080 EMI-F-CHIP - BLM21P221S L8E08 409P777080 EMI-F-CHIP - BLM21P221S L8E09 409P777080 EMI-F-CHIP - BLM21P221S L8E10 409P777080 EMI-F-CHIP - BLM21P221S L8F01 409P777080 EMI-F-CHIP - BLM21P221S

L8F02 321C140060 COIL-RF - 2.7MH-M L8F03 321C140060 COIL-RF - 2.7MH-M L8F04 351P250010 COIL-CHOKE - GSTC6018-100M L8F05 321C140060 COIL-RF - 2.7MH-M L8F06 409P777080 EMI-F-CHIP - BLM21P221S L8F07 409P777080 EMI-F-CHIP - BLM21P221S L8F08 409P777080 EMI-F-CHIP - BLM21P221S L8F09 409P777080 EMI-F-CHIP - BLM21P221S L8F10 409P777080 EMI-F-CHIP - BLM21P221S L8F12 409P777080 EMI-F-CHIP - BLM21P221S L8F13 409P777080 EMI-F-CHIP - BLM21P221S L8F14 409P777080 EMI-F-CHIP - BLM21P221S L8F15 409P777080 EMI-F-CHIP - BLM21P221S L8F16 409P777080 EMI-F-CHIP - BLM21P221S L8F17 409P777080 EMI-F-CHIP - BLM21P221S L8F18 409P777080 EMI-F-CHIP - BLM21P221S L8F19 409P777080 EMI-F-CHIP - BLM21P221S L8F20 409P777080 EMI-F-CHIP - BLM21P221S L8G00 409P777080 EMI-F-CHIP - BLM21P221S bcef L8G01 409P777080 EMI-F-CHIP - BLM21P221S bcef L8H00 409P777080 EMI-F-CHIP - BLM21P221S bcef L8H00 409P777080 EMI-F-CHIP - BLM21P221S L8H01 409P777080 EMI-F-CHIP - BLM21P221S L8H03 409P777080 EMI-F-CHIP - BLM21P221S L8H05 409P777080 EMI-F-CHIP - BLM21P221S L8H10 409P777080 EMI-F-CHIP - BLM21P221S bcef L8H11 409P777080 L8H13 409P777080 EMI-F-CHIP - BLM21P221S L8H24 409P777080 EMI-F-CHIP - BLM21P221S L8H25 409P777080 EMI-F-CHIP - BLM21P221S L8H32 409P777080 EMI-F-CHIP - BLM21P221S L8H82 409P777080 EMI-F-CHIP - BLM21P221S L8H83 409P777080 EMI-F-CHIP - BLM21P221S L8H84 409P777080 EMI-F-CHIP - BLM21P221S L8H85 409P777080 EMI-F-CHIP - BLM21P221S L8H87 409P777080 EMI-F-CHIP - BLM21P221S L8H88 409P777080 EMI-F-CHIP - BLM21P221S L8H90 409P777080 EMI-F-CHIP - BLM21P221S L8H91 409P777080 EMI-F-CHIP - BLM21P221S L8T03 409P777080 EMI-F-CHIP - BLM21P221S L8T05 409P777080 EMI-F-CHIP - BLM21P221S L8T13 409P777080 EMI-F-CHIP - BLM21P221S L8T24 409P777080 EMI-F-CHIP - BLM21P221S L8T25 409P777080 EMI-F-CHIP - BLM21P221S L8T32 409P777080 EMI-F-CHIP - BLM21P221S L9A10 321C151070 COIL-RF - 22MH-K L9A19 321C141010 COIL-RF - 6.8MH-M L9A20 321C141010 COIL-RF - 6.8MH-M L9A21 321C141010 COIL-RF - 6.8MH-M L9A22 321C141030 COIL-RF - 10MH-K L9A23 321C141030 COIL-RF - 10MH-K L9A30 321C140060 COIL-RF - 2.7MH-M L9A31 321C140060 COIL-RF - 2.7MH-M L9A32 321C140060 COIL-RF - 2.7MH-M L9A33 351P250010 COIL-CHOKE - GSTC6018-100M L9A62 321C141010 COIL-RF - 6.8MH-M L9A63 321C141090 COIL-RF - 33MH-K L9A64 321C141090 COIL-RF - 33MH-K L9A70 321C141090 COIL-RF - 33MH-K L9A71 321C141090 COIL-RF - 33MH-K

EMI-F-CHIP - BLM21P221S

PAGE 36

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

L9D00 351P268010 LINE-FILTER - HF3545-502Y5R0-TXXBH L9D01 351P268010 LINE-FILTER - HF3545-502Y5R0-TXXBH L9D02 351P268010 LINE-FILTER - HF3545-502Y5R0-TXXBH

LC2C02 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC2C03 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC2C07 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC8001 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8002 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC81A1 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8300 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8301 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8302 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8303 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8304 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8305 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8306 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8307 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8308 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8309 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8310 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8312 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8313 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8314 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8315 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8316 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8317 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8318 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8319 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8501 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8502 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8503 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8504 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8505 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8506 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8507 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8508 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8509 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8511 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8512 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8514 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8515 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8516 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8517 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8518 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8519 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8520 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8521 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8522 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8523 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8524 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8525 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8526 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8527 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8528 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8529 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8530 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8531 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8601 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8602 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8603 409P945010 EMI-F-CHIP - NFL21SP506X13CD

LC8605 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8606 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8607 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8608 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8609 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8610 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8611 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8612 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8613 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8614 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8615 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8616 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8617 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8618 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8619 409P945010 EMI-F-CHIP - NFL21SP506X13CD LC8620 409P945010 EMI-F-CHIP - NFL21SP506X13CD LF7D02 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7D04 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7D06 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7D08 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7D10 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7D12 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7D14 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7D16 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7D18 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7D20 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7D22 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7D24 409P944010 EMI-F-CHIP - NFL21SP107X1 LF7H13 409P865020 EMI-F-CHIP - BLM11A601S LF7H14 409P865020 EMI-F-CHIP - BLM11A601S LF7H18 409P865020 EMI-F-CHIP - BLM11A601S LF7H20 409P865020 EMI-F-CHIP - BLM11A601S LF7H22 409P865020 EMI-F-CHIP - BLM11A601S LF7H24 409P865020 EMI-F-CHIP - BLM11A601S T2830 409P961010 CHIP-FILTER - ACM2012D-9002P T2860 409P961010 CHIP-FILTER - ACM2012D-9002P T2910 409P961010 CHIP-FILTER - ACM2012D-9002P T2961 409P961010 CHIP-FILTER - ACM2012D-9002P

TRANSFORMERS

T9A10 350P820010 TRANS-POWER - SRW39LEC

VARISTORS

RV9D00 265P100020 VAR - ERZV10D271CS RV9D01 265P100020 VAR - ERZV10D271CS

PAGE 37

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

RESISTORS

CHIP Type Resistors (Listed by Value) Part No. Value Part No. Value

103P509050 1/16W 0OHM 103P493070 1/16W 3.3K-F 103P508040 1/16W 2.2-J 103P503010 1/16W 3.3K-J 103P509000 1/16W 6.8-J 103P503020 1/16W 3.9K-J 103P500010 1/16W 10-J 103P494010 1/16W 4.7K-F 103P910040 1/16W 18-J 103P503030 1/16W 4.7K-J 103P500050 1/16W 22-J 103P913030 1/16W 4.7K-Jx4 103P500060 1/16W 27-J 103P494020 1/16W 5.1K-F 103P500070 1/16W 33-J 103P494030 1/16W 5.6K-F 103P910070 1/16W 33-J 103P503040 1/16W 5.6K-J 103P793080 1/16W 36F 103P814040 1/16W 6.2K-D 103P500080 1/16W 39-J 103P503050 1/16W 6.8K-J 103P794010 1/16W 47-F 103P494070 1/16W 8.2K-F 103P500090 1/16W 47-J 103P503060 1/16W 8.2K-J 103P844030 1/16W 56-D 103P494080 1/16W 9.1K-F 103P501000 1/16W 56-J 103P494090 1/16W 10K-F 103P911000 1/16W 56-Jx4 103P503070 1/16W 10K-J 103P501010 1/16W 68-J 103P913070 1/16W 10K-Jx4 103P794060 1/16W 75-F 103P495010 1/16W 12K-F 103P509090 1/16W 75-J 103P503080 1/16W 12K-J 103P501020 1/16W 82-J 103P495020 1/16W 13K-F 103P794080 1/16W 91F 103P495030 1/16W 15K-F 103P501030 1/16W 100-J 103P503090 1/16W 15K-J 103P501040 1/16W 120-J 103P495050 1/16W 18K-F 103P810050 1/16W 150-D 103P504000 1/16W 18K-J 103P490050 1/16W 150-F 103P504010 1/16W 22K-J 103P501050 1/16W 150-J 103P495090 1/16W 27K-F 103P490080 1/16W 200-F 103P496000 1/16W 30K-F 103P490090 1/16W 220-F 103P496010 103P501070 1/16W 220-J 103P504030 1/16W 33K-J 103P491000 1/16W 240-F 103P504040 1/16W 39K-J 103P491010 1/16W 270-F 103P496040 1/16W 43K-F 103P501080 1/16W 270-J 103P504050 1/16W 47K-J 103P491020 1/16W 300-F 103P914050 1/16W 47K-Jx4 103P501090 1/16W 330-J 103P496070 1/16W 56K-F 103P491040 1/16W 360-F 103P504060 1/16W 56K-J 103P491050 1/16W 390-F 103P504070 1/16W 68K-J 103P502000 1/16W 390-J 103P504080 1/16W 82K-J 103P491060 1/16W 430-F 103P497030 1/16W 100K-F 103P491070 1/16W 470-F 103P504090 1/16W 100K-J 103P502010 1/16W 470-J 103P497050 1/16W 120K-F 103P491080 1/16W 510-F 103P505000 1/16W 120K-J 103P502020 1/16W 560-J 103P505010 1/16W 150K-J 103P492010 1/16W 680-F 103P505030 1/16W 220K-J 103P502030 1/16W 680-J 103P498020 1/16W 240K-F 103P502040 1/16W 820-J 103P505050 1/16W 330K-J 103P492050 1/16W 1K-F 103P505090 1/16W 680K-J 103P502050 1/16W 1K-J 103P506000 1/16W 820K-J 103P492060 1/16W 1.1K-F 103P506010 1/16W 1M-J 103P492070 1/16W 1.2K-F 103P400050 1/10W 22-J 103P502060 1/16W 1.2K-J 103P400090 1/10W 47-J 103P492080 1/16W 1.3K-F 103P401000 1/10W 56-J 103P492090 1/16W 1.5K-F 103P401030 1/10W 100-J 103P502070 1/16W 1.5K-J 103P401050 1/10W 150-J 103P493010 1/16W 1.8K-F 103P409050 1/8W 0OHM 103P502080 1/16W 1.8K-J 103P470090 1/8W 220-F 103P493020 1/16W 2K-F 103P471010 1/8W 270-F 103P493030 1/16W 2.2K-F 103P472090 1/8W 1.5K-F 103P502090 1/16W 2.2K-J 103P402090 1/8W 2.2K-J 103P493050 1/16W 2.7K-F 103P481070 1/4W 220-J 103P503000 1/16W 2.7K-J 103P493060 1/16W 3K-F

103P489090 1/4W 75-J

1/16W 33K-F

RESISTORS

Conventional Resistors (By Ref #)

Ref # Part # Part Name & Description [#]

R2814 103C399000 R-METAL-P - 3W 6.8K R2817 103C399000 R-METAL-P - 3W 6.8K R2818 103P910050 R-NET - 1/16W 22-J R2819 103P910050 R-NET - 1/16W 22-J R2820 103P910050 R-NET - 1/16W 22-J R2821 103P910050 R-NET - 1/16W 22-J R2822 103P910050 R-NET - 1/16W 22-J R3E27 109D151030 R-CARBON - 1/4W 4.7-J R3E28 103C170050 R-METAL - 1W 22-J R3E29 109D151030 R-CARBON - 1/4W 4.7-J R3E30 109D151030 R-CARBON - 1/4W 4.7-J R3E31 109D151030 R-CARBON - 1/4W 4.7-J R3E32 103C170050 R-METAL - 1W 22-J R7E12 103C178010 R-METAL - 1W 1.2-J R7K36 103P710090 R-CARBON - 1/4W 47-J R8700 103C398000 R-METAL-P - 3W 1-K R8H10 103C398050 R-METAL-P - 3W 2.7-K R8H20 103C398020 R-METAL-P - 3W 1.5-K R9A01 109P179010 R-CEMENT-PLATE - 6.8-J R9A02 109P179010 R-CEMENT-PLATE - 6.8-J

R9A03 109C010010R-COMP - 1/2W 1M-K R9A05 109C010010R-COMP - 1/2W 1M-K R9A06 109C010010R-COMP - 1/2W 1M-K

R9A09 103P145030 R-CARBON - 1/2W 220K-J R9A11 103P145030 R-CARBON - 1/2W 220K-J R9A13 103C194090 R-METAL - 3W 100K-J R9A14 103C194090 R-METAL - 3W 100K-J R9A15 103C394020 R-METAL-P - 3W 27K R9A16 103P145020 R-CARBON - 1/2W 180K-J R9A17 103P145020 R-CARBON - 1/2W 180K-J R9A18 103P145020 R-CARBON - 1/2W 180K-J R9A19 103P144020 R-CARBON - 1/2W 27K-J R9A20 103P144020 R-CARBON - 1/2W 27K-J R9A21 103C177040 R-METAL - 1W 0.33-J R9A22 103C177040 R-METAL - 1W 0.33-J R9A25 103P142050 R-CARBON - 1/2W 1K-J R9A26 109D151060 R-CARBON - 1/4W 68-J R9A27 109D151050 R-CARBON - 1/4W 75-J R9A62 103C398020 R-METAL-P - 3W 1.5-K R9A66 103P712000 R-CARBON - 1/4W 390-J R9A67 103P712000 R-CARBON - 1/4W 390-J R9A68 103P712000 R-CARBON - 1/4W 390-J R9A69 103P712000 R-CARBON - 1/4W 390-J R9A76 103C392010 R-METAL-P - 3W 470-J R9A77 103C392010 R-METAL-P - 3W 470-J R9A89 103P141090 R-CARBON - 1/2W 330-J R9A90 103C394020 R-METAL-P - 3W 27K R9A91 103C394020 R-METAL-P - 3W 27K R9A92 103C288040 R-METAL-CP - 2W 2.2-J R9C01 103C288070 R-METAL-CP - 2W 3.9-J

PAGE 38

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

R9D00 109D036020 R-COMP - 1/2W 4.7M-K

R9F01 103P713030 R-CARBON - 1/4W 4.7K-J R9F02 103P713030 R-CARBON - 1/4W 4.7K-J R9F03 103P713070 R-CARBON - 1/4W 10K-J R9F04 103P713070 R-CARBON - 1/4W 10K-J R9F05 103P712030 R-CARBON - 1/4W 680-J R9F06 103P711030 R-CARBON - 1/4W 100-J R9F07 103P713070 R-CARBON - 1/4W 10K-J R9F08 103P713070 R-CARBON - 1/4W 10K-J R9F09 103P713040 R-CARBON - 1/4W 5.6K-J R9F10 103P713030 R-CARBON - 1/4W 4.7K-J R9M00 103C288030 R-METAL-CP - 2W 1.8-J

CAPACITORS

CHIP Type Capacitors (Listed by Value)

Part No. Value Part No. Value

181P528000 4V 100M-M 105C 181P526010 50V 1M-M 181P528010 4V 220M-M 105C 154P340040 50V 3P-C 181P522060 6V 47M-M 141P133080 B50V 0.01M-Z 181P520010 6.3V 22M-M 105C 141P142010 B50V 0.01M-K 181P530030 6.3V 47M-M 105C 141P132030 B50V 0.015M-K 181P520030 6.3V 47M-M 141P140010 B50V 220P-K 181P520040 6.3V 100M-M 141P140050 B50V 470P-K 181P500060 6.3V 220M-M 141P140090 B50V 1000P-K 181P520050 6.3V 220M-M 105C 141P141010 B50V 1500P-K 141P146080 B10V 0.47M-K 141P141030 B50V 2200P-K 141P133010 B10V 3.3M-M 141P141050 B50V 3300P-K 141P147020 B10V/6.3V 1M-K 141P141070 B50V 4700P-K 181P532020 16V 4.7M-M 105C 141P142000 B50V 8200P-K 181P508080 16V 10M-M 154P340010 CK50V 1P-C 181P522030 16V 10M-M 105C 154P340030 CK50V 2P-C 181P532030 B16V 10M-M 105C 154P340060 CK50V 5P-C 181P522040 16V 22M-M 105C 154P340090 CH50V 8P-C 181P502060 16V 47M-M 154P341010 CH50V 10P-C 181P502070 16V 100M-M 154P341030 CH50V 12P-J 141P143020 B16V 0.082M-K 154P341050 CH50V 15P-J 141P143030 B16V 0.1M-K 154P341070 CH50V 18P-J 141P139090 B16V 0.47M-K 154P341090 CH50V 22P-J 141P134070 B16 V 1M-K 154P342010 CH50V 27P-J 141P144050 F16V 0.47M-Z 154P342030 CH50V 33P-J 141P136020 F16V 0.68M-Z 154P342050 CH50V 39P-J 141P135070 F16V 1M-Z 154P342070 CH50V 47P-J 141P142090 B25V 0.047M-K 154P342090 CH50V 56P-J 141P143010 B25V 0.068M-K 154P343050 CH50V 100P-J 141P139030 B25V 0.1M-K 154P343070 CH50V 120P-J 141P138080 B25V 0.33M-K 154P344030 CH50V 220P-J 141P148000 B25 V 1M-K 154P344050 CH50V 270P-J 141P144020 F25V 0.1M-Z 154P344070 CH50V 330P-J 141P135000 F25V 0.22M-Z 154P345010 CH50V 470P-J 141P135010 F25V 0.33M-Z 141P143080 F50V 0.01M-Z 141P135020 F25V 0.47M-Z 141P144010 F50V 0.047M-Z 141P144060 F25V 1M-Z 141P134090 F50V 0.1M-Z 154P345030 CH25V 560P-J 141P135080 F50V/25V 0.1M-Z 154P345050 CH25V 680P-J 141P143050 F50V 1000P-Z 154P345070 CH25V 820P-J 154P352020 SL50V 27P-J 154P345090 CH25V 1000P-J 154P352040 SL50V 33P-J 181P524090 35V 4.7M-M 105C 154P354040 SL50V 220P-J 181P525000 35V 10M-M 105C 154P325040 SL50V 560P-J

CAPACITORS AND TRIMMERS

Conventional Capacitors (By Ref #)

Ref # Part # Part Name & Description [#]

C1H03 181P352040 C-ELEC - 16V 100M-M C1H05 172P262010 C-M-POLY - 50V 0.047M-J C1H53 181P352040 C-ELEC - 16V 100M-M C1H55 172P262010 C-M-POLY - 50V 0.047M-J C2014 181P355060 C-ELEC - 50V 22M-M C2016 181P352040 C-ELEC - 16V 100M-M C2019 181P351070 C-ELEC - 10V 470M-M C2064 181P355060 C-ELEC - 50V 22M-M C2081 181P355050 C-ELEC - 50V 10M-M C2114 181P355060 C-ELEC - 50V 22M-M C2144 181P355060 C-ELEC - 50V 22M-M C2173 181P355060 C-ELEC - 50V 22M-M C2213 181P355060 C-ELEC - 50V 22M-M C2233 181P355050 C-ELEC - 50V 10M-M C2242 181P355050 C-ELEC - 50V 10M-M C2762 181P355050 C-ELEC - 50V 10M-M C2803 181P355050 C-ELEC - 50V 10M-M C2824 181P355060 C-ELEC - 50V 22M-M C2C20 181P352030 C-ELEC - 16V 47M-M C2K06 181P355050 C-ELEC - 50V 10M-M C2K10 181P355050 C-ELEC - 50V 10M-M C2K52 181P352030 C-ELEC - 16V 47M-M C2K59 181P352030 C-ELEC - 16V 47M-M C2K62 181P352030 C-ELEC - 16V 47M-M C2K68 181P352030 C-ELEC - 16V 47M-M C2K72 181P352030 C-ELEC - 16V 47M-M C2K73 181P352030 C-ELEC - 16V 47M-M C2K77 181P352030 C-ELEC - 16V 47M-M C2K81 181P352030 C-ELEC - 16V 47M-M C2K83 181P352030 C-ELEC - 16V 47M-M C2L03 181P351080 C-ELEC - 10V 1000M-M C2L16 181P355050 C-ELEC - 50V 10M-M C2L22 181P352010 C-ELEC - 16V 22M-M C2L31 181P355050 C-ELEC - 50V 10M-M C2L32 181P122070 C-ELEC-NP - 25V 10M-M C2L33 181P355050 C-ELEC - 50V 10M-M C2L34 181P122070 C-ELEC-NP - 25V 10M-M C2L51 181P355050 C-ELEC - 50V 10M-M C2L52 181P122070 C-ELEC-NP - 25V 10M-M C2L53 181P355050 C-ELEC - 50V 10M-M C2L54 181P122070 C-ELEC-NP - 25V 10M-M C2L61 181P352030 C-ELEC - 16V 47M-M C2M26 181P352040 C-ELEC - 16V 100M-M C2M28 181P351080 C-ELEC - 10V 1000M-M C2M29 181P351080 C-ELEC - 10V 1000M-M C2M31 181P352030 C-ELEC - 16V 47M-M C2M33 181P352030 C-ELEC - 16V 47M-M C2M36 181P352040 C-ELEC - 16V 100M-M C2M38 181P352030 C-ELEC - 16V 47M-M C2M39 181P352030 C-ELEC - 16V 47M-M C2M43 181P352030 C-ELEC - 16V 47M-M C2M44 181P352030 C-ELEC - 16V 47M-M C2M54 181P355050 C-ELEC - 50V 10M-M C2M56 181P352030 C-ELEC - 16V 47M-M C2M59 181P352030 C-ELEC - 16V 47M-M

PAGE 39

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

C2M64 181P352030 C-ELEC - 16V 47M-M C2M73 181P352030 C-ELEC - 16V 47M-M C2M75 181P352030 C-ELEC - 16V 47M-M C2M76 181P352040 C-ELEC - 16V 100M-M C2M77 181P352040 C-ELEC - 16V 100M-M C2M80 181P352030 C-ELEC - 16V 47M-M C2M88 181P355010 C-ELEC - 50V 1M-M C2M89 181P352030 C-ELEC - 16V 47M-M C2M98 181P355050 C-ELEC - 50V 10M-M C3E50 181P358070 C-ELEC - 63V 22M-M C3E51 181P354090 C-ELEC - 35V 470M-M C3E52 181P354090 C-ELEC - 35V 470M-M C3E53 181P354090 C-ELEC - 35V 470M-M C3E54 181P354090 C-ELEC - 35V 470M-M C3E91 181P375050 C-ELE-BP-AUDIO - 25V 1000M-M C3E92 181P375050 C-ELE-BP-AUDIO - 25V 1000M-M C3J08 181P352030 C-ELEC - 16V 47M-M C3J26 181P352030 C-ELEC - 16V 47M-M C3J38 181P355050 C-ELEC - 50V 10M-M

C7A00 154P345050 C-CER-CHIP - CH25V 680P-J

C7B02 181P355020 C-ELEC - 50V 2.2M-M C7B16 181P352030 C-ELEC - 16V 47M-M C7B88 181P355050 C-ELEC - 50V 10M-M C7B91 181P355050 C-ELEC - 50V 10M-M C7B96 181P355020 C-ELEC - 50V 2.2M-M C7B99 181P352030 C-ELEC - 16V 47M-M C7E03 181P352050 C-ELEC - 16V 220M-M C7K01 181P352030 C-ELEC - 16V 47M-M C7K21 181P355050 C-ELEC - 50V 10M-M C7K23 181P352030 C-ELEC - 16V 47M-M C7K28 181P355050 C-ELEC - 50V 10M-M C7P15 181P352030 C-ELEC - 16V 47M-M C7P19 181P352030 C-ELEC - 16V 47M-M C7Q02 181P352040 C-ELEC - 16V 100M-M C7Q52 181P352040 C-ELEC - 16V 100M-M C81A2 181P182030 C-ELEC - 16V 1000M-M 105C C81A3 181P182030 C-ELEC - 16V 1000M-M 105C C81B3 181P182030 C-ELEC - 16V 1000M-M 105C C81B4 181P182030 C-ELEC - 16V 1000M-M 105C C8281 189P197020 C-ELE-DBL-LA - FM0H473Z/EECS5R5T473Z C8702 181P355090 C-ELEC - 50V 100M-M C8703 181P185060 C-ELEC - 50V 10M-M 105C C8705 181P184020 C-ELEC - 35V 100M-M C8708 181P185090 C-ELEC - 50V 47M-M 105C C8710 181P181000 C-ELEC - 10V 330M-M 105C C8717 181P352060 C-ELEC - 16V 330M-M C8719 181P732000 C-ELEC - 10V 680M-M 105C C8720 181P185060 C-ELEC - 50V 10M-M 105C C8725 181P732000 C-ELEC - 10V 680M-M 105C C8727 181P181000 C-ELEC - 10V 330M-M 105C C8729 181P732000 C-ELEC - 10V 680M-M 105C C8733 181P732000 C-ELEC - 10V 680M-M 105C C8736 181P185060 C-ELEC - 50V 10M-M 105C C8738 181P352060 C-ELEC - 16V 330M-M C8742 181P185060 C-ELEC - 50V 10M-M 105C C8748 181P185060 C-ELEC - 50V 10M-M 105C C8749 181P184020 C-ELEC - 35V 100M-M C8751 181P185060 C-ELEC - 50V 10M-M 105C C8754 181P184020 C-ELEC - 35V 100M-M

C8760 181P352030 C-ELEC - 16V 47M-M C8761 181P352060 C-ELEC - 16V 330M-M C8765 181P352030 C-ELEC - 16V 47M-M C8772 181P732000 C-ELEC - 10V 680M-M 105C C8773 181P353020 C-ELEC - 25V 10M-M C8780 181P182010 C-ELEC - 16V 330M-M 105C C8786 181P352030 C-ELEC - 16V 47M-M C8788 181P352060 C-ELEC - 16V 330M-M C8790 181P355030 C-ELEC - 50V 3.3M-M C8792 181P353020 C-ELEC - 25V 10M-M C8795 181P352030 C-ELEC - 16V 47M-M C8797 181P353060 C-ELEC - 25V 330M-M C8798 181P181000 C-ELEC - 10V 330M-M 105C C87A0 181P181000 C-ELEC - 10V 330M-M 105C C87A3 181P181000 C-ELEC - 10V 330M-M 105C C87A7 181P181000 C-ELEC - 10V 330M-M 105C C8839 181P185060 C-ELEC - 50V 10M-M 105C C8840 181P185060 C-ELEC - 50V 10M-M 105C C8844 181P185060 C-ELEC - 50V 10M-M 105C C8845 181P185060 C-ELEC - 50V 10M-M 105C C8847 181P185060 C-ELEC - 50V 10M-M 105C C8848 181P185060 C-ELEC - 50V 10M-M 105C C8852 181P185060 C-ELEC - 50V 10M-M 105C C8853 181P185060 C-ELEC - 50V 10M-M 105C

C8C01 141P143030 C-CER-CHIP - B16V 0.1M-K bcef C8C01 141P143030C-CER-CHIP - B16V 0.1M-K C8C02 141P143030 C-CER-CHIP - B16V 0.1M-K bcef C8C02 141P143030C-CER-CHIP - B16V 0.1M-K

C8F19 181P182030 C-ELEC - 16V 1000M-M 105C C8F21 181P182030 C-ELEC - 16V 1000M-M 105C C8F22 181P182030 C-ELEC - 16V 1000M-M 105C C8F27 181P182030 C-ELEC - 16V 1000M-M 105C C9A00 189P185090 C-CER - AC250V E2200P-M C9A01 189P185090 C-CER - AC250V E2200P-M C9A02 185D122050 C-ELEC - H200V 1000M-M C9A03 185D122050 C-ELEC - H200V 1000M-M C9A04 185D127040 C-ELEC - H450V 150M-M 105C

C9A05 189P185090 C-CER - AC250V E2200P-M C9A06 189P185090 C-CER - AC250V E2200P-M C9A08 189P185090 C-CER - AC250V E2200P-M C9A09 189P185090 C-CER - AC250V E2200P-M C9A10 189P185090 C-CER - AC250V E2200P-M C9A11 189P185090 C-CER - AC250V E2200P-M

C9A12 189P153010 C-M-POLY - AC125/250V 0.33M-M

C9A13 189P152080 C-M-POLY - AC125/250V 0.015M-M abde C9A14 189P152080 C-M-POLY - AC125/250V 0.015M-M abde C9A15 189P185070 C-CER - AC250V E1000P-M C9A16 189P185070 C-CER - AC250V E1000P-M C9A20 154P232020 C-CER - B1KV 1000P-K C9A21 181P185060 C-ELEC - 50V 10M-M 105C

C9A25 172P138010 C-POLY - 50V 4700P-J C9A26 185D122050 C-ELEC - H200V 1000M-M C9A27 185D122050 C-ELEC - H200V 1000M-M C9A29 181P185060 C-ELEC - 50V 10M-M 105C C9A30 181P185060 C-ELEC - 50V 10M-M 105C C9A32 181P735040 C-ELEC - 25V 1500M-M C9A33 181P735040 C-ELEC - 25V 1500M-M C9A35 181P735010 C-ELEC - 25V 470M-M C9A37 181P732040 C-ELEC - 10V 3300M-M 105C C9A38 181P732040 C-ELEC - 10V 3300M-M 105C

PAGE 40

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

C9A40 181P184070 C-ELEC - 35V 2200M-M C9A41 181P732010 C-ELEC - 10V 1000M-M 105C C9A43 172P262050 C-M-POLY - 50V 0.1M-J C9A45 181P182030 C-ELEC - 16V 1000M-M 105C C9A46 142P010090 C-CER - B500V 470P-K C9A47 142P010090 C-CER - B500V 470P-K

C9A50 141P134090C-CER-CHIP - F50V 0.1M-Z

C9A51 181P182030 C-ELEC - 16V 1000M-M 105C C9A52 181P182030 C-ELEC - 16V 1000M-M 105C C9A61 181P182030 C-ELEC - 16V 1000M-M 105C C9A62 181P182030 C-ELEC - 16V 1000M-M 105C C9A64 181P181000 C-ELEC - 10V 330M-M 105C C9A66 181P183010 C-ELEC - 25V 100M-M C9A68 181P183010 C-ELEC - 25V 100M-M C9A71 181P183010 C-ELEC - 25V 100M-M C9A73 181P735020 C-ELEC - 25V 1000M-M 105C C9A77 181P183010 C-ELEC - 25V 100M-M C9A79 181P183010 C-ELEC - 25V 100M-M C9A82 181P183010 C-ELEC - 25V 100M-M C9C02 181P352040 C-ELEC - 16V 100M-M C9C03 181P352030 C-ELEC - 16V 47M-M C9C13 181P351090 C-ELEC - 10V 2200M-M C9C22 181P352030 C-ELEC - 16V 47M-M C9C42 181P351090 C-ELEC - 10V 2200M-M

C9D00 189P153040 C-M-POLY - 250VAC 0.1M-M C9D01 189P153040 C-M-POLY - 250VAC 0.1M-M C9D02 189P153040 C-M-POLY - 250VAC 0.1M-M C9D03 189P153040 C-M-POLY - 250VAC 0.1M-M

C9D06 189P153040 C-M-POLY - 250VAC 0.1M-M C9F01 142P023080 C-CER - BF50V 0.01M-Z C9M01 181P352030 C-ELEC - 16V 47M-M C9M04 181P352030 C-ELEC - 16V 47M-M C9M05 181P352030 C-ELEC - 16V 47M-M C9M08 181P352030 C-ELEC - 16V 47M-M C9M10 181P352040 C-ELEC - 16V 100M-M C9M12 181P352030 C-ELEC - 16V 47M-M C9M14 181P352040 C-ELEC - 16V 100M-M C9M16 181P352030 C-ELEC - 16V 47M-M

SWITCHES

S7L20 432P109010 SW-KEY BOARD - KSHS611BT S7L21 432P109010 SW-KEY BOARD - KSHS611BT S7L22 432P109010 SW-KEY BOARD - KSHS611BT S7L23 432P109010 SW-KEY BOARD - KSHS611BT S7L24 432P109010 SW-KEY BOARD - KSHS611BT S7L25 432P109010 SW-KEY BOARD - KSHS611BT S7L26 432P109010 SW-KEY BOARD - KSHS611BT S7L27 432P109010 SW-KEY BOARD - KSHS611BT S7L28 432P109010 SW-KEY BOARD - KSHS611BT S7L29 432P109010 SW-KEY BOARD - KSHS611BT S9F01 432P109010 SW-KEY BOARD - KSHS611BT

MISCELLANEOUS

096Z465030 TAPE-LENS abcef 096Z465080 TAPE-LENS

242D527010 CABLE - IR

242D535060 CABLE - 1394 - 1000mm abde 242D535070 CABLE - 1394 - 1300mm cf 242D536030 CABLE MEMORY 242D540010 CABLE-IF - F-CONN 250mm 242D543010 CABLE - 1394 - 500mm L cf 242D546020 IF-CABLE - PIN-PLUG 70mm be 242D546030 IF-CABLE - PIN-PLUG 200mm be 246C501010 CABLE - DVI TO DVI

299P103050 FAN - MMF-04B12-DL-RB1 be 299P254020 IR-EMITTER, 4-HEAD - T-IR-02 W/FERRITE CO 299P278020 FAN - EFB06121A-R00

299P280010 SENSR-THERMAL - 060BLRU32 299P280020 SENSR-THERMAL - 045BLRU34 305P703010 2RF-SWITCH 411D044020 CORE-FERRITE - ZCAT2032-0930 411D062010 CORE-FERRITE - ZCAT1518-0730 411D063020 CORE-FERRITE - CAT3035 411P026010 CORE-FERRITE - ZCAT2017 411P026020 CORE-FERRITE - ZCAT2436 be 411P027010 CORE-FERRITE - ZCAT4625 411P028010 CORE-FERRITE - HF57S427X1 436P021010 SW-MICRO 480P077010 SPEAKER - COAXIAL 526C008010 DOOR-LINK - STRAP cf 592A032010 PLATE-REAR 598D417020 PLATE - RF-SWITCH 620D144010 FILTER - DUST be 622C208010 MIRROR - HOLDER - TOP abc 622C208020 MIRROR - HOLDER - TOP def 622C209010 MIRROR - HOLDER - BOTTOM abc 622C220010 COVER - LAMP - VENT 622C247010 COVER-SW 635B114010 MIRROR - BRACKET - TOP abc 635B114020 MIRROR - BRACKET - TOP def 641B991010 MIRROR - HOLDER - SIDE abc 641B993010 COVER - FRONT abde 641B999010 MIRROR - HOLDER - SIDE def 704B205010 KNOB CONTROL abc 704B205020 KNOB CONTROL def 704B207010 BUTTON - RESET 752B142010 COVER - FILTER 752B143010 COVER - LAMP abde 752B149010 COVER - LAMP cf 752C297010 COVER - FRONT cf 754D025010 BUTTON - STOPPER cf 760A013010 INLAY TERMINAL 761B413010 MEMORY-CONT-PANEL cf 761B414010 MEMORY-CONT-BOTTOM c f 761B415010 MEMORY-CONT-TOP cf 767D075010 MIRROR (52") abc 767D075020 MIRROR (BIG) def 767D076010 MIRROR (SMALL)

915P020010 LAMP - CARTRIDGE

939P977010 OPTICAL-ENGINE abc 939P977020 OPTICAL-ENGINE def

939P978010 UNIT-POWER-LAMP

939P989010 ASSY-HDD-UNIT cf

AG9D00 299P220020 SURGE-SUPPRESSOR F8F01 283P128050 FUSE-CHIP - AC125/100V 4A F8F02 283P128040 FUSE-CHIP - AC125/100V 3.15A

PAGE 41

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

F8F03 283P128050 FUSE-CHIP - AC125/100V 4A F9A01 283P144080 FUSE - 125V 5A F9A02 283P144040 FUSE - 32V 15A F9A03 283P144040 FUSE - 32V 15A F9A04 283P144080 FUSE - 125V 5A F9A05 283P144080 FUSE - 125V 5A F9A06 283P128050 FUSE-CHIP - AC125/100V 4A F9A07 283P128050 FUSE-CHIP - AC125/100V 4A F9A08 283P144070 FUSE - 125V 3A F9A09 283P127060 FUSE-CHIP - AC125/100V 630MA F9D00 283D131040 FUSE - S10A 125A

SF8800 296P171010 SAW-FILTER - X6892D SF8801 296P172010 SAW-FILTER - X7303P CF8H01 299P128010 OSC-CERAMIC - CSB500F2 CF8T01 299P128010 OSC-CERAMIC - CSB500F2 J2000 452C410010 CONNECTOR-HDMI J2C01 452C388010 CONNECTOR-DSUB J8201 452C401010 CONNECTOR-USB J8202 452C401010 CONNECTOR-USB J8301 440C393030 PIN-JACK-BOARD-1P J8401 451P246010 JACK-1394 - MINI J8402 451P246010 JACK-1394 - MINI J8403 451P246010 JACK-1394 - MINI J8B00 452C300010 CONNECTOR-DSUB-15P J8E00 452C385010 CONNECTOR-DVI

K9A10 287P111030 RELAY-POWER - LKS1AF-12V K9A20 287P111030 RELAY-POWER - LKS1AF-12V K9A21 287P111030 RELAY-POWER - LKS1AF-12V PC9A10 268P058020 PHOTO-COUPLER - ON3131-R/ON3161-R PC9A21 268P058020 PHOTO-COUPLER - ON3131-R/ON3161-R

PJ2000 440C440010 PIN-JACK-BOARD abde PJ2000 440C449010 PIN-JACK-BOARD c f PJ2J01 440C431030 PIN-JACK-BOARD abde PJ2J01 440C434040 PIN-JACK-BOARD c f PJ2J02 440C430010 PIN-JACK-BOARD abde PJ2J02 440C434020 PIN-JACK-BOARD c f PJ2J03 440C430040 PIN-JACK-BOARD abde PJ2J03 440C433020 PIN-JACK-BOARD c f PJ2J04 440C430040 PIN-JACK-BOARD abde PJ2J04 440C433020 PIN-JACK-BOARD c f PJ2J05 440C430060 PIN-JACK-BOARD abde PJ2J05 440C433010 PIN JACK BOARD cf PJ2J06 440C430040 PIN-JACK-BOARD abde PJ2J06 440C433020 PIN-JACK-BOARD c f PJ2J07 440C430030 PIN-JACK-BOARD abde PJ2J07 440C433040 PIN-JACK-BOARD c f PJ2J11 440C231010 PIN-JACK-BOARD-3P abde PJ2J11 440C436050 PIN-JACK-BOARD-3P-1S c f PJ2L08 440C430050 PIN-JACK-BOARD abde PJ2L08 440C433030 PIN-JACK-BOARD c f PJ7C01 451C129010 JACK-MINI - AV NET/IR BLAST PJ7C02 451C268010 JACK MICROPHONE 1P PJ8H00 440C440010 PIN-JACK-BOARD abde PJ8H00 440C449010 PIN-JACK-BOARD cf

TU8700 295P490040 TUNER-TV - ENA46914P4A TU8701 295P523020 TUNER-NTSC/ATSC TU8702 295P524010 TUNER-OOB

X2K51 285P426020 QTZ-CRYST - 4.000000MHZ X2M47 285P426040 QTZ-CRYST - 20.000MHZ X7A13 285P434020 QTZ-

CRYST - 16.000MHZ

X7J10 285P335050 QTZ-CRYST - 80.000MHZ X7P09 285P434010 QTZ-CRYST - 8.000MHZ X8001 285P441040 QTZ-CRYST - 26.1621MHZ X8301 285P434020 QTZ-CRYST - 16.000MHZ X8302 285P441030 QTZ-CRYST - 14.31818MHZ ad X8302 285P441030 QTZ-CRYST - 14.31818MHZ abde X8303 285P413010 QTZ-CRYST - 18.432MHZ X8401 285P431020 QTZ-CRYST - 54.000MHZ X8402 285P410020 QTZ-CRYST - 24.576MHZ X8613 285P434020 QTZ-CRYST - 16.000MHZ X8701 285P413010 QTZ-CRYST - 18.432MHZ X8800 285P453010 QTZ-CRYST - 25.140MHZ X8A00 285P387010 QTZ-CRYST - 24.576MHz cf X8A01 285P446010 QTZ-CRYST - 83.33MHZ cf X8C01 285P391030 OSC - 74.175824MHZ X8C02 285P391030 OSC - 74.175824MHZ X8F01 285P436010 QTZ-CRYST - 20.000MHZ X8G00 285P426030 QTZ-CRYST - 10.000MHZ bcef X8G01 285P426010 QTZ-CRYST - 3.579545MHZ bcef X8H12 299P259010 OSC-CERAMIC - CSALA2M6964ZF01-B0 X8H14 285P426020 QTZ-CRYST - 4.000000MHZ bcef X8H14 285P426020 QTZ-CRYST - 4.000000MHZ X8H26 285P426010 QTZ-CRYST - 3.579545MHZ bcef X8H26 285P426010 QTZ-CRYST - 3.579545MHZ X8T12 299P259010 OSC-CERAMIC - CSALA2M6964ZF01-B0 X8T14 285P426020 QTZ-CRYST - 4.000000MHZ bcef X8T14 285P426020 QTZ-CRYST - 4.000000MHZ X8T26 285P426010 QTZ-CRYST - 3.579545MHZ bcef X8T26 285P426010 QTZ-CRYST - 3.579545MHZ Z7K01 938P005010 UNIT-PREAMP

Z81A1 283P128050 FUSE-CHIP - AC125/100V 4A Z81A2 283P128050 FUSE-CHIP - AC125/100V 4A Z81A3 283P128050 FUSE-CHIP - AC125/100V 4A Z81A4 283P128050 FUSE-CHIP - AC125/100V 4A

PRINTED CIRCUIT BOARDS

299P271010 MEMORY-CARD-READER-PWB 930B921001 ASSY-PWB-POWER cf

930B921002 ASSY-PWB-POWER abde 930B923002 ASSY-PWB-SIGNAL abde 930B923003 ASSY-PWB-SIGNAL c f 930B924001 ASSY-PWB-FMT cf 930B924002 ASSY-PWB-FMT abde 934C116001 ASSY-PWB-DM cf 934C116002 ASSY-PWB-DM abde 934C117001 ASSY-PWB-TERMINAL-1 abde 934C117002 ASSY-PWB-TERMINAL-1 cf 934C118001 ASSY-PWB-TERMINAL-2 934C121001 ASSY-PWB-E2P 935D774001 ASSY-PWB-PREAMP 935D775001 ASSY-PWB-FRONT abde 935D776001 ASSY-PWB-CONTROL 935D779001 ASSY-PWB-FRONT2 cf 935D806001 ASSY-PWB-SPEAKER-R 935D807001 ASSY-PWB-SPEAKER-L 955B298001 ASSY-CHASSIS abde 955B298003 ASSY-CHASSIS cf 955C278001 ASSY-PWB-FAN-CONT

PAGE 42

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

COSMETIC PARTS

706C032010 BADGE - BRAND cf 716C044010 BADGE - BRAND

760A014010 DOOR - FRONT c 760A015010 DOOR - FRONT f 761A233010 GRILLE - SPEAKER a 761A234010 GRILLE - SPEAKER b 761A239010 GRILLE - SPEAKER d 761A240010 GRILLE - SPEAKER e 761A247010 GRILLE - BASE c 761A248010 GRILLE - BASE f 761A250010 DOOR - REAR c 761A251010 DOOR - REAR f 761B411010 GRILLE - SPEAKER - RIGHT c 761B411020 GRILLE - SPEAKER - LEFT c 761B412010 GRILLE - SPEAKER - RIGHT f 761B412020 GRILLE - SPEAKER - LEFT f 775B141040 NAME-PLATE - WD-52525 a 775B141050 NAME-PLATE - WD-62725 d 775B141060 NAME-PLATE - WD-52725 b 775B141070 NAME-PLATE - WD-62725 e 775B141080 NAME-PLATE - WD-52825 c 775B141090 NAME-PLATE - WD-62825 f

ACCESSORIES

242D525010 CABLE - AUDIO 246C351050 CORD-AC - POWER

290P123010 REMOTE-CONTROL - V25++/V26 852C327010 GUIDE - QR - V26 abde 852C329010 GUIDE - QR - V26++ cf 871D407010 GUIDE - OWNER - V26 abde 871D409010 GUIDE - OWNER - V26++ cf

PAGE 43

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

SCREEN ASSEMBLY PARTS

WD-52525

(1) 491P178020 SCREEN - LENTICULAR abc (2) 491P177020 LENS - FRESNEL abc (3) 622C211010 CLIP DS - BOTTOM abc (4) 622C137010 CLIP DS - SIDE abcdef (5) 623D174030 SCREEN - HOLDER abc (6) 701B499030 SCREEN - FRAME - TOP abc (7) 701B500030 SCREEN - FRAME - SIDE ab (8) 704B206010 SCREEN - TRIM - LEFT abc (9) 704B206020 SCREEN - TRIM - RIGHT abc (10) KIT-WD52525 DS DIAMOND - SHIELD a (11) 761A232010 SCREEN - FRAME - BOTTOM ab (12) 761A238010 SCREEN - COVER-FRAME - TOP ab (13) 768C082010 SCREEN-CAP-CORNER - LEFT abcdef (14) 768C082020 SCREEN-CAP-CORNER - RIGHT abcdef

Note: Item 10, DiamondShield, includes the Logo, Side and Bottom Clips (Items 3 & 4)

WD-52725

(10) KIT-WD52725 DS DIAMOND - SHIELD - AR

(11) 761A232010 SCREEN - FRAME - BOTTOM ab (12) 761A238010 SCREEN - COVER-FRAME - TOP ab (13) 768C082010 SCREEN-CAP-CORNER - LEFT abcdef (14) 768C082020 SCREEN-CAP-CORNER - RIGHT abcdef

PAGE 44

MODEL: WD-52525 / WD-52725 / WD-52825 / WD-62525 / WD-62725 / WD-62825

[#] Model Legend: [a] WD-52525, [b] WD-52725, [c] WD-52825, [d] WD-62525, [e] WD-62725, [f] WD-62825

Ref # Part # Part Name & Description [#]

WD-52825

(1) 491P178020 SCREEN - LENTICULAR abc (2) 491P177020 LENS - FRESNEL abc (3) 622C211010 CLIP DS - BOTTOM abc (4) 622C137010 CLIP DS - SIDE abcdef (5) 623D174030 SCREEN - HOLDER abc (6) 701B499030 SCREEN - FRAME - TOP abc (7) 701B500070 SCREEN - FRAME - SIDE c (8) 704B206010 SCREEN - TRIM - LEFT abc (9) 704B206020 SCREEN - TRIM - RIGHT abc (10) KIT-WD52825 DS DIAMOND - SHIELD - AR c (11) 761A232020 SCREEN - FRAME - BOTTOM c (12) 761A238020 SCREEN-COVER-FRAME - TOP c (13) 768C082010 SCREEN-CAP-CORNER - LEFT abcdef (14) 768C082020 SCREEN-CAP-CORNER - RIGHT abcdef

WD-62525

(1) 491P174020 SCREEN - LENTICULAR def (2) 491P173020 LENS - FRESNEL def (3) 622C211020 CLIP DS - BOTTOM def (4) 622C137010 CLIP DS - SIDE abcdef (5) 623D174040 SCREEN - HOLDER def (6) 701B499060 SCREEN - FRAME - TOP d (7) 701B499060 SCREEN - FRAME - SIDE d (8) 704B208010 SCREEN - TRIM - LEFT def (9) 704B208020 SCREEN - TRIM - RIGHT def (10) KIT-WD62525 DS DIAMOND - SHIELD d (11) 761A242010 SCREEN - FRAME - BOTTOM de (12) 761A244010 SCREEN-COVER-FRAME - TOP de (13) 768C082010 SCREEN-CAP-CORNER - LEFT abcdef (14) 768C082020 SCREEN-CAP-CORNER - RIGHT abcdef

WD-62725

(1) 491P176020 SCREEN - LENTICULAR def (2) 491P175020 LENS - FRESNEL def (3) 622C211020 CLIP DS - BOTTOM def (4) 622C137010 CLIP DS - SIDE abcdef (5) 623D174040 SCREEN - HOLDER def (6) 701B499040 SCREEN - FRAME - TOP def (7) 701B500040 SCREEN - FRAME - SIDE de (8) 704B208010 SCREEN - TRIM - LEFT def (9) 704B208020 SCREEN - TRIM - RIGHT def (10) KIT-WD62725 DS DIAMOND - SHIELD - AR e (11) 761A242010 SCREEN - FRAME - BOTTOM de (12) 761A244010 SCREEN-COVER-FRAME - TOP de (13) 768C082010 SCREEN-CAP-CORNER - LEFT abcdef (14) 768C082020 SCREEN-CAP-CORNER - RIGHT abcdef

WD-62825

(1) 491P176020 SCREEN - LENTICULAR def (2) 491P175020 LENS - FRESNEL def (3) 622C211020 CLIP DS - BOTTOM def (4) 622C137010 CLIP DS - SIDE abcdef (5) 623D174040 SCREEN - HOLDER def (6) 701B499040 SCREEN - FRAME - TOP def (7) 701B500080 SCREEN - FRAME - SIDE f (8) 704B208010 SCREEN - TRIM - LEFT def (9) 704B208020 SCREEN - TRIM - RIGHT def (10) KIT-WD62825 DS DIAMOND - SHIELD - AR f (11) 761A242020 SCREEN - FRAME - BOTTOM f (12) 761A244020 SCREEN-COVER-FRAME - TOP f (13) 768C082010 SCREEN-CAP-CORNER - LEFT abcdef (14) 768C082020 SCREEN-CAP-CORNER - RIGHT abcdef

Note: Item 10, DiamondShield, includes the Logo, Side and Bottom DS Clips (Items 3 & 4)

PAGE 45
