Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIES, LTD. Air-Conditioner. To get the best long-lasting performance, please read and follow this User’s Manual carefully before using your air-conditioner. After reading, please store the Manual in a safe place and refer to it for operational questions or in the event of any irregularities.

This air-conditioner is intended for domestic use.

Do not vent R410A into the atmosphere: R410A is a fluorinated greenhouse gas, covered by the Kyoto Protocol with a Global Warming Potential (GWP) = 1975.

Your Air Conditioning product may be marked with this symbol. It means that waste electrical and electronic equipment (WEEE as in directive 2002/ 96/EC) should not be mixed with general household waste. Air conditioners should be treated at an authorized treatment facility for re-use, recycling and recovery and not be disposed of in the municipal waste stream. Please contact the installer or local authority for more information.

This symbol printed in the batteries attached to your Air Conditioning product is information for end-users according to the EU directive 2006/66/ EC article 20 annex II. Batteries, at their end-of-life, should be disposed of separately from general household waste. If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the batteries contain a heavy metal at a certain concentration. This will be indicated as follows: Hg:mercury(0.0005%) , Cd:cadmium(0.002%) , Pb:lead(0.004%) Please, dispose of batteries correctly at your local community waste collection or the recycling center.

ENGLISH

contents

Safety precautions...........................................2

Name of each part and its function .................4

Remote control handling ................................ 6

Operation failure with the remote control ...... 6

Temporary run operation ................................6

Operation and display section for remote

control .............................................................7

Current time setting ........................................ 7

AUTO mode operation ...................................8

Temperature adjustment during AUTO.......... 8

FAN SPEED ...................................................8

COOL/HEAT/DRY/FAN mode operation .....9

Air-conditioner operable

temperature setting ......................................... 9

Characteristics of HEAT mode operation ...... 9

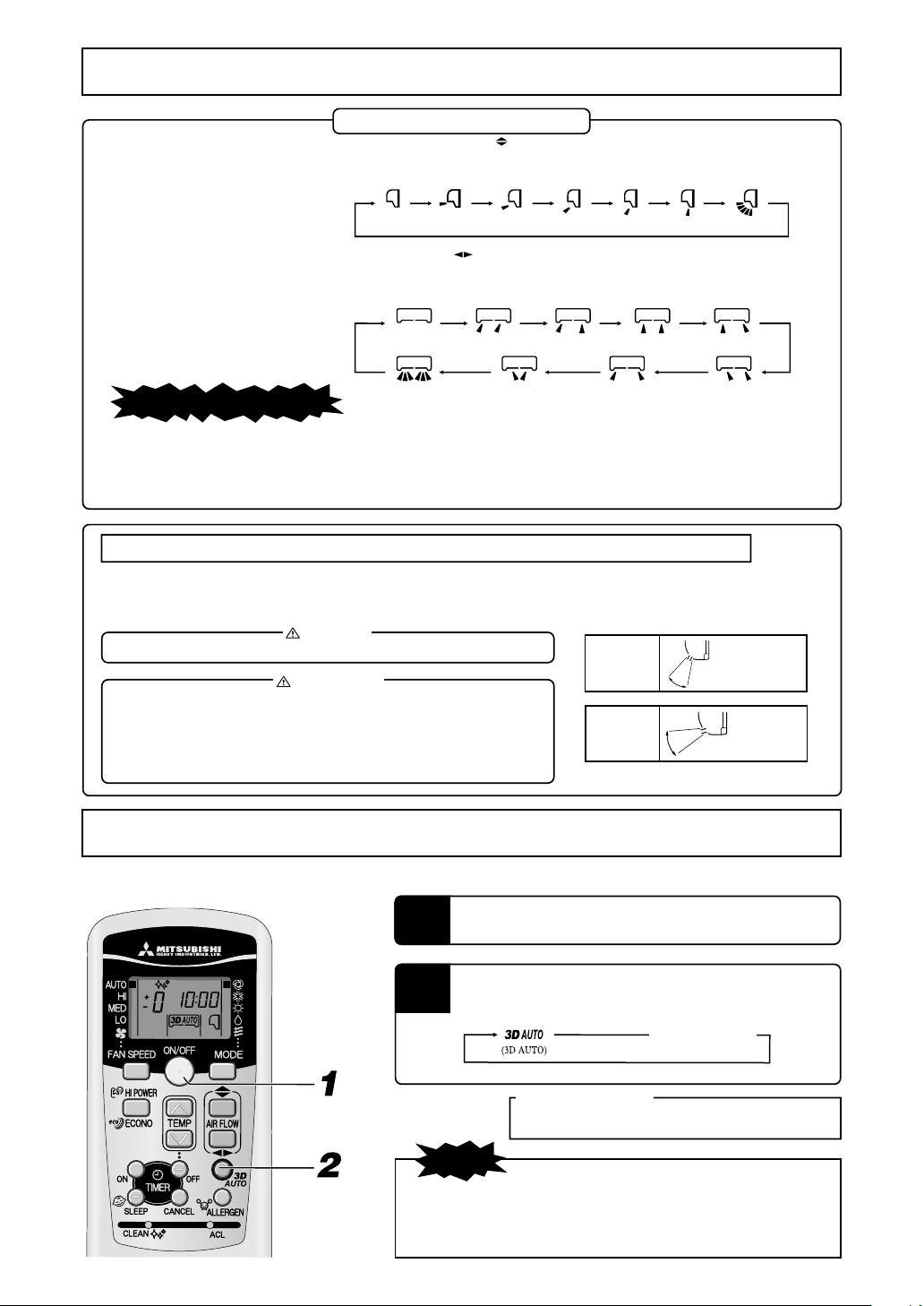

Airflow direction adjustment ........................ 10

3D AUTO operation .....................................10

SLEEP TIMER operation .............................11

OFF-TIMER operation .................................11

ON-TIMER operation...................................12

SLEEP TIMER + ON-TIMER operation .....12

PROGRAM TIMER operation ..................... 13

ALLERGEN CLEAR operation ................... 13

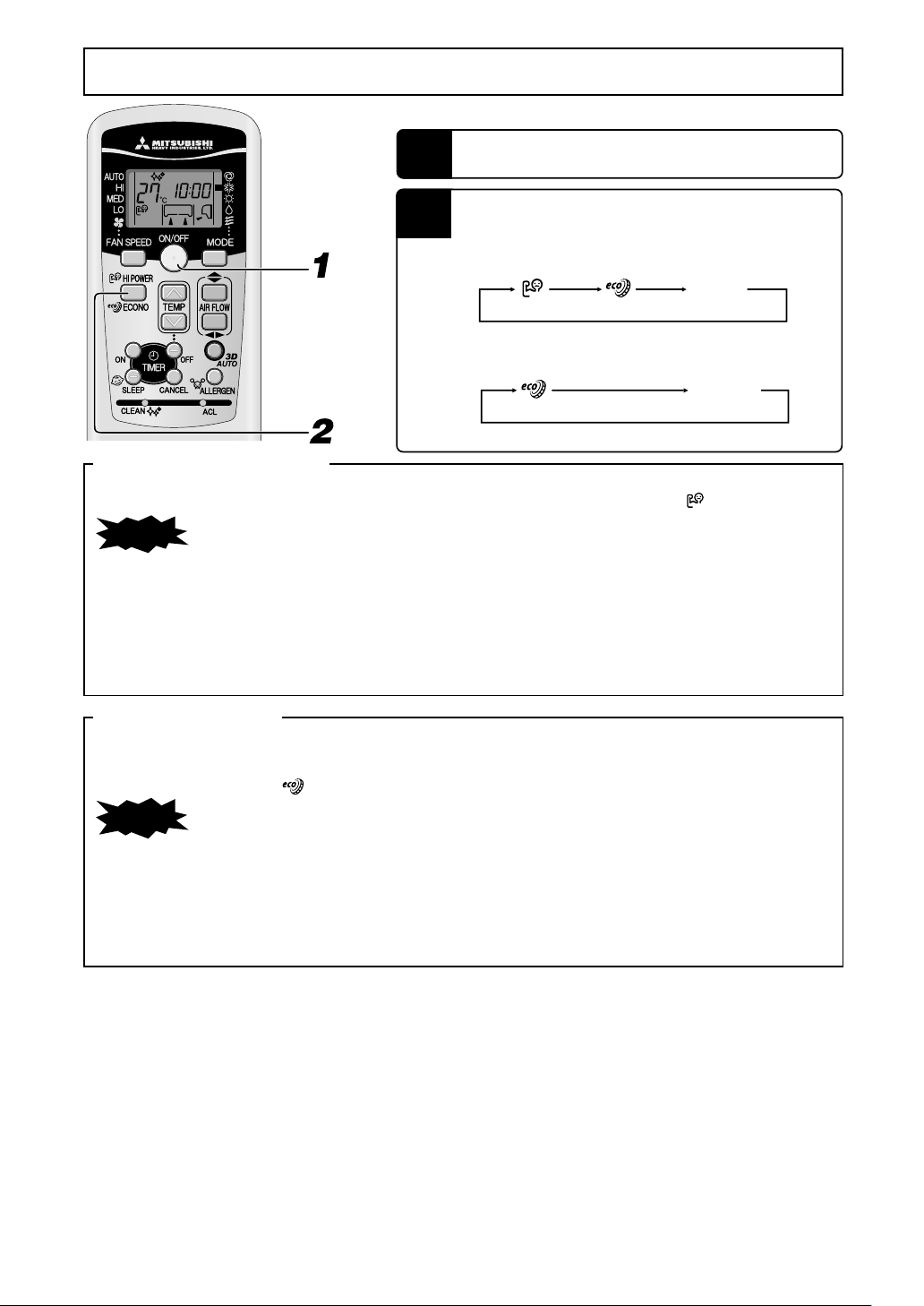

HIGH POWER/ECONOMY operation ........ 14

SELF CLEAN operation .............................. 15

Auto restart function ..................................... 15

Tips for effective operation .......................... 15

Installation location setting........................... 16

Maintenance..................................................17

Proper installation......................................... 19

Troubleshooting ............................................ 19

Notice ........................................................... 20

Contact your dealer....................................... 21

About the Multiple Air-conditioner.............. 21

Self diagnosis function ................................. 22

–1–

Safety precautions

• Before starting to use the system, please read these “Safety precautions” carefully to ensure proper operation of the system.

• The safety precautions are classified as “

improper handling could lead to drastic result like death, serious injury, etc. Even precautions as shown in the column “ a serious problem, depending on the circumstances. Please observe these precautions with great care, since they are essential to your safety.

• Symbols which appear frequently in the text have the following meaning:

DANGER” and “ CAUTION”. Precautions as shown in the column “ DANGER” indicate that

CAUTION” might pose

Strictly prohibited Provide proper earthing

• When you have read this instruction manual, please keep it without missing. If someone else takes over as operator, make certain that the manual is also passed on to the new operator.

Observe instructions with great care

❚ INSTALLATION PRECAUTIONS

CAUTIONDANGER

The system is for domestic, residential etc. use.

If used in severer environments, such as an engineering workplace, the equipment may function poorly.

The system must be installed by your dealer or a qualified professional.

It is not advisable to install the system by yourself, as faulty handling may cause leakage of water, electric shock or fire.

Do not install it where flammable gas may leak.

Gas leaks may cause fire. If you do not install an earth leakage

Make sure to install the drain hose properly so that all the water is drained out.

Improper installation may lead to water drop in the room resulting in wet furniture.

Depending on the place of installation, an earth leakage breaker may be necessary.

breaker, you may get an electric shock.

Make sure that the system has been properly earthed.

Earth cables should never be connected to a gas pipe, water pipe, lightning conductor or telephone earth cable. Incorrect installation of the earth cable may produce an electric shock.

❚ OPERATION PRECAUTIONS

DANGER

Do not expose yourself to the cooling air for a long period.

Do not insert anything into the air inlet.

Store the remote control out of reach of infants.

This could affect your physical condition and cause health problems.

Only use approved fuses.

Use of steel or copper wire instead of an approved fuse is strictly prohibited, as it may cause a breakdown or fire.

Do not place a flammable insecticide or paint spray near the blower, nor spray it directly on the system.

This may result in a fire. The appliance may then work inad-

The system should only be used for its original purpose and not for anything else like, for instance, preservation of food, plants or animals, precision devices or works of art.

The system is only intended for use in ordinary domestic rooms. Any other use of the system may damage the quality of food, etc.

Do not handle the switches with wet hands.

You should not expose any combustion appliance directly to the air stream of the air-conditioner.

Do not place anything containing water, like vases, on top of the unit.

This may cause injury, as the internal fan rotates at high speed.

Failure to observe this may result in the batteries being swallowed or other accidents.

CAUTION

Do not swing from the indoor unit.

This may cause an electric shock. If the indoor unit falls down,

Do not wash the air-conditioner with water.

equately.

Do not install the system where the airflow direction is aimed directly at plants or animals.

Water entering the unit could damage the insulation and therefore cause an electric shock.

you may get injured.

This could cause an electric shock.

This will damage their health.

–2–

❚ Safety precautions

Do not sit on the outdoor unit nor put anything on it.

CAUTION

After a long period of use, check the unit's support structure from time to time.

Do not touch the aluminum fins on the air heat exchanger.

If the unit falls down or things drop off it, people could get hurt.

Do not place household electrical appliances or household items under neath the indoor or outdoor units.

Condensation falling from the unit may stain objects and cause accidents or electrical shock.

Do not control the system with main power switch.

It can cause fire or water leakage. In addition, the fan can start unexpectedly, which can cause personal injury.

When you clean the system, stop the unit and turn off the power supply.

Never open the panel while the internal fan is rotating.

If you do not repair any damage right away, the unit may fall down and cause personal injury.

Do not operate the system without the air filter.

It can cause malfunction of the system due to clogging of the heat exchanger.

If you operate the system together with a combustion appliance, you must regularly ventilate the indoor air.

Insufficient ventilation may cause accidents due to oxygen deficiency.

Do not place objects near the outdoor unit or allow leaves to gather around the unit.

If there are objects or leaves around the outdoor unit, small animals may enter unit and contact electrical parts and may cause a breakdown, smoke or fire.

It may result in injury.

Do not shut off the power supply immediately after stopping the operation.

Wait at least 5 minutes, otherwise there is a risk of water leakage or breakdown.

Stand firmly on a stepladder or other stable object when removing the inlet panel and filters.

Failure to observe this may result in injury through insecure objects toppling over.

Contact your dealer to clean inside the indoor unit, do not attempt to do by yourself.

The use of a non-approved detergent or improper washing method may damage the unit’s plastic components and cause leaks. Damage, smoke, or fire may also happen if the detergent comes in contact with electrical parts or the unit’s motor.

Stop the unit and turn off the power if you hear thunder or there is a danger of lightning.

It may damage the unit.

❚ PRECAUTIONS FOR RELOCATION OR REPAIRS

DANGER

Do not perform any repairs or modifications by yourself. Consult the dealer if the unit requires repair.

If you repair or modify the unit, it can cause water leaks, electric shocks or fire.

If you notice anything abnormal (smell of burning, etc.), stop the system, turn off the power supply and consult your dealer.

Continued use of the system in abnormal circumstances may result in malfunctioning, electric shock, fire, etc.

Consult your dealer for repairs.

Wrong repairs could cause an electric shock, fire, etc.

If the air-conditioner fails to cool or warm the room, it may have a refrigerant leakage. Contact your dealer. If refrigerant needs to be added, check with your dealer for proper instructions.

The refrigerant used in your air-conditioner is safe. However, if refrigerant unexpectedly leaks from the unit onto a fan heater, stove, hotplate or other heat source, harmful gases could be generated.

In case the air-conditioner is relocated elsewhere, contact your dealer or a professional fitter.

Faulty installation may cause water leakage, electric shock, fire, etc.

–3–

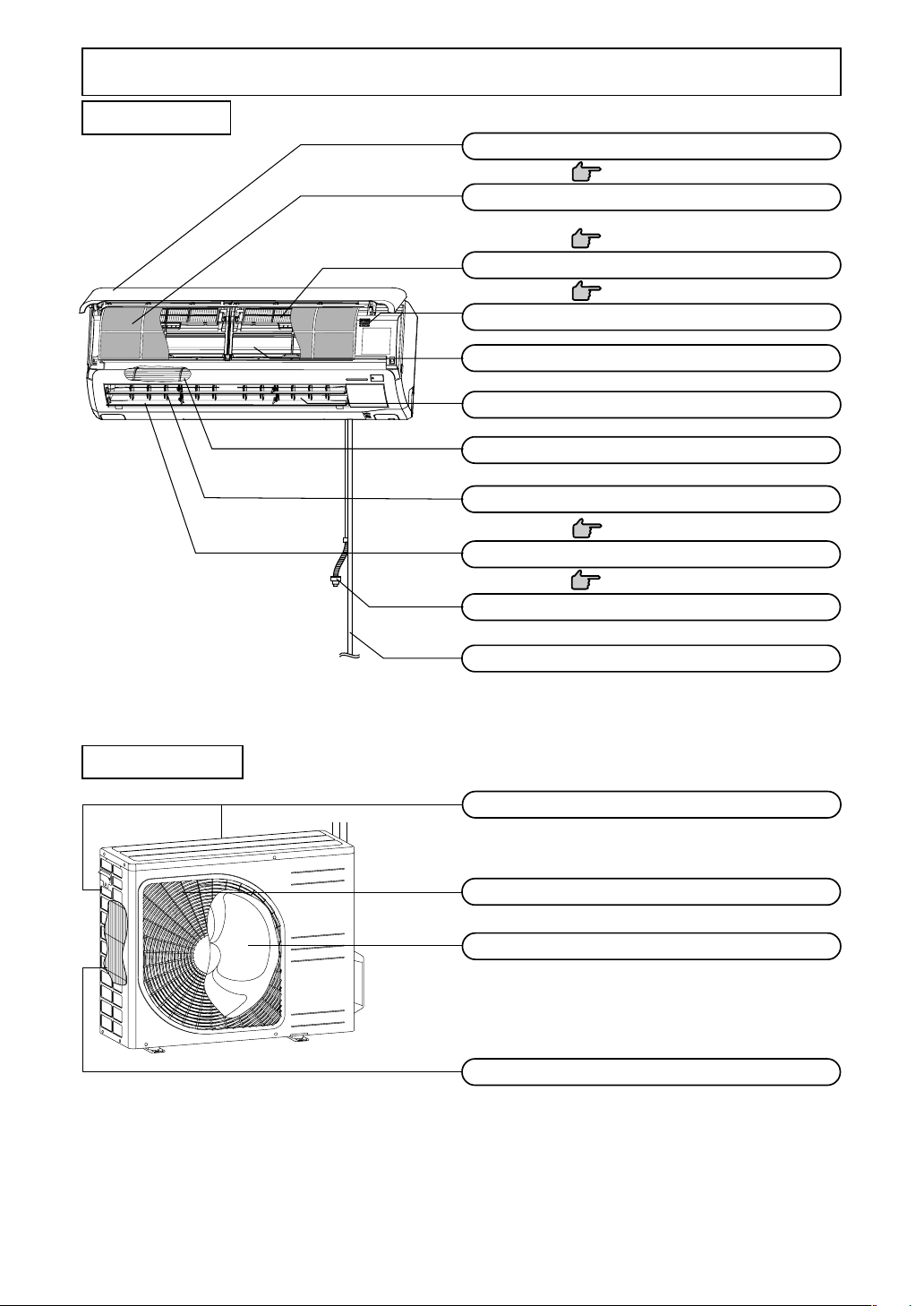

Name of each part and its function

INDOOR UNIT

Air Inlet panel

Draws the indoor air. Page 17

Air filter

Removes dust or dirt from the inlet air.

Air blows out of here.

Left/right airflow direction adjustment louver

Up/down airflow direction adjustment flap

Drains water from the indoor unit.

Refrigerant piping connection and electric wire

Page 17

Air-cleaning filter

Page 18

Room temperature sensor

Heat exchanger

Air outlet

Indoor unit fan

Page 10

Drain hose

OUTDOOR UNIT

Air inlet

(On side & rear surface)

Air outlet

Outdoor unit fan

Heat exchanger

–4–

Name of each part and its function

Unit display section

Remote control signal receiver

Unit ON/OFF button

This button can be used for turning on/off the unit when remote control is not available.

Page 6

RUN (HOT KEEP) light (green)

• Illuminates during operation.

•

Blinks when airflow stops due to the ‘HOT KEEP’

and ‘CLEAN operation

HOT KEEP

CLEAN operation

Page 15

OFF

’.

1.5 sec.

0.5 sec.

3 sec.

1 sec.

3D AUTO light (green)

Illuminates during 3D AUTO operation.

HI POWER light (green)

Illuminates during HIGH POWER operation.

TIMER light (yellow)

Illuminates during TIMER operation.

NOTE

• Buzzer sound for remote control

When preset temperature 24°C, automatic operation and automatic airflow are selected, the buzzer sound (PiPi) is produced. When turning off the air conditioner by pressing ON/OFF button (except CLEAN mode), the buzzer sound (Pi) is produced. This function is useful for operating the air conditioner in the darkness.

Air flow setting

Preset temperature

–5–

Remote control handling

Replacing the batteries

The following cases signify exhausted batteries. Replace old batteries with new ones.

• Receiving beep is not emitted when a signal is transmitted.

• Display fades away.

Pull out the cover and take out

old batteries.

Insert new batteries. R03 (AAA, Micro) x2

Pay attention to the ª and · marks

■ When the display shows any abnormal condition, Press the ACL switch with

NOTE

• Do not use old and new batteries together.

• Remove the batteries when the remote control is not used for a long period.

• The recommended effective period of a battery conforming to JIS or IEC should be

6 to 12 months with normal use. If used longer, or when an unspecified battery is used, liquid may leak from the battery, causing the remote control to malfunction.

• The recommendable effective period is printed on the battery. This may be shorter due to manufacturering time to the unit. However, the battery may still be in working order after expiry of its nominal life.

the tip of a ballpoint pen.

Using the remote control holder

Close the cover.

Press the ACL switch with the

tip of a ballpoint pen.

The timer setting mode is displayed.

Page 7

The remote control can be attached to a wall or pillar by using a remote control holder. Before installing the remote control, check that the air-conditioner receives the signals properly.

For installing or removing the remote control, move it up or down in the holder.

Warning note for remote control handling

Strictly prohibited

• Do not go near high temperature places, such as an electric carpet or stove.

• Do not put any obstructing obstacles between the remote control and the unit.

• Do not leave the remote control exposed to direct sunlight or other strong lighting.

• Do not spill any liquid on the remote control.

• Do not drop the remote control. Handle with care.

• Do not place heavy objects on the remote control, or step on it.

Operation failure with the remote control

• Are the batteries running down?

“Replacing the batteries” above.

Replace the batteries with new ones and retry the operation.

• If the operation fails, operate the unit with temporary operation function. Contact your dealer to have the remote control checked.

Below

Temporary run operation

• The unit ON/OFF button on the unit operates ON/OFF temporarily when the remote control is not used.

Operation program

• OPERATION MODE : AUTO

• FAN SPEED : AUTO

• AIR FLOW : AUTO

• Operation starts by pressing the unit ON/OFF button; it stops if you press

the button again.

NOTE

• Do not hold the Unit ON/OFF button down for more than 5 seconds. (Holding it down longer than 5 seconds sets the automatic cooling used during servicing or when relocating the air-conditioner.)

–6–

Unit ON/OFF button

Operation and display section for remote control

Operation section

FAN SPEED button

Each time the button is pressed, the display is switched over in turn.

HI POWER/ECONO button

This button changes the HIGH POWER/ ECONOMY mode.

TEMPERATURE button

These buttons set the room temperature. (These buttons are used for setting the current time and timer function as well.)

ON TIMER button

This button selects ON TIMER operation.

SLEEP button

This button selects SLEEP operation.

CLEAN switch

This switch selects the CLEAN mode.

CANCEL button

This button cancels the ON timer, OFF timer, and SLEEP operation.

Page 8

Page 14

Page 12

Page 11

Page 15

Transmission procedure

The above illustration shows all controls, but in practice

•

only the relevant parts are shown.

OPERATION MODE select button

Each time the button pressed, the display is switched over in turn.

ON/OFF (luminous) button

Press to start operation, press again to stop.

AIR FLOW (UP/DOWN) button

This button changes the air flow (up/down) direction.

AIR FLOW (LEFT/RIGHT) button

This button changes the air flow (left/right) direction.

3D AUTO button

This button sets 3D AUTO operation.

OFF TIMER button

This button selects OFF TIMER operation.

ACL switch

This switch is for resetting microcomputer and setting time.

ALLERGEN CLEAR button

This button selects ALLERGEN CLEAR operation.

Page 8, 9

Page 10

Page 11

Page 6

Page 13

When each button on the remote control is pressed – with the remote control pointing towards the air-conditioner unit a signal is transmitted. When the air-conditioner receives the signal correctly, it will beep.

Current time setting

■ When inserting the batteries, the current time is automatically set to time setting mode. 13:00 is displayed as the current time. Set the clock to the right time.

Example: Set to 10:30.

Press the ACL switch.

Press with the tip of a ballpoint pen, etc. The time display blinks and can be set to the current time.

Press the “ or ” button.

(Set to 10:30)

Press the ON/OFF button.

The display changes from blinking to steady lighting and the setting is complete. Make sure to press the button within 60 seconds from the last operation in step 2, otherwise the time is not set.

NOTE

• The timer operation works based on the time clock, so please set it correctly.

• The remote control data is reset when the present time is set.

–7–

AUTO mode operation

■

Automatically selects the operation mode (COOL, HEAT, DRY) depending on the room temperature when switched on.

When the unit is not in AUTO mode:

Press MODE button.

Move the [ mark] to the (Auto) position.

Point the remote control toward the air-conditioner, and

Press the ON/OFF button.

To stop: Press the ON/OFF button.

NOTE

• In case air is not blowing out during the operation.

Page 20

Display in OFF status

• When the included clean filter is installed the air conditioner will clean the air during automatic operation.

• The current time and preset OPERATION MODE are displayed while the air conditioner is turned off.

Temperature adjustment during AUTO

■

Air temperature adjustment is possible even during automatic operation. There are 6 levels of adjustment possible with the button or the button. During automatic operation, 24ºC is preset both for heating and cooling.

When a change in temperature is required.

AUTO mode can be operated by simply pressing the ON/OFF button.

• If you do not want the AUTO mode program, change to COOL, HEAT, DRY or FAN instead of AUTO.

Page 9

• Airflow direction adjustment procedure.

Page 10

FAN SPEED

■ You can choose the capacity of your air-conditioner when heating mode, cooling mode or fan mode.

Operation capacity by your choice FAN SPEED Set automatically by microcomputer AUTO Powerful operation with high capacity HI

Standard operation MED Energy-saving operation LO

Press the or button.

When it is a little cold

Press the

■ Each time the

When it is a little hot

Press the

■ Each time the button is pressed, the switch over occurs in the following order

button.

–6 → –5 → ............ –1 → ±0 → +1 ............ +6.

When +6 is indicated, even if the button is pressed, the indicator does not change.

+6 → +5 → ............ +1 → ±0 → –1 ............ –6.

When –6 is indicated, even if the button is pressed, the indicator does not change.

Setting temp.(

button is pressed, the switch over occurs in the following order

button.

-6 -5 -4 -3 -2 -1+0+1 +2+3 +4+5+6

ºC

)

18 19 20 21 22 23 24 25 26 27 28 29 30

Press the FAN SPEED button.

Move the [ mark] to the preferred fan speed position.

AUTO HI MED LO

NOTE

• When changing FAN SPEED from HI to LO, the sound of refrigerant flowing may be heard.

Remote Control display

–8–

COOL/HEAT/DRY/FAN mode operation

Point the remote control toward the air-conditioner, and

Airflow direction adjustment procedure. Page 10

NOTE

• In case air is not blown out, when starting the heating operation. Page20

• The operation program can also be set or changed when the air-

conditioner is not in operation.

2 3

Press the MODE select button.

Move the [ mark] to the required operation position.

(Cool), (Heat), (Dry), (Fan)

Press the ON/OFF button.

Press the TEMP button.

Press or button for the preferred temperature.

Standard

Press the FAN SPEED button

Set the fan speed as preferred.

To stop: Press the ON/OFF button.

Air-conditioner operable temperature setting

■ Use within the following operational range. Operating outside of this range may result in the protection devices being activated, preventing the

unit from working.

Cooling operation Heating operation

Outside temperature Approximately -15 to 46 °C Approximately -15 to 21 °C

Inside temperature Approximately 18 to 32 °C Approximately 15 to 30 °C

Below approximately 80%

Inside humidity

The long-term use of the unit with a humidity level exceeding 80% may result in condensation forming on the surface of the indoor unit, leading to water drips.

—

Characteristics of HEAT mode operation

Mechanism and capacity of HEAT mode operation

■ Mechanism

• The unit draws heat from the cold outside air, transfers it to indoors and heats the room. As a characteristic of heat pump system, the heating capacity reduces when the outside air temperature gets colder.

• It may take some time to supply hot air after turning on the air-conditioner.

• If the outside temperature becomes extremely low, it would be better to use an additional source of heating.

Defrosting

If the outside temperature becomes low and humidity is high, the heat exchanger in the outdoor unit may frost over, which prevents efficient heating.

If this happens, the automatic defrost function is activated and during defrosting the heating operation stops for 5 to 15 minutes during defrosting.

• Both indoor and outdoor fans stop and the RUN light blinks slowly (1.5 sec. ON, 0.5 sec. OFF) during defrosting.

• The outdoor unit may give off some steam during defrosting. This is to help the defrosting process and is not a defect.

• The HEAT operation resumes as soon as defrosting has been completed.

–9–

Airflow direction adjustment

Adjusting airflow direction

■ Up/down direction can be adjusted with the AIRFLOW mode changes as follows: Change on AIRFLOW (UP/DOWN) mode.

(UP/DOWN) button on the remote control. Every time you press this button the

(Flap stopped)

(Swing)

■ Left/right direction can be adjusted with the AIRFLOW mode changes as follows: Change on AIRFLOW (LEFT/RIGHT) mode.

NOTE FOR HEATING OPERATION

• When operation starts, the flap and louver direction is fixed at the horizontal / center position in order to avoid cold draft, and return to the set the position that was

set after the warm air supply is starting.

• The flap and louver direction will be controlled to the horizontal/center position when the room temperature reaches the set temperature and compressor stops or

when defrosting is in operation.

• The airflow direction cannot be set during the period mentioned above. Change the airflow direction settings after the warm air is supplied and the flap/louver goes

to the set position.

(LEFT/RIGHT) button on the remote control. Every time you press this button the

(Louver stopped)

(Swing)

MEMORY FLAP (FLAP OR LOUVER STOPPED)

When you press the AIRFLOW (UP/DOWN or LEFT/RIGHT) button once while the flap or louver is operating, it stops swinging at the position. Since this angle is memorized in the microcomputer, the flap or louver will automatically be set at this angle when the next operation is started.

• Do not expose directory to airflow from the air-conditioner for a long time.

• When in COOL or DRY operation, do not operate for a long period with the

airflow blowing straight down. Otherwise, condensation may appear on the outlet grill and drip down.

• Do not try to adjust the flaps and louvers by hand, as the control angle may change or the flap or louver may not be closed completely.

DANGER

CAUTION

• Recommended angle of the flap when stopping

HEAT

COOL, DRY

(Slant forward

blowing)

(Horizontal

blowing)

–10–

SLEEP TIMER operation

■ The unit stops automatically after the set time lapses. The set temperature is automatically adjusted according to the elapsed time in order to avoid too much cooling or heating.

Page 13

Press the SLEEP button.

■ If it is pressed while the unit is off

SLEEP TIMER operation starts with the previous operation settings, and the air conditioning is turned off after the set time elapses.

■ If it is pressed while the unit is running

The air conditioner is turned off after the set time elapses. Every time the button is pressed, the display changes as follows:

No indication

(cancelled)

Example: You prefer it to stop after 7 hours.

Set to

The timer light (yellow) is on.

Changing of set time

Set a new time by pressing SLEEP button.

How to cancel

Press the CANCEL button to turn off the SLEEP indicator.

• The unit stops after the set time lapses.

•

OFF-TIMER operation

■

The unit stops automatically when the set time comes. With the air conditioner turned off, start the operation from Step 1. With the air conditioner running, start from Step 2.

NOTE

SLEEP operation will not function during ALLERGEN CLEAR operation. Cannot be set at the same time with OFF-TIMER.

Example: You prefer it to stop 22:30.

...

(Units of one hour)

Changing of set time

Set a new time by using the OFF TIMER button.

How to cancel

Press the CANCEL button to turn off the timer display.

1 2 3

Press the ON/OFF button.

Press the OFF TIMER button.

OFF TIMER display is blinking.

Press the “ or ” button.

Every time the button is pressed, the display is switched in the order of:

0:00 0:10 0:20

Every time the button is pressed, the display is switched in the order of:

0:00 23:50 23:40

Set at 22:30.

Press the OFF TIMER button.

The display changes from blinking to steady lighting and the setting is complete. The timer light (yellow) is on.

NOTE

•

The unit stops at the end of the set period of time.

•

Make sure to press the button within 60 seconds from the last operation in step 3, otherwise the setting is not completed.

•

The current time is not displayed during OFF-TIMER operation.

•

OFF-TIMER operation will not function during ALLERGEN CLEAR operation.

•

Different from SLEEP TIMER operation, automatic set temperature adjustment is not done during OFF-TIMER operation.

...

1:00 1:10

23:00 22:50

(Units of ten minutes)

–11–

ON-TIMER operation

■

Operation starts 5 to 60 minutes before the set time so that the room temperature reaches the optimum temperature at the set time. ON-TIMER operation can be set regardless of whether the air-conditioner is running or not.

Example: In the case the preferred room temperature is required at 8:00.

Press the ON-TIMER button.

ON TIMER indicator is blinking.

Page 13

Press the “

or ” button.

Every time the button is pressed, the display is switched in the order of:

0:00 0:10 0:20

Every time the button is pressed, the display is switched in the order of:

0:00 23:50 23:40

Set at 8:00.

Press the ON TIMER button.

Changing of set time

Set a new time by using the ON-TIMER button.

How to cancel

Press the CANCEL button to turn off the timer indicator.

•

The display changes from blinking to steady lighting and the setting is complete. The timer light (yellow) is on. The operation stops if it is set during operation.

NOTE

Operation starts 5 to 60 minutes before the set time. The

timer

light Make sure to press the button within 60 seconds from the last operation in step 2, otherwise the setting is not completed. The current time is not displayed during ON-TIMER operation. ON-TIMER operation will not function during ALLERGEN CLEAR operation.

(yellow)

SLEEP TIMER + ON-TIMER operation

■ Combined timer operation of SLEEP TIMER and ON TIMER.

Example: When it is required to stop after 3 hours and then start operation at 8:00, near

the set temperature.

...

1:00 1:10

...

23:00 22:50

goes out at the set time.

(Units of ten minutes)

Changing of set time

Set a new time by using the SLEEP or ON TIMER button.

■ SLEEP TIMER setting

Set by the procedures on page 11.

Set to

■ ON TIMER operation setting

Set by the above procedure mentioned in ON TIMER.

Set to

The setting of the lighting of the timer light (yellow) of this unit is complete.

• After the SLEEP TIMER set time has elapsed, the operation stops, and it starts from 5 to 60 minutes before the ON TIMER’s set time.

• The timer light is turned off when ON TIMER set time comes.

How to cancel

Press the CANCEL button to turn off the timer display.

–12–

PROGRAM TIMER operation

■ The timer operations of the combination of ON and OFF TIMER. Once this has been set the timer operations will be repeated at the same time every day unless the ON/OFF button is pressed.

Example: When it is prefered to stop at 22:30, and then start operation at 8:00, near the

set temperature.

■ OFF TIMER operation setting

Set by the procedures on page 11. Set to

■ ON TIMER operation setting

Set by the procedures on page 12. Set to

Timer light (yellow) on the unit will light when the setting is completed.

The set time will be displayed on the remote control unit. The display will change depending on the operational status.

With ON TIMER, the air conditioner starts running. Then, with OFF TIMER, the air conditioner stops running.

With OFF TIMER, the air conditioner stops running. Then, with ON TIMER, the air conditioner starts running.

Changing of set time

Set a new time by using the OFF TIMER or ON TIMER button.

How to cancel

Press the CANCEL button to turn off the timer display.

Comfort Start-up

In ON TIMER operation, the unit starts the operation a little earlier, so that the room can approach optimum temperature at ON time. This is so called “Comfort start-up”.

• Mechanism The room temperature is checked 60 minutes before the ON time. Depending on the temperature at that time, the operation starts 5 to 60 minutes before the timer is at ON.

• The function is available for both COOL and HEAT operation mode (including AUTO). It does not work for DRY mode.

▼

In COOL operation (Stop) Operation starts

Set temperature

Check the room temp. 60 mins. before.

▼

(Operation)

Set time

When SLEEP TIMER is selected, the set temperature is automatically adjusted after a while, ensuring that the room is not too cold during cooling or too warm during heating.

• During cooling : the preset temperature is lowered by 1°C at the start of SLEEP operation (when the timer is set). After that, the temperature goes up by 1°C every an hour to become 1°C higher than the present temperature.

• During heating: Preset temperature is lowered by 1°C at the start of SLEEP operation (when the timer is set). After that the temperature to becomes 3°C lower in an hour and 6°C lower in two hours than the present temperature.

ALLERGEN CLEAR operation

■ The power of enzymes is used to eliminate allergy-causing allergens that accumulate on the allergen clear filter.

Aim the remote control at the air-conditioner.

Press the ALLERGEN CLEAR button.

To stop:

NOTE

• Since the room temperature may change quite a bit, it is recommended that this be used when no one is in the room. (It completes automatically in approximately 90 min.)

• During ALLERGEN CLEAR operation temperature, fan speed, airflow direction and timer operations settings cannot be made.

SLEEP TIMER

Press the ON/OFF or ALLERGEN CLEAR button.

–13–

HIGH POWER/ECONOMY operation

If the air-conditioner is not operating, point the remote control toward the air conditioner, and

Press the ON/OFF button.

Press the HI POWER/ECONO button.

• When the operating mode is AUTO, COOL or HEAT Every time the HI POWER/ECONO button is pressed, the display is switched in the order of:

No display

(

HIGH POWER

• When the operating mode is DRY or PROGRAM TIMER Every time the HI POWER/ECONO button is pressed, the display is switched in the order of:

ECONOMY

(

Concerning

Pressing the HI POWER/ECONO button intensifies the operating power and initiates powerful cooling or heating operation for 15 minutes continuously. The remote control

• During the HIGH POWER operation, the room temperature is not controlled. When it causes an excessive cooling or heating,press the HI POWER/ECONO button again to cancel the HIGH POWER operation.

• HIGH POWER operation is not available during the DRY, the program timer and 3D AUTO operations.

• When HIGH POWER operation is set after ON TIMER operation, HIGH POWER operation will start from the set time.

NOTE

HIGH POWER

operation

displays and the FAN SPEED display disappears.

• When the following operations are set, HIGH POWER operation will be canceled.

1 When the HI POWER/ECONO button is pressed again. 2 When the operation mode is changed. 3 When it has been 15 min. since HIGH POWER operation

has started.

4 When the 3D AUTO button is pressed.

• Not operable while the air conditioner is OFF.

)(

ECONOMY

) (Normal operation)

No display

Concerning

Pressing the HI POWER/ECONO button initiates a soft operation with the power suppressed in order to avoid an excessive cooling or heating. The unit operates 1.5°C higher than the setting temperature during cooling or 2.5°C lower than that during heating. The remote control

displays and the FAN SPEED display disappears.

• It will go into ECONOMY operation at the next time the air-conditioner runs in the following case.

3 When the operation is retrieved from CLEAN or

ECONOMY

NOTE

When the air-conditioner is stopped by ON/OFF button during

ECONOMY operation.

When the air-conditioner is stopped in SLEEP or OFF

TIMER operation during ECONOMY operation.

ALLERGEN CLEAR operation.

operation

• When the following operations are set, ECONOMY operation will be canceled.

1 When the HI POWER/ECONO button is pressed again. 2 When the operation mode is changed DRY to FAN.

• Not operable while the air conditioner is OFF.

–14–

SELF CLEAN operation

■ CLEAN operation should be run after AUTO, COOL and DRY operation to remove the moisture from inside the indoor unit and control the growth of mold and bacteria.

In order to active CLEAN operation, press the CLEAN switch

with the tip of a ballpoint pen.

Every time the CLEAN switch is pressed, the display is switched in the order of:

(CLEAN on) (CLEAN off)

NOTE

• Two hours later, the air conditioner stops running automatically. To stop the air conditioner immediately, press the ON/OFF button.

• CLEAN operation is not operated after HEAT and FAN, OFF-TIMER, SLEEP and ALLERGEN CLEAR operations have finished.

• The indoor unit fan runs for about two hours in CLEAN operation.

• The RUN light illuminates during CLEAN operation.

OFF

• Pressing the SLEEP button or ALLERGEN CLEAR button during CLEAN operation cancels the CLEAN operation and then the unit is set to SLEEP or ALLERGEN CLEAR operation.

• This is not a function for removing mold, germs or grime that have already adhered to the unit.

No display

3 sec.

1 sec.

Auto restart function

■ What is auto restart function?

• Auto restart function records the operational status of the air-conditioner immediately prior to be switched off by a power cut, and then automatically resumes operations after the power has been restored.

• The following settings will be cancelled:

1 Timer settings 2 HIGH POWER operations

NOTE

• Auto restart function is set at on when the air-conditioner is shipped from the factory. Consult with your dealer if this function needs to be switched off.

• When power failure occurs, the timer setting is cancelled. Once power is resumed, set the timer again.

Tips for effective operation

■ Please observe the following for the most economic and comfortable use of your unit.

Set a suitable room temperature.

Excessively high or low temperatures are not good for your health and waste of electricity.

Adjust the airflow direction properly.

Adjust the up/down and left/right airflow to ensure a steady room temperature.

Clean the filters frequently.

Clogged filters may block the airflow and cause less efficient operation.

Operate the unit only when needed.

Use the timer properly to operate the unit only when needed.

Avoid direct sunlight and draught.

Cut out direct sunlight by drawing the curtains or blinds when cooling. Keep windows and doors shut, except when ventilating.

Keep heat source away when cooling.

Keep heat sources out of the room as much as possible.

–15–

–16–

Maintenance

Before maintenance

Turn off the power supply.

• Do not spill any liquid.

There's a danger of electric shock.

Wipe the unit with a soft, dry cloth.

• Do not touch the aluminum fins on the heat exchanger. Stand firmly on a stepladder or other stable

•

object when removing the inlet panel and filter.

Do not use the following articles:

• Hot water (40°C or more)

It may deform or discolour the unit.

• Petrol, paint thinner, benzine or cleanser, etc.

They may deform or scratch the unit.

During the operational season

Cleaning the air filter Standard interval is once every two week

Remove the air filter

Cleaning

• Do not clean the filters with boiling water.

• Do not dry them over an open flame.

• Pull them out gently.

• Hold firmly the filter at both sides as shown at right and insert securely.

• Operating without putting back the air filters will make the unit dusty, and may cause damage.

Cleaning the unit

• Wipe the unit with a soft, dry cloth, or use a vacuum cleaner.

• If the unit is very dirty, wipe it with a cloth soaked in warm water.

Cleaning the air inlet panel

• Removal, installation of air inlet panel.

• The panel can be washed with water. After washing

with water, wipe any moisture off the panel and dry out of direct sunlight.

If the filter is very dirty, clean it with warm water (approx. 30°C), and dry it thoroughly.

CAUTION

Reinstall the air filter

• Pull up the air inlet panel forward. Lightly hold the knobs at both sides and lift a

•

little to remove the panel forward.

How to open, close the air inlet panel

Open

Place fingers at the recesses on both sides of the panel and pull up the panel forward so that it will be open by about 60 degrees.

Removal, installation of air inlet panel

Removal

When removing the air inlet panel for internal cleaning or others, open the panel by 80 degrees and then pull it forward.

Push both ends evenl

Installation

Secure the upper edge of the air inlet panel by lightly pushing it in, and then close the

and press further lightly at the center.

anel.

–17–

NOTE

Cooling/heating is affected by an air filter clogged up with dust etc., and the operation noise becomes louder. It may also use extra electricity. Please clean the air filter at appropriate intervals.

At the end of the season

Perform the fan operation for a half day.

Dry the inside of the unit.

Stop the unit and turn off the power supply.

The unit consumes appr. 2W even when the unit is not operating. Turning off the power supply will help saving energy consumption and cost.

Clean and reinstall the air filters.

Clean both the indoor and outdoor units.

Remove batteries from the remote control.

Installing, inspecting, and replacing the air-cleaning filter

1. Open the air inlet panel and remove the air filters. Page 17

2. Remove the filter holders, with the air-cleaning filter installed in the folders, from the airconditioner.

3. Remove the allergen clear filter (Light orange) from filter holder and inspect the filter. Use a vacuum cleaner to remove any dust or dirt from the allergen clear filter. Replace the allergen clear filter if it cannot be cleaned or if it has been for about 1 year. (The allergen clear filter should be replaced after about 1 year of use. However, the actual replacement period may vary depending on the conditions in which the filter is used.)

Remove the photocatalytic washable deodorizing filter (orange) from the filter holder and inspect the filter. Periodically, remove any dust or dirt from the photocatalytic washable deodorizing filter. If the photocatalytic washable deodorizing filter is particularly dirt, it may be washed with water. However, the filter is fragile so be sure to wash it installed in the filter holder to avoid damaging it. After washing the filter, place it in sunlight to dry. Placing the filter in sunlight revitalizes the deodorizing effect.

(Do not dispose of the filter holders. They are reusable. )

4. Install the air-cleaning filter in the filter holders, and then install the filter holders in the air-conditioner.

At the beginning of the season

Make sure that there are no obstacles blocking the airflow around the air intake and outlet openings of

the indoor and outdoor units.

Check if there is no corrosion or rust on the base frame of the outdoor unit.

Ensure that the earth wiring is not snapped nor disconnected.

Ensure that the air filters are clean.

Turn on the power supply.

Insert batteries in the remote control.

Filter holder

NOTE

• The allergen clear filter and the photocatalytic washable deodorizing filter

may be installed on either the right or left side of the air-conditioner.

• Install the allergen clear filter with the light orange side front.

5. Install the air filters and closed the air inlet panel.

CAUTION

• The heat exchanger may injure your fingers.

For replacement the air-cleaning filter, contact your dealer.

Item Feature Color

Allergen clear filter

Photocatalytic washable deodorizing filter

The power of enzyme is used to eliminate allergy-causing allergens that accumulate on the filter.

Sources of odors on the filter are broken up, resulting in a deodorizing effect.

Page 17

–18–

Filter

Light orange

Orange

Proper installation

Suitable installation position

• Do not put any obstruction in front of the indoor unit, preventing proper ventilation and functioning.

• Do not install the unit in any of the following places:

• Where there is a danger of leaking flammable gases.

• Where there is substantial splashing of oil.

• Malfunctioning due to corrosion may occur if the unit is installed in a spa where sulfide gases are generated, or in a seaside resort exposed to

sea breezes. Contact your dealer.

• The air-conditioner and remote control must be at least 1 metre away from a TV set or radio.

• Drain the dehumidified liquid from the indoor unit into a spot that drains well.

Pay attention to operating noises!

• When you install the unit, take care to choose a place that can comfortably stand the weight of the unit and does not increase the operating noise or vibration. If vibration is transmitted through the house, fix the unit with the aid of vibration-proof pads between the unit and the fittings.

• Select a place where cold or hot air, operation noises from the indoor and outdoor units do not cause any inconvenience to your neighbours.

• Do not leave any obstacles near the outlet and inlet of the outdoor unit. This may cause malfunctioning and increased operating noise.

• If you hear an irregular noise during operation, contact your dealer.

Inspection and maintenance

Depending on operating environment, the inside of the air-conditioner may become dirty after a few year operations. This will reduce performance. In addition to normal cleaning, we would recommend inspection and maintenance. (This may lead the air-conditioner to having a longer life without any trouble.)

• Contact your dealer, or any distributor, for inspection and maintenance. (There will be a charge for this service).

• We would recommend inspection and maintenance to be carried out during the off-season.

• If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

Troubleshooting

Please carry out the following checks before making a service call.

The air-conditioner does not work at all.

Has the power switch been turned off?

Have you set the thermostat at a suitable temperature?

suitable

temperature

Is there any direct sunlight entering the room?

Has the timer been set in the “ON” position?

Poor cooling or heating

Is the air filter clean? (Not clogged?)

Poor cooling

Is there a heat source in the room?

Is there a power failure or a blown fuse?

Did you leave any doors or windows open?

Are there too many people in the room?

If the air-conditioner does not operate properly after you have checked the left points, or if any doubt still exists after you have consulted page 20, or if things happen as shown on page 21, switch off the power and contact your dealer.

An alternative refrigerant (R410A) is used in this air-conditioner. When asking your dealer for service or inspection and maintenance, explain the dealer about it.

–19–

Notice

The unit does not restart immediately after you have stopped it.

(RUN light is on)

Not

operating?

Airflow is not blown out when starting the HEATING operation.

RUN light blinks slowly

(1.5 sec ON, 0.5 sec OFF)

Airflow is not blown out for 5 to 10 min. or blown out not warm wind for a moment at HEATING operation.

RUN light blinks slowly

(1.5 sec ON, 0.5 sec OFF)

Airflow is not blown out when starting the DRY operation.

(RUN light is on)

Some steam escapes during COOL operation.

There is a slight smell.

You hear a slight gurgling sound.

Restart is blocked for 3 minutes after you have stopped the operation to protect the unit.

Please wait for three minutes.

The three-minute protection timer in the microcomputer automatically starts it up again.

Airflow has stopped to prevent blowing out of cold air until the indoor heat exchanger has warmed up. (2 to 5 min.) (HOT KEEP program)

When outdoor temperature is low and humidity is high, the unit sometimes performs defrosting automatically. Please wait. During defrosting, water or steam may escape from the outdoor unit.

The indoor fan may stop to prevent re-evaporation of dehumified moisture and to save energy.

This may occur if the room's temperature and humidity are very high. It disappears as soon as the temperature and humidity decrease.

Air blown out during operation may smell. This is caused by tobacco or cosmetics adhering to the unit.

This is caused by refrigerating liquid moving within the unit.

You hear a slight cracking sound.

You hear a hissing or clicking sound.

After a power cut, the unit does not restart even if power has been restored.

Remote control signals are not received.

Moisture may form on the air outlet grills.

Whistling noise is heard from the outdoor unit.

Fan won't stop immediately after unit operation was stopped.

RUN light stays on even though operation was stopped.

Sometimes a “Shooooo” sound might come for a short time from the unit that is turned off.

This is caused by heat expansion or contraction.

This is caused by the operation of the refrigerant control valves or electric components.

If the auto restart function is not set, the unit will not restart automatically. Use the remote control to start the operation again.

Remote control signals may not be received if the signal receiver on the air-conditioner is exposed to direct sunlight or other bright light. If so, cut out the sunlight or reduce the other light.

If the unit is operated for a long time in high humidity, moisture may form on the air outlet grills and start dripping.

The noise means that the revolution speed of the compressor is increasing or decreasing.

Indoor fan : Outdoor fan : Fan will not stop about a 1 minute period in order to

The RUN light illuminates during CLEAN operation. Run light turns off when CLEAN operation ends.

This is the sound when operation of another indoor unit is stopped.

Fan will not stop after 2 hours if set to CLEAN operation.

protect the unit.

–20–

Contact your dealer

■ Turn off the power switch immediately and inform your dealer in any of the following situations:

The fuse or switch blows continuously.

Fuse often blows.

The cable becomes extremely hot. The covering of the cable is cracked.

CAUTION

If the power cord becomes damaged, ask your dealer or a qualified engineer to install the replacement to avoid accidents.

The TV, radio or other equipment starts to malfunction.

When abnormalities occur, turn off the power supply immediately and turn it on after 3 minutes. Restart the operation with ON/OFF button of the remote control and the abnormalities still continue.

A switch does not activate properly. You hear a strange noise during opera-

The RUN and TIMER lights on the unit display section blink quickly (0.5 sec. ON; 0.5 sec. OFF) and do not work.

tion.

About the Multiple Air-conditioner

Simultaneous Operation

• The air-conditioners cannot be in different operating modes at the same time, such as one unit being in the “Cool” mode and one unit being in the “Heat” mode.

• When conducting different operations, the air-conditioner that was operated first will be given priority, so the air-conditioner that is operated after that will conduct air blowing operation.

• When you want to give priority to the air-conditioner that was started later, either stop the air-conditioner that has priority or cause the operation type of the unit operated first to match that of the unit operated second.

Automatic Operation

• When the remote control operation switch is in the “Auto” mode the air-conditioner automatically selects either “Cool,” “Dry,” or “Heat” when operation is started depending on the room temperature.

• During simultaneous operation of air-conditioner units, operation modes may be automatically changed in response to the temperatures of the individual rooms; this will result in the operation of the outdoor unit being stopped. In such a case, COOL or HEAT mode should be used instead of AUTO. (This is only relevant when more than one air-conditioner unit is being used.)

Refrigerant (oil) recovery operation

• If the all of the indoor units are not operated at the same time for an extended period, the cooling or heating performance may temporarily decrease. This is in order to control the recovery of the refrigerant (oil) in the stopped indoor unit(s). At this time, the sound of refrigerant flowing may be heard from the stopped indoor unit(s).

–21–

Self diagnosis function

■ We are constantly trying to do better service to our customers by installing such judges that show abnormality of each function as follows:

TIMER light ON

RUN light keeps flashing

RUN light

1 time flash

2 time flash

3 time flash

5 time flash

6 time flash

7 time flash

TIMER light

1 time flash

2 time flash

4 time flash

5 time flash

1 time flash

2 time flash

3 time flash

Description of trouble

Heat exchanger sensor 1 error

Room temperature sensor error

Heat exchanger sensor 3 error

Active filter voltage error

Indoor fan motor error

Refrigerant is insufficient Closed service valve Heat exchanger sensor 1 error

Outdoor temperature sensor error • Broken outdoor sensor wire, poor connector connection

Outdoor heat exchanger fluid pipe sensor error

Discharge pipe sensor error

Suction pipe sensor error • Broken suction pipe sensor wire, poor connector connection

Current cut

Trouble of outdoor unit

Over current

• Broken heat exchanger sensor 1 wire, poor connector

connection

• Broken room temperature sensor wire, poor connector connection

• Broken heat exchanger sensor 3 wire, poor connector

connection

• Defective power supply

• Defective fan motor, poor connector connection

• Refrigerant is insufficient, leaking

Closed serice valve

•

Broken heat exchanger sensor 1 wire, poor connector connection

•

• Broken heat exchanger fluid pipe sensor wire, poor connector

connection

• Broken discharge pipe sensor wire, poor connector connection.

• Compressor locking, open phase on compressor output,

shortcircuit on power transistor, closed service valve

• Broken power transistor, broken compressor wire

• Broken discharge pipe sensor wire, poor connector connection

• Compressor blockage

• Overload operation, overcharge

Cause

RUN light ON

RUN light 2 time flash

4 time flash

5 time flash

6 time flash

7 time flash

Keep flashing

2 time flash

Power transistor error

Over heat of compressor

Error of signal transmission

Outdoor fan motor error • Defective fan motor, poor connector connection

Cooling high pressure protection • Gas over charge, short circuit of outdoor unit

Rotor lock

• Broken power transistor

• Gas shortage, defective discharge pipe sensor, closed service

valve

• Defective power supply, Broken signal wire, defective in/outdoor

unit boards

• Defective compressor

• Open phase on compressor

• Defective outdoor unit boards

–22–

Nous vous remercions d’avoir choisi un climatiseur MITSUBISHI HEAVY INDUSTRIES, LTD. Pour obtenir des performances optimales et durables, veuillez lire attentivement et respecter les instructions du présent manuel d’utilisateur avant d'utiliser votre climatiseur. Reportez-vous au manuel si vous avez des questions ou en cas de dysfonctionnement.

Ce climatiseur est à usage domestique.

Ne laissez pas sortir du R410A dans l’atmosphère: Le R410A est un gaz à effet de serre fluoré, à Potentiel de Réchauffement Global (PRG, GWP Global Warming Potential) = 1975 selon le Protocole de Kyoto.

Votre unité de climatisation peut comporter ce symbole, qui signifie que les déchets d’équipements électriques et électroniques (DEEE selon la directive 2002/96/CE) ne doivent pas être jetés aux ordures ménagères générales.Les climatiseurs doivent être réusinés dans un établissement autorisé, en vue de leurs réutilisation, recyclage et récupération, et non pas être éliminés dans une décharge municipale. Pour de plus amples renseignements à ce sujet, veuillez communiquer avec l’installateur ou l’autorité municipale.

Ce symbole, imprimé sur les piles insérées dans votre appareil de climatisation, est une information destinée à l’utilisateur final, selon la Directive 2006/66/CE Article 20 Annexe II de l’UE. Les piles usées ne doivent pas être jetées avec les déchets domestiques. Si un symbole chimique est imprimé à côté du symbole indiqué ci-dessus, cela signifie que les piles contiennent une certaine concentration de métal lourd. Ceci est indiqué de la façon suivante: Hg: mercure (0,0005%), Cd: cadmium (0,002%), Pb: plomb (0,004%) Veuillez déposer les piles à l’endroit préconisé dans votre déchetterie locale ou dans un centre de recyclage.

FRANÇAIS

table des matières

Consignes de sécurité .................................. 24

Description des éléments et

leurs fonctions ............................................. 26

Mode d’emploi de la télécommande ........... 28

Panne de la télécommande .......................... 28

Fonction de secours ..................................... 28

Fonctionnement et affichage de la

télécommande .............................................. 29

Réglage de l’heure actuelle.......................... 29

Mode de fonctionnement AUTO ................. 30

Réglage de la température en

mode AUTO ................................................ 30

FAN SPEED

(VITESSE DE VENTILATION) ................ 30

Mode de fonctionnement

COOL/HEAT/DRY/FAN ............................ 31

Réglage de la température de

fonctionnement du climatiseur .................... 31

Particularités du mode de

fonctionnement HEAT ................................ 31

Réglage de l’orientation du flux d’air.......... 32

Fonctionnement en mode 3D AUTO........... 32

Fonction SLEEP TIMER ............................. 33

Fonction OFF-TIMER ................................. 33

Fonction ON-TIMER .................................. 34

Fonctions SLEEP TIMER + ON-TIMER ... 34

Fonction PROGRAM TIMER ..................... 35

Fonction ALLERGEN CLEAR ................... 35

Fonction HIGH POWER/ECONOMY........ 36

Fonction SELF CLEAN .............................. 37

Fonction de redémarrage automatique ........ 37

Conseils d’utilisation ...................................37

Configuration en fonction du lieu

d’installation ................................................ 38

Entretien et maintenance ............................. 39

Procédure d’installation ............................... 41

Que faire avant d’appeler l’installateur/le

service après-vente ...................................... 41

À savoir ....................................................... 42

Contactez votre revendeur ...........................43

Climatiseurs multiples .................................43

Fonction auto-diagnostic ............................. 44

–23–

Consignes de sécurité

• Avant de mettre en route le système, veuillez lire attentivement les « Consignes de sécurité » pour le bon fonctionnement de l’appareil.

• Les consignes de sécurité ci-après sont classées en «

qu’une mauvaise manipulation pourrait avoir de sérieuses conséquences telles que des blessures fatales, graves, etc. Le non-respect des précautions de type «

consignes de sécurité, parce qu’elles constituent des informations très importantes en matière de sécurité.

PRUDENCE » pourraient également entraîner de graves problèmes selon les circonstances. Assurez-vous d’observer strictement ces

DANGER » et « PRUDENCE ». Les précautions de type « DANGER » indiquent

• Les symboles que l'on rencontre souvent dans le texte ont les significations suivantes:

Interdiction totale

• Après avoir lu ce manuel d’instructions, le conserver afin de pouvoir s’y référer ultérieurement. Si l’opérateur est remplacé, assurez-vous de remettre ce manuel au nouvel opérateur.

Respectez les instructions consciencieusement

Assurer une mise à la terre adéquate

❚ CONSIGNES DE SÉCURITÉ POUR L’INSTALLATION

DANGER

Ce système est destiné à un usage domestique.

S’il est utilisé dans des environnements difficiles, tels que des milieux techniques, les performances du système peuvent en être fortement altérées.

L’appareillage doit être installé par votre concessionnaire ou par un installateur professionnel.

Il n’est pas recommandé d’installer le système par vous-même dans la mesure où une mauvaise manipulation peut provoquer une fuite d’eau, un choc électrique ou un incendie.

Ne pas l’installer dans un endroit présentant un risque de fuite de gaz inflammable.

Veiller à installer correctement le tuyau d’écoulement de sorte que toute l’eau puisse être purgée.

Des fuites de gaz se propagent: risque d’incendie.

Une mauvaise installation peut entraîner la chute de gouttes d’eau dans la pièce et endommager ainsi les meubles par cette humidification.

PRUDENCE

Selon l’emplacement choisi de l’installation, un disjoncteur de mise à la terre peut s’avérer nécessaire.

Si vous n’installez pas de disjoncteur de mise à la terre, vous vous exposez à un risque de choc électrique.

Assurez une bonne mise à la terre.

Le câble de terre ne doit jamais être branché à un tuyau de gaz, à une conduite d’eau, à un paratonnerre ou un à câble téléphonique. Risque de décharges électriques en cas de mauvaise installation.

❚ CONSIGNES DE SÉCURITÉ POUR L’UTILISATION

DANGER

Évitez de vous exposer au courant d’air froid pendant une durée prolongée.

Cela pourrait avoir une influence sur votre condition physique, ou causer des problèmes de santé.

N’utilisez que des fusibles approuvés.

Il est strictement interdit d’utiliser un fil de fer ou de cuivre à la place d’un fusible approuvé, afin d’éviter tout risque d’incident de fonctionnement ou d’incendie.

Ne placez pas d’insecticide inflammable ni de pulvérisateur de peinture près du souffleur et ne les vaporisez pas directement sur le système.

Risque d’incendie. Risque de combustion insuffisante

Il ne faut jamais utiliser l’appareil à d’autres fins que celles prévues, par exemple pour la conservation d’aliments, pour des plantes ou des animaux, des dispositifs de précision ou oeuvres d’art.

L’appareil ne doit être utilisé que pour des pièces ordinaires. D’autres applications peuvent endommager la qualité des aliments, etc.

N’insérez rien dans la grille d’arrivée d’air.

Vu que le ventilateur interne tourne à grande vitesse, vous pourriez vous blesser.

PRUDENCE

Ne manipulez pas les interrupteurs avec les mains mouillées.

Risque de décharges électriques. Si l’unité d’intérieur tombe, vous

vent pas être placés à proximité d’une sortie du climatiseur.

de l’appareil.

Ne mettez pas de vase ou autre objet contenant de l’eau sur le dispositif.

Si l’eau pénètre dans l’appareil, l’isolation électrique risque d’être détériorée. Risque de décharges électriques.

Rangez la télécommande hors de la portée des jeunes enfants.

Vous éviterez ainsi qu’ils n’avalent les piles et tout autre accident.

Ne vous suspendez pas à l’appareil.

pouvez vous faire mal.

Ne lavez pas le climatiseur avec de l’eau.Les appareils à combustion ne doi-

Risque de décharges électriques.

Installez le système de sorte que le flux d’air ne soit pas directement orienté vers des plantes ou des animaux.

Ce n’est pas bon pour leur santé.

–24–

❚ Consignes de sécurité

Ne vous asseyez pas ou ne posez rien sur le dispositif extérieur.

PRUDENCE

Vérifiez de temps en temps l’état du support du dispositif lorsque l’installation est ancienne.

Ne touchez pas les volets en aluminium de l’échangeur de chaleur.

Si le dispositif ou les objets entreposés tombent, des personnes pourraient se blesser.

Ne placez aucun appareil ménager électrique ni d’autre équipement ménager sous le dispositif intérieur ou extérieur.

La condensation tombant de l’appareil peut tacher des objets et provoquer des accidents ou un choc électrique.

Ne contrôlez pas le système avec l'interrupteur principal allumé.

Cela peut entraîner un incendie ou une fuite d'eau. De plus, le ventilateur peut se mettre en marche de façon imprévisible, ce qui peut causer des blessures.

Lorsque vous procédez au nettoyage du système, arrêtez l’appareil et mettezle hors tension.

N’ouvrez jamais le panneau lorsque le ventilateur intérieur tourne.

Si vous ne réparez pas immédiatement une panne, l’appareil peut tomber et provoquer des blessures.

N'utilisez pas l'appareil sans le filtre à air.

Ceci peut causer un dysfonctionnements du système à cause de l'encrassement de l'échangeur de chaleur.

Lorsque l’appareil marche en même temps qu’un appareil à combustion, l’air de la pièce doit être ventilé fréquemment.

Une ventilation insuffisante peut provoquer un accident par manque d’oxygène.

Ne posez rien près du dispositif extérieur et veillez à ce qu’il n’y ait pas d’amoncellement de feuilles tout autour.

Si des objets ou des feuilles se trouvent près du dispositif extérieur, de petits animaux risquent de pénétrer dans l’appareil et de toucher des pièces électriques pouvant générer une panne, de la fumée ou un incendie.

Risque de blessure

Ne coupez pas l'alimentation immédiatement après l'arrêt du fonctionnement.

Utilisez un escabeau ou autre objet stable pour atteindre et retirer le panneau d’arrivée d’air ou les filtres.

Contactez votre revendeur pour nettoyer l’intérieur du dispositif interne. N’essayez pas de le faire par vous-même.

Attendez au moins 5 minutes, sinon il y a a un risque de fuite d'eau ou de panne.

Un objet instable pourrait s’écrouler et par conséquent vous risqueriez de vous blesser.

L’utilisation d’un détergent non approuvé ou d’une méthode de nettoyage inappropriée peut endommager les composants plastiques de l’appareil et entraîner des fuites. Tout contact du détergent avec des composants électriques ou le moteur de l'appareil peut générer une panne, de la fumée ou un incendie.

Arrêtez l’appareil et mettez-le hors tension si vous entendez le tonnerre ou en cas de risque de foudre.

Risque d’endommager l’appareil

❚ PRÉCAUTIONS POUR LE DÉPLACEMENT OU LES RÉPARATIONS DE L’APPAREIL

DANGER

Ne réparez ou ne modifiez jamais l'appareil par vous-même. Consultez votre distributeur si l'appareil a besoin d'être réparé.

Si vous réparez ou modifiez l'appareil, ceci peut causer des fuites d'eau, électrocutions ou incendies.

Si vous remarquez la moindre anomalie (odeur de brûlé, etc.), arrêtez l’appareil, mettez-le hors tension et contactez votre revendeur.

Le fonctionnement continu en cas de conditions anormales peut provoquer le dysfonctionnement, des décharges électriques, des incendies, etc.

Contactez votre revendeur pour toute réparation de l’appareil.

Des réparations inadéquates peuvent provoquer des décharges électriques, incendies, etc.

Le fait que le climatiseur ne refroidisse/réchauffe plus la pièce peut indiquer une fuite de réfrigérant. Contactez votre revendeur. S’il faut ajouter du réfrigérant, vérifiez avec votre revendeur la procédure correcte à suivre.

Le réfrigérant utilise dans votre climatiseur ne présente aucun danger. Toutefois, une fuite accidentelle de réfrigérant sur un appareil de chauffage, un réchaud, une plaque chauffante ou toute autre source de chaleur, peut générer des substances nocives.

Si le climatiseur doit être déplacé, contactez votre revendeur ou un installateur professionnel.

Une installation inadéquate peut entraîner des fuites d’eau, des décharges électriques, des incendies, etc.

–25–

Description des éléments et leurs fonctions

DISPOSITIF INTÉRIEUR

Panneau d’arrivée d’air

Réceptionne l’air intérieur. Page 39

Filtre à air

Filtre les poussières ou salissures de l’air aspiré.

Page 39

Filtre de nettoyage d’air

Page 40

Capteur de température ambiante

Échangeur de chaleur

Sortie de l’air

Soufflage par volet motorisé.

Ventilateur du dispositif intérieur

Louvre de réglage du sens gauche/droit du flux d’air

Page 32

Volet motorisé

Page 32

DISPOSITIF EXTÉRIEUR

Tuyau d’écoulement

Purge l’eau du dispositif intérieur.

Tuyaux de réfrigérant et câble électrique

Arrivée d’air

(Surface arrière & latérale)

Sortie d’air

Ventilateur du dispositif extérieur

Échangeur de chaleur

–26–

Description des éléments et leurs fonctions

Panneau de contrôle

Récepteur signal télécommande

Interrupteur ON/OFF de l’unité

Ce bouton vous permet d’allumer/arrêter l’appareil lorsque vous ne pouvez pas le faire à l’aide de la télécommande.

Page 28

Voyant RUN (HOT KEEP) (vert)

• S’allume en fonctionnement.

• Clignote lorsque le flux d’air est arrêté en

raison du fait que l’appareil est en mode « HOT KEEP » et « CLEAN ».

1.5 sec.

HOT KEEP

Mode CLEAN

OFF

Page 37

3 sec.

0.5 sec.

1 sec.

Voyant 3D AUTO (vert)

Éclairé en mode 3D AUTO.

Voyant HI POWER (vert)

Éclairé en mode HIGH POWER.

Voyant TIMER (jaune)

S’allume en mode TIMER.

NOTA

• Signal sonore pour la télécommande

Avec une température préréglée de 24°C, le mode automatique et le flux d’air automatique sont sélectionnés, un signal sonore (bip bip) est émis.

Lors de l’arrêt du climatiseur par une pression sur le bouton MARCHE/ARRÊT (sauf en mode CLEAN), un signal sonore (bip) est émis. Cette fonction est utile pour utiliser le climatiseur dans l’obscurité.

Réglage du flux d’air

Température préréglée

–27–

Mode d’emploi de la télécommande

Remplacement des piles

Dans les cas suivants vos piles sont usagées. Remplacez les piles usées par des piles neuves.

• Aucun « bip » n’est émis lorsque le signal est transmis par la télécommande au dispositif intérieur.

• Le contraste de l’affichage est faible.

Ouvrir le couvercle et retirer les

piles usagées.

Insérez les piles neuves.

R03 (AAA, Micro) x2

Veillez à respecter

la polarité

(

et .)

■ Si l’affichage indique un dysfonctionnement, appuyez sur l’interrupteur ACL

NOTA

• Ne mélangez pas les piles usagées et les piles neuves. Enlevez les piles quand vous n’utilisez pas la télécom mande pendant une longue période.

•

La durée de vie d’une pile conforme aux normes JIS ou IEC est de 6 à 12 mois en utilisation normale. Si on l’utilise plus longtemps ou si on utilise une pile non spécifiée, une substance

liquide pourrait couler de la pile entraînant le non fonctionnement de la télécommande.

• La durée de vie moyenne est indiquée sur la pile. Elle peut être moins longue en raison de la date de fabrication de l’appareil. Toutefois la pile peut durer plus longtemps que

prévu.

avec la pointe d’un stylo à bille.

L’utilisation du support de boitier de télécommande

Refermez le couvercle.

Appuyez sur l’interrupteur ACL avec la pointe d’un stylo bille.

Le mode de réglage la minuterie apparaît.

Page 29

La télécommande peut être utilisée en la fixant sur un mur ou un poteau à l’aide d’un support (un porte-télécommande). Dans ce cas, il faudra mettre la télécommande en place en s’assurant que les signaux de contrôle émis de celle-ci vers le dispositif intérieur sont bien transmis.

Pour sortir et remettre la télécommande, il suffit de la glisser le long du porte-télécommande.

Remarques concernant l’usage de la télécommande

Interdiction totale

• Ne la mettez pas à proximité d’appareils électriques, un poêle ou d’autres appareils dégageant une temp. élevée.

• Ne mettez pas d’obstacles entre la télécommande et le dispositif.

• Evitez de la mettre à un endroit non protégé contre la lumière solaire directe / l’éclairage puissant.

• Protégez la télécommande de tout type d’éclaboussures.

Panne de la télécommande

• Est-ce que les piles ne sont pas trop faibles?

Voir « Remplacer les piles » ci-dessus.

Remplacez les piles usagées par des piles neuves puis répétez la procédure.

• Si l’appareil ne fonctionne toujours pas, actionnez la fonction de secours.

Contactez votre revendeur pour que votre télécommande soit vérifiée.

Fonction de secours

• Attention, ne la laissez pas tomber. Elle risque d’être endommagée.

• Ne placez pas d’objets lourds sur la télécommande et ne marchez pas dessus.

Ci-dessous.

• La touche ON/OFF de l’unité permet d’actionner ON/OFF de l’appareil temporairement quand on n’utilise pas la télécommande.

Types de fonctionnement

• OPERATION MODE : AUTO

• FAN SPEED : AUTO

• AIR FLOW : AUTO

• L’appareil se met en route en appuyant sur la touche ON/OFF de l’unité,

en réappuyant il s’arrête.

NOTA

•

Ne maintenez pas le bouton ON/OFF de l’appareil enfoncé pendant plus de 5 secondes. (Maintenir ce bouton enfoncé pendant plus de 5 secondes déclenche la climatisation automatique utilisée pour l’entretien ou le déplacement du climatiseur.)

Interrupteur ON/OFF de l’unité

–28–

Fonctionnement et affichage de la télécommande

Boutons

Bouton FAN SPEED

Chaque fois que vous appuyez sur ce

■ bouton, l’affichage change. Page 30

Bouton HI POWER/ECONO

Ce bouton change le mode HIGH POWER/ ECONOMY.

Page 36

Bouton TEMP (=réglage température)

Ces boutons permettent de régler la température ambiante. (Ces boutons permettent de régler l’heure actuelle et de configurer la fonction TIMER.)

Bouton ON TIMER

Ce bouton sert à régler la fonction ON TIMER.

Page 34

Bouton SLEEP

Ce bouton permet de sélectionner le mode SLEEP.

Page 33

Sélecteur CLEAN

Ce commutateur sélectionne le mode CLEAN.

Page 37

Bouton CANCEL

Ce bouton annule les minuteurs ON et OFF et le mode SLEEP.

• La figure ci-dessus montre toutes les indications dans le but d’expliquer; dans la pratique seuls les éléments pertinents ont été indiqués.

Bouton de sélection OPERATION MODE

Chaque fois que vous appuyez sur ce

■ bouton, l’affichage change. Page 30, 31

Bouton ON/OFF (lumineux)

Appuyez sur ce bouton pour mettre l’appareil en marche, et appuyez de nouveau sur ce bouton pour l’arrêter.

Bouton AIR FLOW (UP/DOWN)

Ce bouton permet de changer la direction du flux d’air (haut/bas).

Bouton AIR FLOW (LEFT/RIGHT)

Ce bouton permet de changer la direction du flux d’air (gauche/droite).

Bouton 3D AUTO

Ce bouton permet de sélectionner le mode 3D AUTO.

Bouton OFF TIMER

Ce bouton sert à régler la fonction OFF TIMER.

Interrupteur ACL

Cet interrupteur permet de réinitialiser le micro-ordinateur et de régler l’heure.

Bouton ALLERGEN CLEAR

Ce bouton sélectionne le fonctionnement ALLERGEN CLEAR (hypoallergénique) (SRK SERIES SEULEMENT).

Page 32

Page 33

Page 28

Page 35

Transmission des signaux

Lorsqu’on appuie sur une touche de sélection ou de réglage alors que la télécommande est pointée vers l’unité intérieure, un signal d’actualisation est envoyé vers le climatiseur. Lorsqu’il est correctement reçu, l’appareil émet un « BIP » de réception.

Réglage de l’heure actuelle

■ Lorsque vous insérez les piles, l’appareil passe automatiquement en mode de réglage de l’heure. 13:00 est affiché comme heure courante. Réglez l’horloge à l’heure exacte.

Exemple: Réglage sur 10:30.

Appuyez sur l’interrupteur ACL.

Utilisez le bout d’un stylo à pointe bille, etc. L’heure affichée clignote et peut être réglée à l’heure actuelle.

Appuyez sur le bouton ou .

(Réglé sur 10:30)

Appuyez sur le bouton ON/OFF.

L’heure affichée arrête de clignoter une fois la procédure de réglage de l'heure terminée. Veillez à appuyer sur ce bouton dans un délai de 60 secondes après avoir effectué l’étape 2 afin que le réglage de l’heure soit pris en compte.

NOTA

• La minuterie est programmée à partir de l’horloge, veuillez donc régler celle-ci correctement.

• Les données de la télécommande sont réinitialisées quand l’heure est réglée.

–29–

+ 192 hidden pages
