Air-Conditioners
SLZ-A09, A12, A18AR
OPERATION MANUAL
For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit.
BEDIENUNGSHANDBUCH
Zum sicheren und einwandfreien Gebrauch der Klimaanlage dieses Bedienungshandbuch vor Inbetriebnahme
gründlich durchlesen.
MANUEL D’UTILISATION
Pour une utilisation correcte sans risques, veuillez lire le manuel d’utilisation en entier avant de vous servir du
climatiseur.
BEDIENINGSHANDLEIDING
Voor een veilig en juist gebruik moet u deze bedieningshandleiding grondig doorlezen voordat u de
airconditioner gebruikt.
MANUAL DE INSTRUCCIONES
Lea este manual de instrucciones hasta el final antes de poner en marcha la unidad de aire acondicionado
para garantizar un uso seguro y correcto.
ISTRUZIONI DI FUNZIONAMENTO
Leggere attentamente questi istruzioni di funzionamento prima di avviare l’unità, per un uso corretto e sicuro
della stessa.
E°XEIPI¢IO O¢H°IøN XPH™Eø™
°И· ·ЫК¿ПВИ· О·И ЫˆЫЩ‹ ¯Ъ‹ЫЛ, ·Ъ·О·ПВ›ЫЩВ ‰И·‚¿ЫВЩВ ЪФЫВ¯ЩИО¿ ·˘Щfi ЩФ ВБ¯ВИЪ›‰ИФ ¯Ъ‹ЫВˆ˜ ЪИУ ı¤ЫВЩВ ЫВ
ПВИЩФ˘ЪБ›· ЩЛ МФУ¿‰· ОПИМ·ЩИЫМФ‡.
MANUAL DE OPERAÇÃO
Para segurança e utilização correctas, leia atentamente o manual de operação antes de pôr a funcionar a
unidade de ar condicionado.
FOR USER
FÜR BENUTZER
POUR L’UTILISATEUR
VOOR DE GEBRUIKER
Nederlands
PARA EL USUARIO
PER L’UTENTE
°π∞ ∆√¡ Ã∏™∆∏
PARA O UTILIZADOR
Português
English
Deutsch
Français
Español
Italiano
∂ППЛУИО¿
DRIFTSMANUAL
Läs denna driftsmanual noga för säkert och korrekt bruk innan luftkonditioneringen används.
FÖR ANVÄNDAREN
Svenska
Contents
1. Safety Precautions ...................................................................................................................................................................... 2
2. Operation..................................................................................................................................................................................... 3
3. Care and cleaning ....................................................................................................................................................................... 5
4. Troubleshooting ........................................................................................................................................................................... 6
5. Installation, relocation and inspection ......................................................................................................................................... 6
6. Specifications .............................................................................................................................................................................. 7
1. Safety Precautions
s Before installing the unit, make sure you read all the “Safety precautions”.
s The “Safety precautions” provide very important points regarding safety. Make sure you follow them.
s Please report to or take consent by the supply authority before connection to the system.
Symbols used in the text
Warning:
Describes precautions that should be observed to prevent danger of injury or death to the user.
Caution:
Describes precautions that should be observed to prevent damage to the unit.
Symbols used in the illustrations
: Indicates an action that must be avoided.
: Indicates that important instructions must be followed.
: Indicates a part which must be grounded.
: Indicates that caution should be taken with rotating parts.
: Indicates that the main switch must be turned off before servicing.
: Beware of electric shock.
: Beware of hot surface.
Warning:
Carefully read the labels affixed to the main unit.
Warning:
• The unit should not be installed by the user. Ask the dealer or an authorized company to install the unit. If the unit is installed improperly,
water leakage, electric shock or fire may result.
• Do not stand on, or place any items on the unit.
• Do not splash water over the unit and do not touch the unit with wet hands. An electric shock may result.
• Do not spray combustible gas close to the unit. Fire may result.
• Do not place a gas heater or any other open-flame appliance where it will be exposed to the air discharged from the unit. Incomplete
combustion may result.
• Ventilate the room if refrigerant leaks during operation.
If the refrigerant comes in contact with a flame, poisonous gases will be released.
• Do not remove the front panel or the fan guard from the outdoor unit when it is running. You could be injured if you touch rotating, hot or
high-voltage parts.
• Never insert fingers, sticks etc. into the intakes or outlets, otherwise injury may result, since the fan inside the unit rotates at high speed.
• If you detect odd smells, stop using the unit, turn off the power switch and consult your dealer.
• This air conditioner is NOT intended for use by children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.
Caution:
• Do not use any sharp object to push the buttons, as this may damage the remote controller.
• Never block or cover the indoor or outdoor unit’s intakes or outlets.
Disposing of the unit
When you need to dispose of the unit, consult your dealer. If pipes are removed incorrectly, refrigerant (fluorocarbon gas) may blow out and come into
contact with your skin, causing injury. Releasing refrigerant into the atmosphere also damages the environment.
2
MODE
MODE
2. Operation
AUTO
COOL
DRY
HEAT
FAN
VANE
SELECT
TIME
ON/OFF
RESET
TOO
WARM
TOO
COOL
MODE
AUTO COOL
DRY
HEAT
FAN
VANE
SELECT
TIME
1
2
A
ON/OFF
RESET
TOO
WARM
TOO
COOL
MODE
AUTO COOL
DRY
HEAT
FAN
VANE
SELECT
TIME
h
1
A
1
2.1. Description of “AUTO RESTART FUNCTION”
• This unit is equipped with the auto restart function. When the main power is
turned on, the air conditioner will start operation automatically in the same
mode as set with the remote controller before the shutoff of main power.
• If the unit was set to off with the remote controller before the shutoff of
main power, it will remain stopped even after the main power is turned on.
2
• If the unit was in the TEST RUN before the shutoff of main power, it will
start operation, at main power on, in the same mode as set with the
remote controller before the TEST RUN.
2.2. Remote controller (How to set the batteries)
1Remove the back lid and insert batteries. Then reattach the back lid.
• Insert the minus pole of the batteries first.
• Check if the polarity of the batteries is correct.
2Press the RESET button.
• If the RESET button is not pressed, the remote controller may not operate correctly.
• Press using a thin stick.
2.3. Switching the unit on/off
• The power supply should not be turned off while the air conditioner is in
use. This can cause the unit to break down.
1 Press the ON/OFF button.
• Even if you press the ON/OFF button immediately after shutting down
the operation in progress, the air conditioner will not start for about
three minutes. This is to prevent the internal components from being
damaged.
A For the after-mentioned operating functions of the remote controller,
all items are indicated in this illustration.
Note:
The signal can travel up to approximately 7meters (in a straight line) within 45
degrees to both right and left of the center line of the receiver.
In addition, the signal may not be received if there is interference of light of
For SLZ-A09/A12/A18AR
fluorescent lights or strong sunlight.
2.4. Mode select
1If the unit is off, press the ON/OFF button to turn it on.
2Press the operation mode
Each time the operation mode
button and select the operation mode.
button is pressed the moves. (A)
SLZ-A09/A12/A18AR
Automatic (cooling/heating) mode
s
Cooling mode
Drying mode
Heating mode
For SLZ-A09/A12/A18AR
Information for multi system air conditioner (Outdoor
unit: MXZ series)
ss
sMulti system air conditioner (Outdoor unit: MXZ series) can con-
ss
nect two or more indoor units with one outdoor unit. According to
the capacity, two or more units can operate simultaneously.
• When you try to operate two or more indoor units with one outdoor unit
simultaneously, one for the cooling and the other for heating, the operation mode of the indoor unit that operates earlier is selected. The other
indoor units that will start the operation later cannot operate, indicating
an operation state.
In this case, please set all the indoor units to the same operation mode.
• There might be a case that the indoor unit, which is operating in
(AUTO) mode. Cannot change over to the operating mode (COOL ↔
HEAT) and becomes a state of standby.
• When indoor unit starts the operation while the defrosting of outdoor
unit is being done, it takes a few minutes (max. about 15 minutes) to
blow out the warm air.
• In the heating operation, though indoor unit that does not operate may
get warm or the sound of refrigerant flowing may be heard, they are not
malfunction. The reason is that the refrigerant continuously flows into it.
3
2. Operation
TOO
WARM
TOO
COOL
FAN
VANE
SELECT
TIME
SELECT
ON/OFF
RESET
TOO
WARM
TOO
COOL
MODE
AUTO COOL
DRY
HEAT
FAN
VANE
SELECT
TIME
1
A
ON/OFF
RESET
TOO
WARM
TOO
COOL
MODE
AUTO COOL
DRY
HEAT
FAN
VANE
SELECT
TIME
1
A
ON/OFF
RESET
TOO
WARM
TOO
COOL
MODE
AUTO COOL
DRY
HEAT
FAN
VANE
SELECT
TIME
1
A
ON/OFF
RESET
TOO
WARM
TOO
COOL
MODE
AUTO COOL
DRY
HEAT
FAN
VANE
SELECT
TIME
h
1
B
A
2
For SLZ-A09/A12/A18AR
For SLZ-A09/A12/A18AR
2.5. Selecting a temperature
ss
sTo decrease the room temperature:
ss
1Press
button to set the desired temperature.
A The selected temperature is displayed.
• Each time you press the button, the temperature value decreases by 1 °C.
ss
sTo increase the room temperature:
ss
1Press
button to set the desired temperature.
A The selected temperature is displayed.
• Each time you press the button, the temperature value increases by 1 °C.
• Available temperature ranges are as follows:
Cooling/Drying: 19 - 30 °C
Heating: 17 - 28 °C
Automatic: 19 - 28 °C
2.6. Selecting a fan speed
1Press
• Each time you press the button, available options change with the dis-
play A on the remote controller, as shown below.
Fan speed
3-stage
In the following situations, the display differs from the fan speed of the unit.
• In the case of DEFROST/STAND BY lamp lighting of the unit.
• Just after the heating mode (while waiting to change to another mode).
• When the temperature of the room is higher than the temperature set-
ting of the unit operating in the heating mode.
• In drying mode, the indoor fan sometimes stops.
button to select a desired fan speed.
Remote controller display
Low Medium High
▼
▼
▼
2.7. Adjusting vertical airflow direction
The vertical air vane helps select the vertical direction of the airflow.
1Press
A Each time you press the button, the option changes are displayed on
button to select the vertical airflow direction.
the remote controller, as shown below.
4
1 → 2 → 3 → 4 → 5
s
1 Horizontal airfrow 30° 4 Downword airfrow 70°
2 Downword airfrow 45° 5 Swing
3 Downword airfrow 55°
• In either cooling or drying mode, if you select 2 or 3 or 4 when the fan
speed is Low or Medium, the airconditioner will switch automatically to
Horizontal airflow 1 mode after one hour.
For SLZ-A09/A12/A18AR
In the following situations, the display differs from the vertical airflow direction of the unit.
• In the case of DEFROST/STAND BY lamp lighting of the unit.
• When the temperature of the room is higher than the temperature set-
ting of the unit operating in the heating mode.
2.8. Using the timer
It is convenient to set the timer when you go to bed, when you get home,
when you get up, etc.
1Select the timer mode by pressing the
A Each time this button is pressed, the timer mode is changed in se-
quence:
(OFF TIMER) (ON TIMER) TIMER RELEASE
2Set the time of the timer using the
B Each time this button is pressed, the set time increases by 1 hour to
12 hours.
To release the timer:
• Press the
For SLZ-A09/A12/A18AR
are not displayed.
Note:
The OFF TIMER and the ON TIMER cannot be set at the same time.
button until (OFF TIMER) and (ON TIMER)
button during operation.
button.
A B C D E
B
A
D
C
2. Operation

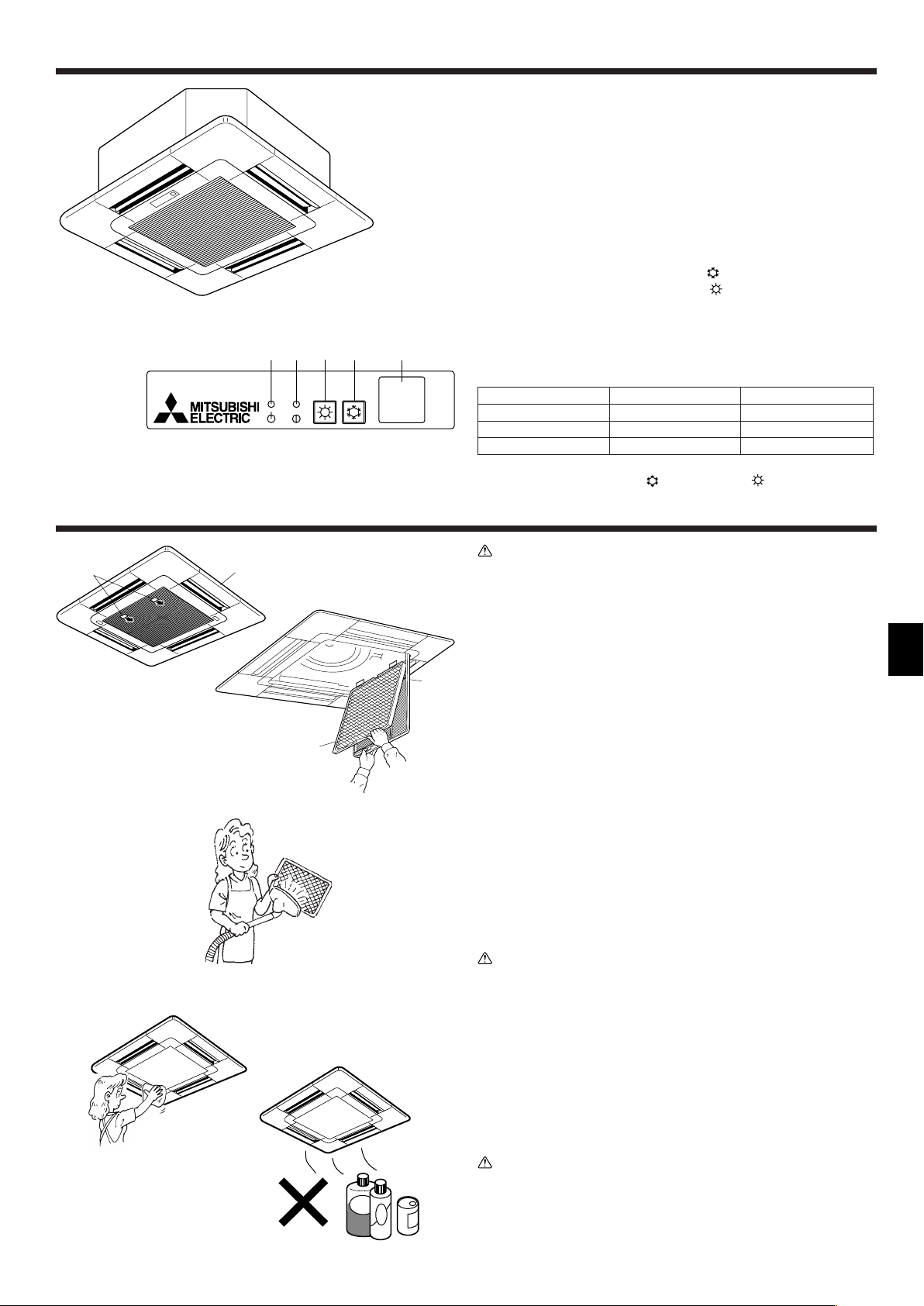

2.9. Emergency operation
When the remote controller cannot be used
When the batteries of the remote controller run out or the remote controller
malfunctions, the emergency operation can be done using the emergency
buttons on the grille.
ADEFROST/STAND BY lamp
BOperation lamp
CEmergency operation switch (heating)
DEmergency operation switch (cooling)
EReceiver
Starting operation
• To operate the cooling mode, press the button D.
• To operate the heating mode, press the button C.
Note:
• Details of emergency mode are as shown below.
Details of EMERGENCY MODE are as shown below. However, the temperature control does not work for 30 minutes in test run and the unit is set
to continuous operation. The fan speed is set to High in test run and shifts
to Medium after 30 minutes.
Operation mode COOL HEAT
Set temperature 24°C24°C
Fan speed med. med.
Airflow direction Horizontal 30° Downward 70°
Stopping operation
• To stop operation, press the button D or the button C.
3. Care and cleaning
Caution:
• Always turn off the power, first on the remote controller and then
the main switch, before cleaning or servicing the unit.
• When installing or removing the filter or the intake grille, do not
stand on an unsteady surface. You may fall and injure yourself. Be
also careful not to let dust fall into your eyes.
Dirty or clogged filters block the airflow and reduce efficiency. Very dirty
filters can damage the air-conditioner itself.
Intake grille removal
1Pull the catch on the intake grille in the direction indicated by the arrow
and it should open.
2Unhook the hinges to remove the intake grille from the grille.
Filter removal
1Open the intake grille.
2Release the catch on the center edge of the intake grille and pull the
filter forward to remove the filter.
A Catch B Grille C Intake grille D Filter
3.1. Cleaning the filters and the indoor unit
Cleaning the filter
• Clean the filter using a vacuum cleaner. If you do not have a vacuum
cleaner, tap the filter against a solid object to knock off dirt and dust.
• If the filter is especially dirty, wash it in lukewarm water. Take care to
rinse off any detergent thoroughly and allow the filter to dry completely
before putting it back into the unit.
Caution:
• Do not dry the filter in direct sunlight or by using a heat source,
such as an electric heater: this may warp it.
• Do not wash the filter in hot water (above 50°C), as this may warp
them.
• Make sure that the air filter is always installed. Operating the unit
without air filter can cause malfunction.
Cleaning the indoor unit
• Wipe the outside of the unit with a clean, dry, soft cloth.
• Clean off any oil stains or finger marks using a neutral household deter-
gent (such as dishwashing liquid or laundry detergent).
Caution:
Never use gasoline, benzene, thinner, scouring powder or any type of
non-neutral detergent, as these substances may damage the unit’s
case.
5
4. Troubleshooting
Before you call out a repair man, check the following table to see whether there is a simple solution to your problem.
Problem
Unit does not cool or heat very well.
The airflow direction suddenly changes.
A white mist is expelled from the indoor
unit.
The air conditioner cannot be operated
for about 3 minutes when restarted.
Air does not blow out soon in the heating
operation.
The start and stop functions are not available just after restarting the unit.
The operation is stopped for about
10 minutes in the heating operation.
Solution
Clean the filter.
After one hour of cooling mode or drying
mode operation with the airflow in a
downward direction, the unit will automatically change to the “Horizontal airflow” mode.
When the unit is in the heating or defrosting mode, it will automatically change to
the “Horizontal airflow” mode.
This may occur just after the unit is turned
on when a high level of humidity is
present in the room.
This protects the air conditioner according to instructions from the microprocessor. Please wait.
Please wait as the air conditioner is preparing to blow out warm air.
Wait about three minutes (operation has
stopped to prevent damage to the air conditioner).
Defrosting of the outdoor unit is being
done (Defrosting operation).
Since this is completed in 10 minutes,
please wait. (When the external temperature is too low and humidity is too high,
frost is formed.)
The operation lamp of the wireless remote controller’s receiver is flashing.
Unit operates even if ON/OFF button has
not been pressed.
No indication of wireless remote controller, indication is dim, or signal transmission cannot reach remote controller sensor.
Problem
A self-diagnostic function is being performed to preserve the air conditioner.
* Do not attempt to make repairs your-
self. Turn the main switch off and contact the dealer from whom you bought
the air conditioner. Provide him or her
with the name of the unit and the
number of times the operation lamp of
the wireless remote controller’s receiver
flashes.
It occurs for the AUTO RESTART FUNCTION mode.
Press the ON/OFF button to stop operation.
The batteries have run out.
Replace the batteries with new ones (size
AAA), and then press the reset button.
Though both alkaline batteries and manganese batteries can be used, alkaline
batteries are recommended because their
service life is longer than that of manganese batteries.
* If indication is not detected even when
new batteries have been replaced,
check that the batteries have been installed properly.
Solution
If none of the above apply, turn the main switch off and contact the dealer from whom you bought the air-conditioner, telling him the model name and the
nature of the problem. Do not try to fix the unit yourself.
In any of the following cases, turn off the main power switch and contact your local dealer for service:
• The operation lamp (on the main unit) flashes.
• The switches do not work properly.
• The circuit breaker trips frequently (or the fuse blows frequently).
• Water has accidentally been splashed into the unit.
• Water leaks from the unit.
• Something is accidentally dropped into the air-conditioner.
• An unusual noise is heard during operation.
The following do not indicate any malfunction:
Odours: smells such as tobacco or cosmetic odours may persist after they have been sucked into the unit.
Sound of liquid flowing inside indoor unit: this can occur during or after operation and is simply the sound of refrigerant being circulated inside the unit.
Ticking sound coming from indoor unit: this can occur when cooling or heating has just begun or has just stopped. It is caused by the indoor unit shrinking
or expanding slightly due to the change in temperature.
5. Installation, relocation and inspection
Installation place
Avoid installing the air conditioner in the following places.
• Where flammable gas could leak.
Inverter type
Radio
fluorescent lamp
To prevent picture
distortion or
noise, keep 1 m
or more apart.
Wall, etc.
Wellventilated dry
place
100 mm or more
TV
400 mm or more
Caution:
Do not install the unit where flammable gas could leak.
If gas leaks and collects around the unit, it may cause an explosion.
• Where there is much machine oil.
• Salty place such as the seaside.
• Where sulfide gas is generated such as a hot spring.
• Where there is oil splashing or much oily smoke.
Warning:
If the air conditioner operates but does not cool or heat (depending
on model) the room, consult your dealer since there may be a refrigerant leak. Be sure to ask the service representative whether there is
refrigerant leakage or not when repairs are carried out.
The refrigerant charged in the air conditioner is safe. Refrigerant normally does not leak, however, if refrigerant gas leaks indoors, and
comes into contact with the fire of a fan heater, space heater, stove,
etc., harmful substances will be generated.
To prevent the effect
of a fluorescent lamp,
keep it away as far
apart as possible.
6
5. Installation, relocation and inspection
Electrical work
• Provide an exclusive circuit for power supply of the air conditioner.
• Be sure to observe the breaker capacity.
Warning:
• The customer should not install this unit. If the unit is installed incorrectly, fire, electric shock, injury due to a falling unit, water leakage, etc.
may result.
• Do not connect using branched outlet or an extension cord, and do not attach many loads to one electric outlet.
A fire or electric shock may result from poor contact, poor insulation, exceeding the permissible current, etc.
Consult your dealer.
Caution:
• Apply grounding
Do not connect a grounding wire to a gas pipe, water pipe, lightning rod or ground wire of a telephone.
If a grounding is incorrect, it may cause an electric shock.
• Install an earth leakage breaker depending on the place where the air conditioner is to be installed (humid place, etc.).
If the earth leakage breaker is not installed, it may cause an electric shock.
Inspection and maintenance
• When the air conditioner is used for several seasons, the capacity may be lowered due to dirt inside the unit.
• Depending upon the conditions of use, an odor may be generated or dirt, dust, etc. may prevent proper drainage.
• It is recommended to apply inspection and maintenance (charged) by a specialist in addition to normal maintenance. Consult your dealer.
Also consider operation sound
• Do not put an object around the air outlet of the outdoor unit. It may cause lowering of capacity or increase operating sound.
• If abnormal sound is heard during operation, consult your dealer.
Relocation
• When the air conditioner is to be removed or reinstalled because of rebuilding, moving, etc., special techniques and work are required.
Warning:
Repair or relocation should not be done by the customer.
If this is done incorrectly, it may cause a fire, electric shock, injury by dropping of the unit, water leakage, etc. Consult your dealer.
Disposal
• To dispose of this product, consult your dealer.
If you have any question, consult your dealer.
6. Specifications
Function
Power supply
Capacity
Input kW
Indoor unit
Airflow (Lo-Hi) CMM
Noise level (Lo-Hi) dB
Weight kg
Outdoor unit
Noise level dB
Refrigerant R410A kg
Weight kg
Model
kW
BTU/h
SLZ-A09AR
Cooling Heating
2.5 3.0
8,500 10,200
0.76 0.87
SLZ-A09AR
8-10
32-38
16.5 + Grille 3
SUZ-A09VR
46
0.8
33
SLZ-A12AR
Cooling Heating
~/N, 220-240V, 50Hz
3.2 3.8
10,900 12,900
1.06 1.07
SLZ-A12AR
9-11
34-39
16.5 + Grille 3
SUZ-A12VR
48
0.9
34
SLZ-A18AR
Cooling Heating
4.3 4.8
14,600 16,300
1.53 1.50
SLZ-A18AR
9-11
35-40
16.5 + Grille 3
SUZ-A18VR
55
1.8
72
Notes: 1. Rating conditions (cooling) Indoor : 27°C DB, 19°C WB Outdoor : 35°C DB
2. Rating conditions (heating) Indoor : 20°C DB Outdoor : 7°C DB, 6°C WB
3. Specifications subject to change without notice.
Guaranteed operating range
Cooling
Heating
Units should be installed by licensed electric contractor accordingly to local code requirement.
Upper limit 32°C DB, 23°C WB 46°C DB, –
Lower limit 21°C DB, 15°C WB -10°C DB, –
Upper limit 27°C DB 24°C DB, 18°C WB
Lower limit 20°C DB -10°C DB, -11°C WB
Indoor Outdoor
7
This product is designed and intended for use in the residential,
commercial and light-industrial environment.
The product at hand is
based on the following
EU regulations:
• Low Voltage Directive 73/23/ EEC
• Electromagnetic Compatibility Directive 89/
336/ EEC
Please be sure to put the contact address/telephone number on
this manual before handing it to the customer.
BG79U162H01
HEAD OFFICE: MITSUBISHI DENKI BLDG., 2-2-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
Printed in Thailand
Loading...
