Mitsubishi Industrial Robot

RV-6S Series INSTRUCTION MANUAL

ROBOT ARM SETUP & MAINTENANCE

BFP-A8323-A

Supplemental Instruction

Thank you for purchasing the Mitsubishi Industrial Robot MELFA Series. This document additionally explains to the Mitsubishi Industrial Robot "RV-6S Series INSTRUVTION MANUAL (BFP-A8323)". Therefore, check the content, and use it together with your instruction manual.

1. Outline

When lubricating, removal of the drain bolt or the plug is unnecessary. The robot which is the target of these supplementary contents is shown below.

No. Target products The discrimination method

Produced in September,

2006 and afterwards.

Produced before August,

2006.

2. Correction of the lubrication port

Revision place

P5-49 “Fig.5-6：Lubrication positions”

*The drain bolt or the plug of

all the axes were erased.

The DATE columns of the rated plate of the robot arm are all the robots after '2006-09'. The robot by which the blue round sticker is stuck on the rated plate of the robot arm.

4. J4 axis lubrication port

6. J6 axis lubrication port

3. J3 axis lubrication port

5. J5 axis lubrication port

2. J2 axis lubrication port

View from A

1. J1 axis lubrication port

BFP-A8323-A01-A

3. Change of the lubrication method and notes

Details of change and supplement

A procedure and precautions applicable to the products affected by the change were added to “(2) Lubrication method” on P5-50. The procedure applicable to the products affected by the change is described below. When lubricating all other products, follow the original procedure specified in the instruction manual.

(1) Lubrication method of products affected by the change

1) Set the robot to the posture shown in Fig. 5-6.

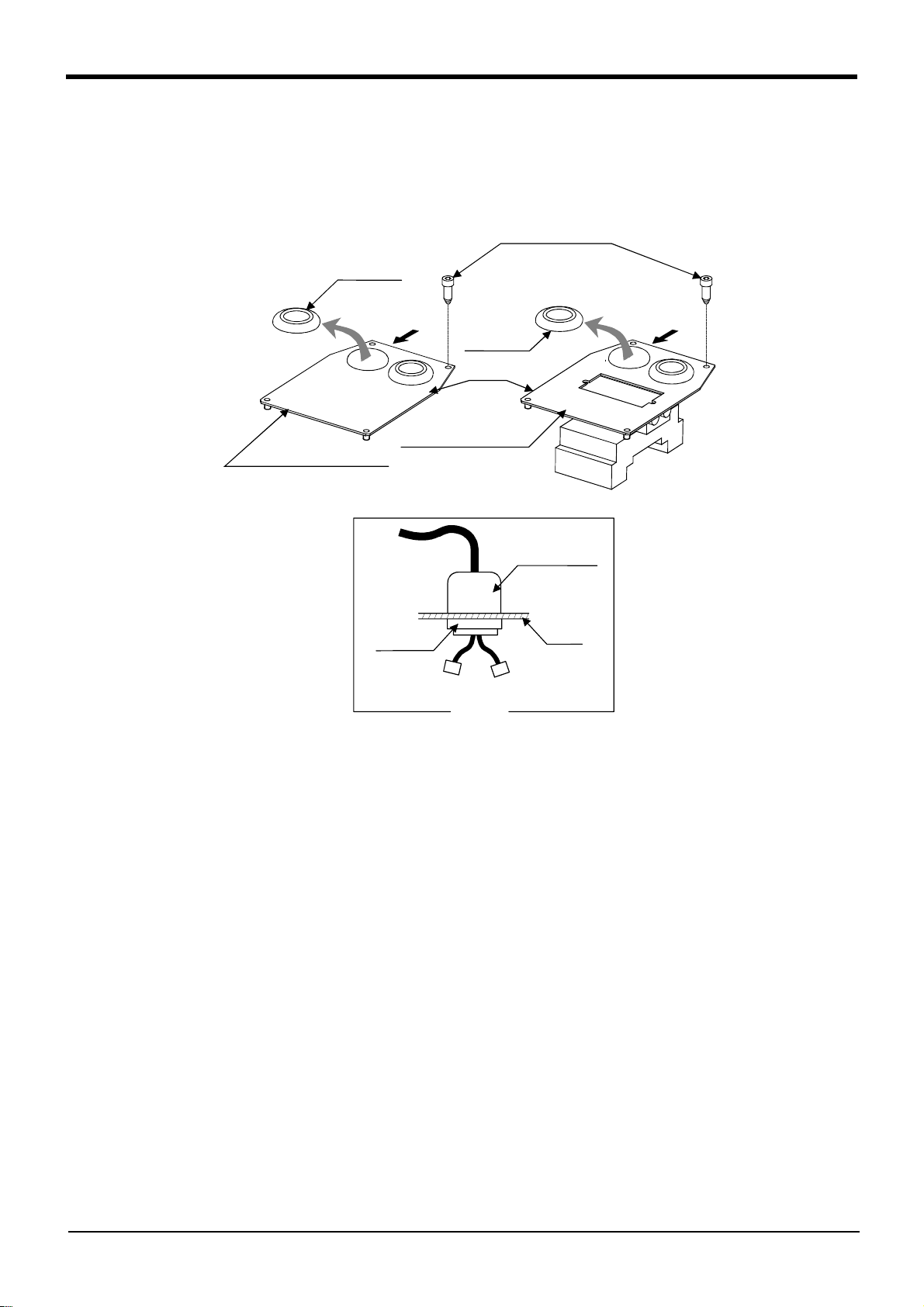

2) Refer to the "5.3.2Installing/removing the cover" on page 44 and remove the covers.

3) Insert the grease shown in Table 5-5 using a grease gun of manual type from the lubrication grease nipple.

4) Replace the covers with the removal procedure in reverse.

(2) Precautions for lubrication

Take note of the following points when lubricating all products, regardless of whether or not they are affected by the change.

CAUTION

Use manual grease gun, and inject grease with pressure 0.03Mpa or less. Do not use the grease gun, which derived by the factory air presser to avoid injecting by too high pressure.

BFP-A8323-A01-A

4. Supplemental note for the installation surface receiving force

Supplemental details

Magnitude of each reaction force added to P2-8 “2.2.3 Installation procedures”.

Table 2-2 shows the maximum reaction force (design values) that may be applied to an installation stand. Please use these values as reference when designing the installation stand.

Ｍ

Ｆ

Ｖ

Ｔ

4-M8×40 hexagon socket bolt (Four positions)

Spring washer

Plain washer

4-φ9 installation hole

Ｆ

Ｈ

Ｆ

Ｈ

Ｆ

Ｖ

2-φ6 holes (prepared holes for φ8 positioning pins)

Ｍ

Ｌ

Ｆ

Ｈ

Ｌ

Ｆ

Ｈ

115

Robot front

204

160

122

6.3a (Installation)

102.5

115 140

6.3a (Installation)

Base bottom

205

Fig.2-3：Installation dimensions

Table 2-2：Magnitude of each reaction force

Item Unit Value Tilt moment : ML Torsional moment : MT

N･m N･m

892

892 Horizontal direction translation force : FH N 800 Vertical direction translation force : FV N 1,400

BFP-A8323-A01-A

Safety Precautions

Always read the following precautions and the separate "Safety Manual" before starting use of the robot to learn the required measures to be taken.

CAUTION

WARNING

CAUTION

WARNING

All teaching work must be carried out by an operator who has received special training. (This also applies to maintenance work with the power source turned ON.) → Enforcement of safety training

For teaching work, prepare a work plan related to the methods and procedures of oper ating the robot, and to the measures to be taken when an error occurs or when restart ing. Carry out work following this plan. (This also applies to maintenance work with the power source turned ON.) → Preparation of work plan

Prepare a device that allows operation to be stopped immediately during teaching work. (This also applies to maintenance work with the power source turned ON.) → Setting of emergency stop switch

During teaching work, place a sign indicating that teaching work is in progress on the start switch, etc. (This also applies to maintenance work with the power source turned ON.) → Indication of teaching work in progress

Provide a fence or enclosure during operation to prevent contact of the operator and robot. → Installation of safety fence

CAUTION

Establish a set signaling method to the related operators for starting work, and follow this method. → Signaling of operation start

As a principle turn the power OFF during maintenance work. Place a sign indicating that maintenance work is in progress on the start switch, etc. → Indication of maintenance work in progress

Before starting work, inspect the robot, emergency stop switch and other related devices, etc., and confirm that there are no errors. → Inspection before starting work

The points of the precautions given in the separate "Safety Manual" are given below. Refer to the actual "Safety Manual" for details.

CAUTION

WARNING

CAUTION

Use the robot within the environment given in the specifications. Failure to do so could lead to a drop or reliability or faults. (Temperature, humidity, atmosphere, noise environ ment, etc.)

Transport the robot with the designated transportation posture. Transporting the robot in a non-designated posture could lead to personal injuries or faults from dropping.

Always use the robot installed on a secure table. Use in an instable posture could lead to positional deviation and vibration.

Wire the cable as far away from noise sources as possible. If placed near a noise source, positional deviation or malfunction could occur.

Do not apply excessive force on the connector or excessively bend the cable. Failure to observe this could lead to contact defects or wire breakage.

Make sure that the workpiece weight, including the hand, does not exceed the rated load or tolerable torque. Exceeding these values could lead to alarms or faults.

Securely install the hand and tool, and securely grasp the workpiece. Failure to observe this could lead to personal injuries or damage if the object comes off or flies off during operation.

Securely ground the robot and controller. Failure to observe this could lead to malfunc tioning by noise or to electric shock accidents.

Indicate the operation state during robot operation. Failure to indicate the state could lead to operators approaching the robot or to incorrect operation.

WARNING

CAUTION

WARNING

CAUTION

When carrying out teaching work in the robot's movement range, always secure the pri ority right for the robot control. Failure to observe this could lead to personal injuries or damage if the robot is started with external commands.

Keep the jog speed as low as possible, and always watch the robot. Failure to do so could lead to interference with the workpiece or peripheral devices.

After editing the program, always confirm the operation with step operation before starting automatic operation. Failure to do so could lead to interference with peripheral devices because of programming mistakes, etc.

Make sure that if the safety fence entrance door is opened during automatic operation, the door is locked or that the robot will automatically stop. F ailure to do so could lead to personal injuries.

Never carry out modifications based on personal judgments, or use non-designated maintenance parts. Failure to observe this could lead to faults or failures.

When the robot arm has to be moved by hand from an external area, do not place hands or fingers in the openings. Failure to observe this could lead to hands or fingers catching depending on the posture.

Do not stop the robot or apply emergency stop by turning the robot controller's main power OFF. If the robot controller main power is turned OFF during automatic operation, the robot accuracy could be adversely affected.Moreover, it may interfere with the peripheral device by drop or move by inertia of the arm.

CAUTION

Do not turn off the main power to the robot controller while rewriting the internal information of the robot controller such as the program or parameters. If the main power to the robot controller is turned off while in automatic operation or

rewriting the program or parameters, the internal information of the robot controller may be damaged.

Revision history

Date of Point Instruction Manual No. Revision Details

2003-10-10 BFP-A8323 First print

2004-05-20 BFP-A8323-A Installing the hand input/output cable was added.

Error in writing correction.

■ Introduction

Thank you for purchasing the Mitsubishi industrial robot. This instruction manual explains procedures to be taken for unpacking, installing, servicing and inspecting the robot arm. Always read through this manual before starting use to ensure correct usage of the robot.

・ No part of this manual may be reproduced by any means or in any form, without prior consent from

Mitsubishi. ・ The details of this manual are subject to change without notice. ・ An effort has been made to make full descriptions in this manual. However, if any discrepancies or

unclear points are found, please contact your dealer. ･ The information contained in this document has been written to be accurate as much as possible.

Please interpret that items not described in this document "cannot be performed.".

Please contact your nearest dealer if you find any doubtful, wrong or skipped point.
