Web Server Module
User's Manual
(Installation)
QJ71WS96
Thank you for purchasing the Mitsubishi programmable logic
controller MELSEC-Q Series.
Prior to use, please read both this manual and detailed manual
thoroughly to fully understand the product.
2002 MITSUBISHI ELECTRIC CORPORATION
MODEL QJ71WS96-U-HW-JE
MODEL
13JT97
CODE
IB(NA)-0800231-C(0311)MEE
SAFETY PRECAUTIONS z
z
(Be sure to read these instructions before using the product.)
Before using this product, read thi s ma nual and the relevant manuals introduced
in this manual carefully and handle the product correctly with full attention to
safety.
Note that these precautions apply only to this product. Refer to the user's manual
of the CPU module for the PLC system safety precautions.
In this manual, the safety in structions a re ranked as "DANGER" and "CAUTION".
Indicates that incorrect handling may cause hazardous
DANGER
CAUTION
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in minor or moderate injury or property
damage.
Note that failure to observe the
serious results depending on the circumstances.
Be sure to observe the instructions of both levels to ensure personal safety.
Please keep this manual in accessible place and be sure to forward it to the end
user.
CAUTION
level instructions may also l ead to
A-1
[DESIGN PRECAUTIONS]
CAUTION
z Do not bundle the co ntrol lines or communication cables with the main circ uit
or power lines, or bring them close to each other.
The distance of 100mm(3.9inch) or more should be ensured.
Failure to do so cause malfunctions due to noise.
z Do not power off a station where this module is mounted and do not reset the
PLC CPU while storing the settings into the standard ROM of the module
using a Web browser.
This may make the data unstable within the standard ROM and require
resetting and re-storing, or it may cause a failure or malfunctions of the
module.
[INSTALLATION PRECAUTIONS]
CAUTION
z Use the PLC in the environment specified in the user's manual of the CPU
module.
Failure to do so may cause electric shock, fires, malfunctions, product
deterioration or damage.
z When mounting the module, fully insert the module fixing projection into the
corresponding fixing hole on the base unit while pressing the module fixing
lever at the bottom of the module.
Incorrect mounting may cause malfunctions, failures or a fall of the module.
The module should be secured with screws in an environment of frequent
vibration.
z Be sure to shut off all phases of the external power supply before mounting
or removing the module.
Failure to do so may damage the module.
z Tighten the screws within the specified torque range.
Loose tightening may cause a fall, short circuits, or malfunctions.
Overtightening may damage the screw s and/or the module , resulting in a fall
of the module, short circuits or malfunctions.
z Do not directly touch the conductive part or electronic components of the
module.
This may cause malfunctions or a failure of the module.
z For connector wiring, co rrectly press, pre ssure-weld or solder the connectin g
part by using the tool specified by the manufacturer.
Poor connection may cause short circuits, fires or malfunctions.
z Be sure to set the CompactFlash
CompactFlash
TM
card slot. Confirm it is completely set.
TM
card by pressing it into the
Poor contact may lead to malfunctions.
A-2
[WIRING PRECAUTIONS]
z Be sure to fix communication cables and power cables to the module by
ducts or clamps.
Failure to do so may cause damage of the module or the cables due to
accidental pull or unintentional shifting of the cables, or malfunctions due to
poor contact of the cable.
z Connect the connectors to the module securely.
z Tighten the terminal screws within the specified torque range.
Loose tightening may result in a fall, short circuits or malfunctions.
Overtightening may cause damage to the screw and/or the module, resulting
in a fall, short circuits or malfunctions.
z Do not hold the communication cable by hand when pulling it out from the
module.
Be sure to hold the connector by hand, when removing the cable with a
connector from the module.
Failure to do so may cause malfunctions or damage to the module or cable.
z Be careful not to let foreign matter such as dust or wire chips get inside the
module. This may cause a fire, failure or malfunctions.
z A protection label is attached to cover the upper part of a module to prevent
the entry of foreign matter. Do not rem ove the label during w iring. However,
be sure to remove it for heat dissipation during system operation.
CAUTION
[TRANSPORTATION PRECAUTIONS]
CAUTION
z When transporting lithium batteries, make sure to treat them based on the
transport regulations. (Refer to Chapter 8 for details of the controlled
models.)
A-3
Revisions
* The manual number is given on the bottom left of the back cover.
Print Date *Manual Number Revision
July, 2002 IB(NA)-0800231-A First printing
Nov., 2002 IB(NA)-0800231-B
Correction
Section 3.1(2), Chapter 4, Section 5.2(2)
Nov., 2003 IB(NA)-0800231-C
Correction
Chapter 2, Chapter 6
Addition
Safety Precautions, Section 3.1 (2),
Chapter 8
This manual confers no industr ial pr operty ri ghts or any r ights of any other kind, nor d oes it
confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for
any problems involving industrial property rights which may occur as a result of using the
contents noted in this manual.
2002 MITSUBISHI ELECTRIC CORPORATION
A-4
CONTENTS
1. Overview........................................................................................................1
2. Performance Specifications...........................................................................2
3. Mounting and Installation...............................................................................3
3.1 Handling Precautions...............................................................................3
3.2 Installation Environment...........................................................................3
4. Part Names....................................................................................................4
5.External Wiring............................................................................................... 6
5.1 Connecting to the 10BASE-T/100BASE-TX .............................................6

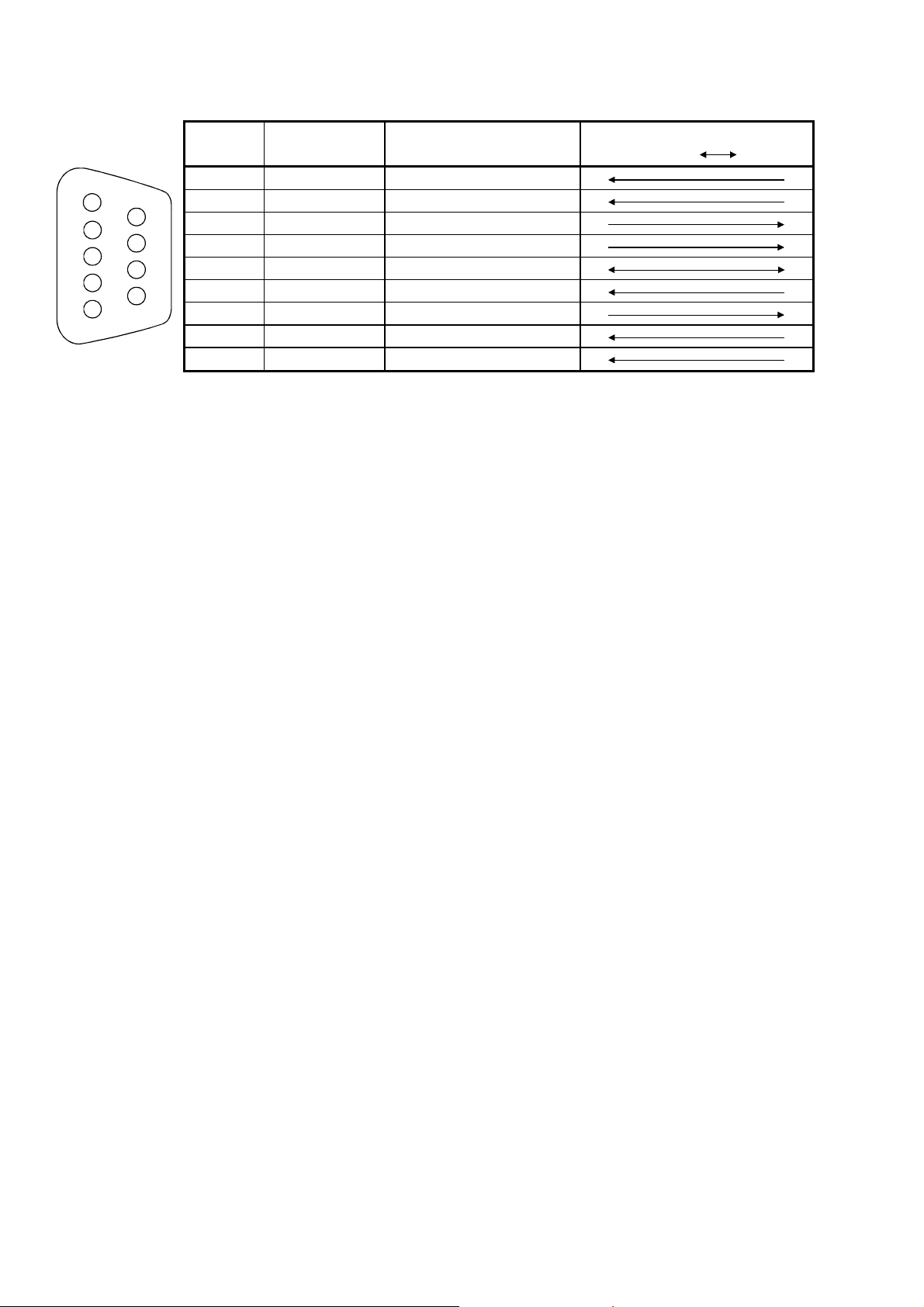

5.2 Connecting to the RS-232........................................................................7
6. Setting from GX Developer............................................................................8
7. External Dimensions....................................................................................11
8. Transportation Precautions .......................................................................... 12
8.1 Controlled Models ..................................................................................12
8.2 Transport Guidelines..............................................................................12
A-5
Manuals
The following table lists the manual on this product.
You can order it as necessary.
Relevant Manual
Manual name
Manual No.
(Model code)
SH-080320E
Web Server Module User's manual
(13JR58)
Compliance with the EMC Directive and the Low Voltage Directive
When incorporating Mitsubishi PLC into other machine or equipment and
making it comply with the EMC directive and the low voltage directive, refer to
Chapter 3, "EMC Directive and Low Voltage Directive" of the User's Manual
(Hardware) for the CPU module.
The CE logo is printed on the rating plate of the P LC, indicating compliance w ith
the EMC directive and the low voltage directive.
For making this product comply with the EMC directive and the low voltage
directive, please refer to Se ction 3.1.3. "Cable" in Chapter 3 "EMC Directive and
Low Voltage Directive" of the User's Manual (Hardware) for the CPU module.
A-6
1. Overview
This manual explains how to install the QJ71WS96 Web server module
(hereinafter referred to as Web server module) and how to wire them with other
devices.
(Production list)
Model name Product name Quantity
QJ71WS96 QJ71WS96 Web server module 1
1
2. Performance Specifications
The following describes the performance specifications of the Web server
module.
For the general specifications of the Web server module, refer to the user's
manual of the CPU module used.
Item Specifications
10BASE-T/10BASE-TX -
Interface (*1) 10BASE-T 10BASE-TX
Data transmission speed 10Mbps 100Mbps
Transmission method Base band
Maximum number of
nodes/connection
Maximum segment
length(*2)
Supported function
RS-232 -
Interface Compliance with RS-232 (D-sub 9 pin)
Communication method Full-duplex communication
Synchronization method Start-stop synchronization method
Transmission speed 9600, 19200, 38400, 57600, 115200 bps
Transmission distance Maximum 15m
Start bit 1
Data format
Parity check None
Transmission control Flow control (RS/CS control) is available
Recommended cable
External wiring applicable
connector
Compact flash card -
Supply power voltage 3.3V 5%
Size TYPE card
Number of mountable cards 1
Number of occupied I/O points 32 points/1 slot (I/O assignment: intelligent 32 points)
Maximum number of writes for
Standard ROM (Flash ROM)
Clock Acquired from the No. 1 CPU (Every 60s)
5V DC internal current
consumption
External dimensions 98 (3. 86 i n. ) ( H) 27.4 (1.08 in.) ( W) 90 (3.54 in.) (D) [mm]
Weight 0.17 kg (0.37Ib.)
Data bit 8
Stop bit 1
Cascade connection
Maximum 4 steps
100m
Auto negotiation function
(automatically recogniz es 10BASE-T/10BASE-TX)
7/0. 127 P HRV-SV outside diameter: 8.5mm or longer
(Oki Electric Cable Company, Limited
Specify the number of pairs in .)
9 pin D-sub (Male) fixing type
Maximum 100,000 times to one area
0.65A
Cascade connection
Maximum 2 steps
*1: Web server module recognizes 10BASE-T/10BASE-TX according to the
external device.
For connection to the hub without the auto negotiation function, set the
half-duplex mode on the hub side.
*2: Distance between the hub and node.
2
3. Mounting and Installation
3.1 Handling precautions
(1) Do not drop or apply severe shock to the module case since it is made of
resin.
(2) Always make sure to touch the grounded metal to discharge the electricity
charged in the body, etc., before touching the module.
Failure to do so may cause a failure or malfunctions of the module.
(3) Tighten the module fixing screws within the specified torque range as
follows:
Screw position Tightening torque range
Module fixing screw (usually not required)
(M3 screw) (*1)
*1:The module can be easily fixed onto the base unit using the hook at the
top of the module. However, it is recommended to secure the module
with the dedicated fixing screws if it is subject to significant vibration or
shock.
3.2 Installation Environment
For details, refer to the user's manual for the CPU module used.
36 to 48 N•cm
3
4. Part Names
[When LED cover is closed]
1)
1)
2)
3)
[When LED cover is opened]
4)
5)
6)
7)
8)
4
Name Description
1) LED Display Refer (1) LED display contents.
10BASE-T/
100BASE-TX interface
Used for connecting Web server module to
10BASE-T/100BASE-TX.
2)
connection connector
(RJ45)
RS-232 interface
(Web server module recognizes 10BASE-T/
10BASE-TX according to the external device.)
Used for connecting Web server module to
3)
connection connector
RS-232.
Used for ejecting a CompactFlash
TM
4) EJECT button
Web server module.
CompactFlash
card
Slot for mounting a CompactFlashTM card onto
TM
5)
mounting slot
CompactFlash
6)
TM
card
Web server module.
Cover for CompactFlash
TM
card mounting slot.
mounting slot cover
7) Battery Battery for file protection.
Connector pin for battery lead.
8) Battery connector pin
(The battery lead is not connected to the
connector at shipment to prevent battery
consumption.)
card from
(1) LED display
LED name LED status Description
Normally operating
ON
RUN
(It may take some time until RUN LED turns ON
after the module is started.)
Watch dog timer error occurrence
OFF
(Hardware error)
OFF Normal operation
ERR.
ON Module continue error
Flickering Module stop error
ON CH2 side: data receiving or data sending
CH2 SD/RD
OFF Data not transmitted
ON 100Mbps
100M
OFF 10Mbps
ON CH1 side: data receiving or data sending
SD/RD
OFF Data not transmitted
5
5. External Wiring
5.1 Connecting to the 10BASE-T/100BASE-TX
Use the twisted pair cable that meets IEEE802.3 10-BASE-T/100BASE-TX
standards when connecting to the 10BASE-T/10BASE-TX interface.
(1) For 100Mbps
Use either of the following cables.
(a) Unshielded twisted pair cable (UTP cable), Category 5
(b) Shielded twisted pair cable (STP cable), Category 5
(2) For 10Mbps
Use either of the following cables.
(a) Unshielded twisted pair cable (UTP cable), Category 3 (4,5)
(b) Shielded twisted pair cable (STP cable), Category 3 (4,5)
TIP
During the high speed communication (100Mbps) via 100BASE-TX
connection, a communication error may occur due to the effect of high
frequency noise generated from the device other than PLC, depending on the
installation environment.
Take the following countermeasures on the Web server module side to
eliminate the effect of high frequency noise.
(1) Wiring
y Do not bundle the twisted pair cables with the main circuit or power cables
or bring them close to each other.
y Make sure to place the twisted pair cable in a duct.
(2) Cable
y In the environment where the cable is susceptible to noise, use the
shielded twisted pair cable (STP cable).
(3) 10Mbps communication
y Connect the 10Mbps-compatible device with Web server module, and
then transmit the data to the device at transmission speed of 10Mbps.
6
5.2 Connecting to the RS-232
Use the RS-232 cable when connecting to the RS-232 interface.
(1) RS-232 connector specifications
Pin
No.
1 CD(DCD) Data Carrier Detect
1
6
2
7
3
8
4
9
5
2 RD(RXD) Received Data
3 SD(TXD) Transmitted Data
4 ER(DTR) Data Terminal Ready
5 SG(GND) Signal Ground
6 DR(DSR) Data Set Ready
7 RS(RTS) Request To Send
8 CS(CTS) Clear To Send
9 CI(RI) Ring Indicator
Signal
abbreviation
Signal name
Signal direction
Web module
(2) RS-232 interface connector
The Web server module uses the following RS-232 interface connector.
9 pin D-sub (Female) fixing type
Use either of the following products as a connector shell fo r the connection
cable on the Web server module side.
y 3M
Plug type: 8209-6009
Shell type: 3702-2209 M2.6
y Tyco Electronics AMP K.K.
Plug type: 747904-2
Shell type: 747515 or 174469-2
y Connector fitting screw (M2.6)
(3) RS-232 cable
Use the RS-232-compliant cable of up to 15m.
[Recommended cable]
7/0. 127 P HRV-SV... Specify the number of pairs in .
(for 13 pairs, specify 7/0. 127 13P HRV-SV.)
(Oki Electric Cable Company, Limited)
Modem
7
6. Setting from GX Developer
Set the mode, default operation, battery error detection, logging monitor setting
and response monitoring time for Web server module on the "Intelligent function
module switch setting" screen.
Switch Number Description
Switch 1 Mode setting
Switch 2
Switch 3 (lower byte) Response monitoring time setting
Switch 4 to 5 For system (not set)
(1) Mode setting (Switch 1)
Select the operation mode for Web server module.
Setting Number Item Description
0000H Online Normal operation mode
0001H Hardware test
0002H CH1 Self-loopback test
0003H CH2 Self-loopback test
9999
(270F
)
H
Module initialization
mode
Default operation/Battery error detection setting/
logging monitor setting
Tests the ROM/RAM/switch
settings
Tests the self diagnostics for
CH1.
Tests the self diagnostics for
CH2.
Initializes the module to default
setting.
8
(2) Default operation/Battery error detection setting/logging monitor setting
b15 b0b1b2
(switch 2)
Speccify 0. * Switch 2
to
b5
b4
b3
0
Logging monitor setting
0: Not display the latest file update time.
1: Displays the latest file update time.
Battery error detection setting
0: Detects battery error.
1: Not detect battery error.
* A switch setting error (0180h) will occur during hardware
test if this area is other than 0.
(a) Default operation setting (bit 0, 1)
For the account setting, system setting and IP filter setting, whether the
default setting is enabled or not is set in this setting.
1) Account setting (bit 0)
0: Operates according to the account setting.
1: Operates according to the default setting.
2) System setting and IP filter setting (bit 1)
0: Operates according to the system setting/IP filter setting.
1: Operates according to the default setting.
(b) Battery error detection setting (bit 2)
This setting is provided to determine whether battery error detection is
enabled or not while the Web server module is operating without battery.
0: Detects battery error.
1: Not detect battery error.
Default operation setting (Account setting)
0: Operates acc ording to the account
setting.
1: Operates according to the default setting.
User name : QJ71WS96
Password : MITSUBISHI
Access authority :
Device write/Tag component write/
Administrator
Initial screen :
Standard screen top page
Default operation setting (System setting)
0: Operates according to the system
setting.
1: Operates according to the default
system setting.
IP address : 192.168.3.3
Subnet mask : 255.255.255.0
Connecting through LAN or the router.
Use the default HTTP port number (80).
Use the default FTP port number (21).
System name : QJ71WS96
Does not execute network diagnoses
(Ping).
Automatic connection to network at
start-up.
Default operation setting (IP filter setting)
0: Operates according to the IP filter setting.
1: Operates according to the default IP filter
setting.
The IP packet with no filter setting is
passed. (Without filter setting)
9
(c) Logging monitor setting (bit 4)
Whether the latest file update time is displayed or not in the file
specification field of the logging monitor is set in this setting.
0: Not display the latest file update time.
1: Displays the latest file update time.
(3) Response monitoring time setting (switch 3 (lower byte))
This is the setting for timeout time (second) from when a module sends a
request to the CPU of the accessed device until the CPU responds to it.
Response timeout error will occur if the CPU of the accessed device does
not respond to the request after the set time has passed.
Setting range: 15 to 255 (second) (default value: 15 seconds)
Response monitoring time will be automatically default value (15 seconds)
if it is not set or set to any of 0 to 14.
b15 b0b8b7
* The upper byte is basically ignored. However, a switch setting
error (0180h) will occur during hardware test if the upper byte
is other than 0.
to to
(Upper byte) *
Specify 0. * Response monitoring time setting
(lower byte)
Swich 3
15 to 255 (seconds)
Response monitoring time will be
automatically default value (15
seconds) if it is not set or set to
any of 0 to 14.
10
7. External Dimensions
90 (3.54)
R1
98 (3.86)
(*1)
27.4
(1.08)
14
(0.55)
Cable diameter
4 + 10
R2
(*2)
(Units:mm (in.))
*1: The bending radius near the connectors (reference value: R1) should be four
times as long as the cable's outside diameter or more when connecting the
twisted pair cable.
*2: The bending radius near the connectors (reference value: R2) should be four
times as long as the cable's diameter or more when connecting the RS-232
cable.
CompactFlash is a trademark of SanDisk Corporation.
Other company names and product names used in this document are
trademarks or registered trademarks of respective companies.
11
8. Transportation Precautions
When transporting lithium batteries, make sure to treat them based on the
transport regulations.
8.1 Controlled Model s
The lithium batteries used with the Web serv er module are classi fied as indicated
in the following table:
Product name Model Product supply status
Q series battery Q6BAT Lithium battery Non-dangerous goods
8.2 Transport Guidelines
Comply with IATA Dangerous Goods Regulations, IMDG code and the local
transport regulations when transporting products after unpacking or repacking,
while Mitsubishi ships products with packages to comply with the transport
regulations.
Please consult your carrier for further details.
Classification for
transportation
12
Warranty
Mitsubishi will not be held liable for damage caused by factors found not to be the cause of
Mitsubishi; machine damage or lost profits caused by faults in the Mitsubishi products;
damage, secondary damage, accident comp ensation caused by special factors unpre dictable
by Mitsubishi; damages to products other than Mitsubishi products; and to other duties.
For safe use
This product has been manufactured as a general-purpose part for general industries, and
y
has not been designed or manufactured to be incorporated in a device or system used in
purposes related to human life.
Before using the product for special purposes such as nuclear power, electric power,
y
aerospace, medicine or passenger movement vehicles, consult with Mitsubishi.
This product has been manufactured under strict quality control. However, when installing
y
the product where major accidents or losses could occur if the product fails, install
appropriate backup or failsafe functions in the system.
Country/Region Sales office/Tel
Brazil MELCO-TEC Rep. Com.e Assessoria
Tecnica Ltda.
AV. Paulista 1471, Conj. 308,
Sao Paulo City, Sao Paulo State,
Brazil
Tel : +55-11-283-2423
Germany Mitsubishi Electric Europe B.V. German
Branch
Gothaer Strasse 8 D-40880 Ratingen,
GERMANY
Tel : +49-2102-486-0
U.K Mitsubishi Electric Europe B.V. UK
Branch
Travellers Lane, Hatfield, Herts., AL10
8XB,UK
Tel : +44-1707-276100
Italy Mitsubishi Electric Europe B.V. Italian
Branch
Centro Dir. Colleoni, Pal. Perseo-Ingr.2
Via Paracelso 12, 20041 Agrate B.,
Milano, Italy
Tel : +39-039-6053344
Spain Mitsubishi Electric Europe B.V. Spanish
Branch
Carretera de Rubi 76-80
08190 - Sant Cugat del Valles,
Barcelona, Spain
Tel : +34-93-565-3131
France Mitsubishi Electric Europe B.V. French
Branch
25 Boulevard des Bouvets, F-92741
N anterre Cedex, France
TEL: +33-1-5568-5568
South Africa Circuit Breaker Industries LTD.
Tripswitch Drive, Elands fon tein Gauteng,
South Africa
Tel : +27-11-928-2000
Hong Kong Ryoden Automation Ltd.
10th Floor, Manulife Tower, 169 Electric
Road, North Point, HongKong
Country/Region Sales office/Tel
China Ryoden Automation Shanghai Ltd.
3F Block5 Building Automation
Instrumentation Plaza 103 Cao Bao Rd.
Shanghai 200233 China
Tel : +86-21-6475-3228
Taiwan Setsuyo Enterprise Co., Ltd.
6F., No.105 Wu-Kung 3rd.RD, Wu-Ku
Hsiang, Taipei Hsine, Taiwan
Tel : +886-2-2299-2499
Korea HAN NEUNG TECHNO CO.,LTD.
1F Dong Seo Game Channel Bldg.,
660-11, Deungchon-dong Kangsec-ku,
Seoul, Korea
Tel : +82-2-3660-9552
Singapore Mitsubishi Electric Asia Pte, Ltd.
307 ALEXANDRA ROAD #05-01/02,
MITSUBISHI ELECTRIC BUILDING
SINGAPORE 159943
Tel : +65-6473-2308
Thailand F. A. Tech Co.,Ltd.
898/28,29,30 S.V.City Building,Office
Tower 2,Floor 17-18 Rama 3 Road,
Bangkpongpang, Yannawa,
Bangkok 10120
Tel : +66-2-682-6522
Indonesia P.T. Autoteknindo SUMBER MAKMUR
Jl. Muara Karang Selatan Block A Utara
No.1 Kav. No.11 Kawasan Industri/
Pergudangan Jakarta - Utara 14440
Tel : +62-21-663-0833
India Messung Systems Put,Ltd.
Electronic Sadan NO:111 Unit No15,
M.I.D.C BHOSARI,PUNE-411026
Tel : +91-20-712-2807
Australia Mitsubishi Electric Australia Pty. Ltd.
348 Victoria Road, PostalBag, No 2,
Rydalmere, N.S.W 2116, Australia
Tel : +61-2-9684-7777
HEAD OFFICE : 1-8-12, OFFICE TOWER Z 14F HARUMI CHUO-KU 104-6212, JAPAN
NAGOYA WORKS : 1-14, YADA-MINAMI 5-CHOME, HIGASHI-KU, NAGOYA, JAPAN
When exported from Japan, this manual does not require application to the Ministry
of Economy, Trade and Industry for service transaction permission.
Specifications subject to change without notice.
Printed in Japan on recycled paper.
Loading...
