Mitsubishi PUHY-400YEM-A, PUHY-500YEM-A, PUHY-400YEM-A-BS, PUHY-500YEM-A-BS, PUHY-400YEM-A-BF PARTS LIST
...Page 1

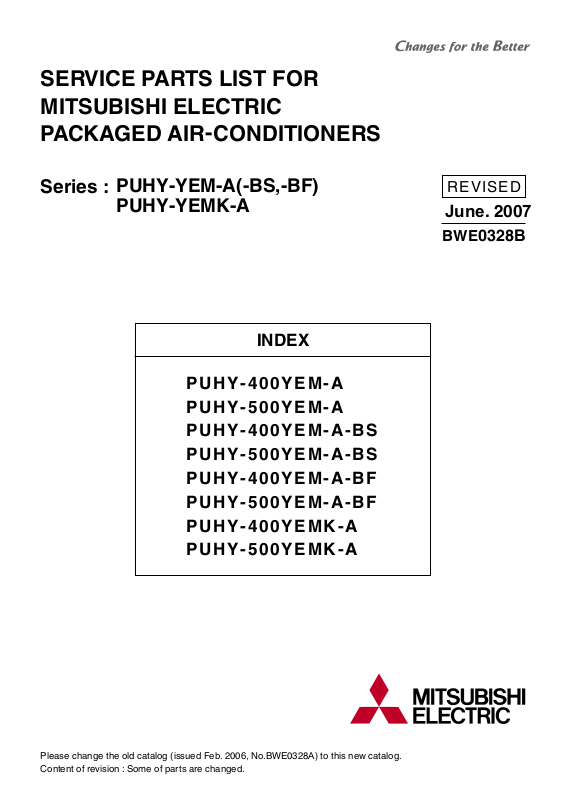

SERVICE PARTS LIST FOR
MITSUBISHI ELECTRIC
PACKAGED AIR-CONDITIONERS
Series :
PUHY-YEM-A(-BS,-BF)
PUHY-YEMK-A
INDEX
PUHY-400YEM-A
PUHY-500YEM-A
PUHY-400YEM-A-BS
PUHY-500YEM-A-BS
REVISED
June. 2007
BWE0328B
PUHY-400YEM-A-BF
PUHY-500YEM-A-BF
PUHY-400YEMK-A
PUHY-500YEMK-A
Please change the old catalog (issued Feb. 2006, No.BWE0328A) to this new catalog.
Content of revision : Some of parts are changed.
Page 2
PUHY-400,500YEM-A(-BS,-BF)
117.137
110.111.129
130.147.148
119.135
113.132
116.133
119.135
112.131
117.137
114
114
106
106
143
138.139
144
142
140
143
138.139
144
142
141
140
141
105.125
119.135
115
102.122
108.109.127
128.145.146
119.135
110.111.129
130.147.148
120.136
112.131
101.121
118.134
103.124
107.126
107.126
115
104.123
105.125
PUHY-400,500YEMK-A
EXTERNAL PARTS & BLOWER PARTS
Spec. Dwg. No. Price
No.
RoHS Compliant : G
Part No.
Part Name
-400YEM-A
-500YEM-A
-400YEM-A-BS
101 R61 E66 667 W Partition board R assy (L) 1 1 W624525G15
102 R61 E66 668 W Partition board R assy (R) 1 1 W624525G20 B
103 R61 E66 657 W Partition board L assy (R) 1 1 W624526G26 B
1
-500YEM-A-BS
Revision History
Page 3
PUHY-400,500YEM-A(-BS,-BF)
EXTERNAL PARTS & BLOWER PARTS
PUHY-400,500YEMK-A
RoHS Compliant : G
No.
104 R61 E66 658 W Partition board L assy (L) 1 1 W624526G20
105 R63 N78 661 G Panel S 2 2 W272421H01 B
106 R63 N78 118 G Fan guard With the Drum 2 2 2 2 W126832G02 B
107 R63 A42 659 G Front panel 2 2 W615888H18 B
108 R61 Y85 480 W Heat exchanger assy F 400YEM-A 2 W265757G22
109 R61 Y50 480 W Heat exchanger assy F 500YEM-A 2 W265759G31
110 R61 Y47 480 W Heat exchanger assy B 400YEM-A 2 W265760G20
111 R61 Y48 480 W Heat exchanger assy B 500YEM-A 2 W265761G30
112 R61 E66 627 W Stay M 2 2 W623717G07
113 R63 E66 674 G Reinforcement M 1 1 W861182H01 B
114 R63 A42 638 G Guard B assy 2 2 2 2 W265789G01 B
115 R63 E66 611 G Guard F assy 2 2 2 2 W265788G01 B
116 R63 E66 125 G Beam M 1 1 W623718G01 B
117 R63 M43 677 G Panel B assy 2 2 W857426G21 B
118 R63 Y15 652 G Panel F 1 1 W623719H09 B
119 R63 L78 653 G Panel FU 4 4 W633746H06 B
120 R61 M54 652 Panel F assy 1 1 W862323G07
121 R61 E67 667 W Partition board R assy (L) 1 1 W624525G11
122 R61 E67 668 Partition board R assy (R) 1 1 W624525G14
123 R61 E67 658 W Partition board L assy (L) 1 1 W624526G14
124 R61 E67 657 W Partition board L assy (R) 1 1 W624526G25 B
125 R61 N78 662 W Panel S 2 2 W272421G02
126 R63 A43 659 G Front panel 2 2 W615888G09 B
127 R61 G48 481 W Heat exchanger assy F 400YEM-A-BS 2 W265757G26
128 R61 G50 481 W Heat exchanger assy F 500YEM-A-BS 2 W265759G37
129 R61 G48 480 W Heat exchanger assy B 400YEM-A-BS 2 W265760G23
130 R61 G50 480 W Heat exchanger assy B 500YEM-A-BS 2 W265761G35
131 R61 E67 627 W Stay M 2 2 W623717G08
132 R61 E68 674 W Reinforcement M 1 1 W861182G02
133 R63 E67 125 G Beam M 1 1 W623718G03 B
134 R61 Y19 652 W Panel F 1 1 W623719G12
135 R61 N78 653 W Panel FU 4 4 W633746G06
136 R61 M55 652 W Panel F assy 1 1 W862323G09
137 R61 M44 677 W Panel B assy 2 2 W857426G28
138 R63 A42 140 G Fan stand 4 4 W856127G05 B
139 R63 A43 140 G Fan stand 4 4 W856127G06 B
140 R61 A69 086 G Cap 2 2 2 2 P221056X01
141 R63 A42 122 G Nut 16 2 2 2 2 P541016X01
142 R63 N78 115 G Propeller fan 750D 2 2 2 2 W126814G01 B
143 R63 Y33 221 G Motor YD380VB<MF> 2 2 2 2 P714762X01 B
144 R63 E90 087 G Screw 6X14 8 8 8 8 P521020X01
145 R61 Y75 480 W Heat exchanger assy F 400YEM-A-BF W265757G27
146 R61 Y76 480 W Heat exchanger assy F 500YEM-A-BF W265759G38
147 R61 Y77 480 W Heat exchanger assy B 400YEM-A-BF W265760G24
148 R61 Y78 480 W Heat exchanger assy B 500YEM-A-BF W265761G36
Part No.
Part Name
Spec. Dwg. No. Price
-400YEM-A
-500YEM-A
-400YEM-A-BS
-500YEM-A-BS
Revision History
2
Page 4
PUHY-400,500YEM-A(-BS,-BF)
117.137
110.111.129
130.147.148
119.135
113.132
116.133
119.135
112.131
117.137
114
114
106
106
143
138.139
144
142
140
143
138.139
144
142
141
140
141
105.125
119.135
115
102.122
108.109.127
128.145.146
119.135
110.111.129
130.147.148
120.136
112.131
101.121
118.134
103.124
107.126
107.126
115
104.123
105.125
PUHY-400,500YEMK-A
EXTERNAL PARTS & BLOWER PARTS
Spec. Dwg. No. Price
No.
RoHS Compliant : G
Part No.
Part Name
-400YEM-A-BF
-500YEM-A-BF
-400YEMK-A
101 R61 E66 667 W Partition board R assy (L) 1 1 1 1 W624525G15
102 R61 E66 668 W Partition board R assy (R) 1 1 1 1 W624525G20 B
103 R61 E66 657 W Partition board L assy (R) 1 1 1 1 W624526G26 B
3
-500YEMK-A
Revision History
Page 5
PUHY-400,500YEM-A(-BS,-BF)
EXTERNAL PARTS & BLOWER PARTS
PUHY-400,500YEMK-A
RoHS Compliant : G
No.
104 R61 E66 658 W Partition board L assy (L) 1 1 1 1 W624526G20
105 R63 N78 661 G Panel S 2 2 2 2 W272421H01 B
106 R63 N78 118 G Fan guard With the Drum 2 2 2 2 W126832G02 B
107 R63 A42 659 G Front panel 2 2 2 2 W615888H18 B
108 R61 Y85 480 W Heat exchanger assy F 400YEM-A W265757G22
109 R61 Y50 480 W Heat exchanger assy F 500YEM-A W265759G31
110 R61 Y47 480 W Heat exchanger assy B 400YEM-A W265760G20
111 R61 Y48 480 W Heat exchanger assy B 500YEM-A W265761G30
112 R61 E66 627 W Stay M 2 2 2 2 W623717G07
113 R63 E66 674 G Reinforcement M 1 1 1 1 W861182H01 B
114 R63 A42 638 G Guard B assy 2 2 2 2 W265789G01 B
115 R63 E66 611 G Guard F assy 2 2 2 2 W265788G01 B
116 R63 E66 125 G Beam M 1 1 1 1 W623718G01 B
117 R63 M43 677 G Panel B assy 2 2 2 2 W857426G21 B
118 R63 Y15 652 G Panel F 1 1 1 1 W623719H09 B
119 R63 L78 653 G Panel FU 4 4 4 4 W633746H06 B
120 R61 M54 652 Panel F assy 1 1 1 1 W862323G07
121 R61 E67 667 W Partition board R assy (L) W624525G11
122 R61 E67 668 Partition board R assy (R) W624525G14
123 R61 E67 658 W Partition board L assy (L) W624526G14
124 R61 E67 657 W Partition board L assy (R) W624526G25 B
125 R61 N78 662 W Panel S W272421G02
126 R63 A43 659 G Front panel W615888G09 B
127 R61 G48 481 W Heat exchanger assy F 400YEM-A-BS W265757G26
128 R61 G50 481 W Heat exchanger assy F 500YEM-A-BS W265759G37
129 R61 G48 480 W Heat exchanger assy B 400YEM-A-BS W265760G23
130 R61 G50 480 W Heat exchanger assy B 500YEM-A-BS W265761G35
131 R61 E67 627 W Stay M W623717G08
132 R61 E68 674 W Reinforcement M W861182G02
133 R63 E67 125 G Beam M W623718G03 B
134 R61 Y19 652 W Panel F W623719G12
135 R61 N78 653 W Panel FU W633746G06
136 R61 M55 652 W Panel F assy W862323G09
137 R61 M44 677 W Panel B assy W857426G28
138 R63 A42 140 G Fan stand 4 4 4 4 W856127G05 B
139 R63 A43 140 G Fan stand W856127G06 B
140 R61 A69 086 G Cap 2 2 2 2 P221056X01
141 R63 A42 122 G Nut 16 2 2 2 2 P541016X01
142 R63 N78 115 G Propeller fan 750D 2 2 2 2 W126814G01 B
143 R63 Y33 221 G Motor YD380VB<MF> 2 2 2 2 P714762X01 B
144 R63 E90 087 G Screw 6X14 8 8 8 8 P521020X01
145 R61 Y75 480 W Heat exchanger assy F 400YEM-A-BF 2 2 W265757G27
146 R61 Y76 480 W Heat exchanger assy F 500YEM-A-BF 2 2 W265759G38
147 R61 Y77 480 W Heat exchanger assy B 400YEM-A-BF 2 2 W265760G24
148 R61 Y78 480 W Heat exchanger assy B 500YEM-A-BF 2 2 W265761G36
Part No.
Part Name
Spec. Dwg. No. Price
-400YEM-A-BF
-500YEM-A-BF
-400YEMK-A
-500YEMK-A
Revision History
4
Page 6
PUHY-400,500YEM-A(-BS,-BF)
242
235.236
224
229
203.217
212
221.231
206.223
203.217
214
207.230.234
229
226
225
203.217
203.239
211.241
216
203.217
203.218.227
220.232
202.210
243.244
243.244
224
205.238
202.210
201.219
208
235.237
203.217
201.219
223
PUHY-500
PUHY-400
203.217.228
233
204.238
204.238
208
202.209
215
224
222.231
229
208
223
201.219
204.238
203.239
240
245
242
235.236
224
203.217
213
221.231
206.223
203.217
214
207.230.234
229
226
225
203.217
203.239
211.241
216
203.217
203.218.227
243.244
243.244
224
205.238
202.210
201.219
208
235.237
203.217
203.217.228
233
204.238
215
224
203.239
240
245
PUHY-400,500YEMK-A

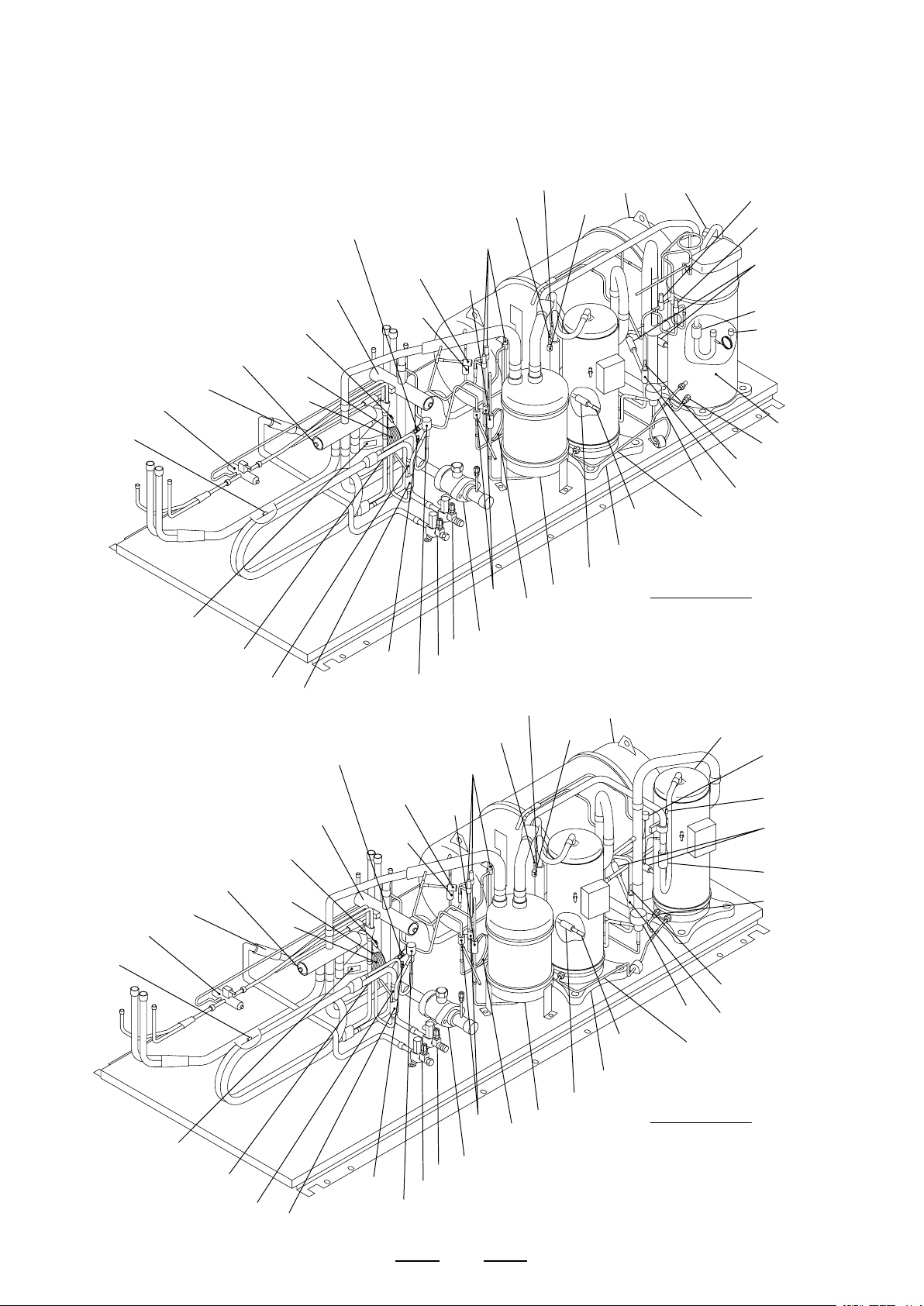

FUNCTIONAL PARTS
5
Page 7
PUHY-400,500YEM-A(-BS,-BF)
FUNCTIONAL PARTS
PUHY-400,500YEMK-A
RoHS Compliant : G
No.
201 R63 347 865 G L.TH spring 2 2 2 2 U38D120H03 B
202 R63 Y04 243 G Solenoid valve coil NEV 3 5 3 5 P631205X01 B
203 R63 658 276 G TH spring 9 9 9 9 BC38D815H01 B
204 R61 Y08 208 W Pressure switch assy <63H1,2> 2 2 2 2 W872429G02
205 R63 331 288 G Pressure sensor <63HS> 1 1 1 1 P419110X01 B
206 R63 Y04 237 G
207 R61 Y03 494 W Pipe assy 1 1 1 1 W883580G05
208 R61 436 418 W Check valve 2 2 2 2 P639808X01
209 R63 670 232 G Solenoid valve NEV-L202DXF<SV2> 1 1 P631148X01 B
210 R63 435 232 G Solenoid valve
211 R61 025 232 Two way valve 1 1 1 1 KB00H435G02 B
212 R61 G78 485 W Equalizer assy 1 1 W633751G03 B
213 R61 G74 485 W Equalizer assy 1 1 W633750G03 B
214 R61 Y11 487 W Oil separator 1 1 1 1 W266568G03
215 R61 F62 425 W Capillary tube assy <1.6X3.2-700> 1 1 1 1 W861175G02
216 R61 E66 426 W Capillary tube assy <0.8X2.4-2000> 1 1 1 1 W861128G02
217 R63 670 202 G Thermistor NTH3A14<TH3~9> 7 7 7 7 P425496X01 B
218 R63 F14 200 G Thermistor <TH2> 1 1 1 1 P425565X01 B
219 R63 911 202 G Thermistor <TH11,12> 2 2 2 2 P425416X02 B
220 R69 950 478 Scroll compressor ZHC165YDA-J<MC2> 1 1 EP10028G04
221 R69 951 478 W Scroll compressor HHV92FAA-YJ<MC1> 1 1 1 1 RF15144G07
222 R69 946 478 W Scroll compressor HH101YAA-J<MC2> 1 1 EP10004G02
223 R63 A42 454 G Strainer 3 3 3 3 W882823G01 B
224 R63 155 454 G Strainer 3 3 3 3 W882822G01 B
225 R63 Y02 454 G Strainer 1 1 1 1 W858399G02 B
226 R61 375 454 W Strainer 1 1 1 1 W817243H06
227 R63 A42 287 G Sensor cover EVA(6.35D) 1 1 1 1 P227170X01 B
228 R61 A45 287 G Sensor cover EVA(12.7D) 1 1 1 1 P227171X01
229 R63 800 413 G Charging plug 3 3 3 3 A50U666H04
230 R61 K50 514 G Packing 1 1 1 1 W881519H01
231 R63 Y07 237 G Belt heater 240V45W<CH11,12> 2 1 2 1 P493781X02 B
232 R63 Y08 237 G Belt heater 240V56W<CH12> 1 1 P493782X01 B
233 R61 670 410 W Ball valve 5/8 1 1 1 1 P636169X01
234 R61 Y09 410 W Ball valve 1Flange 10/8 1 1 1 1 P636299X01
235 R63 G48 401 G Linear expansion valve DKV-18D124 2 2 2 2 P632342X01 B
236 R63 E66 401 G Linear expansion valve coil <SLEV> 1 1 1 1 P472019X01 B
237 R63 A45 401 G Linear expansion valve coil <LEV1> 1 1 1 1 P472017X01 B
238 R61 E66 779 W Rod holder 3771 3 3 3 3 S452002H09
239 R61 800 202 W Thermistor NTH3A23-3<TH10a,b> 2 2 2 2 P425494X01
240 R61 694 410 W Ball valve 1/2 1 1 1 1 P636175X01
241 R63 002 242 G Two way valve coil <SV5b> 1 1 1 1 W875295G05 B
242 R61 Y39 484 W Accumulator 1 1 1 1 W271344G10
243 R63 E37 154 G Four way valve 2 2 2 2 P633101X01 B
244 R63 Y03 242 G Four way valve coil <21S4a,21S4b> 2 2 2 2 P633078X01 B
245 R61 631 418 W Check valve 1 1 1 1 S639001H03
Part No.
Part Name
Liquid level detecting heater assy
<CH2,3> 1 1 1 1 W872422G01 B
Spec. Dwg. No. Price
400<SV1,4,6>
500<SV1,2,3,4,6>
NEV-202DXF
-400YEM-A
-500YEM-A
-400YEM-A-BS
-500YEM-A-BS
400<SV1,4,6>
3 4 3 4 P631807X02 B
500<SV1,3,4,6>
Revision History
6
Page 8
PUHY-400,500YEM-A(-BS,-BF)
FUNCTIONAL PARTS
PUHY-400,500YEMK-A
RoHS Compliant : G
No.
201 R63 347 865 G L.TH spring 2 2 2 2 U38D120H03 B
202 R63 Y04 243 G Solenoid valve coil NEV 3 5 3 5 P631205X01 B
203 R63 658 276 G TH spring 9 9 9 9 BC38D815H01 B
204 R61 Y08 208 W Pressure switch assy <63H1,2> 2 2 2 2 W872429G02
205 R63 331 288 G Pressure sensor <63HS> 1 1 1 1 P419110X01 B
206 R63 Y04 237 G
207 R61 Y03 494 W Pipe assy 1 1 1 1 W883580G05
208 R61 436 418 W Check valve 2 2 2 2 P639808X01
209 R63 670 232 G Solenoid valve NEV-L202DXF<SV2> 1 1 P631148X01 B
210 R63 435 232 G Solenoid valve
211 R61 025 232 Two way valve 1 1 1 1 KB00H435G02 B
212 R61 G78 485 W Equalizer assy 1 1 W633751G03 B
213 R61 G74 485 W Equalizer assy 1 1 W633750G03 B
214 R61 Y11 487 W Oil separator 1 1 1 1 W266568G03
215 R61 F62 425 W Capillary tube assy <1.6X3.2-700> 1 1 1 1 W861175G02
216 R61 E66 426 W Capillary tube assy <0.8X2.4-2000> 1 1 1 1 W861128G02
217 R63 670 202 G Thermistor NTH3A14<TH3~9> 7 7 7 7 P425496X01 B
218 R63 F14 200 G Thermistor <TH2> 1 1 1 1 P425565X01 B
219 R63 911 202 G Thermistor <TH11,12> 2 2 2 2 P425416X02 B
220 R69 950 478 Scroll compressor ZHC165YDA-J<MC2> 1 1 EP10028G04
221 R69 951 478 W Scroll compressor HHV92FAA-YJ<MC1> 1 1 1 1 RF15144G07
222 R69 946 478 W Scroll compressor HH101YAA-J<MC2> 1 1 EP10004G02
223 R63 A42 454 G Strainer 3 3 3 3 W882823G01 B
224 R63 155 454 G Strainer 3 3 3 3 W882822G01 B
225 R63 Y02 454 G Strainer 1 1 1 1 W858399G02 B
226 R61 375 454 W Strainer 1 1 1 1 W817243H06
227 R63 A42 287 G Sensor cover EVA(6.35D) 1 1 1 1 P227170X01 B
228 R61 A45 287 G Sensor cover EVA(12.7D) 1 1 1 1 P227171X01
229 R63 800 413 G Charging plug 3 3 3 3 A50U666H04
230 R61 K50 514 G Packing 1 1 1 1 W881519H01
231 R63 Y07 237 G Belt heater 240V45W<CH11,12> 2 1 2 1 P493781X02 B
232 R63 Y08 237 G Belt heater 240V56W<CH12> 1 1 P493782X01 B
233 R61 670 410 W Ball valve 5/8 1 1 1 1 P636169X01
234 R61 Y09 410 W Ball valve 1Flange 10/8 1 1 1 1 P636299X01
235 R63 G48 401 G Linear expansion valve DKV-18D124 2 2 2 2 P632342X01 B
236 R63 E66 401 G Linear expansion valve coil <SLEV> 1 1 1 1 P472019X01 B
237 R63 A45 401 G Linear expansion valve coil <LEV1> 1 1 1 1 P472017X01 B
238 R61 E66 779 W Rod holder 3771 3 3 3 3 S452002H09
239 R61 800 202 W Thermistor NTH3A23-3<TH10a,b> 2 2 2 2 P425494X01
240 R61 694 410 W Ball valve 1/2 1 1 1 1 P636175X01
241 R63 002 242 G Two way valve coil <SV5b> 1 1 1 1 W875295G05 B
242 R61 Y39 484 W Accumulator 1 1 1 1 W271344G10
243 R63 E37 154 G Four way valve 2 2 2 2 P633101X01 B
244 R63 Y03 242 G Four way valve coil <21S4a,21S4b> 2 2 2 2 P633078X01 B
245 R61 631 418 W Check valve 1 1 1 1 S639001H03
Part No.
Part Name
Liquid level detecting heater assy
<CH2,3> 1 1 1 1 W872422G01 B
Spec. Dwg. No. Price
400<SV1,4,6>
500<SV1,2,3,4,6>
NEV-202DXF
-400YEM-A-BF
-500YEM-A-BF
-400YEMK-A
-500YEMK-A
400<SV1,4,6>
3 4 3 4 P631807X02 B
500<SV1,3,4,6>
Revision History
7
Page 9
PUHY-400,500YEM-A(-BS,-BF)
B
P
N
W V
U
1 4 7 10 16
F5
600VAC 8A FF6600VAC 8A F
F3
250VAC 1A F
L1 L2 L3 N
L2
L1
N
L3L3
L2
L1
N
W855068H01
THIS TERMINAL BLOCK IS USED
FOR TRANSMISSION BETWEEN
OUTDOOR UNITS UNDER
CENTRALIZED CONTROL.
CAUTION
L1 L2 L3 N
THIS TERMINAL BLOCK IS FOR THE
CONTROLLING WIRING OF DC30V.
NEVER CONNECT WITH POWER LINE.
SHIELD
TB7
TB3
CENTRALIZED CONTROL
TRANSMISSION
W891947H01
WARNING
M1 M2 M1 M2
NL3L2L1
F3
250VAC 1A F
F6
600VAC 8A FF5600VAC 8A F
N
W855068H01
THIS TERMINAL BLOCK IS USED
FOR TRANSMISSION BETWEEN
OUTDOOR UNITS UNDER
CENTRALIZED CONTROL.
CAUTION
L1 L2 L3 N
M2M1M2M1
WARNING
W891947H01
TRANSMISSION
CENTRALIZED CONTROL
TB3
TB7
SHIELD
THIS TERMINAL BLOCK IS FOR THE
CONTROLLING WIRING OF DC30V.
NEVER CONNECT WITH POWER LINE.
307
316 318 330.331
302
324317301327 328 329
303
304
308
310
309
319
322
313 326 312
320
325
305
321
303
314.315
306 311 323

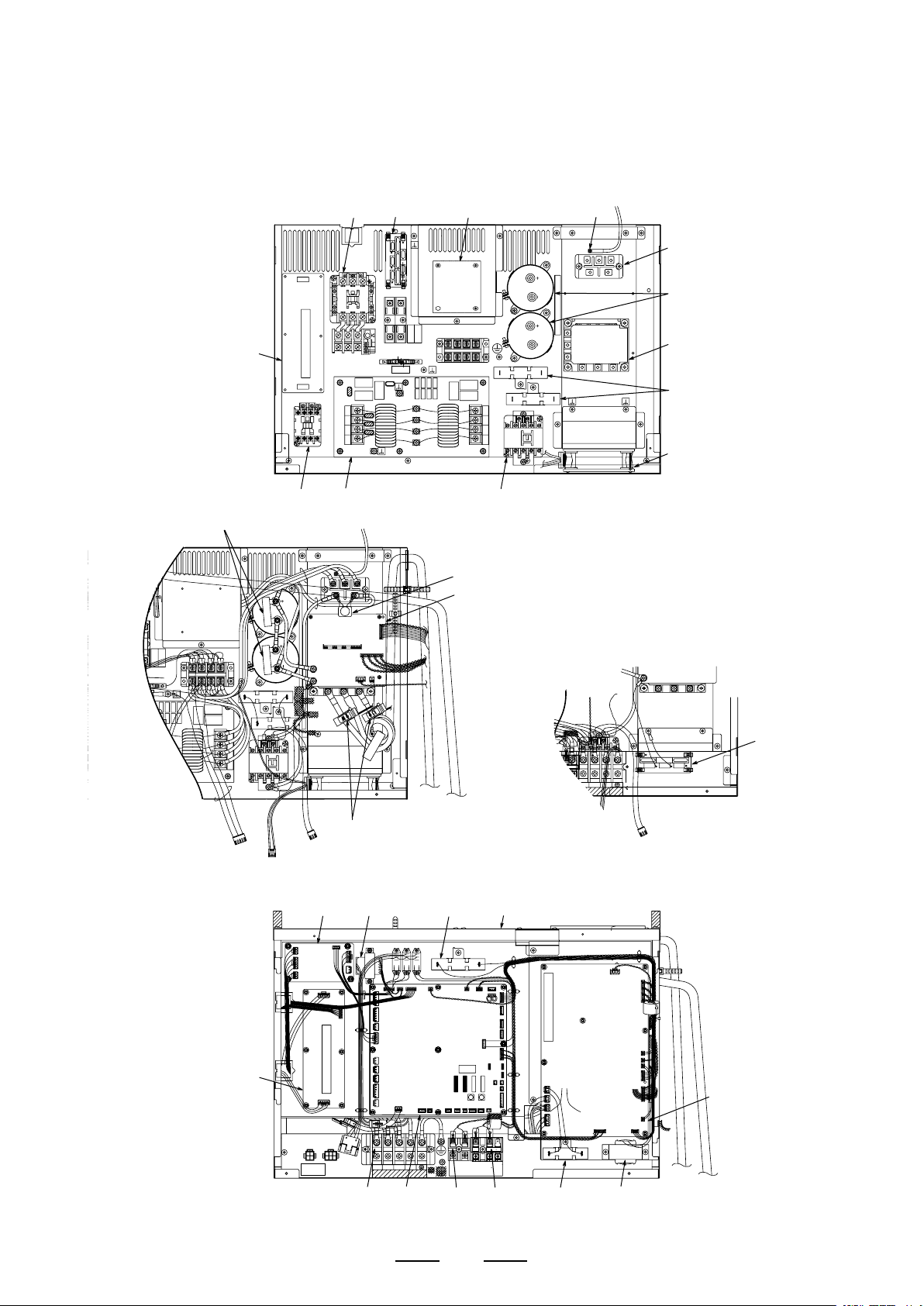

PUHY-400,500YEMK-A
CONTROL BOX PARTS
8
Page 10
PUHY-400,500YEM-A(-BS,-BF)
CONTROL BOX PARTS
PUHY-400,500YEMK-A
RoHS Compliant : G
No.
301 R61 Y98 280 G Main board 1 1 1 1 W266235G28
302 R63 Y67 280 G INV board 1 1 1 1 W639915G01 B
303 R63 Y01 251 G Fan controller board 2 2 2 2 W639913G02 B
304 R63 Y60 280 G Relay board 1 1 1 1 W629574G02 B
305 R63 Y66 280 G G/A board 1 1 1 1 W639914G01 B
306 R61 Y20 281 G SNB board 1 1 1 1 W629557G03
307 R61 Y85 280 G Y-C board 1 1 1 1 W629557G04
308 R63 Y12 320 G Diode DF60LB160 1 1 1 1 W876941G06 B
309 R63 Y04 249 G IPM (Power module) 6MBP50RA120 1 1 1 1 W848413G10 B
310 R63 Y18 252 G Capacitor 40WV,4700µF<C2,3> 2 2 2 2 P412265X01 B
311 R63 Y01 259 G Reactor 1.92mH/34A<DCL> 1 1 1 1 P419149X01 B
312 R63 Y28 225 G Magnet contactor PAK-21J 1 1 1 1 S427020H12 B
313 R63 Y29 225 G Magnet contactor PAK-11J 1 1 1 1 S427020H15 B
314 R61 Y30 225 W Magnetic starter PAK-35JT-F 240V 17.5A 1 1 S427025H82
315 R63 Y36 225 G Magnetic starter PAK-35JT-F 240V 27A 1 1 S427025H84 B
316 R63 Y14 260 G Transformer 240V/40V<T1> 1 1 1 1 P715302X01 B
317 R63 670 234 G Resistor 30W,22Ω<R7> 1 1 1 1 P411113X01 B
318 R63 A42 234 G Resistor 40W,110Ω<R6> 1 1 1 1 W237975K23 B
319 R63 Y05 234 G Resistor 40W,5kΩ<R1,5> 2 2 2 2 P411133X01 B
320 R63 Y02 234 G Resistor
321 R63 Y05 249 G AC current sensor CHJ038 1 1 1 1 P419169X01 B
322 R63 Y15 118 G Fan 109S25UL 1 1 1 1 W639916G01 B
323 R63 M54 201 G Thermistor 181-503-97146 1 1 1 1 P414102X01
324 R61 Y02 244 Choke coil 1A,30mH 1 1 1 1 P419121X01
325 R61 Y20 252 W Capacitor assy 1 1 1 1 W893546G01
326 R61 Y09 293 Noise filter VF4030C-MX2 1 1 1 1 W893513G01
327 R63 Y06 246 G Terminal block <TB1> 1 1 1 1 P436213X01 B
328 R61 008 246 G Terminal block <TB3> 1 1 1 1 BA73S950H02 B
329 R63 979 247 G Terminal block <TB7> 1 1 1 1 P436110X01
330 R61 Y29 281 W Control box 400YEM,YEMK 1 1 W126717G07
331 R61 Y30 281 W Control box 500YEM,YEMK 1 1 W126717G08
Part No.
Part Name
Spec. Dwg. No. Price
10W,33kΩ,pitch=32<R2,3>
-400YEM-A
-500YEM-A
-400YEM-A-BS
-500YEM-A-BS
2 2 2 2 P411126X01 B
Revision History
9
Page 11
PUHY-400,500YEM-A(-BS,-BF)
CONTROL BOX PARTS
PUHY-400,500YEMK-A
RoHS Compliant : G
No.
301 R61 Y98 280 G Main board 1 1 1 1 W266235G28
302 R63 Y67 280 G INV board 1 1 1 1 W639915G01 B
303 R63 Y01 251 G Fan controller board 2 2 2 2 W639913G02 B
304 R63 Y60 280 G Relay board 1 1 1 1 W629574G02 B
305 R63 Y66 280 G G/A board 1 1 1 1 W639914G01 B
306 R61 Y20 281 G SNB board 1 1 1 1 W629557G03
307 R61 Y85 280 G Y-C board 1 1 1 1 W629557G04
308 R63 Y12 320 G Diode DF60LB160 1 1 1 1 W876941G06 B
309 R63 Y04 249 G IPM (Power module) 6MBP50RA120 1 1 1 1 W848413G10 B
310 R63 Y18 252 G Capacitor 40WV,4700µF<C2,3> 2 2 2 2 P412265X01 B
311 R63 Y01 259 G Reactor 1.92mH/34A<DCL> 1 1 1 1 P419149X01 B
312 R63 Y28 225 G Magnet contactor PAK-21J 1 1 1 1 S427020H12 B
313 R63 Y29 225 G Magnet contactor PAK-11J 1 1 1 1 S427020H15 B
314 R61 Y30 225 W Magnetic starter PAK-35JT-F 240V 17.5A 1 1 S427025H82
315 R63 Y36 225 G Magnetic starter PAK-35JT-F 240V 27A 1 1 S427025H84 B
316 R63 Y14 260 G Transformer 240V/40V<T1> 1 1 1 1 P715302X01 B
317 R63 670 234 G Resistor 30W,22Ω<R7> 1 1 1 1 P411113X01 B
318 R63 A42 234 G Resistor 40W,110Ω<R6> 1 1 1 1 W237975K23 B
319 R63 Y05 234 G Resistor 40W,5kΩ<R1,5> 2 2 2 2 P411133X01 B
320 R63 Y02 234 G Resistor
321 R63 Y05 249 G AC current sensor CHJ038 1 1 1 1 P419169X01 B
322 R63 Y15 118 G Fan 109S25UL 1 1 1 1 W639916G01 B
323 R63 M54 201 G Thermistor 181-503-97146 1 1 1 1 P414102X01
324 R61 Y02 244 Choke coil 1A,30mH 1 1 1 1 P419121X01
325 R61 Y20 252 W Capacitor assy 1 1 1 1 W893546G01
326 R61 Y09 293 Noise filter VF4030C-MX2 1 1 1 1 W893513G01
327 R63 Y06 246 G Terminal block <TB1> 1 1 1 1 P436213X01 B
328 R61 008 246 G Terminal block <TB3> 1 1 1 1 BA73S950H02 B
329 R63 979 247 G Terminal block <TB7> 1 1 1 1 P436110X01
330 R61 Y29 281 W Control box 400YEM,YEMK 1 1 W126717G07
331 R61 Y30 281 W Control box 500YEM,YEMK 1 1 W126717G08
Part No.
Part Name
Spec. Dwg. No. Price
10W,33kΩ,pitch=32<R2,3>
-400YEM-A-BF
-500YEM-A-BF
-400YEMK-A
-500YEMK-A
2 2 2 2 P411126X01 B
Revision History
10
Page 12
HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
BWE0328B(20070630)
Loading...
