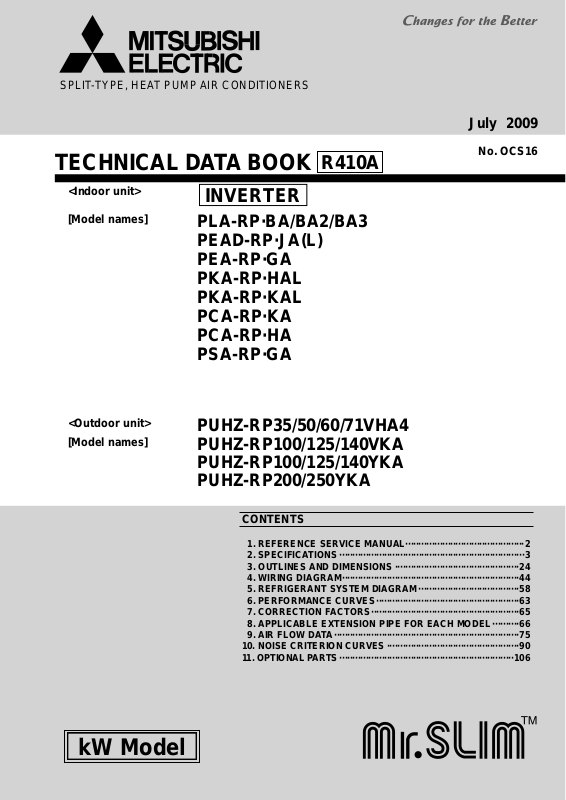

Mitsubishi PLA-RP-BA/BA2/BA3, PEAD-RP-JA(L), PEA-RP-GA, PKA-RP-HAL, PKA-RP-KAL Technical Guide

SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS

TECHNICAL DATA BOOK

July 2009

No. OCS16

R410A

[Model names]

<Outdoor unit> [Model names]

INVERTER

PLA-RP·BA/BA2/BA3 PEAD-RP·JA(L) PEA-RP·GA PKA-RP·HAL PKA-RP·KAL PCA-RP·KA PCA-RP·HA PSA-RP·GA

PUHZ-RP35/50/60/71VHA4 PUHZ-RP100/125/140VKA PUHZ-RP100/125/140YKA

kW Model

PUHZ-RP200/250YKA

CONTENTS

1. REFERENCE SERVICE MANUAL ·············································2

2. SPECIFICATIONS ······································································3

3. OUTLINES AND DIMENSIONS ···············································24

4. WIRING DIAGRAM ···································································44

5. REFRIGERANT SYSTEM DIAGRAM ······································58

6. PERFORMANCE CURVES ······················································ 63

7. CORRECTION FACTORS ························································65

8. APPLICABLE EXTENSION PIPE FOR EACH MODEL ·········· 66

9. AIR FLOW DATA ······································································75

10. NOISE CRITERION CURVES ··················································90

11. OPTIONAL PARTS ··································································106

1

REFERENCE SERVICE MANUAL

For information on service, please refer to the service manual as follows.

1-1. INDOOR UNIT SERVICE MANUAL

Model name Service Ref. PLA-RP35/50/60/71/100/125BA

PLA-RP71/125/140BA2 PLA-RP100BA3 PLA-RP100BA3

PCA-RP50/60/71/100/125/140KA PCA-RP50/60/71/100/125/140KA

PCA-RP71/125HA PCA-RP71/125HA#1 OC329

PLA-RP35/50/60/71/100/125BA#2.UK PLA-RP71/125/140BA2.UK

Service Manual No.

OCH412 OCB412

OCH459 OCB459

OCH454 OCB454

PKA-RP35/50HAL PKA-RP35/50HAL

PKA-RP60/71/100KAL PKA-RP60/71/100KAL.TH

PSA-RP71/100/125/140GA PSA-RP71/100/125/140GA#1 OC332

PEAD-RP35/50/60/71/100/125/140JA(L)

PEA-RP200/250/400/500GA

PEAD-RP35/50/60/71/100/125/140JA(L).UK PEA-RP200/250/400/500GA.TH-AF

PEA-RP200/250GA.TH-AFMF

OCH453 OCB453

OCH452 OCB452

HWE08130 BWE08240

HWE0708A

1-2. OUTDOOR UNIT

Model name Service Ref.

PUHZ-RP35/50/60/71VHA4 PUHZ-RP100/125/140VKA PUHZ-RP100/125/140YKA PUHZ-RP200/250YKA

Service Manual No.

OCH451 OCB451

2

SPECIFICATIONS

2-1. CEILING CASSETTE TYPE

Model name Indoor unit PLA-RP35BA PLA-RP50BA

Outdoor unit PUHZ-RP35VHA4 PUHZ-RP50VHA4

Cooling Capacity Btu/h 12,300 17,100

kW 3.6(1.6-4.5) 5.0(2.3-5.6)

Total input kW 1.07 1.55

EER 3.36 3.23 Energy label class

SHF 0.84 0.81

Heating Capacity Btu/h 14,000 20,500

kW 4.1(1.6-5.2) 6.0(2.5-7.3)

Total input kW 1.12 1.66

COP 3.66 3.61

Energy label class A A

Booster heater kW – –

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 16

Indoor unit Air flow CMM 11-12-13-15 12-14-16-18

(Low-Medium2-Medium1-High)

CFM 390-425-460-530 425-495-565-635

External pressure Pa 0 0

Sound level (Low-Medium2-Medium1-High)

dB(A) 27-28-29-31 28-29-31-32

External finish (Panel) White Munsell 6.4Y 8.9/0.4

Dimension W : mm 840 (950)

Unit (Panel) D : mm 840 (950)

H : mm 258 (35)

W : inch 33-1/16 (37-3/8)

D : inch 33-1/16 (37-3/8)

H : inch 10-3/16 (1-3/8)

Weight kg 22(6)

Unit (Panel) lbs 49(13)

Field drain pipe O.D. mm 32

inch 1-1/4

Outdoor unit Air flow CMM 35

CFM 1,240

Sound level at cooling

Sound level at heating

dB(A) 44

dB(A) 46

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 800

D : mm 300+23

H : mm 600

W : inch 31-1/2

D : inch 11-13/16 + 7/8

H : inch 23-5/8

Weight kg 42

lbs 93

Refrigerant pipe size Gas side O.D. mm 12.7

inch 1/2

Liquid side O.D. mm 6.35

inch 1/4

Refrigerant pipe length

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Upper limit

Cooling

Lower limit Upper limit

Heating

Lower limit

Height difference

Length

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -11°C, W.B. -12°C

m Max. 30

m Max. 50

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage.

+ If optional air protect guide installed. D.B.-15

AA

Indoor unit Single phase 230V 50Hz Outdoor unit

Single phase 230V 50Hz

3

Model name Indoor unit PLA-RP60BA PLA-RP71BA

Outdoor unit PUHZ-RP60VHA4

PUHZ-RP71VHA4

Cooling Capacity Btu/h 20,500 24,200

kW 6.0(2.7-6.7) 7.1(3.3-8.1)

Total input kW 1.60 2.09

EER 3.75 3.40

Energy label class A –

SHF 0.76 0.73

Heating Capacity Btu/h 23,900 27,300

kW 7.0(2.8-8.2) 8.0(3.5-10.2)

Total input kW 1.82 2.15

COP 3.85 3.72

Energy label class A –

Booster heater kW – –

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 25

Indoor unit Air flow CMM 12-14-16-18 14-16-18-21

(Low-Medium2-Medium1-High)

CFM 425-495-565-635 495-565-635-740

External pressure Pa 0 0

Sound level (Low-Medium2-Medium1-High)

dB(A) 28-29-31-32 28-30-32-34

External finish (Panel) White Munsell 6.4Y 8.9/0.4

Dimension W : mm 840 (950)

Unit (Panel) D : mm 840 (950)

H : mm 258 (35)

W : inch 33-1/16 (37-3/8)

D : inch 33-1/16 (37-3/8)

H : inch 10-3/16 (1-3/8)

Weight kg 23(6)

Unit (Panel) lbs 51(13)

Field drain pipe O.D. mm 32

inch 1-1/4

Outdoor unit Air flow CMM 60

CFM 2,120

Sound level at cooling

Sound level at heating

dB(A) 47

dB(A) 48

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 950

D : mm 330+30

H : mm 943

W : inch 37-3/8

D : inch 13 + 1-3/16

H : inch 37-1/8

Weight kg 67

lbs 148

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Refrigerant pipe length

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Upper limit

Cooling

Lower limit Upper limit

Heating

Lower limit

Height difference

Length

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

mMax. 30

mMax. 50

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

Single phase 230V 50Hz

4

Model name Indoor unit PLA-RP71BA2 PLA-RP100BA3

Outdoor unit PUHZ-RP71VHA4 PUHZ-RP100VKA

Cooling Capacity Btu/h 24,200 34,100

kW 7.1(3.3-8.1) 10.0(4.9-11.4)

Total input kW 1.90 2.39

EER 3.74 4.18

Energy label class A A

SHF 0.73 0.74

Heating Capacity Btu/h 27,300 38,200

kW 8.0(3.5-10.2) 11.2(4.5-14.0)

Total input kW 1.90 2.43

COP 4.21

Energy label class A –

Booster heater kW – –

PLA-RP100BA

PUHZ-RP100VKA

34,100

10.0(4.9-11.4)

2.65

3.77

–

0.74

38,200

11.2(4.5-14.0)

2.79

4.01 4.61

A

–

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 3225

Indoor unit Air flow CMM 14-16-18-21

(Low-Medium2-Medium1-High)

CFM 495-565-635-740

External pressure Pa 0

Sound level (Low-Medium2-Medium1-High)

dB(A) 28-30-32-34

20-23-26-30

710-810-920-1060

0

32-34-37-40

External finish (Panel) White Munsell 6.4Y 8.9/0.4

Dimension W : mm 840 (950)

Unit (Panel) D : mm 840 (950)

H : mm 258 (35) 298 (35)

W : inch 33-1/16 (37-3/8)

D : inch 33-1/16 (37-3/8)

H : inch 10-3/16 (1-3/8) 11-3/4 (1-3/8)

Weight kg

Unit (Panel) lbs

23(6)

51(13)

25(6)

55(13)

26(6)

57(13)

Field drain pipe O.D. mm 32

inch 1-1/4

Outdoor unit Air flow CMM 110

CFM 3,880

Sound level at cooling

Sound level at heating

dB(A) 47

dB(A) 48

60

2,120

49

51

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 950

1,050

D : mm 330+30

H : mm 943 1,338

W : inch 41-5/1637-3/8

D : inch 13 + 1-3/16

H : inch 37-1/8 52-11/16

Weight kg 67 116

lbs 148 256

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Refrigerant pipe length

Height difference

Length

mMax. 30

m Max. 75Max. 50

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

5

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

Single phase 230V 50Hz

Model name Indoor unit PLA-RP125BA PLA-RP125BA2 PLA-RP140BA2

Outdoor unit PUHZ-RP125VKA PUHZ-RP125VKA PUHZ-RP140VKA

Cooling Capacity Btu/h 42,700 42,700 47,800

kW 12.5(5.5-14.0) 12.5(5.5-14.0) 14.0(6.2-15.3)

Total input kW 3.83 3.67 4.36

EER 3.26 3.41 3.21

Energy label class – A A

SHF 0.71 0.71 0.71

Heating Capacity Btu/h 47,800 47,800 54,600

kW 14.0(5.0-16.0) 14.0(5.0-16.0) 16.0(5.7-18.0)

Total input kW 3.86 3.50 4.32

COP 3.63 4.00 3.70

Energy label class – A A

Booster heater kW – – –

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 32

Indoor unit Air flow CMM 22-25-28-31 22-25-28-31

(Low-Medium2-Medium1-High)

CFM 780-880-990-1090 780-880-990-1090

External pressure Pa 0 0

Sound level (Low-Medium2-Medium1-High)

dB(A) 34-36-39-41 34-36-39-41

40

24-26-29-32

850-920-1020-1130

0

36-39-42-44

External finish (Panel) White Munsell 6.4Y 8.9/0.4

Dimension W : mm 840 (950)

Unit (Panel) D : mm 840 (950)

H : mm 298 (35)

W : inch 33-1/16 (37-3/8)

D : inch 33-1/16 (37-3/8)

H : inch 11-3/4 (1-3/8)

Weight kg 27(6)

Unit (Panel) lbs 60(13)

25(6)

55(13)

27(6)

60(13)

Field drain pipe O.D. mm 32

inch 1-1/4

Outdoor unit Air flow CMM 120

CFM 4,230

Sound level at cooling

Sound level at heating

dB(A) 50

dB(A) 52

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 1,050

D : mm 330+30

H : mm 1,338

W : inch 41-5/16

D : inch 13 + 1-3/16

H : inch 52-11/16

Weight kg 116 119

lbs 256 262

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Refrigerant pipe length

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Height difference

Length

Upper limit Lower limit Upper limit Lower limit

m Max. 30

m Max. 75

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5 + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46

D.B. 21, W.B. 15 D.B. -20, W.B. -20

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

Single phase 230V 50Hz

6

Model name Indoor unit PLA-RP100BA PLA-RP100BA3

Outdoor unit PUHZ-RP100YKA PUHZ-RP100YKA

Cooling Capacity Btu/h 34,100 34,100

kW 10.0(4.9-11.4) 10.0(4.9-11.4)

Total input kW 2.65 2.39

EER 3.77 4.18 Energy label class

–A

SHF 0.74 0.74

Heating Capacity Btu/h 38,200 38,200

kW 11.2(4.5-14.0) 11.2(4.5-14.0)

Total input kW 2.79 2.43

COP 4.01 4.61 Energy label class

–A

Booster heater kW – –

Power supply Phase : 3

Cycle Hz 50

Voltage V 400

Breaker size A 16

Indoor unit Air flow CMM 20-23-26-30 20-23-26-30

(Low-Medium2-Medium1-High)

CFM 710-810-920-1,060 710-810-920-1,060

External pressure Pa 0 0

Sound level (Low-Medium2-Medium1-High)

dB(A) 32-34-37-40 32-34-37-40

External finish (Panel) White Munsell 6.4Y 8.9/0.4

Dimension W : mm 840 (950)

Unit (Panel) D : mm 840 (950)

H : mm 298 (35)

W : inch 33-1/16 (37-3/8)

D : inch 33-1/16 (37-3/8)

H : inch 11-3/4 (1-3/8)

Weight kg 25 (6)

Unit (Panel) lbs 55 (13)

26 (6)

57 (13)

Field drain pipe O.D. mm 32

inch 1-1/4

Outdoor unit Air flow CMM 110

CFM 3,880

Sound level at cooling

Sound level at heating

dB(A) 49

dB(A) 51

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 1,050

D : mm 330+30

H : mm 1,338

W : inch 41-5/16

D : inch 13 + 1-3/16

H : inch 52-11/16

Weight kg 124

lbs 273

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Refrigerant pipe length

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Height difference

Length

Upper limit Lower limit Upper limit Lower limit

m Max. 30

m Max. 75

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

3. Guaranteed voltage Indoor unit 198~264V, 50Hz

Outdoor unit

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz

Outdoor unit If optional air protect guide installed. D.B.-15

342~457V, 50Hz

3 phase 400V 50Hz

7

Model name Indoor unit PLA-RP125BA PLA-RP125BA2 PLA-RP140BA2

Outdoor unit PUHZ-RP125YKA PUHZ-RP125YKA PUHZ-RP140YKA

Cooling Capacity Btu/h

kW

Total input kW

EER Energy label class

SHF

Heating Capacity Btu/h

kW

Total input kW

COP Energy label class

Booster heater kW

42,700 42,700 47,800

12.5(5.5-14.0) 12.5(5.5-14.0) 14.0(6.2-15.3)

3.83 3.67 4.36

3.26 3.41 3.21

–AA

0.71 0.71 0.71

47,800 47,800 54,600

14.0(5.0-16.0) 14.0(5.0-16.0) 16.0(5.7-18.0)

3.86 3.50 4.32

3.63 4.00 3.70

–AA

–––

Power supply Phase : 3

Cycle Hz 50

Voltage V 400

Breaker size A 16

Indoor unit Air flow CMM

(Low-Medium2-Medium1-High)

CFM

External pressure Pa

Sound level (Low-Medium2-Medium1-High)

dB(A)

External finish (Panel)

Dimension W : mm

Unit (Panel) D : mm

H : mm

W : inch

D : inch

H : inch

Weight kg

Unit (Panel) lbs

Field drain pipe O.D. mm

inch

Outdoor unit Air flow CMM

CFM

Sound level at cooling

Sound level at heating

dB(A)

External finish

Dimension W : mm

D : mm

H : mm

W : inch

D : inch

H : inch

22-25-28-31 22-25-28-31

780-880-990-1090 780-880-990-1090

00

34-36-39-41 34-36-39-41

White Munsell 6.4Y 8.9/0.4

840 (950)

298 (35)

33-1/16 (37-3/8)

11-3/4 (1-3/8)

25(6)

55(13)

27(6)

60(13)

32

1-1/4

120

4,230

50

52

Ivory Munsell 3Y 7.8/1.1

1,050

330+30

1,338

41-5/16

13 + 1-3/16

52-11/16

24-26-29-32

850-920-1020-1130

0

36-39-42-44

27(6)

60(13)

Weight kg 126 132

lbs 278 291

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Upper limit Lower limit Upper limit Lower limit

Height difference

Length

Indoor Outdoor

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

m Max. 30

m Max. 75

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

3. Guaranteed voltage Indoor unit 198~264V, 50Hz

Outdoor unit

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz

Outdoor unit If optional air protect guide installed. D.B.-15

342~457V, 50Hz

3 phase 400V 50Hz

Refrigerant pipe length

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

8

2-2. CEILING-CONCEALED TYPE

Model name Indoor unit PEAD-RP35JA(L) PEAD-RP50JA(L)

Outdoor unit PUHZ-RP35VHA4 PUHZ-RP50VHA4

Cooling Capacity Btu/h 12,300 17,100

kW 3.6(1.6-4.5) 5.0(2.3-5.6)

Total input kW 1.02(1.00) 1.55(1.53)

EER 3.53(3.60) 3.23(3.27)

Energy label class A A

SHF 0.85 0.84

Heating Capacity Btu/h 14,000 20,500

kW 4.1(1.6-5.2) 6.0(2.5-7.3)

Total input kW 1.10 1.56

COP 3.73 3.85

Energy label class A A

Booster heater kW - -

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 16

Indoor unit Air flow CMM 10-12-14

(Low-Middle-High) CFM 353-424-494

External pressure Pa 35/50/70/100/150

Sound level dB(A) 23-27-30

(Low-Middle-High/ 50Pa)

External finish Galvanized sheets

Dimension W : mm 900

D : mm 732

H : mm 250

W : inch 35-7/16

D : inch 28-7/8

H : inch 9-7/8

Weight kg 26(25) 28(27)

lbs

Field drain pipe O.D. 32

mm

inch

58(56) 62(60)

1-1/4

Outdoor unit Air flow CMM 35

CFM 1,240

Sound level at cooling dB(A) 44

Sound level at heating dB(A) 46

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 800

D : mm 300+23

H : mm 600

W : inch 31-1/2

D : inch 11-13/16 + 7/8

H : inch 23-5/8

Weight kg 42

lbs 93

Refrigerant pipe size Gas side O.D. mm 12.7

inch 1/2

Liquid side O.D. mm 6.35

inch 1/4

Refrigerant pipe length Height difference m Max. 30

Length m Max. 50

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -11°C, W.B. -12°C

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

Single phase 230V 50Hz

12-14.5-17

424-512-600

26-31-35

9

Model name Indoor unit PEAD-RP60JA(L) PEAD-RP71JA(L)

Outdoor unit PUHZ-RP60VHA4 PUHZ-RP71VHA4

Cooling Capacity Btu/h 20,500 24,200

kW 6.0(2.7-6.7) 7.1(3.3-8.1)

Total input kW 1.60(1.58) 2.03(2.01)

EER 3.75(3.80) 3.50(3.53)

Energy label class A A

SHF 0.83 0.83

Heating Capacity Btu/h 23,900 27,300

kW 7.0(2.8-8.2) 8.0(3.5-10.2)

Total input kW 1.75 2.00

COP 4.00 4.00

Energy label class A A

Booster heater kW - -

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 25

Indoor unit Air flow CMM 14.5-18-21 17.5-21-25

(Low-Middle-High) CFM 512-636-742 618-742-883

External pressure Pa 35/50/70/100/150

Sound level dB(A) 25-29-33 26-30-34

(Low-Middle-High/ 50Pa)

External finish Galvanized sheets

Dimension W : mm 1,100

D : mm 732

H : mm 250

W : inch 43-5/16

D : inch 28-7/8

H : inch 9-7/8

Weight kg 33(32) 33(32)

lbs

Field drain pipe O.D. 32

mm

inch

73(71) 73(71)

1-1/4

Outdoor unit Air flow CMM 60 60

CFM 2,120 2,120

Sound level at cooling dB(A) 47 47

Sound level at heating dB(A) 48 48

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 950 950

D : mm 330+30 330+30

H : mm 943 943

W : inch 37-3/8 37-3/8

D : inch 13 + 1-3/16 13 + 1-3/16

H : inch 37-1/8 37-1/8

Weight kg 67

lbs 148

Refrigerant pipe size Gas side O.D. mm 15.88 15.88

inch 5/8 5/8

Liquid side O.D. mm 9.52 9.52

inch 3/8 3/8

Refrigerant pipe length Height difference m Max. 30 Max. 30

Length m Max. 50 Max. 50

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

Single phase 230V 50Hz

10

Model name Indoor unit PEAD-RP100JA(L) PEAD-RP125JA(L) PEAD-RP140JA(L)

Outdoor unit PUHZ-RP100VKA

PUHZ-RP125VKA PUHZ-RP140VKA

Cooling Capacity Btu/h 34,100 42,700 47,800

kW 10.0(4.9-11.4) 12.5(5.5-14.0) 14.0(6.2-15.3)

Total input kW 2.77(2.75) 3.86(3.84) 4.36(4.34)

EER 3.61(3.64) 3.24(3.26) 3.21(3.23)

Energy label class A A A

SHF 0.82 0.84 0.83

Heating Capacity Btu/h 38,200 47,800 54,600

kW 11.2(4.5-14.0) 14.0(5.0-16.0) 16.0(5.7-18.0)

Total input kW 2.72 3.50 4.04

COP 4.12 4.00 3.96

Energy label class A A A

Booster heater kW - - -

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 32 40

Indoor unit Air flow CMM 24-29-34 32-39-46

(Low-Middle-High) CFM 847-1,024-1,201

29.5-35.5-42

1,042-1,253-1,483 1,130-1,377-1,624

External pressure Pa 35/50/70/100/150

Sound level dB(A) 29-34-38 33-36-40 34-38-43

(Low-Middle-High/50Pa)

External finish Galvanized sheets

Dimension W : mm 1,400 1,600

D : mm 732

H : mm 250

W : inch 55-1/8 63

D : inch 28-7/8

H : inch 9-7/8

Weight kg 41(40) 47(46)

lbs 91(89) 104(102)

Field drain pipe O.D. 32

mm

43(42)

95(93)

inch 1-1/4

Outdoor unit Air flow CMM 120

CFM 4,230

110

3,880

Sound level at cooling dB(A) 49 50

Sound level at heating dB(A) 51 52

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 1,050

D : mm 330+30

H : mm 1,338

W : inch 41-5/16

D : inch 13 + 1-3/16

H : inch 52-11/16

Weight kg 116 116

lbs 256 256

119

262

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Refrigerant pipe length Height difference m Max. 30

Length m Max. 75

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5 + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46

D.B. 21, W.B. 15 D.B. -20, W.B. -20

11

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

Single phase 230V 50Hz

Model name Indoor unit PEAD-RP100JA(L) PEAD-RP125JA(L) PEAD-RP140JA(L)

Outdoor unit

Cooling Capacity Btu/h

kW

Total input kW

EER

Energy label class

SHF

Heating Capacity Btu/h

kW

Total input kW

COP

Energy label class

PUHZ-RP100YKA

34,100 42,700 47,800

10.0(4.9-11.4) 12.5(5.5-14.0) 14.0(6.2-15.3)

2.77(2.75) 3.86(3.84) 4.36(4.34)

3.61(3.64) 3.24(3.26) 3.21(3.23)

AAA

0.82 0.84 0.83

38,200 47,800 54,600

11.2(4.5-14.0) 14.0(5.0-16.0) 16.0(5.7-18.0)

2.72 3.50 4.04

4.12 4.00 3.96

AAA

PUHZ-RP125YKA PUHZ-RP140YKA

Booster heater kW - - -

Power supply Phase : 3

Cycle Hz 50

Voltage V 400

Breaker size A 16

Indoor unit

Air flow CMM 24-29-34 32-39-46

(Low-Middle-High) CFM 847-1,024-1,201

29.5-35.5-42

1,042-1,253-1,483 1,130-1,377-1,624

External pressure Pa 35/50/70/100/150

Sound level dB(A) 29-34-38 33-36-40 34-38-43

(Low-Middle-High/50Pa)

External finish Galvanized sheets

Dimension W : mm 1,400 1,600

D : mm 732

H : mm 250

W : inch 55-1/8 63

D : inch 28-7/8

H : inch 9-7/8

Weight kg 41(40) 47(46)

lbs 91(89) 104(102)

Field drain pipe O.D. 32

mm

43(42)

95(93)

inch 1-1/4

Outdoor unit

Air flow CMM 120

CFM 4,230

110

3,880

Sound level at cooling dB(A) 49 50

Sound level at heating dB(A) 51 52

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 1,050

D : mm 330+30

H : mm 1,338

W : inch 41-5/16

D : inch 13 + 1-3/16

H : inch 52-11/16

Weight kg 124 132

lbs 273

126

278 291

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Refrigerant pipe length Height difference m Max. 30

Length m Max. 75

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

12

3. Guaranteed voltage Indoor unit 198~264V, 50Hz

Outdoor unit

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz

Outdoor unit

+ If optional air protect guide installed. D.B.-15

342~457V, 50Hz

3 phase 400V 50Hz

Model name Indoor unit PEA-RP200GA PEA-RP250GA

Outdoor unit PUHZ-RP200YKA PUHZ-RP250YKA

Cooling Capacity Btu/h 65,000 75,000

kW 19.0(9.0-22.4) 22.0(11.2-28.0)

Total input kW 6.70 8.34

EER

Energy label class

2.84 2.64

--

SHF 0.81 0.86

Heating Capacity Btu/h 76,400 92,000

kW 22.4(9.5-25.0) 27.0(12.5-31.5)

Total input kW 6.50 8.20

COP 3.45 3.29

Energy label class - -

Booster heater kW - -

Power supply Phase : 3

Cycle Hz 50

Voltage V 400

Breaker size A Indoor 15 / Outdoor 32

Indoor unit Air flow CMM 52-65 64-80

(Low-High) CFM 1835-2295 2260-2825

External pressure Pa 150

Sound level dB(A) 48-51 49-52

(Low-High)

External finish Galvanized steel

Dimension W : mm 16001400

D : mm 634

H : mm 400

W : inch 6355-1/8

D : inch 25

H : inch 15-3/4

Weight kg 70 77

lbs 155 170

Unit drain pipe R1

Outdoor unit Air flow CMM 140

CFM 4,940

Sound level at cooling dB(A) 58

Sound level at heating dB(A) 59

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 1,050

D : mm 330+30

H : mm 1,338

W : inch 41-5/16

D : inch 13 + 1-3/16

H : inch 52-11/16

Weight kg 135

lbs 297

Refrigerant pipe size Gas side O.D. mm 25.4

inch 1

Liquid side O.D. mm 12.7

inch 1/2

9.52

3/8

Refrigerant pipe length Height difference m Max. 30

Length m Max. 100

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C +1 D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

3. Guaranteed voltage 342~457V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit 3 phase 400V 50Hz Outdoor unit

+1. If optional air protect guide is installed : D.B.-15

3 phase 400V 50Hz

141

311

13

Model name Indoor unit PEA-RP400GA PEA-RP500GA

Outdoor unit PUHZ-RP200YKA%2 PUHZ-RP250YKA%2

Cooling Capacity Btu/h 130,000 150,000

kW 38.0(18.0-44.8) 44.0(22.4-56.0)

Total input kW 12.95 17.16

EER 2.93 2.56

Energy label class - -

SHF 0.75 0.77

Heating Capacity Btu/h 153,000 184,000

kW 44.8(18.0-50.0) 54.0(25.0-63.0)

Total input kW 12.55 16.88

COP 3.57 3.20

Energy label class - -

Booster heater kW - -

Power supply Phase : 3

Cycle Hz 50

Voltage V 400

Breaker size A Indoor 15 / Outdoor 32 % 2

Indoor unit Air flow CMM 120 160

(High) CFM 4240 5650

External pressure Pa 150

Sound level dB(A) 52 53

(High)

External finish Galvanized steel

Dimension W : mm 1,947

D : mm 764

H : mm 595

W : inch 79-11/16

D : inch 30-1/8

H : inch 23-7/16

Weight kg 130 133

lbs 286 293

Unit drain pipe R1

Outdoor unit (Per 1 outdoor unit)

Air flow CMM

CFM

Sound level at cooling dB(A)

Sound level at heating dB(A)

External finish

Dimension W : mm

D : mm

H : mm

W : inch

D : inch

H : inch

Weight kg

lbs

Ivory Munsell 3Y 7.8/1.1

135

297

140

4,940

58

59

1,050

330+30

1,338

41-5/16

13 + 1-3/16

52-11/16

Refrigerant pipe size Gas side O.D. mm 25.4 % 2

inch 1 % 2

Liquid side O.D. mm 12.7 % 2

inch 1/2 % 2

9.52 % 2

3/8 % 2

Refrigerant pipe length Height difference m Max. 30

Length m Max. 100 (per 1 outdoor unit)

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C +1 D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

3. Guaranteed voltage 342~457V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit 3 phase 400V 50Hz Outdoor unit

+1. If optional air protect guide is installed : D.B.-15

3 phase 400V 50Hz

141

311

14

2-3. WALL MOUNTED TYPE

Model name Indoor unit PKA-RP35HAL PKA-RP50HAL

Outdoor unit PUHZ-RP35VHA4 PUHZ-RP50VHA4

Cooling Capacity Btu/h 12,300 15,700

kW 3.6(1.6-4.5) 4.6(2.3-5.6)

Total input kW 0.98 1.43

EER 3.67 3.22

Energy label class A A

SHF 0.81 0.72

Heating Capacity Btu/h 14,000 17,100

kW 4.1(1.6-5.2) 5.0(2.5-7.3)

Total input kW 1.13 1.38

COP 3.63 3.62

Energy label class A A

Booster heater kW - -

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 16

Indoor unit Air flow CMM 9-10.5-12

(Low-Middle-High) CFM 320-370-425

External pressure Pa 0

Sound level

(Low-Middle-High)

External finish White Munsell 1.0Y 9.2/0.2

Dimension W : mm 898

Weight kg 13

Field drain pipe I.D. mm 16

Outdoor unit Air flow CMM 35

Sound level at cooling dB(A) 44

Sound level at heating dB(A) 46

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 800

Weight kg 42

Refrigerant pipe size Gas side O.D. mm 12.7

Liquid side O.D. mm 6.35

Refrigerant pipe length Height difference m Max. 30

Length m Max. 50

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -11°C, W.B. -12°C

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

dB(A) 36-40-43

D : mm 249

H : mm 295

W : inch 35-3/8

D : inch 9-13/16

H : inch 11-5/8

lbs 29

inch 5/8

CFM 1,240

D : mm 300+23

H : mm 600

W : inch 31-1/2

D : inch 11-13/16 + 7/8

H : inch 23-5/8

lbs 93

inch 1/2

inch 1/4

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

Single phase 230V 50Hz

15

Model name Indoor unit PKA-RP71KAL PKA-RP100KAL PKA-RP100KAL

Outdoor unit PUHZ-RP71VHA4 PUHZ-RP100VKA PUHZ-RP100YKA

Cooling Capacity Btu/h 24,200 34,100 34,100

kW 7.1(3.3-8.1) 10.0(4.9-11.4) 10.0(4.9-11.4)

Total input kW 1.96 2.90 2.90

EER 3.62 3.45 3.45

Energy label class A A A

SHF 0.78 0.73 0.73

Heating Capacity Btu/h 27,300 38,200 38,200

kW 8.0(3.5-10.2) 11.2(4.5-14.0) 11.2(4.5-14.0)

Total input kW 2.13 3.10 3.10

COP 3.76 3.61 3.61

Energy label class A A A

Booster heater kW - - -

Power supply

Phase

Cycle

: 1

Hz 50

Voltage V 230

Breaker size A 3225 16

PKA-RP60KAL

PUHZ-RP60VHA4

20,500

6.0(2.7-6.7)

1.54

3.90

A

0.86

23,900

7.0(2.8-8.2)

1.76

3.98

A

3

50

400

25

Indoor unit Air flow CMM 18-20-22 20-23-26

(Low-Middle-High)

External pressure

Sound level

(Low-Middle-High)

CFM 635-705-780 705-810-920

Pa 0

dB(A) 39-42-45 41-45-49

External finish Munsell 1.0Y 9.2/0.2

Dimension W : mm 1,170

D : mm 295

H : mm 365

W : inch 46-1/16

D : inch 11-5/8

H : inch 14-3/8

Weight kg 21

lbs 46

Field drain pipe I.D. mm 16

inch 5/8

Outdoor unit Air flow CMM 60

CFM 2,120

Sound level at cooling

dB(A) 47

Sound level at heating dB(A) 48

110

3,880

49

51

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 950

1,050

D : mm 330+30

H : mm 943 1,338

W : inch 37-3/8

D : inch

13 + 1-3/16

41-5/16

H : inch 37-1/8 52-11/16

Weight kg 67 116

lbs 148 256

124

273

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Refrigerant pipe length Height difference m Max. 30 Max. 30

Length m Max. 50 Max. 75

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

16

3. Guaranteed voltage 198~264V, 50Hz (RP100Y: 342~457V, 50Hz)

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

V: Single phase 230V 50Hz Y: 3phase 400V 50Hz

2-4. CEILING SUSPENDED TYPE

Model name Indoor unit PCA-RP60KA PCA-RP71KA

Outdoor unit PUHZ-RP60VHA4 PUHZ-RP71VHA4

Cooling Capacity Btu/h 20,500 24,200

kW 6.0(2.7-6.7) 7.1(3.3-8.1)

Total input kW 1.50 1.96

EER 4.00 3.62

Energy label class A A

SHF 0.81 0.76

Heating Capacity Btu/h 23,900 27,300

kW 7.0(2.8-8.2) 8.0(3.5-10.2)

Total input kW 1.94 2.21

COP 3.61 3.62

Energy label class A A

Booster heater kW - -

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 16 25

Indoor unit Air flow CMM 10-11-13-15 15-16-17-19 16-17-18-20

Outdoor unit Air flow CMM 35 60

Refrigerant pipe size Gas side O.D. mm 12.7 15.88

Refrigerant pipe length Height difference m Max. 30 Max. 30

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

(Low-Medium2-Medium1-High)

External pressure

Sound level (Low-Medium2-Medium1-High)

External finish White Munsell 6.4Y 8.9/0.4

Dimension W : mm 1,280960

Weight kg 32

Field drain pipe O.D. mm 26

Sound level at cooling

Sound level at heating dB(A) 46 48

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 800 950

Weight kg 42 67

Liquid side O.D. mm 6.35 9.52

Length m Max. 50 Max. 50

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C +1 D.B. 28°C D.B. 17°C

Indoor Outdoor

CFM 355-390-460-530 530-565-600-670 565-600-635-705

Pa 0

dB(A) 32-34-37-40 33-35-37-40 35-37-39-41

D : mm 680

H : mm 230

W : inch 50-3/837-13/16

D : inch 26-3/4

H : inch 9-1/16

lbs 71

inch 1

CFM 1,240 2,120

dB(A) 44 47

D : mm

H : mm 600 943

W : inch 31-1/2 37-3/8

D : inch

H : inch 23-5/8 37-1/8

lbs 93 148

inch 1/2 5/8

inch 1/4 3/8

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -11°C, W.B. -12°C +2

PCA-RP50KA

PUHZ-RP50VHA4

17,100

5.0(2.3-5.6)

1.56

3.21

A

0.79

18,800

5.5(2.5-6.6)

1.52

3.62

A

-

25

55

330+23

13 + 7/8

330+30

13 + 1-3/16

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+1. If optional air protect guide installed. D.B.-15°C +2. For RP60/71 D.B. -20°C, W.B. -20°C

Single phase 230V 50Hz

17

Model name Indoor unit PCA-RP100KA PCA-RP125KA PCA-RP140KA

Outdoor unit

PUHZ-RP100VKA

PUHZ-RP125VKA

PUHZ-RP140VKA

Cooling Capacity Btu/h 34,100 42,700 47,800

kW 10.0(4.9-11.4) 12.5(5.5-14.0) 14.0(6.2-15.3)

Total input kW 2.63 3.88 4.36

EER 3.80 3.22 3.21

Energy label class A A A

SHF 0.77 0.72 0.71

Heating Capacity Btu/h 38,200 47,800 54,600

kW 11.2(4.5-14.0) 14.0(5.0-16.0) 16.0(5.7-18.0)

Total input kW 3.02 3.88 4.43

COP 3.71 3.61 3.61

Energy label class A A A

Booster heater kW - - -

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 32 40

Indoor unit Air flow CMM 22-24-26-28 23-25-27-29

(Low-Medium2-Medium1-High)

CFM 775-850-920-990 810-885-955-1,025

24-26-29-32

850-920-1,025-1,130

External pressure Pa 0

Sound level

(Low-Medium2-Medium1-High)

dB(A) 37-39-41-43 39-41-43-45 41-43-45-48

External finish White Munsell 6.4Y 8.9/0.4

Dimension W : mm 1,600

D : mm 680

H : mm 230

W : inch 63

D : inch 26-3/4

H : inch 9-1/16

Weight kg 36 38 39

lbs 79 84 86

Field drain pipe O.D. mm 26

inch 1

Outdoor unit Air flow CMM

CFM

110 120

3,880 4,230

Sound level at cooling dB(A) 49 50

Sound level at heating dB(A) 51 52

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 1,050

D : mm 330+30

H : mm 1,338

W : inch 41-5/16

D : inch 13 + 1-3/16

H : inch 52-11/16

Weight kg 116 119

lbs 256 262

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Refrigerant pipe length Height difference m Max. 30

Length m Max. 75

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5 + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46

D.B. 21, W.B. 15 D.B. -20, W.B. -20

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

Single phase 230V 50Hz

18

Model name Indoor unit PCA-RP100KA PCA-RP125KA PCA-RP140KA

Outdoor unit

Cooling Capacity Btu/h

kW

Total input kW

EER

Energy label class

SHF

Heating Capacity Btu/h

kW

Total input kW

COP

Energy label class

Booster heater kW

PUHZ-RP100YKA

34,100 42,700 47,800

10.0(4.9-11.4) 12.5(5.5-14.0) 14.0(6.2-15.3)

2.63 3.88 4.36

3.80 3.22 3.21

AAA

0.77 0.72 0.71

38,200 47,800 54,600

11.2(4.5-14.0) 14.0(5.0-16.0) 16.0(5.7-18.0)

3.02 3.88 4.43

3.71 3.61 3.61

AAA

---

PUHZ-RP125YKA PUHZ-RP140YKA

Power supply Phase : 3

Cycle Hz 50

Voltage V 400

Breaker size A

Indoor unit Air flow CMM

(Low-Medium2-Medium1-High)

CFM

External pressure Pa

Sound level

(Low-Medium2-Medium1-High)

dB(A)

External finish

Dimension W : mm

D : mm

H : mm

W : inch

D : inch

H : inch

Weight kg

lbs

Field drain pipe O.D. mm

inch

Outdoor unit Air flow CMM

CFM

Sound level at cooling dB(A)

Sound level at heating dB(A)

External finish

Dimension W : mm

D : mm

H : mm

W : inch

D : inch

H : inch

Weight kg 124 132

lbs 273

22-24-26-28 23-25-27-29

775-850-920-990 810-885-955-1,025

37-39-41-43 39-41-43-45 41-43-45-48

White Munsell 6.4Y 8.9/0.4

36 38 39

79 84 86

110 1 20

3,880 4,230

49 50

51 52

Ivory Munsell 3Y 7.8/1.1

16

24-26-29-32

850-920-1,025-1,130

0

1,600

680

230

63

26-3/4

9-1/16

26

1

1,050

330+30

1,338

41-5/16

13 + 1-3/16

52-11/16

126

278 291

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Refrigerant pipe length Height difference m Max. 30

Length m Max. 75

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Indoor Outdoor

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

3. Guaranteed voltage Indoor unit 198~264V, 50Hz

Outdoor unit

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz

Outdoor unit

+ If optional air protect guide installed. D.B.-15

342~457V, 50Hz

3 phase 400V 50Hz

19

Model name Indoor unit PCA-RP71HA PCA-RP125HA PCA-RP125HA

Outdoor unit

PUHZ-RP71VHA4

PUHZ-RP125VKA PUHZ-RP125YKA

Cooling Capacity Btu/h 24,200 42,700 42,700

kW 7.1(3.3-8.1) 12.5(5.5-14.0) 12.5(5.5-14.0)

Total input kW 2.21 3.88 3.88

EER 3.21 3.22 3.22

Energy label class A A A

SHF 0.74 0.77 0.77

Heating Capacity Btu/h 25,900 47,100 47,100

kW 7.6(3.5-10.2) 13.8(5.0-16.0) 13.8(5.0-16.0)

Total input kW 2.23 4.05 4.05

COP 3.41 3.41 3.41

Energy label class B B B

Booster heater kW - - -

Power supply Phase : 13

Cycle Hz 50 50

Voltage V 230 400

Breaker size A 25 16

Indoor unit Air flow CMM 17-19 30-38

(Low-High) CFM 600-670 1,060-1,350

External pressure Pa 0

Sound level

(Low-High)

dB(A) 34-38 44-50

External finish Stainless steel

Dimension W : mm 1136 1520

D : mm 650

H : mm 280

W : inch 44-3/4 59-7/8

D : inch 25-5/8

H : inch 11

Weight kg 41 56

lbs 90 124

Field drain pipe O.D. mm 26

inch 1

Outdoor unit Air flow CMM 60 120

CFM 2,120 4,230

Sound level at cooling dB(A) 47 50

Sound level at heating dB(A) 48 52

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 950 1,050

D : mm 330+30 330+30

H : mm 943 1,338

W : inch 37-3/8 41-5/16

D : inch 13 + 1-3/16 13 + 1-3/16

H : inch 37-1/8 52-11/16

Weight kg 67 116 126

lbs 148 256 278

Refrigerant pipe size Gas side O.D. mm 15.88 15.88

inch 5/8 5/8

Liquid side O.D. mm 9.52 9.52

inch 3/8 3/8

Refrigerant pipe length Height difference m Max. 30 Max. 30

Length m Max. 50 Max. 75

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

3. Guaranteed voltage 198~264V, 50Hz (RP125Y : 342~457V, 50Hz)

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

V: Single phase 230V 50Hz Y: 3 phase 400V 50Hz

,

20

2-5. FLOOR STANDING TYPE

Model name Indoor unit PSA-RP71GA

Outdoor unit PUHZ-RP71VHA4

Cooling Capacity Btu/h 24,200

kW 7.1(3.3-8.1)

Total input kW 2.20

EER 3.23

Energy label class A

SHF 0.73

Heating Capacity Btu/h 25,900

kW 7.6(3.5-10.2)

Total input kW 2.23

COP 3.41

Energy label class B

Booster heater kW -

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 25

Indoor unit Air flow CMM 15-18

(Low-High) CFM 530-635

External pressure Pa 0

Sound level

(Low-High)

External finish White Munsell 0.70Y 8.59/0.97

Dimension W : mm 600

Weight kg 43

Field drain pipe I.D. mm 20

Outdoor unit Air flow CMM 60

Sound level at cooling dB(A) 47

Sound level at heating dB(A) 48

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 950

Weight kg 67

Refrigerant pipe size Gas side O.D. mm 15.88

Liquid side O.D. mm 9.52

Refrigerant pipe length Height difference m Max. 30

Length m Max. 50

dB(A) 40-45

D : mm 270

H : mm 1,900

W : inch 23-5/8

D : inch 10-5/8

H : inch 74-13/16

lbs 98

inch 13/16

CFM 2,120

D : mm 330+30

H : mm 943

W : inch 37-3/8

D : inch 13 + 1-3/16

H : inch 37-1/8

lbs 148

inch 5/8

inch 3/8

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

21

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

Single phase 230V 50Hz

Model name Indoor unit PSA-RP100GA PSA-RP125GA PSA-RP140GA

Outdoor unit

PUHZ-RP100VKA PUHZ-RP125VKA PUHZ-RP140VKA

Cooling Capacity Btu/h 34,100 42,300 47,100

kW 10.0(4.9-11.4) 12.4(5.5-14.0) 13.8(6.2-15.3)

Total input kW 2.99 4.12 4.91

EER 3.34 3.01 2.81

Energy label class A B C

SHF 0.81 0.75 0.74

Heating Capacity Btu/h 38,200 47,800 54,600

kW 11.2(4.5-14.0) 14.0(5.0-16.0) 16.0(5.7-18.0)

Total input kW 3.28 4.11 4.97

COP 3.41 3.41 3.22

Energy label class B B C

Booster heater kW - - -

Power supply Phase : 1

Cycle Hz 50

Voltage V 230

Breaker size A 32 40

Indoor unit Air flow CMM 24-31 26-33 27-35

(Low-High) CFM 850-1060 920-1165 955-1240

External pressure Pa 0

Sound level

(Low-High)

dB(A) 44-49 46-51 47-52

External finish White Munsell 0.70Y 8.59/0.97

Dimension W : mm 600

D : mm 350

H : mm 1,900

W : inch 23-5/8

D : inch 13-3/4

H : inch 74-13/16

Weight kg 51 53

lbs 112 117

Field drain pipe I.D. mm 20

inch 13/16

Outdoor unit Air flow CMM

CFM

110 1 20

3,880 4,230

Sound level at cooling dB(A) 49 50

Sound level at heating dB(A) 51 52

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 1,050

D : mm 330+30

H : mm 1,338

W : inch 41-5/16

D : inch 13 + 1-3/16

H : inch 52-11/16

Weight kg 116

lbs 256

119

262

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Refrigerant pipe length Height difference m Max. 30

Length m Max. 75

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5 + D.B. 28°C D.B. 17°C

Indoor Outdoor

D.B. 46

D.B. 21, W.B. 15 D.B. -20, W.B. -20

22

3. Guaranteed voltage 198~264V, 50Hz

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz Outdoor unit

+ If optional air protect guide installed. D.B.-15

Single phase 230V 50Hz

Model name Indoor unit PSA-RP100GA PSA-RP125GA PSA-RP140GA

Outdoor unit PUHZ-RP100YKA PUHZ-RP125YKA PUHZ-RP140YKA

Cooling Capacity Btu/h 34,100 42,300 47,100

kW 10.0(4.9-11.4) 12.4(5.5-14.0) 13.8(6.2-15.3)

Total input kW 2.99 4.12 4.91

EER 3.34 3.01 2.81

Energy label class A B C

SHF 0.81 0.75 0.74

Heating Capacity Btu/h 38,200 47,800 54,600

kW 11.2(4.5-14.0) 14.0(5.0-16.0) 16.0(5.7-18.0)

Total input kW 3.28 4.11 4.97

COP 3.41 3.41 3.22

Energy label class B B C

Booster heater kW - - -

Power supply Phase : 3

Cycle Hz 50

Voltage V 400

Breaker size A 16

Indoor unit Air flow CMM 24-31 26-33 27-35

(Low-High) CFM 850-1,060 920-1,165 955-1,240

External pressure Pa 0

Sound level

(Low-High)

dB(A) 44-49 46-51 47-52

External finish White Munsell 0.70Y 8.59/0.97

Dimension W : mm 600

D : mm 350

H : mm 1,900

W : inch 23-5/8

D : inch 13-3/4

H : inch 74-13/16

Weight kg 51 51 53

lb s 112 11 2 117

Field drain pipe I.D. mm 20

inch 13/16

Outdoor unit Air flow CMM

CFM

110 120

3,880 4,230

Sound level at cooling dB(A) 49 50

Sound level at heating dB(A) 51 52

External finish Ivory Munsell 3Y 7.8/1.1

Dimension W : mm 1,050

D : mm 330+30

H : mm 1,338

W : inch 41-5/16

D : inch 13 + 1-3/16

H : inch 52-11/16

Weight kg 124 132

lbs 273 291

126

278

Refrigerant pipe size Gas side O.D. mm 15.88

inch 5/8

Liquid side O.D. mm 9.52

inch 3/8

Refrigerant pipe length Height difference m Max. 30

Length m Max. 75

NOTE: 1. Rating conditions (ISO T1)

Cooling Indoor : D.B. 27 (80°F) W.B. 19 (66°F) Outdoor : D.B. 35 (95°F) W.B. 24 (75°F) Heating Indoor : D.B. 20 (68°F) Outdoor : D.B. 7 (45°F) W.B. 6 (43°F) Refrigerant piping length (one way) : 5m (16ft.)

2. Guaranteed operating range

Indoor Outdoor

Cooling

Heating

Upper limit Lower limit Upper limit Lower limit

D.B. 35°C, W.B. 22.5°C D.B. 19°C, W.B. 15°C D.B. -5°C + D.B. 28°C D.B. 17°C

D.B. 46°C

D.B. 21°C, W.B. 15°C D.B. -20°C, W.B. -20°C

3. Guaranteed voltage Indoor unit 198~264V, 50Hz

Outdoor unit

4. Above data are based on the indicated voltage. Indoor unit Single phase 230V 50Hz

Outdoor unit

+ If optional air protect guide installed. D.B.-15

342~457V, 50Hz

3 phase 400V 50Hz

23

3

OUTLINES AND DIMENSIONS

INDOOR UNIT PLA-RP35BA PLA-RP50BA PLA-RP60BA PLA-RP71BA PLA-RP100BA PLA-RP125BA

PLA-RP71BA2 PLA-RP100BA3 PLA-RP125BA2 PLA-RP140BA2

Ceiling hole

860~910

810

Suspension bolt pitch

Indoor unit/Outdoor unit connecting terminal block

Indoor power supply terminal block(Option part)

840

Power supply wire, Indoor unit/Outdoor unit connecting wire entry

597

Air intake hole

M

500

Air outlet hole

950

3000mm or more

37728460

Indoor unit

160

Grille

M

83 36

1800mm or more from floor

For high attachment

20~45

Detail connecting of branch duct(Both aspects)

20~45

(7.5)(7.5)

+35

620

605

- 5

Suspension bolt pitch

24

160

Drain pipe connected to VP-25

A

190

156

105

+

0

+5

Ceiling

Drain hole Drain pump clean hole and Drain emergency drainage hole

597

17

Auto vane (Air outlet)

Air intake hole

Vane motor

Note 1. Please choose the grille from a standard grille, auto-grille.

2. As for drain pipe, please use VP-25(O.D. :32 PVC TUBE). Drain pump is included. Max. lifting height is 850mm from the ceiling.

3. As for suspension bolt, please use M10 or W3/8. (Procured at local site)

4. Electrical box may be removed for the service purpose. Make sure to slack the electrical wire little bit for control/ power wires connection.

5. The height of the indoor unit is able to be adjusted with the grille attached.

6. For the installation of the optional high efficiency filter or optional multi-functional casement.

1) Requires E or more space between transom and ceiling for the installation.

2) Add 135 mm to the dimensions + marked on the figure.

3) The optional high efficiency filter must be used jointly with optional multi-functional casement.

7. When installing the branch ducts, be sure to insulate adequately. Otherwise condensation and dripping may occur. (It becomes the cause of dew drops/water dew.)

8. As for necessary installation/service space, please refer to the left figure.

PLA-RP35/50BA

PLA-RP60BA

PLA-RP71BA PLA-RP71BA2

PLA-RP100,125BA PLA-RP100BA3 PLA-RP125,140BA2

Branch duct hole

860~910

Ceiling hole

Burring hole pitch

Detail drawing of fresh air intake hole

20~45

Connected the attached flexible pipe or socket.

()

Keep approximately 10 to 15mm space between unit ceiling and ceiling slab.

B35

+

In case of standard grille : PLP-6BA / PLP-6BAMD

In case of auto-grille : PLP-6BAJ In case of wireless remote controller : PLP-6BALM Auto grille

Emergency operation switch<Cooling>and Emergency Up/Down switch<Up>

Emergency operation switch<Heating>and Emergency Up/Down switch<Down>

Receiver

Operation lamp

Models

Refrigerant pipe

···:6.35 Flared connection

···1/4 inch Refrigerant pipe

:6.35 / :9.52

Flared connection

1/4 inch/3/8 inch

(compatible)

Refrigerant pipe

···:9.52

Flared connection

···3/8 inch

158

+

DEFROST/STAND BY lamp

1

Refrigerant pipe

···:12.7 Flared connection

···1/2 inch

Refrigerant pipe

···:15.88 Flared connection

···5/8 inch

70

:175

Burring hole

3-:2.8

2

90 100 100 90

350

Burring hole pitch

:125

120

Cut out hole

120

:100

Ceiling

L.L Filter

BA CDE

241 258

281

298

Branch duct hole

840

Suspension bolt M10 or W3/8

Suspension bolt lower edge

Air intake grille

Ceiling

Grille

1500mm or more

Fresh air intake hole

160

150

C

90

1

2

170

140

+

950

Indoor unit

Obstacle

20~45

D

50~70

+

Control wire entry

500

Air outlet hole

M

8336

1000mm

or more

160

Remote controller terminal block

187.5

Floor

Unit : mm

Cut out hole

130

100

155

167

++

14-:2.8

Burring hole

:150

Cut out hole

Air intake grille up/down discharge

Ceiling

Max. 4.0m

Air intake grille

80

74

400

87

85 77

440

24

PEAD-RP35, 50, 60, 71, 100, 125, 140JA

:

2.9

2xE-

15

Suspension bolt hole 4-14x30 Slot

Unit : mm

21018

Air outlet

D (Duct)

100x(E-1)=F

100

30

20

40

Refrigerant piping

2

Flare connection (liquid)

2×2-:2.9

Refrigerant piping

1

Flare connection (gas)

NOTE 1. Use M10 screw for the Suspension bolt (field supply).

2. Keep the service space for the maintenance at the bottom.

3. This chart indicates for PEAD-RP60 models,which have 2 fans. PEAD-RP35

4. In case that the inlet duct is used, remove the air filter (supplied with

the unit), then install the filter (field supply) at suction side.

57

10

58

23

178 (Duct)

57

32 700

40

100

•71•

10

12233

100•125•140JA

•

50JA models have 1 fan.

643 (Suspension bolt pitch)

732

238

136

67

356

Drain pipe (O.D.:32)

Air inlet

Terminal block (Remote controller transmission line)

Drain pump

Drain pipe(O.D.:32) (Spontaneous draining)

PEAD-RP35,50JA

PEAD-RP60,71JA PEAD-RP100,125JA PEAD-RP140JA

41

217

Model A

A

B(Suspension bolt pitch)

23

250

Control box

Terminal block (Indoor/Outdoor connecting line)

900 954 860 9

110 0B115 4 1400

1454

1600

1654

G21

C

175±5mm

(Actual length)

E11D

C

1000

1060 1360 15601416

1000 1300 1500

1200 1500 1700

F

G

858800

1058 1358 1558

Air Filter

Less than 300mm

Drain hose (I.D.:32) <accessory>

Liquid pipe

Gas pipe

:12.7

:15.88

:6.35

:9.52

Less than 700mm

More than 10mm

Ceiling surface

Make the access door at the appointed position properly for service maintenance.

More than 20mm

50

H

50

Note2

Required space for service and maintenance

250~300

450

Access door

450

More than 300

777

Access door

J

6

:

2.9

N-

K

Q

PEAD-RP35,50JA

PEAD-RP60,71JA PEAD-RP100,125JA PEAD-RP140JA

Kx(L-1)=M

Qx(R-1)=SP

JQS

HModel

54 260 4 780 10 40.5 273 4

1000

1200 1500 1700

330

5454320

37055

M

L49K

990

4

1280 148012124040

P10N

340 330

J

11

112 112

R

819

1020

440

1320

5

1520

5380

25

PEAD-RP35, 50, 60, 71, 100, 125, 140JAL

2xE-:2.9

15

Suspension bolt hole 4-14x30 Slot

Unit : mm27Unit : mm

21018

Air outlet

D (Duct)

100x(E-1)=F

100

30

20

40

Refrigerant piping

2

Flare connection (liquid)

2×2-

Refrigerant piping

1

Flare connection (gas)

NOTE 1. Use M10 screw for the Suspension bolt (field supply).

2. Keep the service space for the maintenance at the bottom.

3. This chart indicates for PEAD-RP60 models,which have 2 fans. PEAD-RP35

4. In case of the inlet duct is used,remove the air filter

(supplied with the unit), then install the filter (field supply) at suction side.

57

10

58

23

40

100

178 (Duct)

:

2.9

57

32 700

122

33

•71•

100•125•140JAL

•

50JAL models have 1 fan.

643 (Suspension bolt pitch)

10

136

67

356

732

Drain pipe(O.D.:32)

PEAD-RP35,50JAL

PEAD-RP60,71JAL PEAD-RP100,125JAL PEAD-RP140JAL

Air inlet

Model A

110 0B115 4 1400 1600

A

217

900 954 860 9

1454 1654

G

C

B(Suspension bolt pitch)

21

23

Terminal block (Remote controller transmission line)

250

Control box

Terminal block (Indoor/Outdoor connecting line)

C

1000

1200

1060

1500

1360

1700

15601416

E11D

F

1000 1300 1500

Air Filter

175±5mm

(Actual length)

Gas pipe

G

:12.7

858800

1058

:15.88

1358 1558

Liquid pipe

:6.35

:9.52

Drain hose (I.D.

:

32)

More than 10mm

Ceiling surface

Make the access door at the appointed position properly for service maintenance.

More than 20mm

50

H

50

Note2

Required space for service and maintenance

250~300

450

Access door

450

More than 300

777

Access door

J

6

N-

:

2.9

K

Q

PEAD-RP35,50JAL

PEAD-RP60,71JAL PEAD-RP100,125JAL PEAD-RP140JAL

Kx(L-1)=M

Qx(R-1)=SP

JQS

HModel

54 260 4 780 10 40.5 273 4

1000

1200 1500 1700

330

5454320

37055

M

L49K

990

4

1280 148012124040

P10N

340 330

J

11

112 11 2

R

819

1020

440

1320

5

1520

5380

26

PEA-RP200GA

Return air

sensor

A

Rubber bush <Remote

controller wiring>

Rubber bush

<Outdoor unit

connection wiring>

Rubber bush

A

4- :12

Drain R1

Top vi e w

Control box

Return air

duct flange

Supply air

duct flange

[Field supply]

22-: 3.1

24-: 3 Holes

Refrigerant pipe

:9.52 (3/8 braze)

Refrigerant pipe

:25.4 (1 braze)

Pipe cover···················2pcs.

(For dew condensation prevention of local piping and unit connection)

Remote controller········1pc.

Return air

Left side view

Supply air

Front view

75

55

12970

42

124 34

131

530

50

9525011

7x130(=910)

10

130

45

31 31

1102

200

10

8x130(=1040)

1300

20

199

100

40

20

462

144

1284

400

155 1000 105

40 1260 40

1340

1400

56539

22330

145

89

35

130

35

634

262 73

10

54

10

376

2510010025

PEA-RP250GA

Rubber bush <Remote

controller wiring>

Rubber bush

<Outdoor unit

connection wiring>

Rubber bush

<Power supply

wiring>

A

4- :12

Drain R1

Top view

Control box

22- :3.1

[Field supply]

Return air

duct flange

Supply air

duct flange

26- :3 Holes

Left side view

Supply air

Return air

Front view

Return air

sensor

Pipe cover··················2pcs.

(For dew condensation prevention of local piping and unit connection)

Remote controller·······1pc.

Refrigerant pipe

:12.7 (1/2 braze)

Refrigerant pipe

:25.4 (1 braze)

42

144145

75

55

70 129

124

131

50 530

34

130

9525011

10

66

1302

1484

7x130(=910)

130

45

200

20

100

20

199

40

1500

462

66 9X130(=1170)

10

25 100 100 25

10 10

1540

40146040

255 205

376

1000

1600

73262

400

39 565

54

634

35

130

89

330 22

130

35

Unit : mm

28

PEA-RP400, 500GA

45

Refrigerant pipe

PEA-RP400GA :

:

9.52 (3/8 braze)

PEA-RP500GA :

:

12.7 (1/2 braze)

[2 places (*2 part)]

*2*1*2

*1

Refrigerant pipe :25.4 (1 braze)

[2 places (*1 part)]

Return air sensor

(2 places)

Drain R1

24-:3.1

36-:3 HOLES

Left side view

Front view

Top view

Return air

Supply air

4-:15

[Field supply]

Return air duct flange

Control box

Supply air duct flange

A

Rubber bush

Rubber bush

Rubber bush

A

Pipe cover··················4pcs.

(For dew condensation prevention of local piping and unit connection)

Remote controller·······1pc.

81

11715611 7

10

20 1840

10

40

60

61

60

4040

1800

1880

50 664

525

22

102

22.5

120

4X120(=480)

22.5

595

1824

50

764

2801125395

340 18822

1947

570

40 130 130 40

10

33

29

130

12X130(=1560)

29

149 1618

100

42.5

130

8X130(=1040)42.5

10

203320141

20

42559

700

39

Unit : mm

29

PKA-RP35HAL PKA-RP50HAL

Unit : mm31Unit : mm

A

5

Top side

192

387

197

Mount board

Right side

Front side

599

295

249

Knockout hole

for right piping

155

898

688

Front side (Grille open)

55

Terminal block for

Terminal block for outdoor unit

MA-remote controller (option)

Terminal block for power supply (option)

Emergency operation switch

(cooling/heating)

DEFROST/STAND BY lamp

158

169

184

Operation lamp







457 Gas pipe

Under side

539 Liquid pipe

612

610 Drain hose

Vane (auto)

Size

Refrigerant pipe : :6.35

Flared connection : 1/4F

Refrigerant pipe : :12.7

Flared connection : 1/2F







Gas pipe

Liquid pipe

8

:16 O.D

Drain hose

Receiver

B

Knockout hole

for lower piping

Louver (manual)

C

55mm or greater with left

or rear left pipng or drain

pump installation.

Min.50

Required space (Indoor unit)

Min.250

Min.150

Min.220

69

Min.50

550mm or greater with optional

drain pump installation.

drain pump installation. 250mm or greater with optional

Min.7

Knockout hole for piping

Knockout hole

66

21.8020

53.5

372.3

356.3

327.5

291.5 265 238 225 200

125

70

15

0

15

70

125

200 225

265

291.5

327.5

356.3

372.3

0

16

screw hole

28.5

32.7

41

78.5

91

128.5

116

103.5

153.5

166

178.5

231.5

232.5

203.5

Knockout hole

for left piping

Left side

D

43

56

6

43

C

56

12.5

:65~:80

Through hole

:65~:80

Sleeve

(purchased locally)

59

43

B

60

46

56

6

46

43

A

Center measurement hole :2.5

3.8

58

0

Indoor unit outline

Mount board

4-:9 Bolt hole

77-:5.1

Tapping

273.2

253.5

for lower piping

449

281

193.5

180.3

167 140 115

0

174

213

238

278.3

394

449

30

PKA-RP60KAL PKA-RP71KAL PKA-RP100KAL

Left side

65.2

140.3

Top side

423.7

11

Front side

431.7

Right side

Knockout hole for left piping

53

30

32

18

35

Sleeve (purchased locally)

75

365

A

66

Through hole

75~

80

Knockout hole for piping

C

77

67

65

10.7

7.8

Required space (Indoor unit)

74

(855)

1170

Front side (Grille open)

Filter hook

Under side

Vane (auto)

B

75-5.1

BA

77

67

77

87

7.8

Air inlet

Tapping screw hole

65

Min. 48

108 mm or greater with left or rear left piping or drain pump installation

444 (Gas pipe)

482 (Liquid pipe)

585 (Drain hose)

Louver (manual)

Knockout hole for lower piping

15.5 0

25

50 75

100

117

125 142 192

242

279.5 292

585

530.5

4-9 Bolt hole

408.5

439

454

517.4

439

384

430.5

Wall hole for left rear piping

241

123

154

134

Temporarily fixing hole

314

364

384

339

Knockout hole for rear piping (75×480)

Operation lamp

DEFROST/STAND BY lamp

Receiver

Terminal block for outdoor unit

Terminal block for power supply (option)

Terminal block for

MA-remote controller (option) Emergency operation switch (cooling/heating)

Piping connection department

Liquid pipe

Gas pipe

Drain hose

B

0

54

Center measurement hole 2.5

3

Mount board

110

189

110

60

01010

0

Wall hole for right rear piping

Mount board

C

295

Refrigerant pipe : 9.52 Flared connection : 3/8F

Refrigerant pipe : 15.88 Flared connection : 5/8F

5

Knockout hole for right piping

16 O.D

364

384

384.5

408.5

439

454

465.5

439

449.2

Indoor unit outline

216.5

R37.5

314

339

349.2

54 32 25

12.5

0

12.5

37.5

62.5

87.5

104.5

129.5 167

217

229.5

264 292

308.5 311

585

Min. 7

550 mm or greater with optional

265 mm or greater with optional

drain pump installation

Air outlet

Min. 220Min. 72.4

Min. 50.5

Min. 250

PCA-RP50KA

62140

Unit : mm

When drain socket

is installed

(Drainage)

(gas ø12.7)

(liquid ø6.35)

184

203

233

246

drain pump (option parts),

NOTES.

51

5

10

6

80

18

150

680

320

230

195

88

84

57

1.Use M10 or W3/8 screw for anchor bolt.

680

476

refrigerant pipe will be only upward.

2.Please be sure when installing the

254

182 85

917(Suspension bolt pitch)

1

4

1

85 86 2

26024

120°

5

38

8

[FRONT VIEW]

Electrical box

Ceiling

3

2

126

190

169

124 76

960 22

853

878

Air outlet

Air intake

138

18

387461

7

38

37

75

121

46

(71)

ø125

9

When drain socket

is installed

(Drainage)

233

246

48

8

2

In case of the rear pipe arrangement, make sure to

remove the shaded portions from the independent piece.

Then put the independent piece back in initial position.

(The heat exchanger might be clogged because of dust)

Electrical box

is pulled down

When electrical box

32

Drainage pipe connection(26mmI.D.)

Drainage pipe connection(for the left arrangement)

Knock out hole for left drain-piping arrangement

Refrigerant-pipe connection(gas pipe side/flared connection)

Refrigerant-pipe connection(liquid pipe side/flared connection)

Knock out hole for upper drain pipe arrangement

Knock out hole for fresh air intake ø100

Knock out hole for wiring arrangement 2-ø22

Knock out hole for wiring arrangement 2-ø26

123

4

5

678

Accessory···Drain socket (I.D. 26)

9

PCA-RP60KA PCA-RP71KA

Unit : mm

62140

236

71

180

200

60

179

203

A

B

51

5

6

80

18

150

680

320

10

230

195

84

88

1280 22

1173

When drain socket

(gas ø15.88)

(liquid )

A

B

233

is installed

(Drainage)

246

NOTES.

57

drain pump (option parts),

1.Use M10 or W3/8 screw for anchor bolt.

2.Please be sure when installing the

680

Available pipe size

refrigerant pipe will be only upward.

Use the current nuts meeting the pipe size of the outdoor unit.

476

254

ø9.52

RP71

ø6.35

ø9.52

RP60

5 LIQUID SIDE

182 85

1198

ø15.88

:Initial flare nut size

4 GAS SIDE

1237(Suspension bolt pitch)

4

1

26024

5

8

126

85 86 2

120°

38

Ceiling

[FRONT VIEW]

Electrical box

3

2

190 1

124 76

16937

46 190

138

18

387

7

38

(71)

121

75

9

ø125

461

In case of the rear pipe arrangement, make sure to

remove the shaded portions from the independent piece.

Then put the independent piece back in initial position.

When electrical box

is pulled down

Air outlet

When drain socket

is installed

(Drainage)

246

233

48

8

(The heat exchanger might be clogged because of dust)

2

Drainage pipe connection(26mmI.D.)

Drainage pipe connection(for the left arrangement)

Knock out hole for left drain-piping arrangement

Refrigerant-pipe connection(gas pipe side/flared connection)

Refrigerant-pipe connection(liquid pipe side/flared connection)

Knock out hole for upper drain pipe arrangement

5

123

4

678

Electrical box

Air intake

Knock out hole for fresh air intake ø100

Knock out hole for wiring arrangement 2-ø22

Knock out hole for wiring arrangement 2-ø26

Accessory···Drain socket (I.D. 26)

Flare nut ø6.35 (RP60 only)

9

33

PCA-RP100KA PCA-RP125KA PCA-RP140KA

236

When drain socket

(gas ø15.88)

(liquid ø9.52)

180

200

233

is installed

(Drainage)

246

Unit : mm

6

62140

18

150

(Suspension bolt pitch)

1557

4

1

85 86 2

26024

120°

5

38

88

Ceiling

76

Electrical box

[FRONT VIEW]

80

126

320

680

51

5

10

230

195

84 88

1493

1600 22

57

NOTES.

680

476

drain pump (option parts),

1.Use M10 or W3/8 screw for anchor bolt.

254

refrigerant pipe will be only upward.

2.Please be sure when installing the

182 85

1518

Air outlet

190 1

Air intake

138

18

387

7

169

124

38

71

121

37

ø125

461

9

When drain socket

is installed

(Drainage)

246

233

48

8

In case of the rear pipe arrangement, make sure to

remove the shaded portions from the independent piece.

Then put the independent piece back in initial position.

(The heat exchanger might be clogged because of dust)

Electrical box

2

3

2

190

When electrical box

is pulled down

75

46

Drainage pipe connection(26mmI.D.)

Drainage pipe connection(for the left arrangement)

Knock out hole for left drain-piping arrangement

Refrigerant-pipe connection(gas pipe side/flared connection)

Refrigerant-pipe connection(liquid pipe side/flared connection)

Knock out hole for upper drain pipe arrangement

Knock out hole for fresh air intake ø100

Knock out hole for wiring arrangement 2-ø22

Knock out hole for wiring arrangement 2-ø26

123

5

4

678

Accessory···Drain socket (I.D. 26)

9

34

PCA-RP71HA

Unit : mm

(Gap to ceiling)

90°

130

9

:222

:200

Terminal block box

78

(122)

480

Allowing clearances

6

4

85

14018

45

1

210

2

165

90

120

366

38

318

176

105

650

Less than

Rear wall

Adjustable part

2 ~ 3

300

Ceiling

Less than

250

500

100113 6

or more

295

254

70~90

43

320 80

495

243

75

Refrigerant-pipe connection(gas pipe side/flared connection : 5/8 inch)

Knockout hole for behind refrigerant-piping arrangement

Refrigerant-pipe connection(liquid pipe side/flared connection : 3/8 inch)

<gas>

197

175

110

21

130 15

5

2

Knockout hole for wiring arrangement : 2- : 27

Terminal block(indoor/outdoor connecting line)

Knockout hole for upper refrigerant-pipe arrangement

Flexible hose(accessory) Drainage pipe connection(26mm I.D.)

· Optional parts:duct flange( : 200). model: PAC-SF28OF-E(1 pc.)

Terminal block(remote controller)

Knockout hole (duct for fresh air intake): 2- : 200

75

Suspension bolt

1

280

3

13

70

289

650

Inspection port

(pipe sensor)

75

1224

118 0

986

1136

handle

16

288

Filter (3-pieces)

258 110 102

or more

100

360

Filter element for the exchange

model:PAC-SG38KF-E (12pcs.)

1098

Terminal block box

Electrical box

35

The half bottom of FAN CASING

can be separated.

1.Use M10 or W3/8 screw for anchor bolt.

NOTES.

Ceiling

Less than

or more

Refrigerant-pipe connection(gas pipe side/flared connection : 5/8 inch)

Knockout hole (duct for fresh air intake) : 2- : 200

· Optional parts:duct flange( : 200). model: PAC-SF28OF-E(1 pc.)

Flexible hose(accessory) Drainage pipe connection(26mm I.D.)

Terminal block(indoor/outdoor connecting line)

Terminal block(remote controller)

Refrigerant-pipe connection(liquid pipe side/flared connection : 3/8 inch)

Knockout hole for behind refrigerant-piping arrangement

Knockout hole for upper refrigerant-pipe arrangement

Knockout hole for wiring arrangement : 2- : 27

Allowing clearances

Rear wall

(Gap to ceiling)

NOTES.

1.Use M10 or W3/8 screw for anchor bolt.

Use the current nuts meeting the pipe size

of the outdoor unit.

model:PAC-SG38KF-E (12pcs.)

Filter element for the exchange

(122)246

handle

16

Terminal block box

78

Inspection port

(pipe sensor)

The half bottom of

FAN CASING

can be separated.

Adjustable part

288

360

Filter (4-pieces)

Terminal block box

5

2

1

4

3

6

9

2

1

176

38 210

105

8545

165

:222

:200

440440298

130

90°

650

300

1001520100

Electrical box

500

250

2~3

<gas>

Suspension bolt

70

243

254

175

197

110

21

130 15

258

1482

110 102

1370 75

1608

320 801564

1520

90 120

14018

75

70~90

650

13

289

75

280

495

43

295

PCA-RP125HA

Unit : mm

36

PSA-RP71GA

300 or more 1

5 or more 2

Unit : mm

Front 1,000 or more

Knockout hole

for under-piping

Front side

218

VIEW "A"

95

100

90

175

55 143

Rear side

20

160

Knockout hole

for bottom fixing

277

100 or more 100 or more

40 66

95

Electrical parts box

46122

Terminal block for

indoor/outdoor

connection.

Gas pipe :15.88(5/8 inch)

Liquid pipe :9.52(3/8 inch)

1. Service access allows for

insertion of screw driver.

2. Adjustable

186

Drain pipe

590

480

110

47

767

714 123

105

Knockout hole for piping and wiring

(140 80 oval)

20

A

132

Knockout hole

for branch duct

240

Rear side

10

3838

15

111

Knockout hole for

under-piping(120 70 oval)

130

100

125

340

370

Front side

10

270

250

40

50260

Metal fixture

against overturning

520

260

240

2010

130130

controller

766

130 71

Terminal block for

heater power supply

(Only PSH-P·GAH)

1900

50

608

82730

216

115

Knockout hole for

wiring :27

(Provided on both sides)

180

235

70

Knockout hole for refrigerant and drainage

90 60 oval (Provided on both sides)

530

600

37

PSA-RP100GA PSA-RP125GA PSA-RP140GA

Knockout hole

for under-piping

201

Unit : mm

5 or more

300 or more

2

1

Front 1,000 or more

1. Service access allows for

insertion of screw driver.

100 or more 100 or more

40 66

77

Liquid pipe :9.52(3/8 inch)

Gas pipe :15.88(5/8 inch)

2. Adjustable

261

Drain pipe

590

480

110

132

Knockout hole

for branch duct

Front side

218

VIEW "A"

95

Knockout hole for

under-piping(120 70 oval)

130

100

120

Rear side

20

140

Knockout hole

for bottom fixing

255

350

330

40

50260

Metal fixture

against overturning

120

277

130130

95

Electrical parts box

46122

Terminal block for

indoor/outdoor

connection.

Terminal block for

heater power supply

(Only PSH-P·GAH)

766

1900

608

105

47

Knockout hole for piping and wiring

(140 80 oval)

A

90 60 oval (Provided on both sides)

767

714 123

20

115

50

70

216

Knockout hole for

wiring :27 (Provided on both sides)

260

315

Knockout hole for refrigerant and drainage

240

Rear side

10

3838

15

111

130 71

530

125

340

370

520

260

240

controller

Front side

10

2010

82730

600

38

PUHZ-RP35VHA4 PUHZ-RP50VHA4

Unit : mm

400

347.5

:33 drain hole

Air intake

43.6

155

152

Air intake :33 drain hole

45.4

4-10 % 21 oval hole (M10 foundation bolt)

18

Handle for moving

Air discharge

600

300

10

150

287.5

Installation bolt pitch: 500

800

Free space around the outdoor unit (basic example)

100 mm or more as long as no obstacle is placed on the rear and right-and-left sides of the unit.

100 m

m o

r more

+ 1

500 mm or more

+ 2

2 sides should be open in the right, left and rear side.

+ 1

Basically open

100 mm or more

350 mm or more

40

330

365

300

23

32.5

155

90

69

Service port

1. FOUNDATION BOLTS

Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts, washer and nut must be purchased locally.)

FOUNDATION

18 or below

Service panel

Service panel for charge plug

Connection for liquid pipe

35

43

Connection for gas pipe

183

2. PIPING-WIRING DIRECTION

Piping and wiring connection can be made from the rear direction only.

3. ATTACHING THE CONDUIT

In order to attach the conduit, it is necessary to fix the metal plate with 2 screws to the back panel. Procure the metal plate and make screw holes locally. It is recommended to use the metal plate shown below. Align the metal plate to the marks on the unit and attach it.

+ The position and the size of conduit hole depend on the conduit to be used.

40

20

Minimum installation space for outdoor unit

+ 1 In the place where short cycle tends to occur, cooling and heating capacity and power consumption might get lowered by 10%. Air outlet guide (optional PAC-SG58SG) will help them improve.

+ 2 If air discharges to the wall, the surface might get stained.

39

+ Conduit hole

60

Holes for metal plate fixing screw + The size of hole depends on the screw to be used.

80

PUHZ-RP60VHA4 PUHZ-RP71VHA4

Unit : mm

19

175175

2-U Shaped notched holes

(Foundation Bolt M10)

Rear Air Intake

600

Installation Feet

Side Air Intake

417

330

673

*1 447

Front piping cover

28 370

54

53

40

57 41

2-12 % 36 oval holes

(Foundation Bolt M10)

Air Discharge

30

Left···Power supply wiring

Reight···Indoor/Outdoor wiring

Terminal Connections

950

Earth terminal

322

Handle for moving

Service panel

1

943

*1 431

2

473

Rear piping cover

71

23

Bottom piping hole

(Knockout)

71

Drain hole

(5-:33)

220 145 145 14530

81 219

4 PIPING-WIRING DIRECTIONS

Piping and wiring connections

can be made from 4 directions:

front, right, rear and below.

FOUNDATION

3 FOUNDATION BOLTS2 SERVICE SPACE

Please secure the unit firmly

with 4 foundation (M10) bolts.

(Bolts and washers must be

purchased locally.)

Over100

30

Less than

500

Over

500

Over

Dimensions of space needed

for service access are

shown in the below diagram.

Over10

Service space

over 10mm

over 100mm

FREE

Rear Air Intake

Side Air Intake

Handle for moving

Air Intake

Power supply wiring hole

(2-:27Knockout)

Rear trunking hole

(Knockout)

4045

Right trunking hole

(Knockout)

Power supply wiring hole

(2-:27Knockout)

40

75

Right piping hole

(Knockout)

45

40

Power supply wiring hole

(2-:27Knockout)

:92

7323 63

:92

Rear piping hole

(Knockout)

92

65

27 55

23 73 63

92

19 55

73 63 23 27 92

27 55

65

92

1 FREE SPACE (Around the unit)

The diagram below shows a

basic example.

Explantion of particular details is

given in the installation manuals etc.

over 10mm

over 500mm

Example of Notes

 Refrigerant GAS pipe connction (FLARE):15.88(5/8 inch)

 Refrigerant LIQUID pipe connection (FLARE):9.52(3/8 inch)

*1...Indication of STOP VALVE connection location.

40

Piping Knockout Hole Details

Front trunking hole

(Knockout)

Front piping hole

(Knockout)

PUHZ-RP100VKA PUHZ-RP125VKA PUHZ-RP140VKA PUHZ-RP100YKA PUHZ-RP125YKA PUHZ-RP140YKA

225

2-U Shaped notched holes

(Foundation Bolt M10)

Unit : mm

Air intake

A

40

53560

417 370

19

28

42

60

2-12×36 Oval holes

(Foundation Bolt M10)

Terminal connection

Left···Power supply wiring

Right···Indoor/Outdoor wiring

Service panel

Handle for moving

*1 450

*1 442

1

2

70

Rear piping cover

Front piping cover

Bottom piping hole

(Knock-Out)

86

81

Drain hole

(5-ø33)

600

Rear Air Intake

Installation Feet

Air Discharge

225

30

330

Side Air Intake

4 PIPING-WIRING DIRECTIONS

Piping and wiring connections

can be made from 4 directions:

FRONT,Right,Rear and Below.

FOUNDATION

3 FOUNDATION BOLTS

Please secure the unit firmly

2 SERVICE SPACE

Dimensions of space needed

with 4 foundation (M10) bolts.

(Bolts and washers must be

purchased locally.)

150

Over

for service access are

shown in the below diagram.

FREE

30 Less than

500 Over

Over

10

Over

Service space

Over 10mm

500

1050

Earth terminal

362

Handle for moving

Rear Air Intake

Over 150mm

Side Air Intake

632

1338

Handle for moving

A

919

1067

369

26

154136

Power supply wiring hole

(ø40Knock-Out)

Rear trunking hole

(Knock-Out)

6055

Power supply wiring hole

(ø27Knock-Out)

Power supply wiring hole

(ø40Knock-Out)

Right trunking hole

(Knock-Out)

75 50

Power supply wiring hole

(ø27Knock-Out)

Right piping hole

(Knock-Out)

60 55

Power supply wiring hole

(ø27Knock-Out)

60

ø92

6373

60

ø92

63

27

92

6373

55

60

110 160 160 160

45

Rear piping hole

92

75

27

55

26

55

29 92

73

26

26 27

75

92

ø92

(Knock-Out)

1 FREE SPACE (Around the unit)

The diagram below shows a

basic example.

Explantion of particular details are

given in the installation manuals etc.

Over 10mm

Over 1000mm

···Refrigerant GAS pipe connection (FLARE)ø15.88(5/8F)

Example of Notes

1

41

Model

PUHZ-RP100~140VKA

···Refrigerant LIQUID pipe connection (FLARE)ø 9.52(3/8F) 2

PUHZ-RP100~140YKA

*1···Indication of STOP VALVE connection location.

Piping Knock-Out Hole Details

Front trunking hole

(Knock-Out)

Power supply wiring hole

(ø40Knock-Out)

Front piping hole

(Knock-Out)

PUHZ-RP200YKA PUHZ-RP250YKA

Unit : mm

417 370

19

225

2-U Shaped notched holes

(Foundation Bolt M10)

600

Rear Air Intake

Installation Feet

225

330

Side Air Intake

40

53560

28

42

2-12×36 Oval holes

60

70

30

Terminal connection

Left···Power supply wiring

Right···Indoor/Outdoor wiring

(Foundation Bolt M10)

1050

Earth terminal

Air Discharge

362

Handle for moving

Service panel

Handle for moving

632

1338

Air intake

986 982

1

2

Brazing

369

*1,*2 : 442

*1 A

342

26

Rear piping cover

Front piping cover

Bottom piping hole

86

81

154136

(Knock-Out)

Drain hole

(5-ø33)

110 160 160 160

45

4 PIPING-WIRING DIRECTIONS

Piping and wiring connections

can be made from 4 directions:

FRONT,Right,Rear and Below.

FOUNDATION

3 FOUNDATION BOLTS

Please secure the unit firmly

2 SERVICE SPACE

Dimensions of space needed

1 FREE SPACE (Around the unit)

The diagram below shows a

with 4 foundation (M10) bolts.

(Bolts and washers must be

purchased locally.)

150

Over

for service access are

shown in the below diagram.

FREE

basic example.

Explantion of particular details are

given in the installation manuals etc.

30 Less than

500

Over

10

Over

Over 10mm

500

Over

Service space

Rear Air Intake

Over 150mm

Over 1000mm

Side Air Intake

Example of Notes

Handle for

moving

Power supply wiring hole

(ø40Knock-Out)

Rear trunking hole

(Knock-Out)

6055

Power supply wiring hole

(ø27Knock-Out)

Power supply wiring hole

(ø40Knock-Out)

Right trunking hole

(Knock-Out)

Handle for

moving

Aconnection

450

424

2

ø9.52(3/8F)

ø12.7(1/2F)

Model

PUHZ-RP200YKA

···Refrigerant GAS pipe connection (attached JOINT)ø25.4(Brazing locally)

···Refrigerant LIQUID pipe connection (FLARE)

*1···Indication of STOP VALVE connection location.

1

2

PUHZ-RP250YKA

*2···(FLARE)ø 19.05(3/4F)

Piping Knock-Out Hole Details

75 50

Power supply wiring hole

(ø27Knock-Out)

Right piping hole

(Knock-Out)

Power supply wiring hole

(ø27Knock-Out)

60 55

Front trunking hole

(Knock-Out)

Power supply wiring hole

(ø40Knock-Out)

60

ø92

6373

60

ø92

63

27

92

6373

60

Rear piping hole

(Knock-Out)

75

27

55

26

55

29 92

73

26

26 27

55

75

92

ø92

Front piping hole

(Knock-Out)

92

42

Unit : mm

WIRELESS REMOTE CONTROLLER

58

159.3

WIRED REMOTE CONTROLLER

19.5

130

120

19

55

43

4

WIRING DIAGRAM

4-1. INDOOR UNIT PLA-RP35BA PLA-RP50BA PLA-RP60BA PLA-RP71BA PLA-RP100BA PLA-RP125BA

PLA-RP71BA2 PLA-RP100BA3 PLA-RP125BA2 PLA-RP140BA2

[LEGEND]

SYMBOL SYMBOLNAME NAME

I.B

DCL DP FS MF MV

INDOOR CONTROLLER BOARD

CN2L

CONNECTOR (LOSSNAY)

CN32

CONNECTOR (REMOTE SWITCH) CONNECTOR (HA TERMINAL-A)

CN41 CN51

CONNECTOR (CENTRALLY CONTROL)

FUSE

FUSE (T6.3AL250V)

LED1

POWER SUPPLY (I.B)

LED2

POWER SUPPLY (R.B)

LED3

TRANSMISSION (INDOOR-OUTDOOR)

SW1

SWITCH (MODEL SELECTION) +See table 1

SW2

SWITCH (CAPACITY CORD) +See table 2

SWE

CONNECTOR (EMERGENCY OPERATION)

X1

RELAY (DRAIN PUMP)

REACTOR DRAIN-UP MACHINE DRAIN FLOAT SWITCH FAN MOTOR VANE MOTOR

TB2 TB4 TB5,TB6

OPTION PART

TERMINAL BLOCK (Indoor unit Power (option))

TERMINAL BLOCK ( TERMINAL BLOCK (REMOTE CONTROLLER TRANSMISSION LINE)

TH1

ROOM TEMP. THERMISTOR (0 / 15k, 25 / 5. 4k DETECT)

TH2

PIPE TEMP. THERMISTOR/LIQUID (0 / 15k, 25 / 5. 4k DETECT)

TH5

COND. / EVA. TEMP. THERMISTOR (0 / 15k, 25 / 5. 4k DETECT)

PCB FOR WIRELESS REMOTE CONTROLLER

W.B

BZ

BUZZER

LED1

LED (OPERATION INDICATION : GREEN)

LED2

LED (PREPARATION FOR HEATING : ORANGE) RECEIVING UNIT

RU SW1

EMERGENCY OPERATION (HEAT / DOWN)

SW2

EMERGENCY OPERATION (COOL / UP)

INDOOR/OUTDOOR CONNECTING LINE

Refer to tables 1 and 2

TB5

1

J42J41

Pair No.

51

ON OFF

AUTO GRILLE

POWER

CNAC (WHT)

31

3

CN3G

TRANSMISSION WIRES DC12V

CN32 (WHT)

113

CN51(WHT)

CN41(WHT)

41

SWE

FLOAT SW

CN4F

(WHT)

4

FS

13135

CN3A

I.B

55

MM

MVMV

VAN E

18

20

19

3

1 3

AUTO GRILLE

CN3G (BLK)

55

MM

MV

GRILLE

CNV(

WHT)

WIRELESS

CN90

(WHT)

114169

9

CNB

BZ

SW1

LED2

SW2

LED1

RU

1234567891011121314151617

LED3 LED2 LED1

I-SEE SENSOR

CN4Y (WHT)

4 5

I-SEE SENSOR

I-SEE SENSOR CORNER PANEL (OPTION PART)

W.B

2 TB6

R.B

SW2SW1

CN2L

21

I-SEE

SENSOR MOTOR

CN6Y

(RED)

M

U.B

MT

AUTOMATIC FILTER ELEVATION PANEL (OPTION PART)

2 1

INDOOR/OUTDOOR

COMMUNICATION

21

REMOCON

CN22

(BLU)

LIQUID/PIPE

CN44

(WHT)

14

tt t

TH2 TH5 TH1

3

1

CN3C

(BLU)

RECTIFICATION

INTAKE

CN20

(RED)

21

+ Be sure to turn off the source power and then disconnect fan motor connector. (Failure to do so will cause trouble in Fan motor)

<Table 1> SW1 (MODEL SELECTION)

MODELS

PLA-RP·BA

)

PLA-RP71/125BA2

PLA-RP140BA2 PLA-RP100BA3

<Table 2> SW2 (CAPACITY CODE)

SETTING

CAPACITY

12345

35

12345

50

12345

60

12345

71

The black square () indicates a switch position.

OUTDOOR

135

CN01

(BLK)

DC280V

FAN CNMF (WHT)

741

MS

3~

MF

X1

D.U.M

31

CNP

(BLU)

M

1~

DP

FUSE

SW1

SETTING

12345

SW2

ON OFF

DCL

YLW

ON OFF

CAPACITY

SETTING

12345

100

125

140

Please set the voltage using the remote controller. For the setting method,please refer to the indoor unit Installation Manual.

YLW

YLW ORN

ORN

ORN BRN

12345

TB4

S1

S2

S3

ON OFF

TO OUTDOOR UNIT

Notes:

1.SymboIs used in wiring diagram above are, : Connector, : Terminal (block).

2.Indoor and outdoor connecting wires have poIarities, make sure to match terminal numbers (S1, S2, S3) for correct wirings.

3.Since the outdoor side electric wiring may change, be sure to check the outdoor unit electric wiring diagram for servicing.

4.This diagram shows the wiring of indoor and outdoor connecting wires.(specification of 230V), adopting superimposed system for power and signal. +1:If indoor and outdoor units have separate power supplies, refer to Fig 1. +2:For power supply system of this unit, refer to the caution label located near this diagram.

+1(Fig. 1) CN01 (BLK)

5 3 1

I.B

CN3C (BLU)

31

I.B

YLW

RED

ORN

INDOOR/OUTDOOR

COMMUNICATION

GRN/YLW

YLW ORN ORN BRN

BLU

44

TB2

TB4

S1 S2 S3

L

N

POWER SUPPLY ~(1PHASE) 230V 50Hz

TO OUTDOOR UNIT

PEAD-RP35JA(L) PEAD-RP50JA(L) PEAD-RP60JA(L) PEAD-RP71JA(L) PEAD-RP100JA(L) PEAD-RP125JA(L) PEAD-RP140JA(L)

TO OUTDOOR

POWER SUPPLY

~(1PHASE)

L

N

1

2

UNIT

220~240V 50Hz

S1S2S3

1

2

TB15

INSIDE SECTION OF CONTROL BOX

TO MA REMOTE

CONTROLLER

TB4

1

2

ACL

TO OUTDOOR UNIT

S1S2S3

1

2

1

2

ACL

(IN CASE OF CONNECT THE REPLACEMENT WIRING)

<+A>

1

2

TO CN3C

TO CND

+A

*1. Drain pump and float switch: only for PEAD-JA model

P. B .

CND

(Red)

351

DSA

F01

U

ZNR01

ZNR02

4567121 123

CNMF

DC280~340V

Rectifier circuit

1

(Blue)

3

4

CNXA1

CNXC1

5

3214

CNXB1

X10

U

X01

CNP

(Blue)

M

1~

NOTE: 1. Since the outdoor side electric wiring may change be sure to

check the outdoor unit electric wiring for servicing.

2. Indoor and outdoor connecting wires are made with polarities,

make wiring matching terminal numbers (S1,S2,S3).

3. Symbols used in wiring diagram above are, terminal block,

connector.

Fan motor

NAME

*1

Drain pump

Intake air temp. Thermistor

Pipe temp. Thermistor/liquid

Cond./eva.temp. Thermistor

TH1

TH2

TH5

SYMBOL

(Indoor/outdoor connecting line)

AC reactor (Power factor improvement)

Terminal block

Float switch

Terminal block

(Remote controller transmission line)

ACLFSTB4

TB15

I.B.

(Red)

CN105

LED2

CN32

SW1

(Blue)

CN3C

1

3

SW2

CN2A

(Black)

ON

CN41

SWE

OFF

1

2

CN22

(Blue)

CN51

CN90

(Blue)

CNXA2

LED1

1

CNXB2

(Red)

CN4F

(Red)

CN44

LED3

3

CNXC2

1

3

CN2L

3

2

1

CN20

213

124

2

542

4

2

4

45

NAME

Switch (for mode selection)

Switch (for capacity code)

Connector (emergency operation)

Indoor controller board

SW1

SW2

SYMBOL

I.B.

Var ist or

Aux. relay

Fuse AC250V 6.3AConnector (Centrally control)

Arrester

Power supply board

SWE

F01

Aux. relay

ZNR01, 02

DSA

X01

X10

P. B .

*1

FS

TH1

t°

t° t°

TH5

TH2

NAME

Connector (0-10V Analog input)

Connector (Lossnay)

Connector (Remote switch)

Indoor controller board

CN2A

CN2L

SYMBOL

SYMBOL EXPLANATION

CN32

I.B.

Connector (IT terminal)

Connector (Wireless)

Connector (HA terminal-A)

CN41

CN51

CN90

CN105

LED1

LED(Power supply)

LED(Transmission indoor-outdoor)

LED(Remote controller supply)

LED2

LED3

PEA-RP200, 250GA

NAMESYMBOL

OVER CURRENT RELAY (INDOOR FAN MOTOR)

FAN MOTOR (INDOOR)

51F

MF1

INDOOR UNIT

LIQUID PIPE TEMP.

ROOM TEMP.

THERMISTOR

TERMINAL BLOCK

INTERNAL THERMOSTAT (INDOOR FAN MOTOR)

TH2

TH1

49F

TB2,4,5

52FLo MAGNETIC CONTACTOR (INDOOR FAN MOTOR<LOW SPEED>)

52FHi MAGNETIC CONTACTOR (INDOOR FAN MOTOR<HIGH SPEED>)

C02

C01

52F

(3P)

(6P)

Lo

51F

COND./EVA. TEMP.

TH5

(Hi)

(Lo)

AUXILIARY RELAYX1

SURGE KILLERCR1,2

MF1

123

NAME

LED (POWER SUPPLY<REMOTE CONTROLLER>)LED2

VAR IST ORZNR

FUSE (T6.3AL250V)FUSE

FERRITE COREFB

X4-6 AUXILIARY RELAY

LED (POWER SUPPLY)LED1

SWITCH (MODEL SELECTION)

SWITCH (CAPACITY CODE)

CONNECTOR (EMERGENCY OPERATION)

SWE

SW2

SW1

CONTROLLER

INDOOR

LED (TRANSMISSION<INDOOR·OUTDOOR>)

CONNECTOR (DRAIN SENSOR)

CONNECTOR (REMOTE SWITCH)

CONNECTOR (HA TERMINAL-A)

CONNECTOR (CENTRALLY CONTROL)

CONNECTOR (WIRELESS REMOTE CONTROLLER)

CN90

CN51

CN41

CN32

ZNR5~7 VARISTOR

DSA,DSR ARRESTER

LED3

CONNECTOR (LOSSNAY)

CN2L

CN31

TERMINAL BLOCKTB6

SYMBOL

SNB

BOARD

BOARD 1

REMOTE CONTROLLER

5. Emergency operation

4. Indoor and outdoor connecting wires have polarities, make sure

to match wiring and terminal.

If a trouble occurs with either the remote controller or the indoor microcom-

puter and no other trouble exists, emergency operation for cooling or heating

can be performed by changing the setting of connector (SWE) "ON" on the

indoor controller board.

2. Color of earth wire is yellow and green twisting.

3. Specification subject to change without notice.

Note:1. The dotted lines show field wiring.

SWE :ON / Indoor fan is running at high speed.

6. mark is connector. mark is terminal.

Therefore, do not change factory set value of overcurrent relays.

1. To protect fan motor from abnormal current, overcurrent relays are installed.

Caution,

OUTDOOR UNIT

TO OUTDOOR UNIT

CONNECTING WIRES

(POLAR)

51F

TB4

S3

S2

C01

49F

X1

5

FAN

CNDK

CND

DC13.1V

FB

4

INDOOR

CR1CR2

X1

Hi

52F

X1

Lo

52F

1

3

CNSK

TAB1

DC

13.1V

1

2

POWER BOARD

CN2S

OFF

ON

OFF

ON

12345

INDOOR

CN41

123

12345

CN51

CN2L

21212

5 4123

SW2

SW1

BOARD

CONTROLLER

CN29

4

121

2

1

CN32

CN31

312

CN22

1

ON

CN21

213

365

OFF

4

SWE

CN20

LED1

CN90

X6X5X4

2

LED2

ZNR

LED3

FUSE

987

375 1

31

3112

CN3C

CN2D

TH5

TH2

TH1

321

Hi

52F

DSA

DSR

ZNR5~7

S1

WHITE

RED

TB2

L2

INDOOR UNIT

L1

CIRCUIT BREAKER

(FIELD SUPPLY)

PEA-RP200,250GA:15A

POWER SUPPLY

SNB BOARD 1

RED

BLACK

N

L3

3N~PE

380/400/415V

50Hz

WHITE

BLACK

PE

TB5

LCD

CONTROLLER

BOARD

REMOTE

TB6

1

2

REMOTE CONTROLLER

46

PEA-RP400, 500GA

NAMESYMBOL

ROOM TEMP.

LIQUID PIPE TEMP.

COND./EVA. TEMP.

FAN MOTOR (INDOOR)

OVER CURRENT RELAY (INDOOR FAN MOTOR)

INTERNAL THERMOSTAT (INDOOR FAN MOTOR)

TERMINAL BLOCK

THERMISTOR

MAGNETIC CONTACTOR (INDOOR FAN MOTOR)52F

MF1

51F

INDOOR UNIT

49F

TB2,4-1,4-2,5

TH1-1,1-2

TH2-1,2-2

TH5-1,5-2

X1,2 AUXILIARY RELAY

FERRITE COREFB11,FB12

CR SURGE KILLER

AUXILIARY RELAYX4-6

SWITCH (MODEL SELECTION)SW1

SWITCH (CAPACITY CORD)

FUSE FUSE (T6.3AL250V)

ZNR VARISTOR

SW2

FB21,FB22

CONNECTOR (DRAIN SENSOR)

CONNECTOR (REMOTE SWITCH)

CONNECTOR (HA TERMINAL-A)

CONNECTOR (CENTRALLY CONTROL)

CONNECTOR (LOSSNAY)

CONNECTOR (EMERGENCY OPERATION)

CN2L

SWE

LED1 LED (POWER SUPPLY)

CN31

LED2 LED (POWER SUPPLY<REMOTE CONTROLLER>)

LED3 LED (TRANSMISSION<INDOOR·OUTDOOR>)

CONTROLLER

BOARD

INDOOR

CONNECTOR (WIRELESS REMOTE CONTROLLER)

CN90

CN51

CN41

CN32

ZNR5~7 VARISTOR

DSA,DSR ARRESTER

SNB

BOARD 1

NAMESYMBOL

TERMINAL BLOCK

TB3,TB8

OUTDOOR UNIT

REMOTE CONTROLLER

TERMINAL BLOCK

TB6

match wiring and terminal.

2. Color of earth wire is yellow and green twisting.

3. Specification subject to change without notice.

4. Indoor and outdoor connecting wires have polarities, make sure to

5. Emergency operation

If a trouble occurs with either the remote controller or the indoor microcom-

puter and no other trouble exists, emergency operation for cooling or heating

can be performed by changing the setting of connector (SWE) "ON" on the

indoor controller board.

SWE :ON / Indoor fan is running at high speed.

6. mark is connector. mark is terminal.

Note:1. The dotted lines show field wiring.

Caution,

1.To protect fan motor from abnormal current, overcurrent relays are installed.

Therefore, do not change factory set value of overcurrent relays.

C01 C02

51F

52F

123

MF1

123

TH1-1

DSA

DSR

ZNR5~7

SNB BOARD 1

RED

WHITE BLACK

X02

X01

5

52F

CR

TH2-1

51F

49F

TH5-1

4

C01

FB12

OFF

ON5ON

345

12

CN41

123

12345

CN51

CN2L

21212

OFF

34

SW1

SW2

21

(No.1)

BOARD

INDOOR

CONTROLLER

CN21

CN29

4

121

2

1

CN31

CN32

312

CN22

1

ON

213

365

OFF

4

SWE

CN20

LED1

CN90

(No.1)

OUTDOOR UNIT

TO OUTDOOR UNIT

CONNECTING WIRES

(POLAR)

TB4-1

S1

S2

S3

FAN

1573

X4 X5 X6

2

FUSE

ZNR

LED2

LED3

CN3C

987

CNDK

31

CND

31

3112

CN2D

DC13.1V

X1

1

3

CNSK

INDOOR

POWER BOARD

DC

13.1V

1

2

FB11

CN2S

(No.1)

TAB 1

TH2-2

TH1-2

TH5-2

FB22

OFF

ON5ON

345

12

INDOOR

CN41

123

12345

CN51

CN2L

21212

OFF

34

ON

SW1

SW2

21

(No.2)

BOARD

CONTROLLER

CN21

CN29

4

121

2

1

CN32

CN31

213

312

CN22

1

365

OFF

4

(No.2)

OUTDOOR UNIT

SWE

X4 X5 X6

CN20

2

FUSE

ZNR

LED1

LED2

LED3

CN3C

CN90

987

TO OUTDOOR UNIT

CONNECTING WIRES

TB4-2

FAN

1573

CNDK

31

CND

31

3112

INDOOR

POWER

BOARD

CN2D

DC13.1V

FB21

(No.2)

(POLAR)

S1S2S3

X2

1

CNSK

DC

1

CN2S

3

13.1V

2

TAB 1

BLACK

WHITE

RED

TB2

L3

L2

L1

INDOOR UNIT

CIRCUIT BREAKER

(FIELD SUPPLY)

PEA-RP400,500GA:15A

POWER SUPPLY

3N~PE

380/400/415V

GREEN/YELLOW

BLUE

N

PE

50Hz

TB5

1

2

REMOTE

CONTROLLER

BOARD

REMOTE CONTROLLER

LCD

TB6

47

PKA-RP35HAL PKA-RP50HAL

[Explanation of symbols]

Symbol

I.B Indoor controller board

CN2L Connector (LOSSNAY) CN32 Connector ( Remote switch) CN41 Connector (HA terminal-A) CN51 Connector (Centrally control) CN90 Connector (Remote operation adapter) FUSE FUSE(T3.15AL250V) LED1 Power supply (I.B) LED2 Power supply (R.B) LED3 Transmission (Indoor-outdoor) SW1 Switch (Model selection) +See table 1 SW2

Switch (Capacity code) +See table 2 Connector (Emergency operation)

SWE X1 Relay (Drain pump (option))

Drain pump (option) power supply

CNP

(Drain pump (option))

CN4F Drain float switch (Drain pump (option))

R.B

Wired remote controller(option)

TB6

Terminal block (Remote controller transmission line)

Name

I.B

1

1139

CN32 (WHT)

CN51

(WHT)

CN4F

(WHT)

When attaching drain pump(option), remove the jumper connector CN4F and fit the drain float switch (FS).

SWE

ON OFF

Refer to tables 1and 2

CN151

(WHT)

11

M

T11 DB1

LED1

LED3

LED2

CN90

(WHT)

2

11 1 5

CN2L

(RED)

CN20 (RED)



t

TH1 TH2 TH5

CN41

(WHT)

CN44

(WHT)

141425

tt

4



Notes:

1. SymboIs used in wiring diagram above are, : Connector, : Terminal (block).

2. Indoor and outdoor connecting wires have poIarities, make sure to match terminal numbers (S1, S2, S3) for correct wirings.

3. Since the outdoor side electric wiring may change, be sure to check the outdoor unit electric wiring diagram for servicing.

4. This diagram shows the wiring of indoor and outdoor connecting wires. (specification of 230V), adopting superimposed system for power and signal.

+

1: If indoor and outdoor units have separate power supplies, refer to Fig. 1.

+

2: For power supply system of this unit, refer to the caution label located near this diagram.

Symbol M Vane motor MS Fan motor

Switch board

S.W

SWE2 Emergency operation TB2 Terminal block(Indoor unit Power (option)) TB4 Terminal block (Indoor/outdoor connecting line)

Terminal block (Remote controller transmission line(option))

TB5 TH1 Room temp. Thermistor

(0/15k, 25/5.4k Detect)

TH2

Pipe temp. Thermistor/liquid

(0/15k, 25/5.4k Detect)

TH5

Cond./eva. temp. Thermistor

(0/15k, 25/5.4k Detect)

W.B Pcb for wireless remote controller

LED1 LED (Operation indication : Green)

LED2 LED (Preparation for heating: Orange)

REC1 Receiving unit DCL REACTOR

DRAIN PUMP (OPTION)

DP

DRAIN FLOAT SWITCH (OPTION)

FS

MS

3~

CNMF

6

(WHT)

FUSE

CN01 (BLK)

3

X1

1

CNP(BLU)

3

CN3C (BLU)

1

LDSWE(A)

(BLU)

CNRU (WHT)

1

CN22 (BLU)

2

When attaching drain pump (option)

FLOAT SW

CN4F

(WHT)

DCL

1 3

ORN

5

BLK

DP

M

1~

W.B

6

14

FS

YLW YLWYLW

ORN BRN

LD101(B)

LED1

Name

ORN

2

RU

REC1

LED2

S1 S2 S3

S.W

LDSWE(B)

TB4

TO OUTDOOR UNIT

SWE2

+

1(Fig. 1)

CN01 (BLK)

1 3 5

I.B

CN3C(BLU)

(OPTION PARTS)

I.B

YLW ORN

1

<Table 1> SW1 (MODEL SELECTION)

SETTING

12345

<Table 2> SW2 (CAPACITY CODE)

MODELS

RP35

RP50

The black square () indicates a switch position.

BLU

1

BLU

2

TB5

GRN/YLW

INDOOR/OUTDOOR

3

COMMUNICATION

RED BLU

YLW ORN ORN

BRN

R.B

TB6

TB2

TB4

1 2

L

N

S1

S2

S3

ON OFF

SETTING

12345

POWER SUPPLY ~(1PHASE) 230V 50Hz

TO OUTDOOR UNIT

ON OFF

48

PKA-RP60KAL PKA-RP71KAL PKA-RP100KAL

[LEGEND]

SYMBOL SYMBOLNAME NAME

I.B

CN2L CN32 CN41 CN51 CN90 FUSE LED1 LED2 LED3 SW1 SW2 SWE X1 CNP

CN4F

R.B

TB6

Indoor controller board Connector (LOSSNAY) Connector (Remote switch) Connector (HA terminal-A) Connector (Centrally control) Connector (Remote operation adapter) FUSE (T3.15AL250V) Power supply (I.B) Power supply (R.B) Transmission (Indoor-outdoor) Switch (Model selection) +See table 1 Switch (Capacity code) +See table 2 Connector (Emergency operation) Relay (Drain pump(option)) Drain pump (option) power supply (Sold separately:Drain pump(option))

Drain float switch (Sold separately:Drain pump (option))

Wired remote controller Terminal block (Remote controller transmission line)

MF

M MS S.W

SWE2 TB2 TB4 TB5 TH1

TH2

TH5

W.B

LED1

LED2

REC1 DCL

DP

FS

Vane motor Fan motor Switch board Emergency operation Terminal block (Indoor unit Power (option)) Terminal block (Indoor/outdoor connecting line) Terminal block (Remote controller transmission line) Room temp. Thermistor (0 / 15k, 25 / 5. 4k Detect) Pipe temp. Thermistor/liquid (0 / 15k, 25 / 5. 4k Detect) Cond. / eva. temp. Thermistor (0 / 15k, 25 / 5. 4k Detect)

Pcb for wireless remote controller LED (Operation indication : Green) LED (Preparation for heating : Orange) Receiving unit REACTOR

DRAIN PUMP (OPTION) DRAIN FLOAT SWITCH (OPTION)

+1(Fig. 1) CN01

I.B

(BLK)

1 3 5

I.B

CN3C (BLU)

YLW

ORN

INDOOR/OUTDOOR

31

COMMUNICATION

RED BLU

GRN/YLW

YLW ORN ORN

BRN

The black square () indicates a switch position.

Notes:

1. SymboIs used in wiring diagram above are, :Connector, : Terminal (block).

2. Indoor and outdoor connecting wires have poIarities, make sure to match terminal numbers (S1, S2, S3) for correct wirings.

3. Since the outdoor side electric wiring may change, be sure to check the outdoor unit electric wiring diagram for servicing.

4. This diagram shows the wiring of indoor and outdoor connecting wires.(specification of 230V), adopting superimposed system for power and signal. +1 If indoor and outdoor units have separate power supplies, refer to Fig 1. +2 For power supply system of this unit, refer to the caution label located near this diagram.

TB2

N

TB4

S1 S2 S3

L

POWER SUPPLY ~(1PHASE) 230V 50Hz

TO OUTDOOR UNIT

49

PCA-RP50KA PCA-RP60KA PCA-RP71KA PCA-RP100KA PCA-RP125KA PCA-RP140KA

[

LEGEND

]

SYMBOL SYMBOLNAME NAME

I.B

INDOOR CONTROLLER BOARD

CN2L

CONNECTOR (LOSSNAY)

CN32

CONNECTOR (REMOTE SWITCH) CONNECTOR (HA TERMINAL-A)

CN41 CN51

CONNECTOR (CENTRALLY CONTROL)

FUSE

FUSE (T6.3AL250V)

LED1

POWER SUPPLY (I.B)

LED2

POWER SUPPLY (R.B)

LED3

TRANSMISSION (INDOOR-OUTDOOR)

SW1

SWITCH (MODEL SELECTION)

SW2

SWITCH (CAPACITY CODE)

SWE

CONNECTOR (EMERGENCY OPERATION)

X1

RELAY (DRAIN PUMP) WIRED REMOTE CONTROLLER BOARD

R.B

REACTOR

DCL MF MV TB2

FAN MOTOR VANE MOTOR TERMINAL BLOCK (Indoor unit Power (optional parts))

See table 1

+

See table 2

+

TB4

TERMINAL BLOCK ( TERMINAL BLOCK (REMOTE CONTROLLER

TB5,TB6

TRANSMISSION LINE)

TH1

ROOM TEMP. THERMISTOR (0°C / 15k, 25°C / 5. 4k DETECT)

TH2

PIPE TEMP. THERMISTOR/LIQUID (0°C / 15k, 25°C / 5. 4k DETECT)

TH5

COND. / EVA. TEMP. THERMISTOR (0°C / 15k, 25°C / 5. 4k DETECT)

OPTIONAL PARTS

PCB FOR WIRELESS REMOTE CONTROLLER

W.B

BZ

BUZZER

LED1

LED (OPERATION INDICATION : GREEN)

LED2

LED (PREPARATION FOR HEATING : ORANGE) RECEIVING UNIT

RU SW1

EMERGENCY OPERATION (HEAT / DOWN)

SW2

EMERGENCY OPERATION (COOL / UP)

DP

DRAIN LIFT UP MECHANISM DRAIN FLOAT SWITCH

FS

INDOOR/OUTDOOR CONNECTING LINE

)

Refer to tables 1 and 2

TB5

2 1

1

J42J41

CN51(WHT

Pair No.

51

CN41(WHT

SWE

ON OFF

When attaching drain pump (optional parts)

FLOAT SW

CN4F

(WHT)

TRANSMISSION WIRES DC12V

CN32

(

WHT

)

113

)

REMOCON

41

14

FS

CN22 (

BLU

LIQUID/PIPE

CN44

(

WHT

14

t° t° t°

TH2 TH5 TH1

OUTDOOR

135

CN01 (

BLK

FAN

WHT

)

MS

3~

MF

(OPTIONAL PARTS)

)

X1

31

M

1~

DP

3

1

INDOOR/OUTDOOR

COMMUNICATION

CN3C (

BLU

)

21

)

INTAKE

CN20

(

RED

)

21

DC311~339V

RECTIFICATION

CNMF (

741

+Be sure to turn off the source power and then disconnect fan motor connector. (Failure to do so will cause trouble in Fan motor)

<Table 1> SW1 (MODEL SELECTION)

SW1

Service

12345

ON OFF

The black square () indicates a switch position.

1. SymboIs used in wiring diagram above are, :Connector,

Notes:

:Terminal (block).

2. Indoor and outdoor connecting wires are made with poIarities, make wiring matching terminal numbers (S1, S2, S3).

3. Since the outdoor side electric wiring may change, be sure to check the outdoor unit electric wiring for servicing.

4. This diagram shows the wiring of indoor and outdoor connecting wires (specification of 230V), adopting superimposed system for power and signal.

+1: If indoor and outdoor units have separate power supplies,

refer to Fig. 1.

+2: For power supply system of this unit, refer to the caution

label located near this diagram.

<Table 2> SW2 (CAPACITY CODE)

MODELS

PCA-RP50KA

PCA-RP60KA

PCA-RP71KA

2 TB6

TB4

TB2

L

N

S1 S2 S3

FLOAT SW

R.B

SW2SW1

CN2L

21

CN4F (

WHT

)

4

POWER SUPPLY

~(

1PHASE)

230V 50Hz

TO OUTDOOR UNIT

I.B

VANE

CNV

(WHT

20

18

19

5

M

MV

W.B

+1 (Fig. 1)

CN01 (BLK)

5 3 1

I.B

CN3C

(BLU)

)

1234567891011121314151617

LED3 LED2 LED1

WIRELESS

CN90

(

WHT

)

19

9

CNB

SW1

SW2

RU

(OPTIONAL PARTS)

DCL

I.B

YLW YLW

INDOOR/OUTDOOR

31

COMMUNICATION

BZ

LED2

LED1

ORN

When attaching drain pump (optional parts), remove the jumper connector CN4F and fit the drain float switch (FS).

RED BLU

GRN/YLW

YLW ORN ORN BRN

DCL

YLW

FUSE

YLW ORN

D.U.M

CNP

(

BLU

)

Service Service

12345

ORN BRN

SW2

MODELS

PCA-RP100KA

ON OFF

PCA-RP125KA

ON OFF

PCA-RP140KA

ON OFF

YLW ORN

TB4

S1 S2 S3

12345

TO OUTDOOR UNIT

ON OFF

50

PCA-RP71HA PCA-RP125HA

[LEGEND]

SYMBOL P. B

I. B

FUSE CN2L

CN32 CN41

CN51

LED1

LED2

LED3 X1

X4

X5

X6

SW1 SW2

SWE

INDOOR POWER BOARD

INDOOR CONTROLLER BOARD

FUSE (T6.3AL250V) CONNECTOR (LOSSNAY)

CONNECTOR (REMOTE SWITCH) CONNECTOR (HA TERMINAL-A)

CONNECTOR (CENTRALLY CONTROLL)

POWER SUPPLY (I. B)

POWER SUPPLY (R. B)

TRANSMISSION(INDOOR-OUTDOOR) RELAY (DEW PREVENTION HEATER)

RELAY(FAN MOTOR)

SWITCH (MODEL SELECTION) SWITCH (CAPACITY CODE) See Table 2.

SWITCH (EMERGENCY OPERATION)

NAME SYMBOL NAME

See Table 1.

MF1, MF2

C1, C2

H2

TB2

TB4

TB5,TB6

TH1

TH2

TH5

R. B

FAN MOTOR

CAPACITOR(FAN MOTOR)

DEW PREVENTION HEATER

TERMINAL BLOCK(INDOOR UNIT POWER (OPTION))

TERMINAL BLOCK(INDOOR/OUTDOOR

CONNECTING LINE) TERMINAL BLOCK(REMOTE CONTROLLER

TRANSMISSION LINE)

ROOM TEMP.THERMISTOR (0°C/15k, 25°C/5.4k DETECT)

PIPE TEMP.THERMISTOR/LIQUID (0°C/15k, 25°C/5.4k DETECT)

COND./ EVA.TEMP.THERMISTOR (0°C/15k, 25°C/5.4k DETECT)

WIRED REMOTE CONTROLLER BOARD

MF1

BLU

BLK

RED

BLK

BLU

YLW

WHT

BRN

WHT

YLW

C2

GRY

ORN

654321

ORN

C1

RED

I.B

FAN

1357

(WHT)

X6 X5 X4

SWE

ON

OFF

SW2 SW1

Refer to tables 1 and 2 for service PCB.

Table 1

SW1

Service board

1 2 3 4 5

The black square () indicates a switch position.

Notes:

1. SymboIs used in wiring diagram above are, : Connector, : Terminal (block).

2. Indoor and outdoor connecting wires have poIarities, make sure to match terminal numbers (S1, S2, S3) for correct wirings.

3. Since the outdoor side electric wiring may change, be sure to check the outdoor unit electric wiring diagram for servicing.

4. This diagram shows the wiring of indoor and outdoor connecting wires (specification of 230V), adopting superimposed system for power and signal. +1: When supplying power separately to indoor and outdoor units, refer to Fig 1. +2: For power supply system of this unit, refer to the caution label located near this diagram.

ON OFF

MF2

BLU

BLK

ORN

RED

654321

BLU

BLK

Table 2

MODELS

PCA-RP71HA

WHT

YLW

H2

WHT

YLW

11

YLW

D.HEATER

13 13 13 12

CNC (RED)

Service board

1 2 3 4 5

CNDK

P. B

(RED)

1 2

DC13.1V

3

RED

CNDK (RED)

WHT

YLW

ROWER

LED3 LED2 LED1

SW2

MODELS

ON

PCA-RP125HA

OFF

CN2S

(WHT)

1 2

YLW

ROWER

CND

(ORN)

INTAKE

CN20

(RED)

12 12 12

TH1 TH2 TH5

Service board

1 2 3 4 5

ORN

BLK

WHT

ROWER

CN2D(WHT)

FUSE

CN41 CN2L

LIQUID

CN21

(WHT)

WHT

12 13

ON OFF

13

INDOOR/OUTDOOR

COMMUNICATION

CN3C(BLU)

PIPE CN29 (BLK)

WHT

BLK

YLW ORN ORN BRN

REMOCON

CN22

(BLU)

12

BLU

BLK

TB4

S1

TO

S2

OUTDOOR

S3

UNIT

CN32CN51

I.B

TB5

BLU

2

TRANSMISSION WIRES DC12V

1

Please set the voltage using the remote controller. For the setting method, please refer to the indoor unit Installation Manual.

YLW

+1 (Fig.1)

ORN

RED

BLU

GRN/YLW

YLW ORN

ORN

BRN

TB2

TB4

L

N

S1

S2

S3

3131

POWER

INDOOR/OUTDOOR

CND

COMMUNICATION

(ORN)

CN3C

(BLU)

R.B

1

TB6

2

For PCA-RP125HA

POWER SUPPLY ~(1PHASE) 230V 50Hz

TO OUTDOOR UNIT

51

PSA-RP71GA PSA-RP100GA PSA-RP125GA PSA-RP140GA

[LEGEND]

SYMBOL NAME P. B I.B

INDOOR POWER BOARD

INDOOR CONTROLLER BOARD FUSE FUSE (T6.3AL250V) CN2L CONNECTOR (LOSSNAY) CN32

CONNECTOR (REMOTE SWITCH)

CN41 CONNECTOR (HA TERMINAL-A)

CONNECTOR (CENTRALLY CONTROL)

CN51 LED1 POWER SUPPLY (I.B)

POWER SUPPLY (R.B)

LED2

TRANSMISSION (INDOOR-OUTDOOR)

LED3

SYMBOL NAME SYMBOL NAME

SW1

I.B

SWITCH (MODEL SELECTION) See Table 1.

SW2

SWITCH (CAPACITY CODE) See Table 2.

SWE

SWITCH (EMERGENCY OPERATION) RELAY (LOUVER)

X2 X4 RELAY (FAN MOTOR) X5 RELAY (FAN MOTOR) X6 RELAY (FAN MOTOR)

R.B

WIRED REMOTE CONTROLLER BOARD

TB6

TERMINAL BLOCK (REMOTE CONTROLLER TRANSMISSION LINE)

HEATER

THERMAL FUSE (110°C16A)

FS1,2

HEATER

H

HEATER THERMAL SWITCH

26H

HEATER CONTACTOR

88H

C CAPACITOR (FAN MOTOR) MF ML

TB2

FAN MOTOR LOUVER MOTOR

TERMINAL BLOCK (HEATER) PSH-P·GAH models only or option for PSA-RP·GA models.

TB4

TERMINAL BLOCK (INDOOR/OUTDOOR CONNECTING LINE)

TH1

ROOM TEMP.THERMISTOR (0°C/15k, 25°C/5.4k DETECT)

TH2

PIPE TEMP.THERMISTOR/LIQUID (0°C/15k, 25°C/5.4k DETECT)

TH5

COND./EVA.TEMP.THERMISTOR (0°C/15k, 25°C/5.4k DETECT)

INDOOR UNIT

MF

BLK

BLU

I.B

YLW

FAN

1357

(WHT)

X4X5X6

X6

X5 X4

SWE

ON

OFF

Refer to tables 1 and 2 for service PCB.

PSH -P.GAH models only

2 1

I.B

YLW

16

YLW

Table 1

MODELS

PSA-RP.GA PSH-P.GAH

ORN

C

RED

WHT

LOUVER CNL (YLW)

SW1SW2

HEATER

CN24

(YLW)

88H

YLW

SW2

Service board

1 2 3 4 5

ML

YLW

13 13 13 12

X2

6 5

P.B

YLW

POWER CNDK (RED)

X2

LED3 LED2 LED1

TH2

TH1

TH5

26H

RED

ON OFF

CN2S (WHT)

2

DC13.1V

1

WHT

RED

POWER CND (ORN)

R.B

H

Notes:

1. SymboIs used in wiring diagram above are, : Connector, : Terminal (block).

2. Indoor and outdoor connecting wires have poIarities, make sure to match terminal numbers (S1, S2, S3) for correct wirings.

3. Since the outdoor side electric wiring may change, be sure to check the outdoor unit electric wiring diagram for servicing.

Table 2

MODELS

PSA-RP71GA

PSH-P71GAH

PSA-RP100GA PSH-P100GAH

PSA-RP125GA PSH-P125GAH

PSA-RP140GA PSH-P140GAH

SW2

Service board

1 2 3 4 5

ON OFF

4. This diagram shows the wiring of indoor and outdoor connecting wires (specification of 230V), adopting superimposed system for power and signal.

+1: When supplying power separately to indoor and outdoor units, refer to Fig 1. +2: For power supply system of this unit, refer to the caution label located near this diagram.

The black square () indicates a switch position.

CNSK (RED)

3 2 1

YLW

ORN

FUSE

CN51

LIQUID

2

CN21

1

(WHT) INTAKE

2

CN20

1

(RED) PIPE

2

CN29

1

(BLK)

CN24 CN41

1

2

TB6

FS1FS2

1

WHT

2

BLK

WHT

POWER CN2D (WHT)

CN32

REDRED

BLU

WIRELESS

REMOCON

TRANSMISSION WIRES DC12V

53

TB4

YLW

ORNS1S2

S3

BRN

ORN

13

INDOOR/OUTDOOR

COMMUNICATION

CN3C (BLU)

CN90

(WHT)

2

CN22

1

(BLU)

CN2L

88H

RED

BLU

GRN/YLW

TB2

L

N

TO OUTDOOR UNIT

1 (Fig.1)

YLW

ORN

I.B

POWER

CND

(ORN)

POWER SUPPLY ~(1 PHASE) 230V 50Hz

TB2

RED

BLU

GRY/YLW

TB4

RED

BLU

BRN

ORN

3131

INDOOR/OUTDOOR

COMMUNICATION

CN3C (BLU)

Please set the voltage using the remote controller. For the setting method, please refer to the indoor unit Installation Manual.

L

POWER SUPPLY

N

~(1PHASE) 230V 50Hz

S1 S2

TO OUTDOOR

S3

UNIT

52

4-2. OUTDOOR UNIT PUHZ-RP35VHA4 PUHZ-RP50VHA4

SYMBOL NAME SYMBOL NAME SYMBOL NAME TB1 MC MF1 21S4 63H TH3, TH33 TH4 TH6 TH7 TH8 TH32 Thermistor<Shell LEV-A, LEV-B ACL CY1,CY2 P.B.

TABR/S TABU/V/W

Terminal Block<Power Supply, Indoor/Outdoor Motor for Compressor Fan Motor Solenoid Valve (Four-Way Valve) High Pressure Switch

Thermistor<Outdoor Pipe>

Thermistor<Discharge Thermistor<Outdoor 2-Phase Pipe Thermistor<Outdoor Thermistor<Heat Sink

Electronic Expansion Valve

Reactor Reactor Power Circuit Board Connection Terminal<L/N-Phase> Connection Terminal<U/V/W-Phase>

C. B.

1

MF1

MS

3~

CNS

(WHT)

CNDC

(PNK)

31

7

3

1

>

TH33

TH32

CNF1 (WHT)

13 21

21

TH33

TH32

(YLW

)

(BLK

TRANS

F2

CNAC (WHT)

F1

21

43

)

>

TH7 TH6 TH3 TH4

t°t°t°t°t° t°

4121

TH7/6

TH3

TH4

)

(WHT

)

(WHT

(RED

CN2

(WHT)

5

F3

F4

IPM PFC CB1~CB3

N.F.

LI/LO NI/NO EI,E2,E3 52C

C.B.

SW1

SW4 SW5 SW6 SW7 SW8 SW9

63H

)

31

63H

)

(YLW

71

Power Module Converter Main Smoothing Capacitor

Noise Filter Circuit Board Connection Terminal<L-Phase> Connection Terminal<N-Phase> Connection Terminal<Ground>

52C Relay

Controller Circuit Board

Switch<Forced Defrost, Defect History

Record Reset, Refrigerant Address> Switch<Test Operation> Switch<Function Switch> Switch<Model Select> Switch<Function Setup> Switch<Function Setup> Switch

LEV-A

LEV-B

MM

61

LEV-A (WHT)

LED1

LED2

13 13

21S4

(GRN)

21S4

2

X52

LEV-B (RED)

1

CN4

(WHT)

12

61

CNVMNT

(WHT)

CNM

(WHT)

3

31

CNMNT (WHT)

CN52C

(RED

221

LED1,LED2

F1~4 SWP CN31 CN51 SS CNM CNMNT

CNVMNT

CNDM

X51,X52

When M-NET adapter is connected

SW7

SW9

)

3

1

(WHT

5

)

(WHT

1

5

*1*1

51

SW5SW8SW4 SWP

SW6SW1

14

CN31

)

CNDM

CN51

X51

SS

(WHT)

LED <Operation Inspection Indicators> Fuse<T6.3AL250V> Switch<Pump Down> Connector<Emergency Operation> Connector<Connection for Option> Connector<Connection for Option> Connector<A-Control Service Inspection Kit> Connector <Connected to Optional M-NET Adapter Board> Connector <Connected to Optional M-NET Adapter Board> Connector < Connected for Option (Contact Input)> Relay

5

SW11

SW1

CN5

(WHT)

1

LED2

SW12

LED3

LED4

M-NET ADAPTER

2

CND

1

CN2M

(WHT)

31

LED1

LED5

3

ABS

TB7

M-NET

MC

MS

3~

P. B.

PFC

TABR

RED

WHT

TABS

CB1 CB2 CB3

UVW

BLK

WHT

RED

TABU

TABV

TABW

*1MODEL SELECT

MODEL

35V

50V

*2. SW5 -1 to 5 : Function Switch

The black square () indicates a switch position.

SW6

ON OFF

12345678

ON OFF

12345678

SW5-6 *2

ON OFF

123456

ON OFF

123456

RED

WHT

RED

WHT

ACL

1

CN5

2

(RED)

IPM

CN4

(WHT)

CN3

(WHT)

CN2

(WHT)

RED

1 2

1

7

BLU

L N S1 S2 S3

2

TH8

t°

5

GRN/YLW

YLW

ORN

BRN

CY1 CY2

TB1

RED

1

3

(RED)

CNAC2

1

3

(WHT)

CNAC1

WHT

LO NO

52C

UU

EI

LI

BLK

N. F.

2

1

2

(BLK)

CN52C

BLK

E3

CN5

(RED)

1

2

BLK

E2

NI

POWER SUPPLY ~/N 230V 50Hz

INDOOR UNIT

53

M-NET ADAPTER

SYMBOL

Terminal Block<M-net connection>

TB7

Connector<Transmission>

CN5

Connector<Power Supply>

CND

Connector<M-NET communication>

CN2M

Switch<Status of communication>

SW1

Switch<Address setting : 1s digit>

SW11

NAME

SYMBOL NAME SW12

Switch<Address setting : 10s digit>

LED1

LED<Power Supply : DC5V>

LED2

LED<Connection to Outdoor Unit>

LED3

LED<Transmission : Sending>

LED4

LED<Transmission : Recelving>

LED5

LED<Power Supply : DC12V>

PUHZ-RP60VHA4 PUHZ-RP71VHA4

SYMBOL NAME SYMBOL NAME SYMBOL NAME TB1 MC MF1 21S4 63H TH3, TH33 TH4 TH6 TH7 TH8 TH32 LEV-A, LEV-B ACL CY1,CY2 P.B.

TABR/S TABU/V/W IPM

Terminal Block<Power Supply, Indoor/Outdoor> Motor for Compressor Fan Motor Solenoid Valve (Four-Way Valve) High Pressure Switch

Thermistor<Outdoor Pipe>

Thermistor<Discharge> Thermistor<Outdoor 2-Phase Pipe> Thermistor<Outdoor> Thermistor<Heat Sink> Thermistor<Shell> Electronic Expansion Valve

Reactor Reactor Power Circuit Board Connection Terminal<L/N-Phase> Connection Terminal<U/V/W-Phase>

Power Module

TH7 TH6 TH3 TH4

TH33

TH32

t° t° t° t° t° t°

1

321

21

TH33

TH32

(YLW

)

(BLK

)

TRANS

F2

CNAC (WHT)

F1

21

43

MF1

MS

C. B.

CNF1

1

(WHT)

CNS

(WHT)

CNDC (PNK)

31

7

3

1

3~

TH7/6 (RED)

4121

TH3

(WHT

CN2

(WHT)

F3

F4

)

(WHT

TH4

PFC CB1~CB3

N.F.

LI/LO NI/NO EI,E2,E3 52C

C.B.

SW1

SW4 SW5 SW6 SW7 SW8 SW9 LED1,LED2

63H

)

31

63H

(YLW)

71

5

Converter Main Smoothing Capacitor Noise Filter Circuit Board Connection Terminal<L-Phase> Connection Terminal<N-Phase> Connection Terminal<Ground> 52C Relay Controller Circuit Board Switch<Forced Defrost, Defect History

Record Reset, Refrigerant Address> Switch<Test Operation> Switch<Function Switch> Switch<Model Select> Switch<Function Setup> Switch<Function Setup> Switch

LED <Operation Inspection Indicators>

LEV-A

LEV-B

MM

61

LEV-A (WHT)

LED1

LED2

13 13

21S4

(GRN)

21S4

3

61

31

LEV-B

CNVMNT

(WHT)

(RED)

1

CNM

(WHT)

CN4

(WHT)

12

2

X52

CNMNT

(WHT)

CN52C

(RED)

221

F1~4 SWP CN31 CN51 SS CNM

CNMNT

CNVMNT

CNDM

X51,X52

When M-NET adapter is connected

SW7

SW9

3

1

(WHT)

5

(WHT)

1

5

ABS

5

*1*1

51

SW5SW8SW4 SWP

SW6SW1

14

CN31

CNDM

CN51

X51

SS

(WHT)

Fuse<T6.3AL250V> Switch<Pump Down> Connector<Emergency Operation> Connector<Connection for Option> Connector<Connection for Option> Connector<A-Control Service Inspection Kit> Connector <Connected to Optional M-NET Adapter Board> Connector <Connected to Optional M-NET Adapter Board> Connector < Connected for Option (Contact Input)> Relay

5

SW11

)

SW1

CN5

(WHT

1

LED2

SW12

LED3

LED4

M-NET ADAPTER

)

2

CND

1

CN2M

(WHT

(WHT)

31

LED1

LED5

3

TB7

M-NET

MC

MS

3~

P. B.

PFC

TABR

RED

WHT

TABS

CB1 CB2 CB3

UVW

RED

WHT

BLK

TABU

TABV

TABW

*1MODEL SELECT

MODEL

60V

71V

*2. SW5 -1 to 5 : Function Switch

The black square () indicates a switch position.

SW6

ON OFF

12345678

ON OFF

12345678

SW5-6 *2

ON OFF

123456

ON OFF

123456

RED

WHT

RED

WHT

ACL

1

CN5

2

(RED)

IPM

CN4

(WHT)

CN3

(WHT)

CN2

(WHT)

RED

1 2

1

7

L N S1 S2 S3

BLU

2

TH8

t°

5

GRN/YLW

YLW

ORN

BRN

CY1 CY2

TB1

3

1

(RED)

CNAC2

1

3

(WHT)

CNAC1

RED

LO NO

LI

52C

U

WHT

N. F.

2

1

2

)

(BLK

CN52C

BLK

E3

CN5

(RED)

1

2

BLK

E2

U

EI

NI

BLK

POWER SUPPLY ~/N 230V 50Hz

INDOOR

M-NET ADAPTER

UNIT

SYMBOL

Terminal Block<M-net connection>

TB7

Connector<Transmission>

CN5

Connector<Power Supply>

CND

Connector<M-NET communication>

CN2M

Switch<Status of communication>

SW1

Switch<Address setting : 1s digit>

SW11

54

NAME

SYMBOL NAME

Switch<Address setting : 10s digit>

SW12

LED<Power Supply : DC5V>

LED1

LED<Connection to Outdoor Unit>

LED2

LED<Transmission : Sending>

LED3

LED<Transmission : Receiving>

LED4

LED<Power Supply : DC12V>

LED5

PUHZ-RP100VKA PUHZ-RP125VKA PUHZ-RP140VKA

SYMBOL NAME SYMBOL NAME SYMBOL NAME TB1 MC MF1, MF2 21S4 63H TH3, TH33 TH4 TH6 TH7 TH32

LEV-A, LEV-B, LEV-C

DCL CB CY1,CY2 P. B.

U/V/W

MF1

MF2

Terminal Block<Power Supply, Indoor/Outdoor > Motor for Compressor Fan Motor Solenoid Valve (Four-Way Valve) High Pressure Switch

Thermistor<Outdoor Pipe>

Thermistor<Discharge> Thermistor<Outdoor 2-Phase Pipe> Thermistor<Outdoor> Thermistor<Shell> Electronic Expansion Valve

Reactor Main Smoothing Capacitor Capacitor

Power Circuit Board Connection Terminal<U/V/W-Phase>

TH33

C. B.

7

CNF1

1

CNS

7

2

CNDC

(PNK)

31

(WHT)

CNF2 (WHT)

MS

3~

MS

3~

(WHT)

TH32

t° t° t° t° t° t°

3

121

21

TH33

TH32

(YLW)

(BLK)

3

TRANS

1

F2

CNAC (WHT)

F1

21

43

TH7 TH6 TH3 TH4

4121

TH7/6

TH3

TH4

(WHT)

(RED)

CN2

(WHT)

7

F3

F4

63H

(YLW)

71

LI NI P2 N2 DCL1,DCL2 IGBT EI,E2,E3,E4

C.B.

SW1

SW4 SW5 SW6 SW7 SW8 SW9

LEV-A

MM

61

LEV-A

(WHT)

31

LED2

2

21S4 (GRN)

21S4

(WHT)

Connection Terminal<L-Phase> Connection Terminal<N-Phase> Connection Terminal Connection Terminal Connection Terminal<Reactor> Power Module Connection Terminal<Ground>

Controller Circuit Board Switch<Forced Defrost, Defect History Record Reset, Refrigerant Address> Switch<Test Operation> Switch<Function Switch> Switch<Model Select> Switch<Function Setup> Switch<Function Setup> Switch

RP140 only

LEV-C

M

LEV-B

3

31

CNVMNT

(WHT)

CNMNT (WHT)

CNM

(WHT)

X51

SS

5

51

5

6

1

LEV-B (RED)

1

6

LEV-C

LED1

CN4

21

X52

13 13

(BLU)

CN52C

(RED)

331

SWP CN31 CN51 SS CNM CNMNT

CNVMNT

CNDM

LED1, LED2

F1~F4 X51,X52

*1*1

SW5SW8SW4 SWP

SW6SW1

141

CN31

Switch<Pump Down> Connector<Emergency Operation> Connector<Connection for Option> Connector<Connection for Option> Connector<A-Control Service Inspection Kit> Connector <Connected to Optional M-NET Adapter Board> Connector <Connected to Optional M-NET Adapter Board> Connector < Connected for Option (Contact Input)> LED<Operation Inspection Indicators>

Fuse<T6.3AL250V Relay

When M-NET adapter is connected

5

CN5

(WHT)

5

1

LED2

LED3

LED4

(WHT)

CNDM

CN51

(WHT)

SW7

SW9

3

1

5

1

ABS

M-NET ADAPTER

2

CN2M (WHT)

1

TB7

M-NET

LED5

>

SW1

LED1

3

SW11

SW12

CND

(WHT)

31

2

1

(WHT)

WHT

CB

RED

W

U

V

BLK

RED

WHT

V

W

U

MS

3~

CN4

1

CN2

(WHT)

MC

*1. MODEL SELECT

MODEL

100V

125V

140V

*2. SW5 -1 to 5 : Function Switch

The black square () indicates a switch position.

SW6

ON OFF

12345678

ON OFF

12345678

ON OFF

12345678

SW5-6 *2

ON OFF

123456

ON OFF

123456

ON OFF

123456

P. B.

CN52C

(RED)

1

BLK

3

52C

E4

EI

U

LINI

E3

CNAC2

(RED)

1

E2

CNAC1

(WHT)

BLK

3

BLK

1

3

7

2

DCL2

DCL

DCL1

CNDC

(PNK)

IGBT

3

1

BLK

N2

P2

M-NET ADAPTER

BLU

RED

L N S1 S2 S3

POWER SUPPLY ~/N 230V 50Hz

YLW

GRN/YLW

INDOOR UNIT

ORN

BRN

CY1 CY2

TB1

SYMBOL TB7 CN5 CND CN2M SW1 SW11 SW12 LED1 LED2 LED3 LED4 LED5

Terminal Block<M-net connection> Connector<Transmission> Connector<Power Supply> Connector<M-NET communication> Switch<Status of communication> Switch<Address setting : 1s digit> Switch<Address setting : 10s digit> LED<Power Supply : DC5V> LED<Connection to Outdoor Unit> LED<Transmission : Sending> LED<Transmission : Recelving> LED<Power Supply : DC12V>

NAME

55

PUHZ-RP100YKA PUHZ-RP125YKA PUHZ-RP140YKA

SYMBOL TB1 TB2 Terminal Block<Indoor/Outdoor > MC MF1, MF2 21S4 63H TH3, TH33 TH4 TH6 TH7 TH32 Thermistor<Shell> LEV-A,LEV-B,LEV-C ACL1~ACL4 CB1, CB2 CK RS P.B.

TB-U/V/W TB-L1/L2/L3

Terminal Block<Power Supply >

Motor for Compressor Fan Motor Solenoid Valve (Four-Way Valve) High Pressure Switch

Thermistor<Outdoor Pipe>

Thermistor<Discharge> Thermistor<Outdoor 2-Phase Pipe> Thermistor<Outdoor>

Electronic Expansion Valve

Reactor Main Smoothing Capacitor Capacitor Rush Current Protect Resistor Power Circuit Board Connection Terminal<U/V/W-Phase> Connection Terminal

C.B.

1

MF1

MS

3~

1

MF2

MS

3~

CNS

(WHT)

NAME SYMBOL NAME SYMBOL NAME

<L1/L2/L3-Power Supply

TH7 TH6 TH3 TH4

TH33

TH32

t° t° t° t° t° t°

CNF1

(WHT)

3

121

7

CNF2

(WHT)

7

3

1

2

CNDC (PNK)

1

3

21

TH33

TH32

(YLW)

(BLK)

TRANS

F2

CNAC (WHT)

12

F1

34

BLK

BLU

TH7/6 (RED)

4121

>

TH3 (WHT)

F3

F4

CN2

(WHT)

TH4

(WHT)

N.F.

CONV.B.

C.B.

TB-P2 TB-C1 TB-N1

X52A

LI1/LI2/LI3/NI LO1/LO2/LO3/NO GD1, GD3

L1-A1/IN L1-A2/OU L2-A2/OU L3-A2/OU N-IN CK-OU

SW1

SW4

Connection Terminal Connection Terminal Connection Terminal 52C Relay Noise Filter Circuit Board Connection Terminal Connection Terminal

Connection Terminal<Ground>

Converter Circuit Board Connection Terminal<L1-Power Supply> Connection Terminal<L1-Power Supply> Connection Terminal<L2-Power Supply> Connection Terminal<L3-Power Supply> Connection Terminal Connection Terminal

Controller Circuit Board Switch<Forced Defrost, Defect History Record Reset, Refrigerant Adress>

Switch<Test Operation>

63H

LEV-A LEV-B

MM

61

LEV-A (WHT)

31

LED2

63H

(YLW)

71

7

21S4

13

LEV-B (RED)

LED1

X52

21S4

(GRN)

CN4

(WHT)

<L1/L2/L3/N-Power Supply <L1/L2/L3/N-Power Supply

RP140 only

LEV-C

M

5

61

1

LEV-C

(BLU)

221

3

3151

CNVMNT

(WHT)

6

1 14

CNM

(WHT)

X51

13

SS

(WHT)

CNMNT

(WHT)

5

> >

SW5 SW6 SW7 SW8 SW9 SWP CN31 LED1,LED2 F1~F4 CNM CNMNT

CNVMNT

CNDM

CN3S CN51 X51,X52

*1*1

SW5SW8SW4 SWP

SW6SW1

CN31

Switch<Function Switch> Switch<Model Select> Switch<Function Setup> Switch<Function Setup> Switch Switch<Pump Down> Connector<Emergency Operation> LED<Operatiion Inspection Indicators> FUSE<T6.3AL250V> Connector<A-Control Service Inspection Kit> Connector <Connect to Optional M-NET Adapter Board> Connector <Connect to Optional M-NET Adapter Board> Connector < Connection for Option Connector< Connection for Option> Connector< Connection for Option> Relay

SW7

SW9

3 1

CN3S

(WHT)

3 1

(WHT)

CNDM

5

CN51

(WHT)

1

(Contact Input)

When M-NET adapter is connected

5

SW1

ABS

CN5

(WHT)

1

LED2

LED3

LED4

M-NET ADAPTER

2

CND

1

CN2M

(WHT)

31

LED1

LED5

3

TB7

M-NET

5

>

SW11

SW12

INDOOR UNIT

POWER SUPPLY 3N~ 400V 50Hz

M-NET ADAPTER

P.B.

2

TB2

YLW

S1

ORN

S2

BRN

S3

RS

N.F.

TB1

L1

L2

L3

N

TB7 Terminal Block<M-NET connection > CN5 CND CN2M SW1 SW11

Connector<Transmission> Connector<Power Supply> Connector<M-NET communication> Switch<Status of communication> Switch<Address setting: 1s digit>

RED

WHT

BLK

BLU

GRN/YLW

LI1

LI2

UU

LI3

U

NI

U

GD1

BLK

37

31

CN7

(WHT)

2

CN4

(WHT)

1

CN5

2

(RED)

1

X52A

RED

CNAC1

(WHT)

SW12 Switch<Address setting. 10s digit > LED1 LED2 LED3 LED4 LED5

71

CN2

(WHT)

+

--

+

--

+

TB-P2

RED

31

+

TB-C1

BLK

WHT

++

CB1 CB2 CK

GD3

BLK

LED<Power Supply: DC5V> LED<Connection to Outdoor Unit> LED<Transmission: Sending> LED<Transmission: Receiving> LED<Power Supply: DC12V>

TB-V

TB-L3

TB-L2

TB-L1

TB-N1

CNDC (PNK)

TB-W

TB-U

2

BLK

WHT

RED

BLK

WHT

RED

CNCT (RED)

+

BRN

MC

W

V

MS 3~

U

WHT

RED

BLK

L2-A2

L2-OU

L1-IN

100Y

125Y

140Y

L1-OU

N-IN

BLU

ACL1

ACL2

ACL3

ON OFF

L1-A2

CK-OU

BLK

SW6

12345678

SW5-6 *2

ON OFF

123456

ON OFF

123456

ON OFF

123456

L3-A2

L3-OU

3

2

CNAC2

(RED)

3121

LO1

LO2

LO3

NO

+

U

--

1331

CNL

(BLU)

WHT

CONV.B.

3

CN7

1

(WHT)

L1-A1

RED

WHT

BLK

BLU

*1. MODEL SELECT

MODEL

ACL4

*2. SW5 -1 to 5 : Function Switch

The black square () indicates a switch position.

56

PUHZ-RP200YKA PUHZ-RP250YKA

SYMBOL NAME SYMBOL NAME SYMBOL NAME TB1 TB2 Terminal Block<Indoor/Outdoor> MC MF1,MF2 21S4 63H,63H1,63H2 TH3 TH4 TH6 TH7 TH32 Thermistor<Shell> LEV-A,LEV-B ACL4 DCL CB1,CB2 RS FUSE1, FUSE2 CY1,CY2

INDOOR UNIT

Terminal Block<Power Supply>

Motor for Compressor Fan Motor Solenoid Valve (Four-Way Valve) High Pressure Switch

Thermistor<Outdoor Pipe>

Thermistor<Discharge> Thermistor<Outdoor 2-Phase Pipe> Thermistor<Outdoor>

Electronic Expansion Valve

Reactor Reactor Main Smoothing Capacitor Rush Current Protect Resistor

Fuse<T15AL250V> Capacitor

C. B.

1

CY1

CNS

(WHT)

31

CY2

BRN

ORN

CNF1

7

(WHT)

CNF2

7

(WHT)

3

1

2

CNDC (PNK)

WHT

FUSE1

WHT

YLW

MF1

MS 3~

MF2

MS 3~

TB2

S1

S2

S3

TH7TH6 TH3 TH4

TH32

t° t° t° t° t°

412121

21

TH7/6

TH3

TH32

(RED)

(WHT)

(BLK)

TRANS

CNAC (WHT)

21

43

REDRED

FUSE2

WHT

BLK

RED

SW6SW1

CN31

*1*1

>

CN3S

CNDM

CN51

V

SW7

SW9

(WHT)

W

U

SW7 SW8 SW9 SWP CN31 LED1,LED2 F3,F4 SS CNM CNMNT

CNVMNT

CNDM

CN3S CN51 X51,X52

1

3

1

3

1

5

MC

MS

3~

P. B.

SC-U/V/W TB-L1/L2/L3

N.F.

C.B.

*3. For RP200

63H

TH4

)

(WHT

CN2

(WHT)

7

1

7

F3

F4

P. B.

7

CN2

(WHT)

1

2

CN4

(WHT)

1

2

CN5

(RED)

1

X52A

BLK

RS

BLK

TB-P1

RED

DCL

Power Circuit Board Connection Terminal<U/V/W-Phase> Connection Terminal<L1/L2/L3-Power supply>

Connection Terminal

TB-P1

Connection Terminal

TB-P2

Connection Terminal

TB-C1

Connection Terminal

TB-N1

52C Relay

X52A

Noise Filter Circuit Board

LI1/ LI2/LI3/NI

Connection Terminal

LO1/ LO2/LO3

Connection Terminal Connection Terminal<Ground>

GD1,GD2

Controller Circuit Board

SW1

Switch<Forced Defrost, Defect History Record Reset, Refrigerant Address>

SW4

Switch<Test Operation>

SW5

Switch<Function Switch>

SW6

Switch<Model Select>

*3. For RP250

63H2

LEV-A

63H1

M

61 LEV-A (WHT)

31

63H

LED2

(YLW)

2

(GRN)

21S4

TB-P2

RED

CB1 CB2

LED1

X52

21S4

CN4

(WHT)

12

LEV-B

LEV-B (RED)

M

WHT

61

CNVMNT

TB-C1 TB-N1

(WHT)

35

31

51

CNMNT

(WHT)

141

CNM

(WHT)

X51

1313

(WHT)

SC-W

SC-V

SC-U

TB-L3

TB-L2

TB-L1

BLK

SW5SW8SW4

SWP

SS

BLK

WHT

RED

Switch<Function Setup>

Switch<Function Setup> Switch Switch<Pump Down> Connector<Emergency Operation> LED<Operation Inspection Indicators>

Fuse<T6.3AL250V

Connector<Connection for Option>

Connector<A-Control Service Inspection Kit>

Connector

Connector

Connector

< Connected for Option (Contact Input)>

Connector<Connection for Option>

Relay

When M-NET adapter is connected

5

SW1

CN5

ABS

(WHT)

1

LED2

LED3

LED4

M-NET ADAPTER

2 1

CN2M

(WHT)

LED5

TB7

M-NET

5

LED1

>

SW11

SW12

CND (WHT) 31

3

POWER SUPPLY 3N~ 400V 50Hz

M-NET ADAPTER

SYMBOL

TB7 CN5 CND CN2M SW1 SW11 SW12 LED1 LED2 LED3 LED4 LED5

N. F.

TB1

L1

L2

L3

Terminal Block(M-NET connection)

Connector<Transmission> Connector<Power Supply> Connector<M-NET communication> Switch<Status of communication> Switch<Address setting:1s digit>

Switch<Address setting:10s digit> LED<Power Supply:DC5V> LED<Connection to Outdoor Unit> LED<Transmission:Sending> LED<Transmission:Receiving> LED<Power Supply:DC12V>

LI 1

RED

LI 2

WHT

BLK

BLU

N

GRN/YLW

UU

LI 3

U

NI

U

BLK

NAME

CNAC1 (WHT)

2

CNCT

31

(RED)

3112

CNAC2

(RED)

LO 1

LO 2

RED

WHT

LO3

BLK

*1 MODEL SELECT

MODEL

U

31

WHT

13

CNL

(BLU)

WHT

CNDC

GD2GD1

(PNK)

BLK

2

200Y

250Y

ACL4

*2. SW5 -1 to 5 : Function Switch

The black square () indicates a switch position.

SW6

ON OFF

12345678

ON OFF

12345678

SW5-6 *2

ON OFF

123456

ON OFF

123456

57

5 REFRIGERANT SYSTEM DIAGRAM

5-1. INDOOR UNIT PLA-RP·BA/BA2/BA3 PEAD-RP·JA(L) PCA-RP·KA PCA-RP·HA PSA-RP·GA

Strainer(#50)

Heat exchanger

Refrigerant GAS pipe connection (Flare)

Thermistor TH5 (Cond./Eva. temperature)

Refrigerant LIQUID pipe connection

Distributor with strainer(#50)

Thermistor TH1 (Room temperature)

Thermistor TH2 Pipe temperature (Liquid)

(Flare)

Strainer(#50)

Refrigerant flow in cooling

Refrigerant flow in heating

PKA-RP·HAL PKA-RP·KAL

Thermistor TH5 (Cond./ Eva.temperature)

Heat exchanger

Thermistor TH1 (Room temperature)

Thermistor TH2 Pipe temperature(Liquid)

Distributor with strainer (#50/#50: HAL) (#50/#100: KAL)

Strainer (#50)

Refrigerant GAS pipe connection (Flare)

Refrigerant flow in cooling Refrigerant flow in heating

Refrigerant LIQUID pipe connection (Flare)

Strainer (#50)

58

PEA-RP200, 250GA

Heat exchanger

Condenser/evaporator temperature thermistor (TH5)

Room temperature thermistor(TH1)

Pie temperature thermistor/Liquid (TH2)

PEA-RP400GA PEA-RP500GA

Heat exchanger

Condenser/evaporator temperature thermistor (TH5-2)

Strainer

Refrigerant GAS pipe connection Brazing

Refrigerant flow in cooling Refrigerant flow in heating

Refrigerant LIQUID pipe connection Brazing

Strainer

Refrigerant GAS pipe connection Brazing

Refrigerant flow in cooling Refrigerant flow in heating

Room temperature thermistor(TH1-1)

Room temperature thermistor(TH1-2)

Pie temperature thermistor/Liquid (TH2-2)

Condenser/evaporator temperature thermistor (TH5-1)

Pie temperature thermistor/Liquid (TH2-1)

Refrigerant LIQUID pipe connection Brazing

Strainer

Refrigerant GAS pipe connection Brazing

Refrigerant LIQUID pipe connection Brazing

Strainer

59

5-2. OUTDOOR UNIT PUHZ-RP35VHA4 PUHZ-RP50VHA4

unit: mm(inch)

Refrigerant GAS pipe connection ø12.7 (1/2F)

Refrigerant LIQUID pipe connection ø6.35 (1/4F)

PUHZ-RP60VHA4 PUHZ-RP71VHA4

Refrigerant GAS pipe

connection :15.88(5/8)

Stop valve (with service port)

Strainer #50

Linear expansion valve B

Stop valve

(with service port)

Strainer #50

Charge plug

(Low pressure)

Strainer #100

Solenoid valve (Four-way valve)

Power receiver

4-way valve

Charge plug

Muffler

High pressure switch 63H

Thermistor TH4 (Discharge)

Thermistor TH32 (Shell)

Compressor

Linear expansion valve A

Charge plug

Muffler

(Higt pressure)

High pressure switch 63H

Heat exchanger

Strainer #100

Refrigerant flow in cooling Refrigerant flow in heating

Heat exchanger

Thermistor TH7 (Outdoor)

Thermistor TH6 (Outdoor 2-phase pipe)

Thermistor TH3 (Outdoor pipe)

Distributor

Thermistor TH33 (Outdoor pipe)

Thermistor TH7 (Outdoor)

Thermistor TH6 (Outdoor 2-phase pipe)

Thermistor TH3 (Outdoor pipe)

Distributor

Refrigerant LIQUID pipe

connection :9.52(3/8)

Linear expansion valve B

Stop valve (with service port)

Strainer #100

Power receiver

Strainer #100

Linear expansion valve A

Compressor

60

Thermistor TH4 (Discharge)

Thermistor TH32 (Shell)

Strainer #100

Thermistor TH33 (Outdoor pipe)

PUHZ-RP100VKA PUHZ-RP125VKA PUHZ-RP100YKA PUHZ-RP125YKA

Refrigerant GAS pipe connection ø15.88 (5/8)

Ball valve

Strainer #50

Charge plug

(Low pressure)

Strainer #100

4-way valve

Strainer #100

Muffler

Charge plug (Higt pressure)

High pressure switch 63H

Thermistor TH4 (Discharge)

Thermistor TH32 (Shell)

Heat exchanger

unit: mm(inch)

Thermistor TH7 (Outdoor)

Thermistor TH6 (Outdoor 2-phase pipe)

Thermistor TH3 (Outdoor pipe)

Distributor

Thermistor TH33 (Outdoor pipe)

Linear expansion valve B

Stop valve (with service port)

Power receiver

Refrigerant LIQUID pipe

connection ø9.52 (3/8)

Strainer #100

PUHZ-RP140VKA PUHZ-RP140YKA

Ball valve

Refrigerant GAS pipe

connection :15.88(5/8)

Strainer #50

Charge plug

(Low pressure)

Strainer #100

Compressor

Linear expansion valve A

4-way valve

Muffler

Strainer #100

Charge plug (Higt pressure)

High pressure switch 63H

Thermistor TH4 (Discharge)

Thermistor TH32 (Shell)

Refrigerant flow in cooling

Refrigerant flow in heating

Heat exchanger

Thermistor TH7 (Outdoor)

Thermistor TH6 (Outdoor 2-phase pipe)

Thermistor TH3 (Outdoor pipe)

Distributor

Refrigerant LIQUID pipe connection :9.52(3/8)

Stop valve (with service port)

Strainer #100

Linear expansion valve B

Heat interchange circuit

Linear expansion valve C

Power receiver

61

Strainer #100

Compressor

Linear expansion valve A

Strainer

#100

Thermistor TH33 (Outdoor pipe)

PUHZ-RP200YKA

Heat exchanger

unit: mm(inch)

Thermistor TH7 (Outdoor)

Refrigerant GAS pipe

connection :25.4(1)

Stop valve (with service port)

Refrigerant LIQUID pipe

connection :9.52(3/8)

PUHZ-RP250YKA

Ball valve

Linear expansion valve B

Strainer #50

Charge plug (Low pressure)

Strainer #100

Power receiver

4-way valve

Strainer #100

Charge plug

Muffler

Compressor

Linear expansion valve A

(Higt pressure)

High pressure switch 63H

Thermistor TH4 (Discharge)

Thermistor TH32 (Shell)

Strainer

#100

Thermistor TH6 (Outdoor 2-phase pipe)

Thermistor TH3 (Outdoor pipe)

Refrigerant flow in cooling

Refrigerant flow in heating

Distributor

Refrigerant GAS pipe

:25.4 (1)

Refrigerant LIQUID pipe :12.7 (1/2)

High pressure

Ball valve

Stop valve (with service port)

switch(63H2)

Linear expansion valve B

Strainer (#50)

Service port (check)

Strainer (#100)

Power receiver

4-way valve

Thermistor (TH32) (Shell)

Strainer (#100)

Service port

Muffler

Compressor

Linear expansion valve A

(check)

High pressure switch (63H1)

Heat exchanger

Thermistor (TH4) (Discharge)

Strainer (#100)

Thermistor (TH7)

Thermistor (TH6)

Thermistor (TH3)

Distributor

62

PERFORMANCE CURVES6

FOR THE COMBINATION OF OUTDOOR UNIT

Cooling capacity

1.4

Indoor intake air wet-bulb temperature <W.B. :>

1.2

1.0

0.8

Cooling capacity ratio

0.6

-5 0 5 10 15 20 25 30 35 40 46

Cooling input

1.2

1.0

Outdoor intake air dry-bulb temperature <D.B. >

22

20

18

16

20

18 16

0.8

0.6

Cooling input ratio

Indoor intake air wet-bulb temperature <W.B. :>

0.4

-5 0 5 10 15 20 25 30 35 40 46

Outdoor intake air dry-bulb temperature <D.B. >

Note : These diagrams show the case where the operation frequency of a compressor is fixed.

63

Heating capacity

Indoor intake air dry-bulb temperature <D.B. :>

Heating input

Outdoor intake air wet-bulb temperature <W.B. :>

Indoor intake air dry-bulb temperature <D.B. :>

Outdoor intake air wet-bulb temperature <W.B. :>

Note : These diagrams show the case where the operation frequency of a compressor is fixed.

64

7

CORRECTION FACTORS

7-1. PUHZ-RP·VHA4 PUHZ-RP·VKA PUHZ-RP100-140YKA

Cooling capacity correction factors

Outdoor unit

PUHZ-RP35VHA4 1.00 0.992 0.976 0.962 0.949 0.936 0.930 — — —

PUHZ-RP50VHA4 1.00 0.985 0.957 0.931 0.908 0.886 0.876 — — —

PUHZ-RP60VHA4 1.00 0.992 0.976 0.962 0.949 0.936 0.930 — — —

PUHZ-RP71VHA4 1.00 0.988 0.966 0.946 0.929 0.913 0.905 — — —

5m 10m 20m 30m 40m 50m 55m 60m 70m 80m

Refrigerant piping length (one way)

PUHZ-RP100VKA PUHZ-RP100YKA

PUHZ-RP125VKA PUHZ-RP125YKA

PUHZ-RP140VKA PUHZ-RP140YKA

Heating capacity correction factors

Outdoor unit

PUHZ-RP35VHA4 1.00 0.997 0.991 0.985 0.979 0.973 0.970 — — —

PUHZ-RP50VHA4 1.00 0.997 0.991 0.985 0.979 0.973 0.970 — — —

PUHZ-RP60VHA4 1.00 0.997 0.991 0.985 0.979 0.973 0.970 — — —

PUHZ-RP71VHA4 1.00 0.997 0.991 0.985 0.979 0.973 0.970 — — — PUHZ-RP100VKA

PUHZ-RP100YKA PUHZ-RP125VKA

PUHZ-RP125YKA PUHZ-RP140VKA

PUHZ-RP140YKA

1.00 0.985 0.957 0.931 0.908 0.886 0.876 0.865 0.846 0.829

1.00 0.981 0.946 0.914 0.885 0.858 0.845 0.834 0.812 0.792

1.00 0.976 0.931 0.893 0.858 0.827 0.813 0.800 0.775 0.753

Refrigerant piping length (one way)

5m 10m 20m 30m 40m 50m 55m 60m 70m 80m

1.00 0.997 0.991 0.985 0.979 0.973 0.970 0.967 0.961 0.955

7-2. PUHZ-RP200, 250YKA

Cooling capacity correction factors

Outdoor unit

PUHZ-RP200YKA 1.00 0.985 0.958 0.931 0.908 0.887 0.876 0.865 PUHZ-RP250YKA 1.00 0.981 0.946 0.914 0.885 0.858 0.845 0.834

Outdoor unit

PUHZ-RP200YKA 0.847 0.838 0.829 0.815 0.800 0.790 0.780 0.778 PUHZ-RP250YKA 0.812 0.802 0.792 0.772 0.758 0.743 0.730 0.725

Heating capacity correction factors

Outdoor unit

PUHZ-RP200YKA PUHZ-RP250YKA

Outdoor unit

PUHZ-RP200YKA PUHZ-RP250YKA

5m 10m 20m 30m 40m 50m 55m 60m

70m 75m 80m 90m 100m 110m 120m 125m

5m 10m 20m 30m 40m 50m 55m 60m

1.00 0.997 0.991 0.985 0.979 0.973 0.970 0.967

70m 75m 80m 90m 100m 110m 120m 125m

0.961 0.958 0.955 0.949 0.943 0.937 0.931 0.928

Refrigerant piping length (one way)

65

APPLICABLE EXTENSION PIPE FOR EACH MODEL8

.

8-1. PUHZ-RP·VHA4 PUHZ-RP·VKA PUHZ-RP100-140YKA

8-1-1. PIPE LENGTH (1) 1:1 SYSTEM

Pipe length

<Table 1> Maximum pipe length

Liquid

pipe

(mm)

Gas

pipe

(mm)

RP35•50

RP60•71

OD

Thickness

OD

Thickness

:9.52

30m +1

[30m]

t0.8

:6.35

t0.8

:12.7

:15.88

t0.8

Standard size

+2

50m

[30m]

10m

[10m]

t1.0

30m

[30m]

10m

[10m]

:12.7

[20m]

[30m]

RP100~140

+1. RP50 : maximum pipe length is 10m. +2. Change the SW8-1 on the outdoor controller circuit board from OFF to ON. +3. The maximum length is 75m in case of new pipes.

(2) TWIN AND TRIPLE SYSTEM

(a) TWIN SYSTEM (b) TRIPLE SYSTEM

<Table 2> Maximum pipe length

Main pipe

(mm)

Branch

(mm)

[B, C]

+ The maximum length is 75m in case of new pipes.

[A]

pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

:6.35

:12.7

:9.52

:15.88

:12.7

:19.05

:6.35

12.7

:

:9.52

15.88

:

Standard size

50m

[30m]

50m

[30m]

:9.52

15.88

:

50m +

[30m]

50m

[30m]

t0.8

30m

RP100(RP50%2)RP71(RP35%2)

:9.52

t0.8

:15.88

t1.0

+2

30m

[20m]

Standard size

50m

[30m]

Standard size

50m +3

[30m]

:9.52

:12.7

19.05

:

50m

[30m]

[20m]

50m

[30m]

[20m]

:19.05

t1.0

:15.88

t1.0

30m

[20m]

50m

[30m]

19.05

50m

[20m]

RP125(RP60%2) • RP140(RP71%2)

:9.52

15.88

:

Standard size

50m +

[30m]

:12.7

:9.52

19.05

:

50m

[30m]

t0.8

:19.05

t1.0

50m

[20m]

:12.7

:

50m

[20m]

19.05

: It can be used. : Cooling capacity is lowered. : Additional refrigerant charge is required when the pipe length exceeds 20m.

50m

[30m]

The maximum pipe length Charge-less pipe length

<Table 3> Maximum pipe length

Main pipe

Branch

[B, C, D]

+ The maximum length is 75m in case of new pipes

(mm)

[A]

pipe

(mm)

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

ø6.35

ø12.7

ø9.52

ø15.88

ø12.7

ø19.05

RP140(RP50%3)

ø

9.52

ø

ø15.88

ø19.05

Standard size

50m +

50m

[30m]

50m

[30m]

9.52

ø

12.7

ø19.05

50m

[20m]

50m

[20m]

Indoor unit

h

H

Distribution pipe

Indoor unit side

B

Indoor unit

C

Outdoor unit side

A

<TWIN SYSTEM> Total length A + B + C RP71 : 50 m RP100-140: 75 m

Outdoor unit

Indoor unit

h

H

Distribution pipe

Indoor unit side

B

Indoor unit

C D

Indoor unit

Outdoor unit side

A

<TRIPLE SYSTEM> Total length A + B + C + D RP140: 75 m

Outdoor unit

66

8-1-2. ADJUSTING THE AMOUNT OF REFRIGERANT

• Check additional refrigerant charging amount referring to table 5, 6 when liquid pipe is 1 size larger than standard diameter.

<Table 5> Required additional charge when the pipe size is 1 size larger than the standard diameter (1:1 SYSTEM)

Outdoor unit

PUHZ-RP35,50

PUHZ-RP60,71

PUHZ-RP100~140

Liquid pipe O.D.

:9.52 :12.7 :12.7

<Table 6> Required additional charge when the pipe size is 1 size larger than the standard diameter (TWIN/TRIPLE SYSTEM)

Outdoor unit

PUHZ-RP71~140

If the calculation produces a negative number ( W  0), additional charging is not necessary. L1:

:12.7 liquid pipe length (m)

L2: :9.52 liquid pipe length (m) L3: :6.35 liquid pipe length (m)

When the extension pipe length (main piping + branch piping) exceeds 20 m

Additional refrigerant amount W(g) = (100 % L1) + (60 % L2) + (30 % L3) - 2000

<Table 7> Additional refrigerant charging amount for pipe of standard diameter

PUHZ-RP35,50

1 : 1

PUHZ-RP71

system

PUHZ-RP100~140

Outdoor unitType

Permitted

pipe length

50m or less

75m or less

Amount of unit

filling refrigerant (kg)

2.5kg

3.5kg

5.0kg

Refrigerant amount to be added

60 g per 1 m

100 g per 1 m

Additional refrigerant charging amount

for pipe length exceeding 30 m (kg)

31 – 40m

0.2kg

0.6kg

41 – 50m

0.4kg

1.2kg

51 – 60m

1.8kg

61 – 70m 71 – 75m

2.4kg

Type

Twin Triple

system

Outdoor unit

PUHZ-RP71

PUHZ-RP100~140

Permitted

pipe length

50m or less

75m or less

Amount of unit

filling refrigerant (kg)

3.5kg

5.0kg

31 – 40m

0.6kg

Additional refrigerant charging amount

for pipe length exceeding 30 m (kg)

41 – 50m

51 – 60m

61– 70m 71 – 75m

1.2kg

1.8kg

2.4kg

67

8-1-3. CAPACITY CORRECTION CURVES

Cooling and heating capacity is lowered according to pipe length. Capacity can be obtained by referring to the capacity curves below. When the diameter of gas pipe is 1 size smaller than standard diameter, cooling capacity is lowered comparing to the standard diameter. The lowered capacity can be obtained by referring to capacity curves for gas pipe which is 1 size smaller than standard size. Corrected pipe length (m) = actual pipe length (m) + number of bends x 0.3 (m)

[Sample calculation] Indoor unit RP60 o 2 units (Twin system) Outdoor unit RP125 o 1

■ Condition Using existing pipes.

• Outdoor unit side Liquid pipe [12.7 / Gas pipe [19.05 pipe length (A) 20m

• Indoor unit side Liquid pipe [9.52 / Gas pipe [15.88 pipe length (B) 20m + (C) 15m

1) Farthest piping length 20m + 15m = 35m Number of bends : 10

2) Corrected piping length 35m + 0.3 o 10 = 38m

3) Capacity correction Outdoor unit side’s gas pipe [19.05 Standard [15.88 → 1 size up Refer to 1 Capacity curves <Standard size>

4) Capacity Cooling capacity = Standard cooling capacity o 0.89 Heating capacity = Standard heating capacity o 0.98

1 Capacity curves for PUHZ-RP · HA2 model <Standard size>

100

95

Cooling RP35, 60 models

90

85

80

Capacity ratio [%]

75

Note: The permitted pipe length is up to 55m for RP35, 50, 60, 71 model. The permitted pipe length is up to 80m for RP100 ~ 140 model.

70

5 101520253035404550556065707580

Cooling RP71 model

Corrected pipe length [m]

Cooling

Heating

Heating RP35, 50, 60, 71, 100, 125 and 140 models (Up to 55m for RP35, 50, 60, 71 models)

Cooling RP50, 100 models

Cooling RP125 model

Cooling RP140 model

68

2 Capacity curve for PUHZ-RP35, 50 models <When gas pipe is 1 size smaller than standard size>

100

95

90

Cooling

Heating

Heating RP35, RP50 (:9.52)

Capacity ratio [%]

85

80

5 101520253035

Cooling RP50

(:9.52)

Corrected pipe length [m]

3 Capacity curve for PUHZ-RP60, 71 models <When gas pipe is 1 size smaller than standard size>

100

95

Cooling RP35 (:9.52)

Heating RP60, RP71 (:12.7)

90

Capacity ratio [%]

85

80

5 101520253035

Cooling RP60,RP71 (:12.7)

Corrected pipe length [m]

4 When gas pipe is one size larger than standard size for PUHZ-RP100, 125 and 140.

1 Capacity can be obtained by referring to capacity curves of standard size.

69

8-2. PUHZ-RP200·250YKA

8-2-1. 1:1 SYSTEM (1) Pipe length

<Table 1> Maximum pipe length (RP200·RP250)

pipe

Gas pipe

RP200

O.D.

Thick-

ness

O.D.

Thick-

ness

:19.05

t1.0

20m

Liquid

(mm)

[20m]

RP250

20m

[20m]

Note : Be sure to use hard (tempered) one for pipe over :22.2(RP200)/:19.05(RP250).

: It can be used. : Cooling capacity is lowered. : Additional refrigerant charge is required when the pipe length exceeds 20m.

120m [30m]

The maximum pipe length Charge-less pipe length

:22.2

t1.0

50m

[30m]

50m

[30m]

:9.52

t0.8

:25.4

t1.0

Standard size

120m

[30m]

120m

[30m]

:28.58

t1.0

120m

[30m]

120m

[30m]

:19.05

t1.0

20m

[20m]

20m

[20m]

:22.2

t1.0

50m

[30m]

50m

[30m]

:12.7

t0.8

:25.4

t1.0

120m

[30m]

Standard size

120m

[30m]

:28.58

t1.0

120m

[30m]

120m

[30m]

:22.2

t1.0

50m

[20m]

50m

[20m]

:25.4

t1.0

50m

[20m]

50m

[20m]

:15.88

t1.0

:28.58

t1.0

50m

[20m]

50m

[20m]

:31.75

t1.1

50m

[20m]

50m

[20m]

(2) Adjusting the amount of refrigerant

Check additional refrigerant charging amount referring to table 7 when the liquid pipe diameter is 1 size larger than the standard size, and table 2 when the pipe of the standard diameter is used.

Outdoor unit

RP200

RP250

When length exceeds 70 m

When the total length of the piping exceeds 70 m, calculate the amount of additional charge based on the following requirements. Note: If the calculation produces a negative number (i.e. a “minus” charge), of if calculation results in an amount that is less than the “Additional charage amount for 70 m”, perform the additional charge using the amount shown in “Additional charge amount for 70 m”.

Amount of additional charge

Additional charge amount for 70 meters

permitted pipe length

120m or less

=

(kg)

RP200 3.6 kg RP250 4.8 kg

Initial charge

(kg)

7.1

7.7

Main piping: Liquid line size ø12.7 overall length ×

0.11

(m) × 0.11 (kg/m)

Amount of additional refrigerant charge (kg)

30 m and less 31-40 m and less 41-50 m and less 51-60 m and less 61-70 m and less

No additional

charge necessary

Main piping: Liquid line size ø9.52 overall length ×

+++–

0.09 (Gas line: ø25.4)

(m) × 0.09 (kg/m)

0.9 kg 1.8 kg 2.7 kg 3.6 kg

1.2 kg 2.4 kg 3.6 kg 4.8 kg

Branch piping: Liquid line size ø9.52 overall length ×

0.06 (Gas line: ø15.88)

(m) × 0.06 (kg/m)

Branch piping: Liquid line size ø6.35 overall length ×

0.02

(m) × 0.02 (kg/m)

71-120 m and less

The additional charge amount is obtained by the following formula.

3.6 (kg)

•If the wiring connecting the indoor and outdoor units is longer than 80m, use separate indoor /outdoor unit power supplies.

70

(3) Capacity correction

Cooling and heating capacity is lowered according to the piping length. Capacity can be obtained by referring to the following capacity curves. When the diameter of the gas pipe is smaller than the standard size, cooling capacity is lowered comparing to the operation using the standard diameter pipe. The lowered capacity can be obtained by referring to the capacity curves for gas pipe which is 1 or 2 size smaller than standard size. Corrected pipe length (m) = actual pipe length (m) + number of bends o 0.3 (m)

1. Capacity curves 1 <Standard size>

Cooling

100

95

90

85

80

Capacity ratio [%]

75

70

5 101520253035404550556065707580859095100105110115 125120

Corrected pipe length [m]

Heating

RP200,250

RP200

RP250

2. Capacity curves 2 <When the gas pipe's diameter is 1-size-smaller than the standard size>

100

95

90

85

80

Capacity ratio [%]

75

70

7.510 152025303540455055

Corrected pipe length [m]

Cooling Heating

RP200, 250(:22.2)

RP200(:22.2)

RP250(:22.2)

3. Capacity curves 3 <When the gas pipe's diameter is 2-size-smaller than the standard size>

Cooling

100

95

Heating

RP200, 250(:19.05)

90

85

80

Capacity ratio [%]

75

70

7.5

10 15 20 25

w RP250 Use 1/2H or H pipes if the diameter is 19.05.

RP200(:19.05)

RP250(:19.05)

Corrected pipe length [m]

71

2. TWIN, TRIPLE AND QUADRUPLE SYSTEM

(1) Twin

Maximum pipe length (Main pipe [A] + Branch pipe diameter [ B and C ])

Main pipe

(mm)[A]

Branch

pipe [mm] [B, C]

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

:9.52

:15.88

:9.52

:19.05

:12.7

:19.05

• Be sure to use hard (tempered) one for pipe over :22.2(RP200)/:19.05(RP250).

(2) Triple

Maximum pipe length (Main pipe [A] + Branch pipe [ B, C and D ])

Main pipe

(mm)[A]

Branch

pipe [mm]

[B, C, D]

• Be sure to use hard (tempered) one for pipe over :22.2(RP200)/:19.05(RP250).

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

:9.52

:15.88

:9.52

:19.05

:12.7

:19.05

:9.52

:19.05 :22.2 :25.4 :28.58 :19.05 :22.2 :25.4 :28.58 :22.2 :25.4 :28.58 :31.75 :19.05 :22.2 :25.4 :28.58 :19.05 :22.2 :25.4 :28.58 :22.2 :25.4 :28.58 :31.75

20m

[20m]

20m

[20m]

20m

[20m]

:19.05 :22.2 :25.4 :28.58 :19.05 :22.2 :25.4 :28.58 :22.2 :25.4 :28.58 :31.75 :19.05 :22.2 :25.4 :28.58 :19.05 :22.2 :25.4 :28.58 :22.2 :25.4 :28.58 :31.75

20m

[20m]

20m

[20m]

20m

[20m]

50m

[30m]

50m

[30m]

50m

[30m]

50m

[30m]

50m

[30m]

50m

[30m]

:9.52

Standard

size 120m [30m]

120m [30m]

Standard

size 120m [30m]

120m [30m]

120m

[30m]

120m

[30m]

120m

[30m]

120m [30m]

:12.7 :15.88 :9.52 :12.7 :15.88

20m

[20m]

20m

[20m]

20m

[20m]

20m

[20m]

20m

[20m]

20m

[20m]

50m

[30m]

50m

[30m]

50m

[30m]

50m

[30m]

50m

[30m]

50m

[30m]

120m

120m [30m]

:12.7 :15.88 :9.52 :12.7 :15.88

120m [30m]

[30m]

120m [30m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

20m

[20m]

20m

[20m]

20m

[20m]

20m

[20m]

20m

[20m]

20m

[20m]

50m

[30m]

50m

[30m]

50m

[30m]

50m

[30m]

50m

[30m]

50m

[30m]

120m [30m]

120m

[30m]

120m [30m]

120m

[30m]

120m

[30m]

120m [30m]

20m

[20m]

20m

[20m]

20m

[20m]

20m

[20m]

20m

[20m]

20m

[20m]

RP250 twin (RP1252)RP200 twin (RP1002)

Standard

size

50m

120m

[30m]

120m

50m

[30m]

50m

120m

[30m]

RP250 triple (RP713)RP200 triple (RP603)

Standard

size

50m

120m

[30m]

120m

50m

[30m]

50m

120m

[30m]

120m

[30m]

120m [30m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

(3) Quadruple

Maximum pipe length (Main pipe [A] + Branch pipe [ B, C, D and E ])

Main pipe

(mm)[A]

Branch

pipe

[mm]

[B, C, D, E]

• Be sure to use hard (tempered) one for pipe over :22.2(RP200)/:19.05(RP250).

<

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Liquid pipe

Gas pipe

Marks in the table above

120m

[30m]

:19.05 :22.2 :25.4 :28.58 :19.05 :22.2 :25.4 :28.58 :22.2 :25.4 :28.58 :31.75 :19.05 :22.2 :25.4 :28.58 :19.05 :22.2 :25.4 :28.58 :22.2 :25.4 :28.58 :31.75

:6.35

20m

:12.7

[20m]

:9.52

20m

:15.88

[20m]

:9.52

20m

[20m]

:19.05

:12.7

:19.05

>

: It can be used. : Cooling capacity is lowered. Refer to <Table6>. : Additional refrigerant charge is required when the pipe length exceeds 20m. Refer to <Table7>.

The maximum pipe length Charge-less pipe length

50m

[30m]

50m

[30m]

50m

[30m]

:9.52

Standard

size 120m [30m]

120m

[30m]

120m

[30m]

120m [30m]

:12.7 :15.88 :9.52 :12.7 :15.88

20m

[20m]

20m

[20m]

20m

[20m]

50m

[30m]

50m

[30m]

50m

[30m]

120m [30m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

20m

[20m]

20m

[20m]

20m

[20m]

50m

[30m]

50m

[30m]

50m

[30m]

120m [30m]

120m

[30m]

120m

[30m]

120m [30m]

RP250 quadruple (RP604)RP200 quadruple (RP504)

20m

[20m]

20m

[20m]

20m

[20m]

50m

[30m]

50m

[30m]

50m

[30m]

Standard

size 120m [30m]

120m [30m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

50m

[20m]

72

Pipe diameter and thickness

OD

:6.35

(mm)

Thickness

(mm)

Be sure to use hard (tempered) one for pipe over :19.05(RP250)/:22.2(RP200).(Do not use soft (annealed) one.)

:9.52 :12.7 :

0.8

0.8 0.8 1.0 1.0 1.0 1.0 1.0

15.88:19.05

:22.2 :25.4 :

28.58

:

31.75

1.1



 Indoor unit 

Outdoor unit



Main piping



Branch piping



Multi distribution pipe (option)

Height difference (Indoor unit-

1

Outdoor unit) Max. 30 m

Height difference (Indoor unit-

2

Indoor unit) Max. 1 m

3

Distance between indoor and indoor units pipe length.

B—C B—D B—E C—D C—E D—E

Number of pipe bends

4

Within 15 points 8 points between main pipe A and each branch pipe (B, C, D, E).

Max. 8m







E



BC

2



D

1







A

<Table 6> Lowered cooling capacity by the smaller gas pipe diameter

Pipe length

5m and less

6~10m 11~ 20m 21~30m 31~40m 41~50m

Cooling capacity ratio

gas pipe :22.2 gas pipe :19.05

100%

100~95%

95~88% 88~83% 83~79% 79~75%

100%

100~88%

88~77%

<Table 7> Additional refrigerant amount when the liquid pipe of the larger diameter is used. (Single /Simultaneous Twin / Simultaneous Triple / Simultaneous Quadruple)

When the extension pipe length (main piping + branch piping) exceeds 20mCapacity

RP200, RP250

Additional refrigerant amount W(g)=(180%L1)+(120%L2) (90%L3)+(30%L4)-3000

L1 : :15.88 liquid pipe (m) L2 : :12.7 liquid pipe (m) L

3 : :9.52 liquid pipe (m) L4 : :6.35 liquid pipe (m)

If the calculation produces a negative number (i.e. a "minus" charge), additional charging is not necessary. ( W  0)

Permissible total A+B or A+C Charge-less

Outdoor unit piping length or piping length

A+B+C+D+E A+D or A+E A+B+C+D+E

RP200

PR250

120 m and less 100 m and less 30 m and less

Outdoor unit

RP200

RP250

B-C or B-D or

B-E

or C-D or

C-E or D-E

8 m and less Within 15

Number of pipe bends

73

Outdoor unit

RP200 RP250 7.7 1.2 kg 2.4 kg 3.6 kg 3.6 kg

Permitted

pipe length

120m or less

At time of

shipping (kg)

7.1

Amount of additional refrigerant charge (kg)

30 m and less 31-40 m and less 41-50 m and less 51-60 m and less 61-70 m and less 71-120 m and less

No additional

charge necessary

0.9 kg 1.8 kg 2.7 kg 3.6 kg

A+B+C+D

The additional charge amount is obtained by the following formula.

When length exceeds 70 m

When the total length of the piping exceeds 70 m, calculate the amount of additional charge based on the following requirements. Note: If the calculation produces a negative number (i.e. a “minus” charge), or if calculation results in an amount that is less than the “Additional charge amount for 70 m,” perform the additional charge using the amount shown in “Additional charge amount for 70 m.”

Main piping: Amount of additional charge

Additional charge amount for 70 m

Liquid line size

:12.7 overall length

0.11

3.6 kg

RP200 RP250 4.8 kg

Main piping: Liquid line size

+++

:9.52 overall length

0.09 (Gas line::28.58)

Branch piping: Liquid line size :9.52 overall length

0.06 (Gas line: :15.88)

Branch piping: Liquid line size :6.35 overall length

0.02 (Gas line: :15.88)

–=

3.6 (kg)

1. Perform refrigerant piping connections for the indoor / outdoor unit while the outdoor unit's stop valve is completely closed (Initial setting), and then vacuumize the refrigerant lines through the service port of the outdoor unit.

2. Open the stop valves of the outdoor unit completely. This will completely connects the refrigerant circuits of the indoor and outdoor units. Stop valve opening method is shown on the outdoor unit’s installation manual. Note :

· Apply refrigerating machine oil over the flare seat surface. Do not apply to the threaded portion. (It will cause the flare nut to loosen.)

· Use 2 wrenches to tighten piping connection.

· Use leak detector or soapy water to check for gas leaks after connections are completed.

· For the insulation of the connection at the indoor side, make sure to use the attached insulation materials and thoroughly follow the instruction shown in the manual.

· Always use a non-oxidizing brazing material when brazing the pipes.

Adjusting the amount of refrigerant

Check additional refrigerant charging amount referring to the procedure 2 below when the liquid pipe diameter of the main piping A is larger than the standard size. 1 When the standard diameter pipe is used for the main piping A, calculate the additional refrigerant amount by referring to <Table 2> as well as the 1:1 system. 2 When the liquid pipe diameter of the main piping A is one size larger than the standard size:

· When the extension pipe length (main piping + branch piping) does not exceed 20m, adjustment of the refrigerant is not necessary (charge-less).

· When the extension pipe length (main piping + branch piping) exceeds 20m, charge the amount of refrigerant that is obtained by the formula shown in <Table 7>. If the calculation produces a negative number (i.e. a "minus" charge), additional charging is not necessary. Note: Apply 0 to L

1, L2, L3 and L4 which correspond to the liquid pipe size that are not used.

Correcting the capacity value

When calculating the lowered capacity by the extension pipe length, use the longest length between the indoor and the outdoor units.

74

9

AIR FLOW DATA

9-1. OUTLET AIR SPEED AND COVERAGE RANGE

PLA-RP35BA PLA-RP50BA PLA-RP60BA

Airﬂ ow m3/min. 15 18 18 21 30 31 32 Air speed m/sec. 2.6 3.2 3.2 3.7 5.3 5.4 5.6 Coverage range m 4.1 4.8 4.8 5.6 8.0 8.2 8.5

PLA-RP71BA PLA-RP71BA2

PLA-RP100BA PLA-RP100BA3

PLA-RP125BA PLA-RP125BA2

PLA-RP140BA2

PCA-RP50KA PCA-RP60KA PCA-RP71KA

Airﬂ ow m3/min. 15 19 20 28 29 32 Air speed m/sec. 3.3 3.1 3.2 3.6 3.7 4.1 Coverage range m 9.0 9.6 10.1 12.5 12.9 14.2

PCA-RP71HA PCA-RP125HA

Airﬂ ow m Air speed m/sec. 2.9 4.2 Coverage range m 7.9 13.2

Airﬂ ow m Air speed m/sec. 6.1 6.1 Coverage range m(ft) 10.8(35.4) 10.8(35.4)

Airﬂ ow m Air speed m/sec. 6.0 6.0 6.8 Coverage range m(ft) 14.3(46.9) 14.3(46.9) 16.1(52.8)

3

/min. 19 38

PKA-RP35HAL PKA-RP50HAL

3

/min. 12 12

PKA-RP60KAL PKA-RP71KAL PKA-RP100KAL

3

/min. 22 22 26

PCA-RP100KA PCA-RP125KA PCA-RP140KA

PSA-RP71GA PSA-RP100GA PSA-RP125GA PSA-RP140GA

Airﬂ ow m Air speed m/sec. 2.6 4.5 4.8 4.9 Coverage range m 8.3 14.3 15.2 16.1

w The air coverage range is the distance to which the 0.25m/sec air can reach, when air is blown out horizontally from the unit at the High notch position. The coverage range should be used only as a general guideline since it varies according to the size of the room and the furniture inside the room.

3

/min. 18 31 33 35

75

9-2. PLA-RP·BA/BA2/BA3

9-2-1 FRESH AIR INTAKE AND BRANCH DUCT

1.

Branch duct hole and fresh air intake hole (Fig. 1)

At the time of i nstallation, use the duct holes ( cut out) located at the positions shown in Fig.1, as and when required.

• A fresh air intake hole for the optional multi function casement can also be made.

Note: The figure marked with * in the drawing represent the dimensions of the main unit excluding those of the optional multi function casement. When installing the optional multi function casement, add 135 mm to the dimensions marked on the figure. When installing the branch ducts, be sure to insulate adequately. Otherwise condensation and dripping may occur.

Unit:mm

Fresh air intake hole



Refrigerant pipe

Indoor unit

Branch duct hole



Drain pipe

Branch duct hole diagram (view from either side)

:175 burring hole pitch

70

90

Fig. 1

3-:2.8 burring hole

100 100 90

350

Fresh air intake hole diagram

120

*158

100

14-:2.8 burring hole

:150 cut out hole

:125 burring hole pitch

120

:100 cut out hole

Ceiling

130

*155

*167

76

3. Fresh air intake volume & static pressure characteristics

PLA-RP35~71BA(2)

 At using multi-function casement, standard filter

50

0

-50

2 - inlet

-100

Static pressure[Pa]

-150

1 - inlet

-200 01234 56

Airflow rate [m3/min]

 Direct intake to unit

50

0

-50

-100

Static pressure[Pa]

-150

-200 01234 56

Airflow rate [m

3

/min]

PLA-RP100BA(3), PLA-RP125,140BA(2)

 At using multi-function casement, standard filter

50

0

-50

2 - inlet

-100

Static pressure[Pa]

-150

1 - inlet

-200 02468

 Direct intake to unit

50

Airflow rate [m3/min]

 At using multi-function casement, high efficiency filter

50

0

-50

-100

Static pressure[Pa]

-150

-200 01234 56

Airflow rate [m

3

/min]

1 - inlet

2 - inlet

 At using multi-function casement, high efficiency filter

50

0

-50

-100

Static pressure[Pa]

-150

-200 02468

Airflow rate [m

3

/min]

77

0

-50

-100

Static pressure[Pa]

-150

-200 02468

1 - inlet

Airflow rate [m

3

/min]

2 - inlet

4. Change of outlet numbers

The optional air outlet is necessary. To change the air outlet number to 3-, or 2-way outlet, the outlet number should be closed with the operational air outlet shutter.

When the air outlets are closed, close the vane by removing the vane connector.

Indoor unit

Button

Vane motor

Up/down vanes

Connector

Vane motor

Connector

Button

5. Branch duct and change of outlet numbers

<4- way air flow and branch duct>

Branch duct

Air intake

+ Branch duct should be connected to one of the branch duct holes on the main unit.

Air outlet

Outlet concave portion

Air outlet shutter plate (Option)

<3- way air flow and branch duct>

Branch duct

Air outlet closed position

<2- way air flow and branch duct>

Branch duct

Air

outlet

closed

position

Air intake

+ Close the outlet on the side of branch duct and air flows in 3 directions.

Air outlet

+ The outlet on the side of branch duct and one of the other outlets are closed. Air flows in 2 directions.

Air outlet closed position

78

PLA-RP71BA PLA-RP71BA2

4-way airflow (horizontal vane) Round duct 4-way airflow (horizontal vane) Rectangular duct

30

Duct Duct

20

30

20

10

Static pressure [Pa]

High

Low

0

02

468

Airflow rate [m

3

/min]

3-way airflow (horizontal vane) Round duct 3-way airflow (horizontal vane) Rectangular duct

80

70

High

Duct

Close

3

/min]

60

50

40

30

Static pressure [Pa]

20

Low

10

0

0246810

Airflow rate [m

10

Static pressure [Pa]

High

Low

0

02468

Airflow rate [m

3

/min]

80

70

60

Duct

Close

50

40

30

Static pressure [Pa]

High

20

Low

10

0

0246810

Airflow rate [m

3

/min]

2-way airflow (horizontal vane) Round duct

100

90

80

Duct

Close

70

60

50

40

Static pressure [Pa]

30

20

High

Low

10

0

024681012

Airflow rate [m3/min]

Close

2-way airflow (horizontal vane) Rectangular duct

100

90

80

70

60

50

40

Static pressure [Pa]

30

20

Low

10

0

024681012

Duct

Close

High

Airflow rate [m

3

/min]

• Use 1 of the 2 duct holes on the indoor unit.

• Airflow rate of PLA-RP35~60BA can be calculated from the airflow rate based on the characteristic of the duct for PLA-RP71BA(2).

• Use the optional air outlet shutter plate (PAC-SH51SP-E) for 3-way and 2-way airflow.

Close

79

PLA-RP125BA PLA-RP125BA2

4-way airflow (horizontal vane) Round duct 4-way airflow (horizontal vane) Rectangular duct

30

Low

Duct

High

Duct

High

Duct

20

10

Static pressure [Pa]

Low

0

02468

Airflow rate [m

High

3

/min] Airflow rate [m3/min]

3-way airflow (horizontal vane) Round duct 3-way airflow (horizontal vane) Rectangular duct

80

70

60

50

40

Static pressure [Pa]

30

Duct

Close Close

High

20

10

Static pressure [Pa]

0

02468

80

70

60

50

40

Static pressure [Pa]

30

20

10

0

0246810

Low

Airflow rate [m3/min] Airflow rate [m3/min]

20

10

0

0246 810

Low

2-way airflow (horizontal vane) Round duct 2-way airflow (horizontal vane) Rectangular duct

100

90

80

70

60

50

40

Close

High

Static pressure [Pa]

30

Low

20

10

0

024681012

Airflow rate [m3/min] Airflow rate [m3/min]

Close

100

90

80

70

60

50

40

Static pressure [Pa]

30

20

10

0

024681012

Low

DuctDuct

Close

High

Close

• Use 1 of the 2 duct holes on the indoor unit.

• Airflow rate of PLA-RP100BA(3), PLA-RP140BA2 can be calculated from the airflow rate based on the characteristic of the duct for PLA-RP125BA(2).

• Use the optional air outlet shutter plate (PAC-SH51SP-E) for 3-way and 2-way airflow.

80

9-3. PCA-RP·KA Fresh air intake amount & static pressure characteristics



PCA-RP50KA

PCA-RP60, 71KA

50

0

-50

-100

-150

-200

-250

Static pressure[Pa]

-300 0 1 2 3 4

Airflow rate[m³/min]



PCA-RP100, 125, 140KA

50

0

-50

-100

-150

-200

-250

Static pressure[Pa]

-300 0 1 2 3 4

Airflow rate[m³/min]

50

0

-50

-100

-150

-200

-250

Static pressure[Pa]

-300

How to read curves

Q

Duct characteristics at site

EC

Curve in the

1

graphs

0

2

3

Q

0 1 2 3 4

Airflow rate[m³/min]

Q…Designed amount of fresh air intake

A

C

B

A

A…Static pressure loss of fresh air

intake duct system with airflow amount Q <Pa>

B…Forced static pressure at air conditioner

inlet with airflow amount Q

C…Static pressure of booster fan with

airflow amount Q <Pa>

D…Static pressure loss increase amount

of fresh air intake duct system for airflow amount Q <Pa>

E…Static pressure of indoor unit with

airflow amount Q <Pa>

Qa…Estimated amount of fresh air

intake without D <m3/min>

<Pa>

Q

Qa

AD

81

9-4. PEAD-RP·JA(L) Fan performance

PEAD-RP35JA(L) (External static pressure 35Pa) 220-240V 50Hz

60

50

Limit

40

Rated point

30

20

External static pressure (Pa)

10

0

7 9 111315171921

Low

Airflow rate(m3/min)

High

Middle

PEAD-RP35JA(L) (External static pressure 100Pa) 220-240V 50Hz

120

110

100

Limit

90

80

70

60

50

40

External static pressure (Pa)

30

20

10

0

7 9 11 13 15 17 19 21

Airflow rate(m3/min)

Rated point

High

Middle

Low

PEAD-RP35JA(L) (External static pressure 50Pa) 220-240V 50Hz

70

60

Limit

50

40

30

20

External static pressure (Pa)

10

0

7 9 111315171921

Low

Rated point

High

Middle

Airflow rate(m3/min)

PEAD-RP35JA(L) (External static pressure 70Pa) 220-240V 50Hz

90

80

Limit

70

60

Rated point

High

PEAD-RP35JA(L) (External static pressure 150Pa) 220-240V 50Hz

170

160

150

140

Limit

130

120

110

100

90

80

70

60

50

External static pressure (Pa)

40

30

20

10

0

7 9 111315171921

Airflow rate(m3/min)

Rated point

Middle

Low

High

50

40

30

Middle

Low

External static pressure (Pa)

20

10

0

7 9 111315171921

Airflow rate(m3/min)

82

PEAD-RP50JA(L) (External static pressure 35Pa) 220-240V 50Hz

70

60

50

40

30

20

External static pressure (Pa)

10

0

Limit

High

Rated point

Middle

Low

91419

Airflow rate(m3/min)

PEAD-RP50JA(L) (External static pressure 50Pa) 220-240V 50Hz

80

70

Limit

60

50

40

30

20

External static pressure (Pa)

10

0

91419

Low

Middle

High

Rated point

Airflow rate(m3/min)

PEAD-RP50JA(L) (External static pressure 70Pa) 220-240V 50Hz

100

PEAD-RP50JA(L) (External static pressure 100Pa) 220-240V 50Hz

130

120

110

Limit

100

90

80

70

60

50

40

External static pressure (Pa)

30

20

10

0

91419

Low

Rated point

High

Middle

Airflow rate(m3/min)

PEAD-RP50JA(L) (External static pressure 150Pa) 220-240V 50Hz

180

170

160

150

140

130 120

110

100

External static pressure (Pa)

Limit

90

80

70

60

50

40

30

20

10

0

91419

Low

Airflow rate(m3/min)

Rated point

High

Middle

90

80

Limit

70

60

50

40

30

External static pressure (Pa)

20

10

0

91419

Low

Rated point

High

Middle

Airflow rate(m3/min)

83

PEAD-RP60JA(L) (External static pressure 35Pa) 220-240V 50Hz

60

50

Limit

40

30

20

Rated point

High

Middle

External static pressure (Pa)

10

0

10 15 20 25 30

Low

Airflow rate(m3/min)

PEAD-RP60JA(L) (External static pressure 50Pa) 220-240V 50Hz

70

60

Limit

50

40

30

20

External static pressure (Pa)

10

0

10 15 20 25 30

Low

Rated point

High

Middle

Airflow rate(m3/min)

PEAD-RP60JA(L) (External static pressure 70Pa) 220-240V 50Hz

90

PEAD-RP60JA(L) (External static pressure 100Pa) 220-240V 50Hz

120

110

100

90

Limit

80

70

60

50

40

External static pressure (Pa)

30

20

10

0

10 15 20 25 30

Rated point

High

Middle

Low

Airflow rate(m3/min)

PEAD-RP60JA(L) (External static pressure 150Pa) 220-240V 50Hz

170

160

150

140

130

120

110

100

90

80

70

60

50

External static pressure (Pa)

40

30

20

10

Limit

0

10 15 20 25 30

Airflow rate(m3/min)

Rated point

High

Middle

Low

80

70

Limit

60

50

40

30

External static pressure (Pa)

20

10

0

10 15 20 25 30

Low

Rated point

High

Middle

Airflow rate(m3/min)

84

PEAD-RP71JA(L) (External static pressure 35Pa) 220-240V 50Hz

70

60

50

40

30

20

External static pressure (Pa)

10

Limit

High

Rated point

Middle

Low

0

10 15 20 25 30

Airflow rate(m3/min)

PEAD-RP71JA(L) (External static pressure 50Pa) 220-240V 50Hz

90

80

70

60

50

40

30

Limit

High

Rated point

Middle

Low

External static pressure (Pa)

20

10

0

10 15 20 25 30

Airflow rate(m3/min)

PEAD-RP71JA(L) (External static pressure 70Pa) 220-240V 50Hz

100

90

80

70

60

50

Limit

High

Rated point

Middle

PEAD-RP71JA(L) (External static pressure 100Pa) 220-240V 50Hz

130

120

110

100

90

80

70

60

50

40

External static pressure (Pa)

30

20

10

0

Limit

Low

10 15 20 25 30

High

Rated point

Middle

Airflow rate(m3/min)

PEAD-RP71JA(L) (External static pressure 150Pa) 220-240V 50Hz

180

170

160

150

140

130

120

110

100

External static pressure (Pa)

Limit

90 80

70

60

50

40

30

20

10

0

10

15 20 25 30

Low

Airflow rate(m3/min)

High

Rated point

Middle

40

30

External static pressure (Pa)

20

10

0

10 15 20 25 30

Low

Airflow rate(m3/min)

85

PEAD-RP100JA(L) (External static pressure 35Pa) 220-240V 50Hz

70

Limit

60

50

40

30

20

External static pressure (Pa)

10

0

10 15 20 25 30 35 40 45

Low

Rated point

High

Middle

Airflow rate(m3/min)

PEAD-RP100JA(L) (External static pressure 50Pa) 220-240V 50Hz

100

90

80

Limit

70

60

50

40

30

External static pressure (Pa)

20

10

0

10 15 20 25 30 35 40 45

Middle

Low

High

Rated point

Airflow rate(m3/min)

PEAD-RP100JA(L) (External static pressure 70Pa) 220-240V 50Hz

120

110

100

Limit

90

80

70

60

50

40

External static pressure (Pa)

30

20

10

0

10 15 20 25 30 35 40 45

Low

Airflow rate(m3/min)

High

Rated point

Middle

PEAD-RP100JA(L) (External static pressure 100Pa) 220-240V 50Hz

150

140

130

120

Limit

110

100

90

80

70

60

50

External static pressure (Pa)

40

30

20

10

0

10 15 20 25 30 35 40 45

Low

High

Rated point

Middle

Airflow rate(m3/min)

PEAD-RP100JA(L) (External static pressure 150Pa) 220-240V 50Hz

200 190

180 170 160

Limit

150 140

130 120

110 100

90 80 70

60

External static pressure (Pa)

50 40

30

20 10

0

15 20 25 30 35 40 45

10

Low

Airflow rate(m3/min)

High

Rated point

Middle

86

PEAD-RP125JA(L) (External static pressure 35Pa) 220-240V 50Hz

70

Limit

60

50

40

30

20

External static pressure (Pa)

10

0

15 20 25 30 35 40 45

Low

Middle

High

Rated point

Airflow rate(m3/min)

PEAD-RP125JA(L) (External static pressure 50Pa) 220-240V 50Hz

100

90

80

70

60

50

40

30

External static pressure (Pa)

20

10

0

15 20 25 30 35 40 45

Limit

Middle

Low

High

Rated point

Airflow rate(m3/min)

PEAD-RP125JA(L) (External static pressure 70Pa) 220-240V 50Hz

150

140

130

120

Limit

110

100

90

80

70

60

50

40

External static pressure (Pa)

30

20

10

0

15 20 25 30 35 40 45

Low

Airflow rate(m3/min)

High

Middle

Rated point

PEAD-RP125JA(L) (External static pressure 100Pa) 220-240V 50Hz

180

170

160

Limit

150

140

130

120

110

100

90

80

70

60

50

External static pressure (Pa)

40

30

20 10

0

15 20 25 30 35 40 45

Low

High

Middle

Rated point

Airflow rate(m3/min)

PEAD-RP125JA(L) (External static pressure 150Pa) 220-240V 50Hz

230 220 210 200 190

Limit

180 170 160 150

140 130 120 110 100

90 80 70

External static pressure (Pa)

60 50 40 30 20 10

0

15

20 25 30 35 40 45

Airflow rate(m3/min)

Low

Middle

High

Rated point

87

PEAD-RP140JA(L) (External static pressure 35Pa) 220-240V 50Hz

70

60

50

40

30

20

External static pressure (Pa)

10

0

15 20 25 30 35 40 45

Limit

High

Middle

Low

Rated point

Airflow rate(m3/min)

PEAD-RP140JA(L) (External static pressure 50Pa) 220-240V 50Hz

100

90

Limit

80

70

60

50

40

30

External static pressure (Pa)

20

10

0

15 20 25 30 35 40 5045

Low

Middle

High

Rated point

Airflow rate(m3/min)

PEAD-RP140JA(L) (External static pressure 70Pa) 220-240V 50Hz

150

140

130

Limit

120

110

100

90

80

70

60

50

External static pressure (Pa)

40

30

20

10

0

15 20 25 30 35 40 45

Low

Middle

Airflow rate(m3/min)

High

Rated point

PEAD-RP140JA(L) (External static pressure 100Pa) 220-240V 50Hz

190

180

170 160

150

140

130

120

110

100

External static pressure (Pa)

Limit

90

80

70

60 50

40

30 20

10

0

15 20 25 30 35 40 45

Low

High

Middle

Rated point

Airflow rate(m3/min)

PEAD-RP140JA(L) (External static pressure 150Pa) 220-240V 50Hz

240 230 220 210 200 190 180

Limit

170 160 150

140 130

120 110 100

90 80 70

External static pressure (Pa)

60 50 40

30 20 10

0

20 25 30 35 40 45

15

Airflow rate(m3/min)

Middle

Low

High

Rated point

88

9-5. PEA-RP·GA Fan Performance Curve

PEA-RP200GA Fan Performance Curve 50Hz

(Pa) (Pa)

300

250

200

150

100

External static pressure

50

0

45.0 50.0 55.0 60.0 65.0 70.0

Hi

Lo

(CMM)

Airflow Airflow

PEA-RP400GA Fan Performance Curve 50Hz

(Pa)

300

250

200

150

100

External static pressure

50

PEA-RP250GA Fan Performance Curve 50Hz

250

200

150

100

External static pressure

50

0

60.0 65.0 70.0 75.0 80.0 85.0 90.0

Lo

Hi

PEA-RP500GA Fan Performance Curve 50Hz

(Pa)

350

300

250

200

150

100

External static pressure

50

(CMM)

0

70.0 80.0 100.0 110.0 120.0 130.090.0

Airflow

(CMM)

0

110.0100.0 120.0 130.0 140.0 150.0 160.0 170.0

Airflow

(CMM)

89

10

NOISE CRITERION CURVES

10-1. INDOOR UNIT

PLA-RP35BA PLA-RP50BA

NOTCH SPL(dB) LINE

High 31 Medium1 29 Medium2 28

Low 27

NOTCH SPL(dB) LINE

High 32 Medium1 31 Medium2 29

Low 28

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

90

80

70

60

50

40

30

APPROXIMATE

20

THRESHOLD OF HEARING FOR CONTINUOUS NOISE

10

63 125 250 500 1000 2000 4000 8000

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

90

80

70

60

50

40

30

APPROXIMATE

20

THRESHOLD OF HEARING FOR CONTINUOUS NOISE

10

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

PLA-RP60BA PLA-RP71BA

NOTCH SPL(dB) LINE

High 32

Medium1 31

PLA-RP71BA2

Medium2 29

Low 28

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

BAND CENTER FREQUENCIES, Hz

NOTCH SPL(dB) LINE

High 34 Medium1 32 Medium2 30

Low 28

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

90

80

70

60

50

40

30

APPROXIMATE

20

THRESHOLD OF HEARING FOR CONTINUOUS NOISE

10

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

90

80

70

60

50

40

30

APPROXIMATE

20

THRESHOLD OF HEARING FOR CONTINUOUS NOISE

10

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

90

PLA-RP100BA PLA-RP100BA3

NOTCH SPL(dB) LINE

High 40 Medium1 37 Medium2 34

Low 32

PLA-RP125BA PLA-RP125BA2

NOTCH SPL(dB) LINE

High 41 Medium1 39 Medium2 36

Low 34

90

80

70

60

50

40

30

APPROXIMATE

20

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

THRESHOLD OF HEARING FOR CONTINUOUS NOISE

10

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

PLA-RP140BA2

NOTCH SPL(dB) LINE

High 44 Medium1 42 Medium2 39

Low 36

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

90

80

70

60

50

40

30

APPROXIMATE

20

THRESHOLD OF HEARING FOR CONTINUOUS NOISE

10

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

90

80

70

60

50

40

30

APPROXIMATE

20

THRESHOLD OF HEARING FOR CONTINUOUS NOISE

10

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

UNIT

CEILING

1.5m

MICROPHONE

91

PEAD-RP·JA(L)

Ceiling concealed

2m

Model

PEAD-RP35JA(L) 23-26-29 23-27-30 24-28-31 26-29-33 29-33-37 PEAD-RP50JA(L) 25-30-34 26-31-35 28-32-36 29-33-37 31-35-39 PEAD-RP60JA(L) 25-28-32 25-29-33 26-30-34 27-31-35 29-34-38 PEAD-RP71JA(L) 25-29-34 26-30-34 27-31-35 28-32-36 30-35-39 PEAD-RP100JA(L) 28-33-38 29-34-38 30-35-39 31-36-40 34-40-43 PEAD-RP125JA(L) 31-36-40 33-36-40 33-37-41 34-39-42 37-41-45 PEAD-RP140JA(L) 33-37-43 34-38-43 34-39-44 36-40-45 38-42-46

Aux.duct

Measurement location

35Pa 50Pa 70Pa 100Pa 150Pa

2m

1.5m

Noise level at anechoic room (Low-Middle-High) Unit: dB(A)

Exrernal static pressure

92

PEAD-RP35JA(L)

External static pressure 35Pa

80

High

Middle

Low

External static pressure 100Pa

80

High

Middle

Low

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 50Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 150Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 70Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

93

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

PEAD-RP50JA(L)

External static pressure 35Pa

80

High

Middle

Low

External static pressure 100Pa

80

High

Middle

Low

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 50Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 150Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 70Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

94

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

PEAD-RP60JA(L)

External static pressure 35Pa

80

High

Middle

Low

External static pressure 100Pa

80

High

Middle

Low

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 50Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 150Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 70Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

95

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

PEAD-RP71JA(L)

External static pressure 35Pa

80

High

Middle

Low

External static pressure 100Pa

80

High

Middle

Low

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 50Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 150Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 70Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

96

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

PEAD-RP100JA(L)

External static pressure 35Pa

80

High

Middle

Low

External static pressure 100Pa

80

High

Middle

Low

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 50Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 150Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 70Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

97

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

PEAD-RP125JA(L)

External static pressure 35Pa

80

High

Middle

Low

External static pressure 100Pa

80

High

Middle

Low

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 50Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 150Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 70Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

98

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

PEAD-RP140JA(L)

External static pressure 35Pa

80

High

Middle

Low

External static pressure 100Pa

80

High

Middle

Low

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 50Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 bar)

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 150Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

External static pressure 70Pa

80

bar)



70

60

50

40

30

20

Approximate minimum audible limit on continuous noise

10

OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

High

Middle

Low

NC-70

NC-60

NC-50

NC-40

NC-30

NC-20

99

0

63 125 250 500 1000 2000 4000 8000

BAND CENTER FREQUENCIES, Hz

L

SOUND LEVELS

Low-Middle-High

Model Sound level dB (A)

PKA-RP35, 50HAL 36 - 40 - 43 PKA-RP60, 71KAL 39 - 42 - 45 PKA-RP100KAL 41 - 45 - 49

PKA-RP35HAL PKA-RP50HAL

External static pressure : 0Pa Power source : 220, 230, 240V, 50Hz

70.0

65.0

60.0

55.0

50.0

45.0

40.0

35.0

30.0

25.0

Approximate minimum audible limit on

20.0

continuous noise

15.0

Octave band pressure level (dB) 0dB=20Pa

10.0 63 125 250 500 1k 2k 4k 8k

Octave band center frequencies (Hz)

High Low

NC-60

NC-50

NC-40

NC-30

NC-20

PKA-RP60KAL PKA-RP71KAL

External static pressure : 0Pa Power source : 220, 230, 240V, 50Hz

70.0

65.0

60.0

55.0

50.0

45.0

40.0

35.0

30.0

25.0

20.0

Approximate minimum audible limit on

15.0

continuous noise

Octave band pressure level (dB) 0dB=20Pa

10.0 63 125 250 500 1k 2k 4k 8k

Octave band center frequencies (Hz)

High Low

PKA-RP100KAL

NC-60

NC-50

NC-40

NC-30

NC-20

UNIT

1m

MICROPHONE

External static pressure : 0Pa Power source : 220, 230, 240V, 50Hz

70.0

WAL

65.0

60.0

55.0

50.0

45.0

40.0

35.0

30.0

25.0

20.0

Approximate minimum audible limit on

15.0

continuous noise

Octave band pressure level (dB) 0dB=20Pa

10.0 63 125 250 500 1k 2k 4k 8k

Octave band center frequencies (Hz)

High Low

NC-60

NC-50

NC-40

NC-30

NC-20

100

Mitsubishi PLA-RP-BA/BA2/BA3, PEAD-RP-JA(L), PEA-RP-GA, PKA-RP-HAL, PKA-RP-KAL Technical Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
