Mitsubishi PEFY-P140VMM-E, PEFY-P100VMM-E, PEFY-P80VMM-E, PEFY-P71VMM-E, PEFY-P63VMM-E Parts List
...
INDEX
PEFY-P20,P25,P32VMM-E
PEFY-P40,P50,P63,P71,P80,
P100,P125,P140VMM-E
SERVICE PARTS LIST FOR
MITSUBISHI ELECTRIC
PACKAGED AIR-CONDITIONERS
Sep. 2004
Series PEFY-P·VMM-E
For use with the R410A & R407C & R22
REVISED
Please change the old catalog (issued Apr 2004, No.BWE04090) to this new catalog.
Content of revision : Some of parts are changed.
Content of revision : The models are added and some of parts are changed.
1
101 S70 032 669 Bottom plate 1 1 1 1 W639151Z03 7.6
102 S70 031 669 Bottom plate 1 1 1 W638939Z04 7.5
103 S70 082 669 Bottom plate 2 ass'y 1 1 1 W639152G02 18.5
104 S70 081 669 Bottom plate 2 ass'y 1 1 W638940G03 18.5
105 S70 040 480 H.EX.General ass'y 1 1 W268533G14 119.5
106 S70 041 480 H.EX.General ass'y 1 W268533G15 119.5
107 S70 042 480 H.EX.General ass'y 1 W268533G16 119.5
108 S70 043 480 H.EX.General ass'y 1 W268533G17 119.5
109 S70 031 529 Drain pan ass'y 1 1 1 W639154G01 22.4
110 S70 011 529 Drain pan ass'y 1 1 W638942G01 22.5
111 S70 011 500 Filter 1 1 1 W645496G01 10.0
112 S70 021 500 Filter 1 1 W645496G02 10.0
113 S70 E10 097 Flare nut <Liquid>
<R22,R407C,R410A>
1 111 Z211A143H01 0.65
114 S70 E09 097 Flare nut <Gas> <R22,R407C> 1 Z211A143H07 1.50
115 S70 E14 097 Flare nut <Liquid> <R22,R407C> 1 Z211A143H06 0.80
116 S70 E13 097 Flare nut <Gas>
<R22,R407C,R410A>
1 111 W905525H01 3.10
117 S70 E11 097 Flare nut <Gas> <R410A> 1 BG12U190H01 2.85
118 S70 E12 097 Flare nut <Liquid> <R410A> 1 BG12U190H02 0.95
119 S70 E22 401 LEV 1 1111 P632408X01 36.75
120 S70 NR0 480 H.EX.Diffuser Plate 2 2222 BG25T143H02 0.25
111.112
119
101.102 109.110
103.104
105.106
107.108
120
113.114.115
116.117.118
PEFY-P20,25,32,40,50VMM-E EXTERNAL PARTS (1)
Dwg. No. Price
GBP
No.
Part No. Part Name Spec.
-P20VMM-E
-P25VMM-E
-P32VMM-E
-P40VMM-E
-P50VMM-E
2
201 S70 014 669 Bottom plate 1 1 1 1 W638917Z04 12.9
202 S70 012 669 Bottom plate 1 1 1 W634090Z01 13.9
203 S70 013 669 Bottom plate 1 1 W634084Z01 14.6
204 S70 015 669 Bottom plate 2 ass'y 1 1 1 W638918G03 23.9
205 S70 052 669 Bottom plate 2 ass'y 1 1 W634030G01 22.8
206 S70 050 669 Bottom plate 2 ass'y 1 W631188G02 23.5
207 S70 044 480 H.EX.General ass'y 1 W268533G18 120.3
208 S70 045 480 H.EX.General ass'y 1 W268533G19 160.5
209 S70 046 480 H.EX.General ass'y 1 W268533G20 160.5
210 S70 047 480 H.EX.General ass'y 1 W268533G21 167.9
211 S70 048 480 H.EX.General ass'y 1 W268533G22 167.9
212 S70 049 480 H.EX.General ass'y 1 W268533G23 180.62
213 S70 021 529 Drain pan ass'y 1 1 1 W638920G01 23.0
214 S70 060 529 Drain pan ass'y 1 1 W634034G01 26.9
215 S70 040 529 Drain pan ass'y 1 W631186G01 29.9
216 S70 031 500 Filter 1 1 1 W645496G03 11.0
217 S70 040 500 Filter 1 1 W645497G02 16.0
218 S70 010 500 Filter 1 W645497G03 19.0
219 S70 E50 097 Flare nut <Gas> <R22,R407C> 1 1 1 BG12P502H01 1.75
220 S70 E14 097 Flare nut <Liquid>
<R22,R407C,R410A>
1 11111Z211A143H06 0.80
221 S70 E15 097 Flare nut <Gas>
<R22,R407C,R410A>
111 BG12S826H01 1.50
222 S70 E16 097 Flare nut <Gas> <R410A> 1 1 1 BG12P502H02 2.35
223 S70 E22 401 LEV 1 1 1 P632408X01 36.75
224 S70 E23 401 LEV 1 1 P632411X01 39.25
225 S70 E25 401 LEV 1 P632414X01 40.15
216.217.218
223.224
225
201.202.203 213.214.215
204.205
206
207.208.209
210.211.212
219.220.221.222
PEFY-P63,71,80,100,125,140VMM-E EXTERNAL PARTS (2)
Dwg. No. Price
GBP
No.
Part No. Part Name Spec.
-P63VMM-E
-P71VMM-E
-P80VMM-E
-P100VMM-E
-P125VMM-E
-P140VMM-E
3
301 S70 652 131 Attachment 2 2 2 W353715H01 0.8
302 S70 011 677 Fan base ass'y 1 1 1 W639145G02 27.5
303 S70 777 105 Bush 2 2 2 W843446H02 0.8
304 S70 A89 114 Sirocco fan 18-23L 1 1 1 W122297G02 11.3
305 S70 985 110 Housing ass'y 1 1 1 W638949G04 10.0
306 S70 Y60 220 Motor <MF> 1 1 1 P714425X01 62.5
307 S70 Y61 130 Motor support 1 1 1 W252768H01 5.4
308 S70 Y77 320 Lead wire ass'y 1 1 1 W882178G01 2.6
304
305
301
301
308
303
303
306
307
302
PEFY-P20,25,32VMM-E BLOWER PARTS (1)
Dwg. No. Price
GBP
No.
Part No. Part Name Spec.
-P20VMM-E
-P25VMM-E
-P32VMM-E
4
401 S70 652 131 Attachment 2 2222 W353715H01 0.8
402 S70 021 677 Fan base ass'y 1 1 W641676G01 16.55
403 S70 061 677 Fan base ass'y 1 1 1 W638905G03 22.5
404 S70 777 105 Bush 2 2222 W843446H02 0.8
405 S70 A88 114 Sirocco fan 18-18L 2 2 W122296G02 11.0
406 S70 A89 114 Sirocco fan 18-23L 2 2 2 W122297G02 11.0
407 S70 989 110 Housing ass'y 2 2 W638949G03 9.0
408 S70 985 110 Housing ass'y 2 2 2 W638949G04 10.0
409 S70 Y61 220 Motor <MF> 1 1 P714079X02 62.5
410 S70 Y62 220 Motor <MF> 1 1 1 P714561X01 65.6
411 S70 Y61 130 Motor support 1 1111 W252768H01 5.4
412 S70 Y77 321 Lead wire ass'y 1 1 W882178G02 2.6
413 S70 Y77 322 Lead wire ass'y 1 1 1 W882178G03 2.85
405.406
407.408
401
401
404
404
409.410
411
407.408
405.406
402.403
412.413

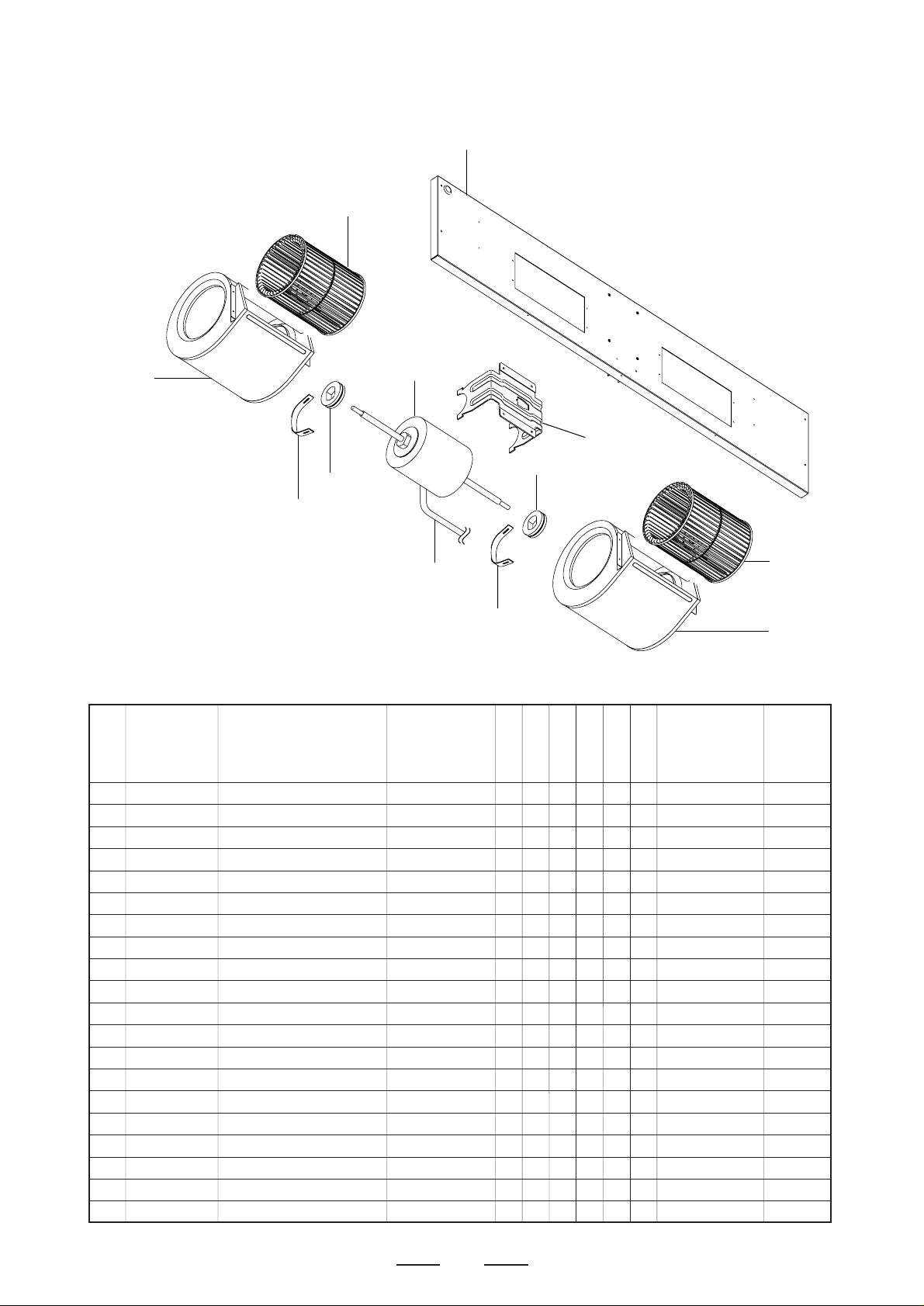

PEFY-P40,50,63,71,80VMM-E BLOWER PARTS (2)
Dwg. No. Price
GBP
No.
Part No. Part Name Spec.
-P40VMM-E
-P50VMM-E
-P63VMM-E
-P71VMM-E
-P80VMM-E
5
501 S70 508 131 Piece 2 2 2 R02K338H02 1.55
502 S70 508 132 Piece with a nut 2 2 2 R02K338G82 1.55
503 S70 081 677 Fan base ass'y 1 1 W634079G01 22.5
504 S70 091 677 Fan base ass'y 1 W634077G01 27.5
505 S70 Y01 105 Bush 2 2 2 W860050H02 2.43
506 S70 Y07 114 Sirocco fan 20-25L 2 2 2 W631126G02 18.6
507 S70 001 110 Housing ass'y 2 2 2 W631120G02 10.3
508 S70 Y63 220 Motor <MF> 1 P714778X01 108.2
509 S70 Y64 220 Motor <MF> 1 1 P714779X01 108.2
510 S70 Y08 130 Leg 1 1 1 W631122Z04 7.1
511 S70 050 255 Capacitor 8 <C> 1 P412190X01 15.6
512 S70 020 255 Capacitor 16 <C> 2 2 P412223X01 11.1
506
507
502
505
501
502
505
510
501
508.509
511.512
507
506
503.504
PEFY-P100,125,140VMM-E BLOWER PARTS (3)
Dwg. No. Price
GBP
No.
Part No. Part Name Spec.
-P100VMM-E
-P125VMM-E
-P140VMM-E
601 S70 101 310 Service P.W.B. ass'y I.B. 1 1 1 1 1 1 1 1 W849072G04 68.0
602 S70 102 310 Service P.W.B. ass'y A.B. 1 1 1 1 1 1 1 1 W849036G09 11.55
603 S70 510 255 Capacitor 6 C 1 1 1 1 1 1 1 1 P412291X01 3.87
604 S70 041 310 P.W.B. General ass'y S.B. 1 1 1 1 1 1 1 1 PP00003G01 9.6
605 S70 030 799 Transformer T 1 1 1 1 1 1 1 1 P715342X01 7.38
606 S70 979 717 Terminalbed TB2 1 1 1 1 1 1 1 1 P436110X01 3.15
607 S70 980 717 Terminalbed TB5/TB15 1 1 1 1 1 1 1 1 P436114X03 5.05
608 S70 080 202 Thermistor TH22 1 1 1 1 1 1 1 1 P425459X02 3.0
609 S70 090 202 Thermistor TH23 1 1 1 1 1 1 1 1 P425458X02 2.5
610 S70 070 202 Thermistor TH21 1 1 1 1 1 1 1 1 P425455X01 2.1
-P20VMM-E
-P25VMM-E
-P32VMM-E
-P40VMM-E
-P50VMM-E
-P63VMM-E
-P71VMM-E
-P80VMM-E
6
Dwg. No. Price
GBP
No.
Part No. Part Name Spec.
608
610
609
601
606
604
603
605
607
602
PEFY-P20,25,32,40,50,63,71,80VMM-E CONTROL BOX PARTS (1)
7
701 S70 104 310 Service P.W.B. ass'y I.B. 1 1 1 W849072G06 85.00
702 S70 105 310 Service P.W.B. ass'y A.B. 1 1 1 W849036G09 25.50
703 S70 041 310 P.W.B. General ass'y S.B. 1 1 1 PP00003G01 9.6
704 S70 030 799 Transformer T 1 1 1 P715342X01 7.38
705 S70 979 717 Terminalbed TB2 1 1 1 P436110X01 3.15
706 S70 980 717 Terminalbed TB5/TB15 1 1 1 P436114X03 5.05
707 S70 080 202 Thermistor TH22 1 1 1 P425459X02 3.0
708 S70 090 202 Thermistor TH23 1 1 1 P425458X02 2.5
709 S70 070 202 Thermistor TH21 1 1 1 P425455X01 2.1
707
709
708
701
705
706
703
704
702
PEFY-P100,125,140VMM-E CONTROL BOX PARTS (2)
Dwg. No. Price
GBP
No.
Part No. Part Name Spec.
-P100VMM-E
-P125VMM-E
-P140VMM-E
HEAD OFFICE: MITSUBISHI DENKI BLDG., 2-2-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
BWE0409A(20040931)
