Mitsubishi Electric MXZ-2D33VA, MXZ-2D53VAH, MXZ-2D53VA2, MXZ-2D53VAH2, MXZ-2D42VA Service Manual

SERVICE MANUAL

OUTDOOR UNIT

HFC

utilized

R410A

NOTE:
RoHS compliant products have <G> mark
on the spec name plate.

MXZ-2D33VA
MXZ-2D40VA
MXZ-2D42VA
MXZ-2D42VA2
MXZ-2D53VA MXZ-2D53VAH
MXZ-2D53VA2 MXZ-2D53VAH2

Models

MXZ-2D33VA

-

E1, E2, E3, ER2, ER3, ET2, ET3

MXZ-2D40VA

-

E1, ER2

MXZ-2D42VA

-

E2, E3, ER3, ET2, ET3

MXZ-2D42VA2

-

E3, ET3, ER3

MXZ-2D53VA

-

E1, E2, E3, ER2, ER3, ET2, ET3

MXZ-2D53VA2

-

E3, ET3, ER3

MXZ-2D53VAH

-

E1, E2, E3, ER2, ER3

MXZ-2D53VAH2

-

E3

MXZ-3D54VA

-

E1

MXZ-3D54VA2

-

E2, E3, ER2, ER3, ET2, ET3

MXZ-3D68VA

-

E1, E2, E3, ER2, ER3, ET2, ET3

MXZ-4D72VA

-

E1, E2, E3, ER2, ER3, ET2, ET3

MXZ-4D83VA

-

E1, E2, ER1, ER2, ET2

MXZ-5D102VA

-

E1, E2, ER1, ER2, ET2

MXZ-6D122VA

-

E1, ER1, ET1

No. OBH626

REVISED EDITION-K

Please void OBH626 REVISED EDITION-J.

Revision K:

• MXZ-2D42/2D53VA2-

ER3

have been added.

PARTS CATALOG (OBB626)

Indoor unit service manual
MSZ-EF•VE Series (OBH589)
MSZ-GF•VE Series (OBH634)
MSZ-SF•VA Series (OBH555)
MSZ-SF•VE Series (OBH600)
MSZ-FH•VE Series (OBH623)
MFZ-KA•VA Series (OB409)
MFZ-KJ•VE Series (OBH666)
MLZ-KA•VA Series (OBH483)
SLZ-KA•VA Series (OC320)
SLZ-KF•VA Series (OCH600)
SEZ-KD•VA Series (HWE07110)
PLA-RP•BA Series (OCH412)
PCA-RP•KA Series (OCH454)
PEAD-RP•JA Series (HWE08130)

CONTENTS

1. TECHNICAL CHANGES ···································3

2. PART NAMES AND FUNCTIONS ····················· 6

3. SPECIFICATION ················································ 7

4. NOISE CRITERIA CURVES ···························· 17

5. OUTLINES AND DIMENSIONS ······················ 20

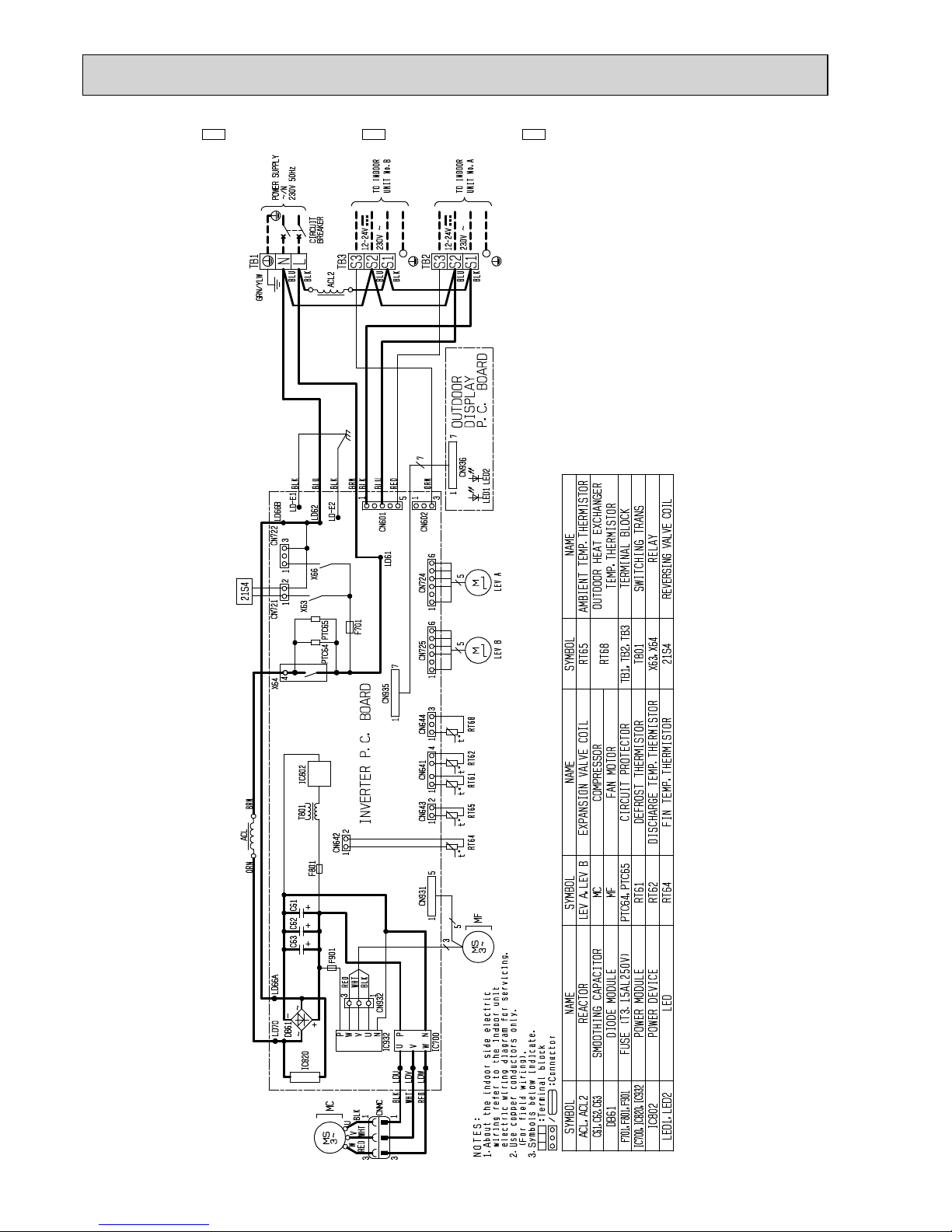

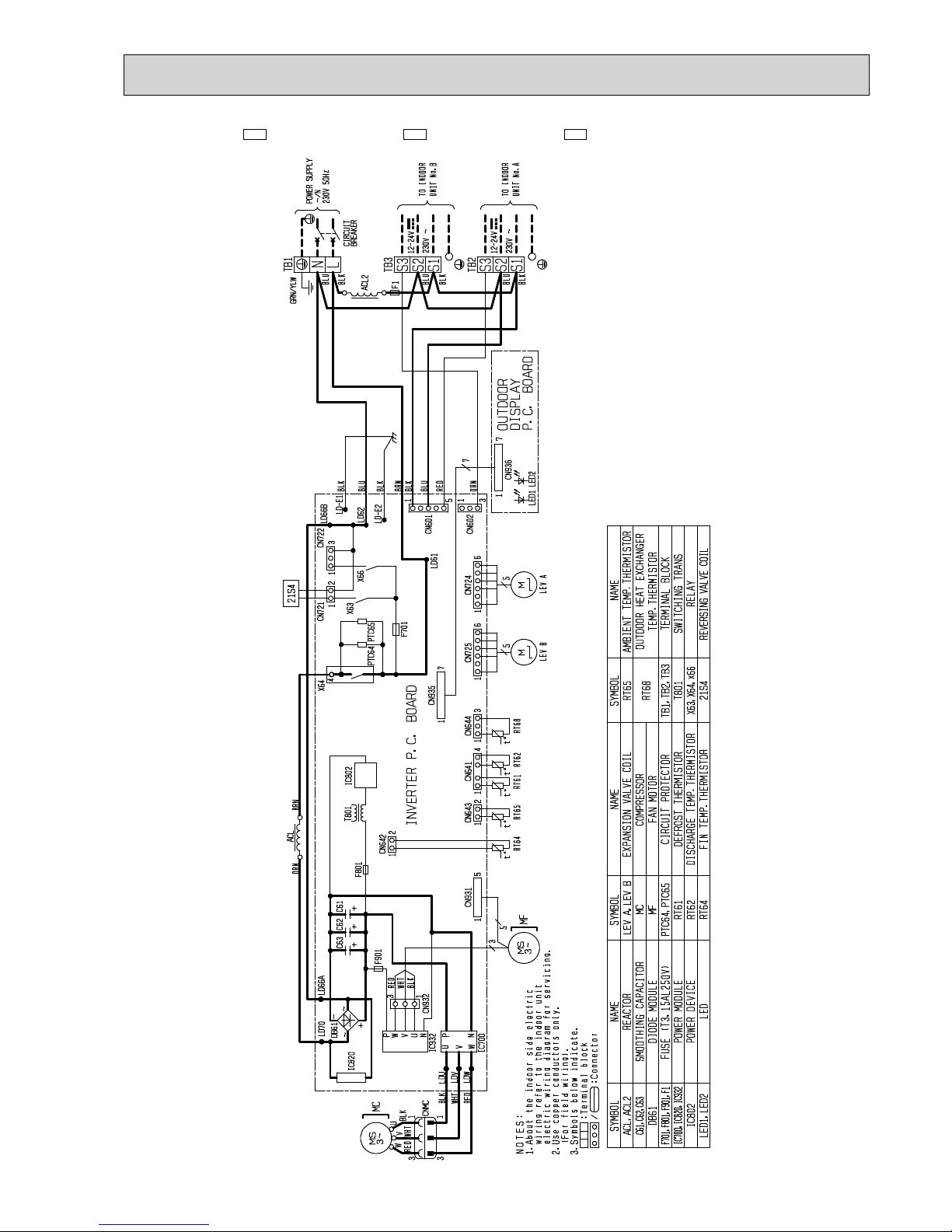

6. WIRING DIAGRAM ·········································· 25

7. REFRIGERANT SYSTEM DIAGRAM ············· 73

8. PERFORMANCE CURVES ····························· 83

9. ACTUA TOR CONTROL ··································117

10. SERVICE FUNCTIONS ···································118

11. TROUBLESHOOTING ··································· 124

12. DISASSEMBLY INSTRUCTIONS ·················· 163

INDOOR UNITS COMBINATION SHEETS

2

<Preparation before the repair service>

Prepare the proper tools.
Prepare the proper protectors.
Provide adequate ventilation.
After stopping the operation of the air conditioner, turn off the power-supply breaker and remove the power plug.
Discharge the capacitor before the work involving the electric parts.

<Precautions during the repair service>

Do not perform the work involving the electric parts with wet hands.
Do not pour water into the electric parts.
Do not touch the refrigerant.
Do not touch the hot or cold areas in the refrigeration cycle.
When the repair or the inspection of the circuit needs to be done without turning off the power, exercise great caution not to

touch the live parts.

Use the specifi ed refrigerant only

Never use any refrigerant other than that specified.

Doing so may cause a burst, an explosion, or fire when the unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the spec labels provided with our products.
We will not be held responsible for mechanical failure, system malfunction, unit breakdown or accidents caused by
failure to follow the instructions.

Revision A:

• MXZ-3D54VA- E1, MXZ-3D68VA- E1, MXZ-4D72VA- E1, MXZ-4D83VA- E1 and MXZ-5D102VA- E1 have been added.

Revision B:

• INDOOR UNITS COMBINATION SHEETS for MXZ-3D54VA, MXZ-3D68VA, MXZ-4D72VA, MXZ-4D83VA and MXZ­5D102VA have been added.

• 11-4. TROUBLESHOOTING CHECK TABLE (MXZ-2D) has been modified.

Revision C:

• MXZ-4D83VA-

ER1

and MXZ-5D102VA-

ER1

have been added.

Revision D:

• MXZ-2D40VA

-

ER2

,

MXZ-2D42VA

- E2, MXZ-2D53VAH

- E2,

ER2

, MXZ-3D54VA2

- E2,

ER2

and MXZ-2D33/2D53/3D68/4

D72/4D83/5D102VA

- E2,

ER2

have been added.

Revision E:

• The tables of WHEN CONNECTING TO MFZ-KJ SERIES INDOOR UNIT for MXZ-2D33/2D53/3D68/4D72VA- E2,

ER2

,

MXZ-2D42VA-

E2

, MXZ-2D53VAH- E2,

ER2

and MXZ-3D54VA2- E2,

ER2

have been added to 7. REFRIGERANT

SYSTEM DIAGRAM.

Revision F:

• MXZ-2D33/2D42/2D53/3D68/4D72/4D83/5D102VA

-

ET2

and MXZ-3D54VA2

-

ET2

have been added.

Revision H:

• MXZ-6D122VA- E1,

ER1, ET1

have been added.

Revision J:

• MXZ-2D42/2D53VA2- E3,

ET3

and MXZ-2D53VAH2- E3 have been added.

Revision G:

• MXZ-2D33/2D42/2D53VA- E3,

ER3,ET3

, MXZ-2D53VAH- E3,

ER3

, MXZ-3D54VA2- E3,

ER3, ET3

and

MXZ-3D68/4D72VA-

E3, ER3,ET3

have been added.

Revision K:

• MXZ-2D42/2D53VA2-

ER3

have been added.

OBH626K

3

MXZ-2C30VA -

E1

MXZ-2D33VA -

E1

1. Grill has been changed.

2. Ice guard has been added.

3. Electrical parts have been changed.

4. Fan motor has been changed.

5. Indoor units combinations have been added.

6. Compressor has been changed. (KNB073FGDHC

KNB073FFDHC)

TECHNICAL CHANGES

1

MXZ-2C40VA -

E1

MXZ-2D40VA -

E1

MXZ-2C52VA -

E1

MXZ-2D53VA -

E1

1. Grill has been changed.

2. Ice guard has been added.

3. Electrical parts have been changed.

4. Fan motor has been changed.

5. Indoor units combinations have been added.

MXZ-2C52VA -

E1

MXZ-2D53VAH -

E1

1. Grille has been changed.

2. Ice guard has been added.

3. Electrical parts have been changed.

4. Fan motor has been changed.

5. Indoor units combinations have been added.

6. Base heater has been added.

7. Drain socket has been removed.

MXZ-3C54VA -

E1

MXZ-3D54VA -

E1

MXZ-3C68VA -

E1

MXZ-3D68VA -

E1

MXZ-4C71VA -

E1

MXZ-4D72VA -

E1

1. Grille has been changed.

2. Ice guard has been added.

3. Power board has been changed.

4. Electrical control P.C. board has been changed.

5. Noise filter P.C. board has been changed.

6. Fan motor has been changed.

7. Indoor units combinations have been added (MSZ-FH Series).

MXZ-4C80VA2 -

E1

MXZ-4D83VA -

E1

MXZ-5C100VA2 -

E1

MXZ-5D102VA -

E1

1. Indoor units combinations have been added (MSZ-FH Series).

MXZ-4D83VA -

ER1

MXZ-5D102VA -

ER1

1. New model

MXZ-2D33VA -

E1

MXZ-2D33VA -

E2

MXZ-2D53VA -

E1

MXZ-2D42VA -

E2

MXZ-2D53VA -

E1

MXZ-2D53VA -

E2

MXZ-2D53VAH -

E1

MXZ-2D53VAH -

E2

MXZ-3D54VA -

E1

MXZ-3D54VA2 -

E2

MXZ-3D68VA -

E1

MXZ-3D68VA -

E2

MXZ-4D72VA -

E1

MXZ-4D72VA -

E2

MXZ-4D83VA -

E1

MXZ-4D83VA -

E2

MXZ-5D102VA -

E1

MXZ-5D102VA -

E2

1. Indoor units combinations have been added (MFZ-KJ Series).

MXZ-4D83VA -

ER1

MXZ-4D83VA -

ER2

MXZ-5D102VA -

ER1

MXZ-5D102VA -

ER2

1. Indoor units combinations have been added (MFZ-KJ Series).

OBH626K

4

MXZ-2D33VA -

ER2

MXZ-2D53VA -

ER2

MXZ-2D53VAH -

ER2

MXZ-3D54VA2 -

ER2

MXZ-3D68VA -

ER2

MXZ-4D72VA -

ER2

1. New model

2. Indoor units combinations have been added (MFZ-KJ Series).

MXZ-2D40VA -

ER2

1. New model

MXZ-2D33VA -

ET2

MXZ-2D42VA -

ET2

MXZ-2D53VA -

ET2

MXZ-3D54VA2 -

ET2

MXZ-3D68VA -

ET2

MXZ-4D72VA -

ET2

MXZ-4D83VA -

ET2

MXZ-5D102VA -

ET2

1. New model

MXZ-2D33VA -

E2

MXZ-2D33VA -

E3

MXZ-2D42VA -

E2

MXZ-2D42VA -

E3

MXZ-2D53VA -

E2

MXZ-2D53VA -

E3

MXZ-2D53VAH -

E2

MXZ-2D53VAH -

E3

1. Inverter P.C. board has been changed.

2. Fuse has been added.

MXZ-2D33VA -

ER2

MXZ-2D33VA -

ER3

MXZ-2D53VA -

ER2

MXZ-2D53VA -

ER3

MXZ-2D53VAH -

ER2

MXZ-2D53VAH -

ER3

1. Inverter P.C. board has been changed.

2. Fuse has been added.

MXZ-2D33VA -

ET2

MXZ-2D33VA -

ET3

MXZ-2D42VA -

ET2

MXZ-2D42VA -

ET3

MXZ-2D53VA -

ET2

MXZ-2D53VA -

ET3

1. Inverter P.C. board has been changed.

2. Fuse has been added.

MXZ-2D42VA -

ER3

1. New model

MXZ-3D54VA2 -

E2

MXZ-3D54VA2 -

E3

1. High pressure switch has been added.

2. Outdoor control P.C. board has been changed.

OBH626K

5

MXZ-3D68VA -

E2

MXZ-3D68VA -

E3

MXZ-4D72VA -

E2

MXZ-4D72VA -

E3

1. Outdoor control P.C. board has been changed.

2. High pressure switch has been changed.

MXZ-3D54VA2 -

ER2

MXZ-3D54VA2 -

ER3

1. High pressure switch has been added.

2. Outdoor control P.C. board has been changed.

MXZ-3D68VA -

ER2

MXZ-3D68VA -

ER3

MXZ-4D72VA -

ER2

MXZ-4D72VA -

ER3

1. Outdoor control P.C. board has been changed.

2. High pressure switch has been changed.

MXZ-3D54VA2 -

ET2

MXZ-3D54VA2 -

ET3

1. High pressure switch has been added.

2. Outdoor control P.C. board has been changed.

MXZ-3D68VA -

E2

MXZ-3D68VA -

E3

MXZ-4D72VA -

E2

MXZ-4D72VA -

E3

1. Outdoor control P.C. board has been changed.

2. High pressure switch has been changed.

MXZ-3D54VA2 -

ER2

MXZ-3D54VA2 -

ER3

1. High pressure switch has been added.

2. Outdoor control P.C. board has been changed.

MXZ-3D68VA -

ER2

MXZ-3D68VA -

ER3

MXZ-4D72VA -

ER2

MXZ-4D72VA -

ER3

1. Outdoor control P.C. board has been changed.

2. High pressure switch has been changed.

MXZ-3D54VA2 -

ET2

MXZ-3D54VA2 -

ET3

1. High pressure switch has been added.

2. Outdoor control P.C. board has been changed.

MXZ-3D68VA -

ET2

MXZ-3D68VA -

ET3

MXZ-4D72VA -

ET2

MXZ-4D72VA -

ET3

1. Outdoor control P.C. board has been changed.

2. High pressure switch has been changed.

MXZ-6D122VA -

E1

MXZ-6D122VA -

ER1

MXZ-6D122VA -

ET1

1. New model

MXZ-2D42VA -

E3

MXZ-2D42VA2 -

E3

MXZ-2D53VA -

E3

MXZ-2D53VA2 -

E3

MXZ-2D53VAH -

E3

MXZ-2D53VAH2 -

E3

MXZ-2D42VA -

ET3

MXZ-2D42VA2 -

ET3, ER3

MXZ-2D53VA -

ET3

MXZ-2D53VA2 -

ET3, ER3

1. Indoor units combinations have been added (SLZ-KF Series).

2. Inverter P.C. board has been changed.

OBH626K

6

PART NAMES AND FUNCTIONS

2

ACCESSORIES

MXZ-2D33VA
MXZ-2D40VA
MXZ-2D42VA
MXZ-2D42VA2
MXZ-2D53VA MXZ-2D53VAH
MXZ-2D53VA2 MXZ-2D53VAH2

Air inlet

Air outlet

Drain outlet

Piping

Drain hose

(Back and side)

Model

MXZ-2D33VA
MXZ-2D40VA
MXZ-2D42VA
MXZ-2D42VA2
MXZ-2D53VA
MXZ-2D53VA2
MXZ-2D53VAH
MXZ-2D53VAH2
MXZ-4D83VA
MXZ-5D102VA

MXZ-3D54VA
MXZ-3D54VA2
MXZ-3D68VA
MXZ-4D72VA

MXZ-6D122VA

Drain socket 1 1 1
Drain cap 2 5

Air outlet

Drain outlet

Air inlet

(Back and side)

MXZ-3D54VA
MXZ-3D54VA2
MXZ-3D68VA
MXZ-4D72VA

MXZ-4D83VA
MXZ-5D102VA

MXZ-6D122VA

Air outlet

Drain outlet

Air inlet

(Back and side)

Air outlet

Drain outlet

Air inlet

(Back and side)

OBH626K

7

SPECIFICATION

3

Outdoor model MXZ-2D33VA
Outdoor unit power supply

Single phase

230 V, 50 Hz

System

Indoor units number 2
Piping total length m Max. 20
Connecting pipe length m Max. 15
Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Function Cooling Heating
Capacity Rated frequency (Min.-Max.)

2 kW 3.3 (1.1 - 3.8) 4.0 (1.0 - 4.1)

Breaker capacity A 15

Electrical

data

Power input (Total) 1, 2 W 900 960
Running current (Total)

1, 2 A 4.3 4.6

Power factor (Total)

1, 2% 90

Starting current (Total)

1, 2 A 4.6

Coeffi cient of performance (C.O.P) (Total)

1, 2 3.67 4.17

Compressor

Model KNB073FFDHC

Output W 800

Current

1, 2 A 4.0 4.2

Refrigeration oil (Model) L 0.32 (NEO22)

Fan

motor

Model RC0J50-FA

Current

1, 2 A 0.35
Dimensions W x H x D mm 800 x 550 x 285
Weight kg 32

Special

remarks

Air fl ow (Rated) m3 /h 1,974 2,022
Sound level (Rated) dB(A) 49 50
Fan speed (Rated) rpm 860 880
Refrigerant fi lling capacity (R410A) kg 1.15

1 Measured under rated operating frequency.

2 When connected with indoor units below.
MSZ-SF15VA + MSZ-EF18VE
NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)
COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C
OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C
HEATING INDOOR Dry-bulb temperature 20.0 °C
OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626K

8

Outdoor model MXZ-2D40VA
Outdoor unit power supply

Single phase
230 V, 50 Hz

System

Indoor units number 2
Piping total length m Max. 30
Connecting pipe length m Max. 20
Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Function Cooling Heating
Capacity Rated frequency (Min.-Max.)

2 kW 4.0 (1.1 - 4.3) 4.5 (1.0 - 4.8)

Breaker capacity A 15

Electrical

data

Power input (Total) 1, 2 W 970
Running current (Total)

1, 2 A 4.7

Power factor (Total)

1, 2% 90

Starting current (Total)

1, 2 A 4.7

Coeffi cient of performance (C.O.P) (Total)

1, 2 4.12 4.64

Compressor

Model KNB092FFDHC

Output W 1,100

Current

1, 2 A 4.4 4.2

Refrigeration oil (Model) L 0.32 (NEO22)

Fan

motor

Model RC0J50-FA

Current

1, 2 A 0.35
Dimensions W x H x D mm 800 x 550 x 285
Weight kg 34

Special

remarks

Air fl ow (Rated) m3 /h 1,752 1,662
Sound level (Rated) dB(A) 49 50
Fan speed (Rated) rpm 840 800
Refrigerant fi lling capacity (R410A) kg 1.3

1 Measured under rated operating frequency.

2 When connected with indoor units below.
MSZ-EF18VE + MSZ-EF22VE
NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)
COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C
OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C
HEATING INDOOR Dry-bulb temperature 20.0 °C
OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626K

9

Outdoor model MXZ-2D42VA MXZ-2D42VA2
Outdoor unit power supply

Single phase
230 V, 50 Hz

System

Indoor units number 2
Piping total length m Max. 30
Connecting pipe length m Max. 20
Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Function Cooling Heating
Capacity Rated frequency (Min.-Max.)

2 kW 4.2 (1.1 - 4.4) 4.5 (1.0 - 4.8)

Breaker capacity A 15

Electrical

data

Power input (Total) 1, 2 W 1,000 930
Running current (Total)

1, 2 A 4.5 4.2

Power factor (Total)

1, 2% 97

Starting current (Total)

1, 2 A 4.5

Coeffi cient of performance (C.O.P) (Total)

1, 2 4.20 4.84

Compressor

Model SNB130FGBHT

Output W 1,150

Current

1, 2 A 4.0 3.6

Refrigeration oil (Model) L 0.45 (NEO22)

Fan

motor

Model RC0J50-FA

Current

1, 2 A 0.35
Dimensions W x H x D mm 800 x 550 x 285
Weight kg 37

Special

remarks

Air fl ow (Rated) m3 /h 1,662 1,998
Sound level (Rated) dB(A) 46 51
Fan speed (Rated) rpm 800 910
Refrigerant fi lling capacity (R410A) kg 1.3

1 Measured under rated operating frequency.

2 When connected with indoor units below.
MSZ-EF18VE + MSZ-EF25VE
NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)
COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C
OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C
HEATING INDOOR Dry-bulb temperature 20.0 °C
OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626K

10

Outdoor model

MXZ-2D53VA MXZ-2D53VAH
MXZ-2D53VA2 MXZ-2D53VAH2

Outdoor unit power supply

Single phase
230 V, 50 Hz

System

Indoor units number 2
Piping total length m Max. 30
Connecting pipe length m Max. 20
Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Function Cooling Heating
Capacity Rated frequency (Min.-Max.)

2 kW 5.3 (1.1 - 5.6) 6.4 (1.0 - 7.0)

Breaker capacity A 15

Electrical

data

Power input (Total) 1, 2 W 1,540 1,700
Running current (Total)

1, 2 A 6.9 7.6

Power factor (Total)

1, 2% 97

Starting current (Total)

1, 2 A 7.6

Coeffi cient of performance (C.O.P) (Total)

1, 2 3.44 3.76

Compressor

Model SNB130FGBHT

Output W 1,400

Current

1, 2 A 6.6 7.2

Refrigeration oil (Model) L 0.45 (NEO22)

Fan

motor

Model RC0J50-FA

Current

1, 2 A 0.35

Dimensions W x H x D mm 800 x 550 x 285

Weight kg

MXZ-2D53VA: 37 MXZ-2D53VAH: 38
MXZ-2D53VA2: 37 MXZ-2D53VAH2: 38

Special

remarks

Air fl ow (Rated) m3 /h 1,974 1,998

Sound level (Rated) dB(A) 50 53

Fan speed (Rated) rpm 900 910

Refrigerant fi lling capacity (R410A) kg 1.3

1 Measured under rated operating frequency.

2 When connected with indoor units below.
MSZ-EF18VE + MSZ-EF35VE
NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)
COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C
OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C
HEATING INDOOR Dry-bulb temperature 20.0 °C
OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626K

11

Outdoor model MXZ-3D54VA MXZ-3D54VA2
Outdoor unit power supply

Single phase
230 V, 50 Hz

System

Indoor units number 2 to 3
Piping total length m Max. 50
Connecting pipe length m Max. 25
Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Function Cooling Heating
Capacity Rated frequency (Min.-Max.)

2 kW 5.4 (2.9 - 6.8) 7.0 (2.6 - 9.0)

Breaker capacity A 25

Electrical

data

Power input (Total) 1, 2W

MXZ-3D54VA: 1,390

MXZ-3D54VA2: 1,350

1,590

Running current (Total)

1, 2A

MXZ-3D54VA: 6.1

MXZ-3D54VA2: 5.9

7.0

Power factor (Total)

1, 2% 99

Starting current (Total)

1, 2 A 7.0

Coeffi cient of performance (C.O.P) (Total)

1, 2

MXZ-3D54VA: 3.88

MXZ-3D54VA2: 4.00

4.40

Compressor

Model SNB130FGBH1T

Output W 1,400

Current

1, 2 A 5.72 6.62

Refrigeration oil (Model) L 0.7 (NEO22)

Fan

motor

Model SIC-71FW-F764-1

Current

1, 2 A 0.2
Dimensions W x H x D mm 840 x 710 x 330
Weight kg 57

Special

remarks

Air fl ow (Rated) m3 /h 2,334 2,376
Sound level (Rated) dB(A) 50 53
Fan speed (Rated) rpm 650 660
Refrigerant fi lling capacity (R410A) kg 2.7

1 Measured under rated operating frequency.

2 When connected with indoor units below.
MSZ-EF18VE + MSZ-EF18VE + MSZ-EF18VE
NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)
COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C
OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C
HEATING INDOOR Dry-bulb temperature 20.0 °C
OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626K

12

Outdoor model MXZ-3D68VA
Outdoor unit power supply

Single phase
230 V, 50 Hz

System

Indoor units number 2 to 3
Piping total length m Max. 60
Connecting pipe length m Max. 25
Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Function Cooling Heating
Capacity Rated frequency (Min.-Max.)

2 kW 6.8 (2.9 - 8.4) 8.6 (2.6 - 10.6)

Breaker capacity A 25

Electrical

data

Power input (Total) 1, 2 W 2,190 2,380
Running current (Total)

1, 2 A 9.6 10.5

Power factor (Total)

1, 2% 99

Starting current (Total)

1, 2 A 10.5

Coeffi cient of performance (C.O.P) (Total)

1, 2 3.11 3.61

Compressor

Model SNB172FEGH1T

Output W 1,800

Current

1, 2 A 9.22 10.12

Refrigeration oil (Model) L 0.7 (NEO22)

Fan

motor

Model SIC-71FW-F764-1

Current

1, 2 A 0.2
Dimensions W x H x D mm 840 x 710 x 330
Weight kg 57

Special

remarks

Air fl ow (Rated) m3 /h 2,334 2,376
Sound level (Rated) dB(A) 50 53
Fan speed (Rated) rpm 650 660
Refrigerant fi lling capacity (R410A) kg 2.7

1 Measured under rated operating frequency.

2 When connected with indoor units below.
MSZ-EF18VE + MSZ-EF25VE + MSZ-EF25VE
NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)
COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C
OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C
HEATING INDOOR Dry-bulb temperature 20.0 °C
OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626K

13

Outdoor model MXZ-4D72VA
Outdoor unit power supply

Single phase
230 V, 50 Hz

System

Indoor units number 2 to 4
Piping total length m Max. 60
Connecting pipe length m Max. 25
Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Function Cooling Heating
Capacity Rated frequency (Min.-Max.)

2 kW 7.2 (3.7 - 8.8) 8.6 (3.4 - 10.7)

Breaker capacity A 25

Electrical

data

Power input (Total) 1, 2 W 2,250 2,280
Running current (Total)

1, 2 A 9.9 10.0

Power factor (Total)

1, 2% 99

Starting current (Total)

1, 2 A 10.0

Coeffi cient of performance (C.O.P) (Total)

1, 2 3.20 3.77

Compressor

Model SNB172FEGH1T

Output W 2,000

Current

1, 2 A 9.46 9.56

Refrigeration oil (Model) L 0.7 (NEO22)

Fan

motor

Model SIC-71FW-F764-1

Current

1, 2 A 0.2
Dimensions W x H x D mm 840 x 710 x 330
Weight kg 58

Special

remarks

Air fl ow (Rated) m3 /h 2,334 2,376
Sound level (Rated) dB(A) 50 53
Fan speed (Rated) rpm 650 660
Refrigerant fi lling capacity (R410A) kg 2.7

1 Measured under rated operating frequency.

2 When connected with indoor units below.
MSZ-EF18VE + MSZ-EF18VE + MSZ-EF18VE + MSZ-EF18VE
NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)
COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C
OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C
HEATING INDOOR Dry-bulb temperature 20.0 °C
OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626K

14

Outdoor model MXZ-4D83VA
Outdoor unit power supply

Single phase
230 V, 50 Hz

System

Indoor units number 2 to 4
Piping total length m Max. 70
Connecting pipe length m Max. 25
Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Function Cooling Heating
Capacity Rated frequency (Min.-Max.)

2 kW 8.3 ( 3.7 - 9.2 ) 9.0 ( 3.4 - 11.6 )

Breaker capacity A 25

Electrical

data

Power input (Total) 1, 2 W 2,830 2,420
Running current (Total)

1, 2 A 12.4 10.6

Power factor (Total)

1, 2% 99

Starting current (Total)

1, 2 A 12.4

Coeffi cient of performance (C.O.P) (Total)

1, 2 2.93 3.72

Compressor

Model TNB220FMCH

Output W 2,100

Current

1, 2 A 11.76 9.96

Refrigeration oil (Model) L 0.87 (NEO22)

Fan

motor

Model RC0J60-CC

Current

1, 2 A 0.4
Dimensions W x H x D mm 900 x 915 x 320
Weight kg 69

Special

remarks

Air fl ow (Rated) m3 /h 2,526 2,628
Sound level (Rated) dB(A) 49 50
Fan speed (Rated) rpm 600 620
Refrigerant fi lling capacity (R410A) kg 3.5

1 Measured under rated operating frequency.

2 When connected with indoor units below.
MSZ-EF18VE + MSZ-EF18VE + MSZ-EF22VE + MSZ-EF25VE
NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)
COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C
OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C
HEATING INDOOR Dry-bulb temperature 20.0 °C
OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626K

15

Outdoor model MXZ-5D102VA
Outdoor unit power supply

Single phase
230 V, 50 Hz

System

Indoor units number 2 to 5
Piping total length m Max. 80
Connecting pipe length m Max. 25
Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Function Cooling Heating
Capacity Rated frequency (Min.-Max.)

2 kW 10.2 ( 3.9 - 11.0 ) 10.5 ( 4.1 - 14.0 )

Breaker capacity A 25

Electrical

data

Power input (Total) 1, 2 W 3,910 2,900
Running current (Total)

1, 2 A 17.2 12.7

Power factor (Total)

1, 2% 99

Starting current (Total)

1, 2 A 17.2

Coeffi cient of performance (C.O.P) (Total)

1, 2 2.61 3.62

Compressor

Model TNB220FMCH

Output W 2,700

Current

1, 2 A 16.5 12.0

Refrigeration oil (Model) L 0.87 (NEO22)

Fan

motor

Model RC0J60-CC

Current

1, 2 A 0.4
Dimensions W x H x D mm 900 x 915 x 320
Weight kg 70

Special

remarks

Air fl ow (Rated) m3 /h 3,396 3,558
Sound level (Rated) dB(A) 53 55
Fan speed (Rated) rpm 780 810
Refrigerant fi lling capacity (R410A) kg 4.0

1 Measured under rated operating frequency.

2 When connected with indoor units below.
MSZ-EF18VE + MSZ-EF18VE + MSZ-EF22VE + MSZ-EF22VE + MSZ-EF22VE
NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)
COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C
OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C
HEATING INDOOR Dry-bulb temperature 20.0 °C
OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626K

16

Outdoor model MXZ-6D122VA
Outdoor unit power supply

Single phase
230 V, 50 Hz

System

Indoor units number 2 to 6
Piping total length m Max. 80
Connecting pipe length m Max. 25
Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.
Function Cooling Heating
Capacity Rated frequency (Min.-Max.)

2 kW 12.2 ( 3.5 - 13.5 ) 14.0 ( 3.5 - 16.5 )

Breaker capacity A 32

Electrical

data

Power input (Total) 1, 2 W 3,660 3,310
Running current (Total)

1, 2 A 16.1 14.5

Power factor (Total)

1, 2% 99

Starting current (Total)

1, 2 A 17.2

Coeffi cient of performance (C.O.P) (Total)

1, 2 3.33 4.23

Compressor

Model MNB33FBTM-L

Output W 1,700

Current

1, 2 A 15.26 12.94

Refrigeration oil (Model) L 1.10 (FV50S)

Fan

motor

Model SIC-81FW-D888-9

Current

1, 2 A 0.3
Dimensions W x H x D mm 950 x 1,048 x 330
Weight kg 88

Special

remarks

Air fl ow (Rated) m3 /h 3,780 4,620
Sound level (Rated) dB(A) 55 57
Fan speed (Rated) rpm 650 750
Refrigerant fi lling capacity (R410A) kg 4.0

1 Measured under rated operating frequency.

2 When connected with indoor units below.
MSZ-EF22VE +MSZ-EF22VE +MSZ-EF22VE +MSZ-EF22VE +MSZ-EF22VE +MSZ-EF22VE
NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)
COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C
OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C
HEATING INDOOR Dry-bulb temperature 20.0 °C
OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626K

17

90

80

70

60

50

40

30

20

10

63 125 250 500 1000 2000 4000 8000

APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

CoolingHigh

FUNCTION

FAN SPEED

HeatingHigh

49

SPL(dB(A))50LINE

90

80

70

60

50

40

30

20

10

63 125 250 500 1000 2000 4000 8000

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE

CoolingHigh

FUNCTION

FAN SPEED

HeatingHigh

46

SPL(dB(A))51LINE

90

80

70

60

50

40

30

20

10

63 125 250 500 1000 2000 4000 8000

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE

CoolingHigh

FUNCTION

FAN SPEED

HeatingHigh

49

SPL(dB(A))50LINE

90

80

70

60

50

40

30

20

10

63 125 250 500 1000 2000 4000 8000

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE

CoolingHigh

FUNCTION

FAN SPEED

HeatingHigh

50

SPL(dB(A))53LINE

NOISE CRITERIA CURVES

4

MXZ-2D53VA
MXZ-2D53VA2
MXZ-2D53VAH
MXZ-2D53VAH2

MXZ-2D33VA

MXZ-2D42VA
MXZ-2D42VA2

MXZ-2D40VA

OBH626K

18

90

80

70

60

50

40

30

20

10

63 125 250 500 1000 2000 4000 8000

APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

CoolingHigh

FUNCTION

FAN SPEED

HeatingHigh

50

SPL(dB(A))53LINE

90

80

70

60

50

40

30

20

10

63 125 250 500 1000 2000 4000 8000

APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

CoolingHigh

FUNCTION

FAN SPEED

HeatingHigh

50

SPL(dB(A))53LINE

90

80

70

60

50

40

30

20

10

63 125 250 500 1000 2000 4000 8000

APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

CoolingHigh

FUNCTION

FAN SPEED

HeatingHigh

50

SPL(dB(A))53LINE

90

80

70

60

50

40

30

20

10

63 125 250 500 1000 2000 4000 8000

APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

CoolingHigh

FUNCTION

FAN SPEED

HeatingHigh

48

SPL(dB(A))51LINE

MXZ-3D54VA
MXZ-3D54VA2

MXZ-3D68VA

MXZ-4D72VA MXZ-4D83VA

OBH626K

19

90

80

70

60

50

40

30

20

10

63 125 250 500 1000 2000 4000 8000

APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

CoolingHigh

FUNCTION

FAN SPEED

HeatingHigh

48

SPL(dB(A))51LINE

90

80

70

60

50

40

30

20

10

63 125 250 500 1000 2000 4000 8000

APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

CoolingHigh

FUNCTION

FAN SPEED

HeatingHigh

55

SPL(dB(A))57LINE

MXZ-5D102VA MXZ-6D122VA

OUTDOOR UNIT

MICROPHONE

1m

Test conditions
Cooling :Dry-bulb temperature 35°C Wet-bulb temperature 24°C
Heating :Dry-bulb temperature 7°C Wet-bulb temperature 6°C

OBH626K

20

OUTLINES AND DIMENSIONS

5

MXZ-2D33VA MXZ-2D40VA MXZ-2D42VA MXZ-2D42VA2
MXZ-2D53VA MXZ-2D53VA2 MXZ-2D53VAH MXZ-2D53VAH2

Unit: mm

OBH626K

21

1.Installation space

Note : Leave front and both sides
free of obstruction.

Note : Leave rear, overhead and
both sides free of obstruction.

500 or more

100 or more

Note : Leave front and overhead
free of obstruction.

100 or more

350 or more

200 or more

500 or more

2.Service space

100 or more

500 or more

350 or more

350 or more

100 or more

Service space

Liquid pipe : Ø6.35(flared)1/4

C unit connection

B unit connection

A unit connection

Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø9.52(flared)3/8

MXZ-3D54VA MXZ-3D54VA2 MXZ-3D68VA

Unit: mm

OBH626K

22

MXZ-4D72VA

Unit: mm

1.Installation space

Note : Leave front and both sides
free of obstruction.

Note : Leave rear, overhead and
both sides free of obstruction.

500 or more

100 or more

Note : Leave front and overhead
free of obstruction.

100 or more

350 or more

200 or more

500 or more

2.Service space

100 or more

500 or more

350 or more

350 or more

100 or more

Service space

Liquid pipe : Ø6.35(flared)1/4

D unit connection

C unit connection

B unit connection

Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø9.52(flared)3/8

A unit connection

Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø12.7(flared)1/2

OBH626K

23

MXZ-4D83VA

MXZ-5D102VA

Unit: mm

Liquid pipe : Ø6.35(flared)1/4

E unit connection
(MXZ-5D102VA)

D unit connection
C unit connection
B unit connection

Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø9.52(flared)3/8

A unit connection

Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø12.7(flared)1/2

1.Installation space

Note : Leave front and both sides
free of obstruction.

Note : Leave rear, overhead and
both sides free of obstruction.

Air out

42

200 200500

315

355

(Bolt pitch)

387

40

27

16

16

11

24

Drain hole 42

(Fondation bolt M10)

(Fondation bolt M10)

2-U Shaped notched hole

2-12 x 36 Oval hole

Air in

Air in

32025 10

88

475

317

900

Handle

Handle

915

500 or more

100 or more

Note : Leave front and overhead
free of obstruction.

100 or more

350 or more

200 or more

500 or more

2.Service space

100 or more

500 or more

350 or more

350 or more

100 or more

Service space

23

612

147

405

45

Indoor and
outdoor
connect wiring
(35 x 53) hole

OBH626K

24

MXZ-6D122VA

Unit: mm

34

468134

43

Handle

Air Intake

Handle

330

70

25 15

6-ø33 Drain Hole

Air in

Air out

Air in

(Foundation Bolt M10)

2-U Shaped Notched Hole

(Foundation Bolt M10)

2-12×36 Oval Hole

(Bolt pitch)

1169780250

51

71

134

40

62

10

10

10

10

175 600 175

10

10

417

31 16370

36

51

Handle

Handle

Handle

361

563

1048

950

Liquid pipe : Ø6.35(flared)1/4

E unit
connection

D unit
connection

C unit
connection

B unit
connection

A unit
connection

F unit
connection

Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø9.52(flared)3/8
Liquid pipe : Ø6.35(flared)1/4
Gas pipe : Ø12.7(flared)1/2

SERVICE SPACE

1.FREE SPACE

2.SERVICE SPACE

100 or more

200 or more

350 or more

500 or more

100 or more

100 or more

350 or more 350 or more

500 or more

100 or more

500 or more

OBH626K

25

WIRING DIAGRAM

6

MXZ-2D33VA -E1 MXZ-2D40VA -E1 MXZ-2D53VA -

E1

OUTDOOR

DISPLAY

P.C. BOARD

OBH626K

26

MXZ-2D33VA -E2 MXZ-2D42VA -E2 MXZ-2D53VA -

E2

OBH626K

27

MXZ-2D33VA -E3 MXZ-2D42VA -E3 MXZ-2D53VA -

E3

OBH626K

28

MXZ-2D33VA -

ER2

MXZ-2D40VA -

ER2

MXZ-2D53VA -

ER2

OBH626K

29

MXZ-2D33VA -

ER3

MXZ-2D42VA -

ER3

MXZ-2D53VA -

ER3

OBH626K

30

MXZ-2D33VA -

ET2

MXZ-2D42VA -

ET2

MXZ-2D53VA -

ET2

OBH626K
