Mitsubishi Electronics MSY-D36NA, MSZ-D36NA, MSZ-D30NA, MSY-D30NA User Manual

SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS

INDOOR UNIT

PARTS CATALOG

Wireless type
Models

MSZ-D30NA
MSZ-D36NA
MSY-D30NA

No. OBB501

MSY-D36NA

CONTENTS

1. RoHS PARTS LIST ·············································2

SERVICE MANUAL (OBH501)

NOTE:

RoHS compliant products have <G> mark on the spec name plate.

RoHS PARTS LIST1

MSZ-D30NA
MSZ-D36NA
MSY-D30NA
MSY-D36NA

1-1. INDOOR UNIT STRUCTURAL PARTS

1

2

3
4

5

6

1-2. INDOOR UNIT HEAT EXCHANGER

9 (See 1-5.)

8

7

10

11

12

13

2

1-1. INDOOR UNIT STRUCTURAL PARTS

No.

1 G E12 C92 970 INSTALLATION PLATE 1 1 1 1
2 G E12 D20 234 BOX 1 1 1 1
3 G E12 C92 000 PANEL ASSEMBLY 1 1 1 1
4 G E12 408 142 CATCH 2 2 2 2 2PCS/SET
5 G E12 C92 067 SCREW CAP 3 3 3 3 3PCS/SET
6 G E12 C92 010 FRONT PANEL 1 1 1 1
7 G E12 C92 100 CATECHIN AIR FILTER 2 2 2 2 1PC/SET
8 G E12 C92 975 CORNER BOX 1 1 1 1

9G

Part No. Part Name

RoHS

—

AIR CLEANING FILTER 2 2 2 2

Symbol

in Wiring

Diagram

D30NA D36NA D30NA D36NA

Q'ty/unit

MSZ- MSY-

Remarks

Including No.4,5,6

2PCS/SET
MAC-1415FT-E

1-2. INDOOR UNIT HEAT EXCHANGER

10 G E12 C92 620 INDOOR HEAT EXCHANGER 1 1 1 1
11 G E12 527 667 UNION (LIQUID) 1 1 1 1 ø3/8
12 G E12 C92 666 UNION (GAS) 1 1 1 1 ø5/8
13 G E12 D20 980 JOINT ASSEMBLY 1 1 1 1

3

MSZ-D30NA
MSZ-D36NA
MSY-D30NA
MSY-D36NA

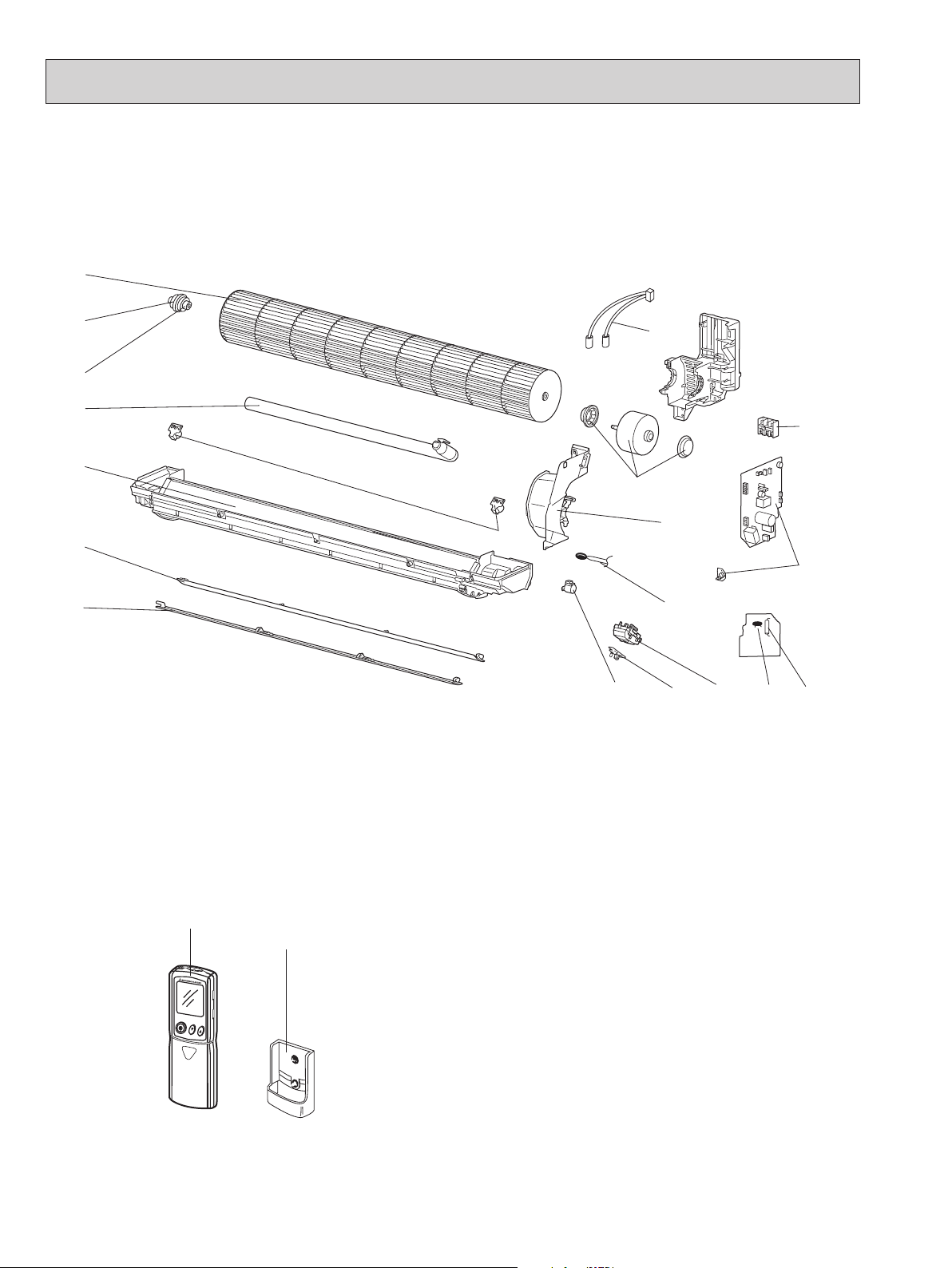

1-3. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS

1

2

3
4

5

18

MOTOR BED

19

16

6

7

1-4. ACCESSORY AND REMOTE CONTROLLER

20

21

8

9

17

14

10 11

15

12 13

4

1-3. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS

No.

1 G E12 C92 302 LINE FLOW FAN 1 1 1 1
2 G E12 751 509 BEARING MOUNT 1 1 1 1
3 G E12 001 504 SLEEVE BEARING 1 1 1 1
4 G E12 408 702 DRAIN HOSE 1 1 1 1
5 G E12 D20 235 NOZZLE ASSEMBLY 1 1 1 1
6 G E12 C92 040 VANE UPPER 1 1 1 1
7 G E12 C92 041 VANE LOWER 1 1 1 1
8 G E12 448 303 VANE MOTOR (VERTICAL) MV2 2 2 2 2 RIGHT & LEFT

9 G E12 749 303 VANE MOTOR (HORIZONTAL) MV1 1 1 1 1 UP & DOWN
10 G E12 C92 468 POWER MONITOR RECEIVER P.C. BOARD 1 1 1 1
11 G E12 C92 095 POWER MONITOR RECEIVER HOLDER 1 1 1 1
12 G E12 A43 385 VARISTOR NR11 1 1 1 1
13 G E12 A49 382 FUSE F11 1 1 1 1 T3.15AL250V
14 G E12 527 308 ROOM TEMPERATURE THERMISTOR RT11 1 1 1 1

15

16 G E12 C92 375 TERMINAL BLOCK TB 1 1 1 1
17 G E12 C92 333 MOTOR BAND 1 1 1 1
18 G E12 C92 300 INDOOR FAN MOTOR ASSEMBLY
19 G E12 C92 307 INDOOR COIL THERMISTOR

1 Including SW P.C. BOARD

2 Including FAN MOTOR RUBBER MOUNT (2 PCS/SET)

Part No. Part Name

RoHS

G E12 C87 452 ELECTRONIC CONTROL P.C. BOARD
G E12 D20 452 ELECTRONIC CONTROL P.C. BOARD
G E12 C91 452 ELECTRONIC CONTROL P.C. BOARD
G E12 D21 452 ELECTRONIC CONTROL P.C. BOARD

2 MF 1 1 1 1 RC0J56-

Symbol

in Wiring

Diagram

11
11
11
1

RT12, RT13 1111

D30NA D36NA D30NA D36NA

Q'ty/unit

MSZ- MSY-

Remarks

1

1-4. ACCESSORY AND REMOTE CONTROLLER

G E12 C26 426 REMOTE CONTROLLER 1 1 KM07K

20

G E12 C29 426 REMOTE CONTROLLER 1 1 KM07M

21 G E12 527 083 REMOTE CONTROLLER HOLDER 1 1 1 1

5

MSZ-D30NA
MSZ-D36NA
MSY-D30NA
MSY-D36NA

1-5. AIR CLEANING FILTER (ANTI-ALLERGY ENZYME FILTER)

Model Part No.

MSZ-D30NA
MSZ-D36NA
MSY-D30NA
MSY-D36NA

MAC-1415FT-E

6

7

TM

HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN

Copyright 2008 MITSUBISHI ELECTRIC ENGINEERING CO.,LTD
Distributed in Feb. 2008. No. OBB501 7
Made in Japan

New publication, effective Feb. 2008
Specifications subject to change without notice.
