R600a
Refrigerator-Freezer
MODEL
MR-WX743C
OPERATING INSTRUCTIONS

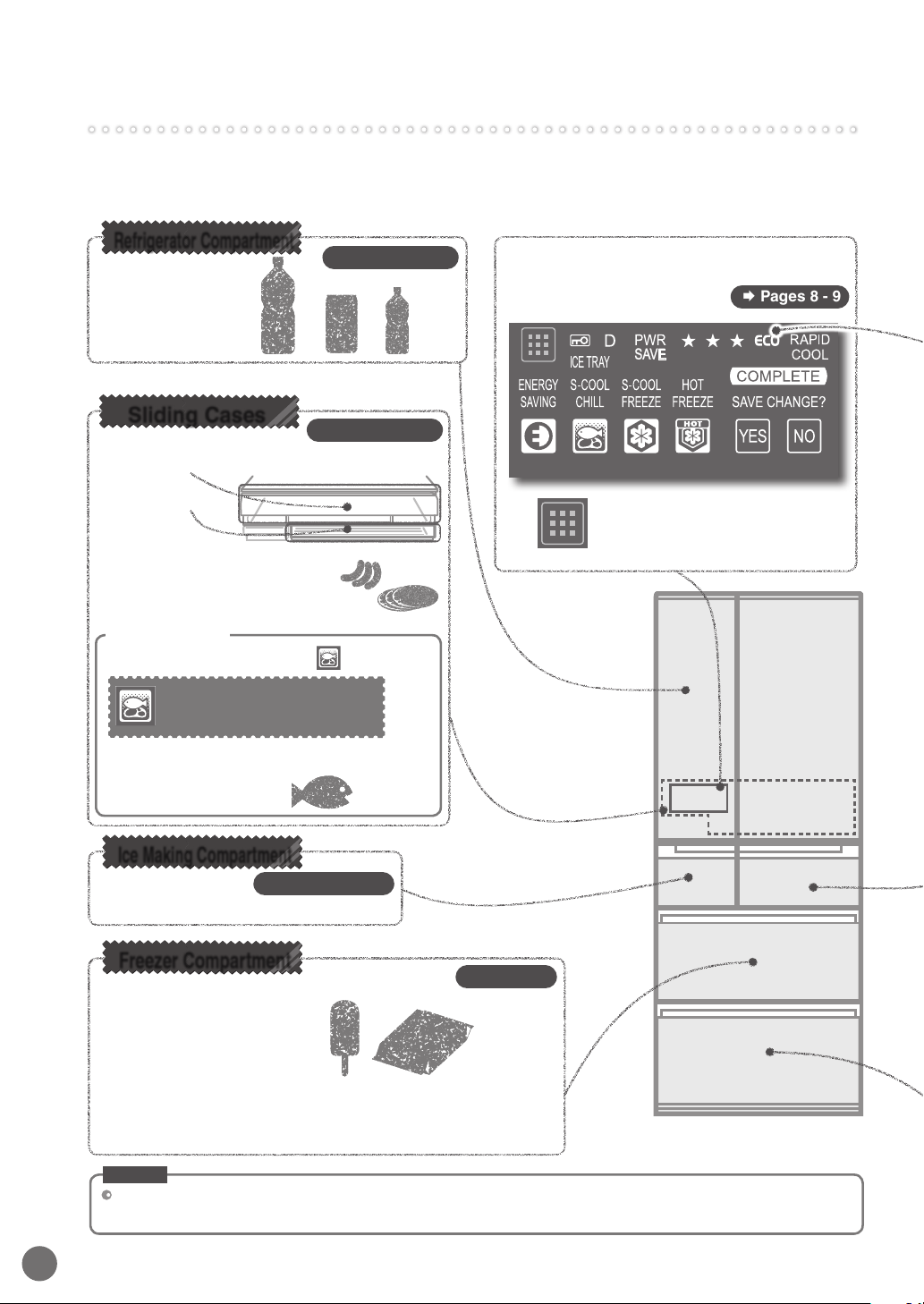

Store food in the best way for consumption
Place food and drinks in the compartments suitable for preserving them.

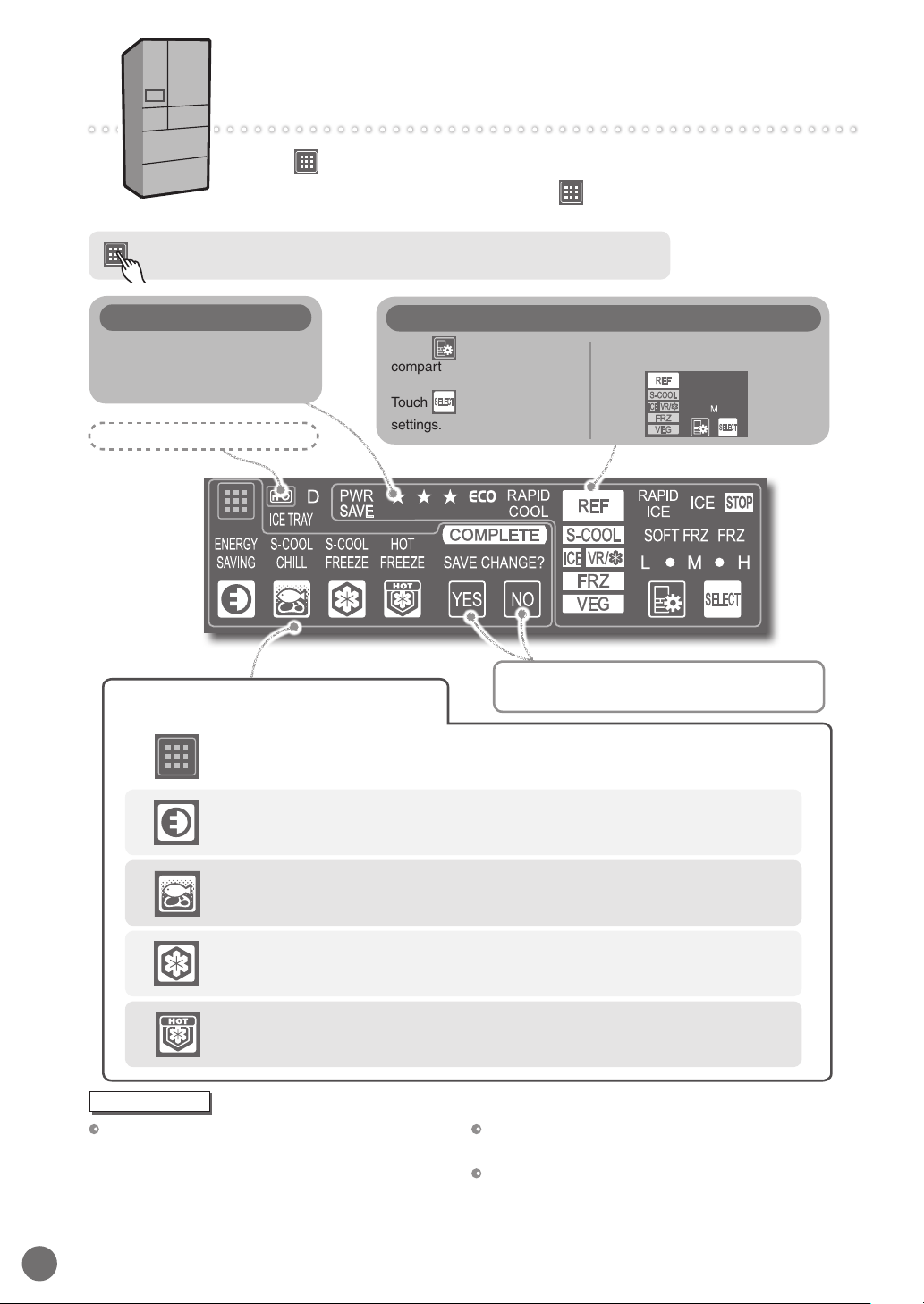

Convenient functions can be easily set by simply touching icons on the operation panel.
!
Refrigerator Compartment
Pages 10 - 11
About 0°C
Foods that are used
daily
Foods you do not
want to freeze
to
6
°C
Sliding Cases
Pages 10 - 11
About -3°C
Upper Case
Lower Case
Dairy products: Yogurt, cheese, etc.
Fish paste products: Steamed
fish paste, fish cake, etc.
Processed food: Ham, sausages,
etc.
Recommended!
The lower case can be set with .

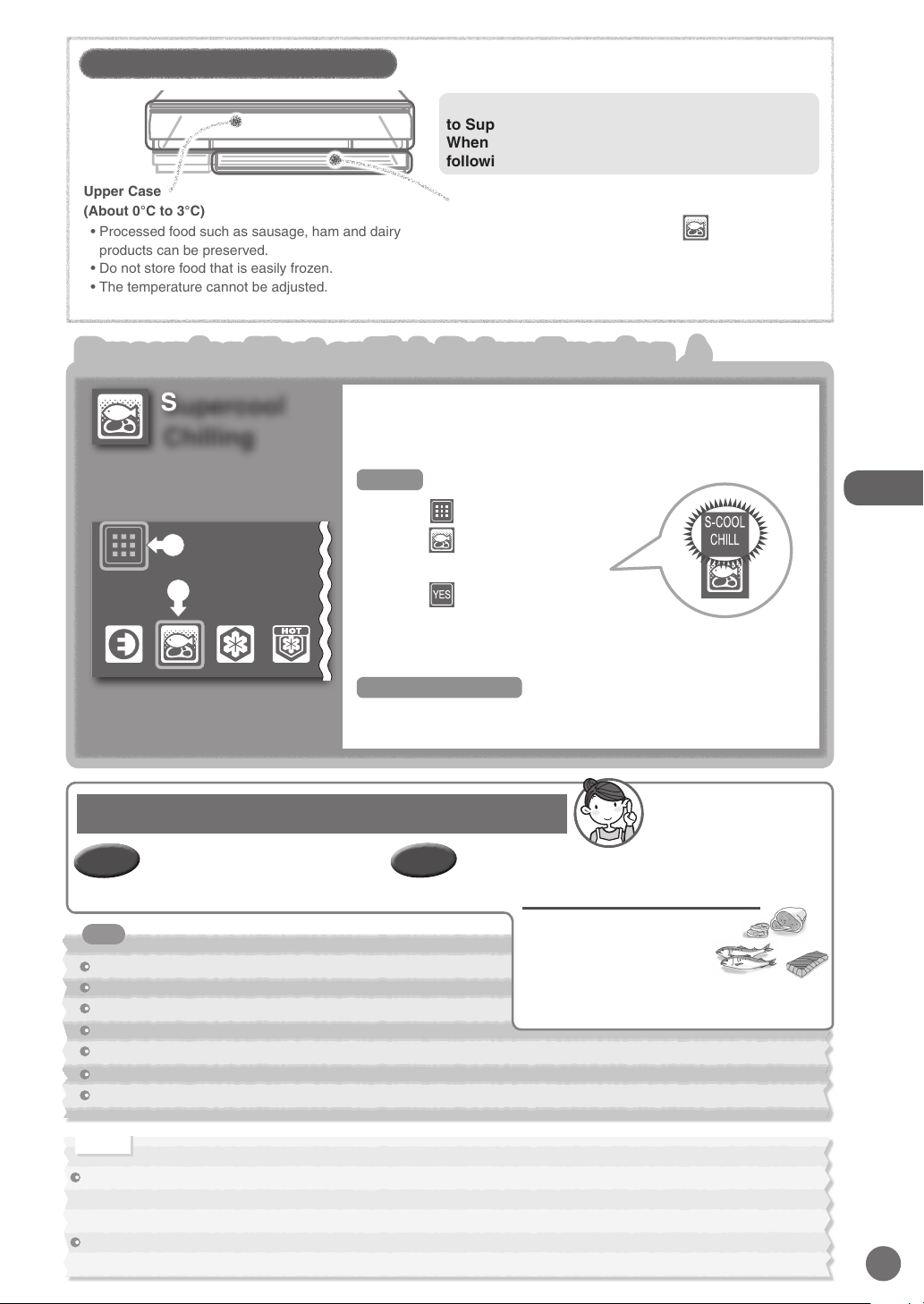

Supercool
Chilling
Preserves flavor below 0°C for a long time
without freezing!
Meat
Fish
to 3
°C
To preserve meat
or fish below
freezing
Operation Panel
Pages 8 - 9
If you touch the left button,
icons will be displayed. You
can select the setting that you
prefer.
Ice Making Compartment
Pages 12 - 13
Ice is made automatically.
Freezer Compartment
Page 18
About
Frozen food
Ice cream
Food frozen at home
Bread
If you store food that is Supercool Frozen in the freezer
compartment, it can be stored for a long time without losing its
taste and texture.
Notice
The temperatures described here are measured in the lower centre of the refrigerator after the temperature has stabilized when the
surrounding temperature is 32°C and the doors are closed without any food inside. The temperature fluctuates with factors such as food
storage conditions and how often the doors are opened and closed.
-22
°C
to
-16
°C
2
Contents
Safety
Installation
Operation
Panel
REF
Sliding Cases
Ice
S-COOL
FRZ
VEG
ENERGY
SAVING
Rapid
Cool
PWR
SAVE
Cleaning
Temperature
Adjustment
Troubleshooting
(Pages)
Safety Precautions …………………… 4-5
Energy Saving Mode
ENERGY
SAVING
With the ECO guide, you can check
your refrigerator's ECO level.
energy saving mode
Versa Compartment
Pages 14 - 15
Soft-Freezing: About
(Can also switch to freezer)
Supercool
Freezing
Blocks of meat
Ground meat
Fillets
°C
-9
To supercool freeze foods
such as meat, fish, and
dessert
to
-5
°C
Page 20
From Installation to Operation
How to Use the Operation Panel
Compartment Introduction
Refrigerator Compartment / Sliding Cases
Ice Making Compartment
Versa Compartment
Soft-Freezing / Supercool Freezing
Freezer Compartment
Vegetable Compartment
…… 6-7
… 8-9
… 10-11
… 12-13
… 14-15
… 16-18
…… 18
… 19
Energy Saving Mode ……………… 20
Detail setting
Performing Temperature Adjustment
Rapid Cool
Power Save Mode
Cleaning
…………………………… 23
…………… 24-25
…………………………… 26-30
… 21-22
Hot
Freezing
Freshly cooked rice
Curry
Sauces
Soft-Freezing / Supercool Freezing
Pages 16 - 18
To use Supercool Freezing
on hot cooked foods such
as freshly cooked rice,
curry, and sauces
Vegetable Compartment
Page 19
About 3°C
Vegetables
Fruits
Drinks
The water that evaporates from the food is
kept inside the compartment to maintain
the moisture. Storing fruits and vegetables
in plastic wrap keeps them even fresher.
to
°C
9
Other Issues
Power Outages ………………………………… 31
To Prevent Accidental Button Operation
(Child Safety Lock)
To Reset Settings
Alarm Sounds
When Not Using the Refrigerator for a
Long Time
To Move or Transport the Refrigerator
To Control the Temperature More Precisely
……………………… 31-34
………………………… 31
……………………………… 31
…………………………………… 32
…………………………………… 32
……… 33
… 34
etc.
Troubleshooting ………………… 35-38
Specifications
This refrigerator is manufactured for refrigerating and freezing
foods in general households. For industrial use, please use a
commercial refrigerator.
The material names are indicated on the main plastic parts to
facilitate recycling.
This refrigerator uses non-freon refrigerant (isobutane) and
non-freon foam insulation material (cyclopentane).
………………………… 39
3

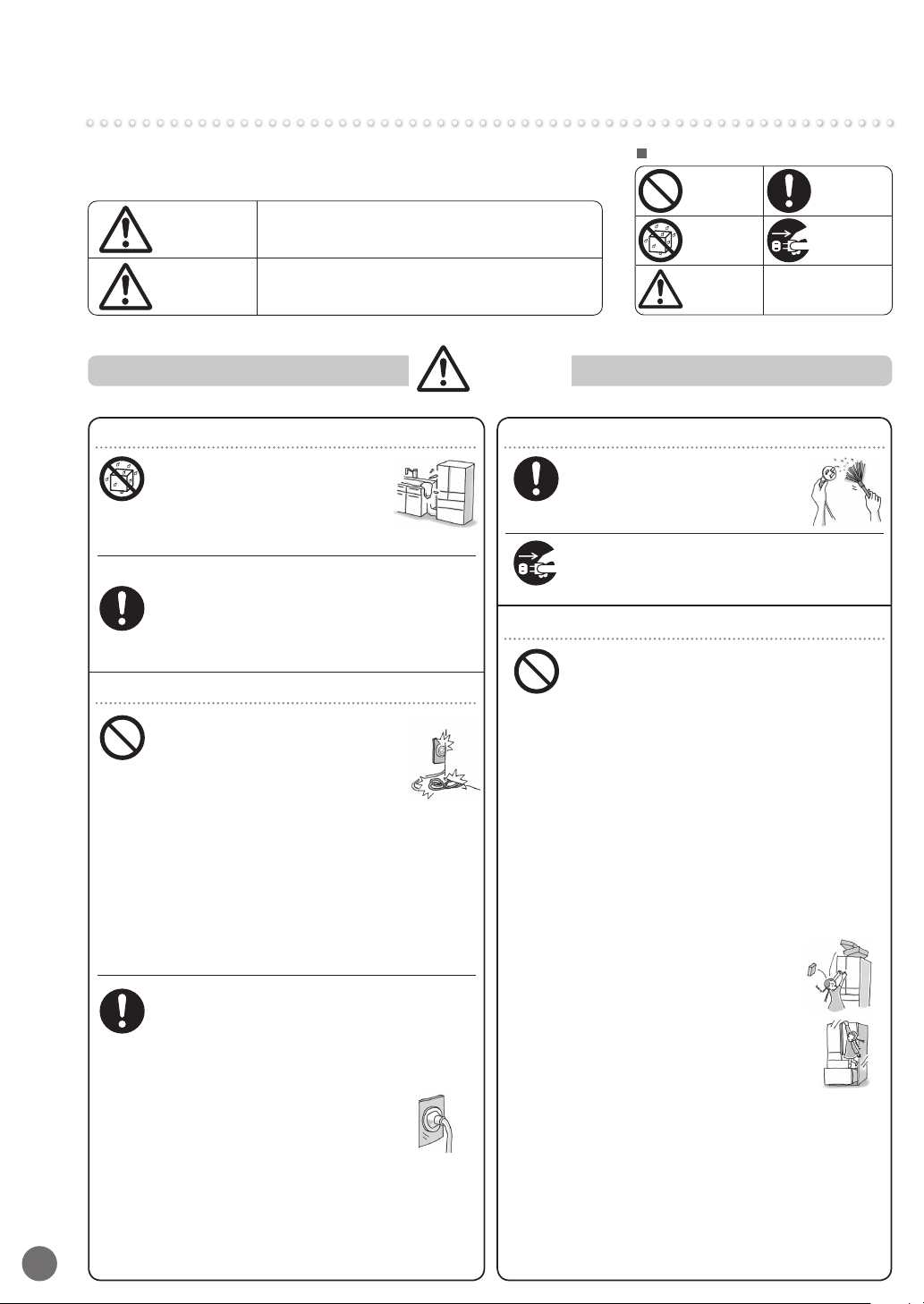

Safety Precautions
The following describes the safety precautions to follow in order to
prevent injury to the user and others, as well as to prevent damage to
property.
Warning
Caution
Improper handling that can result in grave
consequences such as death or serious injury.
Improper handling that can result in personal injury or
damage to your house, household furnishings, etc.
Meaning of symbols.
Prohibited
Water
prohibited
Caution
Follow the
instructions
Remove the
power plug.

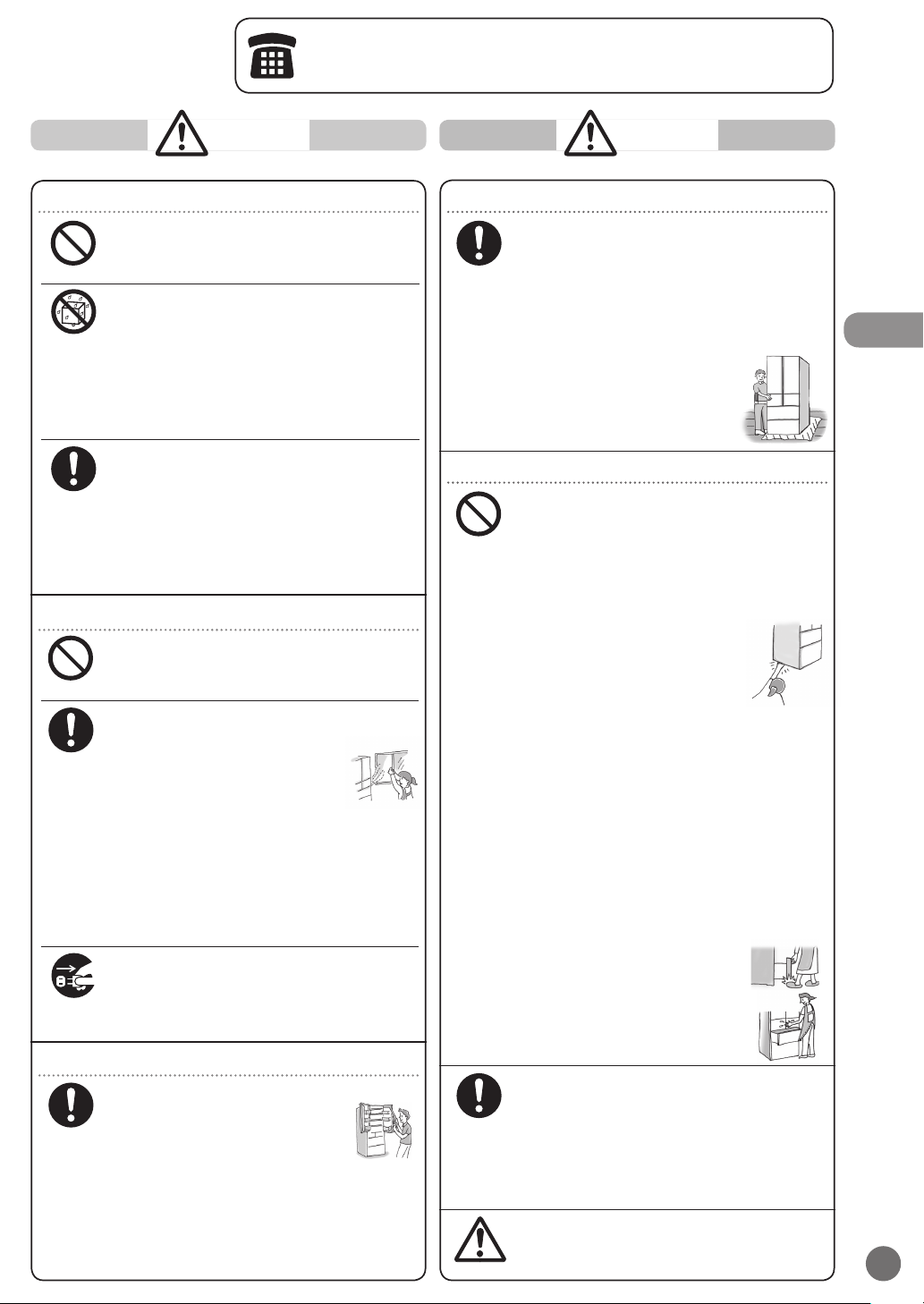

Warning
When Installing the Refrigerator
Do not install the refrigerator
outdoors or in places exposed
Water
prohibited
to water or excessive humidity.
Water may cause insulation failure,
resulting in an electric shock or fire.
Page 6

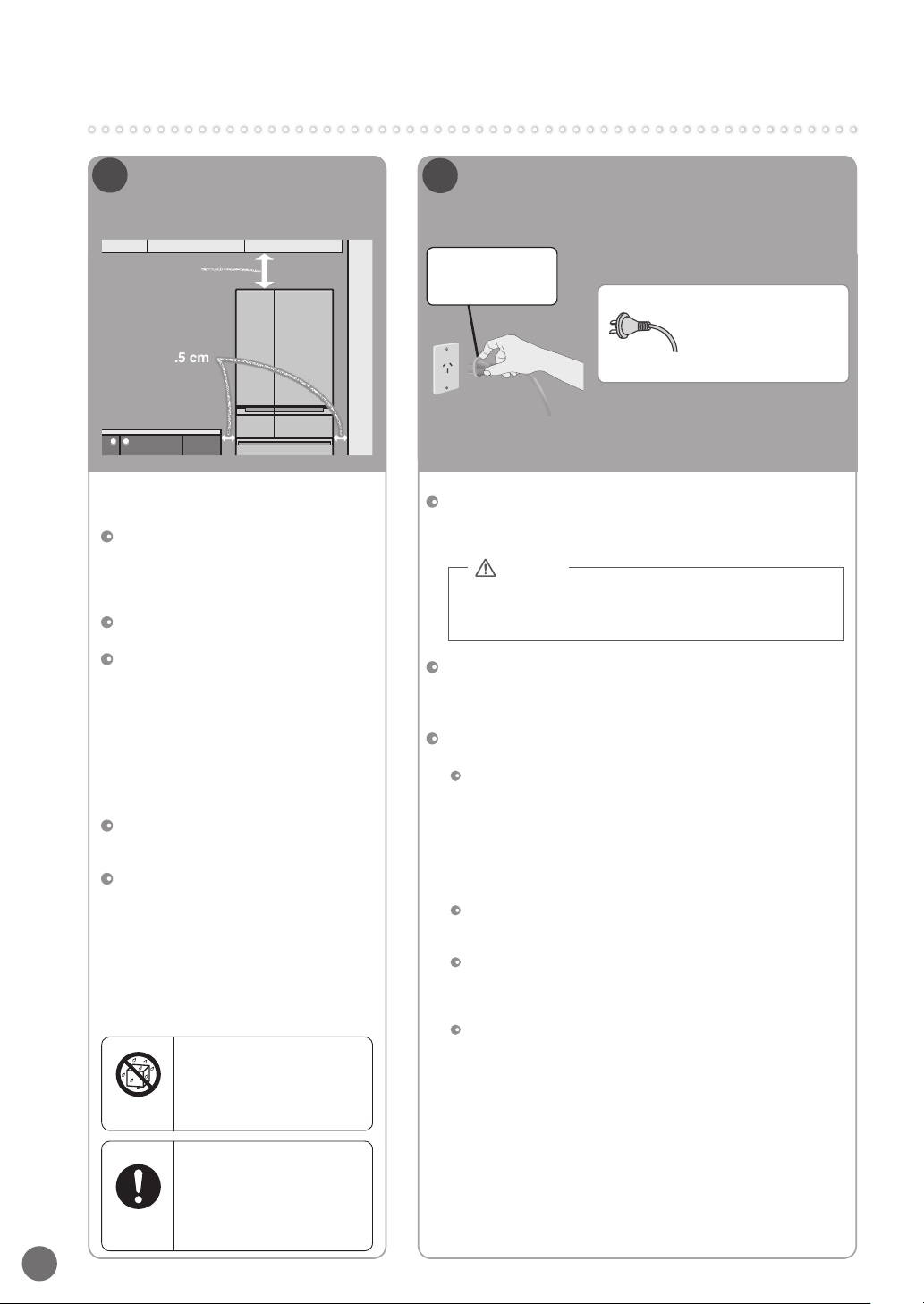

Leave space around the refrigerator.
If refrigerant leaks, it may accumulate and
Follow the
instructions
catch fire or explode.
Prepare for earthquakes by taking fall
prevention measures
Otherwise an injury may result.
Page 6
Page 7
Power and Power Plug
Do not crush the power plug with the
rear of the refrigerator.
Prohibited
Follow the
instructions
4
Do not damage the power cord.
Pressing, folding, bundling, or
placing heavy objects on the power
cord may cause an electric shock or fire.
Do not use damaged cords or plugs, or loose sockets.
Doing so may cause an electric shock or fire.
Do not pull the cord when unplugging the power plug.
The cord may be damaged, resulting in an electric
shock or fire.
Do not plug in or out the power plug
with wet hands.
Doing so may cause an electric shock.
Use a dedicated outlet for the power supply that
meets the rating specified on the rating label.
(The rating label is located on the
refrigerator compartment.)
Using extension cords and plugging too many leads into a
single socket can cause heat build-up or fire.
Page 6
Insert the power plug with the cord
facing down, and fully insert the prongs.
Inserting the plug upside-down
places stress on the cord and may
cause heat generation or fire.
If the power cord is damaged, contact
MITSUBISHI ELECTRIC SERVICE CENTRE
or its service agent for the replacement.
If the power cord is damaged, purchase a new
cord from MITSUBISHI ELECTRIC SERVICE
CENTRE or its service agent. Make sure that the
power cord is designed for this model.
Follow the
instructions
Remove plug
Prohibited
Power and Power Plug
Remove dust periodically
from the power plug.
Dust may cause insulation failure,
resulting in fire.
Remove the power plug before cleaning.
Otherwise an electric shock or injury may result.
When Using
Do not damage or drive screws into the
refrigerator's refrigerant circuit (pipes).
Because combustible refrigerant is used, this may
result in fire or an explosion.
Do not use electrical appliances inside
the refrigerator.
The refrigerant gas leaking into the compartment with sparks
from an electrical contact may cause fire and explosion.
Do not place volatile, inflammable
objects inside the refrigerator.
Benzene, cosmetics and hair dressing products
may catch fire or explode.
Do not store chemicals or scientific
specimens in the refrigerator.
Substances that require strict control must not be
stored in household refrigerators.
Do not place objects on top
of the refrigerator.
Objects may fall when the doors
are opened or closed and cause injury.
Do not hang from the door or handle.
Do not climb on an open door.
Do not apply a heavy load.
The refrigerator may tip over and cause injury.
Do not apply excessive force to glass
doors or shelves.
An impact can cause the glass to crack and may
result in injury.
Do not touch the mechanical area of the automatic
ice maker (area above the ice storage box).
Doing so may result in injury.
Do not use combustible sprays near the refrigerator.
Sparks from an electrical contact may cause an
ignition and fire.
If an abnormality or malfunction occurs, stop operation immediately
Safety
and contact the retail store where you purchased the refrigerator or
MITSUBISHI ELECTRIC SERVICE CENTRE or its service agent.
Warning
When Using
Do not use in a shed or garage.
Small animals may damage the electrical wiring
Prohibited
Water
prohibited
Follow the
instructions
Malfunctions and Long-Term Storage
Prohibited
Follow the
instructions
Remove plug
Follow the
instructions
and cause an electric shock or fire.
Do not place water containers on top of
the refrigerator.
Exposing electrical parts to water may cause an
electric shock or fire.
Do not wash with water or spill soup or
juice onto the refrigerator.
Water or other liquid may cause an electric shock
or fire. Wipe off any liquid immediately.
If you notice a gas leak, do not touch the
refrigerator. Open windows to ventilate.
Sparks from an electrical contact may cause an
explosion or fire.
When the doors are opened or closed,
beware not to hit any furniture.
The door or furniture may be damaged and cause
injury.
Do not disassemble, repair, or alter.
Do not use while parts are damaged.
Doing so may cause injury, electric shock or fire.
If the refrigerant circuit (pipe) is
damaged, do not touch the refrigerator
and avoid using flames.
Open windows to ventilate.
If the refrigerant circuit is damaged,
contact the retail store.
Failing to do so may cause a fire.
When not using the refrigerator for a
long time, unplug the power plug and
open the doors to dry the refrigerator.
If the refrigerator is not dried sufficiently,
refrigerant may leak due to condenser corrosion
and cause a fire or explosion.
If an abnormality occurs (such as a
burning odor), unplug the power plug
and stop refrigerator operation.
Continuing to operate with an abnormality may
cause an electric shock or fire.
When Recycling
For storage, make sure to pull out and
remove the door seal.
There is a possibility of a child getting
trapped in the refrigerator during storage.
Contact the retail store or municipal
government for details about correct
refrigerator disposal.
Improper disposal may cause refrigerant leaks,
resulting in a fire or explosion if exposed to a
flame.
Caution
When Installing/Transporting the Refrigerator
Anchor the refrigerator to a strong and level
floor by adjusting the adjustable supports.
Follow the
instructions
Prohibited
Follow the
instructions
Caution
Otherwise, the refrigerator may move and cause injury.
Pages 6 - 7
Use the transportation hand-holds or the parts
instructed when transporting the refrigerator.
Holding other parts may result in injury.
Page 33
When moving the refrigerator, lay a
protective sheet on the floor and
move the refrigerator slowly.
Failing to do so may result in floor
damage or injury.
When Using
Do not pack in excessive amounts of food.
Do not pull the shelves with excessive force.
Food may fall and cause an injury.
Do not place glass bottles in the freezer,
ice making, and versa compartments.
The bottle may break if the liquid inside freezes,
causing an injury.
Do not put your hands or feet
under the refrigerator.
The steel plates or other parts may cause injury.
Do not eat food that is
discolored or has a bad odor.
It may result in food poisoning or illness.
Observe the following when opening
and closing the doors.
• Do not open or close the doors when another
person is touching the refrigerator.
• Do not put your fingers on the top edge of a
drawer-type door while closing it.
•
Do not open or close the doors with excessive force.
(Food may fall out.)
• Be careful not to trap your fingers or any other
part of your body.
• Be careful not to hit a part of your body.
• Do not trap your feet with the bottom drawer.
(Danger of your toes caught by the
drawer.)
Failing to follow the precautions
above may result in injury.
Do not touch food or containers in the
freezer compartment with wet hands.
It may cause a cold injury.
Be careful when attaching and removing
the glass shelf and pocket.
If it is attached improperly, it could come loose
and fall, causing injury.
Be careful not to hit your hand against
or get your finger caught in the freezer
compartment door or partition.
There is a risk of injury.
Be careful when breaking apart ice
stuck in the ice storage box.
There is a risk of injury.
5
1
From Installation to Operation
2
Installation
Space of 5 cm
or more
Space of 0.5 cm
or more
Install the refrigerator in the
following kind of location.
A place with good ventilation and
not exposed to direct sunlight or
hot air
To keep good cooling performance and
reduce power costs.
A place with low humidity
To prevent it from rusting.
A strong and level place
To prevent vibration, noise, and ajar or
tilting doors.
To prevent deformation or discoloration
of the floor materials due to the weight
or heat.
*If the floor materials are carpets, tatami
mats, wooden floors, PVC floors, etc.
and may deform or discolor, lay a
strong plate or board underneath.
A place away from other devices
To prevent noise or video interference
with devices such as televisions.
There should be at least 0.5 cm of
space on both the left and right
sides, and at least 5 cm of space
above.
To allow heat to dissipate from the top
and the sides of the refrigerator.
*The rear can be placed directly against
the wall. Leave some space if sound or
stain is a concern.
Do not install the refrigerator
outdoors or in places exposed
to water or excessive humidity.
Water
prohibited
Water may cause insulation failure,
resulting in an electric shock or fire.
Connect the Power Supply
* Connect power supply soon after installing the
refrigerator
Dedicated
outlet that meets
the specified rating.
Turn on the power of the
refrigerator as soon as
possible.
Use a dedicated outlet
Use a dedicated outlet for the power supply that meets the rating
specified on the rating label. (The rating label is located on the
refrigerator compartment.)
Warning
Using outlets that do not meet the specified rating or
plugging in too many leads into a single socket can cause
heat buildup or fire.
The refrigerator will not be damaged even if the power is
supplied soon after installation.
It takes a while for the refrigerator to cool, therefore supply
power as soon as possible.
Electrical Connections
Make sure this unit is properly grounded.
The refrigerator should always be plugged into its
dedicated electrical outlet.
This will provide the best performance and prevent
electrical circuits from being overloaded and causing a
fire.
Make sure that the electrical outlet provides the proper
voltage.
Extension cords are not recommended.
If your refrigerator is installed in the high humidity
location, not only ground connection but also installation
of the earth leakage breaker is recommended.
If the power cord is damaged, purchase a new cord from
MITSUBISHI ELECTRIC SERVICE CENTRE or its
service agent. Make sure that the power cord is designed
for this model, in order to avoid a hazard.
If the power cord is damaged, contact MITSUBISHI
ELECTRIC SERVICE CENTRE or its service agent for
the replacement, in order to avoid a hazard.
Leave space around the
refrigerator.
If refrigerant leaks, it may
Follow the
instructions
accumulate and catch fire or
explode.
6
3
Adjustment and Anchoring
Installation
(To prevent vibration, noise,
movement, and doors left ajar)
Turn the adjustable supports to the floor and anchor
them so that the refrigerator will not move.
Turn the adjustable supports in the
Bottom front of refrigerator
arrow direction until they touch the
floor.
Caster
Adjustable support
Adjust the tilt with the adjustable supports.
Follow the
instructions
The right door tilts down The left door tilts down
Turn the right adjustable support
in the direction of the arrow to
lower the refrigerator.
If the door is still tilted after
adjusting the adjustable support,
Left
place a strong board*
adjustable support on the left
Right
rear side to make it level.
1
under the
Right
Left
Anchor the refrigerator
to a strong and level
floor by adjusting the
adjustable supports.
Otherwise, the refrigerator may
move and cause injury.
Turn the left adjustable support
in the direction of the arrow to
lower the refrigerator.
If the door is still tilted after
adjusting the adjustable support,
place a strong board*
adjustable support on the right
rear side to make it level.
1
under the
A few days after installation, the floor may sink due to the refrigerator's
weight. Readjust the tilt with the adjustable supports.
*1 Normally, use a board with a thickness of 2 to 3 mm.
If you find it difficult to turn the adjustable supports,
use the supplied adjustable support tool kit.
Adjust the supports to
make the refrigerator level.
If the front of the
refrigerator is slightly
raised, the doors are
easier to close.
The adjustable support tool kit is stored inside the refrigerator compartment at shipment.
Adjustable support
(lower front
section)
Indentation
Felt sheet
After adjustment, attach the adjustable support cover.
Adjustable support tool
* The figure shows the left adjustable support as an example. The right adjustable support looks the same.
Turn the adjustable support in the direction of
the arrow to lower the refrigerator, and insert
a felt sheet between the support and the floor.
Insert the tool as far as it goes into the
indentation of the adjustable support.
Turn the tool to adjust the tilt of the refrigerator.
(The adjustable support
cover is stored inside the
refrigerator compartment
at shipment)
Adjustable
support
cover
Adjustable
support
cover
Fully insert the adjustable support cover
horizontally until it touches the rear side.
Adjustable
support
Caster
Prepare for Earthquakes
It is recommended to
pass 2 strong belts
through the hand-holds
on the top rear of the
refrigerator and anchor
them to a strong location,
such as a wall or post.
Strong Belts
Do not damage the refrigerant circuit (pipes) or
drive screws into it.
Prohibited
Use in hot spring and geothermal areas
Corrosion control treatment may be required for the refrigerant circuit
(pipe) due to generation of corrosive gases.
Contact the retail store where you purchased the refrigerator.
Because combustible refrigerant is used, this may result in fire
or an explosion.
7
How to Use the Operation Panel
Touching
will cause the operable icons to light up.
To save power, all displays other than are usually turned off (it turns
off if there is no operation for about 30 seconds).
When operating, be sure to touch the buttons with your fingers.
ECO GUIDE
The refrigerator's ECO level is
indicated with the number of
marks. Page 20
Child Safety Lock
Touch an icon to display its setting details.
Page 31
Touch to go to
compartment selection;
Touch
settings. Pages 21 - 25
to go to various
Detail Setting
When setting or cancelling settings (or cancelling
in the middle), touch one of these.
Example:
refrigerator compartment to "M"
When setting the
If you touch the operation panel, icons will be displayed. You can
select the setting that you prefer.
Energy Saving Mode
To successfully save power
Supercool Chilling
To preserve meat or fish below freezing
Supercool Freezing
To supercool freeze foods such as meat, fish, and dessert
Hot Freezing
To use Supercool Freezing on hot cooked foods such as freshly cooked rice,
curry, and sauces
Beginning Use
The refrigerator takes time to cool completely.
• Wait until the refrigerator has sufficiently cooled before
storing ice cream and foods cooler than room temperature.
• Do not open the doors more than necessary, and close them
as soon as possible.
• In summertime, it may take more than 24 hours to make ice
immediately after installation.
There may be a plastic odor.
This odor will gradually disappear.
Ventilate the room to prevent any odors from being trapped.
The refrigerator will be powerfully cooled
(this is the same for summertime).
• Because heat will radiate out of the refrigerator in order to
cool its contents, the sides will become hot.
• Because the compressor will enter high-speed operation,
the operation sound will grow loud.
8
Operation Example
1
3
2
1
2
3
Operation
Panel
Touch
When you keep the door of the refrigerator open,
touch for about 1 second. (until the buzzer
sounds once)
(When Setting Supercool Chilling)
Touch the icon to set
Here touch .
Confirm the setting details
and compartment, then
touch
To Cancel the Setting/Cancel in the Middle
.
and 3, touching
In
2
Operable icons light
up.
The text above the
touched icon lights up.
returns the display to the previous state.
Detail Setting
Pages 21 - 25
It lights up for 5
seconds after
setting.
The
compartment
being set
brightly lights
up.
Touch
In the following cases, the display may not change even when you touch it.
The operation
panel or your
fingers are wet
or dirty.
Wipe the moisture and dirt off your fingers.
Perform operations with your hands. After you have touched an icon, confirm that the display has changed before touching again.
The response may vary, depending on the surrounding temperature, humidity, the health condition of the person who operates it,
and the operating condition of neighboring electric appliances.
Touch the icon
to cancel
You are wearing gloves or
have sticking plaster on your
finger.
Touch
The text above the
icon will disappear.
The interval between
touches is too short.
(Pressing repeatedly
may cause a
misdetection)
9
Compartment Introduction

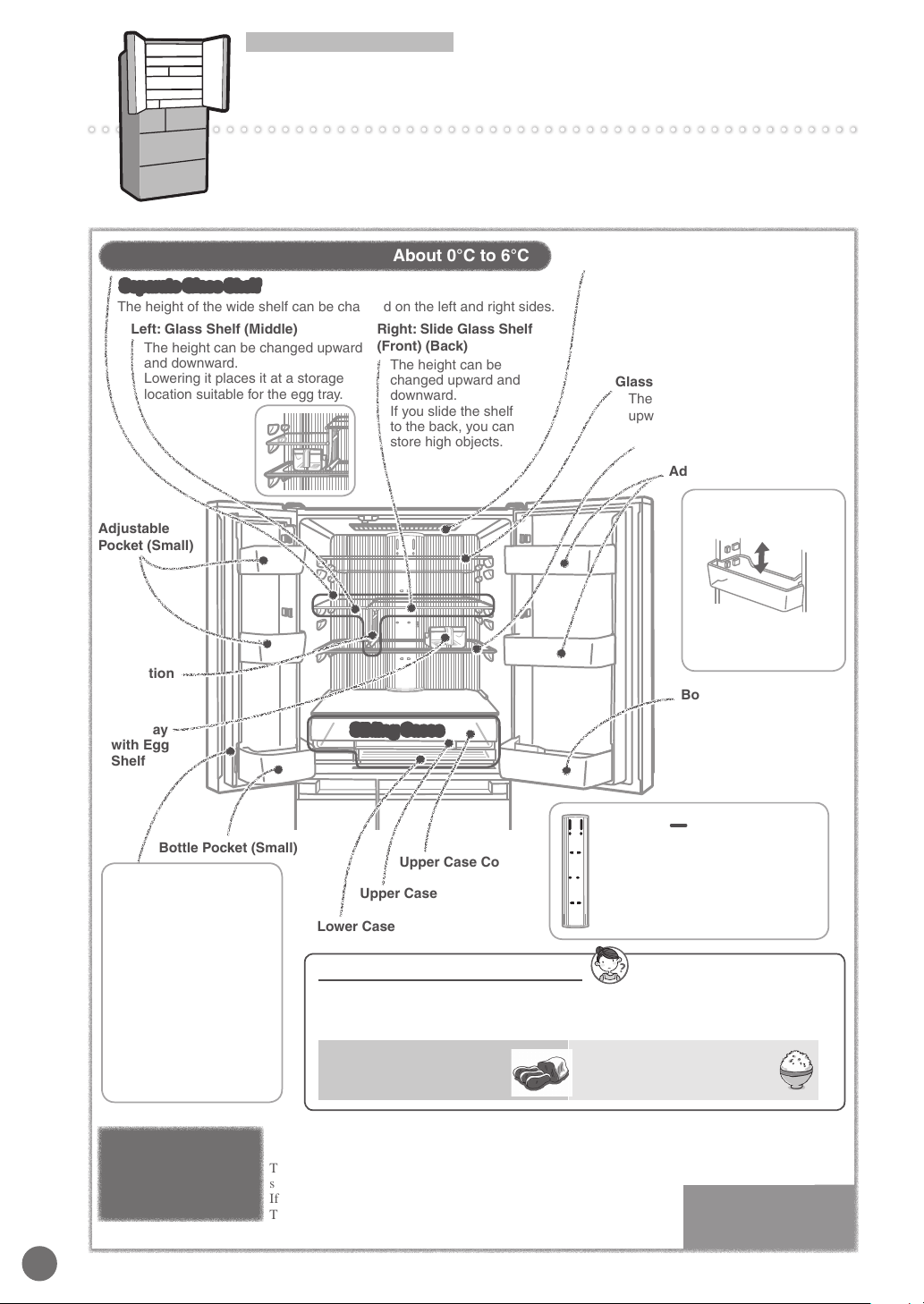

Refrigerator Compartment / Sliding Cases
Use the refrigerator compartment when storing foods that will be consumed soon.
Foods such as meat, fish, dairy products, and processed food can be kept
fresh longer in the sliding cases at a temperature lower than the refrigerator
compartment.
Refrigerator Compartment
Separate Glass Shelf
The height of the wide shelf can be changed on the left and right sides.
Left: Glass Shelf (Middle)
The height can be changed upward
and downward.
Lowering it places it at a storage
location suitable for the egg tray.
Adjustable
Pocket (Small)
Partition
Egg Tray
with Egg
Shelf
About 0°C to 6°C
Right: Slide Glass Shelf
(Front) (Back)
The height can be
changed upward and
downward.
If you slide the shelf
to the back, you can
store high objects.
Sliding Cases
Interior Light
Uses 6 LEDs.
If the interior light is damaged, contact
MITSUBISHI ELECTRIC SERVICE
CENTRE or its service agent for the
replacement, in order to avoid a hazard.
Glass Shelf (Upper)
The height can be changed
upward and downward.
Glass Shelf (Lower)
Adjustable Pocket (Large)
Adjustable Pocket
(Large) (Small)
The height of the
adjustable pockets can
be changed.
Bottle Pocket (Large)
Store plastic
or glass bottles.
10
Bottle Pocket (Small)
Rotating Partition
Open and close the
doors slowly.
If you open or close the
doors with force, the
rotating partition may
open to the front.
Return the partition
to its regular position
before closing the door.
(Otherwise it may be
damaged.)
The door will
automatically close
from halfway with
the Auto closer
Air Outlet
Upper Case Cover
Upper Case
Lower Case
If food with a high water content
is placed near the air outlets, it
may freeze.
(Cans of beer and soft drink, etc., in
particular, may burst when frozen.)
Preventing the Transfer of Odors
It is recommended that foods that have strong odors or easily absorb odor are either
wrapped thoroughly or stored in an airtight container
Kimchi, pot stickers,
sardines (seafood), beef, etc.
Food that transfers odors easily
With the door of the refrigerator compartment open at an angle of about 20 degrees or
less, the door will close automatically.
The door may stop before closing completely if you swing the door too
softly.
If the door stops (ajar), it will not close automatically.
The speed of the closing door may change according to the amount of food
stored.
.
Rice, potato salad, etc.
Food that may easily absorb
odors
When a door is open,
you will be informed
with the door alarm.
Page 32
Sliding Cases
REF
Sliding Cases
Upper Case
(About 0°C to 3°C)
• Processed food such as sausage, ham and dairy
products can be preserved.
• Do not store food that is easily frozen.
• The temperature cannot be adjusted.
About -3°C to 3°C
At the time of purchase, the lower case is not set
to Supercool Chilling.
When setting Supercool Chilling, use the
following settings.
Lower Case
Supercool Chilling can be set with .
• Food will not freeze, even below the freezing point (about
-3°C to 0°C)
• The freshness of meat and fish can be prolonged without
freezing.
Preserving Meat or Fish Below Freezing
Supercool
Chilling
1
2
Supercool Chilling stores and preserves meat or fish for a longer
time at a temperature lower than the refrigerator compartment or
upper case without freezing them.
Once it has been set, Supercool Chilling will be the default
setting until it is disabled.
To Set
1
Touch on the operation panel
2
Touch
The text above the icon will light up.
3
Touch
The settings are finished.
It doesn't matter whether you put food in before or after the
settings.
Page 9
To cancel the setting
* If you disable the setting, the lower case can be used in the same way as
the upper case.
♪
Supercool Chilling Is Very Useful
Tastes
good
Because the food doesn't
freeze, the fresh flavor lasts
longer!
Tips
Do not leave food hanging over shelves or pockets.
Do not place bottles that cannot fit all the way to the bottom of the bottle pocket.
Do not attach a case that you purchased separately onto the outside of a pocket.
Do not heat the glass surfaces of the glass shelves or place hot objects on them.
Do not close the door while food is in front of the upper case or the lower case.
Fully stow away the cases. Otherwise they may keep a door ajar and reduce the cooling performance, or food may fall and cause damage to a case.
Do not pile food to the top. Leave a gap so that cold air can flow to the ceiling and between food.
Keep
fresh
Meat and fish last longer and are fresher than in
the refrigerator compartment or upper case!
Estimated Preservation Period
Meat ········ Up to about 7 days
········· Up to about 5 days
Fish
Sashimi (Block)
* The preservation period will differ according to the
freshness of food before storing it and the using condition
of the refrigerator.
······ Up to about
3 days
Notice
Because sliding cases cannot guarantee the quality of foods that easily freeze (such as tofu, konjac, raw eggs, vegetables, etc.),
storing such foods is not suitable. Depending on the type and amount of food, as well as its condition at the time it is placed in the
refrigerator, food may freeze.
The temperature of the lower case (when Supercool Chilling is set) may exceed 0°C depending on the time of door opening/closing
and the amount of food.
11
Compartment Introduction
1
2
Ice Making Compartment
If water is put into the refrigerator compartment's water tank, ice will be
made in the ice making compartment.
Clean the ice maker periodically to ensure that the ice is pure and
delicious. Pages 26 - 27
Tank Cap
Lid
Ice Tray Lock Lever
Ice Tray
Water Tank
(About 1.2L)
Push in the water tank until it touches
the rear side and confirm that the handle
is aligned with the front of the lower
case.
Lower Case
Soundproof Mat
Reduces the sound of dropping
ice. Do not dispose of it.
When a door is open,
Ice Storage
Box
you will be informed
with the door alarm.
Page 32
Making Ice
Wash the water tank, water supply pipe, and ice tray before making ice for the first time, or if you have
not made ice for more than a week.
Remove the water tank from the refrigerator compartment,
Water
Supply
Port
remove the tank cap
Do not pour water above the full position ().
Water will easily spill when you carry the tank.
Further, it may cause the ice to join together or form a
protrusion.
*WARNING-Fill with potable water only.
by twisting it,
and supply water.
Full position (
)
12
Tips
Ice
Server
Door
Ice Storage
Box
Ice
Server
Ice Storage
Box
Hold the tank with
both hands.
Push the tank until it
touches the rear side.
Reference Line
Lay flat
Close the water tank cap and return the water tank to its
original position.
Push in the water tank until it touches the rear side.
Setting the water tank incorrectly may prevent ice from forming.
Tilting the tank will cause the water to spill.
Do not place food inside when making ice.
Ice Tray
Sensor Lever
(Detects the
ice storage
level)
Stop the ice making and then place the food below the reference line on
the side. (Not doing so may result in a half-shut door or malfunction and
damage)
Do not pour anything other than cold water into the water tank, such as warm water,
juice, tea, soft drinks, or other liquids (the tank can resist heat up to 60°C).
Pouring anything other than cold water into the tank may cause damage.
Do not pour water directly into the ice tray to make ice. Unfrozen water in the ice
tray may fall into the ice storage box, and the ice may not form cubes.
The level of the ice storage is checked automatically by the sensor lever, and ice making
is stopped when the ice reaches a certain level (about 70 to 140 ice cubes). To detect the
ice storage level correctly, make sure that the ice is flat and that the ice server is kept in its
storage position in the front of the ice storage box as shown in the left diagram.
Open and shut the door of the ice making compartment slowly. There is a
risk of the ice spilling.
Pages 21 - 22
Loading...
