< L/S band internally matched power GaAs FET >
MGFS52BN2122A
2.1 – 2.2 GHz BAND / 160W
DESCRIPTION
The MGFS52BN2122A is a 160W push-pull type GaAs power FET
especially designed for use in 2.1 – 2.2GHz band amplifiers.
The hermetically sealed metal-ceramic package guarantees
high reliability.
FEATURES
Push-pull configuration
High output power
Pout=160W (TYP.) @f=2.17GHz
High power gain
GLP=12.0dB (TYP.) @f=2.17GHz
High power added efficiency
P.A.E.=48% (TYP.) @f=2.17GHz
APPLICATION
2.1-2.2GHz band power amplifier for W-CDMA Base Station
QUALITY
IG
RECOMMENDED BIAS CONDITIONS
VDS=12V ID=4.0A RG=5ohm for each gate
Absolute maximum ratings (Ta=25C)
Symbol Parameter Ratings Unit
VGDO
VGSO Gate to source breakdown voltage -10 V
PT *1 Total power dissipation 187.5 W
Tch Cannel temperature 175 C
Tstg Storage temperature -65 to +175 C
*1 : Tc=25C
Electrical characteristics
Symbol Parameter Test conditions Limits Unit
GLP Linear Power Gain VDS=12V,ID(RF off)=4.0A,f=2.17GHz
Pout Output Power 50.8 51.8 - dBm
ID Drain current - 23 30 A
P.A.E. Power added efficiency
Rth(ch-c) *2
*2 :Channel-case
Gate to drain
Thermal resistance delta Vf method - 0.55 0.8
breakdown voltage -20 V
(Ta=25C)
Pin=32dBm
VDS=12V,ID(RF off)=4.0A,f=2.17GHz
Pin=43dBm
OUTLINE
Keep Safety first in your circuit designs!
Mitsubishi Electric Corporation puts the maximum
effort into making semiconductor products better
and more reliable , but there is always the
possibility that trouble may occur with them.
Trouble with semiconductors may lead to personal
injury , fire or property damage. Remember to give
due consideration to safety when making your
circuit designs , with appropriate measure such
as (I) placement of substitutive , auxiliary circuits ,
(ii) use of non-flammable material or (iii) prevention
against any malfunction or mishap.
Min. Typ. Max.
11 12 - dB
- 48 - %
C/W
Publication Date : Apr., 2011
1
< L/S band internally matched power GaAs FET >
MGFS52BN2122A
2.1 – 2.2 GHz BAND / 160W
MGFS52BN2122A TYPICAL CHARACTERISTICS
Pout , Id , PAE , GAIN , ΔGAIN , ΔPHASE vs. Pin (CW 1-tone)
f=2.11GHz f=2.14GHz f=2.17GHz
Test Condition : Vds=12V,Idq=4A,Ta=25deg.C
Publication Date : Apr., 2011
2
< L/S band internally matched power GaAs FET >
MGFS52BN2122A
2.1 – 2.2 GHz BAND / 160W
f=2.11GHz f=2.14GHz f=2.17GHz
Pout , Id , PAE , GAIN , ΔGAIN , ΔPHASE vs. Pin (CW 1-tone)
Test Condition : Vds=12V,Idq=2A,Ta=25deg.C
Publication Date : Apr., 2011
3
< L/S band internally matched power GaAs FET >
MGFS52BN2122A
2.1 – 2.2 GHz BAND / 160W
f=2.11GHz f=2.14GHz f=2.17GHz

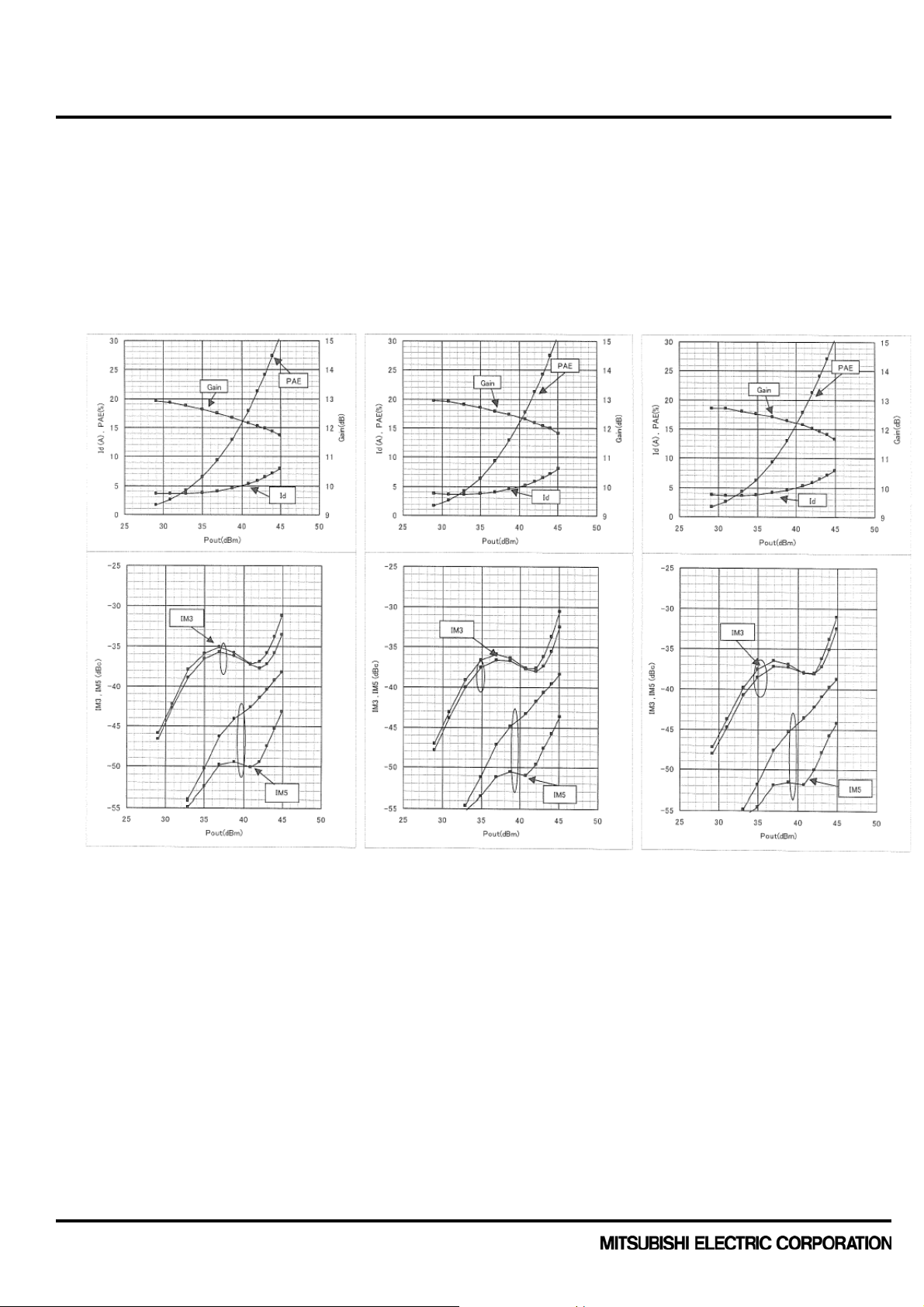

IM3 , IM5 , Id , PAE , GAIN vs. Pout
(W-CDMA signal , 2-tone 3GPP test model 1 w/64DPCH)
Test Condition : Vds=12V,Idq=4A,Ta=25deg.C
Publication Date : Apr., 2011
4
< L/S band internally matched power GaAs FET >
MGFS52BN2122A
2.1 – 2.2 GHz BAND / 160W

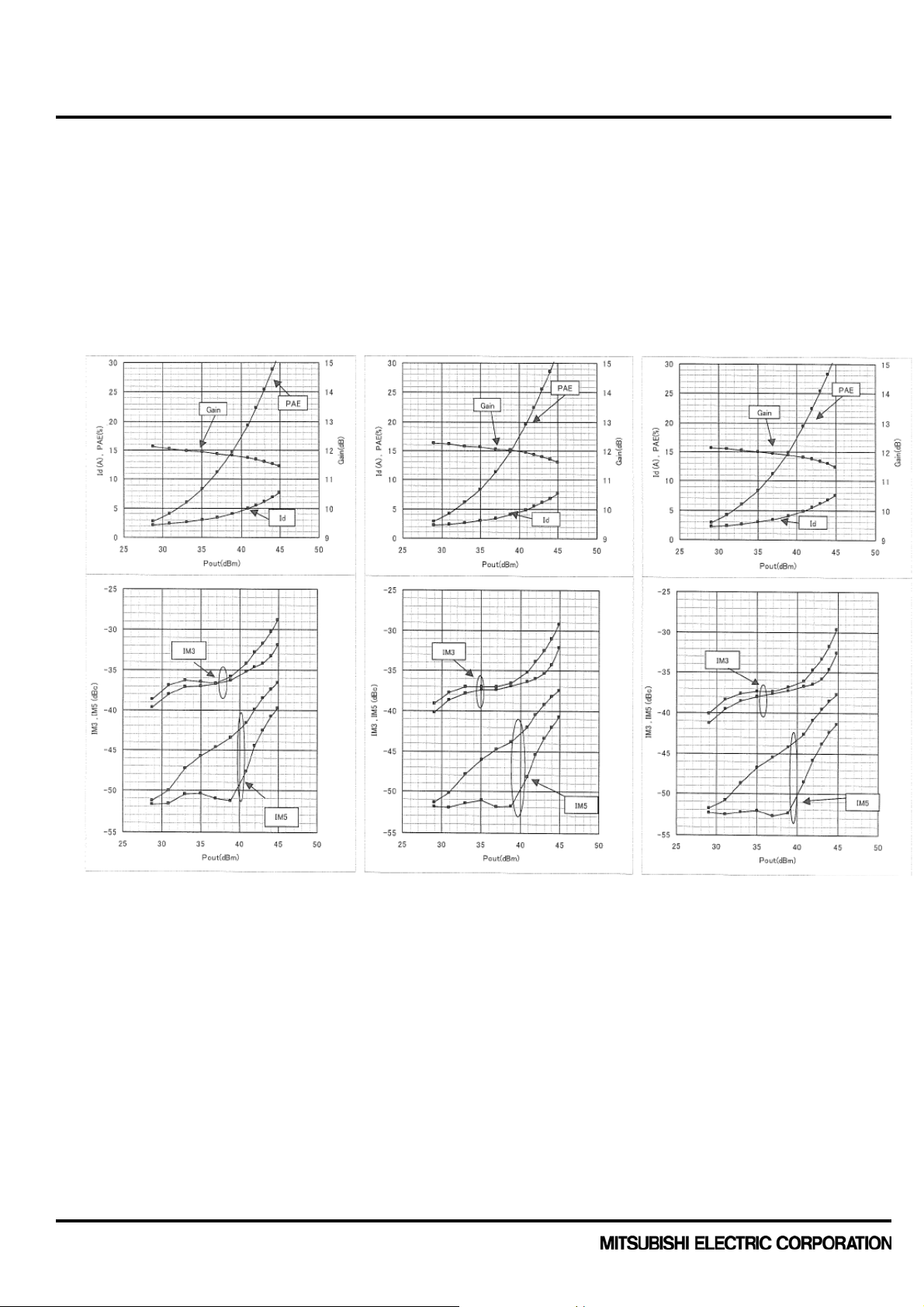

IM3 , IM5 , Id , PAE , GAIN vs. Pout
(W-CDMA signal , 2-tone 3GPP test model 1 w/64DPCH)
f=2.11GHz f=2.14GHz f=2.17GHz
Test Condition : Vds=12V,Idq=2A,Ta=25deg.C
Publication Date : Apr., 2011
5
< L/S band internally matched power GaAs FET >
MGFS52BN2122A
2.1 – 2.2 GHz BAND / 160W

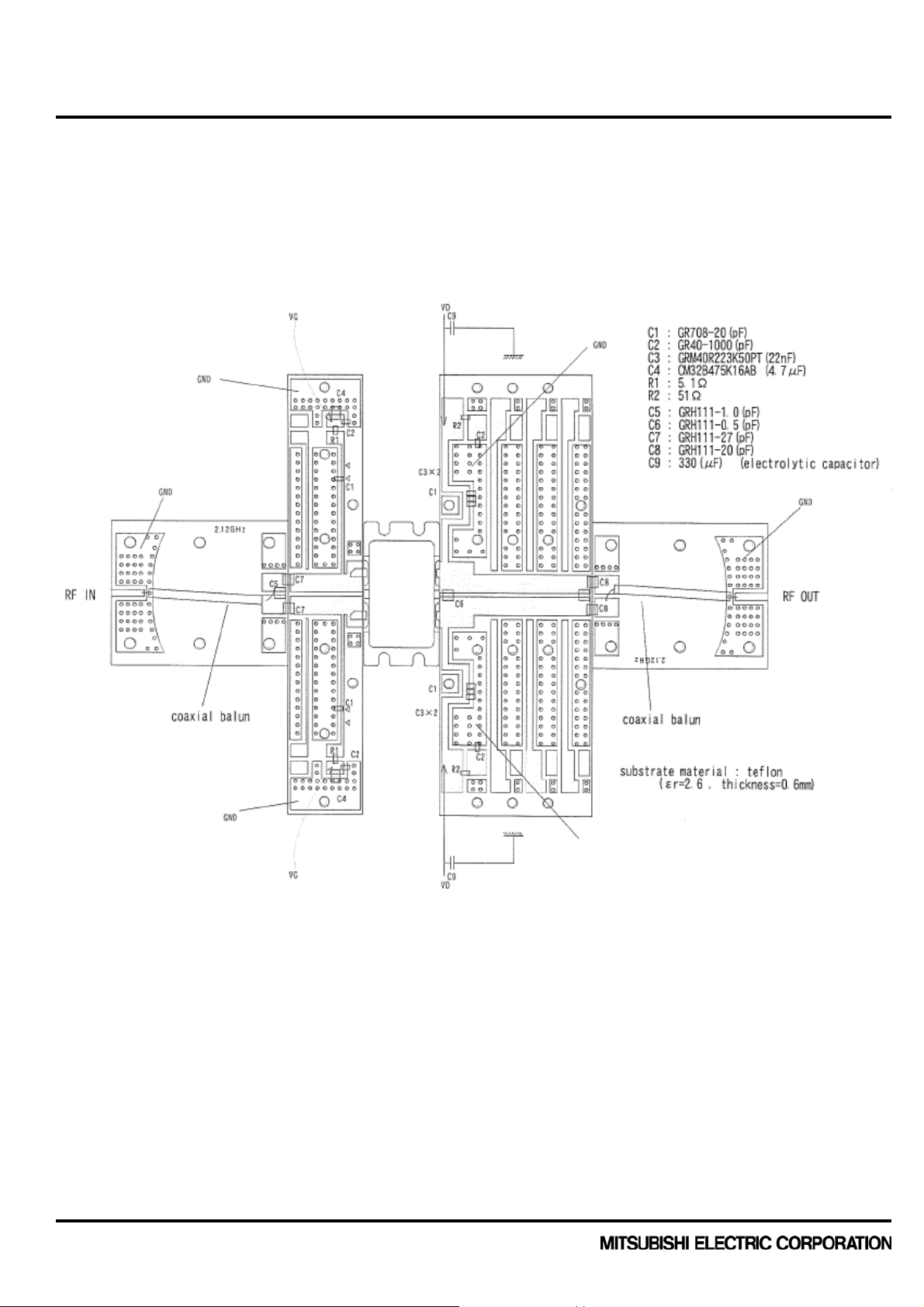

MGFS52BN2122A RF TEST FIXTURE
Publication Date : Apr., 2011
6
< L/S band internally matched power GaAs FET >
MGFS52BN2122A
2.1 – 2.2 GHz BAND / 160W

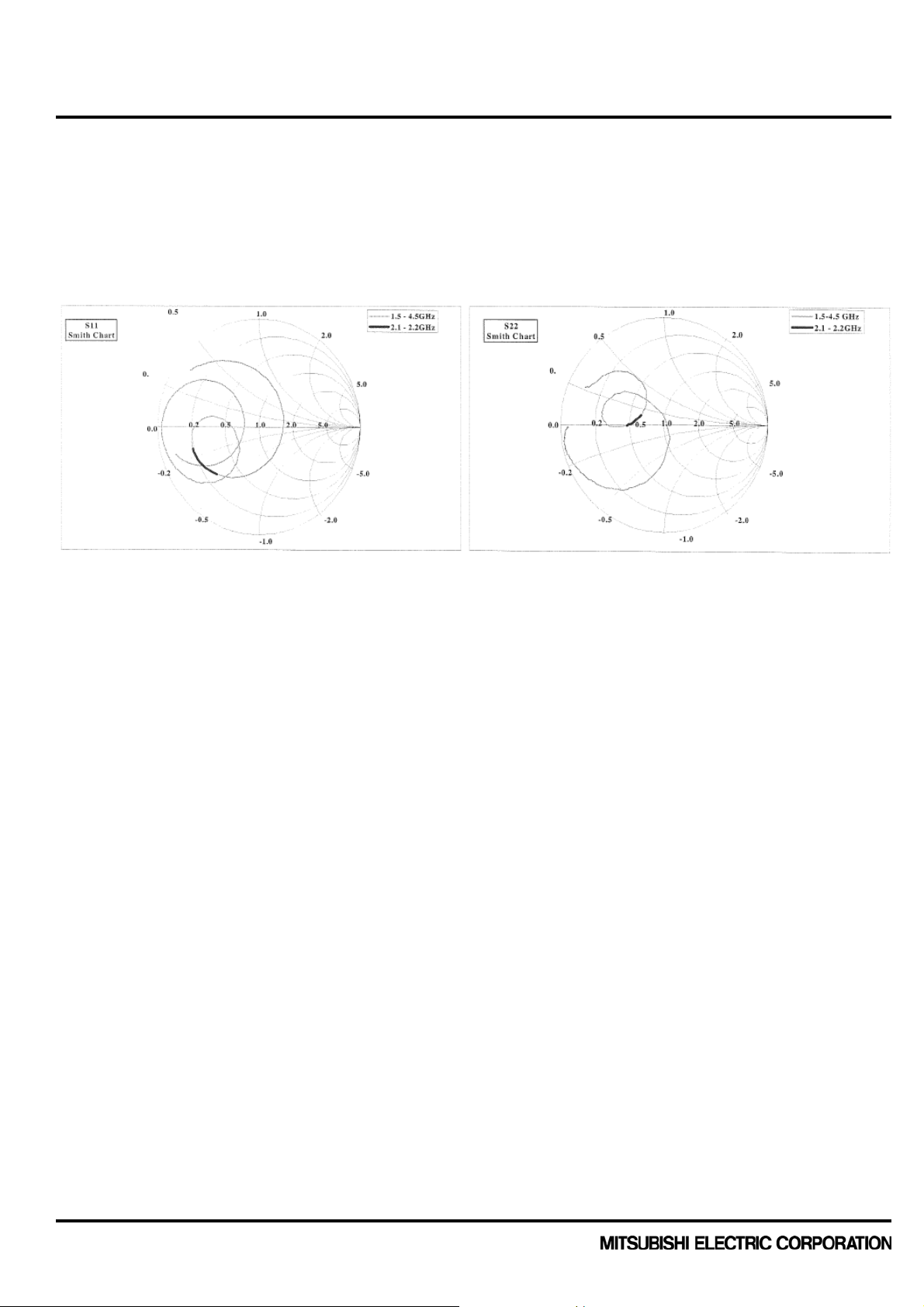

MGFS52BN2122A S-parameters( Ta=25deg.C , VDS=12(V),IDS=2.0(A) for one side FET )
Publication Date : Apr., 2011
7
