Mitsubishi Electric ME96NSR, ME96NSR-MB Operator's Manual

MITSUBISHI ELECTRONIC MULTI-MEASURING INSTRUMENT

MODEL

ME96NSR

MITSUBISHI Electronic Multi-Measuring Instrument NS Series features high performance and crystal clear display. With simple operating functions, NS Series is the best support your measuring and monitoring systems.

Upper/lower limit monitoring up to 4 items

Harmonics monitoring Measures import/export active energy

4 items displayable Backlight automatic off function

DIN Size 96×96mm 3P4W/3P3W Common Use Add-on Type Output Options CE Marking Conforms to EU RoHS Directive (

2002/95/EC

)

Output functions for 7 items Pulse width settable Pulse output at 2 points Analog output range settable

ModBus communication CC-Link communication

Simple settings Simple operations

Features Functions Dimensions / Mounting / Wiring Specifications Related Products Safety Precaution

6 23 26 28 29

Features

ModBus Transmission System (ME96NSR-MB, Optional Plug-in Module ME-0052-NS96)

● ModBus communication system to monitor computers.

Central Monitor

RS485/RS232

Converter

RS485 (ModBus)

RS232

CC-Link Transmission System (ME96NSR, Optional Plug-in Module ME-0040C-NS96)

NETWORK

● By adding the optional plug-in module ME-0052-NS96, monitoring of contact input signal and ON/OFF of contact output signal can be controlled remotely.

● Digital input signal can be latched for over 30ms, and there is no need for external latch circuits.

Optional Plug-in Module ME-0052-NS96

SHT (OFF) CC (ON) AL PAL TAL ACB Status

ModBus Interface Specifications

• Max. Baud Rate 38.4kbp

• Max. Connection Distance 1000m

• Max. Connection Units 31

Optional Plug-in Module ME-0052-NS96

• Digital Input 5 points (24VDC)

• Digital Output 2 points (35VDC)

● Optimum transmission system for remote monitoring using MITSUBISHI PLC.

● Remote monitoring of contact signal leading to less wiring, less spacing.

● Digital input signal can be latched for over 30ms, and there is no need for external latch

circuits.

MELSEC Series

CC-Link

Abnormal Signal (Facility)

Abnormal Signal (Earth Leakage)

Abnormal Signal (Temperature)

Circuit Breaker Status Signal etc

CC-Link Interface

• Max. Baud Rate 10Mbps

• Max. Connection Distance 100m (10Mbps) to 1000m (156kbps)

• Max. Connection Units 42

• Digital Input 4 points (24VDC)

Analog Pulse Transimission System (ME96NSR, Optional Plug-in Module ME-4201-NS96)

● Can remotely monitor A, DA, V, W, var, VA, PF, Hz, Harmonics Current RMS Value, and Harmonics Voltage RMS Value at 4 to 20mA output. (Max. of 4 outputs)

● Active energy and reactive energy can be remotely monitored by pulse output.

NETWORK

Analog Output Pulse Output Alarm Output

(Max. of 2 pulses)

● Can remotely monitor upper/lower limit alarm by contact output. (Max. 1 point)

Alanog Output Specification

• 4 to 20mA

• 4 outputs

• Maximum 600Ω <

Pulse Output Specification

• No-voltage a contact

• 35VDC 0.1A

• Pulse width 0.125, 0.5, 1s is selectable <

Contact Output Specification

• No-voltage a contact

• 35VDC 0.2A

Product Line-up

■ Basic Device

Model Name

ME96NSR

ME96NSR-MB

Transmission

–

ModBus Communication

■ Optional Plug-in Modules

Model Name

ME-4201-NS96

ME-0040C-NS96

ME-0052-NS96

(Note): Contact Output for ME-4201-NS96 closes at the time of high and low alarm occurrence. Contact Output for ME-0052-NS96 switches according to 16 bit set of ModBus communication.

Analog Output

−

Pulse Output

−

Contact Input

− 4 5

Contact Output

(Note)

− 2

Transmission Function

−

CC-Link

−

Used with

ME96NSR

ME96NSR-MB

Features

Variety of Display Functions

● Desired Display can be Chosen

Desired display can be chosen by selecting from existing patterns or selecting displays. (For the details of display patterns, please refer to “Display Pattern Contents” on page 22.)

(1) All Phase Simultaneous Display

Displays measuring value for each phase digitally, and shows average value or total value by bar graph.

Average Current Average Voltage Total Electricity

DISPLAY DISPLAY DISPLAY

Note: Average value or total value can be displayed by numbers by pressing the PHASE button.

(2) Four Measuring Items Simultaneous Display

Four measuring items can be displayed simultaneously by tri-level digital display and bar graph.

DISPLAY DISPLAY DISPLAY

Note: Digital display of each phase is possible by pressing the PHASE button.

(3) Special Display by Display Pattern P00

Display can be selected as desired in Display Pattern P00.

Upper : Select from A, DA, V, W, var, VA, PF, Hz

Middle : Select from A, DA, V, W, var, VA, PF, Hz

Under : Select from A, DA, V, W, var, VA, PF, Hz, Wh, varh

Maximum of four displays can be set.

Functions Available

■ Keep the display unchanged.

■ Keep the display unchanged even when DISPLAY button is pressed.

■ Use ME96NSR instead of electric energy meter by displaying electric power.

Set only one display

● Bar Graph

Each measuring items can be displayed by a bar graph. With bar graph display, one can grasp the rated value and percentage against the alarm value instantly.

(1) Bar Graph Fixed Display

Measuring items displayed by bar graph can be fixed. shows that display is fixed.

Also, display can be changed between average voltage, average current, total power, total reactive power, total power ratio, frequency by

pressing , button.

–

Alarm Indicator

–

Note: Alarm Indicator blinks when it is set on alarm mode.

(2) Digital Value Display by Bar Graph

Values shown on the tri-level digital display can be displayed by bar graph. (Except when the tri-level display is measuring the same items)

Bar graph shows the digital value of .

–

– – –

+ + +

Value shown by bar graph

● Maximum/Minimum Value Display

The maximum and minimum value of each measuring items can be displayed. Both the maximum and minimum value show the current status, so monitoring by the maximum and minimum value is possible. Also, range of minimum value to maximum value is shown by bar graph.

Alarm Indicator

–

DISPLAY DISPLAY DISPLAY

● Cyclic Display

In cyclic display, the display changes automatically every five seconds. Even when this device is used in a very high place or inside of a panel, measuring items and measuring value of each phase can be checked without pushing DISPLAY , PHASE buttons.

Operation Behavior

Press DISPLAY for 2 seconds Measuring items change automatically every 5 seconds

Press PHASE for 2 seconds Phase display changes automatically every 5 seconds

Features of Cyclic Display

■ Cyclic display can display current status, maximum/minimum value

■ Cyclic display continues even after power failures (No need for cyclic display operation)

Features

Measuring Functions

● Accurate Measurement by Our Own ASIC

Our own ASIC allows for accurate measurements. (For details on measurement accuracy, please refer to “Specifications” on page 26.)

● Harmonics Measurement

Measuring of harmonics current, harmonics voltage is possible. This device can also be used for harmonics monitoring.

Harmonics Measurement Items

Measuring

Items

Degree

Synthesis

1st 3rd 5th 7th

9th 11th 13th

Note: When the 1st RMS value is 0 (zero), the distortion ratio shows 0%.

Harmonics Current

(other than phase N)

RMS Value

● Measurement of Active Energy/Reactive Energy

This device can be used to measure active power/reactive energy for particular type of power distribution facility, such as private power generating facility or condenser panel.

Distortion Ratio

RMS Value

Harmonics Current

(phase N)

Distortion Ratio

Harmonics Voltage

RMS Value

Distortion Ratio

Measuring Items for Active Energy/Reactive Energy

Energy Measurement

Setting (Setting 4.1)

Imported Exported

Wh varh

Imported Lag Imported Lead Exported Lag Exported Lead

1 2 3 4

■ Measurement of 2 Quadrants/4 Quadrants by Reactive Energy

There are two ways of counting quadrant in measurement of reactive energy.

2 Quadrants Measurement

-var

lead

+varh

-varh

lag

+var

Imported lead

Imported lag

Exported

(Imported lag + Exported lead)

(Imported lead + Exported lag)

Counts imported lag and exported lead as 1 segment, and imported lead and exported lag as 1 segment.

+W-W

Dead region occurs only in around var=0 (Power ratio: 1). Since dead region does not occur around Power ratio=0, this is suited for facility without private power generator or measurement of reactive power with condenser load of Power ratio=0.

4 Quadrants Measurement

-var

Exported

lag

lead

+var

Imported lead

Imported lag

Remark

Measurement of reactive energy is by 2 quadrants

Measurement of reactive energy is by 4 quadrants

Counts each import lag, import lead, export lag, and export lead as one segment. It is generally felt that a dead region occurs in the border of

+W-W

each segment. This is suited for measurement of facilities with private power generators.

■ Lower Digit Expanded Display

Pressing the , button at the same time for 2 seconds displays lower 3 digits. Small amount of value change of measuring value can be checked.

–

Lower digit expanded display is displayed only

–

Press for 2 sec.

Decimal points shifts

Note:

when active/reactive energy is shown on the display. When the expanded display is operated during active energy screen, reactive energy’s lower digit is not expanded. For displaying lower digits reactive energy, please operate by displaying reactive energy screen.

Monitoring of Upper/Lower Limit

● Monitoring of Upper/Lower Limit (Max. 4 points)

There is an output of upper/lower limit alarm when plug-in optional module ME-4201-NS96 is mounted. (Since contact output is 1 point, it becomes OR output set in upper/lower limit alarm item)

■ Upper/Lower Limit Alarm Display by LCD

Alarm occurrence status can be checked by current status display and maximum/minimum value display.

Alarm display on current status screen

Alarm display on maximum /minimum value screen

● Setting of Alarm Output Delay

Time of alarm output after the maximum value and minimum value is reached can be set. With this function, alarm output caused by frequency change at start-up current of a motor and start-up of private power generating facility can be avoided. Furthermore, maximum value and minimum value do not update during alarm delay.

Noalarmoutputand maximum/minimum valueupdateduring alarmdelaytime.

AlarmDelay

Time

Alarm

Generation

MaximumValueUpdate

Current

Motor Striking Current

AlarmDelay

Time

UpperLimit

Value

LowerLimit

Value

MinimumValueUpdate

Time

Nolowerlimitalarmon0A,0V.

Test Function

Even during a setup of a facility, where no current/voltage input is found, analog output, pulse output, contact output, and communication data is replied. This allows for checkup of wiring and monitoring program system.

Functions

Functions of LCD

13 12 11 10

Note: The above display is an example for explanation.

Functions of Buttons

Buttons

SET

MAX/MIN

PHASE

DISPLAY

Set up setting items such as primary voltage or primary current, and choose and indicate setting items.

Change settings and bar graph display. Change display from Max/Min to instantaneous value. Change phases. Change display.

4 5

LEAD status

LAG status

Scale of the bar graph

Outside range

Alarm indicator

Bar graph status

Phase status

Unit

Metering status

Harmonics

Communication status

Alarm status

Test status

Setup status

Digital

DISPLAY

PHASE

SET &

They show direction of Power Factor or Reactive Power on bar graph. They show the type of counting of Reactive Energy on Reactive Energy Display. They show the scales of the bar graph. Measurement value is outside range of scale of the bar graph. It shows the setting value of the upper limit or lower limit. They show the item expressed with the bar graph. They show the phase for each of the digital displays. They show the unit for each of the digital displays. When it is blinking, the instrument is counting active energy. It means that the digital displays are harmonics values. It shows that the instrument is equipped with a communication function. They show that the upper limit value or lower limit value was exceeded. It shows that the output of the option module is tested. It appears at Set-up mode. The measured value is displayed in a digital number.

Special functionsBasic functions

snoitcnuFButtonssnoitcnuF Operations

RESET

Press for 2 sec.

Press for 1 sec.

PHASE

Manual display change Cyclic display change

Manual phase change Cyclic phase change

Zoom display of Wh, varh values (last 3 digits)

Reset all the Max/Min values.

Fast forward or fast return values when setting.

Reset Wh, varh values to zero by holding down the buttons for 2 sec.

Settings

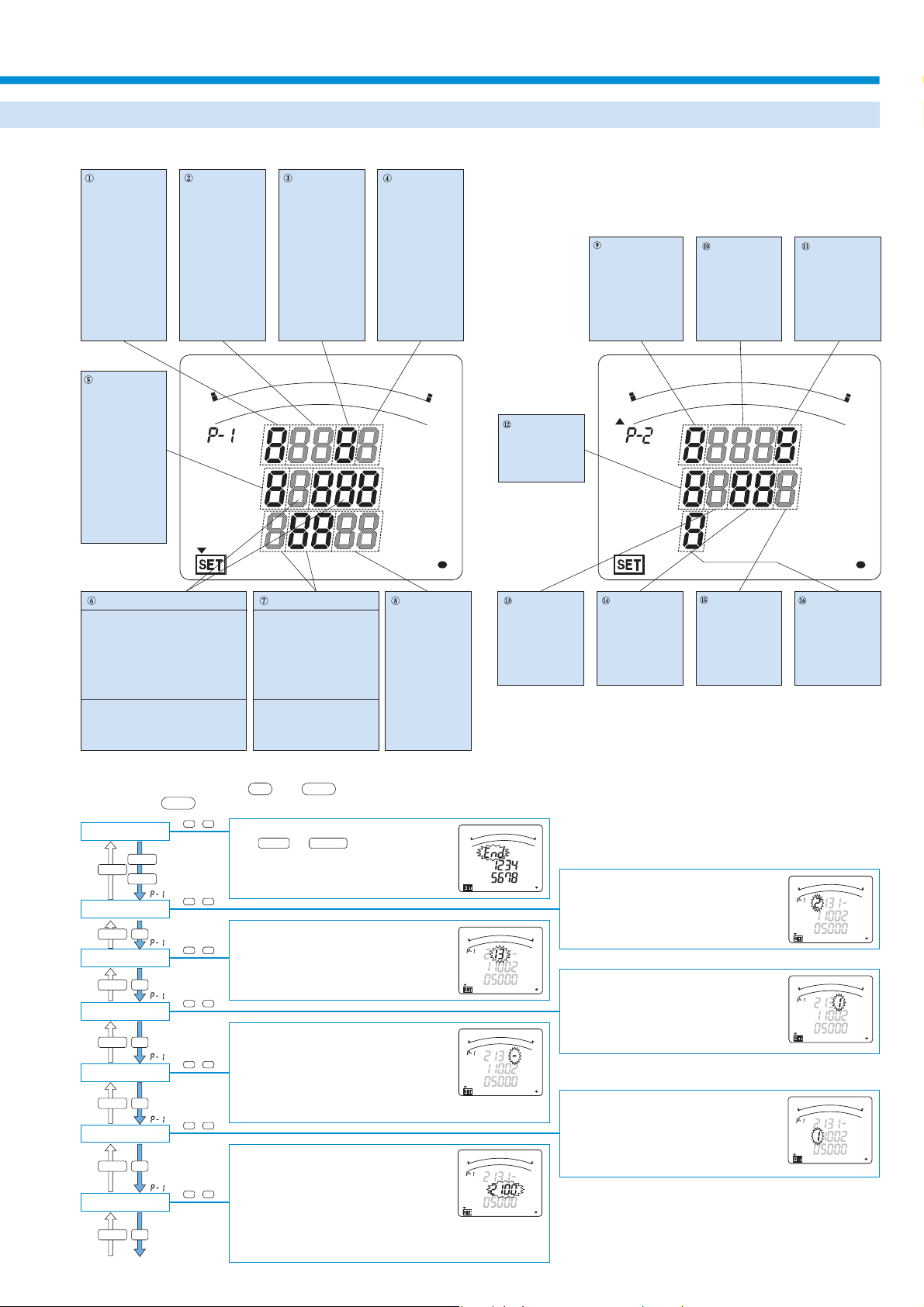

● Set-up Diagram

For correct measurement, it is necessary to set the primary voltage and the primary current, etc. in the Set-up mode. It can set necessary items, after it shifts from the Operation mode to Set-up mode. Items not set are on the initial setting. In case of regular use, it can be used by setting only the Set-up menu 1(basic set-up). In case of using the communication function, set Set-up menu 2. Refer to the next page or later for the set-up items.

● How to access Set-up

Press SET and RESET simultaneously for 2 seconds to get in the

➀

Set-up mode.

Select a Set-up menu number by or .

➁

Change the contents in each Set-up menu. (Refer to pages 7-14.)

➂

–

Operation mode

Measurement display

Initializing

Shift automatically

process

blink extinction

End display

CANCEL display

Example of set-up mode

Example of set value confirmation mode

Set-up menu “End”

Type of option display

(Example)

P-1

Phase

wire

Display pattern

Using VT/ direct input

Simplified set-up menu

Direct

voltage

Secondary

voltage

Primary voltage

Primary current

Time constant

for current

demand

P-2

Communication

method

ModBus

address

ModBus

baud rates

ModBus

parity

ModBus

stop bit

CC-Link

station

number

CC-Link

baud rates

Communication

module reset

Set-up menu 1 Set-up menu 2 Set-up menu 3 Set-up menu 4

Phase

wire

Display pattern

Using VT/ direct input

Direct

voltage

Secondary

voltage

Primary voltage

Secondary

current

Primary current

Time constant

for current

demand

Communication

method

ModBus

address

ModBus

baud rates

ModBus

parity

ModBus

stop bit

CC-Link

station number

CC-Link

baud rates

Communication

module reset

Digital input

reset

CAUTION

Make sure to set for Direct voltage, Secondary voltage, Primary voltage, Secondary current, Primary current. (Or check the set-up contents.) A correct measurement cannot be done if the set-up contents are wrong.

2. Set for the other set-up contents when it is necessary. When it is not done, it operates with the initial contents.

After completion of set-up, select ‘End’ in the Set-up menu and press

➃

SET

When the End display appears, press once again.

➄

SET

Set-up mode or set value confirmation mode

Set-up menu 5 Set-up menu 6 Set-up menu 8Set-up menu 7

Current

maximum

scale

Active power

maximum

scale

Reactive power

maximum

scale

Power

factor scale

✽ This figure writes all set menus.

There is a menu not displayed by the presence of the setting condition and the option.

Expanded

counting

Harmonics

Digital

input/output

Back light

ON/OFF

Current display

digit

Voltage

display

digit

Active power

display digit

Reactive

power

display digit

Apparent

power

display digit

Alarm

item

Alarm value

Alarm

delay time

Alarm cancel

method

Arrow in

figure

Shift from the operation mode to the set-up mode. Shift from the operation mode to the set value confirmation mode. Select the menu number to set or “End”. Get into each setting screen. Shift to the next setting item. Go back to the previous setting item.

Omitted

Select a set value.

in figure

Shift to the End screen.

Memorize the setting contents, and go back to the operation mode.

Select “CANCEL”.

Cancel the setting.

Skip remaining setting items during setting. Shift from the set-up mode to simplified set-up menu.

Display the type of option unit.

Initializing of instrument

Change the page of the simplified set-up menu.

Action

Analog

output 1

Analog

output 2

Analog

output 3

Analog

output 4

Analog

output limit

Pulse

output 1

Pulse

output 2

Pulse width

Key operation

SET

RESET

SET

–

SET

DISPLAY

–

SET

–

SET

PHASE DISPLAY

PHASE

MAX/MIN

PHASE

Analog

output 1 Adj.

Analog

output 2 Adj.

Analog

output 3 Adj.

Analog

output 4 Adj.

Press them simultaneously for 2 seconds.

Press it for 2 seconds.

Press it several times.

Press it.

Press it several times.

Press it.

Press it for 1 second.

Press them simultaneously for 1 second.

Press it.

Settings (Continued)

● Setting Procedure

Display the setting screen with , and setup the items with / .

SET

Settings can be registered for each setup menu number. Display the [End] screen and register with .

■ Set-up Menu 1 (Basic Set-up)

In this set-up menu 1, set-up the basic contents as following for correct measurement . In the operation mode, press and simultaneously for 2 seconds or more, and the following operation becomes available.

SET

RESET

The underline shows the initial value.

Set the set-up menu number to “1”.

+–

Set-up menu

DISPLAY

SET

① Phase wire

DISPLAY

SET

② Display pattern

DISPLAY

SET

① Set the phase wire system.

+–

3P3.2Ct 3P3.3Ct 3P4

Three phase 3-wire (2CT)

Three phase 3-wire (3CT)

Three phase 4-wire

② Set the display pattern. (Initial content: P13)

Note: As for detailed display patterns, refer to page 22.

+–

: Displayed in display setting : Set by the set-up menu 4 (page 9) : Select “P00”, and set display sequence and display

position (Please refer to the user’s manual)

DA : current demand, HI: harmonic current, HV: harmonic voltage DI :

digital input, DO: digital output (DI/DO: only when option module is installed)

VA : Three phase 4-wire only

–

SET

Display

A DA V W PF var Hz varhVA Wh HI HV DI DO

pattern

P01 P02 P03 P04 P05 P06 P07 P08 P09 P10 P11 P12 P13 P00

Exported

active

energy

varh

Special

③

Using VT/direct input

SET

DISPLAY

④ Direct voltage

DISPLAY

SET

⑤

VT secondary voltage

DISPLAY

SET

⑥

VT primary voltage

DISPLAY

SET

⑦

CT secondary

current

DISPLAY

SET

⑧

CT primary current

DISPLAY

SET

⑨ Time constant for

current demand

SET

③ Choose VT or direct input (without VT).

YESno: using VT

+–

: direct input

Initial setting Three phase 3-wire : using VT Three phase 4-wire : direct input

+–

⑤

Set the secondary voltage values of VT. If you set “no” on set up No.

+–

DISPLAY

SET

+–

Three phase 4-wire Three phase 3-wire

63.5V 100V 110V 115V 120V

⑦ Set the secondary current value of CT.

+–

DISPLAY

SET

+–

5A 1A

Set up the time constant for calculating current demand.

⑨

40 seconds

0 second

50 seconds

10 seconds 20 seconds 30 seconds

1 minute

2 minutes

Note: Even when the display pattern do not display the current demand, this screen appears. If the current demand is not necessary, press SET .

③

, this display does not appear.

100V 110V 220V

15 minutes

7 minutes

3 minutes 4 minutes 5 minutes 6 minutes

8 minutes 9 minutes

10 minutes

20 minutes 25 minutes 30 minutes

④ Set-up the rated voltage for scaling of the bar graph. If you set “YES” on set up No.③, this display does not appear.

Three phase 4-wire (phase to phase(L-L)/phase to neutral(L-N))

110V/63.5V 173V/100V

190V/110V

380V/220V

415V/240V 440V/254V 480V/277V

Three phase 3-wire (phase to phase(L-L))

110V 220V

⑥ Set the primary voltage value of VT in the case of using VT.

If you select “no” on set up No.③, this display does not appear.

Initial setting Three phase 3-wire : 10000V Three phase 4-wire : 200V

•

From top digit, select the value of the flickering digit by

–

and .

•

The setting digit can be moved to right by SET .

•

The setting digit can be moved to left by DISPLAY .

•

The number of settable digits are upper 3 digits. Setting is available in the range from 60V to 750kV (750000V).

If it is set on range other than 60V to 750kV, error display (E05) appears. At the moment of the error display, press SET and review the set value, and set it once again.

When SET is pressed at the lowest digit, the setting item

• goes to the next one.

⑧ Set the primary current value of CT. (The initial value is 5A.)

•

From top digit, select the value of the flickering digit by

–

and .

•

The setting digit can be moved to right by SET .

•

The setting digit can be moved to left by DISPLAY .

•

The number of settable digits are upper 2 digits. Setting is available in the range from 5A to 30kA (30000A).

If it is set on range other than 5A to 30kA, error display (E05) appears. At the moment of the error and review the set value, and set it once again.

•

When SET is pressed at the lowest digit, the setting item goes to the next one.

According to the set-up diagram (page 6), save the changed contents, or continue to the other set-up menu.

display, press SET

Set-up menu

Note

+–

If the contents in the Set-up Menu 1 are changed, maximum value, minimum value, and demand value of related measurement items will be reset. (However, all of the counting values are not reset.)

Functions

Settings (Continued)

■ Set-up Menu 2 (Set-up of Communication, Contact Input Reset Procedure)

In the operation mode, press

SET

and

RESET

simultaneously for 2 seconds or more, and the following operation becomes available.

Set-up menu

DISPLAY

SET

① Communication method

DISPLAY

SET

② ModBus address

DISPLAY

SET

③ ModBus baud rates

DISPLAY

SET

④ ModBus parity

DISPLAY

SET

⑤ ModBus stop bit

DISPLAY

SET

⑥ CC-Link station number

DISPLAY

SET

⑦ CC-Link baud rates

DISPLAY

SET

⑧

Communication module reset

DISPLAY

SET

⑨ Digital input reset

SET

Set-up menu

Set the set-up menu number to “2”.

+–

②

Set the ModBus address number.

In case of CC-Link, this display does not appear.

+–

Settable addresses: 1 to 255

+–

④

Set the ModBus parity.

In case of CC-Link, this display does not appear.

+–

Settable parity : non

+–

⑥

Set the CC-Link station number.

In case of ModBus, this display does not apper.

+–

Settable addresses: 1 to 64

+–

⑧

Reset of communication module.

In case of ModBus, this display does not apper.

+–

Set it ON.

Note: When it is not set on ON, changed station number and baud rate do not become valid.

According to the set-up diagram (page 6), save the changed contents or continue to the other set-up menu.

odd EVEn

Set the “CC-Link” or “ModBus” as the

①

communication method. This display appears only if the type ME96NSR-MB has the type ME-0040C-NS96 option module.

CC-Link

485

ModBus

③

Set the ModBus baud rate.

In case of CC-Link, this display does not appear.

Settable baud rate:

⑤

Set the ModBus stop bit.

2400 bps 4800 bps 9600 bps

19.2 kbps

38.4 kbps

In case of CC-Link, this display does not appear.

Stop bit : 1 Stop bit : 2

⑦

Set the CC-Link baud rates.

In case of ModBus, this display does not apper.

Settable baud rates:

on oFF

⑨

Set the digital input(DI) reset method.

0 : 156k 1 : 625k 2 : 2.5M 3 : 5M 4 : 10M

Without digital input, this display does not apper.

HoLd: Manual methodAuto: Automatic method

Note: When selected the manual method(HoLd), input state is kept until the cancel operation is done manually. For the method of the cancel operation, refer to page 21.

■ Set-up Menu 3 (Bar Graph Set-up)

In the operation mode, press

Set-up menu

DISPLAY

SET

①

Current maximum scale

DISPLAY

SET

②

Active power maximum scale

DISPLAY

SET

③ Active power scale

DISPLAY

SET

④

Reactive power maximum scale

DISPLAY

SET

⑤ Power factor scale

SET

Set-up menu

+–

SET

and

Set the set-up menu number to “3”.

Set the maximum scale of active power.

②

The maximum scale is set in the range of about 40% to about 120% of the rated full load power.

Note: This insturument’s rating is 100% value. For the maximum scale value, please refer to the user’s manual.

Set the reactive power maximum scale.

④

The setting method is same as that of ② maximum scale value of active power.

According to the set-up diagram (page 6), save the changed contents or continue to the other set-up menu.

1. Accuracy is defined to rated current. Although the maximum scale may display 120% or more of rated current and rated voltage in order to make

Note

the scale easy to read, current input is within 100% of rated current.

2. When the display pattern that does not display power, reactive power, active energy, and reactive energy is selected, the setting item related to them is skipped.

RESET

simultaneously for 2 seconds or more, and the following operation becomes available.

Set the current maximum scale.

①

The maximum scale is set in the range of about 40% to about 120% of the rated current.

Note: This insturument’s rating is 100% value. For the maximum scale value, please refer to the user’s manual.

Set the single / double deflection of active power.

③

When + and – are pressed, the scale value of bar graph flickers at single / double deflection.

Set the power factor scale.

⑤

00.5

■ Set-up Menu 4 (Set-up of Various Measurement Display, Special Type Display)

In the operation mode, press

Set-up menu

DISPLAY

SET

① Expanded counting

DISPLAY

SET

② Harmonics

DISPLAY

SET

③ Digital input/output

DISPLAY

SET

④ Back light

ON/OFF setting

DISPLAY

SET

⑤ Current display digit

DISPLAY

SET

⑥ Voltage display digit

DISPLAY

SET

⑦ Active power display digit

DISPLAY

SET

⑧

Reactive power display digit

DISPLAY

SET

⑨

Apparent power display digit

SET

Set-up menu

+–

SET

Set the set-up menu number to “4”.

① Set the combination of display for active energy and reactive energy.

Combination of imported/exported and lag/lead can be selected. Combination 1 in the diagram is for standard use.

Combination

② Set the harmonic measurement.

on : Harmonic measurement value is displayed. oFF : Harmonic measurement value is not displayed.

④

Set the back light auto off (Auto) / continuous on (HoLd).

(Setting this is usually unnecessary.)

If you set to ‘Auto off’, the back light turns off when there is no key operation for 5 minutes. When the operation key is pressed, it is lit for 5 minutes. At this moment, the display is not changed. When the operation key is pressed once again, the display is changed.

⑥ Set the voltage display digit.

888: 3 digits 8888: 4 digits

⑧ Set the reactive power display digit.

888: 3 digits 8888: 4 digits

According to the set-up diagram (page 6), save the changed contents or continue to the other set-up menu.

and

Active energy

(Wh)

Imported Exported

1 2 3 4

HoLd

(Continuous ON)

RESET

simultaneously for 2 seconds or more, and the following operation becomes available.

Reactive energy

(varh)

Imported

Imported (Exported)

lag (lead) lag lead

lead (lag)

Auto

(Auto OFF)

Exported lag lead

Display of combination1 Display of combination2 Display of combination3 Display of combination4

③ Set the display of the digital input/output state.

When the ME-0052-NS96 or ME-0040C-NR96 type option module is not installed, this menu is not displayed.

on : The state of the digital input/output is displayed. oFF : The state of the digital input/output is not displayed.

⑤ Set the current display digit.

888: 3 digits 8888: 4 digits

⑦ Set the active power display digit.

888: 3 digits 8888: 4 digits

⑨ Set the apparent power display digit.

888: 3 digits 8888: 4 digits

Note

In No.⑤ to No.⑨, the measurement elements that are not included in the display pattern setting are skipped.

Functions

Settings (Continued)

■ Set-up Menu 5 (Alarm Set-up)

This sets the upper and lower limit alarm. The upper and lower limit set value mark “ (blinking)” is displayed on the bar graph. From the display items, four items can be set. In the operation mode, press and simultaneously for 2 seconds or more, and the following operation becomes available.

+–

Set-up menu

DISPLAY

SET

①

Alarm item 1

DISPLAY

SET

② Alarm value 1

DISPLAY

SET

③ Alarm item 2 to 4

+–

SET

RESET

Set the set-up menu number to “5”.

② Set the alarm value of alarm item 1.

The set-up range is shown below.

Example display when A upper limit is set to 100%

A, DA, A

A,DA lower limit

V upper limit

V lower limit

W, var upper limit

W, var lower limit

PF upper limit

PF lower limit

Hz upper limit

Hz lower limit

Harmonic current total RMS value upper limit

Harmonic voltage total distortion ratio upper limit

Note 1: The upper and lower limit alarm mark by the bar graph is displayed in the step of about 5%

though the digital value can be set in the above-mentioned step on A, DA, V, W and var. However, the alarm is generated with the accuracy of the digital value. DA: current demand

Note 2: V alarm value is set according to the value of primary voltage (direct voltage).

A, DA, W, and var is set for value of rated scale.

Alarm item

N, DAN upper limit

Set-up range

5 to 100 to 120%

3 to 10 to 95%

25 to 110 to 135%

20 to 70 to 95%

–95 to 100 to 120%

–120 to 3 to 95%

–0.05 to 1 to 0.05

–0.05 to –0.5 to 0.05

45 to 65Hz

5 to 35 to 120%

0.5 to 3.5 to 20%

Step

0.05

1Hz

0.5%

③ Set the upper and lower limit alarm item 2 to 4 (AL2, AL3, AL4) in the same method.

① Set the alarm item to be allowed to measurement items.

Three phase 3-wire Three phase 4-wire

non A upper limit A lower limit

Demand A upper limit Demand A lower limit

(L-L) upper limit

(L-L) lower limit

W upper limit

W lower limit

var upper limit

var lower limit

PF upper limit

PF lower limit Hz upper limit Hz lower limit

Harmonic current total

RMS value

Harmonic voltage total

distortion ratio

Note 1: A measurement item that is not selected in the display pattern can be selected. Note 2: The alarm of W, var, and PF is judged from the total RMS value.

The upper alarm of A and DA is judged from the phase of 1, 2, 3 and N. The lower alarm of A and DA is judged from the phase of 1, 2 and 3. (N is excluded.)

Note 3: The alarm of the total distortion ratio is judged from the phase of 1, 2 and 3.

(N is excluded.)

non A upper limit A lower limit

N upper limit

Demand A upper limit Demand A lower limit

Demand A

N upper limit

(L-N) upper limit

(L-N) lower limit

(L-L) upper limit

(L-L) lower limit

W upper limit

W lower limit

var upper limit var lower limit PF upper limit PF lower limit Hz upper limit

Hz lower limit Harmonic current total RMS value Harmonic current phase N RMS value Harmonic voltage total distortion ratio

✽

Refer to page 19 for details.

Display when A upper limit is set

Display of non upper and lower limit alarm

to upper and lower limit alarm

✽

DISPLAY

SET

④ Alarm delay time,

delay time of max/min value

DISPLAY

SET

⑤ Alarm cancel

method

SET

Set-up menu

④ Set the alarm delay time.

+–

⑤

+–

If the condition of limit exceeding continues f or more than the delay time, the alarm generates. And if it does not continue during this time, the maximum/minimum value is not updated.

0 seconds

5 seconds 10 seconds 20 seconds

30 seconds 40 seconds 50 seconds

1 minute

Set the alarm cancel method at generation of alarm. (screen, relay)

Method

Automatic

(Auto)

Manual

(HoLd)

Please refer to page 19 for details.

Cancel method

When there is no alarm generating condition,

alarm is automatically reset.

Alarm is reset by pressing RESET .

Alarm continues until RESET is pressed.

According to the set-up diagram (page 6), save the changed contents or continue to the other set-up menu.

2 minutes 3 minutes 4 minutes 5 minutes

Display of automatic

reset method

Display of manual reset

method

■ Set-up Menu 6 (Analog Output Set-up)

In the operation mode, press and simultaneously for 2 seconds or more, and the following operation becomes available.

SET

RESET

The set-up screen can be displayed for measurement items that are not selected in display pattern. When the ME-4201-NS96 type optional plug-in module is not installed, this menu cannot be set.

Set the set-up menu number to “6”.

+–

Set-up menu

DISPLAY

SET

Analog output CH1

①

measurement item

DISPLAY

SET

② Analog output CH1

detailed set-up

DISPLAY

SET

+–

②

Detailed analog output set-up

(1) When A, DA are set (6.1.1)

Current value is set to the maximum output value of

•

analog output. It can be set in the range of about 40% to about 120% of ratings.

+–

As for detailed set values, refer to the user’s manual.

(2) When W, var are set

•

Power value and reactive power value are set to the maximum output value of analog output. (6.1.1) It can be set in the range of about 20% to about 120% of ratings. As for detailed set values, refer to In the case of W, set to the single/double deflection.

• (initial content : single deflection) (6.1.2)

Example of power 1000W

Single deflection

4 0

1000W

(3) When PF is set

•

The power factor value to the maximum output value of

output CH1 is set from

analog

20 12

–

0.5 0.5

(4) When Hz is set

The frequency range of analog output is set.

•

the user’s manual.

Double deflection

20 12

–

1000W 1000W

–

.5–1

.5/–0–1

20 12

–

60Hz 50Hz

Note: When it is set to 50Hz, output is made at span 45 to 55Hz.

When it is set to 60Hz, output is made at span 55 to 65Hz.

These settings can be set separately from measurement items.

① Set the measurement item for analog output CH1.

Select measurement element output from below.

Three phase 3-wire Three phase 4-wire

non

:CH1

AVG

DA3

DAAVG

V12

V31

VLLAVG:CH2

ΣW:CH3

Σvar

ΣPF:CH4

HI2

HI3

HV12

HV23

non

AAVG:CH1

DA2

DA3

DAN

AVG

V1N

V2N

V3N

VLNAVG:CH2

V23

V31

VLLAVG

ΣW:CH3

var

var2

var

Σvar

VA2

VA3

ΣVA

PF2

PF3

ΣPF:CH4

HI2

HI3

HV1N

HV2N

③

Analog output CH2 to CH4 measurement item

DISPLAY

SET

④

Analog output

CH2 to CH4 detailed set-up

DISPLAY

SET

⑤

Analog output limit

DISPLAY

SET

Set-up menu

③

+–

Analog output CH2 to CH4 measurement item set-up

Analog outputs CH2 to CH4 are set also in the same method as ➀ analog output CH1 measurement item set-up.

④

+–

Analog output CH2 to CH4 detailed set-up

Analog outputs CH2 to CH4 are set also in the same manner as ➁ analog output CH1 detailed set-up.

⑤

Setting of the analog output limit.

+–

Set to cut undefined analog output.

on : Cut undefined analog output. oFF : Don’t cut undefined analog output.

Setting

oFF

Output Range

Span of −1% to 101%

Span of −5% to 105%

According to the set-up diagram (page 6), save the changed contents or continue to the other set-up menu.

+–

Functions

Settings (Continued)

■ Set-up Menu 7 (Pulse Output Set-up)

In the operation mode, press and simultaneously for 2 seconds or more, and the following operation becomes available. When the ME-4201-NS96 optional plug-in module is not installed, this menu cannot be set.

SET

RESET

Set-up menu

DISPLAY

SET

①

Pulse output

②

Pulse output item 1

pulse value

③

Pulse output item 2

④

Pulse output item 2

pulse value

DISPLAY

Pulse width

⑤

item 1

SET

Set-up menu

+–

Set the set-up menu number to “7”.

②

Set the pulse value of pulse output 1.

Pulse value is selected from the table below, according to total load [kW].

Total load [kW] =

✽

Primary voltage value is calculated by phase to newtral.

10 or higher and below 100

100 or higher and below 1000

1000 or higher and below 10000

10000 or higher and below 100000

③

Set the output element to pulse output 2.

Pulse output 2 is set in the same method as ➀ pulse output item 1 set-up. (At initial setting, imported lag reactive energy is set to pulse output 2.)

④

Set the pulse value of pulse output 2.

Pulse output 2 is set in the same method as ➁ pulse output item 1 set-up.

⑤

Set the pulse width of output pulse.

Note: When the pulse width is set to 0.500s, 1.000s, and pulse unit

α× (Primary voltage) × (Primary current)

Total load [kW]

1 or higher and below 10

100000 or higher

0.125s 0.500s 1.000s

is set to lowest settable unit, pulse output cannot follow, and the counting pulse may decrease when load is large.

1000

Digital display

8888.88

88888.8 888888

8888.88

88888.8 888888

α= 3 (Three-phase 3-wire) α=3 (Three-phase 4-wire)

Settable pulse value [kW/pulse]

0.1

100

0.1

100

0.01

0.1 1

0.01

0.1 1

0.001

① Set the output element to pulse output 1.

At initial setting, imported active energy is set to pulse output 1, press SET to go to the next setting.

Settable elements

Display

Pulse output element Imported active energy (Pulse output 1) Exported active energy

)

Imported lag reactive energy (Pulse output 2) Imported lead reactive energy Exported lag reactive energy Exported lead reactive energy No output

In case of reactive energy, kW in the above table is exchanged into kvar and kWh into kvarh.

0.01

0.1

0.01

0.1

Wh – Wh varh (LAG

varh (LEAD) – varh (LAG) –

varh (LEAD) non

kWh/Pulse kWh/Pulse

kWh/Pulse MWh/Pulse MWh/Pulse MWh/Pulse

According to the set-up diagram (page 6), save the

changed contents or continue to the other set-up menu.

Example of pulse output 1

Example of pulse output 2

Example of pulse output 1

■ Set-up Menu 8 (Analog Output Adjustment)

When the ME-4201-NS96 optional plug-in module is installed, zero adjustment and span adjustment of analog output is possible. (Only for circuits set on analog output)

Please adjust it only when the matches with the receiving instrument or the output have changed. In the operation mode, press and simultaneously for 2 seconds or more, and the following operation becomes available.

SET

Set the set-up menu number to “8”.

+–

Set-up menu

DISPLAY

SET

①

Zero Adj. for CH1

DISPLAY

SET

②

Span Adj. for CH1

DISPLAY

SET

CH2, CH3 and CH4 can be adjusted the same as above.

SET

Set-up menu

+–

②

Set the span adjustment for CH1.

+–

±50 steps can be set. (about ± 0.3mA )

According to the set-up diagram (page 6), save the

changed contents, or continue to the other set-up menu.

+–

RESET

①

Set the zero adjustment for CH1.

±50 steps can be set. (about ±0.3mA )

Zero adjustment

20mA

INPUT INPUT

20mA

Span adjustment

Single deflection

● Simplified Set-up

The setting contents of the main 16 items can be set by using two displays. It can be set by the method of substituting numerical value. For the setting contents, refer to the following table.

Simplified setting page: P-2

Content

No.

Content

ModBus stop bit

CC-Link station number

CC-Link baud rates

Communication module reset

No.

Phase wire

➀

Display pattern

➁

Using VT/direct input

➂

Direct voltage

➃

Simplified setting page: P-1

Content

No.

➄ ➅ ➆ ➇

Content

VT secondary voltage

VT primary voltage

CT primary current

Time constant for current demand

No.

Communication method

➈

ModBus address

➉

ModBus baud rates

ModBus parity

Double deflection

INPUT

■ Simplified Set-up Contents List

Phase wire 1:3P3W (2CT) 2:3P3W (3CT) 3:3P4W

Display pattern 00:P00 11:P11 01:P01 12:P12 02:P02 13:P13 03:P03 04:P04 05:P05 06:P06 07:P07 08:P08 09:P09 10:P10

VT secondary

voltage

[3P4W] 1:63.5V 2:100V 3:110V 4:115V 5:120V

[3P3W] 1:100V 2:110V 3:220V

Using VT Direct voltage

/direct input

0:direct input 1:using VT

[3P4W] 1:110V/63.5V 2:173V/100V 3:190V/110V 4:380V/220V 5:415V/240V 6:440V/254V 7:480V/277V [3P3W] 1:110V 2:220V

1:CC-Link 2:ModBus

ModBus parity 0:non 1:odd 2:EVEn

Communication method

ModBus address

001 to 255

ModBus

baud rates 1:2400bps 2:4800bps 3:9600bps 4:19.2kbps 5:38.4kbps

VT primary current

[Exponent value] 0:60 to 999V

1:1000 to 9990V 2:10000 to 99900V 3:100000 to 750000V

[Voltage value] (100 digits) (10 digits) (1 digit) 0 to 9 0 to 9 0 to 9

CT primary current

[Exponent value] 0:5.0 to 9.9A

1:10 to 99A 2:100 to 990A 3:1000 to 9900A 4:10000 to 30000A

[Current value] (10 digits) (1 digit) 0 to 9 0 to 9

Time constant for current demand

00:0s 10:5min 01:10s 11:6min 02:20s 12:7min 03:30s 13:8min 04:40s 14:9min 05:50s 15:10min 06:1min 16:15min 07:2min 17:20min 08:3min 18:25min 09:4min 19:30min

ModBus stop bit

1:1 2:2

CC-Link station number

01 to 64

CC-Link Baud rates

1:156kbps 2:625kbps 3:2.5Mbps 4:5Mbps 5:10Mbps

■ Simplified Set-up

In the operation mode, press and simultaneously for 2 seconds or more, and the following operation becomes available.

PHASE

DISPLAY

SET

/direct input

SET

PHASE

+–

For 1 secend or more

+–

By pressing in the simplified set-up mode, the simplified setting page is changed.

Set-up menu

DISPLAY

①

Phase wire

DISPLAY

②

Display pattern

DISPLAY

③

Using VT

DISPLAY

④ Direct voltage

DISPLAY

VT secondary voltage

⑤

DISPLAY

⑥ VT primary voltage

DISPLAY

SET

Set the set-up menu number to “End”.

Press PHASE and DISPLAY simultaneously for 1 second

or more.

② Set the display pattern.

00 : P00

13 : P13

④ Set the rated voltage scaling for the bar graph.

If you set “1: using VT” on set up No. cannot be set.

[3P3W] 1 : 110V 2 : 220V

⑥

Set the primary voltage values of VT.

If you set “0: direct input” on set up No. cannot be set It is set by the top 3 digits voltage values and the exponent values (10 to the n-th power). The set-up order is the exponent values and the voltage values.

Exponent values: 0 (100 = 1 time)

RESET

[3P4W] 1 : 100/63.5V 2 : 173/100V 3 : 190/110V 4 : 380/220V

1 (10

2 (10

3 (10

= 10 times) = 100 times) = 1000 times)

③ , this content

5 : 415/240V 6 : 440/254V 7 : 480/277V

③

, this content

Voltage values: the top 3 digits (0 to 9)

Example: Set-up to 10000V

Exponent values: 2 Voltage values: 100

① Set the phase wire.

1 : 3P3W 2CT 2 : 3P3W 3CT 3 : 3P4W

③ Set using VT or direct input (without VT).

0 : direct input. 1 : using VT

⑤

Set the secondary voltage values of VT.

If you set “0: direct input” on set up No. cannot be set.

[3P3W] 1 : 100V 2 : 110V 3 : 220V

[3P4W]

1 : 63.5V

2 : 100V 3 : 110V

4 : 115V 5 : 120V

③

, this content

Communication module reset

0:OFF 1:ON

Functions

Settings (Continued)

⑦

Set the primary current values of CT.

It is set by the top 2 digits current values and the exponent values (10 to the (n-1)th power). The set-up order is the exponent values and the current values.

Exponent values

Set the communication method.

This is set only if the type of ME96NSR-MB has the CC-Link optional plug-in module. In case of the

other combination, this content cannot be set.

1: CC-Link 2: ModBus

: 0 (10-1 = 0.1 time)

= 1 time)

1 (10

2 (10

= 10 times)

= 100 times)

3 (10

4 (10

= 1000 times)

Set the ModBus baud rate.

In case of CC-Link, this content cannot be set.

1: 2400bps 2: 4800bps 3: 9600bps

4: 19.2kbps 5: 38.4kbps

Set the ModBus stop bit.

In case of CC-Link, this content cannot be set.

1: 1 2: 2

Set the CC-Link baud rate.

In case of ModBus, this content cannot be set.

1: 156kbps 2: 625kbps 3: 2.5Mbps

According to the set-up diagram (page 6), save the changed contents,

4: 5Mbps 5: 10Mbps

or continue to the other set-up menu.

CT primary current

DISPLAY

SET

Time constant for

current demand

DISPLAY

SET

(Page change of set-up display)

Communication

method

DISPLAY

SET

ModBus address

DISPLAY

SET

ModBus baud rates

DISPLAY

SET

ModBus parity

DISPLAY

SET

ModBus stop bit

DISPLAY

SET

CC-Link

station number

DISPLAY

SET

CC-Link baud lates

DISPLAY

SET

Communication

module reset

SET

Set-up menu

+–

Current values: the top 2 digits (0 to 9)

Example: Set-up to 50A Exponent values: 1 Current values: 50

Set the time constant for calculating current demand.

00: 0s 01: 10s 02: 20s 03: 30s 04: 40s

05: 50s 06: 1min 07: 2min 08: 3min 09: 4min

10: 5min 11: 6min 12: 7min 13: 8min 14: 9min

15: 10min 16: 15min 17: 20min 18: 25min 19: 30min

Set the ModBus address number.

In case of CC-Link, this content cannot be set.

Address: 001 to 255

Set the ModBus parity.

In case of CC-Link, this content cannot be set.

0: non 1: odd 2: even

Set the CC-Link station number.

In case of ModBus, this content cannot be set.

Address: 01 to 64

Set the communication module reset.

In case of ModBus, this content cannot be set.

Set it ON.

0: OFF 1: ON

■ Display of the Type of Optional Plug-in Module

It is possible to display the type of the optional plug-in module when the optional plug-in module is mounted. In the operation mode, after pressing and simultaneously for 2 seconds or more, the following operation becomes available.

Set the set-up menu number to “End”.

+–

Set-up menu

MAX/MIN

1 secend or more

PHASE

Display the type of the optional plug-in module

DISPLAY

SET

Set-up menu

Note

+–

According to the set-up diagram (page 6), end the display of the type of

optional plug-in module or continue to the other set-up menu.

Even in the set value confirmation mode, the type of the optional plug-in module can be displayed. The procedure is the same as the above-mentioned.

SET

RESET

Displays the type of the optional plug-in module.

non : No optional plug-in module 4201 : ME-4201-NS96 0052 : ME-0052-NS96 0040C: ME-0040C-NS96

Test Function

● Alarm Output Test

When the ME-4201-NS96 optional plug-in module is installed, simulated signal output to test the alarm output circuit can be put out.

The following operation becomes possible when you turn on the power supply while pressing at the state of power failure.

DISPLAY

It is not possible to test without the optional plug-in module.

Set the test menu number to “1”.

+–

Test menu

SET

Alarm output test

SET

+–

Test the alarm output.

+–

When , is pressed, the display and the contact output are changed as follows.

(Closed)

oFF

(Opened)

To test the other outputs, continue the test according to the procedures in page 15 to page 16.

When the test is finished, turn off the power supply.

Test menu

+–

● Analog Output Test

When the ME-4201-NS96 optional plug-in module is installed, simulated signal output to test the analog output circuit can be put out.

The following operation becomes possible when you turn on the power supply while pressing It is not possible to test without the optional plug-in module.

DISPLAY

at the state of power failure.

Test menu

SET

Analog output

CH1 test

SET

Analog output

CH2 test

SET

Analog output

CH3 test

SET

Analog output

CH4 test

+–

Set the test menu number to “2”.

Test the analog output CH1.

+–

When , is pressed, the display and the analog output CH1 are changed as follows.

50% output 100% output0% output

Test the analog output CH2.

+–

When , is pressed, the display and the analog output CH2 are changed as follows.

50% output 100% output0% output

Test the analog output CH3.

+–

When , is pressed, the display and the analog output CH3 are changed as follows.

50% output 100% output0% output

Test the analog output CH4.

+–

When , is pressed, the display and the analog output CH4 are changed as follows.

50% output 100% output0% output

SET

Test menu

+–

To test the other outputs, continue the test according to the procedures in page 15 to page 16.

When the test is finished, turn off the power supply.

Functions

Test Function (Continued)

● Pulse Output Test

When the ME-4201-NS96 optional plug-in module is installed, simulated signal output to test the pulse output circuit can be put out.

The following operation becomes possible when you turn on the power supply while pressing at the state of power failure.

DISPLAY

It is not possible to test without the optional plug-in module.

Set the test menu number to “3”.

+–

Test menu

SET

① Pulse output

CH1 test

SET

② Pulse output

CH2 test

SET

Test menu

+–

① Test the pulse output CH1.

+–

When , is pressed, the display and the pulse output are changed as follows.

(Closed)

② Test the pulse output CH2.

+–

When , is pressed, the display and the pulse output are changed as follows.

(Closed)

To test the other outputs, continue the test according to the procedures in page 15 to page 16. When the test is finished, turn off the power supply.

oFF

(Opened)

oFF

(Opened)

● Digital Output Test

When the ME-0052-NS96 optional plug-in module is installed, simulated signal output to test the digital output circuit can be put out.

The following operation becomes possible when you turn on the power supply while pressing at the state of power failure. It is not possible to test without the optional plug-in module.

Set the test menu number to “4”.

+–

Test menu

SET

① Digital output

CH1 test

SET

② Digital output

CH2 test

SET

Test menu

+–

①

Test the digital output CH1.

+–

When , is pressed, the display and the contact output are changed as follows.

(Closed)

②

Test the digital output CH1.

+–

When , is pressed, the display and the contact output are changed as follows.

(Closed)

To test the other outputs, continue the test according to the procedures in page 15 to page 16. When the test is finished, turn off the power supply.

oFF

(Opened)

oFF

(Opened)

DISPLAY

Note

The initial value of each CH of this test mode is “Open”. If CH is changed or this test mode ends, the output becomes “Open”.

Operation

● Display Change

By pressing DISPLAY , the measurement display switches over.

Display change example (Display pattern: P01, Phase wire: Three phase 4 wire)

Note 1: When the display is changed by pressing the following display is displayed just for a few seconds.

DISPLAY

First display

Reference

DISPLAY DISPLAY DISPLAY DISPLAY

Second display Third display Fourth display Display number

Note 2: Even in the maximum and minimum value display, when the DISPLAY is pressed, the display will switch over.

Display items and sequences vary with display patterns (P01 to P13) and additional display. For detailed display pattern, refer to page 22.

➝

This shows that second display of the four displays is being displayed.

● Phase Change

By pressing PHASE , the current phase and the voltage phase switches over.

Display change example (Phase wire: Three phase 3 wire)

PHASEPHASEPHASEPHASE

Current average value Power (total) Voltage average value

Note: When PHASE is pressed, the phase will switch over, even in the maximum and minimum value display.

Current phase 1 Power (total) Voltage phase 1-2

Current phase 2 Power (total) Voltage phase 2-3

Current phase 3 Power (total) Voltage phase 3-1

● Bar Graph Display

Measurement item to be displayed on bar graph can be selected. By displaying one item by a bar graph and other three items by digital numbers, four elements can be displayed at once.

■ Explanation of Bar Graph

In the bar graph, measurement elements shown by “ ” or “ ” are displayed. As for voltage, current, active power, reactive power, power factor, and

▲

frequency, they can be displayed on the bar graph even if they are not set on display pattern.

■ Selection of Bar Graph

Press or to select measurement elements to be displayed on the bar graph.

–

The display element in the bar graph changes as follows by the display pattern that has been selected.

(i) When digital tri-level display are the same items

[Three-phase 3 wire]

AVG (or Σ) of display measuring items

(L-L)AVG

AVG

ΣPFΣvarΣWA

[Three-phase 4 wire]

AVG (or Σ) of display measuring items

(L-N)AVG

(L-L)AVG

AVG

varΣWA

ΣPF

(ii) When the measuring items are all different

[Three-phase 3 wire]

Upper Lower

(L-L)AVG

AVG

ΣPFΣ varΣWA

Middle

[Three-phase 4 wire]

Upper

(L-N) AVG

(L-L) AVG

AVG

ΣPF

varΣWA

Lower

Middle

Example of display of upper stage element on bar graph

Example of display of power factor on bar graph

Functions

Operation (Continued)

● Maximum Value and Minimum Value Display

The maximum values and the minimum values can be displayed.

■ Display of maximum value and minimum value

When MAX/MIN is pressed, the display changes into maximum value and minimum value display. And when MAX/MIN is pressed, the display changes back to the present value display.

Display change example (Display pattern : P01)

Note 1: In the maximum value and minimum value display, bar graph is lit only between the maximum value

MAX/MIN MAX/MIN

Present value display

Maximum value and minimum value display

■ Reset of Maximum Value and Minimum Value

When RESET is pressed for 2 seconds or more, the displayed maximum value and minimum value can be reset. (The maximum/minimum value and the present value become the same.)

and the minimum value. Note 2: When the screen shifts to the maximum value and minimum value display, the following are displayed in the order below. A AN DA DAN V W var VA PF Hz HI HIN HV

➝➝➝ ➝➝➝➝➝➝➝➝ ➝

However, item that are not set for display are not displayed. Note 3: For harmonics, only the following maximum values are displayed. Harmonic current total effective value, 1st, 3rd, 5th, 7th, 9th, 11th, 13th current effective values Harmonic voltage total distortion ratio, 1st voltage effective value, 3rd, 5th, 7th, 9th, 11th, 13th containing ratio

RESET

When RESET and are pressed simultaneously for 2 seconds or more, all the maximum values and minimum values are reset.

Note 1: The maximum values and minimum values not displayed are not reset. Note 2: All degrees are reset for harmonics.

■ Update of Delay Time

If maximum/minimum values do not continue for a long time since delay time, it is not updated. (Delay time is set by set-up menu 5.) Please set the delay time when you do not want to make the maximum value updated in the condition of excessive value in short time such as starting currents of the motor.

Note 1: When delay time is set, the value whose value of middle stage is larger than the maximum value might be displayed until delay time passes. Note 2: The demand current, harmonics current, and harmonics voltage are not delayed, so the current and voltage may display larger value than the present value.

● Cyclic Display

In cyclic display, display and phases automatically change every 5 seconds.

■ Cyclic Display

When DISPLAY is pressed for 2 seconds, the cyclic display screen appears. Cyclic display is possible even on the maximum value and minimum value display.

DISPLAY

Press for 2 seconds.

■ Phase Cyclic Display

When PHASE is pressed for 2 seconds, the phase cyclic display screen appears. Phase cyclic display is possible even on the maximum value and minimum value display.

Display for 5 seconds Display for 5 seconds Display for 5 seconds Display for 5 seconds

PHASE

Press for 2 seconds.

Display for 5 seconds Display for 5 seconds Display for 5 seconds Display for 5 seconds

Note 1: Before shifting to the cyclic display screen, the display blinks 3 times.

Note 2: By pressing any key other than the SET , it goes back to manual display change.

Note 3: In the cyclic display, display number is not displayed.

Note 1: Before shifting to the cyclic display screen, the display blinks 3 times.

Note 2: By pressing any key other than the SET , it goes back to manual display change.

● Generation and Cancel of Upper/Lower Limit Alarm

When the value exceeds the upper or lower limit setting value set in advance, the display blinks and alarm can be output. (No alarm output when all of the input voltage/input current is zero)

■ Set-up

Refer to set-up menu 5. (see page 10)

■ Alarm Indicator

If the item that had alarm set-up is displayed on the bar graph, the alarm indicator appears. By blinking of “ ▲ ”, upper or lower limit is shown.

■ Behavior During Alarm Generation

Alarm condition: When measurement value exceeds alarm value, display blinks and alarm contact closes. Alarm cancel: When alarm is canceled, display blinks normally and alarm contact opens.

Alarm Cancel Method

Automatic

(Auto)

Display

Measurement value > Upper limit value (or Measurement value < Lower limit value)

ALARM , HI or LO : blink

Measurement value < Upper limit value (or Measurement value > Lower limit value)

Normal display

Manual (HoLd)

Alarm contact

Display

Closed

ALARM , HI or LO : blink

ALARM , HI or LO : appear

Opened

Normal display

RESET

(Alarm retention)

Alarm contact

Note 1: In alarm condition, the digital value, the unit (A, V, W, var, VA, PF, Hz), and the phase (1, 2, 3, N, AVG, Σ, DM) of the measurement items blink. There is no blinking when the item is not on the display. Note 2: In alarm hold condition, the unit (A, V, W, var, VA, PF, Hz) and the phase (1, 2, 3, N, AVG, Σ, DM) of the measurement items blink. There is no blinking when the element is not on the display. Note 3: Only the present value (middle digital display) blinks on maximum and minimum value screen. Note 4: In harmonics, only total distortion ratio and RMS value blink. The display of degree does not blink.

Closed Closed

Opened

■ Alarm Cancel Method

Timing of alarm cancel differs by alarm cancel method.

Automatic

(Auto)

Manual

(HoLd)

Note: In contact input screen, alarm reset (including all items batch reset) cannot be operated.

When the measurement value falls below the upper setting value or exceeds the lower setting value, alarm automatically resets.

After the measurement value falls below the upper value or exceeds the lower setting value, alarm is maintained. When the item that generates the alarm is displayed, and button is pressed, the alarm resets. When button is pressed for two seconds or more, all items of alarm are reset.

RESET

■ Alarm Delay

When alarm delay time is set, alarm is not generated until status of measurement value exceeding upper/lower setting value continues for delay time.

Phase that judge upper/lower limit alarm differs by measuring items. Please refer to the following table.

Alarm item (*1)

A upper limit A lower limit

N upper limit (*2)

A Demand A upper limit Demand A lower limit

N upper limit (*2)

Demand A

(L-N) upper limit

(L-N) lower limit (L-L) upper limit

(L-L) lower limit

W upper limit

W lower limit var upper limit var lower limit PF upper limit

PF lower limit

Hz upper limit

Hz lower limit

Harmonic current

total RMS value

Harmonic current

phase N RMS value (*2)

Harmonic voltage

total distortion ratio

*1: The apparent power is not included in the alarm element. *2: Phase N is a alarm element to be independent.

Phase wire

3P3W/3P4W 3P3W/3P4W

3P4W 3P3W/3P4W 3P3W/3P4W

3P4W

3P4W 3P3W/3P4W 3P3W/3P4W 3P3W/3P4W 3P3W/3P4W 3P3W/3P4W 3P3W/3P4W 3P3W/3P4W 3P3W/3P4W 3P3W/3P4W 3P3W/3P4W

3P3W

3P4W

3P3W

3P4W

Phase 1

Phase 2

Phase 3

Phases

Phase N

Phase 1-2 Phase 2-3

Phase 3-1

AVG/Σ

Functions

Operation (Continued)

● Harmonics Display

Harmonic RMS value, distortion ratio, and content rate can be displayed.

■ Measuring Items

Current (

Degree

Harmonic total

1st 3rd 5th 7th

9th 11th 13th

Note: When a fundamental harmonic is 0, the distortion ratio display 0%.

other than phase N

RMS

value

Distortion

ratio

)

Current (phase N) RMS

value

Distortion

ratio

RMS

value

Voltage

Distortion

ratio

■ Degree Change Method

When and are pressed, harmonic degree changes. When PHASE is pressed, harmonic phase changes.

–

Harmonic current

+,–

(phase N)

Current total phase N RMS

Current 1st phase N RMS

Current 3rd phase N RMS

Current 13th phase N RMS

display

DISPLAY

Harmonic current

Current total phase 1 Distortion ratio/RMS

+,–

Current 1st phase 1 RMS

–

Current 3rd phase 1 Distortion ratio/RMS

+,–

Current 13th phase 1 Distortion ratio/RMS

PHASE

Current total phase 2 Distortion ratio/RMS

PHASE

Current 1st phase 2 RMS

PHASE

Current 3rd phase 2 Distortion ratio/RMS

PHASE

Current 13th phase 2 Distortion ratio/RMS

PHASE

Current total phase 3 Distortion ratio/RMS

PHASE

Current 1st phase 3 RMS

PHASE

Current 3rd phase 3 Distortion ratio/RMS

PHASE

Current 13th phase 3 Distortion ratio/RMS

PHASE

DISPLAY

■ Harmonic Display Examples

Harmonic voltage

Voltage total phase 1-N Distortion ratio/RMS

+,–

Voltage 1st phase 1-N RMS

PHASE

Voltage total phase 2-N Distortion ratio/RMS

PHASE

Voltage 1st phase 2-N RMS

+,–

Voltage 3rd phase 1-N Distortion ratio/RMS

PHASE

Voltage 3rd phase 2-N Distortion ratio/RMS

+,–

Voltage 13th phase 1-N Distortion ratio/RMS

PHASE

Voltage 13th phase 2-N Distortion ratio/RMS

* When used as 3P3W, transition is only for 1-2 phase, 2-3 phase.

PHASE

Voltage total phase 3-N Distortion ratio/RMS

PHASE

Voltage 1st phase 3-N RMS

PHASE

Voltage 3rd phase 3-N Distortion ratio/RMS

PHASE

Voltage 13th phase 3-N Distortion ratio/RMS

PHASE

Note: Harmonic total is shown by “ALL”.

DISPLAY

display

Example of harmonic

(

current total display

)(

Example of harmonic

voltage 5th display

)

● Expanded Counting Display

Measured value display and enlarged 3 digital figures display of active energy and reactive energy can be displayed.

■ Display of Active Energy and Reactive Energy Display

Active energy and reactive energy are displayed on the lower stage.

Display type is shown in the right table according to total load power.

Total load [kW] =

In the case of reactive power, kW in the right table is exchanged into kvar, and kWh into kvarh.

α × (Primary voltage value) × (Primary current value)

= 3 Three-phase 4-wire type

(Primary voltage value: phase to neutral)

3 Three-phase 3-wire type

(Primary voltage value: phase to phase)

1000

■ Enlarged 3 Digital Figures

When and are pressed simultaneously for 2 seconds, values of active energy and reactive energy are enlarged by 3 figures.

–

Pressing

simultaneously

for 2 seconds

Note: This function is made only on active energy and reactive energy display.

Example: When 3 digital figures are enlarged on active energy screen, reactive energy is not enlarged.

■ Wh and varh Reset

When SET , RESET , and PHASE are pressed simultaneously for 2 seconds, the measured values of active energy (Wh) and reactive energy (varh) are reset. (This is effective only in the present value display.)

Note: All of active energy (Wh) and reactive energy (varh) not displayed are also reset.

■ Example of Display

Total load [kW]

1 or higher and below 10

10 or higher and below 100

100 or higher and below 1000

1000 or higher and below 10000

10000 or higher and below 100000

100000 or higher

In order to enlarge digital figures of reactive energy, display reactive energy on the screen and operate the same way.

Digital display Unit (k/M)

8888. 88

88888. 8

888888

8888. 88

88888. 8

888888

Exported active energy

■ Polar Display of Each Measuring Items

The polar display of each measuring items are as follows.

Imported lead reactive energy Exported lag reactive energy Exported lead reactive energy

-var

Quadrant 2Quadrant 3

Quadrant 1Quadrant 4

+var

Quadrant

Items

A, DA, V, VA

Hz, HI, HV

var, PF

* When displaying var or PF by bar graph, LEAD/LAG display is lit.

Unsigned

LAG Display*

Unsigned

1234

Unsigned

LEAD Display*

“–” sign

Unsigned

“–” sign

LAG Display*

Unsigned

“–” sign

LEAD Display*

“–” sign

● Display of Digital Input and Digital Output

Displays the digital input and digital output state. When the type ME-0052-NS96 or ME-0040C-NS96 optional plug-in module is not installed, this operation cannot be done.

■ Display of Digital Input and Digital Output

(Example of digital input display) (Example of digital output display)

■ Reset Method of Digital Input

There are “Auto reset method” and “Latch method” for digital input reset method. When set on the latch method, the input status is continued until the latch canceling operation. For example, when the alarm contact is input and the alarm is stopped, you cannot miss the alarm because the alarm generated status is continued in the basic device.

■ Canceling of the Latch

1In the operation mode, press DISPLAY and digital input (d.in) screen is displayed. 2In the digital input screen, the latch is canceled by pressing RESET for 2 seconds.

Note: To display digital input screen, it is needed to set “display of the digital input/output” on “on”. The initial setting is set on “on”.

● Setting Value Confirmation Mode

When confirming the setting value, use the setting value confirmation mode. In this mode, the contents of the set-up items cannot be set, which prevents changing other set values by mistake during operation.

■ Going into Setting Value Confirmation Mode

In the operation mode, press SET for 2 seconds.

■ Setting Value Confirmation

As same as in the set-up diagram (page 6), select the set-up menu number to confirm, and press SET . The way to get back into the operation mode is same as in the set-up diagram. However, the simplified set-up menu canot be confirmed in the setting value confirmation mode.

(Set-up mode) (Set value confirmation mode)

blink

extinction

Functions

Operation (Continued)

● Display Patten Contents

When the display elements are set in the set-up menu 1 and the set-up menu 4, by pressing DISPLAY , the display transits from No.1 in the order shown in the following table.

Three phase 4-wire

Digital

Display

display

pattern

Upper

P01

Middle

Lower

Upper

Middle

P02

Lower

Upper

Middle

P03

Lower

Upper

Middle

P04

Lower

Upper

Middle

P05

Lower

Upper

Middle

P06

Lower

Upper

Middle

P07

Lower

Upper

Middle

P08

Lower

Upper

Middle

P09

Lower

Upper

Middle

P10

Lower

Upper

Middle

P11

Lower

Upper

Middle

P12

Lower

Upper

Middle

P13

Lower

Upper

Middle

P00

Lower

Wh: Imported active energy, varh: Imported reactive energy Note: When an additional screen is added, a screen number is added.

Screen set on display pattern

NO.1 NO.2 NO.3 NO.4 NO.5 NO.6 NO.7 NO.8 NO.9

var

measuring item

Arbitrary

varh

–

For details, refer to the user’s manual

–

varh

var

–

var

Three phase 3-wire

Display

Digital

pattern

display

Upper

P01

Middle

Lower

Upper

P02

Middle

Lower

Upper

Middle

P03

Lower

Upper

Middle

P04

Lower

Upper

Middle

P05

Lower

Upper

Middle

P06

Lower

Upper

Middle

P07

Lower

Upper

Middle

P08

Lower

Upper

Middle

P09

Lower

Upper

Middle

P10

Lower

Upper

Middle

P11

Lower

Upper

Middle

P12

Lower

Upper

Middle

P13

Lower

Upper

Middle

P00

Lower

ΣW: Total active power, Σvar: Total active power, ΣPF: Total power factor

Screen set on display pattern

NO.1 NO.2 NO.3 NO.4 NO.5 NO.6

ΣW

ΣPF

ΣW

Σvar

ΣW

ΣPF

ΣPF ΣPFΣPF

Σvar

varh

ΣW

ΣvarV

ΣPF

–

ΣW

varh

For details, refer to the user’s manual

ΣW

ΣPF

ΣW

Σvar

Arbitrary measuring item

NO.10 NO.11 NO.12 NO.13 NO.14 NO.15

–

Exported

active energy

Exported

active energy

Exported

active energy

Exported

active energy

Exported

active energy

Exported

active energy

Exported

active energy

Exported

active energy

NO.7

Exported

active energy

Exported

active energy

Exported

active energy

Exported

active energy

Exported

active energy

Exported

active energy

Exported

active energy

Exported

active energy

Imported

lead reactive energy

–

Imported

lead reactive energy

–

Imported

lead reactive energy

–

Imported

lead reactive energy

NO.8 NO.9 NO.10 NO.11 NO.12

Imported

lead reactive energy

–

Imported

lead reactive energy

–

Imported

lead reactive energy

–

Imported

lead reactive energy

lag reactive energy

–

lag reactive energy

–

lag reactive energy

–

lag reactive energy

–

lag reactive energy

–

lag reactive energy

–

lag reactive energy

Additional screen (displays when Set-up Menu 4 is set)

Exported

–

Exported

–

Exported

–

Exported

lead reactive energy

–

Exported

lead reactive energy

–

Exported

lead reactive energy

–

Exported

lead reactive energy

Harmonic current

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Additional screen (displays when Set-up Menu 4 is set)

Exported

lead reactive energy

Harmonic current

RMS value

–

Exported

–

Exported

lead reactive energy

RMS value

–

Exported

–

Exported

–

Exported

lead reactive energy

–

Exported

lead reactive energy

RMS value

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Harmonic phase N current

RMS value

Degree

–

Degree

–

Degree

–

Degree

–

Degree

–

Degree

–

Degree

–

Degree

–

Degree

–

Degree

–

Degree

–

Degree

–

Degree

–

Degree

–

Harmonic voltage

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Degree

Ratio

RMS value

Harmonic voltage

RMS value

NO.16

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Degree

Ratio

Digital input state

NO.17

Digital input state

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

NO.13

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

DI No.

State

Digital output state

NO.18

Digital output state

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

NO.14

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

DO No.

State

Dimensions / Mounting / Wiring

Dimensions

,RSN69EM BM-RSN69EM

Option cover

Optional Plug-in Module

95.8 (COVER)

91.6 (PANEL CUT)

95.8 (COVER)

(106.9)

86.2 20.7

91.6 (PANEL CUT)

Mounting

1 Dimensions of Panel

The panel hole dimensions are shown below. It can be attached to a panel with thickness of 1.6 to 4.0mm.

+ 0.5

(With the optional plug-in module)

2 View Angle

The contrast of the display changes at view angles. Mount it at the position that is easy to see.

Viewangle

10°

60°

（Viewedfrom theside）

60°

61.3

75.8

（Viewedfrom thetop）

88.8

81.2

46.8

25.2

17.1

3 Attachment

For attachment of the basic device into the panel hole, attach according to the following procedure.

①The attachment lug is installed in two holes

②Tighten the screws of the lug, and fix onto the panel.

of the top and bottom of the basic device.

4 Installing the Optional Plug-in Module

When installing the optional plug-in module onto the basic device, install according to the following procedure. ①The option cover is removed. ②The optional plug-in module is installed.

Combine the slot of the basic device and the convex part of the optional plug-in module.

Protective sheet

A protective sheet is attached to the display for protection against scratch during the attachment to panel. Before using, remove the protective sheet. When you remove it, the display may light up due to generation of static electricity, but it is not an error. It goes off by natural discharge after a while.

Attachment position

Note

In the case to attaching to the end of the panel, check the wiring work space and decide the attachment position.

Note

Please do not tighten too strongly to prevent panel and screw from breaking. Tightening torque for this product:

0.3N·m to 0.5N·m (Half the torque applied normally for this type of screw) Also, please tighten the upper and lower screws at the same time.

Optional Plug-in module

Install the optional plug-in module after the power is turned off. The option is not recognized when installed while power is on. In this case, the option is recognized by power suspension/power resumption or restarting the basic device.

Dimensions / Mounting / Wiring

Wiring

1 Applicable Cable Size

The table on the right describes the applicable wire size.

Applicable wire size Tightening torque Strip Gauge

2 Wiring

■ Input and Output Terminals of the Basic Device

①Strip top of the cable or crimp the ferrule.

②Slacken screws of the terminal block, and insert the cables into

terminal hole.

③Tighten the terminal screws according to the tightening torque

mentioned above.

3 Confirmations

After wiring, make sure the following:

M The wires are connected correctly. M There is no mistake in wiring.

Wiring Diagram

Input and output terminals of the basic device

AWG24 to 14

AWG 24 to 14 • When using a stranded wire, use a ferrule. (AWG 16)

0.4N·m 10mm

■ Terminals of the Optional Plug-in Module

①Strip top of the cable or

crimp the ferrule.

②Insert the cables by

pushing the lever, and connect by releasing the lever.

Terminals of the optional plug-in module

–

10mm

Insert hole Lever

Three phase 4-wire type : Example of ME96NSR (with VT) Three phase 4-wire type : Example of ME96NSR-MB (for direct input)

1 2 3 0

K L

l K L

Load

+C1

+C2

+C3

Protective Earthing

➀ Auxiliary power supply

100 to 240VAC 100 to 240VDC

✽1 For a low voltage circuit,

grounding of the secondary sides of VT and CT in not necessary.

✽2 Do not connect to NC terminal.

(+)

➀

(–)

1 2 3 0

K L

l K L

Load

T+

+C1

T–

K L

Ter

+C2

SLD

+C3

Protective Earthing

(+) (–)

RS485 (ModBus)

➀

1. If the polarity of VT and CT is not correct, it cannot be measured correctly.

2. In case of DC auxiliary power, it should be wired correctly because it has polarity. In case of AC auxiliary power, it does not have polarity.

Note

3. For a low voltage circuit, grounding of the secondary sides of VT and CT is not necessary.

4. Always earth the terminal to the protective earth conductor. Earth the terminal with under 100 ohm of earth resistance. Otherwise, there will be a false operation.

Three phase 3-wire type : Example of ME96NSR-MB (with VT, wiring 2CT)

1 2 3

K L

U V

v u

Load

+C1

T+

T–

+C2

Ter

SLD

+C3

SLD

Protective Earthing

(+) (–)

RS485 (ModBus)

➀ Auxiliary power supply

100 to 240VAC 100 to 240VDC

✽1 For a low voltage circuit,

grounding of the secondary sides of VT and CT in not necessary.

✽2 Do not connect to NC terminal.

➀

Three phase 3-wire type : Example of ME96NSR (for direct input, wiring 3CT)

1 2 3

K L

Load

+C1

+C2

+C3

Protective Earthing

(+) (–)

➀

Note

1. Use the shielded twisted pair cable.

2. To the units of both the end of ModBus link, the 120 ohm resistance has to be attached.

This instrument can perform 120 ohm termination by short-circuiting the terminal of “T-”and “Ter”.

3. The earth has to be connected to earth by a thick wire of low impedance.

4. Keep the distance between ModBus link to power line.

5. When the setting is 2CT, the use by 3CT wiring cannot correctly measure for phase 2.

Wiring Diagram (Continued)

Optional Plug-in Module : ME-4201-NS96 Optional Plug-in Module : ME-0052-NS96

ME-4201-NS96ME96NSR

CH1+ CH1– CH2+ CH2– CH3+ CH3– CH4+ CH4–

C1A C1B C2A C2B

COM

{

Analog output CH1

{

Analog output CH2

{

Analog output CH3

{

Analog output CH4

{

Pulse output1

{

Pulse output2

{

Alarm output

ME-0052-NS96ME96NSR-MB

DI1+ DI1– DI2+ DI2– DI3+ DI3– DI4+ DI4– DI5+

DI5– DO1+ DO1– DO2+ DO2–

1. Do not bunch the digital input/output signal cables with the main circuit or power cables, or install them close to each other. Keep the distance between the digital input/output signal cables, the main circuit or power cables, and high voltage lines shown below, when they run parallel to each other.

Conditions Distance

Note

Below 600V power lines

Other power lines

30cm or more

60cm or more

2. Analog output signal cables should keep the distance from the other power cables and input signal (VT, CT and auxiliary power) cables, and should not be bunched. And use the shielded cables or twisted pair cables so that it is not affected noise, serge, and induction. Also, the wiring cables should be as short as possible.

3. In case of ME96NSR-MB with ME-4201-NS96, the ModBus interface and the analog outputs do not have the insulation between them.

Optional Plug-in Module : ME-0040C-NS96

ME-0040C-NS96ME96NSR

+C1

+C2

+C3

SLD

DI1

DI2

DI3

DI4

COM

Protective Earthing

CC-Link Communication

24VDC

DI1

DI2

DI4

COM

24VDC

DI1–,DI2–,DI3–,DI4–,DI5–

{

are connected inside.

DO1

{

DO2

DI1+

DI1–

DI5+

DI5–

Note

1. As for CC-Link cable, use the designated cable. Each of Ver.1.10 compatible CC-Link cables, CC-Link specified cables, and CC-Link specified high-performance cables cannot be used together with other cable types. If used together, correct data transmission will not be guaranteed. The terminating resistor is different depending on the applied cable.

2. Connect the shielded wire of the CC-Link specified cable to “SLD” of each module, and earth the both ends of the shielded wire “FG”. The SLD and FG are connected into the module.

3. Keep the distance between CC-Link cables to power lines (At least 10cm). When connecting long distance in parallel, please set apart more than 30cm.

4. Fill the requirements of total wire distance, station distance, and terminal resistance value according to baud rate and type of cable. (As for detail of the requirements, refer to the operation manual for CC-Link master unit.)

5. To the units of both the end of CC-Link line, the terminal resistors should be attached. And the terminal resistors should be attached in between DA and DB.

Specifications

Type

Phase wire

Rating

Current (A) Current Demand (DA) Voltage (V) Active Power (W) Reactive Power (var) Apparent Power (VA)

Measuring Items

Measuring Range and Accuracy

Measuring Method

Display

Response Time

Time Constant of Current Demand Temperature Influence Power Failure Compensation

VA Consumption

Auxiliary power

Weight Dimensions Enclosure Operating Temperature Operating Humidity Storage Temperature

Standard

Note1: Accuracy is specified according to the maximum scales value of rated value. Note2: Measurement of harmonics which its distortion ratio is exceeded 100% may exceed the accuracy. Note3: Harmonics cannot be measured without voltage input.

Power Factor (PF)

Frequency (Hz) Active Energy (Wh) Reactive Energy (varh)

Harmonics Current (HI)

Harmonics Voltage (HV)

Current Current Demand Voltage Active Power Reactive Power Apparent Power Frequency

Power Factor

Active Energy Reactive Energy

Harmonics Current

Harmonics Voltage

Instantaneous Value

Demand Value

Type

Number of Display Digits and Segments

Display Updating Time Interval

VT CT Auxiliary Power Circuit

Current Voltage

Frequency

Digital Display

Bar Graph

Digital Display

Bar Graph

Measuring Range

0 to Rated×120%

0 to Rated×15/11×120%

±Rated/2×110%

0 to Rated×110%

45 to 55Hz or 55 to 65Hz

Lead 0 to 1 to Lag 0

A, V: RMS calculation, W, var, Wh, varh: Digital multiplication, PF: Power ratio calculation Hz: Zero-cross, HV, HI: FFT Thermal type calculation LCD with backlight

A, DA, V, W, var, VA; 4 digits or 3 digits PF; 4 digits, Hz; 3 digits Wh, varh; 6 digits HI (Distortion ratio); 3 digits, HV (Distortion ratio); 4 digits, HV, HI (RMS); 3 digits

21 Segment-Bar Graph Displays on the digital part by selecting upper, middle, lower display. (Excluding Wh, varh, Harmonics) Or displays current, voltage, active power, reactive power, frequency, power factor which is independent from digital display.

22 Segment-Indicator Displays values that were set on alarm setting in the setting mode according to elements shown on bar graph elements.

0.5s

0.5s Display: 2s or less, Analog output: 2s or less In HI and HV, 10s or less Select from 0, 10, 20, 30, 40, 50s, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 25, 30min. Within class index at 23 ±10 degrees celsius Non-volatile memory (Items: setting value, max/min value, active/reactive energy)

0.1VA/phase, 0.2VA/phase (at direct input)

0.1VA/phase 7VA at 110VAC, 8VA at 220VAC, 5W at 100VDC 100 to 240VAC (+10%,-15%) 50/60Hz 100 to 240VDC (+10%,-30%)

0.5kg 96(H)x96(W)x86(D) Thermoplastic self-extinguish (UL94V0)

-5 to 50 degrees celsius (average operating temperature ; 35 or less per day) 30 to 85%RH, non condensing

-20 to 60 degrees celsius EMC···EN61326-1:2006 LVD···EN61010-1:2001

Three phase 4-wire

5AAC/1AAC

max 277V/480VAC

50-60Hz

A1, A2, A3, AN, Aavg

, DA2, DA3, DAN, DAavg

, V23, V31, VLLavg, V1N, V2N, V3N, VLNavg

±Rated×110%

ΣW, W

Σvar, var1, var2, var

ΣVA, VA1, VA2, VA

ΣPF, PF1, PF2, PF

HI1, HI2, HI3, HI

THD, h

HV1N, HV2N, HV

THD, h

0 to Rated

0 to 20%

, W2, W

Imported lag, Imported lead, Exported lag, Exported lead

ME96NSR, ME96NSR-MB

Imported, Exported

, …, h

RMS value and Distortion ratio (max.60%)

, …, h

RMS value and Distortion ratio (max.20%)

2.0%

1.0%

2.0%

Display

2.5%

1AAC5AAC

1.0%0.5%

3.0%

2.0%

Three phase 3-wire

5AAC/1AAC

110VAC, 220VAC

50-60Hz

, A2, A3, Aavg

, DA2, DA3, DAavg

, V23, V31, VLLavg

ΣW

Σvar

–

ΣPF

, HI2, HI

HV12, HV

Analog Output, Pulse Output

(Total RMS, 0 to Rated×60%)

2.0%

1.0%

2.0%

2.5%

(T.H.D, 0 to 20%)

1AAC5AAC

1.0%0.5%

3.0%

2.0%

Transmission

● ModBus Specifications

Interface

Protocol

Speed

Distance

Address

Station Number

Terminal Resistance

Recommended Cables

● CC-Link Specifications

Numbers of Occupied Stations

CC-Link Version

Baud Rate

Maximum Number of Connected Units

SpecificationsItem

RS485, 2 wires half duplex

ModBus RTU

2400, 4800, 9600, 19200, 38400bps

1000m

1 to 255 (FFh)

120Ω 1/2W

Shielded twisted pair, AWG26 (or wider) gauge

SpecificationsItem

1 Station Remote device station (I/O data and word data can be transmitted)

CC-Link Ver 1.10

10Mbps/5Mbps/2.5Mbps/625kbps/156kbps

The following conditions should be satisfied. If the system is configured by only this instrument, up to 42 units can be connected.

Condition 1 : {(1 × a) + (2 × b) + (3 × c) + (4 × d)} ≤ 64

a: number of units occupied by 1 station, b: number of units occupied by 2 stations c: number of units occupied by 3 stations, d: number of units occupied by 4 stations

Condition 2 : {(16 × A) + (54 × B) + (88 × C)} ≤ 2304

A: number of remote I/O stations, B: number of remote device stations, C: number of local stations

1 to 64Remote Station Number (Station Number)

● Twist Pair Cable Specifications

Part of recommended cables of twist pair cables to be used in CC-Link are introduced below. As for details, refer to “Mitsubishi Electric Open Field Network CC-Link”. CC-Link performance is not guaranteed with other than the recommended cables.

Name

Type

Name

Type

Notes: 1. As for terminal resistance, be sure to use 110Ω (1/2W) when using CC-Link exclusive cable, and 130Ω (1/2W) when using CC-Link exclusive high

As for details of twist pair cable, refer to CC-Link catalog “CC-Link Cable Wiring Manual” and “MELFANS Web”.

performance cable. If other combination than the above is used, normal data transmission is not guaranteed.

2. CC-Link exclusive cable and CC-Link exclusive high performance cable cannot be used in mixture.

3. System construction is easier by using CC-Link exclusive cable in 10Mbps and CC-Link exclusive high performance cable under 5Mbps.

4. The CC-Link Exclusive New Cable is more suited for system constructed with CC-Link Ver.1.10 products.

■ About Programming

Necessary information for operating this device by MELSEC-A/Q series sequencer loading CC-Link interface unit are as follows. In addition to this operation manual, read the following documents also.

●

PLC I/F unit user’s manual

● Electronic Multi-Measuring Instrument programming manual (CC-Link) .................................................................................................................... LAN040503

■ Data Collection for ModBus

●

Electronic Multi-Measuring Instrument ModBus I/F specification ................................................................................................................................. LSPM0075

CC-Link Exclusive Cable

FANC-SB

FA-CBL200SB, etc.

CC-Link Exclusive New Cable (CC-Link Ver.1.10)

FANC-SB110H

“MELFANS Web” : http://wwwf2.mitsubishielectric.co.jp/melfansweb/english/index.html

CC-Link Exclusive High Performance Cable

FANC-SBH

FA-CBL200SBH

Contact

Mitsubishi Electric System & Service Co., Ltd.

Kuramo Electric Co., Ltd.

MITSUBISHI ELECTRIC ENGINEERING, CO., LTD.

Contact

Kuramo Electric Co., Ltd.

Output Specification

Output

Analog Output

Pulse Output

Digital Input

Digital Output

Output Load Resistance No-voltage ‘a’ contact

Contact Capacity: 35VDC, 0.1A Rated 24VDC (19to30VDC), under 4mA

Signal Width over 30ms (with ‘DI’ latch HoLd, over 30ms of pulse can be latched)

No-voltage ‘a’ contact Contact Capacity: 35VDC, 0.2A

Specification

4 to 20mADC 600Ω max

Optional Plug-in Module Type

ME-4201-NS96

ME-0052-NS96 ME-0040C-NS96

ME-4201-NS96 ME-0052-NS96

Mitsubishi Electric ME96NSR, ME96NSR-MB Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
