Mitsubishi Electric LDT46IV2 User Manual

46" LCD Display Monitor
USER’S MANUAL BEDIENERHANDBUCH MANUAL DEL USUARIO MANUEL UTILISATEUR MANUALE UTENTE GEBRUIKERSHANDLEIDING
hsilgnE
hcstueDloñapsE
siaçnarF
onailatIsdnalredeN
English
Deutsch
Español
Français
Italiano
Nederlands
English
English-1
Important Information ................................................................................................................................... English-2
Safety Precautions, Maintenance & Recommended Use ........................................................................... English-4
Contents ....................................................................................................................................................... English-5
Parts Name and Functions .......................................................................................................................... English-6
Control Panel .................................................................................................................................. English-6
Terminal Panel ................................................................................................................................. English-7
Wireless Remote Control ............................................................................................................... English-8
Operating Range for the Remote Control ....................................................................................... English-9
Handling the remote control ........................................................................................................... English-9
Setup Procedure .......................................................................................................................................... English-10

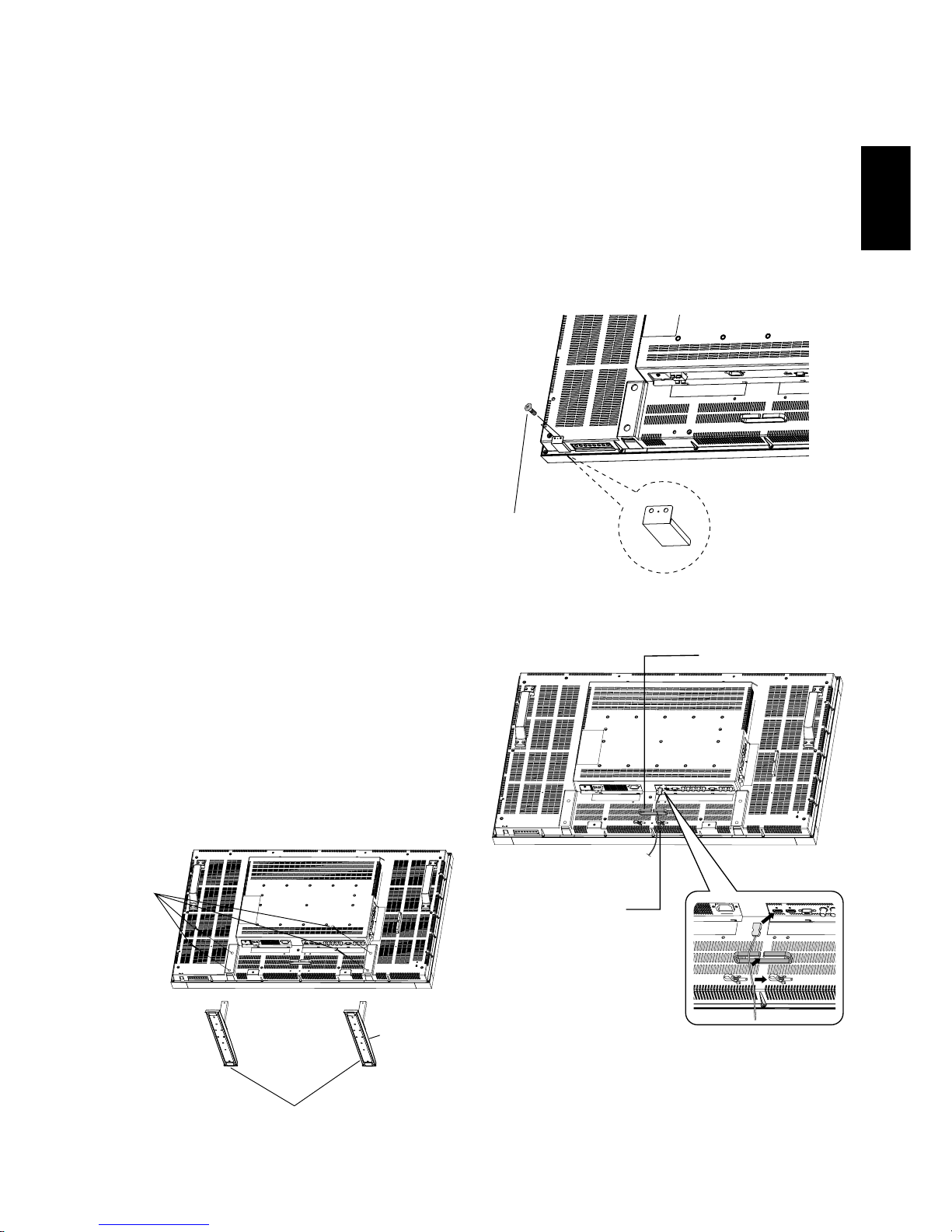

How to Mount and Attach Options to the LCD Monitor ............................................................................... English-13
Connections ................................................................................................................................................. English-14
Wiring Diagram ............................................................................................................................... English-14
Connecting a Personal Computer .................................................................................................. English-15
Connecting with Digital Interface Equipment ................................................................................ English-16
Connecting a DVD Player with component out .............................................................................. English-17
Connecting to a Stereo Amplifi er .................................................................................................... English-18
Basic Operation ............................................................................................................................................ English-19
Power ON and OFF Modes ............................................................................................................ English-19
Power Indicator ............................................................................................................................... English-20
Using Power Management ............................................................................................................ English-20
Selecting a video source ................................................................................................................ English-20
Picture Size .................................................................................................................................... English-20
Picture Mode .................................................................................................................................. English-20
Audio Source Switching ................................................................................................................. English-20
Information OSD ............................................................................................................................. English-21
OSD (On-Screen-Display) Controls .............................................................................................................. English-22
PICTURE ......................................................................................................................................... English-23
SCREEN .......................................................................................................................................... English-24
AUDIO ............................................................................................................................................. English-25
PICTURE IN PICTURE .................................................................................................................... English-25
CONFIGURATION 1 ........................................................................................................................ English-26
CONFIGURATION 2 ........................................................................................................................ English-27
ADVANCED OPTION ...................................................................................................................... English-28
NOTE .............................................................................................................................................. English-30
Controlling the LCD monitor via RS-232C Remote Control ........................................................................ English-32
Features ........................................................................................................................................................ English-34
Troubleshooting ............................................................................................................................................ English-35
Specifi cations .............................................................................................................................................. English-37
Pin Assignment ............................................................................................................................................ English-38
Index
English-2
Important Information
Canadian Department of Communications Compliance Statement
DOC: This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regula­tions. C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.
FCC Information
1. Use the attached specifi ed cables with the LDT461V2 (DL660) color monitor so as not to interfere with radio and television reception. (1) Please use the supplied power cord or equivalent to ensure FCC compliance. (2) Please use the supplied shielded video signal cable, 15-pin mini D-SUB to 15-pin mini D-SUB.
2. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
3. You are cautioned that changes or modifi cations not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
Warning
This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.
Windows is a registered trademark of Microsoft Corporation. All other brands and product names are trademarks or reg­istered trademarks of their respective owners. HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
English
English-3
Important Information
TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have suffi cient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
CAUTION
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This LCD Monitor uses a lamp that contains mercury. Disposal of the lamp or the LCD Monitor with the lamp may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. (For US only).
CAUTION
Declaration
Declaration of the Manufacturer
We hereby certify that the color monitor
LDT461V2 (DL660)
is in compliance with Council Directive 2006/95/EC: – EN 60950-1 Council Directive 2004/108/EC: – EN 55022 – EN 61000-3-2 – EN 61000-3-3 – EN 55024
Declaration of the Manufacturer
Note: This symbol mark is for EU countries only. This symbol mark is according to the directive 2002/96/EC Article 10 Information for users and Annex IV, and/or to the directive 2006/66/EC Article 20 Information for end-users and Annex II. Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and/or reused.
This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste. If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury (0,0005%), Cd: cadmium (0,002%), Pb: lead (0,004%) In the European Union there are separate collection systems for used electrical and electronic products, batteries and accumulators. Please, dispose of this equipment, batteries and accumulators correctly at your local community waste collection/recycling centre. Please, help us to conserve the environment we live in!
and marked with
Mitsubishi Electric Corporation
2-7-3, Marunouchi,
Chiyoda-Ku
Tokyo 100-8310, Japan
CAUTION
WARNING
English-4
• The power cable connector is the primary means of detaching the system from the power supply. The monitor
should be installed close to a power outlet, which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.
• Please clean the holes of back cabinet to reject dirt and dust at least once a year because of set reliability.
• If using the cooling fan continuously, it’s recommended to wipe holes a minimum of once a month.
• When installing the remote control batteries;
- Align the batteries according to the (+) and (-) indications inside the case.
- Align the (-) indication of the battery fi rst inside the
case.
CAUTION:
Immediately unplug your monitor from the wall outlet and re­fer servicing to qualifi ed service personnel under the following conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following
operating instructions.
Recommended Use CAUTION:
• For optimum performance, allow 20 minutes for warm-up.
• Rest your eyes periodically by focusing on an object at least 5 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare and refl ections.
• Clean the LCD monitor surface with a lint-free, non­abrasive cloth. Avoid using any cleaning solution or glass cleaner!
• Adjust the monitor’s brightness, contrast and sharpness controls to enhance readability.
• Avoid displaying fi xed patterns on the monitor for long periods of time to avoid image persistence (after image effects).
• Get regular eye checkups.
Ergonomics
To realize the maximum ergonomic benefi ts, we recommend the following:
• Use the preset Size and Position controls with standard signals.
• Use the preset Color Setting.
• Use non-interlaced signals.
• Do not use primary color blue on a dark background, as it is diffi cult to see and may produce eye fatigue due to insuffi cient contrast.
FOR OPTIMUM PERFORMANCE, PLEASE NOTE
THE FOLLOWING WHEN SETTING UP AND USING
THE LCD COLOR MONITOR:
DO NOT REMOVE MONITOR BACK COVER. There are
no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks.
Refer all servicing to qualifi ed service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fi re or
equipment failure.
• Do not place any heavy objects on the power cord.
Damage to the cord may cause shock or fi re.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
• When operating the LCD monitor with an AC 100-120V power supply in North America, use a power supply cord provided with this monitor.
• When operating the LCD monitor with an AC 220-240V power supply in Europe, use a power supply cord
provided with this monitor.
• In UK, use a BS-approved power cord with molded plug having a black (10A) fuse installed for use with this
monitor. If a power cord is not supplied with this monitor, please
contact your supplier.
• When operating the LCD monitor with a 220-240V AC power supply in Australia, use the power cord provided with this monitor.
If a power cord is not supplied with this monitor, please
contact your supplier.
• For all othercase, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• The inside of the fl uorescent tube located within the LCD monitor contains mercury. Please follow the laws or rules of your municipality to dispose of the tube properly.
• Do not bend power cord.
• Do not use monitor in high temperature, humid, dusty, or oily areas.
• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.
• If the LCD monitor is damaged and the liquid crystal leaks out, do not inhale or swallow it.
• Allow adequate ventilation around the monitor, so that heat can properly dissipate. Do not block ventilated
openings or place the monitor near a radiator or other
heat sources.
Do not put anything on top of the monitor.
Safety Precautions, Maintenance & Recommended Use
English
English-5
Contents
* Remember to save your original box and packing material to transport or ship the monitor.
Your new LDT461V2 monitor box* should contain the following:
• LCD monitor
• Power Cord (3 m)
• Video Signal Cable (4 m)
• User’s Manual
• Wireless Remote Control and AAA Batteries
• Clamper x 2 (To prevent from falling)
• Clamper x 2 (For securing cables)
• Screw for Clamper (To prevent from falling) x 2
• Main switch cover
• Screw for Main Switch cover x 2
• Cable Holder x 2
The following components are prepared as option.
• External Speakers
• Stands
Screw for Clamper
(M4 x 8) x 2
Video Signal Cable
(D-SUB to D-SUB Cable)
User’s Manual
Screw for Main switch cover
(3 x 6) x 2
Main switch cover Cable Holder x 2
Clamper x 2
(To prevent from falling)
Clamper x 2
(For securing the power cord
and HDMI cable)
* The supplied power cord varies depending on destination.
For EU
For North
America
Power cord
* For all other case, use a power cord that matches the AC voltage
of the power outlet and has been approved by and complies with the safety standard of your particular country.
Wireless Remote Control
and AAA Batteries
English-6
OFF
ON
EXIT MUTEINPUT
Button Location
DOWN ( ) button
Activates the OSD menu when the OSD menu is turned-off. Acts as
button to move the highlighted area down to select
the adjustment with OSD menu.
EXIT button
Activates the OSD menu when the OSD menu is turned-off. Acts as EXIT button to move to previous menu with OSD menu.
Remote control sensor and Power indicator
Receives the signal from the remote control (when using the wireless remote control). See also page 9. Glows green when the LCD monitor is in active and glows red when the LCD is in POWER OFF mode. When the LCD is in power save mode, it will glow both green and red. When SCHEDULE is enabled, it willl blink green and glow red. See page 20. In the case of where a failure is detected, it will blink red.
Main Power Switch
On/Off Switch to turn main power on/off.
NOTE: Control Key Lock Mode
This control completely locks out access to all Control Key functions. To activate the control key lock function, press both of “
” and “ ” and hold down simultaneously for more than 3 seconds. To resume back to user mode, press both of “
” and “ ” and hold simultaneously for three (3) seconds.
POWER button ( )
Switches the power on/off. See also page 19.
MUTE button
Switches the audio mute ON/OFF.
INPUT button
Acts as SET button with OSD menu. (Toggle switches between [RGB1], [RGB2], [RGB3], [RGB4], [DVD/HD], [VIDEO<S>] and [VIDEO] .)
PLUS (+) button
Acts as (+) button to increase the adjustment with OSD menu. Increase the audio output level when the OSD menu is turned off.
MINUS (-) button
Acts as (-) button to decrease the adjustment with OSD menu. Decreases the audio output level when the OSD menu is turned off.
UP ( ) button
Activates the OSD menu when the OSD menu is turned-off. Acts as
button to move the highlighted area up to select
the adjustment with OSD menu.
Control Panel
Parts Name and Functions
English
English-7
AC IN connector
Connects with the supplied power cord.
RGB 1 IN (HDMI 1)
To input digital RGB signals from a computer. * This connector does not support analog input. AUDIO is supported via HDMI.
RGB 2 IN (HDMI 2)
To input digital RGB signals from a computer. * This connector does not support analog input. AUDIO is supported via HDMI.
RGB 3 IN (mini D-Sub 15 pin)
To input a analog RGB signals from a computer or other RGB equipment.
RGB 4 IN [R, G, B, H, V] (BNC)
To input the analog RGB signals from a computer or other RGB equipment.
RGB OUT (mini D-Sub 15 pin)
To output the signal from RGB 3 IN or 4 IN.
DVD/HD IN [Y, Pb/Cb, Pr/Cr] (BNC)
Connecting equipment such as a DVD player, HDTV device, or Laser disc player.
AUDIO IN 1, 2, 3
To input audio signal from external equipment such as a com­puter, VCR or DVD player.
AUDIO OUT
To output the audio signal from the AUDIO IN 1,2 and 3 jack.
EXTERNAL CONTROL (mini D-Sub 9 pin)
Connect the IN connector with the RS-232C OUT connector of the computer or a multi-connected LDT461V2 monitor. Connect the OUT connector with the RS-232C IN connector of LDT461V2 monitor.
VIDEO IN/OUT
VIDEO IN connector (BNC and RCA): To input a composite
video signal. BNC and RCA are not available at the same time. (Use only one input). VIDEO OUT connector (BNC): To output the composite video signal from VIDEO IN connector. S-VIDEO IN connector (MINI DIN 4 pin): To input the S-video (Y/C separate signal).
EXTERNAL SPEAKER TERMINAL
To output the audio signal for external speakers from AUDIO 1, 2, 3 jack or HDMI.
Terminal Panel
(IN)
(IN)
(OUT)
(OUT)
English-8
Wireless Remote Control
POWER button
Switches the power on/off.
* If LED Power Indicator on the monitor is not glowing, then
no controls will work.
PICTURE MODE button
Selects from picture mode, [HIGHBRIGHT], [STANDARD], [sRGB], [CINEMA]. See page 20.
HIGHBRIGHT: for moving image such as Video STANDARD: for images (Factory setting) sRGB: for text based images CINEMA: for movies
PIP (Picture In Picture) button
ON/OFF button: PIP-ON/OFF. See page 25. INPUT button: Select the “picture in picture” input signal. CHANGE button: Replaces to the main picture and sub pic-
ture.
Note:
The “PIP” and “POP” modes do not function when the screen size is “CUSTOM” or “REAL”.
STILL button
ON/OFF button: To switch the still picture mode on/off. CAPTURE button: Updates the still picture.
DISPLAY button
To switch the information OSD on/off. See page 21.
MINUS button decrease
Acts as (-) button to decrease the adjustment with OSD menu. Small screen which adjusted “PIP” mode moves left.
SET button
Acts as SET button with OSD menu.
AUTO SETUP button
To enter the auto setup menu. See page 26.
MUTE button
To switch the mute function on/off.
INPUT button
Selects from input signal, [RGB1], [RGB2], [RGB3], [RGB4], [DVD/HD], [VIDEO<S>] and [VIDEO].
AUDIO INPUT button
Press to change the audio source for each video source. The audio source is changed from [AUDIO1] to [AUDIO2], [AUDIO3] and [HDMI] in order. Note that you cannot select the audio source for [VIDEO<S>] or [VIDEO]. [HDMI] is selectable only when the video source is [RGB 1] and [RGB 2].
SIZE button
Selects picture size, [FULL], [NORMAL], [CUSTOM] , [DYNAMIC] and [REAL]. See page 20.
UP button
Acts as button to move the highlighted area up to select the adjustment with OSD menu. Small screen which adjusted “PIP” mode moves up.
MENU button
To switch the menu mode on/off.
PLUS button increase
Acts as (+) button to increase the adjustment with OSD menu. Small screen which adjusted “PIP” mode moves right.
EXIT button
Turn to previous menu with OSD menu.
DOWN button
Acts as button to move the highlighted area down to select the adjustment with OSD menu. Small screen which adjusted “PIP” mode moves down.
VOLUME UP button
Increase the audio output level.
VOLUME DOWN button
Decrease the audio output level.
English
English-9
Handling the remote control
* Do not subject to strong shock. * Do not allow water or other liquid to splash the remote
control. If the remote control gets wet, wipe it dry immedi-
ately. * Avoid exposure to heat and steam. * Other than to install the batteries, do not open the remote.
Operating Range for the Remote Control
Point the top of the remote control toward the LCD monitor's remote sensor during button operation. Use the remote control within a distance of about 7 m/23 ft. from the front of the LCD monitor's remote control sensor and at a horizontal and vertical angle of within 30° within a distance of about 3 m/10 ft.
CAUTION:
Important, the remote control system may not function when direct sunlight or strong illumination strikes the remote control sensor of the LCD monitor, or when there is an object in the path.
30°30°
Loading...
+ 30 hidden pages
