MITSUBISHI
DiamondPoint NX85LCD
COLOR MONIT OR
SER VICE MANUAL
CHASSIS NO. : CL-29
F ACT OR Y MODEL: LN801H
ID LABEL
MODEL No
: L182ET
MODEL: RDT181V(BK), NX85LCD
LCD1855NX-BK
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
1. LCD CHARACTERISTICS
Type : TFT SXGA LCD
Size : 18inch
Pixel Pitch : 0.2805(H) x 0.2805(V)
Color Depth : 8-bit, 16,777,216 colors
Electrical Interface : LVDS
Surface Treatment : Anti-Glare, Hard Coating(3H)
Operating Mode : Normally Black
Backlight Unit : Six-CCFL (Cold Cathode
Fluorescent Lamp)
2. OPTICAL CHARACTERISTICS
2-1. Viewing Angle by Contrast Ratio
≥
10
Left : -60° min., -80°(Typ)
Right : +60° min., +80°(Typ)
Top : +60° min., +80°(Typ)
Bottom : -60° min., -80°(Typ)
2-2. Luminance : 200(min), 250(Typ)
2-3. Contrast Ratio : 200(min), 350(Typ)
3. SIGNAL (Refer to the Timing Chart)
3-1. Sync Signal
• Type : Separate, Positive/Negative
Composite, SOG (Sync On Green)
Digital
3-2. Video Input Signal
1) Type : R, G, B Analog
2) Voltage Level : 0~0.71 V
a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.467 Vp-p
c) Color 15, 0 : 0.714 Vp-p
3) Input Impedance : 75 Ω
3-3. Operating Frequency
Horizontal : 30 ~ 80kHz
Vertical : 56 ~ 85Hz(Limited to 75Hz by EDID)
4. POWER SUPPLY
4-1. Power Adaptor(Built-in Power)
Input : AC 100~240V, 50/60Hz , 1.0A
4-2. Power Consumption
5. ENVIRONMENT
5-1. Operating Temperature: 5°C~35°C (41°F~95°F)
(Ambient)
5-2. Relative Humidity : 10%~80%
(Non-condensing)
5-3. MTBF : 50,000 Hours(Min)
6. DIMENSIONS (with TILT/SWIVEL)
Width : 406 mm (15.98'')
Depth : 215 mm (8.46'')
Height : 427 mm (16.81'')
7. WEIGHT (with TILT/SWIVEL)
Net. Weight : 8.2kg (18.08 lbs)
Gross Weight : 11kg (24.25 lbs)
CONTENTS
SPECIFICATIONS
- 2 -
SPECIFICATIONS ................................................... 2
SERIAL NUMBER INFORMATION ......................... 4
PRECAUTIONS ....................................................... 5
TIMING CHART ....................................................... 6
OPERATING INSTRUCTIONS ................................ 7
WIRING DIAGRAM ................................................. 8
BLOCK DIAGRAM ................................................... 9
DESCRIPTION OF BLOCK DIAGRAM...................10
ADJUSTMENT ...................................................... 12
INSPECTION.......................................................... 17
TROUBLESHOOTING GUIDE .............................. 22
PRINTED CIRCUIT BOARD................................... 27
EXPLODED VIEW...................................................30
REPLACEMENT PARTS LIST ...............................32
PIN CONFIGURATION............................................37
SCHEMATIC DIAGRAM......................................... 39
MODE
POWER ON (NORMAL)
STAND-BY
SUSPEND
DPMS OFF
POWER S/W OFF
H/V SYNC
ON/ON
OFF/ON
ON/OFF
OFF/OFF
-
POWER CONSUMPTION
less than 53 W
less than 3 W
less than 3 W
less than 3 W
less than 2 W
LED COLOR
GREEN
AMBER
AMBER
AMBER
OFF
VIDEO
ACTIVE
OFF
OFF
OFF
-
Signal Connector Pin Assignment
Pin Signal (DVI-D)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
T. M. D. S. Data2T. M. D. S. Data2+
T. M. D. S. Data2/4 Shield
T. M. D. S. Data4T. M. D. S. Data4+
DDC Clock
DDC Data
NOT USED
T. M. D. S. Data1T. M. D. S. Data1+
T. M. D. S. Data1/3 Shield
T. M. D. S. Data3T. M. D. S. Data3+
+5V Power
Ground
(return for +5V,
H. Sync. and V. Sync.)
Pin Signal (DVI-D)
1
8
9
17
24
16
16
17
18
19
20
21
22
23
24
Hot Plug Detect
T. M. D. S. Data0T. M. D. S. Data0+
T. M. D. S. Data0/5 Shield
T. M. D. S. Data5T. M. D. S. Data5+
T. M. D. S. Clock Shield
T. M. D. S. Clock+
T. M. D. S. Clock-
T. M. D. S. (Transition Minimized Differential Signaling)
• DVI-D Connector (Digital)
SERIAL NUMBER INFORMATION
206100001
: Y MM C SSSSS
Overprinting
(1)
(1) : Year code of Production(Last Number of year)
(2)
ex)2000 0, 2001 1, 2002 2
(3)
(4)
(3) : Classification code
ex) RDT181V(BK) Model 1
(4) : Serial Number : This Serial number doesn’t reset at each month.
ex) 00001~01234, 01235~99999, 00001~00010.....
(2) : Month code of Production
Month 1 2 3456789101112
Number 01 02 03 04 05 06 07 08 09 10 11 12
- 5 -
WARNING FOR THE SAFETY-RELATED COMPONENT.
• There are some special components used in LCD
monitor that are important for safety. These parts are
marked on the schematic diagram and the
replacement parts list. It is essential that these critical
parts should be replaced with the manufacturer’s
specified parts to prevent electric shock, fire or other
hazard.
• Do not modify original design without obtaining written
permission from manufacturer or you will void the
original parts and labor guarantee.
TAKE CARE DURING HANDLING THE LCD MODULE
WITH BACKLIGHT UNIT.
• Must mount the module using mounting holes arranged
in four corners.
• Do not press on the panel, edge of the frame strongly
or electric shock as this will result in damage to the
screen.
• Do not scratch or press on the panel with any sharp
objects, such as pencil or pen as this may result in
damage to the panel.
• Protect the module from the ESD as it may damage the
electronic circuit (C-MOS).
• Make certain that treatment person’s body are
grounded through wrist band.
• Do not leave the module in high temperature and in
areas of high humidity for a long time.
• The module not be exposed to the direct sunlight.
• Avoid contact with water as it may a short circuit within
the module.
• If the surface of panel become dirty, please wipe it off
with a softmaterial. (Cleaning with a dirty or rough cloth
may damage the panel.)
WARNING
BE CAREFUL ELECTRIC SHOCK !
• If you want to replace with the new backlight (CCFL) or
inverter circuit, must disconnect the AC adapter
because high voltage appears at inverter circuit about
650Vrms.
• Handle with care wires or connectors of the inverter
circuit. If the wires are pressed cause short and may
burn or take fire.
PRECAUTION
CAUTION
Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.
TIMING CHART
- 6 -
VIDEO
SYNC
B
D
C
F
E
A
<< Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >>
H + 31.469 900 720 54 108 18
V – 70.082 449 350 60 2 37
H – 37.861 832 640 128 40 24
V – 72.809 520 480 28 3 9
H – 31.469 800 640 48 96 16
V – 59.940 525 480 33 2 10
H – 35.000 864 640 96 64 64
V – 66.670 525 480 39 3 3
H – 31.469 900 720 54 108 18
V + 70.082 449 400 35 2 12
H – 37.500 840 640 120 64 16
V – 75.000 500 480 16 3 1
H + 35.156 1024 800 128 72 24
V + 56.250 625 600 22 2 1
H + 37.879 1056 800 88 128 40
V + 60.317 628 600 23 4 1
H + 48.077 1040 800 64 120 56
V + 72.188 666 600 23 6 37
H + 46.875 1056 800 160 80 16
V + 75.000 625 600 21 3 1
H – 49.725 1152 832 224 64 32
V – 74.550 667 624 39 3 1
H – 48.363 1344 1024 160 136 24
V – 60.004 806 768 29 6 3
H – 56.476 1328 1024 144 136 24
V – 70.069 806 768 29 6 3
H + 60.023 1312 1024 176 96 16
V + 75.029 800 768 28 3 1
H + 63.981 1688 1280 248 112 48
V + 60.020 1066 1024 38 3 1
H + 79.976 1688 1280 248 144 16
V + 75.025 1066 1024 38 3 1
Mode
H/V
Sort
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
28.324
28.324
25.175
30.240
31.500
31.500
36.000
40.000
50.000
49.500
57.283
65.0
75.000
78.750
108.000
135.000
720x350
70Hz
640x480
73Hz
640x480
60Hz
640x480
66Hz
720x400
70Hz
640x480
75Hz
800x600
56Hz
800x600
60Hz
800x600
72Hz
800x600
75Hz
832x624
75Hz
1024x768
60Hz
1024x768
70Hz
1024x768
75Hz
1280x1024
60Hz
1280x1024
75Hz
Sync
Polarity
Frequency
Dot
Clock
Total Period
(E)
Video Active Time
(A)
Sync Duration
(D)
Front Portch
(C)
Back Porch
(F)
Resolution
OPERATING INSTRUCTIONS
MITSUBISHI
DiamondPoint NX85LCD
FRONT VIEW
Front Control Panel
DVI Connect
REAR VIEW
Power Connect
D-Sub Signal
Connect
Front Control Panel
1. Power ON/OFF Button
Use this button to turn the monitor on or off.
2. Power Indicator
This indicator lights up green when the monitor
operates normally. If the display is in DPM(Energy
Saving)mode, this indicator color change to amber.
3. MENU Button
Use these buttons to enter or exit the On Screen Display.
213 46 5
4.
▼▲◀▶
Use these buttons to choose or adjust items in the On Screen
Display.
Button
5. AUTO/SELECT Button
Automatically adjust vertical position, horizontal position, pixel
clock and phase.
Use this button to enter a selection in the On Screen Display.
6. SOURCE Button
Use this button to make Dsub or DVI connector active.
This feature is used when two computers are connected to the
monitor. The default setting is Dsub.
- 7 -
MODULE
MAIN PCB
MATAL FRAME
J702
J801
J705
P902
J710
CN7
CN3
CN2
CN1
CN6
CN5
CN4
CN_C01
CN301
CN_C02
Connector Ass’y P/N:
6631T20015R
Connector Ass’y P/N:
6631T25008Q
Connector Ass’y P/N:
6631T20008U
Connector Ass’y P/N:
6631T11012P
D-SUB
DVI-D
Gm5020
including
(ADC / TMDS Rx )
LVDS
(LVDS823)
Memory
(KM416S102BT)
H/V Sync
Micom
68HC08-BD48
M-CLK
Out - CLK
DE ,H/V Sync out
R,G,B /Odd
LCD Module
R,G,B
differential
Data 48 Bit
Address
Inverter CTL
Module CTL
R,G,B
Inverter
Digital Signal
3.3V
Reg.
DVDD 3. 3 V
AVDD 3.3V
12V
Power CTL
12V
2.5V
Reg.
DVDD2.5V
AV DD2.5V
3.3V
Reg.
PVDD 3. 3 V
3.3 VM
5V 5V
5V
H/V Sync
H/V-Sync
3.3 VM
Power Board
12V
5V
AV DD3.3V
AV DD2.5V
- 10 -
DESCRIPTION OF BLOCK DIAGRAM
1. Video Controller Part(GM5020).
This part amplifies the level of video signal for the anolog to digital conversion and converts from the analog video
signal to the digital video signal using a pixelclock.
The pixel clock for each mode is generated by the PLL.
The range of the pixel clock is from 25MHz to 135MHz.
This part consists of the Scaler and frame buffers which converts frame rate of input signal to 60Hz frame rate.
The Scaler gets the video signal converted analog to digital, interpolates input to1280 X 1024 resolution signal and
outputs 8-bit R, G, B signal to transmitter.
Especially pre-amp / ADC / Video controller are merged to one chip ‘Gm5020’ by Genesis.
Also FRC is separate.
2. Display Data Transmitter Part(LVDS).
This part transmit digital signal from the Scaler to the receiver of module.
3. Power Part.
This part consists of the one 5V, two 3.3V and one 2.5 regulators to convert power which is provided 12V, 5V in
Power Board.
12V is provided for inverter and LCD Panel, 5V is provided for Micom.
Also, 5V is converted 3.3V and 2.5V by regulator. Converted power is provided for IC in the main board.

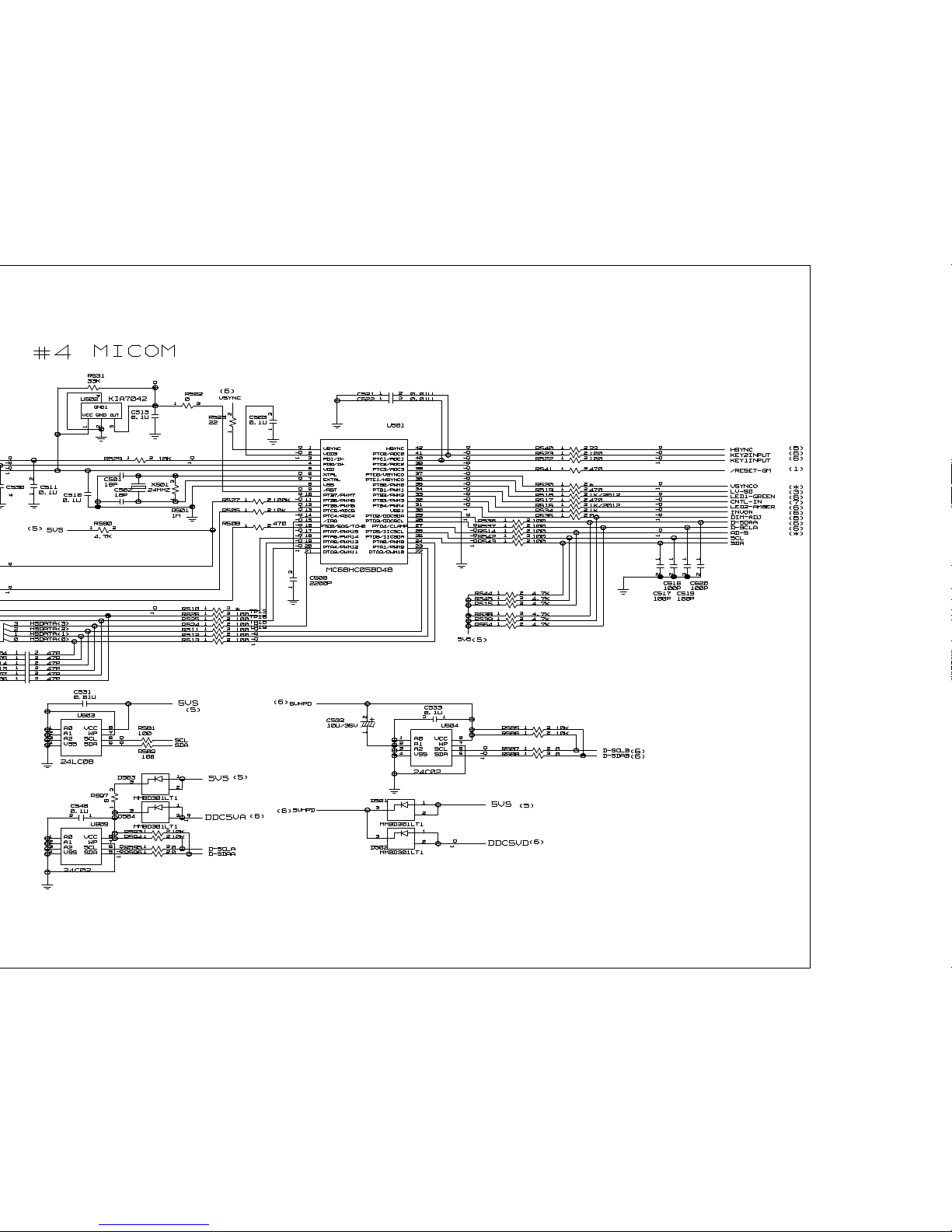

4. MICOM Part.
This part consists of EEPROM IC which stores control data, Reset IC and the Micom.
The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable.
The controlled data of each modes is stored in EEPROM.
5. Inverter
The inverter converts from DC12V to AC 600Vrms and operate back-light lamp of module.
- 11 -
EMI
COMPONENTS
LINE
100 ~ 240V
INPUT RECTIFIE R
AND FILTER
ENERGY
TRANSFER
OUTPUT RECTIFIE R
AND FILTER
12V
5V
GND
SIGNAL
COLLECTION
PHOTO-COUPLER
ISOLATION
PWM CONTROL
CIRCUIT
HVDC
100KHz
PRIMARY
SECONDARY
50 ~ 60Hz
Operation description_Power
1. EMI components.
This part contains of EMI components to comply with global marketing EMI standards like FCC, VCCI CISPR,
the circuit included a line-filter, across line capacitor and of course the primary protection fuse.
2. Input rectifier and filter.
This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor.
3. Energy Transfer.
This part function is transfer the primary energy to secondary through a power transformer.
4. PWM control circuit.
This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to
adjust the duty cycle during different AC input and output loading condition to achieve the dc output stabilize, and
also the over power protection is also monitor by this part.
5. Photo-Coupler isolation.
This part function is to feed back the dc output changing status through a photo transistor to primary controller to
achieve the stabilized dc output voltage.
6. Signal collection.
This part function is to collect the any change from the dc output and feed back to the primary through photo
transistor.
7. Output rectifier and filter.
This part function is to achieve the dc output voltage stabilize.
ADJUSTMENT
- 12 -
1. Application
This specification shall be applied to the adjustment and inspection of the LN801H.
2. Adjustment Setup
All adjustment are thoroughly checked and corrected when the monitor leaves the factory, but sometimes several
minor adjustment may be required.
Adjustment should be following procedure and after more than 30 minutes.
Unless otherwise specified, adjustment shall be carried out under the following conditions.
- Input Power: 100~240V /50~60Hz
- Input Signal: 1280 X1024 @ 60Hz default
- Aging Time: More than 30 Minutes
- Aging Temperature: 10~35 degrees
- Adjustment equipment and equipment connection setup.
Refer to figure 1.
VG819 or equivalent,
1) IBM compatible PC
2) Adjustment program for LN801H.
3) Adapter Box
220
IBM
Compatible PC
Video Signal
Generator
PARALLEL PORT
Power inlet (required)
Power LED
ST Switch
Power Select Switch
(110V/220V)
Control Line
Not used
RS232C
PARALLEL
V-SYNC
POWER
ST
VGS
MONITOR
E
E
V-Sync On/Off Switch
(Switch must be ON.)
F
F
A
A
B
B
C
C
15
10
5
5
69
1
1
1
14
13
25
6
5V
5V
5V
4.7K
4.7K
4.7K
74LS06
74LS06
OFF ON
OFF
ON
11
Figure 1. Cable Connection
3. Adjustment
3-1. Initialization and Aging
Prior to adjustment of this model, more than 30 minutes of aging shall be carried out.
1) Display any pattern at any Mode.
2) Run adjustment program for LN801H on the IBM compatible PC.
3) Select EEPROM → ALL INIT command and Enter.
4) This will make all data to default state and make aging mode.
5) Remove signal cable from the monitor.
<< LCD IIC ADJUST. PROGRAM :LCD185~1. DAT >>
MENU Move : Arrow or Space MENU Select : Enter
COLOR ADJ COMMAND EDIT EEPROM QUIT
DIST. ADJ
<< LCD IIC ADJUST. PROGRAM :LCD185~1. DAT >>
MENU Move : Arrow or Space Quit : ESCMENU Select : Enter
COLOR ADJ COMMAND EDIT EEPROM QUITDIST. ADJ
ALL Init.
EDID(A) WR
EDID(D) WR
EDID Read
EEPROM Read
3-2. Adjustment of Factory Preset Mode.
<< LCD IIC ADJUST. PROGRAM :LCD185~1. DAT >>
MENU Move : Arrow or Space Quit : ESCMENU Select : Enter
COLOR ADJ COMMAND EDIT EEPROM QUITDIST. ADJ
BIAS CAL
DRIVE CAL
<< LCD IIC ADJUST. PROGRAM :LCD185~1. DAT >>
MENU Move : Arrow or Space Quit : ESCMENU Select : Enter
COLOR ADJ COMMAND EDIT EEPROM QUITDIST. ADJ
BIAS CAL
DRIVE CAL
1) It’s not necessary for preset mode adjustment.
All preset mode data shall be written to EEPROM at initial power on.
2) IMPORTANT
At the initial Power turn on, maintain power on status more than 3 seconds.
3-3. Adjustment for White Balance
1) Display (Full black pattern) at SXGA 60Hz.
2) Set External Bright to MAX position and Contrast to 80 Position.
3) Select COLOR ADJ → BIAS CAL command and Enter.
4) No attempt to manually adjust, BIAS data is automatically adjusted and saved to the EEPROM.
If the message of "AUTO OK OK" is displayed at front of screen,
The adjustment is succeeded.
If the message of "AUTO ERROR" is displayed at front of screen, because the adjustment is failed, do adjust
again.
5) Display (Full white pattern) at SXGA 60Hz.
6) Select DRIVE CAL command and Enter.
7) 6500K and 9300k are automatically adjusted and saved to the EEPROM.
If the message of "AUTO OK OK" is displayed at front of screen,
The adjustment is succeeded.
If the message of "AUTO ERROR" is displayed at front of screen, because the adjustment is failed. So do
adjust again.
- 14 -
8) Select PRESET EXIT command and Enter.
<< LCD IIC ADJUST. PROGRAM :LCD185~1. DAT >>
MENU Move : Arrow or Space Quit : ESCMENU Select : Enter
COLOR ADJ COMMAND EDIT EEPROM QUITDIST. ADJ
PRESET START
PRESET EXIT
<< LCD IIC ADJUST. PROGRAM :LCD185~1. DAT >>
MENU Move : Arrow or Space Quit : ESCMENU Select : Enter
COLOR ADJ COMMAND EDIT EEPROM QUITDIST. ADJ
ALL Init.
EDID(A) WR
EDID(D) WR
EDID Read
EEPROM Read
<< LCD IIC ADJUST. PROGRAM :LCD185~1. DAT >>
MENU Move : Arrow or Space Quit : ESCMENU Select : Enter
COLOR ADJ COMMAND EDIT EEPROM QUITDIST. ADJ
ALL Init.
EDID(A) WR
EDID(D) WR
EDID Read
EEPROM Read
3-4. Adjustment for EDID
Use this procedure only when there is some problem on EDID data.
1) Connect the D-sub cable.(For Analog EDID)
2) Select EEPROM → EDID<A> WR command and Enter.
3) Connect the DVI to D-sub cable.(For Digital EDID)
4) Select EEPROM → EDID<D> WR command and Enter.
* How to change the EDID (Serial No. etc.)
<< LCD IIC ADJUST. PROGRAM :LCD185~1. DAT >>
MENU Move : Arrow or Space Quit : ESCMENU Select : Enter
COLOR ADJ COMMAND EDIT EEPROM QUITDIST. ADJ
MODEL SAVE
MODEL SEL.
EDID INFO
DDC INFO
<< LCD IIC ADJUST. PROGRAM :LCD185~1. DAT >>
Don’t save & Exit : Esc key Edit : Enter key Save & Exit : F10 key
COLOR ADJ COMMAND EDIT EEPROM QUITDIST. ADJ
EDID
0
1
2
3
4
5
6
7
0
00
00
18
01
13
53
58
00
1
FF
0C
50
01
00
0E
38
32
2
FF
01
54
01
67
00
35
30
3
FF
03
BF
01
1F
0A
4C
36
4
FF
68
EF
01
11
20
43
30
5
FF
24
80
01
00
20
44
30
6
FF
1D
81
30
00
20
0A
30
7
00
78
80
2A
1E
20
20
30
8
34
EA
81
00
00
20
20
30
9
AC
0A
40
98
00
20
20
31
A
38
25
71
51
00
00
20
0A
B
46
A2
4F
00
FD
00
20
20
C
01
57
01
2A
00
00
00
20
D
01
4B
01
40
38
FC
00
20
E
01
99
01
30
4B
00
00
00
F
01
24
01
70
1F
4E
FF
56
"32 30 36 30 30 30 30 30 31" shows S/No.
By changed ASCII Code, S/No equals 20600001.
1. Operate adjustment Program
2. Select EDID INFO of the EDID Menu for Analog EDID and DDC INFO for Digital EDID.
3. First. You can see the blank screen, and press "Enter" key and you can see the EDID Contents
4. Choose the Data to be changed, and press "Enter" Key.
5. After changing the Data, Press "Enter"
If more and more to be changed, go back to 4 and repeat.
6. To save and end the changed, press "F10" Key
Not to do that, Press "Esc"
- Information of S/No on the EDID-
Find character string "00 00 00 FF 00" on EDID Data.
From next string of the above to "0A" is S/No.
Here, you should take care of this S/No composed by "ASCII Code"
FYI,
30H equals to 0, 31H equals to 1, … 39H equals to 9.
More information, refer to ASCII Code Table.
INSPECTION
- 17 -
1. PERFORMANCE INSPECTION
NO.
ITEMS PATTERN INSPECTION CRITERIA
2
Luminance Full White Check Luminance on 255
g
rey level
200(min.), 250(typ.)
Cd/m2 at the center
3
Luminance
Uniformity
Full White
1) Measure
luminance at each point
(5 point) on brightness/contrast
max condition.
2) Calculate l/u with formula.
[B max - B min]
B max
X 100 %
75 % (max.)
4
White
Balance
Full White
1) Measure
color coordinate at each
color temperature. (6500k & 9300k)
2) Measure color coordinate on R,G,B
if required.
6500k,
Wx=0.313 0.03
Wy=0.329 0.03
9300k,
Wx=0.281 0.03
Wy=0.31
1 0.03
5 DPM
Full White
All Mode
Check wattage and LED color at each
mode
1) Normal mode (H/ V: on/on)
2) Stand-by mode (H/ V : off/on)
3) Suspend mode (H/V : on/off)
4) DPM off mode (H/V : off/off)
5) Power s/w off mode
1)
53 W,
3W,
Green
2)
Amber
3W,
Amber
3W
2W
,
Amber
3)
4)
5)
6 DDC 2B All Mode
Display EDID data from memory and
Compare with standard EDID format for
LN801H.
B2 B3
B1
B4 B5
- 18 -
2. COSMETIC INSPECTION
1.1 DOT DEFECT
This criteria is based on ISO-13406-2 Pixel Faults Class II
Note 1. Horizontally adjacent 2 dots (R+G, G+B)
Items Criteria Remarks
1) Bright Dots Horizontally adjacent 2 dots (R+G, G+B) Max. 3 Note 1
2) Dark Dots Max. 3 Note 2
3) Bright Dots
Horizontally, vertically or combined adjacent 3 dots
(separately bright dots and dark dots)
Not Allowed
4) Dark Dots Not Allowed
Dot Defect 5) Dot defect except 1), 2) R or G or B (Bright Dot + Dark Dot) Max. 7 Note 4
6)
Distance between bright dots
Distance between bright dots (R - R): less than 6.5mm
Max. 2 for each
color
Note 5
7) Distance between 6) s Distance between 6) s : less than 10mm Not Allowed Note 6
Two or more pixels or sub-pixels with more than one fault of 5)
Max. 3 Note 7
Two or more pixels or sub-pixels with more than one fault of 1)
Two or more pixels or sub-pixels with more than one fault of 2)
Max. 15 -
Max. 6 -
Adjacent Dots
Note 3
Fault cluster
Not Allowed Note 8
8)
Min. Distance
between bright dots
Total amount of Bright Dot (G)
Note 9. Every dot herein means sub-pixel (each Red, Green or Blue color)
Note 10. Bright & Dark Dots are larger than one third of sub-pixel. (Dots smaller than one third of sub-pixel are not counted as a defect dots.)
Note 11. Do not use the [ND] filter in counting a bright dot.
Total amount of Dot
Defects
Total amount of Bright Dot (R,G,B) and Dark Dot (R,G,B)
: Bright
Dot
: Dark
Dot
RG GB RG GB
RG RG RG RG RG RG
etc.
Count as horizontally adjacent 2 dots
Do not count as adjacent 2 dots
Combination
with Bright
& Dark Dot
Combination except horizontally
adjacent 2 dots.
- 19 -
Note 2. 1) + 2) : Max. 3
Note 3. Horizontally, vertically or combined adjacent 3 dots
(
separately bright dots and dark dots)
Note 4. Do not count the horizontally adjacent 2 dots (R-G, G-B)
Note 5. Distance between bright dots
Count as adjacent
3
dots
Donot count as adjacent 3 dots
RRGGBBRRGGBBRGGBBR
Distance
between the same color
Combination with Bright Dot & Dark
Dot
Combination
with the different color
Count as defect Do not count as defect
Note 6. Distance between the group of 6)’s.
Count as defect
RR RR GG GG BB BB
- 20 -
Note 7. Two or more pixels or sub-pixels with more than one fault of 5) within 5x5 pixels
The number of cluster within all
screen : Max. 3
Note 8. Two or more pixels or sub-pixels with more than one fault of 1) or 2) within 5x5 pixels
5x5 pixels
1Cluster
Dot Defect (5)
RG RG RG
RG RG RG
5x5 pixels 5x5 pixels 5x5 pixels
Count as defect Do not count as defect
1.2 Polarizer Defects
Items Criteria
Scratches Linear
0.01 W 0.05, 1.0 L 10.0,
N 4
Dent Circular
0.2 D 0.5, N 4
Note
a . Average Diameter
b. Linear : a 2b , Circular : a 2b
c. Extraneous substances which can be wiped out, like Finger Print, Particles, are not considered
as a defect.
d. Defects which is on the Black Matrix(outside of Active Area) are not considered as a defect.
W
: Width
L : Length
D
: Average diameter
D=
a+b
2
b
a
- 21 -
1.3 Foreign Material
Items Criteria
Linear
0.03 W 0.152, (Bright),
0.03 W 0.10(Dark),
0.3 L 3.0, N 4
Foreign
Material
Circular
0.2 D 1.0(White/Dark),
0.1 D 1.3(Gray), N 10
Note
a. Average Diameter
b. Linear : a 2b , Circular : a 2b
W :Width
L : Length
D : Average diameter
a+b
2
D=
a
1.4 Line Defect
All kinds of line defects such as vertical, horizontal or cross are not allowed.
1.5 Bezel Appearance
Scratches, minor bents, stains, particles on the LCD
Bezel frame are not considered
as a defect.
1.6 Display tilt and Position difference
Any part of image must not be missed by the position dif
ference or the display tilt.
L1, L1 , L2, L2 , L3, L3 , L4, L4 0
Monitor Bezel
Image Area
L1
L1
L2
L2
L3
L4
L4
L3
b
- 22 -
TROUBLESHOOTING GUIDE
1. NO POWER
TROUBLE IN
BULT-IN POWER
CHECK J801
5VST VOLTAGE
(5V) ?
NO
NO POWER
(POWER INDICATOR OFF)
TROUBLE
SOMEWHERE ELSE
TROUBLE IN
BULT-IN POWER
CHECK J801
INPUT VOLTAGE
(12V) ?
NO
TROUBLE IN
U501 or X501
NO
YES
YES
YES
CHECK
U501’s PIN 6.
IS THIS PIN
OSCILLATED?
- 23 -
2. NO RASTER
TROUBLE IN
INVON PATTERN
CHECK
J702 PIN 8 (5V) ?
NO
NO RASTER
TROUBLE IN
POWER ADATER
or L703, L704
CHECK
J702 PIN 1, 2, 3
(12V) ?
NO
TROUBLE IN
X501
CHECK
X501
H. PULSE ?
NO
TROUBLE IN
U201
CHECK
U201(GM5020) ?
NO
TROUBLE IN
U201
NO
TROUBLE IN
U201
CHECK
U301, U302, U303
PIN 35
MEMORYCLK?
NO
YES
YES
YES
YES
YES
CHECK
L201, L202, L203
PULSE?
- 24 -
CHECK DOT CLOCK
PATTERN
NO
TROUBLE IN
U201
NO
CHECK
DVS PATTERN
NO
CHECK
DHS PATTERN
NO
YES
YES
YES
YES
YES
TROUBLE IN
LCD MODULE
CHECK
U401 PIN 8
V.PULSE?
CHECK
U401 PIN 7
V.PULSE?
CHECK
U401 PIN 10
PULSE ?
CHECK
L204
PULSE ?
- 25 -
3. NO CLOCK (CLOCK GENERATOR)
NO DOT CLOCK
TROUBLE IN
X201
CHECK
X201 24MHz ?
NO
TROUBLE IN
U201
CHECK
L201
CLOCK ?
NO
YES
YES
- 26 -
4. TROUBLE IN DPM
TROUBLE IN DPM
TROUBLE IN PC
CHECK PC
PC IS NOT GOING
INTO DPM OFF MODE
NO
TROUBLE IN
X501
NO
TROUBLE IN
SIGNAL CABLE
NO
YES
YES
YES
CHECK
U501 PIN 6
WAVEFORM
(24MHz) ?
CHECK
R233, R234?
CHECK
U501 PIN 11
(0V) ?
1. MAIN BOARD (Component Side)
U301
C301
U302
C302
U303
C318
Q703
R741
R740
R730
ZD721
ZD722
1
J705
C526
J706
1
30
20
30
20
30
20
Q704
R744
R743
R742
R731
C729
50
30 40
C408
L401
10
10
RA238
10
RA239
J710
U401
60
20
R236
50
RA225
1
50
1
50
RA240
RA237
1
RA241
RA242
J802
70
1
10
CA201
L403
RA226
RA228RA227 RA230RA229 RA232RA231
RA234
RA233
RA236RA235
D503
D504
ZD711
C817
C409
C410
8090
C413
100
CA202
RA214RA216
L206
Y
W
V
C229
U509
R218
C548
R597
R594
R593
R711
C714
ZD704
U802
R810
CA211
L402
CA209CA210
CA207
CA208
CA203 CA212
RA218RA220
L207
M
U
T
R
P
N
C230
R219
X201
R596
R712
R595
C715
ZD703
D704
R807
R809
R406
RA212
CA204CA205
CA206
RA224 RA222
F
G
H
J
K
L
R235
C271
C261
R705R704
R225
R224
D702 D703
C850
C844
U821
C834
RA210 RA208 RA204RA206 RA202
U201
2014 15 16 17 18 198 9 10 11 12 132345671
A
B
C
D
E
C270
C258
R221
R220
C279
C278
C260C259
C106
R714
R703
R122
R223
D701
D731
D730
C845
R582
R545
C203
C202
C201
C204
C205
C206
C276
R222
C280
Q102
R130
Q103R713
R132 R133
R131
C152
R716
R715
L820
L810
U503
C531
R581
C516
C517
R544
R543
R542
R510
R508
MODEL:LD803H
DATE :2002.05.08
P/N :6870T494A11/A21
C822
C828
L805
C825
U105
C107
C532
D501
R129
C151
D502
J704
ZD705
C707
C840
R515
R514
C831
L804
C1
R152
U504
C533
R588 R587
R586
R726
R727
R585
C728
ZD701
R729
C727
ZD702
C701
R517
R502
U502
U820
C161
C160
R719
R718
D747D744
D746
D739
D745
D736
D738D737
L821
L811
R520
R702
R701
C706
R501 C502
X501
C873
C872
C870
U110
R822
C841
ZD712
D742D740
D743
D734D732
D735D733
J702
J801
R746
R745
C503
C501
U803
C871
U804
R824
R821
C843
D741
R753
R752
C521
C522
U501
C842
J708
C730
C738
R732
C307
C303
R207
R206
R205
R210
C731
C402
C403
C314
C308
C311
C310
C306
C309
C316
C305
C313
C304
C312
R215
R214
R216
R203
R204
C404
C406
C401
R404
R405
R401
R402
R403
C317
C315
R212
R211
R209
R213
C405
C407
R208
C820
C209
C207
R232
C263
L205
R238
R237
L823
C860
C819
C412
C411
L822
C221
C213
C215
C216
C211
C212
C214
C219
C210
C208
C262
R234
R233
C818
C836
C835
C232
C231
C220
L202
L201
C217
C224
C225
C234
C223C222
R201
C227
C226
C218
C265
C264
C239
C240
R240
R239
R825
C236
C235
L204
L203
C237
C233
R202
C228
C273
C269
C275
C514
R511
C515
R524
C257
C238
C274
C272
C505
C504
R513
R512
C506
C507
R525
R526
R527
C823
C827
C829
R535
R539
C519
R564
R537
R538
R536
C508
R505
R580
R531
C832
C824
R831
C826 C830
R826
R534
R518
C520
R516
C513
C833
R827
R816
R818
R817
R815
R813
R814
C710
L704
L703
R541
R519
R522
C530
C511
C510
R820
R819
R830
R812
R811
R828
R829
C740
R540
R523
R529
R528
C861
20
30
10
40
1
3. POWER BOARD (Component Side)
SW8
G
A
LED1
R4
R6
SW7SW6
R3
R8
SW5
R7
R5
SW4
SW3
SW2
SW1
J1
C2
C1
R2
R1
GA
4. POWER BOARD (Solder Side)
5. CONTROL BOARD
- 30 -
EXPLODED VIEW
1
15
16
11
10
6
5
7
2
4
8
9
12
a
a
b
c
3
14
13
- 31 -
EXPLODED VIEW PARTS LIST
Ref. No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
a
b
c
Part No.
3091TKL044E
3091TKL044F
3091TKL044C
6304FLP034A
3809TKL025E
3043TKK099A
6871TST287A
6631T11012P
6633TZA011D
4951TKS078H
6871TMT326A
6871TPT228A
4814TKK187A
4950TKK429A
3550TKK282A
3550TKK283A
6850TD9001M
6866TDV004M
1SZZTER001H
332-113S
332-105G
Description
CABINET ASSEMBLY, LN801H NMV 3090TKL045 BK-EP94(JAPAN) -RDT181V(BK)
CABINET ASSEMBLY, LN801H NMV 3090TKL045A -EP94(BLACK)NEC-NORTH AMERICA-LCD1855NX-BK
CABINET ASSEMBLY, LN801H NMV 3090TKL045A EP94(BLACK)
Mitsubishi-NORTH AMERICA
-
NX85LCD
LCD(LIQUID CRYSTAL DISPLAY), LM181E06-A4M1 LG PHILPS TFT COLOR SXGA 18.1" LVDS SMM
BACK COVER ASSEMBLY, LN801H 3808TKL030 EP94(BLACK)
TILT SWIVEL ASSEMBLY, LN801H . NMV BLACK
PWB(PCB) ASSEMBLY, SUB, LB800H CONTROL TOTAL BRAND
CONNECTOR ASSEMBLY, 30P H-H 100MM UL20276 PANEL LINK LB886F
INVERTER ASSEMBLY, LG-PHILIPS NMC1805A-2 6-LAMPS,18" NMV
METAL ASSEMBLY, FRAME MAIN - LN801H E06
PWB(PCB) ASSEMBLY, MAIN, LN801H ALRDG BRAND CL-29 TOTAL
PWB(PCB) ASSEMBLY, POWER, LN801H POWER TOTAL BRAND NMV
SHIELD, REAR LB886F
METAL, REAR LB800H
COVER, LN801H PIECE VESA BLACK
COVER, LN801H HINGE BLACK
CABLE, D-SUB, UL 2990-9C(7.5) DT 1870MM BLACK(9930) NMV 18" DM
CABLE, DVI, UL20276 DT 2000MM BLACK(9930) NMV 18" DM -ONLY JAPAN
SCREW, DRAWING, D3.0 L10.0 MSWR/BK .
SCREW, DRAWING, D3.0 L12.0 MSWR/BK .
SCREW, DRAWING, PVS+4*10(MSWR/BK)
* Note: Safety mark
- 32 -
DATE: 2002. 07. 02.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C1 0CH8106F691 10UF 16V M 105STD (CYL) R/TP
C106 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C107 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C151 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C160 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C161 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C201 0CH3103K516 10000PF 50V K B 2012 R/TP
C202 0CH3103K516 10000PF 50V K B 2012 R/TP
C203 0CH3103K516 10000PF 50V K B 2012 R/TP
C204 0CH3103K516 10000PF 50V K B 2012 R/TP
C205 0CH3103K516 10000PF 50V K B 2012 R/TP
C206 0CH3103K516 10000PF 50V K B 2012 R/TP
C207 0CH3103K516 10000PF 50V K B 2012 R/TP
C208 0CH3103K516 10000PF 50V K B 2012 R/TP
C209 0CH3103K516 10000PF 50V K B 2012 R/TP
C210 0CH3103K516 10000PF 50V K B 2012 R/TP
C211 0CH3103K516 10000PF 50V K B 2012 R/TP
C212 0CH3103K516 10000PF 50V K B 2012 R/TP
C213 0CH3103K516 10000PF 50V K B 2012 R/TP
C214 0CH3103K516 10000PF 50V K B 2012 R/TP
C215 0CH3103K516 10000PF 50V K B 2012 R/TP
C216 0CH3103K516 10000PF 50V K B 2012 R/TP
C217 0CH3103K516 10000PF 50V K B 2012 R/TP
C218 0CH3104K566 0.1UF 50V K X 2012 R/TP
C219 0CH3103K516 10000PF 50V K B 2012 R/TP
C220 0CH6330K416 33PF 50V J NP0 2012 R/TP
C221 0CH6330K416 33PF 50V J NP0 2012 R/TP
C222 0CH3103K516 10000PF 50V K B 2012 R/TP
C223 0CH3103K516 10000PF 50V K B 2012 R/TP
C224 0CH3103K516 10000PF 50V K B 2012 R/TP
C225 0CH3103K516 10000PF 50V K B 2012 R/TP
C226 0CH3103K516 10000PF 50V K B 2012 R/TP
C227 0CH3104K566 0.1UF 50V K X 2012 R/TP
C228 0CH3103K516 10000PF 50V K B 2012 R/TP
C229 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C230 0CH6150K416 15PF 50V J NP0 2012 R/TP
C231 0CH6680K416 68PF 50V J NP0 2012 R/TP
C232 0CH6680K416 68PF 50V J NP0 2012 R/TP
C233 0CH3103K516 10000PF 50V K B 2012 R/TP
C234 0CH3103K516 10000PF 50V K B 2012 R/TP
C235 0CH6680K416 68PF 50V J NP0 2012 R/TP
C236 0CH6680K416 68PF 50V J NP0 2012 R/TP
C237 0CH3104K566 0.1UF 50V K X 2012 R/TP
C258 0CH6150K416 15PF 50V J NP0 2012 R/TP
C259 0CH3104K566 0.1UF 50V K X 2012 R/TP
C260 0CH3104K566 0.1UF 50V K X 2012 R/TP
C261 0CH3104K566 0.1UF 50V K X 2012 R/TP
C262 0CH6330K416 33PF 50V J NP0 2012 R/TP
C264 0CH6221K416 220PF 50V J NP0 2012 R/TP
C265 0CH6470K416 47PF 50V J NP0 2012 R/TP
C269 0CH3103K516 10000PF 50V K B 2012 R/TP
C270 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
DATE: 2002. 07. 02.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C271 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C272 0CH3104K566 0.1UF 50V K X 2012 R/TP
C273 0CH3103K516 10000PF 50V K B 2012 R/TP
C274 0CH3103K516 10000PF 50V K B 2012 R/TP
C275 0CH3104K566 0.1UF 50V K X 2012 R/TP
C276 0CH3103K516 10000PF 50V K B 2012 R/TP
C278 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C279 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C280 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C301 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C302 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C303 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C304 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C305 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C306 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C307 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C308 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C309 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C310 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C311 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C312 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C313 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C314 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C315 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C316 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C317 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C318 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C401 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C402 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C403 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C404 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C405 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C406 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C407 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C408 0CH8226F691 22UF 16V M 105STD (CYL) R/TP
C409 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) SMD
C410 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) SMD
C411 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C412 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C413 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) SMD
C501 0CC180CK41A 18PF 1608 50V 5% R/TP NP0
C502 0CC180CK41A 18PF 1608 50V 5% R/TP NP0
C503 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C504 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C505 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C506 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C507 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C508 0CK222CK51A 2200PF 1608 50V 10% R/TP B(Y5P)
C510 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C511 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C513 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C514 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C515 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C516 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
REPLACEMENT PARTS LIST
CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,
READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.
* NOTE : S SAFETY Mark
AL ALTERNATIVE PARTS
MAIN BOARD
CAPACITORS
DATE: 2002. 07. 02.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C517 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C519 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C520 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C521 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C522 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C531 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C532 0CH8106J691 10UF 35V M 105STD (CYL) R/TP
C533 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C548 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C701 0CE477EH618 470UF KMG 25V M FL TP 5
C706 0CC221CK41A 220PF 1608 50V 5% R/TP NP0
C707 0CH8106J691 10UF 35V M 105STD (CYL) R/TP
C710 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C714 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C715 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C727 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C728 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C729 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C730 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C731 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C738 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C740 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C817 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) SMD
C818 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C819 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C820 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C822 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) SMD
C823 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C824 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C825 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) SMD
C826 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C827 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C828 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) SMD
C829 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C830 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C831 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) SMD
C832 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C833 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C834 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) SMD
C835 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C836 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C840 0CE477EH618 470UF KMG 25V M FL TP 5
C841 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C842 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C843 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C844 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD) SMD
C845 0CE477EH618 470UF KMG 25V M FL TP 5
C850 0CE477EH618 470UF KMG 25V M FL TP 5
C860 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C861 0CK105CD56A 1UF 1608 10V 10% R/TP X7R
C870 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C871 0CH6101K416 100PF 50V J NP0 2012 R/TP
C872 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C873 0CH6101K416 100PF 50V J NP0 2012 R/TP
D501 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 30
D502 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 30
D503 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 30
D504 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 30
D701 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
DATE: 2002. 07. 02.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
D702 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D703 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D704 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D730 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D731 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D732 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D733 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D734 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D735 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D736 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D737 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D738 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D739 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D740 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D741 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D742 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D743 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D744 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D745 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D746 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D747 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
ZD701 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
ZD702 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
ZD703 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
ZD704 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
ZD705 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
ZD711 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
ZD721 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
ZD722 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
U105 0ITI741400T SN74AC14DR 14,SOP R/TP HEX INVE
U110 0ISS780500H KA78M05-R 3P,D-PAK TP 5V 0.5A R
U201 0IPRPGN001A GM5020 GENESIS 292P,PBGA TRAY S
U301 0IEB121616A M12L16161A-7T 50P TSOP ST 16M(5
U302 0IEB121616A M12L16161A-7T 50P TSOP ST 16M(5
U303 0IEB121616A M12L16161A-7T 50P TSOP ST 16M(5
U401 0ILNRTH001A THC63LVD823 THINE MICROSYSTEMS
U501 0IZZTSZ196A MOTOROLA 42P BK MICOM LN801H NM
U502 0IKE704200J KIA7042AF SOT-89 TP 4.2V VOLTAG
U503 0ICS240813B CAT24WC08J-TE13 8P,SOIC R/TP 8K
U504 0ISS524202B S524A40X21(SCT0) SAMSUNG ELECTR
U509 0ISS524202B S524A40X21(SCT0) SAMSUNG ELECTR
U802 0TFFC80009A FAIRCHILD FDC6326L R/TP SOT-6 2
U803 0IPMGFA003B RC1117S-2.5 FAIRCHILD SOT-223 R
U804 0TFFC80009A FAIRCHILD FDC6326L R/TP SOT-6 2
U820 0IRH033200A BA033FP-E2 MOLD-3 TP REGULATOR
U821 0IRH033200A BA033FP-E2 MOLD-3 TP REGULATOR
L201 0RH0562D622 56 1/10W 5 D.R/TP
L202 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L203 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L204 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L205 6210TCE001R HB-1S2012-400JT CERATECH 2012MM
L206 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L207 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L401 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L402 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L403 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
- 33 -
DIODEs
ICs
COILs & COREs
DATE: 2002. 07. 02.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
L703 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L704 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L804 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L805 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L810 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L811 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L820 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L821 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L822 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L823 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
Q102 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP SO
Q103 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP SO
Q703 0TR162309CA KSC1623 TP SAMSUNG SOT23 NPN E
Q704 0TR162309CA KSC1623 TP SAMSUNG SOT23 NPN E
R122 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R129 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R130 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R131 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R132 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R133 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R201 0RH2001D622 2.0K 1/10W 5 D.R/TP
R202 0RH2001D622 2.0K 1/10W 5 D.R/TP
R203 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R204 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R205 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R206 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R207 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R208 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R209 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R210 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R211 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R212 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R213 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R214 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R215 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R216 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R218 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R219 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R220 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R221 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R222 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R223 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R224 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R225 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R233 0RH0222D622 22 1/10W 5 D.R/TP
R234 0RH0222D622 22 1/10W 5 D.R/TP
R235 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP
R236 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R237 0RH0000D622 0 1/10W P-TYPE TAPPING
R238 0RH0000D622 0 1/10W P-TYPE TAPPING
R239 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R240 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R401 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R402 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R404 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R405 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
DATE: 2002. 07. 02.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
R406 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R501 0RJ1004D677 1000000 OHM 1/10 W 5% 1608 R/TP
R502 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R505 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R508 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R511 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R512 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R513 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R514 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R515 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R516 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D
R517 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R518 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D
R519 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R522 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R523 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R524 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R525 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R526 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R527 0RJ1003D677 100K OHM 1/10 W 5% 1608 R/TP
R528 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP
R529 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R531 0RJ3302D677 33K OHM 1/10 W 5% 1608 R/TP
R534 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R535 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R536 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R537 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R538 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R539 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R540 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP
R541 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R542 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R543 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R544 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R545 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R564 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R580 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R581 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R582 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R585 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R586 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R587 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R588 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R593 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R594 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R595 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R596 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R597 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R701 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R703 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R704 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R705 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R711 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R712 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R713 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP
R714 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R715 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R716 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP
R718 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP
R719 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP
R726 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R727 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
- 34 -
RESISTORs
TRANSISTOR
DATE: 2002. 07. 02.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
R729 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R730 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP
R731 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP
R740 0RH0000D622 0 1/10W P-TYPE TAPPING
R741 0RH0000D622 0 1/10W P-TYPE TAPPING
R742 0RH0000D622 0 1/10W P-TYPE TAPPING
R743 0RH0000D622 0 1/10W P-TYPE TAPPING
R744 0RH0000D622 0 1/10W P-TYPE TAPPING
R745 0RH0000D622 0 1/10W P-TYPE TAPPING
R746 0RH0000D622 0 1/10W P-TYPE TAPPING
R752 0RJ1003D677 100K OHM 1/10 W 5% 1608 R/TP
R753 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R807 0RH0000D622 0 1/10W P-TYPE TAPPING
R809 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP
R810 0RH5600D622 560 1/10W 5 D.R/TP
R811 0RH0332D622 33 1/10W 5 D.R/TP
R812 0RH0332D622 33 1/10W 5 D.R/TP
R813 0RH0332D622 33 1/10W 5 D.R/TP
R814 0RH0332D622 33 1/10W 5 D.R/TP
R815 0RH0332D622 33 1/10W 5 D.R/TP
R816 0RH0332D622 33 1/10W 5 D.R/TP
R817 0RH0332D622 33 1/10W 5 D.R/TP
R818 0RH0332D622 33 1/10W 5 D.R/TP
R819 0RH0332D622 33 1/10W 5 D.R/TP
R820 0RH0332D622 33 1/10W 5 D.R/TP
R821 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP
R822 0RH5600D622 560 1/10W 5 D.R/TP
R824 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R826 0RH0332D622 33 1/10W 5 D.R/TP
R827 0RH0332D622 33 1/10W 5 D.R/TP
R828 0RH0332D622 33 1/10W 5 D.R/TP
R829 0RH0332D622 33 1/10W 5 D.R/TP
R830 0RH0332D622 33 1/10W 5 D.R/TP
RA202 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA204 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA206 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA208 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA210 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA212 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA214 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA216 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA218 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA220 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA222 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA224 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA225 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA226 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA227 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA228 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA229 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA230 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA231 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA232 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA233 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA234 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA235 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA236 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA237 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA238 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA239 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA240 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
RA241 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
DATE: 2002. 07. 02.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
RA242 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/TP CHI
X201 6202TST001E SX-1 SUNNY CHIP 24MHZ 30PPM 20P
X501 6202TST001E SX-1 SUNNY CHIP 24MHZ 30PPM 20P
.
C901 0CBZTBU002B BULK PCX2 335 474K
C902 0CKZTBU004A SD E 222M 12.5BW1 250V BK10.0 S
C903 0CKZTBU004A SD E 222M 12.5BW1 250V BK10.0 S
C904 0CBZTBU002A BULK PCX2 335 224K
C905 0CZZTAB002C KMF 18*40 SYE / SWE 400V 120UF
C906 0CK10302945 0.01UF 2KV Z F TR
C907 0CE476EK638 47UF KMG 50V M FM5 TP 5
C908 0CQ2721N419 2700PF 100V J PE NI TP
C909 0CK1020K515 1000PF 50V K B TR
C911 0CE228EF630 2200UF KMG 16V M FM5 BULK
C913 0CE108BF630 1000UF KME 16V M FM5 BULK
C914 0CE228ED630 2200UF KMG,RD 10V 20% BULK FM5
C915 0CE228ED630 2200UF KMG,RD 10V 20% BULK FM5
C916 181-288L MKT 100V 823JTR PHS26823
C918 0CE228ED630 2200UF KMG,RD 10V 20% BULK FM5
C919 0CKZTBU004B SD E 332M 14.0BW1 250V BK10.0 S
C921 0CE228EF630 2200UF KMG 16V M FM5 BULK
C922 0CKZTTA002E EKR3A102K09FK5 SAMWHA 1KV 1000P
C923 0CKZTTA002E EKR3A102K09FK5 SAMWHA 1KV 1000P
C924 0CE336BH638 33UF KME 25V M FM5 TP5
D901 0DD400709CB UF4007 TP G.I DO204AL 1000V 1A
D902 0DR400409AB UF4004 TP G.I DO204AL 400V 1A 3
D903 0DRIR00011B 16CTQ100 I.R ST TO220 100V 16A
D906 0DRIR00021A 30CTQ060 I.R ST TO220 60V 30A 1
D907 0DS113309AA 1SS133 TP ROHM KOREA DO34 90V 0
BD901 0DD360000DA D3SBA60 BK SHINDENGEN 600V 2
ZD901 0DZ470009BC GDZ4.7B TP GRANDE DO34 0.5W 4.7
F901 131-040C 3150MA 250V 5.2X20 CY/GL UL / C
FH1 430-858C AFC-520 BAE EUN TA
FH2 430-858C AFC-520 BAE EUN TA
IC901 0IPMGIH001A ICE2AS01 INFINEON 8P,DIP ST OFF
IC904 0ISS431000A KA431AZ (LM431AZ)
IC905 0ISS780500F KA7805
L901 150-A85F LX31 GET BAR CHOKE,3.3UH,LB886F
L902 150-A85F LX31 GET BAR CHOKE,3.3UH,LB886F
LF901 6200TZZ001A - GO BK L/FILTER,9MH,LB886F
LF902 6200TZZ001A - GO BK L/FILTER,9MH,LB886F
P901 6620TKB002A BAE EUN AC UNIVERSAL 3PIN BLACK
PC1 0ILI817000E LTV-817M B 4P BK PHOTO COUPLER
T901 6170TMZ125B EER3016 340UH V-10PIN LB886F SI
TH902 6322TA080AA TP8D13 DAEWOO +/- 15% 110/220V
Q902 0TFFN10004A INFINEON SPP11N60C2 ST TO220 60
R901 0RC6803A609 680K OHM 1/2 W(7.0) 5% TA52
R902 0RD3902A609 39K OHM 1/2 W (7.0) 5% TA52
R903 0RD3902A609 39K OHM 1/2 W (7.0) 5% TA52
R906A 0RX5102J609 51KOHM 1 W 5% TA52
R906B 0RX5102J609 51KOHM 1 W 5% TA52
R907 0RD0102Q609 10 1/4W(3 5% TA52
R908 0RD0222Q609 22 1/4W(3 5% TA52
R909 0RD1001Q609 1K 1/4W(3 5% TA52
R910 0RD0431A609 4.3 OHM 1/2 W (7.0) 5% TA52
R911 0RC1004A609 1M OHM 1/2 W(7.0) 5% TA52
R912 0RC1004A609 1M OHM 1/2 W(7.0) 5% TA52
- 35 -
OTHERs
POWER BOARD
DATE: 2002. 07. 02.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
R913 0RN1102F409 11K 1/6W 1% TA52
R914 0RD1002Q609 10K 1/4W(3 5% TA52
R917 0RD1201Q609 1.20K 1/4W(3 5% TA52
R918 0RD1000Q609 100 1/4W(3 5% TA52
R920 0RN4702F409 47K 1/6W 1% TA52
R921 0RN2701F409 2.70K 1/6W 1% TA52
R923 0RB0330K607 0.33 OHM 2 W 5% TA62
R924 0RD0752Q609 75 1/4W(3 5% TA52
R925 0RD1002Q609 10K 1/4W(3 5% TA52
R926 0RN0471H609 4.7 OHM 1/2 W 5% TA52
R927 0RD0102A609 10 OHM 1/2 W (7.0) 5% TA52
R928 0RD0202Q609 20 1/4W(3 5% TA52
C1 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C2 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
LED1 0DLLT0148AA LITEON LTST-C195KGJSKT R/TP GRE
R1 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R2 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R3 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP
R4 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP
R5 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP
R6 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP
R7 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP
R8 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP
SW1 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW2 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW3 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW4 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW5 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW6 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW7 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW8 140-058E SKHV10910B LGEC NON 12V 20A HOR
- 36 -
CONTROL BOARD
PIN CONFIGURATION
GM5020 GENESIS 292P
Anolog
RGB
Serial I/F SDRAM/I/F
Triple
ADC
Host
Interface
Micro-
processor
Frame Store
Interface
OSD
Caputure/
Measure.
ment
YUV to RGB
Converter
Frame Rate
Conversion
Control
Zoom/
Shrink/
Filter
Gamma
Control
Panel I/F
[48-bits]
Output
Control
Output
Data
Path/
Timing
Control
Brightness,
Contrast,
Hue,
Saturation
TMDS
RX
Video
YUV
[8-bits]
Digital
TMDS
Input
FUNCTIONAL BLOCK DIAGRAM
Frame Buffer
(SDRAM/SGRAM)
Output to
LCD
OSC or
XTAL
Micro-
controller
Video
Decoder
Anolog
RGB
Composite
S-Video
DVI
gm5020
SYSTEM BLOCK DIAGRAM
- 38 -
CAT24WC08J-TE13 8P
A
0
A
1
A
2
V
SS
V
CC
WP
SCL
SDA
A
0
A
1
A
2
V
SS
V
CC
WP
SCL
SDA
1
2
3
4
8
7
6
5
1
2
3
4
8
7
6
5
A
0
A
1
A
2
V
SS
V
CC
WP
SCL
SDA
1
2
3
4
8
7
6
5
EXTERNAL LOAD
SDA
WP
D
OUT
SENSE AMPS
SHIFT REGISTERS
WORD ADDRESS
BUFFERS
COLUMN
DECODERS
START/STOP
LOGIC
XDEC
DATA IN STORAGE
HIGH VOLTAGE/
TIMING CONTROL
STATE COUNTERS
SLAVE
SCL
A
0
A
1
V
CC
V
SS
A
2
ADDRESS
COMPARATORS
CONTROL
LOGIC
ACK
E PROM
2
PIN CONFIGURATION
DIP Package(p) SOIX Package(J)
TSSOP Package(U)
BLOCK DIAGRAM
PIN FUNCTION
Pin Name
A0, A1, A2
SDA
SCL
WP
Vcc
Vss
Function
Device Adress Inputs
Serial Data/Address
Serial Clock
Write Protect
+1.8V to + 6.0V power Supply
Ground
- 39 -
- 40 -
- 41 -
- 42 -
- 43 -
- 44 -
- 45 -
1
- 46 -
Loading...
