Mitsubishi Electronics HC6800 User Manual
LCD PROJECTOR
MODEL
HC6800
User Manual
HC6800
This User Manual is important to you.
Please read it before using your projector.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
NOTE:
SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR
THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
WARNING
Use the attached specified power supply cord. If
you use another power supply cord, it may cause
interference with radio and television reception.
This apparatus must be grounded.
DO NOT LOOK DIRECTLY INTO THE LENS WHEN
THE PROJECTOR IS IN THE POWER ON MODE.
CAUTION
Not for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/
Data Processing Equipment, ANSI/NFPA 75.
EN-2
Contents
Important safeguards ........................................................................................................................4
Preparing your projector ....................................................................................................................6
Using the remote control ...................................................................................................................9
Setting up your projector .................................................................................................................10
Viewing video images ......................................................................................................................14
Viewing computer images ...............................................................................................................22

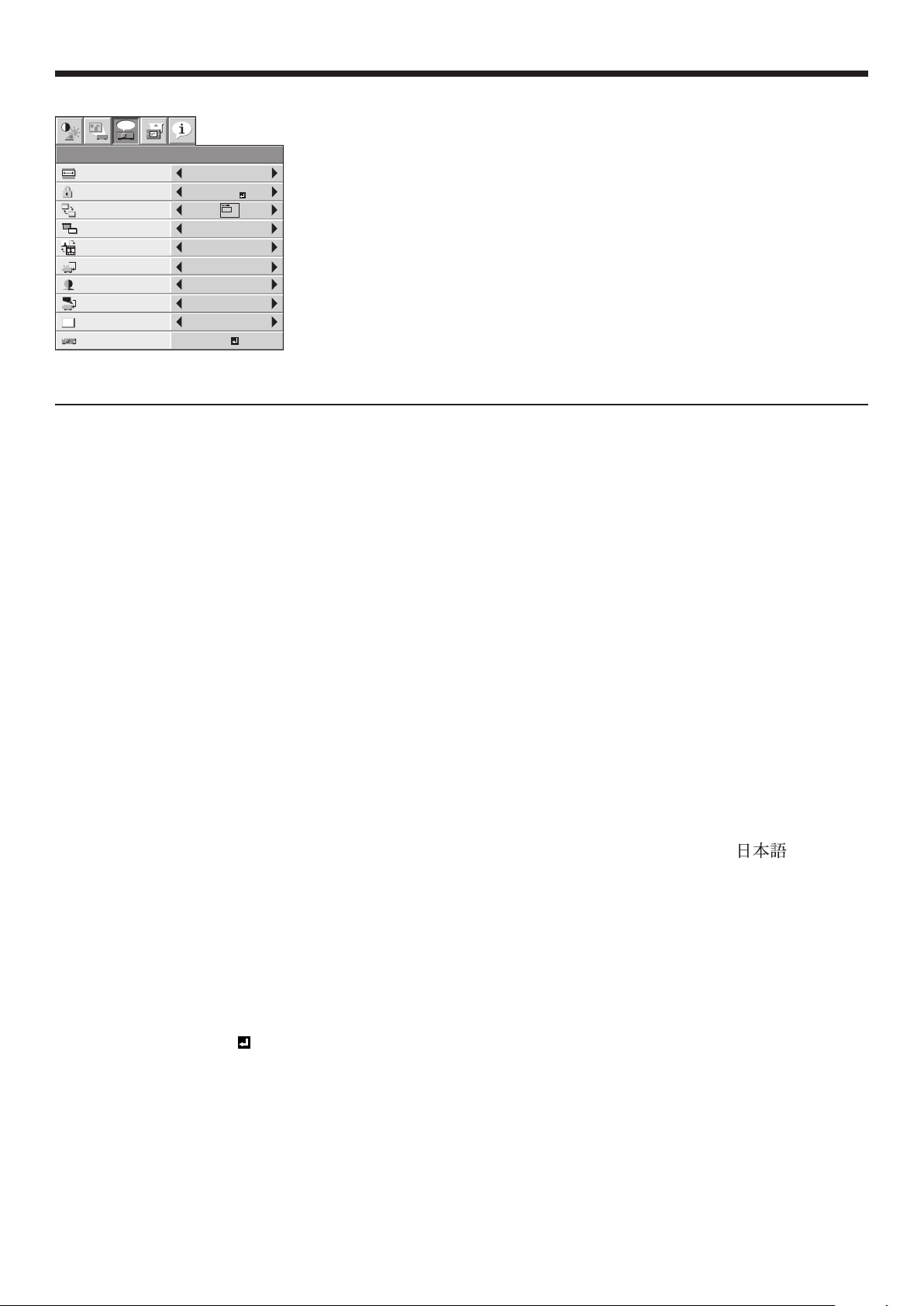

Menu operation ...............................................................................................................................25
Adjusting projected images .............................................................................................................31
Advanced features ..........................................................................................................................35
Replacing the lamp .........................................................................................................................36
Maintenance ....................................................................................................................................39
Troubleshooting ...............................................................................................................................40
Indicators .........................................................................................................................................43
Specifications ..................................................................................................................................44
Trademark, Registered trademark
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
The “HD ready” logo is a trademark of EICTA.
Other brand or product names are trademarks or registered trademarks of their respective holders.
EN-3
Important safeguards
Please read all these instructions regarding your
projector and retain them for future reference. Follow
all warnings and instructions marked on the projector.
Read instructions1.
All the safety and operating instructions should be
read before the appliance is operated.
Retain instructions2.
The safety and operating instructions should be
retained for future reference.
Warnings3.
All warnings on the appliance and in the operating
instructions should be adhered to.
Instructions4.
All operating instructions must be followed.
Cleaning5.
Unplug this projector from the wall outlet before
cleaning it. Do not use liquid aerosol cleaners. Use
a damp soft cloth for cleaning.
Attachments and equipment6.
Never add any attachments and/or equipment
without the approval of the manufacturer as such
additions may result in the risk of fire, electric
shock or other personal injury.
Water and moisture7.
Do not use this projector near water or in contact
with water.
Accessories8.
Do not place this projector on an unstable cart,
stand, tripod, bracket or table. Use only with a
cart, stand, tripod, bracket, or table recommended
by the manufacturer or sold with the projector.
Any mounting of the appliance should follow
the manufacturer’s instructions and should use
a mounting accessory recommended by the
manufacturer.
An appliance and cart combination should be
moved with care. Quick stops, excessive force and
uneven surfaces may cause the appliance and cart
combination to overturn.
Ventilation9.
Slots and openings in the cabinet are provided
for ventilation, ensuring reliable operation of the
projector and to protect it from overheating. Do not
block these openings or allow them to be blocked
by placing the projector on a bed, sofa, rug, or
bookcase. Ensure that there is adequate ventilation
and that the manufacturer’s instructions have been
adhered to.
Power sources10.
This projector should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power,
please consult your appliance dealer or local power
company.
Power-cord protection11.
Power-supply cords should be routed so that
they are not likely to be walked on or pinched
by items placed upon or against them. Pay
particular attention to cords at plugs, convenience
receptacles, and points where they exit from the
appliance. Do not put the power cord under a
carpet.
Overloading12.
Do not overload wall outlets and extension cords
as this can result in a fire or electric shock.
Objects and liquids13.
Never push objects of any kind through openings of
this projector as they may touch dangerous voltage
points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the
projector.
Servicing14.
Do not attempt to service this projector by yourself.
Refer all servicing to qualified service personnel.
Damage requiring service15.
Unplug this projector from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
(a) If the power-supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen
into the projector.
(c) If the projector does not operate normally after
you follow the operating instructions. Adjust
only those controls that are covered by the
operating instructions. An improper adjustment
of other controls may result in damage and
may often require extensive work by a qualified
technician to restore the projector to its normal
operation.
(d) If the projector has been exposed to rain or
water.
(e) If the projector has been dropped or the cabinet
has been damaged.
(f) If the projector exhibits a distinct change in
performance - this indicates a need for service.
Replacement parts16.
When replacement parts are required, be sure
that the service technician has used replacement
parts specified by the manufacturer or parts
having the same characteristics as the original
part. Unauthorized substitutions may result in fire,
electric shock or other hazards.
Safety check17.
Upon completion of any service or repair to this
projector, ask the service technician to perform
safety checks determining that the projector is in a
safe operating condition.
EN-4
Important safeguards (continued)
WARNING:
Unplug immediately if there is something wrong
with your projector.
Do not operate if smoke, strange noise or odor comes
out of your projector. It might cause fire or electric
shock. In this case, unplug immediately and contact
your dealer.
Never remove the cabinet.
This projector contains high voltage circuitry. An
inadvertent contact may result in an electric shock.
Except as specifically explained in the User Manual do
not attempt to service this product by yourself. Please
contact your dealer when you want to fix, adjust or
inspect the projector.
Do not modify this equipment.
It can lead to fire or electric shock.
Do not keep using the damaged projector.
If the projector is dropped and the cabinet is
damaged, unplug the projector and contact your
dealer for inspection. It may lead to fire if you keep
using the damaged projector.
Do not face the projector lens to the sun.
It can lead to fire.
Use correct voltage.
If you use incorrect voltage, it can lead to fire.
Do not place the projector on uneven surface.
Place the projection on a leveled and stable surface only.
Please do not place equipment on unstable surfaces.
Do not look into the lens when it is operating.
It may hurt your eyes. Never let children look into the
lens when it is on.
Do not unplug the power cord during operation.
It can lead to lamp breakage, fire, electric shock or
other trouble. It is best to wait for the fan to turn off
before turning the main power off.
Do not touch the air outlet grille and bottom plate,
which become hot.
Do not touch them or put other equipment in front
of the air outlet grille. The air outlet grille and bottom
plate, when heated, may cause injury or damage to
other equipment. Also, do not set the projector on the
desk which is easily affected by heat.
Do not look into the air outlet grille when projector
is operating.
Heat, dust, etc. may blow out of it and hurt your eyes.
Do not block the air inlet and outlet grilles.
If they are blocked, heat may be generated inside the
projector, causing deterioration in the projector quality
and fire.
Do not use flammable solvents (benzene, thinner,
etc.) and flammable aerosols near the projector.
Flammable substances may ignite causing fire or
breakdown because the temperature inside the
projector rises very high while the lamp is illuminating.
Do not use the projector with condensation on it.
It can lead to breakdown or other failure.
Place of installation
For safety’s sake, refrain from setting the projector
at any place subjected to high temperature and high
humidity. Please maintain an operating temperature,
humidity, and altitude as specified below.
Operating temperature: between +41°F (+5°C) and •
+95°F (+35°C)
Operating humidity: between 30% and 90%•
Never put any heat-producing device under the •
projector so that the projector does not overheat.
Do not attach the projector to a place that is •
unstable or subjected to vibration.
Do not install the projector near any equipment that •
produces a strong magnetic field. Also refrain from
installing near the projector any cable carrying a
large current.
Place the projector on a solid, vibration free surface; •
otherwise it may fall, causing serious injury to a
child or adult, and serious damage to the product.
Do not stand the projector; it may fall, causing •
serious injury and damage to the projector.
Slanting the projector more than ±10°(right and •
left) or ±15°(front and rear) may cause trouble or
explosion of the lamp.
Do not place the projector near air-conditioning •
unit, heater, or humidifier to avoid hot or moist air to
the exhaust and ventilation hole of the projector.
EN-5
Preparing your projector
Checking accessories
The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in
the package.
Cables
Remote control parts
Mini D-SUB
15-pin
Mini D-SUB
15-pin
RGB cable for PC
(246C597-10)
Remote control
(290P158-20)
D-SUB
9-pin
RS-232C cable
(246C598-10)
Used for projector control •
by computer.
R6 (Size-AA)
battery (two)
D-SUB
9-pin
Power supply parts
Power cord (two)
(246C483-10, 246C383-20)
Others
Lens cap•
Clamper•
Lamp replacement tray•
User Manual/Quick Start up (English •
only)
CD-ROM (with User Manual) •
Safety Manual/Quick Start up •
Important:
The attached power cords are to be used exclusively for this product. Never use them for other products.•
Inserting the batteries into the remote control
1
3
2
Remove the back lid of the remote control.1.
Check the polarity (+), (-) of the batteries, and set them 2.
correctly, inserting their (-) side first.
If the battery is inserted from the (+) side first, inserting •
the (-) side is difficult because the coil spring end hits
on the battery side. If the battery is forced in this way,
the outer label of the battery may get ripped and it may
cause a short-circuit and heating.
Attach the back lid.3.
Important:
Use two size-AA batteries (R6).•
Replace the two batteries with new ones when the remote •
control is slow to respond.
Removing the batteries from the remote control
Remove the back lid of the remote control and take out the
Caution:
Use of a battery of wrong type may cause explosion.•
Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used.•
Dispose of used batteries according to your local regulations.•
Batteries may explode if misused. Do not recharge, disassemble, or throw them in fire.•
Be sure to handle the batteries according to the instructions.•
Load the batteries with its positive (+) and negative (-) sides correctly oriented as indicated on the remote control.•
Keep batteries out of reach of children and pets.•
Remove the batteries, if the remote control is not used for a long time.•
Do not combine a new battery with an old one.•
If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in •
contact with your eyes, rinse them with water and then consult your doctor.
batteries.
EN-6
Preparing your projector (continued)
1 2 3 4
69
12 34567
Overview
3
1
4
2
5
Remote control sensor (front)1
Lens2
Right side panel (air inlet grille/filter)3
Indicator area4
Control panel5
Terminal panel6
Kensington Security Lock Standard connector7
Remote control sensor (rear)8
Left side panel (air outlet grille/lamp cover)9
Attaching the lens cap
To attach the supplied lens
cap, push it into the lens
section of the projector ()
and then turn it clockwise ().
(For removal, turn it
counterclockwise.)
678
Indicator area
12
Control panel
5 7
Terminal panel
9
STATUS indicator1
POWER indicator2
POWER button1
HDMI/COMPUTER/2 t button
AUTO POSITION/3 p button
LENS SHIFT button4
MENU button5
ENTER button6
q7 button
ZOOM/FOCUS button8
VIDEO/9 u button
8
VIDEO IN and S-VIDEO IN terminals1
COMPONENT VIDEO IN terminals2
COMPUTER IN/COMPONENT VIDEO IN terminal (mini 3
D-SUB 15-pin)
HDMI IN-1 terminal (HDMI 19-pin)4
HDMI IN-2 terminal (HDMI 19-pin)5
SERIAL terminal (D-SUB 9-pin)6
Used for projector control by computer. Contact your •
dealer for details.
TRIGGER terminal7
8
9
Used for the optional electric screen.•
Main power switch8
O: OFF I: ON
Power jack9
EN-7
Preparing your projector (continued)
1
24
Bottom side
Remote control
1
2
3
4
5
6
7
8
9
10
11
23
22
21
20
19
18
17
16
15
14
13
12
Adjustment feet1
ON ( I ) button1
HDMI2 button2
HDMI1 button3
COMPONENT button4
AV MEMORY buttons5
ENTER button6
MENU button7
CONTRAST button*8
BRIGHTNESS button*9
GAMMA button*10
ZOOM/FOCUS button11
LENS SHIFT button12
NOISE REDUCTION button*13
COLOR button*14
SHARPNESS button*15
COLOR TEMP. button*16
ASPECT button17
AUTO IRIS button18
p19 , q, t, u buttons
VIDEO button20
S-VIDEO button21
COMPUTER button22
AUTO POSITION button23
OFF (24 ) button
* : See below for the picture quality adjusting buttons.
Important:
When you press any button on the remote control, the buttons on the remote control are lit. Wait approx. 6 seconds
after releasing the button to turn them off.
Using the picture quality adjusting buttons
When you press any of the picture quality adjusting buttons, the screen for adjusting the picture quality appears.
Adjust the picture quality by pressing the t and u buttons. The picture quality adjustment can be made alternatively
in the IMAGE menu. (See page 26.) Items in the menus are shown in parentheses below.
CONTRAST (CONTRAST) ................ Adjusts the contrast of the projected image.
BRIGHTNESS (BRIGHTNESS) ......... Adjusts the brightness of the projected image.
COLOR TEMP. (COLOR TEMP.) ....... Selects one of the preset color temperatures. Adjustment of USER mode is also
GAMMA (GAMMA MODE) ................ Selects one of the preset gamma mode. Adjustment of USER mode is also
SHARPNESS (SHARPNESS) ............ Adjusts the sharpness of the projected image.
COLOR (COLOR) .............................. Adjusts the color thickness of the projected image.
NOISE REDUCTION (TRNR, MNR, BAR)
available. (See page 32.)
available. (See page 33.)
... Adjusts the TRNR, MNR and BAR of the projected image. (See page 33.)
EN-8
Using the remote control
Operational range of the remote control
Front of projector Rear of projector
30°30°
Operate the remote control
within a distance of 10 m
(30 feet) from the projector,
pointing the IR beam at the
remote control photo-sensor
(front or rear) of the projector.
Keep the remote control photo-sensor out of direct •
sunlight or fluorescent lamp light.
Keep the remote control photo-sensor at least 2 m •
(6 feet) away from fluorescent lamps. Otherwise,
the remote control may malfunction.
If there is an inverter-operated fluorescent lamp •
near the remote control, the remote control
30°30°
operation may become unstable.
When you use the remote control too close to the •
remote control sensor, the remote control may not
work correctly.
Reception angle
Vertical directions
Vertical directions (ceiling mount)
When operating the remote control, keep the distance
from the remote control to the projector via the screen
within about 5 m (15 feet). The operable range of the
remote control, however, depends on the characteristics
of the screen.
20°
10˚
20°
10°
20°
20°
EN-9
Setting up your projector
Screen height (SH)
Setting up the screen
Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the
projection angle of the projector. (See page 12.)
Install the screen and projector so that the projector’s lens is placed at the same height and horizontal position of •
the screen center.
Do not install the screen where it is exposed to direct sunlight or lighting. Light directly reflecting on the screen •
makes the projected images washed-out and hard to view.
SCREEN SIZE
You can keep the image display area within the screen by setting SCREEN SIZE in the ADVANCED MENU of IMAGE
menu according to the aspect ratio of the actual screen. Select 16:9 when the aspect ratio of the screen is 16:9 or
4:3, and select CINEMA SCOPE (2.35:1) when the aspect ratio is 2.35:1 (CinemaScope).
When setting SCREEN SIZE to CINEMA SCOPE (2.35:1):
CinemaScope size movies are projected in the full screen. •
Set ASPECT in the FEATURE menu to 16:9 when displaying Vista-size images. In this case, they are squeezed •
horizontally.
When ASPECT in the FEATURE menu is set to AUTO and 480i/p, 576i/p, 720p, or 1080i/p signal is input, the part •
for displaying subtitles is not projected. To display subtitles, reset SCREEN SIZE to 16:9 and adjust the image
position using VERTICAL LOCATION in the ADVANCED MENU of the IMAGE menu. (To display the menu on the
screen, adjust SHUTTER(U) in the SIGNAL - USER menu to position the menu.)
Screen size and projection distance
Refer to the following tables to determine the screen size and projection distance.
The figures in the tables are approximate and may be slightly different from the actual measurements.•
Screen width (SW)
Screen
Down side
50%
H1H1
50%
Up side
L
When the aspect ratio of the screen is 16:9
Screen size Projection distance (L) Lens movable range
Diagonal size Height (SH) Width (SW)
inch cm inch cm inch cm inch m inch m inch cm inch cm
50 127 25 62 44 111 60 1.5 98 2.5 18 47 2 6
60 152 29 75 52 133 73 1.8 118 3.0 22 56 3 7
70 178 34 87 61 155 85 2.2 138 3.5 26 65 3 8
80 203 39 100 70 177 98 2.5 157 4.0 29 75 3 9
90 229 44 112 78 199 110 2.8 177 4.5 33 84 4 10
100 254 49 125 87 221 123 3.1 197 5.0 37 93 4 11
110 279 54 137 96 244 135 3.4 217 5.5 40 103 5 12
120 305 59 149 105 266 148 3.8 237 6.0 44 112 5 13
150 381 74 187 131 332 185 4.7 297 7.6 55 140 7 17
200 508 98 249 174 443 248 6.3 397 10.1 74 187 9 22
250 635 123 311 218 553 311 7.9 497 12.6 92 233 11 28
300 762 147 374 261 664 373 9.5 597 15.2 110 280 13 33
Projection distance changes according to the setting of SCREEN SIZE in the ADVANCED MENU in the IMAGE menu. The table above is in the •
case of “16:9.”
Shortest (Wide)
Longest (Tele)
H1 W1
Right sideLeft side
W1 W1
Depending on the installation conditions, warm air that is emitted from the exhaust vents may flow into the intake •
vent, causing the projector to display “TEMPERATURE!!” and then stop projecting images.
EN-10
Setting up your projector (continued)
Screen width (SW)
Screen height (SH)
SW (=W)
Screen size and projection distance (continued)
Screen
Down side
50%
50%
Up side
H1H1
L
Right sideLeft side
W1 W1
When the aspect ratio of the screen is 4:3
When the aspect ratio of the screen is 4:3, the positional relation between the
projected image and the screen is as shown on the right. Refer to the following
table for installation.
When the aspect ratio of the image is 16:9
Screen size (4:3)
Diagonal size Height (SH) Width (SW) Height (H) Width (W)
inch cm inch cm inch cm inch cm inch cm inch cm inch m inch m inch cm inch cm
50 127 30 76 40 102 23 57 40 102 4 10 55 1.4 89 2.3 17 43 2 5
60 152 36 91 48 122 27 69 48 122 5 11 66 1.7 108 2.7 20 51 2 6
70 178 42 107 56 142 32 80 56 142 5 13 78 2.0 126 3.2 24 60 3 7
80 203 48 122 64 163 36 91 64 163 6 15 89 2.3 144 3.7 27 69 3 8
90 229 54 137 72 183 41 103 72 183 7 17 101 2.6 163 4.1 30 77 4 9
100 254 60 152 80 203 45 114 80 203 8 19 112 2.9 181 4.6 34 86 4 10
110 279 66 168 88 224 50 126 88 224 8 21 124 3.1 199 5.1 37 94 4 11
120 305 72 183 96 244 54 137 96 244 9 23 135 3.4 218 5.5 41 103 5 12
150 381 90 229 120 305 68 171 120 305 11 29 170 4.3 273 6.9 51 129 6 15
200 508 120 305 160 406 90 229 160 406 15 38 227 5.8 365 9.3 68 171 8 20
250 635 150 381 200 508 113 286 200 508 19 48 285 7.2 456 11.6 84 214 10 25
300 762 180 457 240 610 135 343 240 610 23 57 342 8.7 548 13.9 101 257 12 30
Size of the projected image (16:9)
space (B)
Black
Projection distance (L) Lens movable range
Shortest (Wide)
Longest (Tele)
H
SH
B B
H1 W1
Projection distance changes according to the setting of SCREEN SIZE in the ADVANCED MENU in the IMAGE menu. The table above is in the •
case of “16:9.”
When the aspect ratio of the screen is 2.35:1 (CinemaScope)
Screen size (2.35:1) Projection distance (L) Lens movable range
Diagonal size Height (SH) Width (SW)
inch cm inch cm inch cm inch m inch m inch cm inch cm
100 254 39 99 92 234 130 3.3 209 5.3 39 99 5 12
110 279 43 109 101 257 143 3.6 230 5.8 43 108 5 13
120 305 47 119 110 281 156 4.0 251 6.4 47 118 6 14
130 330 51 129 120 304 169 4.3 272 6.9 50 128 6 15
140 356 55 139 129 327 183 4.6 293 7.4 54 138 6 16
150 381 59 149 138 351 196 5.0 314 8.0 58 148 7 18
160 406 63 159 147 374 209 5.3 335 8.5 62 158 7 19
170 432 66 169 156 397 222 5.6 356 9.1 66 168 8 20
180 457 70 179 166 421 236 6.0 377 9.6 70 178 8 21
190 483 74 189 175 444 249 6.3 399 10.1 74 187 9 22
200 508 78 199 184 468 262 6.7 420 10.7 78 197 9 23
Projection distance changes according to the setting of SCREEN SIZE in the ADVANCED MENU in the IMAGE menu. The table above is in the •
case of “CINEMA SCOPE (2.35:1).”
Shortest (Wide)
Longest (Tele)
H1 W1
EN-11
Setting up your projector (continued)
Adjusting the position of the projected image
To adjust the position of the projected image on the screen, use the LENS SHIFT button.
Press the LENS SHIFT button.1.
The LENS SHIFT menu appears at the center of the screen.•
Press the 2. p, q, t or u button to move the image position.
When the • q button is pressed, the image moves down.
When the • p button is pressed, the image moves up.
LENS SHIFT
FAST
SELECT : ENTER
When the • u button is pressed, the image moves to the right.
When the • t button is pressed, the image moves to the left.
When the ENTER button is pressed while the LENS SHIFT menu is displayed, the shift mode can be switched •
between FAST and STEP. When FAST is selected, the lens shifts in a large amount with the p, q, t or u button,
and it shifts in a small amount when STEP is selected.
When the LENS SHIFT menu is displayed while no video signal is input to the projector, a crosshatch appears on •
the entire screen.
Be careful not to be caught in the opening in the lens while the lens is moving.•
When the lens is vertically shifted by a large amount, color separation may occur.•
While the lens shift is working, the screen may flicker.•
Correcting skewed or distorted image
For the best projection, project images on a flat screen installed at 90 degrees
to the floor. If necessary, tilt the projector using the two adjustment feet on the
bottom of the projector.
Tilt up the projector to the appropriate angle.1.
Rotate the adjustment feet for fine adjustment.2.
Important:
Don’t transport the projector with its adjustment feet extended. Otherwise the adjustment feet may be damaged.
Screen
Adjustment feet
When fine streaks are seen on projected images
This is due to interference with the screen surface and is not a malfunction. Replace the screen or displace the focus
a little. (See page 18 or 23 for focus adjustment.)
When projected images are distorted to a trapezoid
When the screen and the projector are not placed perpendicularly to each other, projected images become
trapezoidal. If you cannot make the projector and the screen perpendicular to each other by mechanical adjustments,
adjust keystone.
With the INSTALLATION menu:
(See page 26 for menu setting.)
Display the INSTALLATION menu. 1.
INSTALLATION
Select KEYSTONE by pressing the 2. p or q button.
Equalize the widths at the top and bottom of the screen by pressing the 3. t or
u button, viewing the screen.
To cancel the menu:
Press the MENU button several times. 4.
The best adjustment result can be obtained when the lens is positioned at the center of the lateral direction at the •
top in the longitudinal direction. Before performing the keystone adjustment, reset the lens position to the default
position by using LENS SHIFT RESET (see page 27) and then move it to the top using LENS SHIFT (see page 10).
When the keystone adjustment is carried out, the adjustment value is indicated. Note that this value doesn’t mean •
a projection angle.
When the keystone adjustment takes effect, the resolution decreases. In addition, stripes may appear or straight •
lines may bend in images with complicated patterns. They are not due to product malfunctions.
When the keystone adjustment is carried out, the image may not be displayed correctly because of the type of •
input signal.
When the keystone adjustment is performed, the displayed image may be distorted.•
Depending on the installation conditions of the projector and the screen, a perfect rectangular image and the •
proper aspect ratio may not be obtained.
opt.
A V MEMO R Y 1
KEYSTONE 0
Press the t
button.
Press the u
button.
EN-12
Setting up your projector (continued)
Front projection, ceiling mounting
For ceiling mounting,
you need the ceiling
mount kit designed
for this projector.
Ask a specialist for
installation. For details,
consult your dealer.
The warranty on this projector does not cover any •
damage caused by use of any non-recommended
ceiling mount kit or installation of the ceiling mount
kit in an improper location.
When using the projector mounted on the ceiling, •
set IMAGE REVERSE in the INSTALLATION menu
to MIRROR INVERT. See page 27.
When the projector is mounted on the ceiling, •
images may appear darker than those projected in
the case of tabletop mounting. This isn’t a product
malfunction.
Ask your installation specialist to provide an A/C •
power switch. When you do not use the projector,
be sure to shut down the main power by the
switch.
Do not install the projector where the exhaust vents •
are exposed to air emitted by an air conditioning.
Such installation may cause a breakdown.
Do not install the projector near a fire alarm •
because it emits hot air from its exhaust vents.
Important:
We don’t recommend using the projector at an •
altitude of 1500 meters or higher. Use at an altitude of
1500 meters or higher may affect the projector’s life.
TRIGGER terminal
The TRIGGER terminal on the rear of the projector
is a terminal that outputs a 12 V signal to control an
externally connected device (electric screen) when
images are projected.
TRIGGER
To externally
connected device
Ring (NC)
(Ground 0 V)
To use the TRIGGER terminal, set TRIGGER OUT to
SCREEN or ANAMORPHIC in the INSTALLATION
menu. (The factory default is OFF. See page 27 for
details.) Use the following steps to change the setting.
Tip (12 V)
Rear projection
Ask a specialist for
installation. For details,
consult your dealer.
For rear projection, •
set IMAGE
REVERSE in the
INSTALLATION menu to MIRROR. See page 27.
Caution:
Placing the projector directly on a carpet impairs •
ventilation by the fans, causing damage or
failure. Put a hard board under the projector to
facilitate ventilation.
Place the projector at least 50 cm (or 20 inch) •
away from the wall to prevent the air inlet grille
and the air outlet grilles that emit hot air from
being blocked.
Do not use the projector in the following •
locations and manners, which may cause fire or
electric shock.
In a dusty or humid place.•
In a sideways position, or with the lens facing •
down.
Near a heater.•
In an oily, smoky, or damp place such as a kitchen.•
In direct sunlight.•
Where the temperature rises high, such as in •
a closed car.
Where the temperature is lower than +41ºF •
(or +5ºC) or higher than +95ºF (or +35ºC ).
With the INSTALLATION menu:
(See page 26 for menu setting.)
Display the INSTALLATION menu.1.
Select TRIGGER OUT by pressing the 2. p or q
button.
Select SCREEN or ANAMORPHIC by pressing the 3.
t or u button.
To cancel the menu:
Press the MENU button.4.
Caution:
Do not use the signal output from the TRIGGER •
terminal as a power for other devices.
Do not link the TRIGGER terminal with an audio •
terminal of other device because that device may
be damaged.
The rated current for the TRIGGER terminal is •
200 mA. If you use a current exceeding this rating,
a failure may occur.
For information about electric screens, please •
contact screen manufacturers.
EN-13
Viewing video images
A. Connecting the projector to video equipment
When the projector and the connected devices are located too close to each other, the projected image may be •
affected by their interference.
See the owner’s guide of each device for details about its connections.•
Preparation:
Make sure that the power of the projector and that of the video equipment are turned off.•
Basic home theater system connection
EN-14
Video player
DVD player
Set-top box or digital tuner
Y
Viewing video images (continued)
Connecting to a video player, etc.
Video cable (option)
To VIDEO
1
IN terminal
S-video cable (option)
To S-VIDEO
1
IN terminal
Video player, or the like
To video output
2
terminal
Video player, or the like
To S-video
2
output terminal
Connect one end of the optional video cable to the 1.
VIDEO IN terminal of the projector.
Connect the other end of the video cable to the video 2.
output terminal of the video equipment.
When the video equipment is equipped with the
S-video output terminal, make the connection as
follows:
Connect one end of the optional S-video cable to the 1.
S-VIDEO IN terminal of the projector.
Connect the other end of the S-video cable to the S-2.
video output terminal of the video equipment.
Also read the instruction manual of the equipment to be connected.•
Contact your dealer for details of connection.•
When a TV tuner or VCR is connected:
When you use this projector with a TV tuner or VCR connected, no image may appear or a message of NO SIGNAL
may appear on the screen when you change the channel via any channel that is not being received. In such a case,
set the channels of the TV tuner or VCR again. To avoid such symptom, use the TV tuner or VCR with its channel skip
function (that is a function not to display channels that are not being received) enabled.
Connecting to a DVD player or HDTV decoder
To connect this projector to video equipment that has component video output terminals, such as a DVD player, use
the COMPONENT VIDEO IN terminals.
Component cable (option)
PB/CB
PR/CR
DVD player or HDTV decoder
Y
PB/CB
Y
P
R/CR
The terminal’s names Y, P•
The terminal’s names vary depending on the connected devices.•
, and PR are given as examples of when a HDTV decoder is connected.
B
Images may not be projected correctly depending on the type of the DVD player you use.•
Though it may take some time before an image is displayed on the screen depending on the type of the input •
signal, such symptom is not a malfunction.
When connecting a HDTV decoder having RGB output terminals, set COMPUTER INPUT to RGB in the SIGNAL •
menu.
EN-15
