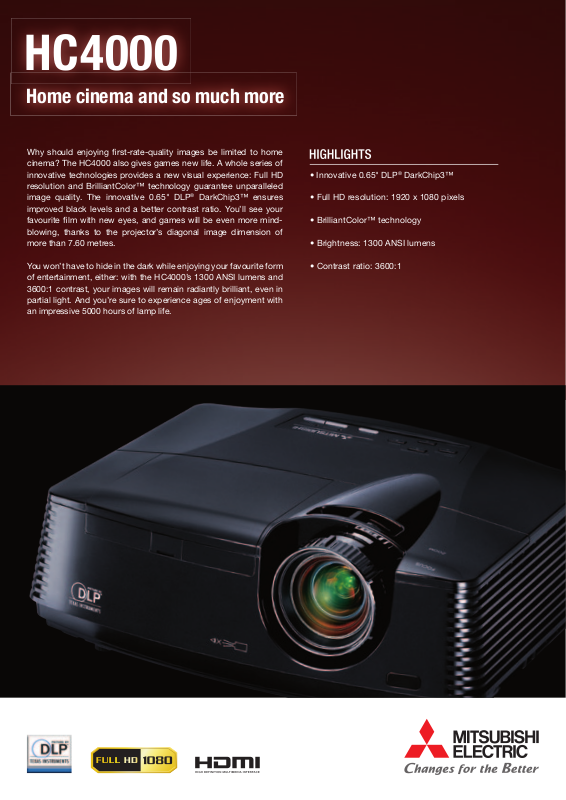

Mitsubishi HC4000 user manual

HC4000

Home cinema and so much more

Why should enjoying fi rst-rate-quality images be limited to home
cinema? The HC4000 also gives games new life. A whole series of
innovative technologies provides a new visual experience: Full HD
resolution and BrilliantColor™ technology guarantee unparalleled
image quality. The innovative 0.65" DLP
improved black levels and a better contrast ratio. You’ll see your
favourite fi lm with new eyes, and games will be even more mind­blowing, thanks to the projector’s diagonal image dimension of
more than 7.60 metres.

®

DarkChip3™ ensures

• Innovative 0.65" DLP® DarkChip3™

• Full HD resolution: 1920 x 1080 pixels

• BrilliantColor™ technology

• Brightness: 1300 ANSI lumens

You won’t have to hide in the dark while enjoying your favourite form
of entertainment, either: with the HC4000’s 1300 ANSI lumens and
3600:1 contrast, your images will remain radiantly brilliant, even in
partial light. And you’re sure to experience ages of enjoyment with
an impressive 5000 hours of lamp life.

• Contrast ratio: 3600:1

W

H

D

D

Relationship between 16:9 screen
and projected images

Relationship between 4:3 screen
and projected images

Screen height

W

HC4000

Home cinema and so much more

Specifications

Technology 0.65" DLP® chip, 12° LVDS DarkChip3TM, DDP3021
Resolution 1920 x 1080 pixels (total: 2,073,600 pixels)
Brightness 1300 ANSI lumens (normal mode)
Contrast 3600:1 (on/off)
Vertical Frequency (V-Sync) 24–85 Hz
Horizontal Frequency (H-Sync) 15–80 kHz
Band Width up to 170 MHz
Projection Lamp 230 W
Lamp Life 5000 hours (low mode)
Lens F = 2.4–2.8 (3.1– 4.6 m@100"), f = 20.6–30.1 mm
Throw Ratio 1.4–2.1:1
Focus/Zoom Manual focus and zoom (zoom ratio 1.5:1), with zoom

Picture Diagonal 1.27–7.62 m
Fan Noise 25 dB (low mode)
PC Compatibility 640 x 480 to 1920 x 1080 pixels

Video Compatibility NTSC/NTSC 4.43, PAL (incl. PAL-M, N), SECAM,

Features 6-Segment Color Wheel (R/G/B/R/G/B), High Native

Input Terminals RGB: mini-D-sub 15-pin, Video: RCA + S-Video,

Output Terminals Trigger-out

trigger

(compr. 1600 x 1200 pixels), sync on green available

PAL-60, Comp. Video: 480i/p (525i/p), 576i/p (625i/p),
720p (750p), 1080i (1125i 50/60 Hz), 1080p (24/50/60 Hz)

Contrast Ratio, Long Life Lamp, Low Fan Noise, Color
Management, DarkChip3
BrilliantColor
Correction, Blu-ray 24P Direct Output Compatible

Comp. Video: RCA x 3, Digital: HDMI

TM

1

TM

, Short-throw HD Zoom Lens, Keystone

, One-touch Projection,

Communication Terminals RS232C, mini-DIN-8-pin
Remote Control Projector fully control
Dimensions (W x H x D) 345 x 129 x 270 mm (not included protrusion)
Weight 3.5 kg
Power Consumption 330 W, standby: 0.5 W
Power Supply AC 100–240 V, 50/60 Hz
Supplied Accessories Cable Set, Remote Control (incl. batteries), User

1

Depending on the operation environment and application. This is an average value given by

the manufacturer based on ideal conditions.

Manual (English), Multilingual User Manual (CD-ROM),
Safety Manual (incl. explanation for quick start), Lens
Cap, Lamp Replacement Attachment

Picture Size (16:9 Format) Distance from Screen

1.5 2.3

1.8 2.7

2.1 3.2

2.4 3.6

2.7 4.1

3.1 4.6

3.4 5.0

3.7 5.5

4.6 6.9

6.2 9.2

7.7 11.5

9.3 –

Screen

Projected image area

H

Hd

Projection distance

The right to make technical changes is reserved; no liability is accepted for printing or other errors.

Relationship between 16:9 screen
and projected images

Screen height

Relationship between 4:3 screen
and projected images

H

D

D

Mitsubishi Electric Europe B.V. • German Office • Visual Information Systems
Gothaer Strasse 8 • D-40880 Ratingen
Tel.: [phone] • Fax: + 49 (0) 21 02/4 86 73 20 • www.Mitsubishi-VIS.de
